Product Type	Pedestal Fan (Dual Fans)
Model Number	IF-222C
Brand	Imarflex
Rated Voltage	230V a.c. ~ 60Hz
Speed Settings	3 (Low, Medium, High)
Fan Speed Levels	0 (Off), 1 (Low), 2 (Medium), 3 (High)
Oscillation	Yes (side-to-side)
Airflow Direction Adjustment	Tilt upward or downward for each fan
Number of Fans	2 (Upper and Lower)
Control Type	Manual knobs (speed) and buttons (oscillation)
Fan Guard Material	Metal (front and rear)
Blade Material	Plastic
Base Type	Round base with screws
Assembly Required	Yes (attach base with screws)
Cleaning Instructions	Remove front guard and blade, wash with soap and water; vacuum motor and rear guard; wipe body with damp cloth
Safety Precautions	Do not immerse in water; do not insert objects; unplug before cleaning; use dry hands
Intended Use	Household room ventilation only
Not for Bathroom Use	Yes
Storage	Store in dry place; keep manual for future reference

Frequently Asked Questions - IF-222C Imarflex

How do I assemble the fan?

Insert the power cord through the center hole of the base, then attach the base to the unit and tighten the three fastening screws. Refer to figures in the manual for guidance.

How do I turn on the fan?

Ensure both speed control knobs (upper and lower) are in position '0', plug into a 230V outlet, then turn each knob to desired speed setting (1, 2, or 3).

What does the oscillation button do?

Press the OSCILLATION button to the lower position to start side-to-side oscillation. Press again to the upper position to stop oscillation.

How do I adjust the airflow direction?

Both the upper and lower fans can be tilted upward or downward manually to direct airflow where needed.

How do I clean the fan?

Always unplug before cleaning. Unscrew and remove the front fan guard and blade, wash them with soap and water. Use a vacuum or brush to clean the motor and rear guard. Wipe the body and base with a damp cloth. Let all parts dry completely before reassembly.

Can I use the fan in a bathroom?

No, the fan is intended for household room ventilation only and should not be used in bathrooms to avoid electric shock.

What should I do if the fan stops working?

Check the power cord and plug for damage. Ensure the speed control knobs are not in '0'. If the problem persists, do not attempt to repair yourself; contact an authorized Imarflex service center.

Is the fan safe for children?

Children should be supervised to ensure they do not play with the appliance. The fan is not intended for use by persons with reduced physical, sensory, or mental capabilities without supervision.

Can I insert objects into the fan guard?

No, never insert any object into the fan guard. This could cause injury or damage the fan.

Where can I get the original manual?

The original manual can be downloaded for free from notice-facile.com in PDF format. You can also request a translated version by email.

USER MANUAL IF-222C Imarflex

SPECIFICATION

MODEL NO. : IF-222C

RATED VOLTAGE : 230Va.c. \~ 60Hz

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully before use.
2. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not attempt to repair, adjust or replace parts in the unit. It must be checked and repaired by an authorized Imarflex technician or by similar qualified persons in order to avoid electric hazard.
6. Do not place the unit near gas stove or electric stove.
7. Children should be supervised to ensure that they do not play with the appliances.
8. This appliance is not intended for use by person (including children) with reduced physical sensory or mental capacities or lack of experience and knowledge, unless that have given supervision or instruction concerning use of the appliances by person responsible for their safety.
9. This unit must only be used for room ventilation. Do not use in bathrooms.
10. Do not insert any object into the Fan Guard.
11. Do not use the plug to stop or start the operation of the unit, use the Speed Control Knob.
12. To prevent electric shock do not operate the unit by wet hands.
13. For household use only.
14. Save this instruction manual for future reference.

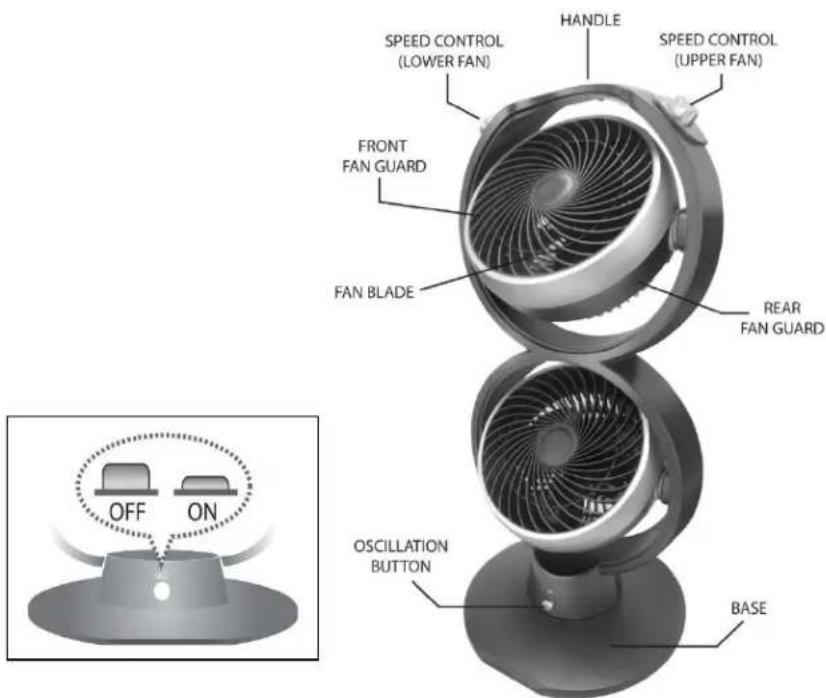

DESCRIPTION OF PARTS

ASSEMBLY INSTRUCTION

1. Insert the cord in the center hole of the base and attached the base into the unit. (See fig. 1)
2. Tighten the three-fastening screw into the unit. (See fig. 2)

HOW TO USE

1. Please make sure the Speed control knob of upper and lower fan is in "0" position
2. Plug the unit into the convenience outlet (230Va.c).
3. SPEED ADJUSTMENT – the speed of the upper and lower fan can be adjusted by turning the speed control knob to the desired setting:

0	Fan is switched off
1	Low range speed of the fan (weak air flow)
2	Medium range speed of the fan (medium air flow)
3	High range speed of the fan (strong air flow)

1. OSCILLATION - pressing the "OSCILLATION" button to (☐) lower position will start the unit to oscillate from side to side. It can be stopped by pressing again the "OSCILLATION" button to (☐) upper position.

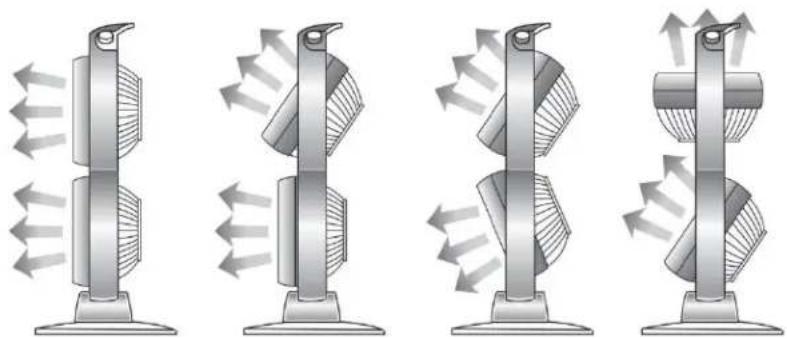

2. AIR FLOW ADJUSTMENT:

a. The Upper and Lower fans can be tilted upward or downward position.

CLEANING MAINTENANCE

1. Always disconnect the unit from the convenience outlet before disassembling the unit.
2. For Both Fans:
   a. Unscrew and remove the Front Fan Guard and Fan Blade, wash with soap and water. b. Use vacuum or brush-out the dirt from the Motor and Rear Fan Guard.
3. Wipe the Body and base with damp cloth.
4. Do not immerse the unit in water or other liquids.
5. Allow detachable parts to dry before assembling the unit.
