USER MANUAL IFC-610T Imarflex

The New Generation of Cooling Fans

Imarflex IFC-610T - 1

text_image 10" PATENTED TURBINE BLADE DESIGN

Imarflex IFC-610T - 2

text_image 20,000 ULTRA HIGH VELOCITY m/hr 10m REACH

airlonizer

Imarflex IFC-610T - 3

text_image 30%

Increase Air Circulation

Reduces Cooling Time & Energy Consumption

Imarflex IFC-610T - 4

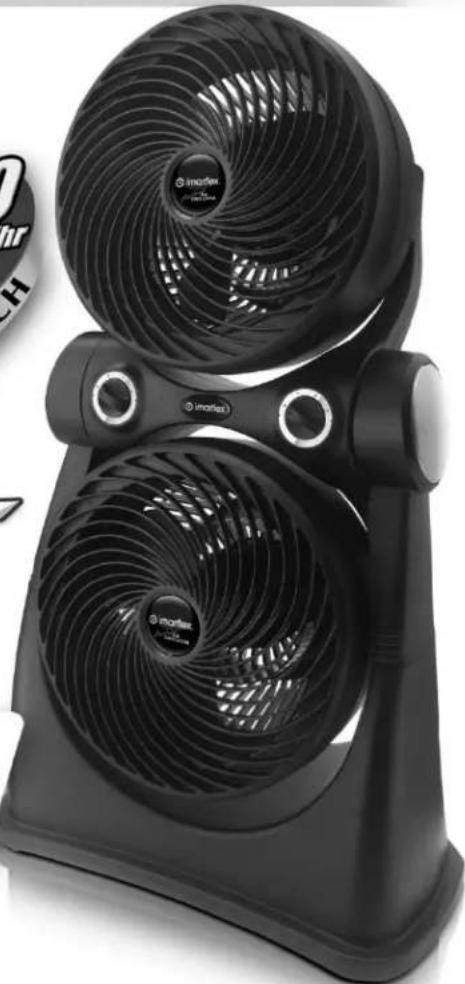

natural_image Black and white photo of a two-door air conditioner fan with visible branding (no text or symbols on the device itself)

IFC-610T

Imarflex IFC-610T - 5

imarflex®

In Every Home. www.imarflex.com

SPECIFICATION

MODEL NO. : IFC-610T

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 120 Watts T

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

  1. Read all instructions carefully before use.
  2. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
  3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
  4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
  5. Do not attempt to repair, adjust or replace parts in the unit. It must be check and repair by an Authorized Imarflex Technician or by similar qualified persons in order to avoid electric hazard.
  6. Do not place the unit near gas stove or electric stove.
  7. Children should be supervised to ensure that they do not play with the appliance.
  8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
  9. This unit must only be used for room ventilation. Do not use in bathrooms.
  10. Do not insert any object into the Fan Guard.
  11. Do not use the plug to stop or start the operation of the unit, use the Speed Control Knob.
  12. To prevent the risk of electric shock do not operate the unit by wet hands.
  13. For household use only.
  14. Save this instruction manual for future reference.

FEATURES AND FUNCTIONS

Air circulator acts as a flow-straightener and further assists in focusing the outward stream of air into tight cyclone airflow.

  • Summer: The cyclone air hits a wall across the room roughly halfway to decrease the room temperature.
  • Rainy: This forces the hot air of the ceiling and mixes it with the cooler air resulting in an even room temperature.
  • Ionizer: It releases a negative ion to purify the circulating air inside the room.

APPLICATION
Imarflex IFC-610T - FEATURES AND FUNCTIONS - 1

Imarflex IFC-610T - FEATURES AND FUNCTIONS - 2

Imarflex IFC-610T - FEATURES AND FUNCTIONS - 3

Imarflex IFC-610T - FEATURES AND FUNCTIONS - 4

Imarflex IFC-610T - FEATURES AND FUNCTIONS - 5

Imarflex IFC-610T - FEATURES AND FUNCTIONS - 6

text_image 2-Room Air Circulation

Base on hot air rises and cool air falls of aerodynamic.

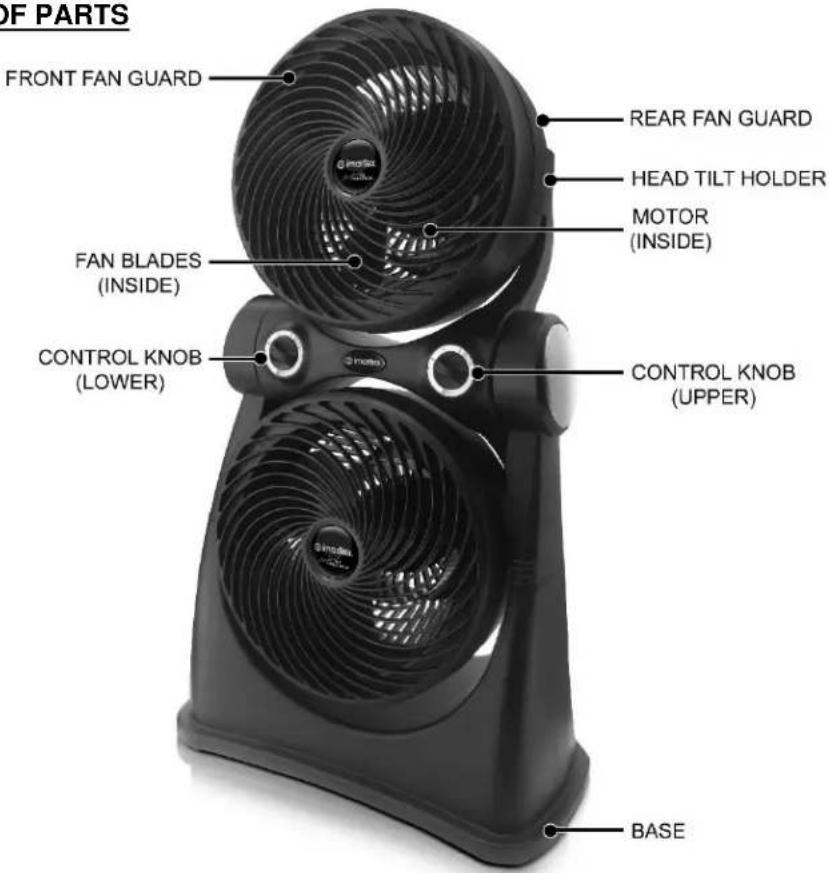

DESCRIPTION OF PARTS
Imarflex IFC-610T - FEATURES AND FUNCTIONS - 7

text_image DF PARTS FRONT FAN GUARD REAR FAN GUARD HEAD TILT HOLDER MOTOR (INSIDE) FAN BLADES (INSIDE) CONTROL KNOB (LOWER) CONTROL KNOB (UPPER) BASE

HOW TO USE

  1. Please make sure the Speed Control Knob is in "0" position.
  2. Plug the unit into the convenience outlet (230Va.c.).
  3. SPEED ADJUSTMENT – the speed can be adjusted by turning the Speed Control Knob to the desired setting:
0Fan is switched off
1Low range speed of the fan (weak air flow)
2Medium range speed of the fan (medium air flow)
3High range speed of the fan (strong air flow)
  1. AIR FLOW ADJUSMENT:

Imarflex IFC-610T - HOW TO USE - 1

natural_image Black handheld device with two fans and a handle, showing airflow direction arrows (no text or symbols)

NOTE: The fans can be moved upward or downward by tilting up or down.

Imarflex IFC-610T - HOW TO USE - 2

natural_image Mechanical device with rotating arms and handle, no visible text or symbols

NOTE: The Upper and the Lower Fan can be adjusted up or down at upward position.

  1. IONIZER – It will automatically turn on if the unit is ON.

CLEANING AND MAINTENANCE

  1. Always disconnect the unit from the convenience outlet before disassembling the unit.

  2. For Both Fans:

a. Unscrew and remove the Front Fan Guard and Fan Blade, wash with soap and water. (See Fig. 1) b. Use vacuum or brush-out the dirt from the Rear Fan Guard.

  1. After cleaning return the Front Fan Guard and tighten the screws.

  2. Wipe the Body and Base with damp cloth.

  3. Do not immerse the unit in water or other liquids.

  4. Allow detachable parts to dry before assembling the unit.

Imarflex IFC-610T - CLEANING AND MAINTENANCE - 1

natural_image Close-up of hands operating a fan blade (no visible text or symbols)

Fig. 1
