USER MANUAL MOD-CV25DS Imarflex

CONVECTION OVEN 00:35 Grill/Combo Conv Comps Instant Start Stop Clear Prepaid Clock Micro Power Auto Definit Auto Control + Closed Time Drop imarflex CONVECTION MICROWAVE Digital PROGRAMMABLE

Digital

PROGRAMMABLE

5 Microwave POWER LEVELS

25 Liter capacity

Stainless Steel CAVITY

SPECIFICATION

Voltage : 230Va.c. \~ 60Hz

Input Power : 1400W(Microwave)/1000W(Griller)/

1300W(Convection)

Rated Microwave Power Output : 900W

Microwave Frequency : 2450MHz

Outside Dimension : 502(W) x 306(H) x 508 (D)

Oven Cavity Dimension : 350(W) x 215(H) x 330 (D)

Oven Capacity : 25 liters/0.8 cu. ft.

1. Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way.

2. There are 3 properties of microwave:

a. Absorbability: Microwave can cause the excess vibration of molecule on various food so as to obtain the heating purpose. But the infiltration ability is largely depending on the size, thickness and properties of the food.

b. Penetrability: Microwave can penetrate through ceramics, glass, temperature-resistant plastics. It is required to use the containers whose material have good microwave penetrability to achieve best heating result. Please see the below Cookware Guide.

c. Reflectivity: Microwave would be reflected by the metal wall of interior cavity so as to establish an even magnetic field, thus can prevent the overheating of partial area.

1. To ensure sufficient ventilation, the distance from the back of microwave to the wall should be above 10cm, the side to the wall above 5cm, the top to the ceiling above 20 cm.

2. Do not place any objects on the top of microwave oven.

3. Keep the microwave oven far from the TV, Radio or antenna as picture disturbance or noise may occur.

4. Keep the plug accessible to the socket.

5. This is designed as a freestanding style and should not be placed in a cabinet.

COOKWARE GUIDE

1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It allows energy to pass through the container and heat food.

2. Do not use reflective materials such as stainless steel, aluminum foil, etc.

3. Do not use recycled paper products as they may contain small metals that can cause sparks or fire.

4. Use round containers rather than oblong and square containers because food in corners tend to be overcooked.

5. Use the table below as reference.

Material of container	Microwave	Grill	Conv	Combi	Notes
Heat-resistant ceramic	Yes	No	No	No	Never use the ceramics decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	No	Can not be used for a long time microwave cooking
Heat-resistant glass	Yes	No	No	No
Grill rack	No	Yes	Yes	Yes
Plastic film	Yes	No	No	No	It should not be used when cooking meat or chops as High temperature may damage the film.

IMPORTANT SAFEGUARDS

When using electrical appliance, basic safety precaution should be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Use the oven only for its intended use or as described in this manual. Do not use corrosive chemicals. This oven is not designed for industrial and laboratory use.
5. Do not operate the oven if empty.
6. Close supervision is necessary when any appliance is used by or near children.
7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper containers, check the oven frequently for possible ignition.

b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.

c. Do not use the Microwave Oven cavity for storage purposes.

d. Do not use sealed containers since they may burst, use only microwave containers.

1. Contents of feeding bottles and baby food jars are to be stirred or shaken and check the temperature before consumption, in order to avoid burns. Heat from the food may transfer to the container, use path holders to avoid burns.

2. Cookware/containers should be checked to ensure that they are suitable for microwave use.

DESCRIPTION OF PARTS

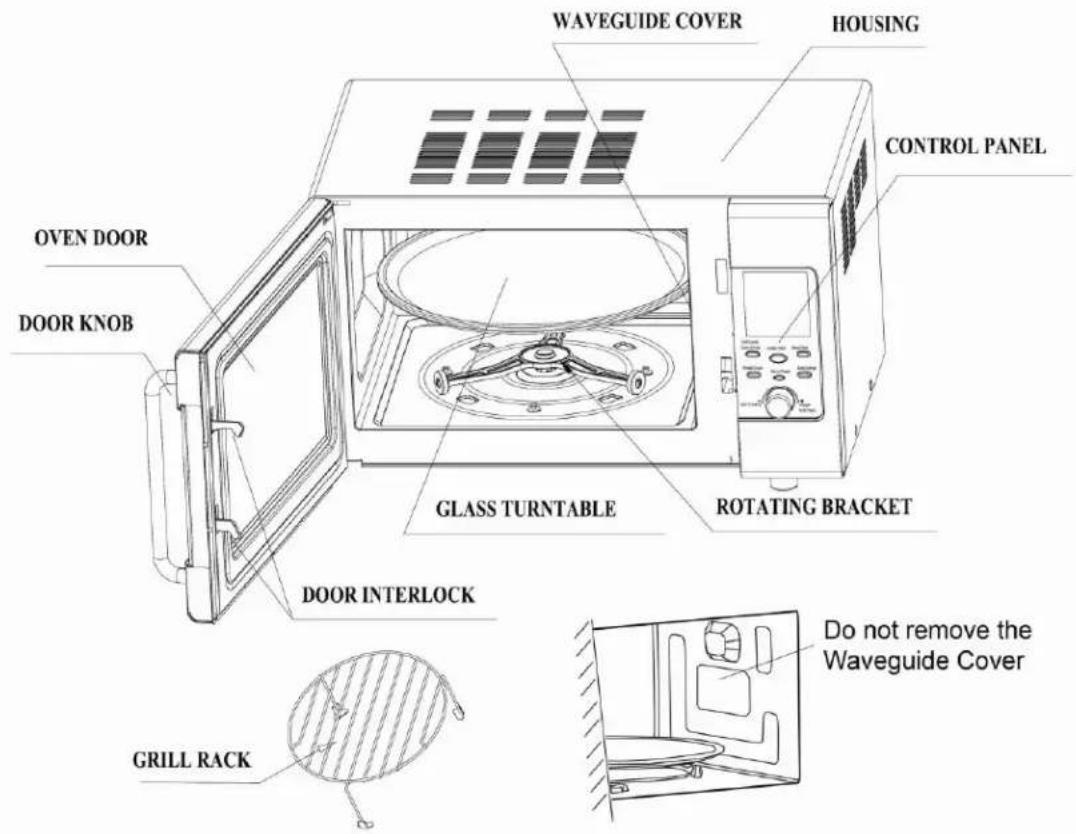

WAVEGUIDE COVER HOUSING CONTROL PANEL OVEN DOOR DOOR KNOB GLASS TURNTABLE ROTATING BRACKET DOOR INTERLOCK GRILL RACK Do not remove the Waveguide Cover

Fig. 1

NOTES:

1. Door Interlock ensures the oven can only be activated when the door is properly closed, which would prevent microwave radiation.
2. Control panel is illustrated in next page (the control panel is subject to change without prior notice).
3. Do not remove the Waveguide cover during cleaning (see Fig.1).
4. Glass turntable turns to make food be heated evenly.
5. Grill rack is used to place food to roast.
6. LCD display will show the clock time, cooking mode and left operation time, which depends on the current set mode.

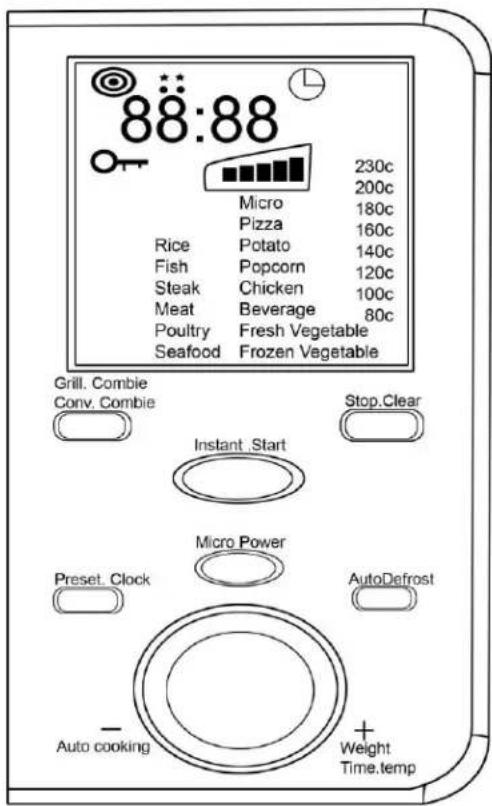

Control Panel

88:88 230c 200c Micro 180c Pizza 160c Rice Potato 140c Fish Popcorn 120c Steak Chicken 100c Meat Beverage 80c Poultry Fresh Vegetable Seafood Frozen Vegetable Grill. Combie Conv. Combie Stop.Clear Instant Start Micro Power Preset Clock AutoDefrost - Auto cooking Weight Time.temp

1. LCD Display: Show information such as cooking time, power, indicators and present time.
2. Preset. Clock: To set the Time.

Example: To set 12:30PM
1. Press PRESET.CLOCK button	:
3. Press PRESET.CLOCK button again	12:00
4. Turn CONTROL KNOB to set minute	12:30
5. Press PRESET.CLOCK once more to confirm.

1. Control Knob: To Increase or decrease Cooking Time, Weight and to choose Auto Cook menu by turning it clockwise or counter clockwise.

2. Child Lock Function: To lock the control panel when you are cleaning so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

To set Child Lock Function
1. Press and hold STOP/CLEAR button for 3 seconds or until key sign appears on the LCD Display.
2 To unluck, Press and hold STOP/CLEAR button for 3 seconds or until key sign disappear.

1. Auto Reminder: When preset cooking program have finished, the LCD Display will show End and three beeps sound will be heard to prompt you to take out the food. If you did not press the Pause/Cancel Button once or open the door. It will beep every 3 minutes.

2. Stop/Clear: Press once to stop. Press twice to clear input.

3. Micro Power: To set Power Level. LCD Display will cycle to show

--- High power, 100% microwave power.
--- Medium High power, 80% microwave power.
--- Medium power, 60% microwave power.
--- Medium Low Power, 40% microwave power.
--- Low power, 20% microwave power.

NOTE:

1. The maximum time you can set as 99 minutes and 99 seconds.
2. Never operate the oven empty.
3. If you want to turn the food during operation, open the oven door to perform

4. After operation close the door, press the Instant. Start button once and the preset cooking procedure will continue. If you intend to remove the food before the preset time, you must press Stop. Clear button twice to clear the preset procedure to avoid unintended operation of next time use.

5. Grill Combi/Conv Combi: To set cooking requirement. Press this button, LCD Display will cycle to show C---C1---C2---G---G1---G2.

A) Convection/Combination

C: Convection, the convection is activated in this mode,

C1: Combination of convection and Microwave cooking.

C2: Same as above except more microwave cooking time. Which is suitable for cooking large size poultry utilizing the penetration ability of microwave.

Temperature setting

• Select Temperature from 80°C, 100°C, 120°C, 140°C, 160°C, 180°C, 200°C and 230°C.
• For defrosting, use 80°C or 100°C.
• For baking, set the oven from 120-180°C.
• For grill poultry, set from 180-230°C.
• In combination mode, the maximum cooking temperature is 180°C.

Preheating

1. In the convection mode, preheating is usually required to obtain best result. But preheating is not recommended to use in combination mode.

Example: To cook with Convection Function at 180^ C for 20 mins.

1. Press CONV COMBI / GRILL COMBI once

1. Select Convection Temperature by turning Control Knob.

1. Press INSTANT/START to confirm.

2. In most case, the oven has to be preheated to preset temperature before placing food in order to achieve best result. Turn knob to set cooking time. Or you may skip this step.

- The oven would be well heated within the default preheating time- 15-minute

1. Press INSTANT/START to start cooking.

NOTE:

The temperature is rising constantly during preheating period and LED shows while temperature changes, the oven will start at 80°C.

When cooking program is ended, the cooling fan will turn ON for 30 seconds. This is intended to prolong the life of electronic part.

1. The preheating temperature must be always higher than oven temperature. For instance, the oven has been operated at 230^ C, then you would like the oven to be operated at 180^ C, in this case LCD displays You must reset the temperature or wait the oven to cool down.

Notes:

1. The oven should not be used without the turntable in place, and it should never be restricted so that it cannot rotate. You may remove the turntable when preheating the oven and when preparing food to be cooked directly on the turntable.

2. Do not cover turntable or rack with aluminum foil. It interferes with air flow that cooks food.

3. Round pizza pans are excellent cooking utensils for many convection-only items. Choose pans that do not have extended handles.

4. When baking, check for doneness after time has elapsed. If not completely done, let stand in oven a few minutes to complete cooking.

CONVECTION COOKING EXAMPLE:

Type of Food	Weight/Dimension	Temperature	Pre-heating	Cooking Time
Grilling Poultry	1.5k Chicken	230°C	Yes	45 mins
Baking Cookies	25 pcs.	160°C	Yes	20 mins
Baking Pizza	15mm thickness	200°C	Yes	30 mins

B) Grill. Combination

G: Grill, the heater is activated during operation time. For grilling thin meats or pork, sausage, chicken wing as good brown color can be obtained.

G1: Combination of Grill and Microwave Cooking. Heater and Magnetron is activated alternately. Utilizing the properties of microwave penetration thick food is suggested to cook in this mode, as the center of food can be done and brown crust still can be obtained.

To grill food with G2 cook menu fo 10 minutes 30-second
1. Select desired Grill Menu. Press CONVI COMBI/GRILL COMBI 4 times	G . 2NUROCOMB
2. Set cooking time by turning the control knob	10 . 30NUROCOMB
3. Press INSTANT START button to start cooking

G2: Same as C1 except that microwave cooking time is longer. Applicable for thick meats, chicken, drumsticks, the inside can be done and brown crust color can still be obtained on the outside.

Caution: It is recommended to use a heat-resistant gloves in taking the food out.

Warning:

In this mode, the entire oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.

1. Auto Defrost: To defrost by food category. Press the button and the LCD

display will circle to show:

Meat: For defrosting meat, the weight range from 0.1Kg to 2.0 Kg.

Poultry: For defrosting poultry, the weight range from 0.2 to 3.0Kg.

Seafood: For defrosting seafood, the weight range from 0.1 to 0.9Kg.

Direction	Display
1. Press Auto Defrost button repeatedly to select Menu
2. Then turn the Control Knob to set weight
3. Press Instant/Start button to start defrosting.
Note: During operation, a sound will heard twice to remind you to turnover the food, immediately open the oven door and turn over the food, then close the door and press instant. Start button once to continue to defrost until time is over.

DEFROST GUIDE

Steaks chop

• Position the food with thinner parts in the center of a shallow dish. If pieces are stuck together, try to separate as soon as possible.
• When the oven beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield the defrosted portions.
• Press Instant/start to continue defrosting.
  • After defrost time, let it stand for 5-15 minutes.

Ground Beef

• Place frozen Ground Beef on a shallow dish.
• When the oven Beeps, it is to prompt you to turn over the food. Remove defrosted portions, turn over.
• Press Instant/start to continue defrosting.
  • After defrosting time, let it stand for 5-15 minutes.

Roast Meat (Beef/pork/lamb)

• Place joint with lean side face upwards (if possible) on a shallow dish.
• When the oven beeps, it is to prompt you to turn over the food. Turn over.
• Press Instant/start to continue defrosting.
  • After defrosting time, let it stand 10-30 minutes.

Poultry

• Remove from original wrapper.
• Place breast side down on a shallow dish.
• When the oven beeps, it is to prompt you to turn over the food. Turn over.
• Press Instant/start to continue defrosting.
  • After defrost time, let it stand for 15-30 minutes.

NOTE: After standing run under cold water to remove giblets if necessary.

Chicken pieces (chicken wings and drumstick)

• Place chicken pieces on a shallow dish.
• When the oven beeps, turn over the food and rearrange.
• Press Instant/start to continue defrosting.

• After defrosting time, let it stand for 5-30 minutes.

Auto Cook Table

LED DISPLAY	PRESET	WEIGHT	COOKING TIME
		Popping 3.0 ounce of popcorn per bagPopping 3.5 ounce of popcorn per bag	5 mins. and 30 secs.6-minute
		Cooking 450g of potato stripsCooking 650g of potato strips	9-minute11-minute
		Reheating 150g of pizza	1-minute
		Cooking of 450g of fish	6 mins. and 30 secs.
		Hevating 250ml of liquid (small cup)Heating 500ml of liquid (small cup)	2 mins. and 20 secs.4 mins. and 40 secs.
		Place a 4kg vegetable in a micro-wave safe bowl add water and over it.	7 mins. and 10 secs.
		Place a 4kg vegetable in a micro-wave safe bowl add water and over it.	8 mins. and 30 secs.

NOTE:

• The cooking time is based on the food in room temperature of 20-25°C. Results may vary defending on the temperature of the food.

• The temperature, weight and shape of food may affect the cooking time.

• Delayed Function: If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: 1. Setting the current clock; 2. setting the cooking menu and time.

1. Set the current time		2. Set the cooking menu and time
1.1 Press the PRESET/CLOCK button		2.1 Press MICRO POWER to select Power Level
1.2 Rotate the Knob to hours, and Timer will be flash		2.2 Rotate KNOB to set cooking time2.3 Press and hold the PRESET/CLOCK for 3-second to return to current clock.	p.30
1.3 Press the PRESET/CLOCK to confirm the time.		3. Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
1.4 Rotate the KNOB to set minute		4. Press PRESET/CLOCK button to confirm the delayed menu. Now the program has been activated. And the Microwave oven start at 14:20
1.5 Press the PRESET/CLOCK or waiting for 5 seconds, and the numbers will be steady		5. You may check the present time by pressing PRESET/CLOCK button
NOTE: Delay function is not applied to cook specific food in Auto Cook Table and Defrost.

1. Multi-Stage Cooking: To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example. You want cook food with 100P microwave for 3 minutes then grill food for 9 minutes. this is 2 stage setting.
Stage 1: 100P Microwave for 3 minutes
1.1 Press Micro Power			2.2 Turn Control Knob to set the time.
1.2 Turn Control Knob to set the time.			3. Press INSTANT/START button start cooking.
Stage 2: Grill food for 9min			When Microwave cooking is finished, it will automatically start grilling.NOTE: Max of 4 stage can be set per program, repeat the steps 1.1, 1.2 if you like to set more
2.1 Press CONV.COMBI/GRILL.COMBI four times

1. Arrange food carefully, place thickest areas toward outside of dish.
2. Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.

3. Slightly cover foods before cooking, covers prevent spattering and help foods to cook evenly.

4. Check recipe for suggestions on proper use of paper towels, microwave plastic wrap or a lid.

5. Stir foods from outside to center of dish once or twice during cooking, foods such as chicken, hamburgers or steaks should be turned over once during cooking.
6. Rearrange foods, like meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
7. After cooking ensure adequate standing time, heated liquid or beverage may result in delayed eruptive boiling. Remove food from oven and stir if possible. Covered food during standing time allows the food to finish cooking without overcooking.
8. Check for the cooking status, look for signs indicating that cooking temperature has been reached. Doneness signs include:
9. Food steams throughout, not just at edge.
10. Poultry thigh joints move easily.
11. Pork and poultry show no pinkness.
12. Fish is opaque and flakes easily with fork.
13. When using microwave safe plastic wrap as cover for cooking food with high fat content, do not allow the wrap touch the food as it may melt. Some microwave safe plastic cookware are not suitable for cooking foods with high fat and sugar content.
14. Potatoes, sausage must be pierced or peeled before cooking.

CLEANING and MAINTENANCE

1. Unplug the oven from the wall socket before cleaning.

2. Do not allow food splatters or spilled liquids adhere to oven walls. Baking soda may be used if the oven gets very dirty. Avoid using spray and other harsh cleaners as this may stain, streak, or dull the door surface.

3. Use damp cloth in cleaning the glass window and the surface of the oven.

4. Do not allow water to seep into the ventilation openings to avoid damages on the operating parts.

5. Do not allow the control panel to become wet.

6. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

7. If the steam accumulates inside or around the oven door, dry it using soft cloth. This may occur when the oven is operated under high humid conditions, but this is normal.

8. If the glass turntable becomes dirty, remove it and wash it with soap and water.

9. The roller rest and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom part of the oven with mild detergent. The roller ring can be

washed with soap and water. If the roller rest is removed from the oven, be sure to return it properly.

TIP: When the microwave oven has been used for a long time, there may be some strange odors remain inside, do any of the following:

1. Place several lemon slices in a cup, then heat with high power for 2-3 min.
2. Place a cup of red tea in oven, then heat with high power for 1 minute.
3. Put some orange peel into oven, then heat them with high power for 1 minute.
