Product Type	Countertop Microwave Oven
Brand	Imarflex
Model	MO-MS25RS
Capacity	25 Liters
Dimensions (W x D x H)	Approx. 485 x 415 x 300 mm
Net Weight	Approx. 13 kg
Power Supply	230V ~ 50Hz
Power Consumption	1200 W (Microwave), 1000 W (Grill)
Microwave Power Output	800 W
Grill Power	1000 W
Functions	Microwave, Grill, Combination, Defrost, Auto Menu
Control Type	Digital Touch with LED Display
Door Opening	Side-hinged
Turntable Diameter	270 mm
Interior Light	Yes
Child Lock	Yes
Cleaning Instructions	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Automatic shut-off, door interlock, overheat protection
Spare Parts Availability	Contact Imarflex customer service or authorized dealers
Warranty	1 year (standard)

Frequently Asked Questions - MO-MS25RS Imarflex

How do I set the clock on the Imarflex MO-MS25RS?

Press the Clock button, then use the number pad to enter the current time. Press Clock again to confirm. The clock will display in 24-hour format.

Can I use metal containers in this microwave?

No, metal containers or utensils should not be used as they can cause sparks and damage the microwave. Use only microwave-safe glass, ceramic, or plastic containers.

How do I use the grill function?

Place food on the metal rack (if included) and select the grill mode by pressing the Grill button. Set the desired cooking time and press Start. The grill will cook from the top.

What does the 'Combination' mode do?

Combination mode alternates between microwave and grill cooking to brown food while cooking it through. Use for dishes like pizza or gratins. Select Combination and set time.

How do I defrost food?

Press the Defrost button, then enter the weight of the food. The microwave will automatically calculate the defrosting time. For best results, turn food halfway through.

Why is my microwave not heating?

Check if the door is fully closed, the power cord is plugged in, and the timer is set. If it still doesn't heat, the magnetron or high-voltage components may be faulty. Contact customer service.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. For stubborn stains, heat a cup of water for 2 minutes to loosen residue. Do not use abrasive cleaners or scouring pads.

Does this model have a child lock?

Yes. Press and hold the Stop/Cancel button for 3 seconds to activate the child lock. The display will show a lock icon. Repeat to unlock.

Can I reheat baby food in this microwave?

Yes, but stir thoroughly and test the temperature before feeding. Use low power (50%) and short intervals to avoid hot spots.

Where can I find the user manual?

The manual is available for free download at notice-facile.com in PDF format. You can also contact Imarflex customer service for a printed copy.

USER MANUAL MO-MS25RS Imarflex

Exterior view of a modern microwave oven with control knobs and a front panel (no visible text or symbols)

imarflex® In Every Home. www.imarflex.com

MO-MS25RS

SPECIFICATION

Model No. : MO-MS25RS

Rated Voltage : 230Va.c. 60Hz

Input Power : 1350W

Microwave Output Power : 800W

Outside Dimension: 280mm(H)x508mm(W)

x335mm(D)

Oven Cavity Dimension : 205mm(H)x330mm(W)

x300mm(D)

Oven Capacity : 25 liters/0.9 cu. ft.

IMPORTANT SAFEGUARDS

When using this oven, basic safety precaution should be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the microwave oven, check if the voltage indicated corresponds with the electric outlet (230Va.c.).

3. Do not use two-way socket with other appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest Imarflex authorized service center.

5. Do not operate the oven if empty.

6. Put the microwave oven on flat surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Do not allow cord to touch hot surface of the unit.

10. To avoid electric shock, do not immerse the unit in water.

11. The use of accessory not recommended by appliance manufacturer may result in fire, electric shock or injury to the user.

12. Heat from the food may transfer to the container, use path holders to avoid burns.

13. Cookware/containers should be checked to ensure that they are suitable for microwave use.

14. This unit is not intended for outdoor use.

15. Do not use this unit other than its intended use.

16. To reduce the risk of fire in the unit cavity

17. Rearrange foods, like meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

18. After cooking ensures adequate standing time, heated liquid or beverage may result in delayed eruptive boiling. Remove food from oven and stir if possible. Covered food during standing time allows the food to finish cooking without overcooking.

19. Check for the cooking status; look for signs indicating that cooking temperature has been reached. Doneness signs include:

- Food steams throughout, not just at edge.

- Poultry thigh joints move easily.

- Pork and poultry show no pinkness.

- Fish is opaque and flakes easily with fork.

1. When using microwave safe plastic wrap as cover for cooking food with high fat content, do not allow the wrap touch the food as it may melt. Some microwave safe plastic cookwares are not suitable for cooking foods with high fat and sugar content.

2. Potatoes, sausage must be pierced or peeled before cooking.

CLEANING & MAINTENANCE

1. Unplug the unit from the convenience outlet.
2. Do not allow food splatters or spilled liquids adhere to oven walls. Baking soda may be used if the oven gets very dirty. Avoid using spray and other harsh cleaners as this may stain, streak, or dull the door surface.
3. Use damp cloth in cleaning the glass window and the surface of the oven.
4. Do not allow water to seep into the ventilation openings to avoid damages on the operating parts.
5. Do not allow the control panel to become wet.
6. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If the steam accumulates inside or around the oven door, dry it using soft cloth. This may occur when the oven is operated under high humid conditions, but this is normal.
8. If the glass turntable becomes dirty, remove it and wash it with soap and water.
9. The roller rest and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom part of the oven with mild detergent. The roller ring can be washed with soap and water. If the roller rest is removed from the oven, be sure to return it properly

REMINDER: Please do not forget to fill up and send the warranty card

COOKWARE GUIDE

1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It allows energy to pass through the container and heat food.
2. Do not use reflective materials such as stainless steel, aluminum foil, etc.
3. Do not use recycled paper products as they may contain small metals that can cause sparks or fire.
4. Use round containers rather than oblong and square containers because food in corners tend to be overcooked.
5. Use the table below as reference: "c" is applicable, "X" is not applicable.

Heat-resistant Glass	O
Ceramic	O
Ordinary Glass	X
Thin plastic Film	O
Aluminum Foil	X
Metal Container	X

1. Plug the unit into the convenience outlet.
2. Pull the door and place the food on the glass turntable, then close the door.
3. Turn the Function Knob to desired cooking requirement.
4. Set the timer to desired cooking time.
5. As soon as the timer is turned ON, the oven will start cooking.
6. A bell ring will be heard once the set time is over. Caution: Always turn the timer to "0" position if food is removed from the oven before the set time is completed.

COOKING TIPS

1. Arrange food carefully, place thickest areas toward outside of dish.
2. Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.
3. Slightly cover foods before cooking, covers prevent spattering and help foods to cook evenly.
4. Check recipe for suggestions on proper use of paper towels, microwave plastic wrap or a lid.
5. Stir foods from outside to center of dish once or twice during cooking, foods such as chicken, hamburgers or steaks should be turned over once during cooking.

a. When heating food in plastic or paper containers, check the oven frequently for possible ignition.
b. Remove wire twist-ties from paper or plastic bags before placing it inside the oven.
c. If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any fumes.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
11. Do not use sealed containers since they may burst, use only microwavable containers.
12. Contents of feeding bottles and baby food jars are to be stirred or shaken and check the temperature before consumption, in order to avoid burns.
13. For household use only; not intended for any business purposes
14. After use, always switch OFF and unplug the unit from the convenience outlet.
15. Save this instruction manual for reference.

WARNING: Never place toys or any live animals inside the microwave.

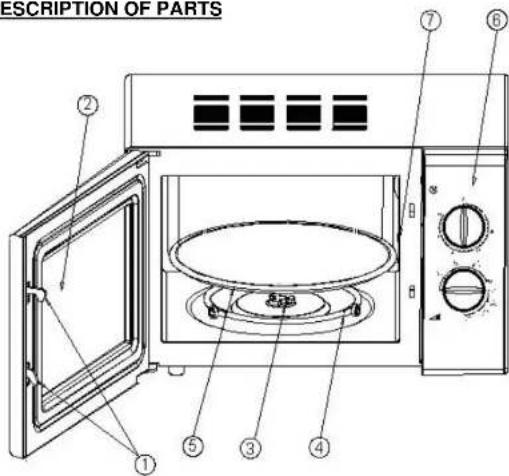

DESCRIPTION OF PARTS

DESCRIPTION OF PARTS ① ② ③ ④ ⑤ ⑥ ⑦

1. Door Safety Interlock System- ensures that microwave oven can only be activated if the door is properly closed.
2. Glass Window-cooking status can be viewed.
3. Shaft
4. Roller Ring- supporting the glass turntable
5. Glass turntable
6. Wave Guide Cover-
   Warning: never remove it during cleaning.

Control Panel

Timer Function Knob

1. Timer- the max time can be set is 30 minutes.

2. Function Knob

Microwave Cooking (6 power level selection)

1. High : 100% power (quick cooking)
2. M. High : 85% power (roasting)
3. Medium : 66% power (slow cooking)
4. M. Low : 40% power
5. Defrost : 37% power
6. Low : 17% power (keeping warm)

DEFROST FUNCTION

1. Defrosting food is one of the helpful functions of microwave oven. It is safe than thawing, it prevents the growth of bacteria.
2. Turn the Function Selector to defrost setting.
3. Set the Timer. Required time depends on the frozen food. It usually requires longer time than ordinary cooking. Turn the food at least once to check the cooking status.

INSTALLATION

1. Remove all packaging materials
2. WARNING: Check for any damages, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches. If there is any damages do not use the oven.
3. The oven should be placed on stable surface to hold its weight.
4. Do not place near gas stove, electric burner or a heated oven.
5. The oven must have sufficient airflow; allow 20cm of space above the oven, 10cm at the back and 5cm on both sides. Do not cover or block any openings of the oven. Do not remove the stand.
6. Do not use the oven without the glass turntable, roller ring and shaft, or if it is not in their proper positions.
7. The socket should be accessible so that it can be easily unplug in case of emergency.
8. Do not cover or place any object on the unit that can block the air exhaust

RADIO INTERFERENCE

1. Operation of microwave oven can cause interference to radio, TV or similar appliance.
2. When there is interference, it may be eliminated by:
3. Cleaning the door and sealing surface of the oven
4. Plugging the oven into a different outlet so that the oven and receiver are on different branch circuit

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not place any object between the door safety lock system or allow small solid particles or cleaner residue to accumulate on sealing surfaces.
2. Do not operate the oven if it is damaged. It is important that the oven is properly closed and there are no damages like:
3. Bent doors
4. Broken or loosened hinges and latches
5. Leaks on door seals and sealing surfaces
6. The oven should not be adjusted or repaired by anyone aside from an authorized lmarflex service technician.
7. Do not tamper the safety interlocks.
