Product Type	Microwave Oven
Brand	Imarflex
Model	MO-P20D
Capacity	20 liters
Power Output	700 Watts
Control Type	Mechanical dials
Display	None (analog timer)
Defrost Function	Yes, by weight
Timer	Up to 30 minutes
Interior Light	Yes
Turntable	Yes, glass
Door Type	Side opening with handle
Material	Stainless steel cavity, plastic exterior
Dimensions (W x D x H)	440 x 360 x 260 mm
Weight	11.0 kg
Power Supply	220-240 V, 50 Hz
Cord Length	1.0 m
Cleaning Instructions	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Child lock, automatic shut-off
Spare Parts Availability	Turntable, fuse, door latch
User Manual	Available for download in PDF

Frequently Asked Questions - MO-P20D Imarflex

How do I set the timer on the Imarflex MO-P20D?

Turn the timer dial clockwise to the desired cooking time (up to 30 minutes). The microwave will start immediately.

Can I use metal containers in this microwave?

No, metal containers can cause arcing and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I defrost food using the defrost function?

The defrost function is based on weight. Set the defrost dial according to the food weight (usually indicated on the dial). The microwave will automatically adjust power and time.

What is the power output of the Imarflex MO-P20D?

The power output is 700 Watts, suitable for reheating and cooking small to medium portions.

How do I clean the microwave interior?

Wipe the interior with a damp cloth after each use. For stubborn stains, use a mild detergent or a mixture of water and vinegar. Avoid abrasive cleaners.

Does the microwave have a child lock?

Yes, the Imarflex MO-P20D is equipped with a child lock function. Refer to the manual for activation instructions.

What should I do if the microwave stops working?

Check the power cord and fuse first. If the issue persists, consult a qualified technician or contact Imarflex support.

Can I use the microwave without a turntable?

The turntable is essential for even cooking. Do not operate the microwave without it.

How do I install the glass turntable?

Place the roller ring inside the cavity, then center the glass turntable on top. Ensure it rotates freely.

Where can I find spare parts like the turntable or fuse?

Authorized Imarflex service centers or online retailers. Contact Imarflex customer service for specific parts.

USER MANUAL MO-P20D Imarflex

White imarflex microwave oven with control panel and digital display (no visible text or symbols on main body)

L.E.D. Display • Multi-stage Cooking • Express Cooking

Auto-cook Function • Weight & Speed Defrost • Child-lock Function

5 Microwave POWER LEVELS

20 Liter CAPACITY

800 Watts

Digital PROGRAMMABLE

SPECIFICATION

Model No. : MO-P20D

Rated Voltage : 230Va.c. \~ 60Hz

Input Power : 1270W

Microwave Output Power : 800W

Microwave Frequency : 2450MHz

Outside Dimension : 330mm(H)x433mm(W)x258mm(D)

Oven Cavity Dimension : 208.2mm(H)x306(W)x307.4mm(D)

Oven Capacity : 20 liters/0.7 cu. ft.

IMPORTANT SAFEGUARDS

When using electrical appliance, basic safety precaution should be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.
4. Do not place the unit near gas stove, electric stove or in a heated oven.
5. Put the unit on flat stable surface; keep it away from the edge of the counter to avoid accident.
6. Use the oven only for its intended use or as described in this manual. Do not use corrosive chemicals. This oven is not designed for industrial and laboratory use.
7. Do not operate the microwave oven if empty.
8. Children should be supervised to ensure that they do not play with the appliance.
9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

10. To reduce the risk of fire in the oven cavity:

11. When heating food in plastic or paper containers, check the oven frequently for possible ignition.

12. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.
13. Do not use the cavity for storage purposes.
14. Do not leave paper products, cooking utensils or food in the cavity when not in use.

15. If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any fumes.

16. Do not use sealed containers since they may burst, use only microwavable containers.

17. Heat from the food may transfer to the container, use path holders to avoid burns.
18. Contents of feeding bottles and baby food jars are to be stirred or shaken and check the temperature before consumption, in order to avoid burns.
19. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave oven since they may explode.
20. Microwave heating of the beverages can result in delayed eruptive boiling; therefore care has to be taken when handling the container.
21. Cookware/containers should be checked to ensure that they are suitable for microwave use.
22. For household use only; not intended for any business purposes.
23. Save this instruction manual for future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

1. Do not place any object between the door safety lock system or allow small solid particles or cleaner residue to accumulate on sealing surfaces.

2. Do not operate the oven if it is damaged. It is important that the oven is properly closed and there are no damages like:

3. Bent doors

4. Broken or loosened hinges and latches

5. Leaks on door seals and sealing surfaces

6. The oven should not be adjusted or repaired by anyone aside from an authorized lmarflex service technician.

7. Do not tamper the safety interlocks.

RADIO INTERFERENCE

1. Operation of microwave oven can cause interference to radio, TV or similar appliance.
2. When there is interference, it may be eliminated by:

- Cleaning the door and sealing surface of the oven

- Plugging the oven into a different outlet so that the oven and receiver are on different branch circuit.

INSTALLATION INSTRUCTION

1. Remove all packaging materials. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
2. WARNING: Check for any damages, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches. If there is any damages do not use the oven.
3. Do not place the unit near gas stove, electric stove or a heated oven.
4. The oven must have sufficient airflow; allow 20cm of space above the oven, 10cm at the back and 5cm on both sides. Do not cover or block any openings of the oven. Do not remove the stand.
5. Do not use the oven without the turntable, roller ring and shafting in their proper positions.
6. The socket should be accessible so that it can be easily unplugged in case of emergency.
7. This oven is not for outdoor use.

COOKWARE GUIDE

1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It allows energy to pass through the container and heat food.
2. Do not use reflective materials such as stainless steel, aluminum foil, etc.
3. Do not use recycled paper products as they may contain small metals that can cause sparks or fire.
4. Use round containers rather than oblong and square containers because food in corners tend to be overcooked.
5. Use the table in next page as reference "YES" is applicable, "NO" is not applicable.

COOKWARE
Heat Resistant Glass	YES
Ordinary Glass	NO
Heat Resistant Ceramics	YES
Microwave-safe Plastic Dish	YES
Kitchen Paper	YES
Metal Tray	NO
Metal Rack	NO
Aluminum Foil & Foil Containers	NO

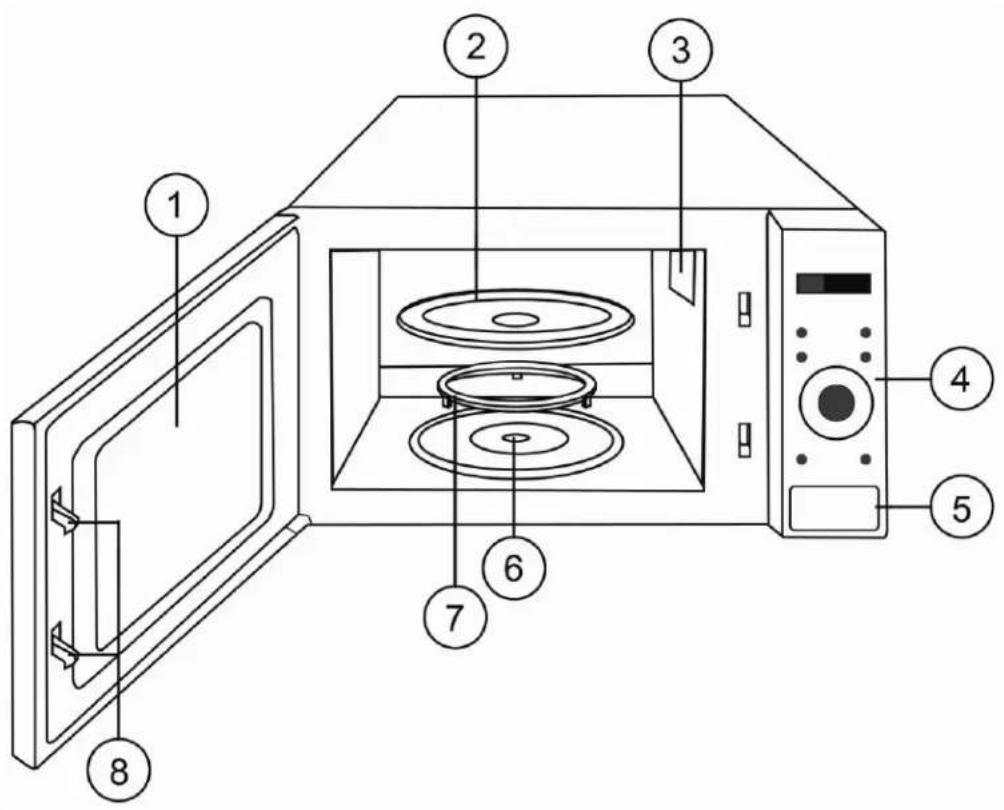

DESCRIPTION OF PARTS

Labeled diagram of a microwave oven showing interior components and numbered parts

1. Glass Windows
2. Glass Turntable
3. Wave Guide Cover
4. Control Panel
5. Door Release Button
6. Shafting
7. Roller Ring
8. Door Safety Interlock System

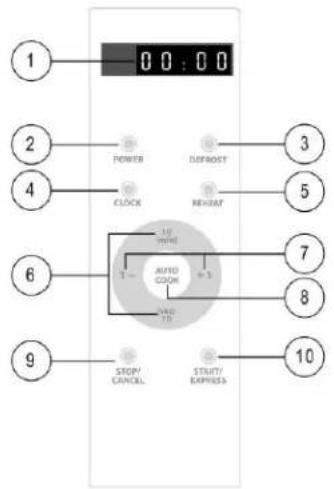

CONTROL PANEL

1. LED Display:

Power light indicators display the cooking program and present time.

1. POWER Key:

Use to set power level from 10% to 100% power output.

1. DEFROST Key:

Use to defrost frozen meat, poultry and seafood. The defrost function has two setting the weight defrost and speed defrost.

1. CLOCK Key:

Use to set the time.

1. REHEAT Key:

Use to reheat the food by weight.

1. 10 (min) / 10 (sec) Key:

Use to set the cooking time by the denomination of 10.

1. 1-/+1 Key:

Use to set the time, cooking time, weight etc.

1. AUTO COOK Key:

Use to set the auto-cooking function from A1 to A8.

1. STOP/CANCEL Key:

Use to stop and cancel the cooking program.

1. START/EXPRESS Key:

Use to begin the cooking program.

When the oven is plugged, the LED indicator is 0:00

1. Press the clock key, the "0" in the left side will blink.
2. Press the 1-/+1 key to set the hour.
3. Press clock key again, the "00" in the right side will blink.
4. Press the 1-/+1 key again to adjust the minutes.
5. Then press clock key once more, and the time is set.

NOTE: This is 24 hour clock setting.

STOP/CANCEL

1. Press STOP/CANCEL key once to stop cooking procedure.
2. Press STOP/CANCEL key twice to clear the cooking procedure.

MICROWAVE COOKING

1. Press POWER key to choose desired Microwave Power

2. Press once 100P --- High Power, 100% microwave power

3. Press twice 80P --- Medium High Power, 80% microwave power
4. Press 3 times 50P --- Medium Power, 50% microwave power
5. Press 4 times 30P --- Medium Low Power, 30% microwave power

6. Press 5 times 10P --- Low Power, 10% microwave power

7. Press the 1-/+1 key to adjust the sec. and min. or press the 10 (sec) / 10 (min) to adjust the sec. and min. by denomination of 10.

8. Press the START/EXPRESS key to start cooking

NOTE: The maximum cooking time is 99 min. and 99 sec.

EXPRESS COOKING

Every press of the START/EXPRESS key, the oven is programmed for:

• Press once 30 sec
• Press twice 1 min
• Press 3 times 1 min & 30 sec
• Up to 12 min

NOTE: If the express cooking requirement is more than 1min. and 30 sec., 1 min. will be automatically added each time you press the START/EXPRESS key.

REHEAT

1. Press the REHEAT key to choose the food weight to reheat.

2. Press once 150 grams

3. Press twice 250 grams
4. Press 3 times 350 grams

5. Press 4 times 400 grams

6. Press the START/EXPRESS key to start cooking.

DEFROST

Press the DEFROST key to select the types of defrosting

1. DEF1

2. Press once "DEF1" for weight defrost from 100g – 2000g

3. Press the 1- / +1 key to set the weight of the food.

4. Press the START/EXPRESS key to start cooking.

5. DEF2

6. Press twice "DEF2" for speed defrost

7. Press the 1-/+1 key to adjust the sec. and min. or
8. Press the 10 (sec) / 10 (min) to adjust the sec. and min. by denomination of 10.
9. Press the START/EXPRESS key to start cooking.

NOTE: The maximum cooking time is 99 min. and 99 sec.

AUTO-COOKING

1. Press the MENU key to set the appropriate auto-cook setting.

1. Press the 1-/+1 key to adjust the appropriate setting.

2. Press the START/EXPRESS key to start cooking.

AUTO-COOK TABLE GUIDE

Auto-cook	Weight(g)	Press Times	Display
A-1 Vegetable	150	Once	150
	350	Twice	350
	500	Thrice	500
A-2 Fish	150	Once	150
	250	Twice	250
	350	Thrice	350
	400	4 times	400
	450	5 times	450
A-3 Meat	150	Once	150
	300	Twice	300
	450	Thrice	450
	600	4 times	600
A-4 Pasta	50(with cold water 450g)	Once	50
	100(with cold water 800g)	Twice	100
	150(with cold water 1200g)	Thrice	150
A-5 Potato	1(approximately230g)	Once	1
	2(approximately460g)	Twice	2
	3(approximately690g)	Thrice	3
A-6 Pizza	1(approximately80g)	Once	1
	2(approximately160g)	Twice	2
	3(approximately250g)	Thrice	3
A-7 Soup	500	Once	500
	750	Twice	750
	1000	Thrice	1000
A-8 Porridge	550	Once	550
	1100	Twice	1100

EXAMPLE: Cook fish of 350 grams

1. Press AUTO-COOK key twice, A-2 will display.
2. Press 1+ or -1 key to choose weight, the LED will display 350.
3. Press the START/EXPRESS key to start cooking.

CHILD LOCK FUNCTION

This feature prevents the unsupervised operation by children.

1. Press and hold the STOP/CANCEL key for 3 seconds or until the sign appears on the display.

2. To unlock. Press and hold STOP/CANCEL key for 3 sec. or until the sign disappear on the display.

DELAYED COOKING FUNCTION

The oven has the ability to be program to do several functions.

Example: You want to program the microwave oven to start cooking at 2:00PM for 9 minutes and 30 seconds.

1. Set the current time (page 4 Setting the Clock)
2. Set the cooking procedure and time when the cooking procedure will start.

a. Select Microwave Power Level b. Press 1-/+1 or 10 (min) / 10 (sec) to set cooking tin

c. Press the CLOCK key to set the time when the cooking procedure will start.

1. Press the CLOCK key once to set the hour.

2. Press 1-/+1 to adjust the hour.

3. Press CLOCK key once again to set the minute.

4. Press 1-/+1 to adjust the minute.

5. Then press the START/EXPRESS key.

6. Check the programmed time by pressing the CLOCK key.

COOKING TIPS

1. Arrange food carefully, place thickest areas toward outside of dish. Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.

2. Slightly cover foods before cooking, covers prevent spattering and help foods to cook evenly.

3. Check recipe for suggestions on proper use of paper towels, microwave plastic wrap or a lid.

4. Stir foods from outside to center of dish once or twice during cooking, foods such as chicken, hamburgers or steaks should be turned over once during cooking.

5. Rearrange foods, like meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

6. After cooking ensure adequate standing time, heated liquid or beverage may result in delayed eruptive boiling. Remove food from oven and stir if possible. Covered food during standing time allows the food to finish cooking without overcooking.

7. Check for the cooking status; look for signs indicating that cooking temperature has been reached. Doneness signs include:

- Food steams throughout, not just at edge.

- Poultry thigh joints move easily.

- Pork and poultry show no pinkness.

- Fish is opaque and flakes easily with fork.

1. When using microwave safe plastic wrap as cover for cooking food with high fat content, do not allow the wrap touch the food as it may melt. Some microwave safe plastic cookware is not suitable for cooking foods with high fat and sugar content.

2. Potatoes, sausage must be pierced or peeled before cooking.

CLEANING & MAINTENANCE

1. Unplug the oven from the convenience outlet before cleaning.
2. Do not allow food splatters or spilled liquids adhere to oven walls. Baking soda may be used if the oven gets very dirty. Avoid using spray and other harsh cleaners as this may stain, streak, or dull the door surface.
3. Use damp cloth in cleaning the glass window and the surface of the oven.
4. Do not allow water to seep into the ventilation openings to avoid damages on the operating parts.
5. Do not allow the control panel to become wet.
6. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If the steam accumulates inside or around the oven door, dry it using soft cloth. This may occur when the oven is operated under high humid conditions, but this is normal.
8. If the glass turntable becomes dirty, remove it and wash it with soap and water.
9. The roller rest and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom part of the oven with mild detergent. The roller ring can be washed with soap and water. If the roller rest is removed from the oven, be sure to return it properly.
