KH 2349 - Headphones SILVERCREST - Free user manual and instructions

Product Type	Wired audio headset
Brand	SILVERCREST
Model	KH 2349
Dimensions (approx.)	18 x 15 x 8 cm
Weight (approx.)	150 g
Color	Black / Gray
Connection type	Wired (3.5 mm jack)
Cable length	1.2 m
Transducer	Dynamic, 40 mm
Impedance	32 ohms
Sensitivity	108 dB SPL/mW
Frequency response	20 Hz - 20 kHz
Built-in microphone	Yes, omnidirectional
Volume control	On the cable
Padded headband	Yes, adjustable
Silicone ear tips	3 sizes (S, M, L)
Temperature range	0°C to 40°C
Care and cleaning	Wipe with a soft, dry cloth; avoid moisture
Safety	Do not listen at high volume; use at a moderate sound level
Spare parts	Additional silicone ear tips available
Repairability	Cable and ear tips replaceable by user
Package contents	Headset, 3 pairs of ear tips, cable, user manual

Frequently Asked Questions - KH 2349 SILVERCREST

How to connect the KH 2349 headset?

Insert the 3.5 mm jack plug into the headphone jack of your device (smartphone, tablet, computer). Make sure the volume is set to a moderate level before starting to listen.

Microphone does not work, what to do?

Check that the plug is fully inserted into the combined or microphone jack. For computers, make sure the audio input device is correctly selected in the settings. Some devices require a four-pole plug (CTIA).

What ear tips are included and how to change them?

The headset comes with three sizes of silicone ear tips: small (S), medium (M), and large (L). To change them, carefully remove the old ear tip from the earpiece and push the new one on firmly.

Can I use this headset for sports?

The KH 2349 is a standard wired headset, not designed for intense sports use. It is not resistant to sweat or water. For sports, choose a wireless and waterproof model.

How to clean the headset?

Use a soft, dry cloth to wipe the surfaces. The silicone ear tips can be removed and washed with warm soapy water, then dried completely before putting them back. Avoid any contact with liquids.

What to do if the sound is too weak or distorted?

Increase the volume of the audio source. Check that the plug is fully inserted. If the problem persists, test the headset on another device to isolate the cause. Distorted sound may be due to a damaged cable.

Is the headset compatible with game consoles?

Yes, most consoles with a 3.5 mm jack (Xbox, PlayStation, Nintendo Switch controllers) are compatible. For voice chat, check that your console supports wired microphones.

How to store the headset to avoid damaging the cable?

Wind the cable without bending it sharply, ideally around a holder or using a cable tie. Avoid pulling the cable to disconnect it.

Can I replace the cable if it is damaged?

The cable of the KH 2349 is fixed, non-detachable. In case of damage, contact customer service for repair or replacement under warranty. Do not attempt to repair it yourself.

How to adjust the headband for better comfort?

Hold the headband with both hands and slide the adjustable arms on each side until the headset rests comfortably on your ears without excessive pressure.

USER MANUAL KH 2349 SILVERCREST

Operating instructions

DK

Sportshoretelefoner

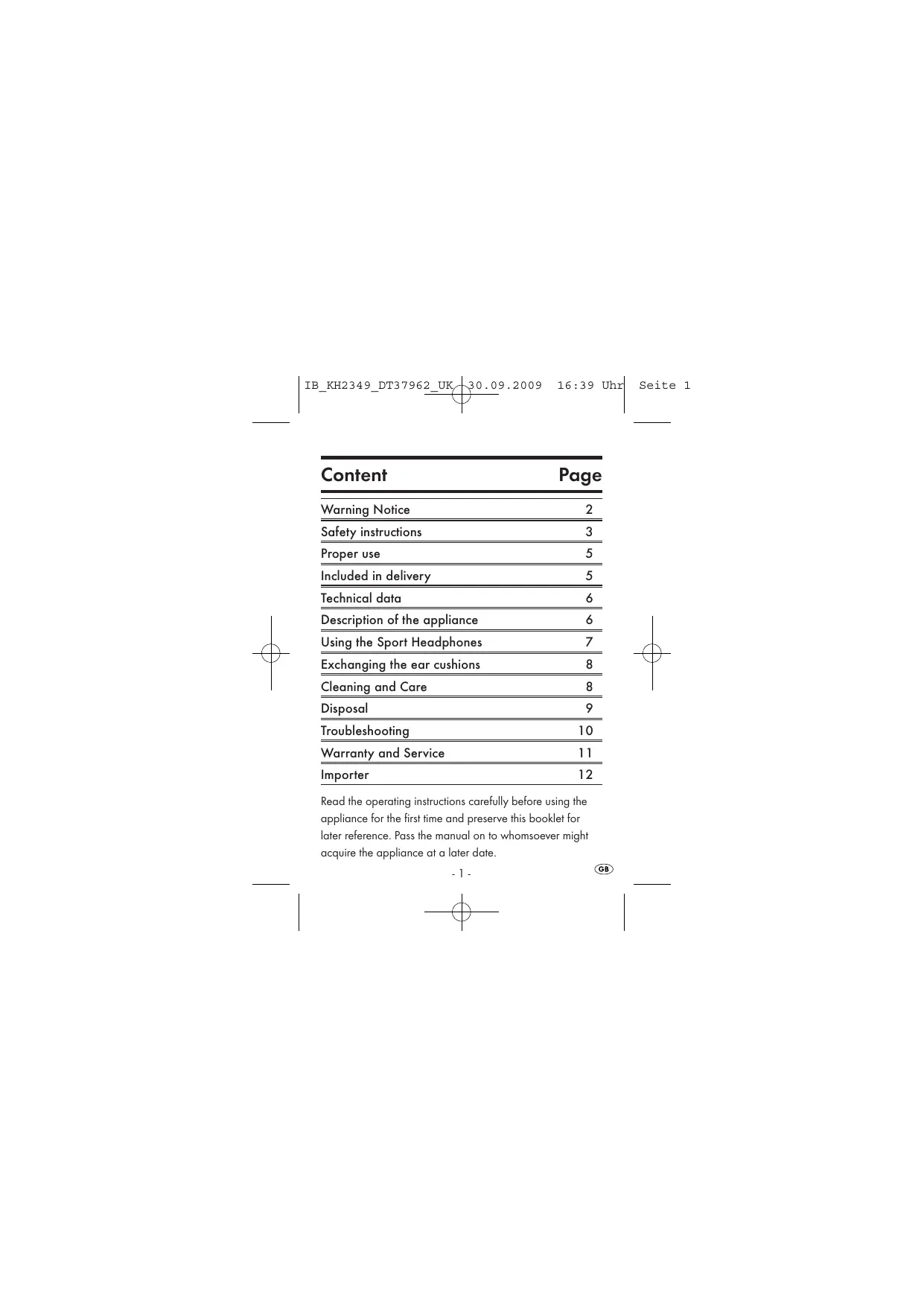

Content	Page
Warning Notice	2
Safety instructions	3
Proper use	5
Included in delivery	5
Technical data	6
Description of the appliance	6
Using the Sport Headphones	7
Exchanging the ear cushions	8
Cleaning and Care	8
Disposal	9
Troubleshooting	10
Warranty and Service	11
Importer	12

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

Sports Headphones KH2349

This documentation is copyright protected.

All rights including those of photographic reproduction, duplication and distribution by means of particular methods (for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved.

Warning Notice

In the existing operation instructions the following warnings are used:

Warning

A warning of this danger level signifies a possible dangerous situation. If the dangerous situation is not avoided it can lead to injuries. The directives in this warning are there to avoid personal injuries.

Important

A warning of this danger level signifies possible property damage. If the situation is not avoided it can lead to property damage. The directives in this warning are there to avoid property damage.

① Notice

A notice signifies additional information that assists in the handling of the device.

Safety instructions

Warning

• Never allow children to use electrical appliances without supervision. Children are not always able to correctly assess the potential dangers.
• Store the packaging foils well away from children. There is a risk of suffocation!
• Never open the housing of the sport headphones and do not attempt to repair it yourself.
• Listening to music too frequently with the headphones, and music which is also too loud, will lead to permanent hearing damage.

Warning

• Never use the sport headphones in public road traffic. If you do, you may not be able to hear warning signals or other traffic sounds.
• Never set the sound volume so loud that you can no longer hear what is happening around you.

Important

• Do not subject the Sport Headphones to high temperatures. It could cause irreparable damage to them.
• Never submerge the Sport Headphones in water or other fluids.
• There are no user-serviceable parts inside the headphones. Never open the housing. It could cause irreparable damage to the appliance.

① Notice

No liability will be accepted for damages resulting from improper or irregular handling, the use of violence or unauthorised modifications.

The Sport Headphone is intended for the playback of music. For this, it must be connected to a playback device with a 3,5 mm jack plug. It is intended for private use only, not for commercial use.

Included in delivery

Sport Headphone

3 pairs of ear cushions made of silicone (small, medium (preassembled), large)

Operating instructions

Technical data

Impedance: 32 + 14 - 10%

Sensitivity: 97 dB +/-3 dB at 1 kHz

Frequency response: 20Hz - 20kHz

Max. Power Input: 50 mW

Wideband characteristic voltage

(WBCV): 270 mV

Weight: 22 g approx.

Operating temperature: +5^ - +35^

Storage temperature: -20°- +50°C

Humidity: 5 - 90% (no condensation)

Description of the appliance

1 Headband
2 Earplug right "R"
3 3,5 mm Jack plug
4 Exchangable ear cushions
5 Connecting cable
6 Earplug left "L"

• Insert the 3,5mm jack plug ③ into the socket on the playback device (e.g. CD-Player).
• Switch the playback device on and adjust the sound volume to minimum.

Caution!

Regular listening to loud music through headphones will lead to hearing damage.

• Place the Sport Headphones on your head. Take note of the markings ^ R^ (right) and ^ L^ (left) on the earplugs ② + ⑥ .
• Then adjust the sound volume on the playback device to the desired level.

Exchanging the ear cushions

• Select the ear cushions 4 suitable for your ears.
• Simply pull the old ear cushions ④ off of the ear plugs ② + 6 .
• Place the new ear cushions ④ over the pegs on the earplug ② + 6 such that the ear cushions ④ sit firmly on the earplugs ② + 6 .

Cleaning and Care

• Clean the Sport Headphones with a lightly moistened cloth. Never use aggressive cleansers. They can damage the surfaces.
• Remove the ear cushions to clean them. Clean the ear cushions with a mild soapy solution and rinse them with clear water. Dry the ear cushions well. Replace the ear cushions over the ear plugs only when they are completely dry.
• Ensure that no liquids can enter the interior of the Sport Headphones.

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility.

Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Problem:

• You cannot hear any sounds from your Sport Headphones.
  The sound volume regulator on the playback device is on the setting minimum. Increase the playback volume.
  The 3,5 mm jack plug ③ is not completely inserted into the socket on the playback device. Push the 3,5 mm jack plug ③ completely into the socket.
• You hear sounds in only one channel.
  The 3,5 mm jack plug ③ is not completely inserted into the socket on the playback device. Push the 3,5 mm jack plug ③ completely into the socket.
  The stereo balance regulator on the playback device is out of adjustment. Adjust it to the setting you desire.

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.

Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

DES UK LTD

Tel.: [phone] (£ 0,10 / minute)

e-mail: [e-mail]

IE

Kompernass Service Ireland

Tel: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

e-mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

D-44867 BOCHUM, GERMANY

www.kompernass.com
