USER MANUAL KH 2199 SILVERCREST

INDEX PAGE Warning Notice 2 Safety information 3 Intended Use 5 Items supplied 6 Operating Elements 6 Technical Data 7 Inserting the batteries 9 Placing 10 Operation 10 Cleaning and care 14 Troubleshooting 15 Disposal 15 Warranty and Service 16 Importer 17 Read these operating instructions carefully before using the device for the first time and preserve this manual for future reference. Pass this manual on to whoever might acquire the device at a future date. -1- æ

KH2198/99 This documentation is copyright protected All rights including those of photographic reproduction, duplication and distribution by means of particular methods [for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved. Warning Notice In the existing operation instructions the following warnings are used: À Warning A warning of this danger level signifies a possible dangerous situation. IFihe dangerous situation is not avoided it can lead to injuries. The directives in this warning are there to avoid personal injuries. À Important A warning of this danger level signifies possible property damage. IFthe situation is not avoided it can lead to property damage. The directives in this warning are there to avoid property damage © Notice A noïice signifies additional information that assists in the handling of the device.

À Warning To avoid potentially fatal electric shocks: + Only use the device in dry rooms. +_ Never allow fluids or other objects to get into the device. +_ Do not place objects containing fluids, e.g. flower vases, on the device. +_Never open the housing of the device or of the mains power adapter {not supplied) and do not attempt to repair the device yourself, it does not contain any userserviceable elements. À Warning To avoid the risk of persona jury: +_ This device is not intended for use by individuals [including children) with restricted physical, physiological or intellectual abilities or deficiences in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the device is to be used. +_ Children should be supervised to ensure that they do not play with the device. À Important To avoid the risk of fire: +_ Place the device in an open and well-ventilated area so that heat pockets cannot be created within it. Never cover the ventilation slits! +_ Do not place open fire sources, e.g. candles, on the device. + Avoid close proximity to heat sources, e.g. direct solar radiation, heaters and other devices etc.

IB_KH2198 99 37977 LB4C.qxd Se 10 009 11:50 Uhr Seite 4 ® Note: Only for KH2199: This device is equipped with nonslip rubber pads. As floor and furniture upper surfaces comprise of various materials and are cleaned with various types of polishes and/or cleaning agents, it cannot be completely excluded that some of these substances contain components that could attack ihe rubber pads and soften them. If possible place an antislip material under the pads of the device. ® Note: In certain countries there could be exceptional regulations for the allocated radio frequency ranges. Take note that you may not exploit irregularly received radio services, pass them on to third parties or improperly misuse them. À Information regarding the handling of batteries The device uses batteries. When handling bateries, please observe the following: À Warning +_ Do not throw batteries into a fire. Do not recharge the batteries. + Never open batteries, never solder or weld batteries. The risk of explosions and injuries exists! Regularly check the condition of the batteries. Leaking batteries can cause damage to the device. +_ If you do notintend to use the device for an extended period, remove the batteries.

IB_KH2198 99 37977 LB4C.qxd Se 10 +_Inthe event ofthe batteries leaking acids, put on a pair of protective gloves. + Clean the battery compartment and the battery contacts with a dry cloth. +_ Keep batteries away from children. Children could put batteries into their mouths and swallow them. If a battery is swallowed, medical assistance must be sought IMMEDIATELY. À Important ! No liability/warranty claims will be considered for damage to the device caused by the effects of moisture, water penetration or overheating! Intended Use 009 11:50 Uhr Seite 5 This device is designed to wake you by means of an alarm tone or radio and also for the reception of radio transmissions. Any other usage of, or modifi- cation to, the device is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepts no liability for damages that result from an improper use of the device or that are caused by an in- correct operation of it. It is not intended for commercial use.

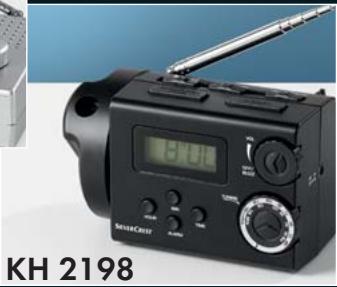

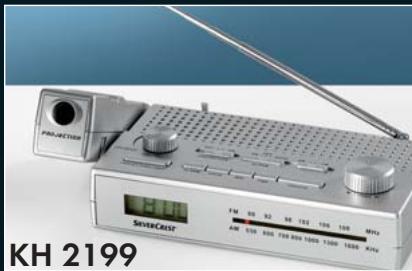

Items supplied 1 Projection alarm clock with radio, 1 Operating manual The batteries and a 3V-mains adaptor (accessories), required for operation, are not included in the supply. After unpacking the device, immediately check to determine that all listed items are present and that the device is in a fauliless condition. Remove all packagng materials and the protective foil from the display. Operating Elements © Projection lens @ Telescopic antenna © Switch ALARM ON/OFF/AUTO © Bution SNOOZE © Waveband selector FM/AM © Button PROJECTION LIGHT, Display illumination © Switch PROJECTION ON/OFF @ Display © Sound volume regulator OFF/BUZZ/VOLUME © Connection for 3V power adapter © Frequency scale @ TUNING regulator © Button TIME © Button ALARM © Button MIN (Minute) © Button HOUR (Stunde) © Battery compartment @® Projection focus (FOCUS)

This device satisfies the fundamental requirements and other relevant regulations ofthe EMC Directive 2004/108/EC. Operating temperature range: +5° -+35°C Storage temperature range: -20°-+50°C Humidity: 5-90% {no condensation) KH2198 Weight : 2309 Dimensions: 117x7.2x7 om KH2199 Weight : 2709 Dimensions: 19.8 x 4.6 x 10.2 cm Battery operation: KH2198: 3 x 1.5 V Type Micro / AAA / LRO3 (not supplied) for radio operation, display illumination and projection. KH2199: 3 x 1.5 V Type Mignon / AA / LRO6 {not supplied] for radio operation, display illumination and projection. Operating voltage : 3 V (Radio operation/Projection], 1.5 V (hour) Frequency range: FM(USW): 87,5-108,0 MHz AM (MW) : 526.5-1606.5 kHz

IB_KH2198 99 37977 LB4C.qxd tiraoz200 11:50 Uhr Seite 8 The technical details of the device allow for a setable frequency range outside of the permissible 87,5-108 MHz and/or 526,5-1606,5 kHz. In different countries various national regulations regarding the allocated radio frequency range can exist. Please note that information received outside of the assigned radio frequency ranges may not be used, passed on to third parties or otherwise misused. Mains adapter: (Mains adapter not supplied) Input voltage: 230 V - 50 Hz Output voltage: DC 3V (+/- 5%) — Rated current: min. 300 mA Polarity: << Even when using 3 V mains adapter, a battery must be inserted. Otherwise, the clock will not function. For Model KH2198: Insert the single battery into the upper part of the battery compartment @. The two other batteries, one above the other, power radio operation and the projection. For Model KH2199: Insert the single battery into the compartment marked “CLOCK USE”. À Important: Ensure that you have the correct polarities with the batteries and the power adapter. False polarity will damage the device. The device can be operated as follows: +_ only with batteries , +_with a mains power adapter and a battery for the clock.

IB_KH2198 99 37977 LB4C.qxd tiraoz200 11:50 Uhr Seite 9 Inserting the batteries KH2198: You require three 1.5 V batteries of the type Micro / AAA / LRO3. . Open the cover of the battery compartment @ on the underside.

2. Insert the three batteries into the battery compartment ®, paying heed

to the polarity markings shown in the battery compartment @. Ensure that the black textile strip is positioned under the batteries, this will make future battery exchanges easier.

3. Close the cover, ensuring that it engages.

KH2199: You require three 1.5 V batteries of the type Mignon / AA / LRO6.

1. Open the cover of the battery compartment @ on the underside.

2. Insert the three batteries into the battery compartment ®, paying heed

to the polarity markings shown in the battery compartment @.

3. Close the cover, ensuring that it engages.

IB_KH2198 99 37977 LB4C.qxd P.10 eus 7 Placing 009 11:50 Uhr Seite 10 +_ Place the projection clock onto a level surface. Position the projection clock such that the projection lens @ is directed onto an empty surface. The distance from the projection lens to the projection area (ceiling or wall) must lie between 0,4 m and 3 m. Operation Connect the external mains adaptor This device can be operated with an external mains adaptor. Please use only mains adaptors that meet these specifications: Input voltage: 230 V - 50 Hz Output voltage: DC 3V(+/-5%) Rated current: min. 300 mA Polarity: << À Attention: Make certain that the polarity is correct - both for the batteries as well as for the mains adaptor. Take note of the markings on the 3V direct current connection ® +. False polarity will damage the device.

2. To switch on, turn the volume controller OFF/BUZZ/VOLUME @ until

4. Place the waveband selector switch @ at the desired frequency range

5. Adjust the tuning regulator @ to select the desired radio station. The

frequencies can be read off from the frequency scale ®.

6. To switch off, slide the switch ALARM ON/OFF/AUTO @ into the position

"OFF". ® Note: The radio is only switched off when the switch ALARM ON/OFF/AUTO @ is at the positions OFF or AUTO. To simply turn the sound volume regulator @ to very quiet, until a »Click« is heard, is not sufficient. Setting up the telescope aerial + Remove the telescope aerial @ from its retainer and set it up. *_ Extend the telescope aerial @ completely. To improve reception in the FM frequency range, slowly turn the end of the telescope aerial @ in various directions. As soon as you have found a position with good reception from your desired radio station, leave the telescope aerial @ in this position. For the reception of AM transmissions, an antenna is built into the device. For improved reception, alter the position of the device in radio mode.

IB_KH2198 99 37977 LB4C.qxd tiraoz200 11:50 Uhr Seite 12 Setting the time Whilst holding the button TIME ® pressed down:

1. Press several times consecutively, or press and hold, the button HOUR ®

2. Release the button HOUR @ as soon as the desired hours setting is shown

3. Press several times consecutively, or press and hold, the button MIN ®

4. Release the bution MIN ® as soon as he desired minutes setting is shown

in the display @. The programmed time will be accepted automatically as soon as the button TIME @ is released. Setting the alarm time IFthe clock is set correcily, as described above: Whilst holding the button ALARM @ pressed down:

1. Press several times consecutively, or press and hold, the button HOUR ®

2. Release the button HOUR @ as soon as the desired hours setting is shown

3. Press several times consecutively, or press and hold, the button MIN ®

4. Release the bution MIN ® as soon as the desired minutes setting is shown

in the display @. The adjusted alarm time will be automatically accepted as soon as the button ALARM @ is released.

IB_KH2198 99 37977 LB4C.qxd tiraoz200 11:50 Uhr Seite 13 Radio alarm call When ihe clock is set correcily, as described above:

1. Adjust the tuning regulator @ to select the desired radio station.

3. To activate an alarm call with radio, place the switch ALARM ON/OFF/

AUTO @ at "AUTO", The symbol for the alarm function 4 and "Zz" appear in the display @. Atthe programmed time the radio switches itself on. If you do not touch any other buttons while the alarm is sounding, after about a minute the radio switches itself off. The radio gives its next alarm call on the following day at the programmed time. Snooze Function Pressing the SNOOZE @ button interrupts the alarm tone for approx. 8 minutes. For as long as the snooze function is activated the indicator "Zz" blinks in the display. After these 8 minutes, the alarm tone is repeated. Place the switch ALARM ON/OFF/AUTO @ at "OFF" to switch the alarm function off com- pletely. Wakening with the alarm tone When ihe clock is set correcily, as described above:

1. Place the sound volume controller OFF/BUZZ/VOLUME @ at "OFF/

BUZZ". A "Click" will be heard.

2. To activate a wake-up call with the alarm tone place the ALARM ON/

OFF/AUTO @ at "AUTO". The symbol for the alarm function 4 and "Zz" appear in the display @. The alarm tone sounds at the programmed time. 1f you do not touch any other buttons while the alarm is sounding, after about a minute the alarm tone switches itself off. The radio gives its next alarm call on the following day at the programmed time.

IB_KH2198 99 37977 LB4C.qxd tiraoz200 11:50 Uhr Seite 14 Projection Attention! When used properly, the radiation from the projection of the display is not at all dangerousl. However, avoid looking directly into the light beam and do not aim the beam at other persons or at animals. To display the time correcily on a wall or the ceiling, the hinged projection element needs to be swivelled into the correct position and the room must be appropriately darkened.. . Place the PROJECTION ON/OFF @ switch at ON.

2. Adjust the projection element as desired. The time is projected onto the

required position. The projection distance is approx. 40cm - 3m.

3. Adjust the clarity ofthe projection with the projection focus ®.

Background lighting for the display and projection À onetime pressing of the button PROJECTION LIGHT @ activates the display illumination and the time projection for approx. 10 seconds. Cleaning and care À Attention: Never permit luids to permeate inside the device. The device could also be irreparably damagedl +_ Keep the device and the ventilation openings clean at all times. + Use a soft and dry cloth to clean the device housing. + Never use detergents or solvents that could damage plastics. +_ Check the state and charge condition of the inserted batteries at least once a year. +_ If you do notintend to use the device for an extended period, remove the batteries.

009 11:50 Uhr Seite 15 IB_KH2198 99 37977 LB4C.qxd P.10 eus 7 + Store the appliance at a dry and clean location with an ambient temperature of approx. 20° - +50°C. Troubleshooting The device does not function. *_ Batterie have not been inserted. Insert batteries. +_ The batteries are exhausted. Exchange the batteries. +_ The batteries have been inserted incorrecly. Check the poling of the batteries and, if necessary, correct it. The projection is fuzzy. + _ The focus is not correcily programmed. Adjust the clarity ofthe projection with the projection focus ®. +_The distance to the projection area is too small or too large. Place the Projection Alarm Clock at a distance of between 40cm and 3m from the projection area. Disposal Do not dispose of the device in your normal domestic waste. This product is subject to the provisions of European Directive mm 2002/96/EC. Dispose of the device through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

009 11:50 Uhr Seite 16 IB_KH2198 99 37977 LB4C.qxd Se 10 Disposal of batteries/accumulators Used batteries/rechargeable batteries may not be disposed of in household waste. All consumers are statutorily obliged to dispose of batteries at a collection site of their community/city district or at a retail store. The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries when they are fully dis- charged. es Dispose of all packaging materials in an environmentally friendly manner. Warranty and Service The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined be- fore delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Depart- ment. Only in this way can a postfree despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired paris. Any damage and defects extant on purchase must be reported immediately after unpacking the appli- ance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment. @ -16-
