USER MANUAL Revo 9981 BDI

B - Shelf Pin x 8 Pre-installed

C - Retention Clip x 8 Pre-installed

D - Phillips Screwdriver x 1

E - Allen Wrench x 1

F - Swivel-Lock Pin x 2 Pre-installed

Your Revo Home Theater Furniture is engineered for easy assembly. Carefully follow this procedure to prevent any damage.

Placement and Maintenance

Revo Home Theater Furniture is designed for indoor use on level floors. Clean glass with glass cleaner, and steel parts and wood veneer with a moist cloth.

Step 1

Unpack and identify the parts listed above. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at [e-mail]. For all other concerns, please contact your BDI Retailer.

Step 2

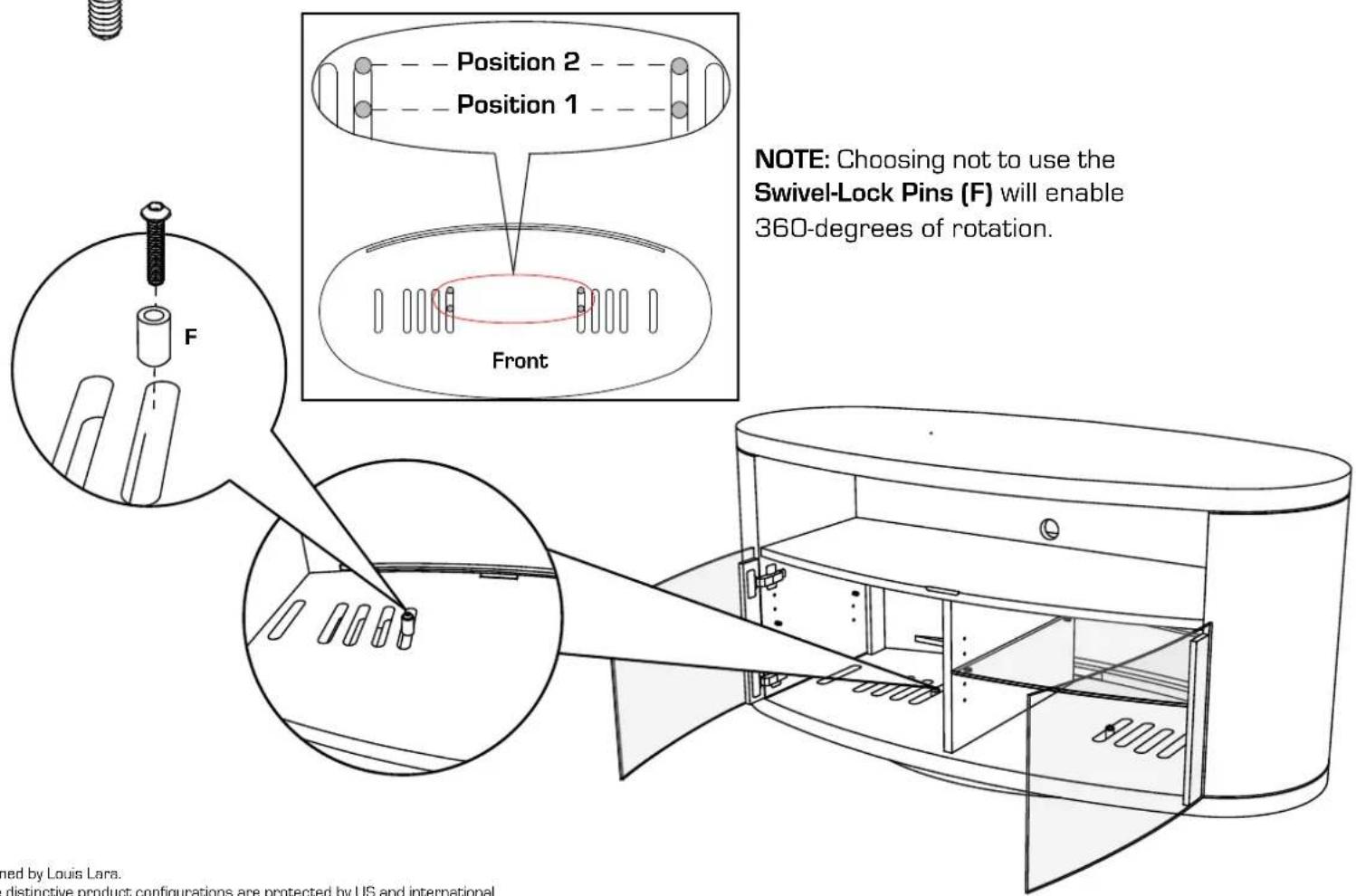

Revo 9981 features a swiveling base. Note that Swivel-Lock Pins (F) are factory-installed at Position 1 enabling the stand to swivel 15-degrees to left and 15-degrees to right.

To lock the stand in a fixed position, use provided Allen Wrench (E) to remove both Swivel-Lock Pins (F) from Position 1 (factory position) and re-install them at Position 2.

Position 2 Position 1 NOTE: Choosing not to use the Swivel-Lock Pins (F) will enable 360-degrees of rotation. Front F ned by Louis Lara. distinctive product configurations are protected by US and international

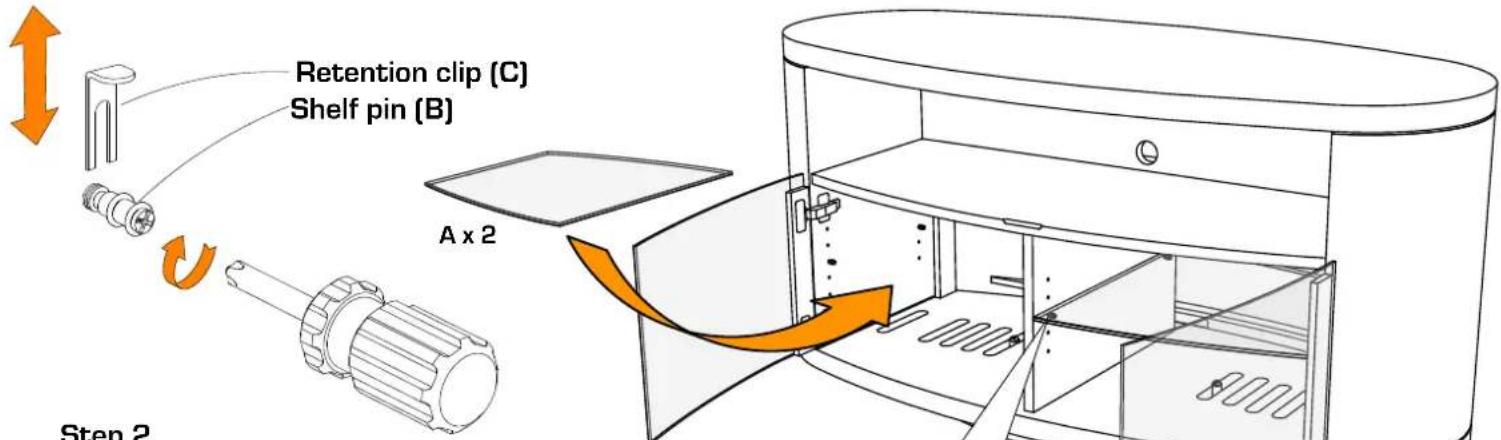

Retention clip (C) Shelf pin (B) A x 2 Step 2

Step 2 Confirm that Shelf Pins (B) are pre-installed.

In order to adjust height, one must remove the glass retention clip (secured by the shelf pin) that holds the glass shelves in place.

Loosen the 4 1. Shelf Pins (B)

1 turn with Phillips Screwdriver (D).

1. Remove Retention Clips (C) [ x 4 ] Unscrew 3. Shelf Pins (B) completely
2. Reposition the Shelf Pins (B) at desired height

Detail of Shelf Pin (B) and Retention Clip (C)

Secure Glass Shelves

To secure the shelves on your Revo unit, it is necessary to use the Retention Clip (C), which is secured by the Shelf Pin (B).

1. Install Glass Shelves (A x 2)
2. Install Retention Clips (C) as shown in "Pin Assembly Diagram"
3. Secure by tightening the Shelf Pin (B) with Phillips Screwdriver (D).

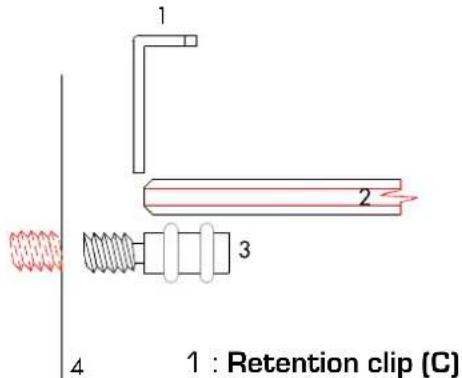

Pin Assembly Diagram

1 2 3 4 1 : Retention clip (C)

2: Glass Shelf (A)
3 : Shelf Pin (B)
4 : Cabinet wall

1 2 3 4

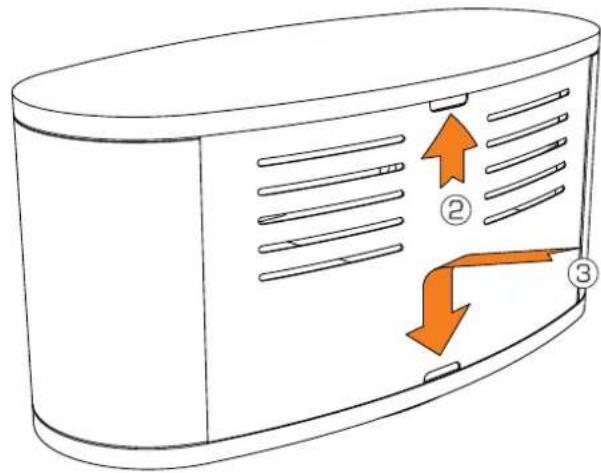

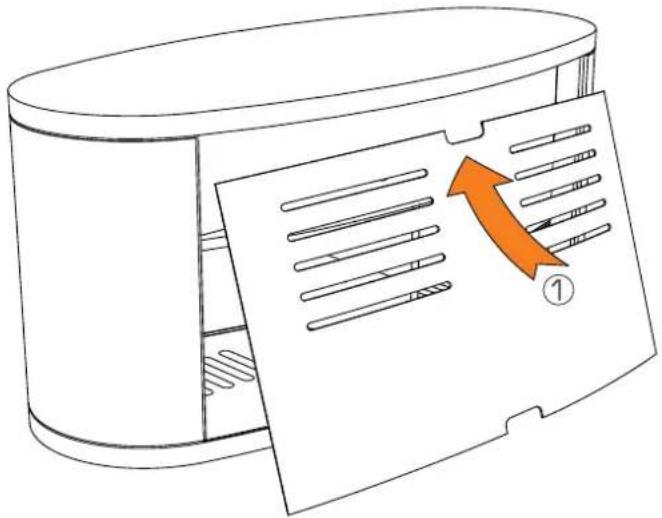

Step 4 Install Back Panel.

The back panel comes pre-installed. Follow illustrations below for installation and removal.

Illustration of a cylindrical container with an open paper sheet and an orange arrow indicating flow or movement (no text or symbols present)

Diagram of a device with labeled components and directional arrows indicating flow or movement

Step 5 Adjust Door Hinges (if needed)

If the cabinet's doors appear out of alignment, this condition can be corrected with minor adjustment to the European hinges on each door.

Because these hinges are infinitely adjustable, adjusting one hinge element can sometimes cause the need for adjustments to other elements. But with a few adjustments, you can modify the orientation of the cabinet doors to make sure that they hang perfectly within your cabinet.

Technical diagram of a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

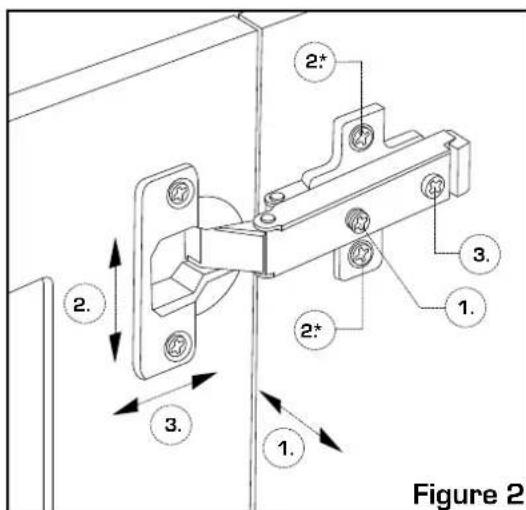

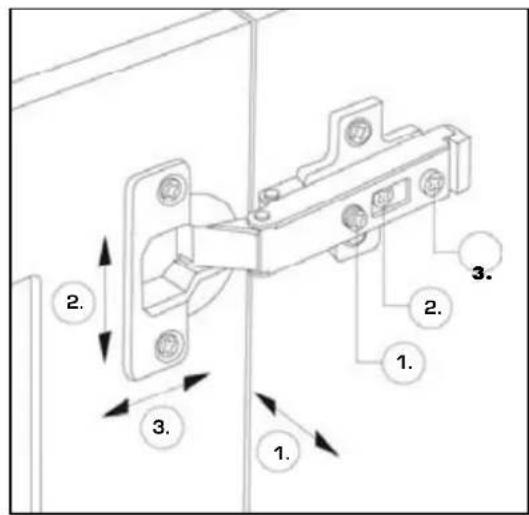

2. 2* 3. 1. 2* 3. 1. Figure 2

Figure 2 Figure 1

Use a Phillips screwdriver to adjust Revo's door hinges:

By adjusting • Screw the door will move LEFT or RIGHT within the frame. Make minor adjustments at both top and bottom hinges for best results.

- By adjusting Screw(s) 2, the door will move UP or DOWN within the frame (the top and bottom hinges must be adjusted the same degree).

NOTE: If your hinges have a Slotted Mounting Plate (as shown in Figure 2): Loosen Screws 2 one complete turn, raise or lower door, then hold in position while tightening Screws 2 (on both hinges).

- By adjusting Screw 3 the entire door will move IN or OUT, opening or closing the gap between the door frame and cabinet. (This screw rarely needs adjustment.)
