National Geographic Binoculars

Instruction Manual

80-10621

80-10821

80-00842CP

80-11032

80-21040CP

80-01632CP

80-11025

80-11840

80-11050

80-11042

TRV1042WP-NG

SUN WARNING

WARNING: NEVER ATTEMPT TO OBSERVE THE SUN WITH THIS DEVICE! OBSERVING THE SUN – EVEN FOR A MOMENT – WILL CAUSE INSTANT AND

IRREVERSIBLE DAMAGE TO YOUR EYE OR EVEN BLINDNESS. Eye damage is often painless, so there is no warning to the observer that the damage has occurred until it is too late. Do not point the device at or near the Sun. Do not look through the device as it is moving. Children should always have adult supervision while observing.

SAFETY WARNINGS

Read and follow the instructions, safety rules, and first aid information.

• Respect privacy: When using this device, respect the privacy of other people. For example, do not use them to look into people's homes.
• Choking hazard: Children should only use device under adult supervision. Keep packaging materials like plastic bags and rubber bands out of the reach of children as these materials pose a choking hazard.

• Risk of blindness: Never use this device to look directly at the Sun or in the direct proximity of the Sun. Doing so may result in a permanent loss of vision.

• Risk of fire: Do not place device, particularly the lenses, in direct sunlight. The concentration of light rays could cause a fire.

• Do not disassemble this device. In the event of a defect, please contact your dealer. The dealer will contact the Customer Service Department and can send the device in to be repaired if necessary.
• Do not subject the device to temperatures exceeding 60^ (140° F).

- Disposal: Keep packaging materials, like plastic bags and rubber bands, away from children as they a pose a risk of suffocation. Dispose of packaging materials as legally required. Consult the local authority on the matter if necessary and recycle materials when possible.

How to adjust the distance between your eyes:

The distance between your eyes is called interpupillary distance. It varies from person to person. To achieve perfect alignment of the lenses to eyes, follow these simples steps.

1. Hold your binoculars in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart until you see a single circular field. Always reset your binoculars to this position before using. Most binoculars have a graduated area at the top of the center hinge for reference in setting interpupillary distance for subsequent use.

How to adjust the diopter setting and center focus:

1. Adjust the diopter scale on the right eyepiece to 0. Look through the binoculars at an object about 150 feet away.
2. Shut your right eye, and focus correctly for your left eye using the center focus wheel (3).
3. Now shut your left eye, and adjust the focus for your right eye, using the diopter setting (2).
4. Now the binoculars are correctly adjusted. You can vary the focus using the center focus wheel and both eyes will always remain in focus. Make note of the diopter setting on the right side, for future use.

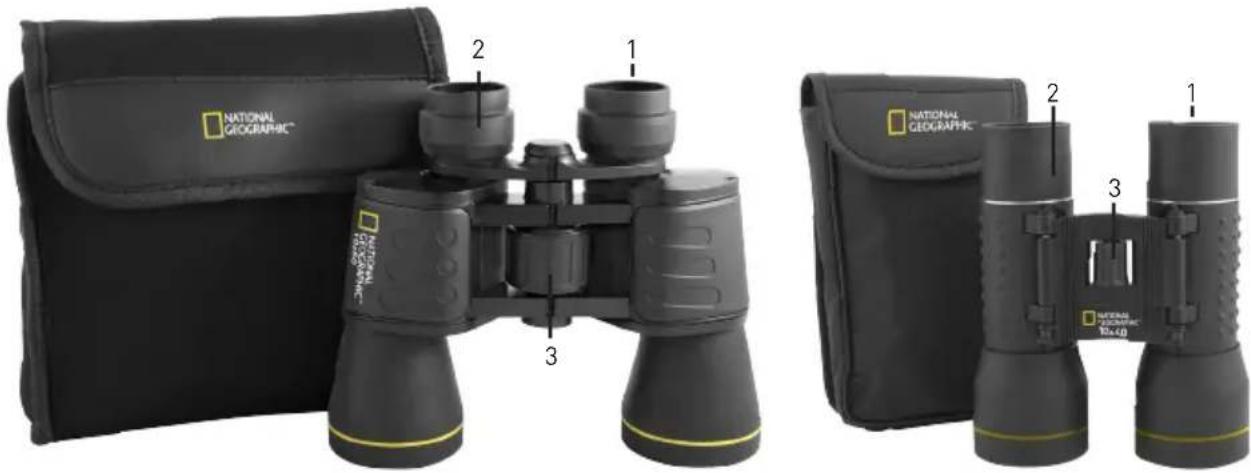

Product photos of binoculars and a national geographic case (no text or symbols visible)

Black binoculars with labeled parts, one partially covered by a national geography folder (no text on binoculars or background)

Parts Overview

1. Foldable rubber eyecups
2. Diopter settings
3. Center focus wheel

How to adjust the eyecups:

If you wear sunglasses or eyeglasses, fold down the eyecups (1).

This will bring your eyes closer to the lenses thus providing an improved field of view.

How to clean:

1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or fingerprints, clean with a soft cotton cloth by rubbing in a circular motion.

Use of a coarse cloth or unnecessary rubbing may scratch the lens surfaces and eventually cause permanent damage to the binoculars.

1. To thoroughly clean your binoculars, you may use a photographic - lens cleaning fluid. Always apply the fluid to the cleaning cloth, never directly onto the lens.

Note: It is important to protect this device from dust and moisture. When using in high humidity conditions, let the device acclimatize for a short period of time before storing so that residual moisture can dissipate.
