USER MANUAL PN-655RE SHARP

SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg

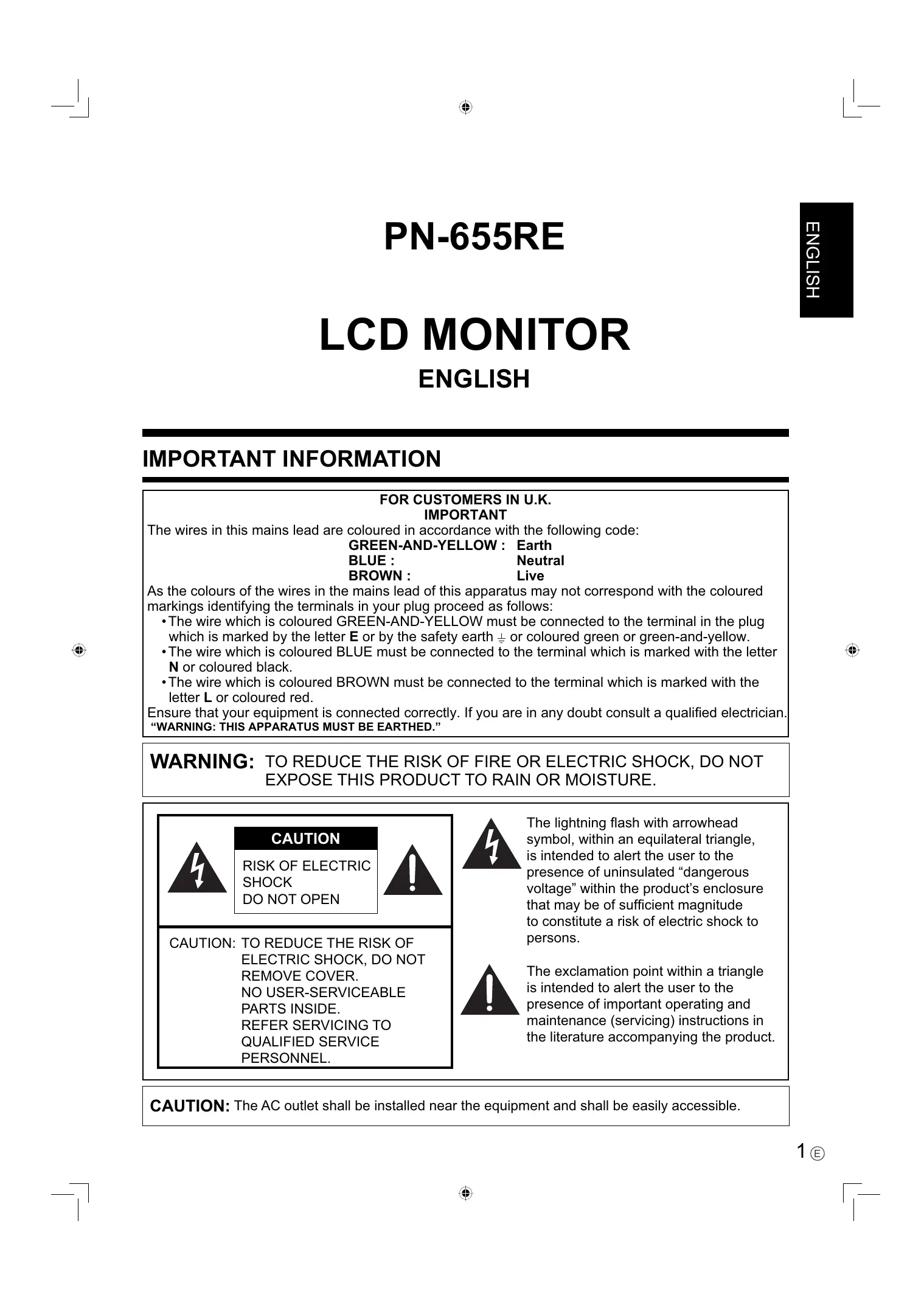

ENGLISH PN-655RE LCD MONITOR ENGLISH IMPORTANT INFORMATION FOR CUSTOMERS IN U.K. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW : Earth BLUE : Neutral BROWN : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: • The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow. • The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. • The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician. “WARNING: THIS APPARATUS MUST BE EARTHED.”

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: The AC outlet shall be installed near the equipment and shall be easily accessible.

E IMPORTANT INFORMATION (Continued) CAUTION: Use the supplied power cord as it is. This product utilises fluorescent tubes containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households) 1. In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling. 2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products. 2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

DEAR SHARP CUSTOMER SAFETY PRECAUTIONS ENGLISH Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product. 1. Read instructions — All operating instructions must be read and understood before the product is operated. 2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference. 3. Observe warnings — All warnings on the product and in the instructions must be observed closely. 4. Follow instructions — All operating instructions must be followed. 5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. 6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents. 7. Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. 8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. 9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. 10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. 11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock. 12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product. 13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. 14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

E SAFETY PRECAUTIONS (Continued) 15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorised parts can result in fire, electric shock and/or other danger. 16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. 17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer. 18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers). 19. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

WARNING: Do not use the factory-installed temporary stand when installing the LCD monitor. This stand is for temporary use only until the monitor is properly mounted. The temporary stand does not support the LCD monitor securely. Using the temporary stand may cause injury.

TIPS AND SAFETY INSTRUCTIONS The Power Cord - Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock. - Use only the power cord supplied with the monitor. - Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating. - Do not remove or insert the power plug with wet hands. Doing so could result in electric shock. - Unplug the power cord if it is not used for a long time. - Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

- The TFT colour LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colours or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor. - Do not display a still picture for a long period, as this could cause a residual image. - If the brightness is adjusted to the minimum setting, it may be difficult to see the screen. - The quality of the video signal may influence the quality of the display. We recommend using an equipment able to perform high quality video signals. - Never rub or tap the monitor with hard objects. - Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognised under law. - This monitor and its accessories may be upgraded without advance notice. - Do not use the monitor where ventilation is poor, where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire. - Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock. - Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it. - Do not use in places where the monitor will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire. - The monitor cannot rotate display images for portrait display. Content must be formatted to be longer vertically from the display source.

Manual Scope - In this manual, Microsoft Windows XP will be referred to as “Windows XP”, and Microsoft Windows 2000 as “Windows 2000”. When there is no need to distinguish between programmes, the term “Windows” will be used. - Microsoft and Windows are registered trademarks of Microsoft Corporation. - All other brand and product names are trademarks or registered trademarks of their respective holders. - Language of OSD menu used in this manual is English by way of example. - Illustrations in this manual may not exactly represent the actual product or display. Fluorescent Tubes ● The fluorescent tubes in this product have a limited lifetime. ● Because of the property of fluorescent tubes, the screen may flash during the initial period of use. If this happens, please turn off the main power switch of the monitor and turn on again to confirm operation.

E Contents Introduction IMPORTANT INFORMATION 1 DEAR SHARP CUSTOMER 3 SAFETY PRECAUTIONS 3 TIPS AND SAFETY INSTRUCTIONS 5 Supplied Accessories 7 Part Names 8 Front view 8 Rear view 8

Connection and Installation How to install the monitor 10 Mounting precautions 10 Connecting Peripheral Equipment 11 Connection with a PC 11 Connection with AV equipment12 Other terminals 13 Connecting External Speakers 13 Connecting the Power Cord14 Connecting Multiple Monitors 15 Removing the Temporary Stand 16 Removing the Handles 17 Preparing the Remote Control Unit 18 Setting the batteries 18 Remote control operation range 18

Basic Operation Turning Power On/Off 19 Turning on the main power 19 Turning power on/off19 Basic Operation 20 Switching the screen size 21 Menu Items 23 Displaying the menu screen 23 Menu Option Reference Chart 25 Menu item details 26 Adjustments for PC screen display 31 Initialisation (Reset)/Functional Restriction Setting32

PC Operation Controlling the Monitor with a PC 33 PC connection 33 Communication conditions 34 Communication procedure 35 RS-232C command table 42

Supplied Accessories

ENGLISH Make sure the following accessories are provided with the product. If any component should be missing, please contact your dealer. Liquid Crystal Display (1)

Remote control unit (1)

POW Stand hole protection cover (2)

ER INPU MUT E T MEN U BRIGHT BRIGHT DISL AY MOD E SIZE RRMC LC-450F G1004 MPPZ

● Operation manual (1)

● CD-ROM (1) (Utility Disk for Windows)

• Sharp Corporation holds authorship rights to the Utility Disk programme. Do not reproduce it without permission. • For environmental protection! Do not dispose of batteries in household garbage. Follow the disposal instructions for your area.

E Part Names LCD panel

• Use a pointed object such as a pen tip to press the switches at the front of the monitor. • The shape of the stand may change without prior notice.

Rear view Hooks RS-232C output terminal (See page 34.) RS-232C input terminal (See pages 33 and 34.) PC audio input terminal (See page 11.) PC analogue RGB input terminal (See page 11.) Audio input terminals (See page 12.) PC digital RGB (DVI-D) input terminal (See page 11.) Audio output terminals (See page 13.)

External speaker terminals (See page 13.)

PC digital RGB (DVI-D) output terminal (See page 15.)

This terminal is not available.

ENGLISH Signal transmitter

E How to install the monitor Mounting precautions • • • •

Since the monitor is heavy, consult your dealer before installation. Installing or moving the monitor must be done by three or more people. Do not hold the LCD panel when moving the monitor. This may cause product damage, failure, or injury. Install the monitor with the surface perpendicular to a level surface. If necessary, limit the tilt between 0 and 20 degrees downward. • Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling. • This monitor should be used at an ambient temperature between 0°C and 40°C. Provide enough space around the monitor to prevent heat from accumulating inside. Unit: cm

5 The Power LED must be on the lower side.

If it is difficult to provide such space because the monitor is installed inside a housing or for other reasons, take other measures to keep the ambient temperature between 0°C and 40°C such as installing a fan in the housing. This monitor must be installed in a vertical orientation only. It cannot be installed in a horizontal orientation. Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction. After mounting, it is recommended to take some measures to prevent the monitor from falling down. Secure the monitor by fastening the hooks at the top of the monitor to a wall or a pillar with strong cord and brackets (not included). Do not place the monitor on a device which generates heat. Be sure to use a stand or a wall-mount bracket designed or designated for mounting the monitor. This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation. This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure. This monitor is fixed to the temporary stand when shipped from the factory. Please note that this stand is for temporary use only until the monitor is properly mounted.

Connecting Peripheral Equipment

Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected.

Connection with a PC PC digital RGB input terminal PC audio input terminal Connect using a DVI cable (commercially available). PC analogue RGB input terminal

Connect using a PC analogue signal cable (commercially available).

Connect using a PC audio cable (commercially available). Use a cable without resistance for the PC audio cable.

• For compatible signal timing (see page 50). • The PC digital RGB input terminal can be connected with a PC which has a DVI-compliant output terminal. (However, images may not be displayed properly depending on the computer to be connected.) • Use the automatic screen adjustment when a PC screen is displayed for the first time with the analogue RGB connection, or when the setting of the PC is changed (see page 31). • When the analogue RGB connection is used, the type of sync signal is automatically determined (Composite sync, Horizontal/Vertical separate, or Sync-on-green). With some video signals, however, the sync signal may not be detected and images may not be displayed properly.

E Connecting Peripheral Equipment

Connection with AV equipment Component video input terminals

Connecting Peripheral Equipment

ENGLISH Other terminals Audio output terminals • Audio sounds which are input through the audio input terminal or PC audio input terminal are output. Connect to the audio input terminals of the connected equipment using an audio (RCA) cable (commercially available). • The audio output varies depending on the input mode selection (see page 20). • The volume level can be adjusted using the volume adjustment (see page 20).

PC digital RGB (DVI-D) output terminal The video from the PC digital RGB (DVI-D) input terminal can be output to external equipment. Use this terminal to connect multiple units in a daisy chain using digital signal (DVI) cables (commercially available). Refer to page 15 for a connection example.

RS-232C input/output terminals You can control the monitor from a PC by connecting an RS-232C straight cable (commercially available) between this terminal and the PC. (See pages 33 and 34.)

Connecting External Speakers Be sure to use external speakers with an impedance of 6 ohms and a rated input of at least 10 W. 1.While pushing the tab, insert the tip of the cable. 2.Release the tab. 1.

• Be sure to connect the + and - terminals and the left and right speakers properly. • Avoid short circuiting the + and - terminals.

E Connecting the Power Cord Caution

Do not use a power cord other than the one supplied with the monitor.

1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet.

1 3 For power outlet 2 AC input terminal

Disconnecting the power cord 1. Turn off the main power switch. 2. Unplug the power cord from the AC power outlet.

Power cord (Supplied)

Connecting Multiple Monitors

ENGLISH You can connect multiple monitors (up to 4 monitors) in a daisy chain by using the PC digital RGB input/ output terminals of this monitor.

PC digital RGB input terminal

Digital signal (DVI) cable (commercially available)

Shows the signal flow

• Multiple monitors cannot be connected in a daisy chain for audio. Connect the external audio amplifier (commercially available) to the audio output terminals. • The length of the signal cables or surrounding environment may affect the image quality.

E Removing the Temporary Stand Prepare wall-hanging brackets or a stand to mount the monitor unit. Read the manual for the brackets or stand for the proper mounting procedure. (The screw holes for mounting brackets (M10 x 4 holes) are provided on the rear of the monitor.) Caution

• The monitor is heavy. It must be handled by three or more people. • This monitor is fixed to the temporary stand when shipped from the factory. Please note that this stand is for temporary use only until the monitor is properly mounted.

1. Hold the monitor with the handles to prevent it from falling down, and remove the stand fixing screws (4).

2. Lift the monitor by holding it with the handles and the underside of the unit.

3. When the installation is complete, attach the included stand hole protection covers, using the supplied screws. (1) Remove the screws from the monitor unit. (2) Secure the stand hole protection covers with the screws removed in step (1).

• The temporary stand is specifically designed for this monitor. Do not use for other devices.

Removing the Handles

ENGLISH The handles are detachable.

After you removed the handles, be sure to replace the removed screws in the original holes.

E Preparing the Remote Control Unit Setting the batteries 1. Press the cover gently and slide it in the direction of the arrow. 2. See the instructions in the compartment and put in the supplied batteries (2 R-6 batteries) with their plus (+) and minus (-) sides oriented correctly. 3. Close the cover.

• The supplied batteries (2 R-6 batteries) may become exhausted faster depending on the storage condition. It is recommended that you replace them with new batteries (commercially available) earlier than specified. • If you will not use the remote control for a long time, remove the batteries. • If the remote control does not work, even with new batteries, take the batteries out, check whether they are facing the right way, then replace them. • Use manganese or alkaline batteries only.

Remote control operation range The operation range of the remote control unit is approx. 5 m at an angle of approx 10° from the centre to the top/bottom/right/left of the remote control sensor.

Remote control sensor

• Do not expose the remote control unit to shock by dropping or stepping on it. This could lead to a malfunction. • Do not expose the remote control unit to liquids, and do not place it in an area with high humidity. • The remote control unit may not work properly if the remote control sensor is under direct sunlight or strong lighting. In such cases, change the angle of the lighting, or operate the remote control unit closer to the remote control sensor. • Objects between the remote control unit and the remote control sensor may prevent proper operation. • Replace the batteries when they run low as this may shorten the remote control’s operation range. • If a fluorescent light is illuminated near the remote control unit, it may interfere with proper operation. • Do not use it with the remote control of other equipment such as air conditioner, stereo components, etc.

Turning Power On/Off • Turn on the monitor first before turning on the PC or playback device.

Turning on the main power

When the main power switch is off, the monitor cannot be turned on using the POWER button on the remote control unit.

Turning power on/off Press the POWER button to turn the power ON/OFF. Power “On”: Power LED lights up green. Power “Off”: Power LED lights up orange. (Standby mode)

Power LED INPUT Caution

• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. Rapid switching may result in a malfunction. TIPS

• When the input mode (see page 20) is set to “DIGITAL” or “ANALOG” and there is no video signal input, the backlight of the monitor is turned off and the monitor enters input signal waiting mode. (The power LED flashes green.) If the monitor is in this mode and you press the POWER button on the remote control unit, the monitor enters standby mode. • If the remote control unit is not available, you can turn on/off the monitor by pressing the (power) switch on the monitor with a pointed object.

E Basic Operation Generally the monitor is operated using the remote control unit. INPUT (Input mode selection) The input mode selection menu is displayed. Press or to select the input terminal, and press

the terminal. * If the remote control unit is not available, you can select the input terminal by pressing the input switch on the monitor with a pointed object. (See page 8) Audio

DIGITAL ANALOG COMPONENT VIDEO PC digital RGB input terminal PC analogue RGB input terminal Component video input terminal Composite video input terminal

MUTE Turns off the volume temporarily. Press the MUTE button again to turn the sound back to the previous level. MENU Displays and turns off the menu screen (see page 23). VOL +/- (Volume adjustment) Pressing or displays the VOLUME menu when the menu screen is not displayed.

to increase the volume, and

to decrease the volume.

* If you do not press any buttons for about 4 seconds, the VOLUME menu automatically disappears. BRIGHT +/- (Backlight adjustment) Pressing or displays the BRIGHT menu when the menu screen is not displayed.

to increase the brightness of the screen, and

the brightness of the screen. * If you do not press any buttons for about 4 seconds, the BRIGHT menu automatically disappears. SIZE (Screen size selection) Each time you press this button, the screen size changes in the following order (see pages 21 and 22): • WIDE → ZOOM 1 → ZOOM 2 → NORMAL → DotbyDot → WIDE...

ENGLISH MODE (Screen mode selection) Each time you press this button, the screen mode changes in the following order: • STD (Standard) → OFFICE *1 → VIVID → sRGB *2 → STD... *1 Display brightness is lowered. (This mode saves power.) *2 When the input mode is DIGITAL/ANALOG. sRGB is international standard of colour representation specified by IEC (International Electrotechnical Commission). Colour conversion is made in taking account of liquid crytal’s characteristics and represents colour tone close to its original image. DISPLAY Displays monitor information. The display disappears when this button is pressed again or disappears automatically after approximately 15 seconds.

Switching the screen size Switching the screen size (When the input mode is DIGITAL/ANALOG) Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE Displays image so it fills the entire screen.

NORMAL Displays image so it fills the screen without changing the aspect ratio of the input signals.

An image with a 4:3 aspect ratio is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.

Use this size if ZOOM 1 cuts off the subtitles.

Displays the dots of the signals input from the connected PC as the corresponding dots on the screen. *

* With a monitor with a screen resolution of 1600 x 1200, selecting DotbyDot displays the NORMAL screen.

E Basic Operation Switching the screen size (When the input mode is COMPONENT/VIDEO) Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE An image with a 4:3 aspect ratio is stretched to fill the entire screen.

An image with a 4:3 aspect ratio is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.

Displays the entire image of the aspect ratio of 4:3 without changing the aspect ratio.

Displays the dots of the input signals as the corresponding dots on the screen.*

Use this size if ZOOM 1 cuts off the subtitles.

* If “DotbyDot” is selected in the conditions below, the image quality cannot be changed by adjusting the value of “SHARPNESS” from the VIDEO ADJUSTMENT menu. · When the input mode is VIDEO · When the input mode is COMPONENT and images of 480i or 480p are displayed TIPS

• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful. • When “Enlarge” is set, the screen size is fixed to “WIDE” mode. • When dual-screen display is selected, the screen size cannot be changed. • When using the screen-size switching function of this monitor, the appearance of the original video may change if you select a screen size with a different aspect ratio than the original image (e.g. TV broadcast or video input from external equipment). Please consider this point when selecting the screen size. • When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen size to “NORMAL”. • When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction. • Depending on the original image size (e.g. CinemaScope size), black bands may remain at the edges of the screen.

ENGLISH Menus can be displayed on the screen to enable video and audio adjustment and the setting of various functions using the remote control unit. For more information, refer to the pages where each topic is explained.

) to adjust the setting.

to close the menu screen.

The menu screen will close automatically if no operation is performed for about 15 seconds. TIPS

• The displayed menu screen will differ depending on the input mode selection.

Menu screen display Name of the menu

GAIN CONTROL ANALOG MANUAL Names of setting items and their status

Displays the input mode currently being selected.

The currently selected item will be highlighted. 1920x1080

Displays the screen resolution, vertical frequency, horizontal frequency, or type of signal of the current input signal.

Yellow: Current setting Blue: Selectable items Grey: Item that cannot be selected (e.g. Function not supported by the current input signal)

ADJUSTMENT (See page 26.)

DIGITAL ANALOG COMPONENT VIDEO

― ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes ― ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes ― Yes Yes Yes Yes Yes Yes ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes ― ― ― ― ― ― ― ― Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

ENGLISH Menu Option Reference Chart

[MANUAL / AUTO] (ANALOG)

Adjusts CLOCK, PHASE, H-POS (horizontal positioning), and V-POS (vertical positioning). When Windows OS is used, the adjustment patterns in the supplied CD-ROM can be used. (See page 31.) MANUAL·············The CLOCK, PHASE, H-POS, and V-POS are manually adjusted. AUTO··················The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.Use this automatic adjustment when you use the PC analogue RGB input terminal to display a PC screen for the first time or when you change the setting of the PC. (See page 31.)

Adjusts BLACK LEVEL and CONTRAST. MANUAL·············The BLACK LEVEL and CONTRAST can be adjusted manually by checking the adjustment pattern. (See page 31.) AUTO··················The BLACK LEVEL and CONTRAST are automatically adjusted.

[CLOCK] Adjusts frequency for sampling clock for applicable video. Adjust when there is flickering in the form of horizontal stripes.When using the adjustment pattern (see page 31), make adjustments so that no horizontal stripe noise appears in it. [PHASE] Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are flickers at corners. When using the adjustment pattern (see page 31), make adjustments so that no vertical stripe noise appears in it. Adjustments to PHASE should be made only after CLOCK has been correctly set. [H-POS] Adjust the horizontal position of the image. [V-POS] Adjust the vertical position of the image. [RESET] When the button is pressed, all values for the ADJUSTMENT menu items are reset to the factory-settings.

[BLACK LEVEL] Adjusts the entire brightness of the video signals. [CONTRAST] Adjusts the brightness of the image.

COLOR CONTROL (DIGITAL/ANALOG) [WHITE BALANCE (colour temperature)] THRU··················Displays the input signal level as is. (through) (for DIGITAL only) PRESET ·············Allows selection from the preadjusted settings. (For a guide to the colour temperatures of the adjustment values, see page 29.) USER··················Allows adjustment of R-CONTRAST (red contrast), G-CONTRAST (green contrast), and B-CONTRAST (blue contrast). [R-CONTRAST] Adjusts red component. [G-CONTRAST] Adjusts green component. [B-CONTRAST] Adjusts blue component. [COPY TO USER] SET·····················Copies the value set for PRESET to the USER setting. [GAMMA] Select a gamma value.

[CONTRAST] Adjusts bright parts of the image. [BLACK LEVEL] Adjusts the entire brightness of the video signals. [TINT] Adjusts the hue. Selecting + changes the colour towards green, and selecting - changes it towards magenta.

MODE SELECT 2 [OFF TIMER] Set the time until the monitor turns off (enters standby mode) between 0 and 23 in units of one hour. This function is disabled when 0 is specified. [OSD H-POSITION] Adjusts the horizontal display position of menu screen. [OSD V-POSITION] Adjusts the vertical display position of menu screen.

Adjusts the colour intensity.

Sets the display language for the menu screen. displays the next menu. Pressing

[SHARPNESS] Adjusts the sharpness of the image. [WHITE BALANCE] Allows selection from the preadjusted settings. (For a guide to the colour temperatures of the adjustment values, see page 29.) [GAMMA] Select a gamma value.

MODE SELECT 1 [480 LINES] (ANALOG) Manually selects input resolution. [768 LINES] (ANALOG)

[SCREEN MOTION] [MOTION TIME 1] [MOTION TIME 2] When SCREEN MOTION is switched on, the screen image moves vertically and horizontally to reduce the rate of residual image formation. When the time specified in MOTION TIME 1 elapses, the screen image is moved vertically and horizontally for a certain period of time at the interval specified in MOTION TIME 2. After the movement stops and the time specified in MOTION TIME 1 elapses again, SCREEN MOTION activates again.While the screen image is moving, the edges of the screen may be hidden. [POWER ON DELAY]

Sets the frame width of the display when the enlargement function is used.

You can delay the screen display after the monitor is turned on. The period can be set up to 60 seconds in units of one second. When this function is activated, the power LED flashes in orange. This function is disabled when 0 is specified.

[ENLARGE] (DIGITAL/ANALOG)

Sets the number of screen splits used for the enlargement. (See page 30.)

Assigns ID numbers to monitors connected in a daisy chain (see page 36), using RS-232C cables. The numbers 1 to 255 are available for ID numbers. If “0” is set, the system regards this as the state where no ID number is set.

Manually selects input resolution. [BEZEL] (DIGITAL/ANALOG)

[ENLARGE-POS] (DIGITAL/ANALOG) Specify the split screen to be displayed when the enlargement function is used. (See page 30.) [MULTI ZOOM] (DIGITAL/ANALOG) Adjusts the enlarged screen. displays the next menu. Pressing IMAGE ZOOM ····Adjusts the scale of enlargement. H-POS ················Adjusts the horizontal position. V-POS ················Adjusts the vertical position.

ENGLISH VIDEO ADJUSTMENT (COMPONENT/VIDEO)

[COLOR SYSTEM] Select the colour system of the AV equipment which is connected to the composite video input terminal. (AUTO / PAL / PAL-60 / SECAM / NTSC3.58 / NTSC4.43) When AUTO is selected, the colour system is automatically set according to the input signal.

[AUDIO] Adjust the volume of the sound output from the speaker. displays the next menu. Pressing TREBLE ·············Adjusts the volume of treble-level sound. BASS ··················Adjusts the volume of bass-level sound. BALANCE ···········Adjusts the balance of the audio sound between right and left.

E Menu Items MODE SELECT 3 [PIP MODES] (See page 29) Sets the display method. OFF ····················Displays one screen. PIP ······················Displays a sub screen inside a main screen. PbyP ···················Displays a main screen and a sub screen in a line. PbyP2 ·················Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line. [PIP SIZE] Sets the size of the sub screen in PIP mode. [PIP H-POS] Adjusts the horizontal position of the sub screen in PIP mode. [PIP V-POS] Adjusts the vertical position of the sub screen in PIP mode. [PIP BLEND] In PIP mode, use this menu item to display the sub screen transparently. [PIP SOURCE] Selects the signal input of the sub screen in PIP, PbyP, or PbyP2 mode. [SOUND CHANGE] Sets the sound which is output in PIP, PbyP, or PbyP2 mode. If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even when the sound for the sub screen is specified. [MAIN POS] Sets the position of the main screen in PbyP or PbyP2 mode. [PbyP2 POS] Sets the position of the sub screen in PbyP2 mode. [AUTO OFF] Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode. AUTO··················Displays the main screen as a full screen. MANUAL·············Displays a main screen and a black sub screen. TIPS

• When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST and GAMMA cannot be set. • When MODE is set to sRGB or VIVID, COLOR CONTROL cannot be set. (DIGITAL/ANALOG) • When MODE is VIVID, WHITE BALANCE and GAMMA cannot be set. (COMPONENT/VIDEO)

ENGLISH Guide to the colour temperatures of the adjustment values The following is a guide to the colour temperatures of the respective adjustment values for WHITE BALANCE. Factory-adjusted value is “13” (approx. 9,000K). Adjustment Colour Adjustment Colour Adjustment Colour value temperature (K) value temperature (K) value temperature (K) 15

Dual screen display You can display the screens of the PC input signal (DIGITAL/ANALOG) and AV input signal (COMPONENT/VIDEO) simultaneously. Set this function with “PIP MODES” in the MODE SELECT 3 menu. (See page 28.) • The currently selected input signal is displayed on the main screen. • You cannot simultaneously display the screens of signals of the same type, such as two types of PC input signals or two types of AV input signals. PIP Example

A sub screen is displayed inside a main screen.

A main screen and a sub screen are displayed in a line.*

Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

* When you select “COMPONENT” on the PbyP main screen and the 1080i video signal is input, the image quality cannot be changed even if you adjust the value for “SHARPNESS” on the VIDEO ADJUSTMENT menu. TIPS

• You might infringe on a copyright of the author which is protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for profit-making or to show the image to the public. • The screen size for dual-screen display is the same as the screen size for single-screen display. The DotbyDot screen is displayed in NORMAL size except when it is set as the PIP main screen. • When dual-screen display is selected, the SCREEN MOTION function is disabled. • When dual-screen display is selected, the screen cannot be enlarged.

E Menu Items Enlarge You can set up 4, 9, or 16 monitors and integrate them into a single large screen to display video. Each monitor displays an enlargement of 1/4, 1/9, or 1/16 of the original image. TIPS

• AV input signals (COMPONENT/VIDEO) cannot be used for the Enlarge function. • To integrate 9 or more monitors using DIGITAL signals, a splitter for the video signal (commercially available) is required. • When connected in ANALOG mode, a splitter for the video signal (commercially available) is required. • When Enlarge is used, the SCREEN MOTION function is disabled. 4 screen monitor set-up

9 screen monitor set-up

16 screen monitor set-up

When you use the PC analogue RGB input terminal to display a PC screen for the first time, or when you change the setting of the PC, you need to perform the automatic adjustment from the ADJUSTMENT menu. (See page 26.) Before making adjustments in the ADJUSTMENT menu or GAIN CONTROL menu, display an image to brighten the entire screen. If you are using a Windows PC, use the adjustment pattern on the supplied CD-ROM.

ENGLISH Adjustments for PC screen display

Retrieving the adjustment pattern 1. 2. 3. 4.

Connect the monitor and computer. Load the supplied CD-ROM into the computer’s CD-ROM drive. Open the CD-ROM in [My Computer]. Double-click [Adj_uty.exe] to start the adjustment programme. The adjustment pattern will appear. Adjust the screen automatically or manually.

5. When adjustment is finished, press the [Esc] on the computer’s keyboard to quit the adjustment programme. 6. Eject the CD-ROM from the CD-ROM drive. TIPS

• If the display mode on the computer you are using is 65,000 colours, the colour levels in the colour pattern may appear differently or greyscale may appear to be coloured. (This is due to the specifications of the input signal and is not a malfunction.)

Automatic adjustment procedure 1. Set the input mode to “ANALOG” and display the adjustment pattern above. MENU and display the ADJUSTMENT menu. 2. Press 3. Press 4. Press

and select “AUTO”. The automatic adjustment is complete in several seconds. MENU

six times to close the menu screen.

• If the screen cannot be adjusted properly with one automatic adjustment, repeat the automatic adjustment two or three times. Try manual adjustment if necessary.

E Initialisation (Reset)/Functional Restriction Setting You can return contrast, image quality, and other settings to their factory-preset values, specify whether power LEDs lights, and enable control via RS-232C (see page 33) among other functions.

for about 5 seconds, press The FUNCTION 1 screen will appear.

2. Select and set the items you want. [ALL RESET] Resets the monitor settings other than the POWER ON DELAY settings to the factory default settings. After initialisation (reset), turn the main power switch off and then back on. [ADJUSTMENT LOCK] Disables operation. OFF ···············Enables operation. 1 ····················Disables operation other than turning power on/off and displaying the “FUNCTION 1” screen. 2 ····················Disables operation other than displaying the “FUNCTION 1” screen. [OSD DISPLAY] Hides/shows menus. The FUNCTION 1 screen cannot be hidden. OFF ···············Hides the menus. ON ·················Displays the menus. [LED] Specifies whether to light power LEDs. OFF ··········· Does not light power LEDs. ON ············· Lights power LEDs. [RS-232C] Specifies whether to allow control via RS-232C (see page 33). LOCKED ········Disables control via RS-232C. UNLOCKED···Enables control via RS-232C.

to return to the normal screen.

Controlling the Monitor with a PC PC connection

ENGLISH You can control this monitor from a PC via RS-232C (COM port) on the PC. You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 36), you can make input mode selection/adjustment or can check the status of a specific monitor.

One-to-one connection with a PC Basic operation Connect with RS-232C straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal of the monitor. RS-232C input terminal To RS-232C input terminal

RS-232C straight cable (commercially available)

E Controlling the Monitor with a PC Daisy chain connection from a single PC Advanced operation Connect with RS-232C straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal of the first monitor. Next, connect RS-232C straight cable to the first monitor’s RS-232C output terminal and to the second monitor’s RS-232C input terminal. Connect in the same way to the third and subsequent monitors. Up to 20 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.) ▼ First monitor

RS-232C straight cable (commercially available)

Communication conditions Set the RS-232C communication settings on the PC to match the monitor’s communication settings as follows: Baud rate Data length Parity bit

9,600 bps 8 bits None

Stop bit Flow control

Controlling the Monitor with a PC ENGLISH Communication procedure Basic operation <Command format> When a command is sent from the PC to the monitor, the monitor operates according to the received command and sends a response message to the PC. Return code C1

Command field (4 prescribed alphanumerical characters)

Parameter field (4 character string comprised of: 0-9, +, -, space, ?)

When inputting a negative value, specify a numerical value in three digits. Example: AUTR-009

To use the six-digit command (MPOS), use a six-digit numerical value without spaces in between. Example: MPOS010097

If a command has “R” listed for “DIRECTION” in the “RS-232C command table” on page 42, the current value can be returned by using “?” as the parameter. Example: 1. If an ID number has not been set: VOLM???? ← From PC to monitor (How much is current volume setting?) 30 ← From monitor to PC (Current volume setting: 30) 2. If an ID number has been assigned (For example, ID number = 1) VOLM ? ← From PC to monitor (“ ” indicates a space.) 30 001 ← From monitor to PC (“ ” indicates a space.)

<Response code format> When a command has been executed correctly

O Return code (0DH, 0AH)

K This is returned when execution of the command is finished.

When a command has not been executed correctly* * This is returned when there is no such command, or when the command cannot be used in the current E R R state of the monitor . * If communication has not been established for reasons such as a bad connection between the PC and monitor, nothing is returned (not even ERR). If execution of the command is taking some time Return code (0DH, 0AH)

W A I Return code (0DH, 0AH)

T With some commands, “WAIT” is returned as a return value. Wait for a moment, and OK or ERR will be returned. New commands cannot be received during this time, even if they are sent.

If RS-232C is locked Return code (0DH, 0AH)

L O C K E D If RS-232C control has been locked with the operation lock (see page 32), LOCKED is returned as the returned value.

E Controlling the Monitor with a PC Advanced operation This section explains commands for daisy chain connection. The basic communication procedure is the same as in the “Basic operation” section.

<ID numbers> You can assign a unique ID number to each monitor (see page 27). This allows you to control a particular monitor in a daisy chain of monitors. You can assign ID numbers either from the menu screen (using the remote control) or from the PC using RS-232C cable. [Example] ID number: 1

PC If monitors are connected as shown above, you can execute commands like “Set the volume of the monitor with ID 4 to 20”. When controlling monitors linked in a daisy chain by designating ID numbers, you should basically avoid any duplication of ID numbers. ID numbers do not have to be assigned in ascending order starting from the PC. They can also be connected as shown below. [Example] ID number: 3

Controlling the Monitor with a PC The command examples shown on this page assume the following connection and ID number set up. ID number: 1

<Commands for ID control>

PC IDSTA monitor receiving this command sets its own ID number in the parameter field. Example: IDST0001 OK 001 ← The ID number of this monitor is set to 1.

TIPS You can automatically assign ID numbers by using the IDST command with the Repeater control (see “Repeater control” on page 39). For example, using the command “IDST001+” automatically sets the ID numbers as shown below. [Example] ID number: 1

PC IDST001+ ← ID setting command with repeater control WAIT OK 001 ← “OK” response from ID number: 1 002 ← “OK” response from ID number: 2 OK OK 003 ← “OK” response from ID number: 3 OK

004 ← “OK” response from ID number: 4 (End)

E Controlling the Monitor with a PC IDSL The parameter of this command sets the ID number of the monitor. The monitor is subject to the next command. Example: IDSL0002 WAIT OK 002 VOLM0030 WAIT OK 002 VOLM0020 OK 001

← The next command is for the monitor with ID number: 2. ← Searching for monitor with ID number: 2 ← Found monitor with ID number: 2 ← Sets volume of monitor with ID number: 2 to 30. ← Processing ← OK response from monitor with ID number: 2 The IDSL command is ← Sets volume to 20. effective only once, for the ← The volume of the monitor with ID number=1 immediately succeeding (the one directly connected to the PC) is set to 20. command.

IDLK The parameter of this command sets the ID number of the monitor. The monitor is subject to all subsequent commands. Example: IDLK0002 WAIT OK 002 VOLM0030 WAIT OK 002 VOLM0020 WAIT OK 002 IDLK0000 WAIT OK 002 VOLM0010 OK 001

← Following commands are for the monitor with ID number: 2. ← Searching for monitor with ID number: 2 ← Found monitor with ID number: 2 ← Sets volume of monitor with ID number: 2 to 30. ← Processing ← Sets volume of monitor with ID number: 2 to 20.

The IDLK command remains effective until it is canceled, or power is shut off.

← Canceling fixed ID number setting ← Canceling IDLK ← Cancelation complete ← The volume of the monitor with ID number=1 (the one directly connected to the PC) is set to 10. (IDLK is canceled.)

IDCK Provides screen display of the ID number currently assigned to a monitor, and the ID number currently set for IDLK (if any). Example: (After executing IDLK0002) IDCK0000 ← (Parameter has no meaning.) ID:001 IDLK:002 ← Returned response. The ID number is also displayed on the monitor screen. IDCK000+ ← Repeater control (If a command is used with repeater control, ID designation using IDSL or WAIT IDLK is canceled.) ID:001 IDLK:000 ID:002 IDLK:000 ID:003 IDLK:000 ID:004 IDLK:000

Controlling the Monitor with a PC ENGLISH

<Repeater control> This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers. [Example] Set 1

PC If monitors are connected as shown above, you can execute a command like “Set all monitors’ input settings to DVI: DIGITAL”.

<Repeater control command> Repeater control is achieved by setting the FOURTH CHARACTER of the parameter to “+”. Example: VOLM030+

← Sets volume of all monitors to 30.

In repeater control, responses are returned by all the connected monitors. If you want to determine that a value has been returned by a specific set, assign ID numbers to each monitor in advance. When some monitors do not return their responses, the probable cause is that the monitors could not receive the command or command processing is not complete. Do not send a new command. Example: (When 4 monitors are connected, and assigned ID numbers: 1 through 4) VOLM030+ WAIT 001 OK OK 002 OK 003 OK 004 ← If 4 monitors are connected in a chain, reliable operation can be ensured by sending a new command only after a reply has been returned by 4th (last) monitor. Repeater control can also be used for reading settings. Example: VOLM???+ WAIT 10 001 20 002 30 003 30 004

Volume settings for all monitors are returned.

• If repeater control is used during ID designation (IDSL, IDLK), the ID designation is canceled.

E Controlling the Monitor with a PC <Response format in Advanced operation > When a command has been executed correctly • Response when no ID number has been set

O A response is returned when execution of the pertinent command is finished.

Return code (0DH, 0AH)

• Response when an ID number has been set Space (20H)

ID number of responding monitor

When a command has not been executed correctly* • Response when no ID number has been set

E R Return code (0DH, 0AH)

• Response when an ID number has been set Space (20H)

* This is returned when there is no such command, or when the command cannot be used in the current state of the monitor. * If communication has not been established for reasons such as a bad connection between the PC and monitor, nothing is returned (not even ERR). * If no monitor has been assigned the designated ID number (e.g. if the command IDSL0002 is used, but no monitor with ID number: 2 is found), no response is returned.

Controlling the Monitor with a PC W A I Return code (0DH, 0AH)

T ENGLISH If execution of the command is taking some time

When the following commands are used, “WAIT” is returned. In this case, a value will be returned if you wait a while. Do not send any command during this period. No ID number is attached to WAIT response. • Commands which return WAIT: - When repeater control is used - When an IDSL or IDLK command is used - When one of the following commands is used: RSET, INPS, ASNC, WIDE, EMAG, EPOS, PXSL, POWR, AGIN, MWIN, MWIP, MWPP. When control via RS-232C is locked (to prevent use) using the operation lock function (see page 32)

L O C K E D Return code (0DH, 0AH)

If the current parameter is read out using “?” for the parameter (for numerical values etc.) • Response when no ID number has been set Example: VOLM???? 10 • Response when an ID number has been set (In the example below: ID number = 1) Example: VOLM???? 10 001

<Communication interval> • After OK or ERR is returned, you must send the following commands. To set a timeout for the command response, specify 10 seconds or longer. • Provide an interval of 100 ms or more between the command response and the transmission of the next command. VOLM0020 OK Interval of 100 ms or more INPS0001 WAIT OK

E Controlling the Monitor with a PC RS-232C command table <How to read the command table> Command: Direction:

Command field (See page 35.) W When the “Parameter” is set in the parameter field (see page 35), the command functions as described under “Control/Response Contents”. R The returned value indicated under “Reply” can be obtained by setting “????”, “ ?” or “???+” (repeater control) in the parameter field (see page 35). Parameter field (See page 35.) Response (Returned value)

* “Yes” indicates commands which can be used in power standby mode.

Power control/Input mode selection Control item

Input signal waiting mode

Toggle change for input mode

PC digital RGB (DVI) (DIGITAL)

PC digital RGB (DVI) (DIGITAL)

Controlling the Monitor with a PC Control item

WHITE BALANCE THRU Command

ENGLISH Picture Adjustment (DIGITAL)

Returns current resolution in the form of hhh, vvv.

E Controlling the Monitor with a PC Picture Adjustment (ANALOG) Control item

ADJUSTMENT Direction

Adjusts the position in the longest direction.

Adjusts the position in the shortest direction.

CHECK PXCK R PIXEL SETTING PXSL WR GAMMA RESOLUTION

Returns current resolution in the form of hhh, vvv.

Controlling the Monitor with a PC Control item

ENGLISH Picture Adjustment (COMPONENT/VIDEO)

RESOLUTION CHECK RESO R Yes

WR WR SUB SCREEN POSITION MHPS MVPS WR WR PIP V/H-POS MPOS WR PIP BLEND PIP SOURCE MWBL MWIP WR WR SOUND CHANGE MWAD WR MAIN POS (Main screen)

MWPP WR PbyP2 POS (Sub screen)

MW2P WR AUTO OFF MOFF WR TREBLE BASS BALANCE OFF TIMER AUTR AUBS AUBL OFTM WR WR WR WR ID NUMBER OFTR IDST R W R W AUDIO ID NO. SETTING ID NO. SETTING (ONCE)

IDLK W ID CHECK IDCK W

Control/Response contents OFF PIP PbyP PbyP2 SMALL MEDIUM LARGE Adjusts the position in the longest direction. Adjusts the position in the shortest direction. Specify the position in MPOSxxxyyy format (xxx: Longer side, yyy: Shorter side position). The response is (xxx, yyy).

Yes TIMER OFF OFF TIMER Remaining time Sets the monitor’s ID number. (“0” means “no ID number”.) Returns the monitor’s ID number. Sets a monitor ID number. This ID number is only effective for the command immediately after this command. Clears the ID number if one has been designated. Sets a monitor ID number. This ID number is effective for the next and all subsequent commands after this command. Clears the ID number if one has been designated.

Displays selected ID number and the monitor’s own ID number on the screen. 0: AUTO, 1: PAL, 2: PAL-60, 3: SECAM, 4: NTSC3.58, 5: NTSC4.43

E Controlling the Monitor with a PC Control item

Control/Response contents 0: OFF LED ON LED OFF SCREEN MOTION OFF SCREEN MOTION ON The time is set in units of 10 seconds. Power On Delay OFF Power On Delay ON ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL РУССКИЙ Internal temperature normal Internal temperature abnormal (Standby mode) Internal temperature abnormal (Temperature is normal now, but it was abnormal during operation.) Internal temperature abnormal (Brightness of the backlight decreases.) Temperature sensor abnormal Initialisation No detectable error has occurred Standby mode by remote control Standby mode by power switch on the monitor Standby mode by RS-232C Waiting mode by No Signal/Out of Timing (Incl: VESA DPMS/DMPM) Standby mode by abnormal temperature Standby mode by OFF TIMER function

* Yes Yes Yes Yes Yes

There is no picture or sound.

Remote control does not work.

Sound from left and right speakers is reversed. Sound is heard from only one side.

There is a picture but no sound.

• Is the power cord disconnected? • Is the main power switch set to “OFF (O)”? • Is the monitor in standby mode (the power LED illuminating in orange)? • Make sure correct input mode is selected. • If any external equipment is connected, make sure the equipment is operating (playing back).

• Are the batteries inserted with polarity ( , ) aligned? • Are the batteries worn out? • Point the remote control unit toward the monitor’s remote control sensor. • Is the menu display hidden or is operation disabled?

• Are audio cables connected properly? • Make sure audio cables for external speakers are connected properly: left and right cables may be reversed or one of the two cables may not be connected. • Check the setting of BALANCE for AUDIO.

• Is the sound muted? • Make sure the volume is not set to minimum. • Is the PC audio cable (commercially available) connected? • Are audio cables connected properly? • Is the audio signal input properly to the audio input terminal corresponding to the selected video input terminal?

ENGLISH Before calling for repair services, make sure following checks for possible remedies to the encountered symptoms.

• Check “COLORS” and “TINT” adjustments. • Make sure the connection sequence is correct.

• The signal may be incompatible. • Try the automatic screen adjustment when the PC analogue RGB input terminal is used.

Control buttons do not work. The remote control does not work. There is no picture.

Some kind of load noises from outside might interfere with normal operation. • Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

• When the internal temperature of the monitor rises excessively, the brightness of the backlight decreases in order to prevent high-temperature-related problems. Remove the cause of the excessive rise in temperature.

E Troubleshooting Warning when temperature rises • When the internal temperature of the monitor rises excessively, the brightness of the backlight decreases automatically in order to prevent high-temperature-related problems. When this occurs, “TEMPERATURE” is displayed on the screen and the Power LED flashes red and green alternately. • If the internal temperature rises further, the monitor automatically enters standby mode. (The Power LED continues flashing red and green alternately.) Solution: • If the monitor enters standby mode due to a rise in temperature, to return to normal display, turn the main power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 10.) • Check whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked. • Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask Sharp dealer about removing internal dust.

Cracking sound The monitor sometimes makes a cracking sound. • You may hear cracking sound from the monitor. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor’s performance.

Specifications Model LCD element Max. resolution (pixels) Max. colours Pixel pitch Viewing angle Screen active area (mm) Computer input signal Sync signal Video colour system Plug and play Power management Input terminals

Power requirement Operating temperature Operating humidity Power consumption Dimensions (mm) Weight (kg)

ENGLISH Product Specifications PN-655RE 65" wide (163.9 cm diagonal) ASV low-reflection black TFT LCD 1080 x 1920 16.77 M colours (8 bits/colour) 0.744mm (H) x 0.744mm (V) 170° right/left/up/down (contrast ratio ≥10) 804 X 1428 Analogue RGB (0.7Vp-p) [75Ω], Digital (DVI 1.0 standard-compliant) Horizontal/vertical separate (TTL: positive/negative), Sync-on-green, Composite sync (TTL: positive/negative) PAL, PAL-60, SECAM, NTSC (3.58MHz), NTSC (4.43MHz) VESA DDC2B VESA DPMS, DVI DMPM Computer signal Analogue Mini D-sub 15 pin, 3 rows x 1 Digital DVI-D 24 pin x 1 Computer audio 3.5 mm mini stereo jack x 1 Serial (RS-232C) D-sub 9 pin x 1 Composite video BNC x 1 Component BNC(Y, Cb/Pb, Cr/Pr) x 1 Audio RCA pin (L/R) x 1 Computer signal Digital DVI-D 24 pin x1 Serial (RS-232C) D-sub 9 pin x 1 Audio RCA pin (L/R) x 1 Speaker 10 W + 10 W [6Ω] AC 100 V – 240 V, 50/60 Hz 0°C to 40°C 20% to 80% (no condensation) 560 W (Input signal waiting mode: 2.0 W, Standby mode: 2.0 W) Approx. 923 x 150 x 1,572 (excluding protrusions) Approx. 66

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product imporovement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. Power management This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor’s power management function to work. DPMS: Display Power Management Signaling

DMPM: Digital Monitor Power Management

E Specifications DDC (plug and play) The monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters is exchanged between the two. This function can be used if the computer supports DDC and it has been configured to detect plug-and-play monitors. There are several types of DDC, depending on the communication method used. This monitor supports DDC2B. Compatible signal timing (PC)

Hsync 31.5 kHz 37.9 kHz 37.5 kHz 37.9 kHz 48.1 kHz 46.9 kHz 31.0 kHz 48.4 kHz 56.5 kHz 60.0 kHz 67.5 kHz 47.8 kHz 60.3 kHz 60.0 kHz 64.0 kHz 80.0 kHz 47.7 kHz 75.0 kHz 44.7 kHz 66.3 kHz 31.5 kHz 48.3 kHz 53.6 kHz 56.6 kHz 61.8 kHz 71.8 kHz 71.7 kHz 81.1 kHz 68.6 kHz

Vsync 60 Hz 72 Hz 75 Hz 60 Hz 72 Hz 75 Hz 60 Hz 60 Hz 70 Hz 75 Hz 75 Hz 60 Hz 75 Hz 60 Hz 60 Hz 75 Hz 60 Hz 60 Hz 60 Hz 60 Hz 70 Hz 60 Hz 66 Hz 70 Hz 66 Hz 76.2 Hz 67.2 Hz 76 Hz 66 Hz

Dot frequency Analogue signal Digital signal Yes Yes 25.175 MHz Yes Yes 31.5 MHz Yes Yes 31.5 MHz Yes Yes 40.0 MHz Yes Yes 50.0 MHz Yes Yes 49.5 MHz Yes Yes 33.75 MHz Yes Yes 65.0 MHz Yes Yes 75.0 MHz Yes Yes 78.75 MHz Yes Yes 108.0 MHz Yes Yes 79.5 MHz Yes Yes 102.25 MHz Yes Yes 108.0 MHz Yes Yes 108.0 MHz Yes Yes 135.0 MHz Yes Yes 85.5 MHz Yes Yes 162.0 MHz Yes Yes 74.4 MHz Yes Yes 148.5 MHz Yes Yes 28.3 MHz Yes 64.13 MHz Yes 70.4 MHz Yes 74.25 MHz Yes 94.88 MHz Yes 108.23 MHz Yes 117.01 MHz Yes 134.99 MHz Yes 135.76 MHz

* Displays a reduced image. * All are compliant only with non-interlaced. * Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input. * The frequency values for the Sun Ultra Series are reference values. A separate conversion adapter (commercially available) may be required for connecting the monitor to the Sun Ultra Series.

Function N.C. Transmitted data Received data Data terminal ready

Function Data set ready Request to send Clear to send N.C.

RS-232C output terminal pins (D-sub 9 pin)

Function Carrier detect Received data Transmitted data Data terminal ready

Function Data set ready Request to send Clear to send Ring indicator (open)

Screw holes for mounting brackets

When mounting the monitor, read the manual of the brackets or stand for their mounting procedure. The screw holes for mounting brackets (M10 x 4 holes) are provided on the rear of the monitor. Note that screw hole depth of the monitor is 30 mm. Loose holding may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 20 mm length of thread. SHARP recommends using mounting interface that comply with UL1678 standard.

Audioeingangsanschlüsse

WR UNTERFENSTER-POSITION MHPS MVPS WR WR PIP V/H-POS MPOS WR MWBL WR

OFTR IDST R W R W AUDIO <TON>

DMPM: Digital Monitor Power Management

MWAD WR MAIN POS (Ecran principle)

MWPP WR PbyP2 POS (Ecran annexe)

MW2P WR AUTO OFF MOFF WR TREBLE <AIGUS> BASS <GRAVES> BALANCE OFF TIMER <MINUTERIE>

AUTR AUBS AUBL OFTM WR WR WR WR ID NUMBER OFTR IDST R W R W AUDIO ID NO. SETTING ID NO. SETTING (UNE FOIS)

VOLUME MUTE VLMP VOLM MUTE WR WR WR ALL RESET <TOTAL RESET>
