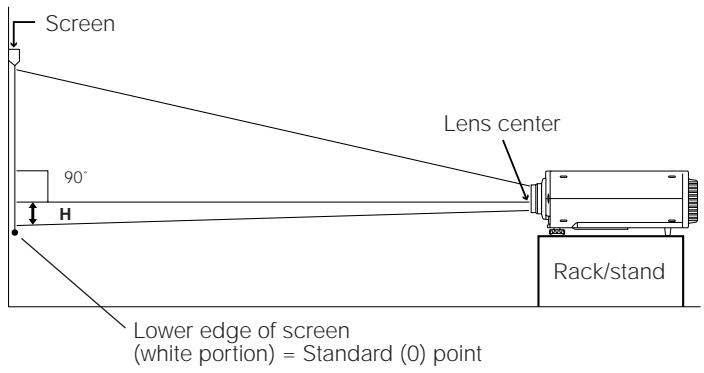

• Setting Up the Projector 82
• Setting Up the Projector 91
• Using the Image Invert/Reverse Function 11
• Using the Image Invert/Reverse Function 11
• Connecting the Projector (IDEQ-1) (IDEQ-2) 14
• Connecting the Projector (VIDEO 1,VIDEO 2) 14
• Connecting the Projector (PCR 1,2; Computer) 15

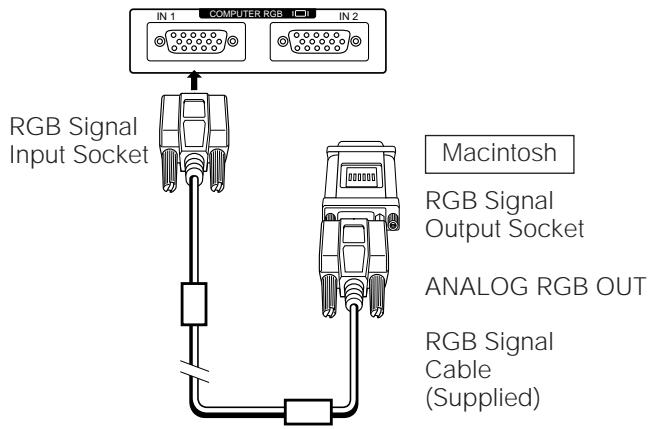

• Connecting the Projector (RGB 1, 2: Computer) 15

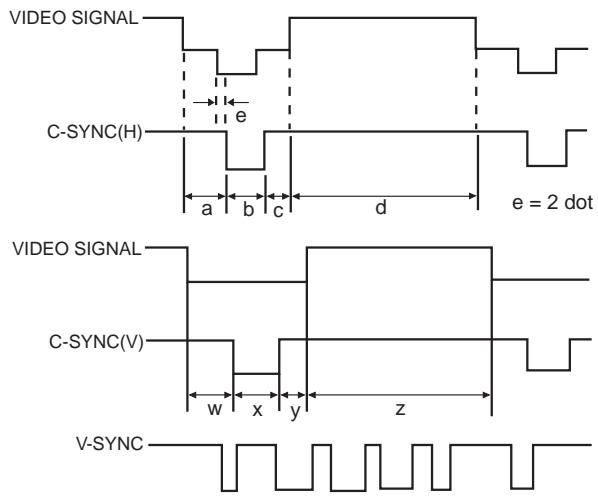

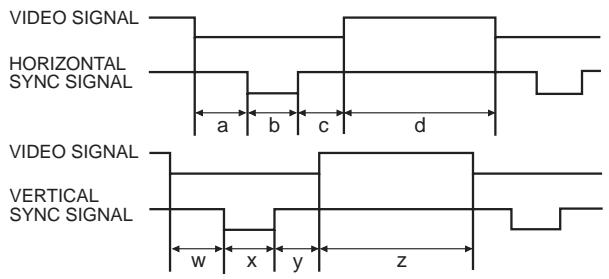

• Input Signal (Recommended Timing) 18
  Input Signals (Recommended Timing) 18
  BCR Adjustment Controls 19
  RGB Adjustment Controls 19
  Basic Operation of the Projector 21
  Basic Operation of the Projector 214
  Adjusting the Picture 24
  Adjusting the Audio 25
  Adjusting the Audio 25
  Functions on the Projector 26
  Air Filter Maintenance 29
  Lamp/Maintenance Indicators 30
  Before Calling for Service 30
  Lamp Replacement 31
• Connection Pin Assignments 33
• RS-232C Terminal Specifications 34
  Wired Remote Control Terminal Specifications 36
• Specifications 37
• Dimensions 38

Table des matieres E

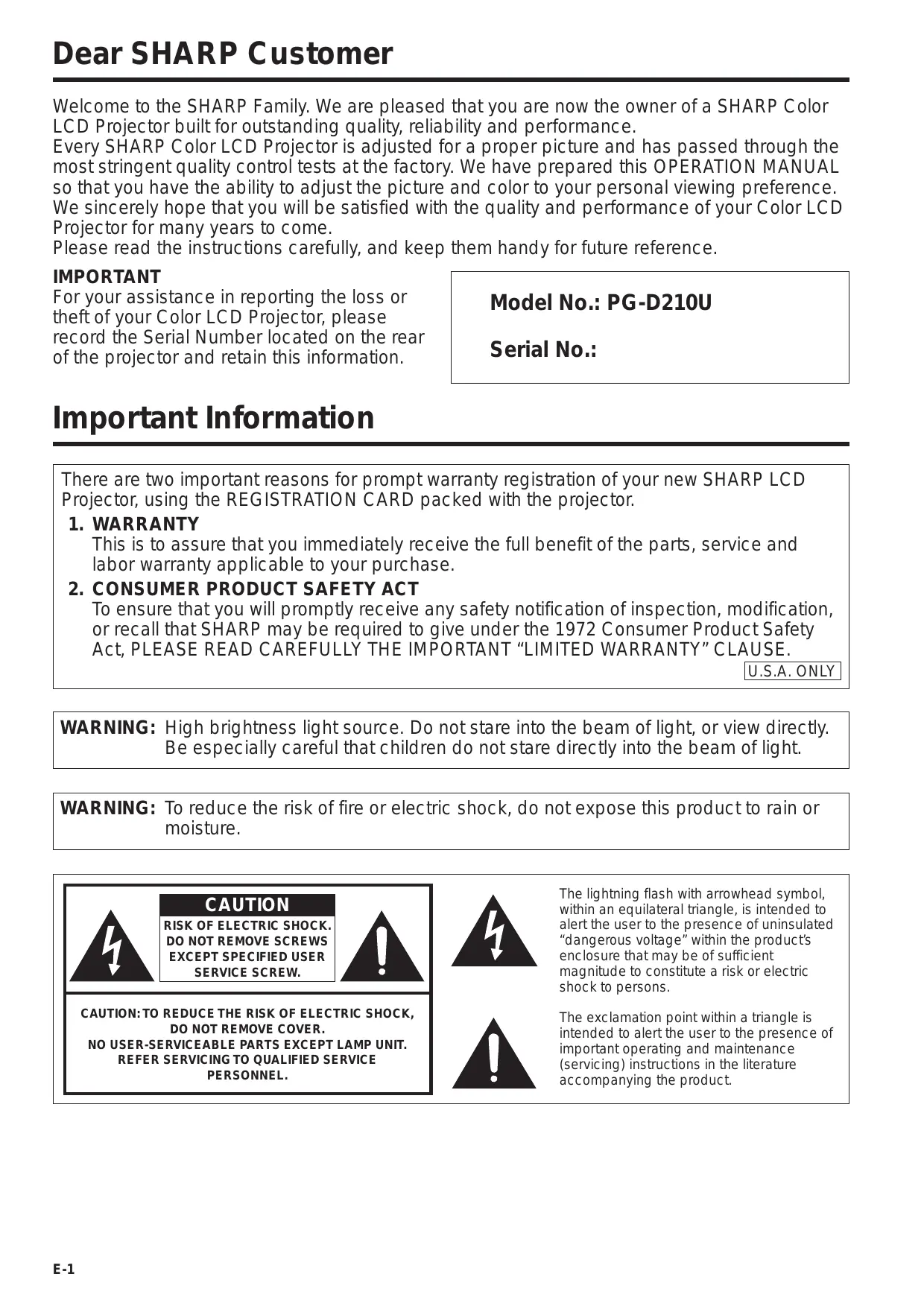

Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color LCD Projector built for outstanding quality, reliability and performance.

Every SHARP Color LCD Projector is adjusted for a proper picture and has passed through the most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL so that you have the ability to adjust the picture and color to your personal viewing preference.

We sincerely hope that you will be satisfied with the quality and performance of your Color LCD Projector for many years to come.

Please read the instructions carefully, and keep them handy for future reference.

IMPORTANT

For your assistance in reporting the loss or theft of your Color LCD Projector, please record the Serial Number located on the rear of the projector and retain this information.

Model No.: PG-D210U

Serial No.:

Important Information

There are two important reasons for prompt warranty registration of your new SHARP LCD Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

U.S.A. ONLY

The enclosed RGB signal cable and Macintosh adaptor must be used with the device. The cable and adaptor are provided to ensure that the device complies with FCC Class A verification.

U.S.A. ONLY

Important Safeguards

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to ensure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its installation, use and servicing. For your own protection and reliable usage of your LCD Projector, please be sure to read these "Important Safeguards" carefully before use.

1. Read Instructions—All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions—The safety and operating instructions should be retained for future reference.
3. Heed Warnings—All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions—All operating and use instructions should be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments—Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture—Do not use this product near water – for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

1. Ventilation—Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization—This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

4. Power-Cord Protection—Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Lightning—For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

6. Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
7. Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
8. Servicing—Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—this indicates a need for service.

1. Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
2. Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
3. Wall or Ceiling Mounting—The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
4. Heat—The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Cautions Concerning the Laser Pointer

"COMPLIES WITH 21 CFR SUBCHAPTER J" SHARP ELECTRONICS CORPORATION SHARP PLAZA, MAHWAH, NEW JERSEY 07430

TEL:1-800-BE-SHARP

REMOTE CONTROL
MODEL NO.: G1414CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUE AU JAPON

The laser pointer on the remote control emits a laser beam from the laser light window shown in the figure to the left. The laser emitted is a class II laser; therefore, do not look into the laser window or shine the laser beam on yourself or other people. The three marks to the left are the caution labels for the laser beam.

Always use the laser pointer at temperatures between 41^ and 104^ (+5^ and +40^) .

Caution:

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

About the Temperature Monitor Function:

• If the projector starts to overheat due to set-up problems or a dirty air filter, "TEMP." will flash in the upper-left corner of the picture. If the temperature continues to rise, then the lamp will turn off, the TEMPERATURE WARNING indicator will flash, and after a 90-second cooling-off period the power will shut off. Refer to page 30, "Maintenance Indicators," when the "TEMP." warning appears in the picture.
• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during operation due to changes in the fan speed.

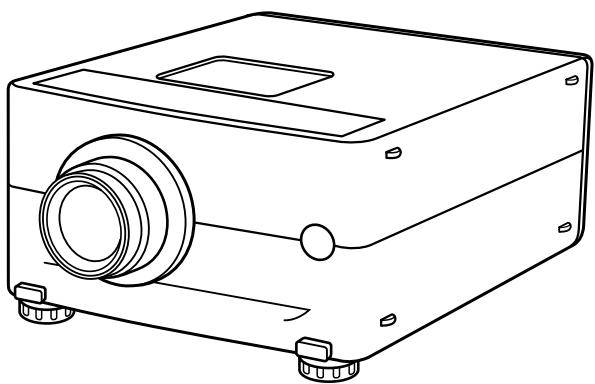

Outstanding Features

Allows easy projection of large screen, full-color computer and video images.

• Can be projected directly onto a video screen or white wall.
• Lightweight, convergence-free system for easy installation.

DIRECT COMPUTER COMPATIBILITY

A multi-scan RGB Input accepts signals from SXGA (1,280 dots × 1,024 lines compressed), XGA (1,024 dots × 768 lines), SVGA (800 dots × 600 lines), VGA (640 dots × 480 lines) and Mac (1,024 dots × 768 lines maximum) compatible computers without the need for any additional hardware.

HIGH PICTURE QUALITY

The three LCD panels contain 786,432 × RGB pixels to achieve exceptionally bright, high quality images.

INTELLIGENT COMPRESSION

SXGA images are compressed and projected without image data loss.

VERSATILE REMOTE CONTROL

• Built-in wireless mouse allows simultaneous operation of projector and computer.
• Built-in Laser Pointer for professional presentations.

FLEXIBLE USE

• In addition to the standard front projection mode, the menu driven functions can be used to instantly reverse the image for rear projection, and invert the image for ceiling mounting.
• Screen projection size adjusts from 40 to 300 inches.

BUILT-IN STEREO SPEAKERS

Built in 2W + 2W stereo amplifiers and speakers eliminate the need for external audio components.

USE WITH "PLUG AND PLAY"

"Plug and Play" compatible with VESA DDC 1 and DDC 2B standards.

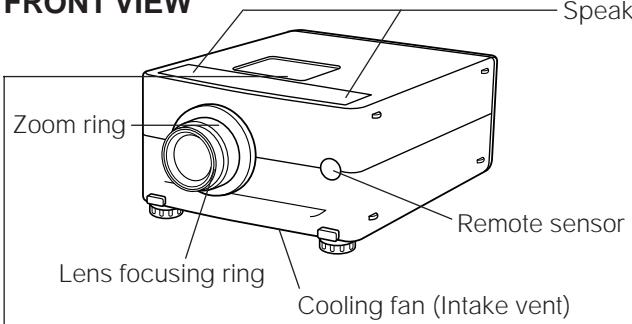

FRONT VIEW
Speakers

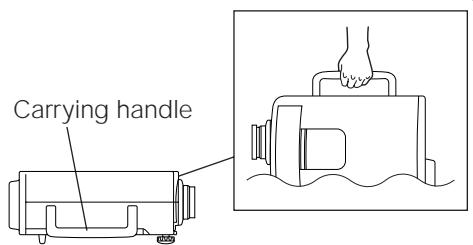

Cautions:

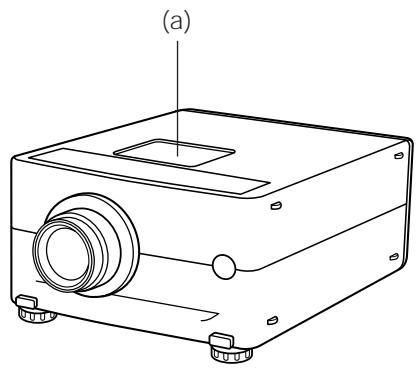

• The exhaust vent, the lamp cage cover and adjacent areas may be extremely hot during projector operation. To prevent injury, do not touch these areas until they have sufficiently cooled.
• Allow at least 4'' (10 cm) of space between the cooling fan (exhaust vent) and the other nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically turn off the projector lamp. This does not indicate a malfunction. Remove the projector plug from the wall outlet and wait 10 minutes. Then turn on the power by plugging the cord back in. This will return the projector to its normal mode.

Security Lock Anchor
This projector has a Kensington
Security Standard connector for use with a Kensington MicroSaver
Security System. Refer to the information that came with the system for instructions on how to use it to secure this model.

Note:

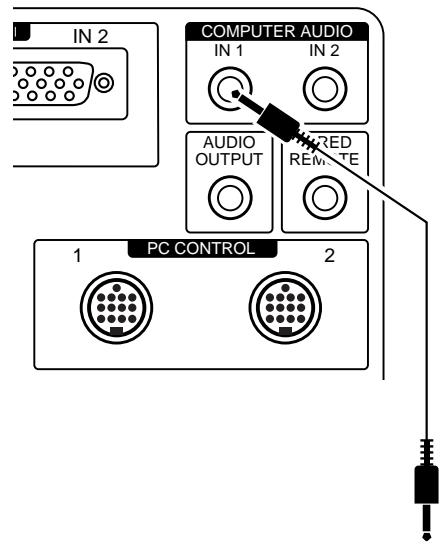

• Be sure to use the Computer Control cable when connecting the PC CONTROL terminals.

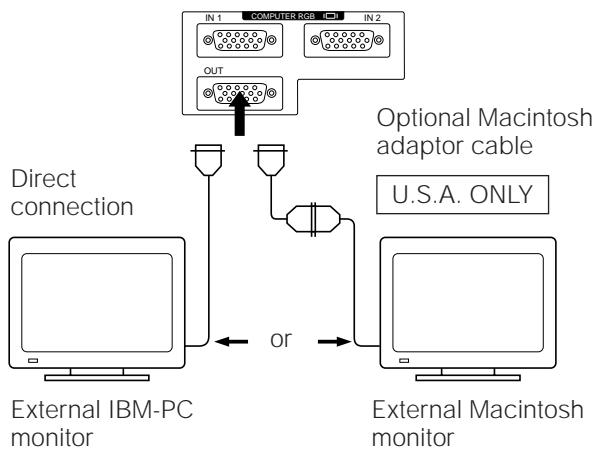

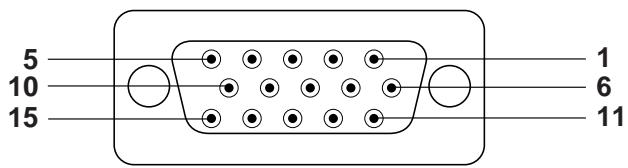

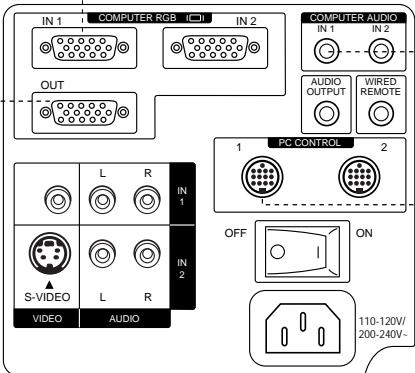

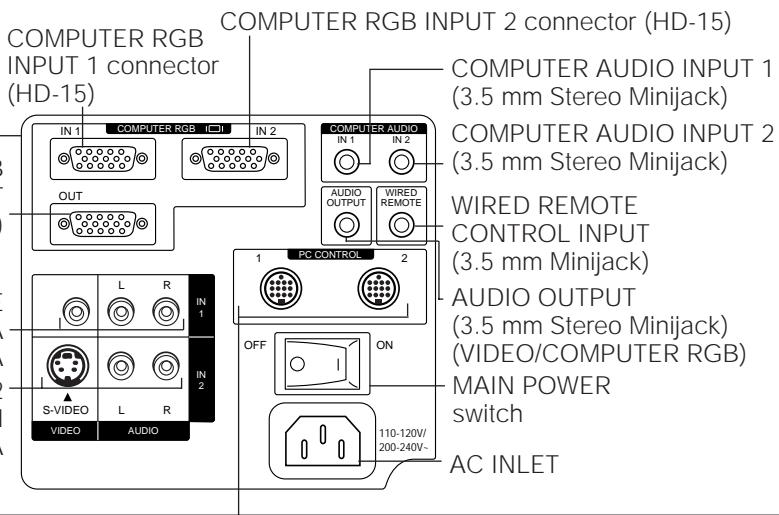

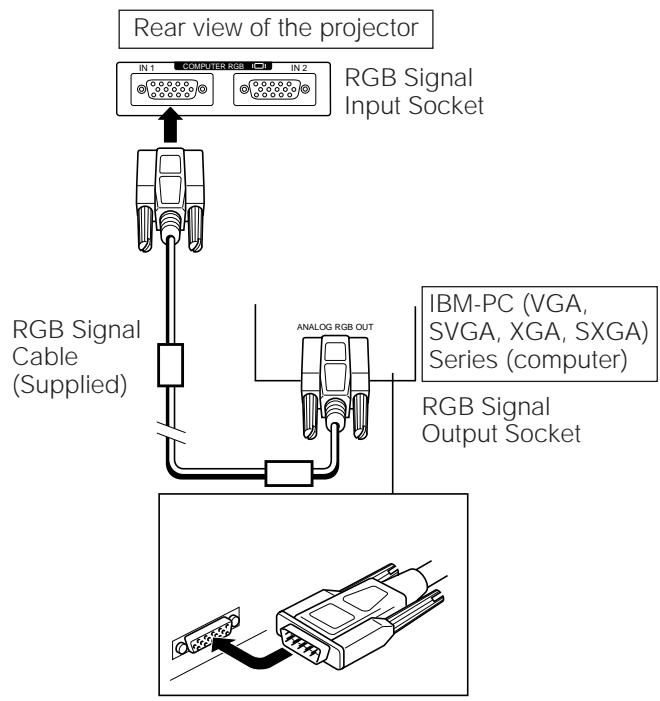

COMPUTER RGB OUTPUT connector (HD-15)

VIDEO INPUT 1 COMPOSITE Video: RCA Audio: RCA VIDEO INPUT 2 deo:4-pin mini DIN Audio: RCA

• PC CONTROL 1: Use the supplied computer control cable when operating the remote control as a wireless mouse or when controlling the projector from the RS-232C terminal.
• PC CONTROL 2: Use the computer control cable (CTANZ0711CE01) (sold separately) when operating the remote control as a wireless mouse.

Notes:

• RS-232C does not function when connected to PC CONTROL 2.
  See page 15 for connection.

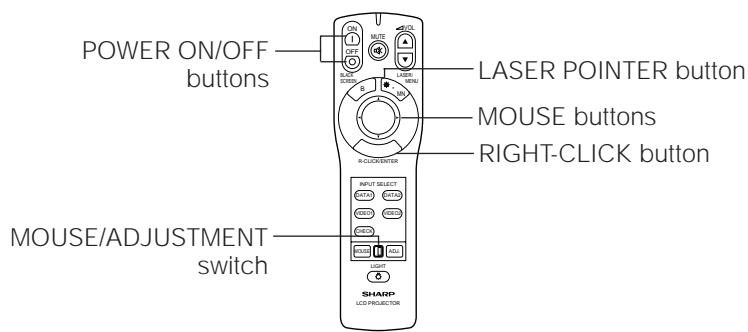

The functions of your personal computer's mouse have been built into the remote control enabling you to operate your projector and personal computer with the remote control.

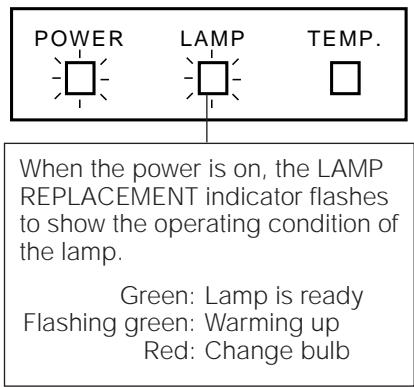

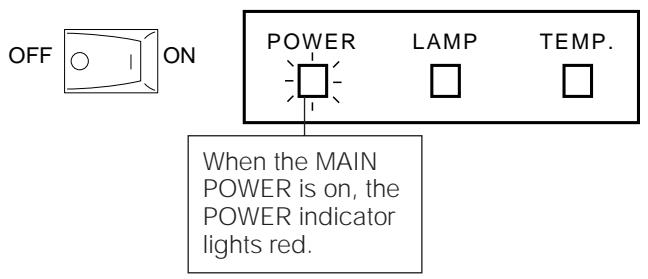

1. Slide the MAIN POWER switch on the rear of the projector on.
2. Press the POWER ON button on the front panel of the remote control to turn the projector power on.
3. When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT switch to the MOUSE position. When using the remote control to operate the projector, move the MOUSE/ADJUSTMENT switch to the ADJ. position. To activate the remote control key back-light feature, press the LIGHT button on the remote control. The colors of the buttons will change as shown in the table at the bottom of this page.

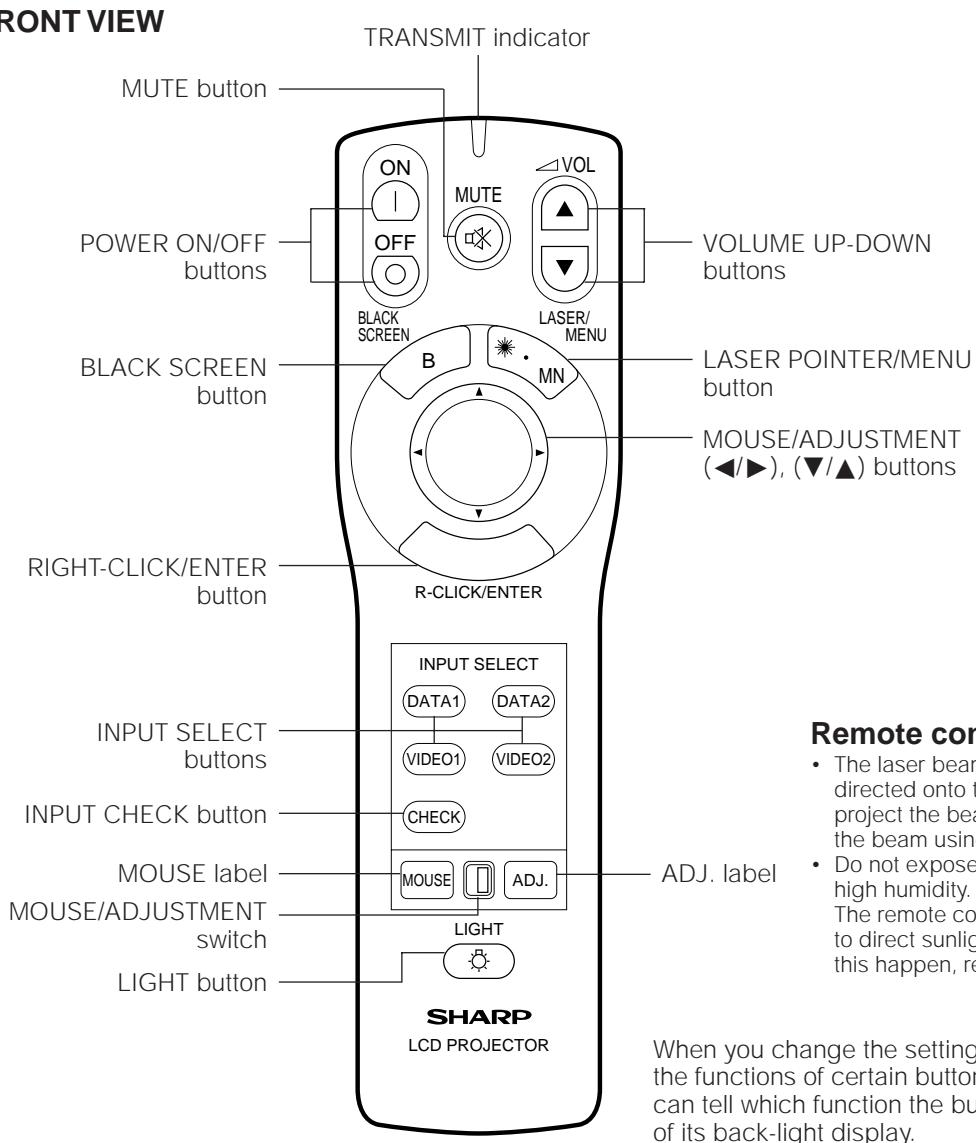

Wireless Mouse Remote Control

FRONTVIEW

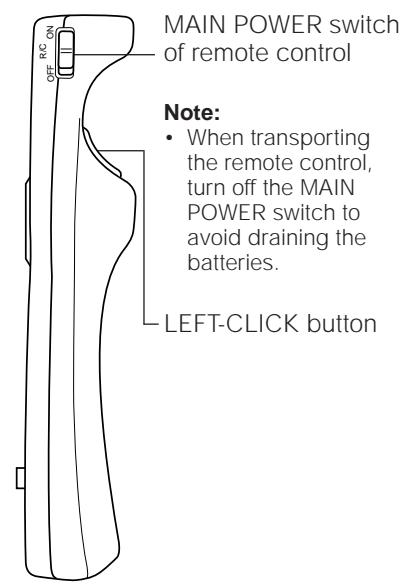

SIDE VIEW

Remote control handling precautions

• The laser beam used in this product is harmless when directed onto the skin, however please be careful not to project the beam directly into the eyes. Do not stare into the beam using an optical instrument.
• Do not expose the remote control to shocks, liquids or high humidity.

The remote control may not operate normally if exposed to direct sunlight or other intense light sources. Should this happen, reposition the light source or the projector.

When you change the setting of the MOUSE/ADJUSTMENT switch, the functions of certain buttons on the remote control change. You can tell which function the button currently possesses by the color of its back-light display.

Using the remote control in a dark room

• Press the LIGHT button to turn on the backlights for the operation buttons for about 5 seconds. The back-light colors are described in the table to the right.

Note:

• If the MAIN POWER switch on the remote control is left on for more than 10 minutes without operation, the power will automatically turn off. To turn the power back on, press any button on the remote control for at least one second.

Button name	Position of MOUSE/ADJUSTMENT switch
	MOUSE	ADJ.
LASER POINTER/MENU	LASER POINTER (GREEN)	MENU (RED)
RIGHT-CLICK/ENTER	RIGHT-CLICK (GREEN)	ENTER (RED)
MOUSE/ADJUSTMENT	MOUSE (NOT LIT)	ADJ.▶▲,▼/▲ (NOT LIT)
LEFT-CLICK	ON (NOT LIT)	—
BLACK SCREEN	BLACK SCREEN (RED)
POWER ON/OFF	ON (RED)
VOLUME UP-DOWN
MUTE
DATA 1
DATA 2
VIDEO 1
VIDEO 2
INPUT CHECK

TOP VIEW

REMOTE CONTROL SIGNAL TRANSMITTER

RED REMOTE CONTROL INPUT (3.5 mm Minijack)

LASER LIGHT WINDOW

Laser light shines out of this window.

Using the optional cable with the remote control

When the remote control cannot be used due to the range or positioning of the projector (rear projection, etc.), connect the optional cable from the Wired Remote Control Input jack on the remote control to the Wired Remote Input on the rear of the projector.

Note:

• The signal transmitter does not function when the optional cable is connected to the remote control.

CAUTION LASER RADIATION- DO NOT STARE INTO BEAM WAVE LENGTH: 670nm MAX. OUTPUT: 1mW CLASS II LASER PRODUCT	"COMPLIES WITH 21 CFR SUBCHAPTER J" SHARP ELECTRONICS CORPORATION SHARP PLAZA, MAHWAH, NEW JERSEY 07430 TEL: 1-800-BE-SHARP U.S.A. ONLY
	REMOTE CONTROL MODEL NO.: G1414CESA DC6V (1.5VX4PCS.) MADE IN JAPAN FABRIQUE AU JAPON

The laser pointer on the remote control emits a laser beam from the laser light window shown in the figure to the left. The laser emitted is a class II laser; therefore, do not look into the laser window or shine the laser beam on yourself or other people. The two marks to the left are the caution labels for the laser beam.

Always use the laser pointer at temperatures between 41^ and 104^ (+5^ and +40^) .

REAR VIEW

Inserting the batteries

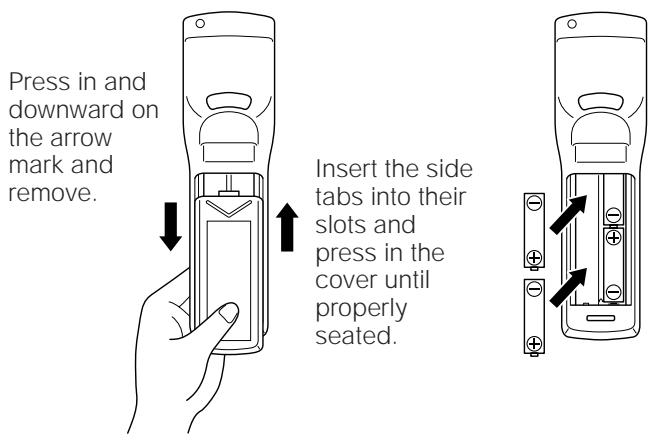

Remove the battery cover as shown and insert four AA size batteries making sure their polarities match the (+) and (-) marks inside the battery compartment.

Notes:

Incorrect use of batteries may cause them to leak or burst.

• Insert the batteries with the (+) and (-) polarities as indicated.
• Remove the batteries if the remote control will not be operated for an extended period of time.
• Maintain the batteries in a clean condition.
• Do not mix different brands of batteries. The life expectancy of the new batteries will be shortened and the old batteries may leak.
• When the batteries have been used up, remove them immediately to prevent leakage and damage. Leaked battery fluid may irritate the skin. Remove any battery fluid by wiping with a cloth.
• Due to storage conditions and the shelf life of the supplied batteries, they may run out after a short time. If so, replace them with new batteries as soon as possible.

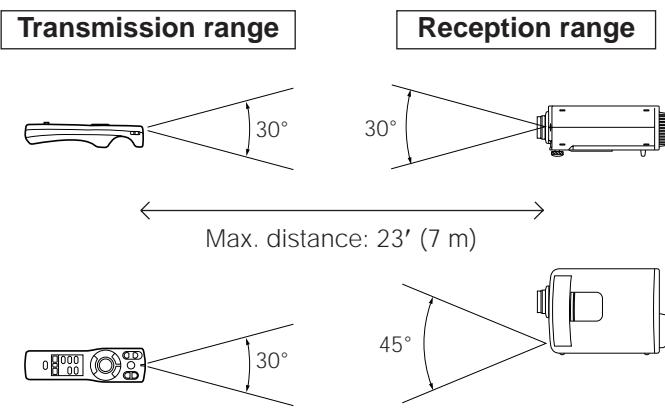

Remote control positioning

Use the remote control as shown in the figures on the left.

Note:

• The signal from the remote control can be reflected off the screen for easy operation. However, the effective distance of the signal may differ due to the screen material.

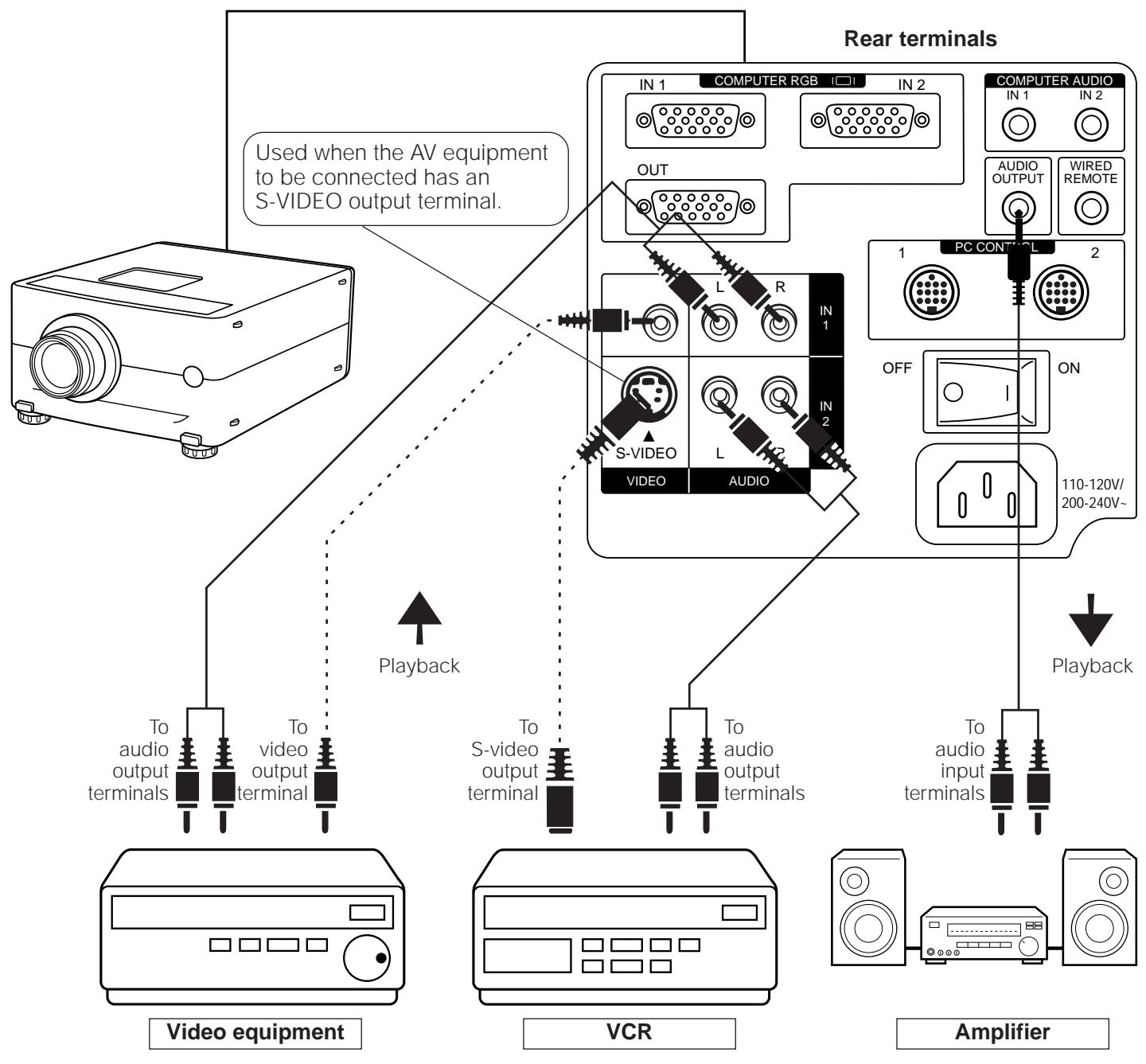

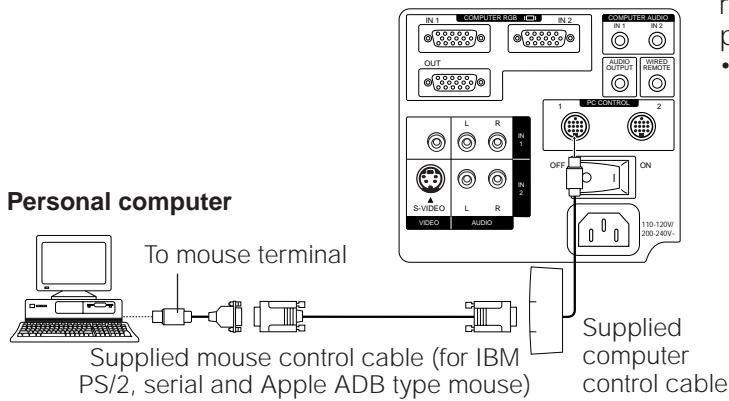

Connection Example
Rear terminals

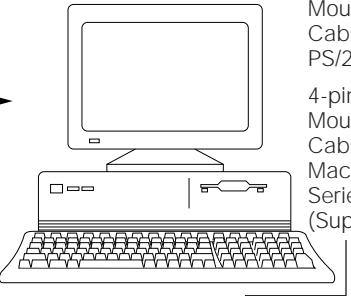

The wireless mouse functions and laser pointer on the remote control can help you create a more professional presentation.

• By connecting the supplied computer control cable to the PC CONTROL terminal on your projector and the supplied mouse control cables to the mouse terminal on your personal computer, you can use the wireless mouse on the remote control, instead of the mouse equipped with your personal computer, to operate your personal computer. The wireless mouse functions will work with personal computers compatible with IBM PS/2, serial (RS-232C) or Apple ADB type mouse systems.

Functions and Operations

• First, connect the units as shown above, and turn the projector power on.
  Second, turn the computer power on.
• Next, slide the MAIN POWER switch on the side of the remote control.
• When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT switch to the MOUSE position.

Notes:

• In some situations the wireless mouse may be inoperable if your computer port is not correctly set-up. Please refer to your computer owners manual for details on setting-up/installing the correct mouse driver.
• Be sure to use the computer control cable when connecting the PC CONTROL terminals.
• Do not connect or remove the mouse control cables and computer control cable to/from your computer while it is on. This may damage your computer.
• Only one set of connection cables is supplied with your projector. For additional connection cables, contact your nearest Authorized Sharp Industrial LCD Products Dealer or Service Center.
• Do not connect the mouse input terminal for IBM/Mac and the mouse input terminal for PC98 simultaneously.

MOUSE buttons

By lightly pressing the up/down and right/left arrow buttons located on the front of the remote control, you can move the mouse cursor on your monitor screen.

Note:

• The amount of pressure applied to the MOUSE button determines the speed the mouse cursor travels. Pressing lightly on the periphery of the MOUSE button makes the mouse cursor move slowly. Pressing hard makes it move quickly.

Mouse cursor

LEFT-CLICK button

RIGHT-CLICK button

LASER POINTER button

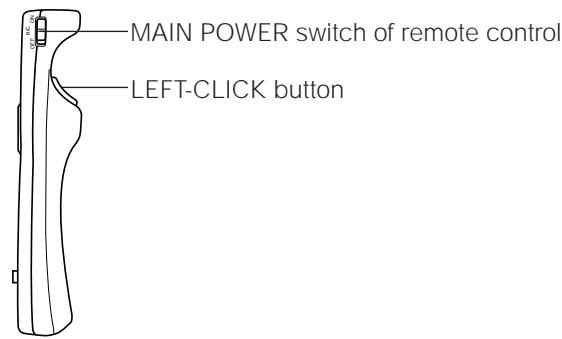

The LEFT-Click button on the back of the remote control corresponds to the left button of the mouse on two-button mouse systems.

The RIGHT-CLICK button on the front of the remote control corresponds to the right button on two-button mouse systems.

Note: For one-button mouse systems use either the LEFT-CLICK or RIGHT-CLICK button.

Press the LASER POINTER button to activate the laser pointer.

When the button is pressed, the light stays on; when the button is released, the light goes off. However, even when the button is pressed continuously, the light automatically goes off 1 minute after it goes on. To turn it on again press the laser pointer button one more time.

The laser pointer on the remote control emits a laser beam from the laser light window. The laser emitted is a class II laser; therefore, do not look into the laser window or shine the laser beam on yourself or other people. The two marks to the left are the caution labels for the laser beam.

Always use the laser pointer at temperatures between 41^ and 104^ (+5^ and +40^)

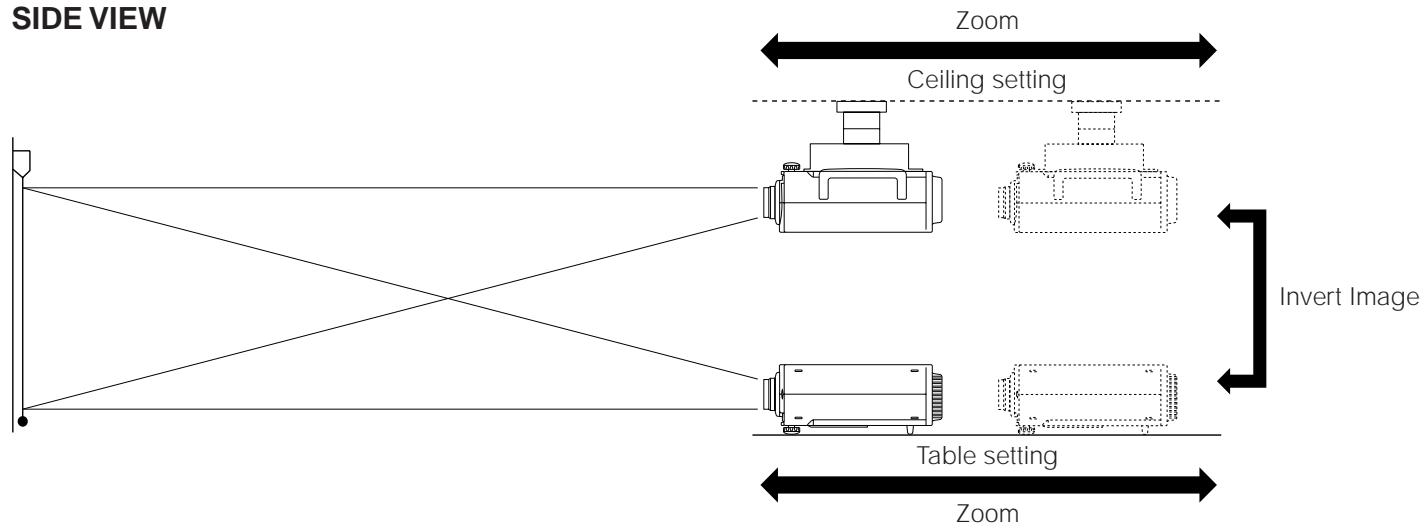

Using the Focus and Zoom

• Zoom, Focus and Reversed/Inverted Image mode functions broaden your options for projector placement.
• See pages 10, 11 and 12 for details on projector setup.

SIDE VIEW

2

3

(Wide angle)

4

5

Zoom ring (Maximum picture size)
(Minimum picture size)
(Zoom)

1. Turn on the MAIN POWER

Turn on the MAIN POWER switch on the back of the projector.

2. Turn on the POWER

Press the POWER ON/OFF button on the projector or the POWER ON button on the remote control to turn on the power.

3. Rotating the zoom ring (from the housed position to the wide angle position)

Rotate the zoom ring on the lens until it clicks. The picture can be adjusted within the zoom range.

4. Adjusting the focus

Rotate the lens focusing ring until the image on the screen is in focus.

5. Adjusting the zoom

Rotate the zoom ring. The picture can be adjusted to the desired size within the zoom range.

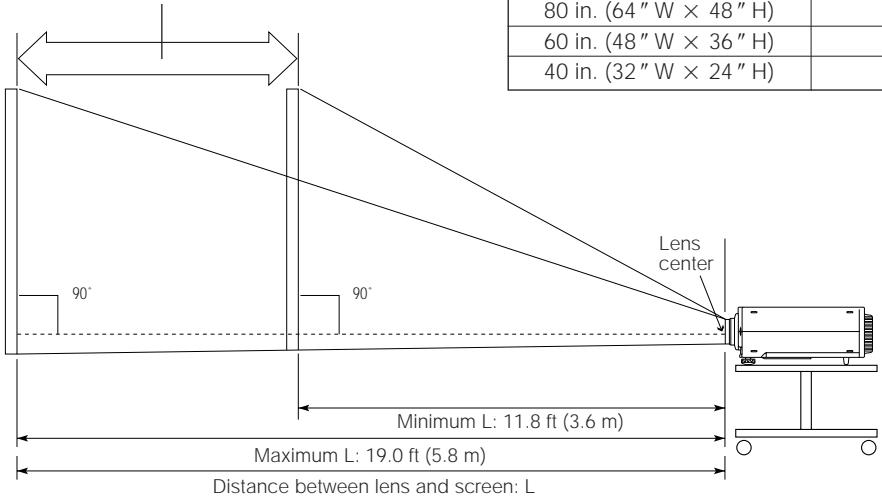

Projector Distance and Picture Size Relationship

• The zoom lens allows adjustment of the image size within the projector's range.
• For optimum picture adjustment, the projector should be placed and adjusted at a distance between 4.6 ft (1.4 m) and 57.4 ft (17.5 m) from the screen.

Distance from screen

Picture size: 100 inches (254 cm)

Picture size (diag.)	Projection distance (L)
	Maximum projection distance	Minimum projection distance
300 in. (240" W × 180" H)	57.4 ft (17.5 m)	35.8 ft (10.9 m)
200 in. (160" W × 120" H)	38.4 ft (11.7 m)	23.9 ft (7.3 m)
150 in. (120" W × 90" H)	28.5 ft (8.7 m)	17.7 ft (5.4 m)
100 in. (80" W × 60" H)	19.0 ft (5.8 m)	11.8 ft (3.6 m)
80 in. (64" W × 48" H)	15.1 ft (4.6 m)	9.5 ft (2.9 m)
60 in. (48" W × 36" H)	11.5 ft (3.5 m)	6.9 ft (2.1 m)
40 in. (32" W × 24" H)	7.5 ft (2.3 m)	4.6 ft (1.4 m)

Zoom adjustment range: 19.0 ft-11.8 ft

The formula for picture size and projection distance

$$ \begin{array}{l} y _ {t} = (0. 0 5 8 6 x - 0. 0 5 4 4) \times 3. 2 8 \ y _ {2} = (0. 0 3 6 7 x - 0. 0 7 0 2) \times 3. 2 8 \ x ^ {\prime}: \text {P i t u r e s i z e} (\text {d i a g .}) (\text {i n c h e s}) \ y _ {I}: \text {M a x i m u m p r o j e c t i o n d i s t a n c e (f t)} \ y _ {2}: \text {M i n i m u m p r o j e c t i o n d i s t a n c e (f t)} \ \end{array} $$

Note:

• There is an error of ± 4 inches ( ± 10 cm) in the formula above.

• Above is an illustration of maximum and minimum projection distances for the PG-D210U with a picture size of 100 inches (254 cm). Move the projector forward or backward if the edges of the image are distorted.

Height of Projector

Adjust to match the setup configuration.

Picture size (diag.)	Distance from lens center to lower edge of screen (H)
300 in. (240" W × 180" H)	26.0 in. (66 cm)
200 in. (160" W × 120" H)	17.3 in. (44 cm)
150 in. (120" W × 90" H)	13.0 in. (33 cm)
100 in. (80" W × 60" H)	8.7 in. (22 cm)
80 in. (64" W × 48" H)	7.1 in. (18 cm)
60 in. (48" W × 36" H)	5.1 in. (13 cm)
40 in. (32" W × 24" H)	3.5 in. (9 cm)

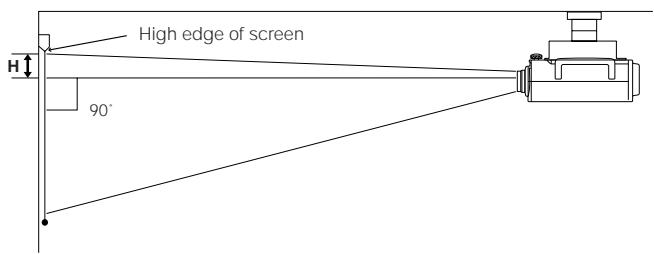

• Ceiling Mount

When the projector is in the inverted position, use the high edge of the screen as the base line.

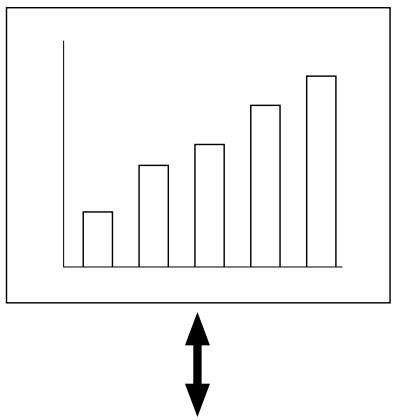

Note:

• Optimal image quality is produced with the projector positioned perpendicular to the screen with all feet flat and level.

This projector is equipped with an image invert/reverse function. The projected image can be inverted or reversed by using the MENU button and the ADJUSTMENT / and / buttons.

1

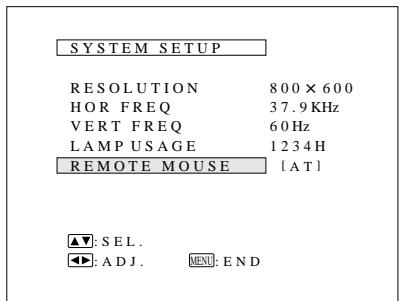

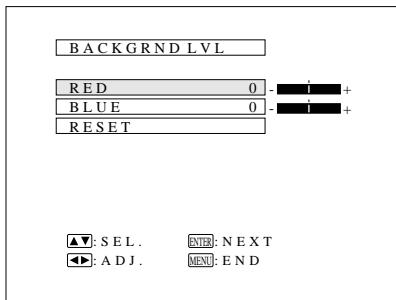

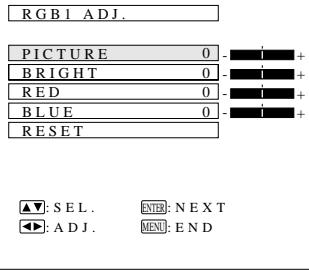

On-Screen Display

2

3

4

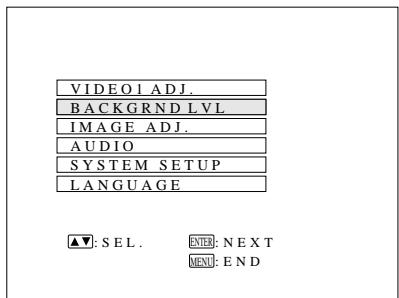

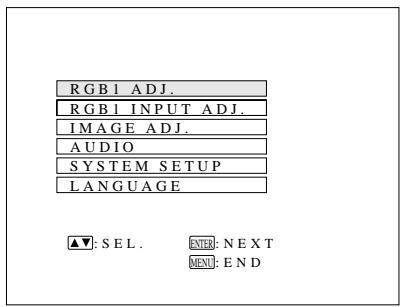

1. Press the MENU button

With the MENU screen displayed, press the ADJUSTMENT / buttons to select "IMAGE ADJ." Then press the ENTER button to display the "IMAGE ADJ." screen.

• The last MENU screen selected is indicated for about 30 seconds.

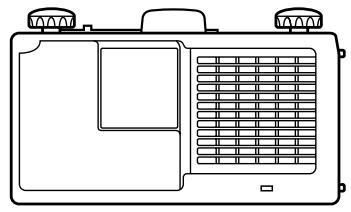

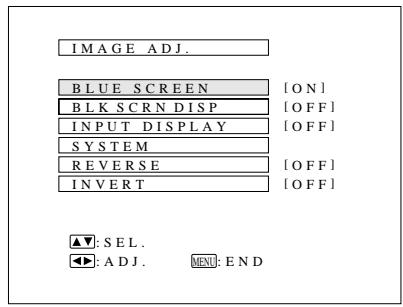

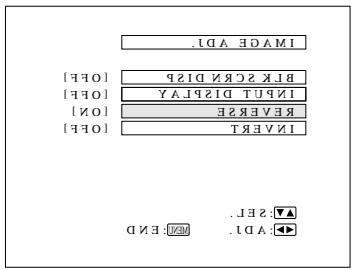

2. Reversed Image Mode

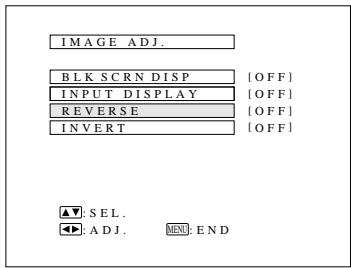

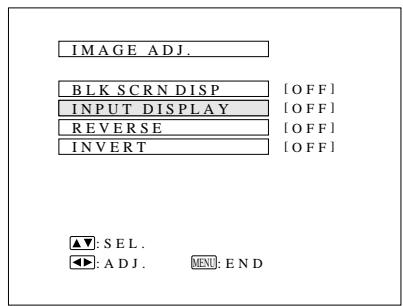

In the "IMAGE ADJ." menu, press the ADJUSTMENT / buttons to select "REVERSE". Then press the ADJUSTMENT buttons to select "ON". The reversed image will appear.

3. Inverted Image Mode

In the "IMAGE ADJ." menu, press the ADJUSTMENT / buttons to select "INVERT". Then press the ADJUSTMENT buttons to select "ON". The inverted image will appear.

4. Reversed Inverted Image Mode

In the "IMAGE ADJ." menu, set the "REVERSE" and "INVERT" functions to "ON". The reversed inverted image will appear.

5. Press the MENU button anytime to exit "IMAGE ADJ."

How to set up the projector and screen

Cautions: When setting up the projector

• For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the lens and filter must be cleaned more often. Periodically the filter should be replaced and the projector should be cleaned internally. As long as the projector is properly maintained in this manner, use in these environments will not reduce the overall operation life. Please note that all internal cleaning must be performed by an Authorized Sharp Industrial LCD Products Dealer or Service Center.
• Do not expose to extreme heat or cold.
  Operating temperature: 41^ to 104^ (+5^ to +40^) Storage temperature: -4^ to 140^ (-20^ to +60^)

• Do not tilt the projector more than 5^ .

• Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes out colors, making viewing difficult. Close the curtains and dim the lights when using the screen in a bright or sunny room.

• The best picture will be obtained when the projector is at a 90 degree angle to the screen. Position the projector and screen as shown.

Example of a standard setup

TOP VIEW

The projector lens should be centered in the middle of the screen.

SIDE VIEW

If the projector and screen are not centered properly, the picture will be distorted, making viewing difficult.

Using the horizontal reverse function makes the following setups possible.

Example of a reversed image setup

• By placing a mirror (normal flat type) in front of the lens and using the horizontal reverse function, the image reflected from the mirror can be projected onto the screen.
• Rear projection with a rear projection screen is also possible when using the horizontal reverse function.

AUDIENCE SIDE

The projector lens should be centered in the middle of the screen.

If the projector and screen are not centered properly, the picture will be distorted, making viewing difficult.

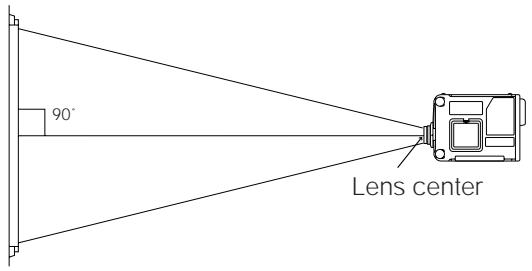

Example of a ceiling-mount setup

Before mounting the projector, be sure to contact your nearest Authorized Sharp Industrial LCD Products Dealer to obtain the manufacturer recommended ceiling mount bracket (sold separately). (AN-XGCM40 Ceiling Mount Bracket, AN-EP101AP Extension Tube for AN-XGCM40).

TOP VIEW

SIDE VIEW

• If the relative positions of the projector and the screen are not properly adjusted, the picture will be distorted.

Note:

• A polarizing screen cannot be used with this projector.

Adjusting the Height of the Picture

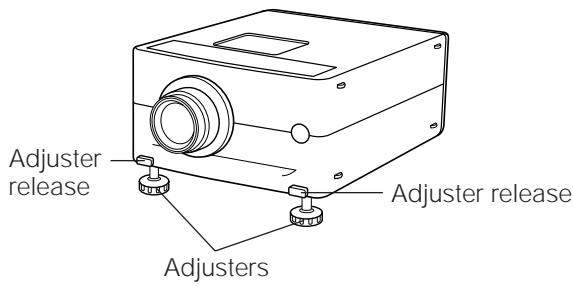

Use the adjuster release to adjust the angle of the projector and height of the picture. Minor adjustments can be made with the adjusters.

1

2

3

1. Press the adjuster release and lift the projector to the desired angle with both hands

• The adjuster legs will extend to the surface of the table.

2. Remove your hand from the adjuster release

• The adjuster legs will lock in position. Release the projector once you are sure the adjuster legs have locked in position.

3. Make any minor adjustments necessary

• Turn the adjusters to further adjust the angle of the projector.

Returning the projector to its original position

• While holding the projector with both hands, press the adjuster release and slowly lower the projector to its original position.

Notes:

• Adjustable up to approximately 5^ from the horizontal.
• When adjustments are made with the adjusters, the picture may become distorted, depending on the relative positions of the projector and the screen.
• After adjusting, in some cases, all of the adjuster legs may not be resting on the table.

To prevent the projector from wobbling, adjust the adjuster legs so that they firmly contact the table.

Cautions:

• Do not press the adjuster release when the adjuster legs are extended without firmly holding the projector.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjusters and the projector.
• Do not hold the lens when lifting or lowering the projector.

Transporting the Projector

Use the carrying handle when carrying the projector.

When transporting the projector, carry it by the handle located on the side of the unit.

Note:

• Always put on the lens cap to prevent damage to the lens when transporting the projector.

Caution:

• Do not lift or carry the projector by the lens or the lens cap as this may damage the lens.

To playback audio and video with the projector connected to a VCR, Laser Disc Player or external audio amplifier, make the following connections.
- Always turn off the LCD Projector while connecting to video equipment, in order to protect both the projector and the equipment being connected.

Select the audio you want to output by selecting VIDEO 1 or VIDEO 2.

Note the following when using the S-VIDEO INPUT terminal:

• The S-VIDEO INPUT terminal uses a video signal system in which the picture is separated into a color and a luminance signal to realize a higher-quality picture.

• By using the external amplifier, the volume can be amplified for greater sound.

• Please carefully read the manual of the computer you will be connecting.

• Before connecting, be sure to turn both the projector and the computer off. After making all connections, turn the projector on first. The computer should always be turned on last.

Personal computer

6-pin DIN

Mouse Control

Cable for IBM

PS/2 (Supplied

4-pin DIN

Mouse Control

Cable for

Macintosh

Series

(Supplied)

• The arrows (, ) indicate the direction of the signals.

Note:

RS-232C

ninal

Rear terminals

15-pin D-Sub

Macintosh Adaptor (Supplied)

9-pin D-Sub

Mouse Control Cable (Supplied)

Computer Control Cable (with mouse/RS-232C input terminal) (Supplied)

e:

• By using RGB INPUT 2 and PC CONTROL 2, another computer can be connected to and operated with the projector. The RS-232C function, however, will not operate when used with the PC CONTROL 2 terminal.

COMPUTER CONTROL CABLE

RS-232C (D-sub 9-pin)

Use when controlling the projector from your personal computer. (RS-232C does not function when connected to PC CONTROL 2

MOUSE TERMINAL

Use when operating your personal computer with the wireless mouse remote control.

Left Terminal: D-sub 9-pin (for IBM/Mac)

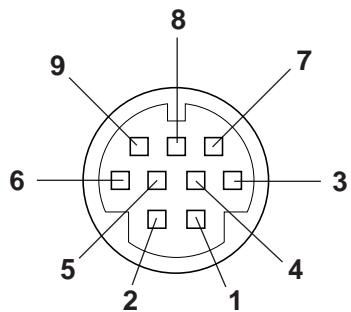

Right Terminal: 9-pin mini DIN (for NEC in JAPAN)

• You can connect your projector to a computer for easy projection of full color computer images and an external monitor for simultaneous viewing. See pages 16 and 17 for details of the connections.
• Refer to page 18 for a list of personal computers connectable to the projector. Use with computers other than those listed may cause some of the functions not to work.
• When the RS-232C terminal on this unit is connected to a personal computer via an RS-232C cable (cross type) and the supplied computer control cable, the personal computer can control the projector and the status of the projector can be checked. See pages 34 and 35 for details.
• By connecting the supplied computer control cable to the PC CONTROL terminal on your projector and the supplied mouse control cables to the mouse terminal on your personal computer, you can use the wireless mouse on the remote control, instead of the mouse equipped with your personal computer, to operate your personal computer. Refer to page 8 for details.

Notes:

• The RS-232C function will only operate when the connection cable is connected to the PC CONTROL 1 terminal on the projector.
• The wireless mouse or RS-232C function may not operate if your computer port is not correctly set-up. Please refer to your computer owners manual for details on setting-up/installing the correct mouse driver.
• Do not connect or remove the computer control cable, mouse control cables, or RS-232C cable to/from your computer while it is on. This may damage your computer.
• Do not connect to the mouse input terminals on the computer control cable for IBM/Mac and PC98 simultaneously.
• Be sure to use the supplied computer control cable when connecting the PC CONTROL terminals.

"Plug and Play" Function

This projector is compatible with VESA DDC 1 and DDC 2B standards.

This projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy set-up.

Note:

• The DDC, "Plug and Play" function of this projector is only functional when used in conjunction with a VESA DDC compatible computer.

Connecting to the Computer RGB Input (RGB 1, 2)/Output Terminals

You can connect your projector to a computer for easy projection of full-color computer images, and an external monitor for simultaneous viewing.

1
2 1

Macintosh Adaptor (Supplied)

2
Macintosh Adaptor (Supplied)
3
Rear view of the projector

1. Connecting to an IBM-PC (VGA, SVGA, XGA, SXGA) Series computer—1,280 × 1,024 maximum resolution

Plug one end of the RGB signal cable into the RGB INPUT terminal on the projector and the other end into the RGB signal output terminal on the computer, and secure the plugs by tightening the thumb screws.

Notes:

• This connection is possible only when using a computer with a VGA/ SVGA/XGA/SXGA or Mac display output port.
• By using RGB INPUT 2 and PC CONTROL 2, another computer can be connected to and operated with the projector.

2. Connecting to a Macintosh Series Computer

640 × 480, 832 × 624 or 1,024 × 768 resolution

1 Set the proper switches on the supplied adaptor.

• For 640 × 480 resolution, set switches 1 and 2 to "ON" and 3, 4, 5 and 6 to "OFF".
• For 832 × 624 resolution, set switches 2 and 4 to "ON" and 1, 3, 5 and 6 to "OFF".
• For 1,024 × 768 resolution, set switches 2 and 3 to "ON" and 1, 4, 5 and 6 to "OFF".

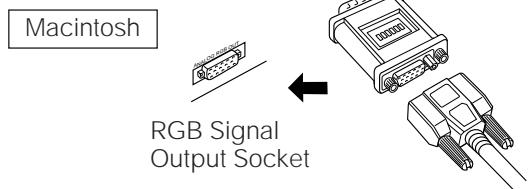

Connect the supplied Macintosh adaptor to the RGB signal output terminal on your Macintosh Series computer, as shown on the left, and secure the plugs by tightening the thumb screws.
3 Firmly plug one end of the supplied RGB signal cable into the RGB input terminal on the projector and the other end to the Macintosh adaptor on the computer, and secure the plugs by tightening the thumb screws.

Notes:

• Be sure to use the supplied Macintosh adaptor.
• Be sure the switches on the adaptor are properly set.
• Once the adaptor is connected to a computer and the computer is turned on, the display mode cannot be changed even if the switches on the adaptor are reset.
• The supplied adaptor is only for use with H-SYNC and V-SYNC output. When connecting a Macintosh Series computer that only outputs C-SYNC, use a special C-SYNC output adaptor (sold separately).

4

5

3. Connecting to other compatible computers

When connecting the projector to a compatible computer other than an IBM-PC (VGA/SVGA/XGA/SXGA) or Macintosh series, a separate cable may be needed. Please contact your dealer for ordering information.

Notes:

• Connecting computers other than the recommended types may result in damage to the projector, the computer, or both.
• Connect the audio from the computer to the COMPUTER AUDIO INPUT terminal.

4. Connecting to the COMPUTER AUDIO INPUT

• The COMPUTER AUDIO INPUT 1 accepts audio from the COMPUTER RGB 1 input, and the COMPUTER AUDIO INPUT 2 accepts audio from the COMPUTER RGB 2 input.
• Connect a 3.5 ~mm Stereo Minijack cable from the audio output terminal on the computer to the COMPUTER AUDIO INPUT terminal on the projector.

5. Connecting an external monitor

Connect your computer monitor to the projector's COMPUTER RGB OUTPUT terminal to view images simultaneously on the external monitor and the projection screen. Select either RGB 1 or RGB 2 to output the images to the monitor.

Caution (Apple Macintosh):

Do not connect the COMPUTER RGB OUTPUT to any monitor except the following:

Apple Color RGB Monitor 13'' / 14'' (640 × 480), 16'' / 17'' (832 × 624) or 19'' (1,024 × 768)

The output signal from the projector to the monitor should be the same as the input signal from the computer to the projector.

Examples:

Input 13'' / 14'' (640× 480) Output (640× 480)

Input 16'' / 17'' (832× 624) Output (832× 624)

Input 19'' (1,024× 768) Output (1,024× 768)

Note:

• The supplied adaptor is only for use with H-SYNC and V-SYNC output. No picture will appear when connected to monitors that only use C-SYNC.

Notes:

• When using the projector with an external IBM-PC monitor, connect the monitor using the supplied cable. When using the projector with a Macintosh monitor, an optional adaptor cable is required. Before using any other type of monitor, carefully check the monitor's interface specifications and make sure that they match the specifications of the projector's interface.
• The external monitor output will only display an analog computer input signal. It will not display a digital or video input signal. To split the composite video signal, use a video distribution amplifier. This is available from your local dealer. The computer RGB output will only loop through the same signal connected to the computer RGB input. (VGA IN VGA OUT, Mac IN Mac OUT)

For IBM and compatibles

Input signals:

The video output signal timing of different types of video signals are shown below for reference.

For Apple Macintosh Series

MODE			IBM					IBM	IBM	IBM	IBM	IBM	IBM	IBM	IBM	IBM	IBM	IBM	Apple	Apple	Apple	Apple
			VGA					VESA	SVGA	SVGA	SVGA	SVGA	XGA	XGA	XGA	SXGA	SXGA	MacintoshTM Itsi	MacintoshTM LC	MacintoshTM	MacintoshTM
			Text		Graphic			Graphic	Graphic	VESA Guideline	VESA Standard	VESA Standard	VESA Guideline	VESA Standard	VESA Standard	VESA Standard	VESA Standard	13° Monitor	13° Monitor	16° Monitor	19° Monitor
			720 dots		640 dots			640 dots	800 dots	800 dots	800 dots	800 dots	1,024 dots	1,024 dots	1,024 dots	1,280 dots	1,280 dots	640 dots	640 dots	832 dots	1,024 dots
			350 lines	400 lines	350 lines	400 lines	480 lines	480 lines	600 lines	600 lines	600 lines	768 lines	768 lines	768 lines	1,024 lines	1,024 lines	480 lines	480 lines	624 lines	768 lines
VIDEO		LEVEL	0.7Vp-p 75Ω load					0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.7Vp-p 75Ω load	0.1Vp max. 75Ω load	0.7Vp-p max. 75Ω load	0.7Vp-p max. 75Ω load	0.7Vp-p max. 75Ω load
		TYPE	R·G·B					R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B	R·G·B C.SYNC	R·G·B C.SYNC	R·G·B C.SYNC
HSYNC	FRONT PORCH a		dot	17		14		24	24	40	56	16	24	24	16	48	16	64	78	31	35
	SYNC b		dot	108		96		40	72	128	120	80	136	136	96	112	144	64	62	65	96
	BACK PORCH c		dot	55		50		128	128	88	64	160	160	144	176	248	248	96	116	224	173
	VIDEO PERIOD d		dot	720		640		640	800	800	800	800	1,024	1,024	1,024	1,280	1,280	640	640	832	1,024
	1H (a+b+c+d)		dot	900		800		832	1,024	1,056	1,040	1,056	1,344	1,328	1,312	1,688	1,688	864	896	1,152	1,328
			μs	31.7774		31.7776		26.413	28.444	26.400	20.800	21.333	20.677	17.707	16.660	15.6	12.5	28.5714	28.595	20.124	16.650
	1 dot		ns	35.3082		39.7219		31.746	27.777	25.000	20.000	20.202	15.385	13.3	12.7	9.3	7.4	33.0688	31.914063	17.468	12.538
	1/H		kHz	31.4689		31.4688		37.860	35.156	37.879	48.077	46.875	48.363	56.476	60.023	63.981	79.976	35.0000	34.971149	49.693	60.0
	1/dot		MHz	28.322		25.175		31.500	36.000	40.000	50.000	49.500	65.000	75.0	78.75	108.000	135.000	30.2400	31.334149	57.246	79.76
	LEVEL			TTL	TTL	TTL		TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
	SYNC POLARITY		+/-	+	-	+	-	-	+/-	+	+	+	-	-	+	+	+	-	-	-	-
VSYNC	FRONT PORCH w		H	38	13	38	13	9	1	1	37	1	3	3	1	1	1	3	3	1	3
	SYNC x		H	2	2	2	2	3	2	4	6	3	6	6	3	3	3	3	3	3	3
	BACK PORCH y		H	59	34	59	34	28	22	23	23	21	29	29	28	38	38	39	39	39	30
	VIDEO PERIOD z		H	350	400	350	400	480	480	600	600	600	768	768	1,024	1,024	480	480	624	768
	1V (w+x+y+z)		H	449	449	449	449	525	520	625	628	666	625	806	806	1,066	1,066	525	525	667	804
			ms	14.2681	14.2681	14.2681	14.2681	16.6832	13.735	17.778	16.579	13.853	13.333	16.666	14.272	13.328	16.7	15.00	15.00	13.423	13.387
	1/v		Hz	70.0866	70.0866	70.0863	70.0863	59.9405	72.809	56.250	60.317	72.188	75.000	60.006	70.069	75.029	60.020	75.025	66.67	66.67	74.502	74.70
	LEVEL			TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
	SYNC POLARITY		+/-	-	+	-	+	-	+/-	+	+	+	-	-	+	+	+	-	-	-	-

Notes:

• When connecting a notebook computer to the data projector for display on an (800 × 600) LCD screen, the screen may not show a full picture image. See page 20, "Computer Mode Memory Adjustments" for details.
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. If this occurs, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.

When displaying computer patterns which repeat every other dot (tiling, vertical stripes, etc.), interference may occur between the LCD pixels, causing flickering, vertical stripes, or contrast irregularities in portions of the screen. Should this occur, use the ADJUSTMENT buttons for HORIZONTAL (LEFT/RIGHT) and VERTICAL (UP/DOWN) position adjustments to adjust for the optimum picture.

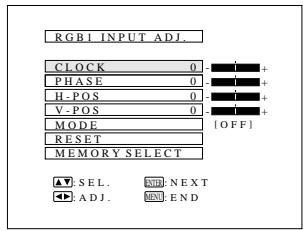

RGB Input Adjustments ("CLOCK", "PHASE", "V-POS" and "H-POS")

1. Select the input of the image you want to adjust (RGB 1 or 2) with the INPUT SELECT button and press the MENU button.

With the MENU screen displayed, press the ADJUSTMENT / buttons to select "RGB 1 INPUT ADJ." Then press the ENTER button to display the "RGB 1 INPUT ADJ." screen.

1. Select the item you wish to adjust with the ADJUST-MENT / buttons. Adjust the item with the ADJUST-MENT buttons.

Note:

• To display only the item that you want to adjust, press the ENTER button after selecting the item with the ADJUSTMENT / buttons. Then adjust the item with the ADJUSTMENT buttons.

3. Press the MENU button anytime to exit RGB INPUT ADJ. Description of Adjustment Items

CLOCK SPEED ADJUSTMENT (FAST/SLOW)

• Adjust the input signal horizontal frequency and the dot clock so that the screen display is normal.

PHASE ADJUSTMENT (UP/DOWN)

Used to reduce image distortion or improve contrast.

HORIZONTAL POSITION ADJUSTMENT (LEFT/RIGHT)

• Used to center the on-screen image by moving it to the left or right.

VERTICAL POSITION ADJUSTMENT (UP/DOWN)

• Used to center the on-screen image by moving it up or down.

MODE ADJUSTMENT

CONNECTING TO IBM-PC COMPUTERS

• Ordinarily, the type of input signal is detected and the correct resolution mode (Text or Graphics) is automatically selected. However, for the following signals, set "MODE" to "ON" or "OFF" to select the projector's resolution mode to match the computer display mode properly.

720 dots × 400 lines, 720 dots × 350 lines (Text Mode)
640 dots × 400 lines, 640 dots × 350 lines (Graphic Mode)
- For graphic mode, select "MODE" and set the "MODE" to "ON"
- For text mode, select "MODE" again at this time, and set "MODE" to "OFF".

CONNECTING TO MACINTOSH LC/II SERIES COMPUTERS

• When connecting to a Macintosh II with 35 kHz Dot Frequency, select "MODE" and set "MODE" to "ON".
• When connecting to a Macintosh LC Series computer with 34.97 kHz Dot Frequency, set "MODE" to "OFF".
• When connecting to third party video cards and other Macintosh computers, set "MODE" to "ON" or "OFF" to select the correct display mode.
• When the input signal is automatically detected or when there is no input signal, "MODE (---)" appears on the screen and the display mode cannot be changed.

INITIAL RESET

• To return the "H-POS", "V-POS", "PHASE" and "CLOCK" adjustments to their initial settings, select "RESET" and then press the ENTER button.

MEMORY SELECT

Used to store up to seven computer mode adjustments.

Note:

• Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering may occur, making the picture hard to see.)

On-Screen Display

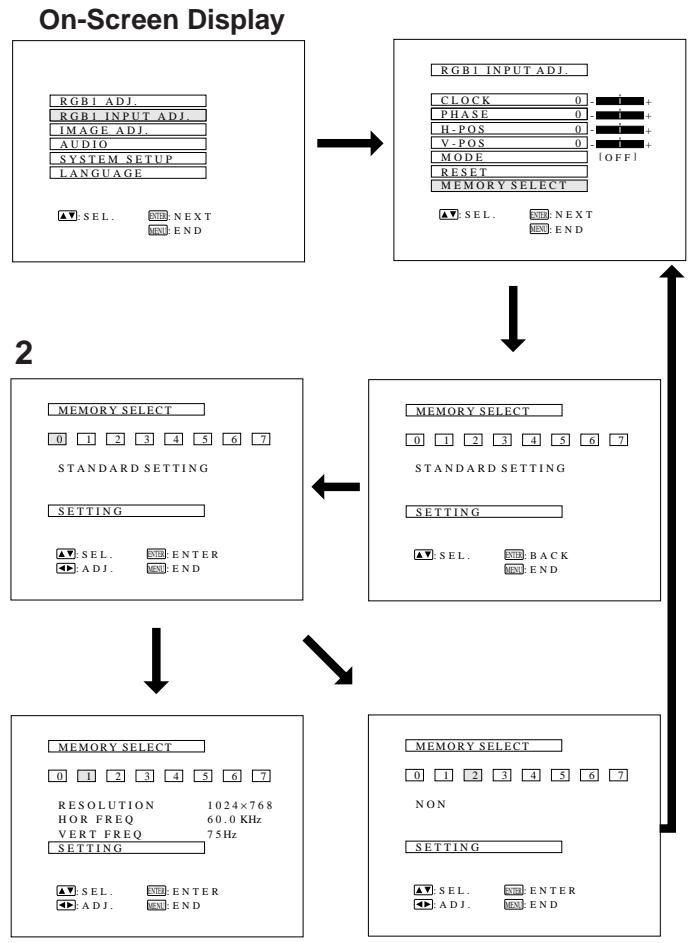

Computer Mode Memory Adjustments

• The projector has been preset with different modes for use with XGA and other compatible computers. However, 7 memory positions are provided to store mode adjustments.
  Each memory position can be used to store mode adjustments to match the computer.

1 When RGB 1 or 2 is selected.

1. Press the ENTER button to select the Memory Adjustment mode

• Press the MENU button. While the MENU screen is displayed, press the ADJUSTMENT / buttons to select "RGB1 INPUT ADJ." Press the ENTER button. The MENU mode changes as shown.
• While the RGB INPUT adjustment menu is displayed, press the ADJUSTMENT / buttons to select "MEMORY SELECT". Then press the ENTER button to change the image.

2. Press the ADJUSTMENT buttons

• The screen shown on the left will appear. There are 7 memory positions.
• Press the ADJUSTMENT button once to move to the following screen. Press the ADJUSTMENT / buttons to select the number of the memory you want to adjust. If that memory position has not been set, the screen on the right will be displayed. If it has been set, the screen on the left will be displayed. MEMORY No. 0 cannot be set. It contains the fixed factory preset settings.
• To make or change a setting, press the ADJUSTMENT / buttons to move the cursor to "SETTING." Then press the ENTER button to go to the RGB INPUT adjustment menu screen. (If you do not want to make any adjustments, press the MENU button.)
• Select the item you want to adjust by pressing the ADJUSTMENT / buttons, then use the ADJUSTMENT buttons to make the adjustments. When adjustments are completed, press the MENU button. The display disappears and the adjustments are stored in memory as a user mode. See page 19 for details on the adjustment items.

3. Press the MENU button anytime to exit RGB INPUT ADJ.

1

1. Connect the AC cord

Connect the supplied AC cord to the AC inlet on the back of the projector.

2

2. Turn on the MAIN POWER

Press the MAIN POWER switch on the back of the projector. The POWER indicator lights red and the projector enters STANDBY mode.

3
Projectile ON/OFF

Remote control ON/OFF

3. Turn on the POWER

Press the POWER ON/OFF button on the projector or the POWER ON button on the remote control.

• When the power is turned off by pressing the POWER ON/OFF button, the POWER indicator will not turn off until the fan has stopped running.
  See page 30, "Lamp/Maintenance Indicators" for details.

Notes:

• When the POWER indicator is not lit, the remote control cannot be used to operate the projector.
• The flashing green LAMP REPLACEMENT indicator indicates that the lamp is warming up. Wait until the indicator stops flashing before operating the projector.
• If the power is turned on immediately after it has been turned off, it may take a short while before the lamp turns on. (During this period the LAMP REPLACEMENT indicator flashes.)
• After the projector is unpacked and turned on for the first time, a slight odor may be emitted from the exhaust fan. This odor will soon disappear with use.

Caution:

• Be sure to take off the lens cap before operation of the projector. Do not place the lens cap on the lens during operation. The lens cap may become extremely hot.

4

On-Screen Display

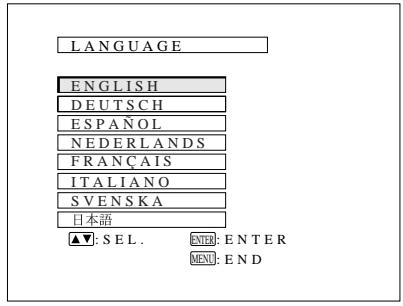

4. Select one of eight ON-SCREEN DISPLAY languages

You can return to the previous screen by selecting the uppermost item (turquoise) with the ADJUSTMENT / buttons (in this case, "LANGUAGE") and then pressing the ENTER button.

The on-screen display is set to English at the factory. The language for the unit's ON-SCREEN DISPLAY can be set to English, German, Spanish, Dutch, French, Italian, Swedish or Japanese.

Setting the ON-SCREEN DISPLAY language

1. Press the MENU button. The menu will appear on the screen.
2. Press the ADJUSTMENT / buttons to highlight the "LANGUAGE" item yellow. Then press the ENTER button to display the language menu.
3. Press the ADJUSTMENT / buttons to highlight the desired language yellow. Then press the ENTER button to set the language. The ON-SCREEN DISPLAY is now programmed to display in the language chosen.

5

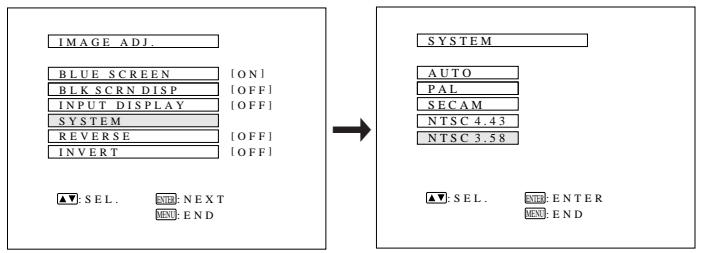

5. Change the system mode

The video input system mode is set to "AUTO" at the factory, but it can be changed to a different mode if the selected system mode is not compatible with the connected audiovisual equipment (when a color image appears in black and white, etc.).

1. Press the MENU button. The menu will appear on the screen.
2. Press the ADJUSTMENT / buttons to highlight the "IMAGE ADJ." yellow. Then press the ENTER button to display the "IMAGE ADJ."
3. Press the ADJUSTMENT / buttons to highlight "SYSTEM" yellow. Then press the ENTER button to display the "SYSTEM".
4. Press the ADJUSTMENT / buttons to highlight the desired video system yellow. Then press the ENTER button to set the system.

Notes:

• In AUTO mode, "PAL," "SECAM", "NTSC 4.43" or "NTSC 3.58" is displayed on the screen for a few seconds when the mode is changed with the INPUT SELECT button.
• When the system mode is set to "AUTO", you may not receive a clear picture due to signal differences. If this happens, switch to the color system you are viewing.

6

7
Mac
RGB1
832× 624

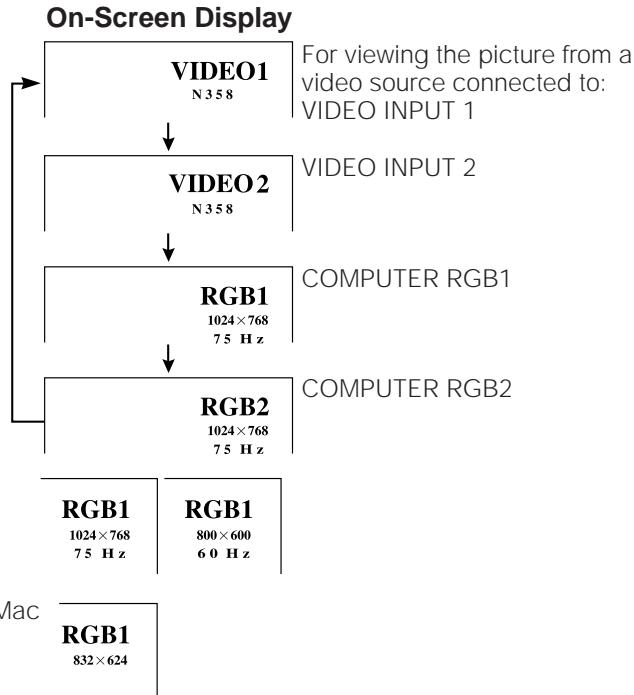

Press the INPUT SELECT button on the projector to switch the picture input. When you press the button, the current input mode is displayed for about 4 seconds. If you press the button again while the input mode is displayed, the mode changes as shown on the left. Confirm the selected input terminal and press the INPUT SELECT button.

Notes:

• The input can be selected directly using the VIDEO 1,VIDEO 2, DATA 1 and DATA 2 buttons on the remote control. (When DATA 1 or DATA 2 is selected, the RGB 1 or RGB 2 screen will appear accordingly.)
• In VIDEO mode, the system being received will be indicated below the "VIDEO" display.
• When selecting RGB mode, the resolution being displayed will be indicated under "RGB," as shown on the left. (Refer to the second example when connecting to Mac display.)
• When no signals are being received, "NO SIGNAL" will be displayed. When receiving a signal the projector is not preset to receive, "NOT REG." will be displayed. (This display function does not operate in Video mode.)
• The picture size differs in RGB, NTSC, PAL and SECAM INPUT modes.

7. Press INPUT CHECK

When the INPUT CHECK button on the remote control is pressed, the current input mode is displayed for about 4 seconds.

Note:

• The INPUT CHECK button will not function if the "INPUT DISPLAY" is turned off, as described on page 28.

8. Adjust the volume

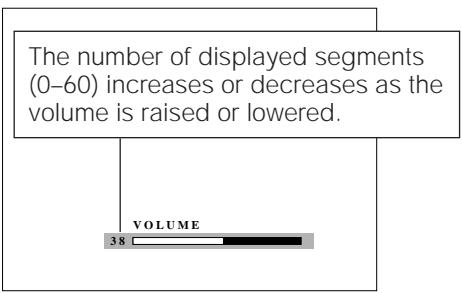

Press the VOLUME UP-DOWN buttons on the projector or on the remote control to adjust the volume.

MUTE

• Press the MUTE button to temporarily turn off the sound.
• Press the MUTE button once again to turn the sound back on.

9. To turn off the power from the projector or the remote control

• Press the POWER ON/OFF button on either the projector or the remote control. The screen on the left will appear.
• If you want to turn off the power, press the POWER ON/OFF button on either the projector or the remote control again within 4 seconds. The power is now temporarily turned off.
• If you accidentally pressed the POWER ON/OFF button and do not want to turn off the power, wait until the On-Screen Display disappears.

The POWER indicator will turn red and the cooling fan will run for 90 seconds, then the power will turn off, and the projector will return to STANDBY mode.

The power can be turned on again either from the projector or remote control. When the power is turned on, the POWER indicator and LAMP REPLACEMENT indicator light green.

Note:

• When the MAIN POWER is off on the projector set, the power cannot be turned on from the remote control.

1

On-Screen Display

2

3

• This projector's picture is factory preset to standard settings. However, you can adjust it to suit your own preferences with the ADJUSTMENT buttons on the projector and the remote control.
• The adjustments can be memorized in RGB 1, RGB 2,VIDEO 1 orVIDEO 2 separately.
• Four picture modes can be adjusted: "PICTURE," "BRIGHT," "RED," and "BLUE".

Adjusting the Picture

1. Use the MENU button to select the mode to be adjusted

• When the MENU button is pressed, the MENU mode is indicated for about 30 seconds. Press the ADJUSTMENT / buttons to select "RGB 1 ADJ.", then press the ENTER button.

2. Adjust the Picture

• Press the ADJUSTMENT / buttons to high-light yellow the picture adjustment item you want to adjust.
• Press the ADJUSTMENT buttons to move the " 1 " mark of the selected adjustment item to the desired setting.
• The adjustment mode is displayed for about 30 seconds.

Description of Adjustment Items

Selected item	ADJUSTMENT ← button	ADJUSTMENT > button
PICTURE	For less contrast	For more contrast
BRIGHT	For less brightness	For more brightness
RED	For weaker red	For stronger red
BLUE	For weaker blue	For stronger blue
COLOR	For less color intensity	For more color intensity
TINT	Skin tones become purplish	Skin tones become greenish
SHARPNESS	For less sharpness	For more sharpness
RESET	All RGB Video Adjustment items are returned to the factory preset settings. Note: To reset all adjustment items, select “RESET” in “RGB 1 ADJ.” mode and press the ENTER button.

3. Display only the item to adjust

• Press the ADJUSTMENT / buttons to highlight yellow the picture adjustment item you want to adjust. If you press the ENTER button at this time, only the selected item will be displayed.
• Press the ADJUSTMENT buttons to move the " 1 " mark of the selected adjustment item to the desired setting.
• The adjustment mode is displayed for about 30 seconds.

Notes:

• When a VIDEO signal input has been selected, only "PICTURE," "BRIGHT," "COLOR," "TINT" and "SHARPNESS" can be adjusted.
  TINT only appears in NTSC 3.58 mode.

4. Press the MENU button anytime to exit RGB ADJ.

On-Screen Display

• The projector's audio is factory preset to the standard setting. However, you can adjust it to suit your own preference with the ADJUSTMENT buttons on the projector or the remote control.

• You can adjust the "BALANCE", "TREBLE" and "BASS".

• To return to the factory preset mode, press the ADJUSTMENT / buttons to select "RESET", then press the ENTER button.

• Press the MENU button to select the normal screen mode.

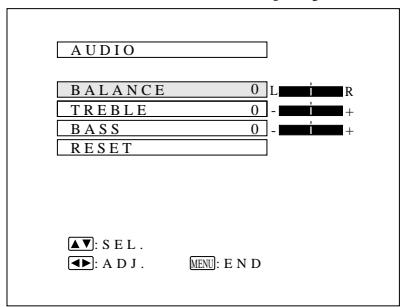

Adjusting the Audio

• Press the MENU button.

Select "AUDIO" with the ADJUSTMENT / buttons. Then press the ENTER button to change to the picture indicated on the left.

• Select "BALANCE," "TREBLE" or "BASS" with the ADJUSTMENT / buttons. Adjust the mode you want with the ADJUSTMENT / buttons.
• To return to the factory preset mode, press the AD-JUSTMENT / buttons to select "RESET", then press the ENTER button.

Description of Adjustment Items

Selected items	ADJUSTMENT ↓ button	ADJUSTMENT ➔ button
BALANCE	Increased audio from the left speaker	Increased audio from the right speaker
TREBLE	Weaker treble	Stronger treble
BASS	Weaker bass	Stronger bass

On-Screen Display

Setting Up the System

Using this function, you can check the input signal and lamp usage time, and select the remote mouse.

Checking the system and lamp usage time

• Press the MENU button. Select "SYSTEM SETUP" with the ADJUSTMENT / buttons. Then press the ENTER button to change to the picture indicated on the left.
• The current system conditions, including the lamp usage time, will be displayed on the screen.
• Press the MENU button to select the normal screen mode.

Note:

• In the video screen, the resolution and frequency settings will not be displayed.

Selecting the Remote Mouse

• Separate settings can be selected for RGB 1 and RGB 2.
• Use the INPUT SELECT buttons to select DATA 1 (RGB 1) or DATA 2 (RGB 2).
• Press the MENU button.
• Select "SYSTEM SETUP" with the ADJUSTMENT / buttons. Then press the ENTER button.
• Select "REMOTE MOUSE" and then select either "[AT]" or "[98]" with the ADJUSTMENT buttons.
• Select "[AT]" when using IBM compatibles and Apple Macintosh series.
• Select " [98]" when using NEC PC98 series (for Japan).
• Press the MENU button to select the normal screen mode.

Background Level

• The Background Level adjustment can be used to adjust the picture white balance for the selected Video Input Source.
• Optimal image quality can be achieved by adjusting the white portion of the picture to obtain the best color for the selected source.

Adjusting the BACKGROUND LEVEL

• Press the MENU button.

Select "BACKGRND LVL" with the ADJUSTMENT / buttons. Then press the ENTER button to change the picture as indicated on the left.

• Select "RED" or "BLUE" with the ADJUSTMENT / buttons. Adjust the mode you want with the ADJUSTMENT buttons.
• To return to the factory preset mode, press the ADJUST-MENT / buttons to select "RESET" then press the ENTER button.
• Press the MENU button to select the normal screen mode.

Note:

• To display only the item that you want to adjust, press the ENTER button after selecting the item with the ADJUSTMENT / buttons. Then adjust the item with the ADJUSTMENT buttons.

LCD Projector

On-Screen Display

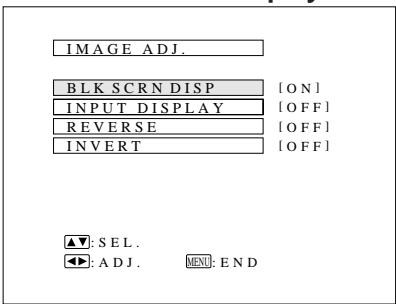

Using the Black Screen Function

This projector is equipped with a Black Screen Function. This function can be used to black out the presentation image.

• Press the BLACK SCREEN button on the projector or the remote control to display the black screen. Press the BLACK SCREEN button again to return to the presentation image.

Note:

• When "BLK SCRN DISP" is set to "OFF", the On-Screen Display ("BLACK SCREEN") will not appear during black screen. See below.

Black Screen On-Screen Display Override

The On-Screen Display ("BLACK SCREEN") that appears during black screen can be turned off. When "BLK SCRN DISP" is set to "OFF", the On-Screen Display will not appear during black screen.

• Press the MENU button. While the MENU screen is displayed, press the ADJUSTMENT / buttons to select "IMAGE ADJ." Then press the ENTER button to display the "IMAGE ADJ." screen as shown. Press the ADJUSTMENT / buttons to select "BLK SCRN DISP" and press the ADJUSTMENT / buttons to select "ON" or "OFF".

On-Screen Display

Using the Blue Screen Function

This projector is equipped with a Blue Screen function that will turn the screen blue when the video input terminal is not connected to anything, or the video component is turned off.

• Press the MENU button. While the MENU screen is displayed, press the ADJUSTMENT / buttons to select "IMAGE ADJ." Then press the ENTER button to display the "IMAGE ADJ." screen as shown. Press the ADJUSTMENT / buttons to select "BLUE SCREEN," and press the ADJUSTMENT / buttons to select "ON" or "OFF". Press the MENU button to return to the normal screen.
• When the Blue Screen function is on, the screen will turn blue when no video signal is being input through the video input terminal.
• When the Blue Screen function is on, and no video signal is input via the input terminal for more than 15 minutes, the power is automatically turned off.

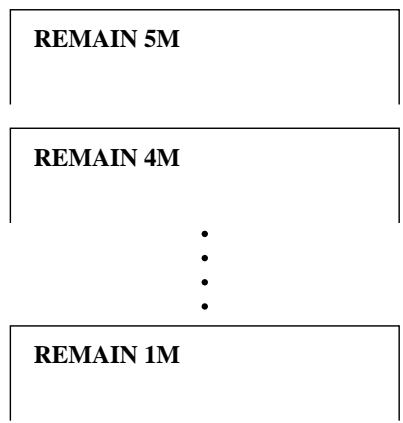

• The indicators appear as shown each minute before the power is turned off, from 5 minutes before until 1 minute before.

Notes:

• The Blue Screen function does not operate in RGB mode.
• When the power is turned off, the POWER indicator will light red.
• To turn the power on again, press the POWER button to set it to OFF, then press it again to set it to ON.

Using the Input Mode On-Screen Display Override Function

The On-Screen Displays that appear during input select ("RGB 1,024 × 768, 75 Hz," etc.) can be turned off. Once "INPUT DISPLAY" is turned off, the On-Screen Displays will not appear even if the INPUT CHECK button on the remote control is pressed.

• Press the MENU button. While the MENU screen is displayed, press the ADJUSTMENT / buttons to select "IMAGE ADJ." Then press the ENTER button to display the "IMAGE ADJ." screen as shown. Press the ADJUSTMENT / buttons to select "INPUT DISPLAY," and press ADJUSTMENT / buttons to select "ON" or "OFF".
• When OFF is selected, the On-Screen Display ("RGB 1,024 × 768, 75 Hz," etc.) will not be displayed during input select.

Bottom Air Filter

AIR FILTER cover

• The air filter should be cleaned every 100 hours of use. Clean the filter more often when the projector is used in a dusty or smoky location.
• Have your nearest Authorized Sharp Industrial LCD Products Dealer or Service Center exchange the filter (PFILD0080CEZZ) when it is no longer possible to clean it.

Cleaning and Replacing the Filter

1 Turn OFF the MAIN POWER.	2 Remove the FILTER COVER.	3 Remove the AIR FILTER.
OFF ON POWER indicator goes off. Unplug the power cord.	Press the tab in the direction of the arrow and lift open the filter cover.	Grasp the air filter between your fingers and lift it out of the filter cover.
	Press Tab Open
4 Clean the AIR FILTER.	5 Replace the AIR FILTER.	6 Replace the FILTER COVER.
Clean the dust off the air filter and cover with a vacuum cleaner extension hose.	Place the filter underneath the tabs on the filter frame. Return the air filter to its original position in the filter cover opening.	Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

Note:

• Be sure the AIR FILTER COVER is securely installed. The power cannot be turned on unless it is correctly installed.

Lamp

The lamp operating life differs, depending on the usage environment. It is recommended that the lamp be replaced after 4,000 cumulative hours of use.

• When the lamp is nearing the end of its operating life, the picture and color quality will deteriorate. At this point, replace the lamp. (See pages 31 and 32.)

Note: The lamp usage time can be checked with the On-Screen display. (See page 26.)

• If the new lamp does not light after replacement, take your projector to the nearest Authorized Sharp Industrial LCD Products Dealer or Service Center for repair.
• Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.

Maintenance Indicators

LAMP REPLACEMENT indicator
TEMPERATURE indicator

• The warning lights on the projector indicate problems inside the projector.
• There are two warning lights: a TEMPERATURE indicator which warns that the projector is too hot, and a LAMP REPLACEMENT indicator which lets you know when to change the lamp.
• If a problem occurs, either the TEMPERATURE indicator or the LAMP REPLACEMENT indicator will light up red, and the power will shut off. After turning off the power, follow the procedures given below.

Warning Indicator	Symptom	Problem	Possible Solution
TEMPERATURE indicator	The internal temperature is abnormally high.	•Blocked air intake.	•Relocate projector to a proper location.
		•Clogged air filter.	•Clean the filter.(See page 29.)
		•Cooling fan breakdown.	•Take the projector to your nearest Autho- rized Sharp Industrial LCD Products Dealer or Service Center for repair.
		•Internal circuit failure.
LAMP REPLACE-MENT indicator	The lamp does not light up.	•Burnt-out lamp.	•Carefully replace the lamp.•Take the projector to your nearest Autho- rized Sharp Industrial LCD Products Dealer or Service Center for repair.
		•Lamp circuit failure.

Notes:

• If the TEMPERATURE indicator comes on, follow the above possible solutions and then wait until the projector has cooled down completely before turning the power back on. (At least 5 minutes.)
• When the power is turned off and then turned on again, as during a brief rest, the LAMP REPLACEMENT indicator may be triggered, preventing the power from going on. When this happens, take the power plug out of the AC outlet and put it back in again.

Before Calling for Service

Problem	Check
No picture and no sound.	·The projector AC cord is not plugged into the AC wall outlet. ·The main power switch is not pressed. ·The input is wrong. (See pages 22 and 23.) ·Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.) ·Remote control batteries have run down. (See page 7.) ·The optional cable for the remote control is improperly inserted. ·The main power of the remote control is not turned on. ·The remote control's MOUSE/ADJUSTMENT switch is set to MOUSE.
Sound is heard but no picture appears.	·Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.) ·The PICTURE and BRIGHT adjustments are set to minimum position. (See page 24.) ·On-Screen Display ("BLACK SCREEN") is turned off and Black Screen function is turned on, creating a black image. (See page 27.)
Color is faded or poor.	·The COLOR and TINT adjustments are not correct. (See page 24.)
Picture is blurred.	·Adjust the focus. (See page 9.) ·The projection distance is too long or too short to allow for proper focus. (See page 10.)
Picture appears but no sound is heard.	·Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.) ·Volume is set to minimum. (See page 23.)
An unusual sound is occasionally heard from the cabinet.	·If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes. This will not affect operation or performance.
Maintenance indicator lights up.	·Refer to "Lamp/Maintenance Indicators" on page 30.

The lamp in the projector has a finite service life. The lamp operating life differs, depending on the usage environment. It is recommended that the lamp be replaced after 4,000 cumulative hours of use. The lamp usage time can be checked at the On-Screen display. (See page 26.)

• Replace the lamp when the picture starts becoming dark and the color contrast deteriorates.

Purchase a replacement UHP lamp unit (lamp/cage module) of the current type BQC-XGNV2U//1 from your nearest Authorized Sharp Industrial LCD Products Dealer. Then change the lamp by carefully following the instructions below.

If you wish, you may bring the projector to your nearest Authorized Sharp Industrial LCD Products Dealer.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through an Authorized Sharp Industrial LCD Products Dealer or Service Center. For the name of the nearest Authorized Sharp Industrial LCD Products

Dealer or Service Center, please call toll-free: 1-800-BE-SHARP (1-800-237-4277).

U.S.A. ONLY

How to Change the Lamp

Precaution:

• Take care not to touch either the glass surface of the lamp cage or the inside of the projector with your bare hands.

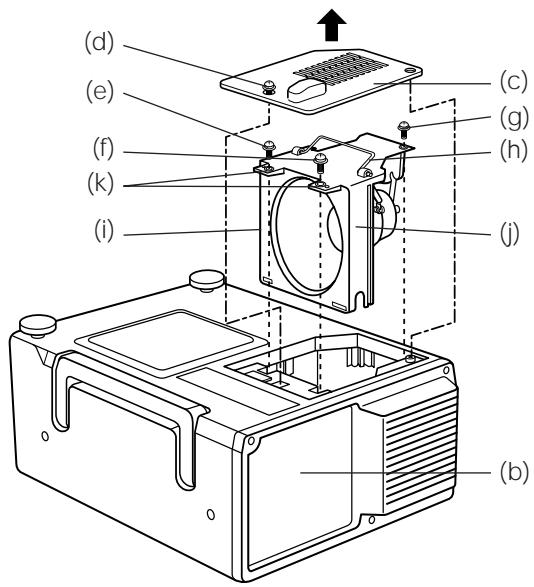

Removing the lamp unit (see figure)

1. Press the power button (a) and turn the instrument off. After the cooling fan stops, turn off the MAIN POWER switch (b). Remove the power cord from the AC outlet.
2. The lamp may be extremely hot. Wait at least an hour after the power cord is disconnected before carrying out the following procedures.
3. Turn over the projector and unfasten the user service screw (d) that secures the lamp cage cover (c) as shown in the above diagram. Then remove the lamp cage cover by pulling it in the direction of the arrow.

Note:

• When the lamp cage cover (c) has been removed, check that the surface of the lamp cage (i) has fully cooled before proceeding with step 4.

• After the lamp cage (i) has sufficiently cooled, remove securing screws (e), (f) and (g) from the lamp cage.

• Hold the lamp cage (i) by the handle (h) and pull it towards you.

Installing the lamp unit

1. Hold the lamp cage (i) by the handle (h) and press it in firmly while making sure that grooves on the side of the lamp cage (j) are properly aligned with the projections inside the lamp cage compartment, and that the holes on the top of the lamp cage (k) are aligned with the screw holes on the projector.
2. Tighten screws (e), (f), (g) and (d), then perform the above instructions in the reverse order.

Caution:

• Because some parts may not be sufficiently cooled, be sure to remove the lamp cage by the handle while taking care not to touch the metallic areas.

Resetting the lamp timer

1

1. Plug in the power cord.

2

1. While pressing the ADJUSTMENT , ADJUSTMENT , and ENTER buttons on the projector, turn on the MAIN POWER switch.

3

After the projector turns on, "LAMP 0000H" is displayed, indicating that the lamp timer is reset.

Note:

• Only reset the lamp timer after replacing the lamp.

Analog RGB 1 and 2 Signal Input and Analog RGB Output Terminal: 15-pin mini

D-sub female connector

Computer Input

Analog

1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync
6. Earth (red)

7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected
10. GND
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock

Mouse Input Terminal (for IBM/Mac): 9-pin D-sub female connector

Pin No. Signal

1	CD
2	RD
3	SD
4	ER
5	SG
6	DR
7	RS
8	CS
9	CI

Name

Carrier Detect

Receive Data

Send Data

Equipment Ready

Signal Ground

Data Set Ready

Request to Send

Clear to Send

Ring Indicator

I/O

Input

Input

Output

Output

Output

Input

Input

Reference

Connected to internal circuit

Connected to internal circuit

Connected to internal circuit

Connected to internal circuit

Connected to internal circuit

Not connected

Connected to internal circuit

Connected to internal circuit

Connected to internal circuit

Mouse Input Terminal (for NEC PC98 series for Japan): 9-pin mini DIN connector

Pin No. Signal

1	+5V	Input
2	XA	Input
3	XB	Input
4	YA	Input
5	YB	Input
6	LEFT	Input
7	NC	Input
8	RIGHT	Input
9	GND

I/O

Reference

Computer output

Computer output

Computer output

Computer output

Computer output

Computer output

RS-232C terminal: 9-pin D-sub male connector

Pin No. Signal

1	CD
2	RD
3	SD
4	ER
5	SG
6	DR
7	RS
8	CS
9	CI

Name

Receive Data

Send Data

Signal Ground

Data Set Ready

Request to Send

I/O

Input Output

Output Output

Reference

Not connected

Connected to internal circuit

Connected to internal circuit

Not connected

Connected to internal circuit

Not connected

Connected to internal circuit

Not connected

Not connected

1. PC control

A personal computer can be used to control the projector by connecting the supplied computer control cable to the PC CONTROL 1 terminal on the projector and an RS-232C cable (cross type) (not supplied) to the computer, and then connecting the RS-232C cable to the computer control cable. (RS-232C does not function when connected to PC CONTROL 2. See page 15 for connection.)

2. Communication conditions

Set the serial port settings of the computer to match that of the table below.

Signal format: Conforms to RS-232C standard.

Baud rate: 9,600 bps

Data length: 8 bits

Parity bit: NON

Stop bit: 1 bit

Flow control: None

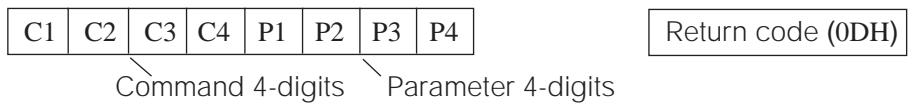

3. Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the unit processes the command from the computer, it sends a response code to the computer.

Command format

Response code format

Normal response

Problem response (communication error or incorrect command)

When more than one code is being sent, send each command only after the OK response code for the previous command from the unit is verified.

Note:

• Using the computer control function of the unit, the liquid crystal projector conditions cannot be read to the computer. Therefore, confirm the conditions by transmitting the display commands for each adjustment menu and checking the conditions with the On-Screen Display. If the unit receives a command other than a menu display command, it will execute the command without displaying the On-Screen Display.

4. Commands

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
POWER SETTING	P	O	W	R	-	-	-	0	POWER OFF
	P	O	W	R	-	-	-	1	POWER ON
INPUT SWITCHING	I	V	E	D	-	-	-	1	VIDEO 1
	I	V	E	D	-	-	-	2	VIDEO 2
	I	R	G	B	-	-	-	1	RGB 1
	I	R	G	B	-	-	-	2	RGB 2
INPUT CHECK	I	C	H	K	-	-	-	0	INPUT CHECK
LANGUAGE SELECTION	M	E	L	A	-	-	-	1	ENGLISH
	M	E	L	A	-	-	-	2	DEUTSCH
	M	E	L	A	-	-	-	3	ESPNOL
	M	E	L	A	-	-	-	4	NEDERLANDS
	M	E	L	A	-	-	-	5	FRANCAIS
	M	E	L	A	-	-	-	6	ITALIANO
	M	E	L	A	-	-	-	7	SVENSKA
	M	E	L	A	-	-	-	8	JAPANESE
VIDEO SYSTEM SELECTION	M	E	S	Y	-	-	-	1	AUTO
	M	E	S	Y	-	-	-	2	PAL
	M	E	S	Y	-	-	-	3	SECAM
	M	E	S	Y	-	-	-	4	NTSC 4.43
	M	E	S	Y	-	-	-	5	NTSC 3.58
VIDEO 1 IMAGE ADJUSTMENT	V	A	P	I	-	*	*	*	PICTURE (-30 - +30)
	V	A	B	R	-	*	*	*	BRIGHT (-30 - +30)
	V	A	C	O	-	*	*	*	COLOR (-30 - +30)
	V	A	T	I	-	*	*	*	TINT (-30 - +30)
	V	A	S	H	-	-	-	*	SHARPNESS (-30 - +30)
	V	A	R	E	-	-	-	0	VIDEO 1 DISPLAY
	V	A	R	E	-	-	-	1	RESET
VIDEO 2 IMAGE ADJUSTMENT	V	B	P	I	-	*	*	*	PICTURE (-30 - +30)
	V	B	B	R	-	*	*	*	BRIGHT (-30 - +30)
	V	B	C	O	-	*	*	*	COLOR (-30 - +30)
	V	B	T	I	-	*	*	*	TINT (-30 - +30)
	V	B	S	H	-	-	-	*	SHARPNESS (-30 - +30)
	V	B	R	E	-	-	-	0	VIDEO 2 DISPLAY
	V	B	R	E	-	-	-	1	RESET
VIDEO BACKGROUND LEVEL	W	B	R	D	-	*	*	*	RED (-30 - +30)
	W	B	B	E	-	*	*	*	BLUE (-30 - +30)
	W	B	R	E	-	-	-	1	RESET

Note:

• If a dash appears in the parameter column, enter a space. If an asterisk appears, enter a value in the range indicated in brackets under CONTROL CONTENTS. See the example on the next page.

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
VOLUMEADJUSTMENT	V	O	L	A	_	_	*	*	VOLUME (0-60)
	M	U	T	E	_	_	_	0	MUTE OFF
	M	U	T	E	_	_	_	1	MUTE ON
AUDIOADJUSTMENT	A	A	B	L	_	*	*	*	BALANCE (-30-+30)
	A	A	T	E	_	*	*	*	TREBLE (-30-+30)
	A	A	B	A	_	*	*	*	BASS (-30-+30)
	A	A	R	E	_	_	_	0	AUDIO DISPLAY
	A	A	R	E	_	_	_	1	RESET
RGB 1 ADJUSTMENT	R	A	P	I	_	*	*	*	PICTURE (-30+30)
	R	A	B	R	_	*	*	*	BRIGHT (-30+30)
	R	A	R	D	_	*	*	*	RED (-30+30)
	R	A	B	E	_	*	*	*	BLUE (-30+30)
	R	A	R	E	_	_	_	0	RGB DISPLAY
	R	A	R	E	_	_	_	1	RESET
RGB 2 ADJUSTMENT	R	B	P	I	_	*	*	*	PICTURE (-30+30)
	R	B	B	R	_	*	*	*	BRIGHT (-30+30)
	R	B	R	D	_	*	*	*	RED (-30+30)
	R	B	B	E	_	*	*	*	BLUE (-30+30)
	R	B	R	E	_	_	_	0	RGB DISPLAY
	R	B	R	E	_	_	_	1	RESET
RGB INPUTADJUSTMENT	I	N	C	L	_	*	*	*	CLOCK (-60+60)
	I	N	P	H	_	*	*	*	PHASE (-60+60)
	I	A	H	P	_	*	*	*	H-POS (-60+60)
	I	A	V	P	_	*	*	*	V-POS (-30+30)
	I	A	R	E	_	_	_	0	RGB INPUT DISPLAY
	I	A	R	E	_	_	_	1	RESET
SCREEN SETTING	I	M	B	E	_	_	_	0	BLUE SCREEN OFF
	I	M	B	E	_	_	_	1	BLUE SCREEN ON
	I	M	B	K	_	_	_	0	BLACK SCREEN OFF
	I	M	B	K	_	_	_	1	BLACK SCREEN ON
	I	M	D	I	_	_	_	0	INPUT DISPLAY OFF
	I	M	D	I	_	_	_	1	INPUT DISPLAY ON
	I	M	R	E	_	_	_	0	REVERSE OFF
	I	M	R	E	_	_	_	1	REVERSE ON
	I	M	I	N	_	_	_	0	INVERT OFF
	I	M	I	N	_	_	_	1	INVERT ON
VIDEOCONFIRMATION	S	Y	S	E	_	_	_	0	DISPLAY
ON-SCREENDISPLAY SETTING	I	M	B	O	_	_	_	0	BLACK SCREEN DISPLAY OFF
	I	M	B	O	_	_	_	1	BLACK SCREEN DISPLAY ON
MOUSEADJUSTMENT	R	E	M	O	_	_	_	1	REMOTE MOUSE AT
	R	E	M	O	_	_	_	2	REMOTE MOUSE 98
SCREEN MODEMEMORY	M	E	M	A	_	_	_	0	MEMORY RELEASE
	M	E	M	A	_	_	_	*	MEMORY SELECTION (1-7)

Note:
- RGB INPUT ADJUSTMENT can only be set in the displayed computer mode.

Example:

When BRIGHT of RGB 1 IMAGE ADJUSTMENT is set to -10.

Computer

R

A

B

R

_

-

1

0

←

Unit

→

←

O

K

1. Specifications of wired remote control input

• 3.50 minijack
  External: +5V (1 A)
• Internal: GND

2. Function and transmission codes

No.	Control Item	System Code					Data Code						External Code
	(Function)	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
1	VOLUME UP	1	0	1	1	0	0	0	1	0	1	0	0	0	1	0
2	VOLUME DOWN	1	0	1	1	0	1	0	1	0	1	0	0	0	1	0
3	POWER ON	1	0	1	1	0	0	1	1	0	1	0	1	0	1	0
4	POWER OFF	1	0	1	1	0	0	1	1	0	1	0	0	1	1	0
5	CURSOR UP ↑	1	0	1	1	0	0	0	1	1	1	0	0	1	1	0
6	CURSOR DOWN ↓	1	0	1	1	0	1	0	1	1	1	0	0	1	1	0
7	ADJUST UP →	1	0	1	1	0	1	1	1	1	0	0	1	0	1	0
8	ADJUST DOWN ←	1	0	1	1	0	0	0	0	0	1	0	1	0	1	0
9	MUTE	1	0	1	1	0	1	1	1	0	1	0	0	0	1	0
10	MENU	1	0	1	1	0	0	0	1	0	0	0	1	1	1	0
11	VIDEO 1	1	0	1	1	0	0	1	0	0	1	1	0	0	1	0
12	VIDEO 2	1	0	1	1	0	1	1	0	0	1	1	0	0	1	0
13	RGB1	1	0	1	1	0	1	0	1	0	1	1	0	0	1	0
14	RGB 2	1	0	1	1	0	0	1	1	0	1	1	0	0	1	0
15	ENTER	1	0	1	1	0	1	1	1	0	1	0	1	0	1	0
16	INPUT CHECK	1	0	1	1	0	1	1	0	1	1	0	0	0	1	0
17	BLACK SCREEN	1	0	1	1	0	1	0	0	1	0	1	1	0	1	0

Note:

• To operate the MOUSE, L-Click and R-Click functions through the wired remote control input, connect the cable from the wired remote control (supplied) terminal on the projector to the remote control. The codes for these functions are complex and are, therefore, not listed here.

Wired remote control function code

LSB

MSB

C1← System Code → C5

C6← Data Code → C13

C14

C15

1

0

1

1

0

*

*

*

*

*

*

*

*

*

1

0

• System codes C1 to C5 are fixed at "10110".
• Codes C14 and C15 are reverse confirmation bits, with "10" indicating "Front" and "01" indicating "Rear".

3. Sharp remote control signal format

1. Transmission format

a. 15-bit format

1. Wave form of output signal

Output using Pulse Position Modulation

• t = 264 s
• To = 1.05 ms
• T1 = 2.10 ms
• Pulse carrier frequency = 455/12 kHz
• Duty ratio = 1:1

3. Transmission control code

a. 15 bit

C1

C2

C3

C4

C5

C6

C7

C8

C9

C10

C11

C12

C13

C14

C15

System Address

Function Key Data Bit

Data Expansion

Mask

Data Delay-mination

D to D Common Data Bit

Reverse in D

b. Example of Reverse D to

D	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
	1	0	1	1	0	1	0	0	0	0	0	0	0	1	0

D	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
	1	0	1	1	0	0	1	1	1	1	1	1	1	0	1

Product Type Model	LCD Projector PG-D210U
Video system	PAL/SECAM/NTSC 3.58/NTSC 4.43
Display method	LCD panel × 3, RGB optical shutter method
LCD panel	Panel size: 1.3" (20.0 [H] × 26.6 [W] mm)
	Display method: Translucent TN liquid crystal panel
	Drive method: TFT (Thin Film Transistor) Active Matrix panel
	No. of dots: 786,432 dots (1,024 [H] × 768 [V])
Lens	1-1.6 zoom lens, F2.5 to 3.6, f = 47 to 76 mm
Projection lamp	120 W UHP lamp
Contrast ratio	200:1
Video input signal	RCA Connector:VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated
	RCA Connector: AUDIO, 0.5 Vrms more than 22 kΩ (stereo)
S-video input signal	4-pin mini DIN connector
	Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
	C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Horizontal resolution	520 TV lines (video input), 700 TV lines (S-video input)
Audio output	2 W + 2 W (stereo)
Computer RGB input signal	Video signal 15-PIN MINI D-SUB CONNECTOR (RGB 1, 2): RGB separate/composite sync/sync on green type analog input: 0-0.7 Vp-p, positive, 75 Ω terminated
	STEREO MINIJACK: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo) HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) or composite sync
	VERTICAL SYNC. SIGNAL: Same as above
Computer Control Cable (Supplied)
RS-232C input terminal	9-pin D-sub male connector for controlling personal computer
Mouse input terminal (for IBM/Mac)	9-pin D-sub female connector for wireless mouse
Mouse input terminal (for PC98)	9-pin mini DIN connector for wireless mouse
Speaker system	2.8" × 1.6" (7 × 4 cm) oval × 2
Rated voltage	AC 110-120/200-240 V
Input current	1.8 A/1.0 A
Rated frequency	50/60 Hz
Power consumption	226 W
Operating temperature	41°F to 104°F (+5°C to +40°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R Carrier frequency	40 kHz
Laser Pointer of Remote Control	Wave length 670 nm
	Max. output 1 mW
	Class II Laser Product
Dimensions (W × D × H)	10.3" × 13.0" × 5.4" (261 × 329 × 137 mm) (main body only)
	10.5" × 15.7" × 6.1" (266 × 399 × 155 mm) (including lens, adjuster legs and projecting parts)
	14.6 lbs. (6.6 kg)
Weight	Remote control unit, Four AA batteries, Extra air filter, RGB signal cable (9.8', 3 m), Macintosh adaptor, Computer control cable (3.3', 1 m), Mouse control cable for IBM PS/2 (5.9", 15 cm), Mouse control cable for Mac (5.9", 15 cm), Mouse control cable (9.8', 3 m), Computer audio cable, AC cord, Lens cap (installed)
Supplied accessories
Replacement parts	Lamp unit (Lamp/cage module) (BQC-XGNV2U/1), Remote control (RRMCG1414CESA), Air filter (PFILD0080CEZZ), RGB signal cable (QCNW-5050CEZZ), Macintosh adaptor (QPLGJ1512CEZZ), Computer control cable (CTANZ0711CE01), Mouse control cable for IBM PS/2 (QCNW-4754CEZZ), Mouse control cable for Mac (QCNW-4755CEZZ), Mouse control cable (QCNW-4620CEZZ), Computer audio cable (QCNW-4870CEZZ), AC cord (OACCU5013CEZZ)

Our projector uses LCD (Liquid Crystal Display) panels. These very sophisticated panels contain 786,432 pixels ( × RGB) TFTs (Thin Film Transistors).

As with any high technology electronic equipment such as large screen TVs, video systems and/or video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive TRTs within acceptable tolerances which may result in illuminated or inactive dots on the picture screen.

This will not affect the picture quality or the life expectancy of the unit.

If you have any questions about this matter, please call toll free 1-800-

BE-SHARP (1-800-237-4277). U.S.A. ONLY

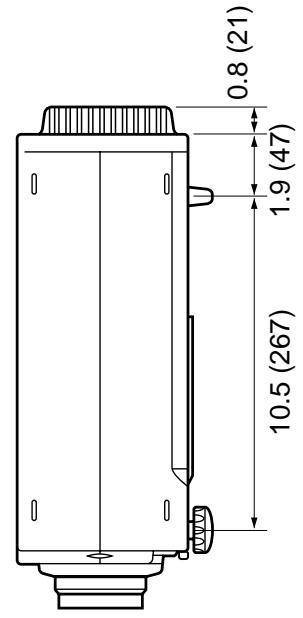

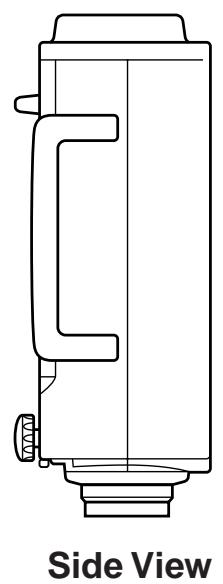

Rear View

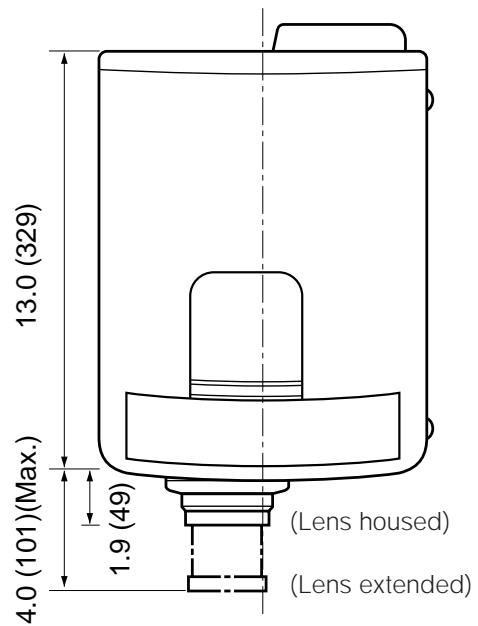

Top View

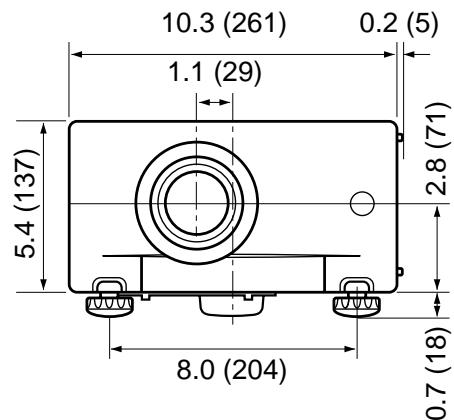

Front View

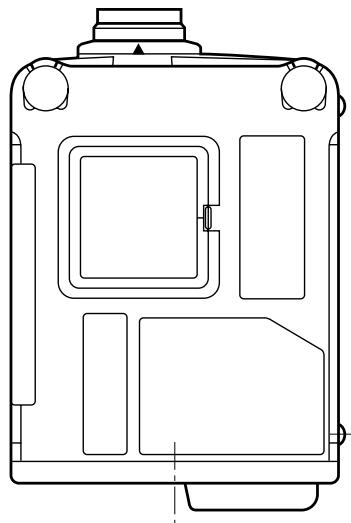

Bottom View

SHARP CORPORATION

OSAKA, JAPAN
