USER MANUAL XR-55X SHARP

MULTIMEDIA PROJECTOR

MODEL

XR-55X

XR-50S

OPERATION MANUAL

Notevision

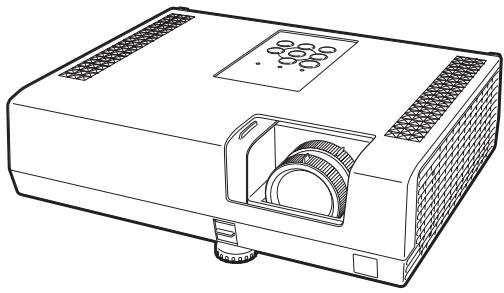

Line drawing of a projector with a circular vent and ventilation slots (no text or symbols)

PICTURE BY DLP® TEXAS INSTRUMENTS

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information.
• Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 11.

Model No.:

Serial No.:

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked 🌐 or 🔒 and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol 12 or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

Authorized representative responsible for the European Union Community Market

SHARP ELECTRONICS (Europe) GmbH

The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish, Portuguese, Chinese, Korean and Arabic. Carefully read through the operation instructions before operating the projector.

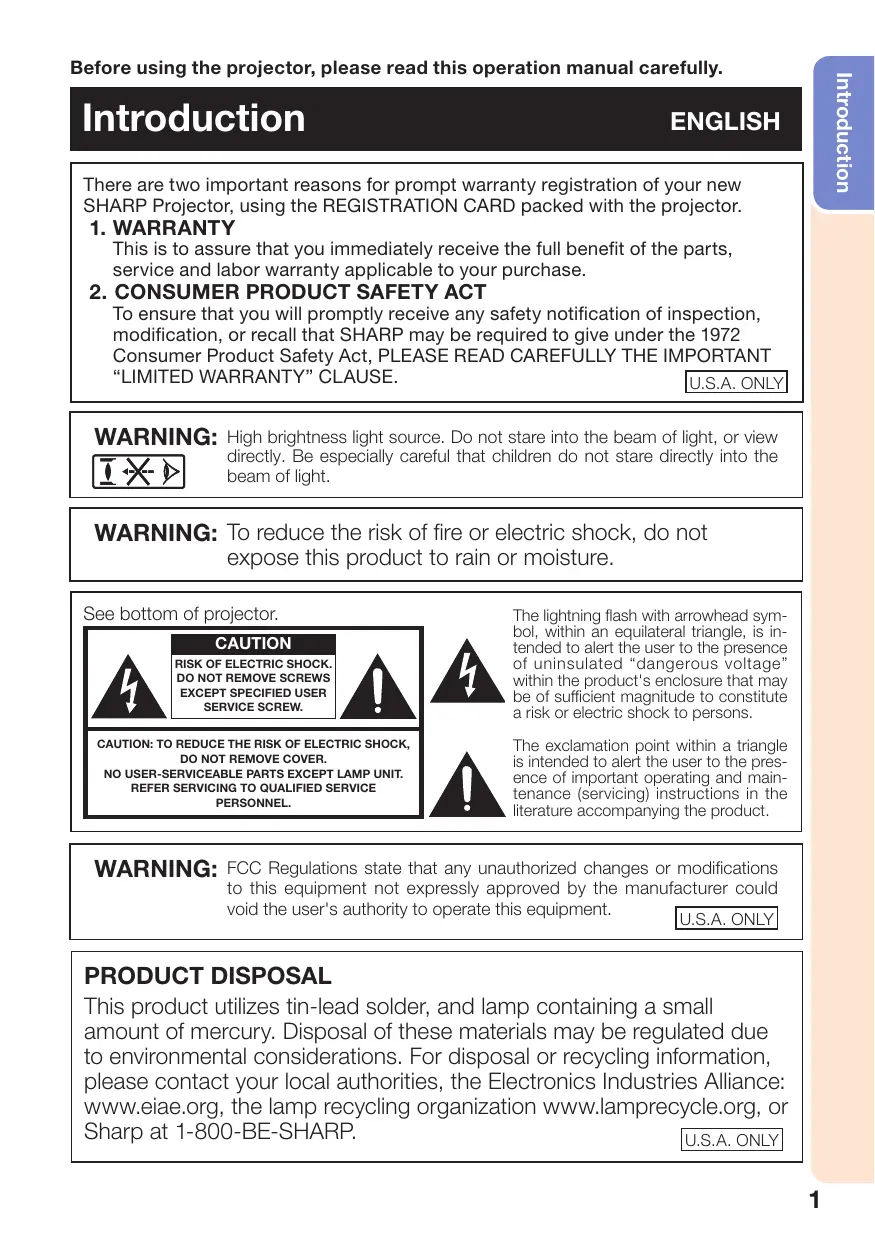

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE.

U.S.A. ONLY

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

See bottom of projector.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

U.S.A. ONLY

PRODUCT DISPOSAL

This product utilizes tin-lead solder, and lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org, or Sharp at 1-800-BE-SHARP.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  U.S.A. ONLY

Declaration of conformity

SHARP PROJECTOR, MODEL XR-55X/XR-50S

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163

TEL: 1-800-BE-SHARP (1-800-237-4277)

U.S.A. ONLY

Caution Concerning Lamp Replacement

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burns or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.
• Do not touch the glass surface of the lamp unit or the inside of the projector.
• Do not loosen other screws except for the lamp unit cover and lamp unit.
• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

■ Carefully change the lamp by following the instructions described on pages 56 to 58.

* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

How to Read this Operation Manual

The specifications are slightly different, depending on the model. However, you can connect and operate all models in the same manner.
- In this operation manual, the illustration and the screen display are simplified for explanation, and may differ slightly from the actual display. The examples used throughout this manual are based on the XR-55X model.

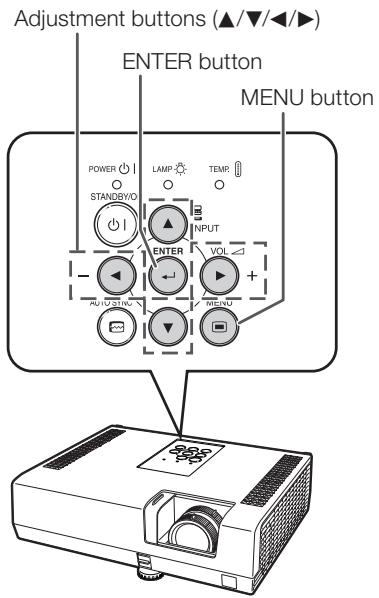

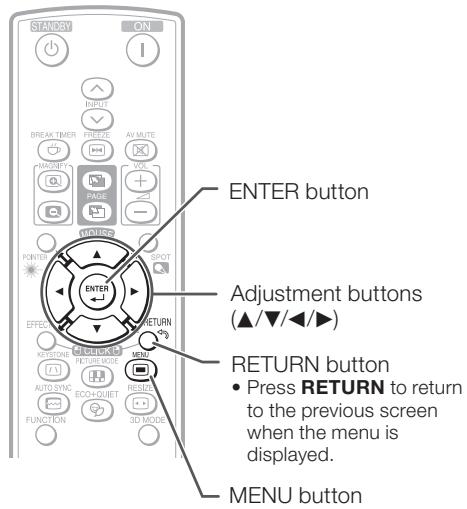

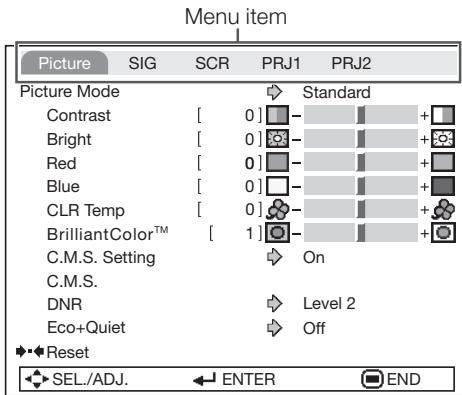

Using the Menu Screen

Select from the Quick Start Menu, which is a collection of the most frequently used functions, or the Complete Menu, which enables advanced settings and adjustments.

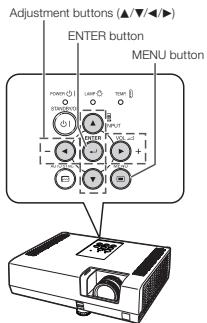

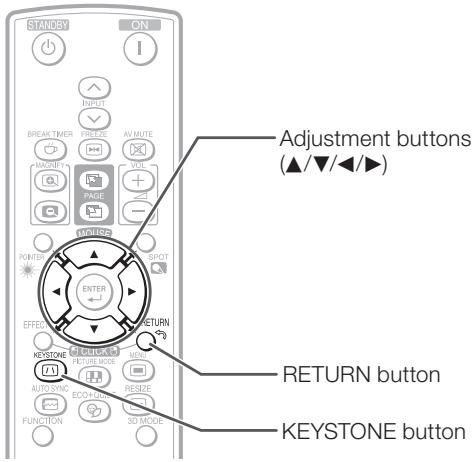

Adjustment buttons (▲/▼/◄►) ENTER button MENU button

ENTER button Adjustment buttons RETURN button Press RETURN to return to the previous screen when the menu is displayed. MENU button

Buttons used in this operation

Menu Selections (Quick Start Menu)

- This operation can also be performed by using the buttons on the projector.

1 Press MENU. • The "Quick Start Menu" screen for the selected Input mode is displayed.

2 Press ▲ or ▼ to select the desired item, then press ENTER.

3 Press ▲/▼/◄/► to adjust the item selected, then press ENTER.

Info

• To display the advanced settings and adjustments, select "Go To Complete Menu". Press ENTER to display the Complete Menu screen.
• If you do not want to display the Quick Start Menu, set "Go To Complete Menu" - "PRJ-ADJ2" - "Quick Start Menu" to "Off". (See page 51.)

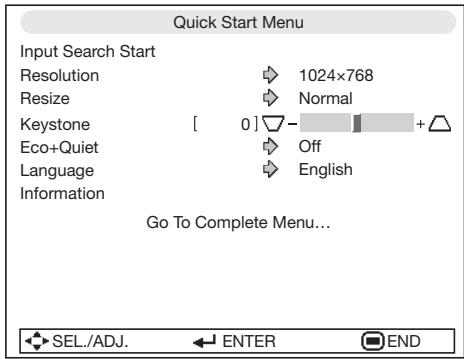

Example Quick Start Menu Input Search Start Resolution 1024x768 Resize Normal Keystone [ 0] Off Eco+Quiet English Language Information Go To Complete Menu... SEL/ADJ. ENTER END

Button used in this step

On-screen display

38

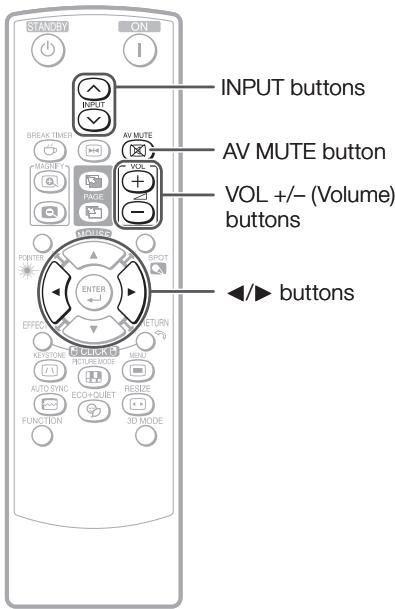

Info ......Indicates safeguards for using the projector.

Note ...... Indicates additional information for setting up and operating the projector.

For Future Reference

Maintenance

P. 53

Troubleshooting

PP. 67 and 68

Index

P. 72

Preparing

Introduction

How to Read this Operation Manual .....3

Contents......4

IMPORTANT SAFEGUARDS ......6

How to Access the PDF Operation Manuals....10

Accessories....11

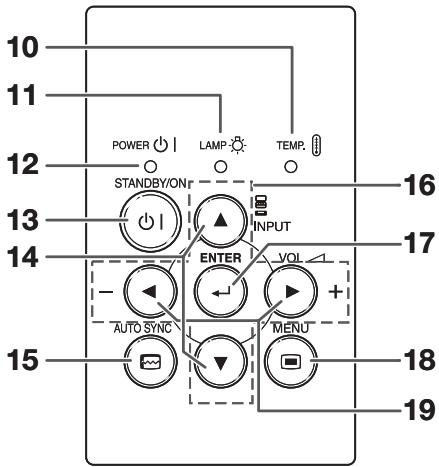

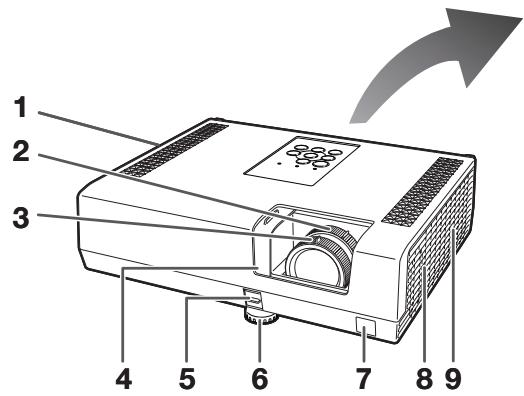

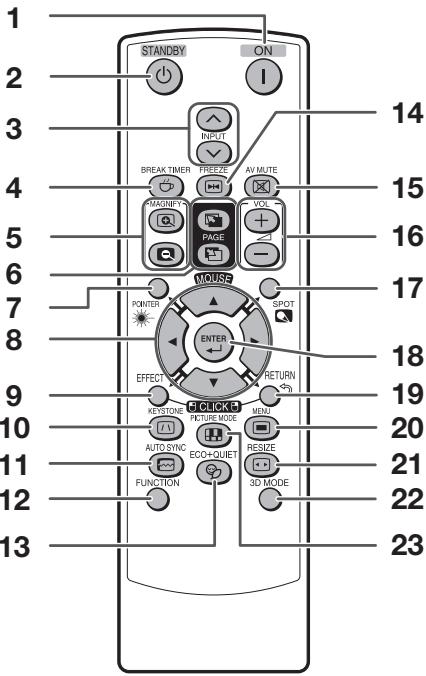

Part Names and Functions......12

Front View 12

Top View 12

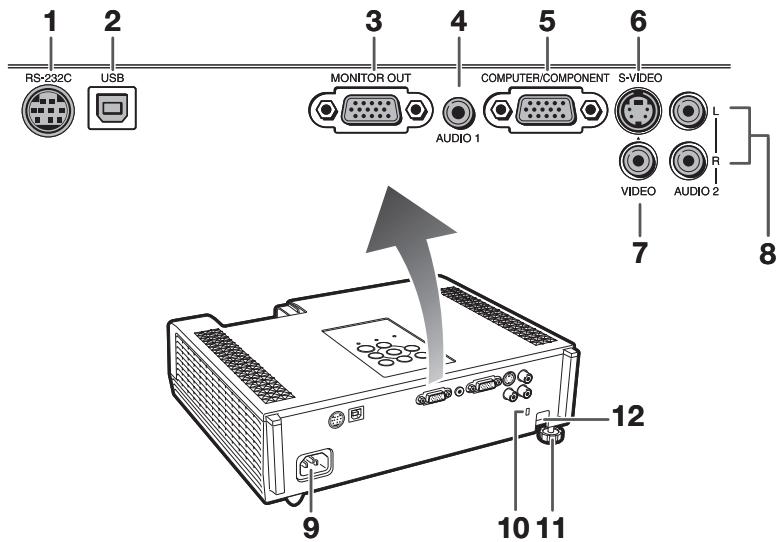

Rear View (Terminals).... 13

Inserting the Batteries.... 15

Usable Range.... 15

Easy Start

Easy Start....16

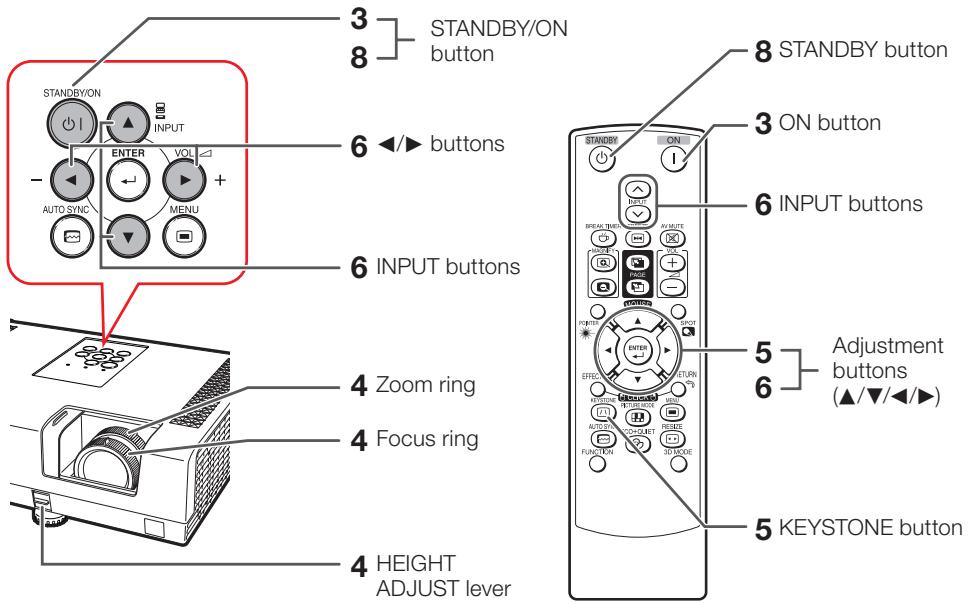

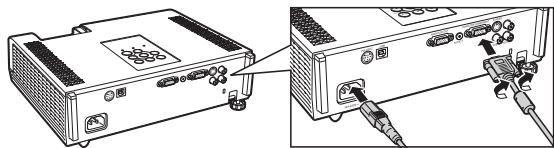

Setup and Projection 16

Setup

Setting Up the Projector....18

Setting Up the Projector 18

Standard Setup (Front Projection)...... 18

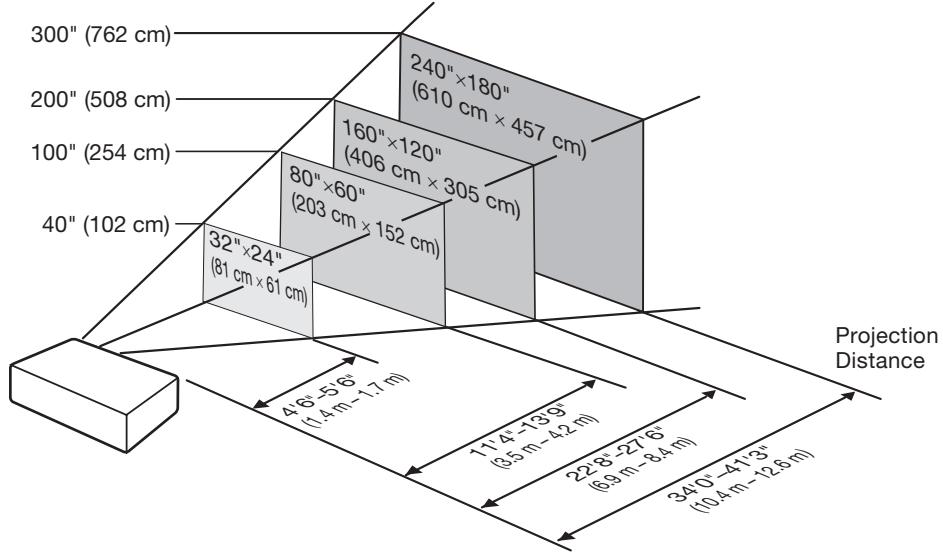

Screen Size and Projection Distance ..... 19

Projection (PRJ) Mode 20

Ceiling-Mount Setup.... 20

Connections

Connecting the Projector to Other Equipment....21

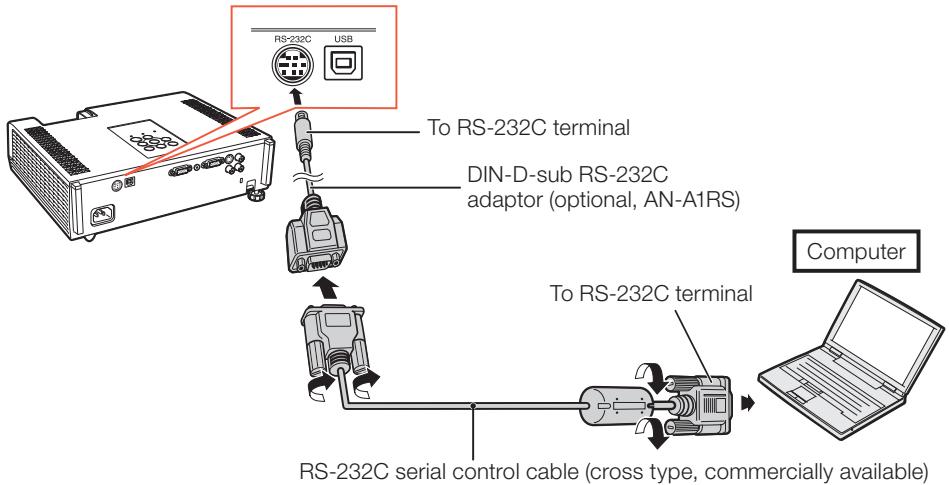

Controlling the Projector by a Computer 24

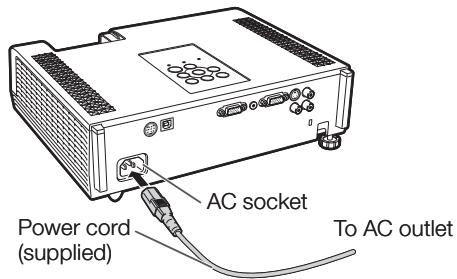

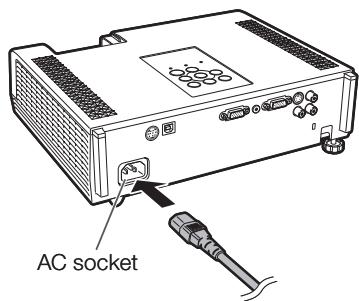

Connecting the Power Cord....24

Using

Basic Operation

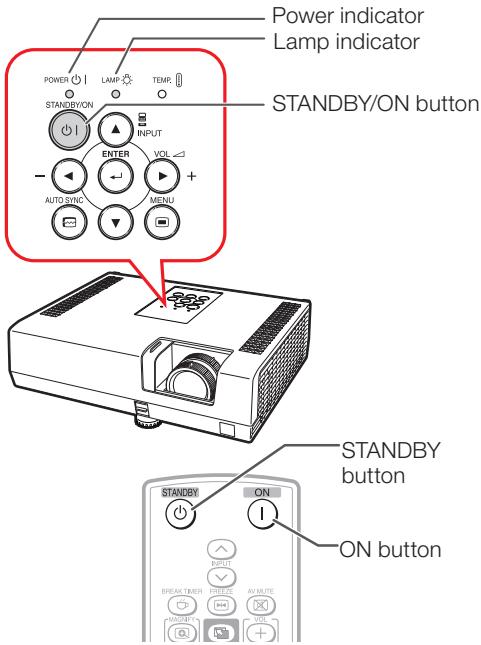

Turning the Projector On/Off .....25

Turning the Projector On.... 25

Turning the Power Off (Putting the Projector into Standby Mode) 25

Image Projection 26

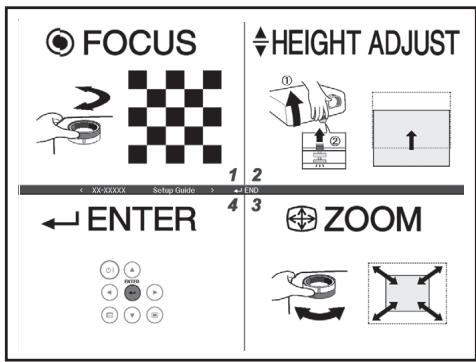

About the Setup Guide.... 26

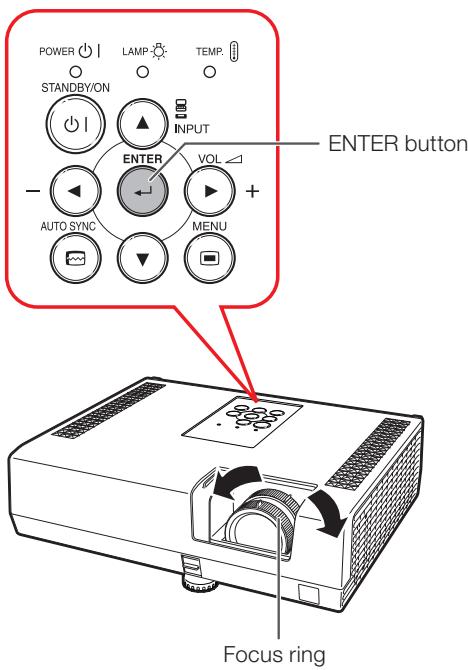

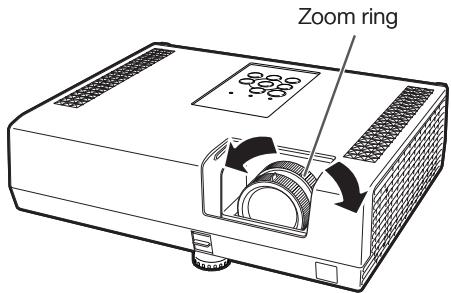

Adjusting the Projected Image 26

Correcting Trapezoidal Distortion 28

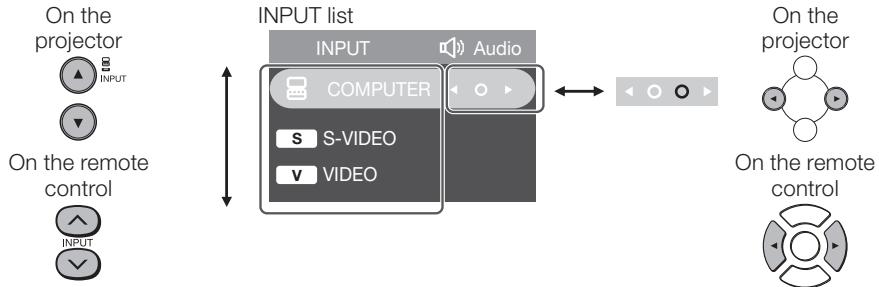

Switching the Input Mode.... 29

Adjusting the Volume 29

Displaying the Black Screen and

Turning Off the Sound Temporarily ..... 29

Resize Mode 30

Useful Features

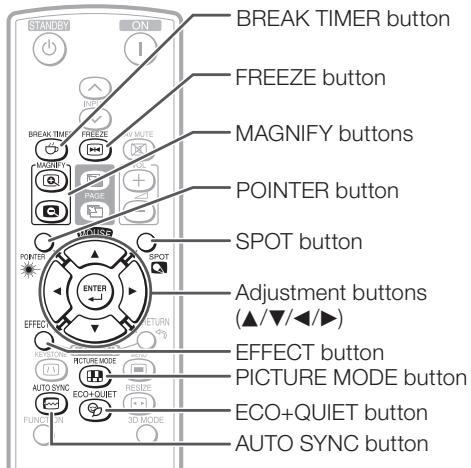

Operating with the Remote Control.....32

Displaying and Setting the Break Timer 32

Displaying the Pointer 32

Using the Spot Function 32

Switching the Eco+Quiet Mode 32

Auto Sync (Auto Sync Adjustment) ...... 33

Freezing a Moving Image 33

Selecting the Picture Mode.... 33

Displaying an Enlarged Portion of an Image 33

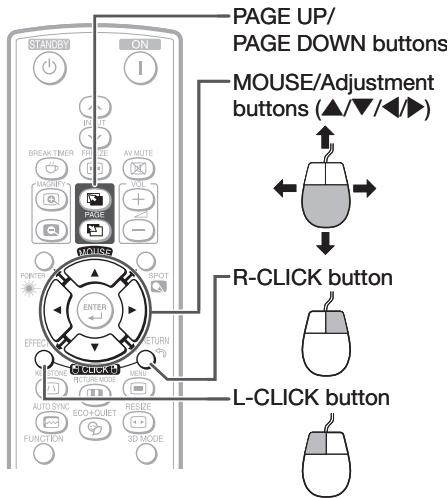

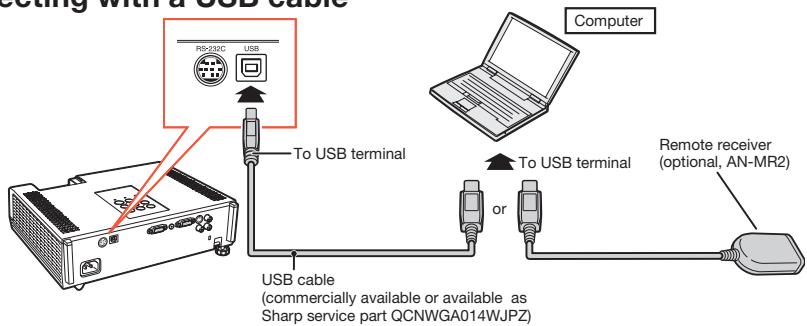

Using the Remote Control as the Wireless Computer Mouse.... 34

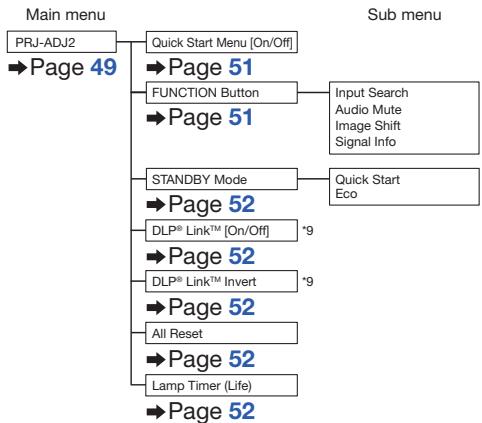

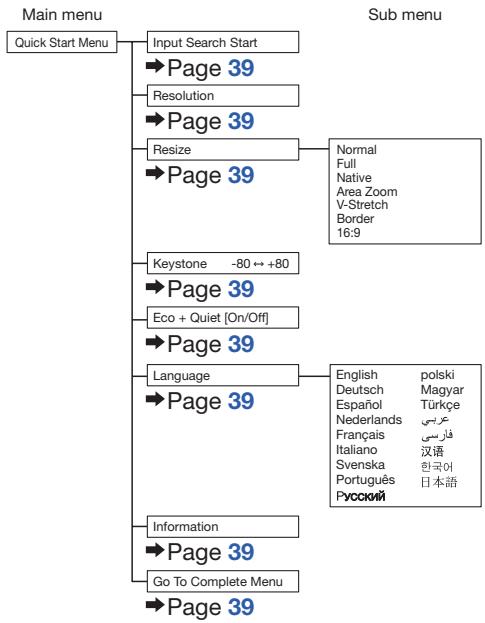

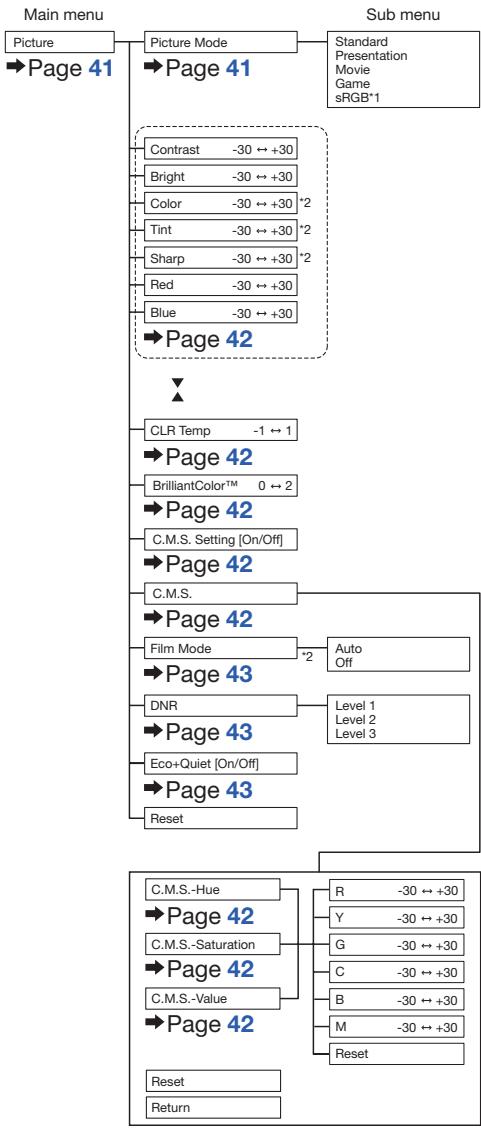

Menu Items....35

Using the Menu Screen 38

Menu Selections (Quick Start Menu) ......38

Quick Start Menu 39

Menu Selections (Complete Menu) 39

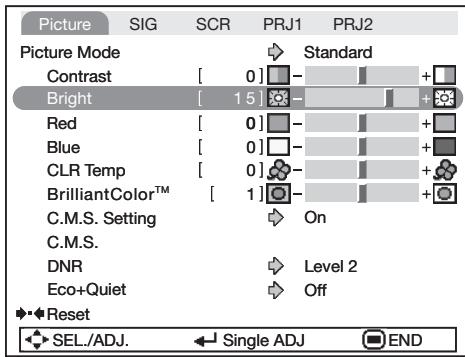

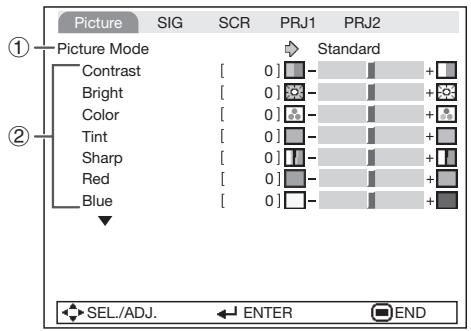

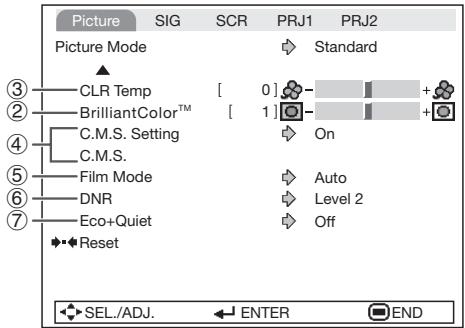

Picture Adjustment ("Picture" Menu) ....41

Selecting the Picture Mode...... 41

Adjusting the Image 42

Adjusting the Color Temperature...... 42

Adjusting the Colors 42

Selecting the Film Mode 43

Reducing Image Noise (DNR) 43

Eco+Quiet 43

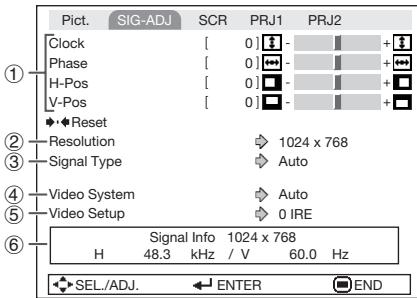

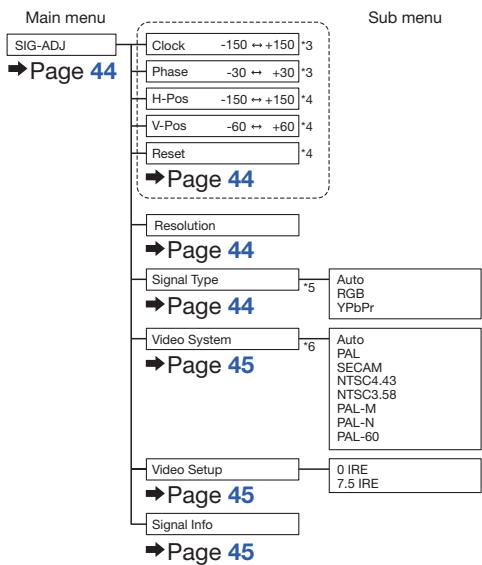

Signal Adjustment ("SIG-ADJ" Menu) ..44

Adjusting the Computer Image 44

Resolution Setting 44

Signal Type Setting 44

Setting the Video System 45

Setting the Video Setup 45

Checking the Input Signal 45

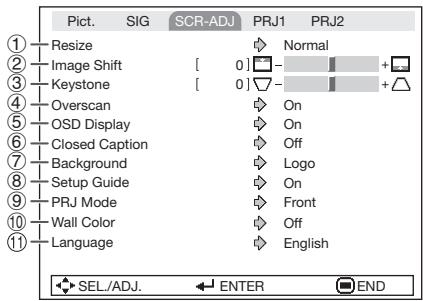

Adjusting the Projected Image

("SCR - ADJ" Menu)......46

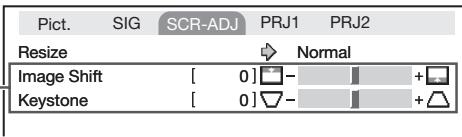

Setting the Resize Mode...... 46

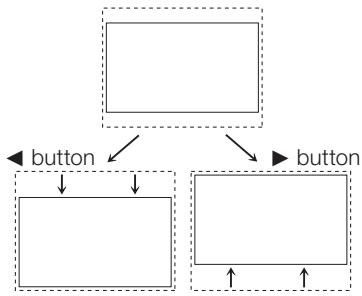

Adjusting the Image Position 46

Keystone Correction 46

Setting the Overscan 47

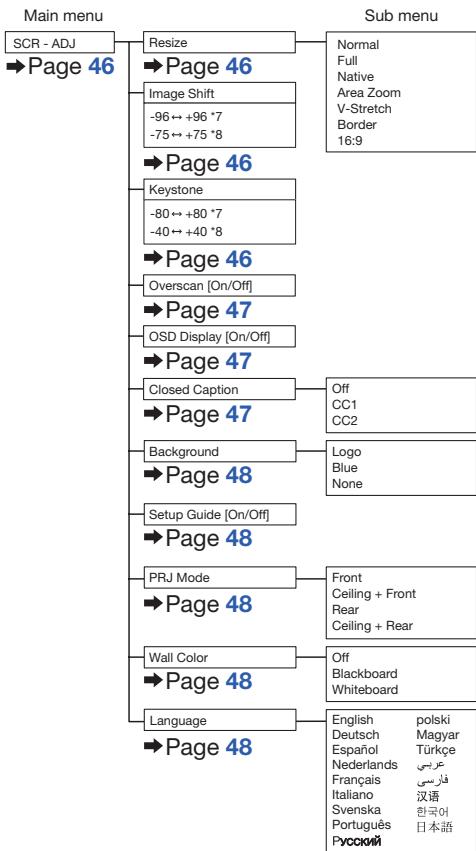

Setting the On-screen Display 47

Closed Caption 47

Selecting the Background Image...... 48

Selecting the Setup Guide 48

Reversing/Inverting Projected Images.....48

Selecting the Wall Color 48

Selecting the On-screen Display Language ... 48

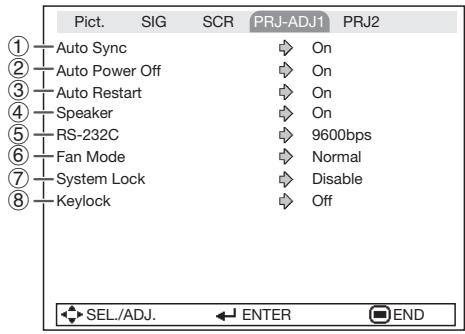

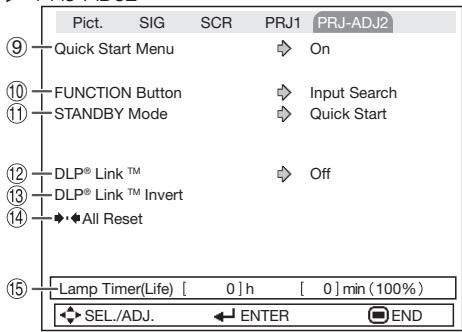

Adjusting the Projector Function

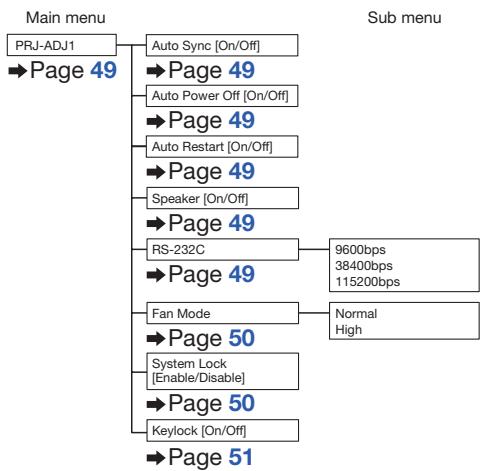

("PRJ-ADJ1/2" Menu) 49

Auto Sync (Auto Sync Adjustment) ...... 49

Auto Power Off Function 49

Auto Restart Function.... 49

Speaker Setting 49

Selecting the Transmission Speed (RS-232C) 49

Fan Mode Setting 50

System Lock Function.... 50

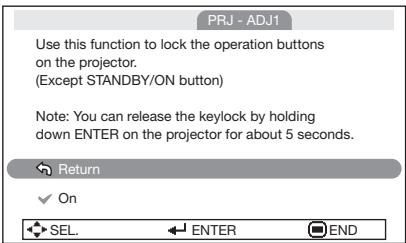

Keylock Function.... 51

Selecting the Quick Start Menu .... 51

Setting the FUNCTION Button Operation.. 51

STANDBY Mode.... 52

DLP ^® Link ^TM 52

DLP ^® Link ^TM Invert 52

Returning to the Default Settings 52

Checking the Lamp Life Status.... 52

Reference

Appendix

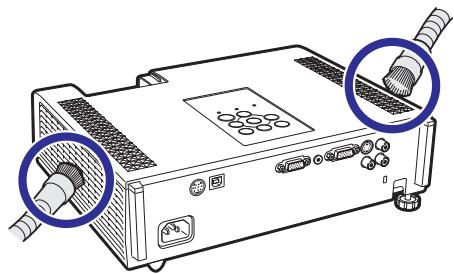

Maintenance....53

Maintenance Indicators....54

Regarding the Lamp....56

Lamp 56

Caution Concerning the Lamp 56

Replacing the Lamp 56

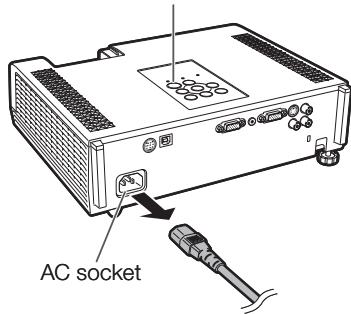

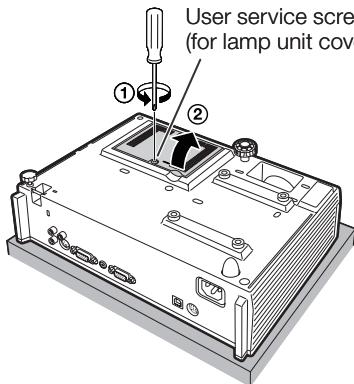

Removing and Installing the Lamp Unit.... 57

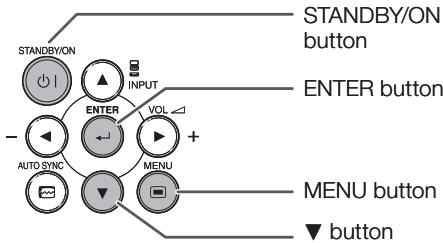

Resetting the Lamp Timer 58

Connecting Pin Assignments ....59

RS-232C Specifications and Commands 61

Computer Compatibility Chart ......66

Troubleshooting......67

For SHARP Assistance....69

Specifications....70

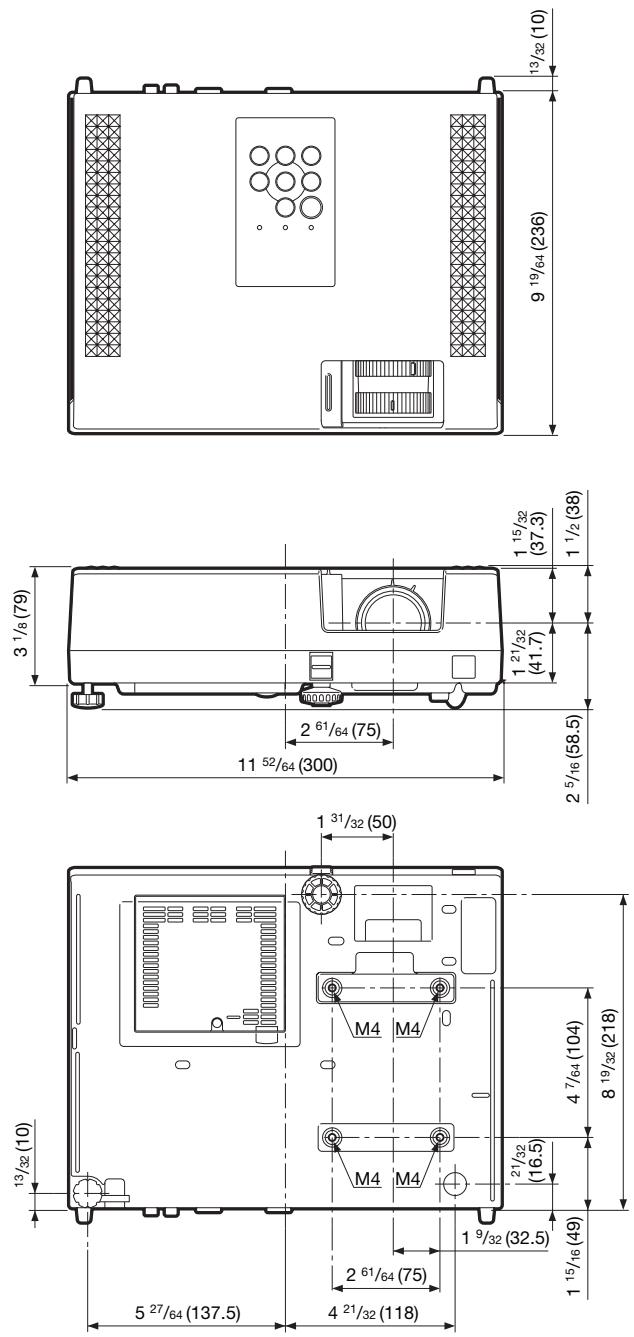

Dimensions....71

Index....72

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

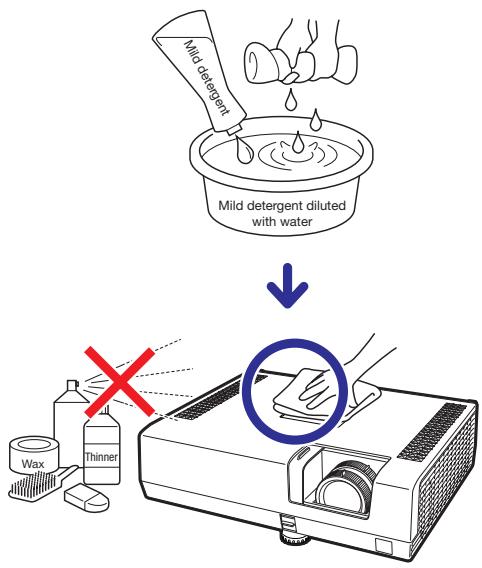

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician.

Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a grounding terminal.

This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ and DLP® Link™ are trademarks of Texas Instruments.
• Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe ^ Reader ^ is a trademark of Adobe Systems Incorporated.
• Macintosh® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective companies.
• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector

Dealer or Service Center for replacement.

See "Regarding the Lamp" on page 56.

Caution concerning the setup of the projector

For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■ Place the projector on a level site within the adjustment range (9 degrees) of the adjustment foot.

Two diagrams showing a hammer striking a surface with a red X and a blue O, no text or symbols present.

■ After the projector is purchased, a faint smell from the vent may appear when the power is first turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 1,500 meters (4,900 feet) or more)

When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.
■ Use the projector at altitudes of 2,300 meters (7,500 feet) or less.

Warning about placing the projector in a high position

■ When placing the projector in a high position, make certain it is carefully secure to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

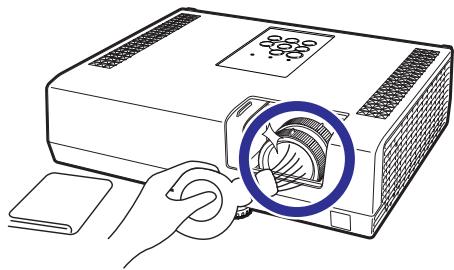

■ Protect the lens so as not to hit or damage the surface of the lens.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41^ F to 95^ F (+ 5^ C to + 35^ C).
■ The storage temperature of the projector is from -4^ to 140^ ( -20^ to +60^ ).

Do not block the exhaust and intake vents.

• Allow at least 11^13/_16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.
  ■ Ensure that the intake vent and the exhaust vent are not obstructed.
  If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into Standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 54 and 55.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

If you are not to use the projector for a long time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.
■ Do not carry the projector by holding the lens.
■ When storing the projector, ensure that you close the lens shutter.
■ Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

When connecting a computer or other audio-visual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.
■ Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

TEMP.

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the temperature warning indicator will blink. And if the temperature keeps on rising, “TEMP.” will illuminate in the lower left corner of the picture with the temperature warning indicator blinking. If this state continues, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode. Refer to “Maintenance Indicators” on pages 54 and 55 for details.

Info

- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

Closed Caption uses Bitstream Vera fonts

Copyright (c) 2003 by Bitstream, Inc. All Rights Reserved. Bitstream Vera is a trademark of Bitstream, Inc.

Permission is hereby granted, free of charge, to any person obtaining a copy of the fonts accompanying this license (“Fonts”) and associated documentation files (the “Font Software”), to reproduce and distribute the Font Software, including without limitation the rights to use, copy, merge, publish, distribute, and/or sell copies of the Font Software, and to permit persons to whom the Font Software is furnished to do so, subject to the following conditions:

The above copyright and trademark notices and this permission notice shall be included in all copies of one or more of the Font Software typefaces.

The Font Software may be modified, altered, or added to, and in particular the designs of glyphs or characters in the Fonts may be modified and additional glyphs or characters may be added to the Fonts, only if the fonts are renamed to names not containing either the words “Bitstream” or the word “Vera”.

This License becomes null and void to the extent applicable to Fonts or Font Software that has been modified and is distributed under the “Bitstream Vera” names.

The Font Software may be sold as part of a larger software package but no copy of one or more of the Font Software typefaces may be sold by itself.

THE FONT SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER RIGHT. IN NO EVENT SHALL BITSTREAM OR THE GNOME FOUNDATION BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE.

Except as contained in this notice, the names of Gnome, the Gnome Foundation, and Bitstream Inc., shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Font Software without prior written authorization from the Gnome Foundation or Bitstream Inc., respectively. For further information, contact: fonts at gnome dot org.

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe ^® Reader ^® on your computer (Windows ^® or Macintosh ^® ).

Please download Adobe ^® Reader ^® from the Internet (http://www.adobe.com).

Accessing the PDF Manuals for Windows ^® (For Macintosh ^® , skip step ②).

① Insert the CD-ROM in the CD-ROM drive.
② Double click the “My Computer” icon.
③ Double click the “CD-ROM” drive.
④ Double click the “MANUALS” folder.
⑤ Double click the model (name of the folder) that you want to view.
⑥ Double click the language (name of the folder) that you want to view.
⑦ Double click the pdf file to access the projector manuals.

Note

- If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then specify the desired file using the “File”, “Open” menu.

Accessories

Supplied accessories

1 OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFFICE ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFC ON/OFO

Remote control

for XR-55X

ON OFF OK Cancel Change Adjust Reset Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to Reset to

for XR-50S

Two R-6 batteries ("AA" size, UM/SUM-3, HP-7 or similar)

Illustration of a coiled cable with two connectors (no text or symbols)

RGB cable (10' (3.0 m))

Power cord*

For U.S. and Canada, etc. (6' (1.8 m))

Illustration of a coiled electrical outlet with a power plug (no text or symbols)

For Europe, except U.K. (6' (1.8 m))

For U.K. and Singapore (6' (1.8 m))

Illustration of a coiled electrical plug with two connectors (no text or symbols)

For Australia, New Zealand and Oceania (6' (1.8 m))

* Which power cords are supplied along with your projector depends on the region. Use the power cord that corresponds to the wall outlet in your country.
- Operation manuals (this manual , OPERATION MANUAL FOR STEREOSCOPIC 3D PROJECTION and CD-ROM )

Note

- Codes in "< >" are Replacement parts codes.

Optional accessories

Lamp unit
■ Ceiling-mount adaptor
■ Ceiling-mount bracket
■ Ceiling-mount unit
■ Ceiling-mount extension tube
■ Remote receiver
■ 3 RCA to mini D-sub 15 pin cable (10' (3.0 m))
■ DIN-D-sub RS-232C adaptor (5 ^57/_64 " (15 cm))

AN-D350LP

AN-60KT

AN-XRCM30 (for U.S.A. only)

AN-TK201

AN-TK202

AN-EP101B

(for U.S.A. only)

AN-MR2

AN-C3CP2

AN-A1RS

Note

- Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

Part Names and Functions

Numbers in ■ refer to the main pages in this operation manual where the topic is explained.

1 2 3 4 5 6 7 8 9

10 11 12 POWER LAMP TEMP. STANDBY/ONr INPUT 16 13 17 14 ENTER VOL - AUTO SYNC MENU 15 18 19

Front View

1 Exhaust vent 53
2 Zoom ring 27 For enlarging/reducing the picture.
3 Focus ring 26 For adjusting the focus.
4 Lens shutter 25, 29

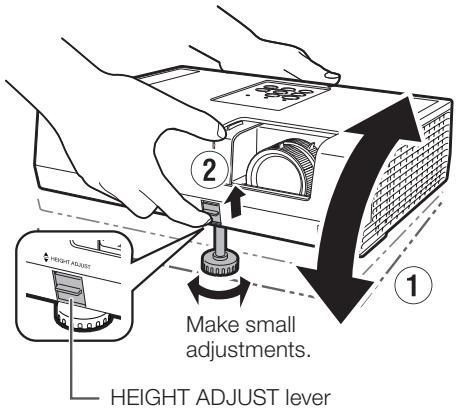

5 HEIGHT ADJUST lever 27
6 Adjustment foot 27
7 Remote control sensor 15
8 Speaker 49
9 Intake vent 53

Top View

10 Temperature warning indicator 54
11 Lamp indicator 54
12 Power indicator 54
13 STANDBY/ON button 25 For turning the power on and putting the projector into Standby mode.
14 INPUT buttons (▲/▼) 29 For switching Input mode.
15 AUTO SYNC button 33 For automatically adjusting images when connected to a computer.
16 Adjustment buttons (▲/▼/◄/►) 38 For selecting menu items.
17 ENTER button 38 For setting items selected or adjusted on the menu.
18 MENU button 38 For displaying adjustment and setting screens.
19 VOL (Volume) buttons (-◀/▶+) 29 For adjusting the speaker sound level.

1 RS-232C USB MONITOR OUT AUDIO 1 4 COMPUTER/COMPONENT S-VIDEO L R VIDEO AUDIO 2 7 8 9 10 11 12

Rear View (Terminals)

1 RS-232C terminal 24 Terminal for controlling the projector using a computer.
2 USB terminal 34 Terminal connecting with the USB terminal on the computer for using the supplied remote control as the computer mouse.
3 MONITOR OUT terminal 23 (Output terminal for computer RGB and component signals) Terminal for connecting a monitor.
4 AUDIO 1 input terminal 23 5 COMPUTER/COMPONENT input terminal 21, 22 Terminal for computer RGB and component signals.

6 S-VIDEO input terminal 22 Terminal for connecting video equipment with an S-video terminal.
7 VIDEO input terminal 22 Terminal for connecting video equipment.
8 AUDIO 2 input terminal 23
9 AC socket 24 Connect the supplied power cord.
10 Kensington Security Standard connector

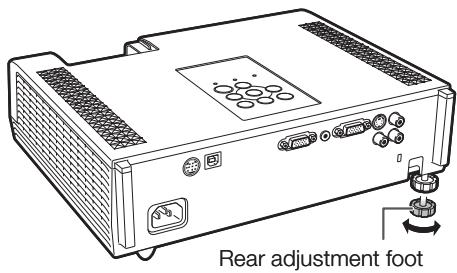

11 Rear adjustment foot 27
12 Security bar

Using the Kensington Lock

- This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Part Names and Functions (Continued)

Numbers in ■ refer to the main pages in this operation manual where the topic is explained.

STANDBY ON INPUT BREAK TIMER FREEZ AV MUTE MAGNETY VOLT PAGE VOLUME POWER SPOT ENTER EFFECT RETURN CLICK MENU KEystone MEM AUTO SYNC ECO-QUIET RESIZE FUNCTION 3D MODE 14 15 16 17 18 19 20 21 22 23

1 ON button 25 For turning the power on.
2 STANDBY button 25 For putting the projector into the Standby mode.
3 INPUT buttons (∧ / ∨) 29 For switching Input mode.
4 BREAK TIMER button 32 For displaying the break time.
5 MAGNIFY buttons 33 For enlarging/reducing part of the image.
6 PAGE UP/PAGE DOWN buttons 34 Same as the [Page Up] and [Page Down] keys on a computer keyboard, when with the USB connection (using a USB cable or the optional remote receiver).
7 POINTER button 32 For displaying the pointer.
8 MOUSE/Adjustment buttons (▲/▼/◄/►) 34, 38

- For moving the computer cursor when with the USB connection (using a USB cable or the optional remote receiver).

- For selecting and adjusting menu items.

9 L-CLICK/EFFECT button 34, 32

• For the Left click when with the USB connection (using a USB cable or the optional remote receiver).

• For changing the pointer or spot area.
  10 KEYSTONE button 28 For entering the Keystone Correction mode.
  11 AUTO SYNC button 33, 49 For automatically adjusting images when connected to a computer.
  12 FUNCTION button 51 For operating and executing a function assigned to "FUNCTION Button".
  13 ECO+QUIET button 32 For lowering the noise of the cooling fan and extending the lamp life.
  14 FREEZE button 33 For freezing images.
  15 AV MUTE button 29 For temporarily displaying a black screen and turning off the sound.
  16 VOL +/- (Volume) buttons 29 For adjusting the speaker sound level.
  17 SPOT button 32 For displaying the spotlight.
  18 ENTER button 38 For setting items selected or adjusted on the menu.
  19 R-CLICK/RETURN button 34, 38

• For the Right click when with the USB connection (using a USB cable or the optional remote receiver).

• For returning to the previous menu screen during menu operations.

20 MENU button 38 For displaying adjustment and setting screens.

21 RESIZE button 30 For switching the picture size (NORMAL, 16:9, etc.).
22 3D MODE button (XR-55X only) See the OPERATION MANUAL FOR STEREOSCOPIC 3D PROJECTION provided separately.
23 PICTURE MODE button 33 For selecting the appropriate picture.

Inserting the Batteries

1 Pull down the tab on the cover and remove the cover towards the direction of the arrow.

2 Insert the batteries.

- Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.

3 Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.

Illustration of a handheld device with a scroll wheel and directional arrow indicating rotation (no text or symbols)

Diagram of a device casing with internal components and labeled terminals (no text or symbols present)

Diagram of a device being folded or placed on a tray, showing arrows indicating movement (no text or symbols present)

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with alkaline or manganese batteries.
• Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

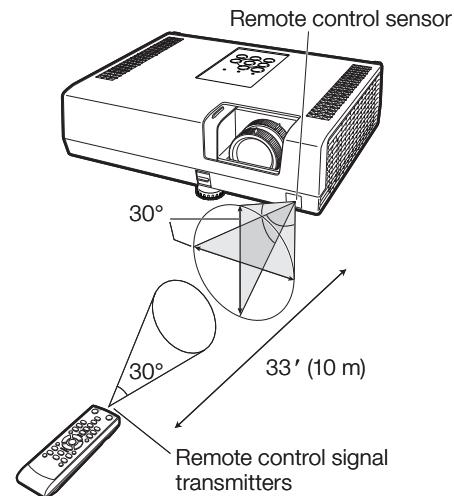

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

• Ensure that you do not drop it or expose it to moisture or high temperature.
• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Remote control sensor 30° 30° 33' (10 m) Remote control signal transmitters

Remote control

Easy Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

STANDBY/ON button STANDBY/ON INPUT + AUTO SYNC ENTER VOL MENU 6 ◀▶ buttons 6 INPUT buttons 4 Zoom ring 4 Focus ring 4 HEIGHT ADJUST lever 8 STANDBY button 3 ON button 6 INPUT buttons 5 Adjustment buttons (▲/▼/◄/►) 6 KEYSTONE button

1. Place the projector facing a wall or a screen

→P. 18

1. Connect the projector to the computer and plug the power cord into the AC socket of the projector

Diagram showing two electronic devices connected to a power connector, with no visible text or symbols.

When connecting equipment other than a computer, see pages 22 and 23.

→PP. 21, 24

1. Open the lens shutter fully and then turn the projector on

Line drawing of a rectangular electronic device with a label and arrow indicating direction (no text or symbols present)

On the projector

On the remote control

→P. 25

4. Adjust the projected image with the Setup Guide

1 After the projector turns on, the Setup Guide appears. (When "Setup Guide" is set to "On". See page 48.)
2 Follow the steps in the Setup Guide and adjust the focus, height (angle) and picture size.
3 After adjusting the focus, height (angle) and picture size, press ENTER to finish the Setup Guide.

P. 26

5. Correct trapezoidal distortion

Correcting trapezoidal distortion using Keystone Correction.

On the remote control

Shrinks upper side.

Shrinks lower side.

P. 28

6. Select the Input mode

Press INPUT ▲/▼ to display the INPUT list. Use INPUT ▲/▼ to select the Input mode, and use ◀/▶ to select the audio input terminal.

P. 29

7. Turn the computer on

8. Turn the power off

Press STANDBY/ON on the projector or STANDBY on the remote control, and then press the button again while the confirmation message is displayed to put the projector into Standby mode.

On the projector

On the remote control

On-screen display

Enter STANDBY mode?

Yes : Press Again

No : Please Wait

P. 25

Setting Up the Projector

Setting Up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector's feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See page 28.)

Standard Setup (Front Projection)

Place the projector at the required distance from the screen according to the desired picture size. (See page 19.)

Line drawing of a meeting scene with three people, one standing and pointing at a blank board (no text or symbols)

Indication of the Projection Image Size and Projection Distance

Example: 4:3 Signal Input (Normal Mode)

Picture Size

Screen Size and Projection Distance

Screen H 90° Lens center L

4:3 Signal Input (Normal Mode)

Picture (Screen) size			Projection distance [L]		Distance from the lens center to the bottom of the image [H]
Diagonal [ ]	Width	Height	Minimum [L1]	Maximum [L2]
300" (762 cm)	610 cm (240")	457 cm (180")	10.4 m (34' 0")	12.6 m (41' 3")	18 cm (7 ^1/_4 "
250" (635 cm)	508 cm (200")	381 cm (150")	8.6 m (28' 4")	10.5 m (34' 4")	15 cm (6 ^1/_32 "
200" (508 cm)	406 cm (160")	305 cm (120")	6.9 m (22' 8")	8.4 m (27' 6")	12 cm (4 ^53/_64 "
150" (381 cm)	305 cm (120")	229 cm (90")	5.2 m (17' 0")	6.3 m (20' 7")	9 cm (3 ^5/_8 "
120" (305 cm)	244 cm (96")	183 cm (72")	4.1 m (13' 7")	5.0 m (16' 6")	7 cm (2 ^57/_64 "
100" (254 cm)	203 cm (80")	152 cm (60")	3.5 m (11' 4")	4.2 m (13' 9")	6 cm (2 ^27/_64 "
80" (203 cm)	163 cm (64")	122 cm (48")	2.8 m (9' 1")	3.3 m (11' 0")	5 cm (1 ^15/_16 "
70" (178 cm)	142 cm (56")	107 cm (42")	2.4 m (7' 11")	2.9 m (9' 7")	4 cm (1 ^11/_16 "
60" (152 cm)	122 cm (48")	91 cm (36")	2.1 m (6' 10")	2.5 m (8' 3")	4 cm (1 ^29/_64 "
40" (102 cm)	81 cm (32")	61 cm (24")	1.4 m (4' 6")	1.7 m (5' 6")	2 cm ( ^31/_32 "

16:9 Signal Input (16:9 Mode)

Picture (Screen) size			Projection distance [L]		Distance from the lens center to the bottom of the image [H]	Adjustable range of image position [S]
Diagonal [ ]	Width	Height	Minimum [L1]	Maximum [L2]
300" (762 cm)	664 cm (261")	374 cm (147")	11.3 m (37' 1")	13.7 m (44' 11")	82 cm (32 ^13/_32 ")	±62 cm (±24 ^33/_64 ")
250" (635 cm)	553 cm (218")	311 cm (123")	9.4 m (30' 11")	11.4 m (37' 5")	69 cm (27")	±52 cm (±20 ^27/_64 ")
200" (508 cm)	443 cm (174")	249 cm (98")	7.5 m (24' 9")	9.1 m (29' 11")	55 cm (21 ^39/_64 ")	±42 cm (±16 ^11/_32 ")
150" (381 cm)	332 cm (131")	187 cm (74")	5.6 m (18' 6")	6.8 m (22' 5")	41 cm (16 ^13/_64 ")	±31 cm (±12 ^1/_4 ")
120" (305 cm)	266 cm (105")	149 cm (59")	4.5 m (14' 10")	5.5 m (18' 0")	33 cm (12 ^31/_32 ")	±25 cm (±9 ^13/_16 ")
100" (254 cm)	221 cm (87")	125 cm (49")	3.8 m (12' 4")	4.6 m (15' 0")	27 cm (10 ^51/_64 ")	±21 cm (±8 ^11/_64 ")
80" (203 cm)	177 cm (70")	100 cm (39")	3.0 m (9' 11")	3.6 m (12' 0")	22 cm (8 ^41/_64 ")	±17 cm (±6 ^17/_32 ")
60" (152 cm)	133 cm (52")	75 cm (29")	2.3 m (7' 5")	2.7 m (9' 0")	16 cm (6 ^31/_64 ")	±12 cm (±4 ^29/_32 ")
40" (102 cm)	89 cm (35")	50 cm (20")	1.5 m (4' 11")	1.8 m (6' 0")	11 cm (4 ^21/_64 ")	±8 cm (±3 ^17/_64 ")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

	4:3 Signal		16:9 Signal
	[m/cm]	[Feet/inches]	[m/cm]	[Feet/inches]
L1: Minimum projection distance (m/ft)	0.03457	0.03457 / 0.3048	0.03766	0.03766 / 0.3048
L2: Maximum projection distance (m/ft)	0.04187	0.04187 / 0.3048	0.04562	0.04562 / 0.3048
H: Distance from the lens center to the bottom of the image (cm/in)	0.06134	0.06134 / 2.54	0.27437	0.27437 / 2.54
S: Adjustable range of image position (cm/in) See page 46.	—	—	±0.20754	±0.20754 / 2.54

: Picture diagonal size : 40"-300"

Note

- Allow a margin of error in the values in the diagrams above.

Setting Up the Projector (Continued)

Projection (PRJ) Mode

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-ADJ” menu. See page 48.)

■ Table mounted, front projection [Menu item → “Front”]

Simple line drawing of a projector and two human silhouettes (no text or symbols)

■ Table mounted, rear projection (with a translucent screen) [Menu item → “Rear”]

Line drawing of a projector on screen with two people watching from below (no text or symbols)

■ Ceiling mounted, front projection [Menu item → “Ceiling + Front”]

Simple line drawing of a projector projecting onto a screen to two people watching (no text or symbols)

■ Ceiling mounted, rear projection (with a translucent screen) [Menu item → “Ceiling + Rear”]

Line drawing showing a projector projecting onto a screen to a group of people watching (no text or symbols present)

■ Ceiling-Mount Setup

It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

Connecting the Projector to Other Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the equipment to be connected. After making all connections, turn on the projector and then the other pieces of equipment. When connecting a computer, ensure that it is the last equipment to be turned on after all the connections are made.

• For more details of connection and cables, refer to the operation manual of the connecting equipment.
• You may need other cables or connectors not listed below.

Terminals on the Projector

RS-232C

USB

MONITOR OUT

COMPUTER/COMPONENT S-VIDEO

VIDEO
AUDIO 2

Equipment	Terminal on connected equipment	Cable	Terminal on the projector
Computer	RGB output terminal	RGB cable (supplied)	COMPUTER/COMPONENTCOMPUTER/COMPONENT

Note

• See page 66 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on (e.g. Press "Fn" and "F5" keys simultaneously when using a SHARP notebook computer). Refer to the specific instructions in your computer's operation manual to enable your computer's external output port.

Connecting the Projector to Other Equipment (Continued)

Equipment	Terminal on connected equipment	Cable	Terminal on the projector
Video equipment	Component video output terminal	3 RCA to mini D-sub 15 pin cable (optional, AN-C3CP2)	COMPUTER/ COMPONENT
	S-video output terminal	S-video cable (commercially available)[C80D]	S-VIDEOS-VIDE
	Video output terminal	Video cable (commercially available)	VIDEOVIDEO
Camera/Video game	Component video output terminal	Cables for a camera or a video game/3 RCA to mini D-sub 15 pin cable (optional, AN-C3CP2)—RCA adaptor plug (commercially available)	COMPUTER/ COMPONENT
	S-video output terminal	Cables for a camera or a video game	S-VIDEOS
	Video output terminal	Cables for a camera or a video game	VIDEO[D4KH]

Note

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.
• The projector does not support RGBC signals via the Euro-scart.

Equipment	Terminal on connected equipment	Cable	Terminal on the projector
Audio equipment[mmol]	ø3.5 mm audio output terminal	ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)	AUDIO 1[###]AUDIO 1
	RCA audio output terminal	RCA audio cable (commercially available)	AUDIO 2
		Cables for a camera or a video game
Monitor	RGB input terminal[###]	RGB cable (supplied or commercially available)	MONITOR OUT

Note

• When using the 3.5mm mono audio cable, the volume level will be half of when using the 3.5mm stereo audio cable.
• You can select AUDIO 1 or AUDIO 2 in the INPUT list. (See page 29.)
• RGB signals and Component signals can be output to the monitor.

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. See page 61 for details.

When connecting to a computer using a DIN-D-sub RS-232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable

RS-232C USB To RS-232C terminal DIN-D-sub RS-232C adaptor (optional, AN-A1RS) To RS-232C terminal RS-232C serial control cable (cross type, commercially available)

Note

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.
• See pages 59 and 60 for connection of an RS-232C serial control cable.

Info

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into AC outlet.

Power cord (supplied) AC socket To AC outlet

Turning the Projector On/Off

Turning the Projector On

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages 21 to 24.)

Open the lens shutter fully and press STANDBY/ON on the projector or ON on the remote control.

• The power indicator illuminates green.
• After the lamp indicator illuminates, the projector is ready to start operation.

Note

- About the Lamp Indicator

The lamp indicator illuminates to indicate the status of the lamp.

Green: The lamp is on.

Blinking in green: The lamp is warming up.

Red: The lamp is shut down abnormally or the lamp should be replaced.

• When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation.
• If the projector is put into Standby mode and immediately turned on again, the lamp may take some time to start projection.
• When System Lock is set, the keycode input box appears. To cancel the keycode setting, input the keycode that you have already set. See page 50 for details.

Turning the Power Off (Putting the Projector into Standby Mode)

Press STANDBY/ON on the projector or STANDBY on the remote control, then press that button again while the confirmation message is displayed, to put the projector into Standby mode.

- The projector cannot be turned on while cooling.

Info

• When “Auto Restart” is set to “On”: If the power cord is unplugged from the outlet or the breaker switch is turned off when the projector is on, then the projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on. (See page 49.)
• English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page 48.

Power indicator Lamp indicator STANDBY/ON button POWER LAMP TEMP STANDBY/ON INPUT ENTER VOL AUTO SYNC MENU STANDBY button ON button

On-screen display (confirmation message)

Enter STANDBY mode?

Yes : Press Again

No : Please Wait

Info

- Direct Power Off function: You can unplug the power cord from the AC outlet even if the cooling fan is still running.

Image Projection

About the Setup Guide

After turning on the projector, the Setup Guide screen appears to assist you with projector setup.

Guidance items

1 FOCUS
2 HEIGHT ADJUST
3 ZOOM

Press ENTER to exit the Setup Guide screen.

Note

- The Setup Guide screen automatically highlights the items in the following order:

However, you can adjust the focus or height (angle) regardless of the highlighted item.

- If you do not want to display the Setup Guide for the next time, set "Menu" - "SCR - ADJ" - "Setup Guide" to "Off". (See page 48.)

Adjusting the Projected Image

1 Adjusting the Focus

You can adjust the focus with the focus ring on the projector.

Rotate the focus ring to adjust the focus while watching the projected image.

- Using the knob on the focus ring will make the adjustments easier.

Setup Guide screen

FOCUS HEIGHT ADJUST 1 2 << XXXXXXX Setup Guide > END ← ENTER 3 ZOOM

POWER STANDBY/ON LAMP INPUT - ENTER VOL AUTO SYNC MENU + ENTER button Focus ring

2 Adjusting the Height

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector.

When the screen is above the projector, the projection image can be made higher by adjusting the projector.

1 Lift the projector to adjust its height while lifting the HEIGHT ADJUST lever.

2 Remove your hands from the HEIGHT ADJUST lever of the projector after its height has been finely adjusted.

- The angle of projection is adjustable up to 9 degrees from the surface on which the projector is placed.

3 Use the rear adjustment foot to make the projector level.

- The projector is adjustable ± 2 degrees from the standard position.

Note

- When adjusting the height of the projector, trapezoidal distortion occurs. Follow the procedures in Keystone Correction to correct the distortion. (See pages 28 and 46.)

3 Adjusting the Picture Size

You can adjust the picture size using the zoom ring on the projector.

Rotate the zoom ring to enlarge or shrink the picture size.

- Using the knob on the zoom ring will make the adjustments easier.

2 Make small adjustments. HEIGHT ADJUST lever 1

Rear adjustment foot

Info

• Do not apply too much pressure on the projector when the front adjustment foot comes out.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.
• Hold the projector firmly while lifting or carrying.
• Do not hold by the lens area.

Zoom ring

Image Projection (Continued)

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Note

- The Keystone Correction can be adjusted up to an angle of approximately ± 40 (XR-55X)/ ± 20 (XR-50S) degrees and the screen can also be set up to an angle of approximately ± 40 (XR-55X)/ ± 20 (XR-50S) degrees.

1 Press KEYSTONE to enter the Keystone Correction mode.

2 Press ▲/▶ or ◀/▼ to adjust the Keystone Correction.

Note

- To return to the default setting, press RETURN while the on-screen display of the Keystone Correction mode is on the screen.

3 Press KEYSTONE.

- The on-screen display of the Keystone Correction mode will disappear.

STANDBY ON BREAK TIMER AV MUTE MAGNET Y VOL PAGE POWER SPOT ENTER EFFECT RETURN KEYSTONE AUTO SMOCK ECO-HAR FUNCTION RETURN button RE3/2E 3D MODE Adjustment buttons (▲/▼/◄/►) RETURN button KEYSTONE button

On-screen display (Keystone Correction mode)

KEYSTONE [ 0] - ADJUST END

Shrinks upper side. (Move the slide bar in the + direction.)

Shrinks lower side. (Move the slide bar in the - direction.)

Simple geometric diagram showing a rectangle with dashed lines and arrows, no text or symbols present.

Info

- While adjusting the image using Keystone Correction, straight lines and the edges of the image may appear jagged.

Switching the Input Mode

Select the appropriate Input mode for the connected equipment.

Press INPUT ∧/∨ to display the INPUT list.

Use INPUT ∧/∨ to select the Input mode, and use ◀/► to select the audio input terminal.

Adjusting the Volume

Press VOL +/- on the remote control or -◀/▶+ on the projector to adjust the volume.

Note

• Pressing VOL-/-◀ will lower the volume.
• Pressing VOL+/▶+ will raise the volume.
• When the projector is connected to external equipment, the volume level of the external equipment changes in accordance with the volume level of the projector. Set the projector's volume to the lowest level when turning the projector on/off or when changing the input signal.
• When you do not want to output the sound from the projector's speaker while the projector is connected to external equipment, set "Speaker" in the "PRJ-ADJ1" menu to "Off". (See page 49.)

Displaying the Black Screen and Turning Off the Sound Temporarily

Press AV MUTE on the remote control or close the lens shutter to temporarily display a black screen and turn off the sound.

Note

• Pressing AV MUTE again will turn the projected image back on.
• When you close the lens shutter, the projector will be set to AV Mute mode and then the projector will be turned off automatically after about 30 minutes.

STANLEY ON INPUT AV MUTE button VOL +/- (Volume) buttons ▲/► buttons BREAK TIMER AV MUTE POWER SPOT ENTER EFFECT RETURN KEYSTONE TRI-DRUMS AUTO SYNC ECO-QUIET RESIDE FUNCTION 3D MODE

On-screen display

25

On-screen display

AV MUTE

Image Projection (Continued)

Resize Mode

This function allows you to modify or customize the Resize mode to enhance the input image. Depending on the input signal, you can choose a desired image.

Press RESIZE.

• See page 46 for setting on menu screen.

COMPUTER

EFFECT RETURN REKESTONE CLICK + PIKTURE MODE MENU AUTO SYNC ECO+QUIET RESIZE FUNCTION 3D MODE RESIZE button

	Main resolution	NORMAL	FULL	NATIVE	BORDER	16:9
XR-55X	SVGA (800 × 600)	1024 × 768	—	800 × 600	768 × 576	1024 × 576
	XGA (1024 × 768)			—
	SXGA (1280 × 1024)	968 × 768	1024 × 768	1280 × 1024	720 × 576
	1280 × 800	1024 × 640		1280 × 800	922 × 576
XR-50S	SVGA (800 × 600)	800 × 600	—	—	600 × 450	800 × 450
	XGA (1024 × 768)			1024 × 768
	SXGA (1280 × 1024)	750 × 600	800 × 600	1280 × 1024
	1280 × 800	800 × 500		1280 × 800	720 × 450

: Cutout area on which images cannot be projected
: Area where the signals are off screen
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode
*3 For XR-50S model, “Border” cannot be selected with certain resolution selections in which the horizontal part of aspect ratio becomes smaller than 4:3 (such as 1280 × 1024 , among others).

VIDEO/DTV

Input signal		For 4:3 screen			For 16:9 screen
Video/DTV	Image type	NORMAL	AREA ZOOM	V-STRETCH	BORDER	16:9
480I, 480P,576I, 576P,NTSC, PAL,SECAM	4:3 aspect ratio
	Squeeze
	Letter box
720P, 1035I,1080I, 1080P	16:9 aspect ratio
540P	16:9 aspect ratio				*2	*2
	(4:3 aspect ratio in 16:9)	*1

: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals

*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode.

About Copyrights

• When using the Resize function to select an image size with a different aspect ratio to a TV program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size.
• The use of the Resize or Keystone Correction function to compress or stretch the image for commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.

Operating with the Remote Control

BREAK TIMER button FREEZE button MAGNIFY buttons POINTER button SPOT button Adjustment buttons ▲/▼/▲/▲ EFFECT button PICTURE MODE button ECO+QUIET button AUTO SYNC button

Displaying and Setting the Break Timer

1 Press BREAK TIMER.

- The timer starts to count down from 5 minutes.

On-screen display

2 Press ▲/▼/◄/► to adjust the length of the break time.

- Increases with ▲ or ▶ 5 minutes → 6 minutes → 60 minutes

- Shortens with ◀ or ▼ 4 minutes → 3 minutes → 1 minute - The break time can be set in units of one minute (up to 60 minutes).

Canceling the break timer display function

Press BREAK TIMER.

Note

- The Break Timer is not available while the projector is operating the following functions.

• Auto Sync
• Freeze
• AV Mute
• Input Search

Displaying the Pointer

1 Press POINTER and press ▲/▼/◄/► on the remote control to move the pointer.

- Press EFFECT to change the pointer icon (5 types).

Star	Finger1	Finger2	Heart	Underline

2 Press POINTER again.

- The pointer will disappear.

Using the Spot Function

1 Press SPOT and press ▲/▼/◄/► on the remote control to move the spot area.

- Press EFFECT to change the spot area size (3 types).

1/9 1/25 1/8

2 Press SPOT again.

- The spot area will disappear.

Switching the Eco+Quiet Mode

Press ECO+QUIET to switch the Eco+Quiet mode between on and off.

- When the Eco+Quiet Mode is set to “ON”, the sound of the cooling fan will turn down, the power consumption will decrease, and the lamp life will extend.

Note

- Refer to "Eco+Quiet" on page 43 for details.

Auto Sync (Auto Sync Adjustment)

Auto Sync function works when detecting input signal after the projector turns on.

Press AUTO SYNC to manually adjust with Auto Sync function.

Note

- When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 44.)

Freezing a Moving Image

1 Press FREEZE.

- The projected image is frozen.

2 Press FREEZE again to return to the moving image from the currently connected device.

Selecting the Picture Mode

You can select the appropriate Picture mode for the projected image, such as movie or video game.

Press PICTURE MODE.

- When pressing PICTURE MODE, the Picture mode changes in the following order:

→STANDARD → PRESENTATION →MOVIE →GAME →sRGB*

Note

• See page 41 for details on the Picture mode.

* "sRGB" is displayed only when RGB signal is input.

Displaying an Enlarged Portion of an Image

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

1 Press 📄 MAGNIFY on the remote control.

- Enlarges the image.

- Pressing 📄 or 📄 MAGNIFY enlarges or reduces the projected image.

Note

Press 🔒.

×1 ×2 ×3 ×4

Press 🔒.

- You can change the location of the enlarged image using ▲, ▼, ◀ and ▶.

2 Press RETURN on the remote control to cancel the operation.

- The magnification then returns to × 1 .

Note

• The selectable magnifications differ depending on the input signal.
• In the following cases, the image will return to the normal size (×1).
• When switching the Input mode.
• When RETURN has been pressed.
• When the input signal is changed.
• When the input signal resolution and refresh rate (vertical frequency) change.
• When the Resize mode is changed.

Operating with the Remote Control (Continued)

Using the Remote Control as the Wireless Computer Mouse

When connecting the projector and the computer with a USB cable, you can use the remote control as the computer mouse.

If the computer is placed too far away from the projector to be connected via the USB cable, the remote receiver (optional, AN-MR2) makes it possible to operate the projector with the remote control. For details, see the operation manual of the receiver.

Connecting with a USB cable

Setting with a USB cable RS-232C USB To USB terminal Computer To USB terminal or Remote receiver (optional, AN-MR2) USB cable (commercially available or available as Sharp service part QCNWGA014WJPZ)

The mouse pointer can be operated in the following way after it is connected.

■ When moving the cursor
Press MOUSE/Adjustment buttons (▲/▼/◄/►).
■ When left-clicking
Press L-CLICK.
■ When right-clicking
Press R-CLICK.
■ When your computer supports only a one-click mouse (such as Macintosh)
Press L-CLICK or R-CLICK.
L-CLICK and R-CLICK have common function.
■ When using [Page Up] or [Page Down]
Same as the [Page Up] and [Page Down] keys on a computer keyboard.
Press PAGE UP or PAGE DOWN.

PAGE UP/ PAGE DOWN buttons MOUSE/Adjustment buttons (▲/▼/◄►) R-CLICK button L-CLICK button

Note

• This function only works with the Microsoft® Windows® OS and Mac OS® that support USB.
• You cannot use this function when displaying the menu screen.
• Confirm that the computer recognizes the USB connection.

Menu Items

The following shows the items that can be set in the projector.

"Quick Start Menu"

"Picture" menu

*1 Item when inputting RGB signal through COMPUTER.

*2 Items when inputting component signal through COMPUTER, or when selecting S-VIDEO or VIDEO.

"Signal adjustment (SIG-ADJ)" menu

*3 Items when inputting RGB signal through COMPUTER/COMPONENT.
*4 Items when inputting COMPUTER/COMPONENT.
*5 Item when selecting COMPUTER/COMPONENT.
*6 Item when selecting S-VIDEO or VIDEO.

"Screen adjustment (SCR-ADJ)" menu

    AD["Sub menu"] --> AE["Normal"]
    AE --> AF["Full"]
    AE --> AG["Native"]
    AE --> AH["Area Zoom"]
    AE --> AI["V-Stretch"]
    AE --> AJ["Border 16:9"]

    AK["Off"] --> AL["CC1"]
    AK --> AM["CC2"]

    AN["Logo"] --> AO["Blue"]
    AN --> AP["None"]

    AQ["Front"] --> AR["Ceiling + Front"]
    AQ --> AS["Rear"]
    AQ --> AT["Ceiling + Rear"]

    AU["Off"] --> AV["Blackboard"]
    AU --> AW["Whiteboard"]

    AX["English"] --> AY["polski"]
    AX --> AZ["Deutsch Magyar"]
    AX --> BA["Espanol Türkçe"]
    AX --> BB["Nederlands عربی"]
    AX --> BC["Français فارسی"]
    AX --> BD["Italiano 汉語"]
    AX --> BE["Svenska 한국어"]
    AX --> BF["Português 日本語"]
    AX --> BG["Русский"]

*7 Adjustment range for XR-55X.
*8 Adjustment range for XR-50S.

"Projector adjustment (PRJ-ADJ1/2)" menu

*9 This item is available for XR-55X only.

Using the Menu Screen

Select from the Quick Start Menu, which is a collection of the most frequently used functions, or the Complete Menu, which enables advanced settings and adjustments.

Adjustment buttons (▲/▼/◄/►) ENTER button MENU button POWER ○ STANDBYOD ○ LAMP ○ ○ TEMP. ○ ○ INPUT ENTER VOL + OUTPUTSING ○ MENDU ●

STANDBY ON INPUT BREAK TIMER FROEZE AV MUTE MAGNET'S VOOL PAGE POWER POT SPOT ENTER ENTER RETURN Adjustment buttons (▲/▼/◄/►) RETURN button • Press RETURN to return to the previous screen when the menu is displayed. MENU button

Menu Selections (Quick Start Menu)

- This operation can also be performed by using the buttons on the projector.

1 Press MENU.

- The “Quick Start Menu” screen for the selected Input mode is displayed.

2 Press ▲ or ▼ to select the desired item, then press ENTER.

3 Press ▲/▼/◄/► to adjust the item selected, then press ENTER.

Info

• To display the advanced settings and adjustments, select "Go To Complete Menu". Press ENTER to display the Complete Menu screen.
• If you do not want to display the Quick Start Menu, set "Go To Complete Menu" - "PRJ-ADJ2" - "Quick Start Menu" to "Off". (See page 51.)

Example

Quick Start Menu Input Search Start Resolution 1024×768 Resize Normal Keystone [ 0] - + Eco+Quiet Off Language English Information Go To Complete Menu... SEL./ADJ. ← ENTER END

Quick Start Menu

The following items can be configured on the Quick Start Menu.

Selectable items	Description
Input Search Start	Automatically searches for and switches to the appropriate Input mode. Pressing an operation button during input searching cancels the search.
Resolution	Manually change the resolution.Use this function when the image and screen size do not match with the resolution selected automatically. (See page 44.)
Resize	Changes the Resize mode.Use this function to stretch the image vertically or horizontally or when the edges of the image cannot be seen. (See page 46.)
Keystone	Corrects the keystone distortion of projected images.Use this function to correct the trapezoidal distortion of images caused when projecting images at an angle to the screen. (See page 46.)
Eco+Quiet	When set to “On”, this function reduces the cooling fan noise and power consumption, thereby prolonging the operating life of the lamp. (See page 43.)
Language	Selects the language displayed on the screen. (See page 48.)
Information	Displays the input signal, lamp use time, remaining lamp life, etc.
Go To Complete Menu	Displays the Complete Menu for advanced settings and adjustments.

Note

• The setting of Resize mode will be made independently for each Input mode.
• The setting of Eco+Quiet mode will be made independently for each Input mode and each Picture mode.

Menu Selections (Complete Menu)

Example: Adjusting "Bright".

- This operation can also be performed by using the buttons on the projector.

1 Press MENU.

- The “Quick Start Menu” screen is displayed.

2 Press ▲ or ▼ to select “Go To Complete Menu”.

3 Press ▶ or ◀ and select "Picture" to adjust.

Info

- When “PRJ-ADJ2” - “Quick Start Menu” is set to “On”, pressing MENU displays the Quick Start Menu screen.

Example: “Picture” screen menu for COMPUTER (RGB) input

Menu item Picture SIG SCR PRJ1 PRJ2 Picture Mode Standard Contrast [0] - + Bright [0] - + Red [0] - + Blue [0] - + CLR Temp [0] - + BrilliantColor™ [1] - + C.M.S. Setting On C.M.S. DNR Level 2 Eco+Quiet Off Reset SEL./ADJ. ENTER END

Using the Menu Screen (Continued)

4

Press ▲ or ▼ and select “Bright” to adjust.

- The selected item is highlighted.

To adjust the projected image while watching it

Press ENTER.

• The selected item (e.g. “Bright”) is displayed by itself at the bottom of the screen.
• When pressing ▲ or ▼, the following item (“Red” after “Bright”) will be displayed.

Note

- Press ENTER again to return to the previous screen.

Picture SIG SCR PRJ1 PRJ2 Picture Mode Standard Contrast [ 0 ] + Bright [ 0 ] + Red [ 0 ] - + Blue [ 0 ] - + CLR Temp [ 0 ] - + BrilliantColor™ [ 1 ] - + C.M.S. Setting On C.M.S. DNR Level 2 Eco+Quiet Off Reset SEL./ADJ. Single ADJ END

Items to be adjusted

Pict. SIG SCR-ADJ PRJ1 PRJ2 Resize Normal Image Shift [ 0] - + + Keystone [ 0] - + +

Press ENTER.

The item displayed by itself

Picture Bright [ 0 ] - | + SEL./ADJ. ← Rtn. Menu END

5

Press ◀ or ▶ to adjust the item selected.

- The adjustment is stored.

Picture SIG SCR PRJ1 PRJ2 Picture Mode Contrast [ 0 ] Bright [ 15 ] Standard Red [ 0 ] Blue [ 0 ] CLR Temp [ 0 ] BrilliantColor™ [ 1 ] C.M.S. Setting On C.M.S. DNR Level 2 Eco+Quiet Off Reset SEL./ADJ. Single ADJ END

6

Press MENU.

- The menu screen will disappear.

Note

- The MENU button is not available while the projector is operating: - Auto Sync/Break Timer/Freeze/AV Mute/Input Search

Picture Adjustment ("Picture" Menu)

Menu operation → Page 39

PAGE1

Picture SIG SCR PRJ1 PRJ2 ① Picture Mode Contrast [ 0 ] Bright [ 0 ] Color [ 0 ] Tint [ 0 ] Sharp [ 0 ] Red [ 0 ] Blue [ 0 ] Standard SEL./ADJ. ENTER END

PAGE2

Picture SIG SCR PRJ1 PRJ2 Picture Mode Standard ③ CLR Temp [ 0 ] + ② BrilliantColor™ [ 1 ] + ④ C.M.S. Setting On C.M.S. ⑤ Film Mode Auto ⑥ DNR Level 2 ⑦ Eco+Quiet Off Reset SEL./ADJ. ENTER END

① Selecting the Picture Mode

Selectable items	Description	The default settings of each item when selecting Picture Mode
		CLR Temp	BrilliantColorTM	Eco+Quiet
Standard	For standard image	0	1	Off
Presentation	Brightens portions of image for more enhanced presentations.	0	2	Off
Movie	Gives natural tint to the projected image.	-1	0	On
Game	Gives sharpness to the projected image.	0	1	Off
*sRGB	For high fidelity reproduction of images from a computer.	-	-	Off

• “sRGB” is displayed only when RGB signal is input.
• You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are retained in memory.

Note

• You can also press PICTURE MODE on the remote control to select the Picture mode. (See page 33.)
• *sRGB is an international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when “sRGB” is selected. You cannot set the items, “Red”, “Blue”, “CLR Temp”, “BrilliantColor™”, when “sRGB” is selected.

Info

- When "sRGB" is selected, the projected image may become dark, but this does not indicate a malfunction.

Picture Adjustment (“Picture” Menu) (Continued)

Menu operation → Page

② Adjusting the Image

Adjustment items	◀ button	▶ button
Contrast	For less contrast.	For more contrast.
Bright	For less brightness.	For more brightness.
Color*1	For less color intensity.	For more color intensity.
Tint*1	For making skin tones purplish.	For making skin tones greenish.
Sharp*1	For less sharpness.	For more sharpness.
Red*2	For weaker red.	For stronger red.
Blue*2	For weaker blue.	For stronger blue.
BrilliantColorTM*2 *3	For making the effect weaker.	For making the effect stronger.

*1 Not displayed in the RGB input mode.
*2 Not adjustable/selectable when selecting "sRGB".
*3 BrilliantColor™ uses Texas Instruments' BrilliantColor™ technology. As the BrilliantColor™ level is increased, the image becomes brighter while the color reproduction is kept at a high level.

Note

• “Red”, “Blue”, “BrilliantColor™” and “CLR Temp” cannot be set when “sRGB” is selected.
• To reset all adjustment items, select "Reset" and press ENTER.

③ Adjusting the Color Temperature

Selectable items	Description
-1	For lower color temperature for warmer, reddish incandescent-like images.
0
1	For higher color temperature for cooler, bluish, fluorescent-like images.

Note

- Values on “CLR Temp” are only for general standard purposes.

④ Adjusting the Colors

This function adjusts each of the six main colors that comprise the color wheel, altering their “Hue”, “Saturation”, or “Value”.

Selectable items	Description
C.M.S.-Hue	Sets the hue of the main colors.
C.M.S.-Saturation	Sets the saturation of the main colors
C.M.S.-Value	Sets the brightness of the main colors.
Reset	The adjustments of “Hue”, “Saturation” and “Value” of all colors are reset to the default setting.
Return	Returns to the “Picture” menu screen.

Adjusting “Hue”, “Saturation”, or “Value”.

1 Select "On" for "C.M.S. Setting" in the "Picture" menu and then press ENTER.
2 Select "C.M.S." in the "Picture" menu and then press ENTER.
3 Press ▲ or ▼ to select either “Hue”, “Saturation”, or “Value” and then press ENTER.
4 Select the color to be adjusted with ▲ or ▼ and adjust it with ◀ or ▶.

Example of adjusting the “Hue”

Main colors	◀ button	▶ button
R (Red)	Closer to magenta	Closer to yellow
Y (Yellow)	Closer to red	Closer to green
G (Green)	Closer to yellow	Closer to cyan
C (Cyan)	Closer to green	Closer to blue
B (Blue)	Closer to cyan	Closer to magenta
M (Magenta)	Closer to blue	Closer to red

• When “Saturation” is selected, the selected color becomes ◀: lighter. ▶: thicker.
• When "Value" is selected, the selected color becomes

◀: darker. ▶: brighter.

- To reset the adjustment values of each color to the default settings, select "Reset" and press ENTER.

⑤ Selecting the Film Mode

This function provides high-quality playback of images originally projected at 24 fps, such as movies on DVDs.

Selectable items	Description
Auto	Films are detected automatically.
Off	Films are not detected.

Note

- This function is available for the following signals.

With COMPUTER/COMPONENT input:

-480I
- 576I
- 1035I (XR-55X only)
- 1080I (XR-55X only)

With S-VIDEO or VIDEO input:

- All signals

⑥ Reducing Image Noise (DNR)

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable items	Description
Level 1	Sets the DNR level for viewing a clearer picture.
Level 2
Level 3

Note

- This function is not available for some signals.

⑦ Eco+Quiet

Selectable items	Brightness and Power consumption
On	Approx. 75%
Off	100%

Note

- When “Eco+Quiet” is set to “On”, the fan sound and power consumption are lower than they are when “Off” is selected. (Projection brightness decreases as shown in the chart.)

Signal Adjustment ("SIG-ADJ" Menu)

Menu operation → Page

Pict. SIG-ADJ SCR PRJ1 PRJ2 Clock [ 0 ] - + Phase [ 0 ] - + H-Pos [ 0 ] - + V-Pos [ 0 ] - + Reset Resolution 1024 x 768 Signal Type Auto Video System Auto Video Setup 0 IRE Signal Info 1024 x 768 H 48.3 kHz / V 60.0 Hz SEL./ADJ. ← ENTER END

① Adjusting the Computer Image

If the optimum image cannot be obtained with Auto Sync adjustment, use the SIG-ADJ function.

Selectable items	Description
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

Note

• To reset all adjustment items, select "Reset" and press ENTER.
• The adjustable range of "H-Pos" (H-Position) and "V-Pos" (V-Position) may vary depending on the screen resolution of the computer.

② Resolution Setting

Ordinarily, the type of input signal is detected and the correct Resolution mode is automatically selected. However, for some signals, the optimal Resolution mode in “Resolution” may need to be selected to match the computer display mode.

Note

- See “Checking the Input Signal” on page 45 for information on the currently selected input signal.

③ Signal Type Setting

This function allows you to select the input signal type RGB or Component for COMPUTER/COMPONENT.

Selectable items	Description
Auto	Input signals are automatically recognized as RGB or component.
RGB	Set when RGB signals are received.
YPbPr	Set when Component signals are received.

④ Setting the Video System

The video input system mode is factory preset to "Auto"; however, a clear picture from the connected audio-visual equipment may not be received, depending on the Video signal difference.

In that case, switch the Video signal.

Selectable items

Auto

PAL

SECAM

*NTSC4.43

NTSC3.58

PAL-M

PAL-N

PAL -60

* When reproducing NTSC signals in PAL video equipment.

Note

• The Video signal can only be set in S-VIDEO or VIDEO mode.
• When “Video System” is set to “Auto”, you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.

⑤ Setting the Video Setup

Selectable items	Description
0 IRE	Sets the black level to 0 IRE.
7.5 IRE	Sets the black level to 7.5 IRE.

Note

- This function is available for the following signals.

With COMPUTER/COMPONENT input:

-480I

With S-VIDEO or VIDEO input:

- NTSC3.58

⑥ Checking the Input Signal

This function allows you to check the current input signal information.

Adjusting the Projected Image ("SCR-ADJ" Menu)

Menu operation → Page 39

Pict. SIG SCR-ADJ PRJ1 PRJ2 ① Resize ② Image Shift [ 0] Normal ③ Keystone [ 0] + ④ Overscan ⑤ OSD Display ⑥ Closed Caption ⑦ Background ⑧ Setup Guide ⑨ PRJ Mode ⑩ Wall Color ⑪ Language SEL/ADJ. ENTER END

① Setting the Resize Mode

Use this function to stretch the image vertically or horizontally or when the edges of the image cannot be seen.

Note

• For details of the Resize mode, see pages 30 and 31.
• You can also press RESIZE on the remote control to set the Resize mode. (See page 30.)

② Adjusting the Image Position

You can move the projected image vertically.

Note

- This function only works in some Resize modes. (See pages 30 and 31.)

③ Keystone Correction

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Select "Keystone" on the "SCR-ADJ" menu and adjust with the slide bar.

See page 28 for details of Keystone Correction.

button

button

Note

• The Keystone Correction can be adjusted up to an angle of approximately ± 40 (XR-55X)/ ± 20 (XR-50S) degrees.
• You can also press KEYSTONE on the remote control to adjust Keystone Correction.

④ Setting the Overscan

This function allows you to set the overscan area (display area).

Selectable items	Description
On	The input area is displayed without the screen edges.
Off	The whole input area is displayed.

Note

- This function is available for the following signals.

With COMPUTER/COMPONENT input:

• 480P
• 540P
  -576P
  -720P
• 1035I

• 1080I/1080P

• If noise appears at the screen edges when "Off" is selected, set the function to "On".

• Also see "About Copyrights" on page 31.

⑤ Setting the On-screen Display

Selectable items	Description
On	All on-screen displays are displayed.
Off	VOLUME/AV MUTE/FREEZE/AUTO SYNC/RESIZE/PICTURE MODE/ ECO+QUIET/MAGNIFY/Input Search/ Audio Mute/“An invalid button has been pressed.” are not displayed.

⑥ Closed Caption

Info

• This function is available for NTSC3.58 signal.
• This function does not work when the Resize mode is set to "Border".
• This function is available in the following cases only:

Resize mode	Keystone Correction
NormalArea ZoomV-Stretch	-40 – +40
16:9	-12 – +12

• “Closed Caption” is a system which allows conversations, narration, and sound effects in TV programs (Limited regions) and home videos to be viewed as captions on the screen.
• Not all programs and videos will offer closed captioning. Please look for the cc symbol to ensure that captions will be shown.
• Two channels are available: CC1 and CC2.

Selectable items	Description
Off	—
CC1	Closed Caption mode for CH1 data
CC2	Closed Caption mode for CH2 data

Note

• Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source. This does not necessarily indicate a problem with the projector.
• If any button is pressed to call up the on-screen display while viewing a Closed Caption broadcast, the closed captions will disappear.

Adjusting the Projected Image (“SCR-ADJ” Menu) (Continued)

Menu operation → Page 39

Selecting the Background Image

Selectable items	Description
Logo	Sharp logo screen
Blue	Blue screen
None	—

Selecting the Setup Guide

Selectable items	Description
On	Displaying the Setup Guide when turning the projector on.
Off	Not displaying the Setup Guide.

Reversing/Inverting Projected Images

Selectable items	Description
Front	Normal image (Projected from the front of the screen)
Ceiling + Front	Inverted image (Projected from the front of the screen with an inverted projector)
Rear	Reversed image (Projected from the rear of the screen or with a mirror)
Ceiling + Rear	Reversed and inverted image (Projected with a mirror)

See page 20 for details of Projection (PRJ) Mode.

Selecting the Wall Color

This function allows you to project the image to a colored (white or dark green) surface or wall without using a screen.

Selectable items	Description
Off	The Wall Color function is not activated.
Blackboard	Projects images onto a blackboard (dark green).
Whiteboard	Projects images onto a whiteboard.

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 17 languages.

English	polski
Deutsch	Magyar
Español	Türkçe
Nederlands	عربي
Français	فارسی
Italiano	汉语
Svenska	한국어
Português	日本語
Русский

Adjusting the Projector Function (“PRJ-ADJ1/2” Menu)

PRJ-ADJ1

Pict. SIG SCR PRJ-ADJ1 PRJ2 ① Auto Sync ② Auto Power Off ③ Auto Restart ④ Speaker ⑤ RS-232C ⑥ Fan Mode ⑦ System Lock ⑧ Keylock SEL./ADJ. ← ENTER END

Menu operation → Page 39

PRJ-ADJ2

Pict. SIG SCR PRJ1 PRJ-ADJ2 ⑨ Quick Start Menu On ⑩ FUNCTION Button Input Search ⑪ STANDBY Mode Quick Start ⑫ DLP® Link™ Off ⑬ DLP® Link™ Invert ⑭ All Reset ⑮ Lamp Timer(Life) [ 0 ] h [ 0 ] min (100%) SEL./ADJ. ENTER END

① Auto Sync (Auto Sync Adjustment)

Selectable items	Description
On	Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.
Off	Auto Sync adjustment is not automatically performed.

Note

• Auto Sync adjustment is also performed by pressing AUTO SYNC.
• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.
• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 44.)

Auto Power Off Function

Selectable items	Description
On	When no input signal is detected for more than 15 minutes, the projector will automatically enter Standby mode.
Off	The Auto Power Off function will be disabled.

Note

- When the Auto Power Off function is set to "On", 5 minutes before the projector enters Standby mode, the message "Enter STANDBY mode in X min." will appear on the screen to indicate the remaining minutes.

③ Auto Restart Function

Selectable items	Description
On	If the power cord is unplugged from the outlet or the breaker switch is turned off when the projector is on, then the projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on.
Off	The projector does not turn on automatically when the power cord is plugged into the AC outlet or the breaker switch is turned on.

④ Speaker Setting

Selectable items	Description
On	The audio signal is output from the internal speaker.
Off	The audio signal is not output from the internal speaker.

⑤ Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Selectable items	Description
9600bps	Transmission speed is slow.
38400bps	↑↓
115200bps	Transmission speed is rapid.

Adjusting the Projector Function (“PRJ-ADJ1/2” Menu) (Continued)

Menu operation → Page

⑥ Fan Mode Setting

This function changes the fan rotation speed.

Selectable items	Description
Normal	Suitable for normal environments.
High	Set when using the projector at altitudes of approximately 1,500 meters (4,900 feet) or more.

When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

⑦ System Lock Function

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record the keycode in a safe place where only authorized users have access.

Info

- If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 69). Even if the product warranty is valid, the keycode reset will incur a charge.

Setting/Changing the Keycode

1 Select "System Lock", then press ENTER or ▶.

2 Select "Next", then press ENTER.

- The screen for entering the keycode appears.

3 Press the 4 buttons on the remote control or on the projector to enter the preset keycode in "Old Code".

- When setting the keycode for the first time, press ▼ on the projector for four times.

PRJ - ADJ1 Setting the System Lock Old Code -- -- -- New Code -- -- -- Reconfirm -- -- --

Note

• If you input a wrong keycode, the cursor returns to the first point of the "Old Code".
• The preset keycode is 4 ▼ buttons on the projector. When you press the ▼ button four times, the keycord input screen disappears.

4 Press the 4 buttons on the remote control or on the projector to enter the new keycode in "New Code".

Note

• You cannot use the following buttons for keycode: STANDBY/ON, ON, STANDBY, ENTER, L-CLICK, R-CLICK/RETURN and MENU
• System Lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you used the buttons on the projector in setting your keycode, the keycode cannot be canceled with the remote control.

PRJ - ADJ1 Setting the System Lock Old Code * * * * New Code = - Reconfirm - - - - -

5 Enter the same keycode in "Reconfirm".

Note

To cancel the keycode that you have already set

- Press ▼ on the projector for four times in steps 4 and 5 above.

When the System Lock is set

- When System Lock is set, the keycode input screen appears after the power is turned on. When it appears, enter the right keycode to start projection.

Input screen for keycode

System Lock

⑧ Keylock Function

Use this function to lock the operation buttons on the projector.

This function can be set using either the menu screen or ENTER on the projector.

Setting with the menu screen

Selectable items	Description
On	All buttons on the projector, except STANDBY/ON, are locked.
Off	Turns off the Keylock function.

■ Setting with the projector buttons Locking the Operation Buttons

1 Hold down ENTER on the projector for about 5 seconds while the projector is being turned on.

- The Keylock function screen is displayed.

PRJ - ADJ1 Use this function to lock the operation buttons on the projector. (Except STANDBY/ON button) Note: You can release the keylock by holding down ENTER on the projector for about 5 seconds. Return ✓ On SEL. ← ENTER END

2 Select "On", then press ENTER.

On-screen display

Keylock function On

• The Keylock function does not affect the operation with the remote control buttons.
• You cannot use the Keylock function while the projector is warming up.

Menu operation → Page 39

Taking the Keylock Off

Hold down ENTER on the projector for about 5 seconds.

On-screen display

Keylock function Off

Info

• Even when Keylock function is set to “On”, STANDBY/ON on the projector can be used to turn on and off the power.
• Keylock cannot be set while the projector is: displaying the “Setup Guide” or “Menu” screens, in Standby mode, warming up, changing input signals, operating the Auto Sync or Input Search function, in Freeze mode or on the “System Lock” screen during warming up.

⑨ Selecting the Quick Start Menu

Selectable items	Description
On	Pressing MENU displays the Quick Start Menu screen.
Off	Pressing MENU displays the Complete Menu screen.

⑩ Setting the FUNCTION Button Operation

You can assign one of the following functions to the FUNCTION button on the remote control. The assigned function can be performed by just pressing FUNCTION.

Selectable items	Description
Input Search	Automatically searches for and switches to the appropriate Input mode.
Audio Mute	For temporarily turning off the sound. Press FUNCTION again to turn on the sound
Image Shift	For moving the projected image vertically. (See page 46.)
Signal Info	Input signal information is displayed.

Adjusting the Projector Function (“PRJ-ADJ1/2” Menu) (Continued)

Menu operation → Page 39

STANDBY Mode

When set to “Eco”, power consumption is reduced in Standby mode.

Selectable items	Description
Eco	The monitor output and RS-232C are switched off in Standby mode.
Quick Start	The monitor output and RS-232C are activated even if the projector is in Standby mode.

DLP ^® Link ^TM (XR-55X only)

See the OPERATION MANUAL FOR STEREOSCOPIC 3D PROJECTION provided separately.

DLP ^® Link ^TM Invert (XR-55X only)

See the OPERATION MANUAL FOR STEREOSCOPIC 3D PROJECTION provided separately.

Returning to the Default Settings

This function allows you to initialize the settings you have made in the projector.

Note

- The following items or menu cannot be initialized.

• Resolution
• Language
• Lamp Timer (Life)
• System Lock

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition		Remaining lamp life
	“Life”	100%	5%
Operated exclusively with “Eco+Quiet” set to “On”		Approx. 4,000 hours	Approx. 200 hours
Operated exclusively with “Eco+Quiet” set to “Off”		Approx. 2,000 hours	Approx. 100 hours

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.
• The lamp life may vary depending on the usage condition.

Maintenance

Cleaning the projector

■ Ensure that you have unplugged the power cord before cleaning the projector.
The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods.
The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.
■ Wipe off dirt gently with a soft flannel cloth. Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the cabinet or cause cracking.
■ Wiping with a hard cloth or using strong force may scratch the cabinet surface.
When the dirt is hard to remove, soak a cloth in a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent Mild detergent diluted with water ↓ Wax Thinner

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.
As the surface of the lens can easily get damaged, be careful not to scrape or hit the lens.

Illustration of a projector with a magnified inset showing the blade (no text or symbols)

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Illustration of a computer monitor with two blue circular annotations highlighting ports (no text or symbols present)

Info

- If you want to clean the air vents during projector operation, ensure you press STANDBY/ON on the projector or STANDBY on the remote control and put the projector into Standby mode. After the cooling fan has stopped, clean the vents.

Maintenance Indicators

The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter Standby mode. After the projector has entered Standby mode, follow the procedures given below.

Top View

Temperature warning indicator

Lamp indicator

Power indicator
    K["+"]

About the temperature warning indicator

TEMP.

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the temperature warning indicator will blink. And if the temperature keeps on rising,

“TEMP” will illuminate in the lower left corner of the picture with the temperature warning indicator blinking. If this state continues, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode. When you find the temperature warning indicator blinking, be sure to perform the measures described on page 55.

About the lamp indicator

Change The Lamp.

When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter Standby mode. At this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Indicators on the Projector

Power indicator	Red on	Normal (Standby)
	Green on	Normal (Power on)
	Red blinks	Abnormal (See page 55.)
	Green blinks	Normal (Cooling)
	Green and orange blink alternately	The lens shutter is closed. (See page 29.)
Lamp indicator	Green on	Normal
	Green blinks	The lamp is warming up.
	Red on	The lamp is shut down abnormally or requires to be changed. (See page 55.)
Temperature warning indicator	Off	Normal
	Red on/Red blinks	The internal temperature is abnormally high. (See page 55.)

Maintenance indicator			Problem	Cause	Possible Solution
	Normal	Abnormal
Temperature warning indicator	Off	Red blinks (On)/ Red on (Standby)	The internal temperature is abnormally high.	Temperatures around the projector are high.Blocked air intake	Use the projector in an area with a temperature of lower than 95°F (+35°C).Relocate the projector to an area with proper ventilation. (See page 8.)
				Cooling fan breakdownInternal circuit failureClogged air intake	Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page 69) for repair.
Lamp indicator	Green on (Green blinks when the lamp is warming up.)	Red on	The lamp does not illuminate.	The lamp is shut down abnormally.	Disconnect the power cord from the AC outlet, and then connect it again.
			Time to change the lamp.	Remaining lamp life becomes 5% or less.	Carefully replace the lamp. (See page 56.)Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page 69) for repair.Please exercise care when replacing the lamp.Securely install the cover.
		Red on (Standby)	The lamp does not illuminate.	Burnt-out lampLamp circuit failure
Power indicator	Green on/ Red on Green blinks (Cooling)	Red blinks	The power indicator blinks in red when the projector is on.	The lamp unit cover is open.	If the power indicator blinks in red even when the lamp unit cover are securely installed, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 69) for advice.

Info

• If the temperature warning indicator illuminates, and the projector enters Standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

Regarding the Lamp

Lamp

It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (See page 52.)

■ Purchase a replacement lamp of type AN-D350LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information

www.lamprecycle.org or 1-800-BE-SHARP

U.S.A ONLY

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burns or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section.

* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

Removing and Installing the Lamp Unit

Warning!

- Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

Info

• Do not touch the glass surface of the lamp unit or the inside of the projector.
• To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below.
• Do not loosen other screws except for the lamp unit cover and lamp unit.

1

Press STANDBY/ON on the projector or STANDBY on the remote control to put the projector into Standby mode.

2

Disconnect the power cord.

• Unplug the power cord from the AC socket.
• Leave the lamp until it has fully cooled down (about 1 hour).

3

Remove the lamp unit cover.

- Close the lens shutter and turn the projector over. Loosen the user service screw (①) that secures the lamp unit cover. Remove the lamp unit cover (②).

Optional accessory

Lamp unit AN-D350LP

STANDBY/ON button

AC socket

User service screw (for lamp unit cover)

User service screw (for lamp unit cover)

Regarding the Lamp (Continued)

4 Remove the lamp unit.

- Loosen the securing screw from the lamp unit. Hold the lamp unit and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

5 Insert the new lamp unit.

- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screw.

6 Replace the lamp unit cover.

- Align the tab on the lamp unit cover (①) and close it (②). Then tighten the user service screw (③) to secure the lamp unit cover.

Info

- If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Securing screw

Illustration of a hand installing or adjusting an electronic component into a circuit board (no text or symbols visible)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Diagram of a screwdriver inserted into a device component (no text or symbols visible)

Diagram showing a mechanical device with labeled parts and directional arrows, likely illustrating a process or assembly.

Diagram showing a screwdriver pressing down on a mechanical component with numbered callouts indicating steps ③ and ④.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

- Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

1 Connect the power cord and open the lens shutter fully.

- Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

- While simultaneously holding down MENU, ENTER and ▼ on the projector, press STANDBY/ON on the projector and keep all four buttons pressed down until the lamp indicator starts blinking green. - “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

AC socket

Connecting Pin Assignments

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output

Terminals: mini D-sub 15 pin female connector

Pin No.	Signal	Pin No.	Signal
1.	Video input (red)	1.	PR (CR)
2.	Video input (green/sync on green)	2.	Y
3.	Video input (blue)	3.	PB (CB)
4.	Not connected	4.	Not connected
5.	Not connected	5.	Not connected
6.	Earth (red)	6.	Earth (PR)
7.	Earth (green/sync on green)	7.	Earth (Y)
8.	Earth (blue)	8.	Earth (PB)
9.	Not connected	9.	Not connected
10.	GND	10.	Not connected
11.	Not connected	11.	Not connected
12.	Bi-directional data	12.	Not connected
13.	Horizontal sync signal: TTL level	13.	Not connected
14.	Vertical sync signal: TTL level	14.	Not connected
15.	Data clock	15.	Not connected

RS-232C Terminal: mini DIN 9 pin female connector

8 7 6 3 4 5 2 1 9

Pin No.	Signal	Name	I/O	Reference
1.				Not connected
2.	RD	Receive Data	Input	Connected to internal circuit
3.	SD	Send Data	Output	Connected to internal circuit
4.				Not connected
5.	SG	Signal Ground		Connected to internal circuit
6.				Not connected
7.	RS	Request to Send		Connected to CS in internal circuit
8.	CS	Clear to Send		Connected to RS in internal circuit
9.				Not connected

RS-232C Terminal: D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor (optional, AN-A1RS)

1 ... 5 6 ... 9

Pin No.	Signal	Name	I/O	Reference
1.				Not connected
2.	RD	Receive Data	Input	Connected to internal circuit
3.	SD	Send Data	Output	Connected to internal circuit
4.				Not connected
5.	SG	Signal Ground		Connected to internal circuit
6.				Not connected
7.	RS	Request to Send		Connected to CS in internal circuit
8.	CS	Clear to Send		Connected to RS in internal circuit
9.				Not connected

Connecting Pin Assignments (Continued)

RS-232C Cable recommended connection: D-sub 9 pin female connector

5 ... 1 9 ... 6

Pin No.	Signal	Pin No.	Signal
1.	CD	1.	CD
2.	RD	2.	RD
3.	SD	3.	SD
4.	ER	4.	ER
5.	SG	5.	SG
6.	DR	6.	DR
7.	RS	7.	RS
8.	CS	8.	CS
9.	CI	9.	CI

Note

- Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g. computer).

USB Terminal: Type B USB connector

4 3 1 2

Pin No.	Signal	Name
1.	VCC	USB power
2.	USB-	USB data-
3.	USB+	USB data+
4.	SG	Signal Ground

RS-232C Specifications and Commands

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type, commercially available) to the projector. (See page 24.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard.

Parity bit: None

Baud rate*: 9,600 bps / 38,400 bps / 115,200 bps

Stop bit: 1 bit

Data length: 8 bits

Flow control: None

*Set the projector's baud rate to the same rate as used by the computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1	C2	C3	C4	P1	P2	P3	P4

Command 4-digit

Return code (0DH)

Response code format
Normal response

O

K

Return code (0DH)

Problem response (communication error or incorrect command)

E

R

R

Return code (0DH)

Info

• When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds after the power has been turned on, and then transmit the commands.
• After sending an input selection or picture adjustment command and then receiving an “OK” response code, the projector may take some time to process the command. If a second command is sent while the projector is still processing the first command, you may receive an “ERR” response code. If this happens, try resending the second command.
• When more than one code is being sent, send each command only after the response code for the previous command from the projector is verified.
• “POWR?????”, “TABN ____ 1”, “TLPS ____ 1”, “TPOW ____ 1”, “TLPN ____ 1”, “TLTT ____ 1”, “TLTM ____ 1”, “TLTL ____ 1”, “TNAM ____ 1”, “MNRD ____ 1”, “PJNO ____ 1”

- When the projector receives the special commands shown above:

* The on-screen display will not disappear.

* The "Auto Power Off" timer will not be reset.

- The special commands are available for applications that require continuous polling.

Note

• If an underbar (_) appears in the parameter column, enter a space.
• If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets under Control Contents.

RS-232C Specifications and Commands (Continued)

Commands

Example: When turning on the projector, make the following setting.

Computer

P

O

W

R

-

-

-

1

←→

←

O

K

←

Projector

CONTROL CONTENTS

COMMAND

PARAMETER

RETURN

Power ON

Standby mode(or 30-second startup time)

Power

On

P

O

W

R

-

-

-

1

OK or ERR

OK

Off

P

O

W

R

-

-

-

0

OK

OK or ERR

Status

P

O

W

R

?

?

?

?

1

0

Projector Condition

T

A

B

N

-

-

-

1

0: Normal1: Temp High8: Lamp Life 5% or less16: Lamp Burn-out32: Lamp Ignition Failure

0: Normal1: Temp High2: Fan Error4: Cover Open8: Lamp Life 5% or less16: Lamp Burn-out32: Lamp Ignition Failure64: Temp Abnormally High

Lamp

Status

T

L

P

S

-

-

-

1

0: Off, 1: On, 2: Retry3: Waiting, 4: Lamp Error

0: Off, 4: Lamp Error

Power Status

T

P

O

W

-

-

-

1

1: On, 2: Cooling

0: Standby

Quantity

T

L

P

N

-

-

-

1

1

Usage Time(Hour)

T

L

T

T

-

-

-

1

0 - 9999(Integer)

Usage Time(Minute)

T

L

T

M

-

-

-

1

0, 15, 30, 45

Life(Percentage)

T

L

T

L

-

-

-

1

0% - 100%(Integer)

Name

Model Name Check

T

N

A

M

-

-

-

1

XR55X/XR50S

Model Name Check

M

N

R

D

-

-

-

1

XR-55X/XR-50S

Projector Name Setting 1(First 4 characters) *1

P

J

N

1

*

*

*

*

OK or ERR

Projector Name Setting 2(Middle 4 characters) *1

P

J

N

2

*

*

*

*

OK or ERR

Projector Name Setting 3(Last 4 characters) *1

P

J

N

3

*

*

*

*

OK or ERR

Projector Name Check

P

J

N

0

-

-

-

1

Projector Name

Input Change

COMPUTER

I

R

G

B

-

-

-

1

OK or ERR

ERR

S-VIDEO

I

V

E

D

-

-

-

1

OK or ERR

ERR

VIDEO

I

V

E

D

-

-

-

2

OK or ERR

ERR

Input RGB Check

I

R

G

B

?

?

?

?

1: COMPUTER or ERR

ERR

Input Video Check

I

V

E

D

?

?

?

?

1: S-VIDEO, 2: VIDEO or ERR

ERR

Input Mode Check

I

M

O

D

?

?

?

?

1: RGB, 2: VIDEO

ERR

Input Check

I

C

H

K

?

?

?

?

1: COMPUTER2: S-VIDEO3: VIDEO

ERR

Volume

Volume(0 - 60)

V

O

L

A

-

-

*

*

OK or ERR

ERR

Volume up/down(-10 - +10)

V

O

U

D

-

*

*

*

OK or ERR

ERR

Keystone

-80 - +80 (XGA)/-40 - +40 (SVGA)

K

E

Y

S

*

*

*

*

OK or ERR

ERR

AV Mute

On

I

M

B

K

-

-

-

1

OK or ERR

ERR

Off

I

M

B

K

-

-

-

0

OK or ERR

ERR

Freeze

On

F

R

E

Z

-

-

-

1

OK or ERR

ERR

Off

F

R

E

Z

-

-

-

0

OK or ERR

ERR

Auto Sync

Start

A

D

J

S

-

-

-

1

OK or ERR

ERR

Resize

COMPUTER

Normal

R

A

S

R

-

-

-

1

OK or ERR

ERR

16:9

R

A

S

R

-

-

-

2

OK or ERR

ERR

Native

R

A

S

R

-

-

-

3

OK or ERR

ERR

Full

R

A

S

R

-

-

-

5

OK or ERR

ERR

Border

R

A

S

R

-

-

-

6

OK or ERR

ERR

Area Zoom

R

A

S

R

-

-

1

0

OK or ERR

ERR

V-Stretch

R

A

S

R

-

-

1

1

OK or ERR

ERR

S-VIDEO

Normal

R

A

S

V

-

-

-

1

OK or ERR

ERR

16:9

R

A

S

V

-

-

-

2

OK or ERR

ERR

Border

R

A

S

V

-

-

-

3

OK or ERR

ERR

Area Zoom

R

A

S

V

-

-

1

0

OK or ERR

ERR

V-Stretch

R

A

S

V

-

-

1

1

OK or ERR

ERR

VIDEO

Normal

R

B

S

V

-

-

-

1

OK or ERR

ERR

16:9

R

B

S

V

-

-

-

2

OK or ERR

ERR

Border

R

B

S

V

-

-

-

3

OK or ERR

ERR

Area Zoom

R

B

S

V

-

-

1

0

OK or ERR

ERR

V-Stretch

R

B

S

V

-

-

1

1

OK or ERR

ERR

All Reset

A

L

R

E

-

-

-

1

OK or ERR

ERR

COMPUTER Input

Picture Mode

Standard

R

A

P

S

-

-

1

0

OK or ERR

ERR

Presentation

R

A

P

S

-

-

1

1

OK or ERR

ERR

Movie

R

A

P

S

-

-

1

2

OK or ERR

ERR

Game

R

A

P

S

-

-

1

3

OK or ERR

ERR

sRGB

R

A

P

S

-

-

1

4

OK or ERR

ERR

Contrast

-30 - +30

R

A

P

I

-

*

*

*

OK or ERR

ERR

Bright

-30 - +30

R

A

B

R

-

*

*

*

OK or ERR

ERR

Red

-30 - +30

R

A

R

D

-

*

*

*

OK or ERR

ERR

Blue

-30 - +30

R

A

B

E

-

*

*

*

OK or ERR

ERR

Color

-30 - +30

R

A

C

O

-

*

*

*

OK or ERR

ERR

Tint

-30 - +30

R

A

T

I

-

*

*

*

OK or ERR

ERR

Sharp

-30 - +30

R

A

S

H

-

*

*

*

OK or ERR

ERR

CLR Temp

-1 - +1

R

A

C

T

-

-

*

*

OK or ERR

ERR

BrilliantColorTM

0 - +2

R

A

W

E

-

-

-

*

OK or ERR

ERR

Film Mode

Auto

R

A

F

M

-

-

-

0

OK or ERR

ERR

Off

R

A

F

M

-

-

-

1

OK or ERR

ERR

DNR

Level 1

R

A

N

R

-

-

-

1

OK or ERR

ERR

Level 2

R

A

N

R

-

-

-

2

OK or ERR

ERR

Level 3

R

A

N

R

-

-

-

3

OK or ERR

ERR

Picture Reset

R

A

R

E

-

-

-

1

OK or ERR

ERR

Signal Type

Auto

I

A

S

I

-

-

-

0

OK or ERR

ERR

RGB

I

A

S

I

-

-

-

1

OK or ERR

ERR

YPbPr

I

A

S

I

-

-

-

2

OK or ERR

ERR

Audio Input

AUDIO 1

R

A

A

I

-

-

-

1

OK or ERR

ERR

AUDIO 2

R

A

A

I

-

-

-

2

OK or ERR

ERR

S-VIDEO Input

Picture Mode

Standard

V

A

P

S

-

-

1

0

OK or ERR

ERR

Presentation

V

A

P

S

-

-

1

1

OK or ERR

ERR

Movie

V

A

P

S

-

-

1

2

OK or ERR

ERR

Game

V

A

P

S

-

-

1

3

OK or ERR

ERR

Contrast

-30 - +30

V

A

P

I

-

*

*

*

OK or ERR

ERR

Bright

-30 - +30

V

A

B

R

-

*

*

*

OK or ERR

ERR

Red

-30 - +30

V

A

R

D

-

*

*

*

OK or ERR

ERR

Blue

-30 - +30

V

A

B

E

-

*

*

*

OK or ERR

ERR

Color

-30 - +30

V

A

C

O

-

*

*

*

OK or ERR

ERR

Tint

-30 - +30

V

A

T

I

-

*

*

*

OK or ERR

ERR

Sharp

-30 - +30

V

A

S

H

-

*

*

*

OK or ERR

ERR

CLR Temp

-1 - +1

V

A

C

T

-

-

*

*

OK or ERR

ERR

BrilliantColorTM

0 - +2

V

A

W

E

-

-

-

*

OK or ERR

ERR

Film Mode

Auto

V

A

F

M

-

-

-

0

OK or ERR

ERR

Off

V

A

F

M

-

-

-

1

OK or ERR

ERR

DNR

Level 1

V

A

N

R

-

-

-

1

OK or ERR

ERR

Level 2

V

A

N

R

-

-

-

2

OK or ERR

ERR

Level 3

V

A

N

R

-

-

-

3

OK or ERR

ERR

Picture Reset

V

A

R

E

-

-

-

1

OK or ERR

ERR

Audio Input

AUDIO 1

V

A

A

I

-

-

-

1

OK or ERR

ERR

AUDIO 2

V

A

A

I

-

-

-

2

OK or ERR

ERR

VIDEO Input

Picture Mode

Standard

V

B

P

S

-

-

1

0

OK or ERR

ERR

Presentation

V

B

P

S

-

-

1

1

OK or ERR

ERR

Movie

V

B

P

S

-

-

1

2

OK or ERR

ERR

Game

V

B

P

S

-

-

1

3

OK or ERR

ERR

Contrast

-30 - +30

V

B

P

I

-

*

*

*

OK or ERR

ERR

Bright

-30 - +30

V

B

B

R

-

*

*

*

OK or ERR

ERR

Red

-30 - +30

V

B

R

D

-

*

*

*

OK or ERR

ERR

Blue

-30 - +30

V

B

B

E

-

*

*

*

OK or ERR

ERR

Color

-30 - +30

V

B

C

O

-

*

*

*

OK or ERR

ERR

Tint

-30 - +30

V

B

T

I

-

*

*

*

OK or ERR

ERR

Sharp

-30 - +30

V

B

S

H

-

*

*

*

OK or ERR

ERR

CLR Temp

-1 - +1

V

B

C

T

-

-

*

*

OK or ERR

ERR

BrilliantColorTM

0 - +2

V

B

W

E

-

-

-

*

OK or ERR

ERR

Film Mode

Auto

V

B

F

M

-

-

-

0

OK or ERR

ERR

Off

V

B

F

M

-

-

-

1

OK or ERR

ERR

DNR

Level 1

V

B

N

R

-

-

-

1

OK or ERR

ERR

Level 2

V

B

N

R

-

-

-

2

OK or ERR

ERR

Level 3

V

B

N

R

-

-

-

3

OK or ERR

ERR

Picture Reset

V

B

R

E

-

-

-

1

OK or ERR

ERR

Audio Input

AUDIO 1

V

B

A

I

-

-

-

1

OK or ERR

ERR

AUDIO 2

V

B

A

I

-

-

-

2

OK or ERR

ERR

C.M.S. Setting

On

C

M

C

S

-

-

1

1

OK or ERR

ERR

Off

C

M

C

S

-

-

0

0

OK or ERR

ERR

C.M.S.

Hue

Red

C

M

H

R

-

*

*

*

OK or ERR

ERR

Yellow

C

M

H

Y

-

*

*

*

OK or ERR

ERR

Green

C

M

H

G

-

*

*

*

OK or ERR

ERR

Cyan

C

M

H

C

-

*

*

*

OK or ERR

ERR

Blue

C

M

H

B

-

*

*

*

OK or ERR

ERR

Magenta

C

M

H

M

-

*

*

*

OK or ERR

ERR

Reset

C

M

R

E

-

-

-

2

OK or ERR

ERR

Saturation

Red

C

M

S

R

-

*

*

*

OK or ERR

ERR

Yellow

C

M

S

Y

-

*

*

*

OK or ERR

ERR

Green

C

M

S

G

-

*

*

*

OK or ERR

ERR

Cyan

C

M

S

C

-

*

*

*

OK or ERR

ERR

Blue

C

M

S

B

-

*

*

*

OK or ERR

ERR

Magenta

C

M

S

M

-

*

*

*

OK or ERR

ERR

Reset

C

M

R

E

-

-

-

3

OK or ERR

ERR

Value

Red

C

M

V

R

-

*

*

*

OK or ERR

ERR

Yellow

C

M

V

Y

-

*

*

*

OK or ERR

ERR

Green

C

M

V

G

-

*

*

*

OK or ERR

ERR

Cyan

C

M

V

C

-

*

*

*

OK or ERR

ERR

Blue

C

M

V

B

-

*

*

*

OK or ERR

ERR

Magenta

C

M

V

M

-

*

*

*

OK or ERR

ERR

Reset

C

M

R

E

-

-

-

4

OK or ERR

ERR

C.M.S. All Reset

C

M

R

E

-

-

-

1

OK or ERR

ERR

Clock

-150 - +150

I

N

C

L

*

*

*

*

OK or ERR

ERR

Phase

-30 - +30

I

N

P

H

-

*

*

*

OK or ERR

ERR

H-position

-150 - +150

I

A

H

P

*

*

*

*

OK or ERR

ERR

V-position

-60 - +60

I

A

V

P

-

*

*

*

OK or ERR

ERR

Fine Sync Adjustment Reset

I

A

R

E

-

-

-

1

OK or ERR

ERR

Image Shift

-96 - +96 (XGA)/-75 - +75 (SVGA)

L

N

D

S

-

*

*

*

OK or ERR

ERR

Overscan

On

O

V

S

N

-

-

-

1

OK or ERR

ERR

Off

O

V

S

N

-

-

-

0

OK or ERR

ERR

OSD Display

On

I

M

D

I

-

-

-

1

OK or ERR

ERR

Off

I

M

D

I

-

-

-

0

OK or ERR

ERR

Video System

Auto

M

E

S

Y

-

-

-

1

OK or ERR

ERR

PAL

M

E

S

Y

-

-

-

2

OK or ERR

ERR

SECAM

M

E

S

Y

-

-

-

3

OK or ERR

ERR

NTSC4.43

M

E

S

Y

-

-

-

4

OK or ERR

ERR

NTSC3.58

M

E

S

Y

-

-

-

5

OK or ERR

ERR

PAL-M

M

E

S

Y

-

-

-

6

OK or ERR

ERR

PAL-N

M

E

S

Y

-

-

-

7

OK or ERR

ERR

PAL-60

M

E

S

Y

-

-

-

8

OK or ERR

ERR

Background

Logo

I

M

B

G

-

-

-

1

OK or ERR

ERR

Blue

I

M

B

G

-

-

-

3

OK or ERR

ERR

None

I

M

B

G

-

-

-

4

OK or ERR

ERR

Eco+Quiet

On

T

H

M

D

-

-

-

1

OK or ERR

ERR

Off

T

H

M

D

-

-

-

0

OK or ERR

ERR

Auto Sync

On

A

A

D

J

-

-

-

1

OK or ERR

ERR

Off

A

A

D

J

-

-

-

0

OK or ERR

ERR

Auto Power Off

On

A

P

O

W

-

-

-

1

OK or ERR

ERR

Off

A

P

O

W

-

-

-

0

OK or ERR

ERR

Auto Restart

On

A

R

E

S

-

-

-

1

OK or ERR

ERR

Off

A

R

E

S

-

-

-

0

OK or ERR

ERR

STANDBY Mode

Quick Start

M

O

U

T

-

-

-

1

OK or ERR

ERR

Eco

M

O

U

T

-

-

-

0

OK or ERR

ERR

PRJ Mode

Reverse

On

I

M

R

E

-

-

-

1

OK or ERR

ERR

Off

I

M

R

E

-

-

-

0

OK or ERR

ERR

Invert

On

I

M

I

N

-

-

-

1

OK or ERR

ERR

Off

I

M

I

N

-

-

-

0

OK or ERR

ERR

CONTROL CONTENTS		COMMAND				PARAMETER				RETURN
										Power ON	Standby mode(or 30-second startup time)
Language	English	M	E	L	A	-	-	-	1	OK or ERR	ERR
	Deutsch	M	E	L	A	-	-	-	2	OK or ERR	ERR
	Español	M	E	L	A	-	-	-	3	OK or ERR	ERR
	Nederlands	M	E	L	A	-	-	-	4	OK or ERR	ERR
	Français	M	E	L	A	-	-	-	5	OK or ERR	ERR
	Italiano	M	E	L	A	-	-	-	6	OK or ERR	ERR
	Svenska	M	E	L	A	-	-	-	7	OK or ERR	ERR
	日本語	M	E	L	A	-	-	-	8	OK or ERR	ERR
	Português	M	E	L	A	-	-	-	9	OK or ERR	ERR
	汉语	M	E	L	A	-	-	1	0	OK or ERR	ERR
	한국어	M	E	L	A	-	-	1	1	OK or ERR	ERR
	Русский	M	E	L	A	-	-	1	2	OK or ERR	ERR
	عربي	M	E	L	A	-	-	1	3	OK or ERR	ERR
	polski	M	E	L	A	-	-	1	4	OK or ERR	ERR
	Türkçe	M	E	L	A	-	-	1	5	OK or ERR	ERR
	فارسی	M	E	L	A	-	-	1	6	OK or ERR	ERR
	Magyar	M	E	L	A	-	-	1	7	OK or ERR	ERR
Setup Guide	On	S	E	G	U	-	-	-	1	OK or ERR	ERR
	Off	S	E	G	U	-	-	-	0	OK or ERR	ERR
Internal Speaker	On	A	S	P	K	-	-	-	1	OK or ERR	ERR
	Off	A	S	P	K	-	-	-	0	OK or ERR	ERR
RGB Frequency Check	Horizontal	T	F	R	Q	-	-	-	1	kHz(***.* or ERR)	ERR
	Vertical	T	F	R	Q	-	-	-	2	Hz(***.* or ERR)	ERR
Fan Mode	Normal	H	L	M	D	-	-	-	0	OK or ERR	ERR
	High	H	L	M	D	-	-	-	1	OK or ERR	ERR
Input Search *2	Start	I	S	E	S	-	-	-	1	OK or ERR	ERR
Video Setup	0 IRE	V	I	S	U	-	-	-	0	OK or ERR	ERR
	7.5 IRE	V	I	S	U	-	-	-	1	OK or ERR	ERR
Wall Color	Off	W	L	C	O	-	-	-	0	OK or ERR	ERR
	Blackboard	W	L	C	O	-	-	-	1	OK or ERR	ERR
	Whiteboard	W	L	C	O	-	-	-	2	OK or ERR	ERR
Quick Start Menu	On	Q	S	M	N	-	-	-	0	OK or ERR	ERR
	Off	Q	S	M	N	-	-	-	1	OK or ERR	ERR
DLP^® LinkTM (XR-55X only)	Off	3	D	E	N	-	-	-	0	OK or ERR	ERR
	On	3	D	E	N	-	-	-	1	OK or ERR	ERR
DLP^® LinkTM Invert (XR-55X only)		3	D	I	V	-	-	-	1	OK or ERR	ERR
Closed Caption(For Americas only)	Off	C	L	C	A	-	-	-	0	OK or ERR	ERR
	CC1	C	L	C	A	-	-	-	1	OK or ERR	ERR
	CC2	C	L	C	A	-	-	-	2	OK or ERR	ERR
Lamp Timer Reset *3		L	P	R	E	0	0	0	1	ERR	OK or ERR

*1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3.
*2 When the next command is sent during input search, you may receive an “ERR” response code, and the input search is canceled.
*3 The Lamp Timer Reset command is available only in standby mode.

Computer Compatibility Chart

Computer

- Multiple signal support Horizontal Frequency: 15-110 kHz, Vertical Frequency: 45-85 Hz,

Pixel Clock: 12-165 MHz

Sync signal: Compatible with TTL level

- Compatible with sync on green signal

PC/MAC	Mode	Resolution	Horizontal frequency [kHz]	Vertical frequency[Hz]	Display
					XR-55X	XR-50S
PC	VGA	640 × 400	27.0	60	Upscale	Upscale
			31.5	70
			37.9	85
		720 × 400	27.0	60
			31.5	70
			37.9	85
		640 × 480	26.2	50
			31.5	60
			34.7	70
			37.9	72
			37.5	75
			43.3	85
	SVGA	800 × 600	31.3	50		TRUE
			35.2	56
			37.9	60
			46.6	70
			48.1	72
			46.9	75
			53.7	85
	XGA	1024 × 768	40.3	50	TRUE	Intelligent Compression
			48.4	60
			56.5	70
			60.0	75
			68.7	85
	WXGA	1280 × 720	45.0	60	Intelligent Compression
		1280 × 768	47.8	60
		1280 × 800	49.7	60
			62.8	75
		1360 × 768	47.7	60
		1366 × 768	47.8	60
	WXGA+	1440 × 900	55.9	60
	SXGA	1152 × 864	55.0	60
			66.2	70
			67.5	75
		1280 × 960	60.0	60
			75.0	75
		1280 × 1024	64.0	60
			80.0	75
	SXGA+	1400 × 1050	64.0	60
			65.3	60
	WSXGA+	1680 × 1050	65.3	60
	UXGA	1600 × 1200	75.0	60
MAC 13"	VGA	640 × 480	34.9	67	Upscale	Upscale
MAC 16"	SVGA	832 × 624	49.7	75		Intelligent Compression
MAC 19"	XGA	1024 × 768	60.2	75	TRUE
MAC 21"	SXGA	1152 × 870	68.7	75	Intelligent Compression

Note

• Optimum image quality will be achieved by matching your computer's output resolution to the resolution that corresponds to “TRUE” in the “Display” column shown above.
• When “Screen resolution” of the computer is different from the resolution displayed on the projected image, follow the procedures shown below.
• Refer to “Resolution” on the “SIG-ADJ” menu and select the same resolution as the resolution in “Screen resolution” of the computer.
• Depending on the computer you are using, the output signal may not be faithful to the "Screen resolution" adjustment. Check the settings of the computer's signal output. If the settings cannot be changed, it is recommended that the resolution be set to the one that corresponds to "TRUE" in the "Display" column.

DTV

Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
480I	15.7	60	720P	45.0	60
480P	31.5	60	1035I	33.8	60
540P	33.8	60	1080I	28.1	50
576I	15.6	50	1080I	33.8	60
576P	31.3	50	1080P	56.3	50
720P	37.5	50	1080P	67.5	60

Problem	Check	Page
No picture and no sound or projector does not start.	Projector power cord is not plugged into the wall outlet.	24
	Power to the external connected devices is off.	-
	The lens shutter is closed.	25, 29
	The selected Input mode is wrong.	29
	The AV Mute function is working.	29
	Cables are incorrectly connected to the projector.	21-24
	Remote control battery has run out.	15
	External output has not been set when connecting a notebook computer.	21
	The lamp unit cover is not installed correctly.	57, 58
Sound is heard but no picture appears (or picture is dark).	Cables are incorrectly connected to the projector.	21-24
	“Bright” is set to minimum position.	42
	Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer's operation manual for how to switch its signal output settings.Is “On” selected in “DLP® LinkTM”? (XR-55X only)	-52
Dark or bluish image	Check that “Wall Color” is configured correctly.	48
Color is faded or poor.	Image adjustments are incorrectly set.Make adjustments of “Color” and “Tint” in “Picture Mode” and lower the “BrilliantColorTM” value.	42
	(S-Video, Video Input only)Video input system is incorrectly set.(COMPUTER/COMPONENT Input only)Input signal type (RGB/Component) is incorrectly set.	4544
Picture is blurred; noise appears.	Adjust the focus.	26
	The projection distance exceeds the focus range.	19
	There is fog on the lens. If the projector is carried from a cold room into a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.	-
	(Computer Input only)Perform “SIG-ADJ” Adjustments (“Clock” and “Phase” Adjustment)Noise may appear depending on the computer.	44-
Picture appears but no sound is heard.	Cables are incorrectly connected to the projector.	21-24
	Volume is set to minimum.When the projector is connected to an external device and the volume is set to minimum, the sound is not output even if you turn up the volume of the external device.	29
	“Speaker” is set to “Off”.The Audio Mute function is working.	4951
Data image is not centered.	Make the necessary adjustments of each item in the “SIG-ADJ” menu.	44
	Depending on the computer you are using, the output resolution signal may be different from the one you have set. For details, refer to the operation manual of the computer.	-
An unusual sound is occasionally heard from the cabinet.	If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.	-

Troubleshooting (Continued)

Problem	Check	Page
Maintenance indicator on the projector illuminates or blinks in red.	• See “Maintenance Indicators”.	54
Picture is green on COMPUTER (Component)	• Change the input signal type setting.	44
Picture is pink (no green) on COMPUTER (RGB)
Picture is too bright and whitish.	• Image adjustments are incorrectly set.	42
The cooling fan becomes noisy.	• When temperature inside the projector increases, the cooling fan runs faster.	8, 953, 54, 55
The lamp does not light up even after the projector turns on.	• The lamp indicator is illuminating in red.Replace the lamp.• The lens shutter is closed.	54, 57, 5825, 29
The lamp suddenly turns off during projection.
The image sometimes flickers.	• Cables are incorrectly connected to the projector or the connected equipment works improperly.• If this happens frequently, replace the lamp.	21–2457
The lamp needs much time to turn on.	• The lamp will eventually need to be changed.While the remaining lamp life draws to a close, replace the lamp.	57
Picture is dark.
The remote control cannot be used.	• Operate the remote control while pointing it at the projector's remote control sensor.• The remote control may be too far away from the projector.• If direct sunlight or a strong fluorescent lamp is shining on the projector's remote control sensor, place the projector where it will not be affected by strong light.	15
	• The batteries may be depleted or inserted incorrectly. Make sure the batteries are inserted correctly or insert new ones.	15

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

For SHARP Assistance

If you encounter any problems during setup or operation of this projector, first refer to the “Troubleshooting” section on pages 67 and 68. If this operation manual does not answer your question, please contact the SHARP Service departments listed below.

U.S.A.	Sharp Electronics Corporation1-888-GO-SHARP (1-888-467-4277)[e-mail]://www.sharpusa.com	Benelux	SHARP Electronics Benelux BV0900-SHARPCE (0900-7427723)Nederland9900-0159 Belgiumhttp://www.sharp.nl
Canada	Sharp Electronics of Canada Ltd.[phone]http://www.sharp.ca		http://www.sharp.behttp://www.sharp.lu
Mexico	Sharp Electronics CorporationMexico Branch(525) 716-9000http://www.sharp.com.mx	Australia	Sharp Corporation of Australia Pty.Ltd.1300-135-022http://www.sharp.net.au
Latin America	Sharp Electronics Corp. LatinAmerican Group(305) [e-mail]://www.siempresharp.com	New Zealand	Sharp Corporation of New ZealandPhone: [phone]Fax: [phone]http://www.sharp.net.nz
Germany	Sharp Electronics (Europe) GMBH01805-234675http://www.sharp.de	Singapore	Sharp-Roxy Sales (S) Pte. [e-mail]://www.sharp.com.sg
U.K.	Sharp Electronics (U.K.) Ltd.08705 274277http://www.sharp.co.uk/customersupport	Hong Kong	Sharp-Roxy (HK) Ltd.(852) [e-mail]://www.sharp.com.hk
Italy	Sharp Electronics (Italy) S.P.A.(39) 02-89595-1http://www.sharp.it	Taiwan	Sharp Corporation (Taiwan)0800-025111http://www.sharp-scot.com.tw
France	Sharp Electronics France01 49 90 35 [e-mail]://www.sharp.fr	Malaysia	Sharp-Roxy Sales & Service Co.(60) 3-5125678
Spain	Sharp Electronica Espana, S.A.93 [e-mail]://www.sharp.es	U.A.E.	Sharp Middle East [e-mail]
Switzerland	Sharp Electronics (Schweiz) AG0041 1 846 63 [e-mail]://www.sharp.ch	Thailand	Sharp Thebnakorn Co. [e-mail]://www.sharp-th.com
Sweden	Sharp Electronics ( Nordic ) AB(46) 8 [e-mail]://www.sharp.se	Korea	Sharp Electronics Incorporated of Korea(82) [e-mail]://www.sharpkorea.co.kr
Austria	Sharp Electronics (Europe) GMBHBranch Office Austria0043 1 727 19 [e-mail]://www.sharp.at	India	Sharp Business Systems (India)Limited(91) 11- [e-mail]

Model				XR-55X	XR-50S
Display devices				0.55" DLP® Chip ×1
Resolution				XGA (1024 × 768)	SVGA (800 × 600)
Lens	F number			F 2.4 – 2.6
	Zoom			Manual, ×1.20 (f = 19.0 – 22.7 mm)
	Focus			Manual
Input terminals	Computer/Component (mini D-sub 15 pin)			×1
	S-Video (mini DIN 4 pin)			×1
	Video (RCA)			×1
	Audio (ø3.5 mm stereo minijack)			×1
	Audio (RCA)			×1 (L/R)
Output terminal	Computer/Component (mini D-sub 15 pin)			×1
Control and communication terminals	USB (Type B)			×1
	RS-232C (mini DIN 9 pin)			×1
Speaker				7W (Mono)
Projection lamp				210 W
Rated voltage				AC 100 – 240 V
Rated frequency				50/60 Hz
Input current				2.8 A
Power consumption		Eco+Quiet Off	AC 100 V	274 W
			AC 240 V	265 W
		Eco+Quiet On	AC 100 V	215 W
			AC 240 V	210 W
Power consumption (STANDBY Mode)		Quick Start	AC 100 V	3.0 W	2.6 W
			AC 240 V	3.7 W	3.2 W
		Eco	AC 100 V	0.32 W
			AC 240 V	0.77 W
Operation temperature				41°F to 95°F (+5°C to +35°C)
Cabinet				Plastic
Dimensions (main body only) [W × H × D]				11 ^52/_64 " × 3 ^1/_8 " × 9 ^19/_64 " (300 × 79 × 236 mm)
Weight (approx.)				6.2 lbs. (2.8 kg)

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

This SHARP projector uses a DLP ^® chip. This very sophisticated panel contains 786,432 (XR-55X)/480,000 (XR-50S) pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

Dimensions

Units: inches (mm)

16:9....30, 31

3D MODE button 14

Accessories 11

AC socket 24

Adjustment buttons 38, 39

Adjustment foot 27

All Reset 52

AREA ZOOM 31

Aspect ratio 30

Audio input 29

AUDIO 1, 2 terminals 23

Audio Mute 51

Auto Power Off 49

Auto Restart 49

Auto Sync (Auto Sync adjustment) 33, 49

AUTO SYNC button 33

AV MUTE button 29

Background 48

Batteries 15

Blue 48

BORDER 30, 31

BREAK TIMER button 32

Bright 42

BrilliantColor™ 42

Clock 44

Closed Caption 47

CLR Temp (Color Temperature) 42

C.M.S. 42

Color 42

Complete Menu 39

COMPUTER/COMPONENT input terminal …… 21, 22

Contrast 42

DIN-D-sub RS-232C adaptor 11

DLP ^® Link ^TM 52

DLP ^® Link ^TM Invert 52

DNR 43

Eco+Quiet 32,43

ECO+QUIET button 32

ENTER button 38

Exhaust vent 12,53

Fan Mode 50

Film Mode 43

Focus ring 26

FREEZE button 33

FULL 30

FUNCTION button 14

FUNCTION Button setting....51

HEIGHT ADJUST lever 27

H-Pos 44

Image shift 46

Information 39

INPUT modes 29

Input Search Start 39

Intake vent 12,53

Kensington Security Standard connector 13

Keycode 50

Keylock 51

KEYSTONE button 28

Keystone Correction 28,46

Lamp 56

Lamp indicator 54

Lamp Timer (Life) 52

Lamp unit 57

Language (on-screen display language) 48

L-CLICK/EFFECT button 32, 34

Lens shutter 25, 29

MAGNIFY buttons 33

MENU button 38

MONITOR OUT terminal 23

MOUSE/Adjustment buttons 34, 38

NATIVE 30

NORMAL 30, 31

ON button 25

Optional accessories 11

OSD Display 47

Overscan 47

PAGE DOWN button 34

PAGE UP button 34

PDF....10

Phase 44

Picture Adjustment 41

Picture Mode 33,41

PICTURE MODE button 33

POINTER button 32

Power cord 24

Power indicator 54

PRJ-ADJ1/2 49

PRJ Mode 20,48

Quick Start Menu 39

R-CLICK/RETURN button 34, 38

Red 42

Remote control 14

Remote control sensor 15

Replacing the lamp 56, 57

Resize 30,46

RESIZE button 30

Resolution 44

RGB cable 21

RS-232C terminal 24

SCR-ADJ 46

Screen Size and Projection Distance 19

Security bar 13

Setup Guide 26,48

Sharp 42

SIG-ADJ 44

Signal Info 45

Signal Type 44

Speaker 49

SPOT button 32

STANDBY button 25

STANDBY Mode 52

STANDBY/ON button 25

Supplied accessories 11

S-VIDEO terminal 22

System Lock 50

Temperature warning indicator 54

Tint 42

USB terminal 34

Video Setup 45

Video System 45

VIDEO terminal 22

VOL (Volume) buttons 29

V-Pos 44

V-STRETCH 31

Wall Color 48

Zoom ring 27

SHARP®

SHARP CORPORATION
