USER MANUAL RAZR Maxx Ve MOTOROLA

Now Playing On Your Phone!

verizonwireless

MOTORAZR™ maxx Ve

USER GUIDE

HELLOMOTO

Introducing your new MOTA RAZR^TM maxx Ve CDMA wireless phone. Here's a quick anatomy lesson.

Two-stage Shutter Release Key Left Soft Key Volume Keys Smart/ Speakerphone Key Make & answer calls. Right Soft Key Clear/Back Key Turn on & off, hang up, exit menus. Scroll up, down, left, or right.

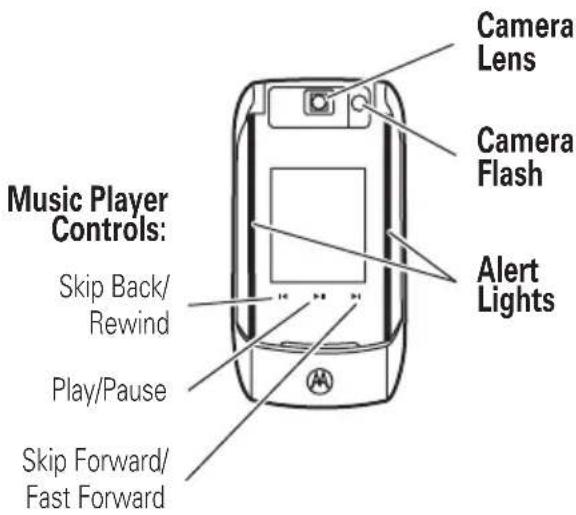

Music Player Controls: Skip Back/ Rewind Play/Pause Skip Forward/ Fast Forward Camera Lens Camera Flash Alert Lights

Home Screen

MOTOROLA T22 13.00 7:30 The, Net 12:12:45pm Measure | MENU Panellets. ① ② ①

Press the center key 🔊 to open the Main Menu.

Press and hold the Power Key 📊 for a few seconds, or until the display lights up, to turn on your phone.

Main Menu

CONTACTS 1. New Contact 2. Contact List 3. Groups 4. Speed Dials ③ ④

Press the navigation key ◆ left/right to highlight a menu option, then down to highlight a suboption.

Press the center key ◆ to select.

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

Certain mobile phone features are dependent on the capabilities and settings of your service provider's network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature's functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Windows is a registered trademark of Microsoft Corporation. All other product or service names are the property of their respective owners.

© Motorola, Inc., 2007.

Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment.

Software Copyright Notice

The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual Number: 6809504A09-0

contents

menu map 6

Use and Care 8

essentials 9

about this guide. . . . . . . 9

battery 10

turn it on & off ..... 12

make a call.... 12

answer a call ..... 13

store a phone number 13

call a stored phone number 13

see your phone number 14

main attractions ..... 15

get & play music ..... 15

record & play voice records 29

record & play video clips 30

send a photo in a message 32

send a multimedia (picture/video) message .... 36

receive a multimedia (picture/video) message .... 38

download pictures .... 39 download V CAST videos .... 39

manage memory ..... 39 Bluetooth® connections ..... 42

cable connections .... 45 TTY operation ..... 45

basics 48

home screen ..... 48

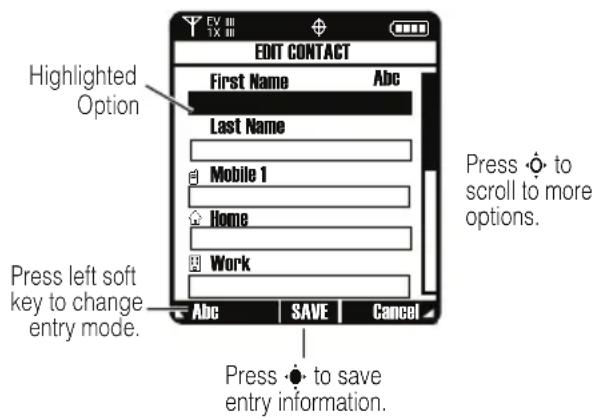

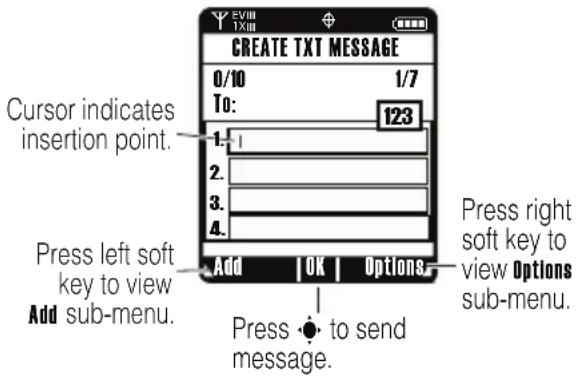

enter text.....51

adjust volume ..... 56

change sound settings .... 56

external display ..... 56

handsfree speaker....56

standalone mode.....58

change lock code ..... 58

lock & unlock phone .. 59

customize....61

conserve battery charge .... 61

sounds settings ..... 61

4 contents

get ringtones ..... 63

talking phone

settings.... 63

answer options..... 64

wallpaper 64

screen saver ..... 65

backlight 66

brightness.... 66

clock format ..... 66

AGPS & your

location.... 67

AGPS limitations

& tips 68

calls 69

redial a number..... 69

automatic redial ..... 69

recent calls ..... 70

return unanswered

calls 71

speed dial 71

emergency calls ..... 72

AGPS during an

emergency call ..... 72

voicemail 73

in-call options ..... 74

other features ..... 75

advanced calling ..... 75

messages.... 76

contacts 77

personalizing..... 81

call times & data

volumes 88

handsfree 90

Bluetooth® wireless

connections ..... 90

network 92

personal organizer ... 93

security.... 94

fun & games.... 94

service & repairs..... 96

Specific Absorption

Rate Data.... 97

Safety and General

Information ..... 100

Industry Canada

Notice to Users..... 105

FCC Notice To Users. . 106

Motorola Limited

Warranty for the United

States and Canada . . . 107

Hearing Aid

Compatibility with

Mobile Phones ..... 111

Information from

the World Health

Organization ..... 112

California Perchlorate

Label 114

Smart Practices

While Driving ..... 115

index 117

contents

menu map

main menu

GET IT NOW\*

• Music & Tones
  • Picture & Video
• Games
• News & Info
• Tools on the Go
• Extras

MESSAGING

• New Message
• Inbox
• Sent
• Drafts
  • Voicemail
  • E-mail*
• Mobile IM*
• Chat *

CONTACTS

• New Contact
• Contact List
• Groups
• Speed Dials

RECENT CALLS

• Missed
• Received
• Dialed
  • All
  • View Timers

SETTINGS & TOOLS

- (see next page)

* Wireless web services required

This is the standard main menu layout.

Your phone's menu may be different.

settings menu

My Account\*

Balance

• Balance • Usage
- Payments
- My Plan
- My Features
- Change VM PW
- Find Store
- F A Q s

Tools

• Voice Commands
• Calendar
• Alarm Clock
• World Clock
• Notepad
• Calculator

Bluetooth

- Add New Device

Sounds Settings

• Master Volume
• Call Sounds
• Alert Sounds
• Keypad Volume
  • Service Alerts
• Power On/Off
• Talking Phone

* requires Mobile Web service

Display Settings

• Banner
- Backlight
- Brightness
- Wallpaper
- Screensaver
- Display Themes
- Alert Lights
- Clock Format

Phone Settings

• Standalone Mode
• Shortcut Key
• Language
• Location
• Security
• System Select
  • NÂM Select
• Text Input

Call Settings

• Answer Options
• Auto Retry
• TTY Mode
- One Touch Dial
- Voice Privacy
- Call Restrictions
- DTMF Tones

Memory

• Save Options**
• Phone Memory
• Card Memory**

Phone Info

• My Number
• SW Version
- Icon Glossary
- Software Update

** available only when optional memory card installed

Use and Care

To care for your Motorola phone, please keep it away from:

liquids of any kind dust and dirt

Don't expose your phone to water, rain, extreme humidity, sweat, or other moisture.

Don't expose your phone to dust, dirt, sand, food, or other inappropriate materials.

extreme heat or cold cleaning solutions

Avoid temperatures below -10^/14^ or above 45^/113^ .

To clean your phone, use only a dry soft cloth. Don't use alcohol or other cleaning solutions.

microwaves the ground

Don't try to dry your phone in a microwave oven.

Don't drop your phone.

essentials

CAUTION: Before using the phone for the first time, read the Important Safety and Legal Information included in the gray-edged pages at the back of this guide.

about this guide

This guide shows how to locate a menu feature as follows:

Find it: MENU (◀) ▶ “RECENT CALLS ▼ Received

This means that, from the home screen:

1 Press the center key ◆ to open the menu.
2 Press the navigation key ◆ left or right to scroll to “☐”RECENT CALLS.
3 Press the navigation key ◆ down to scroll to Received, and press the center key ◆ to select it.
4 Press CLR to return to the previous menu, or 📷 to return to the home screen.

symbols

This means a feature is network/subscription dependent and may not be available in all areas. Contact your service provider for more information.

essentials

symbols

This means a feature requires an optional accessory.

battery

battery tips

Battery life depends on the network, signal strength, temperature, features, and accessories you use.

• Always use Motorola Original batteries and chargers. The warranty does
  not cover damage caused by
  non-Motorola batteries and/or chargers.

- New batteries or batteries stored for a long time may take more time to charge.

• When charging your battery, keep it near room temperature.
  When storing your battery, keep it uncharged in a cool, dark, dry place.
• Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your phone with you when you leave your vehicle.
• It is normal for batteries to gradually wear down and require longer charging times. If you notice a change in your battery life, it is probably time to purchase a new battery.

Contact your local recycling center for proper battery disposal.

Warning: Never dispose of batteries in a fire because they may explode.

Before using your phone, read the battery safety information in the "Safety and General Information" section included in this guide.

install the battery

1

Grip here

2

Diagram of a mobile phone showing internal components with numbered labels 1 and 2 indicating specific parts or functions.

3

Line drawing of a car interior with directional arrows indicating movement or flow (no text or symbols)

charge the battery

New batteries are not fully charged. Plug the battery charger into your phone and an electrical outlet. Your phone might take several seconds to start charging the battery.

Simple line drawing of a connector with an attached cable (no text or symbols)

If your phone is charging while powered off, it displays Charge Complete when finished.

If your phone is powered on while charging, it displays a temporary charge complete

message, and the battery symbol stops flashing.

Tip: Relax, you can't overcharge your battery. It will perform best after you fully charge and discharge it a few times.

You can charge your battery by connecting a cable from your phone's mini-USB port to a USB port on a computer. Both your phone and the computer must be turned on, and your computer must have the correct software drivers installed. Cables and software drivers are available in Motorola Original data kits, sold separately.

turn it on & off

1 Open your phone.

12 essentials

2 Press and hold 📋 for a few seconds or until the display turns

CLR Power Key

The phone may require several seconds to turn on. If prompted, enter your four-digit unlock code (the last four digits of your phone number or 1234) and press OK to unlock the phone.

To turn off your phone, press and hold 📷 for a few seconds.

make a call

Enter a phone number and press 🔒 to make a call.

To "hang up," close the flip or press.

Tip: Closing the flip also ends the call, unless you are using the speakerphone feature (see page 56).

answer a call

When your phone rings and/or vibrates, just open the flip or press 🔒 to answer.

To "hang up," press.

Tip: Closing the flip also ends the call, unless you are using the speakerphone feature (see page 56).

store a phone number

You can store a phone number in Contacts:

1 Enter a phone number in the home screen.
2 Press the left soft key to select Save.

3 Highlight Create New and press OK (●).
4 Scroll to the type of entry you want to enter (Mobile 1, Mobile 2, Home, Work, or Fax) and press OK ( ).
5 Enter a name and other details for the phone number.
6 Press SAVE (◀) to store the number.

To edit or delete a Contacts entry, see page 78.

Tip: You can set your phone to display a picture for each caller or set it to play a ringtone for a specific caller each time they call you (see "assign picture to entry" on page 78 and "assign ringtone to entry" on page 79).

call a stored phone number

Find it: MENU (●) ▶ CONTACTS ▼ Contact List

essentials

1 Scroll to the Contacts entry.
2 Press ☐ to call the entry.

Tip: Find it fast! Press Contacts (the right soft key) from the home screen to see your Contacts list.

see your phone number

From the home screen, press CLR #.

Tip: Want to see your phone number while you're on a call? PressOptions, then Phone Info ▼ My Number ▼ MDN.

main attractions

You can do much more with your phone than make and receive calls!

get & play music

Use the Music & Tones menu to:

• get new music and tones

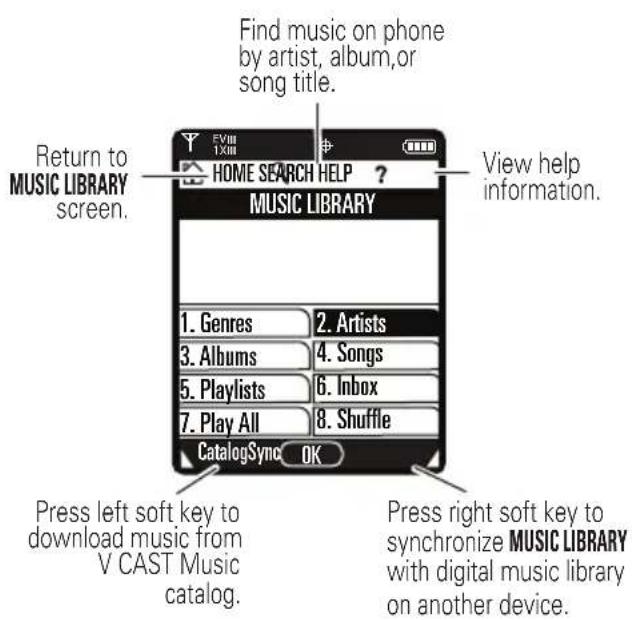

• play music in your MUSIC LIBRARY
- record new sounds
• set music or tones as your ringtone

Tip: Get to Music & Tones quickly by pressing •◇• left from the home screen (see page 48).

download V CAST music directly to phone

1 Select V CAST Music from the Music & Tones menu.
2 Browse or search the catalog to find the songs you want.
To preview a song, highlight the song and select Preview.
3 To buy a song, highlight the song and select Buy.
After your press Buy your phone shows song details and price.
4 Press BUY (♦) to confirm your selection.

5 When you see a confirmation that your purchase was successful and your music is available for download, pressOK (●) to continue, or choose to download later.
6 When prompted to select a storage location, scroll to Phone Memory or Memory Card and press the center key 🔊 to begin downloading.

Note: Your phone must be in an EVDO coverage area to download music. If you are in an EVDO coverage area, your phone displays the EV symbol with at least one signal strength bar in the status area of the screen (see page 49).

Your phone displays a status indicator. After downloading, you must wait for the phone to acquire the content license.

7 Press Play to play the downloaded song immediately.

or

Press Library to go to the MUSIC LIBRARY (see next section).

or

Press OK (♦) to return to the previously viewed music catalog.

transfer music from a computer

You can transfer songs from a computer to your phone with a USB cable connection. You can purchase these songs from the V CAST Music Store or import them from your CD collection.

computer system requirements

To access the V CAST Music Store from a computer or to transfer music from a computer to your phone, you need the Windows® XP operating system, Windows

Media Player 10 or later version, and an active internet connection.

If you have the Windows XP operating system and an internet connection, you can download Windows Media Player 10. From your computer's Web browser, go to http://www.microsoft.com

buy music from V CAST Music Store

1 On your computer, launch Windows Media Player.
2 In the Windows Media Player window, select the "V CAST Music" option.
3 Click on the "Log In" button, then log in by entering your mobile phone number and password.
If you have not registered yet, click on the "Register" button, then follow the instructions to register and get your password.

4 Browse or search the store to find the songs you want.
To preview a song, click on the headset icon next to the song title.
5 To buy a song, click on the "Purchase" or "Buy" button next to the song title.
6 Repeat steps 4 and 5 to add more songs to your shopping cart.
7 When you finish shopping, click on "MY PURCHASES," then follow the on-screen instructions to complete your purchase(s) and download the song(s) you have purchased.
Downloading can take several minutes. When downloading is complete, click on the "Library" tab in the Windows Media Player window to see the songs you purchased.
To transfer the songs to your phone, see "transfer songs to your phone" on page 18.

main attractions

import songs from an audio CD

1 On your computer, launch the Windows Media Player.
2 Insert an audio CD into your computer's CD ROM drive.
3 Click on the "Rip" tab in the Windows Media Player window.
4 Highlight the songs you want to import and click on the "Rip Music" icon.
The songs are imported to the Windows Media Player Library.

To transfer the songs to your phone, see "transfer songs to your phone" on page 18.

If you do not see the songs you downloaded in the Windows Media Player Library:

1 On your computer, launch Windows Explorer.

2 In the Windows Explorer window, open the My Documents folder, then open the My Music folder and look for the songs you downloaded.
3 Right-click on each song and select "Add To Now Playing List."
The song will be added to the Windows Media Player Library.

transfer songs to your phone

1 On your computer, launch Windows Media Player.
2 On your computer , click on the "Library" tab in the Windows Media Player window.
3 On your computer :

- If using Windows Media Player 10, click on the "Select list options" selection (to the right of "Library Options") in the Windows Media

Player window. Then select "Sync List" from the pull-down menu.

- If using Windows Media Player 11, click on the "Sync" tab in the Windows Media Player windo.

4 On your computer, drag the desired song(s) from the Library to the Sync list in the Windows Media Player window.

5 Connect the USB cable to your phone and to an available USB port on your computer.

If this is the first time you have connected the phone to a computer with a USB cable, additional software drivers may be installed. (For more information on using a USB cable connection, see page 45.)

6 On your phone , press MENU (●) ▶ G E T I T N O W ▼ Music & Tones, then select Sync Music.

Wait until the phone display shows Connected. (This can take 30-60 seconds.)

7 On your computer, click on the "Start Sync" icon in the Windows Media Player window.
8 On your phone , wait until the transfer is complete, then press the 🔒 key.
9 Disconnect the cable from the phone and the computer.

You can now use your phone's music player to play the songs you transferred from your computer.

play music—flip open

Use the Music Library to access and play the music that you download from the V CAST Music catalog (see page 16).

Find it: MENU (◄◄►) ►→°GET IT NOW ▼Music & Tones ▼My Music

main attractions

Find music on phone by artist, album,or song title. Return to MUSIC LIBRARY screen. HOME SEARCH HELP ? VIEW help information. MUSIC LIBRARY 1. Genres 2. Artists 3. Albums 4. Songs 5. Playlists 6. Inbox 7. Play All 8. Shuffle CatalogSync OK Press left soft key to download music from V CAST Music catalog. Press right soft key to synchronize MUSIC LIBRARY with digital music library on another device.

The HOME, SEARCH, and HELP options appear on all screens in the Music Library.

The Music Library includes these options:

option
Genres	Find & play music from a specific genre (type of music) such as rock, jazz, or blues.
Artists	Find & play music by a specific artist.
Albums	Find & play music from a specific album.Note: Even if you have only one song from an album, you will see a listing for that album.
Songs	Find & play specific songs.
Playlists	Play songs from personalized playlists that you create.
Inbox	View alert notifications received when new music from a selected artist is available for download.
Play All	Play all songs in the Music Library in list order.
Shuffle	Play songs in the Music Library in random order.

• Press CLR from any Music Library screen to return to the previous screen.
• Press 📷 from any Music Library screen to return to the home screen.
• On screens that show a list of items (for example, album titles), enter letters in the Go To area to jump directly to items beginning with those letters.

music player controls

Use these keys to control the music player during song playback when the flip is open

controls with flip open
pause/play	To pause, press & release the center key ◆.To resume play, press the center key ◆ again.
fast forward	Press & hold ◆ right.
skip to next song	Press & release ◆ right.
rewind	Press & hold ◆ left.
skip back to previous song	Within first two seconds of song, press & release ◆ left.
return to song beginning	After first two seconds of song, press & release ◆ left.

controls with flip open

turn off music Press 📷. player

play an album

Find it: MENU ( ◆ ) ▶ →°GETITNOW

▼Music & Tones ▼My Music

Select Genres, Artists, or Albums.

From the GENRES screen

1 Scroll to the genre you want and press OK (●).
2 Scroll to the artist you want and press OK (●).
3 Scroll to the album you want to play and press Options.
4 Scroll to Play album and press OK (●). (See below for other OPTIONS menu selections.)

22 main attractions

From the ARTISTS screen:

1 Scroll to the artist you want and press OK (●).
2 Scroll to the album you want to play and press Options.
3 Scroll to Play album and press OK (●). (See below for other OPTIONS menu selections.)

From the ALBUMS screen:

1 Scroll to the album you want and press Options.
2 Scroll to Play album and press OK (●). (See below for other OPTIONS menu selections.)

When you press Options from the ALBUMS screen, your phone displays these options:

option
Play album	Play the selected album, beginning with the first song.
Erase album	Remove the selected album from the Music Library.
Reinitialize Library Database	Under normal conditions, the Music Library is maintained automatically. If the library behaves unexpectedly, use this option to reinitialize it. This option deletes the existing library and creates a new one that contains all currently installed music.

play a song

Find it: MENU ( ◆ ) ▶ →°GETITNOW

▼ Music & Tones ▼ My Music

Select Genres, Artists, Albums. or Songs.

From the GENRES screen:

1 Scroll to the genre you want and press OK (●).
2 Scroll to the artist you want and press OK (●).
3 Scroll to the album you want and press OK (●).
4 Scroll to the song you want to play and press Play (◆). (The song plays only once.)

or

Press Options to select another option (see page 25).

From the ARTISTS screen:

1 Scroll to the artist you want and press OK (●).
2 Scroll to the album you want and press OK (●).
3 Scroll to the song you want to play and press Play (●). (The song plays only once, followed by the next song in the list.)

or

Press Options to select another option (see page 25).

From the ALBUMS screen:

1 Scroll to the album you want and press OK (●).
2 Scroll to the song you want to play and press Play (●). (The song plays only once, followed by the next song in the list.)
or

24 main attractions

Press Options to select another option (see page 25).

From the SONGS screen:

Scroll to the song you want to play and press Play (◆). (The song plays only once, followed by the next song in the list.)

or

Press Options to select another option (see page 25).

play all songs on phone

Find it: MENU ( ◀) ▶ →°GET IT NOW

▼Music & Tones ▼My Music ▼Play All

play music from a playlist

Find it: MENU ( ◀) ▶ →°GET IT NOW

▼Music & Tones ▼My Music ▼Playlists

To play an entire playlist, scroll to the playlist you want and press Options, the scroll to Play playlist and press OK (◀●▶).

To play a song from a playlist, scroll to the playlist you want and press OK (●), then scroll to the song you want to play and press Play (●).

music library options menus

When you scroll to a song and press Options, your phone displays these options:

option
Add To Playlist	Add the selected song to a playlist.
Move Song	Move the song from the memory card to the phone or from the phone to the card.
Erase Song	Delete the selected song.

option
Song Info	View the following information for the song: title, artist, album title, genre, copyright year, duration, and track number (if available).
Reinitialize Library Database	Under normal conditions, the Music Library is maintained automatically. If the library behaves unexpectedly, use this option to reinitialize it. This option deletes the existing library and creates a new one that contains all currently installed music.

When you press Options while a song is playing, your phone displays these options:

Note: The song is paused when you press Options.

option
Play All	Play all songs in the Music Library in list order.
Shuffle	Play songs in the Music Library in random order.
Get V CAST Music	Connect to the V CAST Music catalog to download more songs.
Buy music by artist	Connect to the V CAST Music catalog and go directly to a list of music available by the artist performing the current song.

play music—flip closed

To activate the music player or to resume playback while the flip is closed:

1 Press and hold the smart/speakerphone key until the touch sensor controls are lit (see page 1).
2 Press and hold the smart speakerphone key again for two full seconds.

Note: You may also be able to start the music player with the pause/play control. Press the smart/speakerphone key to light the touch sensor controls, then press and hold the pause/play control for two seconds.

The music player begins playback in Play All mode (see page 26). Use the touch sensor controls as follows:

touch sensor controls
pause/play	Press & release ▶II.
fast forward	Press & hold ▶I.
skip to next song	Press & release ▶I.
rewind	Press & hold I◄◄.
skip back to previous song	Press & release I◄◄.

Tip: You can also close the flip while a song is playing and then use the touch sensor controls.

To lock the touch sensor controls during music playback, press and hold the smart/speakerphone key until the lock symbol appears in the external display. To unlock the touch sensor controls, press and hold the smart/speakerphone key again or open the flip.

listening tips

When you're on the go, you can listen to your music through a wired headset with an EMU

(Enhanced Mini USB) connector or by using Bluetooth® A2DP stereo headphones (see page 44).

Note: You cannot charge your phone when an EMU headset is connected.

When the phone's flip is open and you are not using a wired or wireless headset, music is played through the phone's speaker.

create a playlist

Find it: Press MENU (●) ▶ G E T I T N O W ▼ Music & Tones ▼ My Music ▼ Playlists

1 Press Options.

2 If playlists already exist, press Options, then scroll to Create playlist and press OK(●).

or

If no playlists exist, press Create.

3 Enter a title for the playlist on the CREATE PLAYLIST screen and press OK (◆).
4 Press CLR to return to the MUSIC LIBRARY menu.
5 Select Genres, Artists, or Albums, navigate to the ALBUMS screen (see page 22, scroll to an album, and press OK (●).
6 Scroll to a desired song and press Options.
7 Scroll to Add to Playlist and press OK (●).
8 Scroll to the desired playlist and press ADD (◆).
9 Repeat steps 5 through 8 to add more songs.
10 When finished adding songs to the playlist, press CLR to return to the previous screen or 🔒 to return to the home screen.

edit a playlist

Find it: Press MENU (♦) ▶ GET IT NOW ▼ Music & Tones ▼ My Music ▼ Playlists

1 Scroll to the playlist you want to edit and press Options.
2 Scroll to Edit playlist and press OK (●).
3 Edit the playlist as desired.

To change the order of songs in your playlist, scroll to a song and press Move.

Then scroll up or down to move the song up or down in the playlist. When finished, press Save.

To delete a song, scroll to the song and press Remove.

4 Press CLR to return to the previous screen or 📷 to return to the home screen.

record & play voice records

You can create a voice record that you can play back later as a reminder for yourself.

create voice record

Find it: MENU (◄●►) ► ↑°GET IT NOW

▼ Music & Tones ▼ My Sounds

1 Scroll to Record New and press OK (●).
2 Press OK(◆) to begin recording, then STOP (◆) when finished.

The voice record is automatically saved and displayed in the MY SOUNDS list. You can now select Play, SEND (●), or Options.

Tip: To create a voice record quickly, press and hold the voice key (on the right side of the phone), then press OK (●) to begin recording. Press STOP (●) when finished. Press Save to

save the voice record, SEND (◆) to send it in a message, or Erase to delete it. Press 📄 to exit.

Tip: After you create a voice record, you can give it a new name. In the MY SOUNDS listing, your phone displays an 📋 indicator beside the names of voice records that you created. Scroll to the voice record you want to rename, press Options, then scroll to and select Rename

play voice record

Find it: MENU ( ◆) ▶ →°GETITNOW

▼ Music & Tones ▼ My Sounds

Scroll to the file name of the desired voice record and press PLAY (●).

record & play video clips

You can record a video clip with your phone and send it in a multimedia message to other wireless phone users.

Your camera lens is on the back of your phone when the phone is open (see page 1). To get the clearest video clips, wipe the lens clean with a soft, dry cloth before you capture a video clip.

record a clip

To activate your phone's video camera:

Find it: MENU ( ◆) →▶GETITNOW

▼Picture & Video

1 Scroll to Record Video and press OK (◆).

Tip: You can also activate the video camera viewfinder by pressing and

main attractions

holding the camera key 📄. Press the camera key 📄 again to switch between the video camera and the still photo camera.

The active viewfinder image appears on your phone's screen:

Press left soft key to view Videos. Press right soft key to view Options menu. 176x144 00:00 Videos REC Options Press •• to begin recording.

2 Point the camera lens at the video subject.

Press ⬇ left and right to zoom in and out. Press Options to open the OPTIONS menu (see the next section).

3 Press REC (●) to begin recording.

Press Pause to temporarily stop recording.

Press Resume to continue.

4 Press STOP(●) to stop recording.

5 Press Save to save the video clip.

or

Press SEND(◆) to save the video clip and go to the CREATE VIDEO MSG screen.

or

Press Erase to delete the video clip and return to the active viewfinder.

adjust video camera settings

When the video camera is active, press Options to open the OPTIONS menu, which can include these options:

option
Brightness	Adjust image brightness.
White Balance	Adjust for different lighting.
Duration	Specify standard lengths for video clips of Short (5 seconds), Medium (15 seconds), Fit to Video Msg. (varies depending on video settings), or Long (Max Memory).
Resolution	Set recording resolution to 320x240 or 176x144.
Flash	Set a light to turn on when you record a video clip.
Color	Scroll left or right to select Normal,
Effects	Antique, Black & White, or Negative.
Switch	Specify where you want to save video clips (phone memory or memory card).
Storage
Device

play video clip

To play a video clip stored on your phone:

Find it: MENU ( ◆ ) ➡▶GETITNOW

▼Picture & Video

1 Scroll to My Videos and press OK (●).
2 Scroll to the clip you want to play and press PLAY (●).

Press Mute while the clip is playing to mute the video clip sound. Press Mute again to turn sound on again.

send a photo in a message

You can take a photo with your phone and send it in a multimedia message to other wireless phone users.

Your camera lens is on the back of your phone when the phone is open (see page 1). To get the clearest photos, wipe the lens clean with a soft, dry cloth before you capture a photo.

take & send photo

To activate your phone's camera:

Find it: MENU ( ◆) →→GET IT NOW

▼Picture & Video

1 Scroll to Take Picture and press OK ( ◆ ).

Tip: You can also activate the phone's camera by pressing the camera key 📷.

Press the camera key 📄 again to switch between the still photo camera and the video camera.

The active viewfinder image appears on your phone's screen:

Press left soft key to view MY PICTURES. Press right soft key to view Options menu. Press left soft key to view MY PICTURES. Press right soft key to view Options TO TAKE to take photo.

2 Point the camera lens at the camera subject.

Press ◀◆ left and right to zoom in and out.

Press Options to open the OPTIONS menu (see the following section).

3 Use the two-stage shutter release key [+] to take the photo using the auto focus feature (see "auto focus" on page 34).

or

Press TAKE (●) to take a photo.

Note: Taking a photo with TAKE (◆) will automatically set the camera to a fixed focus mode. While the image may not be as sharp as one taken with autofocus, it can be captured more quickly.

4 Press SEND (●) to save the photo and go to the CREATE PICTURE MESSAGE screen.

or

Press Erase to delete the photo and return to the active viewfinder.

or

Press Save to save the picture to My Pictures.

Tip: To take a self-portrait, activate the camera, close the flip, point the lens at yourself, and center yourself in the external display. (Hold the camera at least 18 inches away.) Press the two-stage shutter release key [+] to take the self portrait in auto focus mode. Press the smart/speakerphone key to take a photo more quickly in fixed focus mode.

auto focus

Your phone is equipped with an auto focus lens and a two-stage shutter release key (see page 1). Use these features to take the highest quality photos.

Note: You can disable the auto focus feature from the camera OPTIONS menu (see page 35).

To use the auto focus feature:

1 When you are ready to take a photo, press the two-stage shutter release key [+] halfway to activate the auto focus feature.

While the lens is focusing, the focus bracket flashes in the viewfinder window.

When focus is locked, the bracket stops flashing and turns green, and your phone plays a tone.

2 Take the photo by fully pressing the two-stage shutter release key [+] .

adjust camera settings

When the camera is active, press Options to open the OPTIONS menu, which can include the following options:

option
Resolution	Set resolution to 1600x1200), 1280x960, 640x480, 320x240, or Picture ID.
Auto Focus	Set the camera to adjust focus automatically on a target image.
Self Timer	Set the camera to take a photo after a specific interval.
Flash	Set camera light for photos taken in settings with low light. When Flash is set to On, the lightning bolt icon in the viewfinder window (see page page 33) turns yellow.
Brightness	Adjust image brightness.

option
White Balance	Adjust for different lighting.
Shutter Sound	Activate a sound that plays when you take a photo.
Color Effects	Scroll left or right to select Normal, Antique, Black & White, or Negative.
Fun Frame	Select from different types of backgrounds to frame the image.
Switch Storage Device	Specify where you want to save photos (phone memory or memory card).

send a multimedia (picture/video) message

A multimedia message contains embedded media objects (possibly including photos, picture, sounds, or voice records). You can send a multimedia message to other Verizon Wireless multimedia messaging-capable phones and to other email addresses.

create & send message

Find it: MENU ( ◀) ▶M ESSAGING

▼New Message ▼Picture Message or Video Message

1 Press keypad keys to enter a phone number, then OK (♦).

or

Press Add ▼Contacts, then OK (●). For each Contacts entry you want to add, scroll to the

entry and press MARK (◆). Press Done when finished selecting entries.

or

Press Add ▼Recent Calls, then OK (●). For each Recent Calls entry you want to add, scroll to the entry and press MARK (●). Press Done when finished adding entries.

2 Scroll to the Text entry area.
3 Press keypad keys to enter message text.
4 Scroll to the Picture entry area and press Pics.

or

Scroll to the Video entry box and press Videos.

5 Scroll to a picture and press OK( ◆).

or

Scroll to a video clip and press OK (●).

6 If sending a Picture message, scroll to the Sound entry area and press Sounds. Then scroll to a sound and press OK (♦).
7 Scroll to Subject.
8 Press keypad keys to enter the message subject.

or

Press Options, scroll to Add Quick Text and press OK(◆). Then select a Quick Text item as the message subject.

9 Press SEND (●) to send the message.

message options

While creating a multimedia message, press Options to open the OPTIONS menu, which can include the following options:

option
Preview	View the current contents of the message.
Add Quick Text	Quick text is a prewritten message that you can quickly select and send. Your phone comes with several quick text messages, and you can create additional ones.
Save as Draft	Save the message to theDrafts folder.
Priority Level	Set toHighorNormal.
Validity Period	Specify how long the message stays in the Outbox folder.
Deferred Delivery	Send the message later at a time and date that you set.
Remove Picture, Remove Sound, Remove Video	Remove a multimedia object from the message.
Add Slide	Add a page to the message.
Add To Contacts	Add the message recipient to your Contacts.

receive a multimedia (picture/video) message

When you receive a multimedia message, your phone displays the ☑ (message waiting) indicator and a New Message notification, and plays an alert sound.

Open the flip and press View Now to view the message immediately or View Later to save it in your Inbox to view later.

To view messages in your Inbox:

Find it: MENU ( ◀) ▶ MESSAGING ▼ Inbox

1 Scroll to the desired message.
2 Press Open to open the message.

Multimedia messages that you receive can contain different media objects:

• Photos, pictures, and animations are displayed as you read the message.
• A sound file begins playing when its slide is displayed. Use the volume keys to adjust the volume as the sound file plays.
• To open an attachment, highlight the file indicator/filename and press VIEW (for an image file), PLAY (for a sound file), or OPEN (for a vObject such as a Contacts or datebook entry or an unknown file type).

download pictures

Find it: Press MENU (●) ▶ →°GET IT NOW

▼ Picture & Video

1 Scroll to Get New Pictures and press OK (●).

2 With Get New App highlighted, press OK (●) to connect to Get It Now.

Note: Normal airtime and/or carrier usage charges apply.

download V CAST videos

Find it: Press MENU (◆) ▶ G E T I T N O W ▶ Picture & Video

Note: Normal airtime and/or carrier usage charges apply.

manage memory

You can store multimedia content such as songs and photos on your phone's internal

memory or on a removable microSD® (TransFlash) memory card.

Note: If you download a copyrighted file and store it on your memory card, you can use the file only when your memory card is inserted in your phone. You cannot send, copy, or change copyrighted files.

install memory card

1 Remove the battery door and battery (see page 11).
2 Slide the memory card into the card slot and under the rubber card holder as shown. Be sure the card is fully inserted.
3 Replace the battery and the battery door.

Diagram of a device's internal structure showing a highlighted internal component (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

40 main attractions

Do not remove your memory card while your phone is using it or writing files on it.

set memory for multimedia content

You can set whether multimedia content that you download or create with your phone's camera is stored in phone memory or on the memory card.

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Memory ▼Save Options

1 Scroll to Pictures, Videos, or Sounds, and press OK (●).
2 Scroll to Phone Memory or Card Memory and press OK (●).

view memory information

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼ Memory

Select Phone Memory or Card Memory and press OK (●).

move files from phone to memory card

You can move files (such as pictures and photos, video clips, and sound and music files) from your phone to the memory card to free up phone memory.

Note: Moving a file to the memory card deletes the original from phone memory.

To move photos or video clips:

Find it: MENU (●) ▶ →°GET IT NOW

▼Picture & Video

1 Open the appropriate list (My Pictures or My Videos).

A memory card icon in the thumbnail picture for a Picture indicates that the Picture is stored on the memory card.

A memory card icon beside a Video file name indicates that the Video is stored on the memory card.

An 📁 in the thumbnail picture for a Picture indicates that the Picture came preloaded on your phone and cannot be moved to the memory card.

If the Picture or Video is not marked with a memory card icon, the Picture or Video is stored on the phone.

2 Scroll to the file you want to move and press Options.

3 Select Move and press OK (●).

Your phone asks if you want to move the file.

4 Select Yes and press OK (●) to confirm that you want to move the file.

To move an audio clip that you recorded:

Find it: MENU (◆) ▶°GETITNOW

▼Music & Tones ▼My Sounds

A memory card icon beside the file name of an audio clip indicates that the audio clip is stored on the memory card.

If the file name is not marked with a memory card icon, the audio clip is stored on the phone.

1 Scroll to the file you want to move and press Options.
2 Select Move and press OK (◆).

42 main attractions

Your phone asks if you want to move the file.

3 Select Yes and press OK (●) to confirm that you want to move the file.

Bluetooth® connections

Your phone supports Bluetooth wireless connections. You can connect your phone with a Bluetooth headset or car kit to make handsfree calls.

Note: The use of wireless phones while driving may cause distraction. Discontinue a call if you can't concentrate on driving. Additionally, the use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

Your phone currently supports the following Bluetooth profiles:

• Headset
• Handsfree
  • Dial Up Networking (DUN)
• Serial Port Profile (SPP)
• Advanced Audio Device Profile (A2DP—Stereo Bluetooth Profile)
• OBEX profiles—File Transfer Profile (FTP) and Object Push Profile (OPP) for user-generated content (image and video), and vCard (OPP only)

For more information about Bluetooth wireless connections supported by this device, go to FAQ

www.verizonwireless.com/bluetooth.

For information on vehicle compatibility, go to www.verizonwireless.com/bluetooth.

Note: All multimedia (video player, audio player, shutter tone, V CAST) will play from the speakerphone when your phone is connected to another Bluetooth device except Bluetooth A2DP stereo headphones.

For maximum Bluetooth security, you should always connect Bluetooth devices in a safe, private environment, away from other devices with Bluetooth connection capabilities.

turn Bluetooth power on or off

Find it: Press MENU (●) ▶ SETTINGS & TOOLS ▼ Bluetooth

Press the left soft key to turn Bluetooth power On or Off.

Note: To extend battery life, use this procedure to set Bluetooth power to Off when not in use. Your phone will not connect to devices until you set Bluetooth power back to

main attractions

On and connect your phone with the device again.

pair with a headset, handsfree device, or PC

Note: If you want to use your Motorola Bluetooth headset with both an audio device and your phone, use your phone's Bluetooth menus to connect the phone with the headset. If you establish the connection by pressing a button on the headset, or if you allow the headset to connect automatically by turning it on, you may experience unexpected results.

Before you try to connect your phone with another Bluetooth device, make sure your phone's Bluetooth power is On and the other device is in pairing or bonding mode (see the user's guide for the device). You can connect your phone with only one device at a time.

Find it: MENU ( ◀▶ ) ▶ SETTINGS & TOOLS

▼Bluetooth ▼Add New Device

Note: If your Bluetooth power is not turned on, your phone will prompt you to turn it on.

Your phone lists the devices it finds within range. If your phone is already connected to a device, your phone identifies that device with a Bluetooth connection active) indicator.

1 Scroll to a device in the list.
2 Press Pair to connect to the device.
3 If the device requests permission to bond with your phone, press YES and enter the device PIN code to create a secure connection with the device. (The PIN code is typically set to 0000).

Note: See the instructions that came with your device for the device PIN code and other information about the device.

When the connection is made, the Bluetooth connection active indicator (✗) or a Bluetooth message displays in the home screen.

Tip: When Bluetooth power is on, your phone can automatically connect to a handsfree device you have used before. Just turn on the device or move it near the phone.

cable connections

Your phone has a mini-USB port so you can connect it to a computer.

If you use a USB cable connection:

Diagram showing a connector inserted into a cable, with no visible text or symbols

- You must use the cables included with the Motorola Original™ data kit (see the data kit user's guide for more information).

- Make sure to connect the phone to a high-power USB port on your computer (not a low-power one such as the USB port on your keyboard or bus-powered USB hub). Typically, USB high-power ports are located directly on your computer.

Note: If you connect your phone to a low-power USB port, the computer may not recognize your phone.

- Make sure both your phone and the computer are turned on.

TTY operation

You can use an optional TTY device with your phone to send and receive calls. You must plug the TTY device into the phone's headset connector and set the phone to operate in one of three TTY modes.

Note: Use a TSB-121 compliant cable (provided by the TTY manufacturer) to connect the TTY device to your phone. If the cable has a 2.5mm jack, you will also need a Motorola Original™ 2.5mm-to-EMU TTY adapter to attach the jack to the phone.

Note: Set the phone to level 4 (middle setting) for proper operation. If you experience a high number of incorrect characters, adjust the volume as needed to minimize the error rate.

Note: For optimal performance, your phone should be at least 12 inches (30 centimeters) from the TTY device. Placing the phone too close to the TTY device may cause high error rates.

set TTY mode

When you set your phone to a TTY mode, it operates in that mode whenever a TTY device is connected.

Find it: MENU (●) ▶ SETTINGS & TOOLS ▼ Call Settings ▼ TTY Mode

TTY Mode can include these options:

option
TTY Full	Transmit and receive TTY characters.
TTY + Talk	Receive TTY characters but transmit by speaking into microphone.
TTY + Hear	Transmit TTY characters but receive by listening to earpiece.
TTY Off	All TTY modes are turned off.

When your phone is in a TTY mode, your phone displays the international TTY mode, the international TTY symbol, and the mode setting during an active TTY call.

return to voice mode

To return to standard voice mode, select TTY OFF from the TTY MODE menu.

main attractions

basics

See page 1 for a basic phone diagram.

home screen

The home screen shows when you turn on the phone.

Date & Time Left Soft Key Label Thu, Oct 23 12:45pm Message | MENU | Contacts Right Soft Key Label

To dial a number from the home screen, press number keys and 🔒.

Press the center key ◆ to open the main menu. Soft key labels show current soft key functions. (For soft key locations, see page 1.)

Tip: Select a menu option quickly by pressing the number for that option. For example, from the SETTINGS & TOOLS menu, press 4 to select Sounds Settings.

Press ◆◆ up, down, left, or right as a shortcut key to open these basic menu features:

navigation key direction & menu
up	Mobile Web
down	Calendar
left	MUSIC & TONES
right	GET IT NOW

You can set your phone to display or hide these menu icons on the home screen (see page 88).

Your phone displays system status indicators:

System Status-Indicators

EV III 1x III Thu, Oct 23 12:45pm Message |MENU| Contacts

alert/indicator

EV1X Signal Strength

1x-EVDO indicates that phone is in 1x-EVDO coverage area (necessary for V CAST services). 1X indicates when phone is in 1x-RTT coverage area. Vertical bars show the strength of the network connection. Four bars indicate maximum signal strength. One bar indicates minimum.

▲ Roaming

Indicates phone is roaming off your home network.

S SSL

Indicates application verification is via SSL during a download session.

alert/indicator

→ Data Call, Tethered, or Embedded WAP/BREW ApplicationShows during data call, tethered mode, or WAP/BREW application.

→DormantIndicates phone is dormant and PPP session is active.

→No ServicePhone is in area with no service coverage.

→TTYPhone is in TTY mode.

→Voice CallShows during an active voice call.

→E911Indicates E911 is On.

alert/indicator

Location OnIndicates Location is set to On.

Battery LevelShows battery strength. The more bars, the greater the charge. (Four bars indicate maximum strength.)

All Sounds OffIndicates Master Volume is set to Off.

Alarm OnlyIndicates Master Volume is set to Alarm Only.

Vibrate OnIndicates Master Volume is set to Vibrate On.

SpeakerphoneIndicates speakerphone is on.

alert/indicator

Missed Call

Indicates a call was missed.

Message

Shows when you receive a new message.

Calendar Event

Shows number of calendar appointments.

New Voicemail

Shows when a voicemail message is received.

Alarm On

Shows when an alarm has been set.

Bluetooth Connection Active

Indicates your phone is paired to another Bluetooth device.

enter text

Some features let you enter text. The following is an example of a screen for Contacts entry information:.

EDIT CONTACT First Name Abc Last Name Mobile 1 Home Work Press left soft key to change entry mode. Press ← to save entry information. Press → to scroll to more options.

The following is an example of an entry screen used when you create a text message:

CREATE TXT MESSAGE 0/10 1/7 To: 123 Cursor indicates insertion point. Press left soft key to view Add sub-menu. Press right soft key to view Options sub-menu. Press •• to send message.

select entry mode

Multiple entry modes make it easy for you to enter names, numbers, and messages. The mode you select stays active until you select another mode.

To select an entry mode from theCREATE TXT MESSAGE screen, press Options, then select Entry Mode.

To select an entry mode from the EDIT CONTACT screen, press Abc.

You can select one of these entry modes:

entry modes
iTAP English	The phone predicts each word (in English) as you press keys.
iTAP Spanish	The phone predicts each word (in Spanish) as you press keys.
Abc	Enter letters and numbers by pressing a key one or more times, first character of a sentence in uppercase.
ABC	Enter letters and numbers by pressing a key one or more times, all characters in uppercase.
123	Enter numbers only.
Symbols	Enter symbols.

Tip: Press ✉ in a text entry screen to toggle through capitalization options:

abc no uppercase letters

Abc first letter of a sentence in uppercase

ABC all uppercase letters

tap mode

This is the standard mode for entering text on your phone. Regular tap mode cycles through the letters, numbers, and symbols of the key you press.

1 Press a key one or more times to select a letter, number, or symbol.
2 Enter the remaining characters in the same way.

Tip: Press # to enter a space.

When you enter text with tap mode, the soft key functions change:

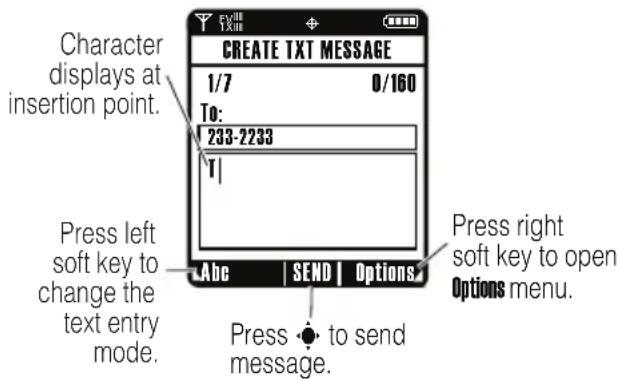

CREATE TEXT MESSAGE 1/7 0/160 To: 233-2233 T Press left soft key to change the text entry mode. Press right soft key to open Options menu. Press • to send message.

• Press ◀◆ left or right to move the flashing cursor to the left or right in a text message.
• If you don't want to save your text or text edits, press 🔒 to exit without saving.

iTAP® mode

iTAP software provides a predictive text entry method that combines your key presses into common words.

When you enter three or more letters in a row, your phone may guess the rest of the word. For example, if you enter prog, your phone might show:

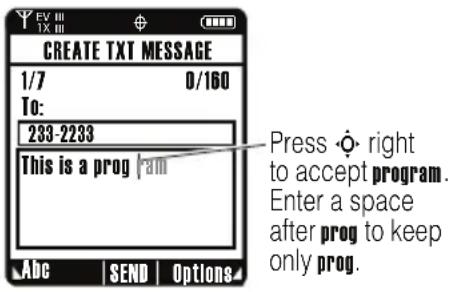

CREATE TXT MESSAGE 1/7 0/160 To: 233-2233 This is a prog ram Press right to accept program. Enter a space after prog to keep only prog.

If you want a different word (such as progress), continue pressing keys to enter the remaining letters.

• Scroll down to view other possible combinations, and select the one you want.
• Press ⬇ right to enter the highlighted combination when it spells a word. A space is inserted automatically after the word.
• To enter numbers quickly, press and hold a number key to temporarily switch to numeric mode. Press the number keys to enter the numbers you want.
• Press 1 to enter punctuation or other characters.

enter words

1 Press keys (one press per letter) to begin entering a word.

As you type, your phone automatically shows additional letters that form a suggested combination.

2 Scroll down to view other possible combinations, and highlight the combination you want.
3 Press ◦ right to enter the highlighted combination when it spells a word. A space is automatically inserted after the word.

If you enter a word the phone does not recognize, the phone stores it as a new word option. When you fill memory space for new word options, your phone deletes the oldest words to add new ones.

numeric mode

Press keypad keys to enter the numbers you want. When you finish entering numbers, press the 123 key to switch to another entry mode.

symbol mode

On the SYMBOLS screen, scroll to the desired symbol and press OK (●) to select it.

Press Next to page down to the next set of symbols. Press Prev to page up to the previous set.

delete letters & words

Move the cursor to the right of the text you want to delete, then:

• Press and release CLR to delete one letter at a time.
• Press and hold CLR to delete an entire word.

adjust volume

With the flip open, press the volume keys to:

Volume Keys

• turn off an incoming call alert
- change the earpiece volume during calls
- change the ringer volume from the home screen

change sound settings

In the home screen, with the phone's flip open, press the down volume key to switch to lower the volume for call sounds, then switch to Vibrate Only, Alarm

Volume Keys

Only, or All Sounds Off. Press the up volume key to cycle back from silent to vibrate and then to the lowest call volume setting.

external display

When you close your phone, the external display shows the time, status indicators, and notifications for incoming calls and other events. For a list of phone status indicators, see page 49.

handsfree speaker

You can use your phone's handsfree speaker to make calls without holding the phone to your ear.

The handsfree speaker stays on until you press and hold the smart/speakerphone key again or turn off the phone.

Note: The handsfree speaker won't work when your phone is connected to a handsfree car kit or headset.

flip open

To activate the speakerphone during a call,

Volume Keys

Smart/Speaker-phone Key

press and hold the smart/speakerphone key.

You will see Spkrphone On and the speakerphone indicator 🔍, and hear a soft audio alert.

To end the call, press End Call or 📷. You will see Call Ended and hear a soft audio alert.

Note: Closing the flip while using the speakerphone does not end the call (see "flip closed" below).

To turn off the speakerphone, press the smart/speakerphone key.

flip closed

1 Open your phone's flip.
2 Press and hold the smart/speakerphone key to turn on the speakerphone.
3 Enter the number you want to call and press 📄.
4 When the call connects, close the flip and continue your conversation.
5 To end the call, press Ⓤ. You will see Call Ended and hear a soft audio alert.

standalone mode

Note: Consult airline staff about the use of Standalone Mode in flight. Turn off your phone whenever instructed to do so by airline staff.

Use standalone mode to turn off your phone's calling features in locations where wireless phone use is prohibited. You cannot make or receive calls or use Bluetooth™ wireless devices in standalone mode, but you can use your phone's other non-calling features.

Find it: MENU ( ◀● ) ▶ SETTINGS & TOOLS ▼ Phone Settings ▼ Standalone Mode .

Your phone indicates that Standalone Mode is set to On by displaying indicators and a message on the home screen:

OFF Standalone Mode Thu. Oct 23 12:45pm Message | MENU | Contacts

change lock code

Your phone's four-digitlock code is originally set to the last four digits of your phone number. If your service provider didn't change this code, you should change it:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼ Phone Settings ▼ Security

1 When prompted, enter the lock code and press OK (●).
2 Scroll to Edit Code and press OK (●).
3 Enter the new four-digit lock code in the New Code entry area, then press ◆ down to move the cursor into the Confirm Code entry area. Re-enter the new four-digit lock code.
4 Press OK (●).

lock & unlock phone

You can lock your phone to keep others from using it. To lock or unlock your phone, you need the four-digit lock code.

Note: You can make emergency calls on a locked phone (see page 72). A locked phone

still rings or vibrates for incoming calls or messages, but you need to unlock it to answer.

To manually lock your phone:

Find it: MENU ( ◆) ▶ SETTINGS & TOOLS

▼ Phone Settings ▼ Security

1 When prompted, enter the lock code and press OK (◆).
2 Scroll to Lock Mode and press OK (●).
3 Scroll to Lock and press OK (●).

To automatically lock your phone whenever you turn it off:

Find it: MENU ( ◀● ) ▶ SETTINGS & TOOLS

▼ Phone Settings ▼ Security

1 When prompted, enter the lock code and press OK (●).
2 Scroll to Lock Mode and press OK (●).
3 Scroll to On Power Up and press OK (●).
4 Press 🔒 to return to the home screen.

To unlock the phone enter the four-digit lock code in the Enter Lock Code entry area and press OK (◆).

conserve battery charge

Using certain features can quickly deplete your battery's charge. These features can include downloading music, using the camera, replaying video clips, and using Bluetooth® wireless connections.

You can conserve your battery's charge by doing the following:

• Turn Bluetooth power off when not in use (see page 43).
• Turn off wallpaper (see page 64) and screen saver (see page 65).
• Turn off backlights (see page 66).

sounds settings

You can set your phone to signal incoming calls or other events by playing specific ringtones or by vibrating.

master volume

Find it: MENU (●) ▶ SETTINGS & TOOLS ▼ Sounds Settings ▼ Master Volume

1 Scroll up or down to the desired setting: High, Med High, Med, Med Low, Low—Your phone rings for incoming calls and other events, depending on the detail settings. Vibrate Only—The phone vibrates to indicate an incoming call.

customize

Alarm Only—Your phone plays an audible alarm to alert you to events. You are not able to change detail settings for events.

All Sounds Off—The phone does not alert you to incoming calls or other events.

2 With the desired setting highlighted, press SET (●).
3 Press 🔒 to return to the home screen.

sounds for calls, events, & alerts

Note: Master Volume must be set to High, Med High, Med, Med Low, or Low.

Set sounds for calls:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Sound Settings ▼Call Sounds

1 Scroll to Call Ringtone and press OK (●), then scroll to a desired ringtone and press OK (●).

Note: Press the left soft key to preview the ringtone.

or

Scroll to Call Vibrate and press OK (♦), then scroll to On or Off and press OK (♦).

2 Press 🔒 to return to the home screen.

Set sounds for events (such as incoming messages) or alerts:

Find it: MENU (◆) ▶ SETTINGS & TOOLS

▼Sound Settings ▼Alert Sounds

1 Scroll to TXT Message, PIX-FLIX Msg, or Voicemail Msg, and press OK (●).

2 Scroll to Tone and press OK ( ), then scroll to a desired ringtone and press OK ( ).

Note: Press the left soft key to preview the ringtone.

or

Scroll to Vibrate and press OK (●), then scroll to On or Off and press OK (●).

or

Scroll to Reminder and press OK(●), then scroll to Once, Every 2 Minutes, Every 15 Minutes, or Off, and press OK (●). (For all settings but Off, your phone plays an audible beep at the interval you set.)

3 Press 🔒 to return to the home screen.

Tip: You can assign a distinctive ringtone to each entry in your Contacts list (see page 79).

get ringtones

Find it: MENU (●) ▶ G E T I T N O W ▼ Music & Tones

1 Scroll to Get New Ringtones and press OK (◆).

2 On the GET NEW RINGTONES screen, scroll to Get New App and press OK (●).

Your phone connects to a Web site with ringtone collections. Follow the prompts on the screen to browse ringtone lists and to select and download a ringtone.

3 Press 🔒 to return to the home screen.

talking phone settings

You can set your phone to speak aloud the numbers of the keypad keys when you press them:

Find it: MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼Sound Settings ▼Talking Phone ▼Keypad Digits .

You can also set your phone to speak aloud the name of Contacts entries when you highlight the entries in the CONTACT LIST:

Find it: MENU ( ◀▶ ) ▶ SETTINGS & TOOLS

▼Sound Settings ▼Talking Phone ▼ContactListEntries

answer options

You can use different ways to answer an incoming call:

options
Flip Open	Answer by opening the flip.
Any Key	Answer by pressing any key.
Send Only	Answer by pressing the ☐ key only.

options
Auto Answer	Automatically answer incoming call (works with headset, Bluetooth® connections, and when phone is operating in handsfree mode).

To activate/deactivate an answer option:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Call Settings ▼Answer Options .

wallpaper

Set a photo, picture, or animation as a wallpaper (background) image in your home screen and your phone's external display:

Find it: MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼Display Settings ▼Wallpaper

1 Select Main Screen (for the home screen) or Front Screen (for the external display).
2 Scroll to the picture in MY PICTURES that you want, and press OK (♦).

or

Press Options, then select Take new picture to take a new photo to use as a wallpaper, or select PIX Place to select a picture from your PIX Place, or select Get New to go to GET NEW PICTURES and download a picture (see page 39).

or

To turn off the wallpaper, scroll to None (in MY PICTURES) and press OK (●).

3 Press 🔒 to return to the home screen.

screen saver

Set a photo, picture, or animation as a screen saver for you home screen and your phone's external display. The screen saver displays when the flip is open and no activity is detected for a set time.

Tip: This feature helps save your screen, but not your battery. To extend battery life, turn off the screen saver.

Find it: MENU ( ◆) ▶ SETTINGS & TOOLS

▼ Display Settings ▼ Screensaver

1 Select Main Screen (for the home screen) or Front Screen (for the external display).
2 Scroll to the picture in MY PICTURES that you want, and press OK (♦).

or

Press Options, then select Take new picture to take a new photo to use as a screen

customize

saver, or select PIX Place to select a picture from your PIX Place, or select Get New to go to GET NEW PICTURES and download a picture (see page 39).

or

To turn off the screen saver scroll to None (in MY PICTURES) and press OK (●).

3 Press 🔒 to return to the home screen.

backlight

Set how long the backlights for the home screen and the keypad remain on, or turn off backlights to extend battery life:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Display Settings ▼Backlight

Tip: Setting Backlight to Always On will reduce battery life significantly and require more frequent battery charging.

brightness

Set the brightness of your home screen:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼ Display Settings ▼ Brightness

clock format

Set how your phone shows the current time on the home screen (see page 48) and on the external display (see page 56).

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Display Settings ▼Clock Format

1 Scroll to Main Clock (for the home screen) or Front Clock (for the external display).

2 Scroll to the desired setting and press OK (●):

Digital 12 Time shown as numeric digits in 12-hour notation followed by am or pm.

Digital 24 Time shown as numeric digits in 24-hour notation (for example, 13:26.

Analog Time shown on the image of a clock with hour and minute hands.

Off Time not displayed.

AGPS & your location

Your phone can use the automatic location information (ALI) feature, along with Assisted Global Positioning System (AGPS) satellite

signals, to tell the network where you are physically located.

When ALI is set to Location On, your phone displays the » (ALI on) indicator. Services may use your known location to provide useful information (for example, driving directions, or the location of the nearest bank). Your phone prompts you when the network or a service asks for your location. You can refuse at this point.

When ALI is set to 911 Only, your phone displays the ⊕ (ALI off) indicator, and the phone does not send location information unless you call the emergency phone number (such as 911).

Find it: MENU (◆) ▶ SETTINGS & TOOLS ▼ Phone Settings ▼ Location

1 Scroll to Location On or 911 Only.
2 Press OK (●) to select the setting.

customize

AGPS limitations & tips

Your phone uses Assisted Global Positioning System (AGPS) satellite signals to estimate your location. If your phone cannot find strong satellite signals, your AGPS might be slower, less accurate, or it might not work at all. AGPS provides only an approximate location, often within 150 feet (45 meters) but sometimes much farther from your actual location.

To improve AGPS accuracy:

- Go outside and away from underground locations, covered vehicles, structures with metal or concrete roofs, tall buildings, and foliage. Indoor performance might improve if you move closer to window, but some window sun-shielding films can block satellite signals.

• Move away from radios, entertainment equipment, and other electronic devices that might interfere with or block AGPS satellite signals.
• Extend your phone antenna.
• Hold your phone away from your body, and point the phone antenna toward the sky. Do not cover the antenna area with your fingers.

AGPS uses satellites controlled by the U.S. government and subject to changes implemented in accordance with the Department of Defense AGPS user policy and the Federal Radio Navigation Plan. These changes might affect AGPS performance.

calls

To make and answer calls, see page 12.

redial a number

1 Press ☐ to see the dialed calls list.
2 Scroll to the entry you want to call.
3 Press ☐ to redial the number.

To redial a busy number:

1 Press ☐ from the home screen.
2 Scroll to the entry you want to call.
3 Press ☐.

automatic redial

When you receive a busy signal, your phone displays Call Failed, Number Busy.

With automatic redial, your phone automatically redials the number for four minutes. When the call goes through, your phone rings or vibrates once, displays Redial Successful, and connects the call.

You must turn on automatic redial to use the feature:

Find it: MENU (●) ▶ SETTINGS & TOOLS

▼Call Settings ▼Auto Retry

When automatic redial is turned off, you can manually activate it to redial a number. When

you hear a fast busy signal and see Call Failed, press 📷 or RETRY to automatically redial.

recent calls

Your phone keeps lists of the last ninety calls you received and dialed, even if the calls didn't connect. The most recent calls are listed first. The oldest calls are deleted as new calls are added.

Shortcut: Press ☐ from the home screen to view the All Calls list.

Find it: MENU (◀●▶) ▶“□”RECENT CALLS

1 Scroll to Missed, Received, Dialed, or All.
2 Press OK (●) to select the list.

3 Scroll to an entry.
4 Press ☐ to call the entry's number.

or

Press Message to send a message to the entry's number.

or

Press OPEN (◆) to view entry details.

or

Press Options to open the Options menu to perform other actions on the entry.

The Options menu can include these options:

options
Save	Create a Contacts entry with the number in the No. field.
Erase	Delete the selected entry (if the entry is not locked).
Lock	Lock selected entry so it cannot be erased.
Erase All	Delete all unlocked entries.
View Timers	Go to the View Timers screen.

return unanswered calls

Your phone keeps a record of your unanswered calls, and displays the ☐ (missed call) indicator and X Missed Calls.

1 Press VIEW to see the received calls list.
2 Scroll to the call you want to return.
3 Press ☐ to make the call.

speed dial

You can assign a unique speed dial number to each entry you store in Contacts.

Note: Your service provider may have already assigned speed dial number 1 to your voice mail number.

To assign a speed dial number to an entry:

Find it: MENU ( ◀▶ ) ▶ CONTACTS ▼Speed Dials

1 Scroll to an unassigned speed dial number and press SET ( ).
2 Scroll to a contact in the Contacts list and press OK (●).

To see an entry's speed dial number:

Find it: MENU ( ◀ ) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press View. The speed dial number is displayed with the ✉ icon.

To speed dial an entry.

1 Enter the one- or two-digit speed dial number for the entry you want to call.
2 Press 🔒 to call the entry.

Tip: Use 1-touch dialing for quick calling! To dial entries 1 through 9, press and hold the one-digit speed dial number for one second.

To dial entries 10 and higher press the first digit, then press and hold the second digit.

emergency calls

Your service provider programs one or more emergency phone numbers, such as 911 or 112, that you can call under any circumstances, even when your phone is locked.

Note: Emergency numbers vary by country. Your phone's preprogrammed emergency

number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues.

1 Enter the emergency number.
2 Press ☐ to call the emergency number.

AGPS during an emergency call

When you make an emergency call, your phone can use Assisted Global Positioning System (AGPS) satellite signals to tell the emergency response center your approximate location.

The AGPS feature has limitations, so always tell the emergency response center your best knowledge of your location. Remain on the

phone for as long as the emergency response center instructs you.

AGPS might not work for emergency calls:

• Your phone's AGPS feature must be turned on (see page 67).
• Your local emergency response center might not process AGPS location information. For details, contact your local authorities.

For best results:

- Go outside and away from underground locations, covered vehicles, structures with metal or concrete roofs, tall buildings, and foliage. Indoor performance might improve if you move closer to windows, but some window sun shielding films can block satellite signals.

- Move away from radios, entertainment equipment, and other electronic devices that might interfere with or block AGPS satellite signals.

If your phone cannot find strong AGPS satellite signals, the location of the nearest cell tower in contact with your phone is automatically provided to the emergency response center.

voicemail

Your network stores the voicemail messages you receive.

Note: Your service provider may include additional information about using this feature.

When you receive a voicemail message, your phone shows the voicemail message

indicator 🔒". Press 🔒 to call your voicemail phone number.

Tip: Your service provider may assign speed dial number 1 to your voicemail phone number. If so, simply press and hold ① to call your voicemail number.

To check voicemail messages later:

Find it: MENU ( ◀ ) ▶ MESSAGING ▼ Voicemail

Press 📷 (send key) to call your voicemail phone number.

Your phone may prompt you to store your voicemail phone number. If you don't know your voicemail number, contact your service provider.

Note: You can't store a p (pause), w (wait), or n (number) character in this number. If you want to store a voicemail number with these characters, create a Contacts entry for it. Then, you can use the entry to call your voicemail.

in-call options

During an active call, press OPTIONS to access these options:

1. Send TXT Msg 5. Voice Privacy
2. Messages 6. Connect Bluetooth
3. Contacts 7. Phone Info
4. Recent Calls 8. Location

other features

advanced calling

features

restrict calls

MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼ Call Settings ▼ Call Restrictions

When prompted, enter the lock code and press OK ( ). Then select Outgoing Calls or Incoming Calls and press OK ( ). Scroll to All, Contacts, or None, and press OK ( ).

features

DTMF tones

Your phone can send Dual Tone Multi Frequency (DTMF) tones for calling card calls or to navigate automated systems (such as banking by phone).

Set up DTMF tones:

MENU (●) ▶ SETTINGS & TOOLS ▼ Call Settings ▼ DTMF Tones

Select Normal or Long.

Send DTMF tones during a call:

Press number keys.

other features—advanced calling

messages

features

send text message MENU ( ◆ ) ▶ ⬇M ESSAGING▼New Message ▼TXT MessagePress Options to perform other actions on the message.

store message objects Go to a multimedia message slide(see page 38) and press Options, then select Save Picture or Save Sound.

view sent messages MENU ( ◆ ) ▶ ⬇M ESSAGING ▼SentScroll to the message you want to view and press Open ( ◆ ). Press Options to perform other actions on the message.

features

read received message MENU ( ◆ ) ▶ ⬇ MESSAGING ▼ InboxScroll to the message you want to read and press Open ( ◆ ).Press Options to perform other actions on the message.

view drafts MENU ( ◆ ) ▶ ⬇ MESSAGING ▼ DraftsScroll to the message you want to view and press EDIT ( ◆ ).To delete the message, press Erase.Press Options to perform other actions on the message.

features

erase messages

MENU ( ◀ ) ▶ MESSAGING

Press Options, then scroll to Erase Inbox, Erase Drafts, Erase Sent or Erase All, and press OK (●).

E-Mail

MENU (●) ▶ MESSAGING > E-mail

Access your internet e-mail account to exchange e-mail from your phone.

Mobile IM

MENU (●) ▶ MESSAGING > Mobile IM

Access your internet Instant Messaging account to exchange messages in real time with family and friends.

features

Chat

MENU ( ◀) ▶ MESSAGING > Chat

Access your internet chat account to chat in real time with family and friends.

contacts

features

create entry

MENU ( ◀● ) ▶ CONTACTS ▼ New Contact

features

insert special characters

While entering a number, press Options. Then select one of the following:

2-Sec Pause—Your phone pauses for two seconds before it dials the next digit.

Wait—Your phone waits until the call connects, then prompts you for confirmation before it dials the next digit(s).

edit entry

MENU ( ◀ ) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Edit.

features

erase entry

MENU (●) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Options, then scroll to Erase and press OK (●).

assign picture to entry

When you assign a picture to a Contacts entry, your phone displays that picture when you receive a call from the entry.

MENU (●) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Edit. Scroll to Picture and press Set to go to My Pictures. Scroll to the desired picture and press OK (♦).

features

assign ringtone to entry

When you assign a ringtone to a Contacts entry, your phone plays that ringtone when you receive a call from the entry.

MENU ( ◀▶ ) ▶ CONTACTS ▼Contact List

Scroll to the entry and press Edit. Scroll to Ringtone and press Set to go to the MY RINGTONES menu. Scroll to the desired ringtone and press OK (◆).

Note: Master Volume must be set to High, Med High, Med, Med Low, or Low (see page 56).

features

download ringtone for entry

You can download a ringtone and assign it to a Contacts entry. When you receive a call from that entry, your phone plays that ringtone

MENU ( ◀▶ ) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Edit. Scroll to Ringtone and press Set to go to the MY RINGTONES menu. Select Get New Ringtones, then proceed to download and save a ringtone.

features

set speed dial number

Assign a speed dial number to a Contacts entry:

MENU ( ◀▶ ) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Edit. Scroll to the number to be assigned a speed dial number and press Options, then scroll to Set Speed Dial and press OK (●).

set default number for entry

Set the default number for a Contacts entry with multiple numbers:

MENU ( ◀▶ ) ▶ CONTACTS ▼ Contact List

Scroll to the entry and press Edit. Scroll to the number to be set as the default number and press Options, then scroll to Set As Default and press OK (●).

features

add entries to group

Tip: You can add a Contacts entry to a group while editing that entry by scrolling to Group and pressing Set.

MENU (●) ▶ CONTACTS ▼ Groups

Scroll to the group name and press Options, then scroll to Add and press OK ( ). On the Add Contacts screen, scroll to each contact you want to add and press OK ( ).

When you are finished adding contacts to a group, press Done.

When you send a message to a group list, the message goes to all entries in that group.

features

add group

Add a new group as an entry on the Groups screen:

MENU ( ◀ ) ▶ CONTACTS ▼ Groups

Press New. Enter the name for the new group and press SAVE (●).

When you send a message to a group list, the message goes to all Contacts entries in that group.

call an entry

MENU ( ◀ ) ▶ CONTACTS

Scroll to Contact List and press OK (●), then scroll to the entry you want to call and press 📊.

personalizing

voice recognition

Your phone's voice recognition feature enables you to place calls and complete other actions by speaking commands to your phone.

voice recognition tips

• When speaking the name of a Contacts entry, say the name exactly as it is listed. For example, to call the mobile number for an entry named Bill Smith, say "Call Bill Smith mobile." (If the entry includes only one number for Bill Smith, say "Call Bill Smith."
• Speak numbers at a normal speed and volume, and pronounce each digit distinctly. Avoid pausing between digits.

other features—personalizing

- Your phone may be set to play voice command instructions through the speakerphone when you press the voice key, enabling you to see the VOICE COMMANDS menu. If you then use the Call command to place a call, audio plays through the phone's earpiece when the call connects. You can turn this feature off if desired (see page 86).

voice commands

1 Press and release the voice key on the right side of the phone.

Your phone displays and says Say a command, then displays a list of voice commands.

2 Say one of the commands listed in the following table. Your phone performs the corresponding action.

feature

Call

Place a call to:

- a Contacts entry whose name you speak

or

• a phone number you speak

For example, when prompted to say a command, say "Call Bill Smith mobile" or "Call 8475551212."

feature

Send

Send a text or multimedia message.

Say "Send text" or "Send picture," then:

• the name of a Contacts entry or
• a phone number

For instructions on sending a text or multimedia message, see page 76.

Lookup

Look up a Contacts entry by saying its name.

feature

Go To

Access the menu or perform the action you specify:

Voicemail—Dial your voicemail number.

Camera—Activate your phone's camera.

Redial—Redial the last number you called.

Received Calls—Go to the received calls list.

feature

Check

View status of the item you say:

Status—coverage, signal strength, and battery charge

Voicemail—new voicemail messages

Messages—new received text or multimedia messages

Missed Calls—unanswered incoming calls

Time—time and date

Battery—battery charge

Signal Strength—network connection strength

Volume —ringer volume

feature

My AccountLaunch Mobile Web and display your account options.

Help GuideAccess help information for the voice recognition feature.

modify voice recognition settings

1 Press and release the voice key on the right side of the phone.
2 Press Settings.

3 Scroll to the desired option and press OK (●).

voice recognition settings

Choice Lists

If your phone is not sure that it has correctly identified a name or number that you speak, it can display up to three choices and prompt you to confirm the correct one.

You can control when choice lists appear:

Automatic—Display a list of choices from multiple alternatives.

Always On—Always display a list of choices when there are multiple alternatives.

Always Off—Never display a choice list. The phone chooses from the best alternatives.

voice recognition settings

Sensitivity

This setting allows you to fine tune the phone's ability to recognize voice commands.

If sensitivity is too strict, your phone will often reject voice commands and display "Please repeat ..." or "No match found." Adjust the sensitivity toward Reject Less.

If sensitivity is too forgiving, you will often experience false activations (indicating that the phone detects a wrong match). Adjust the Sensitivity setting toward Reject More.

voice recognition settings

Digit Dialing

Adapt digit dialing to your voice:

Adapt Digits—Adapt digits to improve recognition of spoken phone numbers. Adaptation takes about sixty seconds.

Reset Digits—Erase any digital adaptation you did previously and reset digit recognition to the factory default. If you have not adapted digits, this option appears in grey (not available).

voice recognition settings

Sound

Customize voice recognition by turning playback on or off for prompts, names, and numbers. You can also adjust the speed and volume of name playback.

Prompts—Turn playback on or off for prompts such as “Please say a command.”

Digits—Turn playback on or off for digits (for example, when confirming a phone number).

Names—Turn playback on or off for names.

Name Settings—Adjust speed and volume of name playback.

Speakerphone—Set whether your phone plays instructions through the speakerphone when you press the voice key (see “voice recognition tips” on page 81).

To access help additional information for a setting you have selected, press INFO.

more personalizing features

features

alert lights

Set lights on the flip (see page) 2 to turn on when you receive a call.

MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼Display Settings ▼Alert Lights

You can set alert lights to blink in different rhythmic patterns for incoming calls. The lights will also pulse while the phone is charging until charging is 90% complete.

features

keypad volume

MENU ( ◀) ▶ SETTINGS & TOOLS

▼ Sounds Settings ▼ Keypad Volume

Note: Master Volume must be set to High, Med High, Med, Med Low, or Low.

power on/off sounds

MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼ Sounds Settings ▼ Power On/Off

Note: Master Volume must be set to High, Med High, Med, Med Low, or Low.

display themes

Set the colors and styles of screens that your phone displays:

MENU ( ◀●▶) ▶ SETTINGS & TOOLS

▼ Display Settings ▼ Display Themes

features

menu languageMENU ( ◆• ) ▶ ⚙️ SETTINGS & TOOLS▼ Phone Settings ▼Language

banner Create a heading to display on your phone’s home screen:MENU ( ◆• ) ▶ ⚙️ SETTINGS & TOOLS▼ Display Settings ▼Banner

show or hide menu iconsShow or hide menu icons in the home screen that you can use as shortcuts to those menus:MENU ( ◆• ) ▶ ⚙️ SETTINGS & TOOLS▼ Phone Settings ▼Shortcut KeyScroll to and selectIcons Mode, then selectShow or Hide.

features

change home keys

Change menus selected with the navigation keys in the home screen:

MENU (●) ▶ SETTINGS & TOOLS ▼ Phone Settings ▼ Shortcut Key

Select Up Key, Down Key, Right Key, or Left Key, then scroll to and select the menu you want to assign to that key.

call times & data volumes

Network connection time is the elapsed time from the moment you connect to your service provider's network to the moment you end the call by pressing 🔒. This time includes busy signals and ringing.

The amount of network connection time you track on your resettable timer may not equal the amount of time for which you are billed by your service provider. For billing information, contact your service provider.

features

call times

MENU ( ◀▶ ) ▶ “RECENT CALLS

▼View Timers

Scroll to the appropriate timer and press OK (●).

set in-call timer

MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼ Sounds Settings ▼ Service Alerts ▼ Minute Beep

features

data volumes

MENU ( ◀▶ ) ▶ “☐” RECENT CALLS

▼View Timers

Scroll to Transmit KB, Received KB, Total KB, or Lifetime Data Counter, and press OK (●).

reset timer

MENU ( ◀▶ ) ▶ “RECENT CALLS

▼View Timers

Scroll to the timer you want to reset and press Reset. To reset all timers, press Reset All.

view last reset

MENU ( ◀ ) ▶ “” RECENT CALLS

▼View Timers ▼Last Reset

handsfree

Note: The use of wireless phones while driving may cause distraction. Discontinue a call if you can't concentrate on driving. Additionally, the use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

features

accessory volume settings (car kit or headset)

Adjust volume of headsets or car kit accessories that are enable for Bluetooth wireless connections:

During an active call, press your phone's up or down volume key.

Bluetooth® wireless connections

features

make phone visible to other device

Allow an unknown Bluetooth device to discover your phone:

MENU (◆) ▶ SETTINGS & TOOLS ▼Bluetooth

▼Settings ▼Discovery Mode

Scroll to On and press OK (●).

features

connect to recognized device

MENU ( ◀ ) ▶ SETTINGS & TOOLS

▼Bluetooth ▼Add New Device

Select the device.

Note: To ensure the best Bluetooth connection, always connect to Bluetooth devices using your phone's menus rather than making your device discoverable.

connect to handsfree device during a call

Press OPTIONS, then select Connect Bluetooth.

Note: You cannot switch to a headset or car kit if you are already connected to a Bluetooth device.

features

disconnect from device

Scroll to Bluetooth and select Off.

set Bluetooth power always on

Set Bluetooth power to be on whenever your phone is on:

MENU ( ◆) ▶ SETTINGS & TOOLS ▼ Bluetooth

▼ On

set Bluetooth options

MENU ( ◀●▶ ) ▶ SETTINGS & TOOLS

Bluetooth Settings

network

features
network settings
Adjust network settings:
MENU ( ◆) ▶ SETTINGS & TOOLS▼Phone Settings ▶ System SelectScroll to Set Mode and press OK ( ◆).
set call drop alerts
Set phone to beep whenever thenetwork drops a call. (Because digitalnetworks are so quiet, the call drop alertmay be your only indication that a call wasdropped.)
MENU ( ◆) ▶ SETTINGS & TOOLS▼Sounds Settings ▶ Service Alerts ▶ Voice Call Drop

features

set call connect alerts Set phone to beep whenever an outgoing call is connected:MENU (●) ▶ SETTINGS & TOOLS▼ Sounds Settings ▼ Service Alerts ▼ Call Connect

set roaming alerts Set phone to beep whenever phone begins roaming:MENU (●) ▶ SETTINGS & TOOLS▼ Sounds Settings ▼ Service Alerts ▼ ERI

personal organizer

features

add calendar appointmentMENU ( ◆) ▶ ⚫ SETTINGS & TOOLS ▼Tools▼ CalendarScroll to the desired date and press Add, then enter new appointment information.

see calendar appointmentMENU ( ◆) ▶ ⚫ SETTINGS & TOOLS ▼Tools▼ CalendarScroll to the date of the appointment and press VIEW ( ◆). Press VIEW ( ◆) again to see appointment details.

set alarm clockMENU ( ◆) ▶ ⚫ SETTINGS & TOOLS ▼Tools▼ Alarm Clock

features

turn off alarmPress Off or [IMAGE].

view world clockView current time in cities around the world:MENU ( ◀●) ▶ ⚪ SETTINGS & TOOLS ▼Tools▼World ClockScroll left or right to the desired city.

use notepadWrite notes to yourself:MENU ( ◀●) ▶ ⚪ SETTINGS & TOOLS ▼Tools▼Notepad

calculatorMENU ( ◀●) ▶ ⚪ SETTINGS & TOOLS ▼Tools▼Calculator

security

features

voice privacy

Encrypt outgoing voice calls and use secure channels when available:

MENU (●) ▶ SETTINGS & TOOLS ▼ Call Settings

▼ Voice Privacy

fun & games

Note: A lock (💡) icon next to a picture or sound means that you cannot send or copy it.

features

launch game or application

Launch a Get It Now game or application:

MENU (●) ▶ G E T I T N O W▼ Games

Select the game or application you want to launch.

download game or application

Download a Get It Now game or application:

MENU (◆) ▶ G E T I T N O W▼ Games

▼Get New App

Select a category, application, and pricing option. Normal airtime and/or carrier usage charges apply.

features

Web sessions

Select or create a Web session:

From the home screen, press ◆◆ up to select MOBILE WEB.

manage pictures

MENU ( ◆ ) ▶ →°GET IT NOW

▼Picture & Video

Scroll to My Pictures and press OK (●) to view a list of pictures.

To view a picture, scroll to the picture title and press VIEW (●).

Press Options to open the OPTIONS menu for My Pictures, then scroll to and select the desired option: Send, To PIX Place, Get New, Set As, Rename, Move, Lock, Erase, Erase All, Slide Show, or Picture Info.

Note: The OPTIONS menu includes different options for locked or preloaded images.

features

manage video clips

MENU ( ◆) ▶ →°GET IT NOW

▼Picture & Video

Scroll to My Videos and press OK (◆) to view a list of video clips.

To play a video clip, scroll to the video clip title and press PLAY (●).

Press Options to open the OPTIONS menu for My Videos, then scroll to and select the desired option: Send, To PIX Place, VCAST Video, Rename, Move, Lock, Erase, Erase All, Video Info, or Trim.

service & repairs

If you have questions or need assistance, we're here to help.

Go to www.motorola.com/consumer/support, where you can select from a number of customer care options. You can also contact the Motorola Customer Support Center at 1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).

Specific Absorption Rate Data

This model wireless phone meets the government's requirements for exposure to radio waves.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. ^1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1.31 W/kg, and when worn on the body, as described in this user guide, is 1.20 W/kg. The SAR value for this product in its data transmission mode (body-worn use) is 0.56 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). ^2

While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines.

SAR Data

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:

http://www.phonefacts.net

or the Canadian Wireless Telecommunications Association (CWTA)

Web site:

http://www.cwta.ca

1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.
2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

Abstract black and white geometric logo with stylized letter M (no text or symbols)

MOTOROLA

Important Safety and Legal Information

Safety and General Information

This section contains important information on the safe and efficient operation of your mobile device. Read this information before using your mobile device.*

Exposure to Radio Frequency (RF) Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits.

Your Motorola mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

Operational Precautions

For optimal mobile device performance and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions.

External Antenna Care

If your mobile device has an external antenna, use only a Motorola-supplied or approved replacement antenna. Use of unauthorized antennas, modifications, or attachments could damage the mobile device and/or may result in your device not complying with local regulatory requirements in your country.

DO NOT hold the external antenna when the mobile device is IN USE. Holding the external antenna affects call quality and may cause the mobile device to operate at a higher power level than needed.

Product Operation

When placing or receiving a phone call, hold your mobile device just like you would a landline phone.

If you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not use a body-worn accessory supplied or approved by Motorola, keep the mobile device and its antenna at least 2.5 centimeters (1 inch) from your body when transmitting.

When using any data feature of the mobile device, with or without an accessory cable, position the mobile device and its antenna at least 2.5 centimeters (1 inch) from your body.

Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our Web site at: www.motorola.com.

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your mobile device may cause interference with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do so. These locations include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy.

In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight.

Pacemakers

If you have a pacemaker, consult your physician before using this device.

Persons with pacemakers should observe the following precautions:

• ALWAYS keep the mobile device more than 20 centimeters (8 inches) from your pacemaker when the mobile device is turned ON.
  • DO NOT carry the mobile device in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• Turn OFF the mobile device immediately if you have any reason to suspect that interference is taking place.

Hearing Aids

Some mobile devices may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer or physician to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult your physician or the manufacturer of your device to determine if it is adequately shielded from RF energy.

Safety Information

Driving Precautions

Check the laws and regulations on the use of mobile devices in the area where you drive. Always obey them.

When using your mobile device while driving, please:

• Give full attention to driving and to the road. Using a mobile device may be distracting. Discontinue a call if you can't concentrate on driving.
• Use handsfree operation, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.

Responsible driving practices can be found in the "Smart Practices While Driving" section at the end of this guide and/or at the Motorola Web site: www.motorola.com/callsmart.

Operational Warnings

Obey all posted signs when using mobile devices in public areas, such as health care facilities or blasting areas.

Automobile Air Bags

Do not place a mobile device in the air bag deployment area.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often but not always posted, and can include fueling areas such as below decks

on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove, install, or charge batteries. In such areas, sparks can occur and cause an explosion or fire.

Damaged Products

If your mobile device or battery has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to a Motorola Authorized Service Center. Do not attempt to dry it with an external heat source, such as a microwave oven.

Batteries and Chargers

If jewelry, keys, beaded chains, or other conductive materials touch exposed battery terminals, this could complete an electrical circuit (short circuit), become very hot, and could cause damage or injury. Be careful when handling a charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects. Use only Motorola Original batteries and chargers.

Caution: To avoid risk of personal injury, do not dispose of your battery in a fire.

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition
	Important safety information follows.
	Do not dispose of your battery or mobile device in a fire.
	Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.
	Do not throw your battery or mobile device in the trash.
	Your mobile device contains an internal lithium ion battery.
	Do not let your battery, charger, or mobile device get wet.
	Listening at full volume to music or voice through a headset may damage your hearing.

Choking Hazards

Your mobile device or its accessories may include detachable parts, which may present a choking hazard to small children. Keep your mobile device and its accessories away from small children.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when playing video games. These may occur even if a person has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your physician before playing video games or enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. It is always a good idea to hold the screen away from your eyes, leave the

Safety Information

lights on in the room, take a 15-minute break every hour, and stop use if you are very tired.

Caution About High Volume Usage

Listening at full volume to music or voice through a headset may damage your hearing.

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you continue to have discomfort during or after such use, stop use and see a physician.

ITC06-405

Industry Canada Notice to Users

Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5.

Industry Canada Notice

FCC Notice To Users

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Motorola Limited Warranty for the United States and Canada

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants its telephones, pagers, messaging devices, and consumer and professional two-way radios (excluding commercial, government or industrial radios) that operate via Family Radio Service or General Mobile Radio Service, Motorola-branded or certified accessories sold for use with these Products ("Accessories") and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products ("Software") to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Products and Accessories

Products Covered Length of Coverage
Products and Accessories as defined above, unless otherwise provided for below.	One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.
Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap^TM covers and cases.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Consumer and Professional Two-Way Radio Accessories.	Ninety (90) days from the date of purchase by the first consumer purchaser of the product.
Products and Accessories that are Repaired or Replaced.	The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage.

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.

Software

Products Covered Length of Coverage
Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk).	Ninety (90) days from the date of purchase.

Exclusions

Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.

Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the internet), is provided "as is" and without warranty.

Who Is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to requesting service.

How to Obtain Warranty Service or Other Information

USA Phones	1-800-331-6456Pagers1-800-548-9954Two-Way Radios and Messaging Devices1-800-353-2729
Canada All Products	1-800-461-4575
TTY	1-888-390-6456
For Accessories and Software, please call the telephone number designated above for the product with which they are used.

You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.

Warranty

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted Motorola software such as the exclusive rights to reproduce and distribute copies of the Motorola software. Motorola software may only be copied into, used in, and redistributed with, the Products associated with such Motorola software. No other use, including without limitation disassembly of such Motorola software or exercise of the exclusive rights reserved for Motorola, is permitted.

Hearing Aid Compatibility with Mobile Phones

Some Motorola phones are measured for compatibility with hearing aids. If the box for your particular model has "Rated for Hearing Aids" printed on it, the following explanation applies.

When some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device's telecoil ("T Switch" or "Telephone Switch") than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)

Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.

Hearing Aids

Information from the World Health Organization

Present scientific information does not indicate the need for any special precautions for the use of mobile phones. If you are concerned, you may want to limit your own or your children's RF

exposure by limiting the length of calls or by using handsfree devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information: http://www.who.int./peh-emf

Product Registration

Online Product Registration:

direct.motorola.com/hellomoto/Motosupport/source/registration.asp

Product registration is an important step toward enjoying your new Motorola product. Registering helps us facilitate warranty service, and permits us to contact you should your product require an update or other service. Registration is for U.S. residents only and is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status.

Thank you for choosing a Motorola product.

Export Law Assurances

This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation

or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade.

Wireless: The New Recyclable

Your wireless mobile device can be recycled. Recycling your mobile device reduces the amount of waste disposed in landfills and allows recycled materials to be incorporated into new products.

The Cellular Telecommunications Industry Association (CTIA) and its members encourage consumers to recycle their mobile devices and have taken steps to promote the collection and environmentally sound recycling of end-of-life devices.

As a mobile device user, you have an important role in ensuring that this device is recycled properly. When it comes time to give this mobile device up or trade it in for a new one, please remember that the mobile device, the charger, and many of its accessories can be recycled. It's easy. To learn more about CTIA's Recycling Program for Used Wireless Devices, please visit us at:

recycling.motorola.young-america.com/index.html

Export Law

California Perchlorate Label

Some mobile phones use an internal, permanent backup battery on the printed circuit board that may contain very small amounts of perchlorate. In such cases, California law requires the following label:

"Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate."

There is no special handling required by consumers.

Smart Practices While Driving

Drive Safe, Call Smart SM

Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. Go to

www.motorola.com/callsmart for more information.

Your mobile device lets you communicate by voice and data—almost anywhere, anytime, wherever wireless service is available and safe conditions allow. When driving a car, driving is your first responsibility. If you choose to use your mobile device while driving, remember the following tips:

- Get to know your Motorola mobile device and its features such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.

- When available, use a handsfree device. If possible, add an additional layer of convenience to your mobile device with one of the many Motorola Original handsfree accessories available today.

- Position your mobile device within easy reach. Be able to access your mobile device without removing your

eyes from the road. If you receive an incoming call at an inconvenient time, if possible, let your voice mail answer it for you.

• Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or going through your address book takes attention away from your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your car is not moving or before pulling into traffic. If you must make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that can divert your attention away from the road.

Driving Safety

• Use your mobile device to call for help. Dial 911 or other local emergency number in the case of fire, traffic accident, or medical emergencies.*
• Use your mobile device to help others in emergencies. If you see an auto accident, crime in progress, or other serious emergency where lives are in danger, call 911 or other local emergency number, as you would want others to do for you.*
• Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number.*

index

A

accessories 10, 90

accessory connector port 1

alarm clock 93

alert

turn off 56

alert lights 87

alert sounds 62

answer a call 13

attach a number 78

B

backlight 66

banner 88

battery 11

extending battery life 10, 43, 61

Bluetooth connection

description 42, 90

brightness 66

C

cables 45

calculator 93

calendar 93

call

answer 13

end 12, 13

make 12

restrict 75

call drop alerts 92

call sounds 62

call timers 89

car kit 90

center key 1

center select key 9

chat 77

clock

alarm 93

world 93

codes 58, 59

Contacts

assign picture 78

assign ringtone 79

call entry 81

create entry 77

create group 80, 81

download ringtone 79

edit entry 78

erase entry 78

set default number 80

index

Contacts (continued) set speed dial number 80 speak entry 64

D

data volume 89

dial a phone number 12

dialed calls 70

display 48

display themes 87

draft message 76

DTMF tones 75

E

earpiece volume 56

email 77

emergency number 72

end a call 12, 13

end key 1, 12, 13

event sounds 62

export regulations 113

external display 56

F

flip 13

H

handsfree speaker 56

headset 90

headset jack 1

hearing aids 111

home keys 88

home screen 48

|

iTAP text entry mode 54

K

keypad 87

L

language 88

lights

alert 87

linking. See Bluetooth connection

lock

phone 59

lock code 58

M

make a call 12

master volume 61

menu 9

icons 88

message 76

chat 77

draft 76

email 77

Mobile IM 77

objects 76

read 76

received 76

sent 76

Mobile IM 77

N

navigation key 1, 9

network settings 92

number. See phone number

numeric entry mode 55

0

optional accessory 10

optional feature 9

P

pairing. See Bluetooth connection

perchlorate label 114

personalize 81

phone number 14

phonebook 77, 78

photo 95

picture 95

power key 1, 12

R

received calls 70

received message 76

recent calls 70

recycling 113

redial 69

reset timer 89

restrict calls 75

ringer volume 56

roaming alert 92

s

safety information 100

safety tips 115

screen saver 65

send key 1, 12, 13

sent message 76

service tones 92

soft keys 1,48

sound settings 56, 61

speak Contact list entry 64

speak keypad digits 63

speakerphone 90

store your number 14

symbol entry mode 55

T

talking phone 63

tap text entry mode 53

telephone number. See phone number

text entry 51

index

text message 76

themes 87

timers 89

turn on/off 12

U

unlock

phone 59

unlock code 59

USB cables 45

V

video clip 95

voice privacy 94

voice recognition 81

voicemail 73

voicemail message indicator 73

volume 56, 87

W

wallpaper 64

warranty 107

WHO information 112

world clock 93

Y

your phone number 14

U.S. patent Re. 34,976

CAST ^SM

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

© Motorola, Inc., 2007.

Diagram of a mobile phone showing two labeled components with arrows indicating direction or movement

3

Diagram of a mobile phone car with an arrow indicating direction (no text or symbols)

cargar la batería

Diagram showing a connector inserted into a car body, with no visible text or symbols

Diagram of a device interior showing a highlighted rectangular component (no text or symbols)

Diagram of a device's internal structure with no visible text or symbols

www.verizonwireless.com/bluetooth.

Diagram showing a connector inserted into a cable, with no visible text or symbols

Abstract black and white geometric logo resembling a stylized letter 'M' (no text or symbols)

MOTOROLA

direct.motorola.com/hellomoto/Motosupport/source/registration.asp
