USER MANUAL XCV23Z MAKITA

Cordless Vacuum Cleaner Aspiradora Inalámbrica

XCV20 XCV23

Line drawings of two different industrial vacuum cleaner units with wheels and control panels (no text or symbols)

SPECIFICATIONS

Model: XCV20 XCV23
Standard filter type Cloth filter (for dry and wet dust)
Maximum air volume (with BL1850B, Φ32 mm (1-1/4") x 1.7 m (67") hose)		2.1 m^3/min (74.15 cu.ft/min)
Vacuum (with BL1850B, Φ32 mm (1-1/4") x 1.7 m (67") hose) 11 kPa
Recoverable capacity Dust 8 L (2.1 gal.) 15 L (4.0 gal.)
		Water 6 L (1.6 gal.) 12 L (3.2 gal.)
Dimensions (L x W x H) 366 mm x 334 mm x 368 mm		(14-3/8" x 13-1/8" x 14-1/2")	366 mm x 334 mm x 421 mm(14-3/8" x 13-1/8" x 16-1/2")
Rated voltage D.C. 36 V
Net weight 7.0 - 7.7 kg (15.4 - 17.0 lbs) 7.2 - 7.9 kg (15.9 - 17.4 lbs)

- Due to our continuing program of research and development, the specifications herein are subject to change without notice.

- Specifications and battery cartridge may differ from country to country.

- The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight of the appliance and battery cartridge(s) are shown in the table.

• For wet dust, the float and the water filter or cloth filter are required.

Applicable battery cartridge and charger

Battery cartridge	BL1815N / BL1820B / BL1830 / BL1830B / BL1840B / BL1850B / BL1860B
Charger	DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

SAFETY WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING

To reduce the risk of fire, electric shock or injury:

1. Do not leave appliance when battery fitted. Remove battery from appliance when not in use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer's recommended attachments.

5. Do not use with damaged battery. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

6. Do not handle battery or appliance with wet hands.

7. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
8. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
9. Turn off all controls before removing the battery cartridge.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Use only the charger supplied by the manufacturer to recharge.
13. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
14. Do not use without filters in place. Replace a damaged filter immediately.
15. Do not charge the battery outdoors.
16. Always install float before any wet pick-up operation.
17. Do not use the cleaner as a stool or work bench. The machine may fall down and may result in personal injury.

18. Do not vacuum the following:

19. Flammable liquid (kerosene, gasoline, solvents such as benzine, thinner, etc.)

20. Hot substances that are burning or smoking (cigarettes, matches, incense sticks, candles, hot ashes), sparks and metal dust generated by cutting or grinding metal, etc.
21. Flammable material (toner, paint, spray, etc.)
    • Foam like carpet cleaning agent, etc. (they may cause explosion or fire)

22. Explosive or pyrophoric substances (nitroglycerin, aluminum, magnesium, titanium, zinc, red phosphorus, yellow phosphorus, celluloid, etc. and their dust, gas or steam)

23. Sharp objects (glass, cutlery, wood splinter, metal, stone, nail, razor, push pin, etc.)
    • Solidifying and conductive fine powder (metal or carbon powder)

24. Dehumidifier
    • Large amount of powder (flour, fire extinguisher powder, etc.)
25. Substances that cause toxic symptoms
26. Aggressive chemicals (acid, leach, etc.)
27. Liquid or damp garbage, including vomit and excreta
28. Asbestos
29. Pesticides Such action may cause fire, injury and/or property damage.

To reduce your exposure to these chemicals, always wear approved respiratory protection such as dust masks that are specially designed to filter out microscopic particles. Direct the exhaust air away from your face and body.

NOTE: Read the OSHA regulation on silica dust to understand the requirements needed to reduce exposure to silica dust at the job-site. Specific rules apply to the drilling, demolition cutting and grinding materials that contain silica. All OSHA requirements regarding reducing silica dust can be found at the OSHA website: www.osha.gov.

Battery tool use and care

1. Prevent unintentional starting.

Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

1. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

3. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
4. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
5. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
7. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
8. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
9. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
10. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

SAVE THESE INSTRUCTIONS.

This appliance is intended for commercial use.

Symbols

The followings show the symbols used for tool.

v	volts
—	direct current
⚠️	Take particular care and attention.
⚠️	Never stand on the cleaner.

Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.
5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.
6. Follow your local regulations relating to disposal of battery.
7. When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place.
8. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.
9. If the tool is not used for a long period of time, the battery must be removed from the tool.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10 °C - 40 °C ( 50 °F - 104 °F ). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use it for a long period (more than six months).

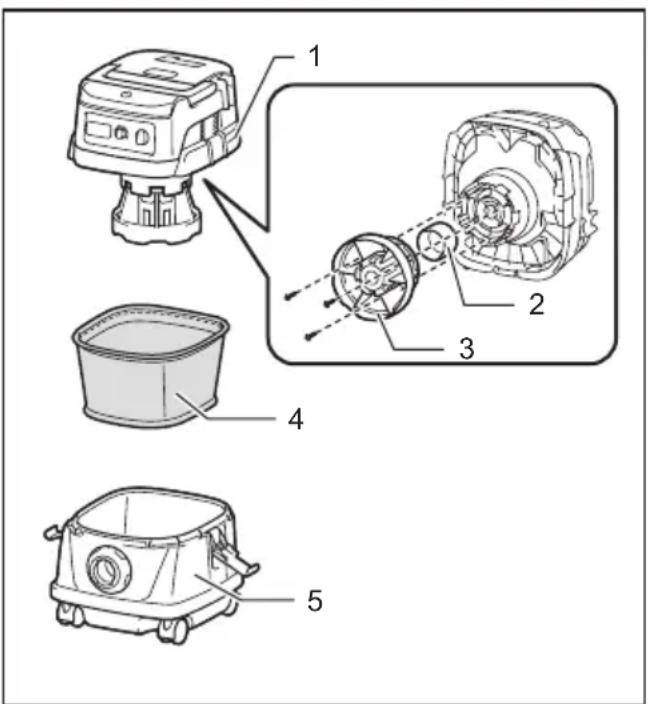

PARTS DESCRIPTION

Technical diagram showing exploded view of a mechanical device with labeled parts including a power supply unit, bucket, fan, and motor.

▶ 1. Tank cover 2. Float 3. Float cage 4. Cloth filter 5. Tank

FUNCTIONAL DESCRIPTION

A CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

⚠️CAUTION: Always switch off the tool before installing or removing of the battery cartridge.
⚠CAUTION: Hold the cleaner and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the cleaner and the battery cartridge firmly may cause them to slip off your hands and result in damage to the cleaner and battery cartridge and a personal injury.
CAUTION: Be careful not to pinch your fingers when opening or closing the battery cover. Failure to do so may cause personal injury.

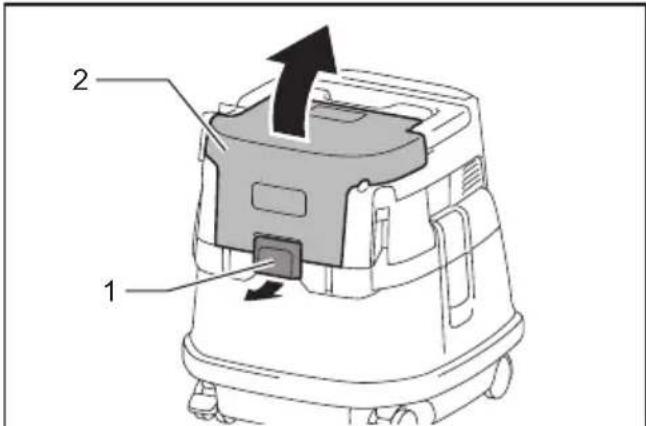

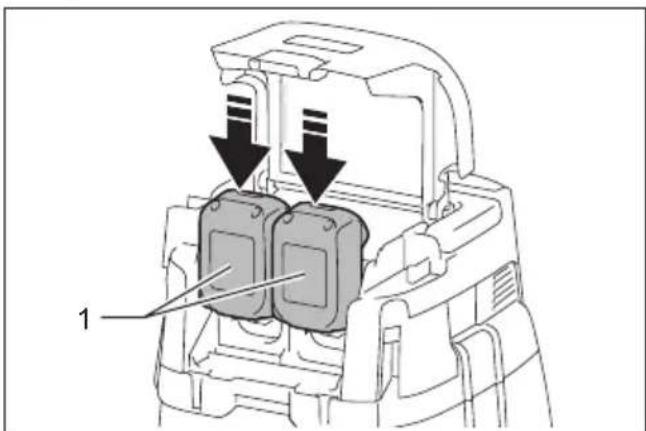

To install the battery cartridge, release the lock first, and then open the battery cover. After that, insert the battery cartridge.

Technical diagram of a cleaning or cleaning device with labeled parts 1 and 2, showing internal components and directional arrows.

▶ 1. Lock 2. Battery cover

Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. Then lock the battery cover.

1

▶ 1. Battery cartridge

To remove the battery cartridge, slide it from the tool while sliding the button in front of the cartridge.

CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the cleaner, causing injury to you or someone around you.
CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

NOTE: The cleaner does not work with only one battery cartridge.

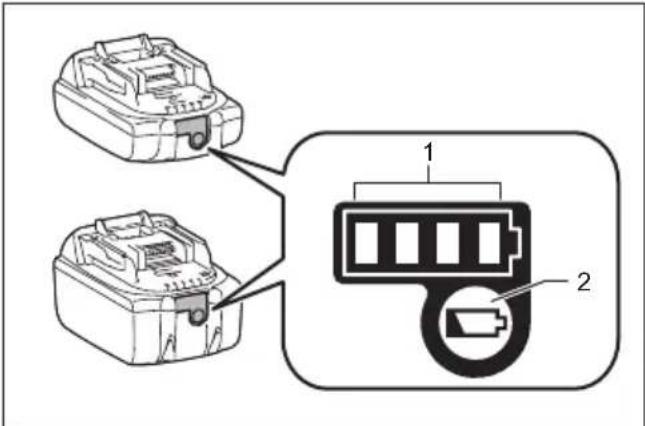

Indicating the remaining battery capacity

Only for battery cartridges with the indicator

Diagram showing two connected electrical components with labeled parts 1 and 2, likely illustrating a power or signal connection.

▶ 1. Indicator lamps 2. Check button

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

Indicator lamps Remaining			capacity
Lighted Off	Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

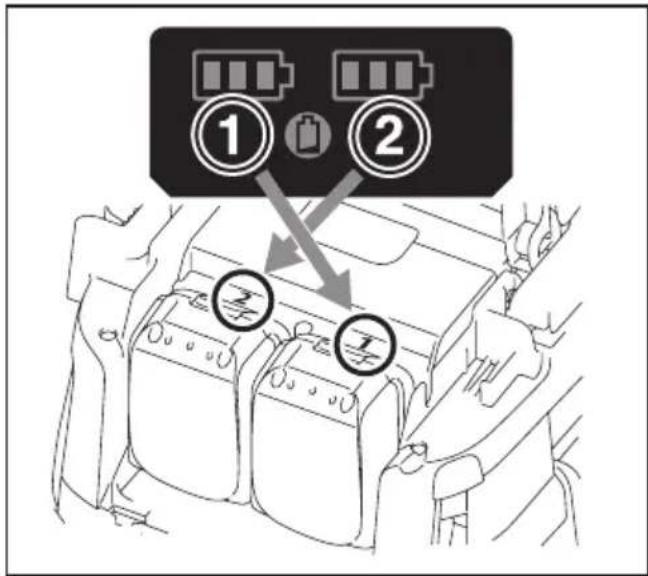

Indicating the remaining battery capacity

1 2 3 4 5 O I 2

▶ 1. Battery indicator 2. Check button

Diagram showing battery charging mechanism with numbered instructions and icons for battery, battery, and charging

Press the check button to indicate the remaining battery capacities. The battery indicators correspond to each battery.

Battery indicator status Remaining			battery capacity
On	Off	Blinking
			50% to 100%
			20% to 50%
			0% to 20%
			Charge the battery

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:

Overload protection

When the tool is operated in a manner that causes it to draw an abnormally high current, the tool automatically stops without any indication. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

Overheat protection

On Blinking

When the tool is overheated, the tool stops automatically, and the battery indicator blinks about 60 seconds. In this situation, let the tool cool down before turning the tool on again.

Overdischarge protection

When the battery capacity becomes low, the tool stops automatically. If the product does not operate even when the switches are operated, remove the batteries from the tool and charge the batteries.

Switch action

2 1 0 2 3 1 5 O 1

▶ 1. Stand-by switch 2. Power button 3. Suction force adjusting knob

To start the cleaner:

1. Set the stand-by switch to the "I" side. The cleaner gets into stand-by state.

2. Press the power button.

To make the cleaner get into stand-by mode, press the power button again.

To turn off the cleaner, set the stand-by switch to the "O" side.

The suction power can be adjusted according to your work need.

Suction power can be increased by turning the suction force adjusting knob from the symbol to the symbol.

NOTICE: Always set the stand-by switch to the "O" side when not using the cleaner for long time. The cleaner consumes power during stand-by state.

Auto-suction stop during wet suction operation

WARNING: Do not use for a long time while the float is at work. Using the cleaner with its float at work for a long time can cause overheat, resulting in the cleaner deformation.
WARNING: Do not pick up foam or soapy liquid. Picking up foam or soapy liquid can cause foam to come out of air exit before the float works. Continuing to using in this condition may cause an electric shock and breakage of the cleaner.

Auto-suction stop works only when using with the float and float cage.

The cleaner has a float mechanism that prevents water from immersing into the motor when picking up more than a certain amount of water. When the tank is full and the cleaner no longer picks up water, switch off the cleaner and empty the tank.

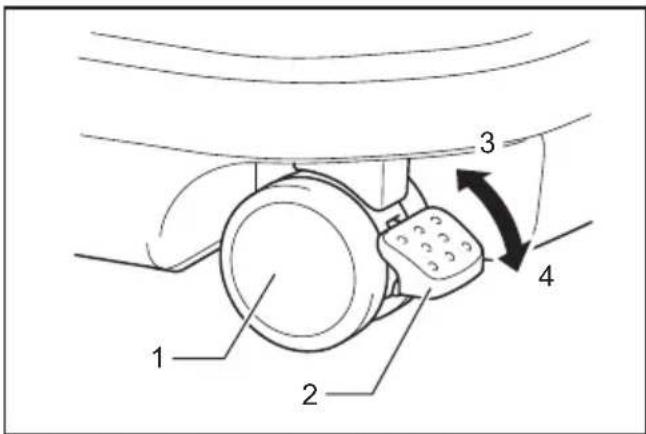

Locking or unlocking the caster

1 2 3 4

▶ 1. Caster 2. Stopper lever 3. FREE position
4. LOCK position

Locking the caster is convenient when storing the cleaner, stopping the work on the way and keeping the cleaner still.

To operate the stopper, move it by hand. To lock the caster with a stopper, lower the stopper lever and the caster no longer will rotate. To release the caster from the locked position, raise the stopper lever.

NOTE: When moving the cleaner, make sure that the caster is unlocked. Moving the cleaner with the caster in the locked position may cause damage to the caster.

Carriage handle

When carrying the cleaner, carry it by holding the handle on the head. The handle is retractable at the head when not in use.

Line drawing of a person using a handheld device (no text or symbols)

ASSEMBLY

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.
CAUTION: Always wear dust mask during assembly or maintenance.

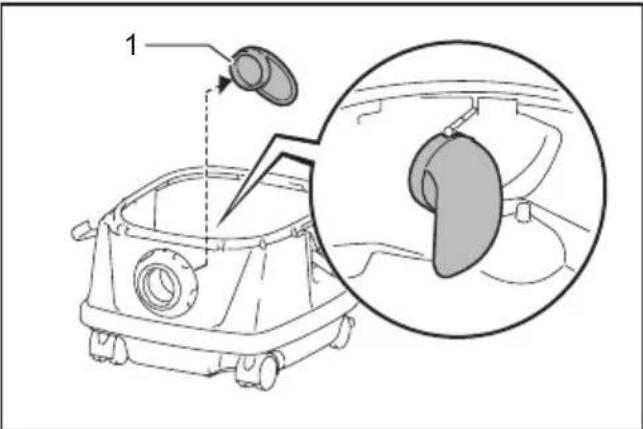

Installing the powder filter (HEPA) and prefilter (for dry dust)

Optional accessory

CAUTION: Never pick up water or other liquids or wet dusts when using the powder filter. Picking up such things may cause the powder filter breakage.

To use powder filter:

1. Remove the float cage and float by removing the bolts.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

▶ 1. Float 2. Float cage

1. Place the prefilter in the tank while aligning the mounting position markings.

2. Mount the damper on the powder filter and then place them in the prefilter while aligning the mounting position markings.

3. Mount the tank cover and lock it.

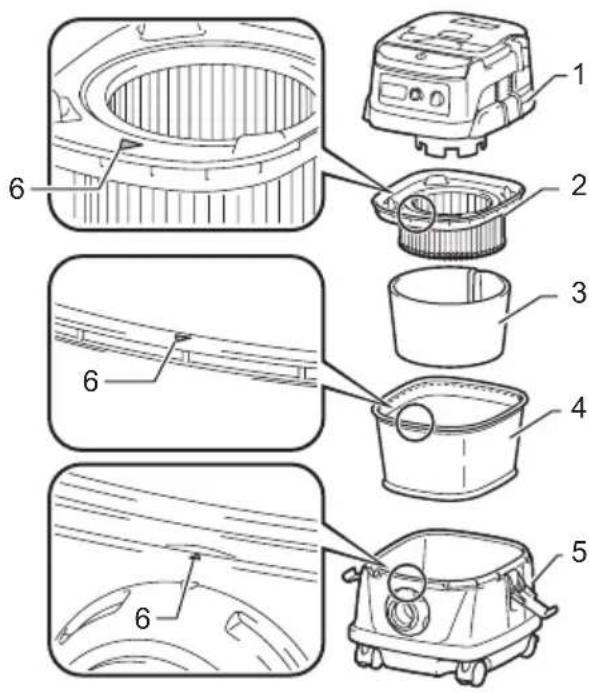

Technical diagram showing exploded view of a washing machine with labeled parts including front panel, side panel, and back panel.

▶ 1. Tank cover 2. Powder filter (HEPA) 3. Damper 4. Prefilter 5. Tank 6. Mounting position marking

NOTICE: Before using the powder filter, make sure that prefilter and damper are used together. It is not allowed to install powder filter alone.

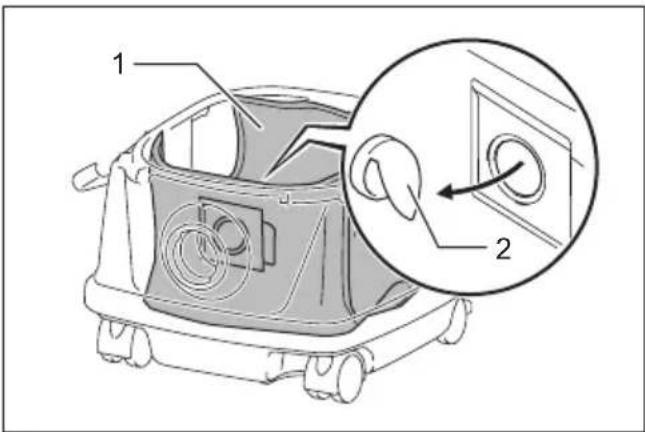

Installing the water filter

Optional accessory

NOTICE: Never pick up water or wet dust without the float and the cloth filter or the water filter.

NOTICE: For picking up wet dust, make sure that the float cage and the float are installed on the cleaner.

NOTICE: When installing the water filter on the tank, set it tight at the opening of the tank so that the hook of the water filter engages the tank opening firmly and there is no space between the water filter and the tank.

To pick up water or wet dust only, the water filter is more suitable than the cloth filter.

When installing the water filter, align its mounting position marking with the one on the tank.

Technical diagram showing three labeled components of a device, with numbered parts and directional arrows indicating assembly or assembly.

▶ 1. Water filter 2. Tank 3. Mounting position marking

NOTE: It is recommended using water filter when picking up large amount of water repeatedly. Otherwise vacuum ability may be reduced in case of cloth filter.

Installing the paper pack

Optional accessory

⚠ WARNING: Before using the paper pack, make sure that the cloth filter or prefilter is used together. Failure to use the cloth filter / prefilter together may cause unusual noise and heat, resulting in a fire.

NOTICE: Never pick up water or other liquids or wet dusts when using the paper pack. Picking up such things may cause the paper pack breakage.

NOTICE: When using the cloth filter, make sure that the float and the float cage are attached on the tank cover.

NOTICE: When using the prefilter, make sure that the powder filter and the damper are used together.

1. Remove the rubber holder.

1

▶ 1. Rubber holder

1. Extend the paper pack.
2. Align the paper pack opening with the dust suction opening of the cleaner.
3. Insert the cardboard part of the paper pack onto the holder so that it is positioned at the end beyond the detent protrusion.

Technical diagram of a device with labeled parts and an inset showing a hand holding a circular component.

▶ 1. Paper pack 2. Holder

Installing the polyethylene bag

Cleaner can also be used without polyethylene bag. However, using polyethylene bag is easier to empty the tank without letting your hands dirty.

Spread the polyethylene bag in the tank. Insert it between the holder plate and the tank, and pull it to the hose inlet.

Medical diagram showing anatomical views of a patient's head and torso with labeled parts 1 and 2

▶ 1. Holder plate 2. Polyethylene bag

Spread the bag around the top of the tank so that the cloth filter / prefilter edge can catch and hold the bag securely.

Line drawing of a portable device with labeled parts (no text or symbols present)

▶ 1. Cloth filter / prefilter

NOTE: A polyethylene bag available on the market can be used. 0.04 mm or thicker one is recommended.

NOTE: Too much dust will tear the bag easily, so do not collect the dust more than the half of the bag capacity.

Emptying the polyethylene bag

WARNING: Always make sure that the cleaner is switched off and the battery cartridge is removed before emptying the polyethylene bag. Failure to do so may cause an electric shock and serious personal injury.

CAUTION: Do not apply a great impact on the float cage and tank. Applying a great impact may cause deformation and damage to the parts.

CAUTION: Empty the tank at least once a day although this depends on picked-up dust volume in the tank. Or, the suction force will weaken and the motor may be broken.

CAUTION: Do not grab the hook when emptying the tank. Grabbing the hook may cause the hook to break.

Unhook and lift up the tank cover.

Shake off the dust from the cloth filter / prefilter and then take the polyethylene bag out of the tank.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

NOTE: Take the polyethylene bag carefully out of the tank so that the polyethylene bag cannot be caught and torn by the protrusion inside the tank when emptying it.

NOTE: Empty the polyethylene bag before it becomes full. Too much dust in the tank may cause the polyethylene bag to be torn.

Installing the tool box

1. Release the lock of the battery cover, and open the battery cover.
2. Set the rails on the tool box along the grooves on the housing.
3. Close the battery cover and apply the lock.

Technical line drawing of a mechanical assembly with no visible text or symbols

The tool box is convenient for carrying batteries, pipe, or cuffs.

Technical line drawing of a mechanical device with no visible text or symbols

Connecting the hose

NOTICE: Never force the hose for bending or stamp it. Never move the cleaner by a hose.

Forcing, stamping and pulling the hose may cause a breakage or deformation of the hose.

NOTICE: When picking up large wastes such as planer carvings, concrete dusts or similar other than small wastes, use the 38 mm inner diameter hose (optional accessory). Using the 28 mm inner diameter hose (optional accessory) may cause a hose stuffing and damage.

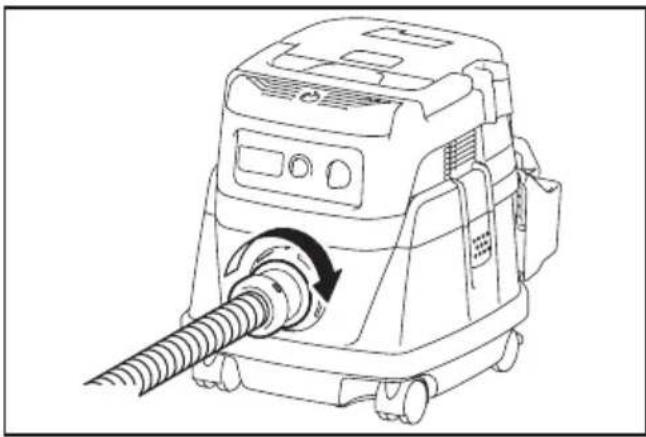

Insert the hose onto the mounting port of the tank and turn it clockwise until it locks.

Line drawing of a vacuum cleaner with a hose and valve, showing internal components and airflow direction (no text or symbols)

Connecting the attachment with lock function

Optional accessory

Insert the attachment into the suction inlet until it clicks. To remove, pull the attachment while pushing the release button.

Technical diagram showing three-step assembly steps of a mechanical tool, labeled with components 1, 2, and 3.

▶ 1. Suction inlet with lock function 2. Release button 3. Attachment with lock function

NOTE: The attachment with lock function is available when using the suction inlet with lock function.

1 2 3

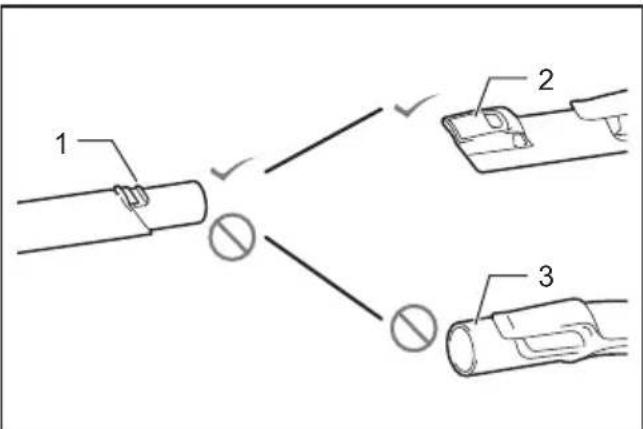

▶ 1. Attachment with lock function 2. Suction inlet with lock function 3. Suction inlet without lock function

Adjusting the length of the slide-type extension wand

Optional accessory

With pressing the slide button, adjust the wand length. The length is locked when releasing the slide button.

Illustration of a hand holding a cylindrical object with directional arrows indicating motion or force (no text or symbols)

1. Slide button

MAINTENANCE

⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

Storage of accessories

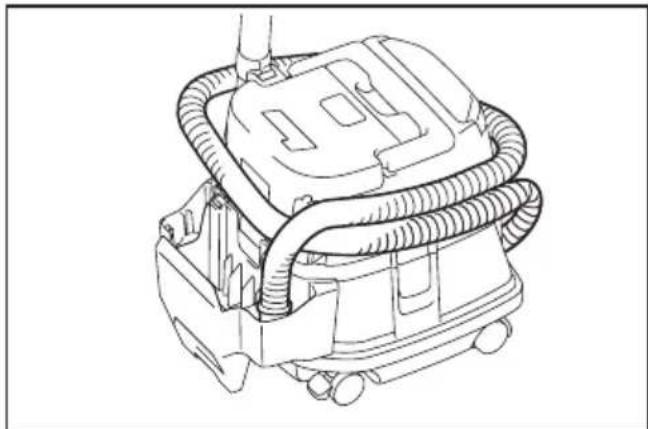

The pipes can be placed into the pipe holder when not using the cleaner for a short time.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with coiled tubing and mounting base (no text or symbols)

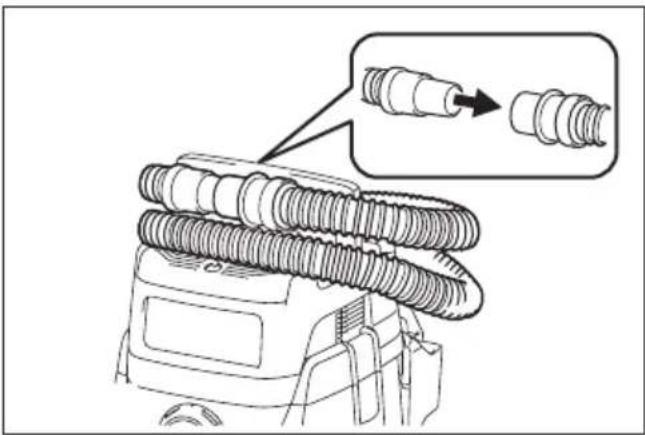

The hose can be stored around the tool by connecting each ends.

Diagram of a medical device with coiled tubing and an inset showing a magnified view of a connector (no text or symbols present)

Cleaning of cloth filter

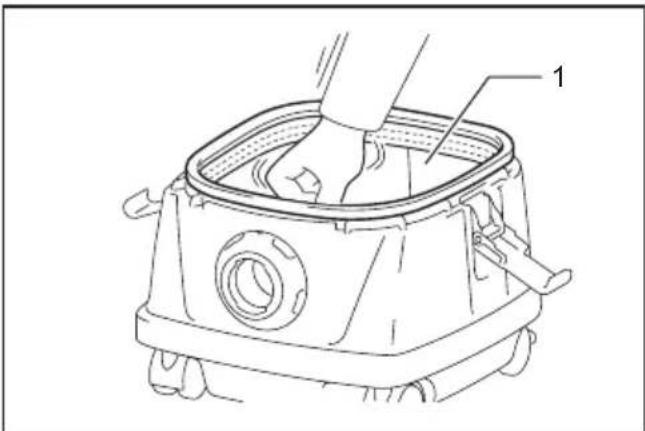

Clogged cloth filter causes poor suction performance. Clean out the cloth filter from time to time.

To remove dust or particles adhering to the cloth filter, shake the frame bottom quickly several times.

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols present.

1. Cloth filter

Cleaning of powder filter (HEPA) and prefilter

Optional accessory

Clogged powder filter, prefilter and damper cause poor suction performance. Clean out the filters and damper from time to time.

To remove dust or particles adhering to the filters, shake the frame bottom quickly several times.

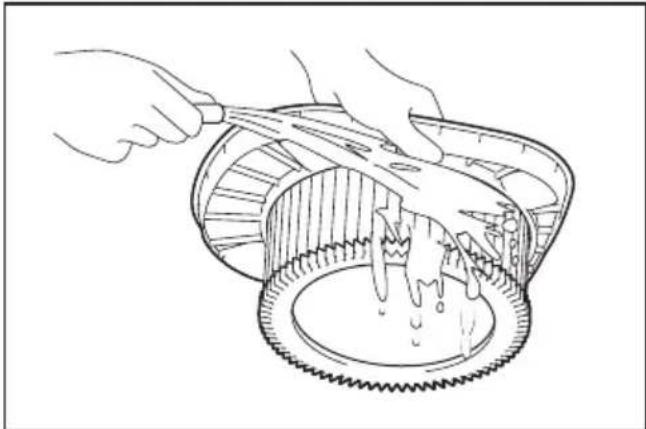

Occasionally wash the powder filter in water, rinse and dry thoroughly in the shade before use. Never wash filters in a washing machine.

Line drawing of hands using a tool to lift a mechanical component into a circular basin (no text or symbols)

NOTE: Do not rub or scratch the powder filter, the prefilter and the damper with hard objects such as a brush and a paddle.

NOTE: The filters wear out in course of time. It is recommended to have some spares for them.

OPTIONAL ACCESSORIES

⚠️CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Hose
• Front cuff (22, 24, 38)
• Straight pipe
• Extension wand
• Corner nozzle
• Round brush
  • Powder filter, HEPA (for dry dust)
• Damper
• Prefilter
• Nozzle assembly
• Bent pipe
• Polyethylene bag
• Paper pack
• Holder set
• Water Filter
  • Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

MAKITA LIMITED WARRANTY

Please refer to the annexed warranty sheet for the most current warranty terms applicable to this product. If annexed warranty sheet is not available, refer to the warranty details set forth at below website for your respective country.

United States of America: www.makitatools.com

Canada: www.makita.ca

Other countries: www.makita.com

ESPECIFICACIONES

Modelo: XCV20 XCV23
Tipo de filtro estándar Filtro de tela (para polvo seco y húmedo)
Volumen de aire máximo(con BL1850B, manguera de Φ32 mm (1-1/4") x 1,7 m (67"))		2,1 m^3/min (74,15 cu.ft/min)
Aspiradora (con BL1850B, manguera de Φ32 mm (1-1/4") x 1,7 m (67"))		11 kPa
Capacidad recuperable Polvo 8 L	(2,1 gal) 15 L (4,0 gal)
	Agua 6 L (1,6 gal) 12 L (3,2 gal)
Dimensiones (La x An x Al) 366 mm x 334 mm x 368 mm		(14-3/8" x 13-1/8" x 14-1/2")	366 mm x 334 mm x 421 mm(14-3/8" x 13-1/8" x 16-1/2")
Tensión nominal 36 V c.c.
Peso neto		7,0 kg - 7,7 kg (15,4 lbs - 17,0 lbs)	7,2 kg - 7,9 kg (15,9 lbs - 17,4 lbs)

Technical diagram showing exploded view of a mechanical device with labeled components including pump, bucket, and motor parts.

Diagram of a cleaning or cleaning device with labeled parts 1 and 2, showing internal components and directional arrows.

Diagram showing two connected components with labeled parts, likely illustrating a battery or sensor assembly.

1 2 3 4 5 O I 2

Diagram showing battery charging mechanism with labeled icons and Chinese text annotations

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Line drawing of a person's lower body wearing a mechanical device (no text or symbols)

MONTAJE

Technical diagram of a mechanical assembly with labeled parts 1 and 2, showing internal components and directional arrows.

Technical diagram showing exploded view of a washing machine with labeled parts including fan, bucket, and motor.

Technical diagram showing three labeled components of a mechanical device, including a bucket and motor housing.

Technical diagram of a vehicle's internal components with labeled parts and an inset showing a circular component detail.

Technical diagram of a device casing with labeled parts and an inset showing a hand holding a circular component.

Medical diagram showing anatomical views of a patient's head and torso with labeled parts 1 and 2

Line drawing of a mechanical device with labeled components (no text or symbols present)

1. Filtro de tela/prefiltro

Line drawing of a hand holding a cloth over a square kitchen appliance (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and alignment lines (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with a hose and valve, showing internal components and airflow direction (no text or symbols)

Technical diagram showing three-step assembly steps of a mechanical tool, labeled with components 1, 2, and 3.

Illustration of hands holding a cylindrical object with directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with coiled tubing and wheels (no text or symbols)

Diagram of a mechanical device with coiled tubing and a magnified inset showing a connector (no text or symbols)

Technical line drawing of a kitchen appliance with labeled parts (no text or symbols present)

1. Filtro de tela

Line drawing of hands using a tool to clean or brush inside a mechanical component (no text or symbols)

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
