USER MANUAL AY-XPC7JHR SHARP

SHARP Uses Refrigerant R410A AY-XPC7JHR AY-XPC9IJHR AY-XPC12JHR Device of this mark is a trademark of Sharp Corporation.

or a trademark of Sharp Corporation

Plasmacluster is a registered trademark

SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL CLIMATISEUR INDIVIDUEL EN DEUX PARTIES MODE D'EMPLOI ACONDICIONADOR DE AIRE DE DOBLE SERVICIO MANUAL DE INSTRUCCIONES CONDIZIONATORE D'ARIA DA CAMERA TIPO SPLIT MANUALE DI ISTRUZIONI ZWEITEILIGES KLIMAGERÂT BEDIENUNGSANLEITUNG AIPKONTIZION AQMATIOY TYNOY SPLIT ETXEIPIAIO AEITOYPTIAZ AR CONDICIONADO DE SALA DE DUAS UNIDADES MANUAL DE OPERAÇÂO Attention: Your product is marked with this symbol. It means that used electrical and electronic products should

not be mixed with general household waste. There is a separate collection system for these products.

+ LL A. Information on Disposal for Users (private households) 1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment

to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users. an 1. In the European Union If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A (Global warming potential 1980)

Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference.

+ IMPORTANT SAFETY INSTRUCTIONS + PART NAMES.. + USING THE REMOTE CONTROL + SETTING AIR PURIFYING FILTER + TIPS ON SAVING ENERGY + AUXILIARY MODE. + BASIC OPERATION + TIPS ABOUT INDICATOR PANEL. + ADJUSTING THE AIR FLOW DIRECTION + PLASMACLUSTER OPERATION. + SELF CLEAN OPERATION... + ONE-HOUR OFF TIMER + TIMER OPERATION . + FULL POWER OPERATION + MAINTENANCE + BEFORE CALLING FOR SERVICE.

+ ADDITIONAL NOTES ON OPERATION GB-10 GB-10

WARNINGS FOR USE Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.

Be careful not to expose your body directly to the outlet air for a long time. lt may affect your physical conditions.

3 When using the air conditioner for infants,

children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.

Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.

Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.

If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.

7 The appliance shall be installed in accordance

With national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.

8 If the supply cord is damaged, it must be

replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacture- specified power cord for replacement.

9 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.

WARNINGS FOR INSTALLATION/ REMOVAL/REPAIR

+ Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/ removal/repair of the unit.

CAUTIONS FOR USE Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.

Do not operate the buttons with wet hand. It may cause electric shock.

For safety, turn the circuit breaker off when not using the unit for an extended period of time. Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.

Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.

This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.

Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.

Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

10/5 appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION/

INSTALLATION Make sure to connect the air conditioner to power supply of the rated voltage and frequency.

Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

Do not install the unit in a place where inflam- mable gas may leak. It may cause fire.

Install the unit in a place with minimal dust, fumes and moisture in the air.

Arrange the drain hose to ensure smooth drain- age. Insufficient drainage may cause wetting of the room, furniture etc.

Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

PART NAMES INDOOR UNIT NOTE: Actual units might vary slightly from those shown above.

18 PLASMACLUSTER Lamp (blue)

17 Indicates battery compartment is below this mark 18 CLOCK Button

20 FULL POWER Button

27 PLASMACLUSTER Symbol

28 TRANSMITTING Symbol

29 SELF CLEAN Symbol

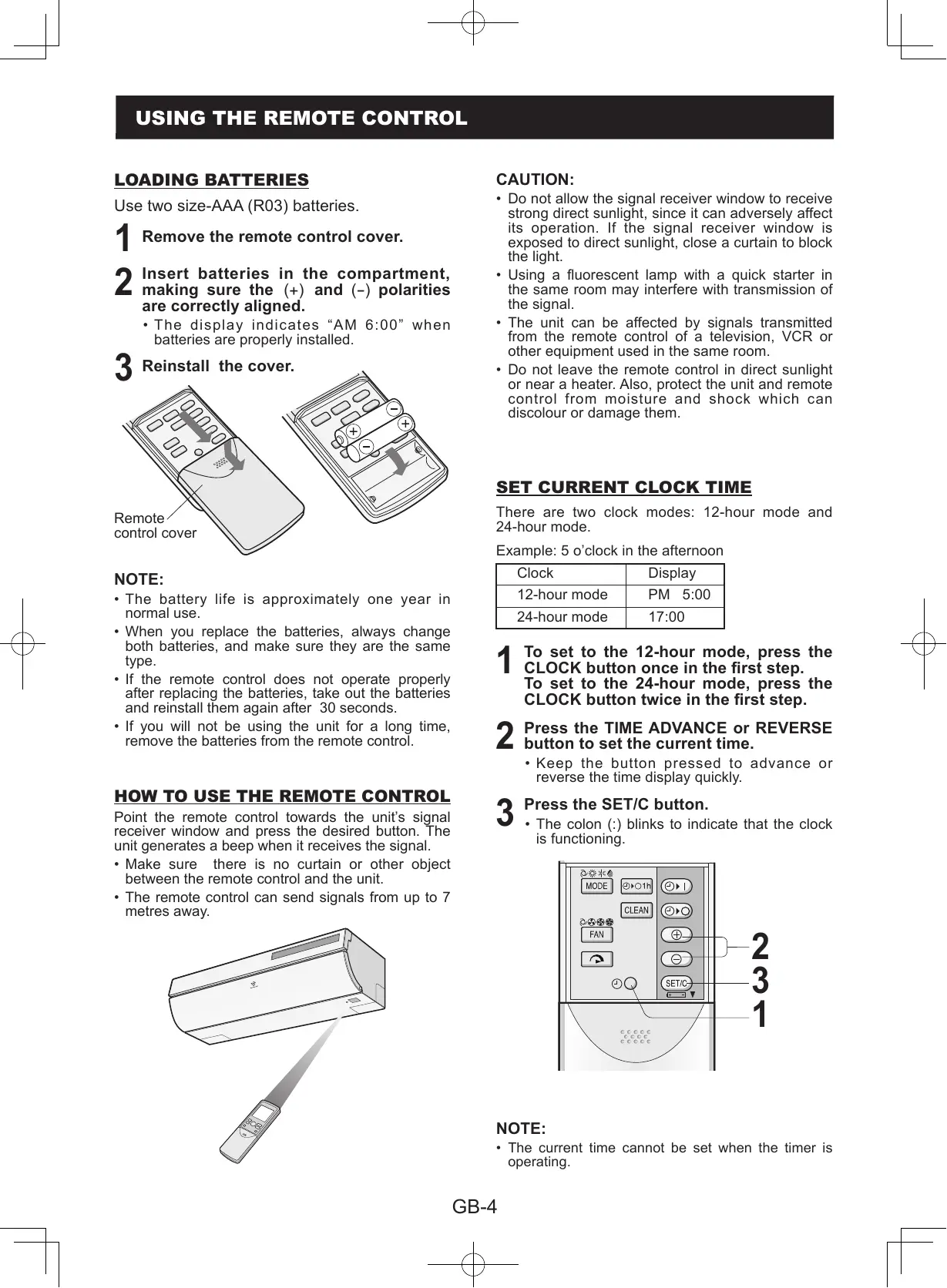

U G THE REMOTE CONTR LOADING BATTERIES Use two size-AAA (RO03) batteries.

1 Remove the remote control cover.

2 Insert batteries in the compartment, making sure the (+) and (-) polarities are correctly aligned. + The display indicates “AM 6:00” when batteries are properly installed.

3 Reinstall the cover.

Remote control cover

- The battery life is approximately one year in normal use.

+ When you replace the batteries, always change both batteries, and make sure they are the same type.

-+ If the remote control does not operate properly after replacing the batteries, take out the batteries and reinstall them again after 30 seconds.

+ If you will not be using the unit for a long time, remove the batteries from the remote control.

HOW TO USE THE REMOTE CONTROL Point the remote control towards the units signal

receiver window and press the desired button. The

unit generates a beep when it receives the signal.

+ Make sure there is no curtain or other object between the remote control and the unit.

+ The remote control can send signals from up to 7 metres away.

+ Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.

Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.

The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.

Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

SET CURRENT CLOCK TIME There are two clock modes: 12-hour mode and 24-hour mode.

Example: 5 o’clock in the afternoon

Clock Display 12-hour mode PM _ 5:00 24-hour mode 17:00

To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

Press the TIME ADVANCE or REVERSE button to set the current time.

+ Keep the button pressed to advance or reverse the time display quickly. Press the SET/C button.

+ The colon (:) blinks to indicate that the clock is functioning.

+ The current time cannot be set when the timer is operating.

The air purifying filters are packed as accessory of this unit. During operation of the air conditioner, the filters remove dust and tobacco smoke from the air and discharges clean air.

1 Take out the air filters. @ Open the filter cover.

@ Push the air filters up slightly to unlock them.

Pull the air filters down to remove them.

Set the air purifying filter under the filter stoppers located on the air filter.

Reinstall the air filters.

Reinstall the air filters in the original posi- tions.

Close the filter cover.

Push the arrow-marked of the panel firmly to lock it in place.

- The filters are sealed in a plastic bag to keep their dust collection effect. Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)

+ Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

+ Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower in the HEAT mode will save approximately 10 percent in power consumption.

+ Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

+ Blocking direct sunlight during cooling operation Will reduce power consumption.

+ Close the windows and doors during cooling and heating operations.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

* The indoor unit still consumes a small amount of power when it is not operating.

XILIARY MODE Use this mode when the remote control is not available.

TO TURN ON Lift the open panel of the indoor unit and press the AUX button.

The red OPERATION lamp ( E] ) on the unit will light and the unit will start operating in the AUTO mode.

+ The fan speed and temperature setting are set to AUTO.

TO TURN OFF Press the AUX. button again.

+ The red OPERATION lamp ( E] ) on the unit will turn off.

- If the AUX button is pressed during normal operation, the unit will turn off.

1 Press the MODE button to select the operation mode.

AUTO HEAT COOL DRY MS uns

2 Press the ON/OFF button to start operation.

+ The red OPERATION lamp ( E] ) on the unit will light.

3 Press the THERMOSTAT button to set the desired temperature.

+ The temperature can be changed in 1°C incre- ments within the range of 2°C higher to 2°C lower from the temperature automatically deter- mined by the air conditioner.

+ The temperature can be set within the range of 18 to 32°C.

4 Press the FAN button to set the desired fan speed.

+ In the DRY mode, the fan speed is preset to AUTO and cannot be changed.

5 To turn off the unit, press the ON/OFF button again.

+ The red OPERATION lamp ( E] ) on the unit will turn off.

When using your air-condi- tioner with multi-system

With a multi system air conditioner, mul-

tiple indoor units can be connected to

one outdoor unit. When the setting mode differs among indoor unit(s), the indoor unit(s) operated later may not work.

+ When the indoor unit(s) is/are operating in HEAT mode, the remaining unit(s) can not operate in COOL or DRY mode.

+ When the indoor unit(s) is/are operating in COOL or DRY mode, the remaining unit(s) can not operate in HEAT mode.

When the mode of the indoor unit(s) later op- erated is/are different from those which is/are in operation, after a few seconds, a long BEEP will be emitted and the temperature indicator on the indicator panel will indicate” - - ” and the OPERATION lamp and TIMER lamp will blink alternately. This shows that the later op- erated unit(s) is/are not working. In such case, change the mode to the same mode which the other indoor unit(s) is/are operating in.

The indicator panel will change each time you press the DISPLAY button in the fol- lowing manner.

The room 1 E [_] temperature is LU displayed.

temperature Indiactor

ous Temp.Lamp light up

The outdoor temperature is displayed.

temperature Indiactor

7 TIPS ABOUT AUTO MODE —

In the AUTO mode, the temperature setting and mode are automatically selected accord- ing to the room temperature and outdoor temperature when the unit is turned on.

+ During operation, if the outdoor tempera- ture changes, the temperature settings will automatically slide as shown in the chart.

Modes and Temperature Settings

10 18 28 34 femp (°C) Cool | Cool | Col (24°C) |(25°0)|(26°0) 29! Heat | Heat Dry ACC RES Heat (22°C) indooF TE (C) The figures in (_) are temperature settings

+ When using your air-conditioner with multi- system, mode of the unit operated first will have priority over other unit(s) without reference to the above chart.

The displayed temperatures are rough estimates and may vary from the actual temperatures. Temperature display ranges

Room temperature: 0°C — 40°C ( La is displayed when less than 0°C and X ; when higher than 40°

Outdoor temperature: -9°C - 45°C ( La is displayed when less than -9°C and H , when higher than 45°C)

-- is displayed during the first about 0-120 seconds of operation while the temperatures are being detected.

During SELF CLEAN operation, the indicator panel will display remaining time of the operation. Room and outdoor temperature will not be displayed even if you press the DISPLAY button.

Single use + Only the room temperature can be displayed for 5 ) seconds when the unit is not in operation. Multi use . is displayed for 5 seconds when the unit is not in operation.

DJUSTING THE AIR FLOW DIRECTION VERTICAL AIR FLOW DIRECTION HORIZONTAL AIR FLOW DIRECTION Press the VERTICAL AIR FLOW button Press the HORIZONTAL AIR FLOW but- to set the desired air flow direction. ton to set the desired air flow direction.

AUTO mode AUTO obliquely downward

AUTO (==) —æœD —— De — Ÿ (==)

HEAT mode AUTO obliquely downward downward AUTO D D D — CAUTION: [= Never attempt to adjust the open panel and the lou- vres manually. COOL/DRY mode + Manual adjustment of the open panel and the AUTO obliquelyupward obliquely downward louvres can cause the unit to malfunction. AUTO D DT =D. —

TIPS ABOUT AIR FLOW DIRECTION “AUTO“ =

COOL mode 10 minutes later The open panel will be set obliquely

à downward for 10 minutes, and then DN » \

shift to obliquely upward to deliver cool air to the ceiling.

HEAT mode When outlet air When outlet air When room The open panel will be set obliquely temperature is low becomes warm becomes warm backward when outlet air tempera-

ture is low, and then shift to obliquely - -

downward when outlet air becomes — —

warm. When the room becomes s \ | # \

warm, it will be set downward to de- liver the warm air to the floor.

DRY mode | The open panel will be set obliquely ) + upward.

PLASMACLUSTER OPERATION The Plasmacluster lon generator inside the air conditioner will release positive and negative plasmacluster ions into the room. Approximately the same numbers of positive and negative ions released into the air will reduce some airborne mold.

During operation, press the PLASMACLUSTER button. + The remote control will display *

+ The blue PLASMACLUSTER lamp on th unit will light up.

TO CANCEL Press the PLASMACLUSTER button again.

+ The PLASMACLUSTER lamp on the unit will turn off.

+ Use of the PLASMACLUSTER operation will be memorized, and it will be activated the next time you turn on the air conditioner.

+ To turn off the PLASMACLUSTER lamp, press the DISPLAY button.

- To perform the PLASMACLUSTER operation without accompanying heat, cool or dry mode, press the PLASMACLUSTER button while the unit is not operating. The mode symbol of the remote control will go off and the fan speed can not be set AUTO.

SELF CLEAN OPERATION SELF CLEAN operation will reduce the growth mold fungus with Plasmacluster ions and dry inside of the air conditioner unit. Utilize the operation at seasonal change over terms.

Mold fungus already grown can not be eliminated by this operation.

1 Press the SELF CLEAN button when the unit is not operating. + The remote control displays “ C ”. + The blue PLASMACLUSTER lamp on the unit will light up. + The unit will stop operation after forty minutes.

+ The remaining operation time will be indicated on the TEMPERATURE INDICATOR of the indoor unit in minute decrements.

TO CANCEL Press the SELF CLEAN button.

Alternatively, turn the unit off by pressing the ON/OFF button.

+ The blue PLASMACLUSTER lamp on the unit will turn off.

+ You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation.

+ The orange TIMER lamp ( @ ) on the unit will light up. + The unit will stop operating after one hour.

CANCEL TO CANCEL Press the TIMER CANCEL (SET/C) button.

+ The orange TIMER lamp ( @ ) on the unit will turn off.

Alternatively, turn the unit off by pressing the ON/OFF button.

+ The red OPERATION lamp ( E] ) and the orange TIMER lamp ( @ ) on the unit will turn off.

The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.

If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition.

If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER is activated, press the ONE-HOUR OFF TIMER button again during operation.

If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

2 The TIMER OFF indicator will blink; press the TIME ADVANCE or REVERSE button to set the desired time.

(The time can be set in 10-minute increments.)

3 Point the remote control at the receiver window on the unit and press the TIMER SET (SET/C) button. + The orange TIMER lamp ( © ) on the unit will light. + The unit will generate a beep when it receives the signal.

TIPS ABOUT TIMER OFF OPERATION When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

+ One hour after the time operation begins, the temperature setting rises 1°C higher than the original temperature setting.

+ One hour after the timer operation begins, the temperature setting drops 3°C lower than the original temperature setting.

make sure the clock is properly set with the current tim

2 The TIMER ON indicator will blink; press the TIME ADVANCE or REVERSE button to set the desired time.

(The time can be set in 10-minute increments.)

3 Point the remote control at the receiver window on the unit and press the TIMER SET (SET/C) button. + The orange TIMER lamp ( @ ) on the unit will

Press the TIMER CANCEL (SET/C) button. . dre orange TIMER lamp ( @ ) on the unit will turn o

+ The current clock time will be displayed on the remote control.

light. + The unit will generate a beep when it receives Le] SETIC: CANCEL the signal. Tr

4 Select the operation condition.

+ The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

+ If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMER CANCEL button

You can use the ON and OFF timers in combination.

To stop operation at 11:00 p.m. and resume operation to bring the room temperature to the desired level by 7:00 a.m.

1 Set the TIMER OFF to 11:00 p.m. during operation. 2 Set the TIMER ON to 7:00 a.m.

The arrow ( Y or A ) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first.

+ You cannot programmed the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.

+ Either timer can be programmed to activate prior the other.

FULL POWER OPERATION In this operation, the air conditioner works at the maximum power to makes the room cool or warm so rapidly that you can use it just after you come home.

1 To activate the FULL POWER operation,

press the FULL POWER button during operation.

+ The remote control will display “

+ The temperature display will go off.

+ The green FULL POWER lamp ( A ) on the unit will light up.

© d 2 AUTO on) D 7 Æ nn

CH TO CANCEL Press the FULL POWER button again.

+ FULL POWER operation will also be cancelled when the operation mode is changed, or when the unit is turned off.

+ The green FULL POWER lamp ( 7 ) on the unit will turn off.

+ You can not set the temperature or fan speed during the FULL POWER operation.

BEFORE PERFORMING MAINTENANCE Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

1 Turn off the unit.

Wait 15 seconds or more after the open panel is completely closed, and turn off the circuit breaker.

CLEANING THE FILTERS The air filters should be cleaned every two weeks.

1 Turn off the unit.

2 Remove the filters.

Lift the filter cover.

Push the air filters up slightly to unlock them.

® Pull the air filters down to remove them.

Take off the air purifying filters from the air filters.

Use a vacuum cleaner to remove dust. lf the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

Reinstall the air purifying filters.

Reinstall the filters.

@ Reinstall the filters in the original positions. @ Close the filter cover.

@ Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

+ Wipe them with a soft cloth.

+ Do not directly splash or pour water on them. It can cause electrical shock or equipment damage.

+ Do not use hot water, thinner, abrasive powders or strong solvents.

[ The open panel can be removed

REMOVAL Push the release button and open the lower part of the open panel.

Lift the open panel up slightly and re- move it.

1 Hook both tabs on the shaft. There is a shaft on each end of the unit.

2 Close the open panel.

Push the arrow-marked points on the open panel until it clicks.

After attachment, be sure to close the open panel firmly. Unacceptable

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the SELF CLEAN operation to allow the mechanism to thoroughly dry.

2 Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.

3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON Make sure that the air filters are not dirty.

Make sure that nothing obstructs the air inlet or outlet.

CHANGING THE AIR PURIFYING FILTER The filters should be changed every 3 - 6 months

1 Remove the air filters.

2 Change the air purifying filters.

Take off the old air purifying filters from the air filters.

2 Set the new air purifying filters, under the filter stoppers located on the air filters.

- The dirty air purifying filters are not washable for reuse. The new filters are available at your nearest dealer.

Replacement filter: Type AZ-F900F Disposal of Filters

Please dispose of replaced filters according to the local disposal laws and regulations.

BEFORE CALLING FOR SERVICE The following conditions do not denote equip- ment malfunctions

UNIT DOES NOT OPERATE The unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.

UNIT DOES NOT SEND OUT WARM AIR The unit is preheating or de-icing.

ODORS Carpet and furniture odors that entered into the unit may be sent out from the unit.

CRACKING NOISE The unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.

A LOW BUZZING NOISE EMITTED This is a sound emitted when the unit is generating Plasmacluster ions.

SWISHING NOISE The soft, swishing noise is the sound of the refrigerant flowing inside the unit.

+ In the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.

+ In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.

THE OUTDOOR UNIT DOES NOT STOP After stopping the operation, the outdoor unit will rotate its’ fan for about a minute to cool down the unit.

ODOR EMITTED FROM THE PLASMACLUSTER AIR OUTLET This is the smell of ozone generated from the Plasmacluster lon generator. The ozone concentration is very small, posing no adverse effect on your health. The ozone discharged into the air rapidly decomposes, and its density in the room will not increase.

When using your air conditioner with multi- system

INDOOR UNIT BECOMES WARM EVEN WHEN IDLE This is because the refrigerant also floes through the idle indoor unit's pipes when the other unit is operated in HEAT mode.

INDOOR UNIT BECOMES WARM EVEN WHEN NOT DURING HEATING OPERATION When the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (eg. HEATING or COOLING). At this time, you may feel warm air coming out from the unit air outlet if HEATING is performed with units in other rooms. Indoor fan will decrease its rotating speed and will turn ON and OFF depending on the room temperature.

UNIT DOES NOT OPERATE IN YOUR REQUESTED MODE

+ When one indoor unit is operating in COOL or DRY mode, you can not operate the other unit in HEAT mode. (After a few seconds, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate” - = ” and the OPERATION lamp and TIMER lamp will blink alternately.)

When one indoor unit is operating in HEAT mode, you can not operate the other unit in COOL nor DRY mode. (After a few seconds, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate” -- ” and the OPERATION lamp and TIMER lamp will blink alternately.)

UNIT DOES NOT SEND OUT AIR (PLASMACLUSTER operation without accompanying air conditioning mode, SELF CLEAN operation)

The other unit(s) is/are de-icing.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE_UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY

+ Check the filters. If dirty, clean them.

+ Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.

+ Check the thermostat is proper setting.

+ Make sure windows and doors are closed tightly.

+ A large number of people in the room can prevent the unit from achieving the desired temperature.

+ Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL

+ Check whether the remote control batteries have become old and weak.

+ Try to send the signal again with the remote control pointed properly towards the unit's signal receiver Window.

+ Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when TEMPERATURE INDICATOR on the indicator panel blink.

AD ON OPERATION NOTES ON OPERATING TEMPERATURE RANGE INDOOR TEMP. | OUTDOOR TEMP. . h 46°C (Single use) upper limit | 32C | 43:c (Muït use) COOLING L —10'C (Single use) lower limit 21C 21C (Multi use) HEATING | PPT limit 27C 24°C lower limit - —15"C

+ The built-in protective device may prevent the unit from operating when used out of this range.

+ Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically re- start in the same settings which were active before the power failure, except for timer settings.

If the timers were set before a power failure, they Will need to be re-set after power recovery.

PREHEATING FUNCTION In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

+ When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.

+ After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

+ The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.

+ If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

+ It takes time to warm up and heat the entire room because of the forced air circulation system.

= mg) o © = ol FT 5 4

© © M OO O1 BR ON —=

os — © © D) T 5 mn 80

27 PLASMACLUSTER-Symbol

AEI YPTIA PLASMACLUSTER

ns — mm © v Ge Û FT — #

SHARP CORPORATION Printed in China TINSEA555JBRZ 10H- (TH) ©
