Product Type	Active HD-TVI Video with Power Balun over Coax
Brand	Speco Technologies
Model	TVICOAXVP
Dimensions (Transmitter & Receiver)	1.9 x 4.4 x 1" (49.2 x 112.5 x 25.2 mm)
Weight (Each)	0.33 lbs (150 g)
Power Input (Receiver)	DC 24V to 40V
Power Output (Transmitter)	DC 12V for camera
Supported Video Formats	HD-TVI, AHD, HD-CVI, CVBS
Max Transmission Distance	Up to 1312' (400 m) depending on cable and voltage
HD-TVI Distance	300 m (984 ft) max
AHD/HD-CVI/CVBS Distance	400 m (1312 ft) max
Recommended Cable	RG59 or RG6U coaxial cable
Video Input/Output	1 x BNC (1 Vp-p, 75 Ω) each
Power Interface	1 x DC Jack (2.0 mm) each
Adjustable Controls	Frequency and brightness
Operating Temperature	32 to 158°F (0 to 70°C)
Storage Temperature	-4 to 185°F (-20 to 85°C)
Humidity	Up to 95%
Package Contents	Transmitter (TVICAT5VPT) x1, Receiver (TVICAT5VPR) x1, DC 24V 1.25Amp or DC 40V 1Amp adapter, DC plug to bare wire power cord, mounting screw pack
Maintenance	Clean with a dry cloth; ensure cables are securely connected
Safety	Use proper grounding; avoid damage before connecting coax
Repairability	No user-serviceable parts; contact Speco Technologies for service

Frequently Asked Questions - TVICOAXVP Speco Technologies

What is the maximum transmission distance for HD-TVI with the TVICOAXVP?

The maximum HD-TVI transmission distance is 300 meters (984 feet) when using RG59 cable and appropriate power.

What video formats are supported?

It supports HD-TVI, AHD, HD-CVI, and CVBS (analog) video formats.

How do I power the unit?

The receiver accepts DC 24V to 40V input. The transmitter outputs DC 12V to power the camera. An appropriate power adapter (24V 1.25A or 40V 1A) is included.

Can I use multiple amplifiers with one power adapter?

Yes, you can daisy-chain multiple receivers using a jumper to extend power. Ensure total current does not exceed adapter rating.

What type of cable is recommended?

High quality RG59 or RG6U coaxial cable is strongly recommended for best performance.

How do I install the TVICOAXVP?

Connect the transmitter near the camera and the receiver near the DVR. Use BNC cables. Ensure coax is connected before powering on to avoid damage.

The camera has no video. What should I check?

Check all BNC connections, ensure the power adapter is working, and verify the coax cable is properly terminated. Also check the brightness/frequency adjustments.

What is the output current for the camera?

The transmitter output current varies with distance and input voltage. At 24V input, it delivers 190-370 mA; at 40V input, it delivers 470-650 mA. Ensure your camera's power requirement is met.

Does this work with existing analog DVRs?

Yes, it supports CVBS (analog) format, so it can be used with standard analog DVRs, but distance may be limited.

What is the warranty?

Warranty details are not specified in the manual. Contact Speco Technologies directly for warranty information.

USER MANUAL TVICOAXVP Speco Technologies

Active HD-TVI Video with Power Balun over Coax

Introduction

TVICAT5VP is a video amplifier designed to use an RG59 coaxial cable to send a video signal and power source with a transmission distance up to 1000M. It also allows you to use one power adapter for multiple amplifiers — a jumper is needed to extend power.

Features

● Supports HD-TVI, AHD, HD-CVI video formats.
- HD-TVI Signal extension up to 984' (300M)
● Supports DC 24V to 40V power input
● Frequency and brightness adjustable.

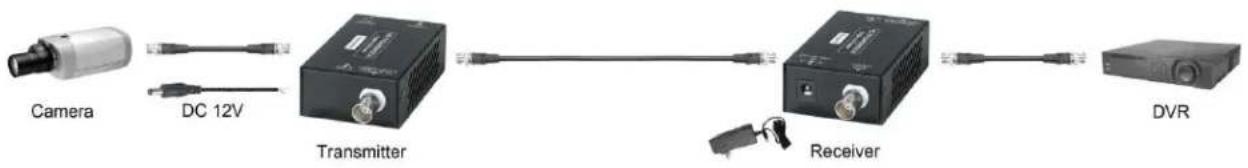

Installation View

★ To avoid any damage, before powering on please make sure your coax cable is connected with the included transmitter and receiver.

HD-TVI 300 M (MAX.) AHD/HDCV/CVBS 400 M (MAX.)

Transmission Distance Chart based on Power Input Voltage/Current

The output current will be slightly different based on different cable. It's important to ensure you have enough mA to power your camera at the end of the run.

Cable Type	TVICOAXVP Receiver Power Input	Distance	TVICOAXVP Transmitter DC12V Output for Camera
RG59 DC24V 1.25Amp	164' (50M)	DC12V	370mA
	328' (100M)		350mA
	492' (150M)		320mA
	656' (200M)		300mA
	984' (300M)		190mA
	1312' (400M)		140mA
Cable Type	TVICAT5VP Receiver Power Input	Distance	TVICAT5VP Transmitter DC12V Output for Camera
RG59	DC40V 1Amp	164' (50M)328' (100M)	DC12V	650mA650mA
		492' (150M)		630mA
		656' (200M)		600mA
		984' (300M)		570mA
		1312' (400M)		470mA

Panel View

TVICOAXVPT

TVICOAXVPR

Cable

We strongly recommend using high quality RG59 or RG6U cable. Poor quality cable or improper construction will cause unstable connections, video or sound disruptions, and picture noise can appear.

Note

1. Input/output power cord DC jack is 2.0mm.
2. Before sending power, please make sure the voltage polarity and input/output terminal are installed correctly.

Package Includes

TVICAT5VPT x 1pcs

TVICAT5VPR x 1pcs

DC24V 1.25Amp power adapter x 1 or DC40V 1Amp

DC plug to bare wire power cord x 1

Mounting screw pack x 1

Specification

ITEM NO. TVICOAXVPT TVICOAXVPR
Support
Video Format	HD-TVI, AHD, HD-CVI, CVBS
Max. Transmission Distance	1312' (400M)
Ports & Interfaces
Video Input	1 x BNC (1 Vp-p, 75 Ω)	1 x BNC (1 Vp-p, 75 Ω)
Video Output	1 x BNC (1 Vp-p, 75 Ω)	1 x BNC (1 Vp-p, 75 Ω)
Power Interface	1 x DC Jack	1 x DC Jack
Power
Power Input	n/a	DC 24V to 40V
Power Output	12V	n/a
Ambient Temperature
Operation	32 to 158°F (0 to 70°C)
Storage	-4 to 185°F (-20 to 85°C) RoHS CE
Humidity	Up to 95%
Physical Characteristics
Dimensions	1.9 x 4.4 x 1" (49.2 x 112.5 x 25.2mm)	1.9 x 4.4 x 1" (49.2 x 112.5 x 25.2mm)
Weight	0.33 Lbs (150g)	0.33 Lbs (150g)

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com

Rev. 11/1/22
