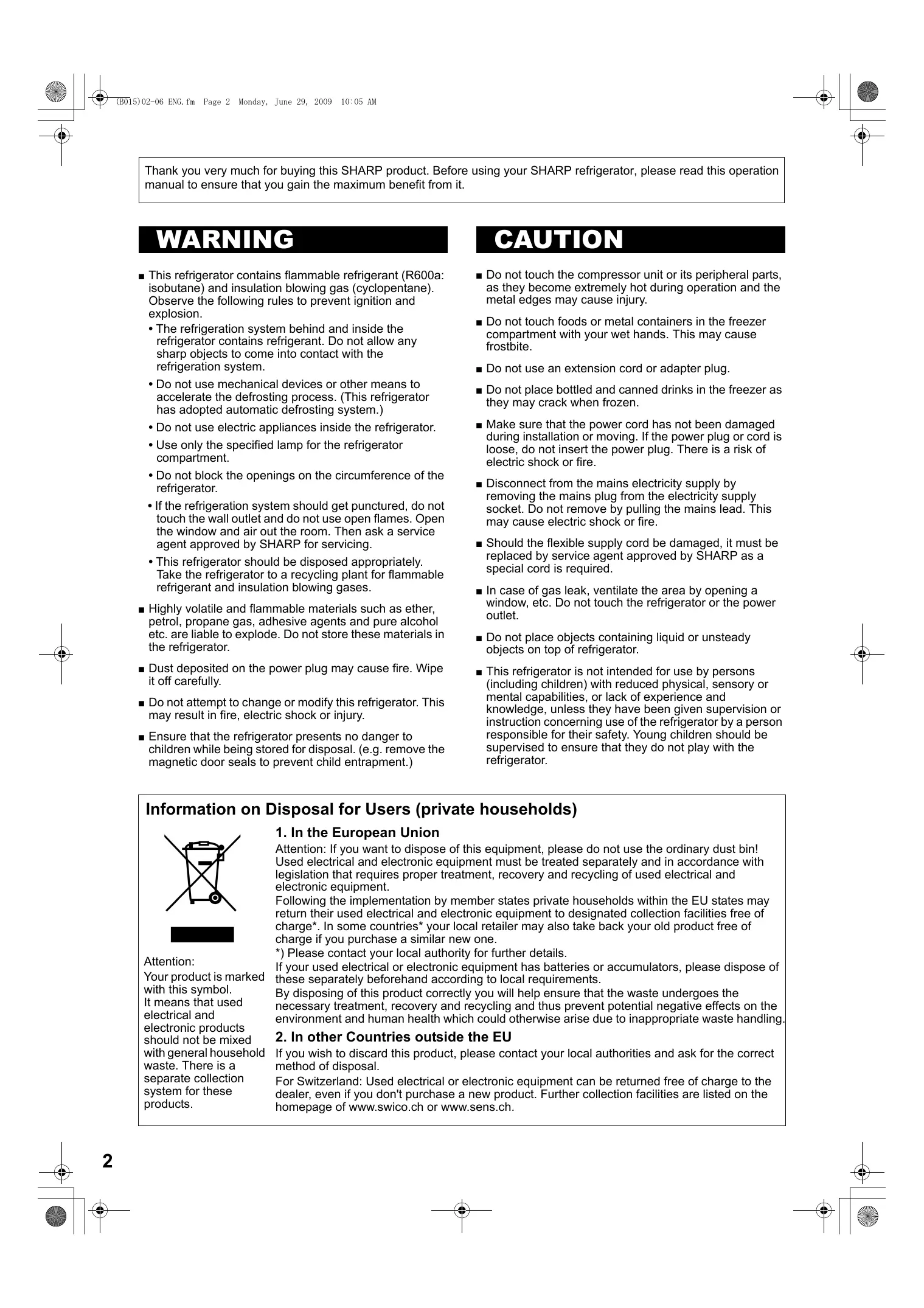

• Free standing type SJ-TD591S SJ-TD641S SJ-TD691S Page 2 Monday, June 29, 2009 10:05 AM Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it. WARNING

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

• The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.
• Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)
• Do not use electric appliances inside the refrigerator.
• Use only the specified lamp for the refrigerator compartment.
• Do not block the openings on the circumference of the refrigerator.
• If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.
• This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases. Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.

Dust deposited on the power plug may cause fire. Wipe it off carefully.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.) CAUTION

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

Do not use an extension cord or adapter plug.

Do not place bottled and canned drinks in the freezer as they may crack when frozen.

Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

Do not place objects containing liquid or unsteady objects on top of refrigerator.

This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. Attention: If your used electrical or electronic equipment has batteries or accumulators, please dispose of Your product is marked these separately beforehand according to local requirements. with this symbol. By disposing of this product correctly you will help ensure that the waste undergoes the It means that used necessary treatment, recovery and recycling and thus prevent potential negative effects on the electrical and environment and human health which could otherwise arise due to inappropriate waste handling. electronic products

2. In other Countries outside the EU

should not be mixed with general household If you wish to discard this product, please contact your local authorities and ask for the correct waste. There is a method of disposal. separate collection For Switzerland: Used electrical or electronic equipment can be returned free of charge to the system for these dealer, even if you don't purchase a new product. Further collection facilities are listed on the products. homepage of www.swico.ch or www.sens.ch.

(B015)02-06 ENG.fm Page 3 Monday, June 29, 2009 10:05 AM INSTALLATION INDICATOR OF TEMPERATURE WARNING

Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust. Coldest zone adequate ventilation space around the 1 Keep refrigerator.

• The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.
• It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.
• If using the refrigerator in the space below dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure. 90 mm or more 60 mm or more 60 mm

or more This refrigerator is provided with a indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

SJ-TD591S SJ-TD641S SJ-TD691S

1400mm 1500mm the two front adjustable feet, ensure that the 2 Using refrigerator is positioned firmly and level on the floor. the 2 screws of the cabinet lower part, and 3 Remove use these to fit the foot covers. (supplied inside the refrigerator compartment) Adjustable foot Foot cover NOTE

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Symbol The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height as the symbol isn’t the coldest zone.) Checking the temperature in the coldest zone You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again. BLUE

Correct setting Temperature too high, adjust the refrigerator temp. control. NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

Provide suitable stand. When transporting

• Using the casters, it is possible to move back and forth.
• Carry the refrigerator by holding the handles located on the rear and bottom.

EST SLO 2 pcs. SJ-TD591S : SJ-TD641S , SJ-TD691S : 4 pcs.

Before using your refrigerator Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

(B015)02-06 ENG.fm Page 4 Monday, June 29, 2009 10:05 AM DESCRIPTION

• 2 star section for storing frozen food only.

1. Freezer shelf

2. Ice cube maker

1) Do not over fill the Ice cube trays;

otherwise the ice cubes will be joined together when frozen.

2) When the ice cubes are made,

turn the lever clockwise to empty the ice into the Ice cube box. NOTE To prevent damage to the Ice

7. Refrigerator shelves (2 pcs.)

8. Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

9. Fruit and vegetable shelf

10. Fruit and vegetable crisper

1 pc. SJ-TD591S : SJ-TD641S , SJ-TD691S : 2 pcs.

11. Divider

(Only for SJ-TD591S) SJ-TD591S

12. Adjustable feet & covers (2 pcs.)

13. Magnetic door seals (2 pcs.)

14. Flexible pocket

Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket.

15. Door pockets (2 pcs.)

16. Water tank

17. Utility pockets

SJ-TD591S SJ-TD641S SJ-TD691S Lever small medium medium medium large medium NOTE (Only for SJ-TD691S) Do not replace the right utility pocket with that of the left, and vice versa. Ice cube box cube box, do not make ice in the Ice cube box or pour oil into it.

3. Ice cube box

4. Fresh case & door

5. Refrigerator light

6. Temp. control knobs

Adjustable by turning each knob.

18. Egg holder

19. Bottle pocket

20. Bottle stopper / Tube stand

Prevents bottles etc. from falling. Stick-type food products can also be stored inside.

21. Water dispenser

Attach the tray included in the package. Tray (for refrigerator) (for freezer) Deodorizing unit When the compartment light is blown Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required. Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel. Defrosting Defrosting is fully automatic due to a unique energy saving system.

(B069)02-06 ENG.fm Page 5 Thursday, August 20, 2009 9:59 AM How to drink water the lever with a glass. 1 Push (Water comes out.) the glass slowly away from 2 Move the lever. (The lever returns to the WARNING

Fill with potable water only. the cap of the water tank, 1 Open and fill the tank with water. the cap of the water tank. 2 Close (If it isn’t, water might spill when the door is opened or closed.) Water level

Lever original position, and water stops.)

• For hygienic reasons, replace the water in the water tank Cap NOTE Water tank
• Do not open or close the door roughly. Water may spill from the water tank.
• Do not pour any liquids except for water. If other liquid such as juice is poured in, it might cause a failure. Before pouring hot water into the tank, wait until it gets cold. (Upper temperature limit: approximately 50°C) approximately once a week.
• Throw away the water in the tray frequently. If do not, water may overflow.
• If the water dispenser is not used for an extended period of time, clean and dry the water tank thoroughly, and attach it to the original position.

Unplug the refrigerator first to prevent electric shock. Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

CARE AND CLEANING

How to remove the water tank (Remove it approximately once a month and wash it with water.) 1 Push the lever and let out all water in the water tank. the pipe cover. 2 Remove Disconnect the both ends of the joint pipe. IMPORTANT

Joint pipe To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result. Pipe cover

When reattaching Water tank

Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable.) the inside with a cloth soaked in warm soapy 2 Clean dishwashing water. Then, use cold water to wipe off soapy water. 3 Remove the water tank from the door.

the cover and take out 4 Remove the mesh filter.

Cover 3 Wipe the exterior with a soft cloth each time it is soiled. the Magnetic door seal with a toothbrush and 4 Clean warm soapy dishwashing water. Mesh filter

When reattaching NOTE

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).
• If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

NOTE EST SLO Ensure that each parts are reattached. Bad reattaching may cause water leakage. Switching off your refrigerator If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

(B015)02-06 ENG.fm Page 6 Monday, June 29, 2009 10:05 AM STORING FOOD Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

• Ensure all cooked food is wrapped securely or placed in an airtight container.
• To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the fruit and vegetable crisper.
• Eggs should be stored in the Egg holder.
• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.
• Keep the door securely closed.

OUT For best freezing

• Quality of foods should be fresh.
• Freeze small quantities of food at a time to freeze them quickly.
• Food should be properly stored or covered and the air should be removed to seal tightly.
• Evenly place the food in the freezer.
• Label bags or containers to keep an inventory of freezing food.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points. Problem Solution The outside of a cabinet is hot when touched. It is normal. The hot pipe is in the cabinet in order to prevent dew generation. When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.

• Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).
• Cracking or crunching sound, squeaking sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling. Frosting or dew generation occurs inside or outside the refrigerator. This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• When foods containing plenty of moisture are stored. (Wrapping is required.) The foods in the refrigerator compartment freeze.

• Is the refrigerator operated for a long time with temp. control set at MAX?
• Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to MIN. It smells in the compartment.

• Wrapping is required for the foods with strong smell.
• Deodorizing unit cannot remove all of smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.
