USER MANUAL BWC3989 Becken

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 5
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 10

2.1. Product Description 10
2.2. Product usage 12
2.3. Maintenance and cleaning 20
2.4. Troubleshooting 21

3. TECHNICAL SPECIFICATIONS 23

4. POST-SALE SERVICE 24

5. ENVIRONMENTAL PROTECTION 24

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

1. SAFETY INSTRUCTIONS

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

[you can trust]

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

1.5. General Precautions

• Please follow instructions during installation and handling.
• Please keep these instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations (including LED lamp replacement) must be carried out by authorized professionals, ask the service agency for help if necessary. Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

Safety of children and other vulnerable people

• Keep all packaging out of the reach of children, as there is a risk of suffocation.
• If you decide to discard and scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children from playing with it, which could result in a risk of electric shock or being trapped inside.
• If an appliance with a magnetic door seal is being replaced by another one with a latch on the door or the seal, please make sure that the latch is disabled before selling or discarding/scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.

[you can trust]

General safety

• This appliance is designed for home use.
• Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.
• WARNING: Do not damage the refrigerating circuit.
• The refrigerating and insulating systems contain inflammable gases. Therefore, when the appliance is discarded/scrapped, it should be deposited at an accredited collection centre. Please do not expose the appliance to fire.
• If the refrigerating circuit is damaged:
• Avoid open flames or any source of combustion.
• Make sure that the room where the appliance is installed is well ventilated. It is dangerous to change the appliance's specification in any way whatsoever.
• Any damage to the power cable may cause a short circuit and/or an electric shock.

Electrical safety

• We decline any liability regarding incidents caused by poor electrical installations.
• Do not extend the power cable, and do not use an extension cable, adapter, or multi-way socket.

BECKEN

• Please check if the wall socket is not damaged because one in a poor condition may cause the appliance to overheat and explode.
• Make sure the appliance is always electrically earthed.
• If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.
• Do not use the appliance if the interior lighting cover is not installed.
• Disconnect the appliance before replacing the lighting bulb.
• The appliance operates on a single phase 220\~240 V / 50 Hz power supply and it must be connected to an earthed wall socket, in accordance with applicable recommendations.
• Do not attempt to replace a damaged power cable, please contact your after-sales service instead.
• The power socket must be easily accessible but out of the reach of children.
• In case of doubt, contact your installation technician.

Daily use

• Do not store inflammable substances or fluids inside the appliance, as this would create a risk of explosion.
• Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).
• When unplugging the appliance, grip the plug firmly, do not pull the cable.

[you can trust]

• Do not expose the appliance to direct sunlight.
• Keep the appliance away from candles, lamps and open flames, to avoid the risk of fire.
• This appliance is only designed to store wines and drinks.
• The appliance is heavy, so please be careful when moving it.
• If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Do not lean or climb on the appliance or its elements.
• To avoid objects from falling and subsequent damage to the appliance, do not overload its compartments.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

BECKEN

2. OPERATING INSTRUCTIONS

2.1. Product Description

Model BWC3989 / BWC3990

1 2 3 4 5 6 7 8 9 10

11

1 Front hinge
2 LED light
3 Fan base
4 Cabinet
5 Shelf
6 Adjustable feet
7 Door
8 Door glass
9 Handle
10 Lower hinge
11 Control panel

[you can trust]

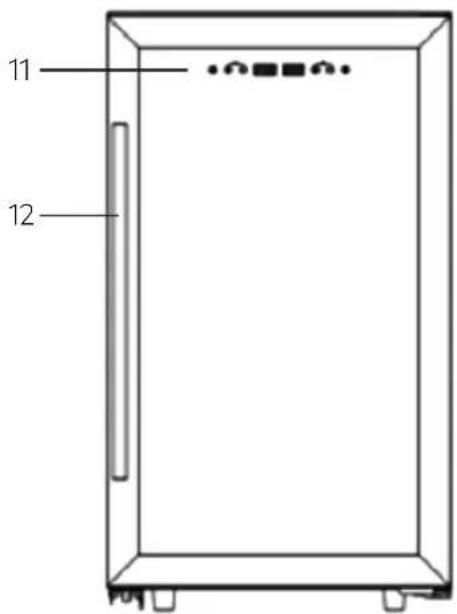

Model BWC3991

1 2 3 4 5 6 7 8 9 10

11 12

1 Front hinge
2 LED light
3 Fan base
4 Shelf
5 Zone separation
6 LED light
7 Adjustable feet
8 Control panel cover
9 Door glass
10 Lower hinge
11 Control panel
12 Handle

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

2.2. Product usage

This appliance allows you to store your bottles or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range. This appliance is specifically intended for wine storage.

Important information concerning installation!

• To ensure proper electrical connection, follow the recommendations given in this manual.
• Unpack the appliance and visually check that it is not damaged. Please do not connect a damaged appliance. If the appliance has any damage, inform your retailer or point of sale and keep the packaging.
• It is recommended that the appliance may settle for at least 24 hours before plugging it to the mains, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the provided installation recommendations.
• To avoid the risk of fire, wherever possible, make sure the appliance is not in contact with walls or any hot element (compressor, condenser). Therefore, observe the installation recommendations.
• The appliance should not be placed close to radiators or cooking hot plates or gas burners.
• Please ensure that electrical sockets remain accessible when the appliance is installed.

[you can trust]

Power saving

To limit power consumption:

• Install your appliance in a suitable place (see "Installation instructions").
• Leave the doors open as little time as possible.
• To ensure that the appliance operates properly, clean the condenser regularly (see “Maintenance and cleaning”).
• Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, please make sure that no element of the refrigerating circuit is damaged, as the refrigerating fluid (R600a) is inflammable.

Installation instructions

Before using your wine cooler:

• Remove inner and outer packaging.
• Before plugging the appliance to the electrical socket, leave it in position for 24 hours. This will reduce the refrigeration circuit's possibility of malfunction due to transport.
• Clean the inside using a soft cloth and lukewarm water.

BECKEN

Using your wine cooler

• Your wine cooler must be positioned in a room with an ambient temperature between 16 and +38 °C
• If the ambient temperature is higher or lower, your appliance's performance may be affected and it may not reach temperatures set for each model.

Installing your wine cooler

• This wine cooler is designed for free-standing installation.
• Position it in a place strong enough to support its weight when loaded. To ensure that it is levelled, adjust the height of the feet underneath.
• To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room that is too cold.
• Connect the appliance to a single socket, leaving a 20 mm gap between the back of the cooler and the side wall. Be careful when adjusting it, so that your wine cooler is perfectly levelled. This will avoid any movement due to instability, generating noise and vibration, and will ensure that the door seals perfectly.

[you can trust]

Control panel

Model BWC3989 / BWC3990

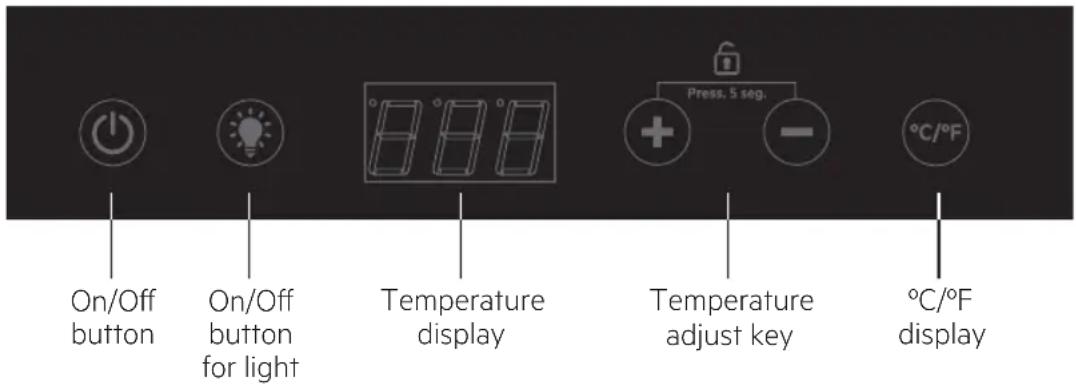

On/Off button On/Off button for light Temperature display Temperature adjust key °C/°F display

• Temperature range: 5 - 20 °C / 41 - 68 °F.
- Press the button for 3 seconds to turn the appliance on or off.
- Press the button to turn the lights on or off.
- Press the button to change the temperature's display from Celsius to Fahrenheit.
- All controls will be locked after 20 seconds when there is no operation, press the temperature control button ⏻ and ⏻ together for 3 seconds to unlock it.
- You can set the desired temperature by pressing the + or - button.
- The selected temperature will increase/decrease by 1 °C (33,8 °F) with each press.

BECKEN

Model BWC3991

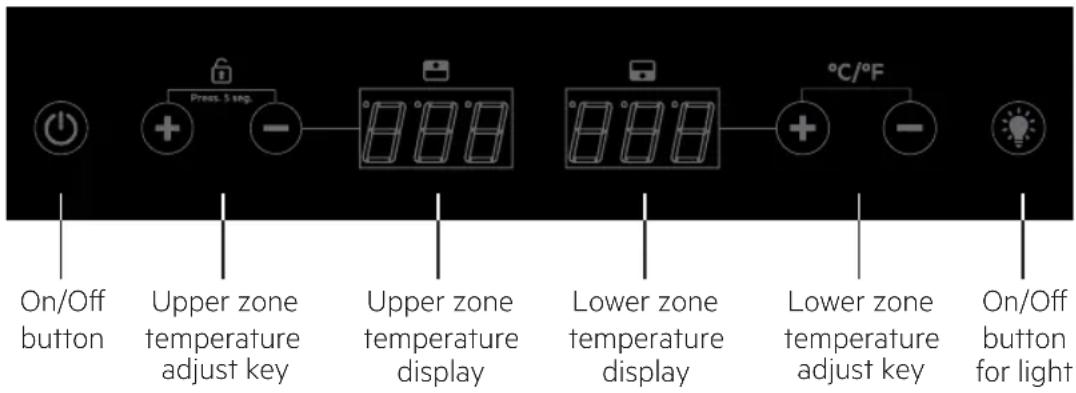

On/Off button Press 5 step Upper zone temperature adjust key Upper zone temperature display Lower zone temperature display Lower zone temperature adjust key On/Off button for light

• Temperature range: Upper zone is 5 - 12 °C (41 - 53,6 °F), lower zone is 12 - 18 °C (53,6 - 64,4 °F).
• Press the button for 5 seconds to turn the appliance on or off.
• Press the button to turn the light in both zones on or off.
• Press the lower zone temperature control button together for 5 seconds to change the temperature's display from Celsius to Fahrenheit.
• All controls will be locked after 20 seconds when there is no operation, press the upper zone temperature control button together for 5 seconds to unlock it.
• You can set the desired temperature for each zone by pressing the respective button, 📄 or .
• The selected temperature will increase/decrease by 1 °C (33,8 °F) with each press.

[you can trust]

Reversing the Door

Please note the door is not reversible.

Equipment

The climate control system

According to advice from specialists, the ideal temperature for storing wine is around 12 °C, within a bracket of 10 to 14 °C. Do not confuse this with service temperature, which varies between 5 and 20 °C, depending on the specific nature of the wine.

It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.

The anti-vibration system

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics avoid transmitting vibration to your wines.

Defrosting

Your appliance is equipped with an automatic defrost cycle, so when a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channelled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

Loading

The maximum recommended bottle loading is given as guideline and is for reference only; it provides a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in litres).

These figures correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux” bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

Storing your wine cooler

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance.
• Unplug the appliance.
• Thoroughly clean the inside and outside of the appliance.
• Leave the door open to avoid condensation, unpleasant odours and moul.

[you can trust]

What to do in the event of a power cut

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cooler. To protect your wines during a power cut, avoid opening the door as much as possible. During extended power cuts, take the necessary measures to protect your wine.

• If the appliance is unplugged or if there is a power cut, you must wait three to five minutes before restarting. If you try to restart before this time, the compressor will only restart after 3 to 5 minutes (if the temperature requires).
• When switching it on for the first time or following an extended shutdown, it is possible that when restarting, the temperatures selected and those displayed are not the same. Please note that this is normal, and it will take a few hours before they stabilise.

If you need to move your wine cooler

• First, unplug your appliance.
• Remove all bottles and secure any loose parts.
• To avoid damaging the levelling screws on the feet, screw them tightly into the base.
• Move the appliance in an upright position (preferably) or note the direction in which the appliance may be laid down by looking at its packaging.

BECKEN

In the event of a breakdown

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check if:

1. The appliance is properly plugged in;
2. A power cut is in progress;
3. The breakdown different than the ones described in the troubleshoot table at the end of this manual.

CAUTION!: Unplug the appliance before carrying out any maintenance or repair work.

2.3. Maintenance and cleaning

Before cleaning your appliance (something to be done regularly), unplug it from the mains by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with a soaked piece of cloth in warm water mixed with a gentle cleaning product. Then rinse with clean water and let it dry before reconnecting it. Do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.

Wooden shelves require no particular maintenance.

Do not use sharp or pointy objects to remove ice. Please use a plastic scraper instead.

When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature, as the cold will remove any odours.

[you can trust]

2.4. Troubleshooting

• Any electrical work should be carried out by a qualified and skilled technician.
• The appliance should be repaired by an accredited repair centre, using only the manufacturer's original spare parts.
• This appliance is designed for home use only. The manufacturer declines any liability whatsoever in case of other uses.

You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your after-sales department. Try the following suggestions.

Problem Possible Causes
The appliance is not running	· The appliance is not plugged in· The appliance is not turned on· Check if the installation has any voltage· Check if the circuit breaker or fuse has blown
The appliance is not cold enough	· Check the temperature control setting· Check if the ambient temperature is beyond the appliance's operating temperature· The door is opened too frequently· The door is not closed properly· The door is not sealing properly· Insufficient free space around the appliance
The compressor starts and stops frequently	· The external temperature is high· A large quantity of bottles has been put into the cooler· The appliance is opened frequently· The door is not properly closed· The cooler has not been correctly set

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

Problem Possible Causes
LED lights do not operate	The appliance is not plugged inThe fuse has blownLED lights are brokenThe light switch is off
Vibration • Check and ensure that the appliance is levelled
The appliance makes a lot of noise	A noise resembling circulating water is produced by the coolant gas, which is normalAt the end of a cooling cycle, you can hear the noise of water circulatingExpansion and contraction of the internal walls may cause a cracking soundThe appliance is not levelledCheck if the fan is in good condition
The door does not close properly	The appliance is not levelledThe door seal is dirty or damagedThe shelves are not correctly positionedA part of the contents is preventing the door from closing
The LED display is not working properly	The control panel failedThe power PCB has brokenThe appliance is not plugged inThe probe is not working

[you can trust]

3. TECHNICAL SPECIFICATIONS

Model BWC3989 BWC3990 BWC3991
Supply	220~240 V / 50 Hz	220~240 V / 50 Hz	220~240 V / 50 Hz
Product Dimensions (W x D x H) mm	480 × 430 × 496 480 × 430 × 838 480 × 565 × 838
Net Weight (kg) 20 2750 34.60
Energy efficiency class	A+ A	A
Energy consumption / 24 h	0.288 kWh / 24 h	0.389 kWh / 24 h	0.397 kWh / 24 h
Energy Consumption / year	105 kWh / year	142 kWh / year	145 kWh / year
Defrosting	Automatic	Automatic	Automatic
Climate class	ST	ST ST, T
Acoustic emissions in air in dB(A) re 1 pW	41 dB	42 dB	40 dB
Installation type	Free standing	Free standing	Free standing
Capacity (bottles)	17	34	54

Wine Cooler | Vinoteca | Cave de Vinho

BECKEN

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or labels

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, refrigerants and flammable insulation blowing gases. The disposal should only be done through public collection points; please contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

[you can trust]

Vertical gray gradient bar with no text or symbols

Wine Cooler | Vinoteca | Cave de Vinho

EN

25

Estimado cliente:

Symbol of a trash bin crossed with no visible text or labels

Vertical gray gradient bar with no text or symbols

Wine Cooler | Vinoteca | Cave de Vinho

ES

49

Caro(a) cliente,

Symbol of a trash bin crossed with no visible text or numbers

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
