USER MANUAL Garden table heater II Thermex

Safety Instructions and Operation Manual

Black rectangular industrial heater with hexagonal lattice structure and vertical yellow rod (no text or symbols visible)

BriefIntroduction

ThisproductisinfraredadiantheaterwithremotecontrolandIP65approved.Itis almostunlimitedusedinoutdoor,suchasopenbars,courtyard,inwinteretc.This patio heater is energy-efficient, convenient, environmentally friendly and for better lifeetc.

ImportantSafetyInstructions

• Whenusingelectricalappliances,basicsafetyprecautionsshouldalwaysbefollowedto reducetheriskoffire,electricshock,orinjurytopersons,includingthefollowing:.
• Readallinstructionsbeforeusingthisheater
• Thisheaterishotwheninuse.Toavoidburns,donotletbareskintouchhotsurfaces.If provided,usehandleswhenmovingthisheater.Keepcombustiblematerials,suchasfurniture, pillows,bedding,papers,clothesandcurtainsatleast0.9mfromthefrontoftheheater.
• Extremecutionisnecessarywhenanyheaterisusedbyornearchildrenorinvalidsandwhenevertheheaterisleftoperatingandunattended.
  ● Alwaysunplugheaterwhennotinuse
• Donotruncordundercarpeting.Donotcovercordwiththrowrugs,runners,orsimilar coverings.Donotroutecordunderfurnitureorappliances.Arrangecordawayfromtraffic areaandwhereitwillnotbetrippedover.
• Connecttoproperlygroundedoutletsonly.
• Todisconnectheater,turncontrolsoff,thenremoveplugfromoutlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shockorfire, ordamagetheheater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner(such as newspapers, table-cloths, curtains, etc.). Do not use on soft surfaces, like a bed, where openingsmaybecomeblocked.
  ● Nonakedflamesources, such as lighted candles, should be placed on the apparatus.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used for stored.
• Usethisheateronlyasdescribedinthismanual.Anyotherusenotrecommendedbythe manufacturermaycausefire,electricshock,orinjurytopersons.
  ● Always plug heaters directly into a MAINS socket outlet with a protective earthing connection.
• Neverusewithanextensioncordorrelocatablepowertap(outlet/powerstrip).
• Checkifthevoltageindicatedonthenameplateoftheappliancecorrespondstothelocal mainsvoltagebeforeyouconnecttheappliance.
  ● The appliance is not located immediately below a wall socket-outlet.

• The casing and the front cover of the appliance become extremely hot during operation. Pay attention that, no combustible material duetowindorotherenvironmental influences covers or obstruct the appliance, such as curtains, marquees, flags, plastic foiletc. Donottouch the appliance. Caution! Riskofscaldinjury!

• In case of improper use, there is a risk of electrical shock and/or fire hazard. Operation of the appliancemustbediscontinuedandremovethemainsplugimmediately.Donottrytorepair the appliance by your-self. Please contact with the service agent or a suitably qualified electricianformaintenance.

• Remove the plug from the power outlet and wait until the appliance is sufficiently cooled off beforecleaning.
• The appliance must only be mounted by an authorized specialist, paying attention to the relevant regulations of the powers supply companies and theregional construction regulations.

SaveTheseInstructions

Specifications

Specification	Thermex Havebordsvarmer II
Voltage(V)	220-240V
Powerconsumption(W)1200W
IPcodeIP65
InfraredreceivingAngle 60^ ± 5^
Thecontroldistance	6m (Max)
Actionangleoftiltswitch	50^ ± 10^ (360°)

FunctionInstruction

Handle Heating element Protection mesh Switch Base
Name F	unction
HandleMovetheheater
HeatingelementHeating
ProtectionmeshAvoiddamage
SwitchTurnon/off/standby
BaseFixedtheheater

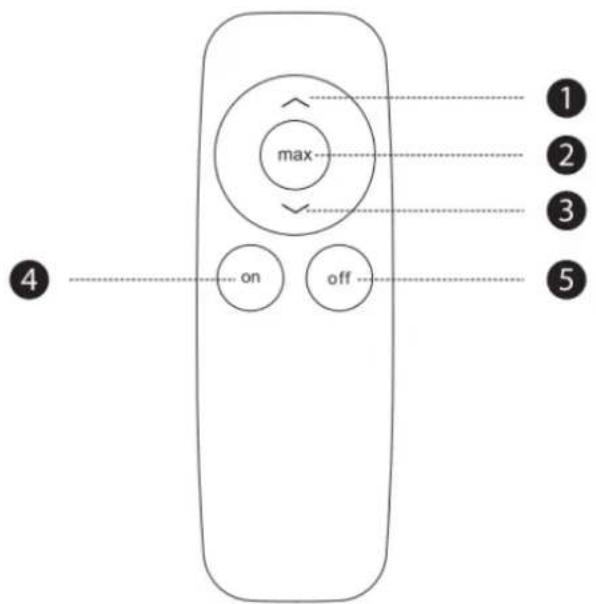

RemoteControllInstructions

max on off 1 2 3 4 5

ButtonFeature

1 UpArrowUponeheatinglevel
2 MaxTheheatergoesdirectlytothehighestheatinglevel
3 DownArrow	Downoneheatinglevel
4 On	Toswitchtheheateron:PressON.Thepatioheaterhasasoftstartfunctionof33%power.4secondsaftertheheaterhasbeenturnedon,itwillautomaticallyswitchtothe last heating level used. In case of the first-time use, after 4seconds the heaterwillautomaticallyswitchto100%power.
5 Off	Toswitchtheheateroff:PressOFF.Theheaterwillswitchtostandbymode(thereceiverindicator willlightup).

Notice :

• Use 2 pieces AAA 1,5V batteries in the remote control. Remove the battery when not use for long time, thus the lifespan of remote control can be extended.
• Choose the same specification battery when replacing the battery inside, otherwise it may cause remote control not work, thereby affect the normal use of the heater.
• Please contact service agent for further help if you need the function.
• The remote control function may be out of work if there is a barrier between the remote control and heater.
  ● Replacing the batteries duly so as not to affect the normal use of heater and remote control.

IOIISwitchfunction

• I=StandbyUsetheremotecontroltoturnON/OFFtheheater.
• II=ONTheheaterworksdirectlywithoutremotecontrol.
  O=OFFPowerOFF.

OperationInstruction

• Remove all package material (including anti-vibration object of the lamp) and check the appliance, supplycordandtheplugforsignsofdamage.
• Openthepackageofscrew, takeoffthescrews
• Openthepackageofthebase, takeoffthebase
  ● Fixthebaseontheheater, Figure1
• Nevermoveorcoveritwhentheheaterisworking, Figure2
• Pay attention to the mounting place and all mounting material(dowels, screws). Ensure they aresuitableandstableenoughformountingandlastinglyholdingoftheappliance.
  ● Pay attention that, the installation of the appliance must not add excessive wind load.
• Plug in the power source and operate the remote control. Then observe, whether during the first 10-15 minutes the appliance works trouble-free.
• If you do not use, please remove battery socket.

Figure1: Assembly diagram of the base

Simple line drawing of a device with a mesh pattern on top and two dots on the side (no text or symbols)

Figure2:Regularwork

Simple line drawing of a mechanical component with intersecting red lines (no text or symbols)

Nocover

Illustration of a person carrying a large cylindrical device with red cross marks (no text or symbols)

Nomoving

CleaningandMaintenance

• This appliance is consist of a robust and maintenance-free aluminum casing with a protection cover. Nouserserviceablepartsinside.
• Before cleaning, remove the plug from the power outlet and wait until the appliance is sufficiently cooled off.
  ● Wipe the appliance only with clean and lint-free cloth or a soft brush.
• Neveruseabrasivecleaners, scrubbingbrushes and chemical cleaners for cleaning!
  ● Canusealcoholtocleantheappliance.
  ● To protect against electrical shock and danger of life, do not immerse cord, plug, or any part of the appliance in water or other liquid.
• For heating element replacement, please contact the manufacturer or its service agent or a similarly qualified person.
  ● Any other service, please contact with the service agent or a suitably qualified electrician.

Storage

Donotroutecordwhenheaterstorage,orheaterisnotinuse.

Disposal

Thismarkingindicatesthatthisproductshouldnotbedisposedwithother householdwastesthroughouttheEU.Topreventpossibleharmtotheenvironment orhumanhealthfromuncontrolledwastedisposal,recycleitresponsiblytopromote thesustainablereuseofmaterialresources.Toreturnyouruseddevice,pleaseuse thereturnandcollectionsystemsorcontacttheretailerwheretheproductwas purchased.Theycantakethisproductforenvironmentalsaferecycling.

CustomerService

● Repairsmustbecarriedoutbyauthorizedspecialists,thusensuringelectricalsafety.
- Pleasecontactwiththeserviceagentorasuitablyqualifiedelectrician.
- Improperrepairscouldleadtodangertotheuser.
- This warranty does not cover damage off failure which results from alteration, accident, misuse, abuse, neglect, commercial use or improper maintenance.
- In line with our policy of continuous product development we reserve the right to change the productanddocumentationspecificationswithoutnotice.
