Product Type	Infrared Patio Heater
Brand	Thermex
Model	Tower Heater II
Voltage	220-240 V
Power Consumption	1200 W
IP Rating	IP65
Remote Control Distance	6 m (max)
Infrared Receiving Angle	60° ± 5°
Tilt Switch Action Angle	50° ± 10° (360°)
Remote Control Battery	2 x AAA 1.5V
Heating Element	Infrared lamp
Material	Aluminum casing with protection mesh
Safety Features	Overheat protection via tilt switch, IP65 weatherproof, automatic standby mode
Assembly Required	Yes (base attachment with screws)
Cleaning Instructions	Wipe with clean lint-free cloth; use alcohol if needed; no abrasive cleaners
Usage Environment	Outdoor and indoor (IP65 rated)
Power Cord Length	Not specified (typical 1-2 m)
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - Tower Heater II Thermex

How do I install the base of the Tower Heater II?

Remove the screws from the package, attach the base to the heater body and fix it firmly using the screws. Ensure the base is stable. Refer to Figure 1 in the manual.

Can I use this heater indoors?

Yes, the heater has an IP65 rating, making it suitable for both indoor and outdoor use. However, ensure proper ventilation and keep at least 0.9 m away from combustible materials.

How do I operate the remote control?

Insert 2 AAA 1.5V batteries. Press the ON button to turn on; the heater will start at 33% power and after 4 seconds switch to the last used level (or 100% for first use). Press OFF to turn off. Use UP/DOWN arrows to adjust heat levels.

What does the I/O/II switch do?

The switch has three positions: I (Standby) - heater can be turned on/off via remote; II (ON) - heater works directly without remote; O (OFF) - power off completely.

What is the maximum distance for the remote control?

The remote control works up to 6 meters from the heater, with an infrared receiving angle of 60°. Avoid obstacles between remote and heater for best performance.

How should I clean the heater?

Before cleaning, unplug the heater and let it cool completely. Wipe with a clean, lint-free cloth or a soft brush. You can use alcohol for stubborn stains. Never use abrasive cleaners or immerse in water.

What safety precautions should I take?

Do not cover the heater or block air intakes. Keep combustibles at least 0.9 m away. Do not use near flammable liquids. Always plug directly into a grounded outlet, never use an extension cord. Supervise children and pets.

Why is my remote control not working?

Check if batteries are inserted correctly and not depleted. Ensure there are no obstacles between the remote and heater. If the heater is in standby (I position) but remote still fails, replace batteries. For persistent issues, contact service.

Can I replace the heating element myself?

No, the heating element should only be replaced by the manufacturer, its service agent, or a qualified electrician. The appliance has no user-serviceable parts inside.

How do I store the heater when not in use?

Unplug and let it cool. Remove batteries from the remote. Do not route the cord around the heater. Store in a dry, clean place. Avoid placing heavy objects on top.

USER MANUAL Tower Heater II Thermex

Safety Instructions and Operation Manual

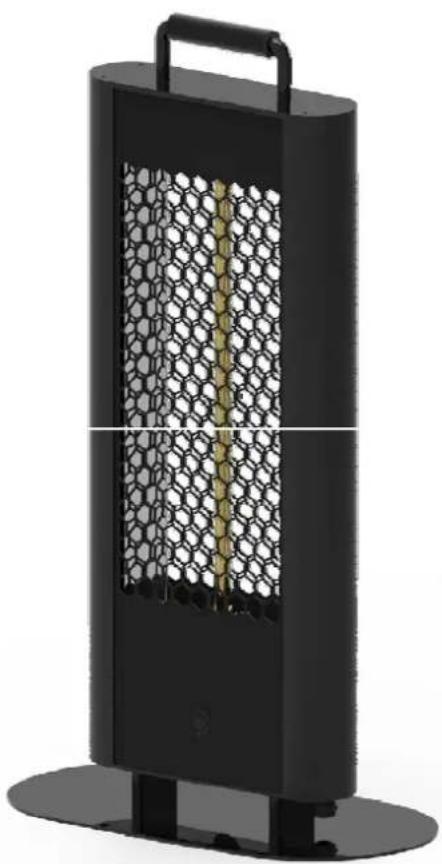

Black rectangular industrial heater with hexagonal lattice structure and a vertical yellow rod inserted (no text or symbols visible)

BriefIntroduction

ThisproductisinfraredadiantheaterwithremotecontrolandIP65approved.Itis almostunlimitedusedinoutdoor,suchasopenbars,courtyard,inwinteretc.This patio heater is energy-efficient, convenient, environmentally friendly and for better lifeetc.

ImportantSafetyInstructions

• Whenusingelectricalappliances,basicsafetyprecautionsshouldalwaysbefollowedto reducetheriskoffire,electricshock,orinjurytopersons,includingthefollowing:.
• Readallinstructionsbeforeusingthisheater
• Thisheaterishotwheninuse.Toavoidburns,donotletbareskintouchhotsurfaces.If provided,usehandleswhenmovingthisheater.Keepcombustiblematerials,suchasfurniture, pillows,bedding,papers,clothesandcurtainsatleast0.9mfromthefrontoftheheater.
• Extremecautionisnecessarywhenanyheaterisusedbyornearchildrenorinvalidsandwhenevertheheaterisleftoperatingandunattended.
  ● Alwaysunplugheaterwhennotinuse
• Donotruncordundercarpeting.Donotcovercordwiththrowrugs,runners,orsimilar coverings.Donotroutecordunderfurnitureorappliances.Arrangecordawayfromtraffic areaandwhereitwillnotbetrippedover.
• Connecttoproperlygroundedoutletsonly.
• Todisconnectheater,turncontrolsoff,thenremoveplugfromoutlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shockorfire, ordamagetheheater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner(such as newspapers, table-cloths, curtains, etc.). Do not use on soft surfaces, like a bed, where openingsmaybecomeblocked.
  ● Nonakedflamesources, such as lighted candles, should be placed on the apparatus.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used for stored.
• Usethisheateronlyasdescribedinthismanual.Anyotherusenotrecommendedbythe manufacturermaycausefire,electricshock,orinjurytopersons.
  ● Always plug heaters directly into a MAINS socket outlet with a protective earthing connection.
• Neverusewithanextensioncordorrelocatablepowertap(outlet/powerstrip).
• Checkifthevoltageindicatedonthenameplateoftheappliancecorrespondstothelocal mainsvoltagebeforeyouconnecttheappliance.
  ● The appliance is not located immediately below a wall socket-outlet.

• The casing and the front cover of the appliance become extremely hot during operation. Pay attention that, no combustible material duetowindorotherenvironmental influences covers or obstruct the appliance, such as curtains, marquees, flags, plastic foiletc. Donottouch the appliance. Caution! Riskofscaldinjury!

• In case of improper use, there is a risk of electrical shock and/or fire hazard. Operation of the appliancemustbediscontinuedandremovethemainsplugimmediately.Donottrytorepair the appliance by your-self. Please contact with the service agent or a suitably qualified electricianformaintenance.

• Remove the plug from the power outlet and wait until the appliance is sufficiently cooled off beforecleaning.
• The appliance must only be mounted by an authorized specialist, paying attention to the relevant regulations of the powers supply companies and theregional construction regulations.

SaveTheseInstructions

Specifications

Specification	Thermex Havebordsvarmer II
Voltage(V)	220-240V
Powerconsumption(W)1200W
IPcodeIP65
InfraredreceivingAngle 60^ ± 5^
Thecontroldistance	6m (Max)
Actionangleoftiltswitch	50^ ± 10^ (360°)

FunctionInstruction

Handle Heating element Protection mesh Switch Base
Name F	unction
HandleMovetheheater
HeatingelementHeating
ProtectionmeshAvoiddamage
SwitchTurnon/off/standby
BaseFixedtheheater

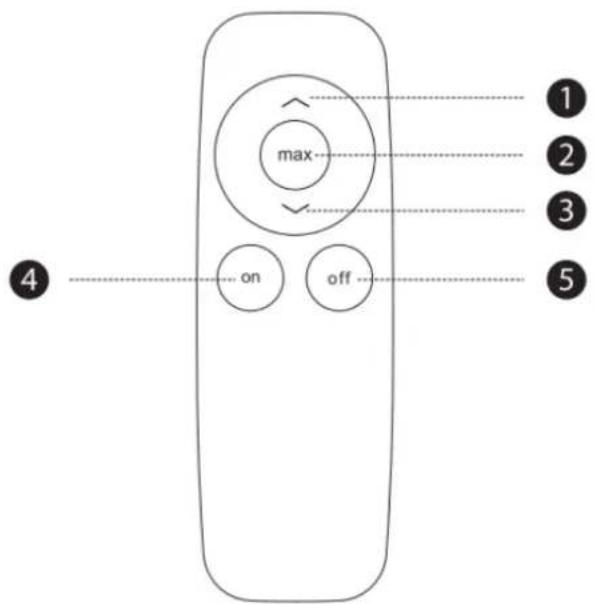

RemoteControllInstructions

ButtonFeature

1 UpArrowUponeheatinglevel
2 MaxTheheatergoesdirectlytothehighestheatinglevel
3 DownArrow	Downoneheatinglevel
4 On	Toswitchtheheateron:PressON.Thepatioheaterhasasoftstartfunctionof33%power.4secondsaftertheheaterhasbeenturnedon,itwillautomaticallyswitchtothe last heating level used. In case of the first-time use, after 4seconds the heaterwillautomaticallyswitchto100%power.
5 Off	Toswitchtheheateroff:PressOFF.Theheaterwillswitchtostandbymode(thereceiverindicator willlightup).

Notice :

• Use 2 pieces AAA 1,5V batteries in the remote control. Remove the battery when not use for long time, thus the lifespan of remote control can be extended.
• Choose the same specification battery when replacing the battery inside, otherwise it may cause remote control not work, thereby affect the normal use of the heater.
• Please contact service agent for further help if you need the function.
• The remote control function may be out of work if there is a barrier between the remote control and heater.
  ● Replacing the batteries duly so as not to affect the normal use of heater and remote control.

IOIISwitchfunction

• I=StandbyUsetheremotecontroltoturnON/OFFtheheater.
• II=ONTheheaterworksdirectlywithoutremotecontrol.
  O=OFFPowerOFF.

OperationInstruction

• Remove all package material (including anti-vibration object of the lamp) and check the appliance, supplycordandtheplugforsignsofdamage.
• Openthepackageofscrew, takeoffthescrews
• Openthepackageofthebase, takeoffthebase
  ● Fixthebaseontheheater, Figure1
• Nevermoveorcoveritwhentheheaterisworking, Figure2
• Pay attention to the mounting place and all mounting material(dowels, screws). Ensure they aresuitableandstableenoughformountingandlastinglyholdingoftheappliance.
  ● Pay attention that, the installation of the appliance must not add excessive wind load.
• Plug in the power source and operate the remote control. Then observe, whether during the first 10-15 minutes the appliance works trouble-free.
• If you do not use, please remove battery socket.

Figure1: Assembly diagram of the base

Simple line drawing of a device with a mesh pattern on top and two dots on the side (no text or symbols)

Figure2:Regularwork

Simple line drawing of a mechanical component with intersecting red lines (no text or symbols)

Nocover

Illustration of a person carrying a large cylindrical device with red cross marks (no text or symbols)

Nomoving

CleaningandMaintenance

• This appliance is consist of a robust and maintenance-free aluminum casing with a protection cover. Nouserserviceablepartsinside.
• Before cleaning, remove the plug from the power outlet and wait until the appliance is sufficiently cooled off.
  ● Wipe the appliance only with clean and lint-free cloth or a soft brush.
• Neveruseabrasivecleaners, scrubbingbrushes and chemical cleaners for cleaning!
  ● Canusealcoholtocleantheappliance.
  ● To protect against electrical shock and danger of life, do not immerse cord, plug, or any part of the appliance in water or other liquid.
• For heating element replacement, please contact the manufacturer or its service agent or a similarly qualified person.
  ● Any other service, please contact with the service agent or a suitably qualified electrician.

Storage

Donotroutecordwhenheaterstorage,orheaterisnotinuse.

Disposal

Thismarkingindicatesthatthisproductshouldnotbedisposedwithother householdwastesthroughouttheEU.Topreventpossibleharmtotheenvironment orhumanhealthfromuncontrolledwastedisposal,recycleitresponsiblytopromote thesustainablereuseofmaterialresources.Toreturnyouruseddevice,pleaseuse thereturnandcollectionsystemsorcontacttheretailerwheretheproductwas purchased.Theycantakethisproductforenvironmentalsaferecycling.

CustomerService

● Repairsmustbecarriedoutbyauthorizedspecialists,thusensuringelectricalsafety.
- Pleasecontactwiththeserviceagentorasuitablyqualifiedelectrician.
- Improperrepairscouldleadtodangertotheuser.
- This warranty does not cover damage off failure which results from alteration, accident, misuse, abuse, neglect, commercial use or improper maintenance.
- In line with our policy of continuous product development we reserve the right to change the productanddocumentationspecificationswithoutnotice.
