Product Type	10 Gigabit LR Fiber Tap (9 Micron)
Brand	USRobotics
Model	USR4516LC
Form Factor	1U rackmount
Port Connectivity	SC fiber connectors (2 Network, 2 Monitor)
Fiber Type	9 micron single-mode
Data Rates Supported	100 Mb, 1 Gb, 10 Gb
Maximum Distance	100 Mb: 2 km, 1 Gb: 550 m, 10 Gb: 82 m (between network endpoints)
Power Requirement	Passive, no external power required
Dimensions (H x W x D)	1.10" x 5.75" x 5.75" (28 mm x 146 mm x 146 mm)
Product Weight	0.65 lb (0.29 kg)
Package Weight	2.0 lb (0.91 kg)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-30°C to 65°C (-22°F to 149°F)
Humidity	<95% non-condensing
Package Contents	USR4516 Tap, Information Card
Installation Note	Connect network devices to NETWORK A/B, analysis tool to MON A/B; ensure fiber direction for proper light budget
Light Budget Consideration	Fiber direction is critical; if link faults occur, swap Network connectors (In/Out)
Compliance	CE, WEEE
Warranty	Limited warranty details at www.usr.com/support/4516
Support	Visit www.usr.com/support

Frequently Asked Questions - USR4516LC USRobotics

What is the USRobotics USR4516LC?

The USRobotics USR4516LC is a 10 Gigabit LR Fiber Tap (9 Micron) that provides passive access to monitor fiber traffic between network devices using analysis tools.

What are the package contents?

The package includes the USR4516 10 Gigabit LR Fiber Tap and an Information Card.

Does the tap require external power?

No, the tap is passive and does not require any external power.

What distance limits apply for different data rates?

For 100 Mb, the maximum distance is 2 km; for 1 Gb, 550 m; for 10 Gb, 82 m between network endpoints.

What type of fiber connectors does it use?

The tap uses SC fiber connectors with two Network ports (A and B) and two Monitor ports (A and B).

How should I connect fibers to the tap correctly?

Connect the fiber cables from device A to the NETWORK A SC port, from device B to NETWORK B, and from your analysis device to MON A and MON B. Ensure the fiber direction follows the light budget requirements: the Tx from the network device (with light) should enter the Rx port on the tap.

What should I do if my monitoring tool shows link faults?

Link faults often occur due to incorrect fiber direction. To remedy, simply swap the Network connectors (In to Out and Out to In) to ensure proper light levels reach the monitoring ports.

What are the operating temperature and humidity ranges?

The operating temperature is 0°C to 40°C (32°F to 104°F), storage temperature is -30°C to 65°C (-22°F to 149°F), and humidity should be less than 95% non-condensing.

Where can I find warranty and support information?

Warranty details are available at www.usr.com/support/4516. For technical support, visit www.usr.com/support.

What regulatory compliances does this product meet?

The product is compliant with CE (EMC Directive 89/366/EEC and Low Voltage Directive 98/68/EEC) and WEEE Directive 2012/19/EU.

USER MANUAL USR4516LC USRobotics

10 Gigabit LR Fiber Tap (9 Micron) Installation Guide

USR4516 10 Gigabit LR Fiber Tap (9 Micron)

Package Contents:

• USR4516 10 Gigabit LR Fiber Tap (9 Micron)
• Information Card

Introduction — The 10 Gigabit LR Fiber Tap (9 Micron) is a single-port device that provides easy access to passively monitor fiber traffic between devices using your network analysis tools.

Specifications:

• Occupies 1U of rackspace
• Port Connectivity: SC fiber connectors
• Cable Type: 9 micron fiber
- Distance Limit: typically at 100Mb 2km, 1Gb 550m, 10Gb 82m between any network to network end-points or network to monitor end-points.
• Power Requirement: Passive, no power required
- Dimensions H x W x D: 1.10" x 5.75" x 5.75" (28 mm x 146 mm x 146 mm)
• Weight: Product - 0.65 pounds (0.29 kg) Package - 2.0 pounds (0.91 kg)
- Operating Temperature: 0^ to 40^ C (32° to 104° F)
• Storage Temperature: -30^ to 65^ C ( -22^ to 149^ F)
• Humidity: Less than 95% non-condensing operating or non-operating

USRobotics®

Considerations for Fiber Installation:

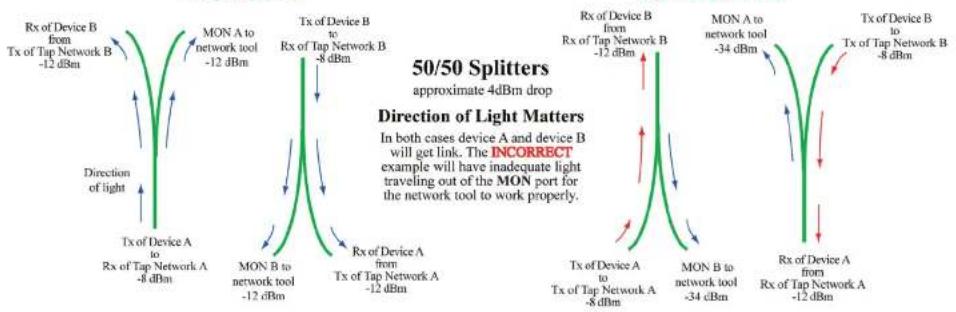

Fiber TAPs are splitters that divide the light traveling along the fiber into two separate channels. The splitting of the fiber takes signal strength from one fiber and divides it into two (or more) fibers requiring enough light from the main channel to be shared among the divided fibers - meaning that you need to take into consideration the "light budget" to allow for the loss of light on each split channel. By installing the fibers in the proper direction there should be enough light to work properly. If light does not enter the tap in the proper direction, the light traveling out from the MON port will be inadequate for the network tool to utilize the data. This is a common problem that results in link faults on the network tools. To remedy the problem, simply swap the Network connectors (In to Out and Out to In) for proper connectivity and link activity.

CORRECT

NOTE: All fiber connectors are keyed, the key pointing up, Tx is on the left and Rx is on the right. Tx from the network device, the fiber with light, should enter the Rx port on the Fiber Tap.

INCORRECT

USRobotics®

10 Gigabit LR Fiber Tap

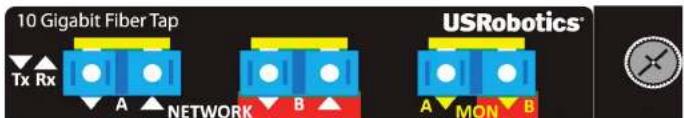

• Connect the fiber cables of device A to the NETWORK A SC port.
• Connect the fiber cables of device B to the NETWORK B SC port.
• Connect fiber cables from the Analysis device to the MON A and B SC port.

Warranty and Support Information:

This product is subject to the U.S. Robotics Corporation Limited Warranty. To view a copy of the Limited Warranty, please see: www.usr.com/support/4516

For information on how to contact USRobotics Technical Support, please see the USRobotics corporate web site at: www.usr.com/support

Regulatory Information:

CE Compliance

Declaration of Conformity

Hereby, USRobotics, declares that this tap, USRobotics 10 Gigabit LR Fiber Tap, is in compliance with the essential requirements and other relevant provisions of EMC Directive 89/366/EEC and Low Voltage Directive 98/68/EEC. An electronic copy of the original CE Declaration of Conformity is available at the USRobotics website: www.usr.com

This product is subject to Directive 2012/19/EU of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection
