USER MANUAL Actus-XL 35 Kit Cambo

Please read this manual carefully before using the ACTUS-XL 35 Kit!

3D mechanical assembly diagram showing interconnected components with no visible text or symbols

CAMBO

Thank you for purchasing a Cambo product.

The Cambo ACTUS-XL is a new view camera system, evolved from the ACTUS and ULTIMA series. Where the Actus Mini excels in being the lightest and smallest camera pla orm, the ACTUS-XL system is a fusion of both the Actus and UI ma camera pla orms, maintaining full camera movements. Modular is the keyword. The Actus-XL accepts all Actus lens plates and lens adapters, sharing the same mount. On the rear standard you nd an easy exchangeable frame holder for either a digital back or a DSLR/Mirror less camera body. Both front and rear standard have lateral movements, ver cal adjustments, swings as well as Its, all for op mized control over perspec ve and selec ve sharpness.

With the use of full view camera movements the photographer will be able to be more versa, be more crea ve and will be ge ng more professional results much faster than before.

Con gura on of the ACTUS-XL 35 Kit:

• Actus-XL View camera body
• ACXL-960 Lens plate holder (Without lens plate)
• ACXL-965 Bayonet frame (Op onal camera bayonet)
• AC-214 Extended bellow (250mm extension)
• UL-30 300mm monorail

1. Key Features

Expand the usability of your camera system

• View camera movement for selec ve sharpness
• Rear Shi movement to s tch wider angle images
• Focal plane shi s to increase le size
• Rota on Landscape/portrait built-in
• Built-in macro extension
• Use of various lens designs
• Interchangeable bellows op ons

Enhance your crea vity with the Cambo ACTUS-XL-35

• Use Its and swings to place exact sharpness where needed
• Create selec ve op cal un-sharpness
• Use more of the image circle of your lenses
- 5 tch your images without changing the lens posi on
• Focus closer and enlarge your subject without extension rings
• Experiment with other system lenses and medium format lenses

Experience the possibili es of the Cambo ACTUS-XL-35

• Front and Rear standards o er geared It / swing both on-axis
  • Lens plates are quickly interchangeable
• Quick slide focus adjustment rail
• Fine focus adjustment with precision gearing on both standards
  • Shi movements ver cal/horizontal in the focal plane
  • Zero clicks on all movements
  • Image centered rota on from landscape to portrait
• Exchangeable bayonets for Sony E-Mount, Nikon F, Canon EOS, Fuji X-series, Micro 4/3, Olympus OMD, Leica-M, Pentax-K, Canon-M, Olympus-OMD

2. Cambo ACTUS-XL-35 Specifications

Size L/W/H: 31x14,5x31,5cm

Weight: 4800 grams

Swing: +/- 20° both front and rear

Tilt: +/- 20° both front and rear

Shi ver cal: 40mm (20/20) both front and rear

Shi horizontal: 50mm (25/25) both front and rear

Max extension: up to 185mm (Sony E-mount)

(Lens plate to sensor) up to 205mm (Nikon F-mount)

Up to 201mm (Canon EOS-mount)

Monorail extensions: +150mm, +250mm, +420mm

Available colors: Black anodized

3. Warnings

Due to the modularity of the Actus camera system, many camera-lens combina ons are possible. Please beware that there is a possibility, with some camera-lens combina ons, that the rear element of the lens collides with the rear standard or a ached camera. Please note that Cambo is not responsible for any damage done to the Actus, lens or camera, due to improper or careless use.
Before changing the camera orienta on form landscape to portrait or vice-versa, ensure that there is enough clearance between the camera body and the rear housing of the Actus. If necessary (this depends on the camera body is used) use the ver cal shi to li the camera to gain more clearance.
⚠ Ensure that there is enough clearance between the camera body and the rear housing of the Actus, before dismoung the camera body.
(Over)exposure to direct sunlight or heat sources will damage the leather bellows. Keep/store the leather bellows in a cool, dry, dust free and ven lated place.
The Actus uses disc magnets to mount the bellows. These permanent magnets (magne sm N45) could cause temporary or permanent damage to equipment ^1 sensi ve to magne sm like magne c cards (credit card, ATM card).
⚠ Beware that some combina ons of swing, It, shi and focus adjustments can dismount the bellows.

4. Opera ng instruc ons

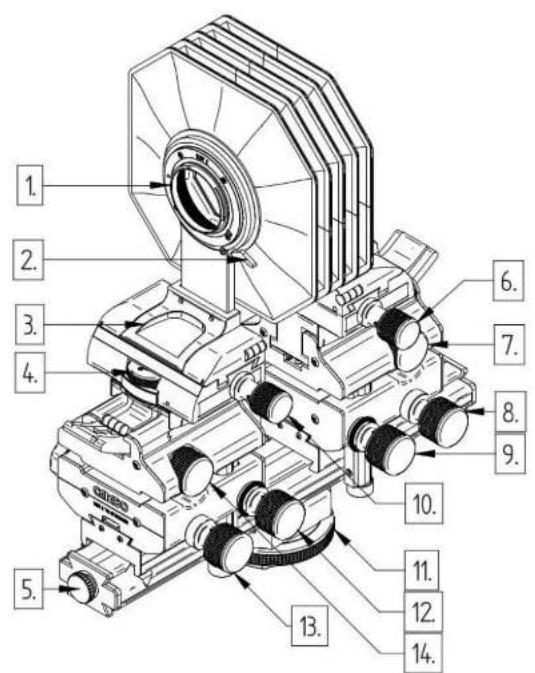

Actus-XL opera on knobs, right hand side

1. Camera mount (interchangeable bayonet)
2. Unlock lever camera orienta on
3. Camera holder dovetail
4. Rear swing adjustment knob
5. Rail extension
6. Front lateral shi adjustment knob
7. Front on-axis It adjustment knob
8. Front ne focus adjustment knob
9. Front Rise and fall adjustment knob
10. Rear lateral shi adjustment knob
11. Adjustable tripod moun ng block
12. Rear rise and fall adjustment knob
13. Rear ne focus adjustment knob
14. Rear on-axis It adjustment knob

Technical diagram of a surveying instrument with numbered parts for identification

Figure 1 Actus-XL, Right hand side

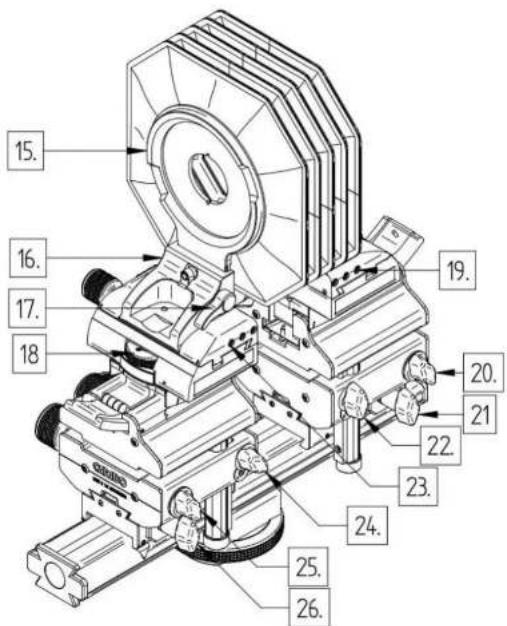

Actus-XL opera on knobs, le hand side

1. Actus lens panel
2. Lens holder dovetail
3. Lens panel (un)locking lever
4. Front swing adjustment knob
5. Rear dove tail adjustment screws
6. Locking knob rear ne focus adjustment
7. Locking knob rear fast focus adjustment
8. Locking knob rear rise and fall movement
9. Front dove tail adjustment screws ^2
10. Locking knob front rise and fall movement
11. Locking knob front ne focus adjustment
12. Locking knob front fast focus adjustment

15. 16. 17. 18 19. 20. 21 22. 23. 24. 25. 26.

Figure 2 Actus-XL, Le hand side

Cambo R&D February 2017
