USER MANUAL CS-STYX Cambo

Technical line drawing of a mechanical device with articulated arms and mounting brackets (no text or symbols)

INSTRUCTION MANUAL

EN

Please read this manual carefully before using the Cambo CS rig!

Thank you for purchasing a Cambo product

The Cambo CS system complies with the “Arriflex ^® 15mm Light Weight” standard. This means the CS system is compatible with parts of other brands using the 15mm light weight standard. The 15mm light weight standard characteristics are: 15mm iris rods that are positioned 60mm apart and 85mm below the optical axis.

The Styx-rig is designed as a compact DSLR/DV rig. The handle offset and angle are adjustable as for the distance between the shoulder pad and DSLR/DV.

Due to the modular character of the Cambo rig system, the user is fully in charge of customizing the rig to his or her personal preferences.

The Styx-rig can be used with any follow-focus and/or matte box, this rig configuration centers the weight of the rig on the handle axis.

Warnings

✗ Before loosening a clamp knob, ensure that the loosened part of the rig is supported.
✗ Do not tighten the clamp without a rod inserted. This can deform and damage the clamp.

Mechanical clamp device with a cylindrical shaft and a switch, accompanied by a black X symbol (no text or labels)

Mechanical component diagram with a checkmark indicating selection (no text or symbols present)

✗ Always check, after (re)assembly of the rig, if the clamps connecting the rods are well tightened.
✗ Do not lift the rig while holding only one handle. This could lead to excessive force momentum on the handle joint, causing it to shift.

Item check list

Before starting, please check if all items are included in your package. If anything is missing, contact your dealer.

Technical line drawing of a mechanical pipe fitting with flanges and connectors (no text or symbols)

CS-H1 grip handle compact (2x)

Mechanical assembly diagram showing a clamp mechanism with two shafts and a spring (no text or symbols)

CS-1546 iris rods 460mm (2x), CS-M1 camera/tripod mount (1x), CS-153 triple clamp (1x)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

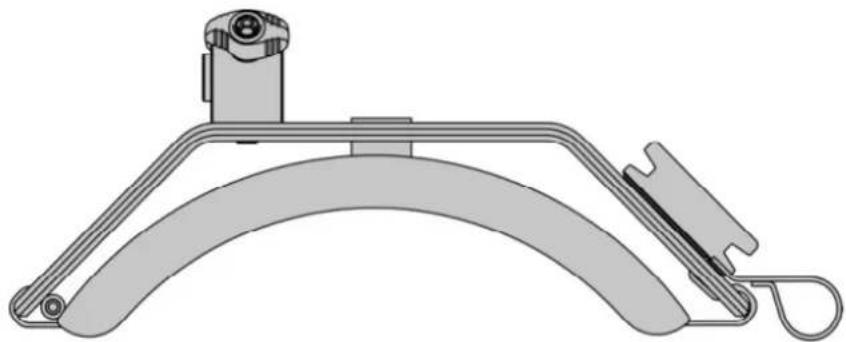

CS-P1 ergonomic pad (1x), CS-152 dual clamp (1x)

CS-1522 iris rod 220mm (1x)

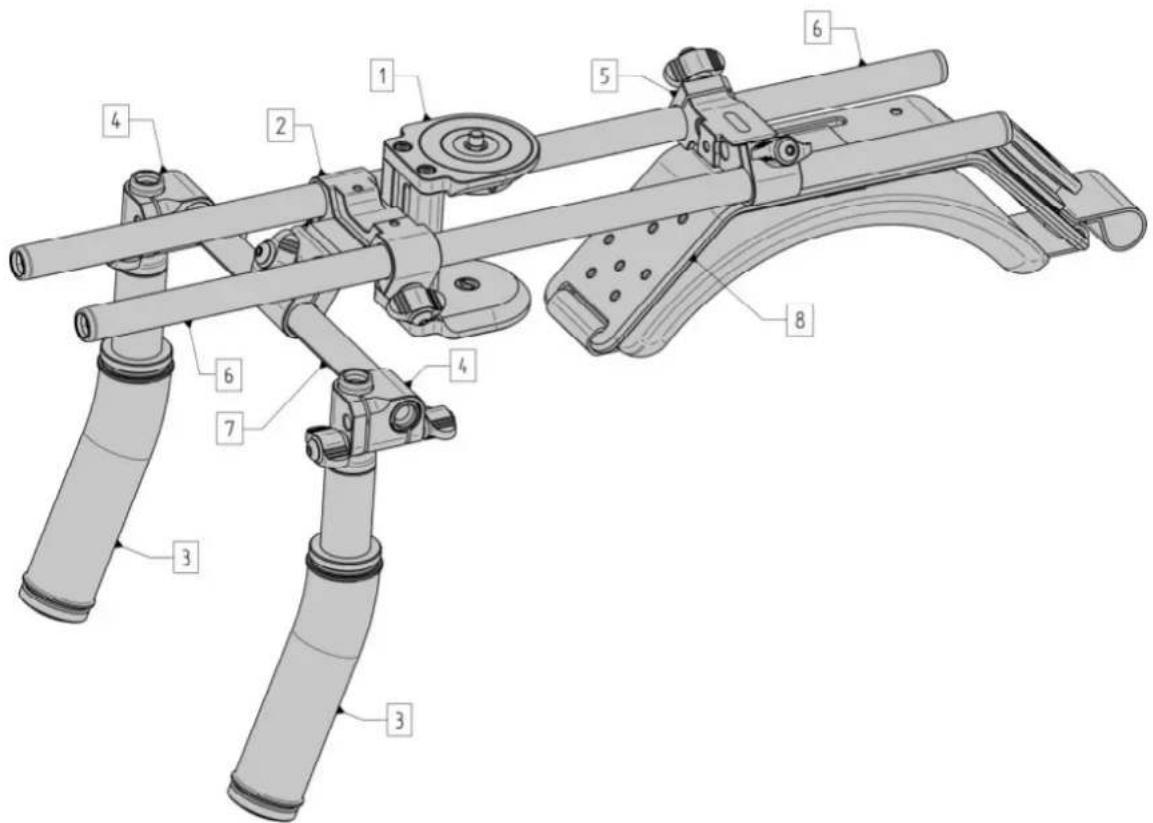

Overview CS-Eris rig

Technical diagram of a mechanical device with numbered components for identification

1 CS-M1 Camera/tripod mount
2 CS-153 Triple 15mm rod clamp
3 CS-H1 Grip Handle Compact (As an assembled unit includes CS-151 part)
4 CS-151 Perpendicular 15mm rod clamp
5 CS-152 Dual 15mm rod clamp
6 CS-1546 Iris rod 460mm
7 CS-1522 Iris rod 220mm
8 CS-P1 Ergonomic shoulder pad

CS-Eris rig adjustments

The "15mm Arriflex LW" standard, indicates a distance of 85mm between the optical axis and the axis of the rods.

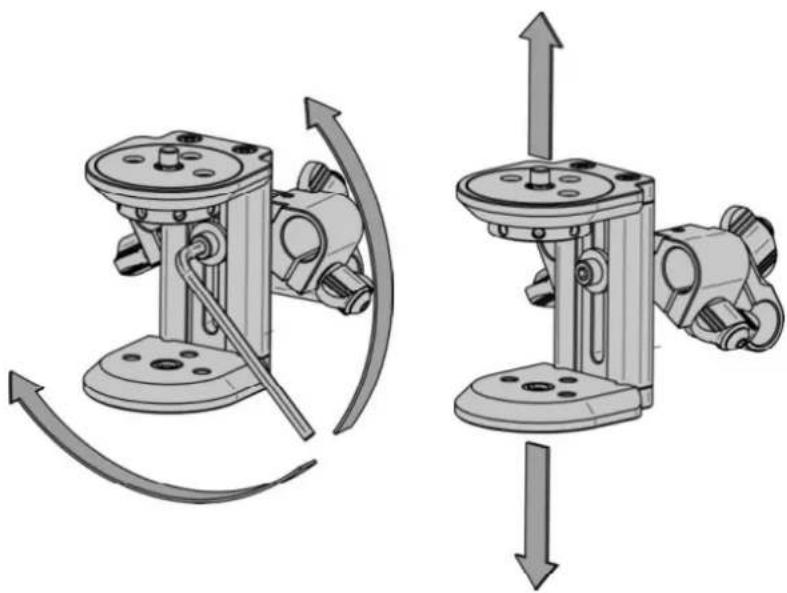

Due to the variation in camera bodies and quick-release plates the distance between the camera and rods is adjustable.

Use a hex-key 4mm to loosen the socket bolt, by turning it counter clockwise. Set the distance between camera and rods to the appropriate value, fasten the CS-M1 mount by turning the hex-key clockwise (do not over tighten the bolt).

Mechanical assembly diagram showing two configurations with rotating arms and directional arrows (no text or labels)

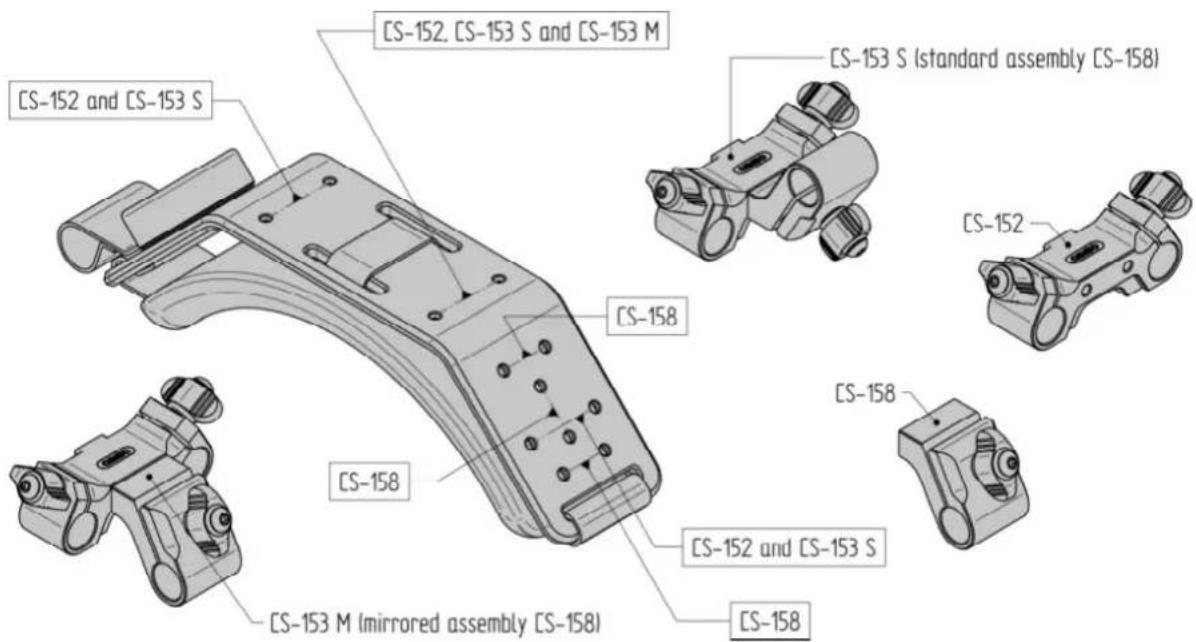

CS-152, CS-153 S and CS-153 M CS-152 and CS-153 S CS-158 CS-153 S (standard assembly CS-158) CS-152 CS-158 CS-152 and CS-153 S CS-158 CS-153 M (mirrored assembly CS-158)

The image above shows the different mounting options of the CS-P1 shoulder pad. The CS-152/153 and the CS-158 can be mounted directly to the CS-P1 shoulder pad.

Cambo CS system accessories

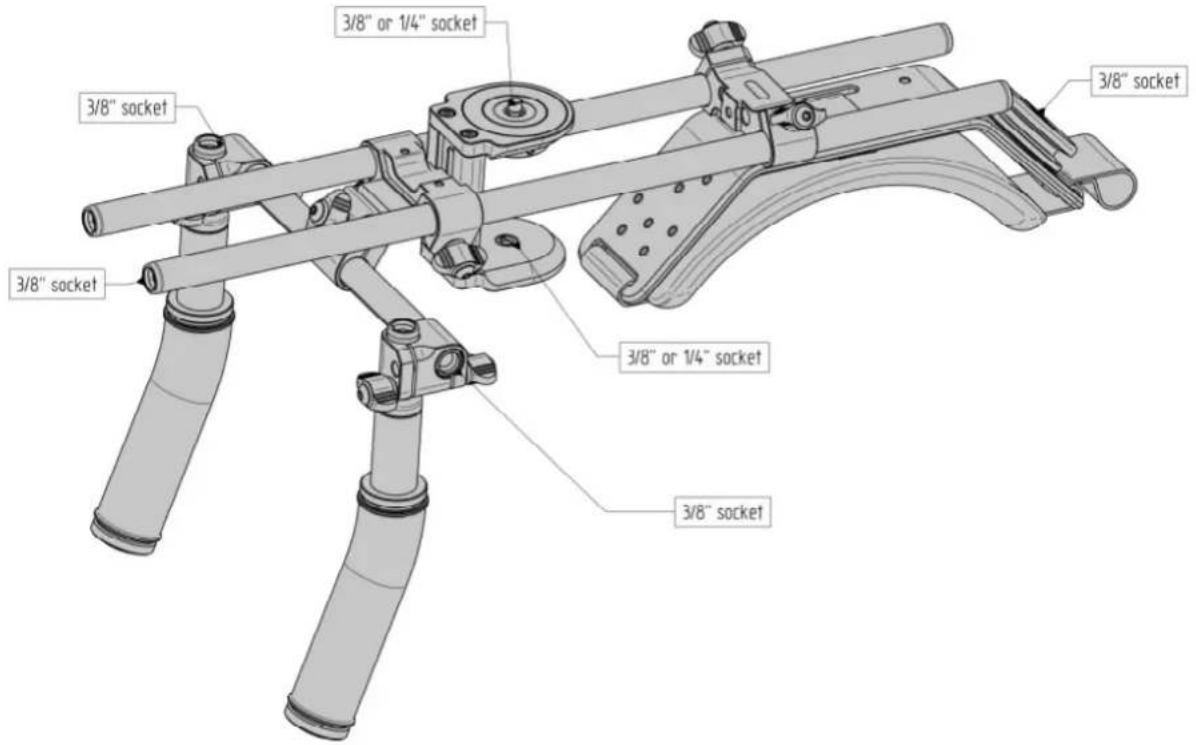

3/8" or 1/4" socket 3/8" socket 3/8" socket 3/8" or 1/4" socket 3/8" socket

The CS-15XX iris rods feature a 3/8" socket which can be used for mounting attachments. The CS-180 weight (0,8Kg) can be mounted directly to the CS-P1 shoulder pad.

Name Function

CS-155 iris rod connector

CS-156 3/8" adapter

CS-156 1/4" adapter

To couple two CS-15XX iris rods

To attach a 3/8" accessory

To attach a 1/4" accessory

monitor, microphone, light, etc.

3/8" screw CS-157 | 3/8" to 1/4" adapter 1/4" screw 3/8" screw CS-156 | 3/8" to 3/8" adapter 3/8" screw

CS-155 I 15mm iris rid connector 3/8" screw 3/8" screw 3/8" socket CS-180 I 0,8Kg weight CAMBO 0,8 kg 1,8 Kg 3/8" screw

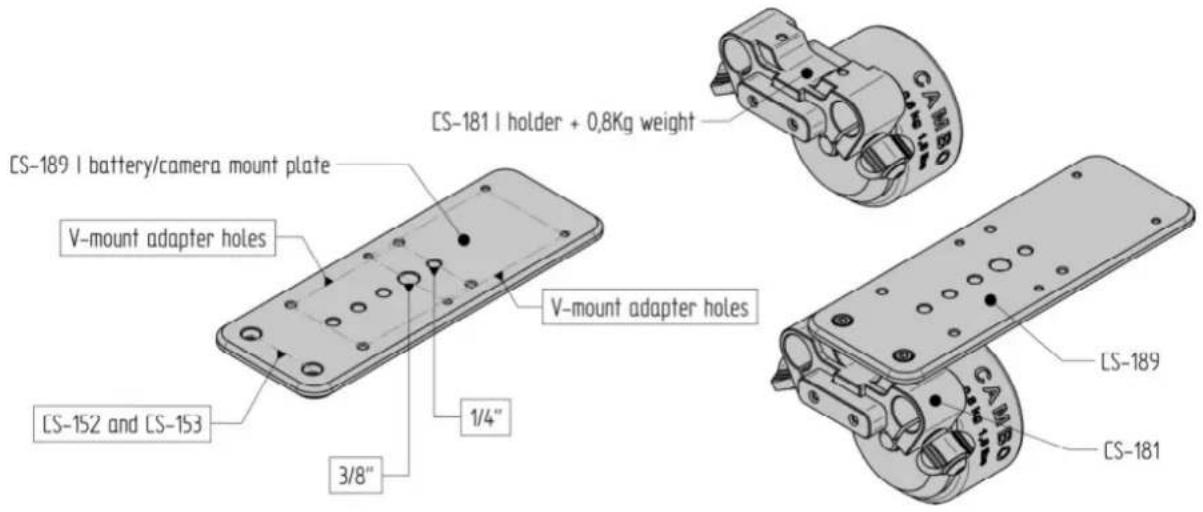

CS-189 I battery/camera mount plate V-mount adapter holes CS-152 and CS-153 3/8" 1/4" V-mount adapter holes CS-181 I holder + 0.8Kg weight CS-189 CS-181

The CS-181 unit can be used to adjust the weight distribution of the CS-rig.

CS-H1 unit CS-157 CS-15XX CS-155 CS-M8

The CS-M8 is a separate monitor/microphone/light stand which couples to the 15mm iris rod. The CS-H1 handle can be extended using a CS-155 connector and a CS-15XX iris rod.

Cambo CS system

15mm CS rig assemblies

CS-Abrix HDSLR Camera Support Basic

CS-Cilix HDSLR Support Two Grip Handheld

CS-Styx HDSLR/DV Shoulder Mount

CS-Cirus HDSLR OFFSET RIG

CS-Eris HDSLR Support Fully Adjustable

CS-Chronos HDSLR Cinema Rig Professional

15mm iris rod clamp units

CS-151 Rod Clamp 15mm Perpendicular

CS-152 Rod Clamp 15mm Dual Parallel

CS-153 Rod Clamp 15mm Triple Dual/Perpendicular

CS-154 Rod Clamp 15mm Bracket Quad Parallel

CS-158 Rod Clamp 15mm Single (Connects to the CS-152 and CS-P1)

Camera/tripod mount units

CS-M0 Compact Camera/Accessory Mount

CS-M1 Compact Camera/Tripod Mount

CS-M2 DV Camera/Tripod Mount One Column Base

CS-M4 DV Camera/Tripod Mount Two Column Base

CS-M8 Monitor/Microphone Support

CS-394 Quick Release Mount Manfrotto 394 RC4 Low Profile

Handle units

CS-H1 Grip Handle Compact (Includes the CS-151)

CS-H2 Grip Handle Telescopic

Shoulder support units

CS-P1 Shoulder Pad Ergonomic Adjustable

Weight/battery units

CS-180 0.8Kg/1,8Lbs Weight with 3/8" mount connections

CS-181 Weight Holder Including 1x 0.8Kg/1,8Lbs weights

CS-182 Weight Holder Including 2x 0.8Kg/1,8Lbs weights

CS-189 Battery/Camera Mount Plate (Connects to the CS-152 and CS-153)

15mm Rod Connector and Adapters

CS-155 Cambo Iris Rod Connector

CS-156 Cambo Iris Rod to 3/8" Adapter

CS-157 Cambo Iris Rod to 1/4" Adapter

HDRB Heavy Duty Stainless Steel Reducer Bushing 3/8" to 1/4"

15mm iris rods

CS-1509 Iris Rod 90mm / 3.5"

CS-1512 Iris Rod 120mm / 5"

CS-1522 Iris Rod 220mm / 9"

CS-1530 Iris Rod 300mm / 12"

CS-1536 Iris Rod 380mm / 15"

CS-1546 Iris Rod 460mm / 18"

Matte-box units

CSM-100 Matte-box Flexible Hood

CSM-210 Matte-box Kit, two filter holder, one rotating

Follow-focus units

CSMFC-1 Follow Focus Kit Universal

Viewer-loupe units

CS-30 3" Monitor Viewing Loupe 3.0x Magnification

Cambo Photographic Industry B.V. / Cambo Video and Broadcast Products B.V. Cambo R&D 14-6-2010

This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual. All specifications in this instruction manual are subject to change without notice.

For more information please visit the Cambo web site: www.cambo.com
