USER MANUAL PIPCAMHD82 Pyle

Indoor Wireless/Wired HD P2P Network Camera Pro. (with H.264 image compression)

Close-up of a black remote control camera with a spherical head and silver bezel, emitting signal waves (no text or symbols visible)

PIPCAMHD82

Quick Start Guide

Find FAQs including setup video and support online at www.pipcamwireless.com

WIRELESS SETUP

1. Download the App;

Download "Pyle IP Pro" in Apple Store or Google Play

1. Attach the wireless antenna to your camera. Plug in your camera into power in the SAME room as your home's wireless router - wait 2 minutes for the camera to pan and tilt through the full range of motion

Close-up of a black electronic device with two connected ports and a red arrow pointing to one (no visible text or symbols)

1. Reset the camera using a pin - Hold in the reset pin for 10 - 12 seconds until you hear an audible chirp. Wait again 1 - 2 min for the camera to reset and run through the full range of pan and tilt

Close-up of a green electronic component being processed with a tool, no visible text or symbols

1. Check in your mobile phone's system settings that you are currently connected to your home router's wireless network - Setup will not work using cell data

WIRELESS SETUP

1. Open the Pyle IP Pro app and select the "add camera" option

Edit Refresh PYLE® Before watch the video, you need add a camera Add Now

1. Enter the password for your home wireless network

Step 2 One Key Config Need Current Will info of iPhone Lanzar Next Note: this mode only supports a few models, please check the product packing support.

1. Select "One Key Config"

Back Add Help Method One (1) Scan OFF/Book Scan Method Two (1) Scan Local Network Scan Method Three Manual Press Input Method Four (1) Use Real Currency Comparable currency and Auto

1. Wait for the camera to chirp indicating the connection has been made

One Key Confo Auto Process 4% Please wait for about a minute

WIRED SETUP

1. Plug your camera into AC power

Close-up of a black electronic device with a metallic connector and a golden bulb, placed on a blue surface (no visible text or symbols)

1. Plug your camera directly into your router with wired Ethernet wire (included)

NOTE: Wired Ethernet is required for setup. Wireless will be configured later.

Close-up of a hand inserting cable into a network socket (no visible text or symbols)

NOTE: Wait 2-3 minutes for camera to boot. You will see the camera run through a full range of pan and tilt motion.

1. When boot up completes, your camera's ethernet port will flash yellow and green lights indicating the camera is connected to your router.

Close-up of a white USB connector with green connectors and yellow indicator lights, mounted on a blue surface (no visible text or symbols)

NOTE: If lights are not flickering the camera is not receiving data. Please check for faulty ethernet cable and that your router is working with another device.

1. Check that you have WIFI enabled in your phone's system settings

WIRED SETUP

1. Open up the Pyle IP Pro app and select "add camera"

PYLE® Before watch the video, you need add a camera Add Now

1. Scan the QR code on your camera with your smartphone's camera

Scan URCode Camera only Camera's sensitive

1. Select the option to "Scan QR Code"

Back Add Help Method One Scan Method Two Scankey Config Auto

1. Name your camera to your preference - Then input the camera default password "pylecam"

SCAN QRCODE C3TT8669E5LADSMK7X2 Add Camera a w e i t y u i o p a s d f g h j k l z x c v b n m Z Q S P C N R

WIRED SETUP

1. Make sure to change the password to a custom password
2. Now navigate to the "Camera" tab to see a list of all of your cameras. Select the newly added camera to check you can see the video feed.
3. Select "Edit" in the top left corner, then "set" on your camera's entry.

Daima PYLE OK PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE + PYLE +

1. Select "WIFI Setting"

Back Camera Settings Choose Lfd 2198001.PANUSK111A Password ****** Change Password WPI Setting Device Clock Setting SDC#t Settings Motor Clock Settings Java Note 50Hz LED Indicator Maps

1. Wait for the list of available WIFI networks to appear. Select your home network.

- No networks displayed? Go to www.pipcamwireless.com and search "I am having trouble connecting to WiFi" for more help

WIRED SETUP

1. Add the wireless password for your home router

soft soft_guwt xintywt optin-rwtf TWCF-F Lanser Lanser-guwt Your Network Name

LANzar Protocols are cold variations and modifies constant variability Cancel Open Lanzar Protocols Lanzar guest Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 03 C space return

1. The camera will now reboot. Please wait for the app to countdown from 60 seconds

DO NOT REMOVE THE DATA CABLE FROM THE CAMERA

1. Once the countdown stops, look for the "Connected" to show next to your network

Back WiFi setting WiFi-guest WiFi WiFi Lenter Lenter-guest WiFi-guest sfa#y#wi sfa#ywi optimumwi TWCWiFi anipam electric SFA GPs WiFi

1. Now you can disconnect the wired ethernet cord and move the camera to its desired location

Note: Passwords are case sensitive and the app isn't smart enough to tell you if you have tuned it correctly. If you have any doubt about

WIRED SETUP

1. Open up the camera feed in your Pyle IP app and you can check that it is live!

Black Video Camera: music/Video/phone File Operation EPCAM Camera Status: COMPUTER Last View Time: 100% (6:18:15) (3:00) Storage Status: No EPCG or Real Format Network Address: No IP address only (1:00) Remote Net IP: LAN 100.168.15.179 Current WPI: Newer

Find desktop setup - feature overview and product registration online!

www.pipcamwireless.com

TROUBLESHOOTING

If the camera does not chirp and the loading bar times out - try the reset like in step 3 and try again

Make sure you have correctly entered the password for your home wireless router

If you have trouble multiple times with "One Key Configuration" - On the reset in step 3.

Pyle H.264 Solution Desktop Setup QSG Find FAQs including setup video and support online at http://www.pipcamwireless.com

This guide covers the following models
-PIPCAM8
-PIPCAMHD17
-PIPCAMHD45
-PIPCAMHD46
-PIPCAMHD47

Before you begin

*Setup should be done in the same room as the wireless router in your home.
* Camera and PC must share the same network. Verify the setup PC is on the SAME network as the wireless router in your home.

1) Plug your camera into power
2) Attach the wireless antenna to your camera (If Applicable)
3) Plug your camera directly into your router with wired Ethernet wire

Close-up of a computer mouse with visible internal components (no text or symbols)

-You will see the camera run through a full range of pan and tilt motion.

-When boot up completes, your camera's Ethernet port will flash yellow and green lights indicating the camera is connected to your router.

Close-up of a white cable connector with green terminal blocks and gold connectors, mounted on a blue surface (no visible text or symbols)

If you do not see the flickering lights - DO NOT CONTINUE

please refer to the FAQ online

https://pyleaudio.helpshift.com/a/pyle-ip/?s=general&f=the-green-and-yellow-lights-at-the-back-of-my-camera-do-not-flash-when-plugged-into-power-and-ethernet

5) Copy/Paste or type the link below into your Internet browser to Download the software package online

www.pyleaudio.com/manuals/drivers/pipcam8.zip

6) Unzip the zip file and select Mac or the other folder depending on your OS

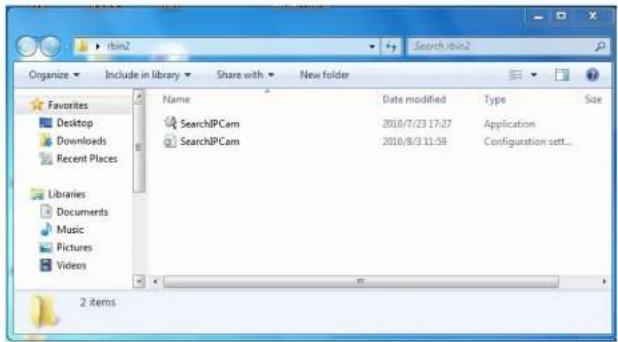

7) Open the "IP Address Tool" folder and install the "SearchIPCam Setup" file on your PC

8) Once installed – open the "S-CAM Finder" app

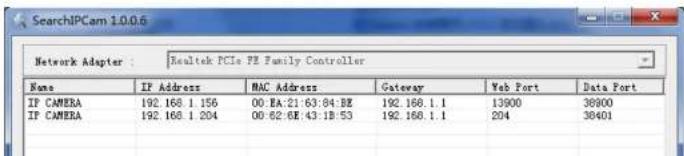

S-CAM Finder

Click the "Refresh" icon to find your camera

Network Adapter : Intel(R) 82567LM-3 Gigabit Network Connection
Name	IP Address	MAC Address	Gateway	Web Port	Data Port
IP CAMERA	192.168.1.123	54:CD:EE:00:F2:9C	192.168.1.1	80	38401
IP CAMERA	192.168.1.131	54:CD:EE:02:29:7A	192.168.1.1	88	38401

NOTE: Some users may see a blue background in the web UI – while the options may be in slightly different places, the setup process is the same

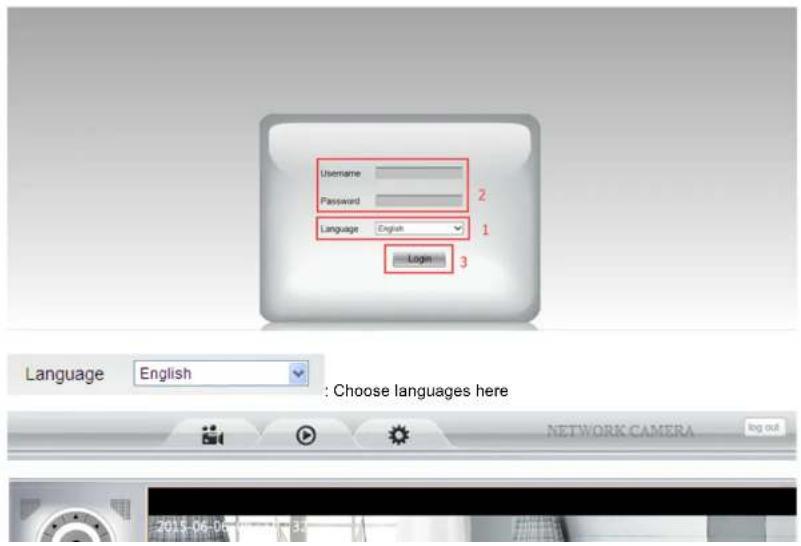

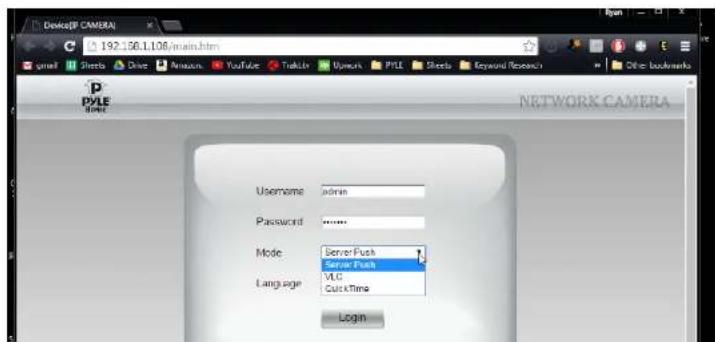

10) Log in using your camera's default user name and password USER: admin PASS: "pylecam" OR "admin"

11) Select the login option appropriate for your browser -Google Chrome: Server Push Mode -Internet Explorer: ActiveX Mode -Safari/Firefox: VLC Mode

- I recommend using Google Chrome for fast initial wireless setup – to continue setting up using Internet Explorer, skip to the link at the end of the guide to learn how to install the Active X plugin – then resume step 12 for wireless configuration

DeviceP CAMERA 192.156.1.108/main.htm p PYLE SPOLE NETWORK CAMERA Username: admin Password: ******** Mode: Server Push Server Push Language: VLC Quick Time Login

12) Check that you see a live video feed for the camera

192:198.1:108/main.html gmail Sheets Close Amazon YouTube YouTube Truksy Upwards PPLE Sheets Keyword Research Other backweeks p DYLE SHEE 2016-07-14 00:14:35 IP CAMERA

No Video?

-If you aren't using Google Chrome - back up to step 9 and try logging in using Google chrome in server push mode now

-Your login password may be incorrect – try both default passwords suggested step 11 -If still no video – do a hardware reset to make sure the camera password is set back to default passwords

[Unreadable]

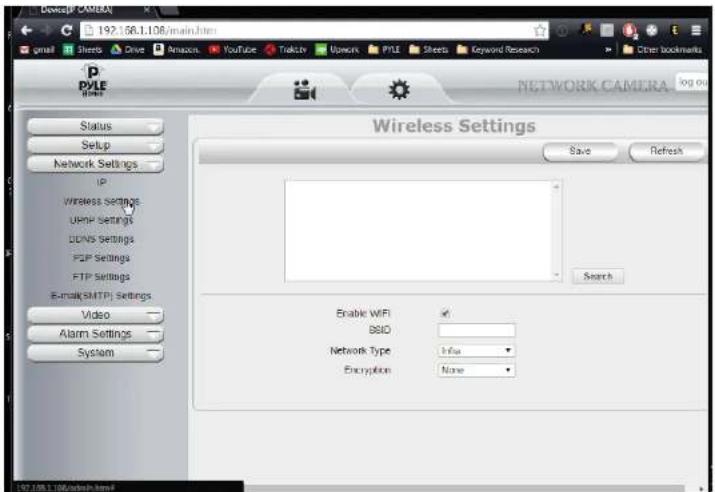

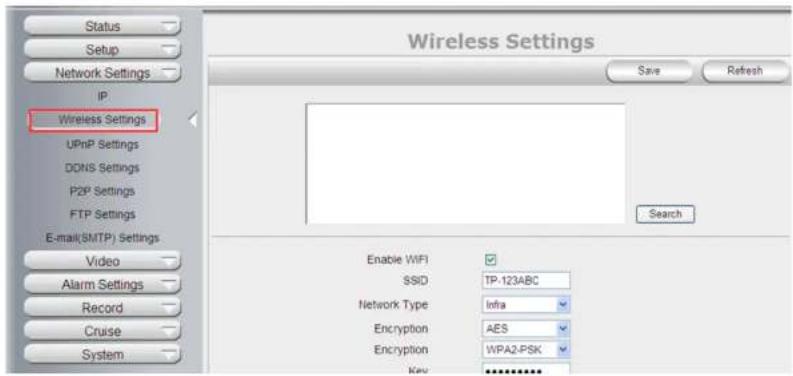

192.108.1.106/main.html PYLE PYLE Status Setup Network Settings IP Wireless Settings UHHP Settings DDNS Settings FDP Settings FTP Settings E-mail(SMTP) Settings Video Alarm Settings System Network Camera log on Save Refresh Wireless Settings Enable WIFI ✓ BSID Network Type Info Encryption None Search 192.108.1.106/main.html

No Networks Detected?

See FAQ online

https://pyleaudio.helpshift.com/a/pyle-ip/?s=general&f=i-don-t-see-any-networks-detected-when-setting-up-wifi

Or go to the FAQ on pipcamwireless.com and search the FAQ "I don't see any networks detected"

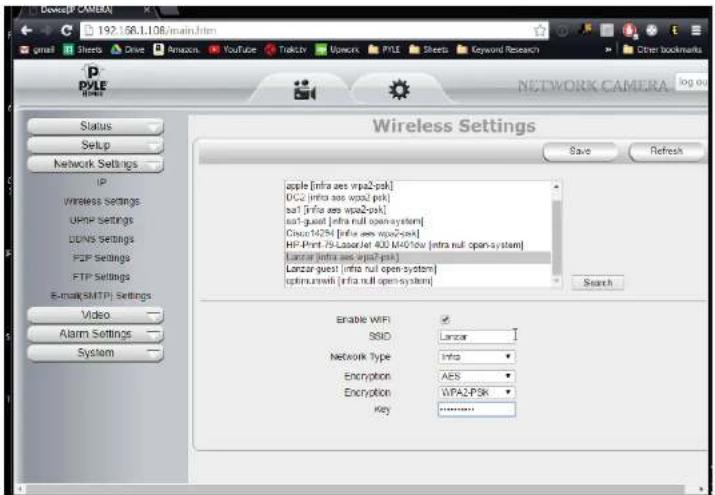

Developer CAMERA 192.106.1.108/main.htm gmail Sheets Drive Amazon YouTube Traktory Vancure Pyle Sheets Keyword Research Other bookmarks PYLE HKEY NETWORK CAMERA log on Status Setup Network Settings IP Wireless Settings UPSP Settings DDNS Settings F2P Settings FTP Settings E-mail(SMTP) Settings Video Alarm Settings System Wireless Settings apple [infra aos wpa2-psk] DC2 [infra aos wpa2-psk] sat [infra aos wpa2-psk] sat-guest [infra null open-system] Circust42% [infra aos wpa2-psk] HP-Print 75-Laser/let 400 M40/low [infra null open-system] Lancar [infra aos wpa2-psk] Lancar-guest [infra null open-system] optimuswalt [infra null open-system] Save Refresh Search Enable WIFI SSID Linear Network Type Info Encryption AES Encryption WPA2-PSK Key ............

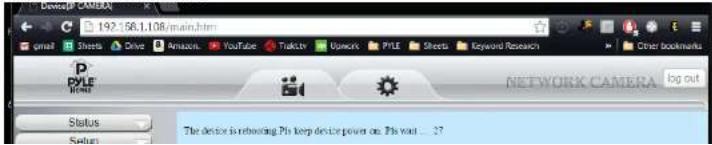

5) Allow the camera to load – wait for the countdown to run before adjusting the camera or web browser

192.156.1.108/main.htm PYLE Front Status Sapiere The device is networking Pi keep device power on Pi wait ... 37 NETWORK CAMERA log out

DON'T UNPLUG YOUR CAMERA POWER CABLE YET

5) Now let's test the wireless connection in the same room as your wireless router before moving the camera to the final location
-Leaving the power plugged in - Disconnect the wired Ethernet cable and wait

6) Wait 2-3 minutes for the camera to reboot

-I know - it doesn't look like it is doing anything... But wait a bit before trying to adjust the camera or refresh the app

PIPCAM5

You should see the white LED indicator go out as soon as you pull out the network cable - after 1-2 min the LED indicator should come back on rapidly flashing

Troubleshooting

If the camera does not connect wireless after 2-3 mins un-pluged from the data cable - Reconnect the wired Ethernet cable and try

1) Setting the wireless password again

-Check password is entered correctly - Passwords are case sensitive - the app will not give you "incorrect wifi password" indication

2) Try a hardware reset

Instructions available on our FAQ online http://pyleaudio.helpshift.com/a/pyle-ip/?s=general&f=how-can-i-hardware-reset-my-camera

Don't forget to claim your free 1 year warranty by registering your camera with us online!

Find help and support with us online!

http://www.pipcamwireless.com

CONTENTS

1. INTRODUCTION....4

1.1 Features 5

1.2 Packing List 5

1.3 Product Views....6

1.4 PC System Requirements 7

1.5 Hardware Installation 7

1. INSTALLATION AND SETTINGS 8

2.1 Network Connection....8

2.2 Browser Settings (For IE only) 9

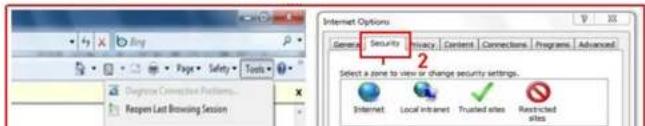

2.3 UPnP Service....10

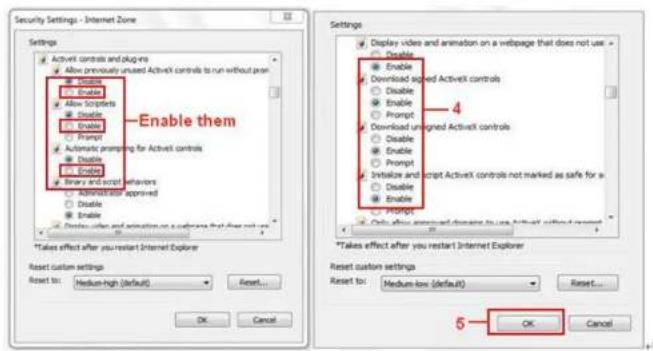

2.4 IPCam IP Address Search Tool (for IE browser only)....11

2.5 Install the OCX ActiveX (For IE only)....12

1. SOFTWARE OPERATION....14

3.3 Functions 16

3.4 For Live Video (for IE browser) 17

1. SETTINGS 26

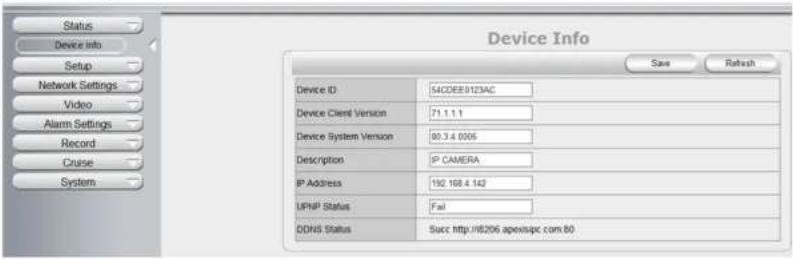

4.1 Status----Device Info....26

4.2 Setup....26

4.2.2 Multi-Device Settings 27

4.2.3 Date & Time 28

4.2.4 Audio Settings 28

A 3 Network Settings 2R

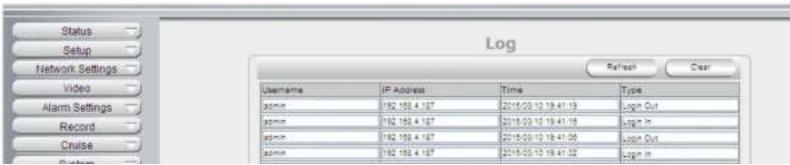

4.7.1 Log 38

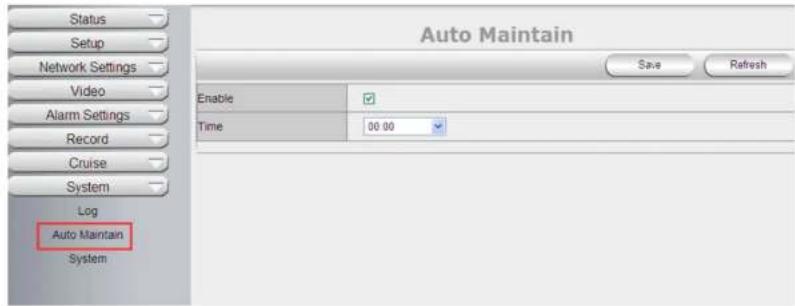

4.7.2 Auto Maintain 38

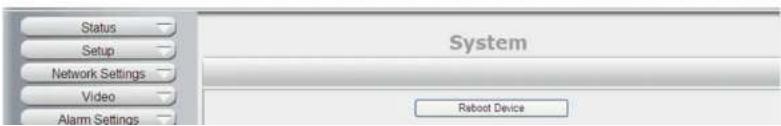

4.7.3 System 39

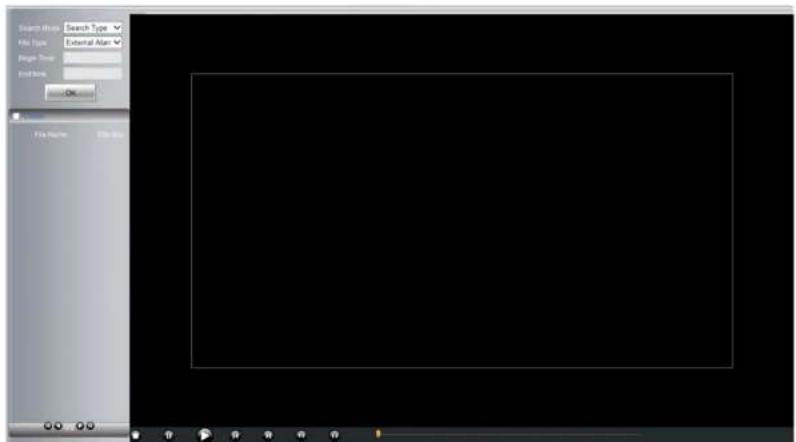

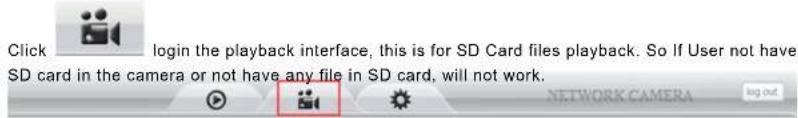

1. PLAYBACK for IE browser only 40
2. FREQUENTLY ASKED QUESTIONS....41
3. SPECIFICATIONS 46
4. OBTAINING TECHNICAL SUPPORT 47

1. INTRODUCTION

This user manual will show the details to set up your camera with your computer; if you are viewing with a Smartphone, pls check Quick Start Guide, as it is very easy to set up.

IMPORTANT NOTICE

The various screens throughout this owner's manual will look different depending on the browser you use. Full functionality is available when using Internet Explorer (IE) with ActiveX (OCX) installed. Limited functionality is available with other browsers, such as Safari, Chrome, and Firefox.

Please Read this manual carefully, according to the browser you are using.

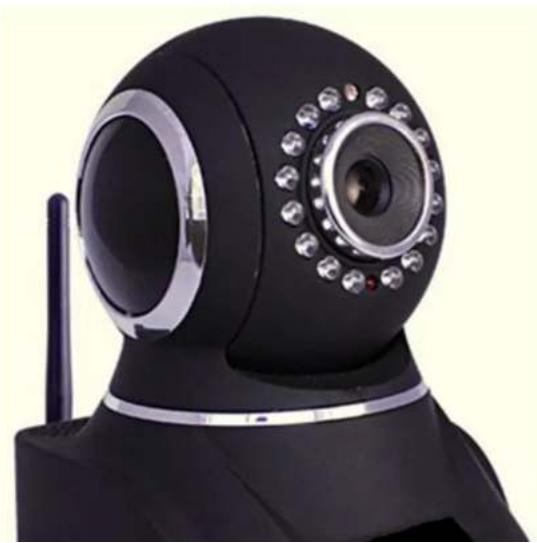

This is an integrated wireless IP Camera. It combines a high quality digital Video Camera with network connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local network or over the Internet.

The main function of the camera is to transmit remote video over IP network. The high quality video image can be transmitted with 30fps speed on the LAN/WAN by using H.264, MJPEG compression technology.

It is based on the TCP/IP standard build-in WER server which supports Internet Explorer

1.1 Features

☆ Powerful high-speed video protocol processor
☆ High-sensitivity 1/3" CMOS sensor
☆ Picture total 2000K pixels (2megapixel)
☆ Supports Pan and Tilt (PT) control, Pan 320°, Tilt 120°
★ Optimized H.264 MJPEG video compression for transmission
☆ Multi-level user management and passwords definition
* Embedded Web Server for users to visit by IE
☆ Supports wireless network (WI-FI/802.11/b/g/n)
☆ Supports Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆ Gives an alarm in case of motion detection
☆ Supports image snapshot
Supports multiple protocols : TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP.
Supports WEP/WPA/WPA2 encryption
☆ Supports IE, Firefox, Safari, and Google chrome browsers

1.2 Packing List

• IP Camera
• Wi-Fi Antenna
• Quick Setup Guide
• DC Power Supply

1.3 Product Views

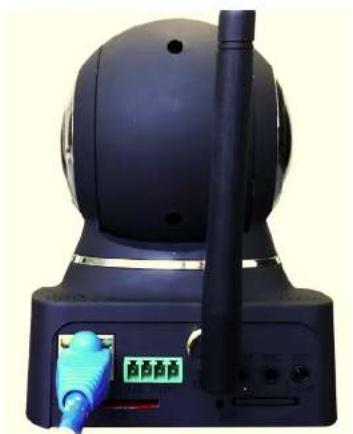

1.3.1 Rear View

Close-up of a black remote control camera with a blue connector inserted, no visible text or symbols

Close-up of a blue circular object with a QR code on its side, likely for scanning to access digital content.

I/O Alarm Pin: 1 Alarm input (GND) 2 Input 3 Output A 4 Output B.

Network Interface: RJ-45/10-100 base T.

Network Light: The green LED will be on when the network is connected, the yellow LED will blink when data is transferred.

Reset: If you press and hold the RESET button for about 10 seconds, all the parameters will be set back to the factory default settings. (Please keep the power on when doing a RESET).

1.4 PC System Requirements

System configuration requirements:

CPU: 2.06 GHZ or above.

Memory: 256M or above.

Network Card: 10M or above.

Display Card: 64M or above memory.

Recommended Operating system: Windows XP, Windows Vista, Windows 7.

1.5 Hardware Installation

Follow the steps below to set up your camera hardware.

1. Install the Wi-Fi antenna.
2. Plug the power adaptor into the camera and into an AC outlet.
3. Plug the network cable into the camera and router/switch

2. INSTALLATION AND SETTINGS

System Requirement:

Operating System: Windows 2000 / XP / Vista / 7

Network Protocol: TCP/IP

Network Structure: Applies to all network connections 10/100M LAN platform

Browser: Internet Explorer 6.0 or above. Firefox, Google, Safari, or Chrome.

2.1 Network Connection

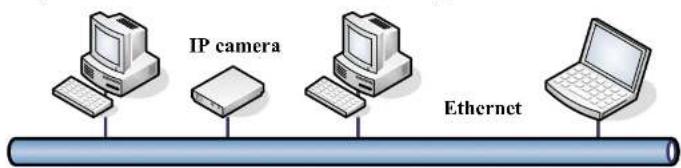

Intranet and Extranet Connection Reference:

Extranet means public IP (i.e. The Internet), Intranet means private IP. If your IP belongs to the follow range, then it's a private IP :

Category A: 10.0.0.0 - 10.255.255.255

Category B: 172.16.0.0 - 172.31.255.255

Category C: 192.168.0.0 - 192.168.255.255

Intranet Connection: The IP camera and your computer (device) should be under the same network environment, and both of the IPs should be under the same subnet, pictured as below:

IP camera Ethernet

Extranet Connection: there are 2 ways as below:

(1) IP camera connects to the Internet via a router, here camera's IP is a private IP client needs to connect

2.2 Browser Settings (For IE only)

OCX will be downloaded automatically when you login to the IP Camera, but you might have to set the IE browser to enable the OCX to be downloaded automatically after signing in. Steps as below:

1. Close the firewall of your computer.
2. Change the ActiveX settings, "IE" browser > "Tool" > "Internet Options" > "Security" > "Custom Level" > "ActiveX control and Plug-ins", all the ActiveX options set to be "Enable":

Especially:

Enable: Download unsigned ActiveX controls

Enable: Initialize and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plug-ins

Internet Options General Security Privacy Context Connections Programs Advanced Select a zone to view or change security settings. Internet Local Internet Trusted sites Restricted sites

Security Settings - Internet Zone Settings ■ ActiveX controls and plug-in ■ Allow previously unused ActiveX controls to run without prior ■ Enable ■ Allow scripts ■ Enable ■ Prompt ■ Automatic prompting for ActiveX controls ■ Enable ■ Enable ■ Binary and script behaviors ■ Administrator approved ■ Enable ■ Enable ■ Delete video and animation on a cloud that does not use * Takes effect after you restart Internet Explorer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel Settings ■ Display videos and animation on a webpage that does not use ■ Enable ■ Download signed ActiveX controls ■ Enable ■ Enable ■ Prompt ■ Download unsigned ActiveX controls ■ Enable ■ Enable ■ Prompt ■ Initiate and script ActiveX controls not marked as safe for a ■ Enable ■ Enable ■ Prompt ■ Only allow original domain to use ActiveX content. * Takes effect after you restart Internet Explorer Reset custom settings Reset to: Medium-low (default) Reset... OK Cancel 5 - OK Cancel

You can also click "Start" menu->"Internet Explorer", and choose "Internet attributes", or via "Control Panel" ->"Internet Explorer", to access Security settings.

NOTE: Make sure that your firewall or anti-virus software doesn't block the software or ActiveX. If you couldn't see live video, please close your firewall or anti-virus software, and try again.

2.3 UPnP Service

UPnP could help you to find your camera's IP more quickly. For Window XP, from "Control Panel" > "Add or remove applications" > "Add or remove Windows component" > "Network service" > "Detailed data" > "UPnP users interface", the factory default settings is disabled. Enable it then it can allow your operating

2.4 IPCam IP Address Search Tool (for IE browser only)

Step 1: Use tool "SearchIPCam.exe" to find IP address of LAN.

Organize Include in library Share with New folder Favorites Desktop Downloads Recent Places Libraries Documents Music Pictures Videos Name Data modified Type Size SearchPCam 2010/7/23 17:27 Application SearchPCam 2010/8/3 11:59 Configuration sett... 2 items

Step 2: Double click "Search IPCam" on your desktop, the camera's IP & MAC address will be displayed. If you want to search again, click "Search".

Network Adapter : Realtek PCIs PE Family Controller Name IP Address MAC Address Gateway Web Port Data Port IP CAMERA 192.168.1.156 00:BA:21:63:84:8Z 192.168.1.1 13900 38800 IP CAMERA 192.168.1.204 00:62:6E:43:1B:53 192.168.1.1 204 38401

Username Password Language English Login

2.5 Install the OCX ActiveX (For IE only)

Install the OCX ActiveX for the first time login; You will get tips after enter user and password in login page.

Download the OCX file, then double click to install it automatically.

After OCX installed fully, then input the user and password to login the camera.

2.5.1 For other Browsers, e.g., Safari, Firefox, Chrome, there is no need to install the ActiveX control, see below:

User can input the ip address in the other browsers, select the view mode such as Server Puch; VLC, Quick time to view

If I hear can not find the correct IP address. The default IP address for each camera is 102 168 1 155. You can

Username Password Mode Server Push Language English Login

3. SOFTWARE OPERATION

3.1 Software operation for IE Browser

Choose your desired language, input correct user name and password, then click "Login"

User name: admin Password: pylecam,

Username Password Language English Login 2 1 3 Language English : Choose languages here NETWORK CAMERA log out

3.2 Software Operation For Chrome, Firefox, Safari:

Choose the suitable language, input correct user name and password, then click "Login"

User name: admin Password: pylecam

Username Password Mode: Server Push Language: English Login

Language

QuickTime

Choose the login mode.

QuickTime: Choose QuickTime, login to the camera directly. if there is prompt for installing the QuickTime

player just download and install it

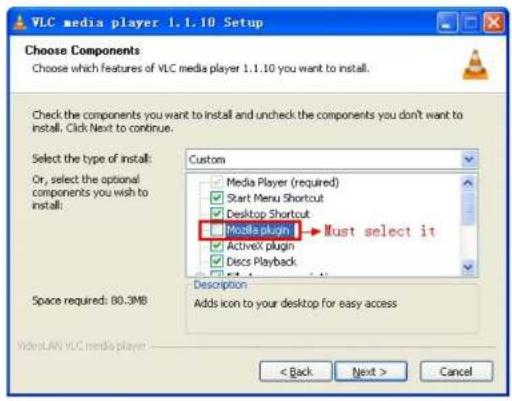

VLC media player 1.1.10 Setup Choose Components Choose which features of VLC media player 1.1.10 you want to install. Check the components you want to install and uncheck the components you don't want to install. Click Next to continue. Select the type of install: Or, select the optional components you wish to install: Custom Media Player (required) Start Menu Shortcut Desktop Shortcut Module plugin Must select it ActiveK plugin Decs Playback Description Adda icon to your desktop for easy access Space required: 80.3MB < Back Next > Cancel ViewLAN VLC media player

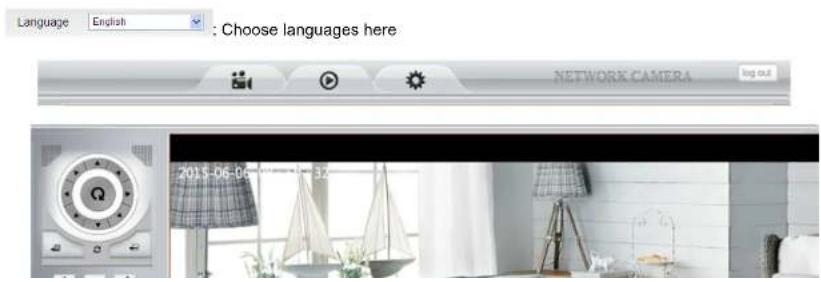

Language English : Choose languages here NETWORK CAMERA log out 2015-06-06 32

Live video: Click it, back to live video window from "Playback" or "Params settings"

Playback : Click to query and playback the video files (Details see 5 Playback)

Params Settings : Setting the camera's parameters (Details see 4 Params settings)

Log out: you will back to the login page

3.3.2 Two main functions (For Safari, Chrome, Firefox)

Live video: Click it, back to live video window from "Playback" or "Params settings"

Params Settings : Setting the camera's parameters (Details see 4 Params settings)

Log out: you will back to the login page

3.4 For Live Video (for IE browser)

2.4.1 Video Menu

Interior view of a modern living room with a gray sofa, coffee table, and lamp (no visible text or symbols)

Record: Click to start record manually, the icon will change to green color.

Record file will be

saved in the PC to its appointed path as AVI format. Click it again, will stop record function.

Audio: Click it to enable listen function, the icon will change to green color

can hear the live

audio from camera via PC if audio is ON. Click it again, will stop listen function.

Talk: Click it to enable talk function, the icon will change to green color

can talk between PC and

camera if audio device connected. Click it again, will stop talk function.

OSD: Means "On-Screen Display"

OSD Color: Including Disabled, Black, Red, Green, Blue, Purple, Gray, Silver, Yellow, Olive, Turquoise, White, Light Blue etc.

OSD Frequency Mirror Flip Silver Disabled Black Red Green Blue Purple Gray Silver Yellow Olive Turquoise White Light Blue

Frequency: Including 50HZ, 60HZ, Outdoor.

50HZ/60HZ for the users who use 50HZ/60HZ frequency, outdoor for the users who want to use this camera to monitor an outdoor environment (through a window).

NOTE: The camera should only be used in a indoor environment

3.5 Live Video for Safari, Chrome, Firefox:

3.5.1 Play Menu For QuickTime Mode:

Capture: Click to take snapshot, the picture be saved in the PC to its appointed path as JPG format, up-up the snapshot, right click the picture to save it.

Fullscreen: Click to have fullscreen view;

: Click to exit fullscreen.

OSD Settings: Click it will pop-up the OSD settings interface, including

OSD Color, Frequency, Image Mirror and Flip.

OSD: Means "On-Screen Display"

OSD Color: Including Disabled, Black, Red, Green, Blue, Purple, Gray, Silver, Yellow, Olive, Turquoise, White, Light Blue etc.

Mirror and Flip

Mirror: Select this checkbox to see a mirror image. Uncheck it to go back to normal.

Flip: Select this checkbox to flip the image upside down. Uncheck it to go back to normal.

NOTE: You can choose Mirror and Flip function if you set up the camera in a special position, upside down for example.

3.5.2 Top Menu For VLC Mode:

This will be the same as 3.3.1 TOP Menu For QuickTime Mode.

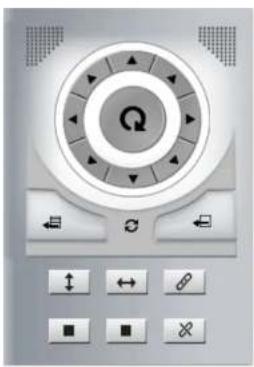

3.6 Left Side Menu:

3.6.1 Left Side Menu For IE browser

There are some basic operation icons listed on the left side menu as below:

etc directions.

Center: Click this icon, the camera will pan/tilt, then stop at the center. Normally it will rotate 1

rotation.

Up: Click this icon, camera will move up, you can click one by one or hold it to control the movement.

Down: Click this icon, camera will move down, click it step by step or hold on to control the movement

NOTE: It is the same operation as left, right, up-left, up-right, down-left, down-right etc.

Set Preset: It supports 9 preset positions. First, control the camera to rotate to the special position you

it will pop-up a dialog frame (Figure 4.0), choose any number

Call Preset: It supports 9 preset positions. If you want to monitor an important area quickly and

precisely, just click Call Preset Position button it will pop-up a dialog frame (Figure 4.0), choose the number, then the camera will rotate to the preset position automatically.

If you want to use Call Preset, you have to Set Preset first.

NOTE: if you eat different positions with a game number, the camera will record the last position setting only

Click this one; you can view 4 Channels of cameras that are connected, from CH1 to CH4. Move

the mouse to the icon, the frame will change to red color

Click this one; you can view 9 Channels of cameras that are connected, from CH1 to CH9. Move

the mouse to the icon, the frame will change to red color

NOTE: If you want to view 4/9 channels, you should set the Multi-Device firstly (See section 4.13 Multi-Device Settings).

6 128 153 0

PTZ speed: set value from 1 to 100, click the icon, it will change back to the factory settings.

Brightness: set value from 0 to 255, click the icon, it will change back to the factory settings.

Close-up of a circular control panel with directional arrows and function buttons (no readable text or symbols)

8 6 128 153 0

Figure 4.4

PT Control: Set Pan/Tilt as upward, downward, leftward, rightward, up-left, down-left, up-right, down-right, etc.

Center: Click this icon, the camera will pan/tilt, then stop at the center. Normally it will rotate 1

rotation.

Up: Click this icon, camera will move up, you can click step by step or hold it to control the movement.

Down: Click this icon, camera will move down, click it step by step or hold on to control the movement.

If you want to use Call Preset, you have to Set Preset first.

NOTE: If you set different positions with a same number, camera will record the last position setting only.

Cruise: Preset cruise, camera can cruise according to the different presets you set.

Click this icon, the camera will rotate up and down, i.e., vertical tilt, click to stop it.

Click this icon, the camera will rotate left and right, i.e., horizontal pan, click to stop it.

Click this icon, IO output Switch ON. Click ✗ to set it OFF.

8 6 128 153 0

Figure 4.6

PTZ speed: set value from 1 to 100, click the icon to go back to the factory settings.

Brightness: set value from 0 to 255. click the icon to go back to the factory settings.

4. SETTINGS

4.1 Status----Device Info.

Click "Settings" icon ____ select "Status", it will show the basic information such as "Device ID", "Device Client Version", "Device System Version", "Description", "IP Address", "UPNP Status", "DDNS Status" etc.

Default device name is "IP Camera", users can change the camera's description here, picture as below:

4.1.2 For IE, camera will show as below:

Device Info Status Device Info Setup Network Settings Video Alarm Settings Record Cluse System Save Refresh Device ID 54CDE8123AC Device Client Version 71.1.1.1 Device System Version 80.3.4 0005 Description IP CAMERA IP Address 192.168.4.142 UPHP Status Fail DO/ID Status Succ http://f8206.apxispjc.com.80

Figure 4.7

4.1.3 For Safari, Chrome, Firefox, camera will show like picture as below:

Administrator : Lower permission than super administrator, it can set most of the parameters except adding or editing other administrator accounts.

Operator: Lower permission than administrator, can do some operation such as pan/tilt control and set some parameters.

Visitor: The lowest permission, only can view live video, can't control the pan/tilt, parameter settings etc.

Users Permission Multi-Device Settings Date&Time Audio Settings Network Settings... Video Alarm Settings Record Cruise System Serial Number Username Password Permission 1 user ******** Super Automation 2 123 ******** Visitor 3 456 ******** Operator 4 5 6 7 8 9 10 Save Refresh

4.2.2 Multi-Device Settings

Note: Multi-Device only can be set under IE Browser, for Firefox, Safari, Chrome, you cannot see these setting, as they do not support ActiveX.

Click "Multi-Device Settings" to enter the interface:

4.2.3 Date & Time

Date Time: Display the current date and time

Time Zone: Set the current time zone Select the working time server.

Time Mode: Can choose PC Time or NTP Time.

PC Timing: Camera will set the time the same as your PC.

NTP Server: User will need to select a working time server, and select the time zone.

Status Setup Users Permission Multi-Device Settings Date&Time Audio Settings Network Settings Video Date&Time Save Refresh Datetime 2015-03-19 17:14:57 Time Zone Settings GMT+8 Timing Mode PC Timing

4.2.4 Audio Settings

External Headset: User need to enable this feature, and connect external audio device like speak, Mic. So that this feature work.

Built-in Headset: This means the built-in Headset port; with located in the cable. User can connect to the audio devices;

Microphone Volume: User can adjust the volume of Microphone.

Speaker Volume: User can adjust the volume of Speaker.

Status Setup Audio Settings

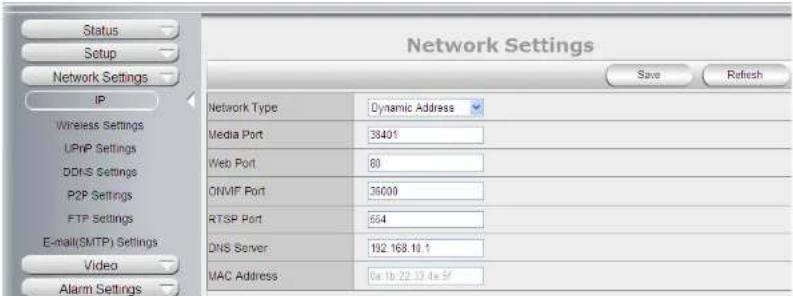

RTSP Port: Default 554;

DNS server: User can change DNS IP settings.

Network Settings Save Refresh Network Type Dynamic Address Media Port 38401 Web Port 80 ONVF Port 36000 RTSP Port 554 DNS Server 192.168.10.1 MAC Address 0x 1b:22.13.4x 5F

4.3.2 Wireless Settings

Click the icon "Search" to scan the wireless network in this environment automatically.

Using Wireless Lan: Set Wi-Fi ON/OFF.

SSID: the ID of Wireless network, it should be the same SSID as the connected Wi-Fi router.

Network Type: Two modes:

1. Infra (Infrastructure Mode), if using normal AP, choose Infra mode.
2. Ad-Hoc Mode. If using point-to-point transmission, choose Ad-Hoc mode.

The factory setting is Infra.

• Encryption: WEP, TKIP, AES optional.
• Authentication: WFD: Open System or Share Key TKID (AFSI: WPA_PSK or WPA2_PSK

Status Setup Network Settings IP Wireless Settings UPnP Settings DONS Settings P2P Settings FTP Settings E-mail(SMTP) Settings Video Alarm Settings Record Cruise System Wireless Settings Save Refresh Search Enable WIFI ✓ SSID TP-123ABC Network Type Infra Encryption AES Encryption WPA2-PSK Key *********

4.3.3 Upnp Settings

Enable UPNP: Set UPNP function ON/OFF.

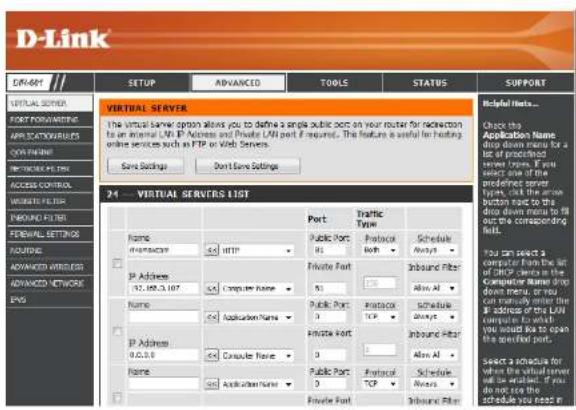

Select it to enable UPNP, then the camera will do port forwarding automatically.

It's helpful for using DDNS, if your router support UPNP, then you no need do port forwarding in router.

NOTE: Here UPNP only for port forwarding now. It has much relation with security settings of your router, make sure the UPnP function of router is ON.

ATTENTION: If your router doesn't support UPNP function, it may show error information. So we recommend you do port forwarding manually in your router.

Status UPnP Settings

NOTE: Only one DDNS can be chosen, for example, if you use manufacturer's DDNS, the 3rd one won't work, if you use a 3rd DDNS, the manufacturer's one won't work.

Status Setup Network Settings IP Wireless Settings UPnP Settings DDNS Settings P2P Settings FTP Settings E-mail(SMTP) Settings DDNS Settings Enable DDNS Open DDNS Service Type Factory DDNS DDNS Username DDNS Password DDNS Hostname Save Refresh

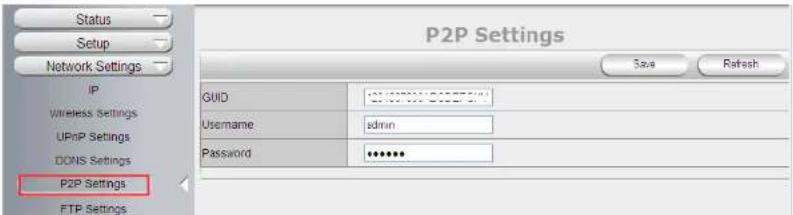

4.3.5 P2P Settings

User can see and change P2P GUID here

Factory will provide a factory P2P GUID for free using. Default user: admin; password: pylecam;User can change the password here or change a new P2P GUID here.

Status Setup Network Settings IP Wireless Settings UPnP Settings DONS Settings P2P Settings FTP Settings P2P Settings Save Refresh GUID Username admin Password ****

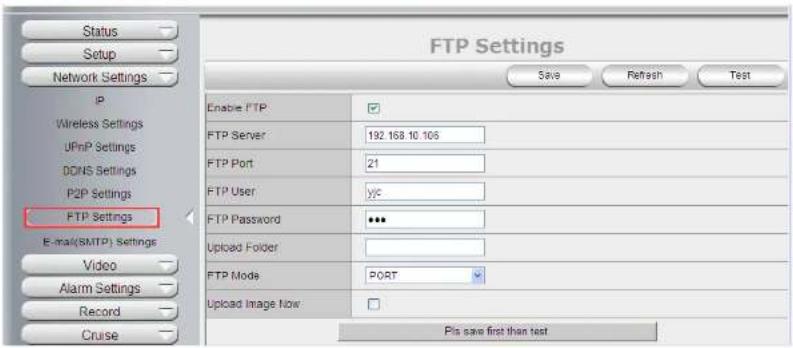

Status Setup Network Settings IP Wireless Settings UPnP Settings DDNS Settings P2P Settings FTP Settings E-mail(SMTP) Settings Video Alarm Settings Record Cruise FTP Settings Enable FTP FTP Server 192.168.10.105 FTP Port 21 FTP User yfc FTP Password *** Uploaded Folder FTP Mode PORT Upload Image Now Save Refresh Test Pls save first than test

4.3.7 E-mail(SMTP) Settings

Enable Email: Set e-mail function ON/OFF.

Sender: Set sender's name or email address

Sender's email: Set sender's email address.

Receiver: Set receiver's email box. (Supports 3 receivers' emails simultaneously)

SMTP Server: The sender address SMTP server.

SMTP Port: The sender's SMTP Port, usually is 25, some SMTP servers have their own port, e.g., the smtp port for Gmail is 465.

Auth User: Verify the user settings.

SMTP Username: Set sender's user name or email address.

SMTP password: Set sender's email address password.

4.4 Video Info.

Click "Video Info" to enter the interface as below:

Status Setup Network Settings Video Video Info Alarm Settings Record Cruise System Video Info Sub-Times Reset Angle Normal Rate 30° Image Width 100% Sub-Times Reset Angle Normal Rate 30° Image Width 100% Social Frames Clear Sheet Blue Green

There are two options for stream, Main-Stream and Sub-Stream, you can set the stream based on the actual operation environment, for example, if the bandwidth is good enough, set Main-Stream as Initial-Stream, or choose Sub-Stream if better.

Set the parameters of Main-Stream and Sub-Stream as below:

Resolution: 1920 x 1080, 1280*720;640 x 368, 320 x 208 optional.

Frame Rate: Set the frame rate according to the bandwidth. Frame rate could be "Auto" or "from 1 fps to 30 fps (Real time)". If the network situation is not ideal, you can reduce the frame rate to control the coding rate, make the moving pictures smoother.

Bit Rate: Higher bite rate means better quality images, but takes more bandwidth, so adjust the settings according to the actual bandwidth available. The range of bit rate from 128 Kbps \~ 4 Mbps.

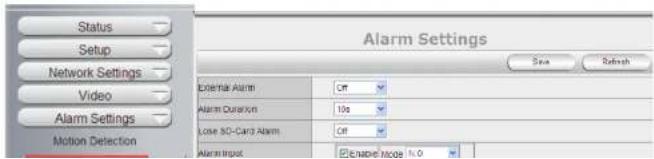

4.5 Alarm Settings

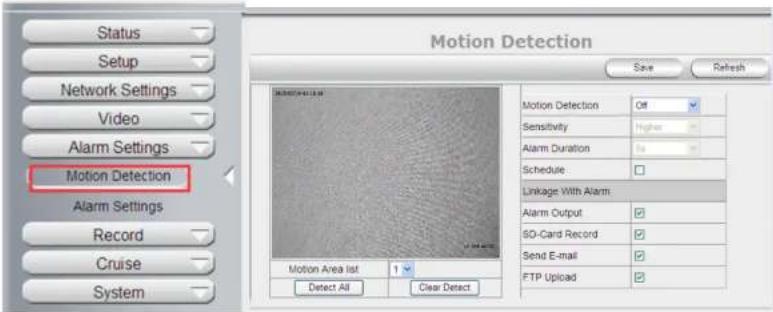

4.5.1 Motion Detection

Status Setup Network Settings Video Alarm Settings Motion Detection Alarm Settings Record Cruise System Motion Detection Save Refresh Motion Area list 1 Detect All Clear Detect Motion Detection Off Sensitivity Higher Alarm Duration No Schedule □ Linkage With Alarm Alarm Output ☑ SO-Card Record ☑ Send E-mail ☑ FTP Upload ☑

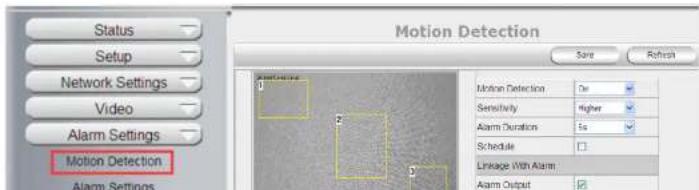

Motion Detection Zone Armed:

Can set all zones to be armed, or a specified zone armed.

Before setting a specified zone, you should set "Motion Detection" to "ON", then press left mouse, drag the mouse onto video area to set the detection zone, and save it, supports 3 areas.

Status Setup Network Settings Video Alarm Settings Motion Detection Alarm Settings Motion Detection Sensitivity Higher Alarm Duration 5s Schedule Linkage With Alarm Alarm Output

Click Save to save all the settings.

Click Update to refresh the settings.

Linkage With Alarm
Alarm Output
SD-Card Record
Send E-mail
FTP Upload

4.5.2 Alarm Settings

External Alarm: Set external alarm function ON/OFF.

• Alarm Duration: Set external alarm output duration (Relay close time), can be Forever, 5s, 10s, 15s, 30s, 60s.
• Lose SD-Card Alarm: Set alarm triggered ON/OFF if the SD-Card is lost.
• Alarm Input: Set alarm input ON/OFF, it supports NO/NC external alarm device, choose the correct mode to make sure it works well, it refers to the I/O pin6 (Input2) and pin7 (Input1).

Status Setup Network Settings Video Alarm Settings Motion Detection Alarm Settings Size Refresh External Alarm Off Alarm Duration 10s Lose SO-Card Alarm Off Alarm Input Enable mode 1.0

Linkage With Alarm
Alarm Output
SD-Card Record
Send E-mail
FTP Upload

4.6 Record

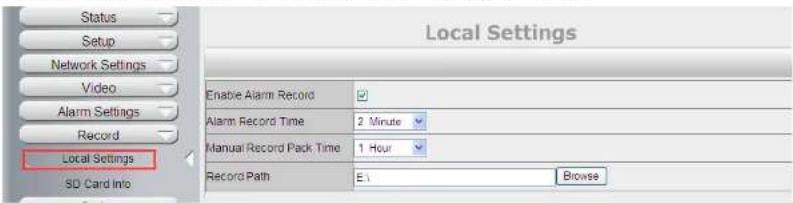

4.6.1 Local Settings

Note: This feature will suitable for IE only, as other browsers not support IE activeX.

Enable Alarm Record: Camera will record to the path user set when Alarm happens.

Alarm Record time: User can set the record time when Alarm happens. Such as 2 mins.

Manual Record Pack time: User can set the manual record time, such as 2 hours. Once click the "Record" button under the live video screen, camera will record as long as user set.

Path: This belongs to the PC path, user can set the PC path to store all records.

Status Setup Network Settings Video Alarm Settings Record Local Settings SD Card into Local Settings Enable Alarm Record Alarm Record Time 2 Minute Manual Record Pack Time 1 Hour Record Path Ex Browse

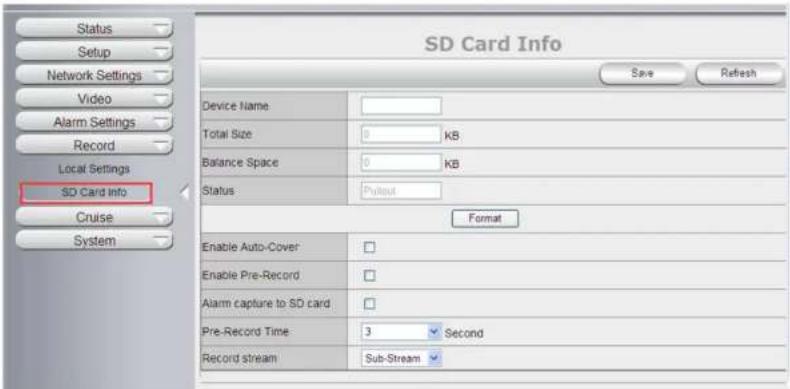

462 SD Card info

SD Card Info Device Name: Total Size 0 kB Balance Space 0 kB Status Pullout Format Enable Auto-Cover Enable Pre-Record Alarm capture to SD card Pre-Record Time 3 Second Record stream Sub-Stream

4.7 Cruise

Cruise works support 9 directions; User can set the locations, then camera can keep cruising under the directions.

Cruise Name: User can set the a Name for the crusing Plan.

Status: Enable it, User can start settings.

Serial Number: User can set the locations or path for cruise.

Preset: Camera will follow from 1 to 9; User can set different location with different Number.

Residert Time: Camera stay time: Such as, Preset 1; Resident time: 3 seconds; Then when camera in preset 1 location, will stay for 3 seconds.

Speed camera moving speed

Cruise Save Refresh Reset Status Setup Network Settings Video Alarm Settings Record Cruise Cruise List None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] None [Invalid] Cruise Information Cruise Name Status Serial Number Preset Resident time Speed 1 1 [Invalid] 0 0 2 1 [Invalid] 0 0 3 1 [Invalid] 0 0 4 1 [Invalid] 0 0 5 1 [Invalid] 0 0 6 1 [Invalid] 0 0 7 1 [Invalid] 0 0 8 1 [Invalid] 0 0 9 1 [Invalid] 0 0

4.7 System

4.7.1 Log

Log provides information of camera, login, log out, alarm, power on/off...etc;

Status Setup Network Settings Video Alarm Settings Record Cruise Status Log Refresh Clear Username IP Address Time Type aspn 192 150 4 187 2015-03-12 19:41:13 steam aspn 192 150 4 187 2015-03-12 19:41:16 steam aspn 192 150 4 187 2015-03-12 19:41:00 steam aspn 192 150 4 187 2015-03-12 19:41:02 steam Log Out Login In

Status Setup Network Settings Video Alarm Settings Record Cruise System Log Auto Maintain System Auto Maintain Save Refresh Enable Time 00:00

4.7.3 System

Reboot Device: Camera will get reboot.

Restore factory settings: User can restore factory settings once forget password, settings..etc.

Upgrade Device Firmware: To upgrade or degrade the camera firmware. (The firmware needs to store in the same camera you are viewing camera.)

Upgrade Device Web ui: To upgrade or degrade the camera web ui. (The firmware needs to store in the same camera you are viewing camera.)

Status Setup Network Settings Video Alarm Settings System Robot Device

5. PLAYBACK for IE browser only

Note: Playback function shows under IE ActiveX mode only. Other browsers not support this feature.

Click login the playback interface, this is for SD Card files playback. So If User not have SD card in the camera or not have any file in SD card, will not work.

Search Mode Search Type File Type External Atom Barge Top Exporter OK... File Name File Size

Search Mode: User can search the record, snapshot..etc by different methods.

Search Type: External Alarm and Motion detection optional; Select External Alarm; Camera will

6. FREQUENTLY ASKED QUESTIONS

1. I have forgotten the administrator username and/or password

There is a [RST] button on the rear panel, keep the power on, hold the reset button for 30 seconds, it will restore back to factory default settings as below:

Username: admin

Password: pylecam

NOTE: Please don't press RST button unless you are sure you want to do it.

2. There is no picture displayed in IE browser (For IE only)

It maybe the ActiveX problem,

If using the IE browser for the first time, you should install the ActiveX control, details as below:

Before login, click the ActiveX icon Load OCX at the right side of interface to download, save the file, run it to install the ActiveX.

3. Fail to visit IP camera via IE after upgrading (For IE Only)

Solution: Clear the browser buffer.

Steps: Open IE>click "Tools">“Internet Options”>“General”>“Delete">“Internet temporary files”, delete the cookies and temporary files, then click "OK" and re-login.

4. The video is not smooth

Possible reason 1: The frame rate value is too small.

Solution: Increase the frame rate value

Solution: modify the physical address of IP camera.

Possible Reason 5: Web port has been modified.

Solution: Contact as Network Administrator to obtain related information.

Possible Reason 6: Unknown.

Solution: Press RESET to restore to factory settings then connect it again, the default IP address is 192.168.1.155, subnet mask is 255.255.255.0

6. The color of image is abnormal (Green or other color)

Sometimes the IP camera images cannot be displayed properly because of different graphics cards, the images appears to be green or other colors, then you should run the program "Config.exe" from the downloaded OCT files.

(or run C:\windows\system32\Config.exe) to set the following parameters for the display buffer: auto-detection, used display card memory or system memory, then run IE, connect IP camera again.

7. There is no voice while monitoring

Possible Reason 1: No audio input connection.

Solution: Check audio connection of the host.

Possible Reason 2: the relative audio option of IP camera is OFF.

Solution: Check audio parameter settings to see if you have set the audio option ON, but without external audio input.

8. Image processing doesn't work properly

Possible Reason 1: System problem, DirectX function is disabled, which will cause slow display of images and abnormal color.

Doechle Reason 2: Hardware problem, graphics card doesn't support image acceleration and hardware.

Note: If you are unable to do it, it means your DirectX is not installed properly or hardware doesn't support this function.

9. Fail to use DDNS

Possible Reason 1: The PC or IP Camera can't connect to the internet.

Solution: Check the internet connection and settings.

Possible Reason 2: Port forward is not set in router.

Solution: Set the port forward of extranet in router correctly.

For example, if IP Camera address is: 192.168.1.100, Media port is 38401, Web port is 85, factory DDNS is http://test.aipcam.com.

Set Port Forwarding in the router.

This is an important step. You need to set port forwarding in your router, to refer to the IP of your camera correctly, for DDNS to work. There are so many kinds of routers, so it's difficult to show fixed steps, but here are some samples of different router's port forwarding settings, just for reference:

TP-LINK:

1. Login to the router.

1. Choose "Forwarding", select "Virtual Servers"

2. Click the Add New button, non-up below:

Fill in the web port, for example port 85, IP address as 192.168.1.100, click Save.

(1) Repeat step 3 above, it will pop-up the window again, fill in the media port as 38401, IP address as 192.168.1.100, then save.

(2) Then check the "Device Info" - "DDNS Status",

It will show DDNS: http://test.aipcam.com:85, input this link in IE, then you can visit this camera remotely.

BELKIN:

1. Login to the router.

2. Choose "Firewall", select "Virtual Servers"

3. Input the port (don't use 80) and IP address, then click save.

NOTE: The port and IP address should be the same as the camera.

BELKIN Router Setup LAN Setup LAN Settings LAN Config Internet WAN Internet Link DNS Network Security WPs Windows USB USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP USB TCP

D-Link OK/401 SETUP ADVANCED TOOLS STATUS SUPPORT VIRTUAL SERVER PORT FORWARDING APPLICATIONS CONFIGURE NETWORK FILTER ACCESS CONTROL WEIGHT FILTER INROUND FILTER FERRIVAL SETTINGS ROUTING ADVANCED VERSIONS ADVANCED NETWORK PNG 24 - VIRTUAL SERVERS LIST Name:

niracnion

http

Private Port

3

Private Port

5

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Public Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

3

Private Port

Figure 13.3

1. SPECIFICATIONS

Image Sensor	Image Sensor	1/3" Color CMOS Sensor
	Display Resolution	1920 x 1080 Pixels (2000K Pixels, i.e. 2.0 Megapixel)
	Lens	3.6mm
	Mini. Illumination	0.5 Lux
	Viewing Angle	60-90 Degree
Audio	Input	Built-in Microphone
	Output	Built-in Speaker
	Audio Compression	ADPCM
Video	Image Compression	H.264, MJPEG
	Image Frame Rate	30fps (VGA), 10fps (QVGA)
	Resolution	1280 x 720 (VGA), 640 x 480 (QVGA)
	Flip Mirror Images	Vertical / Horizontal
	Light Frequency	50Hz, 60Hz, Outdoor
	Video Parameters	Brightness, Saturation, Contrast, Hue
Communication	Ethernet Interface	Build in 10/100Mbps, Auto MDI/MDIX , RJ-45
	Supported Protocol	TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP
	Compress rate level	128Kbps ~ 4Mbps
	Wireless Standard	IEEE 802.11b/g/n
	Data Rate	802.11b: 11Mbps (max.), 802.11g: 54Mbps (max.), 802.11n: 150Mbps (max.)
	Wireless Security	WEP & WPA WPA2 Encryption
Physical	Pan/Tilt Angle	Horizontal: 340° & Vertical: 130°

8. OBTAINING TECHNICAL SUPPORT

We hope your experience with your IP network camera is enjoyable, but if you experience any issues or have any questions that this User's Guide has not answered, please email us.

If your camera does not support some special functions shown in this manual, please contact our technical support team to obtain the latest Firmware and WEB UI file for upgrading.

Statement: If you found any bug of software, pls kindly not discuss in the public place or website, contact us by email or phone, we will give you a quick shot.

FCC Caution

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, it may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control devices in accordance with the specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or
