Product Type	Off-road caravan
Brand	Atlantic Caravans
Model	High Terrain HT196-1 RD
Chassis	6" Roadrunner chassis & A-frame, Supa-galvanised with Hammertone finish
Suspension	Oz Trekker 3500kg independent with shock & coil, 12" brakes
Wheels & Tyres	16" alloy wheels with 265/75 Cooper ST Maxx all-terrain tyres
Electrical System	2 x 120Ah AGM batteries, BM Pro HA lithium-compatible charger, 2 x solar panels, 12V/240V outlets
Air Conditioning	Reverse cycle air conditioner
Cooking Appliances	Gas/electric cooktop & mini grill, rangehood, microwave
Refrigerator	2-door refrigerator/freezer
Entertainment	24" flat screen TV/DVD combo, CD/MP3/Radio player
Washing Machine	Built-in washing machine (size varies by model)
Bed	Queen size inner spring pillow top mattress with lift-up slatted base
Awning	Roll out awning
Windows	Double-glazed with built-in roller blinds and screens
Water System	12V Lyons pressure pump, external outlets
Safety Features	Smoke detector, fire extinguisher, breakaway unit, electric brakes
Storage	Front tunnel boot with 2 access doors, ample overhead cupboards, under bench pantry
Floor Plans Available	HT162-1 MD, HT173-1 MD, HT202-1 RD, HT212-1 FMD
Country of Manufacture	Australia

Frequently Asked Questions - High Terrain HT196-1 RD ATLANTIC

What is the length of the High Terrain HT196-1 RD?

The model number suggests a length of approximately 19.6 feet (5.97 m), but exact dimensions may vary. Please refer to the specific floor plan for precise measurements.

What type of suspension does this caravan have?

It features an Oz Trekker 3500kg independent suspension with shock absorbers and coil springs, designed for off-road conditions.

How many solar panels are included?

The caravan comes standard with 2 solar panels to help charge the batteries.

What is the battery capacity?

It is equipped with 2 x 120Ah AGM batteries, providing ample power for off-grid camping.

Is there a washing machine in the caravan?

Yes, a washing machine is included, but the size and type may vary depending on the specific model.

What type of tyres does the caravan use?

It comes with Cooper ST Maxx all-terrain tyres (265/75) mounted on 16" alloy wheels, suitable for rough terrain.

Does the caravan have air conditioning?

Yes, it is fitted with a reverse cycle air conditioner for both heating and cooling.

What safety features are installed?

Standard safety includes a smoke detector, fire extinguisher, breakaway unit, and electric brakes on all wheels.

Can I clean the exterior with a pressure washer?

It is generally safe to use a pressure washer on the silver composite panel cladding and checker plate, but avoid direct spray on seals and windows to prevent water ingress.

What is the warranty on this caravan?

Warranty details are not specified in the manual. Please contact Atlantic Caravans directly for warranty information.

USER MANUAL High Terrain HT196-1 RD ATLANTIC

At Atlantic Caravans our focus is on building the ideal home on the road for your Australian caravan holiday.

Our premium custom built caravans are proudly Australian made for Australian conditions and can be built to suit your individual needs.

We know there is no substitute for "the great Australian caravan holiday", which is why our caravans provide the perfect place to share those special moments with your family and friends.

HIGH TERRAIN

MAJOR FEATURES

REVERSE CYCLE AIR CONDITIONER

WASHING MACHINE

MICROWAVE

SHOWER

QUEEN BED

AMPLE STORAGE

FLAT SCREEN TV

16" ALLOY WHEELS w/ 265/75 TERRAIN TYRES

ROADRUNNER 6" CHASSIS & A-FRAME

2 X SOLAR PANELS

OZ TREKKER SHOCK & COIL SUSPENSION

ROLLOUT AWNING

HIGH TERRAIN

HT162-1 MD

HT173-1 MD

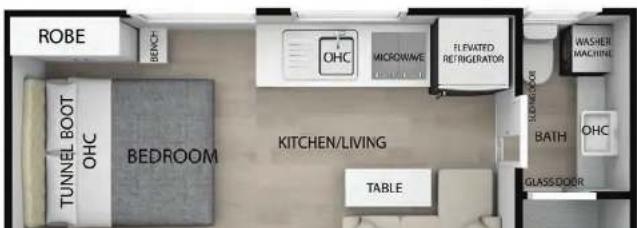

FLOOR PLANS

HT202-1 RD

HT212-1 FMD

HIGH TERRAIN

STANDARD FEATURES

CHASSIS	BASE	INTERIOR	BASE
6" Chassis & A frame	●	Under bench slide out pantry (on selected layouts)	●
Supa galvanised chassis with Hammertone finish	●	Contemporary modular furniture	●
07 Treikker® 3500kg independent suspension w/ 12" brakes	●	Smooth white ply walls & ceiling	●
16" Alloy wheels with 265/75 Cooper ST Maxx all terrain tyres	●	Steel sided drawers	●
8" Jockey wheel	●	Drop down door to end of dinette (on selected layouts)	●
D0358 hitch	●	Positive lock catches to all drawers & doors & concealed catches in OHC	●
	●	25mm Laminte benchtopsCaravan jack with jacking points	●
Electric brakes to all wheels	●	Recessed cooktop	●
One piece timber floor with Gal lined protection	●	Comfortable queen size, inner spring, pillow top mattress	●
Easy lift drop down jacks	●	Lift up, slated bed base with extension	●
2 x 5kg rubber coated gas cradles	●	Perspex splashback full height in kitchen & ensuite	●
Fold out step with LED light	●	2 x Towel rails	●
Wood box - located on rear bar	●	Smoke detector & fire extinguisher	●
Protective elbows and recovery points to rear of main chassis rails	●	Ensuite sliding door (on selected layouts)	●
4 Bar bumper bar	●	Gas struts to all overhead cupboards	●

EXTERIOR	BASE	APPLIANCES	BASE
Double-glazed windows w/ built-in roller blinds & screen	●	Gas/electric cook top & mini grill	●
Security door	●	Rangehood	●
Front tunnel boot with 2 x access doors & galvanised lining	●	Microwave	●
Roll out awning	●	2 door refrigerator/freezer	●
2 x Power hatches	●	CD/Mp3/Radio player	●
2 x Roof hatches (on selected models)	●	Reverse cyclic AC	●
12V Lyons pressure hatch	●	24"Flat screen TV/DVD combo unit	●
Silver composite panel cladding	●	Washing machine; size/type will vary depending on model	●
Side and rear checker plate, 550mm high	●	Swift Allrescoft slide out kitchen fitted into tunnel boot light above*	●

HIGH TERRAIN

STANDARD FEATURES

&UPGRADES

ELECTRICAL	BASE	CHASSIS UPGRADES	BASE
2 x 120Ah AGM batteries	●	AL-KD® ESO® or Dexter® DSCO	○
BM Pro® HA (lithium compatible) charger transformer	●	Cruisemaster D045G	○
Odyssey digital information display	●	Hot dip galvanised chassis	○
2 x Solar panels	●	Chassis raiser	○
12 Pin flat plug + Anderson plug	●	Extra 16" spare wheel & bracket	○
Breakaway unit fitted to A-frame	●	Extra jerry can holders	○
External 240V & 12V/USB outlets	●
12V/USB points both sides of bed located in nooks	●
Single 240V outlets both sides of bed located in nooks	●
Double 240V outlets in lounge/dinette, kitchen & ensuite area	●
Bargman light at entrance	●
LED side markers, clearance lights, taillights	●
LED lights throughout	●
1 x Tunnel boot light; road side only*	●
2 x LED reading lights in bedroom	●
2 x LED bars fitted front & rear	●
3 x LED annex lights: 1 extra in lieu if tunnel boot light*	●
Fan in bed room	●
EXTERNAL UPGRADES	BASE	INTERNAL & ELEC UPGRADES	BASE
K4 slide out sink fitted to tunnel boot: Weber © Baby QQ*	○	Single bed option (on selected models)	○
Grip Sport® tilt & lift bike rack (2 or 4 bikes) fitted to A frame	○	6" Bed bolster	○
		Extra drawers	○
		Pull out foot rest and draw under or lift up foot rests	○
		Leather seating	○
		Dinette infill cushion to form a bed	○
