Product Type	2-Way Marine Speaker
Speaker Size	6.5 inches
Peak Power Handling	400 Watts
RMS Power Handling	200 Watts
Impedance	4 Ohms
Frequency Response	40 Hz - 20 kHz
Sensitivity	92 dB
Cone Material	Polypropylene with Rubber Surround
Tweeter Size / Type	1-inch Silk Dome
Waterproof Rating	IP66
Mounting Depth	2.5 inches
Mounting Hole Diameter	5.8 inches
Grille Included	Yes, black metal grille
Weight per Speaker	2.2 lbs
Color	Black
Recommended Amplifier Power (RMS)	20 - 200 Watts per channel
Woofer Magnet Type	Ferrite
Sealing Gasket	Included for moisture protection
Maintenance	Wipe with damp cloth; avoid chemical solvents.
Safety Instructions	Ensure proper mounting to prevent water ingress.
Spare Parts Available	Grilles, gaskets, mounting screws

Frequently Asked Questions - PLMR65C2B Pyle

What is the best way to install the Pyle PLMR65C2B speakers in a boat?

Use the included gasket to seal the mounting hole. Ensure the wiring is properly insulated and the speakers are securely fastened to prevent vibration.

Can I use these speakers in a car?

Yes, they work in any 12V system but are specifically designed for marine environments. For cars, ensure they are mounted in a dry location.

What is the RMS power rating for these speakers?

The RMS power handling is 200 Watts per speaker, with a peak of 400 Watts.

Do the speakers come with mounting hardware?

Yes, they include screws and a grille. You may need additional wiring or adapters depending on your setup.

Are these speakers waterproof?

They have an IP66 rating, meaning they are protected against strong water jets but not fully submersible.

What is the impedance of the PLMR65C2B?

The impedance is 4 Ohms, compatible with most marine and car amplifiers.

How do I clean these speakers?

Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the cone and surround.

What is the recommended amplifier power for these speakers?

An amplifier delivering between 20 and 200 Watts RMS per channel is recommended for optimal performance.

Can I replace the grille if it gets damaged?

Yes, replacement grilles are available from Pyle or authorized dealers. Contact support for part numbers.

What is the frequency response of the PLMR65C2B?

The frequency response ranges from 40 Hz to 20 kHz, providing good bass and clear highs.

USER MANUAL PLMR65C2B Pyle

Two PYLE-branded audio drive discs, one black and one white, with no visible text or symbols on the discs themselves.

☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

One Pair 6.5" Two-Way Marine Component Kit, 240 Watts w/ 4 Ohm Impedance (Pair)

USER GUIDE

INSTALLATION OPTIONS

Version 1: By 2-Way coaxial speaker usage.

PYLE - +

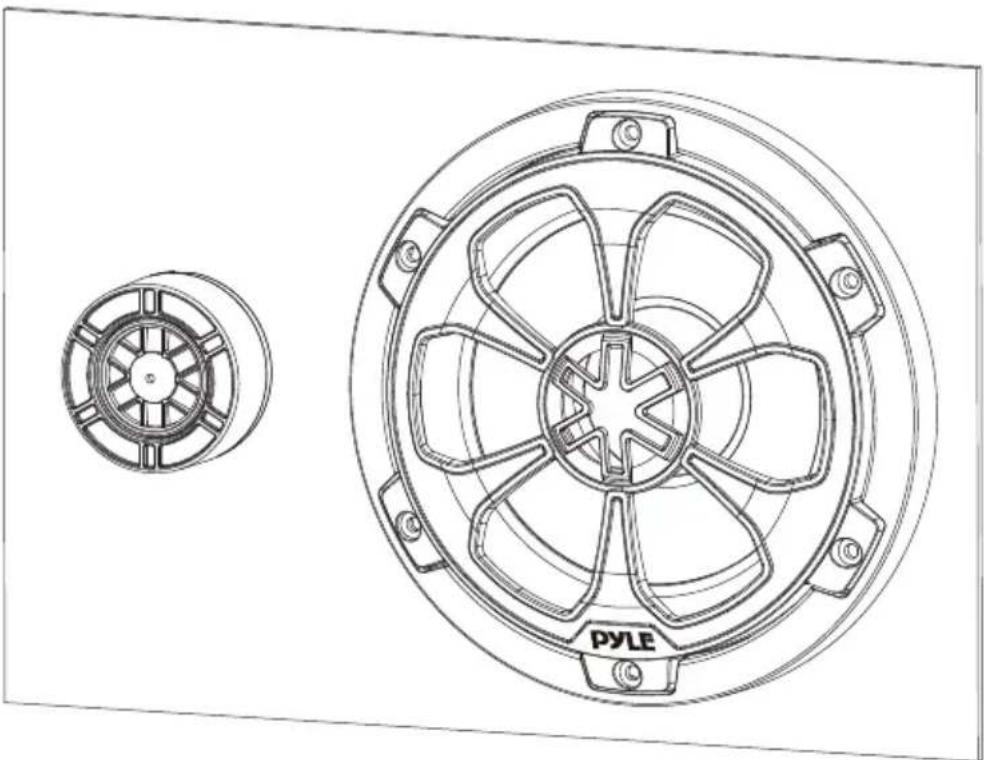

Version 2: By 2-Way component speaker usage, the tweeter can be removed and installed onto a surface. See the steps below.

Technical line drawing of a PYLE motor fan assembly (no text or symbols)

STEP 1.

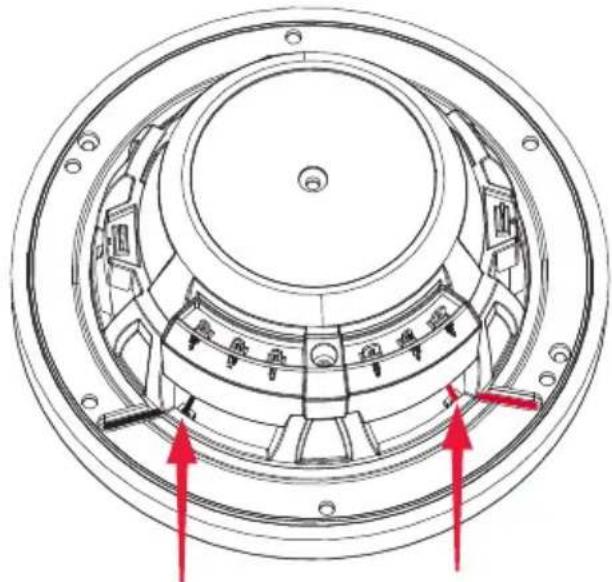

Remove the tweeter wires: Facing down the speaker and pull the red + black tweeter wires (see below drawing point by red arrows).

Remove the wires from the groove.

Technical line drawing of a circular mechanical component with internal structural details and red arrows indicating directional arrows (no text or symbols)

STEP 2.

Remove the speaker grill: Pull the grill up and then the tweeter wires will also pulled out with rubber plugs. Put the grill upside down and loose the screws around the tweeter cover. Pull the wires out of the grooves to remove the tweeter completely.

Technical line drawing of a mechanical component with three views: top shows a circular fan assembly, middle shows a multi-circular housing, and bottom shows a cylindrical device with wiring (no text or symbols)

STEP 3.

Put the grill back to the speaker and fasten the screws.

Technical line drawing of a mechanical assembly with multiple circular components and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with radial slots and mounting brackets (no text or symbols)

STEP 4.

Put the tweeter as surface mount.

Technical line drawing of a mechanical assembly with springs and a base plate (no text or symbols)

Technical line drawing of a mechanical component with rotating parts and directional arrows (no text or symbols)

Features:

• One Pair 6.5" Two-Way Marine Component Speaker Systems
- Butyl Rubber Surround
• 1" High-Temperature ASV Voice Coil
• Water-resistant Construction 2 Way Attachable Grille Design
• High Quality Poly Injection Cone
- 1" Neodymium PEI Dome Detachable Tweeter as Options of Component or Coaxial Speaker Application.
- Ensures Low Distortion
• Surface Mount Capability
• Built in Matching Crossover Network on Speaker Unit
• Marine Grade Waterproof Rating: IP-X5

What's in the Box:

• (2) Marine 2-Way Speakers
• (2) Tweeter Surface Mount Plastic Housings
• (2) 4M Power Cables
• (2) 0.15M Red Wires
• (2) 0.15M Black Wires
- Stainless Screw Bag

Technical Specs:

• Power Handling: 240 Watts MAX
- Impedance: 4 Ohm
- Sensitivity: 91 dB
- Mounting Depth: 2.44"
• Magnet Structure: 11 oz.
• Weight of Speaker with Grill: 2.18 lbs.
• Frequency Response: 60Hz - 20KHz
• Product Dimension: 6.93" x 6.93" x 3.66" -inches
