USER MANUAL PHPD82A Pyle

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PYLE

PyleUSA.com

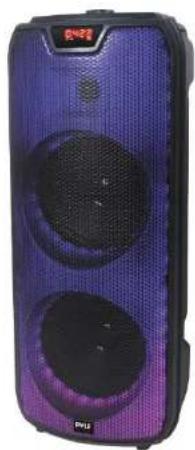

Purple and black portable electronic device with two speakers and a speaker grille (no visible text or symbols)

PHPD82A

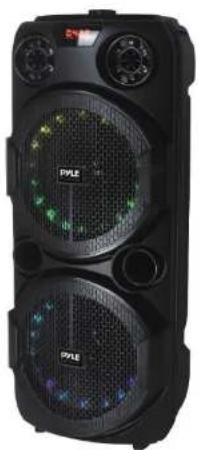

Black multi-band portable electronic device with two speakers and a central display (no visible text or symbols)

PHPD82B

Dual 8" Wireless BT Portable PA Party Speaker

Portable PA & Karaoke Party Audio Speaker,

with Built-in Rechargeable Battery, Flashing Party Circular Rotary Lights, MP3/USB/ /FM Radio (300 Watt MAX)

USER GUIDE

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

1. DO NOT expose the device to dirty or dusty environments.

1. DO NOT insert any foreign objects into the device.

1. DO NOT expose the device to strong magnetic or electrical field.

1. DO NOT use the device in the rain

1. Please check with your Local Authority or retailer for proper disposal of electronic products.

1. DO NOT disassemble the device. Only a certified service technician should perform repair.

1. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

ILLEGAL OPERATION MAY CAUSE PERSONAL INJURY, WHICH COULD BE FATAL. ILLEGAL OPERATION MAY CAUSE DAMAGE TO PROPERTY

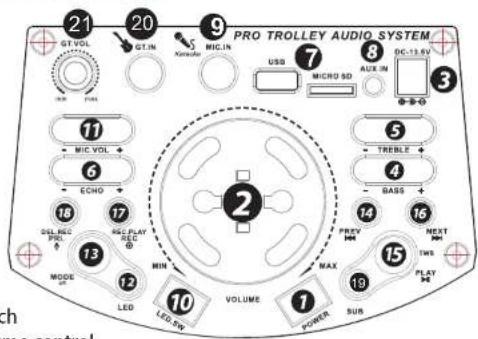

CONTROL BOARD FUNCTIONS

21 GT.VOL GT.IN X5 MIC.IN PRO TROLLEY AUDIO SYSTEM 7 USB MICRO SD AUX.IN DC-13.6V 3 11 MIC VOL 6 ECHO 17 SIL RED PUL 13 MODE UP LED MIN LED.0W VOLUME 10 POWER SUB MAX PREV. 9M BASS 14 16 NEXT 8M TWS PLAY 5M 19 15 2

1. Power Switch

2. Master volume control

3. DC 13.5V input jack

4. Bass volume control knob

5. Treble volume control knob

6. Microphone Echo control knob

7. USB and Micro SD Memory Card Slot

8. 3.5MM AUX input jack

9. 6.5MM microphone input jack

10. LED light switch

11. Microphone volume control knob

12. LED MODE

13. Mode button: Short press to choose BT, FM, AUX, USB, SD mode

14. Previous

15. Play/Pause/press and hold for TWS function

16. Next

17. Short press to start recording, and short press again to save and play recording Press and hold press to play recording files, and press and hold again to quit recording

18. Microphone priority button: Short press to start microphone priority. When playing the recorded file, press and hold to delete current recording.

19. X-BASS

20. Guitar input

21. Guitar Volume

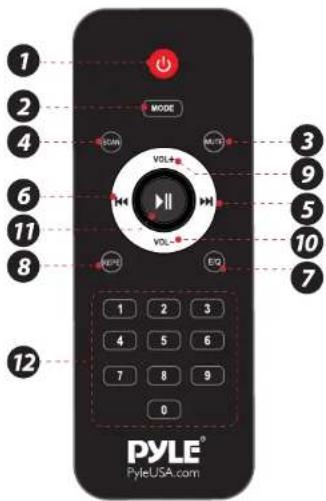

22. Power: Used to turn on/off the MP3 player power.

23. MODE: Used to switch the AUX/USB/BT/Radio
24. Mute button
25. In FM mode, press to search radio station automatically and save.
26. Next song of USB/In FM mode, short press to select next frequency, press and hold to fast-forward frequency
27. Previous song in USB//In FM mode, short press to select last frequency, press and hold to fast backtrack frequency.
28. EQ solution
29. Repeat song
30. Increase volume
31. Decrease volume
32. Play/Pause/In FM Mode, press to select saved radio station.
33. Choose song number directly/In FM mode, choose FM frequency directly.

1 2 3 4 5 6 7 8 9 10 11 12 MODE VOL+ VOL- EIG PYLE® PyleUSA.com

TWS FUNCTION

For increase sound effect, our unit provides TWS function as follows:

Step-1: Turn ON BT mode on your device and connect the machine.

Step-2: Press and hold each control board "TWS" button more than 3's, and you will see "ON" on display, unit will start to connect the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.

Remark:

1. After connection, press and hold again one of control board "TWS" button more than 3's, you will see "OFF" on display, unit's TWS dis-connection.

TROUBLESHOOTINGREMOTE CONTROL FUNCTIONS

Fault	Possible Cause	Solution
No sound	1. No input sound source.2. Volume is too low.	1. Use a better music signal.2. Adjust volume.
Distortion of sound	1. Volume too high.2. Speaker may be damaged	1. Turn down the volume.2. If speaker is damaged, repair or replace it.
Karaoke does not work	1. Microphone plug is not fully inserted.2. Microphone switch is not on.3. Microphone volume knob is at the lowest position.	1. Plug microphone properly into the socket.2. Turn on microphone switch.3. Adjust microphone volume properly.
MP3 does not play	1. The audio format in the USB is incorrect.2. Improper operation has caused a process disorder.3. USB disc is disconnected.	1. Convert audio format into Mp3 format.2. Reboot the machine.3. Insert USB disc properly.

Wireless BT Connectivity:

• Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today's Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.1
• Wireless BT Network Name: 'PYLEUSA'
• Wireless Range: Up to 32' ft.

This product can expose you to a chemical or group of chemicals, which may include "Lead and lead compounds" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
