USER MANUAL GH1109SNL Philco

Technical line drawing of a structural frame assembly (no text or symbols)

USER MANUAL

用戶手冊

GH1206SNL

GH1109SNL

EN

Dear Customer

Thank you for buying our range hood. Please read the user manual carefully and store in a handy place for later reference.

This hood is designed for fitting in a cabinet.

Read the following carefully to avoid damage or injury.

SAFETY AND WARNINGS

• Where applicable, this appliance is supplied with fixings. Please ensure you use the correct fixings suitable for the substrate where the appliance will be installed and that they are able to support the weight of the appliance.

• Before connecting the hood, check that the supplied voltage and frequency match with that indicated on the appliance rating plate. If in doubt, ask for advice instore or from a qualified installer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard.

• Use only the same size of fittings and mounting screws as recommended in this instruction manual. Failure to follow these instructions may result in electrical hazards.

- Means for full disconnection must be incorporated in the fixed wiring in accordance with the local wiring installation rules for your country. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected during installation.

- When the extractor hood is located above an appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the hood shall be at least 650mm.

- Consult local regulations regarding extraction outlets and ensure these are complied with. Do not connect the hood to a ventilation

or hot air duct containing combustion fumes from burning gas or other fuels. Confirm that room ventilation is appropriate with the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels

- The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak affecting the appliance, do not use and contact customer services to arrange for inspection.

- Do not use flammable sprays in close vicinity to the appliance.

- Please dispose of the packing material carefully. There is a fire risk if cleaning is not carried out in accordance with the instructions. Refer to the Care and Maintenance sections carefully for details on how to clean and replace the aluminium and carbon filters (if fitted).

- Refer to the Care and Maintenance section for details on the type of lamps that can be used and how to replace them.

- Do not use a steam cleaner for care and maintenance.

- The appliance is not intended to be operated by means of an

external timer or separate remote control system.

• There shall be adequate ventilation of the room when the hood is used at the same time as appliances burning gas or other fuels. Ensure that the negative pressure of the installation site does not exceed 4 Pa (0.04 mbar) to ensure combustion fumes are not drawn back into the room.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services for assistance.
• Switch off the appliance at the mains supply before carrying out any maintenance work or cleaning.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• Do not flambé under the hood. To avoid the risk of fire, clean or replace the grease filter regularly and closely monitor pans containing hot oil.
• The manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
• The appliance is for domestic use only as an extractor hood.

INSTALLATION INSTRUCTIONS

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class II appliance and MUST NOT be

earthed.

Contents of packaging

Isometric line drawing of a rectangular electronic component with a circular top and base plate (no text or symbols)

Rangehood
(1)

Simple line drawing of a cylindrical mechanical component with mounting base (no text or symbols)

∅150mm
Ducting adapter
(1)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

∅150 to ∅125 adapter
(1)

Screw M6 x 40mm (including washer) (4)

Screw S 3 x 12mm
(6)

Screw S 3.5 x 10mm
(2)

Technical line drawing of two rectangular metal brackets with cutouts (no text or symbols)

Rear Spacers
(2)

Lateral Spacer
(2)

INSTALLATION

650mm top of cooking surface

Positioning

2 mm

Fixing dimensions

Ø150 88 45 555/855 272 230 600/900 20 0~160 280

WARNING!

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Drilling holes

Drill the holes on top of wooden cupboard

• drill ∅ 7mm hole
• drill ∅ 16mm hole
  • cut ∅ 196mm hole

Ø7 for hood fastening screws 86 Ø16 for cable clearance Ø196 for flue clearance 210 192 252 272 33 453/753 Door/hood fascia Front of cabinet

Fixing the ducting adapter

Connect ∅150mm ducting adapter to the blower outlet and use screws to fix it to the range hood.

Screw ST3.5 x 10mm Ø150mm Ducting adapter Ø Ø eht ot retpa

∅150mm ducting adapter.

Important! For best performance, ∅150mm ducting is recommended (∅125mm ducting can be used, but will reduce the airflow of the cooker hood).

Fixing the Lateral spacers

Screw ST3 x 12mm Lateral spacer

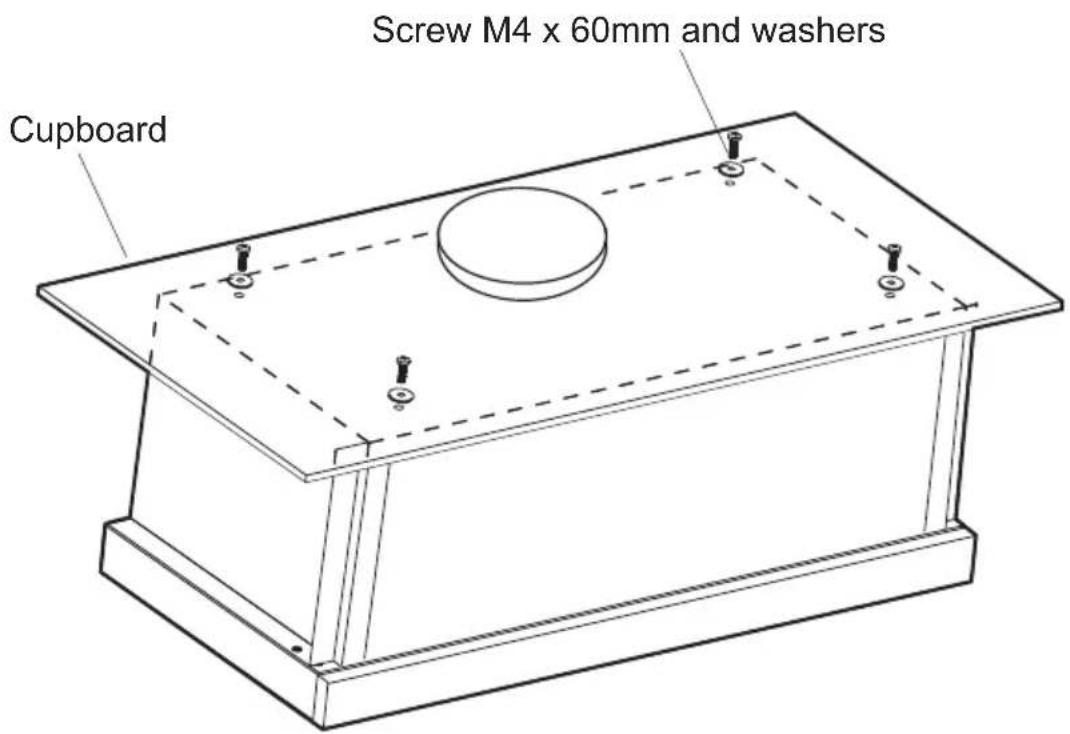

Mounting the rangehood to the underside of cupboard

Attach the rangehood to wooden support and fix it with the 4 screws supplied.

Cupboard Screw M4 x 60mm and washers

Fixing the Rear Spacer

Use suitable Rear Spacer to cover the space between the wall and the rangehood and fix it with 2 screws.

600/900 Rear spacer can be reversed to suit gap at rear Screw ST3 x 12mm

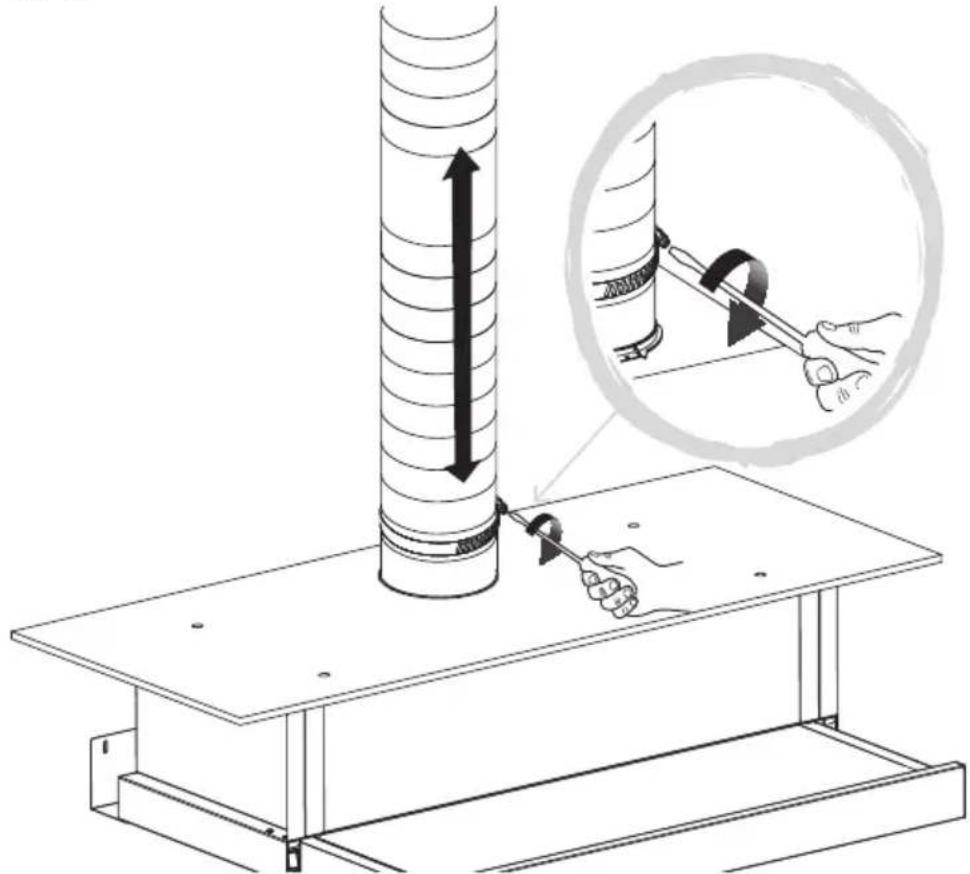

Fixing flexible duct

Connect ∅100 mm or 125 mm flexible duct to the adapter and fix it.

Technical illustration of a mechanical assembly with a cylindrical component and a magnified inset showing hand positioning (no text or symbols)

OPERATING INSTRUCTIONS

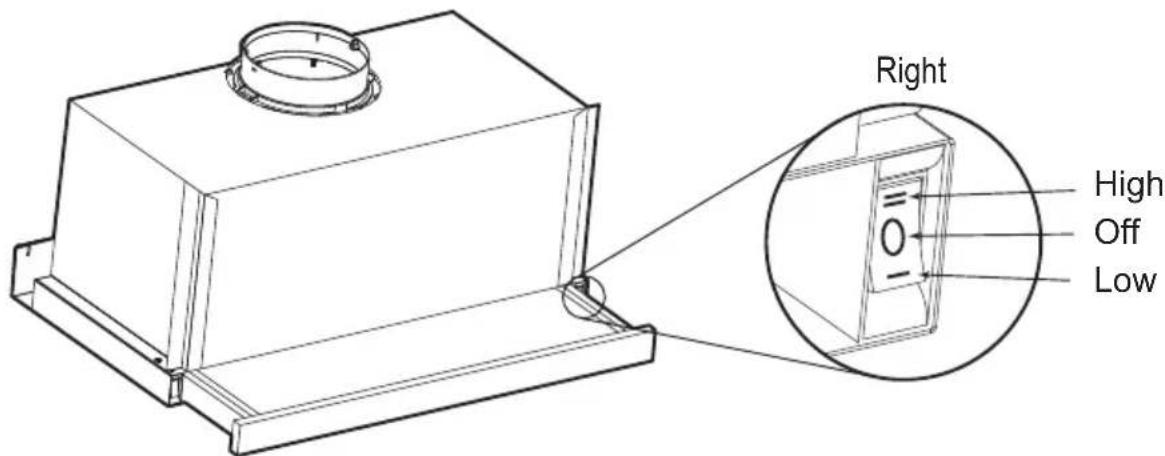

Control panel features

To operate the rangehood, pull out the retractable hood and select the extraction level using the switch on the right hand side.

Right High Off Low

To switch on the rangehood light, use the switch located on the left hand side of the rangehood.

Lamp Off 0 1 Lamp On

Warning: the lighting should not be used as permanent light source but only for cooking.

CLEANING AND MAINTENANCE

Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or Customer Service.

Exterior Cleaning : Use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products.

Replacing the lamp

Ensure that the rangehood is unplugged, then slide out the retractable hood and remove the filters. Turn the lamp anti-clockwise to remove then replace the lamp by turning it clockwise.

Note that lamps become hot when in use. Allow the lamps to cool down for a few minutes before changing them.

Technical line drawing of a mechanical or architectural component with two internal grating and circular fixtures (no text or symbols)

Cleaning Aluminium grease filters

Important! increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

1 MONTH

Line drawing of a hand inserting a grid into a rectangular device (no text or symbols)

Diagram of a rectangular device with a mesh grille and directional arrow indicating flow or movement (no text or symbols)

Simple line drawing of a kitchen appliance with a basket, drawer, and plate (no text or symbols)

≤ 65°C

Simple line drawing of a spray bottle spraying over a grid-patterned surface, enclosed in a circular border (no text or symbols)

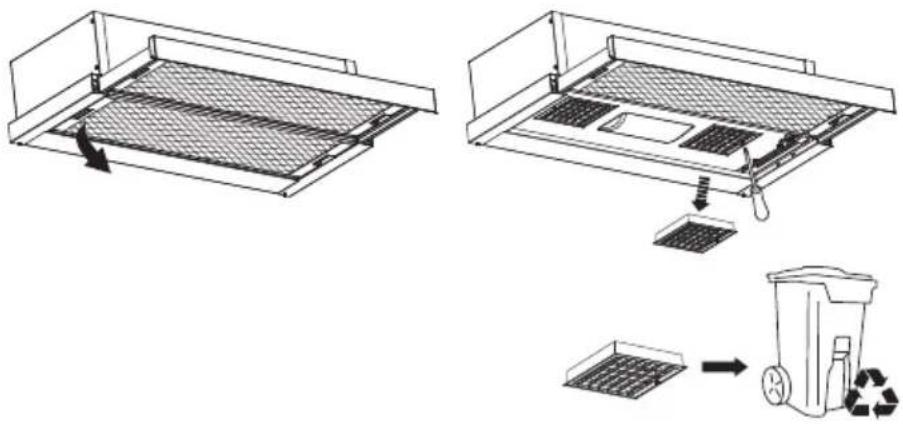

Replacing Activated charcoal filters

Replace Activated charcoal every 3 months

3 MONTHS

Diagram illustrating a recycling process with labeled steps: wire meshing, drain level inspection, and recycling bin.

Troubleshooting

Problem Possible cause Solution
Excessive vibration. The	appliance is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan blade is damaged.	Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
The light is on, but the fan does not work.	The fan blade is jammed.
	The motor is damaged.
Both the light and motor do not work.	Light bulb blown. Replace with a bulb	of the correct rating.
	Power connection loose. Check power supply.
Suction performance reduced.	Speed may be too low. Select a higher speed.
	Aluminium filters are dirty. Care and maintenance section.	Clean the aluminium filters. (See on).
	Top vent might be obstructed.	Clear any obstruction.
	Optional vent kit might be twisted. Ensure that the vent kit is fitted according to the manufacturer's instructions.
	The installation may not comply with the manufacturers instructions.	The vent hose should be correct diameter throughout with no reductions or restriction.(See installation section).
Works normally but cooking smells linger.	Carbon filter is not fitted in recirculation mode or is full of grease.	Fit carbon filter or replace the carbon filter (See Care and maintenance section).

Recycling & disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

中文

親愛的顧客

Isometric line drawing of a rectangular electronic component with a circular top and base plate (no text or symbols)

抽油煙機
(1)

Simple line drawing of a cylindrical mechanical component with mounting base (no text or symbols)

∅150毫米
排氣管接合器
(1)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of two rectangular metal brackets with notches, no text or symbols present

後方收口墊片
(2)

機側墊片
(2)

安装

Technical diagram illustrating a mechanical assembly with a cylindrical component being inserted, accompanied by an inset showing hand positioning and tool path.

使用抽油煙機

控制面板

Technical line drawing of a mechanical or electrical component with two internal grating and a central fan (no text or symbols)

清潔抽油煙機金屬濾網

Two technical illustrations of a grid-patterned device with a hand adjusting its panel, showing internal structure and directional arrows (no text or symbols)

Line drawing of a kitchen appliance with a grid, basket, and dish (no text or symbols)

≤ 65°C

Simple line drawing of a spray nozzle spraying over a grid-patterned surface (no text or symbols)

更換活性碳過濾網

請每三個月更換一次活性碳過濾網。

3個月

Diagram illustrating a recycling process with labeled steps: wire meshing, drain level inspection, and recycling bin.

故障排除

Symbol of a trash bin crossed with two crossed arms, no text or labels present
