USER MANUAL RD300MA Zipper

EN Assembly instruction

ZI-RD300 Zubehör

(Snow blade; bucket extensions, flat hopper)

RD300SS

(EAN: 9120039234021)

Technical line drawing of a mechanical assembly with no visible text or symbols

RD300MA

(EAN: 9120039233994)

RD300FP

(EAN: 9120039234014)

Green and black plastic power tool with 'ZIPPER' branding, no visible text or symbols on the vehicle itself.

Illustration of a green and white agricultural harvester with a yellow canopy cover (no text or symbols visible)

Yellow agricultural machine with large front panel and side railings (no visible text or symbols)

1 INHALT / INDEX

1 INHALT / INDEX 2

3 VORWORT (DE) 3

Technical line drawing of a manual dump truck with snow plow (no text or symbols)

M8 × 40 ×1 M8 × 50 ×1 d

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating assembly steps

2 MB x 20 (X II)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

MB x 25 (X 4) ⑤ ④

6 M8 x 25 (X x) M8 x 25 (X x) M8 x 25 × 10 b

7 8 R-pin (X 3) × 2 C

Loosen 4 Bolts M8 x 25 (x 2) M8 x 25 x 2

7 PREFACE (EN)

Dear Customer!

This manual contains important information and advice for the correct and safe use and maintenance of the accessories for the wheeled dumper ZI-RD3000.

The manual are only in combination with the manual for wheeled dumper ZI-RD300 complete and part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries!

Due to continuous development of our products illustrations, pictures might differ slightly.

If you however find errors in this manual, please inform us.

Technical changes excepted!

Copyright law

© 2019

This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüßlberg, AUSTRIA.

Customer Support

The additional products are only to be used with the intended machine and only in technically perfect condition as well as as intended, safety and hazard-conscious! Faults which may impair the safety can be remedied immediately! The operating, maintenance and repair conditions prescribed by the manufacturer and compliance with the safety instructions contained in the instructions must be complied with.

Intended use analogue operating instructions ZI-RD300

9 ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

9.1 Assembly

9.1.1 ZI-RD300SS

M8 × 30 × 4 M12 × 30 × 2 a	1. Install the two supporting feet to the balde as shown in Fig.a, adjust the height and fix them with M12x30 bolts and nuts. Mount the steering bracket to the blade with M8x30 bolts, washers and nuts.
M8 × 20 × 2 M12 × 30 × 2 b	2. Mount the bracket for the push rod to the dumper base with M8x20 bolts, washers and nuts, and the flange bracket with M12x30 bolts, washers and nuts.

		3. Fix the blade assembly to the flange bracket with M20x95 bolt, washer and nut. Adjust the tightness of the bolt to make sure the blade can be rotated left and right freely.
		4. Connect the push rod and rod extension by M8x40 bolt, washer and nut. Fix the rod extension to the blade with M8x50 bolt and nut. Lock the second pin of the push rod into the limit slot of the bracket.

9.1.2 RD300MA

	1. assemble the sides and middle part of the bucket extension as shown.
	2. Connect the parts as shown using M8x20 screws, washers, spring washers and nuts (x2).
	3. Place the pre-assembled bucket extensions onto the machine.

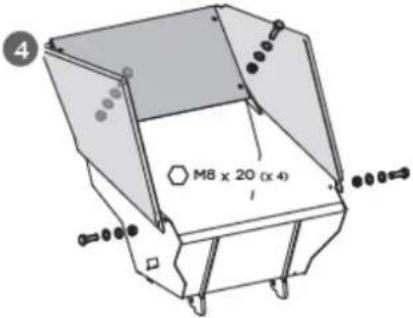

	4. Fix it with M8x20 screws, washers, spring washers and nuts (x4) at the all 4 edges.

9.1.3 RD300FP

1. Before the flatbed can be assembled, the ZI-RD300's tray must be dismantled. To do this, remove the split pins and remove the tray.
2. assembling the flat hopper (assemble the individual parts of the flat hopper as shown in the following pictures)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

2 M8 x 20 (X 8)

Technical diagram of a mechanical assembly with numbered components and alignment markers

MB x 25 (X 4)

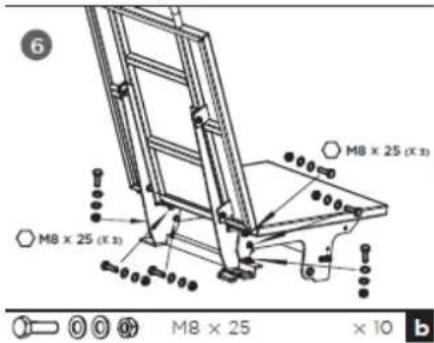

6 M8 x 25 (X 3) M8 x 25 (X 3) M8 x 25 × 10 b

7 8 R-pin (X 3) × 2 C

Loosen 4 Bolts M8 x 25 (x 2) M8 x 25 x 2

10 EXPLOSIONSZEICHNUNG / EXPLOSION DRAWING

RD300SS

Technical diagram of a mechanical assembly with numbered components for identification

RD300MA

Technical diagram of a folding or folding device with numbered components and alignment markers

RD300FP

Technical diagram of a mechanical assembly with numbered components and exploded views

11 ERSATZTEILE / SPARE PARTS

With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.

I MP OR T AN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service form you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and part name. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

12 GEWÄHRLEISTUNG

1.) Gewährleistung:

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

PRODUKTBEOBACHTUNG

Product experience form

We observe the quality of our delivered products in the frame of a Quality Management policy. Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Erworben von / purchased from:

E-Mail/ e-mail:

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
