USER MANUAL 99-7379HG Metra

Interior view of a car dashboard with air conditioners and control panels (no visible text or symbols)

Hyundai Elantra GT (with factory navigation) 2013-2015

KIT FEATURES

• ISO DIN radio provision with pocket
  • ISO DDIN radio provision
• Painted gloss black to match the factory finish

KIT COMPONENTS

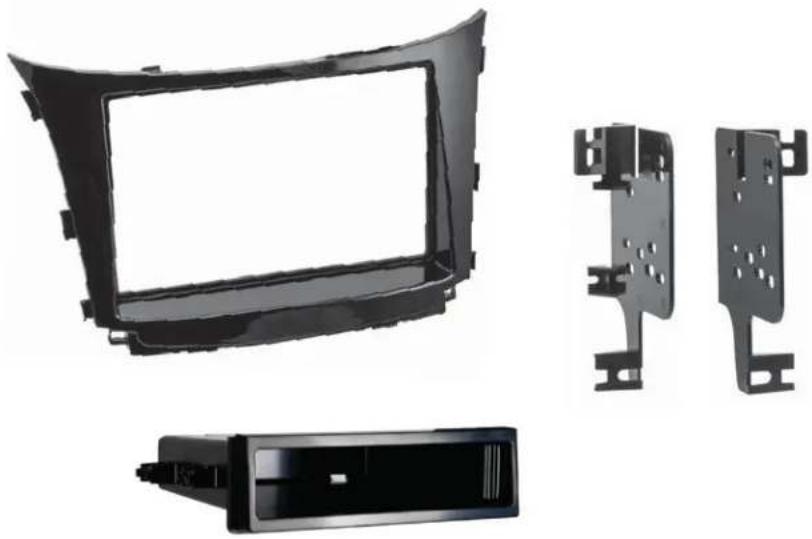

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws

A

Line drawing of a curved plastic panel or casing with mounting brackets (no text or symbols)

•

•

[Non-Text]

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly

-ISO DIN radio provision with pocket ....3

-ISO DDIN radio provision ....3

WIRING & ANTENNA CONNECTIONS(sold separately)

Wiring Harness: 70-7304

- Visit metraonline.com for premium options

Antenna Adapter: Not required

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Socket wrench

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

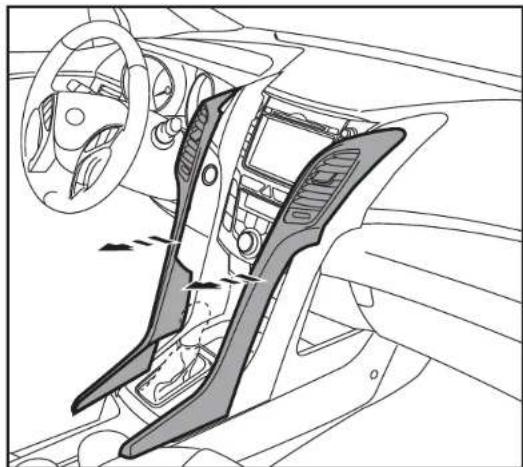

1. Unsnap and remove the vent panels from either side of the radio down to the shifter base. (Figure A)

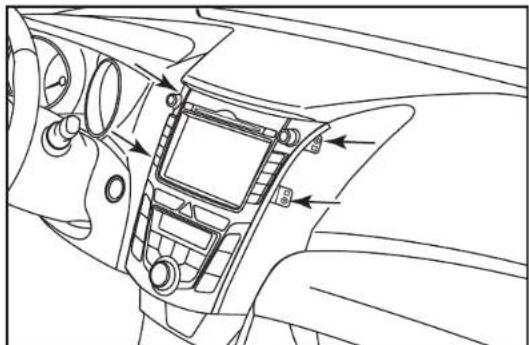

2. Remove the (4) screws and remove the radio. (Figure B)

Continue to Kit Assembly

Interior view of a car dashboard and steering wheel (no text or symbols visible)

(Figure A)

Line drawing of a car dashboard with airbags and control panels (no text or symbols)

(Figure B)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Attach the dio brackets to the radio housing trim panel with (4) #8 x 3/8" Phillips screws supplied (Figure A)
2. Mount the pocket to the bracket/panel assembly with (4) #8 x 3/8" Phillips screws supplied. (Figure B)
3. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
4. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure C)
5. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
6. Mount the new radio assembly into the dash and reassemble the dash in reverse order of disassembly.

Technical line drawing of a car body panel with mounting brackets and mounting holes (no text or symbols)

(Figure A) (Figure A)

Technical line drawing of a car airfoil component (no text or symbols)

(Figure B) (Figure B)

Technical line drawing of a car air vent or hood assembly (no text or symbols)

(Figure C)

ISO DDIN radio provision

1. Attach the dio brackets to the radio housing trim panel with (4) #8 x 3/8" Phillips screws supplied (Figure A)
2. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
4. Mount the new radio assembly into the dash and reassemble the dash in reverse order of disassembly.

Technical diagram of a car body panel with numbered components and alignment markers

Technical diagram of a device rear panel with labeled dimensions and directional arrows

Meta

99-7379HG

INSTALLATION INSTRUCTIONS

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installenstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Interior view of a car dashboard with air condition meters and control panels (no visible text or symbols)

Exterior view of a car dashboard frame with two side views showing internal components (no text or symbols)

HARDWARE INCLUDED

Hyundai Elantra GT 2013-2015

(with factory navigation)

D ISO DDIN radio provision
S ISO DIN radio provision with pocket
P Radio trim panel is painted gloss black to match factory finish

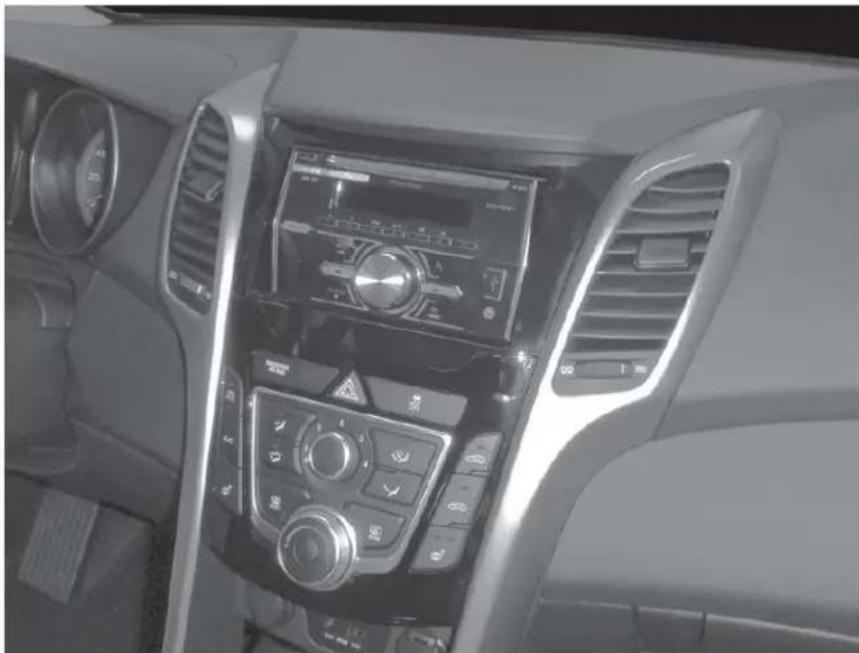

This kit provides the ability to install an ISO DIN radio with pocket, as well as an ISO DDIN radio replacement. Use with vehicles equipped with factory navigation. Painted high gloss black to match the original factory appearance.

KIT COMPONENTS

• Radio trim panel
• Radio brackets
• Pocket
  • (8) #8 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS

(sold separately)

• Wiring Harness: 70-7304
• Visit metraonline.com for premium options
• Antenna Adapter: Not required
