USER MANUAL 99-9100 Metra

Installation instructions for part 99-9100

AUDI A4/A6/A8 1996-1999 TT 2000-2006 99-9100

KIT FEATURES

• DIN radio provision

KIT COMPONENTS

• A) Trim plate (a) • B) Trim plate (b) • C) (2) Screw caps

Interior view of a vehicle's dashboard and steering wheel (no visible text or symbols)

Three technical diagrams showing mechanical components labeled A, B, and C, with no visible text or symbols.

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Please visit metraonline.com for more information

Antenna Adapter: • Please visit metraonline.com for more information

TOOLS REQUIRED

• 86-9001 radio removal keys • Pry tool

Table of Contents

Dash Disassembly 2

Kit Assembly

• A4/A6/A8 1996-1999....3
• TT 2000-2006....3

CAUTION! Metra recommends disconnecting the negative battery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for more information. All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory radio with the key in the on position, or the vehicle running. It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio.

99-9100

Dash Disassembly

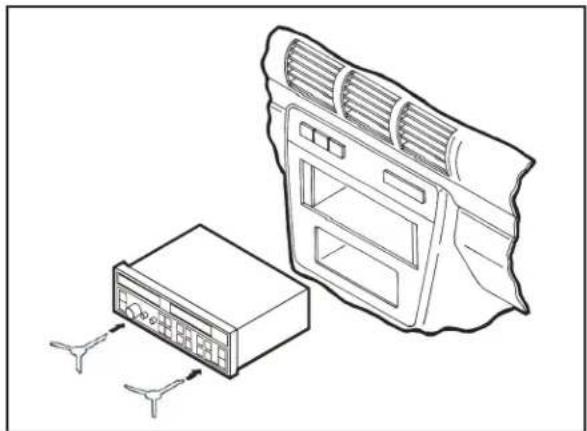

1. Insert Metra's 86-9001 into the slots in the factory radio and pull the radio out. (Figure A)
2. Disconnect the wiring.
3. For TT models only: Remove (2) Phillips screws from inside the radio opening. (Figure B)

Continue to kit assembly

Line drawing of a portable air conditioner unit connected to a fan, with no visible text or symbols

(Figure A)

99-9100

Kit Assembly

AUDI A4/A6/A8 1996-1999

1. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
   Note: Disregard the trim ring, it will not be used in this application.
2. Slide the sleeve into the radio opening in the dash and secure by bending the metal locking tabs down.
3. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
4. Slide the radio back into the sleeve until it clicks in.
5. Snap Trim Plate (a) onto the front of the radio.

Audi TT 2000-2006

1. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
   Note: Disregard the trim ring, it will not be used in this application.
2. Slide the sleeve into the radio opening in the dash and secure by bending the metal locking tabs down.
3. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
4. Slide the radio back into the sleeve until it clicks in.
5. Secure Trim Plate (b) to the front of the radio opening using the screws removed during disassembly.
6. Place the screw caps into the screw openings in the trim plate.

Installation instructions for part 99-9100

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by parrolling in the most recognized and suggested

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

606-334-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP

certified technicians

Metra

Interior view of a vehicle's dashboard and steering wheel (no visible text or symbols)
