USER MANUAL 99-8912HG Metra

Interior view of a car dashboard with digital display and control panel (no visible text or symbols)

Subaru BRZ 2016-Up

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
- Painted high gloss black to match the factory finish

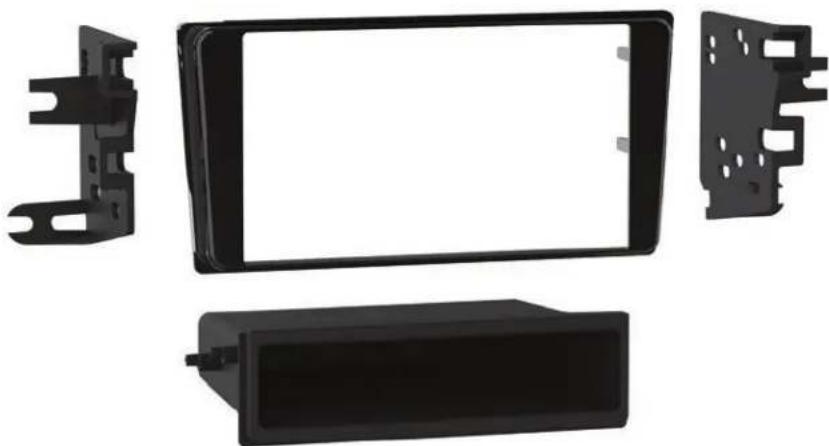

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Phillips screws (4) • E) Panel clips (4)

A

Line drawing of a rectangular frame with a small protrusion at the top (no text or symbols)

•

Technical line drawing of two mechanical bracket assemblies (no text or symbols)

•

Isometric line drawing of a rectangular electronic enclosure or housing (no text or symbols)

[Non-Text]

E

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly

- ISO DIN radio provision with pocket ....3

- ISO DDIN radio provision ....3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1761

Antenna Adapter: 40-LX11

Steering wheel control interface: ASWC-1

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• 10mm socket wrench

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

1. Unclip and remove the radio trim panel. (Figure A)
2. Remove (4) 10mm screws securing the radio. Slide the radio out, then unplug and remove. (Figure B)

Continue to Kit Assembly

Interior view of a car dashboard with steering wheel and air vent (no text or symbols visible)

(Figure A) (Figure B)

Technical line drawing of a vehicle dashboard with control panel and buttons (no text or symbols)

KIT ASSEMBLY

DIN radio provision with pocket

1. Attach the (4) panel clips provided to the radio trim panel (Figure A)
2. Secure the pocket to the radio brackets using (4) Phillips screws provided. (Figure B)
3. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
4. Slide the radio into the bracket/pocket assembly, then secure using screws supplied with the radio (Figure C)
5. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
6. Slide the radio into the dash, then secure using the factory screws. Clip the radio trim panel over the completed assembly to complete the installation.

Technical line drawing of a rectangular frame with mounting holes and dashed alignment lines (no text or symbols)

(Figure A)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

(Figure B)

Technical line drawing of a device casing with internal components and directional arrows (no text or symbols)

(Figure C)

ISO DDIN radio provision

1. Attach the (4) panel clips provided to the radio trim panel (Figure A)

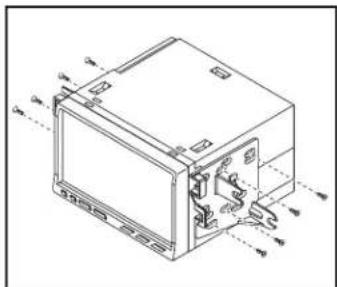

2. Secure the radio brackets to the radio using screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation
4. Slide the radio into the dash, then secure using the factory screws. Clip the radio trim panel over the completed assembly to complete the installation.

Technical line drawing of a rectangular frame with mounting holes and dashed lines indicating hidden edges (no text or symbols)

(Figure A)

Technical diagram of an electronic device with labeled components and internal structure

(Figure B)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

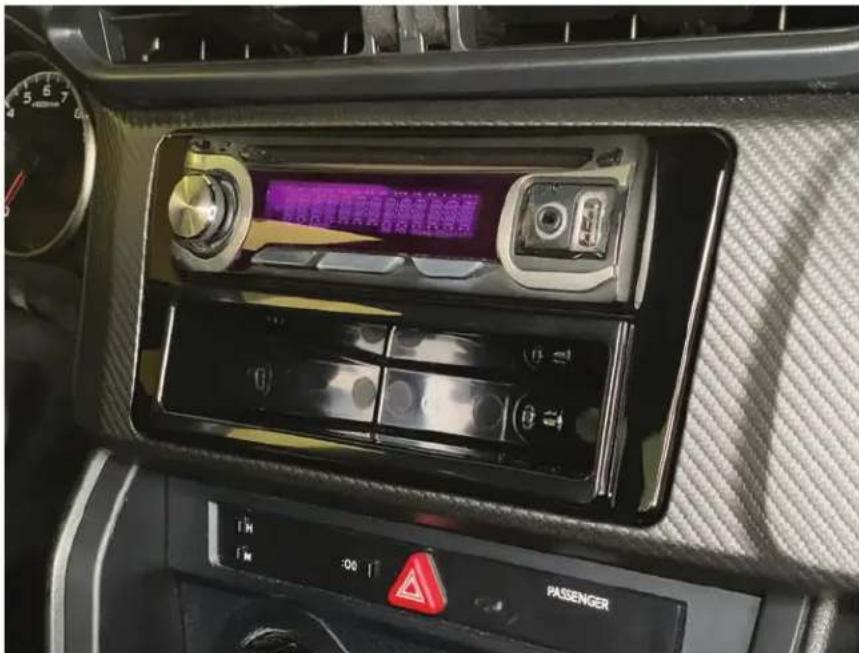

Interior view of a car dashboard with digital display and control buttons (no readable text or symbols)

Exterior view of a black rectangular device housing with metal brackets and mounting bracket (no text or symbols visible)

HARDWARE INCLUDED

Illustration of six different types of screw fasteners, including clamps and screws (no text or symbols present)

Subaru BRZ 2016-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications.

ISO DDIN radio provision

ISO DIN radio provision with pocket

Painted high gloss black to match the factory finish

KIT COMPONENTS

• Radio trim panel
• Radio brackets
• Pocket
• Panel clips (4)
  • Phillips screws (4)

WIRING & ANTENNA CONNECTIONS

(sold separately)

• Wiring Harness: 70-1761
- Antenna Adapter: 40-LX11
• Steering wheel control interface: ASWC-1
