USER MANUAL DP-7363B Metra

Installation instructions for part DP-7363B

Hyundai Sonata 2015-up DP-7363B

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO Double DIN radio provision
- Painted matte black

Interior view of a car dashboard with air conditioners and steering wheel (no visible text or symbols)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Steering column cover bracket • D) Pocket
• E) (4) #8 x 3/8" Phillips screws • F) (8) #4 x 3/8" Phillips screws • G) (7) Panel clips

Technical line drawings of automotive components including chassis, bracket, and screw assembly (no text or labels)

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304, HYBL-04

Antenna Adapter: • Not required

Table of Contents

Dash Disassembly

- Hyundai Sonata 2015-up ....2-3

Kit Assembly

- ISO DIN radio provision with pocket 4

- ISO Double DIN radio provision .... 5

TOOLS REQUIRED

- Phillips screwdriver • Panel removal tool

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

DP-7363B

Dash Disassembly

1. Unsnap and remove the climate/hazard/clock panel. (Figure A)

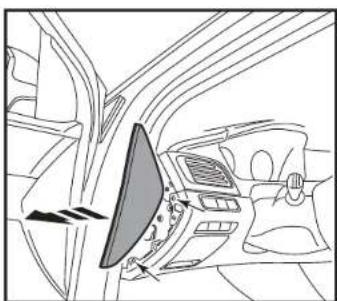

2. Unsnap and remove the trim panel on the drivers side of the dash and then remove (2) Phillips screws. (Figure B)

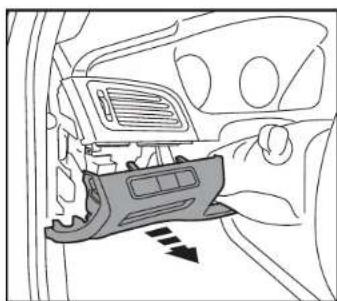

3. Unsnap the knee panel from under the steering wheel. (no need to completely remove this panel). (Figure C)

Continued on next page

Interior view of a car dashboard with air conditioner and navigation panel (no text or symbols)

Interior view of a car showing the steering wheel and dashboard (no text or symbols visible)

Diagram of a car interior showing a vehicle's headrest and dashboard with a directional arrow indicating movement (no text or symbols present)

(Figure C)(Figure B)(Figure A)

DP-7363B

Dash Disassembly

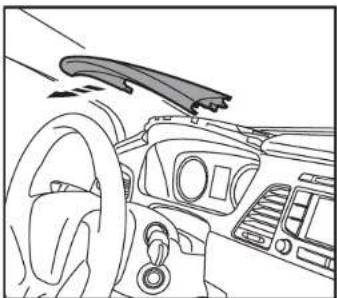

1. Unsnap and remove the panel above the instrument cluster. (Figure D)

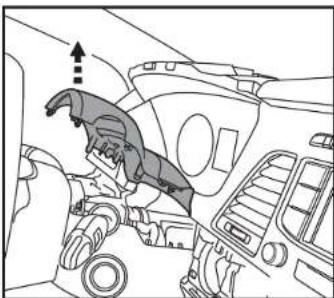

2. Unsnap the top half of the steering column cover. (Figure E)

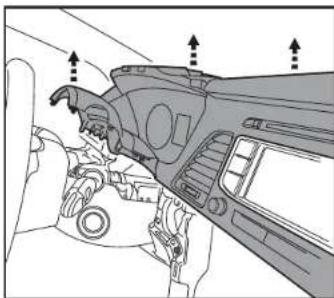

3. Remove (4) screws to remove the radio panel; (2) under the radio section, and (2) above the instrument cluster. (Figure F)

Note: The top of the steering column cover will come with the large panel.

1. Remove (4) Phillips screws securing the radio and then remove the radio.

Continued to kit assembly

Interior view of a car dashboard and steering wheel (no text or symbols visible)

Interior view of a vehicle showing dashboard and steering wheel (no text or symbols)

Diagram of a car interior showing dashboard and steering wheel assembly (no text or labels)

(Figure F)(Figure E)(Figure D)

DP-7363B

Kit Assembly

ISO DIN radio provision with pocket

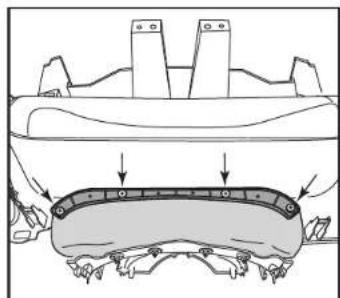

1. To remove the factory steering column cover from the factory dash panel, pry (4) round retaining clips from where the leather meets the large panel. (Figure A)
2. Place the leather cover over the Metra radio trim panel, place the steering column bracket over the leather and secure with the (4) #4 x 3/8" Phillips screws supplied. (Figure B)

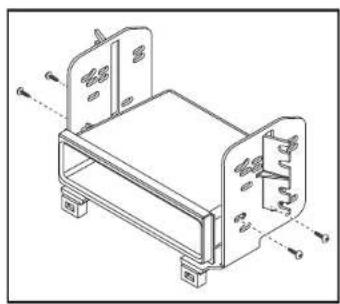

3. Mount the pocket to the radio brackets with the (4) #8 x 3/8" Phillips screws supplied. (Figure C)
4. Remove the metal "DIN" sleeve and trim ring from the aftermarket radio.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

(Figure A) (Figure C)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

(Figure B) (Figure D)

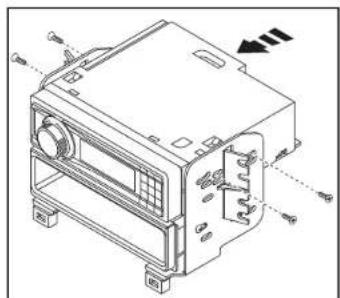

1. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure D)
2. Locate the factory wiring harness and antenna plug in the dash and make all necessary connections to the radio. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
3. Mount the Metra radio assembly into the dash.
4. Snap the Metra radio trim panel and steering column cover into the dash and reassemble the dash in the reverse order of disassembly.

Technical line drawing of a mechanical housing or bracket assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

DP-7363B

Kit Assembly

ISO Double DIN radio provision

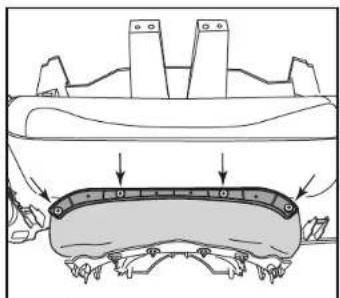

1. To remove the factory steering column cover from the factory dash panel, pry (4) round retaining clips from where the leather meets the large panel. (Figure A)
2. Place the leather cover over the Metra radio trim panel, place the steering column bracket over the leather and secure with the (4) #4 x 3/8" Phillips screws supplied. (Figure B)

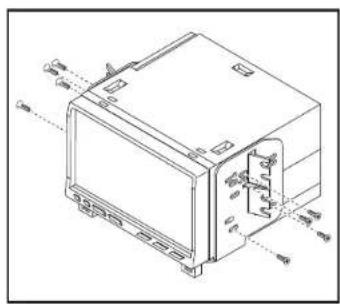

3. Mount the radio to the radio brackets using the screws supplied with the radio. (Figure C)

Pure technical line drawing of a mechanical or structural assembly without any text, numbers, or symbols

(Figure A) (Figure C)

Diagram of a mechanical component with arrows indicating force or movement, no visible text or symbols

(Figure B)

1. Locate the factory wiring harness and antenna plug in the dash and make all necessary connections to the radio. Metra recommends using the proper mating adapters from Metra and/or AXESS.
2. Mount the new radio assembly into the dash.
3. Snap the Metra radio trim panel and steering column cover into the dash and reassemble the dash in the reverse order of disassembly.

Technical line drawing of an electronic device housing with mounting holes and internal components (no text or symbols)

Installation instructions for part DP-73638
