USER MANUAL 99-8239B Metra

Installation instructions for part 99-8239B

Toyota Prius C 2012-2014 99-8239B

KIT FEATURES

• ISO DIN radio provision with pocket
• Painted Matte Black

Interior view of a car dashboard with air conditioner and touchscreen (no visible text or symbols)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips pan head screws
• E) (2) #8 x 3/8 Phillips truss head screws

BCDE

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1761

Antenna Adapter: • 40-LX11

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver - Socket wrench

Table of Contents

Dash Disassembly 2

Kit Assembly

- ISO DIN radio provision with pocket......3

CAUTION! Metra recommends disconnecting the negative battery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for more information. All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory radio with the key in the on position, or the vehicle running. It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio.

METRA. The World's best kits. ^TM

metraonline.com

© COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION

99-82398

Dash Disassembly

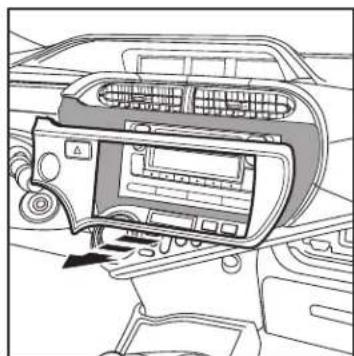

1. Unclip and remove the trim panel from around the radio including the hazard switch. (Figure A)

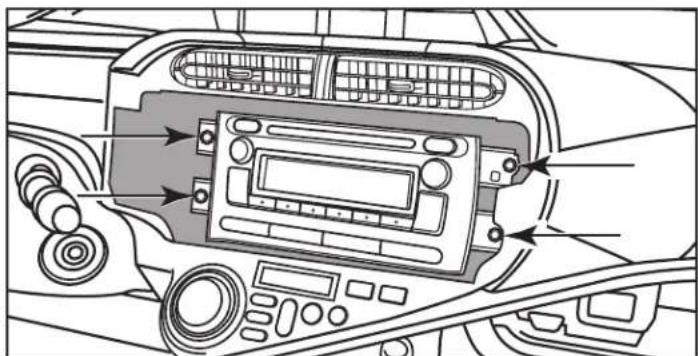

2. Remove (4) 8mm bolts securing the factory radio, then unplug and remove the radio. (Figure B)

Continue to kit assembly

Interior view of a car dashboard with air vent and control panel (no visible text or symbols)

(Figure A)

Interior view of a car dashboard with air filters and control panel (no visible text or labels)

(Figure B)

99-82398

Kit Assembly

ISO DIN radio provision with pocket

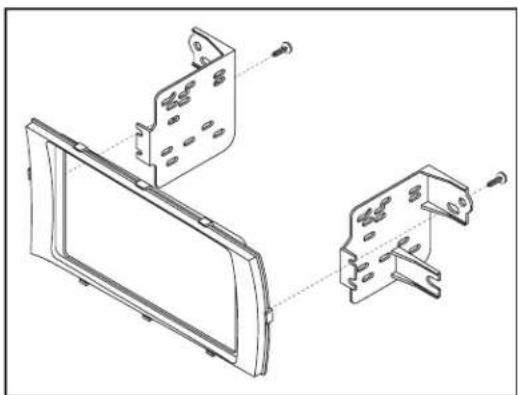

1. Secure the radio brackets to the radio trim panel using (2) #8 x 3/8" Phillips truss head screws supplied. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
3. Secure the radio to the radio-bracket/trim assembly using screws supplied with the radio. (Figure B)
4. Secure the pocket to the radio-bracket/ trim assembly using (4) #8 x 3/8" Phillips pan head screws supplied. (Figure B)
5. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
6. Reassemble the dash in reverse order of disassembly.

Technical line drawing of a mechanical assembly with two views (front and side), showing internal components and mounting holes (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of an internal air conditioner unit with mounting brackets and a control panel (no text or symbols)

Installation instructions for part 99-82398

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
