USER MANUAL 108-TO1HG Metra

Interior view of a car dashboard with air filters and a digital display (no visible text or symbols)

Toyota Sequoia 2008-up, Tundra 2007-2013

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
  • 108-T01B - Painted scratch resistant matte black
  • 108-T01HG - Painted high gloss black
  • 108-T01CHG -Painted high gloss charcoal (matches 2010-up)

KIT COMPONENTS

• A) Radio housing • B) Radio brackets

A

Technical line drawing of a rectangular frame with curved edges and a central recess (no text or symbols)

B

TABLE OF CONTENTS

Dash Disassembly

-With console shifter 2-3

-With column shifter 4-5

Kit Assembly 6

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Please visit metraonline.com for wiring harness options

Antenna Adapter: Please visit metraonline.com for antenna adapter options

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• 10mm socket wrench

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

With console shifter

1. Unclip and remove the trim panel around the cup holders. (Figure A)

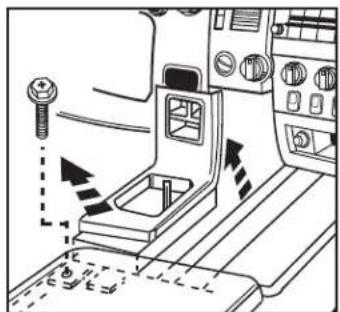

2. Remove (1) Phillips screw securing the shifter trim panel, then unclip and remove the panel. (Figure B)
3. Unclip, unplug and remove the climate control assembly. (Figure C)

Continued on the next page

Line drawing of a machine tool with control panel and tray (no text or symbols)

(Figure A) (Figure C)(Figure B)

Diagram of a vehicle air intake system with directional arrows indicating flow or movement between components

Line drawing of an airplane cockpit interior showing flight controls and dashboard (no text or symbols)

DASH DISASSEMBLY (CONT.)

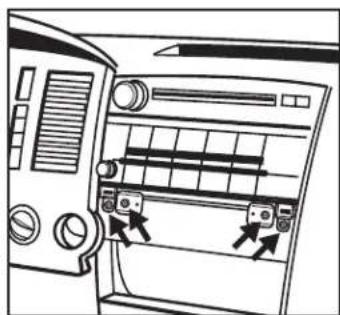

1. Remove (4) 10mm screws securing the bottom of the radio. (Figure D)
2. Unclip the right side of the instrument panel trim to allow room for the radio to be removed in the following step.

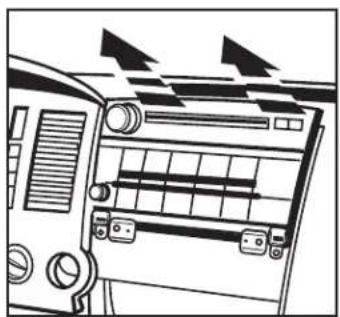

3. Unclip the radio from the dash. Slide the radio out, then unplug and remove radio. (Figure E)

Continue to Kit Assembly

Interior view of a car dashboard with control panel and buttons (no text or symbols visible)

(Figure D) (Figure E)

Interior view of a car air conditioning unit with directional arrows indicating airflow or movement (no text or symbols)

DASH DISASSEMBLY

With column shifter

1. Remove (2) plastic Phillips screws from each side of the trim panel below the cup holder, then unclip and remove the panel. (Figure A)
2. Pull the cup-holder out, then depress the clip from each side to remove the cup-holder from the dash. (Figure B)

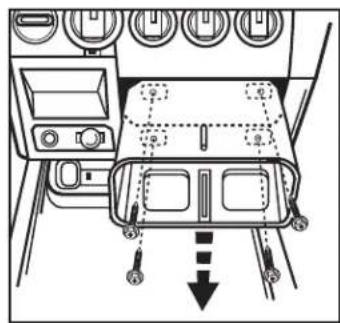

3. Remove (4) Phillips screws securing the cup-holder assembly to the dash, then unclip and remove the assembly. (Figure C)

Top-down view of a car dashboard with directional arrows indicating left and right sides (no text or symbols)

(Figure A) (Figure C)(Figure B)

Line drawing of a car air intake system with control panel and fan (no text or symbols)

Diagram of a vehicle air intake system with labeled components and directional arrows indicating flow or movement.

Continued on the next page

DASH DISASSEMBLY (CONT.)

1. Unclip the climate control assembly and set aside. (Figure D)

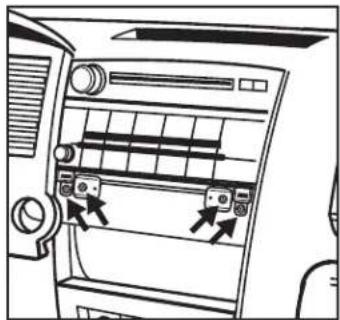

2. Remove (4) 10mm bolts securing the bottom of the radio. (Figure E)
3. Unclip the right side of the instrument panel trim to allow room for the radio to be removed in the following step.
4. Unclip the radio from the dash. Slide the radio out, then unplug and remove radio. (Figure F)

Line drawing of a car air conditioner unit with control panel and battery compartment (no text or symbols)

Interior view of a car dashboard with directional arrows indicating movement or control buttons (no text or symbols visible)

(Figure E) (Figure F)(Figure D)

Line drawing of a car's front panel with buttons and ventilation grilles (no text or symbols)

KIT ASSEMBLY

Note: For steps 1 and 2, reference the installation manual provided with the radio for which hardware to use. The display screen and radio chassis use two different types of screws.

1. Secure the radio brackets to the radio chassis using (4) screws supplied with the radio. (Figure A)

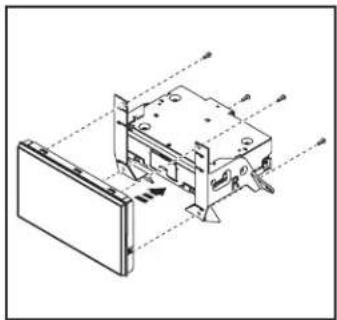

2. Secure the radio display to the radio brackets using (4) screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio for proper operation.

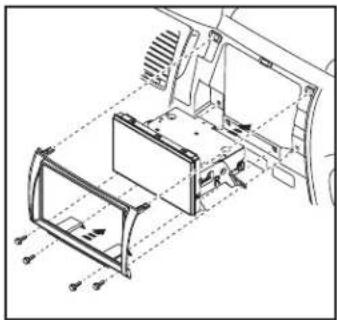

4. Slide the radio assembly into the dash. Place the radio trim panel over the radio assembly, then secure both using the factory screws. (Figure C)
5. Reassemble the dash in reverse order of disassembly to complete the installation.

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

(Figure A) (Figure C)(Figure B)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a car interior frame with structural components and alignment markers (no text or symbols)

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 1-800-253-TECH, or email at [e-mail]. Before doing so, look over the instruction booklet a second time and ensure that the installation was performed exactly as the instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
