Product Type	Audio Installation Kit
Brand	Metra
Model	108-TO2CHG
Vehicle Compatibility	Toyota Tacoma 2012-2015
Designed For	Pioneer DMH-C5500NEX 8-inch radio
Color/Finish	Painted Charcoal High Gloss
Components Included	Radio trim panel, radio brackets, clock/hazard housing, panel clips (4), #4 x 3/8" Phillips truss head screws (6)
Tools Required	Panel removal tool, Phillips screwdriver, 10mm socket wrench, cutting tool
Wiring Harness	Sold separately (visit metraonline.com for options)
Antenna Adapter	Sold separately (visit metraonline.com for options)
Installation Difficulty	Moderate (requires dash disassembly and cutting)
Screw Size	#4 x 3/8" Phillips truss head
Panel Clips Quantity	4 (replacement if factory missing/damaged)
Tech Support	1-800-253-TECH or [e-mail]

Frequently Asked Questions - 108-TO2CHG Metra

Does this kit fit my 2013 Toyota Tacoma?

Yes, the Metra 108-TO2CHG is designed for Toyota Tacoma models from 2012 to 2015.

What radio does this kit work with?

This kit is specifically designed for the Pioneer DMH-C5500NEX 8-inch radio.

Is the painting scratch-resistant?

The 108-TO2CHG has a painted charcoal high gloss finish. For a scratch-resistant matte black option, consider model 108-T02B.

Do I need a wiring harness?

Yes, a wiring harness is required but sold separately. Visit metraonline.com to find the correct harness for your vehicle.

Does the kit include an antenna adapter?

No, the antenna adapter is sold separately. Check metraonline.com for compatible options.

What tools are needed for installation?

You will need a panel removal tool, Phillips screwdriver, 10mm socket wrench, and a cutting tool.

How do I install the clock/hazard assembly?

Attach the clock/hazard housing to the radio trim panel using the provided screws, then clip the clock/hazard assembly into the trim panel. Do not overtighten.

Can I reuse the factory panel clips?

Yes, you can reuse factory clips if they are in good condition. The kit includes 4 replacement clips if needed.

Do I need to cut the factory dash?

Yes, you may need to cut the factory dash panel in areas indicated to accommodate the larger aftermarket radio. Use a cutting tool.

Where can I get tech support?

Contact Metra Tech Support at 1-800-253-TECH or email [e-mail]. Have the vehicle disassembled when calling.

USER MANUAL 108-TO2CHG Metra

Toyota Tacoma 2012-2015

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
  • 108-T02B = Painted scratch resistant matte black
• 108-T02CHG = Painted charcoal high gloss

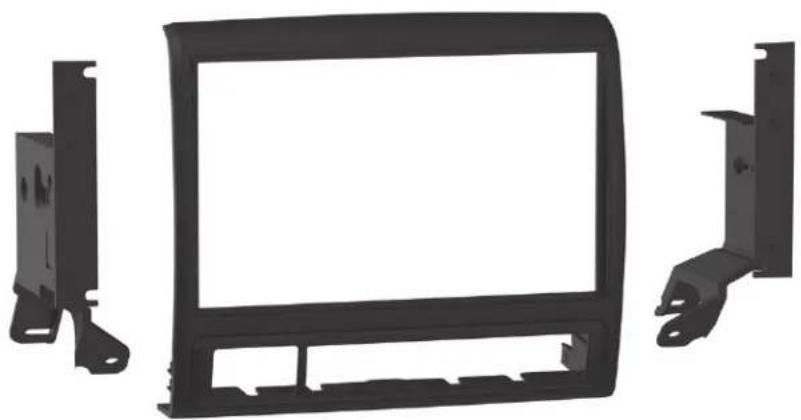

KIT COMPONENTS

- A) Radio trim panel • B) Radio brackets • C) Clock/Hazard housing • D) Panel Clips (4) • E) #4 x 3/8" Phillips truss head screws (6)

AB

•

•

•

E

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation ....3

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Please visit metraonline.com for wiring harness options

Antenna Adapter: Please visit metraonline.com for antenna adapter options

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• 10mm socket wrench • Cutting tool

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

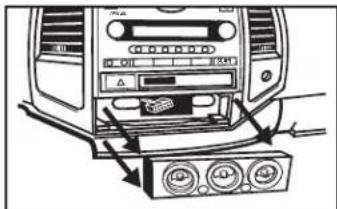

1. Unclip, unplug and remove the climate control panel. (Figure A)
2. Remove (4) 10mm screws securing the radio assembly. (Figure B)

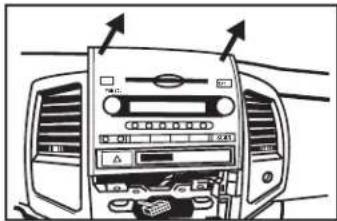

3. Unclip, unplug, and remove the radio assembly. (Figure C)

(Figure A)

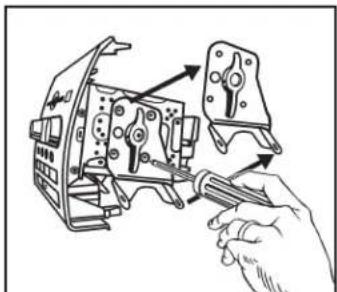

1. Remove (8) screws securing the radio brackets to the radio, then remove the brackets. (Figure D)
2. Unclip and remove the clock/hazard assembly from the radio assembly. (Figure E)
3. Remove (3) panel clips from the radio assembly.

Continue to Kit Preparation

(Figure D)

(Figure B)

(Figure E)

(Figure C)

KIT PREPARATION KIT ASSEMB

1. Attach the clock/hazard housing to the radio trim panel using (6) #4 x 3/8" Phillips pan-head screws provided.

WARNING: DO NOT OVERTIGHTEN THE SCREWS.

1. Clip the clock/hazard assembly into the radio trim panel. (Figure A)
2. Attach (4) factory panel clips to the radio trim panel. The middle clip will not be reused to allow room for the larger aftermarket radio.

Note: (4) panel clips have been provided, only if the factory clips are missing or damaged.

1. Cut the factory dash panel in areas indicted to allow room for the aftermarket radio. (Figure B)

Continue to Kit Assembly

(Figure A)

(Figure B)

Note: For steps 1 and 2, reference the installation manual provided with the radio for which hardware to use. The display screen and radio chassis use two different types of screws.

1. Secure the radio brackets to the radio chassis using (4) screws supplied with the radio. (Figure A)
2. Secure the radio display to the radio brackets using (4) screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio for proper operation.
4. Slide the completed radio assembly into the dash, then secure it using the factory screws.
5. Re-connect the clock/hazard assembly back to the vehicle, then clip the radio trim panel over the radio assembly.
6. Reassemble the dash in reverse order of disassembly to complete the installation.

(Figure A)

(Figure B)

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 1-800-253-TECH, or email at [e-mail]. Before doing so, look over the instruction booklet a second time and ensure that the installation was performed exactly as the instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

HARDWARE INCLUDED

Toyota Tacoma 2012-2015

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications.

Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio

108-T02B = Painted scratch resistant matte black

108-T02CHG = Painted charcoal high gloss

KIT COMPONENTS

• Radio trim panel
• Radio brackets
• Clock/Hazard housing
• Panel clips (4)

• 4 x 3/8" Phillips truss head screws (6)

WIRING & ANTENNA CONNECTIONS

(sold separately)

• Wiring Harness: Please visit metraonline.com for wiring harness options.
• Antenna Adapter: Please visit metraonline.com for antenna adapter options.

SALES 800-221-0932
