USER MANUAL NeoTV NTV200S NETGEAR

NeoTV Streaming Player (NTV200S)

User Manual

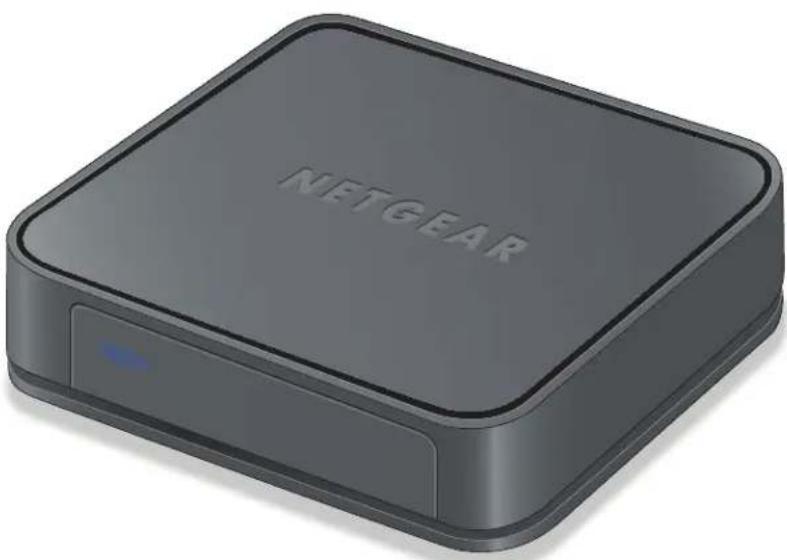

3D rendering of a black NETGEAR device with a blue indicator light (no text or symbols on the device body)

350 East Plumeria Drive

San Jose, CA 95134

USA

April 2012

202-11028-01

v1.0

© 2012 NETGEAR, Inc. All rights reserved

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information about the topics covered in this manual, visit the Support website at

http://support.netgear.com

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/app/answers/detail/a_id/984

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © 2012 NETGEAR, Inc. All rights reserved.

HDMI, the HDMI Logo, and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use, or application of, the product(s) or circuit layout(s) described herein.

Contents

Chapter 1 Getting Started

Streaming Media Basics....6

Hardware Features....7

What Is Included in the Box 7

Front and Rear Views....7

What You Need to Use Your NeoTV Player....7

Installation 8

Connect to the TV....8

Remote Control Batteries 8

Connect to Your Home Network. 9

Reset Button....10

Remote Control 11

Onscreen Quick Setup 13

Watch NeoTV Channels. 15

Fling Queue....16

Intel Wireless Display (WiDi) 17

Chapter 2 Settings

Settings Menu 20

General Settings....21

Restore Factory Settings .....22

Audio & Video Settings....23

Network Settings 25

About 26

Registration 27

Chapter 3 Maintenance

Update Notification....29

Replace the Remote Control Batteries....29

Error 101 on Flingo Channels....30

Chapter 4 NeoTV Mobile Apps

NeoTV Remote Control App....32

Using the App with the NeoTV Streaming Player....33

Gestures....33

Channels 34

Favorites....35

Settings. 35

NeoTV Streaming Player (NTV200S)

Appendix A Supplemental Information

Factory Default Settings....38

Technical Specifications....38

Appendix B Notification of Compliance

Getting Started

1

This chapter covers the following topics:

• Streaming Media Basics
- Hardware Features
• What You Need to Use Your NeoTV Player
- Installation
- Onscreen Quick Setup
- Remote Control
• Watch NeoTV Channels
• Intel Wireless Display (WiDi)

For more information about the topics covered in this manual, visit the support website at http://support.netgear.com.

Streaming Media Basics

For the optimal media streaming experience with the NeoTV Streaming Player, NETGEAR recommends the following:

- Broadband Internet service. You need at least a 1.2 Mbps connection to watch movies instantly on the NeoTV Streaming Player. The faster your connection, the better the quality. For high-quality video and audio, a connection of least 2.5 Mbps is required, and for HD 1080p movies 4.5 Mbps is recommended.

Note: Streaming quality also depends on the Internet connection quality, sometimes higher bandwidth is required to accommodate the network packet lost.

You can test your bandwidth at one of the following sites:

www.speakeasy.net/speedtest

www.speedtest.net

Or you can sign up for VUDU services and run Network Speed Test under setting.

- Network connections. You can connect your NeoTV Streaming Player to your broadband Internet connection using a wired or wirelessly (Wi-Fi) connection. You might need a network router or access point if your cable or DSL modem does not have free ports or wireless support.

- Internet access through your network. The NeoTV Streaming Player connects to the Internet through your home network using either a wireless connection or, if you prefer, an Ethernet cable. For wireless connections, the NeoTV Streaming Player follows the Wi-Fi standard and is compatible with 802.11b, 802.11g, and 802.11n networks—the most common Wi-Fi networks, depending on your specific model. The NeoTV Streaming Player also supports wireless security, including WEP, WPA, and WPA2.

Hardware Features

What Is Included in the Box

Pure electrical circuit lines without any symbols

NeoTV Streaming Player

Coiled cable with a black plastic plug and terminal connector (no visible text or symbols)

Power adapter

NEIGEAR Model 1: Model 2: Model 3: Model 4: Model 5: Model 6: Model 7: Model 8: Model 9: Model 10: Model 11: Model 12: Model 13: Model 14: Model 15: Model 16: Model 17: Model 18: Model 19: Model 20: Model 21: Model 22: Model 23: Model 24: Model 25: Model 26: Model 27: Model 28: Model 29: Model 30: Model 31: Model 32: Model 33: Model 34: Model 35: Model 36: Model 37: Model 38: Model 39: Model 40: Model 41: Model 42: Model 43: Model 44: Model 45: Model 46: Model 47: Model 48: Model 49: Model 50: Model 51: Model 52: Model 53: Model 54: Model 55: Model 56: Model 57: Model 58: Model 59: Model 60: Model 61: Model 62: Model 63: Model 64: Model 65: Model 66: Model 67: Model 68: Model 69: Model 70: Model 71: Model 72: Model 73: Model 74: Model 75: Model 76: Model 77: Model 78: Model 79: Model 80: Model 81: Model 82: Model 83: Model 84: Model 85: Model 86: Model 87: Model 88: Model 89: Model 90: Model 91: Model 92: Model 93: Model 94: Model 95: Model 96: Model 97: Model 98: Model 99: Model 100

Installation guide

Remote control with batteries

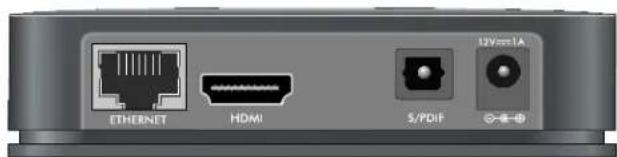

Front and Rear Views

Exterior view of a gray electronic device casing with no visible text or symbols

I2Vee1A ETHERNET HDMI S/PDIF

What You Need to Use Your NeoTV Player

• TV with HDMI port
- HDMI cable
• Broadband Internet connection
• A wireless or wired network

Installation

To install your NeoTV Streaming Player, you connect it to the TV and to your home network. When you turn on the TV, the NeoTV Quick Setup screen displays.

Connect to the TV

1. Make sure that your TV is on and set to display the correct video input.
2. Connect an HDMI cable (sold separately) to the HDMI port on your player and to the HDMI IN port on your TV.

HDMI supports 5.1 surround You do not need a separate HDMI cable (not included) NeoTV

HDMI supports 5.1 surround sound (if available). You do not need a separate audio cable.

1. Connect the power adapter to your player, and plug it into an electrical outlet.

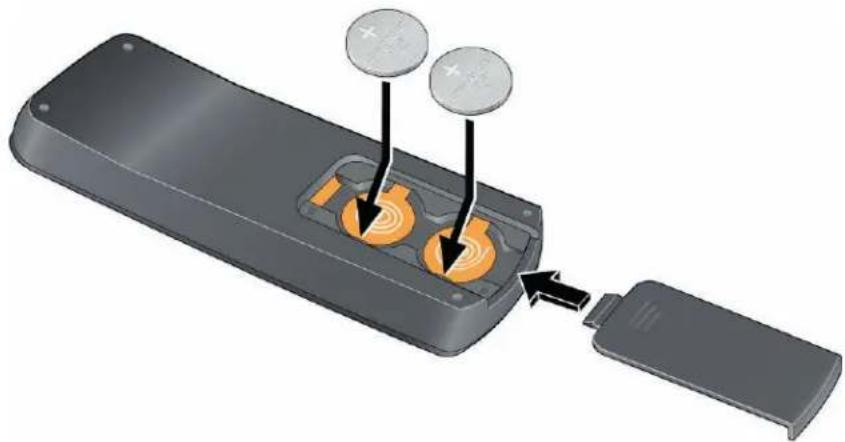

Remote Control Batteries

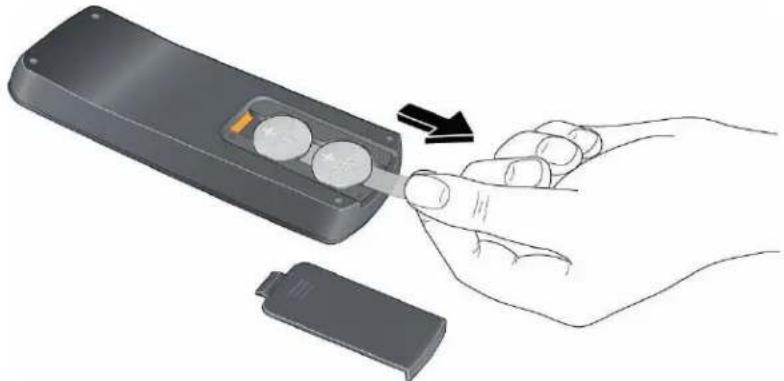

To use the remote control, remove the plastic strip beneath the batteries as shown.

Illustration of a hand inserting a battery into a remote control unit (no text or symbols)

Figure 1. Remove the plastic strip that is under the batteries

Connect to Your Home Network

To use your player, you need to connect it to your home network with either a wireless or a wired connection. After you get your network ready, the onscreen guided setup helps you connect your player to your network.

IMPORTANT:

Do not place anything on top of your NeoTV player. Placing objects on top of your player can interfere with the wireless signal or cause the player to overheat.

Wired Connection

Use an Ethernet cable (sold separately) to connect your player to a LAN port on your router.

Figure 2. Wired LAN connection

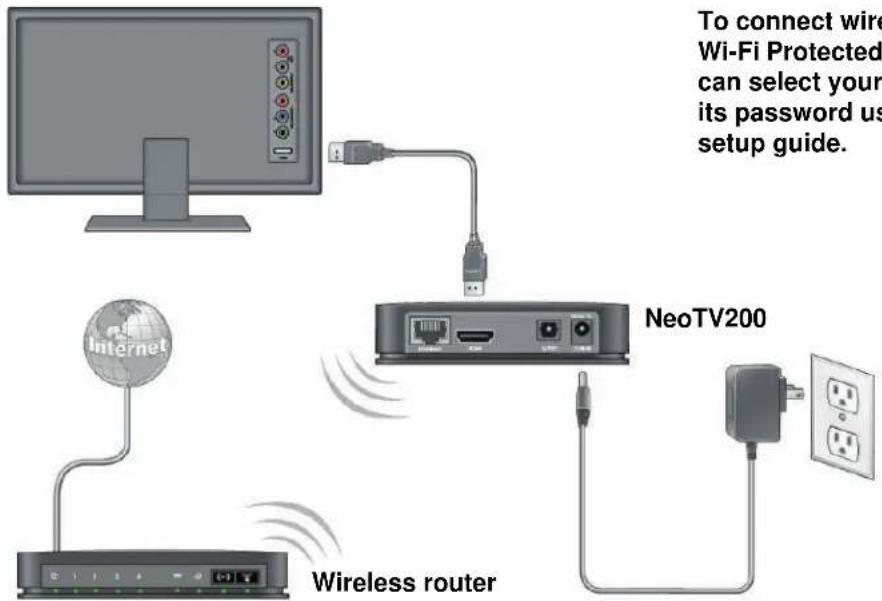

Wireless Connection

If you are using a wireless connection, place your player within range of your wireless network. For best wireless reception, avoid enclosing your player in a cabinet.

To connect wire Wi-Fi Protected can select your its password us setup guide. Internet NeoTV200 Wireless router

To connect wirelessly, you can use Wi-Fi Protected Setup (WPS), or you can select your network and enter its password using the onscreen setup guide.

Figure 3. Wireless network connection

If you do not receive a strong signal during the onscreen setup, rotate your player or move it closer to your router.

Reset Button

There is Reset button on the bottom of the NeoTV Streaming Player. You can use the Reset button to go to standby mode.

• Press Reset once and the NeoTV Streaming Player goes to standby mode. Press Reset again to wake up the NeoTV Streaming Player.
  • To reboot, press and hold Reset for 6 seconds. The unit power cycles.

Remote Control

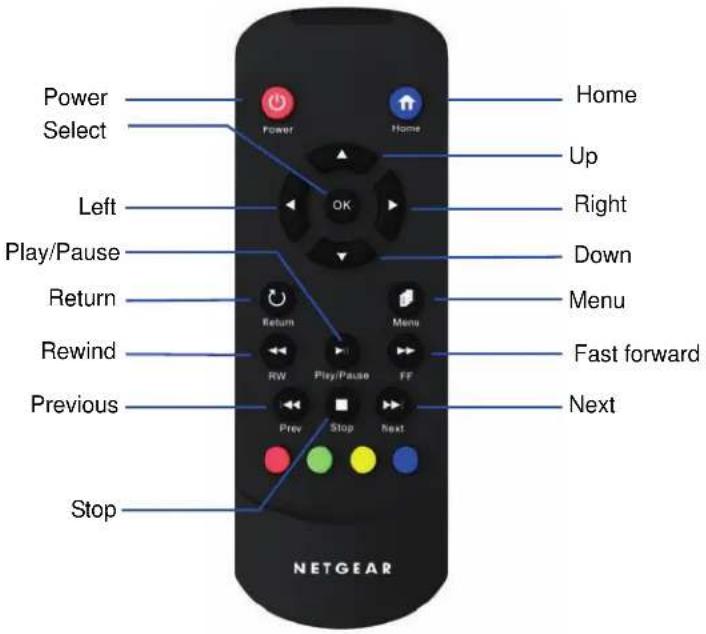

The remote control buttons are described in the following figure:

Power Select Left Play/Pause Return Rewind Previous Stop Home Up Right Down Menu Fast forward Next Prev Stop Next NETGEAR

Figure 4. Remote control

Table 1. Remote control buttons

Button Description
Power Wake up the 200, or make the NTV200 go to standby.
Home Exit the current steering channel to go to the Home screen.
Up	Navigate up.
Down	Navigate down.
Left Navigate left.
Right [CTWD]	Navigate right
OK Select.
Return Return to the previous menu. Some services do not use this button.
Menu Additional options. Some channels might not use this button.
Play/Pause Play or pause media.
Stop Stop playing media.
Fast Forward Fast forward.
Rewind Rewind.
Next Skip to next. Services do not use this button.
Previous Previous chapter. Some services do not use this button.
	These color-coded buttons are used only in certain screens. Those screens display instructions for their use.

Onscreen Quick Setup

Onscreen Quick Setup makes it easy to get started with the NeoTV Streaming Player.

To use Quick Setup:

1. After you connect your NeoTV Streaming Player, press Power on the NeoTV remote control to turn it on.
2. You might need to use your TV remote control to select the HDMI input on your TV where you connected the NeoTV Streaming Player.

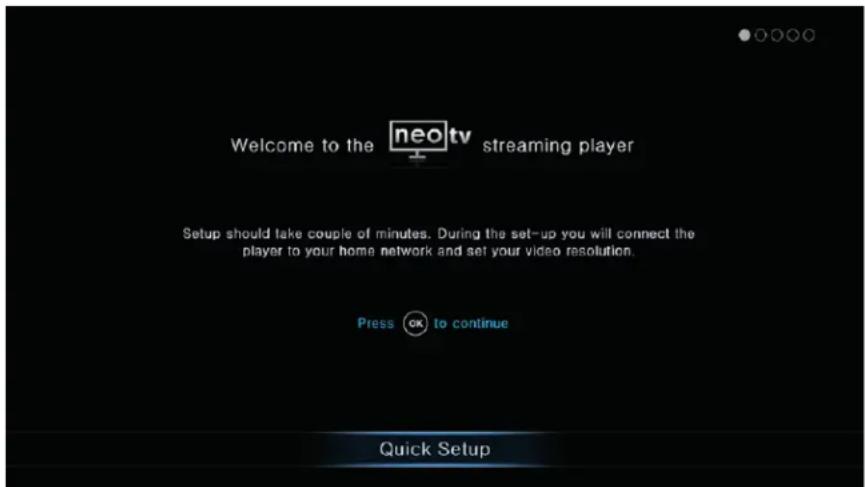

The NeoTV Quick Setup Welcome screen displays.

Welcome to the neo tv streaming player Setup should take couple of minutes. During the set-up you will connect the player to your home network and set your video resolution. Press OK to continue Quick Setup

1. Follow the onscreen setup instructions to select the following:

• TV resolution. This is the output resolution to the TV.
- Standby timing. Select the number of minutes that the NeoTV Streaming Player waits to display a screen saver when media is not playing.
- WiFi network. Select your home network. If you connected an Ethernet LAN cable, you are not prompted to select a WiFi network. You can use one of the following methods.
- Select your WiFi network. The NTV200 displays a list of networks in your area. Select the one that you want to join.
- Connect using WPS. When prompted, press the WPS button on your router to join your network without typing the network password.
- Connect manually. Use the onscreen keyboard to type the name of the network and its WiFi password.
• The NeoTV Streaming Player checks for software updates.

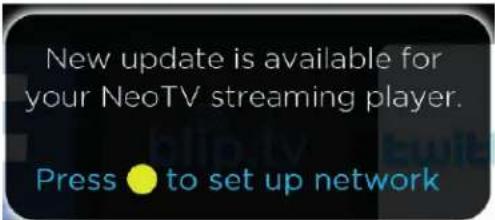

1. If an update is available press the yellow, button on the lower part of the remote control:

New update is available for your NeoTV streaming player. Press ● to set up network

The NeoTV Streaming Player might restart after upgrading. Then the Home screen displays:

neo tv GAME of THRONES BEASON ONE EXTREMELY LOUD INCREDIBLY CLOSE My Channels Most Popular Movies & TV News & Education Web TV Music & Photos Lifestyle Games Settings Intel WiDi Wireless Display NETFLIX hulu PLUS CinemaNow FILM FRESH vds HD Movies vds Apps YouTube PANDORA databorges media Picasa f FLING QUEUE twitter

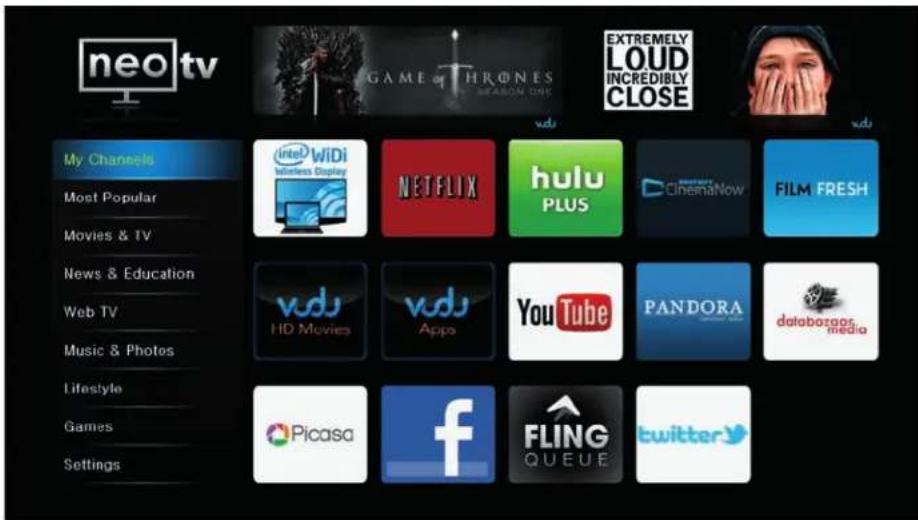

Figure 5. NeoTV Streaming Player Home screen

Watch NeoTV Channels

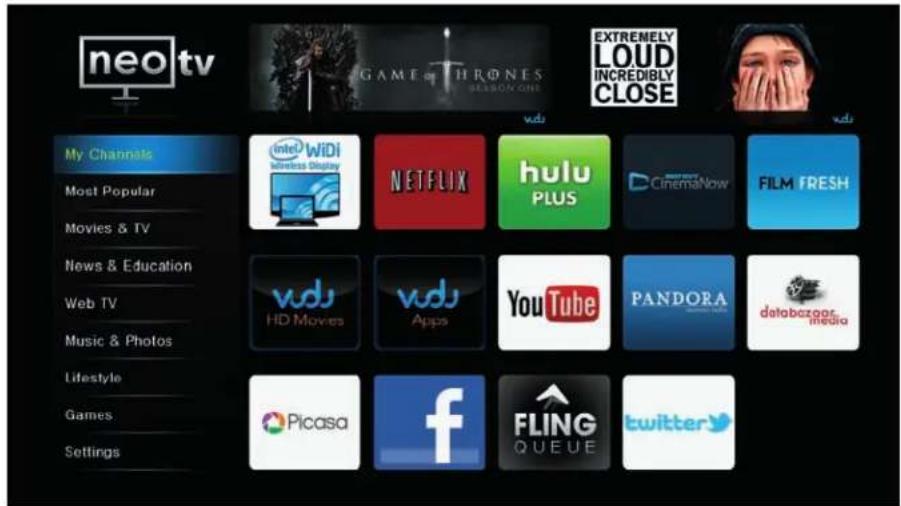

The Home screen displays your channel selections:

neo tv GAME OF THRONES SEASON ONE EXTREMELY LOUD INCREBILY CLOSE wdu wdu My Channels Meat Popular Movies & TV News & Education Web TV Music & Photos Lifestyle Games Settings intel WiDi Wireless Display NETFLIX hulu PLUS CinemaNow FILM FRESH wdu HD Movies vdu Apps YouTube PANDORA databozgas media Picasa f FLING QUEUE twitter

If you want to play HD movies and TV shows, note that Netflix, HuluPlus, CinemaNow, and VUDU offer high-definition (HD) content. VUDU also provides 1080p full HD and 5.1 surround sound content.

To manage My Channels:

You can control the My Channel display on the Home screen.

• To move a channel, select it and press the blue ● button on the remote control. Use the arrow button on the remote control to go to the new position and press OK.
• To remove a channel from the display, press the red ● button on the remote control and press OK.

To add channels:

1. Navigate to a screen such as Most Popular that displays a selection of channels.
2. Use the arrow buttons on the remote control to select a channel that you want to add to My Channels.
3. Press the green button on the remote control.
   The next time you go to the My Channels screen, the new channel will be included.

To play media:

1. Select a menu item in the left pane on the Home screen.
2. Select the service or channel, and press OK.

Fling Queue

Flingo is a free app that lets you select Internet content and send it to your TV.

To set up your computer with Flingo:

1. Launch a web browser.
2. Go to the Flingo website at www.flingo.org.
3. Check to make sure that your browser is supported.
4. Drag the Fling button from the Flingo website onto your browser.

To fling a video from your computer to your TV:

1. Turn on the NTV200.

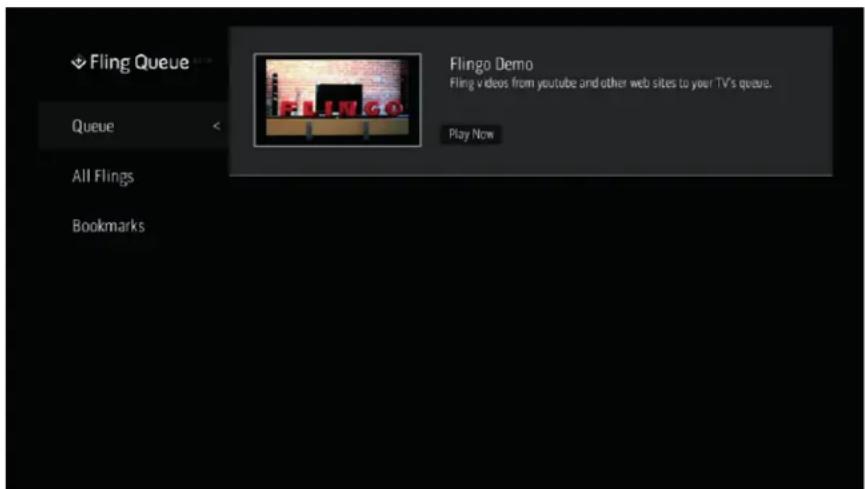

2. Select Fling Queue.

Fling Queue Queue All Flings Bookmarks Flingo Demo Fling videos from youtube and other web sites to your TV's queue. Play Now

Fling Queue is typically one of the selections on the Most Popular screen.

1. Make sure that your computer and the NTV200 are on the same network.
2. On your computer, use your browser to navigate to the Internet content that you want to play on your TV.
3. Click the Fling button on your browser. Flingo locates the NTV200 on your network and displays the following message:

Cancel Fling FLINGO ■ Fling all Fling 'em

1. Select the items that you want to fling, and click Fling 'em.

2. On your TV, on the Fling Queue screen, select the item that you want.

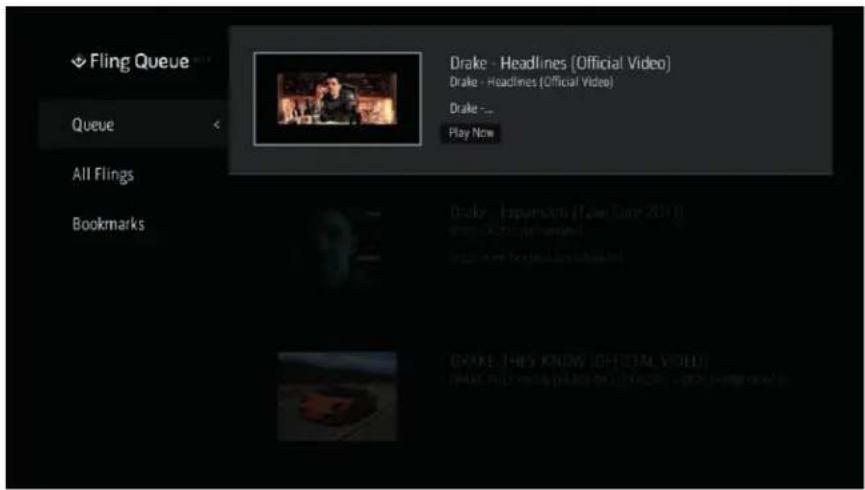

Fling Queue Queue All Flings Bookmarks Drake - Headlines (Official Video) Drake - Headlines (Official Video) Drake -- Play Now Drake - Expansion (Tawl Davis 2010) Drake - Expansion (Tawl Davis 2010) Drake - Expansion (Tawl Davis 2010) Drake - Expansion (Tawl Davis 2010) Drake - Expansion (Tawl Davis 2010) Drake - Expansion (Tawl Davis 2010)

Intel Wireless Display (WiDi)

Intel WiDi channel wirelessly projects your WiDi-capable laptop display to a TV. Visit the Intel web site at intel.com for more information about the Intel WiDi Wireless Display.

intel WiDi Wireless Display

To project your laptop display to your TV wirelessly:

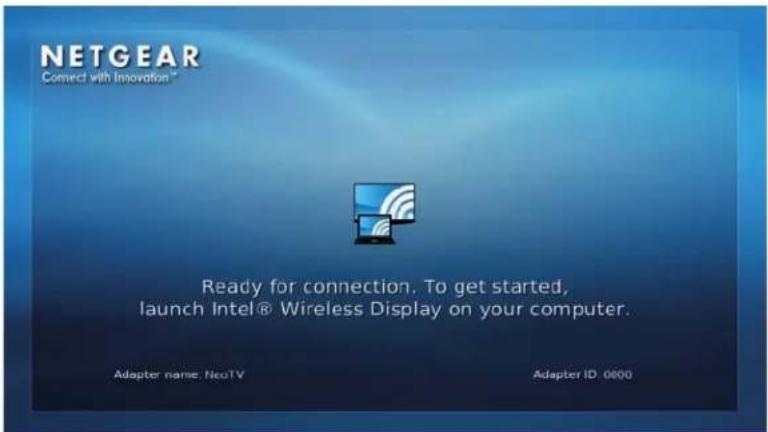

1. After you enter Intel WiDi channel, the Ready for Connection screen displays on your TV.

NETGEAR Connect with Innovation™ Ready for connection. To get started, launch Intel® Wireless Display on your computer. Adapter name: NetTV Adapter ID: 0000

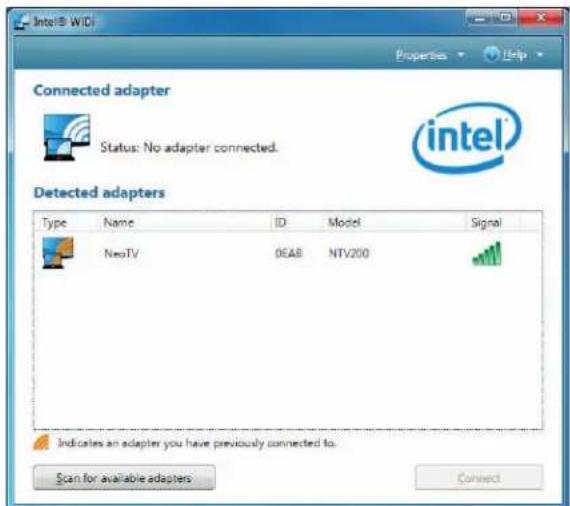

1. On your laptop, launch the Intel WiDi application. It scans and finds the NeoTV adapter. Then click the selected adapter to start the connection to display your laptop screen on your TV.

Intel® WDi Properties Help Connected adapter Status: No adapter connected. Detected adapters Type Name ID Model Signal NeoTV OSAB NTV200 Indicates an adapter you have previously connected to. Scan for available adapters Connect

1. If you are connecting the laptop to the NeoTV adapter for the first time, the NeoTV adapter displays a 4-digit security code on the TV screen. Enter this code into the Intel WiDi application. Within a few seconds, the TV screen displays your laptop screen.

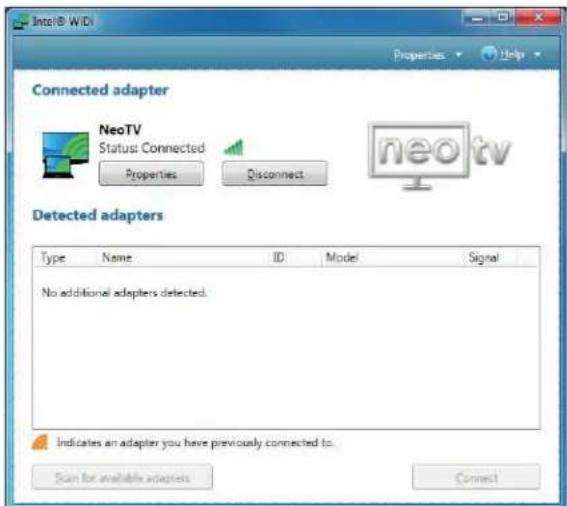

2. To terminate the NeoTV WiDi section or to go back to the NeoTV home page, disconnect the WiDi connection.

a. Click the Disconnect button on your laptop WiDi application, and wait until the Ready for Connection screen shows on your TV.
b. Then press the NeoTV remote Home button to go back to NeoTV home page.

Intel® WiDi Connected adapter NeoTV Status: Connected Properties Disconnect neo tv Detected adapters Type Name ID Model Signal No additional adapters detected. Indicates an adapter you have previously connected to. Scan for available adapters Connect

Settings

2

This chapter covers the following topics:

• Settings Menu
• General Settings
  • Audio & Video Settings
  • Network Settings
• About
• Registration

Settings Menu

You can customize the settings for your NeoTV Streaming Player.

To view or change the settings:

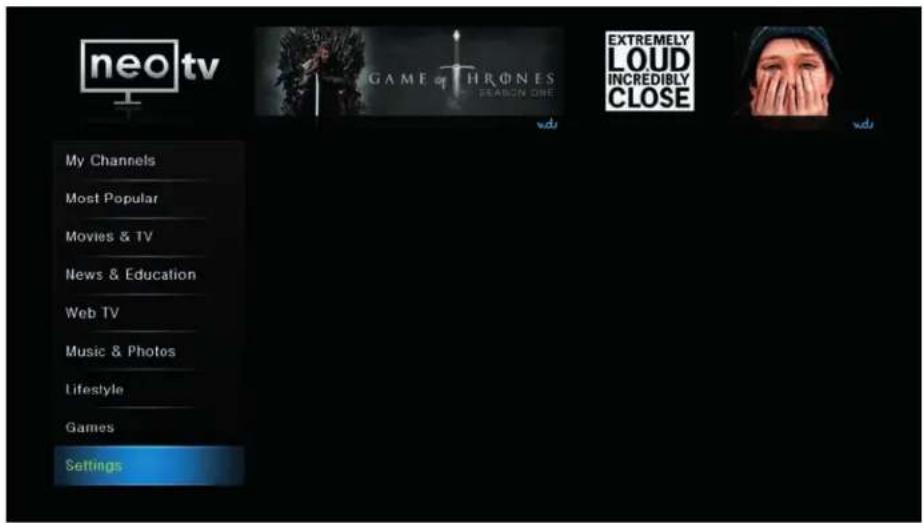

1. Select Settings on the Home screen.

neo tv My Channels Most Popular Movies & TV News & Education Web TV Music & Photos Lifestyle Games Settings GAME OF THRONES SEASON ONE EXTREMELY LOUD INCREDBLY CLOSE

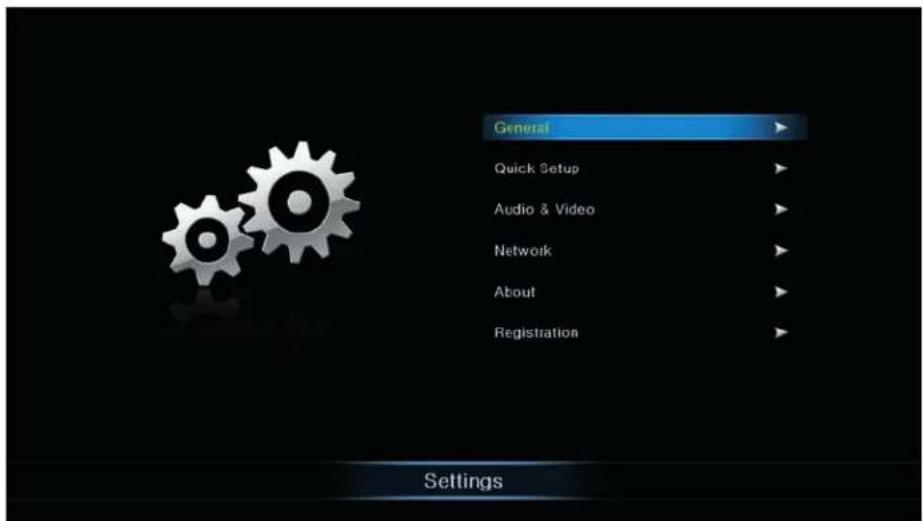

1. Press OK to display the following screen:

General Quick Setup Audio & Video Network About Registration Settings

Each setting menu is described in the following sections in this chapter.

General Settings

The General Settings menu includes the following:

• Software Update. Check to see if newer versions of software are available. Download them and install them on your NeoTV Streaming Player.
• Screen Saver Timing. Specify how long the NeoTV Streaming Player should wait to display a screen saver when no channel is playing.
• Standby Timing. Select the number of minutes the NeoTV Streaming Player waits before turning off and going into standby mode.
• Restore Factory Settings. Return the NeoTV Streaming Player to its factory settings. This option erases any settings that you have specified. It does not erase software updates.
  • Legal. View legal information about your product.

You can use the restore factory settings feature to return the NeoTV Streaming Player to its factory settings, or to deactivate streaming services.

Selecting Restore Factory Settings restores the unit to default settings, but it does not remove the channel account information. To remove the channel account information, select Deactivate All Connected Application or deactivate specific channel account information.

To restore factory settings:

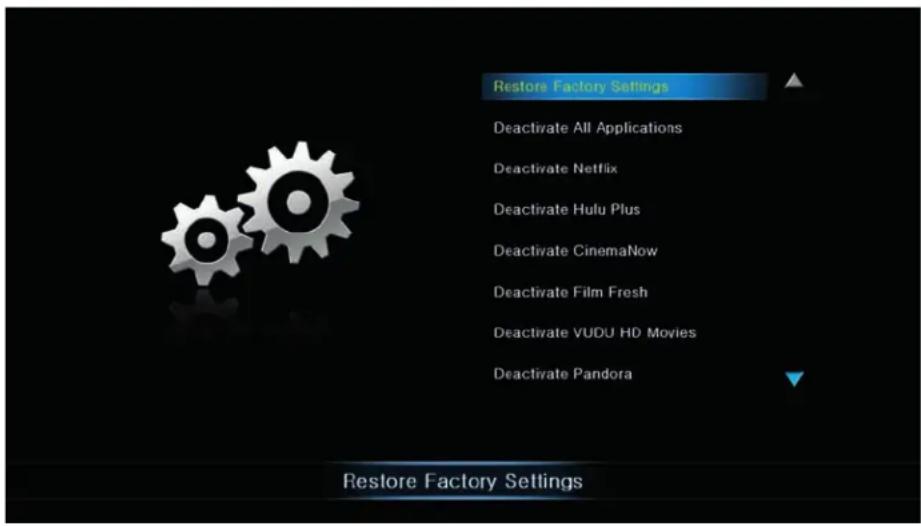

1. Select Settings > Restore Factory Settings to display the following screen:

Restore Factory Settings Deactivate All Applications Deactivate Netflix Deactivate Hulu Plus Deactivate CinemaNow Deactivate Film Fresh Deactivate VUDU HD Movies Deactivate Pandora Restore Factory Settings

1. Press OK to confirm.

2. The NeoTV Streaming Player erases the settings that you specified during setup, and restarts.
   • The Quick Setup Welcome screen displays.

3. To set up your NeoTV Streaming Player, follow the onscreen instructions to select your TV resolution, specify the standby timing, and connect to your network.

The NeoTV Streaming Player might check for software updates, download and install new software if it is available, and restart.

Audio & Video Settings

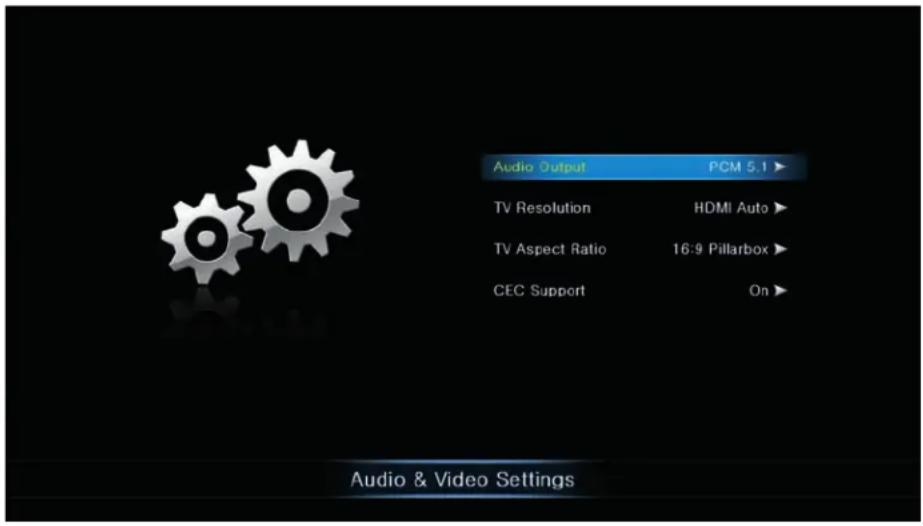

Select Settings > Audio & Video to display the following screen:

Audio Output PCM 5.1 TV Resolution HDMI Auto TV Aspect Ratio 16:9 Pillarbox CEC Support On Audio & Video Settings

Digital Output

Select the digital output setting for the audio. If you connect the NTV200S TV directly through HDMI cable, select PCM stereo. If you connect the NTV200S to an A/V receiver cable, see the following table.

Table 2. Digital Output settings with an A/V receiver

NTV200S connection	Receiver decodes Dolby Digital or Dolby Digital Plus	Setting
SPDIF cable Yes Bitstream Legacy
SPDIF cable No PCM	Stereo or PCM 5.1 (depends on	the number of speakers)
HDMI N/A Bitstream HD

TV Resolution

Select the resolution for your TV. The following table describes the available settings.

TV Resolution setting	HDMI TV
HDMI Auto The NeoTV	V Streaming Player automatically sets the correct resolution for your HDTV.
1080p	Your TV is a high-definition TV (HDTV) capable of 1080p (any frame rate).
1080i	Your TV is a high-definition TV (HDTV) capable of only 1080i.
720p Your TV is a high-definition TV (HDTV) capable of only 720p.

TV Aspect

Select the aspect ratio. If your TV has a very rectangular (widescreen, or 16:9) aspect ratio, you can select either full screen or pillarboxed). The following table describes these settings.

Media 16:9 Full 16:9 Pillarboxed
Movie in widescreen format • 4:3 video sources are stretched horizontally to fit the entire screen. • Selecting a 4:3 aspect ratio setting when resolution is set to 720p or 1080i/p has no effect.		4:3 video sources are shown in center of the screen; vertical bars are on the sides of the screen.
HD video in widescreen format	The episode fills the entire screen. No effect. The episode fills the entire screen.
SD (4.3) TV episodes The episode is stretched horizontally to fit the entire screen.		The episode is shown in the center of the screen with vertical bars on the sides of the screen.
Cropped movie (movie put on disk in 4:3 aspect ratio)	The movie is stretched horizontally to fit the entire screen.	The movie is shown in the center of the screen with vertical bars on the sides of the screen.

CEC Support

The CEC (Consumer Electronics Control) option allows the TV remote control to control certain functions of the NeoTV Streaming Player and for the NeoTV Streaming Player to control certain functions of the TV.

Note: Not all TVs are compatible with your NeoTV Streaming Player's CEC control.

If you press the Power button on the NTV200S remote control to wake up the NeoTV Streaming Player, if the TV is in standby mode, the TV also wakes up.

Your TV uses CEC to control the NeoTV Streaming Player in the following ways.

• Pressing the TV Power button to power down or go to standby mode, places the NeoTV Streaming Player in standby mode.
  • The NeoTV Streaming Player becomes a TV CEC device.
• Certain TV remote controls can operate the NeoTV Streaming Player through CEC (such as Up, Down, Left, Right, and OK).

Network Settings

You can view or change the network settings for the NeoTV Streaming Player. The options displayed in the Network Settings screen depend on whether or not an Ethernet cable is connected to the NeoTV Streaming Player.

Select Settings > Network to display the Network Settings screen.

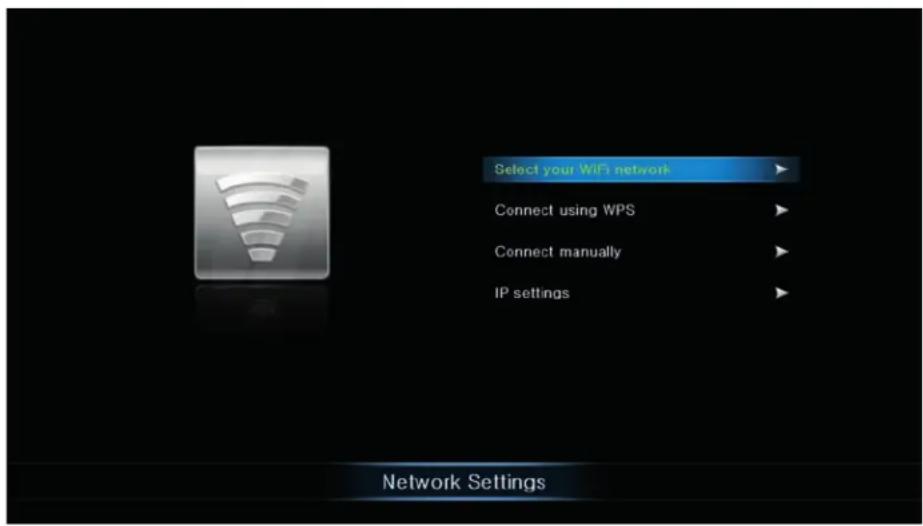

If no Ethernet cable is connected, the NeoTV Streaming Player displays options for a wireless network connection.

Select your WiFi network Connect using WPS Connect manually IP settings Network Settings

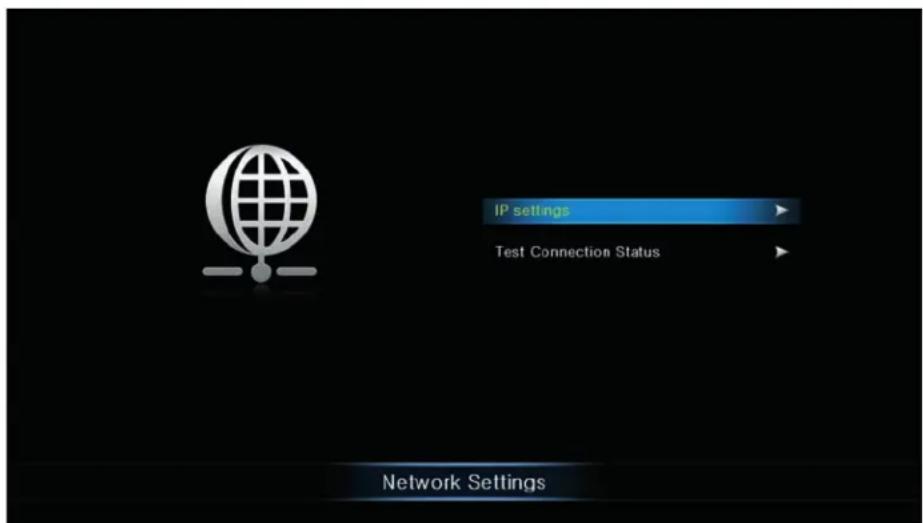

If an Ethernet cable is connected, the NeoTV Streaming Player detects it, and displays only network information for a LAN cable connection to your network.

IP settings Test Connection Status Network Settings

The Network Settings menu includes the following options:

• Connect by selecting your WiFi network. The NeoTV Streaming Player scans for wireless networks in your area and displays a list. Select your network, and enter its password to connect wirelessly.
• Connect to WiFi network using WPS. Wi-Fi Protected Setup (WPS) lets you join a wireless network that is secured with WPA or WPA2 without typing the password. Your wireless router or access point has to be compatible with WPS.
• Connect manually to your network. Type in the wireless network name (SSID) and network password for your network.
  • IP Settings. View the IP settings for the NeoTV Streaming Player.
  • Test Network Connection. Verify that basic network communication is working.

About

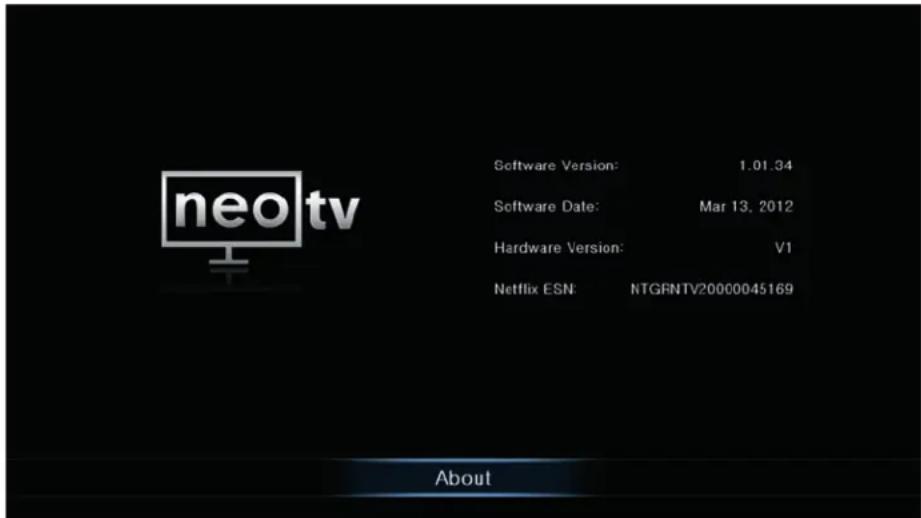

View details about the software and hardware version of your NeoTV Streaming Player. Select Settings > About to display the following screen:

neo tv Software Version: 1.01.34 Software Date: Mar 13, 2012 Hardware Version: V1 Netflix ESN: NTGRNTV20000045169 About

• Software Version. The version of software currently running on your NTV200S.
• Software Date. The date your current software was released.
- Hardware Version.
- Netflix ESN. This is the electronic serial number (ESN) used for Netflix. Every unit has an individual ESN associated with a Netflix account.

Registration

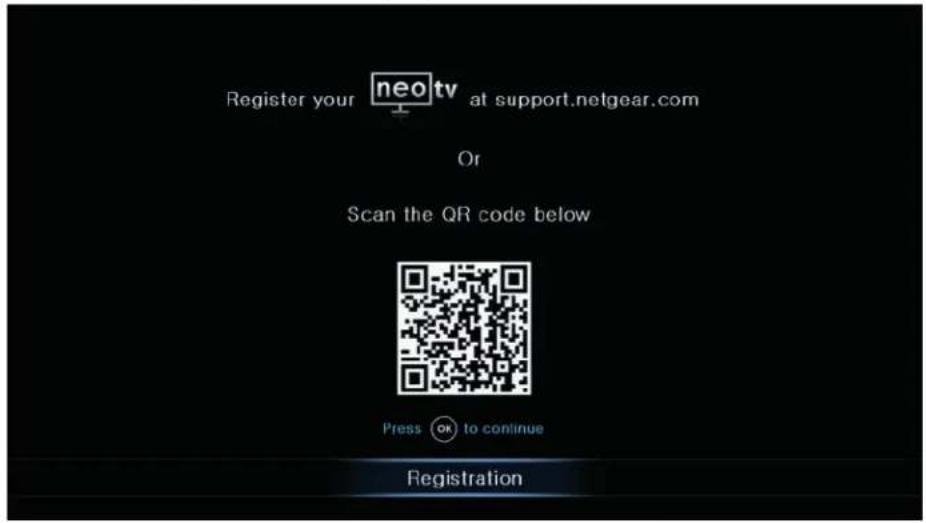

You can enter http://support.netgear.com or scan the QR code on your screen. Select Settings > Registration to display the following screen:

Register your neo tv at support.netgear.com Or Scan the QR code below Press OK to continue Registration

This chapter covers the following topics:

• Update Notification
  • Replace the Remote Control Batteries
  • Error 101 on Flingo Channels

Update Notification

When there is new firmware, the NeoTV Streaming Player notifies you when the unit powers up, or wakes up from standby.

neo tv GAME OF THRONES PEASON ORE EXTREMELY LOUD INCREBILY CLOSE My Channels Most Popular Movies & TV News & Education Web TV Music & Photos Lifestyle Games Settings Intel WiDi Wireless Display NETFLIX hulu PLUS CinemaNew FILM FRESH vds HD Movies vds Apps YouTube PANDORA databoag media Picasa FLING QUEUE Press ● to set up network New update is available for your NeoTV streaming player

Follow the onscreen instruction to press the red remote control button, and then press OK to update the firmware.

Replace the Remote Control Batteries

The remote control uses two CR2032 coin batteries. To replace the batteries, slide open the battery compartment and put in the new batteries as shown.

Diagram of a remote control box with two buttons and an external switch, showing internal components (no text or symbols)

Error 101 on Flingo Channels

Due to Internet bandwidth and quality of the Internet connection, Flingo channels sometimes display error 101 at the bottom of the display. To correct this, increase the Internet bandwidth or improve the quality of Internet connection.

NeoTV mobile apps are sold separately. They allow you to use your phone as a remote control for the NeoTV Streaming Player. NeoTV mobile apps are free to download from Android market and the Apple apps store.

This chapter covers the following topics:

• NeoTV Remote Control App
• Using the App with the NeoTV Streaming Player

NeoTV Remote Control App

The NeoTV remote control app turns your iPhone, iPod touch, or Android phone into a NeoTV Streaming Player remote control. You can use it to manage devices and you can specify the feedback settings.

VR/Un 36 5:20 PM ASTGEAR Now Showing: OK NBC

Figure 6. The app is like a virtual NeoTV remote control

To use the NeoTV remote control app:

1. Using your iPhone or Android smartphone, navigate to the Apple AppStore or Android Market, and search for NeoTV. You can use the following QR codes to speed up this process:

QR code image containing encoded data, no visible human-readable text

Apple App Store

QR code image containing encoded data, no visible human-readable text

Android

1. Install the app on your phone.
2. Make sure that the phone is connected to the same WiFi network (SSID) as your NeoTV Streaming Player.

Launch the app, and it searches for your device and connects.

Using the App with the NeoTV Streaming Player

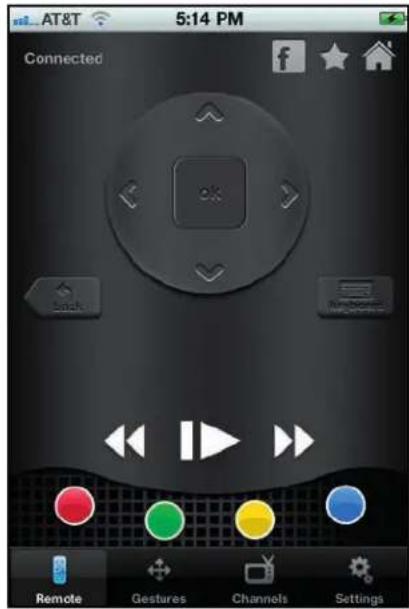

When you select the NeoTV App on your phone, the Remote screen displays:

To use the NeoTV app to control the TV:

1. Make sure that your TV and the NeoTV Streaming Player are turned on.
2. Use your phone in place of the remote control to make NTV200S selections on the TV screen.

The NeoTV app automatically pairs with the unit in the same LAN.

AT&T 5:14 PM Connected f ★ Home Backspace Remote Gestures Channels Settings

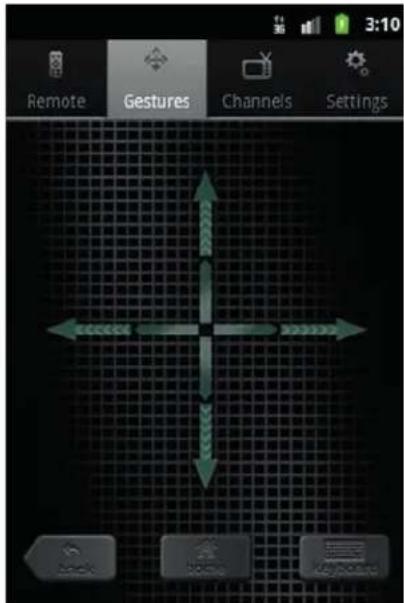

Gestures

You can use the Gestures screen to slide your finger up, down, left or right to navigate, or you can tap the screen for OK. When you use this screen on your phone you don't have to look at the phone while you are controlling the NTV200.

Remote Gestures Channels Settings Back Downs Keyboard

Channels

You can use your phone to view the channels that are available on your NeoTV Streaming Player and select the one that you want to watch on TV.

AT&T 4:50 PM NETFLIX vds HD Movies vds Apps YouTube PANDORA napster Picasa Revision3 vimeo crunchyrdl.com The Economist blip.tv Remote Gestures Channels Settings

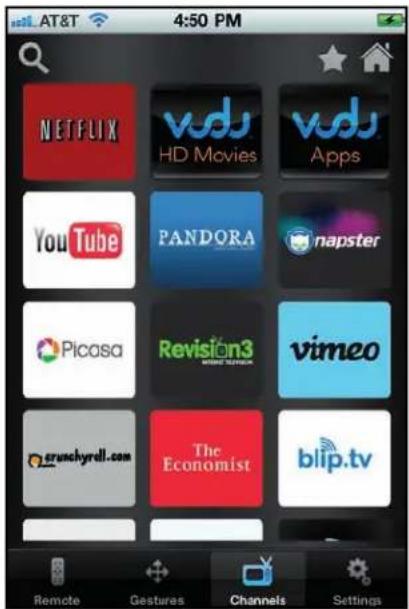

iPhone App

Remote Gestures Channels Settings NETFLIX vds HD Movies vds Apps YouTube PANDORA napster Picasa Revision3 crvachyroll.com The Economist blip.tv TED

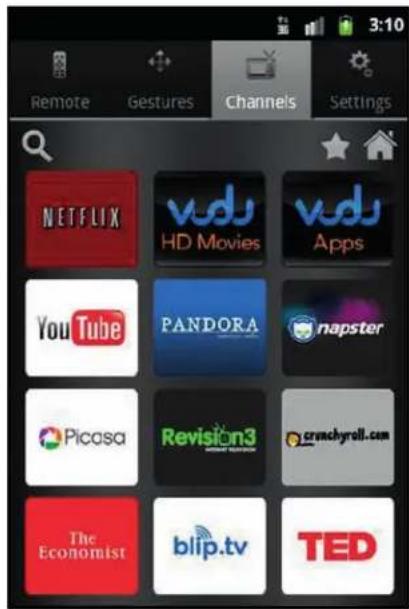

Android App

Touch the channel that you want to watch on your TV: You can use the star symbol to create a list of favorites.

NeoTV Streaming Player (NTV200S)

Favorites

Touch the star icon to go to your list of favorites. You can edit your favorites.

Settings

The Hosts setting lets you specify your network connections. Sounds & Vibrate lets you turn sound and vibration on and off.

The Host screen shows the device you are currently connected to, and lets you change your connection.

NeoTV Streaming Player (NTV200S)

• Auto Pair. This feature automatically finds NeoTV Streaming Player and connects to it through your WiFi network.
• Add a new device. Manually type in your network information.

Supplemental Information

This appendix covers the following topics:

• Factory Default Settings
• Technical Specifications

Factory Default Settings

You can use the onscreen menus to restore factory settings. Select Settings > Restore Factory Settings. The following table shows the factory settings.

Feature Setting
Language English
Video mode HDMI auto
Digital output PCM 5.1
TV aspect 16:9 Pillarbox
CEC On
Standby timing 30 minutes

Technical Specifications

The following table includes technical specifications for the NeoTV Streaming Player.

Feature Description
Data and routing protocol	TCP/IP, DHCP
Power adapter 12V, 1A
Dimensions 113 mm x 113 mm x 24 mm
Weight 136g
Environmental Operating temperature:Operating humidity:
Interface LAN: 10BAS	E-T or 100BASE-Tx, RJ-45WLAN: 802.11.n/g/b

Notification of Compliance

NETGEAR NeoTV Streaming Player

B

Regulatory Compliance Information

This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.

FCC Requirements for Operation in the United States

FCC Information to User

This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals

FCC RF Radiation Exposure

RF Exposure Information

The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4) addressing RF exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio frequency waves.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FCC Declaration of Conformity

We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the NETGEAR NeoTV Streaming Player NTV200 complies with Part 15 Subpart B of FCC CFR47 Rules.

Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

FCC Radio Frequency Interference Warnings & Instructions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
