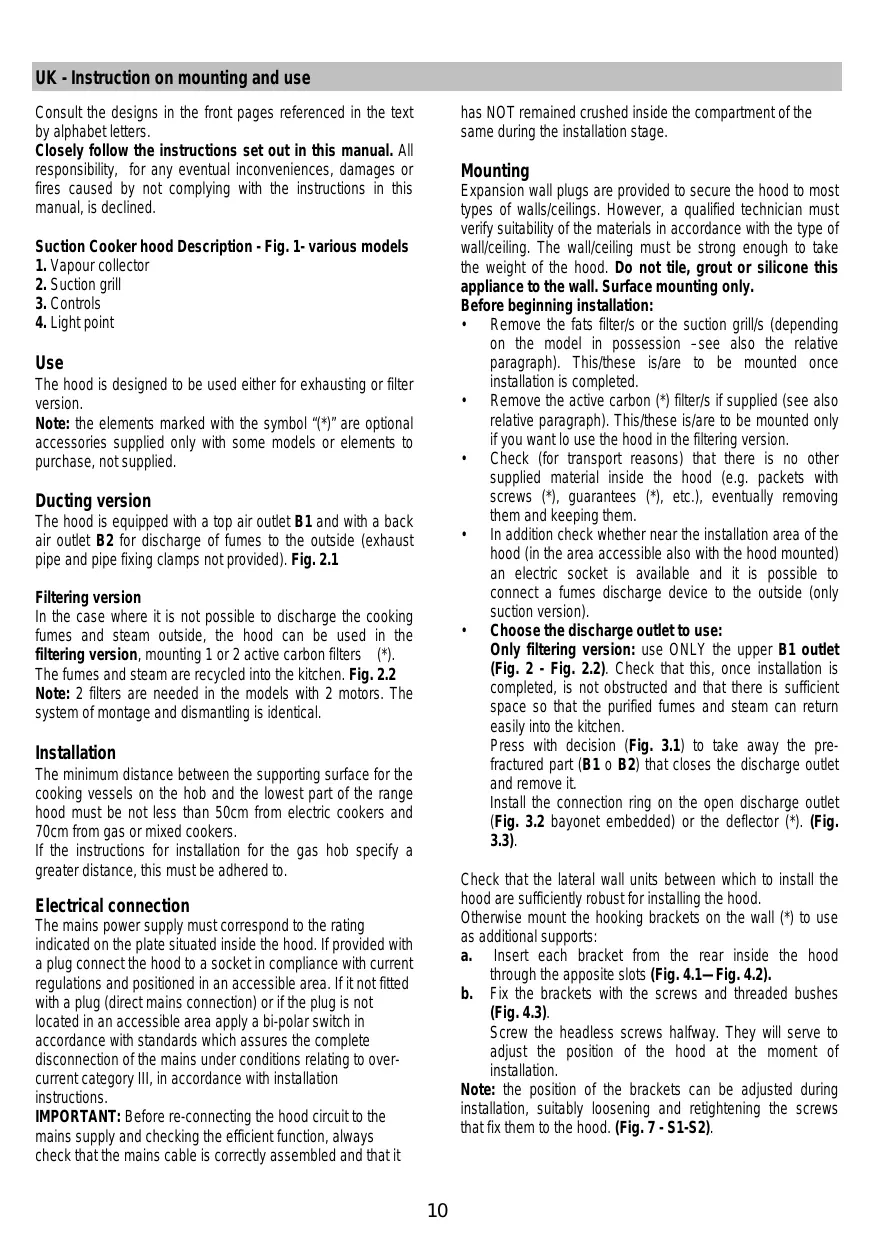

Notice SAUTER SHE 735 WF1 - page 10

User questions about SHE 735 WF1 SAUTER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

L'email reste privé : il sert seulement à vous prévenir si quelqu'un répond à votre question.

No questions yet. Be the first to ask one.

Download the instructions for your Air-conditioner in PDF format for free! Find your manual SHE 735 WF1 - SAUTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHE 735 WF1 by SAUTER.

USER MANUAL SHE 735 WF1 SAUTER

UK - Instruction on mounting and use Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. has NOT remained crushed inside the compartment of the same during the installation stage. Mounting Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Before beginning installation:

  • Remove the fats filter/s or the suction grill/s (depending on the model in possession –see also the relative paragraph). This/these is/are to be mounted once installation is completed.
  • Remove the active carbon (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
  • Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
  • In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
  • Choose the discharge outlet to use: Only filtering version: use ONLY the upper B1 outlet (Fig. 2 - Fig. 2.2). Check that this, once installation is completed, is not obstructed and that there is sufficient space so that the purified fumes and steam can return easily into the kitchen. Press with decision (Fig. 3.1) to take away the prefractured part (B1 o B2) that closes the discharge outlet and remove it. Install the connection ring on the open discharge outlet (Fig. 3.2 bayonet embedded) or the deflector (*). (Fig. 3.3). Suction Cooker hood Description - Fig. 1- various models

Use The hood is designed to be used either for exhausting or filter version. Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied. Ducting version The hood is equipped with a top air outlet B1 and with a back air outlet B2 for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided). Fig. 2.1 Filtering version In the case where it is not possible to discharge the cooking fumes and steam outside, the hood can be used in the filtering version, mounting 1 or 2 active carbon filters (*). The fumes and steam are recycled into the kitchen. Fig. 2.2 Note: 2 filters are needed in the models with 2 motors. The system of montage and dismantling is identical. Installation The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 70cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. Check that the lateral wall units between which to install the hood are sufficiently robust for installing the hood. Otherwise mount the hooking brackets on the wall (*) to use as additional supports: a. Insert each bracket from the rear inside the hood through the apposite slots (Fig. 4.1—Fig. 4.2). b. Fix the brackets with the screws and threaded bushes (Fig. 4.3). Screw the headless screws halfway. They will serve to adjust the position of the hood at the moment of installation. Note: the position of the brackets can be adjusted during installation, suitably loosening and retightening the screws that fix them to the hood. (Fig. 7 - S1-S2). Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to overcurrent category III, in accordance with installation instructions. IMPORTANT: Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled and that it

Installing the aesthetic panel (*) a. Extract the steam collector (freeing it from the blocking hooks - Fig. 5). b. Put perforation diagram N3 on the REAR of aesthetic panel J (the arrow on the diagram turned upward towards the UPPER EDGE of the aesthetic panel). Fig. 6 c. Make BLIND HOLES K as indicated. Fig. 6 d. Put the steam collector over the aesthetic panel and fix it with 8 screws L. Fig. 6 e. Remount the door on the hood, first on upper guides M1, then on the lower M2. Fig. 6 f. Close completely and re-open the door to check its correct sliding on the guides. Operation Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. Use the keys or buttons envisaged for the control of the lights and the power of the available suction. Only in some models: switching on and off the fan that adjusts the suction power and, in some cases, switching the lights on and off, is controlled by opening and closing the steam collector. Maintenance Installation a. Use perforation diagram N2 (*). Position the diagram on the front edges of the wall unit (right wall unit, B side) – (left wall unit, C side) WITHOUT CONSIDERING THE THICKNESS OF THE DOORS, and make the holes as indicated. Fig. 8 b. If necessary, fix the hood to the wall, putting template N1 (*) on the wall so its upper edge coincides with the upper edge of template N2 (*). Fig. 7-8 c. Make the holes as indicated. Fix 2 hooks (*) R to the wall with screws and dowels. Fig. 7 d. In case the thickness of the lateral wall units is 16mm, put, with embedded fixing, the O (*) spacers at the sides of the hood in correspondence with the holes used for the passage of the fixing screws to the lateral wall units. Fig. e. Hang the hood onto the hooks (*) and adjust the position of the hood with headless screws S1 and adjusting the position of the hooking brackets with screws S2. Fig. 7 f. Fix the hood to the lateral wall units with 4 screws P. Fig. g. Mount the lower corner Q (*) to the hood with two screws and plastic washers T. They will serve to cover possible spaces between the rear of the hood and the wall. Fig. 7 Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL! Grease filter Traps cooking grease particles. This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To access fats filter V, open the suction grill with hooks H1 or H2 (depending on the model in possession) and free it from the W stops. Fig. 9 Some models are provided with anti-grease filter incorporated in the suction grill, these should be removed from the housing by pulling the handles H2 (Fig. 9) upwards and sliding out, wash these filters as with metallic filters. Charcoal filter (filter version only) It absorbs unpleasant odours caused by cooking. The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The carbon filter may NOT be washed or regenerated. Cover the grill that protects the suction motor with the carbon filter so that the slots on the filter correspond to the pins on the sides of the motor protection grill. Turn the carbon filter clockwise to block them (bayonet fixing). Fig. 10 Proceed in reverse for mounting.

Replacing lamps Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Remove the suction gril to access the lamp area. Remove the damaged lightbulb and replace with an oval incandescent lightbulb max. 40W E14. If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance. on the product, or on the documents The symbol accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Caution WARNING! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. Children should be monitored to ensure that they do not play with the appliance. Never use the hood without effectively mounted grating.! The hood must NEVER be used as a support surface unless specifically indicated. The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames. As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual).. Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires. We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the nonobservance of the instructions included in this manual. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
