USER MANUAL SHB1944IX SAUTER

Black-and-white photo of a bowl of diced food garnished with mint leaves and a small white object, placed on a napkin (no text or symbols visible)

Sauter

Chère Cliente, Cher Client,

Diagram of a brick wall with a cylindrical component mounted on a base, connected by wires to a wall-mounted device (no text or symbols present)

Fig. 2

Diagram of a mechanical press or clamping device with a cylindrical component and base, showing motion arrows (no text or symbols)

Fig. 3

2 / INSTALLATION DE VOTRE APPAREILFR

• MONTAGE DE LA CHEMINEE

Diagram of a mechanical press or clamping device with a cylindrical component and rotating arm (no text or symbols)

Fig. 3

Diagram of a brick wall-mounted structure with directional arrows indicating movement or force (no text or symbols)

Fig. 6

Diagram of a brick wall with a box and directional arrows indicating movement or force (no text or symbols)

Fig. 5

Line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Fig. 4

2 / INSTALLATION DE VOTRE APPAREIL

FR

- Recyclage

Line drawing of a refrigerator with door, ventilation grille, and side panel (no text or symbols)

Fig. 4

Fig. 8

Technical line drawing of a cabinet or enclosure with mounting brackets and a vent (no text or symbols)

Diagram of a brick wall with a box and support structure, showing upward arrows indicating movement (no text or symbols)

Fig. 6

H1 H2

Fig. 5

Conseil

Technical diagram of a kitchen ventilation system with labeled components and airflow path

1- RELATIONS CONSOMMATEURS FRANCE

(B) (H) Jouter Circuit Board Schematic (1.2) Power of Tamp Power of Tamp DCN/DCN 50kA CE Ruler 14

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

©

EN

1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

Safety and important precautions

These instructions are also available on the Sauter web site.

Please take heed of this advice when installing and using your appliance.

• In order to constantly improve our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
• Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in the future.

1 / NOTICES TO THE USER EN

Important precautions

- This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

- Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

- This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

- Caution: the accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks

- All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be

1 / NOTICES TO THE USEREN

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
  • Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

1 / NOTICES TO THE USER EN

Risk of asphyxiation

• The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).
• The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

• It is forbidden to flame food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may be sucked in and damage the appliance.
• Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.
• Clean the appliance and replace the filters at

1 / NOTICES TO THE USEREN

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER EN

• ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
— Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way,

the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

— We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective fi lm from the cartridge fi iter before use.

1 / NOTICES TO THE USEREN

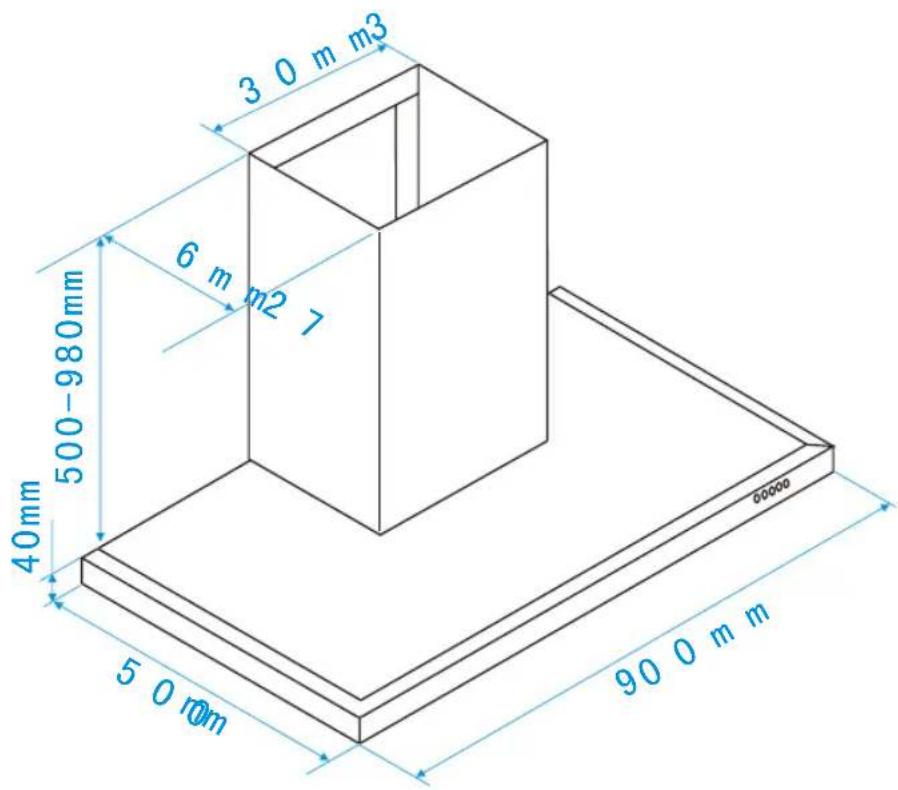

• DESCRIPTION OF YOUR APPLIANCE

30 m m3 6 m m2 7 500-980mm 40mm 50 r0m 90 0 m m

2 / INSTALLING YOUR APPLIANCE EN

— The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.

— Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.

— If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.

— If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.

— The exhaust duct shouldn't empty into the attic under no circumstances.

— Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

• USING THE EVACUATION MODE

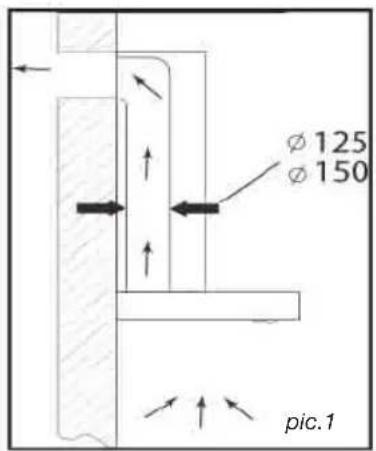

If you possess an outlet to the exterior (pic. 1)

Your hood can be connected to this outlet using a fl ue (minimum diameter ∅ mm that is enamelled, in aluminium, fl exible or made of infl ammable material). If your fl ue is less than 125 mm in diameter, you must use the recycling mode.

φ 125 φ 150 pic.1

• USING THE RECYCLING MODE

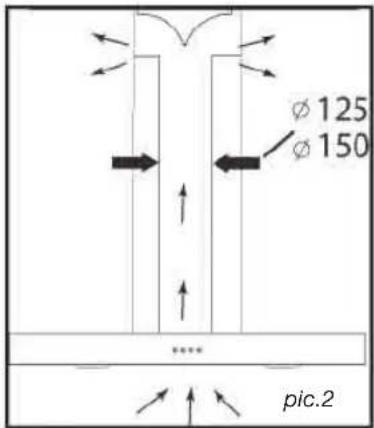

If you do not possess an outlet to the exterior (pic. 2)

All of our appliances can be used in recycling mode.

In this case, you should add an active carbon fi Iter which will keep in odours. (See Chapter 4: Changing the carbon fi Iter.)

Ø 125 Ø 150 pic.2

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

2 / INSTALLING YOUR APPLIANCEEN

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that:

— the electrical installation has sufficient voltage,
— the electrical wires are in good condition,
— the diameter of the wires complies with the installation requirements.

Warning

This appliance is delivered with a H 05 VVF power cord that has three- 0.75mm^2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

2 / INSTALLING YOUR APPLIANCE EN

• ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected.

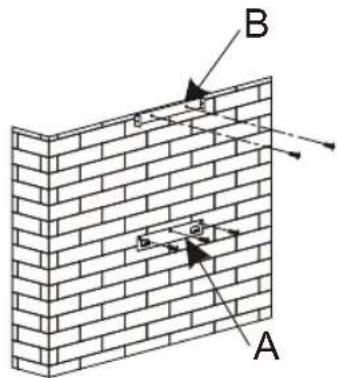

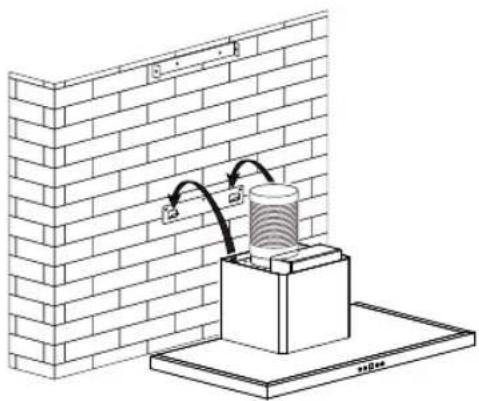

Fixing to the wall :

— Mark a vertical line on the wall centred on the cooktop.

— Mark on the wall the three holes that have to be drilled, using the supplied hood suspension hook and observing the recommended distance. (part A Pic. 1)

— Drill the three 8 mm diameter holes in a suitable position and insert the plugs.

— Before fi xing the hood, mount the non-return valve on the motor outlet -Secure the hood's fi xing support, ensuring that it is perfectly level. (part A Pic. 1)

— Fix the extendable evacuation sleeve (not included) to the motor outlet without impeding the movement of the non-return valve.(Pic. 3)

— Fit and secure the body of the hood on this support with the screws provided for this purpose. (Pic. 2)

B A

Pict 1

Diagram of a wall-mounted electrical component with wiring and mounting base (no text or symbols)

Pict 2

Diagram of a mechanical press or clamping device with rotating components and directional arrows (no text or symbols)

Pict 3

2 / INSTALLING YOUR APPLIANCEEN

• ASSEMBLING THE VENTILATION SHAFT

• Outdoor evacuation

— Calculate the fi nal height for fixing the duct support U-bracket (part B Pic. 1)

— Mark the two holes accordingly

— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (part B Pic. 1)

— Fix the fl at bracket behind the lower duct.

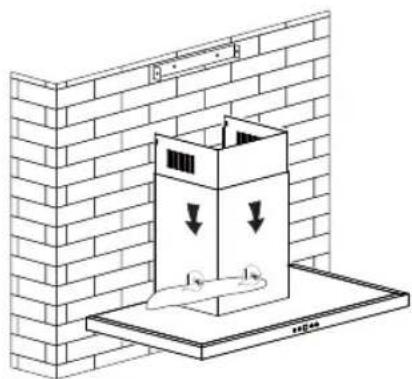

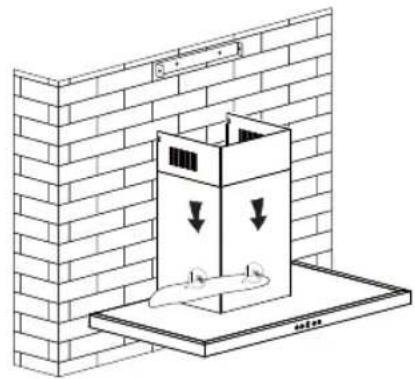

— Fix the two ducts to the hood.(Pic. 5)

— Connect the sleeve to the air outlet to the outside.

— Make the electrical connection to the hood using the mains supply cable.

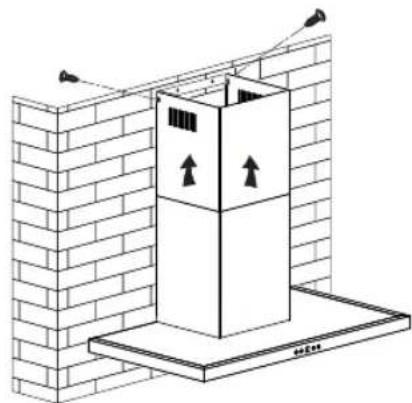

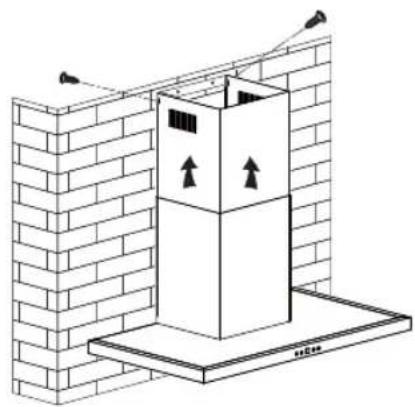

— Lift the upper duct up to the ceiling and fix it to the bracket using the screws.

Diagram of a mechanical press or clamping device with a cylindrical component and rotating arm (no text or symbols)

Pict 3

Isometric line drawing of a brick wall with a box and support structure (no text or symbols)

Pict 6

Diagram of a brick wall with a cardboard box and directional arrows indicating movement or force (no text or symbols)

Pict 5

Line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Pict 4

2 / INSTALLING YOUR APPLIANCE EN

- Recycling

— Calculate the fi nal height for fixing the duct support U-bracket.
— Mark the two holes.
— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood.
— Fix the fl at bracket behind the lower duct.
— Fit the sleeve adapter on the deflector (Pic. 8).
— Connect the extendable sleeve to the deflector.

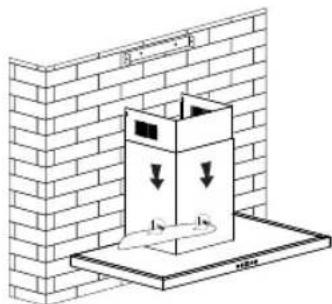

— Fit the two parts of the duct on to the hood (Pic. 5).
— Fit the defl ector (Pic. 8) into the upper duct by the ventilation inlets (Pic. 6)
— Make the electrical connection to the hood using the mains supply cable.

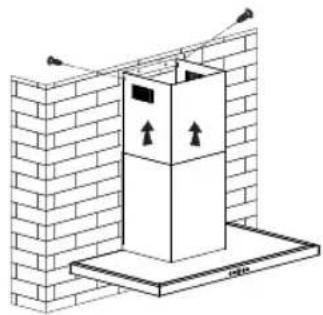

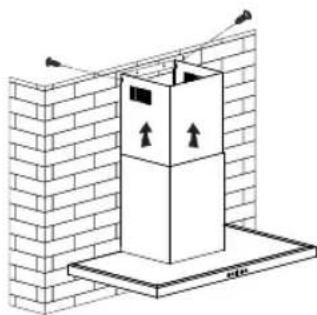

— Lift the upper duct up to the ceiling and fix it to the bracket using the two screws.

Line drawing of a refrigerator with a door and ventilation grille (no text or symbols)

Pict 4

Pict 8

Technical line drawing of a cabinet or enclosure with mounting brackets and a vent (no text or symbols)

Diagram of a brick wall with a box and upward arrows indicating movement or force, no text or symbols present.

Pict 6

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter fl ue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the fl ue. In the event that the hood will be operated using outdoor evacuation, you should ensure a suffi cient infl ow of fresh air to avoid a pressure defi ciency in the room.

Warning

Do not use tools to remove the safety fi lm of hood.

EN 3 / USING YOUR APPLIANCE

• TO USE YOUR COOKER HOOD

How to use the control panel.

1. Press the button "①", its inner indicator light bright, the motor is running at low speed and its indicator light bright. Press the button "①" again, the indicators light will be off. All the function of the hood will be closed, the hood enters into standby mode.
2. Press the button "1", its inner indicator light bright, the motor is running at low speed. Press the button again, the motor stops.
3. Press the button "2", its inner indicator light bright, the motor is running at medium speed. Press the button again, the motor stops.
4. Press the button "3", its inner indicator light bright, the motor is running at high speed. Press the button again, the motor stops.
5. Press the button " 🔍 ", both lights start bright. Press the button again, the lights are switched off.

Advice on how to save energy

Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings at the back of the range.

1 2 3 ① ◯ ◯ ◯ ◯ ◯

4 / CARING FOR AND CLEANING YOUR APPLIANCE

EN

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

- CLEANING THE FILTER CARTRIDGES

They must be cleaned after approximately 30 hours of use or at least once a month.

Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before returning them to the hood.

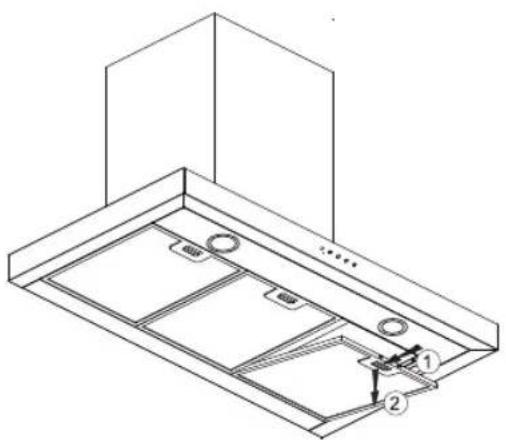

• Dismantling the filter cartridge

— Turn the built-in filter cartridge handle.
— Tilt the filter cartridge downward.

Technical diagram of a kitchen ventilation system with labeled components

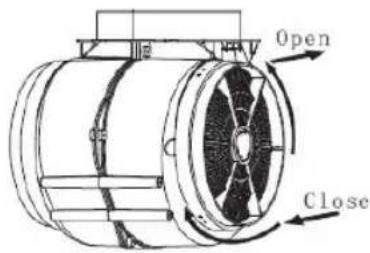

- CHANGING THE CARBON FILTER (optional)

Replace it after approximately 120 hours of use.

— Turn the carbon filter to remove it.
— Do the operation in the reverse order to put a new filter back as shown in the diagram on the right.

Open Close

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

• CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

• CHANGING THE LIGHT BULB

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE WHAT	TO DO	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This fi lter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood.In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These fi liters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)
Activated carbon fi lter	This fi lter traps odours and must be changed at least once a year depending on your level of use.You should order these fi liters from your dealer (quoting the reference shown on the identifi cation plate located inside the hood) and note the date the fi lter was changed.

5 / TROUBLESHOOTINGEN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is suffi cient for the quantity of smoke and vapours to be cleared.• The kitchen is suffi ciently ventilated to allow for fresh air intake.• The carbon fi lter is not worn (hood operating in recycling mode).
The hood stopped working.	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

6 / AFTER-SALES SERVICE EN

Any maintenance on your equipment should be undertaken by :

— either your dealer,
— or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

EN Ecodesign information / Technical product fiche

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	SHB1944IX
Annual energy consumption	AEC	24,7	kWh/annum
Energy efficiency index	EEi	42,2	-
Fluid dynamic efficiency index	FDE	32,1	-
Lighting efficiency index	LE	27,7	-
Grease filtering efficiency	GFE	76,2	-
Time increase factor	f	0,8	-
Maximum volumetric airflow of the cooker hood	Q_max	548,0	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	309,9	m^3/h
Static pressure at the best efficiency point	P_BEP	279	P
Power consumption at the best efficiency point	W_BEP	74,9	W
Nominal power consumption of lighting system	W_L	3,9	W
Average illumination of the lighting system	E_middle	108	Lux/W
Power consumption in off mode	P_o	--	W
Power consumption in standby mode	P_s	0,32	W
Volumetric airflow at the highest speed setting in normal use -		548,0	m^3/h
Volumetric airflow at the lowest speed setting in normal use -		190,1	m^3/h
Volumetric airflow in intensive or boost mode -		--	m^3/h
Sound power emissions at the highest speed setting in normal use -		63	dB(LwA)
Sound power emissions at the lowest speed setting in normal use -		41	dB(LwA)
Sound power emissions in intensive / boost mode -		--	dB(LwA)
