USER MANUAL EV-Y6221-A3WQ Enforcer

4-in-1 HD TVI, CVI, AHD, Analog

Covert PIR Camera

Manual

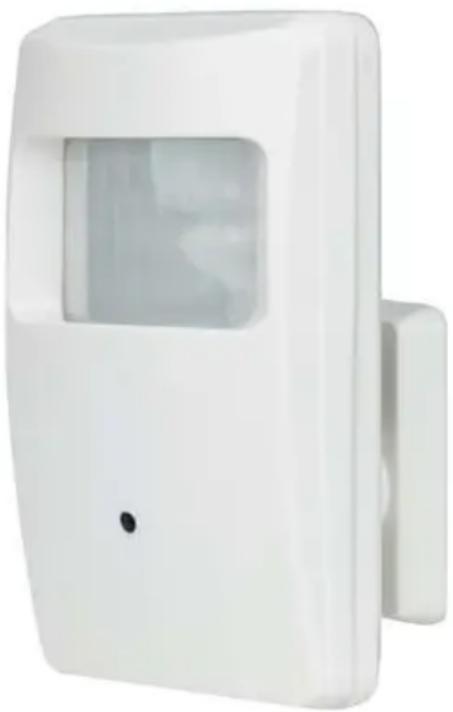

White rectangular device with a small screen and mounting bracket, no visible text or symbols.

Features:

• Select between multiple formats: TVI, CVI, AHD, and Analog
• Joystick OSD Control
• 1080p Resolution
• Camera is hidden in a non-functioning PIR sensor housing

• 1/2.9" 2MP Sony CMOS
• 3.7mm Covert pinhole lens
• 18 Covert IR LEDs for discreet monitoring
• D-WDR (Digital Wide Dynamic Range)
• 2DNR (2D Digital Noise Reduction)
• 3DNR (3D Digital Noise Reduction)

ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Covert PIR Camera Specifications:

Type Covert PIR Camera
Formats TVI (Default) / CVI / AHD / Analog
CMOS	12.9" 2MP Sony CMOS
Resolution (HD) 1920x1080
TV Lines (Analog)	2000TVL
2DNR	Yes
3DNR	Yes
DWDR	Yes
OSD (On-Screen Display)	Yes
Cable OSD control	Yes
Video output	1.0Vp-p Complex video output
Megapixels	2MP
Lens 3.7mm Pinhole lens
Viewing angle	85°
# of IR LEDs	18 Covert (940nm)
IR Range	Up to 50ft (15m)
FPS	50-60
F Stop	1.8
Minimum illumination (IR On)	0 Lux
Gamma correction	0-1
S/N Ratio	>46dB
Gain control	Yes
White balance	Auto, Day & Night
Shutter control	AES (Auto Electric Shutter), 1/60~1/100,000 s
Current draw (IR On)	350mA
	(IR Off)
Operating voltage	12VDC
Operating temperature	-20°~140° F (-28°~60° C)
Dimensions	4^1/16"x2^3/8" x1^5/16" (104x60x34 mm)
Weight	12.3-oz (350g)

Parts List:

1x Camera 2x Mounting screws 1x Mounting bracket 1x Manual

1x DC Plug with Terminal Block 2x Screw anchors 1x Mounting bracket ball

Dimensions:

2^3/_8 " (60mm)

1^5/_16'' (34mm)

4^1/_16 (104mm)

2" (52mm)

2 SECO-LARM U.S.A., Inc.

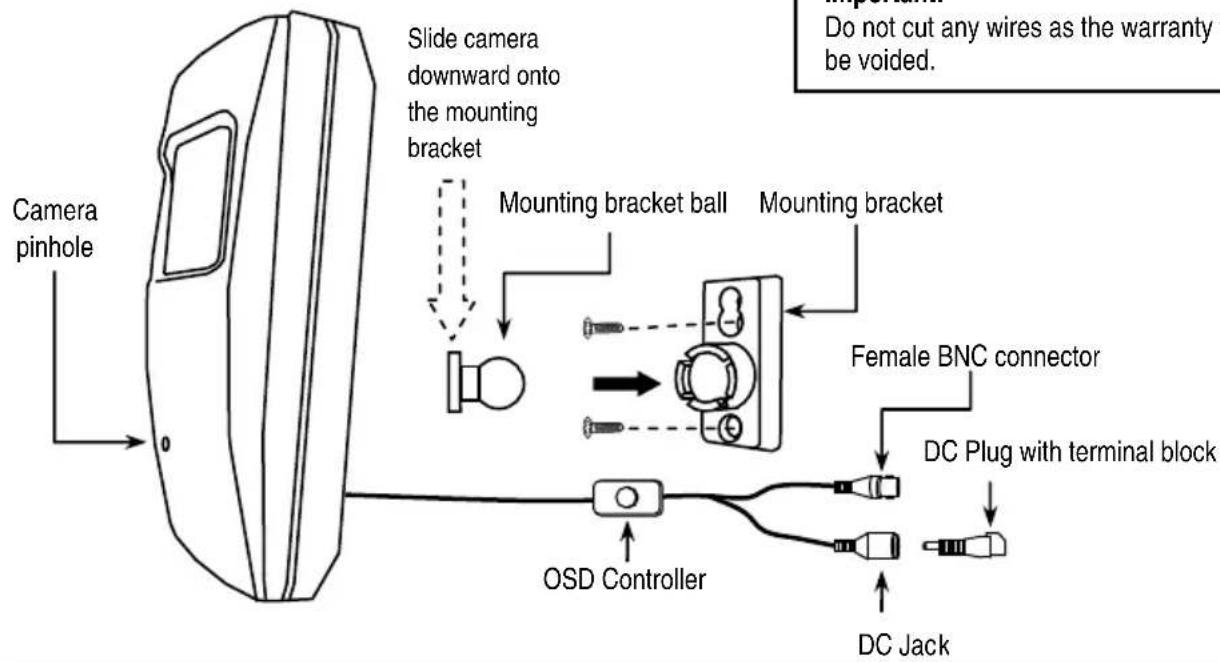

Overview:

Camera pinhole Slide camera downward onto the mounting bracket Mounting bracket ball Mounting bracket Female BNC connector DC Plug with terminal block OSD Controller DC Jack Do not cut any wires as the warranty be voided.

OSD Controller Settings:

To set format via the OSD controller, press the controller in the direction of the desired setting, hold for 5 seconds, and release when the camera restarts.

See chart to the right.

Direction	Format Setting
Up	CVI
Down	TVI
Left	CVBS
Right	AHD

Camera UP DN Power

Before starting:

1. Use the camera within the given temperature and voltage limits.

2. Do not point the camera at the sun. Heat can damage the camera even when not in use.

3. Do not subject the camera to strong vibrations.

4. Do not mount the camera in areas exposed to radiation, strong magnetic fields, or strong electrical signals.

Installation:

1. Run a 12VDC power supply wire and a video cable with a male BNC connector through the wall to where the camera will be mounted.
2. Connect the camera's video and power cables.
3. Temporarily mount the camera to test its function and display.

4. Do a preliminary test of the camera to ensure it will work properly. Partially screw a screw into the wall where the top of the bracket should go. Slide the bracket onto the screw. Finish securing the top of the bracket to the wall.

5. Secure the bottom of the bracket to the wall.

6. Attach the mounting bracket ball to the mounting bracket by gently pushing the ball into the bracket.
7. Attach the camera to the assembled bracket by sliding the camera downward.
8. Do a final test of the video camera and monitor.
9. Program the camera if needed via the attached OSD joystick.

NOTE: For the OSD manual, visit www.seco-larm.com.

Troubleshooting:

The screen is black	Check that the camera is powered upCheck that the power supply's polarity is correctCheck that the monitor is powered upCheck that the video cable connecting the camera to the monitor is connected properly
The image is foggy or washed out at night	Check that there are no objects very close to the cameraCheck that there are no highly reflective objects in the scene
The screen image is dim	Clean the lens using a soft, clean clothCheck that the light source is adequate
The screen image has poor contrast	Adjust the monitor's contrast knobChange the position of the camera
The screen image flickers	Change the position of the camera, check cables and format setting
The screen image is distorted	Change the position of the camera, check cables and format setting
The camera case is hot	Check that the correct power supply is in use
IR LEDs do not turn on	Check that the correct power supply is in use

WARNING: Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric shock. Do not open the case of this device, as there are no user-serviceable components inside. Do not cut any wires as the warranty will be voided.

IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for two (2) years from the date of sale to the original customer. SECO-LARM's obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM and the purchaser's exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damage of any kind to the purchaser or anyone else.

NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2017 SECO-LARM U.S.A., Inc. All rights reserved.
