KE8952-AX-G - KVM Switch ATEN - Free user manual and instructions

USER MANUAL KE8952-AX-G ATEN

Exterior view of a black ATEN digital audio jack (no visible text or symbols on the device body)

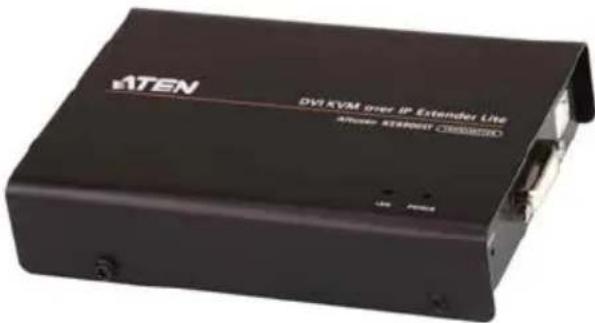

ATEN DVI KVM Ultra IP Extender Lite ATEN® RESTENERGY CORNERSO

Exterior view of a black ATEN computer device with ports and indicator lights (no readable text or symbols beyond branding)

EMC Information

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE

STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Warning: Operation of this equipment in a residential environment could cause radio interference.

Suggestion: Shielded twisted pair (STP) cables must be used with the unit to ensure compliance with FCC & CE standards.

KCC Statement

This product is RoHS compliant.

CE 20

User Information

Online Registration

Be sure to register your product at our online support center:

International http://eservice.aten.com

Telephone Support

For telephone support, call this number:

International 886-2-86	92-6959
China 86-400-810-0-8	10
Japan 81-3-5615-581	1
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923

User Notice

All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.

The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE.

Package Contents

KE6900 / KE6940

The KE6900 / KE6940 package consists of:

1 KE6900T / KE6940T KVM Over IP Transmitter
1 KE6900R / KE6940R KVM Over IP Receiver
1 USB DVI-D KVM Cable (KE6900T/KE6940T only)
1 DVI-D Cable 1.8 m (KE6940T only)
1 Foot Pad Set
2 Power Adapters
1 Mounting Kit
1 User Instructions*

KE6900ST

The KE6900ST package consists of:

1 KE6900ST Slim KVM Over IP Transmitter
1 USB DVI-D KVM Cable
1 Foot Pad Set
1 Power Adapter
1 Mounting Kit
1 User Instructions*

KE8950 / KE8952

The KE8950 / KE8952 package consists of:

1 KE8950T / KE8952T KVM Over IP Transmitter
1 KE8950R / KE8952R KVM Over IP Receiver
1 USB HDMI KVM Cable
1 Foot Pad Set
2 Power Adapters (KE8950T/KE8950R only)

1 Mounting Kit (KE8950T or KE8952T)
2 HDMI Lockpro
1 User Instructions*

* Features may have been added to the KE6900 / KE6900ST / KE6940 / KE8950 / KE8952 since this manual was published. Please visit our website to download the most up-to-date version.

Check to make sure that all of the components are present and in good order. If anything is missing, or was damaged in shipping, contact your dealer. Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the KE6900 / KE6900ST / KE6940 / KE8950 / KE8952 or to any other devices on the installation.

Copyright © 2017 ATEN® International Co., Ltd.

Manual Date: 2017-08-14

Altusen and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

Contents

EMC Information....ii

User Information ....iii

Online Registration ..... iii

Telephone Support ....iii

User Notice ....iii

Package Contents ....iv

KE6900 / KE6940 .....iv

KE6900ST....iv

KE8950 / KE8952....iv

About This Manual ..... xii

Conventions .....xiv

Product Information .....xiv

Chapter 1.

Introduction

Overview....1

Features 3

Requirements 5

Console....5

Computers....5

Cables....5

Software 5

Operating Systems 7

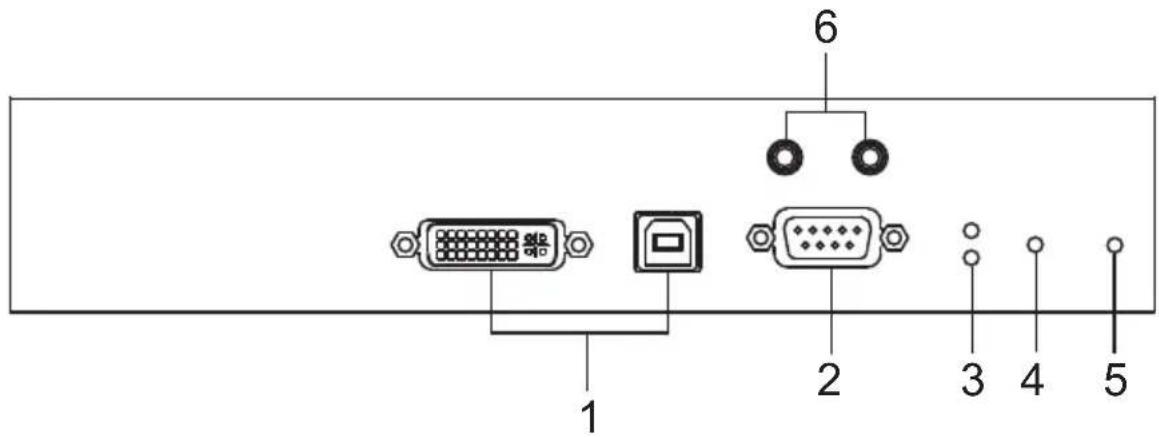

Components 8

KE6900T (Transmitter) Front View 8

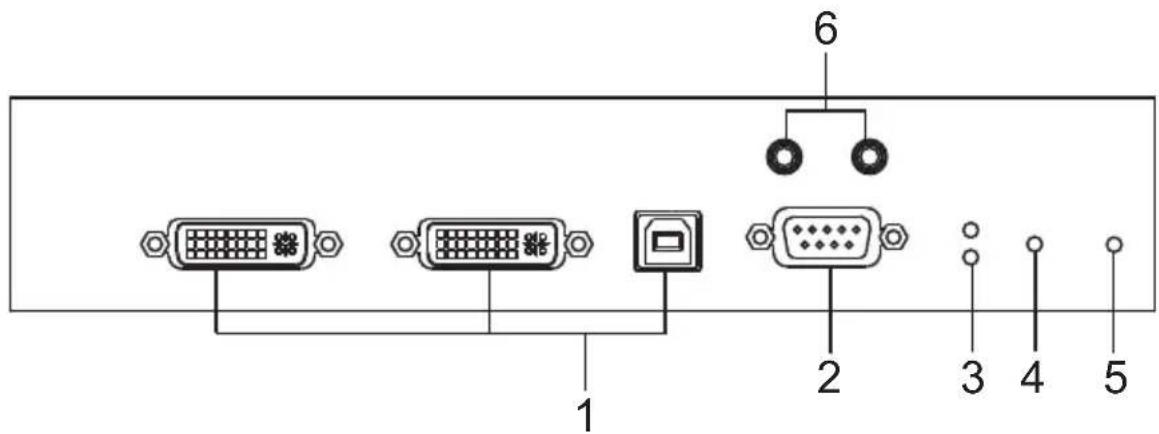

KE6900T (Transmitter) Rear View 9

KE6900R (Receiver) Front View. 10

KE6900R (Receiver) Rear View 11

KE6940T (Transmitter) Front View 12

KE6940T (Transmitter) Rear View 13

KE6940R (Receiver) Front View. 14

KE6940R (Receiver) Rear View 15

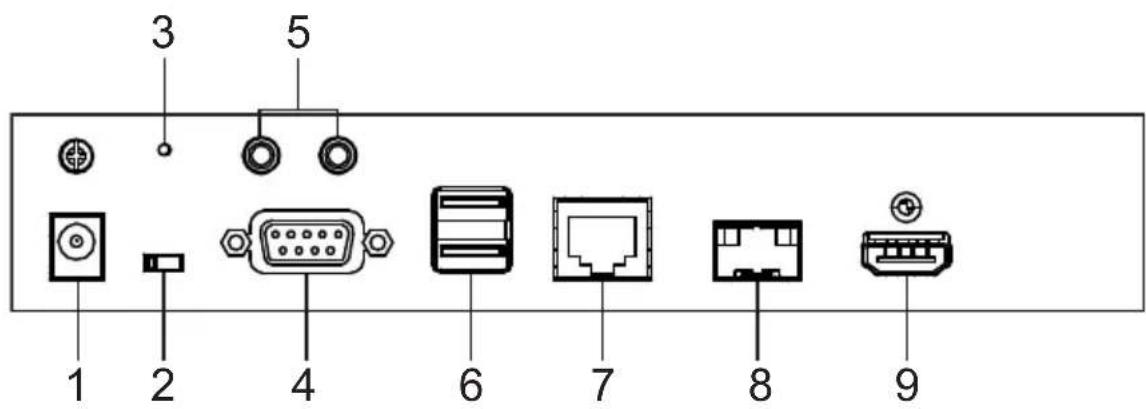

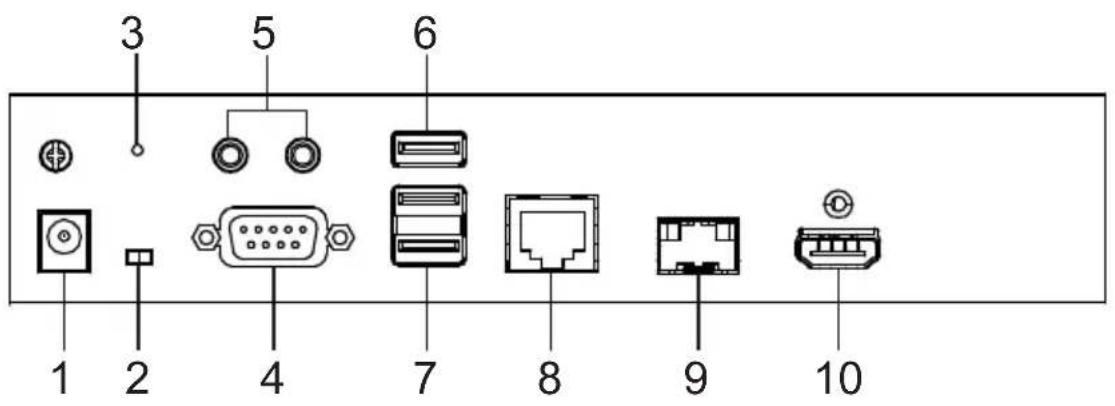

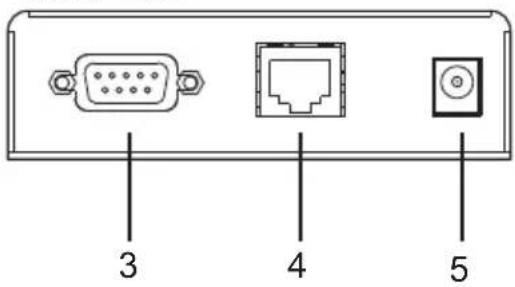

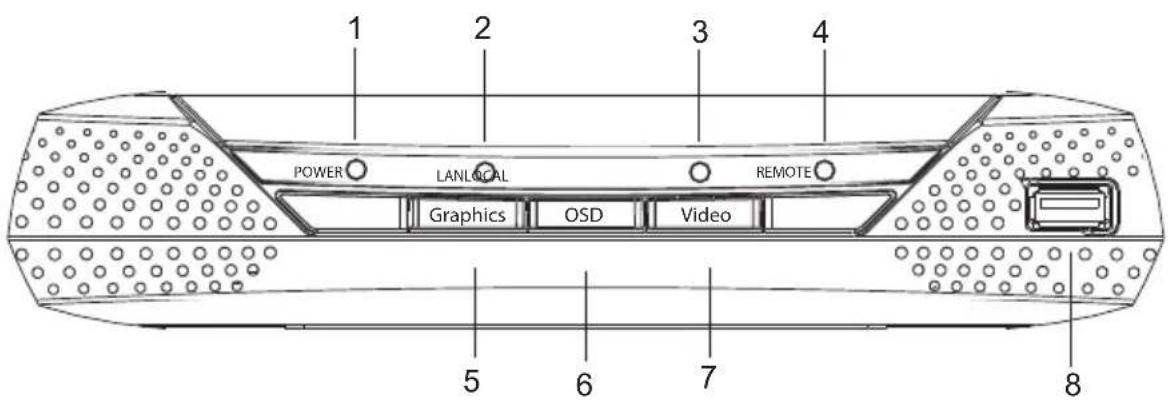

KE6900ST (Transmitter) Front, Rear and Top View.....16

KE8950T / KE8952T (Transmitter) Front View ..... 18

KE8950T / KE8952T (Transmitter) Rear View ..... 19

KE8950R / KE8952R (Receiver) Front View. 21

KE8950R / KE8952R (Receiver) Rear View. 22

Chapter 2.

Hardware Setup

Rack Mounting 23

KE6900T/KE6940T....23

KE6900ST....25

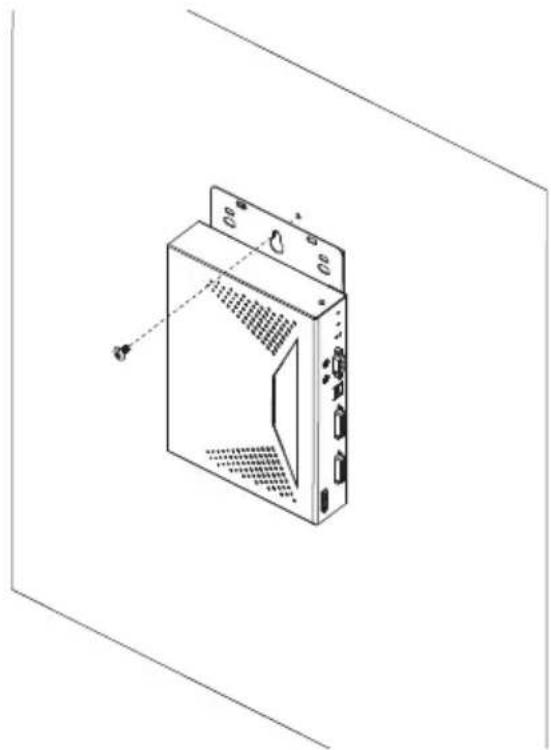

Wall Mounting....26

KE6900T/KE6940T 26

KE6900ST....27

KE6900 Point-to-Point Installation 28

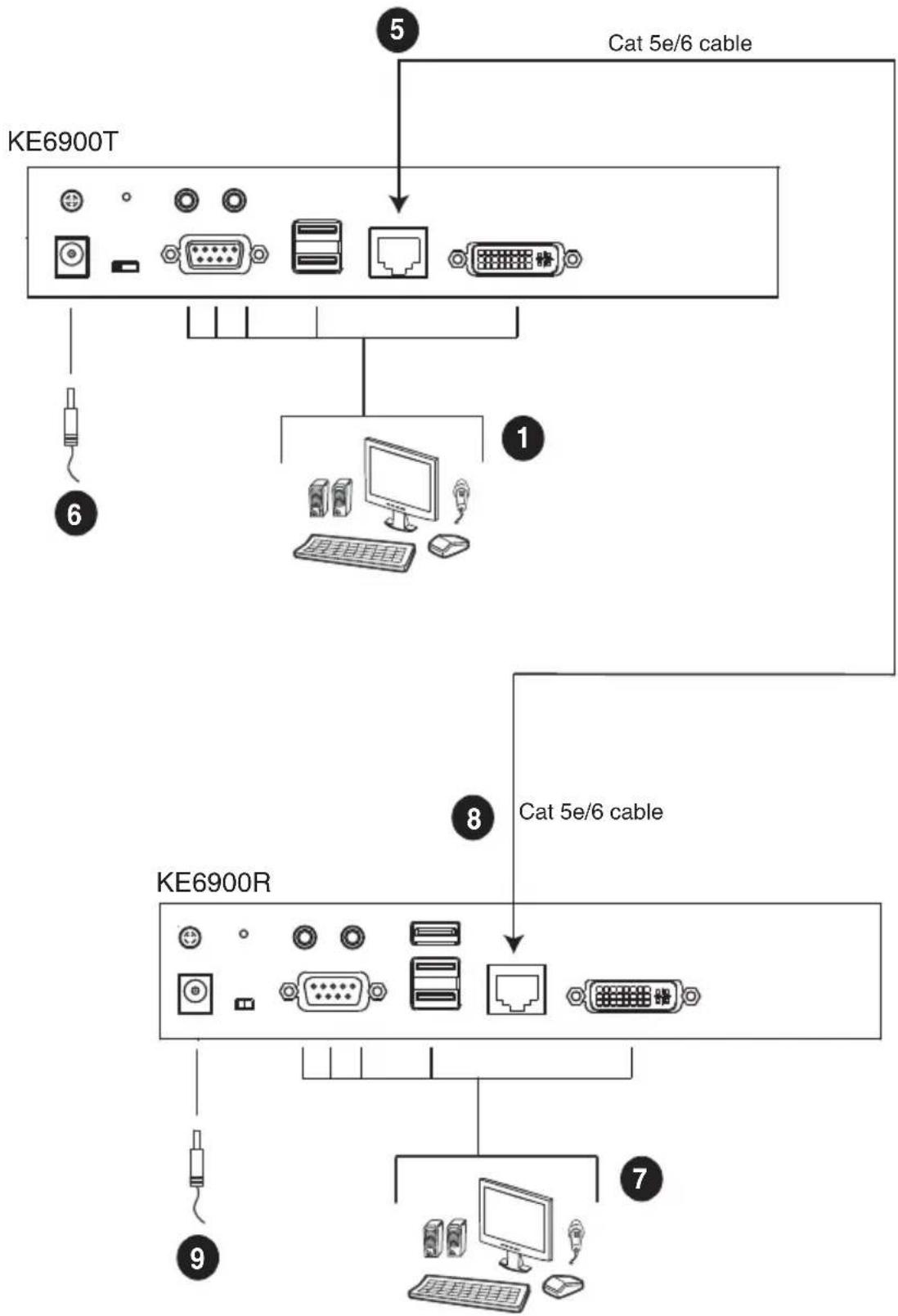

KE6900 Point-to-Point Installation 1 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

KE6900 Point-to-Point Installation 2 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

KE8900 Point-to-Point Installation ....31

KE8900 Point-to-Point Installation 1 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

KE8900 Point-to-Point Installation 2 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

KE6900ST Point-to-Point Installation 34

Setting up a LAN Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

KE6900 LAN Installation....36

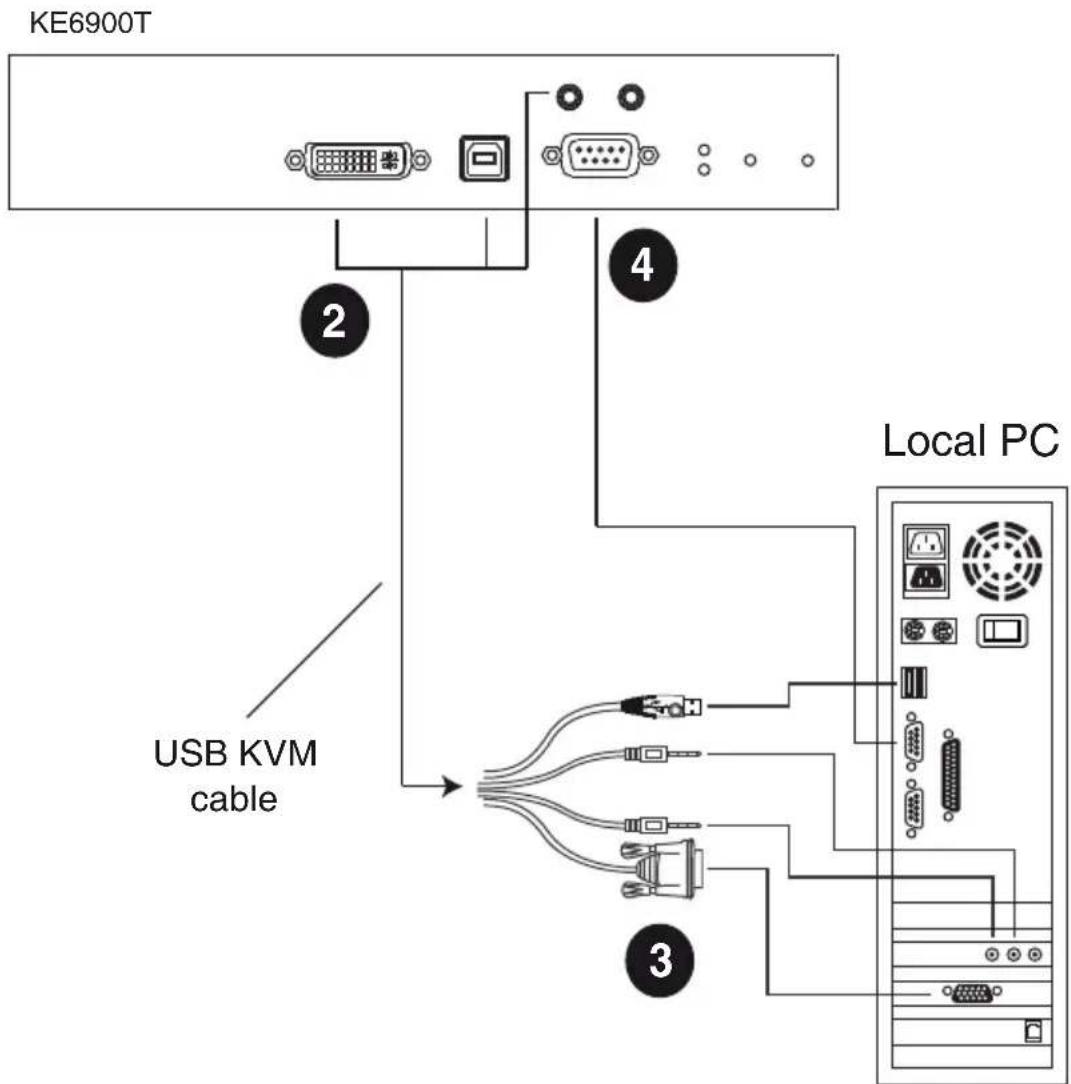

KE6900 Network Installation Diagram 1 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

KE6900 Network Installation Diagram 2 of 2.....39

KE8950 LAN Installation....40

KE8950 Network Installation Diagram 1 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

KE8950 Network Installation Diagram 2 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Network Configuration....44

Exit OSD 45

Default IP Addresses 45

KE I/O Ports ....46

Chapter 3.

OSD Operation

Overview....47

LED Display 47

Invoking the OSD 48

Microphone Hotkey 48

Touch Screen Calibration 48

OSD Interface 49

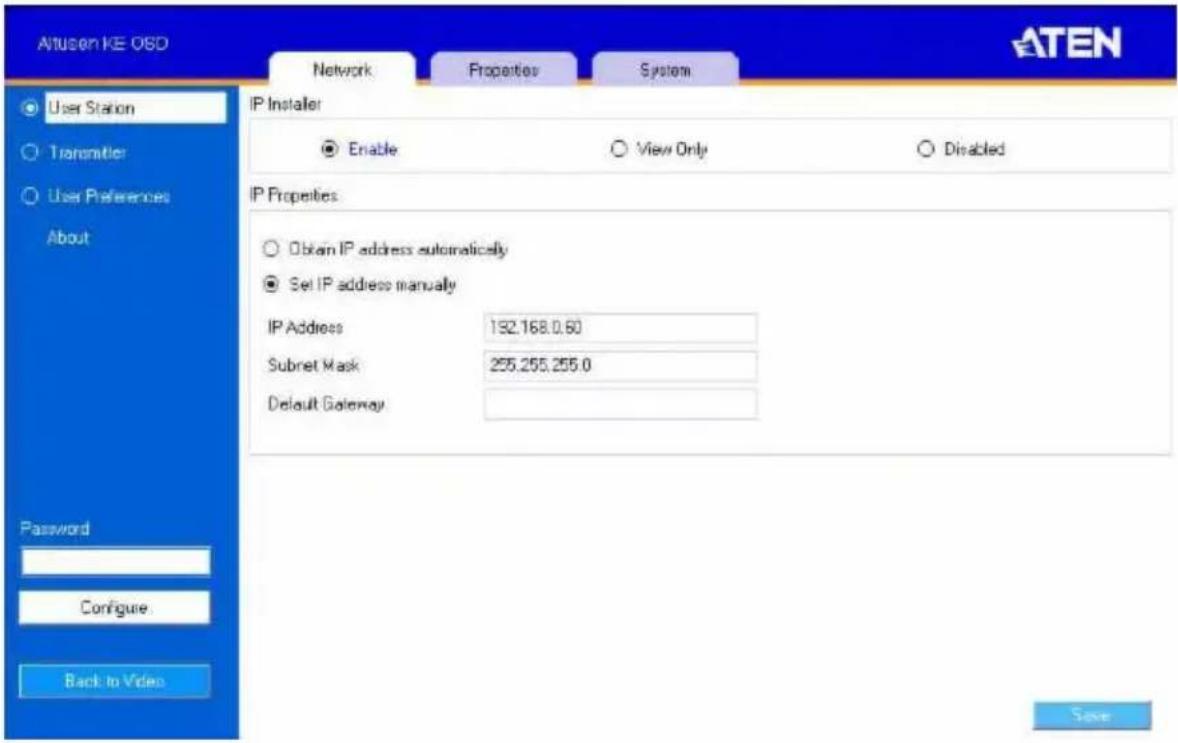

User Station Configuration ....50

Network 50

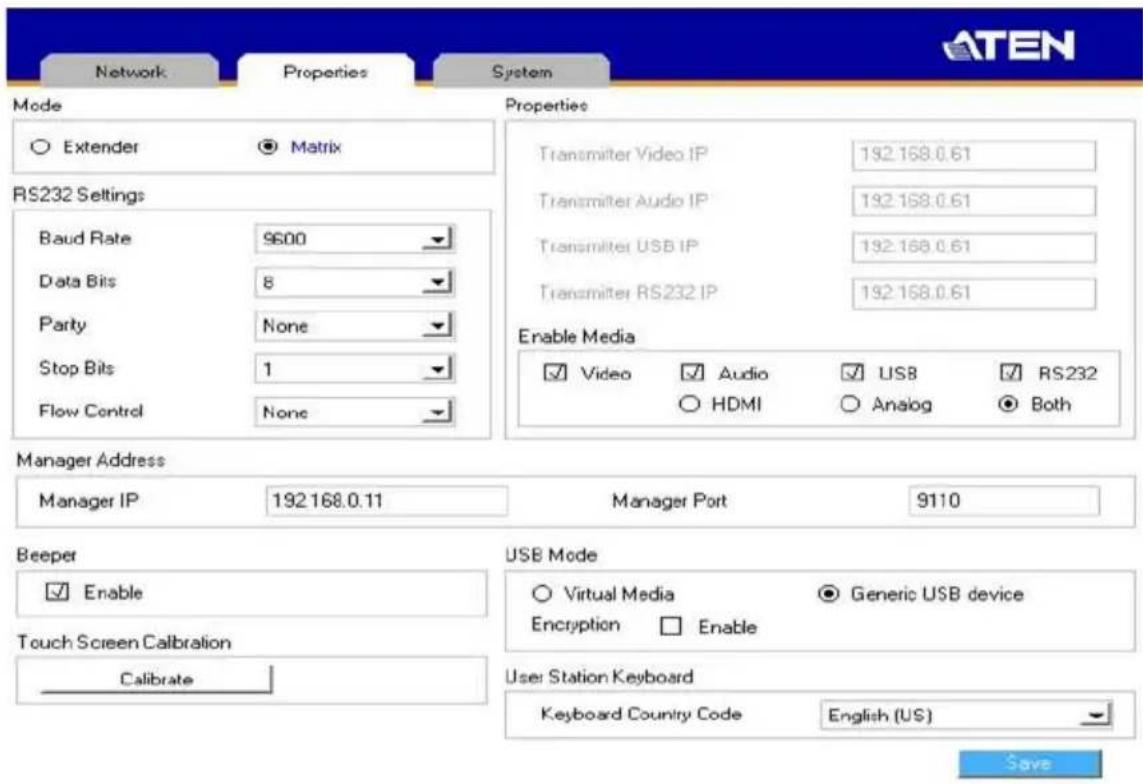

Properties ....51

System 53

Transmitter Configuration ....54

Network 54

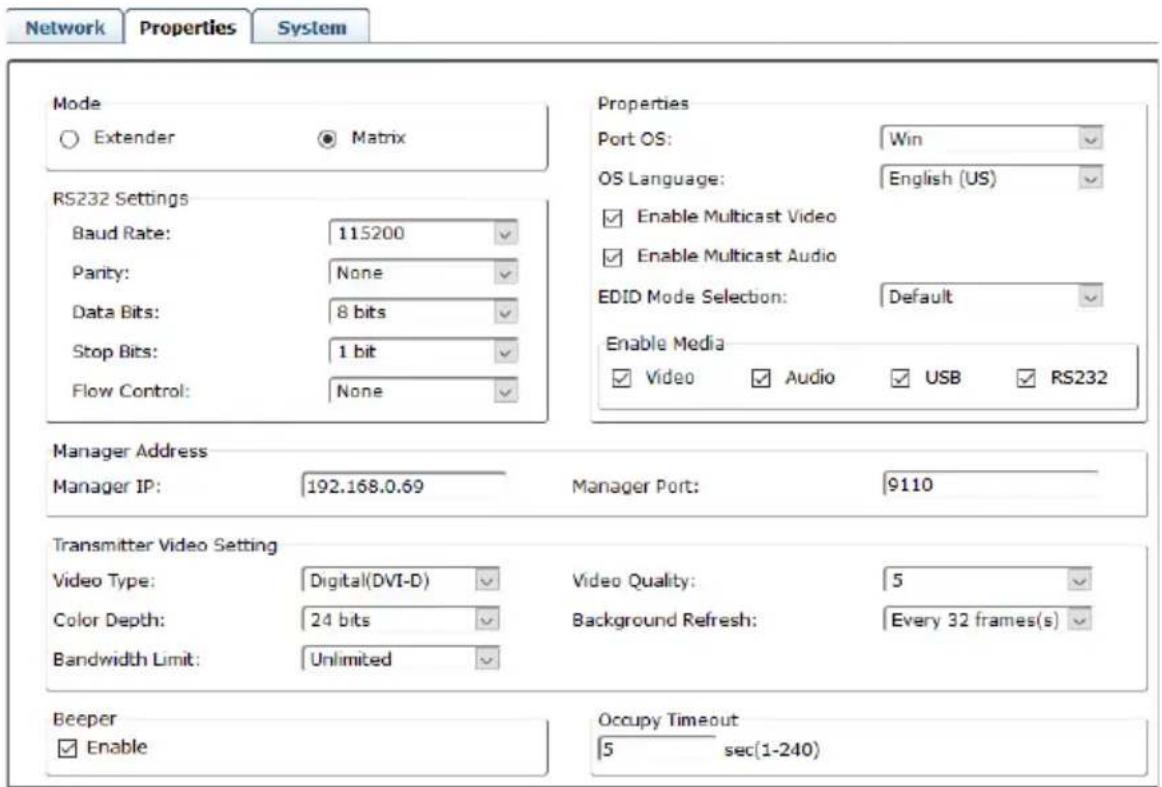

Properties ....55

System 58

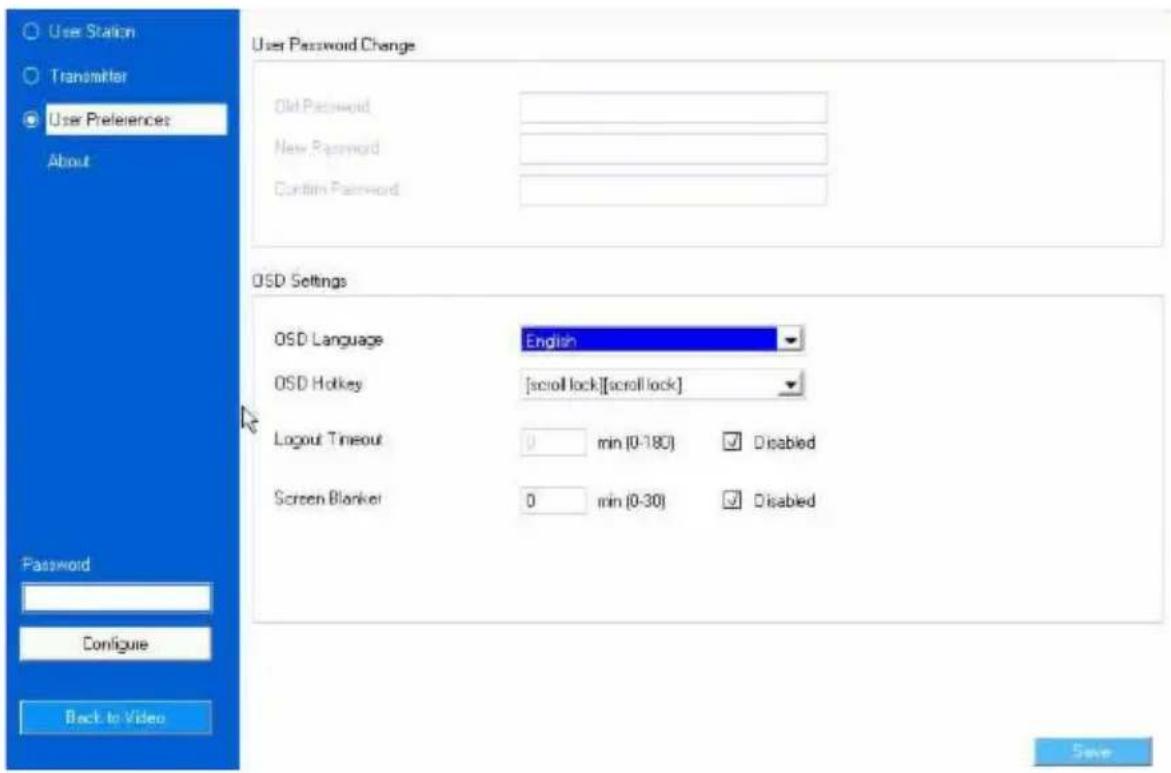

User Preferences ....59

Connecting....60

Connections Page....61

List Mode 61

Array Mode 63

Profile / Video Wall Page. 65

Push Content. 67

Pull Content. 69

Chapter 4.

Software Installation

Overview....71

Download - Trial Version 71

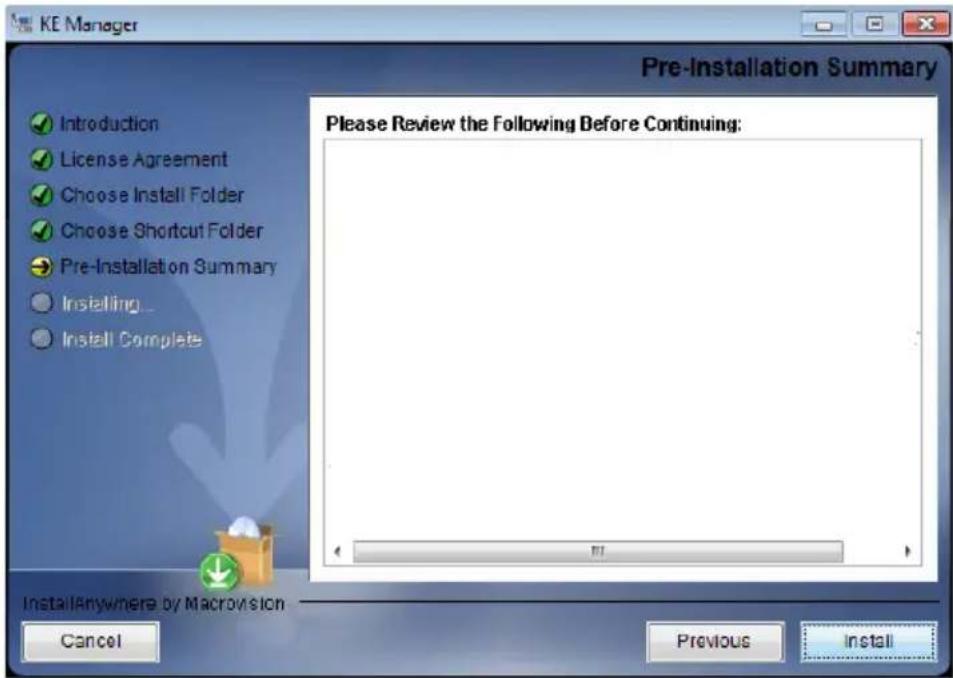

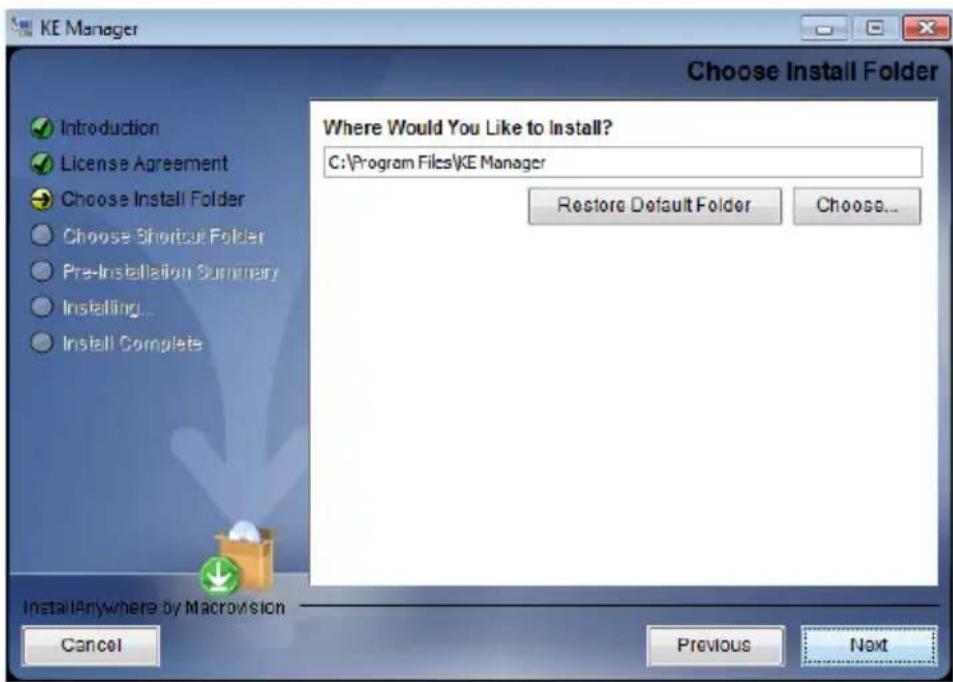

KE Management Software Install 73

Upgrading Trial Version 76

Chapter 5.

Browser / Telnet Operation

Overview....77

Logging In. 77

The Matrix Manager Main Page 78

Web Components 78

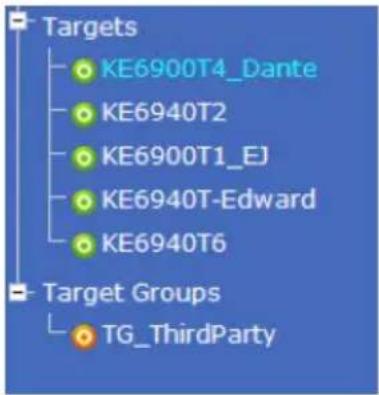

Tree View Considerations....79

The Tab Bar 80

Telnet 81

Configuration Menu....81

Main Menu....81

1. Network 82

2. Properties 82

3. System 83

Chapter 6.

Dashboard

Overview....84

Active Connections 85

Active Sessions....86

Online User Stations....87

Online Transmitters....88

Latest Events 89

Schedule 90

Chapter 7.

Device Management

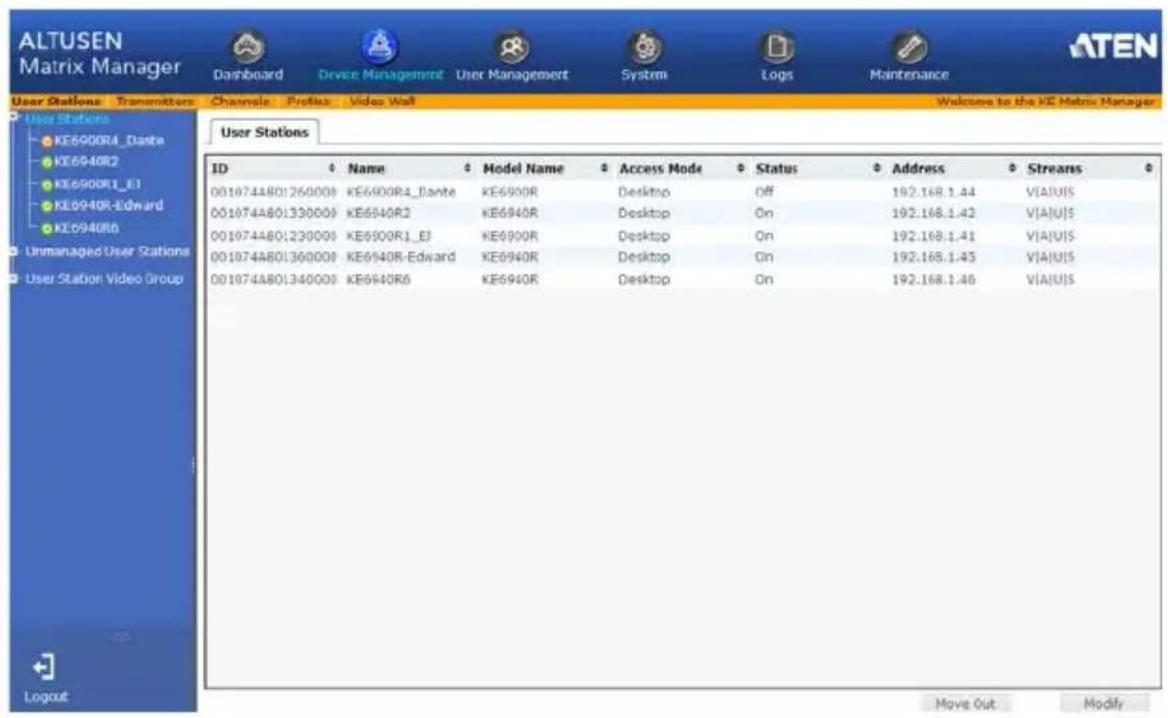

Overview....91

User Stations 92

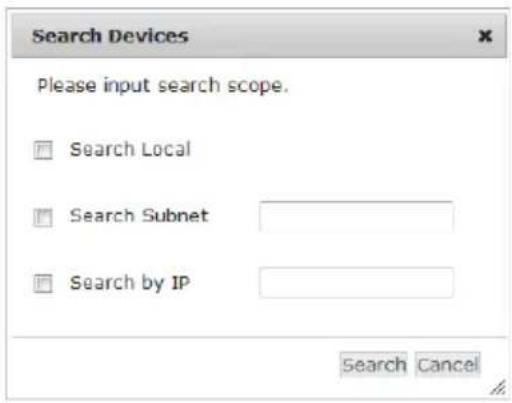

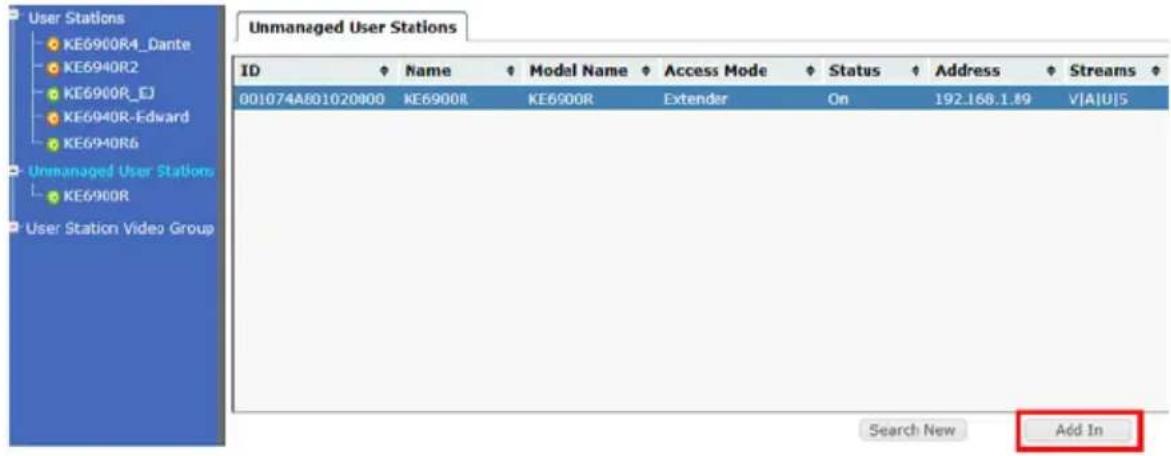

Adding a User Station. 93

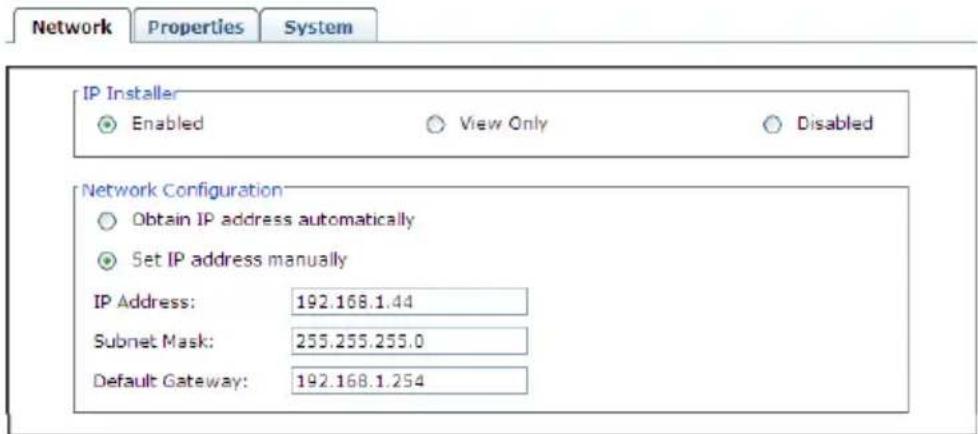

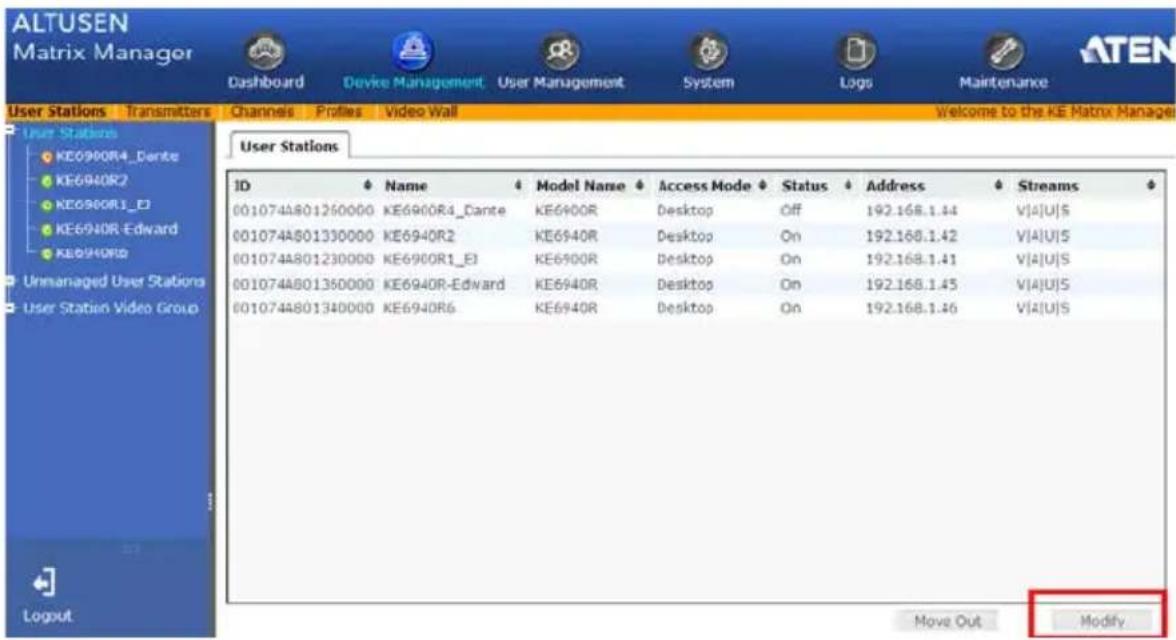

Configuring a User Station 94

Deleting a User Station. 99

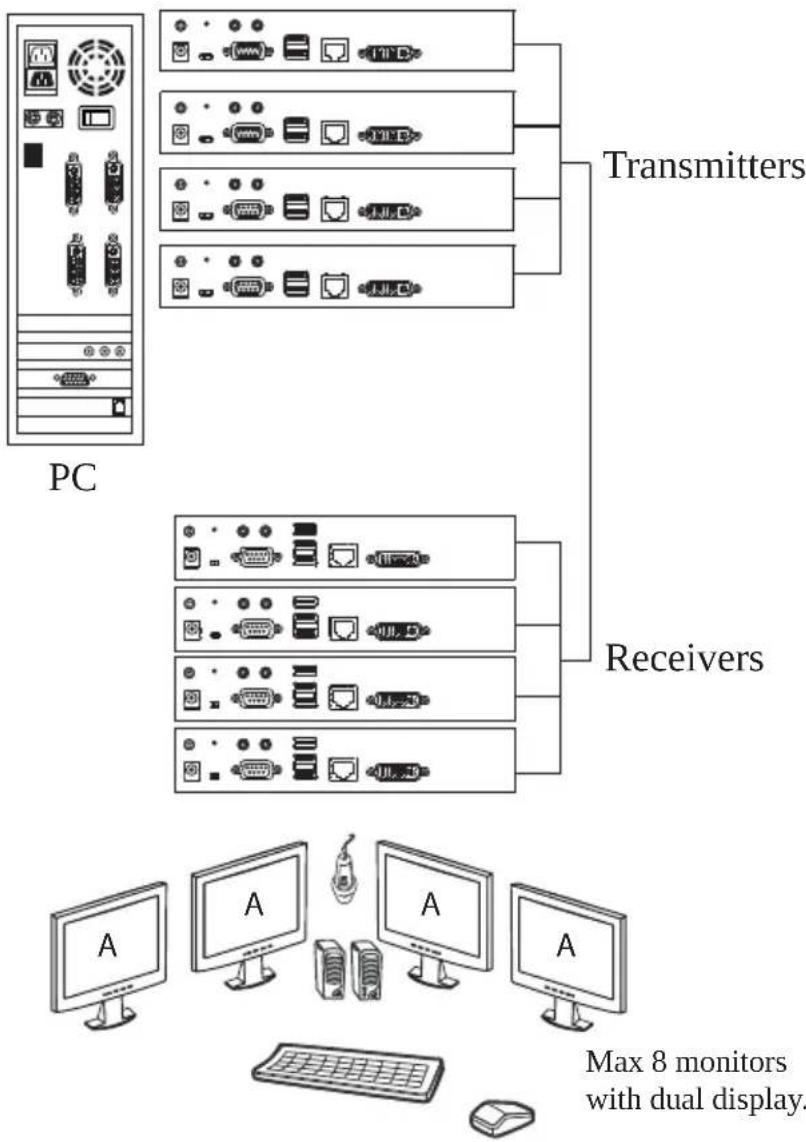

User Station Video Group. 100

Hardware Setup 100

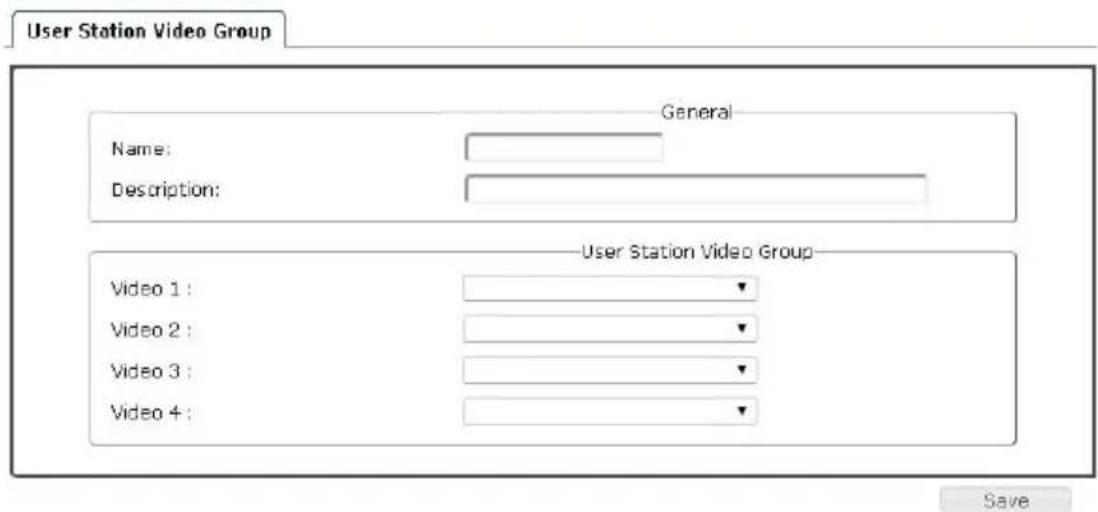

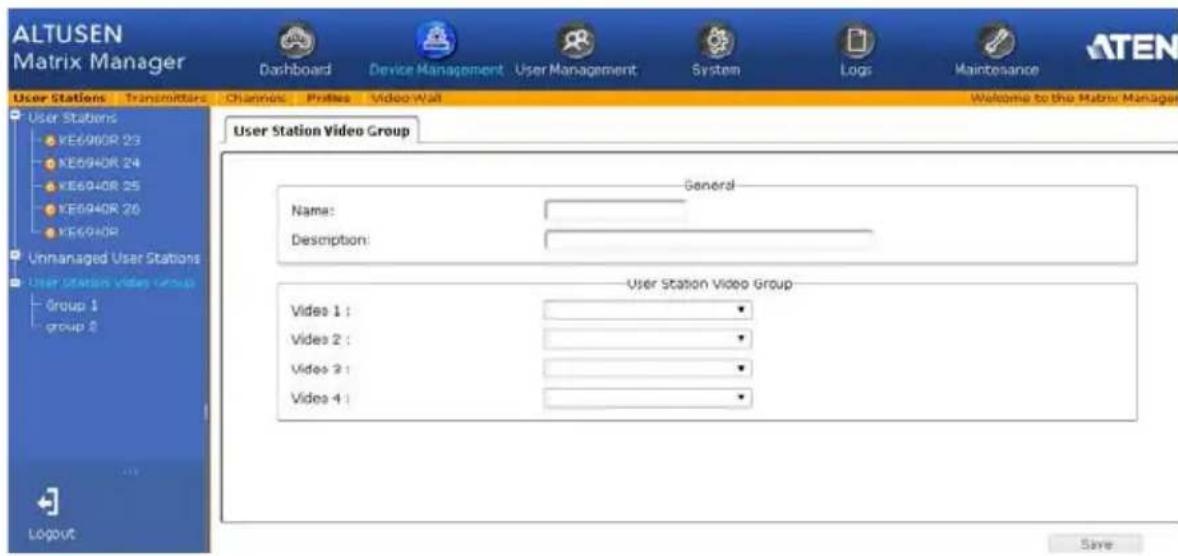

Adding a User Station Video Group 101

Transmitters 103

Adding a Transmitter....104

Configuring a Transmitter 105

Deleting a Transmitter....109

Channel Connections....110

Channels....111

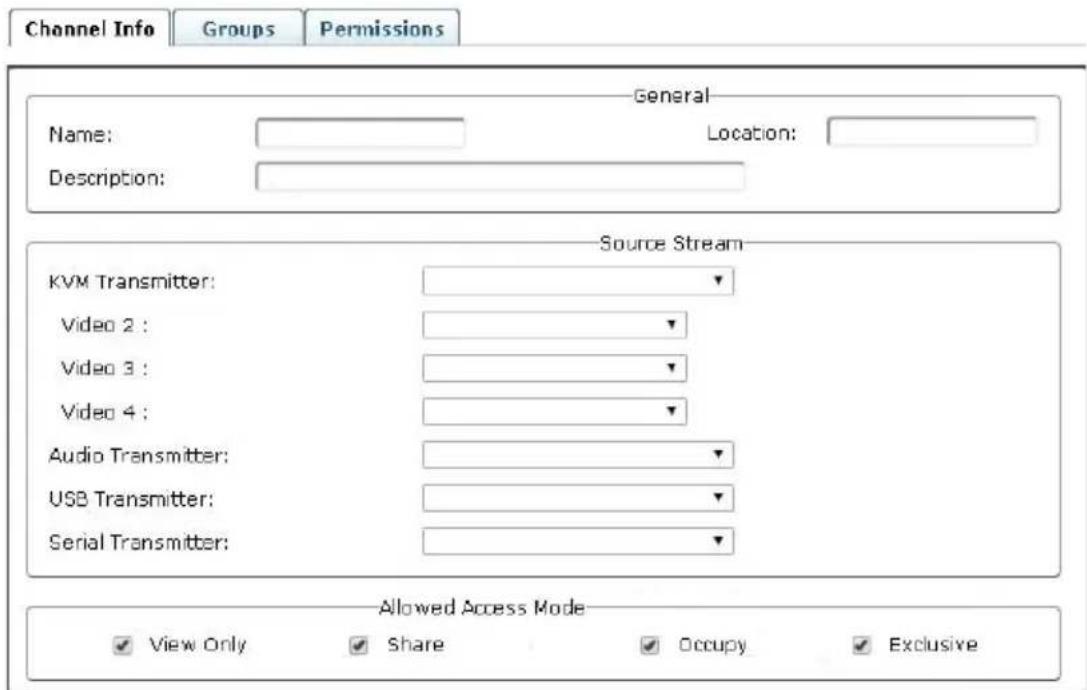

Adding a Channel ..... 112

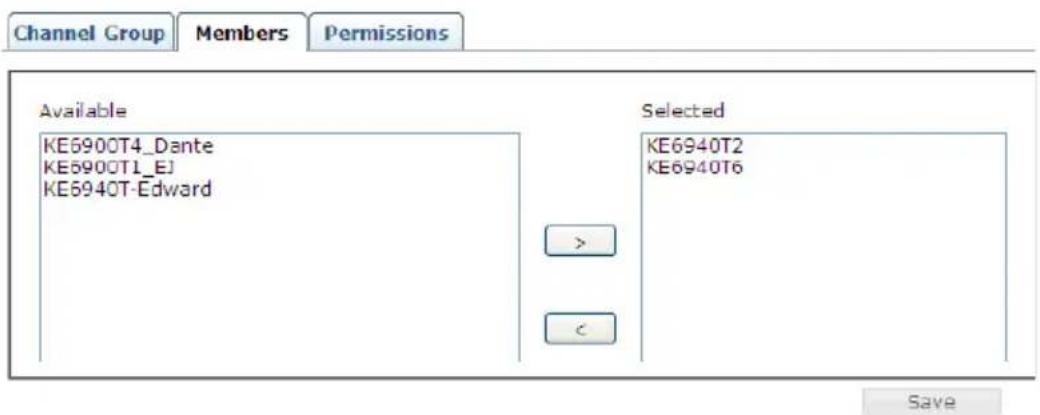

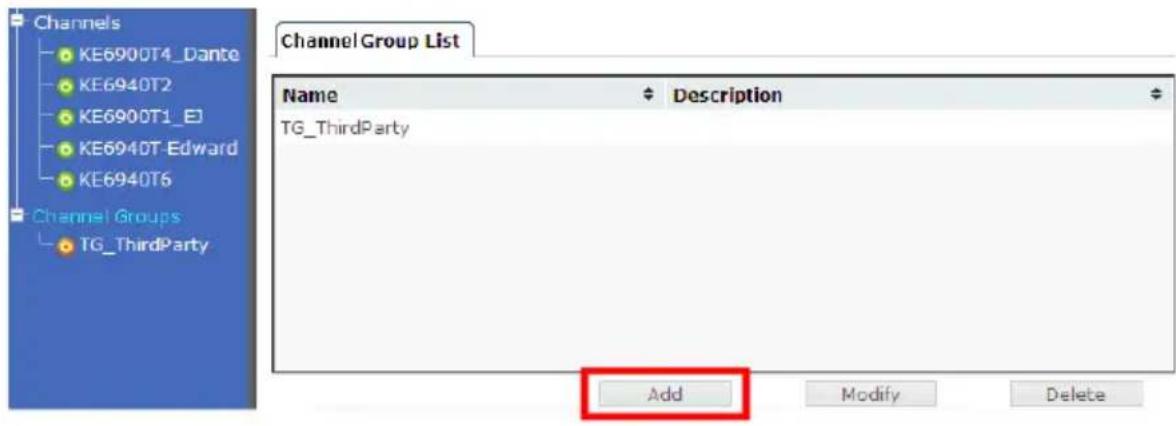

Channel Groups 115

Adding a Channel Group....115

Profiles 117

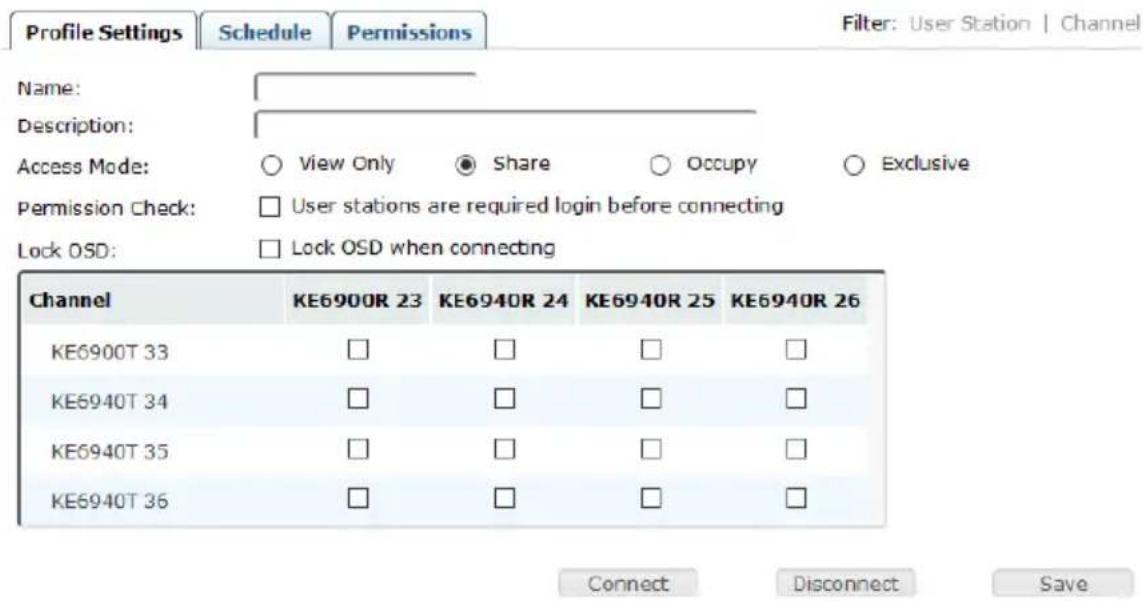

Adding a Profile....118

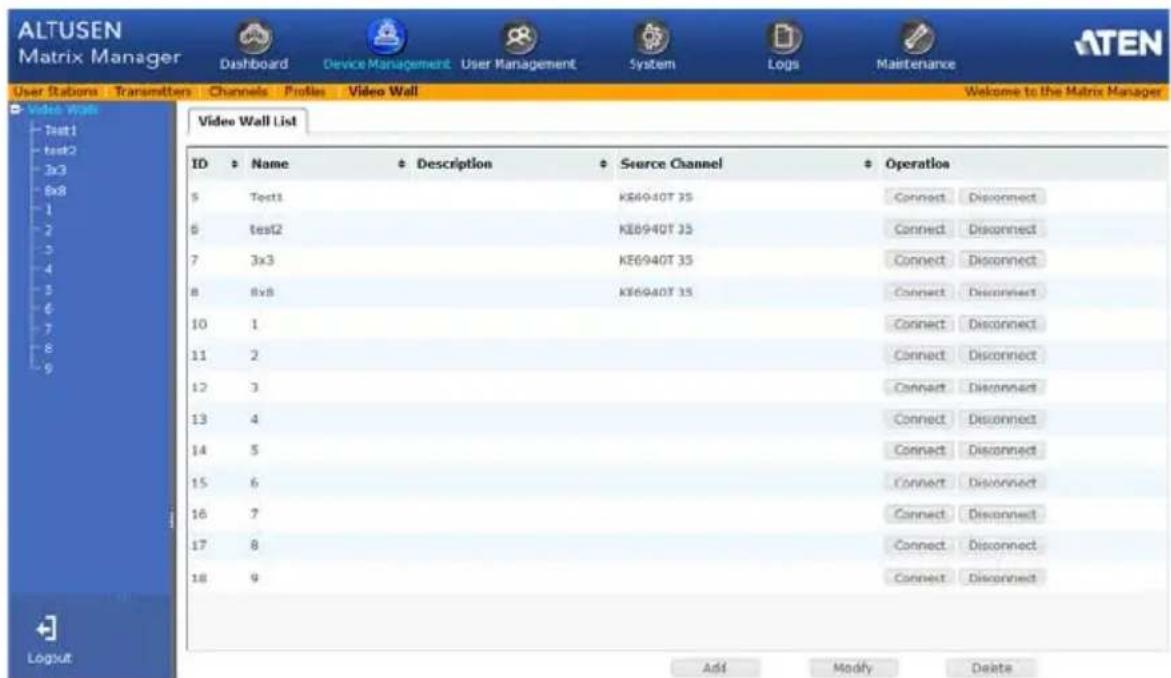

Video Wall....121

Video Wall Example 122

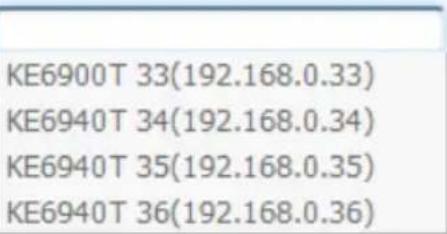

Adding a Video Wall ....123

Chapter 8.

User Management

Overview....127

Users....128

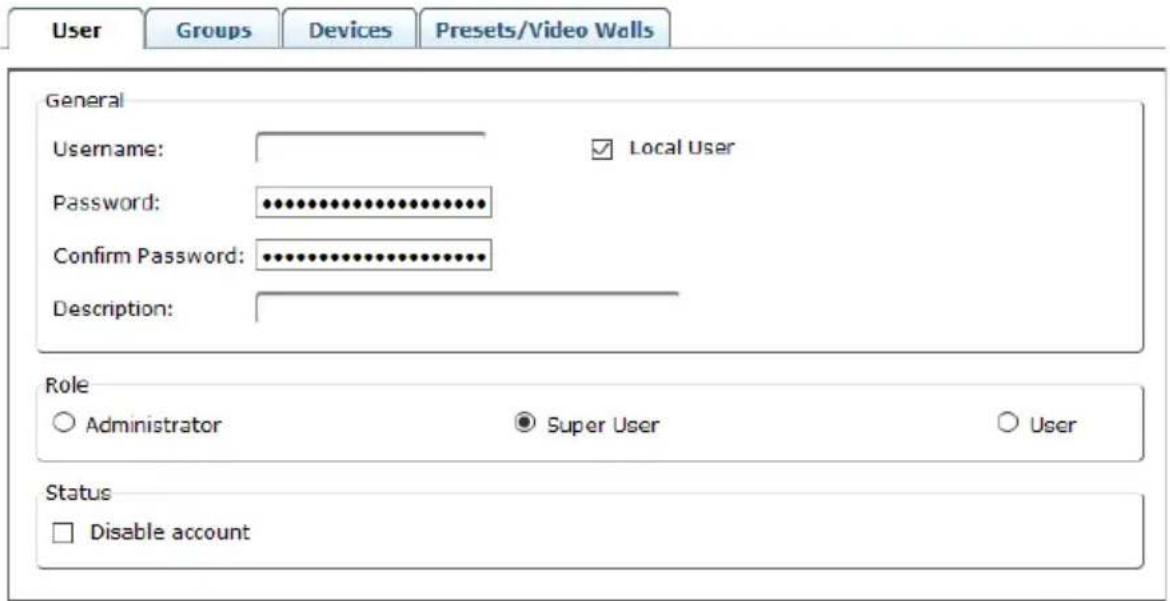

Adding Users....128

Modifying User Accounts....130

Deleting User Accounts....130

Groups 131

Creating Groups....131

Modifying Groups .....132

Deleting Groups 132

Users and Groups....133

Assigning Users to a Group From the User's Notebook .....133

Removing Users From a Group From the User's Notebook .....134

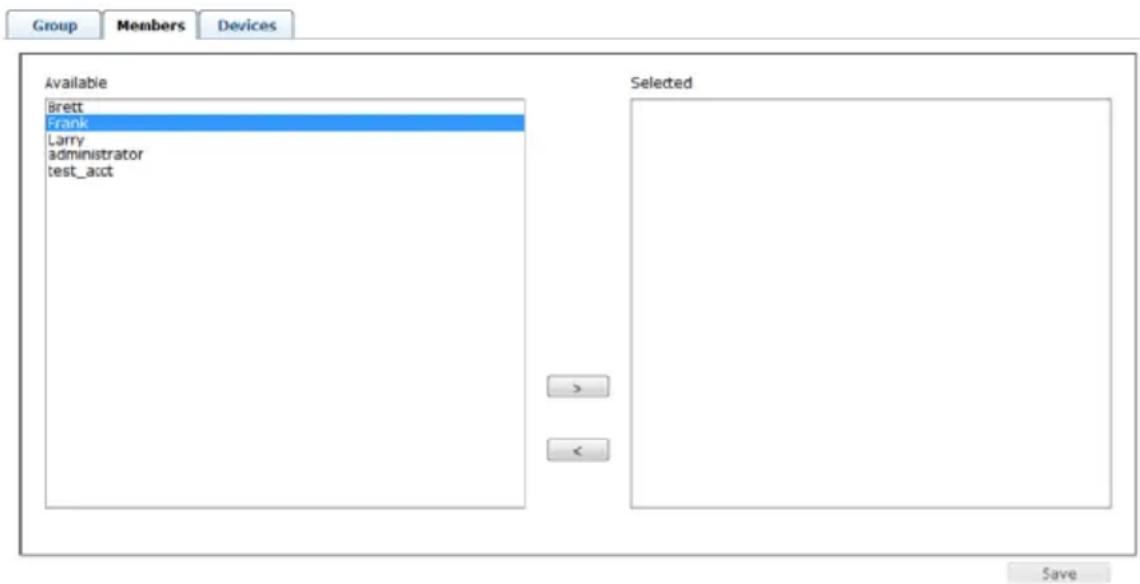

Assigning Users to a Group From the Group's Notebook.....135

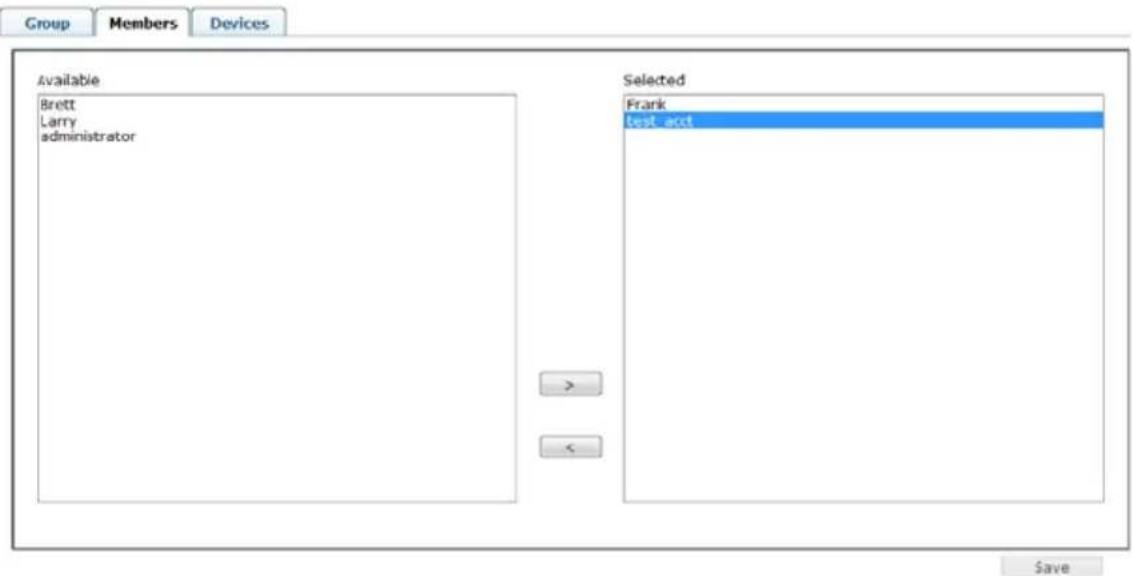

Removing Users From a Group From the Group's Notebook .....136

Device 137

Assigning Device Permissions From the User's Notebook .....137

Assigning Device Permissions From the Groups' Notebook.....139

Profiles/Video Walls 140

Assigning Profile/Video Wall Permissions From the User's Notebook . . 140

Chapter 9.

System

Overview....142

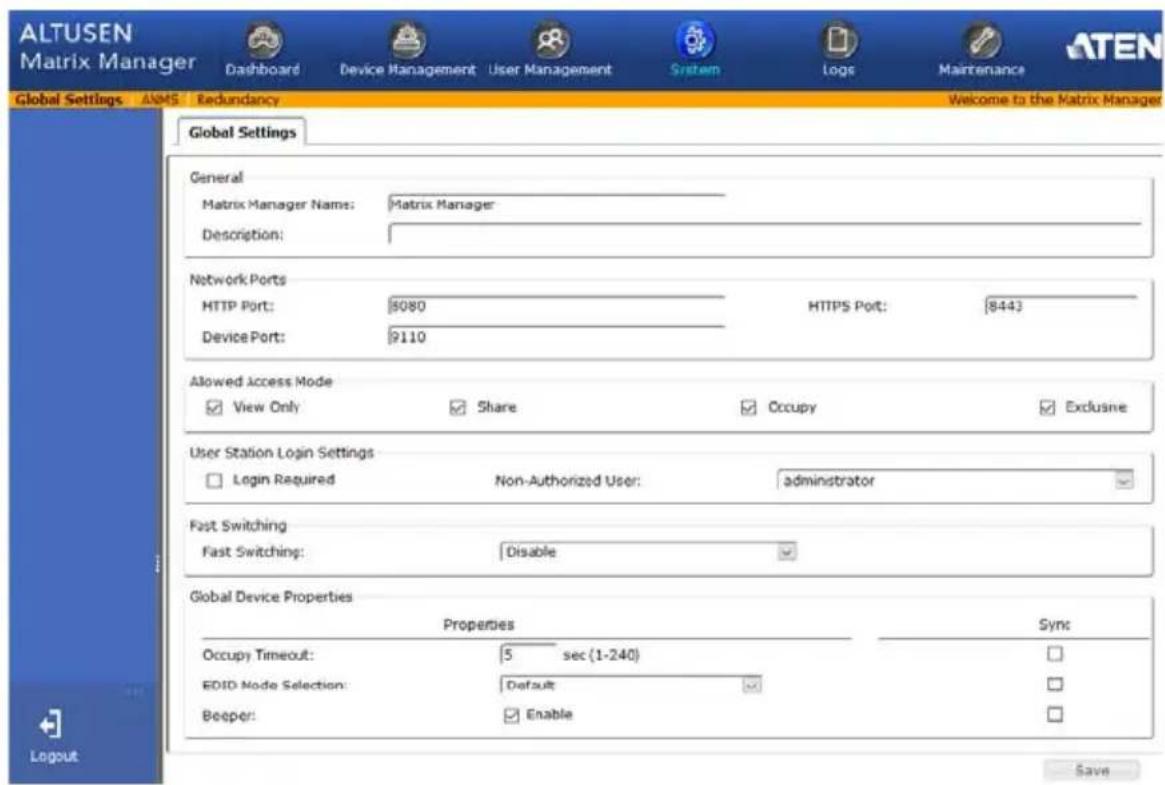

Global Settings 143

ANMS 147

Event Destination....147

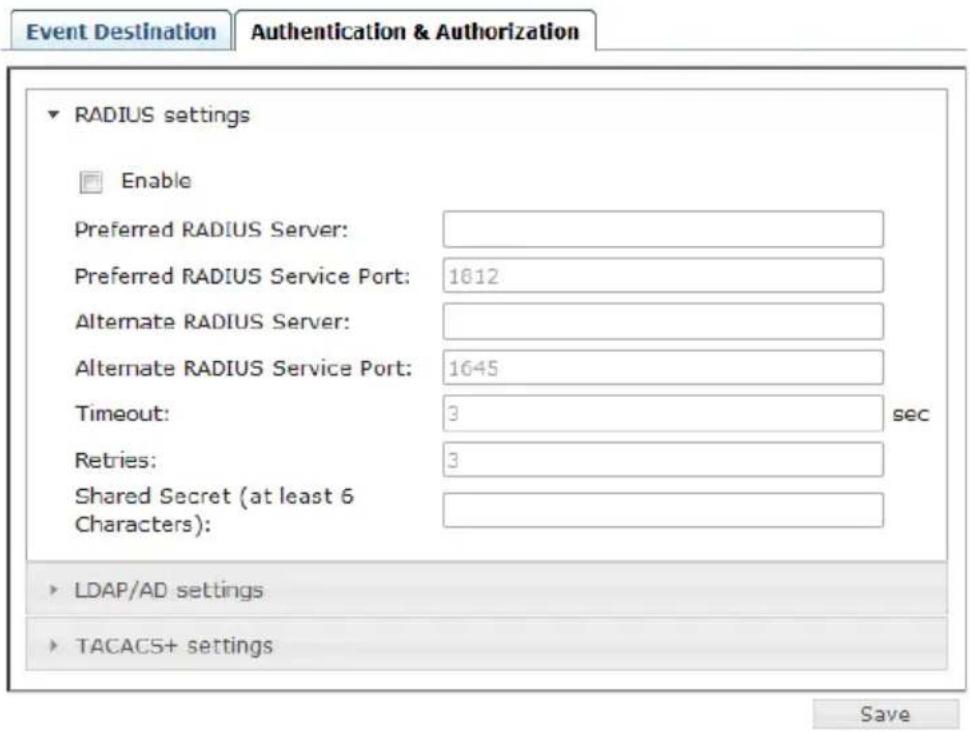

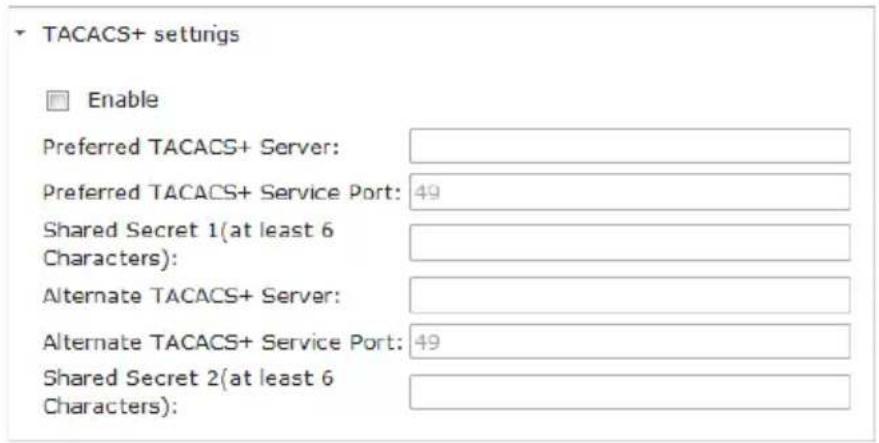

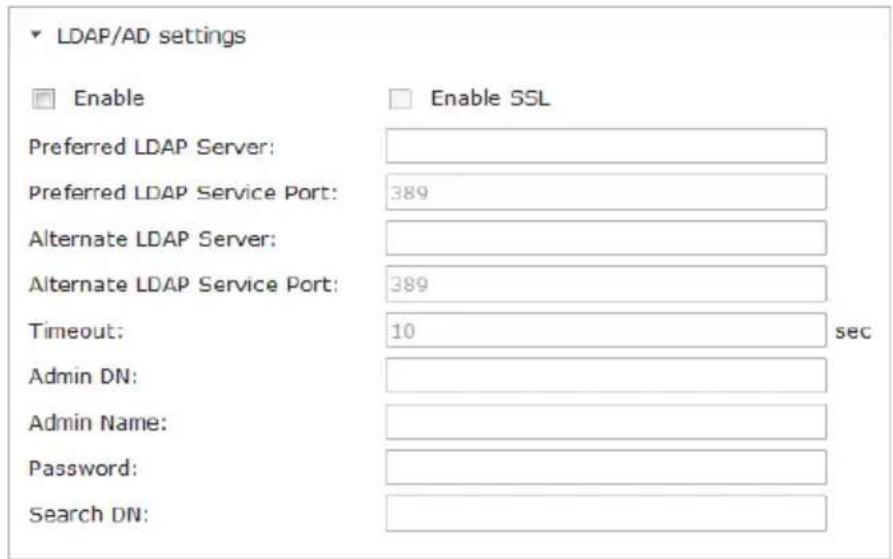

Authentication & Authorization. 149

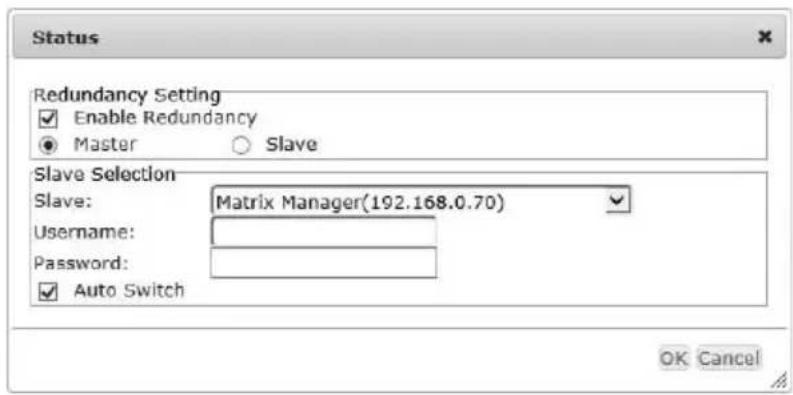

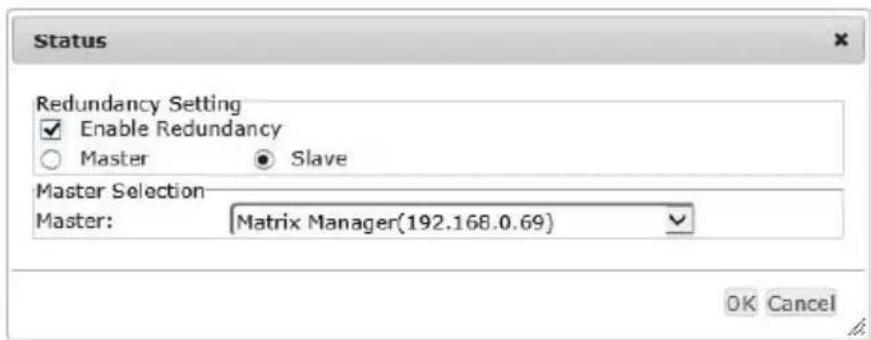

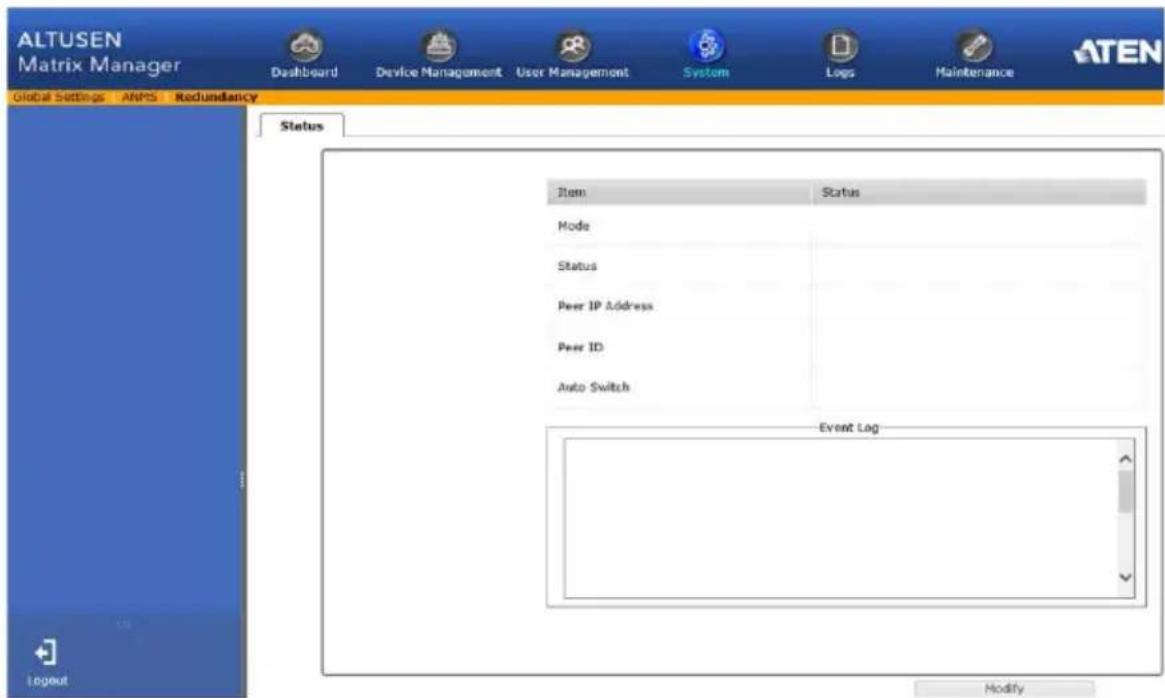

Redundancy 152

Chapter 10.

Logs

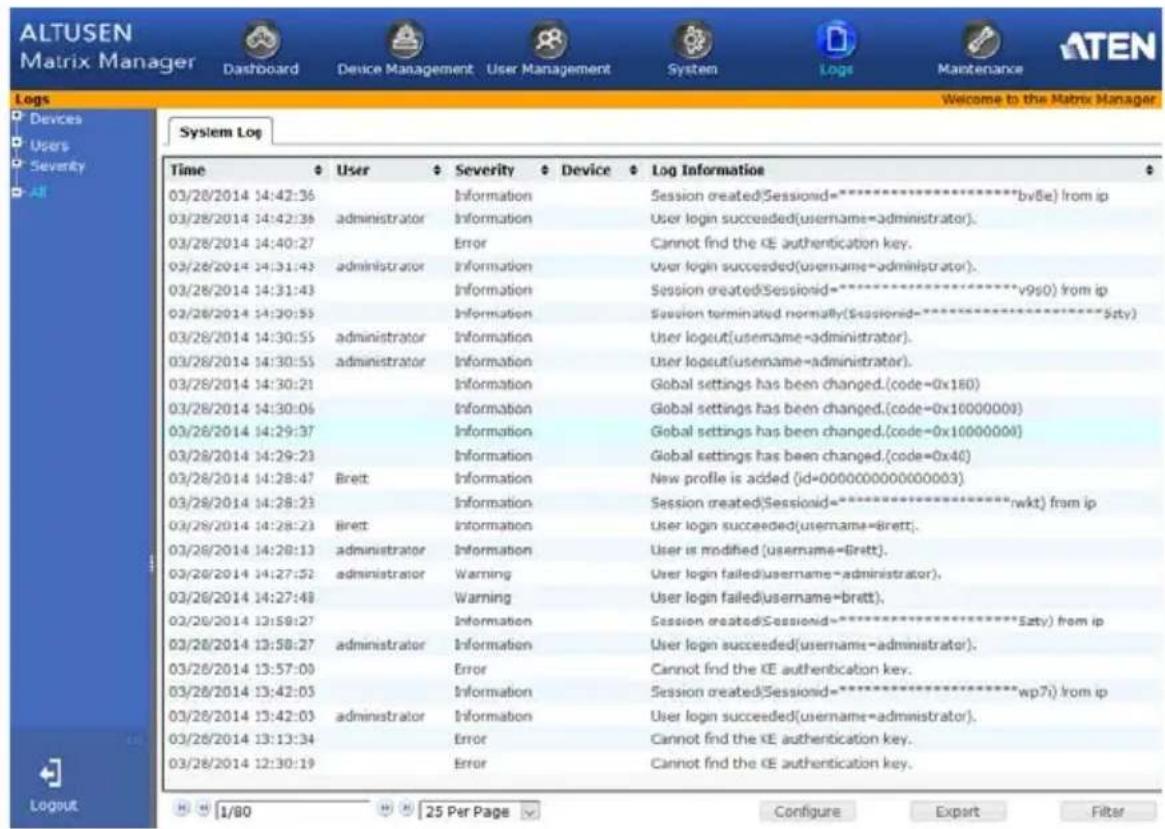

Overview....156

System Log....157

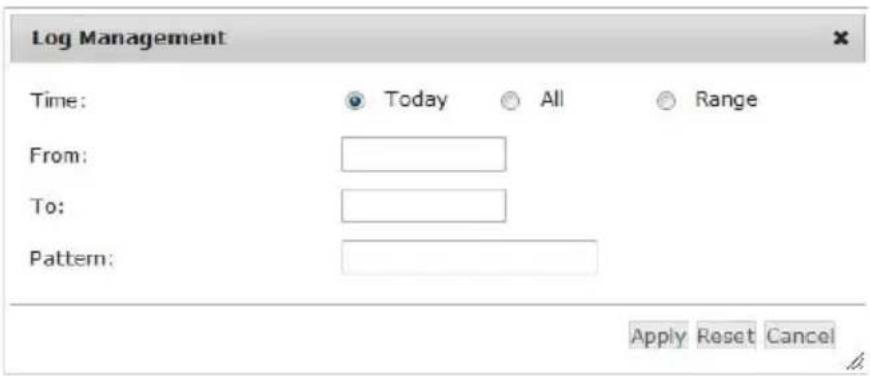

Filter 159

Chapter 11.

Maintenance

Overview....160

Firmware Upgrade 163

Firmware Upgrade Recovery 164

Certificates 165

Private Certificate 165

Certificate Signing Request. 166

Preferences 168

Chapter 12.

Firmware Upgrade Utility

Preparation 170

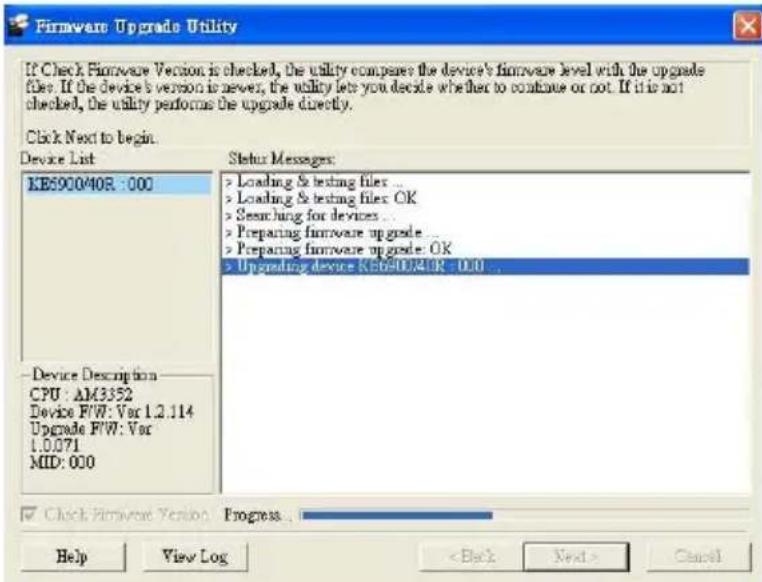

Starting the Upgrade. 171

Upgrade Succeeded....173

Firmware Upgrade Recovery 174

Chapter 13.

CLI Commands

Serial Control Protocol Commands 175

Configuring the Serial Port 175

Device/Profile Commands....175

Verification 175

Switch Port Command 177

Mute Command....181

Profile Command 183

EDID Command 185

Reset Command 187

RS-232 Command 188

OSD Command....191

List Command....192

Read Command 194

Set Command....198

Appendix

Safety Instructions 207

General 207

Rack Mounting 209

Technical Support. 210

International 210

North America. 210

Specifications....211

KE6900T / KE6940T .....211

KE6900R / KE6940R. 213

KE6900ST....214

KE8950T / KE8952T....215

KE8950R / KE8952R. 216

Optional Rack Mounting .....217

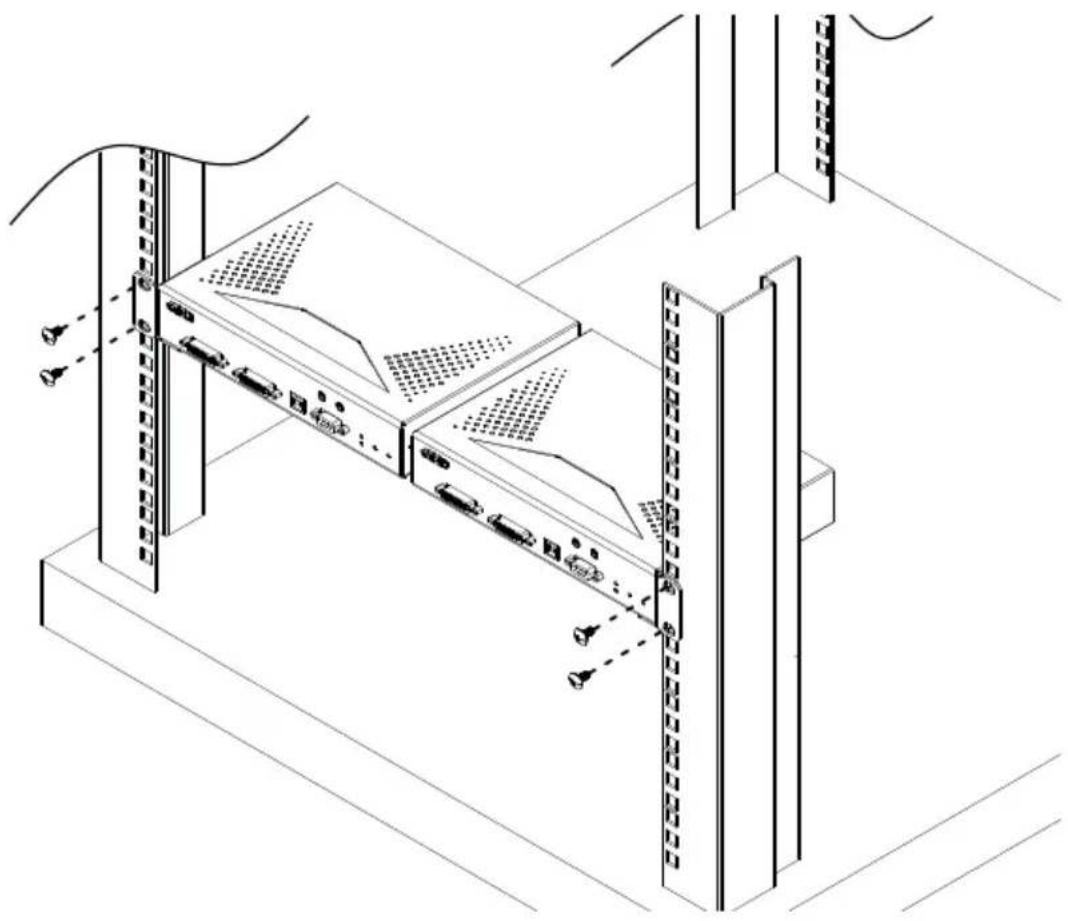

Dual Rack Mounting .....217

Single Rack Mounting .....220

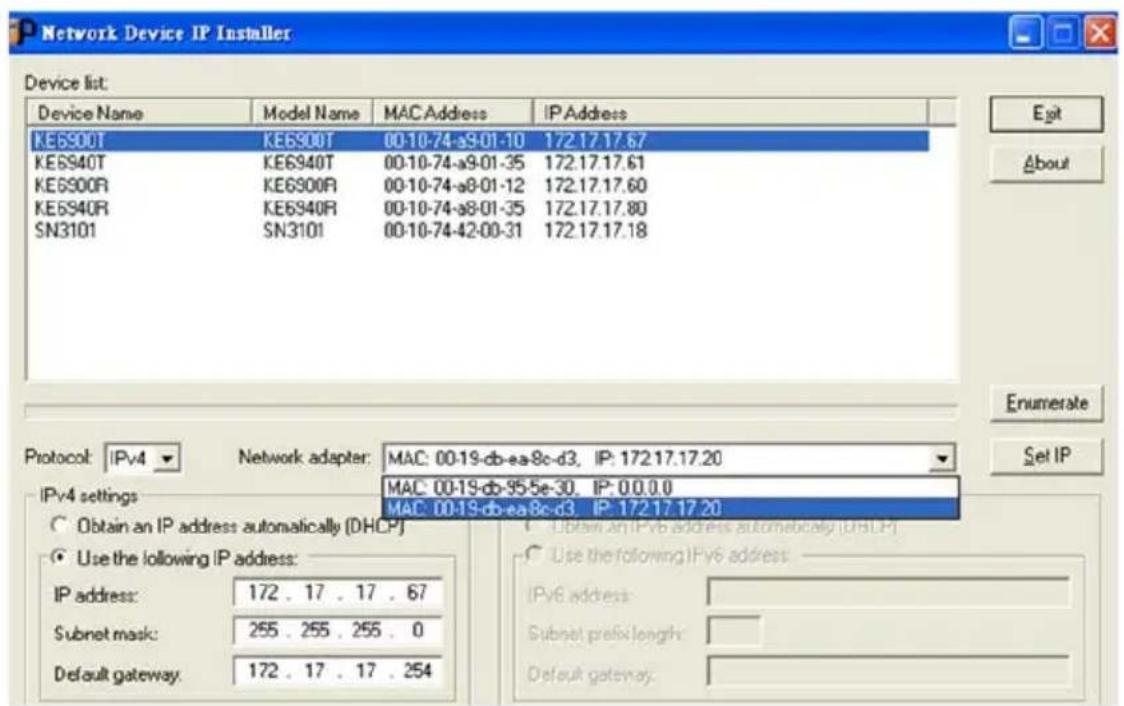

IP Installer....222

Trusted Certificates. 223

Overview 223

Self-Signed Private Certificates 224

Examples. 224

Importing the Files....224

RS-232 Pin Assignments .....225

Transmitter Front RS-232 Port .....225

Multicast IP Address .....226

KE Multicast Rule .....226

Multicast IP Formula 226

If X is between 0 \~ 127 .....226

If X is between 128 \~ 192 .....227

If X is 192 or higher .....227

Keys to Network Performance .....228

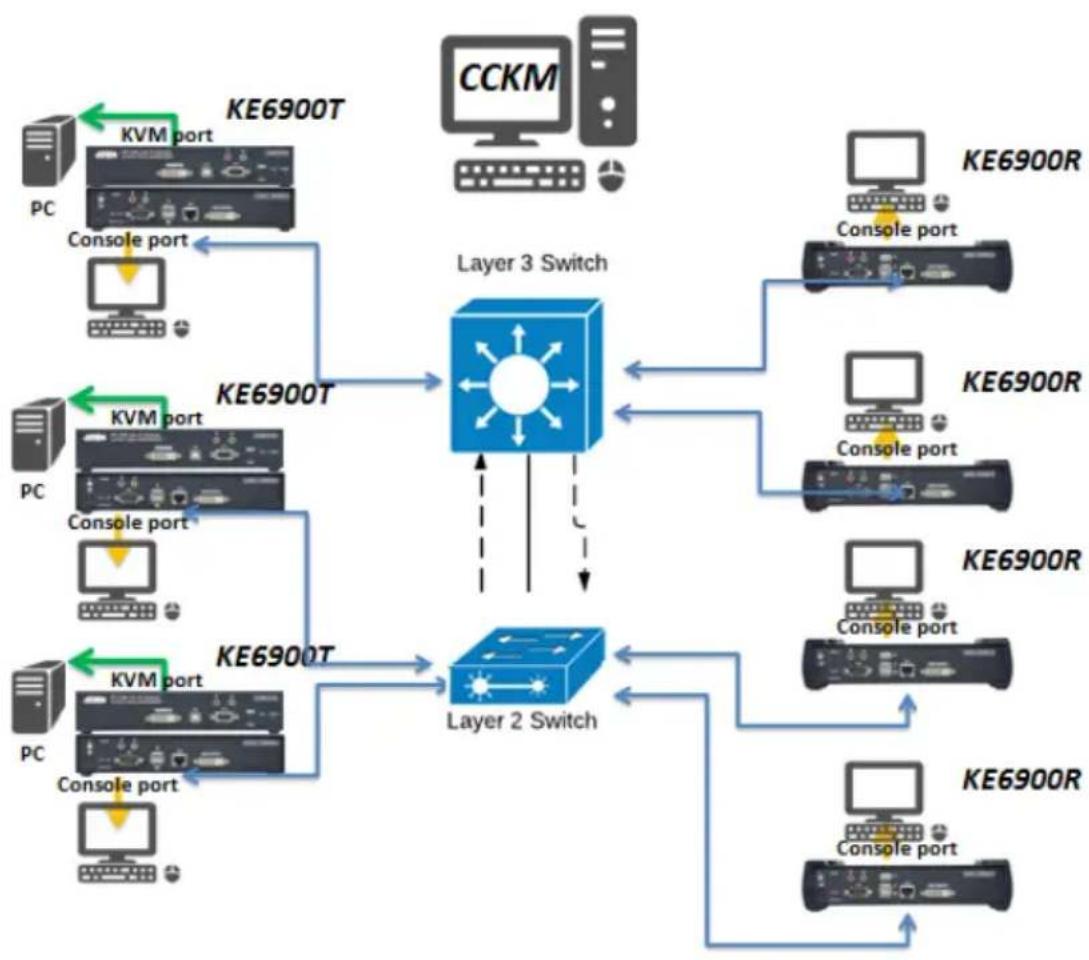

Build a Network Diagram. 228

Other Factors....228

Choose a High Performance Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Layer 2 or Layer 3 Switches .....230

Considerations 230

Number of ports. 230

Stackable verse Standalone .....230

What Stackable Switches Can do:....231

Switch Specifications....231

Configuring Switches and KE Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

KE transmitter Settings:....232

Limited Hardware Warranty 233

What is covered by the Limited Hardware Warranty. . . . . . . . . . . . . . 233

About This Manual

This User Manual is provided to help you get the most from your KVM Over IP Matrix System. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

Chapter 1, Introduction, introduces you to the KVM Over IP Matrix System. Its purpose, features and benefits are presented, and its front and back panel components are described.

Chapter 2, Hardware Setup, provides step-by-step instructions for setting up your installation, and explains some basic operation procedures.

Chapter 3, OSD Operation, explains the fundamental concepts involved in operating the KE6900 / KE6900ST / KE6940 / KE8950 / KE8952, and provides a complete description of the On Screen Displays (OSDs) and how to work with them.

Chapter 4, Software Installation, explains the administrative procedures that are required to download and install the Matrix Manager software.

Chapter 5, Browser / Telnet Operation, explains how to log in to the Matrix Manager with a web browser, and describes the features, functions, and how to work with the browser's interface.

Chapter 6, Dashboard, explains how to use the Matrix Manager's Dashboard tab to view connection, session, and device events.

Chapter 7, Device Management, explains how to add, configure, and organize the Transmitter and Receiver devices that will be managed over the network, as well as how to create Channels and Profiles for matrix connections.

Chapter 8, User Management, describes how to add, modify and delete user accounts; create user groups and assign users to them; specify access rights for users and groups; and specify user authentication.

Chapter 9, System, explains the Matrix Manager's global settings, and ANMS settings for LDAP/AD, RADIUS, and TACACS+ authentication and authorization.

Chapter 10, Logs, explains how to access, filter, and search the various logs that are kept by the Matrix Manager.

Chapter 11, Maintenance, explains how to use the Matrix Manager's Maintenance tab to backup, restore, upgrade firmware, install certificates, and set user preferences.

Chapter 12, Firmware Upgrade Utility, explains how to download and use the Firmware Upgrade Utility to install new firmware on the devices.

Chapter 13, CLI Commands, provides a complete list of the serial protocol and TCP/IP commands used when utilizing the RS-232 Serial Port or a network connection to configure the KE devices.

An Appendix, at the end of the manual provides technical and troubleshooting information.

Conventions

This manual uses the following conventions:

Monospaced Indicates text that you should key in.

[] Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

1. Numbered lists represent procedures with sequential steps.

◆ Bullet lists provide information, but do not involve sequential steps.

→ Indicates selecting the option (on a menu or dialog box, for example), that comes next. For example, Start → Run means to open the Start menu, and then select Run.

Indicates critical information.

Product Information

For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:

International http://www.aten.com

North America http://www.aten-usa.com

Overview

The KVM Over IP Matrix System is a solution that combines KE Series Extenders (KE6900, KE6940, KE6900ST, KE8950, KE8952) with the KE Management Software (CCKM) to extend, control and monitor access to computers, across a network, in a multitude of ways. The system lets you setup a matrix of remote KVM consoles that access computers across a network, with the flexibility to control and configure each connection.

The KE Extenders consist of transmitters that connects to the computer and receivers that provide console access from a separate location. The computer is accessed from the remote console via a standard TCP/IP network or direct Ethernet cable connection. This is perfect for any installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display.

The KE6900 is a single view extender that supports one DVI display at each end. The KE6940 is a dual view extender that supports two DVI displays at each end, allowing the video output to display across two monitors.

The KE8950 and KE8952 are single view 4K HDMI extenders that support HDCP 1.4 and HDMI 1.4a. The KE8900 Series connect unit-to-unit or over a TCP/IP network via a Gigabit Ethernet or SFP port. Both models support Fiber Channel over Ethernet via SFP fiber modules* which connect to a network switch at speeds up to 1 Gbps. Additionally, the KE8952's Gigabit LAN port supports Power over Ethernet (PoE) which provides a network connection and powers the unit from a network switch over Cat 5e cable.

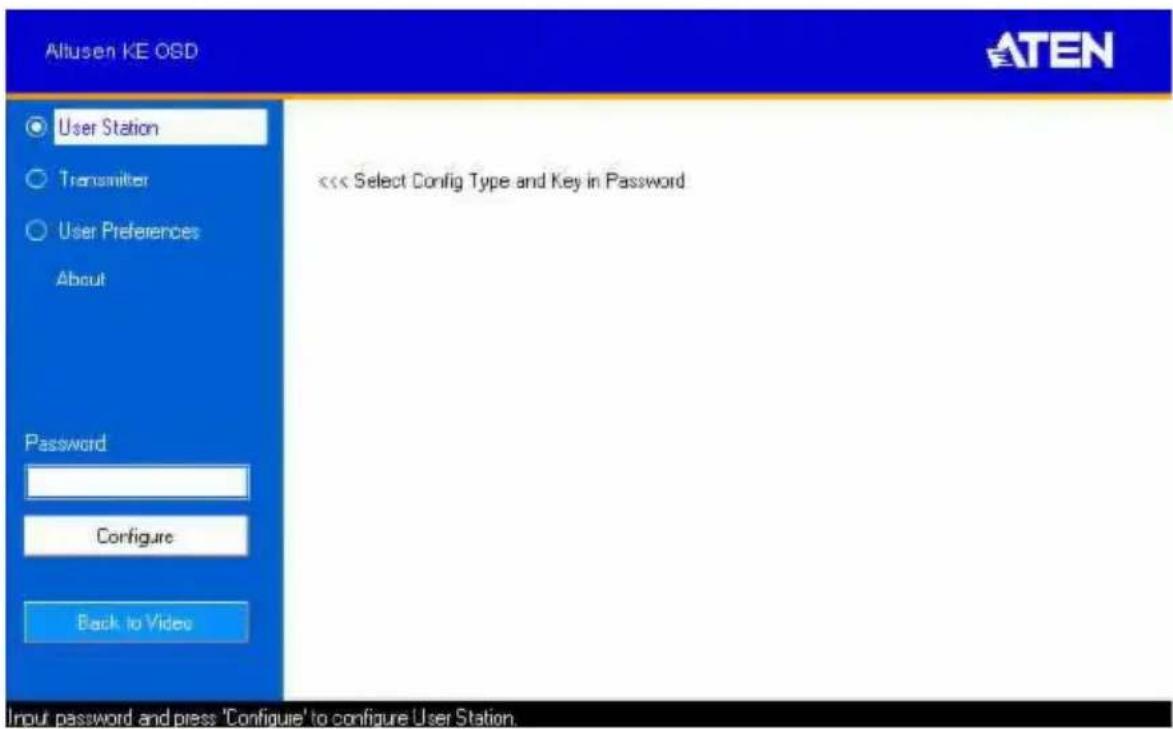

The KE Extenders have a local On Screen Display (OSD) on the receiver end to configure both units - for easy setup and operation. Both the transmitter and receiver have RS-232 ports to connect to a serial terminal for configuration or serial devices such as touchscreens and barcode scanners.

As KVM over IP Matrix Extenders they can make console-to-computer connections in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

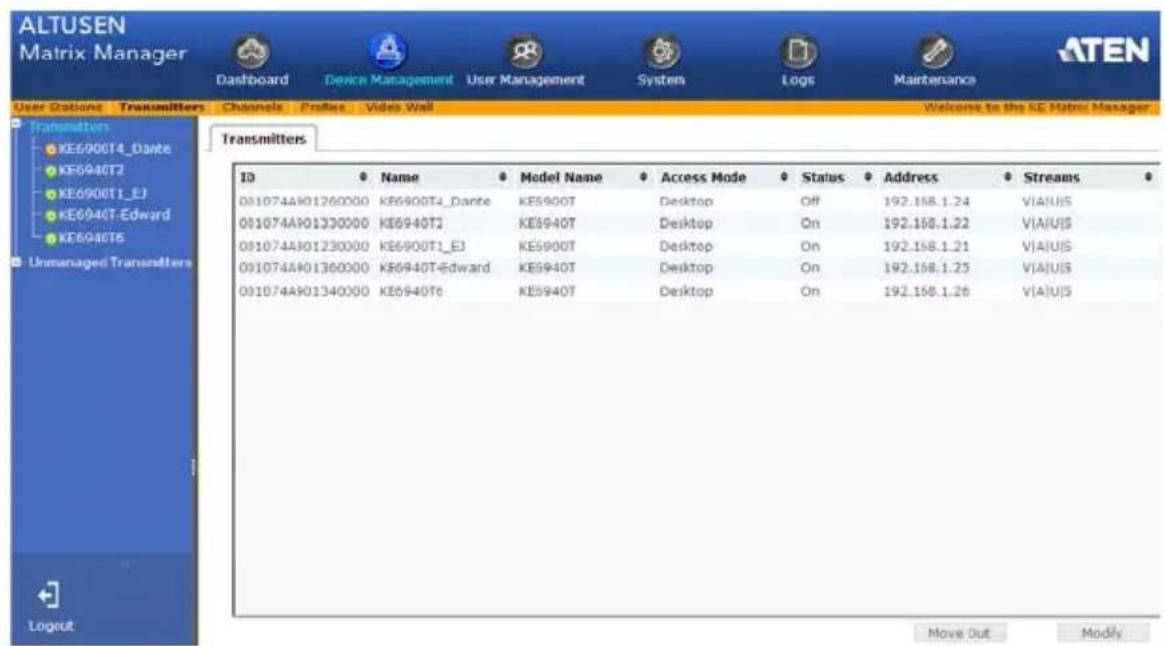

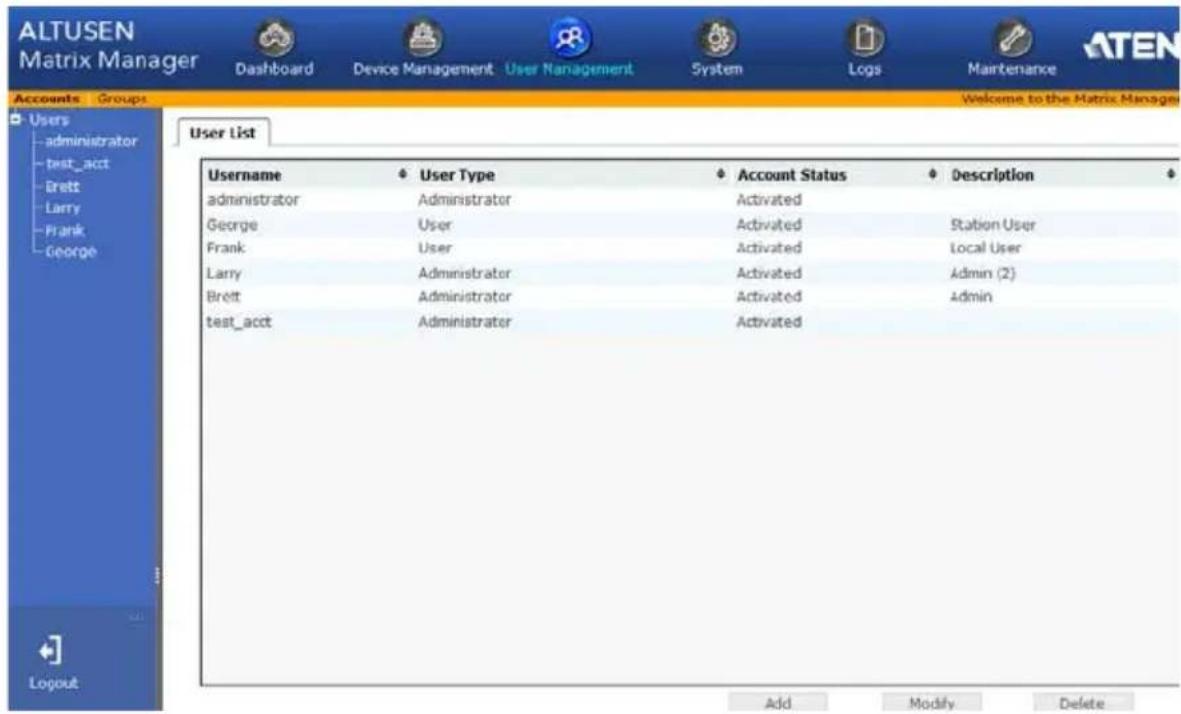

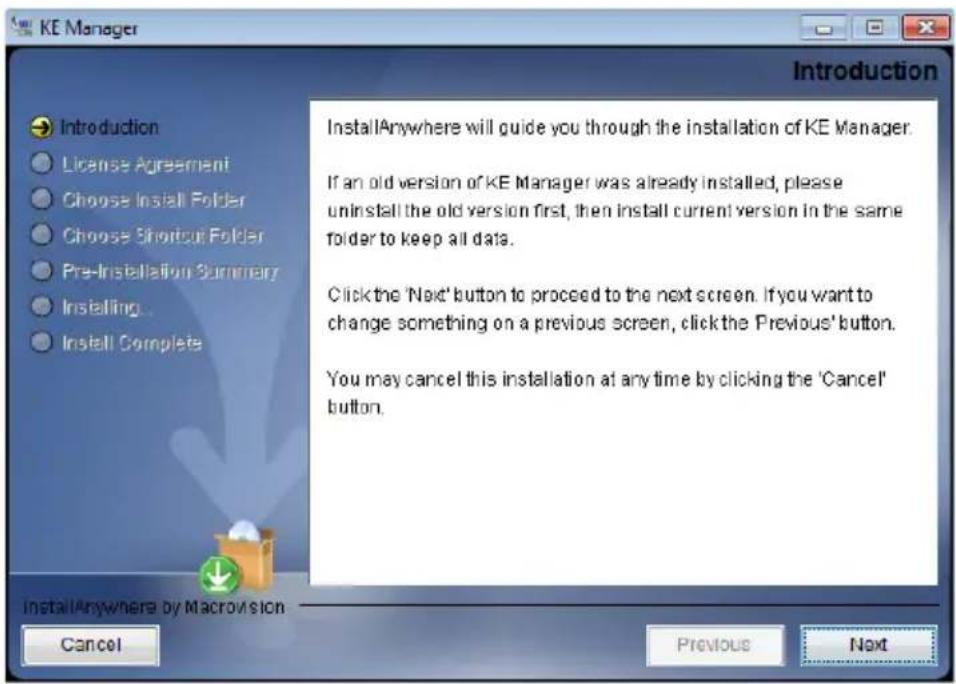

The KE Management Software (CCKM) allows you to define matrix connections and manage KE Extenders with features such as auto-detection of KE Extenders, username/password authentication, switching and sharing of

connections, scheduling, permissions and more. Whether you're extending computer access for Monitoring, Broadcasting, Editing or Workstation setup, the KVM Over IP Matrix System gives you the flexibility and control to manage one or hundreds of extended connections.

Note: The SFP module is sold separately. You can choose the 2A-136G, a multi-mode SFP module that provides 1 GbE connectivity up to 550 meters; or the 2A-137G, a single-mode SFP module that provides 1 GbE connectivity up to 10 kilometers. Visit ATEN's website or contact your ATEN dealer for more information.

Features

• Remote KVM console access of computers over LAN or Ethernet cable connection
• Dual console operation – control your system from both the Transmitter and Receiver by USB keyboard, monitor, and mouse
• RS-232 serial portsallows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners ^1
• Superior video quality – up to 1920 x 1200 @ 60 Hz with 24-bit color depth (KE6900 series); up to 3840 x 2160 @ 30 Hz (4:4:4) with 24-bit color depth (KE8900 series)
• Supports standard VGA resolutions from 640 x 480 to 1920 x 1200 @ 60 Hz (KE6900 series); and HDMI resolutions from 640 x 480 to 3840 x 2160 @ 30 Hz (KE8950 series)
• OSD (On Screen Display) on the Receiver configures both units
  ◆ Supports KE Management Web GUIadministration ^2
• KE Management Lite provides web GUI support for smaller installations ^3
• Supports Power over Ethernet (PoE) functionality – compliant with IEEE 802.3at and 802.3af standards (KE8952 only)
  ♦ Gigabit Ethernet port
• Remote login security
  ♦ DVI digital and analog monitor support
  ◆ Built-in ESD protection and surge protection
  ◆ Supports 2 channel analog (KE6900 series) and 7.1 channel surround sound (KE8950 series) stereo speakers and microphone
• Auto-MDIX - automatically detects cable type
  ◆ Supports widescreen formats
  ◆ Supports High-Quality Video streaming
  Virtual Media Support
  Hot pluggable

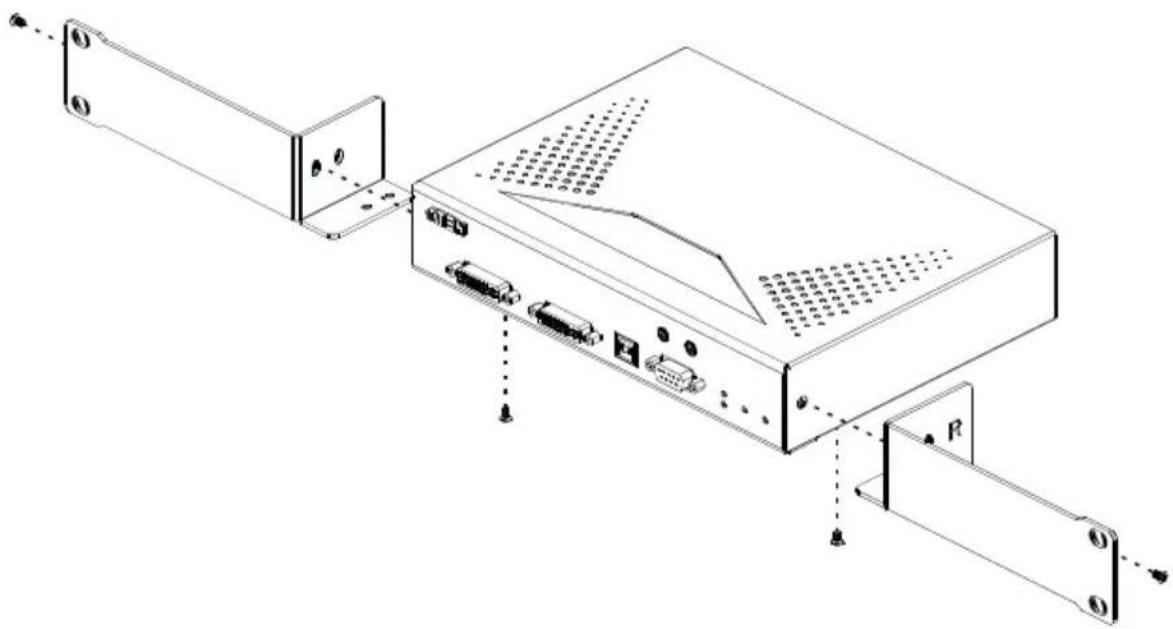

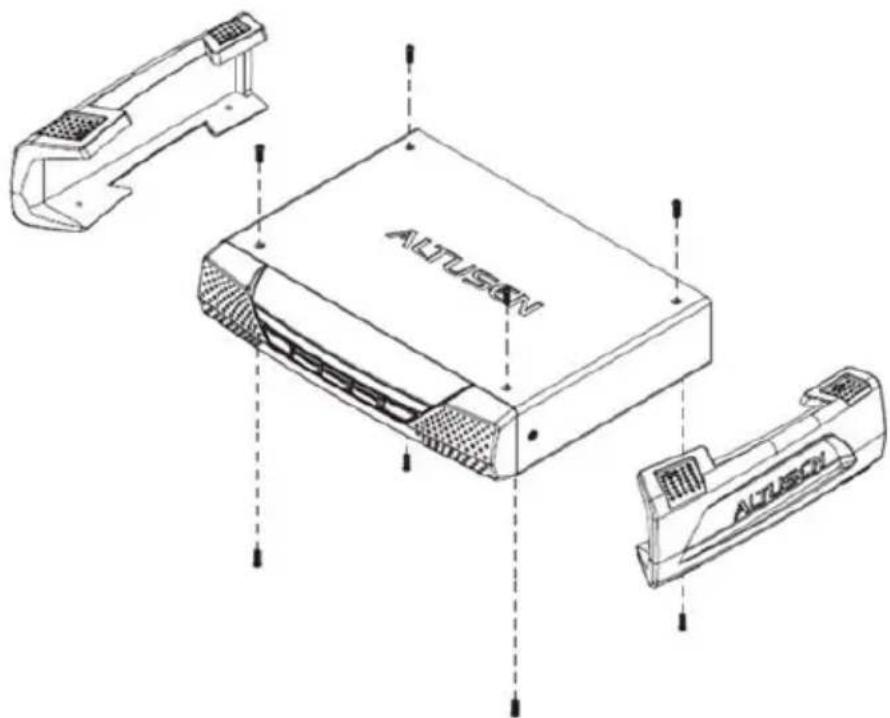

• Rack Mountable
  ◆ Upgradeable firmware

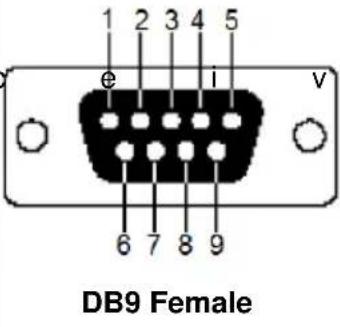

Note: 1. RS-232 serial ports support Tx/Rx/CTS/RTS/DTR/DSR signals only.

1. The KE Management web GUI can be updated from the CCKM page on our website: www.aten.com. To obtain a license for the full version of the software please contact your ATEN dealer.
2. The KE Management Lite is a web GUI that supports up to 8 KE devices and can be downloaded for free after registering your product on the ATEN eService website (http://eservice.aten.com).

Requirements

Console

• (KE6900) One DVI compatible monitor capable of the highest possible resolution
• (KE6940) Two DVI compatible monitors capable of the highest possible resolution
• (KE8950/KE8952) One HDMI compatible monitor capable of the highest possible resolution
  A USB mouse
  A USB keyboard
  ◆ Microphone and speakers

Computers

The following equipment must be installed on each computer that is to be connected to the system:

♦ (KE6900) One DVI port
♦ (KE6940) Two DVI ports
♦ (KE8950/KE8952) One HDMI port
USB Type A port
◆ Audio ports

Cables

- For optimal signal integrity and to simplify the setup, we strongly recommend that you only use the high quality custom USB KVM Cable that is provided with this package.

Software

The minimum hardware and software requirements for the computer running the KE Management software are:

◆ Processor: Intel or AMD processor 1 GHz or above
♦ RAM: 2GB or above
♦ HDD: 16GB or above
- Web browser
- Java Runtime Environment (JRE) 6 with update 11 or higher

♦ Operating System Requirements:

◆ Windows 2000, XP, Vista, 2003, 2008, 7 and 8.1
Linux (Ubuntu, CentOS, Fedora, SUSE)

Operating Systems

The KE Series supports the following operating systems which can display standard HDMI/DVI/VGA signals:

OS Version
Windows 2000 and higher
Linux RedHat	6.0 and higher
	SUSE 8.2 and higher
	Mandriva (Mandrake) 9.0 and higher
UNIX AIX 4.3	and higher
	FreeBSD 3.51 and higher
	Sun Solaris 8 and higher
Novell Netware	5.0 and higher
Mac OS 9 and higher

Components

KE6900T (Transmitter) Front View

1 2 3 4 5 6

No.	Component Description
1	KVM Ports The USB KVM	cable supplied with the package that links the Transmitter to the computer plugs into these ports.
2	RS-232 Port This RS-232	serial port is for connecting to the computer for serial control.
3	Remote / Local LED Lights	Green to indicate which side of the installation (Local or Remote) currently has KVM control of the computer.
4	LAN LED This LED indicates the network status.◆ Lights when connected to the LAN and blinks when the Ethernet connection is active:◆ Orange: 10 Mbps◆ Orange + Green: 100 Mbps◆ Green: 1000 Mbps◆ Off when not connected to the LAN.
5	Power LED Lights blue to indicate the unit is turned on.
6	Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink).

KE6900T (Transmitter) Rear View

1 2 3 4 5 6 7 8

No.	Component Description
1	Power Jack The cable from the DC Power adapter connects here.
2	Function Switch Use this slide switch to set the unit's mode to:Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.Local: Only the local Transmitter has KVM control of the computer. The Receiver's KVM access to the computer is locked.
3	Reset This switch must be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5	Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink).
6	Console Ports The unit's USB keyboard and USB mouse plug into these ports.
7	LAN Port The cable that connects the unit to the LAN plugs in here.
8	DVI-I Output The cable from the local DVI monitor plugs in here.

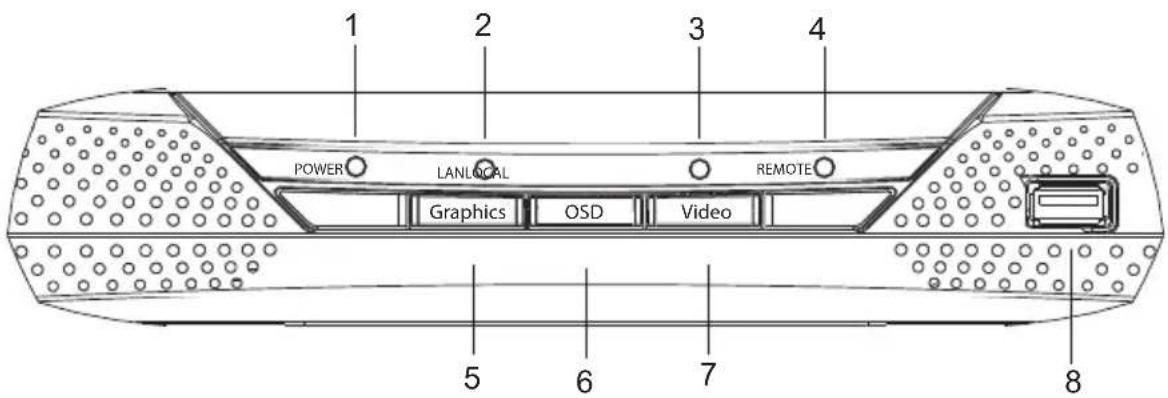

KE6900R (Receiver) Front View

POWER LANLOCAL Graphics OSD Video REMOTE 1 2 3 4 5 6 7 8

No.	Component Description
1	Power LED Lights blue to indicate the unit is turned on.
2	LAN LED This LED indicates the network status.◆Lights when connected to the LAN and blinks when the Ethernet connection is active:◆Orange: 10 Mbps◆Orange + Green: 100 Mbps◆Green: 1000 Mbps◆Off when not connected to the LAN.
3	Local LED Lights green to Indicate the Transmitter has KVM access of the computer.
4	Remote LED Lights green to Indicate the Receiver has KVM access of the computer.
5	Graphics Pushbutton Sets the displays image quality to the highest possible grade so that images are optimized. This toggle button turns off the Video Pushbutton option.Graphics mode is selected by default.
6	OSD Pushbutton Use this pushbutton to open the OSD menu.
7	Video Pushbutton Sets the displays image quality to a grade that is optimized for video playback. This toggle button turns off the Graphics Pushbutton option.
8	USB Port Use this port for virtual media or a USB peripheral device.Note:When using a USB disk plugged into this port, see USB Mode, page 97.

KE6900R (Receiver) Rear View

1 2 3 4 5 6 7 8 9

No.	Component Description
1	Power Jack The cable from the DC Power adapter connects here.
2	Function Switch Use this slide switch to set the unit's mode:Extension: Sets the device to use the normal TX to RX extension mode.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
3	Reset This switch must be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5	Audio Ports These mini stereo ports are for the local speakers (green) and microphone (pink).
6	USB Port Use this port for virtual media or a USB peripheral device.Note: When using a USB disk plugged into this port, see USB Mode, page 97.
7	Console Ports The unit's USB keyboard and USB mouse plug into these ports. When using a keyboard or mouse with special functions, see USB Mode, page 97
8	LAN Port The cable that connects the unit to the LAN plugs in here.
9	DVI-I Output The cable from the local DVI monitor plugs in here.

KE6940T (Transmitter) Front View

1 2 3 4 5 6

No.	Component Description
1	KVM Ports The USB KVM	cable supplied with the package that links the Transmitter to the computer plugs into these ports.
2	RS-232 Port This RS-232	serial port is for connecting to the computer for serial control.
3	Remote / Local LED Lights	green to indicate which side of the installation (Local or Remote) has KVM control of the computer.
4	LAN LED This LED indicates the network status.◆ Lights when connected to the LAN and blinks when the Ethernet connection is active:◆ Orange: 10 Mbps◆ Orange + Green: 100 Mbps◆ Green: 1000 Mbps◆ Off when not connected to the LAN.
5	Power LED Lights blue to indicate the unit is turned on.
6	Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink).

KE6940T (Transmitter) Rear View

1 2 3 4 5 6 7 8

No.	Component Description
1	Power Jack The cable from the DC Power adapter connects here.
2	Function Switch Use this slide switch to set the unit's mode to:Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.Local: Only the local Transmitter has KVM control of the computer. The Receiver's KVM access to the computer is locked.
3	Reset This switch must be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5	Audio Ports These mini stereo ports are for the local speakers (green) and microphone (pink).
6	Console Ports The unit's USB keyboard and USB mouse plug into these ports.
7	LAN Port The cable that connects the unit to the LAN plugs in here.
8	DVI-I Output The cable from the local DVI monitor plugs in here.

KE6940R (Receiver) Front View

POWER LANLOCAL Graphics OSD Video REMOTE 1 2 3 4 5 6 7 8

No.	Component Description
1	Power LED Lights blue to indicate the unit is turned on.
2	LAN LED This LED indicates the network status.◆Lights when connected to the LAN and blinks when the Ethernet connection is active:◆Orange: 10 Mbps◆Orange + Green: 100 Mbps◆Green: 1000 Mbps◆Off when not connected to the LAN.
3	Local LED Lights green to Indicate the Transmitter has KVM access of the computer.
4	Remote LED Lights green to Indicate the Receiver has KVM access of the computer.
5	Graphics Pushbutton Sets the displays image quality to the highest possible grade so that images are optimized. This toggle button turns off the Video Pushbutton option.Graphics mode is selected by default.
6	OSD Pushbutton Use this pushbutton to open the OSD menu.
7	Video Pushbutton Sets the displays image quality to a grade that is optimized for video playback. This toggle button turns off the Graphics Pushbutton option.
8	USB Port Use this port for virtual media or a USB peripheral device.Note:When using a USB disk plugged into this port, see USB Mode, page 97.

KE6940R (Receiver) Rear View

1 2 3 4 5 6 7 8 9

No.	Component Description
1	Power Jack The cable	from the DC Power adapter connects here.
2	Function Switch Use this	slide switch to set the unit's mode:Extension: Sets the device to use the normal TX to RX extension mode.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
3	Reset This switch must	be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232	serial port is for connecting to a serial terminal.
5	Audio Ports These mini	stereo ports are for the local speakers (green) and microphone (pink).
6	USB Port Use this port	for virtual media or a USB peripheral device.Note: When using a USB disk plugged into this port, see USB Mode, page 97.
7	Console Ports The unit's	USB keyboard and USB mouse plug into these ports.
8	LAN Port The cable that	connects the unit to the LAN plugs in here.
9	DVI-I Output The cable	from the local DVI monitors plug in here.

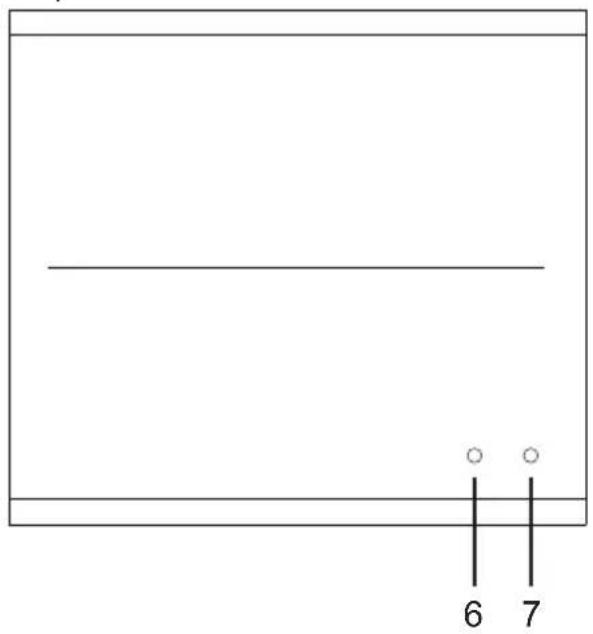

KE6900ST (Transmitter) Front, Rear and Top View

Front View

1 2

Top View

6 7

Rear View

3 4 5

No. Component Description

1 Reset This switch must be pushed with a thin object, such as the end of a paper clip.◆ Press and release to reboot the device.◆ Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.◆ Press and hold it in for more then three seconds resets the unit back to its factory default settings.
2 KVM Port The USB KVM	cable supplied with the package that links the Transmitter to the computer plugs into these ports.
3 RS-232 Port This RS-232	serial port is for connecting to the computer for serial control.Note:When a LAN connection is detected serial commands bypass the KE6900ST and are sent across the network to the receiver. When no LAN connection is detected serial commands are automatically directed to the KE6900ST for local configuration and control.
4 LAN Port The cable that	connects the unit to the LAN plugs in here.
5 Power Jack The cable from the DC Power adapter connects here.
No.	Component Description
6 LAN LED This LED indicates the network status.
	Lights when connected to the LAN and blinks when the Ethernet connection is active:Orange: 10 MbpsOrange + Green: 100 MbpsGreen: 1000 MbpsOff when not connected to the LAN.
7 Power LED Lights blue to indicate the unit is turned on.

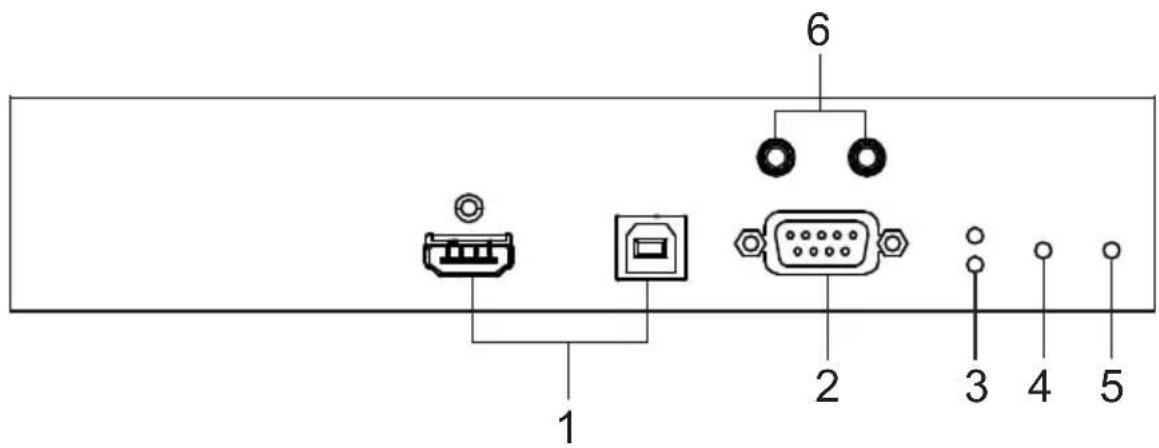

KE8950T / KE8952T (Transmitter) Front View

1 2 6 3 4 5

No.	Component Description
1	KVM Ports The USB KVM	cable supplied with the package that links the Transmitter to the computer plugs into these ports.
2	RS-232 Port This RS-232	serial port is for connecting to the computer for serial control.
3	Remote / Local LED Lights	Green to indicate which side of the installation (Local or Remote) currently has KVM control of the computer.
4	LAN LED This LED indicates the network status.◆ Lights when connected to the LAN and blinks when the Ethernet connection is active:◆ Orange: 10 Mbps◆ Orange + Green: 100 Mbps◆ Green: 1000 Mbps◆ Off when not connected to the LAN.
5	Power LED Lights blue to indicate the unit is turned on.
6	Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink).

KE8950T / KE8952T (Transmitter) Rear View

1 2 3 4 5 6 7 8 9

No.	Component Description
1	Power Jack The cable from the DC Power adapter connects here.
2	Function Switch Use this slide switch to set the unit's mode to:Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.Local: Only the local Transmitter has KVM control of the computer. The Receiver's KVM access to the computer is locked.
3	Reset This switch must be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5	Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink).
6	Console Ports The unit's USB keyboard and USB mouse plug into these ports.
7	LAN Port The cable that connects the unit to the LAN plugs in here.
8	SFP Port The Gigabit Ethernet (GbE) optical fiber cable that connects the unit to the LAN plugs in here.
9 HDMI Output The cable from the local HDMI monitor plugs in here.

KE8950R / KE8952R (Receiver) Front View

1 2 3 4 POWER LANLOCAL REMOTE Graphics OSD Video 5 6 7 8

No.	Component Description
1	Power LED Lights blue to indicate the unit is turned on.
2	LAN LED This LED indicates the network status.◆ Lights when connected to the LAN and blinks when the Ethernet connection is active:◆ Orange: 10 Mbps◆ Orange + Green: 100 Mbps◆ Green: 1000 Mbps◆ Off when not connected to the LAN.
3	Local LED Lights green to Indicate the Transmitter has KVM access of the computer.
4	Remote LED Lights green to Indicate the Receiver has KVM access of the computer.
5	Graphics Pushbutton Sets the displays image quality to the highest possible grade so that images are optimized. This toggle button turns off the Video Pushbutton option.Graphics mode is selected by default.
6	OSD Pushbutton Use this pushbutton to open the OSD menu.
7	Video Pushbutton Sets the displays image quality to a grade that is optimized for video playback. This toggle button turns off the Graphics Pushbutton option.
8	USB Port Use this port for virtual media or a USB peripheral device.Note: When using a USB disk plugged into this port, see USB Mode, page 97.

KE8950R / KE8952R (Receiver) Rear View

1 2 3 4 5 6 7 8 9 10

No.	Component Description
1	Power Jack The cable from the DC Power adapter connects here.
2	Function Switch Use this slide switch to set the unit's mode:Extension: Sets the device to use the normal TX to RX extension mode.RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
3	Reset This switch must be pushed with a thin object, such as the end of a paper clip.Press and release to reboot the device.Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.Press and hold it in for more then three seconds resets the unit back to its factory default settings.
4	RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5	Audio Ports These mini stereo ports are for the local speakers (green) and microphone (pink).
6	USB Port Use this port for virtual media or a USB peripheral device.Note: When using a USB disk plugged into this port, see USB Mode, page 97.
7	Console Ports The unit's USB keyboard and USB mouse plug into these ports. When using a keyboard or mouse with special functions, see USB Mode, page 97
8	LAN Port The cable that connects the unit to the LAN plugs in here.
9	SFP Port The Gigabit Ethernet (GbE) optical fiber cable that connects the unit to the LAN plugs in here.
10	HDMI Output The cable from the local HDMI monitor plugs in here.

Chapter 2

Hardware Setup

1. Important safety information regarding the placement of this device is found on page 207. Please review it before proceeding.

2. Make sure that the power to all devices connected to the installation is turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.

Rack Mounting

For convenience and flexibility, the Transmitter can be mounted on system racks. To rack mount a unit do the following:

KE6900T/KE6940T

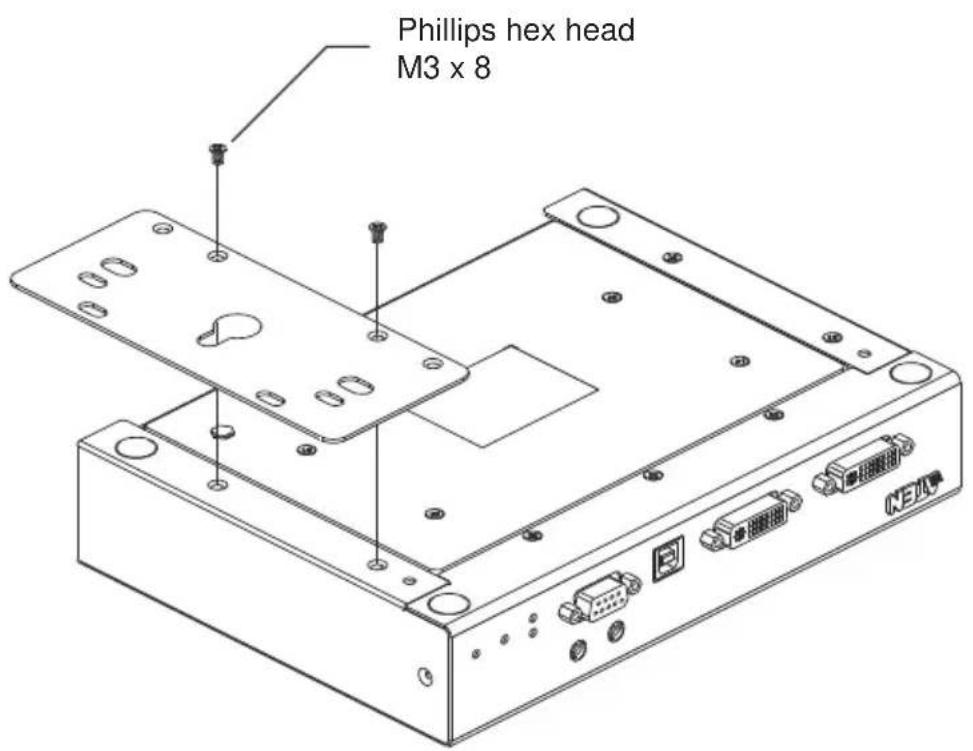

1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom of the Transmitter as show below:

Phillips hex head M3 x 8

1. Screw the bracket into a convenient location on the rack.

Isometric line drawing of a mechanical assembly with three vertical supports and a close-up of a device mounted on a base (no text or symbols)

Note: These screws are not provided. We recommend that you use M5 x 12 Phillips Type I cross recessed type screws.

KE6900ST

1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom of the Transmitter as show below:

Phillips hex head M3 x 8

1. Screw the bracket into a convenient location on the rack.

Technical line drawing of a server rack with vertical racks and a mounted device (no text or symbols)

Note: These screws are not provided. We recommend that you use M5 x 12 Phillips Type I cross recessed type screws.

Wall Mounting

For convenience the Transmitter can be mounted to a wall.

KE6900T/KE6940T

1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom of the Transmitter as show below:

Phillips hex head M3 x 8

1. Use the center hole to screw the bracket to a secure wall surface.

Isometric line drawing of a front-mounted electronic device with ports and ventilation slots (no text or symbols)

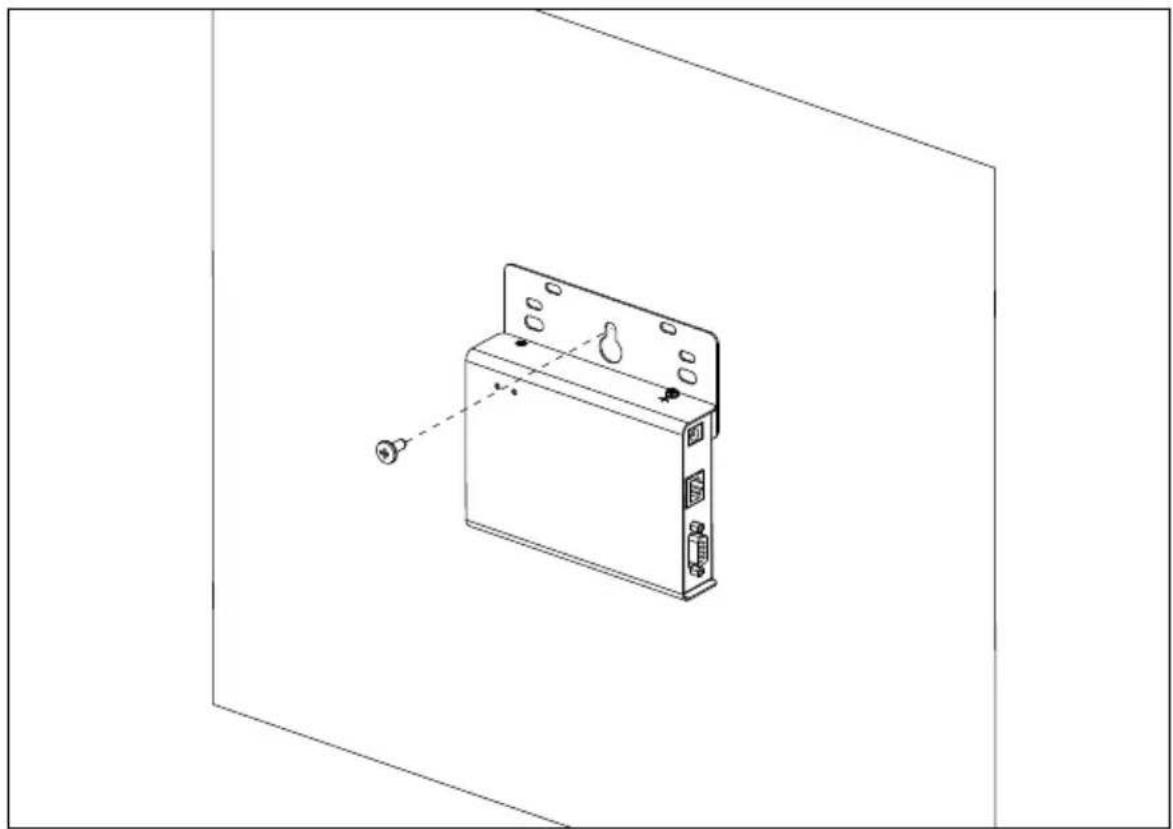

KE6900ST

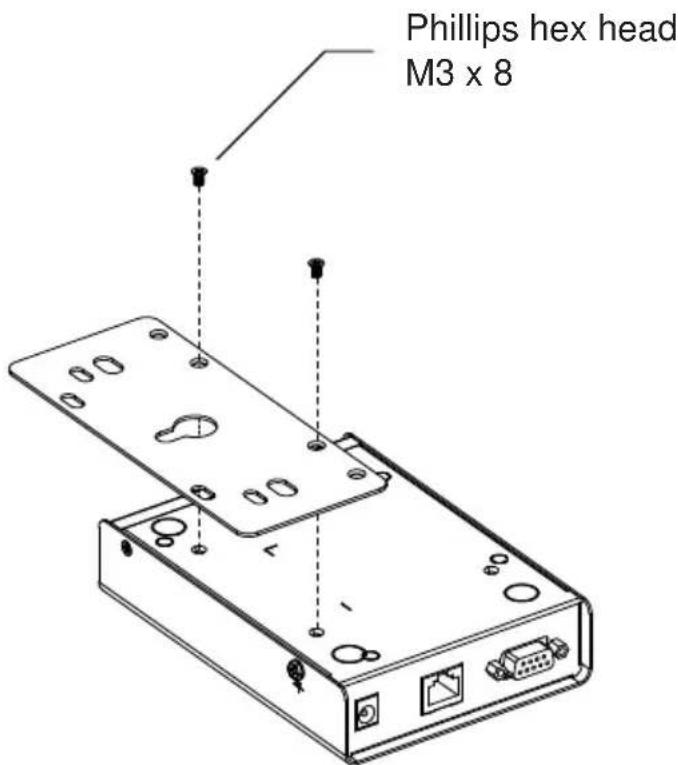

1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom of the Transmitter as show below:

Phillips hex head M3 x 8

1. Use the center hole to screw the bracket to a secure wall surface.

Line drawing of a device casing with ports and connectors, shown in isometric view (no text or symbols)

KE6900 Point-to-Point Installation

Setting up the KE6900 / KE6940 system in a point-to-point configuration is simply a matter of plugging in the cables.

Note: In a point-to-point configuration, no administrator setup is necessary.

Make sure that all the equipment is powered off. Refer to the installation diagrams on the next two pages and do the following:

1. On the Transmitter side, plug the mouse, keyboard, DVI monitor, microphone and speakers into the ports on the Console section of the KE6900T / KE6940T. Each port is marked with an appropriate icon to indicate itself.*
2. Connect the USB KVM cable provided to the KVM Ports on the front of the KE6900T / KE6940T.
3. Connect the other end of the USB KVM cable to the keyboard, video, mouse, speaker and microphone ports on the computer.
4. For control of serial devices, connect the RS-232 serial port on the Transmitter to a serial port on the computer.
5. Connect a Cat 5e/6 cable to the KE6900T / KE6940T's LAN port.
6. Plug the power adapter into an AC source; and plug the other end into the KE6900T / KE6940T's Power Jack.
7. On the Receiver side, plug the mouse, keyboard, DVI monitor, microphone, and speakers into the ports on the Console section of the KE6900R / KE6940R.**
8. Connect the other end of the Cat 5e/6 cable to the KE6900R / KE6940R's LAN port.
9. Plug the second power adapter into an AC source; and plug the other end into the KE6900R / KE6940R's Power Jack.
10. Power on the computer.

Note: 1. If installing the KE6940 with two DVI monitors, connect the second DVI monitor via a DVI cable into the additional ports on the KE6940 and computer.

1. A keyboard or mouse with special functions may need to use the USB ports for advanced features to work (see USB Mode, page 97).

KE6900 Point-to-Point Installation 1 of 2

Note: The diagram above shows the KE6900T and KE6900R. The KE6940 installation is the same except that an additional DVI monitor can be connected at each end for a dual-view display setup.

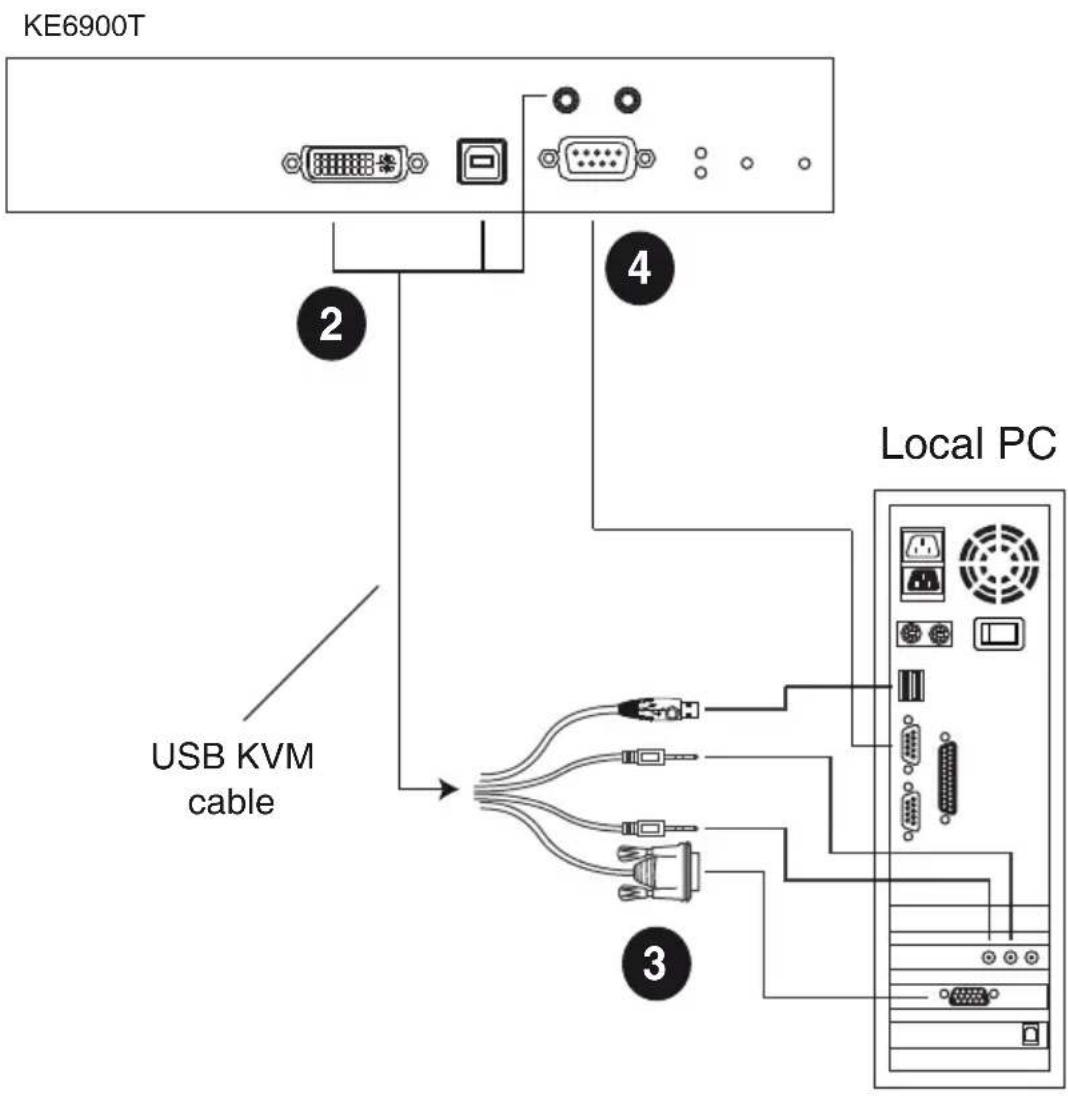

KE6900 Point-to-Point Installation 2 of 2

KE6900T 2 4 USB KVM cable 3 Local PC

Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).

KE8900 Point-to-Point Installation

Setting up the KE8950 / KE8952 system in a point-to-point configuration is simply a matter of plugging in the cables.

Note: In a point-to-point configuration, no administrator setup is necessary.

Make sure that all the equipment is powered off. Refer to the installation diagrams on the next two pages and do the following:

1. On the transmitter side, plug the mouse, keyboard, HDMI monitor, microphone and speakers into the ports on the Console section of the KE8950T / KE8952T. Each port is marked with an appropriate icon to indicate its function.
2. Connect the USB HDMI KVM cable provided with this package into the KVM Ports on the front of the KE8950T / KE8952T.
3. Connect the other end of the USB HDMI KVM cable into the keyboard, video, mouse, speaker and microphone ports on the computer.
4. For control of serial devices, connect the RS-232 serial port on the transmitter to a serial port on the computer.
5. Connect a Cat 5e/6 cable to the KE8950T / KE8952T's LAN port, or a Gigabit Ethernet (GbE) optical fiber cable to the SFP port.
6. Plug the power adapter into an AC source; then plug the other end into the KE8950T / KE8952T's power jack.*
7. On the receiver side, plug the mouse, keyboard, HDMI monitor, microphone, and speakers into the ports on the Console section of the KE8950R / KE8952R.
8. Connect the other end of the Cat 5e/6 cable to the KE8950R / KE8952R's LAN port; or the other end of the Gigabit Ethernet (GbE) optical fiber cable to the SFP port.
9. Plug the second power adapter into an AC source; then plug the other end into the KE8950R / KE8952R's power jack.*
10. Power on the computer.

Note: Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters.

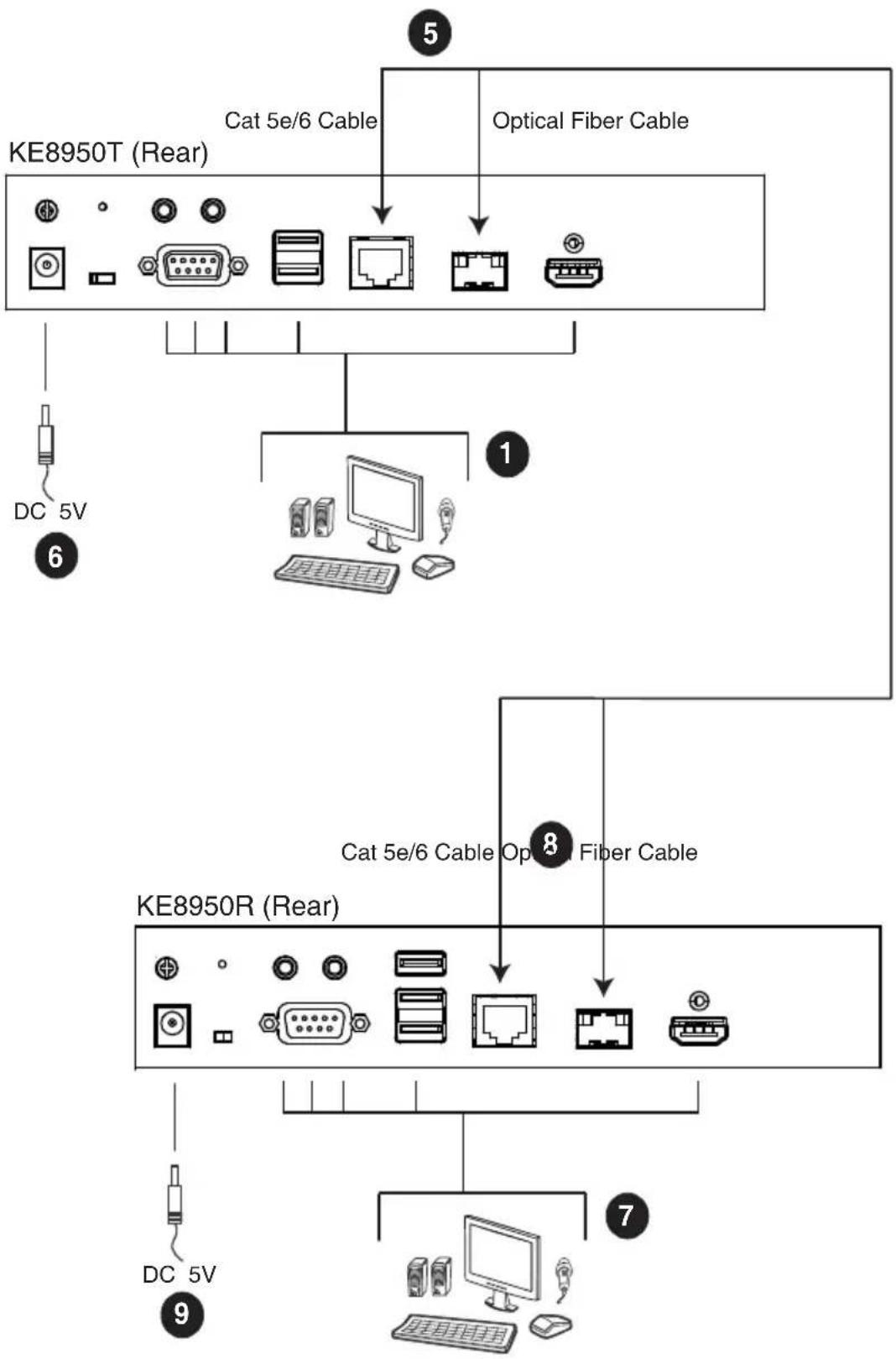

KE8900 Point-to-Point Installation 1 of 2

Note: Power adapters are not provided with the KE8952. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to the KE8952.

KE8900 Point-to-Point Installation 2 of 2

KE8950T (Front) 2 4 USB HDMI KVM Cable Local PC

Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).

KE6900ST Point-to-Point Installation

The KE6900ST DVI KVM over IP Extender Lite is a cost saving alternative for installations with Transmitters that don't need a local console or audio transmission but want the connectivity features of advanced KE models.

Setting up the KE6900ST system in a point-to-point configuration is simply a matter of plugging in the cables. Make sure that all the equipment is powered off. Refer to the installation diagrams on the next page and do the following:

1. Connect the USB DVI-D KVM Cable (provided with this package) to the USB and DVI-D ports on the front of the KE6900ST.
2. Connect the other end of the USB DVI-D KVM Cable to USB and DVI video ports on the computer.
3. For control of serial devices, connect the RS-232 serial port on the KE6900ST to a serial port on the computer.
4. Plug the power adapter (provided with this package) into an AC source; and plug the other end into the KE6900ST Power Jack.
5. Connect a Cat 5e/6 cable to the KE6900ST's LAN port.
6. Connect the other end of the Cat 5e/6 cable to the KE69x0R's* LAN port.
7. On the Receiver side, plug the mouse, keyboard and DVI monitor into the ports on the Console section of the KE69x0R.*
8. Plug the second power adapter into an AC source; and plug the other end into the KE69x0R's Power Jack.
9. Power on the computer.

Note: KE69x0R units are required and sold separately.

Setting up a LAN Installation

Setting up the KE6900ST on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE69x0 devices on the same TCP/IP LAN. To setup a LAN installation, simply connect the Cat 5e/6 cable (in step 5 above) to the network instead of directly between two KE69x0 devices and see KE6900 LAN Installation, page 36 for details.

KE6900 LAN Installation

Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE6900 / KE6900ST / KE6940 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 228).

Note: 1. The units are preconfigured with factory-default network settings. If you install only one set of KE Series units, you do not need to change these default network settings. See Default IP Addresses, page 45, for further details.
2. In a network setup with multiple units, each Transmitter and Receiver must be configured with a unique IP address. See Network Configuration, page 44, for further details.
3. We recommended using 1000Mbps Gigabit Ethernet switches (wire speeds, non-blocking with 1Gbps/1.5Mpps performance per port) between KE Series devices installed on different LAN segments. 10/100Mbps switches might cause poor performance.
4. In multipoint configurations, the IGMP and flow control function of your network switches/hubs must be enabled to avoid the deterioration of data throughput. To ensure functionality use a layer 3 switch that supports IGMP queries.
5. If your network uses cascaded switches, please check to ensure the data throughput is sufficient.
6. To get the best performance, we suggest creating a private network for KE devices, as they are bandwidth-intensive devices.

Make sure that all the equipment is powered off. Refer to the installation diagram on the following page, and do the following:

1. On the Transmitter side, plug the mouse, keyboard, DVI monitor, microphone and speakers into the ports on the Console section of the KE6900T / KE6940T.* Each port is marked with an appropriate icon to indicate itself.
2. Connect the USB KVM cable provided to the KVM Ports on the front of the KE6900T / KE6940T.

3. Connect the other end of the USB KVM cable to the keyboard, video, mouse, speaker and microphone ports on the computer.

4. For control of serial devices, connect the RS-232 serial port on the Transmitter to a serial port on the computer.

5. Use a Cat 5e/6 cable to connect the KE6900T / KE6940T's LAN port to the local area TCP/IP network.
6. Plug the power adapter into an AC source; and plug the other end into the KE6900T / KE6940T's Power Jack.
7. On the Receiver side, plug the mouse, keyboard, DVI monitor, microphone, and speakers into the ports on the Console section of the KE6900R / KE6940R.**
8. Use a Cat 5e/6 cable to connect the KE6900R / KE6940R's LAN port to the local area TCP/IP network.
9. Plug the second power adapter into an AC source; and plug the other end into the KE6900R / KE6940R's Power Jack.
10. Use the OSD on the Receiver to configure the network settings for both devices (See Network Configuration, page 44).
11. Repeat these steps for each Transmitter and Receiver you wish to install on the network.
12. Power on the computer(s).

Note: 1. If installing the KE6940 with two DVI monitors, connect the second DVI monitor via a DVI cable into the additional ports on the KE6940 and computer.

1. A keyboard or mouse with special functions may need to use the USB ports for advanced features to work (see USB Mode, page 97).

KE6900 Network Installation Diagram 1 of 2

Note: The diagram above shows the KE6900T and KE6900R. The KE6940 installation is the same except that an additional DVI monitor can be connected at each end for a dual-view display setup.

KE6900 Network Installation Diagram 2 of 2

KE6900T 2 4 USB KVM cable Local PC

Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).

KE8950 LAN Installation

Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE8950 / KE8952 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 228).

Note: 1. The units are preconfigured with factory-default network settings. If you install only one set of KE Series units, you do not need to change these default network settings. See Default IP Addresses, page 45, for further details.
2. In a network setup with multiple units, each Transmitter and Receiver must be configured with a unique IP address. See Network Configuration, page 44, for further details.
3. We recommended using 1000Mbps Gigabit Ethernet switches (wire speeds, non-blocking with 1Gbps/1.5Mpps performance per port) between KE Series devices installed on different LAN segments. 10/100Mbps switches might cause poor performance.
4. In multipoint configurations, the IGMP and flow control function of your network switches/hubs must be enabled to avoid the deterioration of data throughput. To ensure functionality use a layer 3 switch that supports IGMP queries.
5. If your network uses cascaded switches, please check to ensure the data throughput is sufficient.
6. To get the best performance, we suggest creating a private network for KE devices, as they are bandwidth-intensive devices.

Make sure that all the equipment is powered off. Refer to the installation diagram on the following page, and do the following:

1. On the Transmitter side, plug the mouse, keyboard, HDMI monitor, microphone and speakers into the ports on the Console section of the KE8950T / KE8952T. Each port is marked with an appropriate icon to indicate itself.
2. Connect the USB KVM cable provided to the KVM Ports on the front of the KE8950T / KE8952T.

3. Connect the other end of the USB KVM cable to the keyboard, video, mouse, speaker and microphone ports on the computer.

4. For control of serial devices, connect the RS-232 serial port on the Transmitter to a serial port on the computer.

5. Connect a Cat 5e/6 cable to the LAN port, or a Gigabit Ethernet (GbE) optical fiber cable to the SFP port to connect the KE8950T / KE8952T to the local area TCP/IP network.*
6. Plug the power adapter into an AC source; and plug the other end into the KE8950T / KE8952T's Power Jack.**
7. On the Receiver side, plug the mouse, keyboard, HDMI monitor, microphone, and speakers into the ports on the Console section of the KE8950R / KE8952R.***
8. Connect a Cat 5e/6 cable to the LAN port, or a Gigabit Ethernet (GbE) optical fiber cable to the SFP port to connect the KE8950R / KE8952R to the local area TCP/IP network.*
9. Plug the power adapter into an AC source; and plug the other end into the KE8950R / KE8952R's Power Jack.**
10. Use the OSD on the Receiver to configure the network settings for both devices (See Network Configuration, page 44).
11. Repeat these steps for each Transmitter and Receiver you wish to install on the network.
12. Power on the computer(s).

Note: 1. The KE8952's LAN port provides Power over Ethernet (PoE) functionality which supplies power to the unit when connected to a compatible PoE network switch.
2. Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to KE8952 units.
3. A keyboard or mouse with special functions may need to use the USB ports for advanced features to work (see USB Mode, page 97).

KE8950 Network Installation Diagram 1 of 2

Note: Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to KE8952 units.

KE8950 Network Installation Diagram 2 of 2

KE8950T (Front) USB HDMI KVM Cable Local PC

Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).

Network Configuration

This section provides instructions to configure the network settings with a fixed IP address, subnet mask, and default gateway. To use the IP Installer to configure the IP address, see IP Installer, page 222.

Note: 1. Both devices are preconfigured with factory-default network settings. If you install only one set of KE Series units, you do not need to change these default network settings. See Default IP Addresses, page 45, for further details.
2. In a network setup with multiple units, each transmitter and receiver must be configured with a unique IP address. See Network Configuration, page 44, for further details.
3. We recommended using 1000Mbps Gigabit Ethernet switches (wire speeds, non-blocking with 1Gbps/1.5Mpps performance per port) between devices installed on different LAN segments. 10/100Mbps switches might cause poor performance.
4. In multipoint configurations, the IGMP and flow control function of your network switches/hubs must be enabled to avoid the deterioration of data throughput. To ensure functionality use a layer 3 switch that supports IGMP queries.
5. If your network uses cascaded switches, please check to ensure the data throughput is sufficient.
6. To get the best performance, we suggest creating a private network for KE device, as they are bandwidth-intensive devices.

To configure the network settings, do the following:

1. Setup the hardware and connect the Transmitter and Receiver to the local area network (see KE6900 LAN Installation, page 36, or KE8950 LAN Installation, page 40).
2. From the Receiver, tap the Scroll Lock key twice to invoke the OSD.
3. Select the User Station or Transmitter from the sidebar menu.
4. Enter the password and click Configure.
   The default password is: password.

5. From the Network tab select Set IP address manually and enter the following:

6. IP Address– sets the IP address for the KE device. Key in a valid unique IP address.
   Note: See Default IP Addresses, page 45, for the preconfigured factory-default settings.

7. Subnet Mask – sets the subnet mask for the KE device. Key in a valid subnet mask value.
   Note: The default setting is 255.255.255.0
8. Default Gateway– sets the default gateway for the KE device. Key in a valid default gateway.

6. Click Save.

Exit OSD

To exit the OSD, press [Esc] on the keyboard, click Logout; tap the Scroll Lock key twice; or return to the OSD main page and press the front panel OSD pushbutton (Receiver only).

At this point the Receiver can connect to the Transmitter to access the remote computer (see Connecting, page 60 for instructions).

Default IP Addresses

The preconfigured factory-default IP addresses for the KE Series devices are as follows:

Transmitters - 192.168.0.61

Receivers - 192.168.0.60

KE I/O Ports

The following table provides the I/O port use of KE Series devices.

Device Port Number
KE Management (TCP) HTTP	8080
	HTTPS 8443
	Device TCP 9110
	CLI 9111
	Redundancy 9120
	Database Service 1527
KE Management (UDP) Port	9110
	Broadcast	9000
KE TX/RX Device (TCP) Manager	9110
	Service	9000
	Telnet	23
	SSH 22
KE TX Device (TCP)	VM 9001
	vUSB	9002
	Serial	9003
	USB Access Mode	9009
KE RX Device (TCP)	CLI	9130
KE TX/RX Device (UDP)	Manager 9110
	Service	9000
	Array Mode	9120
	Video	0xFE00(65024) - 0xFE03(65027)
	Audio	0xFE04(65028) - 0xFE05(65029)

Overview

This chapter provides instructions to configure and operate KE Series devices using the local On Screen Display (OSD). To configure the network settings with the OSD, see Network Configuration, page 44.

LED Display

Both the Transmitter and Receiver have front panel LEDs to indicate their operating and power status, as explained in the table below:

LED Indication
LAN This LED indicates the network status.	Lights when connected to the LAN and blinks when the Ethernet connection is active:Orange: 10 MbpsOrange + Green: 100 MbpsGreen: 1000 MbpsOff when not connected to the LAN.
Power	Lights blue when the unit is powered on.OFF when power is off.
Local	Lights green to Indicate the Transmitter has KVM focus of the computer
Remote	Lights green to Indicate the Receiver has KVM focus of the computer.

Invoking the OSD

The On Screen Display (OSD) is a keyboard/mouse-driven application on the receiver used to configure the transmitter and receiver settings. Once the receiver has discovered the transmitter over a network* or direct Ethernet cable connection, you can use the OSD on the receiver to configure the transmitter's settings.

To invoke the OSD, press the OSD pushbutton on the front of the receiver, or from the keyboard tap the Scroll Lock key twice. The OSD main page will appear (see OSD Interface, page 49).

To exit the OSD, press [Esc] on the keyboard; click Logout; tap the Scroll Lock key twice; or return to the OSD main page and press the OSD pushbutton on the front of the receiver. The OSD disappears and the computer desktop screen or the System Login prompt is displayed.

Note: 1. For the Receiver to discover the Transmitter over a network, both must be on the same subnet of the LAN.
2. To change the OSD hotkeys, see page 59.
3. If the keyboard/mouse won't work when the OSD is invoked, see USB Mode, page 97.

Microphone Hotkey

You can switch microphone access between User Stations with a hotkey:

1. Press and hold down [Num Lock].
2. Press and release [-].
3. Release [Num Lock].
4. Press 1.

Press the Esc key to cancel.

Touch Screen Calibration

If you're using a touch screen monitor and the OSD appears off center, you can use the blinking + at each corner to adjust the position of the OSD.

OSD Interface

After you invoke the OSD, the main page appears:

Alhusen KE OSD User Station Transmitter User Preferences About Password Configure Back to Video << Select Config Type and Key in Password Input: password and press 'Configure' to configure User Station.

Note: A password is required to enter the OSD. The default password is: password. For security purposes, we recommend you change this to something unique.

The OSD components are described in the table, below:

No.	Item Description
1	User Station (Receiver)	Select this radio button, enter a password, and click Configure to enter the User Station Configuration screen.
2	Transmitter Select this	radio button, enter a password, and click Configure to enter the Transmitter Configuration screen.Note: Receiver must first discover the transmitter over the network for this option to be available.
3	User Preferences Select	this radio button, enter a password, and click Configure to enter the User Preferences screen.
4	About About provides information regarding the OSD version.
5	Password Input the OSD	password and click Configure to enter the selected configuration screen. See note for password.
6	Configure	After entering a password, click Configure to enter the selected configuration screen.
7	Back to Video Clicking	this button exits the OSD and returns you to the computer's video display.

User Station Configuration

When you select the User Station radio button and click Configure to login, the Network tab appears:

Altusen KE OSD Network Properties System ATEN User Station Transmitter User Preferences About Password Configure Back to Video IP Installer Enable View Only Disabled IP Properties Obtain IP address automatically Set IP address manually IP Address 132.168.0.60 Subret Mask 255.255.255.0 Default Gateway Save

Network

The Network tab allows you to configure the User Station's IP address settings:

Item Description
IP Installer The IP	Installer is an external Windows-based utility for assigning an IP address to the device. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility. See IP Installer, page 222 for instructions.Note: For security, we strongly recommend that you set this to View Only or Disable after each use.
Network Configuration	For dynamic IP address assignment (DHCP), select the Obtain IP address automatically radio button.To specify a fixed IP Address, Subnet Mask, and Default Gateway select the Set IP address manually radio button and fill in the fields with values appropriate for your network.For help configuring network settings with the OSD, See Network Configuration, page 44.

After entering the information, click Save.

Properties

The Properties tab allows you to configure the User Station's settings:

Network Properties System Mode Extender Matrix RS232 Settings Baud Rate 9600 Data Bits 8 Party None Stop Bits 1 Flow Control None Properties Transmitter Video IP 192.168.0.61 Transmitter Audio IP 192.168.0.61 Transmitter USB IP 192.168.0.61 Transmitter RS232 IP 192.168.0.61 Enable Media Video Audio USB RS232 HDMI Analog Both Manager Address Manager IP 192.168.0.11 Manager Port 9110 Beeper Enable USB Mode Virtual Media Generic USB device Encryption Enable Touch Screen Calibration User Station Keyboard Keyboard Country Code English (US) Calibrate Save

Item Description
Mode	Select Extender mode for simple one-to-one (Transmitter to User Station) setups that are managed with the Receiver's OSD menu.Select Matrix mode to manage devices and connections from the KE Management web GUI. This mode is for advanced administration of Transmitter to User Station connections.(See Channel Connections, page 110)
Properties	If you selected Extender mode (above) set the Transmitter IP address for the User Station's Video, Audio, USB, and RS232 source signals.If you selected Matrix mode (above) the Properties will be grayed out. Use Channels to configure the Transmitter connections. (See Channel Connections, page 110)
RS232 Settings	Configure the serial device settings for the User Station. The default settings are:Baud Rate: 9600Parity: NoneData Bits: 8 bitsStop bits: 1 bitFlow Control: None
Item Description
Enable Media Select which type of media the User Station can stream from Transmitters: Video, Audio, USB, and RS232. For KE8950 Series models, use the radio button to set the source of the audio signal: HDMI, Analog, or Both.
Manager Address	Set the IP address and Port number of the computer running the KE Management software. The default port number is 9110.
Beeper Check this box to allow the User Station to beep when configuration changes are made to it.
Touch Screen Calibration	Use this button to calibrate the surface of a USB touch screen connected to the unit. When the calibration screen appears, touch the flashing + symbol at each corner until the process is complete.
USB Mode Select	the type of USB device you will connect to the USB ports:Virtual Media: Only select this option if you are plugging a USB disk into the USB ports. This will give you the highest data transfer speeds but will not allow other USB devices plugged into the USB ports to work. When user stations connected to the same transmitter mount or unmount USB disk drives, the keyboard and mouse operations will experience a brief delay. Transmitters can support up to 12 virtual media connections at the same time (keyboard/mouse included).Generic USB device: Use this option to plug USB peripherals into the USB ports. This option also allows a keyboard and mouse with special functions to plug into the USB ports for console use. Use this only if the special functions of the keyboard or mouse are required but do not work when plugged into the console ports. When the keyboard and mouse are plugged into the USB ports, they will not work within the OSD menus. To work within the OSD menus, the keyboard and mouse must be plugged into the console ports. KE6900ST transmitters do not support the Generic USB Device mode. In this mode, KE6900/KE6940 transmitters supports up to 2 USB connections; and KE8950/KE8952 transmitters support up to 5 USB connections (keyboard/mouse excluded).Encryption: Check this box to encrypt USB drives plugged into the USB ports.
User Station Keyboard	Use the Keyboard Country Code drop-down menu to select the User Station's language keyboard for use in the OSD.

After entering the information, click Save.

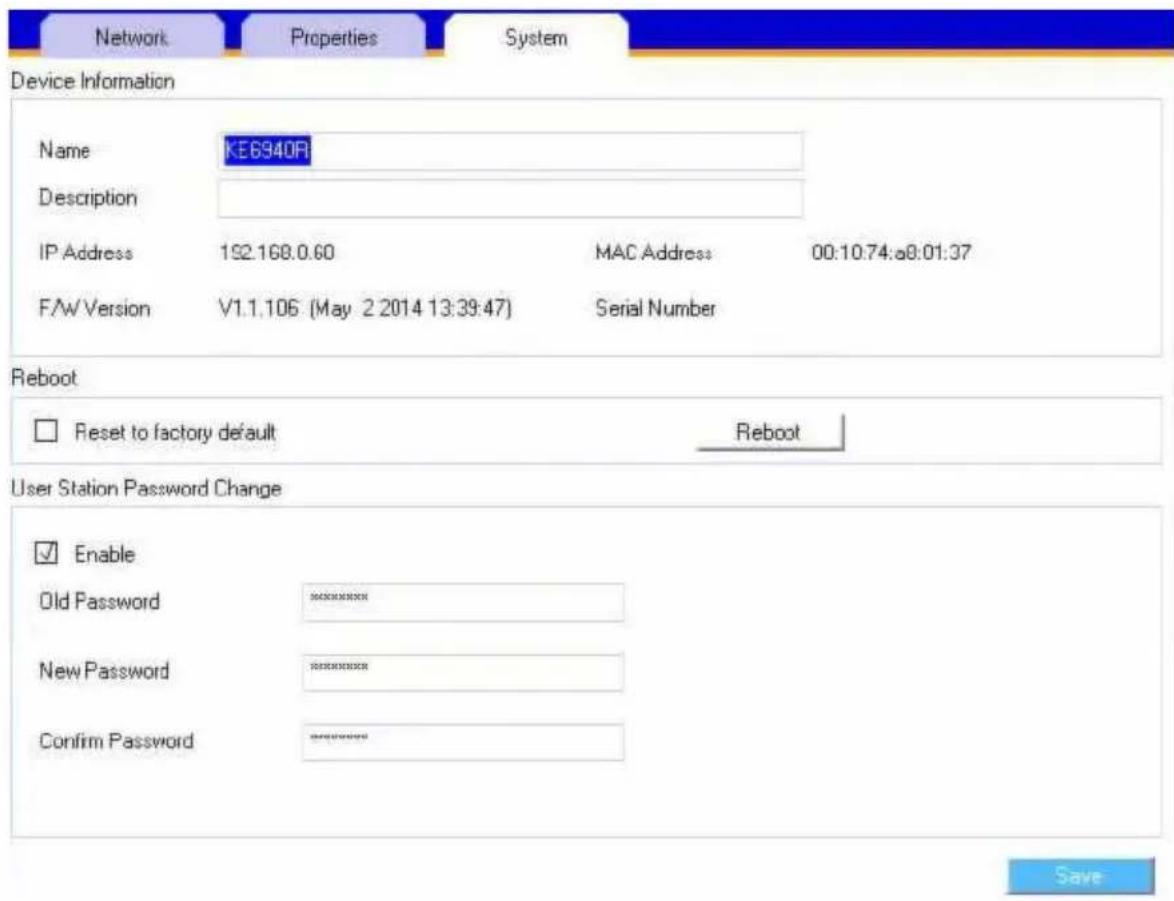

System

The System tab allows you to configure the User Station's general settings:

Network Properties System Device Information Name KE6940F Description IP Address 192.168.0.60 MAC Address 00:10.74:a8:01:37 F/W Version V1.1.106 (May 2 2014 13:39:47) Serial Number Reboot Reset to factory default Reboot User Station Password Change Enable Old Password ********** New Password ********** Confirm Password ********** Save

Item Description
Device Information	Enter the Name, Location, and Description of the User Station. It also displays the IP Address, MAC Address, F/W Version, Serial Number, and Model Number of the User Station.
Reboot	Check the box and click Reboot to reset the User Station's settings back to the factory default. All custom settings will be lost.
User Station Password Change	Check Enable to require a password for access to the User Station's OSD configuration screen. Enter the Old Password, enter a New Password, and confirm the new password in the Confirm Password box.

After entering the information, click Save.

Transmitter Configuration

When you select the Transmitter radio button and click Configure to login, the Network tab appears:

Altus en KE 0SD Network Properties System User Station Transmitter User Preferences About Password Configure Back to Video ATEN IP Installer Enable View Only Disabled IP Properties Obtain IP address automatically Set IP address manually IP Address 192.168.0.61 Subnet Mask 255.255.255.0 Default Gateway Save

Network

The Network tab allows you to configure the Transmitter's IP address settings:

Item Description
IP Installer The IP	Installer is an external Windows-based utility for assigning an IP address to the device. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility. See IP Installer, page 222 for instructions.Note: For security, we strongly recommend that you set this to View Only or Disable after each use.
Network Configuration	For dynamic IP address assignment (DHCP), select the Obtain IP address automatically radio button.To specify a fixed IP Address, Subnet Mask, and Default Gateway select the Set IP address manually radio button and fill in the fields with values appropriate for your network.For help configuring network settings with the OSD, See Network Configuration, page 44.

After entering the information, click Save.

Properties

The Properties tab allows you to configure the Transmitter's extender settings:

Network Properties System Mode Properties Extender Matrix RS232 Settings Baud Rate 9600 Data Bits 8 Parity None Stop Bits 1 Flow Control None OS Language English (US) Port OS WIN Enable Multicast Video Enable Multicast Audio EDID Mode Selection Manual EDID Enable Media Video Audio USB RS232 Manager Address KE Manager IP KE Manager Port S110 Transmitter Video Attributes Video Type Analog(DVI-A) Video Quality 5 Color Depth 24 bits Background Refresh Every 32frames(s) Bandwidth Limit Unlimited Beeper Enable Save

Item Description
Mode	Select Extender mode for simple one-to-one (Transmitter to User Station) setups that are managed with the Receiver's OSD menu.Select Matrix mode to manage devices and connections from the KE Management web GUI. This mode is for advanced administration of Transmitter to User Station connections.(See Channel Connections, page 110)
Properties	Port OS: Use the drop-down menu to select the operating system of the computer connected to the Transmitter.OS Language: Use the drop-down menu to select the operating system language of the computer connected to the Transmitter.Enable Multicast Video: Check this box to allow a broadcast of the Transmitter's video signal to be sent out to multiple User Stations.Enable Multicast Audio: Check this box to allow a broadcast of the Transmitter's audio signal to be sent out to multiple User Stations.EDID Mode Selection: EDID contains a display's basic information and is used by the source device to utilize the best resolution across different monitors. Select how you want the source device to acquire the display's EDID:Default: EDID is set to the default ATEN configuration. This setting must be used when connecting KE6900 devices to KE8950 devices.Auto: Checks the EDID of all connected displays and uses the best resolution for all displays.Manual: Manually set the EDID configuration from the Connections Page (see page 61).Remix: Checks the EDID of all connected displays and the source device uses the best common resolution for all displays.
Enable Media	Select which type of media the Transmitter can stream to User Stations: Video, Audio, USB, and RS232.
RS232 Settings C	Configure the serial device settings for the Transmitter. The default settings are:Baud Rate: 9600Parity: NoneData Bits: 8 bitsStop bits: 1 bitFlow Control: None
Manager Address	Set the IP address and Port number of the computer running the KE Management software. The default port number is 9110.
Transmitter Video Attributes	To set the Transmitter's video settings:Video Type: Select the DVI video connector being used by the display: Digital (DVI-D) or Digital (DVI-I). This option is available for KE6900 units and will be grayed out for other models.Color Depth: Select the number of bits to use for the color depth: 24, 16, or 8. This is the number of bits used to describe the color of a single pixel. A bit depth determines the number of colors that can be displayed at one time.Bandwidth Limit: Select the maximum bandwidth that the Transmitter can use to transmit video over the network. A lower bandwidth setting transmits lower quality video; a higher bandwidth setting sends higher quality video but this can affect network speed.Video Quality: Select the video quality to use. 5 is the highest video quality, and 1 is the lowest video quality. Options are: 1~5.Background Refresh: Sets how often the Transmitter refreshes the background image on the connected display. Options are to refresh every 256,128, 64, 32,16, or 0 frames.
Beeper Check this	box to allow the device to beep every time a configuration change is made.
Occupy Timeout Set	Set a time threshold for devices whose Access Mode has been set to Occupy (see Allowed Access Mode, page 144). If there is no activity from the User Station occupying the port for the amount of time set here, the User Station is timed out and the port is released. The first User Station to send keyboard or mouse input after the port has been released gets to occupy the port. Input a value from 1 to 240 seconds.

After entering the information, click Save.

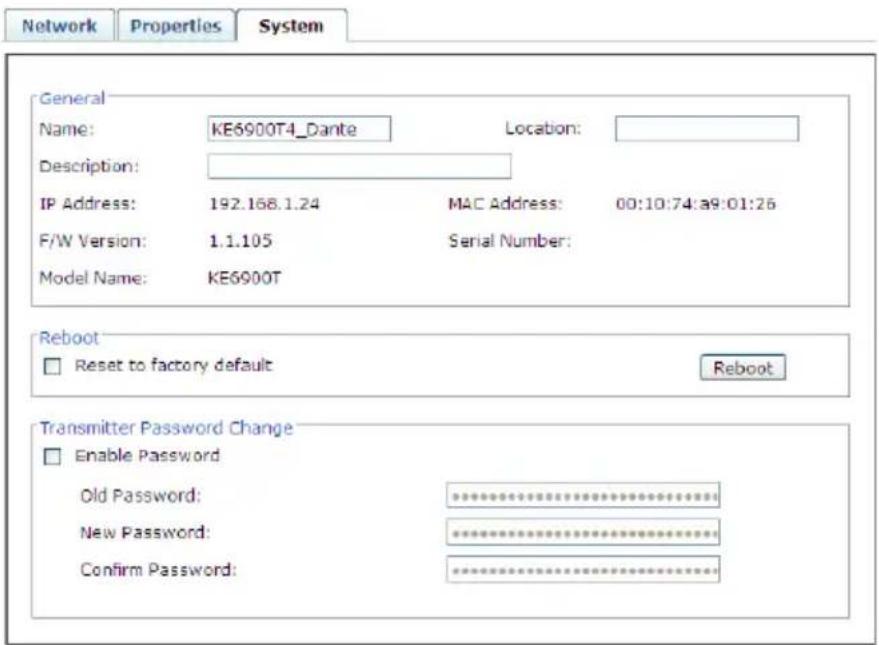

System

The System tab allows you to configure the Transmitter's general settings:

Network Properties System Device Information Name KE6940T Description IP Address 192.168.0.61 MAC Address 00:00:00:a9:01:37 F/W Version V1.1.106 (May 2 2014 13:39:47) Serial Number Reboot Reset to factory default Reboot Transmitter Password Change Enable Old Password ********** New Password ********** Confirm Password ********** Save

Item Description
Device Information	Enter the Name, Location, and Description of the Transmitter. It also displays the IP Address, MAC Address, F/W Version, Serial Number, and Model Number of the Transmitter.
Reboot	Check the box and click Reboot to reset the Transmitter's settings back to the factory default. All custom settings will be lost.
Transmitter Password Change	Check Enable to require a password for access to the Transmitter's OSD configuration screen. Enter the Old Password, enter a New Password, and confirm the new password in the Confirm Password box.

After entering the information, click Save.

User Preferences

When you select the User Preferences radio button and click Configure to login, the configuration screen appears:

User Station Transmitter User Preferences About User Password Change Old Password New Password Confirm Password OSD Settings OSD Language English OSD Hotkey [scroll lock][scroll lock] Logout Timeout 0,min (0-180) ✓ Disabled Screen Blanker 0,min (0-30) ✓ Disabled Password Configure Back to Video Save

Item Description
User Password Change	This section allows you to change the OSD password:1. Key in the old password in the Old password field.2. Key in the new password in the New password field.3. Key in the new password again in the Confirm password field.
OSD Language Click the drop-down menu to select the language you want to use for OSD sessions. Choices are: English, Chinese (Simplified), Chinese (Traditional), Japanese, Korean, Dutch, French, Spanish, Portuguese, and Russian.
OSD Hotkey Select the hotkey combination to invoke the OSD screen.
Logout Timeout If there is no user input for the amount of time set with this function, the user is automatically logged out of the OSD. A login is necessary before the OSD can be accessed again.
Screen Blanker Set how many minutes the OSD waits when a session is idle before turning off the display.

When you have made your choices, Click Save.

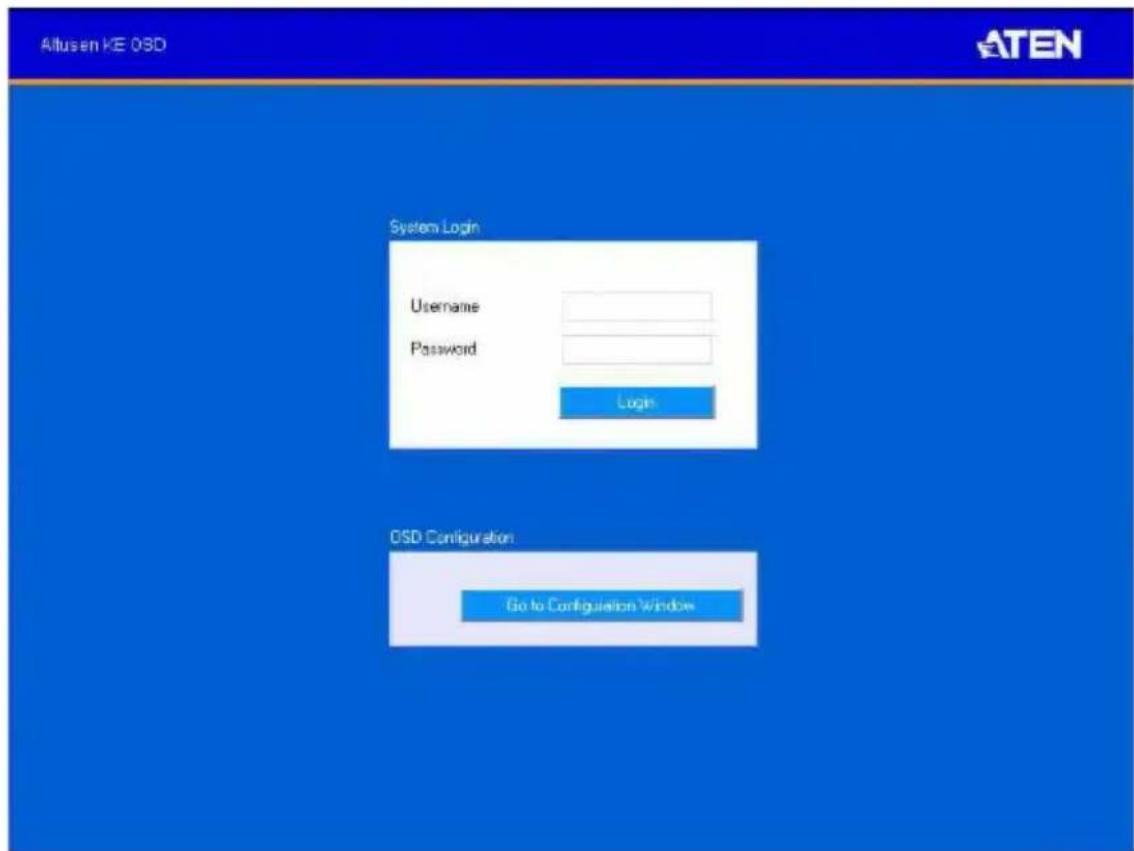

Connecting

If the User Station is set to Extender mode, the video screen of the remote computer will appear automatically when you exit the OSD (press Esc to exit). In Matrix mode you will see the System Login screen, which provides access to the Connection Page by entering a username and password:

Altusen KE OSD ATEN System Login Username Password Login OISD Configuration Go to Configuration Window

Note: 1. The administrator account can be used to log in for the first time.
Username: administrator | Password: password. For security purposes, we recommend you change this to something unique (see User Management, page 127).
2. If the User Station does not require a login, click Login to system (see Login Required, page 96).
3. For information about Extender and Desktop/Matrix modes see Mode, page 51.

After you login the Connection Page appears, as shown on the next page.

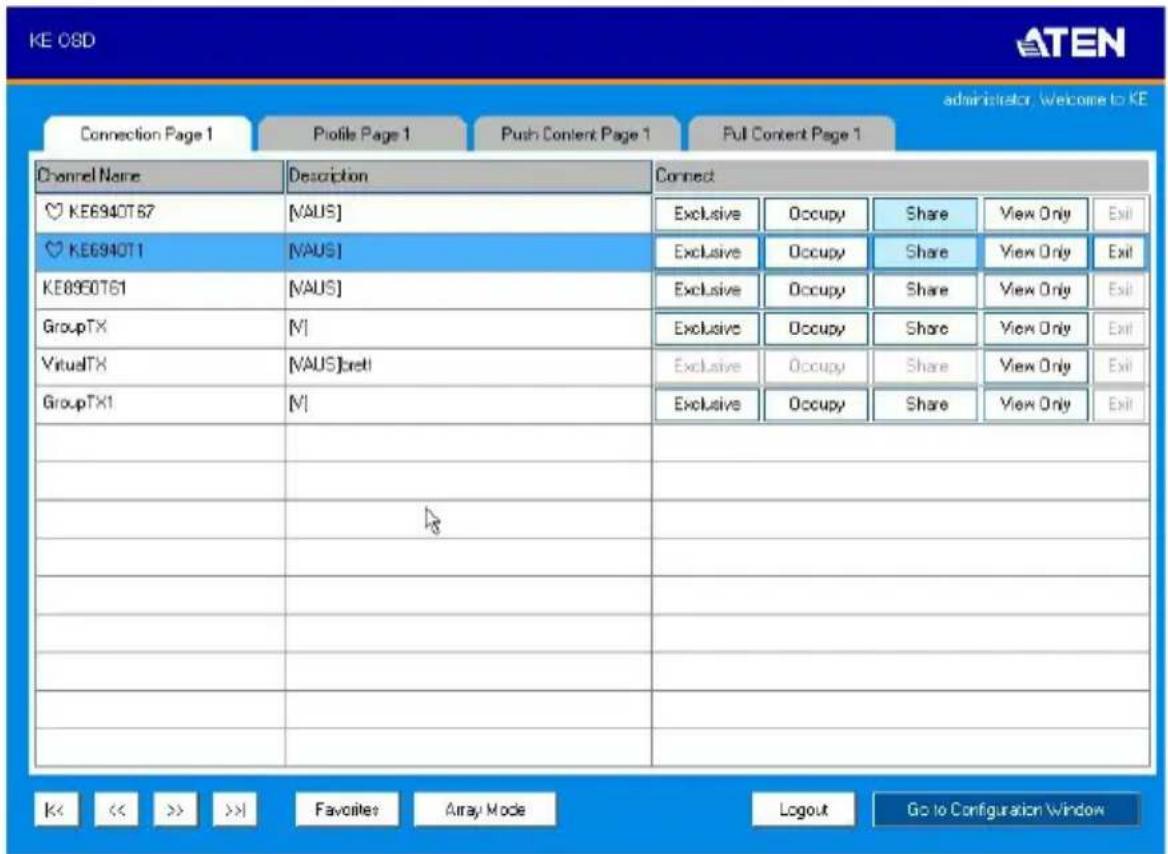

Connections Page

After you have successfully logged in the Connection Page appears:

List Mode

KE OSD Connection Page 1 Profile Page 1 Push Content Page 1 Full Content Page 1 Administrator: Welcome to KE Channel Name Description Connect KE6940T67 [NAUS] Exclusive Occupy Share View Only Exit KE6940T1 [NAUS] Exclusive Occupy Share View Only Exit KE8950T61 [NAUS] Exclusive Occupy Share View Only Exit GroupTX [N] Exclusive Occupy Share View Only Exit VirtualTX [NAUS]bret Exclusive Occupy Share View Only Exit GroupTX1 [N] Exclusive Occupy Share View Only Exit K<< >> >> Favorites Array Mode Logout Go to Configuration Window

The Connection Page components are described in the table, below:

No. Item Description
1 Channel Name Lists the Channel	nel connections available for the User Station. A Channel is a defined connection to Transmitters, created in the Device Management tab of the KE Management (seeChannels, page 111).
2 Description This field provides	a description of the Channel, entered when it was created.

No.	Item	Description
3	Connect To connect the User	Station to a Channel, click the access type:Exclusive:The first User Station to access the Channel has exclusive control over the Channel. No other User Stations can view the Channel. The Timeout function does not apply to this setting.Occupy:The first User Station to access the Channel has control over the Channel. However, additional User Stations may view the Channel's video display. If the User Station controlling the Channel is inactive for longer than the time set in the Timeout box, control is transferred to the first User Station to move the mouse or strike the keyboard.Share:Can simultaneously share control over the Channel. Input from the User Stations is placed in a queue and executed chronologically.View Only:User Station connects with view only access to the Channels video display.
4	Next Arrow Use these two buttons to navigate to the next pageor to the end of the list if there are more Channels available than can be seen on the page.
5	Previous Arrow Use these two buttons to navigate to the previous page or to the beginning of the list if there are more Channels available than can be seen on the page.
6	Favorites / All	Click Favorites to list only the Channels marked as favorites. Click All to list all Channels. Channels marked as favorites appear with a heart icon.To add/remove a Favorite, select a Channel and then right click with the mouse to select Add to Favorite or Remove from Favorite.
7	Array Mode Click to view the Channel connections with a video preview of each source. The list will be shown in groups of six at a time. The Array Mode is discussed on page 63.
8	List Mode Click to view the Channel connections in a list that can be sorted by name or with favorites listed first. Click the Channel Name heading to change the sort.
9	Manual EDID If the EDID Model Selection on the Properties tab is set to Manual, the Manual EDID button appears here. Click Manual EDID to adjust the EDID setting locally. To set the EDID Mode to Manual, see Properties, page 56.
10	Logout Click this button to log out of the Connection Page.
11	Go to Configuration Window	Click this button to return to the main OSD screen.

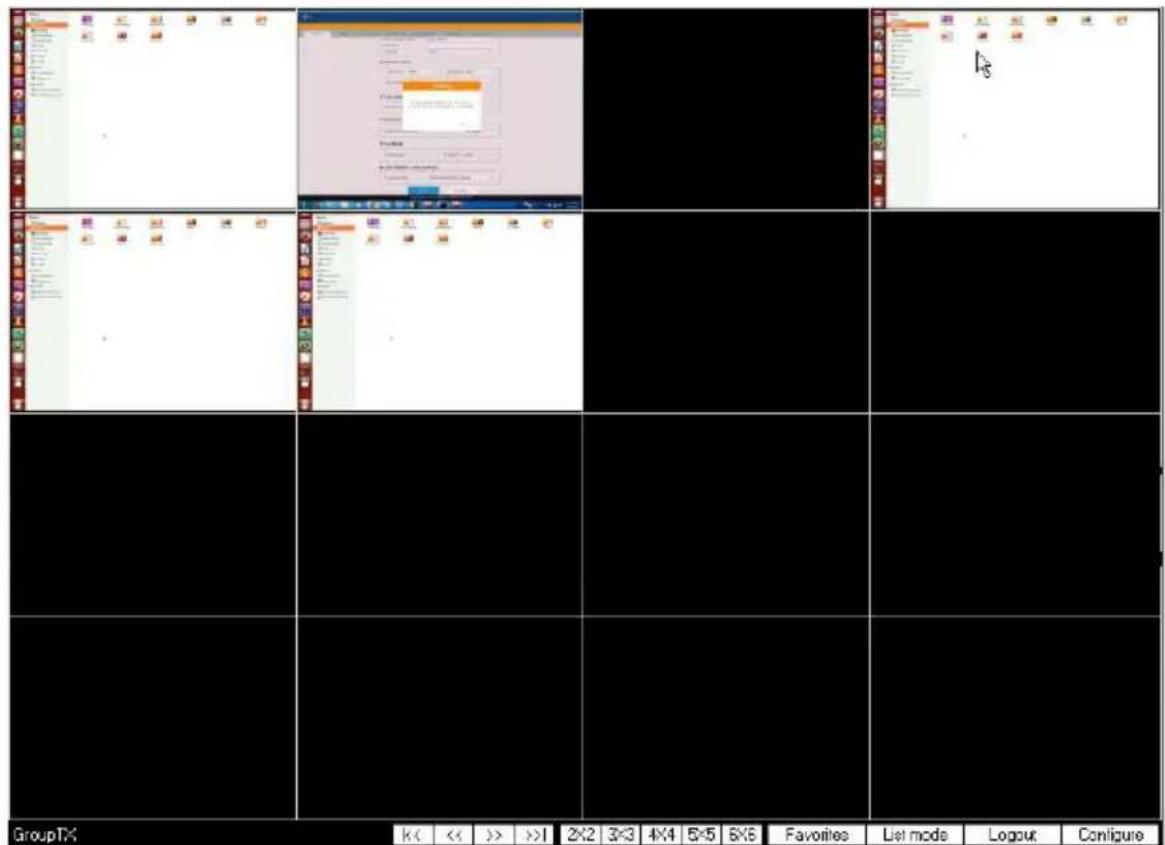

Array Mode

In Array Mode the screen is divided into a grid of panels, with each panel showing the video display of a particular Channel. Right-click a panel and select a mode to connect: E: Exclusive, O: Occupy, S: Share, V: View Only, X: Exit.

GroupTX k<<<<>>>>1 2x2 3x3 4X4 5x5 6X6 Favorites List mode Logpur Configure

No.	Item Description
1	Next Arrow Use these two buttons	to navigate to the next pageor to the end of the list if there are more Channels available than can be seen on the page.
2	Previous Arrow Use these two buttons	to navigate to the previouspage or to the beginning of the list if there are moreChannels available than can be seen on the page.
3	Grid Selection Select a range	for how many Channels you want todisplay. Options are: 2x2, 3x3, 4x4, 5x5, and 6x6.
4	Favorites	Click Favorites to list only the Channels marked as favorites. Click All to list all Channels.To add/remove a Favorite, go to List Mode, select a Channel and then right click with the mouse to select Add to Favorite or Remove from Favorite.
5	List Mode Click to view the Channel connections in a list that can be sorted by name or with favorites listed first. Click the Channel Name heading to change the sort. List Mode is discussed on page 62.
6	Logout Click this button to log out of the Connection Page.
10	Configure Click this button to return to the main OSD screen.

Profile / Video Wall Page

Click the Profile / Video Wall Page tab and the following screen appears:

KE OSD ATEN Administrator: Welcome to KE. Connection Page 1 Profile Page 1 Push Content Page 1 Pull Content Page 1 Name Description Connect 1 Connect Disconnect 2 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Disconnect 3 Connect Spread Page 1 Profile Page 1 Push Content Page 1 Pull Content Page 1 Video Wall Logout Go to Configuration Window

The Profile /Video Wall Page components are described in the table, below:

No.	Item Description
1	Name Lists the Profiles and Video Walls available. Profiles / Video Walls give User Stations access to Channels and allow you to push the connection.
2	Description The field provides a description of the Profile/Video Wall that was entered when it was created.
3	Connect Click Connect and the User Station will connect with the settings of that Profile or Video Wall (see Profiles, page 117 or Video Wall, page 121).
4	Disconnect Click Disconnect to end the current Profile or Video Wall connection.
5	Next Arrow Use these two buttons to navigate to the next page or to the end of the list if there are more Profiles/Video Walls available than can be seen on the page.
6	Previous Arrow Use these two buttons to navigate to the previous page or to the beginning of the list if there are more Profiles/Video Walls available than can be seen on the page.
7	Video Wall Click to view a list	of available Video Wall connections. Appears when the Profile button has been clicked.
8	Profile Click to view a list of a	available Profile connections. Appears when the Video Wall button has been clicked.
9	Logout Click this button to log	out of the Connection Page.
10	Go to Configuration Window	Click this button to return to the main OSD screen.

Push Content

Push Content allows you to push the User Stations current connection to another User Station's console – allowing both the share access to the computer. Click the Push Content tab and the following screen appears:

KE OSD ATEN Administrator, Welcome to KE Connection Page 1 Profile Page 1 Push Content Page 1 Pull Content Page 1 User Station Name Description Connect KE6940R70 Push Content KE8950R72 Push Content Suclion Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Content Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Control Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Interval Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persh Periods Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval Persn Interval

The Push Content Page components are described in the table, below:

No.	Item Description
1	User Station Name Lists the User Station Name(s) that can be selected to push the connection from the local User Station.
2	Description The field provides a description of the User Station that was entered when it was created.
3	Connect	Click Push Content to push the User Station's connection to the selected User Station's console. The local User Station's connection will appear on the User Station that it was pushed to and both will share access to the computer. The access mode selected by the local User Station will determine how access is shared (see Allowed Access Mode, page 144 for details).
5	Next Arrow Use these two buttons to navigate to the next page or to the end of the list if there are more choices available than can be seen on the page.
6	Previous Arrow Use these two buttons to navigate to the previous page or to the beginning of the list if there are more choices available than can be seen on the page.
No. Item Description
9 Logout Click this button to log	out of the Connection Page.
10 Go to Configuration Window	Click this button to return to the main OSD screen.

Pull Content

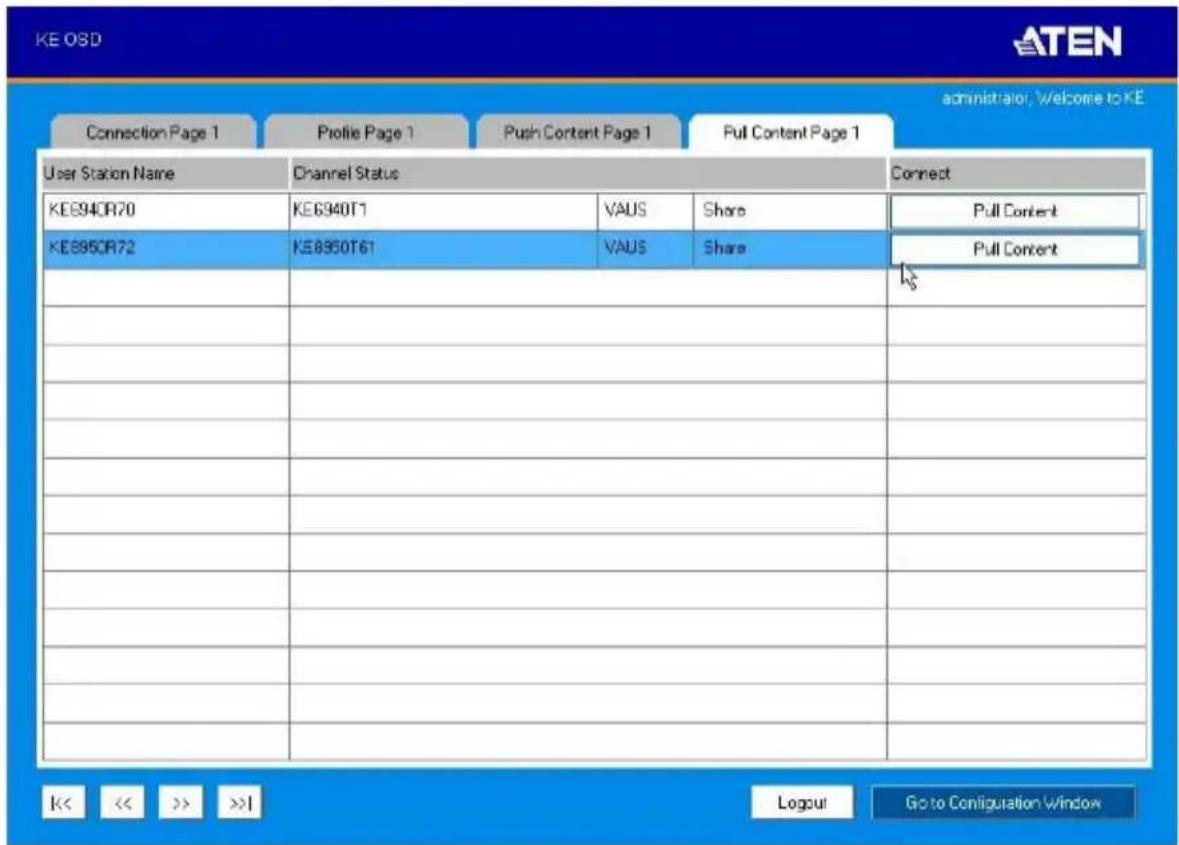

Pull Content allows you to pull a User Station's Channel connection to the local User Station's console – allowing both to share access to the computer. Click the Pull Content tab and the following screen appears:

KE OSD ATEN Administrator: Welcome to KE Connection Page 1 Profile Page 1 Push Content Page 1 Full Content Page 1 User Station Name Channel Status Connect KE6940R70 KE6940T1 VAUS Share Pull Content KE6950R72 KE6950T61 VAUS Share Pull Content # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

The Pull Content Page components are described in the table, below:

No.	Item Description
1	User Station Name Lists the User Station Name(s) currently connected to the Channel listed under Channel Status.
2	Channel Status Lists the name, description and access type of each available Channel connection.
3	Connect	Click Pull Content and the User Station will pull the Channel connection to the local console and use the access mode displayed under Channel Status.
5	Next Arrow Use these two buttons to navigate to the next page or to the end of the list if there are more choices available than can be seen on the page.
6	Previous Arrow Use these two buttons to navigate to the previous page or to the beginning of the list if there are more choices available than can be seen on the page.
9	Logout Click this button to log out of the Connection Page.
No. Item Description
10 Go to Configuration Window	Click this button to return to the main OSD screen.

Overview

The KE Management Software is a browser based GUI that provides management of KE Series devices over a network. You can download the KE Management Lite version which is free and manages up to 8 KE devices, or purchase a full version of the KE Management Software. To purchase the full version contact your local authorized ATEN dealer. To download the free KE Management Lite Software, use the instructions below.

Download - Trial Version

To download the KE Management Lite software, do the following:

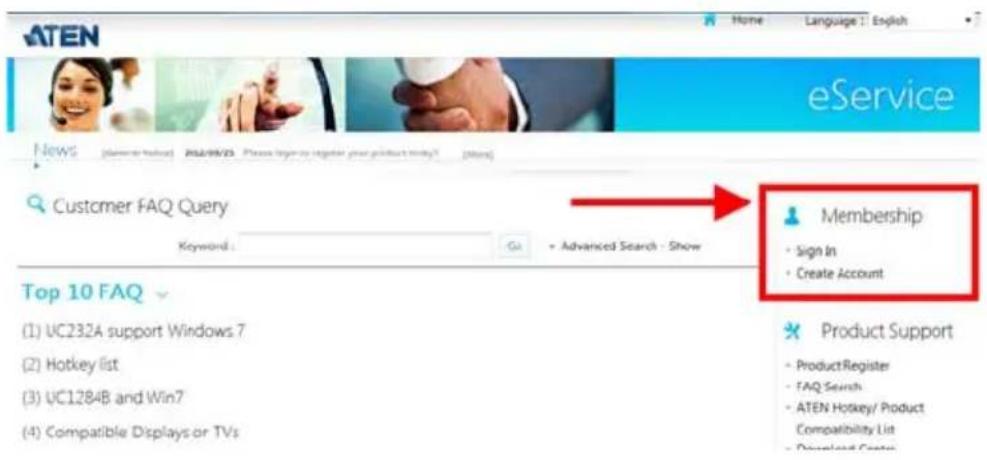

1. Visit our website and click Support → Go to ATEN eService.

PRODUCTS RESOURCES SUPPORT Search Aten Join ATEN eService As a member you can use all of ATEN's on-line services ...Join Now! ATEN eService APP ios | android Technical Support Go to ATEN eService ATEN's portal which provides centralized on-line services with an ID and password. Our eServices Include: • Product Registration • On-line Technical Support • FAQ • Partner Center Learn more

1. Create an account and Sign In to ATEN eService.

ATEN Home Language : English eService News Customer FAQ Query Keyword : Advanced Search - Show Membership • Sign In • Create Account Top 10 FAQ (1) UC232A support Windows 7 (2) Hotkey list (3) UC1284B and Win7 (4) Compatible Displays or TVs Product Support • ProductRegister • FAQ Search • ATEN Hotkey/ Product Compatibility List • Download Create

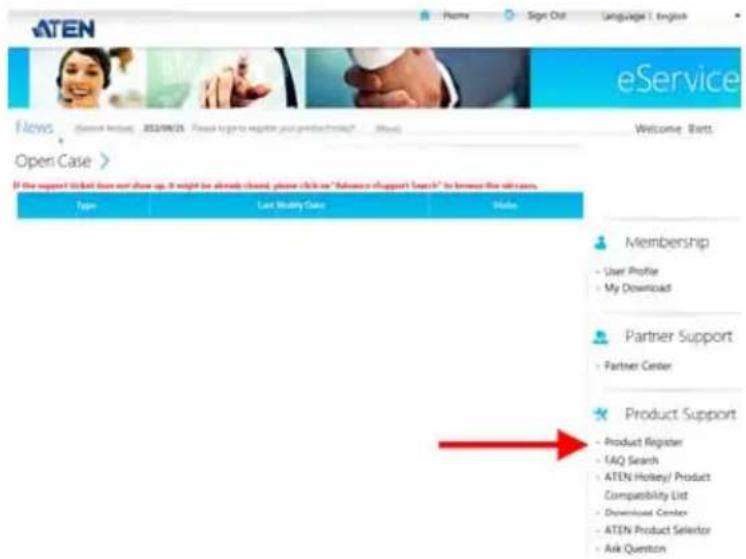

1. Register the KE device(s) you have purchased.

ATEN Home Sign Out Language 1. English eService News Open Case > If the support ticket does not show up, it might be already closed, please click in "Advance support search" to browse the all rights. Type Last Modality Date Video Membership User Profile My Download Partner Support Partner Center Product Support Product Register FAQ Search ATEN Hockey/ Product Compatibility List Downloader Center ATEN Product Selector Ask Queston

1. After you have registered the KE device(s), click Trial Software Download.

Product Register > Insert Please press "Insert" button to start register your purchased ATEN product serial number. Trial Software Download

Serial Number	Model	Date of Purchase	Invoice / Shipping Document	Warranty Due Date	Action
12345678901235	KE6940	2015/10/20

Note: The trial version or “KE Management Lite” includes full functions to setup and configure up to 8 KE Series (transmitter/receiver) devices. The KE Management Lite version will never expire. If you would like to purchase the official full version of the KE Management software, please contact your ATEN reseller and see page 76.

1. Click the software version you would like to download, then click Save.

My Download >
FAQ Attachment Download	Trial Software Download
File Title	Web Site	File Download
Matrix Manager Lite V1.2.113.015 (Linux version)	KE6900 Matrix Manager Lite V1.2.113.011 Ink (click download icon to download KE Matrix Manager Lite Linux version)	#
Matrix Manager Lite V1.2.113.011 (Windows version)	KE6900 Matrix Manager Lite V1.2.113.011 Ink (click download icon to download KE Matrix Manager Lite Windows version)	#

1. Unzip the KE_Management_Lite.zip file and double click the *.exe file to start the installation.
2. Follow the instructions on the next page to install the trial version of the software.

KE Management Software Install

The following are instructions to install the full version of the KE Management software. For software requirements, see Software, page 5.

1. Insert the USB license key into a USB port on your computer.
2. Double click the KEMangementSetup file to start the setup. When the Introduction screen appears, click Next.:

KE Manager Introduction Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete InstallAnywhere will guide you through the installation of KE Manager. If an old version of KE Manager was already installed, please uninstall the old version first, then install current version in the same folder to keep all data. Click the 'Next' button to proceed to the next screen. If you want to change something on a previous screen, click the Previous' button. You may cancel this installation at any time by clicking the 'Cancel' button. Cancel Previous Next

1. The License Agreement appears:

KE Manager License Agreement Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete Installation and Use of KE Manager Requires Acceptance of the Following License Agreement: SOFTWARE LICENSE AGREEMENT LICENSE GRANT Aten International Co., Ltd. ("Licensor") grants to you a non-exclusive, non-transferable license to access and use KE Manager (the "Product") during the "Term" set forth below. You may install the Product on a hard disk or other storage device; install and use the Product on a file server for use on a network for the purposes of (i) permanent installation onto hard disks or other storage devices or (ii) use of the I accept the terms of the License Agreement I do NOT accept the terms of the License Agreement Install Anywhere by Macrosion Cancel Previous Next

If you agree with the License Agreement, select I accept the terms of the license agreement, and click Next.

1. The Choose Install Folder screen appears:

KE Manager Choose Install Folder Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete Where Would You Like to Install? C:\Program Files\KE Manager Restore Default Folder Choose... Install Anywhere by Macrosion Cancel Previous Next

Select where you would like to install the program, and click Next.

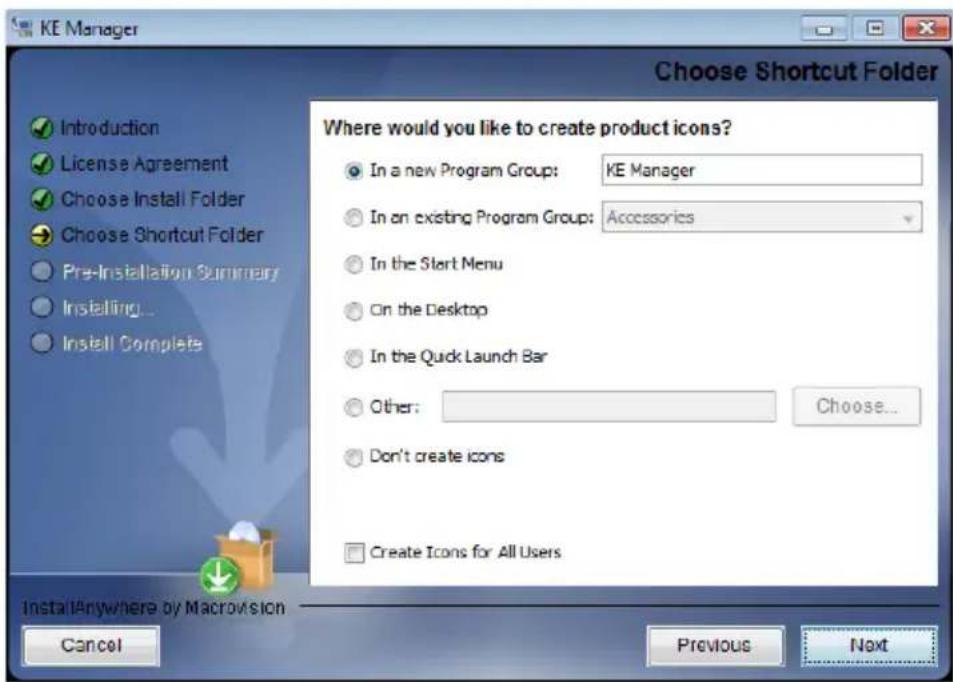

1. The Choose Shortcut Folder screen appears:

KE Manager Choose Shortcut Folder Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete Where would you like to create product icons? In a new Program Group: KE Manager In an existing Program Group: Accessories In the Start Menu On the Desktop In the Quick Launch Bar Other: Choose... Don't create icons Create Icons for All Users Install Anywhere by Macrovision Cancel Previous Next

Select where to create shortcuts for the program by selecting the options provided, and click Next.

1. The Pre-Installation Summary screen appears:

KE Manager Pre-Installation Summary Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete Please Review the Following Before Continuing: InstallAnywhere by Macrovision Cancel Previous Install

Confirm the settings you've selected. If you want to make a change click Previous to go back, or click Install to begin the software installation.

1. When the process is done, the Install Complete screen appears:

KE Manager Install Complete Introduction License Agreement Choose Install Folder Choose Shortcut Folder Pre-Installation Summary Installing... Install Complete Congratulations! KE Manager has been successfully installed to: DIKE Manager Press "Done" to quit the installer. InstallAnywhere by Macromsion Cancel Previous Done

Click Done.

Note: If you are installing the KE Management software on a second computer for redundancy (see Redundancy, page 152) – remove the USB License key and plug it into the primary computer running the KE Management software.

Upgrading Trial Version

After you purchase a license to upgrade the KE Management Lite version to the full version of the Matrix Manger software, go to the System tab, and at the bottom of the Global Settings page, click Upgrade:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Global Settings ANES Redundancy Welcome to the Matrix Manager Global Settings HTTP Port: 8080 HTTPS Port: 8443 Device Port: 9110 Allowed Access Mode View Only Share Occupy Exclusive User Station Login Settings Login Required Non-Authorized User: user0001 Fast Switching Fast Switching: Disable Global Device Properties Properties Sync Occupy Timeout: $ sec(1-240) EDID Mode Selection: Default Keeper: Enable Matrix Man: Number: 6.124.003/2016 15:18 10:02) Key serial number: Upgrade Logout Save

Overview

The KE Management Software can be accessed through most standard web browsers and via Telnet. Once users log in and are authenticated, the browser GUI comes up. The first section explains the login procedure and web browser components. The last section provides details for connecting via Telnet.

Logging In

To log into the Matrix Manager, do the following:

1. Open the browser and specify the IP address of the computer installed with the KE Management software, in the browser's URL location bar.

Note: If the administrator has configured the HTTP or HTTPS port setting as something other than the default, you must include http://or https:// before the IP address, and specify the port number along with the IP address. For example:

https://192.168.1.20:8443

Where 8443 is the https port number, or 8080 is the http port number, and a colon is inserted between it and the IP address.

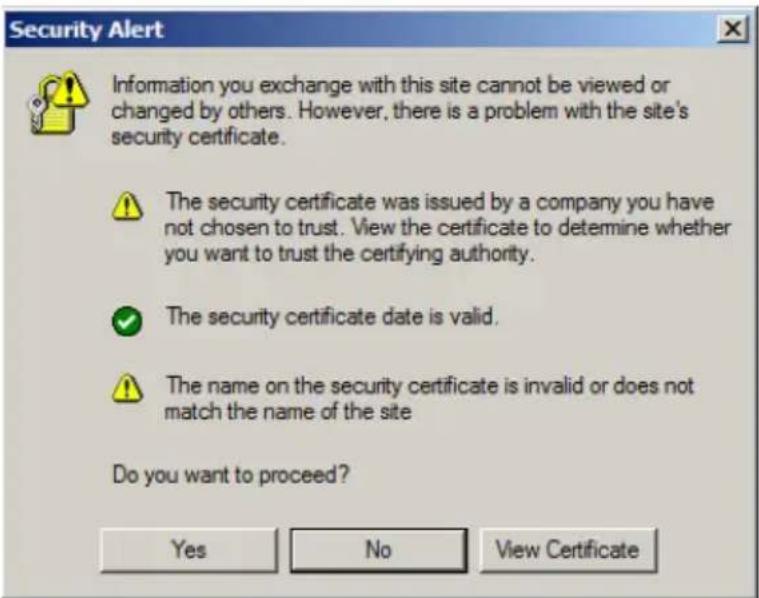

1. If a Security Alert box appears, accept the certificate – it can be trusted (See Trusted Certificates, page 223 for details). The Login page appears:

KE Matrix Manager Login Username Password Login

1. Enter the Username and Password, and click Login.

Note: Only administrator accounts can be used to login. Username: administrator | Password: password. For security purposes, we recommend you change this to something unique.

The Matrix Manager Main Page

After you have successfully logged in, the web browser's main page appears:

ALTUSEN Matrix Manager KE6900 Dashboard Device Management User Management System Logs Maintenance ATEN 2 3 4 Dashboard Active Connections View Note... Start Time Username User Station Target Streams Access Mode Active Sessions View Note... Username Service IP Login Time Last Access User Type administrator HTTPS 10.3.41.62 03/25/2014 13:39:08 03/25/2014 13:49:03 admin Online User Stations View Note... ID Name Model Name Status Address Streams Online Transmitters View Note... ID Name Model Name Status Address Streams Shutdown Restart

Web Components

The web components are described in the table, below:

No.	Item Description
1	Tab Bar The tab bar contains	the Matrix Manager's main operation categories: Dashboard, Device Management, User Management, System, Logs, and Maintenance.
2	Menu Bar The menu bar contains	operations operational sub-categories that pertain to the item selected in the tab bar.
3	Sidebar The Sidebar provides	a tree view and listing of items that relate to the various tab bar and menu bar selections. Clicking an item in the Sidebar brings up a page with the details that are relevant to it.
4	Logout Click this button to log	out of your Matrix Manager web session.
5	ATEN Logo Click this button to	open a new browser window that opens on the ATEN website.
6	Welcome Message	If this function is enabled (see Preferences, page 168) a welcome message displays here.
7	Interactive Display Panel This	is your main work area. The screens that appear reflect your menu choices and Sidebar item selection.

Tree View Considerations

On some pages there will be a sidebar menu with options that can be expanded:

Targets KE6900T4_Dante KE6940T2 KE6900T1_EJ KE6940T-Edward KE6940T6 Target Groups TG_ThirdParty

A plus (+) sign in front of an item means that there are additional items nested inside of it. Click the plus sign to expand the view and show the nested items.

- The plus sign changes to a minus sign (-)when an item is expanded. Click the minus sign to collapse the view and hide the nested items.

- For devices, if the device is on line, its icon is in green; if it is off line, its icon is orange.

The Tab Bar

The functions associated with each of the tabs are explained in the table below:

Icon Function
Dashboard	Dashboard: The Dashboard is used to view information about current connections, sessions, and device events. The first page provides an overview and the sidebar provides a link to view details about each section. The Dashboard is discussed on page 84.
Device Management	Device Management: The Device Management page is used to configure and control the overall operation of the devices added to the Matrix Manager. Device Management is discussed on page 91.
User Management	User Management: The User Management page is used to create and manage Users and Groups. It is also used to assign permissions to them. User Management is discussed on page 127.
System	System: The System page is used to configure the KE Management's global settings and setup ANMS authorization and authentication. The System page is discussed on page 142.
Logs	Logs: The Log page displays the contents of the log file. The Log page is discussed on page 156.
Maintenance	Maintenance: The Maintenance page is used to install firmware; backup and restore configuration information, install certificates, and set preferences. The Maintenance page is discussed on page 160.

Telnet

The KE Series can be operated and configured via a remote terminal session using Telnet. This is a useful means for configuring devices when they are first setup and connected to the network.

To log into the KE Series device by means of a Telnet session, do the following:

1. On your computer, open a terminal (command line) session.
2. At the prompt, key in the KE device's IP address in the following way:
   telnet [IP address]
3. Press Enter. The login screen appears. At the login prompt, provide the Password.

Note: The default password for Telnet sessions is password.

Configuration Menu

Once a Telnet connection to the KE device is established, the device's text-based Configuration Menu comes up, allowing you to select options by entering a number on the following screens:

Main Menu

+++++++++++++

KE6900 User Station

User Station Configuration

+++++++++++++

1. Network
2. Properties
3. System

Q. Logout

Select one:

1. Network

KE6900 User Station

Network Settings

1. IP Installer [Enabled]

2. DHCP [Disabled]

3. IP Address [172.17.17.34]

4. Subnet Mask [255.255.255.0]

5. Default Gateway [172.17.17.254]

Q. Exit

Select one:

2. Properties

KE6900 User Station

Device Properties

1. Mode [Matrix]
2. Transmitter Video IP Address [172.17.17.35]
3. Transmitter Audio IP Address [172.17.17.35]
4. Transmitter USB IP Address [172.17.17.35]
5. Transmitter RS232 IP Address [172.17.17.35]
6. UART Configuration
7. Video [Enabled]
8. Audio [Enabled]
9. USB [Enabled]
10. RS232 [Enabled]
11. KE Manager IP [172.17.17.33]
12. KE Manager Port [9110]
13. Beeper [Enabled]
14. USB Mode [VM]
15. USB Secure Transmit [Disabled]

Q. Exit

Select one:

3. System

+++++++++++++

KE6900 User Station

System Setting

1. Device Name [KE6900R]

2. Device Description [Receiver1]

Device IP Address: 172.17.17.34

Device MAC Address: 00:10:74:A8:01:23

Device FW Version: V1.1.109

Device Serial Number:

1. Password [Enabled]

2. Change Password

3. System Reboot/Reset to Factory Default

Q. Exit

Select one:

Chapter 6

Dashboard

Overview

The Dashboard tab is used to view events about connections, sessions, online devices and schedules. The Home page provides an overview of the information provided in each section. The Sidebar provides a link to each section in the Dashboard.

The Dashboard opens on the Home page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance ATEN Welcome to the Matrix Manager Dashboard Active Connections Active Sessions Online User Stations Online Parameters Latest Events Schedule Dashboard Last Ambulatory Status : [ Premary ] (Working) Active Connection View More... Channel Streames Access Mode User Station Username Start Time Operation KE6940T 36 VIAUIS Share KE6940R 25 administrator 08/12/2015 11:45:23 Disconnect KE6940T 36 VIAUIS Share KE6940R 26 administrator 08/12/2015 11:45:23 Disconnect KE6940T 36 VIAUIS Share KE6940R 24 administrator 08/12/2015 11:45:23 Disconnect KE6940T 36 VIAUIS Share KE6940R 23 administrator 08/12/2015 11:45:23 Disconnect Active Sessions View More... Username Service JP Login Time Last Access User Type Administrator SBD 192.168.0.28 08/12/2015 09:34:39 08/12/2015 09:34:39 admin administrator SBD 192.168.0.26 08/12/2015 09:34:40 08/12/2015 09:34:40 admin administrator SBD 192.168.0.23 08/12/2015 09:34:41 08/12/2015 11:45:58 admin administrator SBD 192.168.0.24 08/12/2015 09:34:41 08/12/2015 09:34:41 admin administrator VTTPS 192.168.0.69 08/12/2015 09:37:06 14:09:26 admin Online User Stations View More... Name Model Name Address Streams KE6940K 23 KE6940R 192.168.0.2 VIAUIS 9 KE6940R 23 KE6940R 192.168.0.2 VIAUIS 3 KE6940R 23 KE6940R 192.168.0.2 VIAUIS 5 Online Transmitters View More... Name Model Name Address Streams KE6940T 33 KE6940T 192.168.0.3 VIAUIS 2 KE6940T 34 KE6940T 192.168.0.3 VIAUIS 4 KE6940T 36 KE6940T 192.168.0.3 VIAUIS 6 Shutdown Resetart

At the bottom of the page, click Shutdown* to stop the KE Manager service, or Restart to stop and restart the service. Both options will logout all user web sessions.

Note: Clicking Shutdown stops the KE Manager service and web sessions will not be available until the KE Manager service is restarted.

Active Connections

The Active Connections page lets an administrator see the active Channel connections (User Stations connected to Transmitters) and provides information about each of their sessions.

Connections

Channel	Streams	Access Mode	User Station	Username	Start Time	Operation
KE6940T	V|A|U|S	Share	KE6940R 25	administrator	08/12/2015 11:45:23	Disconnect
KE6940T	V|A|U|S	Share	KE6940R 26	administrator	08/12/2015 11:45:23	Disconnect
KE6940T	V|A|U|S	Share	KE6940R 24	administrator	08/12/2015 11:45:23	Disconnect
KE6940T	V|A|U|S	Share	KE6900R 23	administrator	08/12/2015 11:45:23	Disconnect

The meanings of the headings at the top of the page are straightforward.

• Channel refers to the defined Transmitter connection in use by the User Station.
• Streams refers to the type of source the connection is streaming: Video, Audio, USB, or Serial.
• Access Mode refers to the type of access (Exclusive, Occupy, Share, View only) that the User Station is connecting with.
• User Station refers to the Receiver that is being used to access the Channel connection.
• Username refers to the user that logged into the User Station to establish the connection.
• Start Time refers to the date/time the connection between the User Station and Transmitter began.
  Operation provides a Disconnect button that allows you to disconnect the active connection.

Active Sessions

The Active Sessions page shows all of the users that are logged into KE Management and OSD sessions and provides information concerning the “who, where and when” of each session. This page also gives the administrator the option of forcing a user logout by selecting the user and clicking Kill Session from the bottom of the page.

Sessions

Select	Username	Service	IP	Login Time	Last Access	User Type
□	administrator	OSD	192.168.0.24	08/05/2015 13:28:59	08/05/2015 13:29:39	admin
□	administrator	OSD	192.168.0.25	08/05/2015 13:29:02	08/05/2015 13:29:39	admin
□	administrator	OSD	192.168.0.26	08/05/2015 13:45:17	08/05/2015 13:45:17	admin
□	administrator	OSD	192.168.0.23	08/05/2015 15:26:27	08/05/2015 15:49:54	admin
□	administrator	HTTPS	192.168.0.69	08/05/2015 16:14:36	08/07/2015 16:18:00	admin

The meanings of the headings at the top of the page are straightforward.

• Select allows you to check boxes and use the Kill Session button at the bottom of the page to force users to logout.
• Username refers to the user that logged into the User Station to establish the connection.
• Service refers to how the user logged into their session – via Matrix Manger or OSD.
• IP refers to the IP address of the device from which the user has logged in.
• Login Time refers to the date/time that the user logged into the KE Management software or OSD session.
• Last Access refers to the last time the user session was active and in use.
• User Type refers to the account type that the user is logged in with.

Online User Stations

The Online User Stations page lets the administrator see all of the Receivers that are currently available on the network and provides information about each device.

User Stations

ID	Name	Model Name	Status	Address	Streams
001074A801060000	KE6940R 26	KE6940R	On	192.168.0.26	V|A|U|S
001074A801030000	KE6900R 23	KE6900R	On	192.168.0.23	V|A|U|S
001074A801050000	KE6940R 25	KE6940R	On	192.168.0.25	V|A|U|S
001074A801040000	KE6940R 24	KE6940R	On	192.168.0.24	V|A|U|S

The meanings of the headings at the top of the page are straightforward.

• ID refers to the identification number assigned by the system.
• Name refers to the name entered on the User Stations System page.
  ◆ Model Name refers to the Receiver model number.
• Status refers to the User Station’s online status.
• Address refers to the IP address of the User Station.
• Streams refers to the source type that the User Station is configured to stream: Video, Audio, USB, and Serial.

Online Transmitters

The Online Transmitters page lets the administrator see all of the Transmitters that are currently available on the network and provides information about each device.

Transmitters

ID	Name	Model Name	Status	Address	Streams
001074A801060000	KE6940T 26	KE6940T	On	192.168.0.6	V|A|U|S
001074A801030000	KE6900T 23	KE6900T	On	192.168.0.3	V|A|U|S
001074A801050000	KE6940T 25	KE6940T	On	192.168.0.5	V|A|U|S
001074A801040000	KE6940T 24	KE6940T	On	192.168.0.4	V|A|U|S

The meanings of the headings at the top of the page are straightforward.

• ID refers to the identification number assigned by the system.
• Name refers to the name entered on the Transmitter's System page.
  ◆ Model Name refers to the Transmitter model number.
• Status refers to the Transmitter's online status.
• Address refers to the IP address of the Transmitter.
• Streams refers to the source type that the Transmitter is configured to stream: Video, Audio, USB, or Serial.

Latest Events

The Latest Events page lets the administrator see the most recent Dashboard events that relate to the current connections and sessions, and provides details about each.

Latest Events

Time	User	Severity	Device	Log Information
03/26/2014 14:03:35		Information		Session created(Sessionid=**********10.3.41.62.
03/26/2014 14:03:35	administrator	Information		User login succeeded(username=administrator).
03/26/2014 14:02:06		Error		Cannot find the KE authentication key.
03/26/2014 13:40:19		Information		Session created(Sessionid=**********10.3.41.62.
03/26/2014 13:40:19	administrator	Information		User login succeeded(username=administrator).
03/26/2014 13:18:38		Error		Cannot find the KE authentication key.
03/26/2014 12:35:42		Error		Cannot find the KE authentication key.
03/26/2014 12:00:43	administrator	Information		User logout(username=administrator).
03/26/2014 12:00:43		Information		Session terminated normally(Sessionid=**********).
03/26/2014 12:00:43	administrator	Information		User logout(username=administrator).
03/26/2014 11:56:12		Information		Session created(Sessionid=**********10.3.41.62.
03/26/2014 11:56:12	administrator	Information		User login succeeded(username=administrator).
03/26/2014 11:52:23		Error		Cannot find the KE authentication key.
03/26/2014 11:51:39		Error		System will reboot in 10 seconds.
03/26/2014 11:51:34		Information		Session created(Sessionid=**********10.3.41.62.
03/26/2014 11:51:34	administrator	Information		User login succeeded(username=administrator).
03/26/2014 11:49:02		Error		Cannot find the KE authentication key.
03/26/2014 11:47:19	administrator	Information		User login succeeded(username=administrator).
03/26/2014 11:47:19		Information		Session created(Sessionid=**********10.3.41.62.
03/26/2014 11:47:11	administrator	Information		User logout(username=administrator).
03/26/2014 11:47:11		Information		Session terminated normally(Sessionid=**********).

The meanings of the headings at the top of the page are straightforward.

◆ Time refers to the date and time that the event occurred.
- User refers to the username that the event relates to. If no username appears, the event is general system information.
- Severity refers to the event’s severity type: Information, Error, or Warning
◆ Device refers to the Transmitter or User Station that relates to the event. If no device is listed the event refers to the KE Management software.
- Log Information provides detailed information about each event.

Schedule

The Schedule page lets the administrator see all of the Profiles and Video Walls that are scheduled to activate.

Profile/Video Walls ≈	Routine Type	Day	Start Date	End Date	Connect Time	Disconnect Time	Apply	Operation
3	Once	-	2015-08-28	2015-08-28	00:00	01:00	08/28/201500:00:00	Delete
1	Every 1 month(s)	11	2015-08-28	2015-10-29	00:00	01:00	09/11/201500:00:00	Delete
7	Every 1 week(s)	Sunday	2015-08-27	2015-09-16	00:00	02:00	08/30/201500:00:00	Delete

The meanings of the headings at the top of the page are straightforward.

• Profiles/Video Walls refers to the ID number created for the Profile or Video Wall schedule.
• Routine Type refers to how often the Profile or Video Wall is scheduled to repeat.
  Day refers to either the day of a week (Monday to Sunday) or a day of the month that the Profile or Video Wall is scheduled to run.
• Start Date refers to the date that the Profiles or Video Wall is scheduled to start.
• End Date refers to the date that the Profile or Video Wall is scheduled to end.
• Connect Time refers to the time of day that the Profile or Video Wall is scheduled to make its connection(s).
• Disconnect Time refers to the time of day that the Profile or Video Wall is scheduled to disconnect its connection(s).
• Apply refers to the date and time when the Profile or Video Wall schedule was created.
  Operation provides a Delete button that can be used to permanently delete the Profile or Video Wall schedule.

Chapter 7

Device Management

Overview

The Device Management tab contains five menu bar items: User Stations, Transmitters, Channels, Profiles and Video Wall. Each page provides a way to add, configure and schedule the Transmitters/Receivers connections. Before Transmitters and Receivers can be added they must be connected to the network and have an IP address.

The Device Management tab opens on the User Stations page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance ATEN User Stations Transmitters Channels Profile Video Wall Welcome to the KE Matrix Manager User Stations KE6900R4_Dasta KE6940R2 KE6900R1_E3 KE6940R-Edward KE6940R6 Unmanaged User Stations User Station Video Group ID Name Model Name Access Mode Status Address Streams 001074A801260008 KE6900R4_Bante KE6900R Desktop Off 192.168.1.44 VIA|U|S 001074A801330008 KE6940R2 KE6940R Desktop On 192.168.1.42 VIA|U|S 001074A801230008 KE6900R1_E3 KE6900R Desktop On 192.168.1.41 VIA|U|S 001074A801360008 KE6940R-Edward KE6940R Desktop On 192.168.1.45 VIA|U|S 001074A801340008 KE6940R6 KE6940R Desktop On 192.168.1.46 VIA|U|S Logout Move Out Modify

User Stations

The User Stations page allows you to add and configure Receivers. The Sidebar provides three menu options: User Stations, Unmanaged User Stations and User Station Video Group. User Stations are the Receivers that have been added to the KE Management software. Unmanaged User Stations are Receivers that have been found on the network but haven't been added to the KE Management software. To discover a Receiver, it must be connected to the network and have an IP address. User Station Video Group lists Transmitters that have been grouped to share the video from one computer.

Click User Stations from the menu bar and the following screen appears:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Pottles Video Wall Welcome to the KE Matrix Manager User Stations 001074A801260000 KE6900R4_Dante KE6900R Model Name Access Mode Status Address Streams 001074A801330000 KE6940R2 KE6940R Desktop On 192.168.1.44 V|A|U|S 001074A801230000 KE6900R1_E3 KE6900R Desktop On 192.168.1.42 V|A|U|S 001074A801360000 KE6940R-Edward KE6940R Desktop On 192.168.1.41 V|A|U|S 001074A801340000 KE6940R5 KE6940R Desktop On 192.168.1.43 V|A|U|S Logout Move Out Modify

The main page provides an overview of each User Station. The Sidebar provides a link with a more detailed view of each.

The meanings of the headings at the top of the page are straightforward.

ID refers to the identification number assigned by the system.
- Name refers to the name entered on the User Stations's System page.
◆ Model Name refers to the Receiver model number.
- Access Mode refers to the User Station’s mode set in the Properties.
- Status refers to the User Station’s online status.
- Address refers to the IP address of the User Station.
- Streams refers to the source type that the User Station is configured to stream: Video, Audio, USB, and Serial.

Adding a User Station

To add a User Station, do the following:

1. From Unmanaged User Stations, select a User Station and click Add in:

User Stations KE6900R4_Dante KE6940R2 KE6900R_EJ KE6940R-Edward KE6940R6 Unmanaged User Stations KE6900R User Station Video Group Unmanaged User Stations ID Name Model Name Access Mode Status Address Streams 001074A801020000 KE6900R KE6900R Extender On 192.168.1.89 V/A|U|S Search New Add In

or click Search New:

Search Devices Please input search scope. Search Local Search Subnet Search by IP Search Cancel

You can search for a device by Local, Subnet, or IP address. Select a scope, enter the information and click Search.

1. Once added, the User Station appears on the User Stations main page and in Sidebar menu:

User Stations KE6900R4_Dante KE6940R2 KE6900R1_EJ KE6940R-Edward KE6940R6 KE6900R ID Name Model Name Access Mode Status Address Streams 001074A801260000 KE6900R4_Dante KE6900R Desktop Off 192.168.1.44 V|A|U|S 001074A801330000 KE6940R2 KE6940R Desktop On 192.168.1.42 V|A|U|S 001074A801230000 KE6900R1_EJ KE6900R Desktop On 192.168.1.41 V|A|U|S 001074A801360000 KE6940R-Edward KE6940R Desktop On 192.168.1.45 V|A|U|S 001074A801340000 KE6940R6 KE6940R Desktop On 192.168.1.46 V|A|U|S 001074A801230000 KE6900R KE6900R Desktop On 192.168.1.89 V|A|U|S Unmanaged User Stations User Station Video Group Move Out Modify

Configuring a User Station

A User Station's settings can be modified from the User Stations main page. Changes that are saved here are then updated on the Receiver across the network. To configure a User Station:

1. Select a User Station and click Modify.

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Profiles Video Wall Welcome to the KE Matrix Manager User Stations KE0900R4_Dante KE6940R2 KE0900R1_E3 KE6940R-Edward KE0940R5 Unmanaged User Stations User Station Video Group User Stations ID Name Model Name Access Mode Status Address Streams 001074A801260000 KE6900R4_Dante KE6940R Desktop Off 192.168.1.44 V|A|U|S 001074A801330000 KE6940R2 KE6940R Desktop On 192.168.1.42 V|A|U|S 001074A801230000 KE6900R1_E3 KE6940R Desktop On 192.168.1.41 V|A|U|S 001074A801360000 KE6940R-Edward KE6940R Desktop On 192.168.1.45 V|A|U|S 001074A801340000 KE6940R6 KE6940R Desktop On 192.168.1.46 V|A|U|S Move Out Modify

1. The Network tab appears with the User Station's IP address settings:

Network Properties System IP Installer Enabled View Only Disabled Network Configuration Obtain IP address automatically Set IP address manually IP Address: 192.168.1.44 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.254

Item Description
IP Installer The IP	Installer is an external Windows-based utility for assigning IP addresses to the device. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility. See IP Installer, page 222 for details.For security, we strongly recommend that you set this to View Only or Disable after each use.
Network Configuration	For dynamic IP address assignment, select the Obtain IP address automatically radio button.To specify a fixed IP Address, Subnet Mask, and Default Gateway select the Set IP address manually radio button and fill in the fields with values appropriate for your network.For information to configure the network settings locally on the device see Network Configuration, page 44.

3. Click the Properties tab to configure the User Station's properties:

Network Properties System Mode Extender Matrix RS232 Settings Baud Rate: 115200 Parity: None Data Bits: 8 bits Stop Bits: 1 bit Flow Control: None Properties Transmitter Video IP: 192.168.0.61 Transmitter Audio IP: 192.168.0.61 Transmitter USB IP: 192.168.0.61 Transmitter RS232 IP: 192.168.0.61 Enable Media Video Audio USB RS232 Manager Address Manager IP: 192.168.0.69 Manager Port: 9110 User Station Login Required Beeper Enable USB Mode Virtual Media Generic USB device Encryption Enable

Item Description
Mode	Select Extender mode for simple one-to-one (Transmitter to User Station) setups that are managed mostly with the Receiver's OSD menu.Select Matrix mode to manage devices and connections from the KE Management software. This mode is for advanced setup and administration of Transmitter to User Station connections via the Matrix Manger browser UI. (See Channel Connections, page 110)
Properties	If you selected Extender mode (above) set the Transmitter IP address for the User Station's Video, Audio, USB, and RS232 source signals.If you selected Matrix mode (above) the Properties will be grayed out. Use Channels to configure the Transmitter connections. (See Channel Connections, page 110)
RS-232 Settings	Configure the settings for the serial device the User Station will be connecting to. The default settings are: Baud Rate: 9600 Parity: None Data Bits: 8 bits Stop bits: 1 bit Flow Control: None
Enable Media Select which source type the User Station can stream : Video, Audio, USB, and RS232.
Manager Address	Set the IP address and Port number of the computer running the KE Management software. The default port number is 9110.
Login Required Check this box to require a username and password on the User Station's OSD to access the Connection Page (see page 60). Note: WARNING! If you uncheck Login Required you must select an Anonymous User in Global Settings. Otherwise a system login error may occur on the User Station's OSD. (See User Station Login Settings, page 145)
Beeper Check this box for the Receiver to beep when configuration changes are made.
USB Mode Select	the type of USB device you will connect to the USB ports:Virtual Media:Select this option only if you are plugging a USB disk drive (including USB HDD/optical disk) into the USB ports. This will give you the highest data transfer speeds but will not allow other USB devices to work when plugged into the USB ports. When user stations connected to the same transmitter mount or unmount USB disk drives, the keyboard and mouse operations will experience a brief delay. Transmitters can support up to 12 virtual media connections at the same time (keyboard/mouse included).Generic USB device:Use this option to plug USB peripherals into the USB ports. This option also allows a keyboard and mouse with special functions to plug into the USB ports for console use. Use this only if the special functions of the keyboard or mouse are required but do not work when plugged into the console ports. When the keyboard and mouse are plugged into the USB ports, they will not work within the OSD menus. To work within the OSD menus, the keyboard and mouse must be plugged into the console ports. KE6900ST transmitters do not support the Generic USB Device mode. In this mode, KE6900/KE6940 transmitters supports up to 2 USB connections; and KE8950/KE8952 transmitters support up to 5 USB connections (keyboard/mouse excluded).Encryption:Check this box to encrypt USB disk drives plugged into the USB ports.

(Continues on next page.)

4. Click the System tab to configure the general settings:

Network Properties System General Name: KE6900R4_Dante Location: Description: IP Address: 192.168.1.44 MAC Address: 00:10:74:a8:01:26 F/W Version: 1.1.105 MFG: Model Name: KE6900R Reboot Reset to factory default Reboot User Station Password Change Enable Password Old Password: ********** New Password: ********** Confirm Password: **********

Item Description
General	Enter the Name, Location, and Description of the User Station. This section also displays the User Station's IP Address, F/W Version, Model Name, MAC Address and MFG*. Note: The MFG number (manufacturing number) is an internal serial number for our factory and technical support staff to identify products. This number does not affect any product's warranty. If your product needs after-sales services, you may provide the MFG Number to our sales or technical support staff to identify the product and model number.
Reboot	Check the box and click Reboot to reset the User Station's settings back to the factory default. All custom settings will be lost.
User Station Password Change	Check Enable to require a password to access the User Station's OSD configuration screens (see page 49). Enter the Old Password, enter a New Password, and confirm the new password in the Confirm Password box.

5. After entering the information, click Save.

Deleting a User Station

To delete a User Station:

1. Select the User Station you want to delete.
2. Click Move Out.

The device list updates with the remaining User Stations. The User Station you deleted will appear on the Unmanaged User Stations main page and Sidebar menu.

User Station Video Group

Creating a User Station Video Group allows you to cascade up to four Transmitters connected to separate video cards on a computer and share the video with four or eight (dual display) User Stations with the first having keyboard and mouse access. The image below provides an example of the setup without the actual physical connections or possible device connections.

Note: User Station Video Groups cannot be used with a Video Wall or Profile.

Hardware Setup

1. Connect each Transmitter to the network and to a DVI port on the computer.

2. Connect one Transmitter's - console & KVM ports to their respective device (keyboard/mouse/computer).

3. Setup the Receivers as you normally would. All Receivers can have a keyboard and mouse but only one (Video 1) can work on the computer for the group.

4. Note the Receiver and Transmitter with keyboard and mouse access (to the computer) so they can be set in the User Station Video Group (as Video 1) and in the Channel (as KVM Transmitter).

Adding a User Station Video Group

1. Add the User Stations (Adding a User Station, page 93) and Transmitters (Adding a Transmitter, page 104) to the KE Management software.
2. On the left Sidebar select User Station Video Group.

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Profiles Video Wall Welcome to the Matrix Manager User Station Video Group General Name: Description: User Station Video Group Videos 1 : Videos 2 : Videos 3 : Videos 4 : Unmanaged User Stations User Station Video Group Group 1 group 2 Logout Save

1. Provide a Name and Description for the group.

User Station Video Group Name: Description: General User Station Video Group Video 1: Video 2: Video 3: Video 4:

1. Use the Video 1 drop-down menu to select the Receiver that will have keyboard and mouse access to the computer.

Note: All Receivers can switch KVM access to other Transmitters but only Video 1 has keyboard and mouse access to the computer for the group.

1. Use the Video 2, Video 3 and Video 4 drop-down menus to select the other Receivers for the group.

2. Click Save. The group appears in the Sidebar.

3. On the menu bar, go to Channels.

4. Add a new Channel.

Channel Info Groups Permissions General Name: Location: Description: Source Stream KVM Transmitter: Video 2 : Video 3 : Video 4 : Audio Transmitter: USB Transmitter: Serial Transmitter: Allowed Access Mode ✓ View Only ✓ Share ✓ Occupy ✓ Exclusive

1. Set the Source Stream to map the Transmitters to the User Station Video Group Receivers, as such: KVM Transmitter → Video 1; Video 2 → Video 2; Video 3 → Video 3; Video 4 → Video 4.

- Use the KVM Transmitter drop-down menu to select the Transmitter connected to the computer’s keyboard and mouse ports.

Use the Video 2, Video 3 and Video 4 drop-down menus to select the other Transmitters connected to the computer.

- Use the Audio, USB and Serial drop-down menus to select the Transmitter for each source signal. The Transmitter selected sends the signal to the Receiver set with the same Video #

1. Configure the remaining Channel settings (see Adding a Channel, page 112).

2. Click Save.

Transmitters

The Transmitters page allows you to add, configure, and delete Transmitters. The Sidebar provides two options: Transmitters and Unmanaged

Transmitters. Unmanaged Transmitters are Transmitters on the network that haven't been added to the KE Management software. For the KE Management software to discover a Transmitter, it must be connected to the local network with an IP address.

Click Transmitters from the menu bar and the following screen appears:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Profile Videos Wall Welcome to the KE Matrix Manager Transmitters KE6900T4_Dante KE6940T2 KE6900T1_EJ KE6940T-Edward KE6940T6 Unmanaged Transmitters ID Name Model Name Access Mode Status Address Streams 081074A901260000 KE6900T4_Dante KE5900T Desktop Off 192.158.1.24 VIAUIS 081074A901330000 KE6940T2 KE5940T Desktop On 192.158.1.22 VIAUIS 081074A901230000 KE6900T1_EJ KE5900T Desktop On 192.158.1.21 VIAUIS 081074A901360000 KE6940T-Edward KE5940T Desktop On 192.158.1.25 VIAUIS 081074A901340000 KE6940T6 KE5940T Desktop On 192.158.1.26 VIAUIS Logout Move Out Modify

The main page provides an overview of each Transmitter. The Sidebar provides a link with a more detailed view of each.

The meanings of the headings at the top of the page are straightforward.

ID refers to the identification number assigned by the system.
- Name refers to the name entered on the Transmitter's System page.
◆ Model Name refers to the Transmitter's model number.
- Access Mode refers to the Transmitter's mode set in the Properties.
- Status refers to the Transmitter’s online status.
- Address refers to the IP address of the Transmitter.
- Streams refers to the source type that the Transmitter is configured to stream: Video, Audio, USB, or Serial.

Adding a Transmitter

To add a Transmitter, do the following:

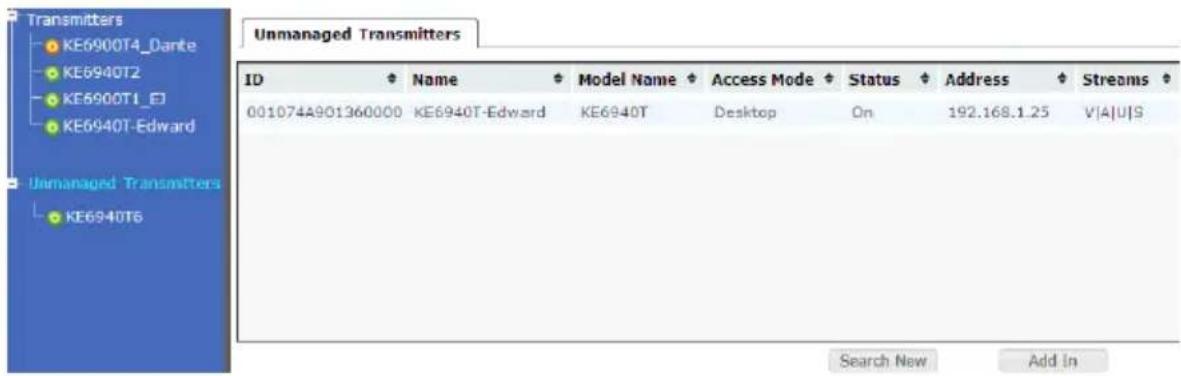

1. From Unmanaged Transmitters, select a Transmitter and click Add in:

Transmitters KE6900T4_Dante KE6940T2 KE6900T1_ED KE6940T-Edward Unmanaged Transmitters KE6940T6 Unmanaged Transmitters ID Name Model Name Access Mode Status Address Streams 001074A901360000 KE6940T-Edward KE6940T Desktop On 192.168.1.25 V|A|U|S Search New Add In

or click Search New:

Search Devices Please input search scope. Search Local Search Subnet Search by IP Search Cancel

You can search for a device by Local, Subnet, or IP address. Select a scope, enter the information and click Search.

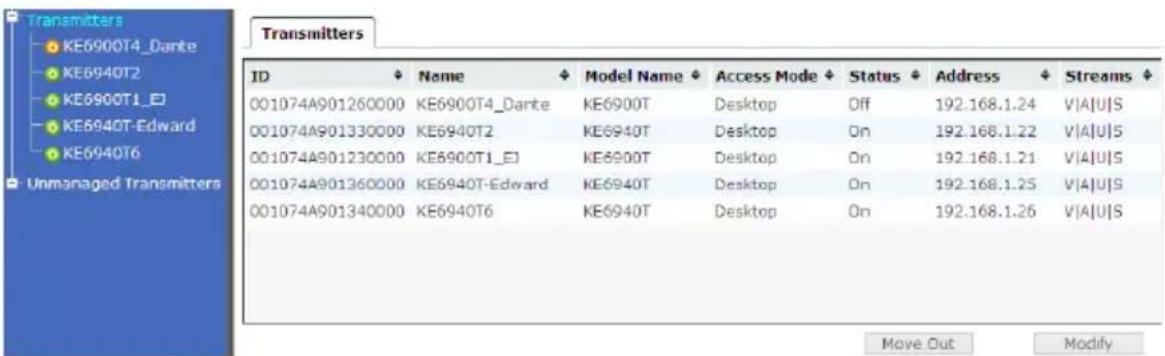

1. Once added, the Transmitter appears on the Transmitters main page and Sidebar menu:

Transmitters KE6900T4_Danke KE6940T2 KE6900T1_E3 KE6940T-Edward KE6940T6 Unmanaged Transmitters ID Name Model Name Access Mode Status Address Streams 001074A901260000 KE6900T4_Danke KE6900T Desktop Off 192.168.1.24 V|A|U|S 001074A901330000 KE6940T2 KE6940T Desktop On 192.168.1.22 V|A|U|S 001074A901230000 KE6900T1_E3 KE6900T Desktop On 192.168.1.21 V|A|U|S 001074A901360000 KE6940T-Edward KE6940T Desktop On 192.168.1.25 V|A|U|S 001074A901340000 KE6940T6 KE6940T Desktop On 192.168.1.26 V|A|U|S Move Out Modify

Configuring a Transmitter

A Transmitter's settings can be modified from the Transmitters main page. Changes that are saved are updated on the Transmitter device across the network. To configure a Transmitter:

1. Select a Transmitter and click Modify.

ALTUSEN Matrix Manager Dashboard Devices Management User Management System Logs Maintenance User Stations Transmitters Channels Profiles Video Wall Welcome to the KE Matrix Manager Transmitters KE6900T4_Dante KE6940T2 KE6900T1_EJ KE6940T-Edward KE6940TG Unmanaged Transmitters ID Name Model Name Access Node Status Address Streams 001074A901260000 KE6900T4_Dante KE6900T Desktop Off 192.168.1.24 VIAUIS 001074A901330000 KE6940T2 KE6940T Desktop On 192.168.1.22 VIAUIS 001074A901230000 KE6900T1_EJ KE6900T Desktop On 192.168.1.21 VIAUIS 001074A901360000 KE6940T-Edward KE6940T Desktop On 192.168.1.25 VIAUIS 001074A901340000 KE6940T6 KE6940T Desktop On 192.168.1.26 VIAUIS Move Out Modify

1. The Network tab appears with the Transmitter's IP address settings:

Network Properties System IP Installer Enabled View Only Disabled Network Configuration Obtain IP address automatically Set IP address manually IP Address: 192.168.1.44 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.254

Item Description
IP Installer The IP	Installer is an external Windows-based utility for assigning IP addresses to the device. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility. (See IP Installer, page 222)For security, we strongly recommend that you set this to View Only or Disable after each use.
Network Configuration	For dynamic IP address assignment, select the Obtain IP address automatically radio button.To specify a fixed IP Address, Subnet Mask, and Default Gateway, select the Set IP address manually radio button and fill in the fields with values appropriate for your network.For information to configure the network settings locally on the device see Network Configuration, page 44.

3. Click the Properties tab to configure the Transmitter's properties:

Network Properties System Mode ○ Extender ● Matrix RS232 Settings Baud Rate: 115200 Parity: None Data Bits: 8 bits Stop Bits: 1 bit Flow Control: None Properties Port OS: Win OS Language: English (US) ✓ Enable Multicast Video ✓ Enable Multicast Audio EDID Mode Selection: Default Enable Media ✓ Video ✓ Audio ✓ USB ✓ RS232 Manager Address Manager IP: 192.168.0.69 Manager Port: 9110 Transmitter Video Setting Video Type: Digital(DVI-D) Video Quality: 5 Color Depth: 24 bits Background Refresh: Every 32 frames(s) Bandwidth Limit: Unlimited Beeper ✓ Enable Occupy Timeout 5 sec(1-240)

Item Description
Mode	Select Extender mode for simple one-to-one (Transmitter to User Station) setups that are managed with the Receiver's OSD menu.Select Matrix mode to manage devices and connections from the KE Management software. This mode is for advanced administration of Transmitter to User Station connections.(See Channel Connections, page 110)
Properties	Port OS: Use the drop-down menu to select the operating system of the computer connected to the Transmitter.OS Language: Use the drop-down menu to select the operating system language of the computer connected to the Transmitter.Enable Multicast Video: Check this box to allow a broadcast of the Transmitter's video signal to be sent to multiple User Stations.Enable Multicast Audio: Check this box to allow a broadcast of the Transmitter's audio signal to be sent to multiple User Stations.EDID Mode Selection: EDID contains a display's basic information and is used by the source device to utilize the best resolution across different monitors. Select how you want the source device to acquire the display's EDID:Default: EDID is set to the default ATEN configuration. This setting must be used when connecting KE6900 devices to KE8950 devices.Auto: Checks the EDID of all connected displays and uses the best resolution for all displays.Manual: Manually set the EDID configuration from the User Station's OSD (see Manual EDID, page 62).Remix: Checks the EDID of all connected displays and the source device uses the best common resolution for all displays.
Enable Media	Select which source type the Transmitter can stream: Video, Audio, USB and RS232.
RS232 Settings C	Configure the serial device settings for the Transmitter. The default settings are:Baud Rate: 9600Parity: NoneData Bits: 8 bitsStop bits: 1 bitFlow Control: None
Manager Address	Set the Manger IP address and Manager Port number of the computer running the KE Management software. The default port number is 9110.
TransmitterVideo Setting	These refer to the Transmitter's video settings:Video Type: Select the DVI video connector being used by the display: Digital (DVI-D) or Digital (DVI-I). This option is only available for KE6900 units.Color Depth: Select the number of bits to use for the color depth: 24, 16, or 8. This is the number of bits used to describe the color of a single pixel. A bit depth determines the number of colors that can be displayed at one time.Bandwidth Limit: Select the maximum bandwidth that the Transmitter can use to transmit video over the network. A lower bandwidth transmits lower quality video; a higher bandwidth sends higher quality video but this can affect network speed.Video Quality: Select the video quality to use. 5 is the highest video quality, and 1 is the lowest video quality. Options are: 1~5.Background Refresh: Sets how often the Transmitter refreshes the background image on the connected display. Options are to refresh every 256,128, 64, 32,16, or 0 frames.
Beeper Check this	box for the Transmitter to beep when a configuration change is made.
Occupy Timeout Set	Set a time threshold for User Stations whose Access Mode has been set to Occupy If there is no activity from the User Station occupying the port for the amount of time set here, the User Station is timed out and the port is released. The first User Station to send keyboard or mouse input after the port has been released gets to occupy the port. Input a value from 1 to 240 seconds.

4. Click the System tab configure the general settings:

Network Properties System General Name: KE6900T4_Dante Location: Description: IP Address: 192.168.1.24 MAC Address: 00:10:74:a9:01:26 F/W Version: 1.1.105 Serial Number: Model Name: KE6900T Reboot Reset to factory default Reboot Transmitter Password Change Enable Password Old Password: ********** New Password: ********** Confirm Password: ********...

Item Description
General	Enter the Name, Location, and Description of the Transmitter. This section also displays the IP Address, MAC Address, F/W Version, Serial Number, and Model Number.
Reboot	Check the box and click Reboot to reset the Transmitter's settings back to the factory default. All custom settings will be lost.
Transmitter Password Change	Check Enable to require a password to access to the Transmitter's OSD configuration screens (see page 49). Enter the Old Password, enter a New Password, and confirm the new password in the Confirm Password box.

1. After entering the information, click Save.

Deleting a Transmitter

To delete a Transmitter:

1. Select the Transmitter you want to delete.

2. Click Move Out.

The device list updates with the remaining Transmitters. The Transmitter you deleted will appear on the Unmanaged Transmitters main page and Sidebar menu.

Channel Connections

With Channel connections a User Station can connect to multiple Transmitters, individually or simultaneously and stream the Video, Audio, USB, and Serial source from different Transmitters. For example: you can create a Channel that connects to four Transmitters to access a different source on each computer, as shown below:

Create Channels to allow User Stations to connect to any Transmitters you have setup- individually or simultaneously. The Channel defines the connection to the sources. At the User Stations you can select the Channel connections you create. To setup Channels: first create a Channel that defines the connection, then create a Profile to give the User Station(s) access to the Channel. Instructions are provided on the pages that follow.

Channels

A Channel defines the Transmitter connections for a User Station. This allows a User Station to connect to different Transmitters and stream sources from different Transmitters, depending on how the Channel is defined. Once Channels are created you can select them from the User Station's Connection Page (see Connecting, page 60).

Click Channels from the menu bar and the following screen appears:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Profiles Video Wall Welcome to the KE Matrix Manager Channel List ID Name Bound Stream Video TX Audio TX USB TX RS232 TX 001074A901260000 KE6900T4_Dante YES VIAUIS KE6900T4_Dante KE6900T4_Dante KE6900T4_Dante 001074A901330000 KE6940T2 YES VIAUIS KE6940T2 KE6940T2 KE6940T2 001074A901230000 KE6940T1_E1 YES VIAUIS KE6940T1_E1 KE6940T1_E1 KE6940T1_E1 001074A901360000 KE6940T-Edward YES VIAUIS KE6940T-Edward KE6940T-Edward KE6940T-Edward 001074A901343000 KE6940T6 YES VIAUIS KE6940T6 KE6940T6 KE6940T6 Add Modify Delete

The main page provides an overview of each Channel. The Sidebar provides a link with a more detailed view of each.

The meanings of the headings at the top of the page are straightforward.

ID refers to the identification number assigned by the system.
- Name refers to the name entered on the Channel’s Info page.
Bound states whether the Channel's connections are all bound to the same Transmitter.
- Streams refers to the source type that the Channel is configured to stream: Video, Audio, USB, or Serial.
- Video TX, Audio TX, USB TX, RS232 TX lists the Transmitter's name for each source stream.
- Click Modify to change the selected Channel’s settings.
- Click Add to create a new Channel.
- Click Delete to remove the selected Channel.

Adding a Channel

To add a Channel, do the following:

1. From the Channels main page, click Add:

Channel List ID Name Bound Stream Video TX Audio TX USB TX RS232 TX 001074A901260 KE6900T4_Dante YES V[A]U$ KE6900T4_Dante KE6900T4_Dante KE6900T4_Dante 001074A901330 KE6940T2 YES V[A]U$ KE6940T2 KE6940T2 KE6940T2 KE6940T2 001074A901230 KE6900T1_EJ YES V[A]U$ KE6900T1_EJ KE6900T1_EJ KE6900T1_EJ 001074A901360 KE6940T-Edward YES V[A]U$ KE6940T-Edward KE6940T-Edward KE6940T-Edward 001074A901340 KE6940T6 YES V[A]U$ KE6940T6 KE6940T6 KE6940T6 Add Modify Delete

1. The Channel Info tab appears with the general settings:

Channel Info Groups Permissions General Name: Location: Description: Source Stream KVM Transmitter: Video 2 : Video 3 : Video 4 : Audio Transmitter: USB Transmitter: Serial Transmitter: Allowed Access Mode View Only Share Occupy Exclusive

Item Description
General	Enter a Name, Location, and Description for the Channel.
Source Stream Use	the drop-down menu to select the Transmitter to use for each of the Channel's source stream: KVM (keyboard/video/mouse), Audio, USB, and Serial.
Allowed Access Mode	Check the box for the type of access mode you want to allow on this Channel. This defines how the Channel can be accessed when multiple users access it.View Only: Users only have view access to the Channel's video display.Share: Users simultaneously share control over the Channel.Input from the users is placed in a queue and executed chronologically.Occupy: The first user to access the Channel has control over the Channel. However, additional users may view the Channel's video display. If the user who controls the Channel is inactive for longer than the time set in the Timeout box (see Occupy Timeout, page 108), Channel control is transferred to the first user to move the mouse or strike the keyboard.Exclusive: The first user to access the Channel has exclusive control over the Channel. No other users can view the Channel. The Timeout function does not apply to Channels which have this setting.

1. Click the Groups tab to add the Channel to Channel Groups:

Channel Info Groups Permissions Available Selected >< > Save

Select a Channel Group from the Selected column and use the left arrow to add the Channel to the group. Select a Channel Group from the Available column and use the right arrow to remove the Channel from the group. See Channel Groups, page 115 for details.

4. Click the Permissions tab to set the Channels access rights:

Channel Info Groups Permissions

Users/Groups	View Only	Share	Occupy	Exclusive
▼ Users
radius001	□	□	□	□
test	√	□	□	□
user002	□	□	□	□
user003	□	□	□	□
▼ Groups
GP_Test	□	□	□	□
GP_ThirdParty	√	□	□	□

Save

Item Description

Users/Groups You

can assign individual access rights to Users and Groups for the Channel by checking the appropriate boxes:View Only: Only has view access to the Channel's video display.Share: Can simultaneously share control over the Channel.Input from the users is placed in a queue and executed chronologically.Occupy: The first user to access the Channel has control over the Channel. However, additional users may view the Channel's video display. If the user who controls the Channel is inactive for longer than the time set in the Timeout box (see Occupy Timeout, page 108), Channel control is transferred to the first user to move the mouse or strike the keyboard.Exclusive: The first user to access the Channel has exclusive control over the Channel. No other users can view the Channel.The Timeout function does not apply to Channels which have this setting.

5. After entering the information, click Save.

Channel Groups

Channel Groups allow administrators to easily and efficiently manage users and Channels. Since Channel Group access rights apply to any Channel that is a member of the group, administrators need only set them once for the group, instead of having to set them for each Channel individually. Multiple groups can be defined to allow some users access to specific Channels, while restricting other users from accessing them.

Adding a Channel Group

To add a Channel Group, do the following:

1. Select Channel Groups from the Channel Sidebar menu, and click Add:

Channels KE6900T4_Dante KE6940T2 KE6900T1_E KE6940T-Edward KE6940T6 Channel Groups TG_ThirdParty Channel Group List Name Description TG_ThirdParty Add Modify Delete

1. The Channel Group tab appears with the general settings:

Channel Group Members Permissions General Group Name: TG_ThirdParty Description: Save

Item Description
General	Enter a Name and Description for the Channel Group.

1. Click the Members tab to add Channels to the group:

Channel Group Members Permissions Available Selected KE6900T4_Dante KE6940T2 KE6900T1_EJ KE6940T6 KE6940T-Edward >< > Save

Select a Channel from the Selected column and use the left arrow to add it to the group. Select a Channel from the Available column and use the right arrow to remove it from the group.

1. Click the Permissions tab to set the group access rights:

Channel Group Members Permissions Users/Groups View Only Share Occupy Exclusive ▼ Users radius001 ✓ □ □ □ test □ □ □ □ user002 ✓ □ □ □ user003 ✓ □ □ □ ▼ Groups GP_Test □ □ □ □ GP_ThirdParty □ □ □ □ Save

Item Description

Users/Groups

You can assign the access rights to Users and Groups for the Channel Group by checking the appropriate boxes:View Only: Has view access to the Channel video display.Share: Simultaneously share control of the Channel. Input from the users is placed in a queue and executed chronologically.Occupy: The first user to access the Channel has control over the Channel. However, additional users may view the Channel's video display. If the user who controls the Channel is inactive for longer than the time set in the Timeout box (see Occupy Timeout, page 108), Channel control is transferred to the first user to move the mouse or strike the keyboard.Exclusive: The first user to access the Channel has exclusive control. No other users can view the Channel. The Timeout function does not apply to Channels which have this setting.

1. After entering the information, click Save.

Profiles

Profiles are created for Channels to allow User Station access to the connection. Create a Profile for a Channel and assign access for each User Station.

Click Profiles from the menu bar and the following screen appears:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stabors Transmitters Channels Profiles Video Wall Welcome to the Matrix Manager Profile List ID Name Description Operation 9 r25 Connect Disconnect 20 111111 Connect Disconnect 21 22222 Connect Disconnect 22 3333333 Connect Disconnect 23 4444444 Connect Disconnect 24 12345 Connect Disconnect Add Modify Delete

The main page provides an overview of each Profile. The Sidebar provides a link with a more detailed view of each Profile.

The meanings of the headings on the Profile List are straightforward.

ID refers to the identification number assigned by the system.
- Name refers to the name entered on the Profile’s Settings page.*
◆ Description refers to the description entered on the Profile’s Settings page.
Operation allows you to click Connect to send a Profile's settings to the Transmitters and User Stations, or Disconnect to remove a Profile's settings from the Transmitters and User Stations.
- Click Add to create a new Profile.
- Click Modify to change the selected Profile’s settings.
- Click Delete to remove the selected Profile.

Note: Profiles and Video Walls can not share the same name.

Adding a Profile

To add a Profile, do the following:

1. From the Profile main page, click Add:

Profiles r25 111111 22222 3333333 4444444 12345 Profile List ID Name Description Operation 9 r25 Connect Disconnect 20 111111 Connect Disconnect 21 22222 Connect Disconnect 22 3333333 Connect Disconnect 23 4444444 Connect Disconnect 24 12345 Connect Disconnect Add Modify Delete

1. The Profile Settings tab appears with the Profile and access settings:

Profile Settings Schedule Permissions Filter: User Station | Channel Name: Description: Access Mode: ○ View Only ● Share ○ Occupy ○ Exclusive Permission Check: □ User stations are required login before connecting Lock OSD: □ Lock OSD when connecting Channel KE6900R 23 KE6940R 24 KE6940R 25 KE6940R 26 KE6900T 33 □ □ □ □ KE6940T 34 □ □ □ □ KE6940T 35 □ □ □ □ KE6940T 36 □ □ □ □ Connect Disconnect Save

Item Description
Name/Description	Enter a Name and Description for the Channel.
Access Mode	This defines how the Channel in the Profile can be accessed by User Stations when multiple users access it.View Only: Users only have view access to the Channels video display.Share: Users simultaneously share control over the Channel. Input from the users is placed in a queue and executed chronologically.Occupy: The first user to access the Channel has control over the Channel. However, additional users may view the Channel's video display. If the user who controls the Channel is inactive for longer than the time set in the Timeout box (see Occupy Timeout, page 108), Channel control is transferred to the first user to move the mouse or strike the keyboard.Exclusive: The first user to access the Channel has exclusive control over the Channel. No other users can view the Channel. The Timeout function does not apply to Channels which have this setting.
Permission Check	Checking this box requires a user with access rights (permissions) to be logged into the User Station's OSD when the Profile attempts to connect. If a user is not logged into the OSD or the user account does not have permission to make the Profile connection, the connection fails and will not re-connect.
Lock OSD Check	Checking this box will lock the User Station's OSD so that it can not be invoked while the Profile is connected. All mouse/keyboard functions work on the computer but the OSD can not be accessed.
Channel This	table lists all the Channels and User Stations available.Checking a box enables the User Station to use the Channel connection, listed to the left. The Channel will appear on the User Station's Connection Page (See Connections Page, page 61), allowing you to connect to it.
Connect	Clicking Connect will send the Profile settings to the User Stations to connect to the Transmitters accordingly.
Disconnect	Clicking Disconnect sends a command to the User Stations to disconnect from the Transmitters defined in the profile.
Save Click Save to add the connection profile to the Profile List.

1. Click the Schedule tab if you want to schedule a time for the Profile to connect. A pop-up window appears:

Schedule Routine Type Once Start Date 08/18/2015 End Date 08/20/2015 Connect Time(HH:MM) 00:00 Disabled Disconnect Time(HH:MM) 00:00 Disabled Add Cancel

Item Description
Routine Type	Use the drop-down menu to select how often you would like the profile to run: Once, Daily, Weekly and Monthly. If you select Weekly/ Monthly an additional drop-down menu appears to select the Week Day/Month Day on which the profile will run.
Start Date	Enter the date on which you want the schedule to begin running.
End Date	Enter the date on which you want the schedule to stop running.
Connect Time	Enter the time of day that you want the profile to connect.
Disconnect Time	Enter the time of day that you want the profile to disconnect.
Every	If you select a Monthly or Weekly Routine Type, the Every box appears allowing you to enter how often you want the schedule to run. For example, every 2, 3 or 4 weeks/months. If you want to run the schedule once a week or once a month, leave the default entry of 1.

1. Click Add after you have configured the schedule.
2. Click the Permissions tab to set the Profile's access rights:

Preset Settings	Schedule	Permissions	show: all checked und checked
Users/Groups		Operation
▼ Users		□
user0002		□
user0003		□
user0004		□
▼ Groups		□
		Connect	Disconnect Save

Item Description

Users You must assign access rights for the profile by selecting the Operation check box for the Users that you want to grant permission to allow the profile connections.

Groups You must assign access rights for the profile by selecting the Operation check box for the Groups that you want to grant permission to allow the profile connections.

1. After entering the information, click Save.

Video Wall

The Video Wall settings allow you to create a video wall by selecting a Transmitter for a set of User Stations that will display video content as one screen. A video wall is considered a connection from a Transmitter to multiple User Stations. Therefore, each source (Transmitter) on a video wall needs a separate Video Wall setting created in the KE Management software.

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance User Stations Transmitters Channels Profiles Video Wall Welcome to the Matrix Manager Video Wall List ID Name Description Source Channel Operation 5 Test1 KE6040T 35 Connect Disconnect 6 test2 KE6940T 35 Connect Disconnect 7 3x3 KE6940T 35 Connect Disconnect 8 8x8 KE6940T 35 Connect Disconnect 10 1 Connect Disconnect 11 2 Connect Disconnect 12 3 Connect Disconnect 13 4 Connect Disconnect 14 5 Connect Disconnect 15 6 Connect Disconnect 16 7 Connect Disconnect 17 8 Connect Disconnect 18 9 Connect Disconnect Add Modify Delete

The main page provides an overview of each Video Wall.

The meanings of the headings on the Video Wall List are straightforward.

ID refers to the identification number assigned by the system.
- Name refers to the name entered on the Video Wall's Settings page.*
- Description refers to the description entered on the Video Wall's Settings page.
Source Channel refers to the Transmitter selected for the User Stations.
Operation allows you to click Connect to send the settings to start the Video Wall connections. Use Disconnect to remove the Video Wall settings from the Transmitter and User Station(s).

• Click Add to create a new Video Wall.
• Click Modify to change the selected Video Wall’s settings.
• Click Delete to remove the selected Profile.

Note: Profiles and Video Walls can not share the same name.

Video Wall Example

The diagram below shows a 3x3 video wall setup with three Transmitters (video sources) connected to nine User Stations. In this scenario, three Video Wall settings (A, B, C) need to be added to the Matrix Manger.

Adding a Video Wall

To add a Video Wall, do the following:

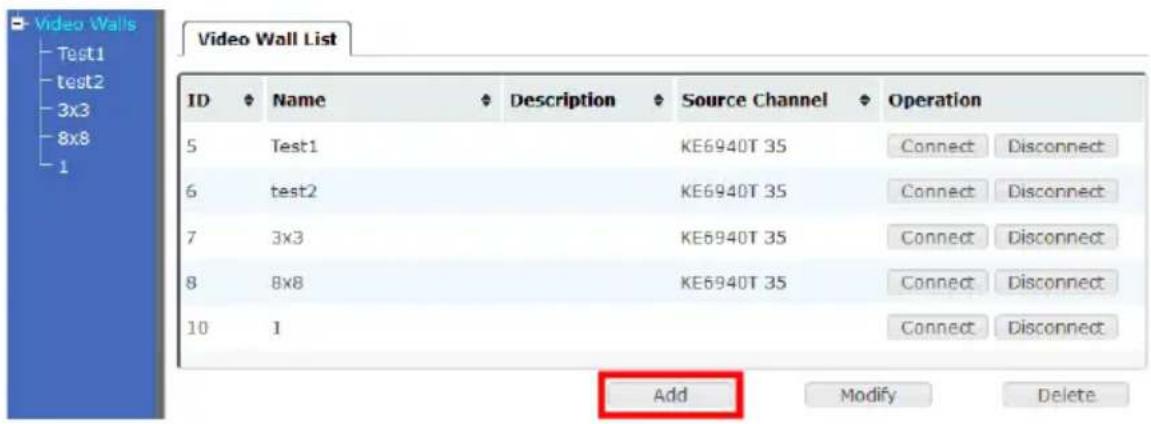

1. From the Video Wall main page, click Add:

Video Wall List ID Name Description Source Channel Operation 5 Test1 KE6940T 35 Connect Disconnect 6 test2 KE6940T 35 Connect Disconnect 7 3x3 KE6940T 35 Connect Disconnect 8 8x8 KE6940T 35 Connect Disconnect 10 1 Connect Disconnect Add Modify Delete

1. The Video Wall Settings tab appears allowing you to configure the settings:

Video Wall Settings Schedule Permissions Name: 2 Description: Access Mode: View Only Share Occupy Source Channel: Number of Display: 3 x 3 Bezel Dimension: 10 $10 (unit: mm) Scale Mode: Stretch Fit Width Fit Height Video Wall Layout: Connect Disconnect Save

Item Description
Name/Description	Enter a Name and Description for the Video Wall.
Access Mode	This defines how the Source Channel (Transmitter) can be accessed by User Stations when multiple users attempt to access it.View Only:Users only have view access to the Source Channel video output.Share:Users simultaneously share control over the Source Channel. Input from the users is placed in a queue and executed chronologically.Occupy:The first user to access the Source Channel has control over it. However, additional users may view the Source Channel's video display. If the user who controls the Source Channel is inactive for longer than the time set in the Timeout box (see Occupy Timeout, page 108), control is transferred to the first user to move the mouse or strike the keyboard.
Source Channel	Click inside this box to bring up a list of Transmitters that can be select as the video source for the video wall, as shown below:Note:For KE6940T devices, only the DVI-I Input 1 port can be used as the source channel.
Number of Displays	Use the two slide bars to set the number of vertical and horizontal displays for the video wall.
Bezel Dimension	Sets the vertical and horizontal line size between each display in the video wall.
Scale Mode Sets the scaling for the video output on the displays:♦ Stretch:fits the video on the entire display.♦ Fit Width:fits the video to the width of the display.♦ Fit Height:fits the video to the height of the display.
Video Wall Layout	Click inside a box to bring up a list of User Stations that can be selected as the video output for that portion of the video wall.KE6900R 23(192.168.0.23)KE6940R 24(192.168.0.24):1KE6940R 24(192.168.0.24):2KE6940R 25(192.168.0.25):1
Connect	Clicking Connect will send the Video Wall settings to the Transmitters and User Stations and will connect the devices accordingly.

1. Click the Schedule tab if you want to schedule a time for the video wall to connect. A pop-up window appears:

Schedule Routine Type Once Start Date 08/18/2015 End Date 08/20/2015 Connect Time(HH:MM) 00:00 Disabled Disconnect Time(HH:MM) 00:00 Disabled Add Cancel

Item Description
Routine Type	Use the drop-down menu to select how often you would like the video wall to run: Once, Daily, Weekly and Monthly. If you select Weekly/ Monthly an additional drop-down menu appears to select the Week Day/Month Day on which the profile will run.
Start Date	Enter the date on which you want the schedule to begin running.
End Date	Enter the date on which you want the schedule to stop running.
Connect Time	Enter the time of day that you want the video wall to connect.
Disconnect Time	Enter the time of day that you want the video wall to disconnect.
Every	If you select a Monthly or Weekly Routine Type, the Every box appears allowing you to enter how often you want the schedule to run. For example, every 2, 3 or 4 weeks/months. If you want to run the schedule once a week or once a month, leave the default entry of 1.

1. Click Add after you have configured the schedule.
2. Click the Permissions tab to set the Video Wall's access rights:

Preset Settings Schedule Permissions show: all checked unchecked Users/Groups Operation ▼ Users □ user0002 □ user0003 □ user0004 □ ▼ Groups □ Connect Disconnect Save

Item Description

Users You must assign access rights for the Video Wall by selecting the Operation check box for the Users that you want to grant permission to allow the connections.

Groups You must assign access rights for the Video Wall by selecting the Operation check box for the Groups that you want to grant permission to allow the connections.

1. After entering the information, click Save.

Overview

User Management has two menu bar items used to create Accounts and Groups. The User Management tab opens on the Accounts page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Accounts Groups Welcome to the Matrix Manager Users Administrator test_act Brett Larry Frank George User List Username User Type Account Status Description administrator Administrator Activated George User Activated Station User Frank User Activated Local User Larry Administrator Activated Admin (2) Brett Administrator Activated Admin test_act Administrator Activated Add Modify Delete

The page is organized into two main areas: the Sidebar at the left, and the large main panel at the right.

- Users and groups appear in the panel at the left of the page. The large panel at the right provides more detailed information at-a-glance for each.

There are menu bar entries for Accounts (Users) and Groups. Depending on the menu item selected, either Users or Groups are listed in the Sidebar.

- The sort order of the information displayed can be changed by clicking the main panel column headings.

- The buttons below the main panel are used to manage users and groups, as shown in the sections that follow.

Users

The KE Management software supports three types of user accounts, shown in the table bellow:

User Type Role
Administrator Access and	management of the KE Management software, including configuration and setting up of devices. Manage Users, Groups, Channels, Profiles and Video Walls. Configure personal working environments.
Super User Access User	Station to connect Channels and Profiles they have been given permission for.
User Access User Stations	to connect to Channels they have been given permission for.

Adding Users

To add a user, do the following:

1. Select Users in the Sidebar.
2. Click Add at the bottom of the main page. The User tab opens:

User Groups Devices Presets/Video Walls General Username: ✓ Local User Password: ••••••••••••••••••• Confirm Password: •••••••••••••••••• Description: Role ○ Administrator ● Super User ○ User Status □ Disable account

Save

Enter the required information in the fields provided. A description of each is given in the table below:

Field Description
Username From 1 to 16 characters are allowed depending on the Account Policy settings.
Local User	Check the Local User box if the account is for logging in to the KE Management software or a User Station (Receiver).Uncheck the Local User box if the account is authenticated with a 3rd party external source, such as RADIUS, LDAP/AD, or TACACS+. See ANMS, page 147 for details.
Password From 0 to 1	6 characters are allowed depending on the Account Policy settings.
Confirm Password To	be sure there is no mistake in the password, you are asked to enter it again. The two entries must match.
Description Additional	information about the user that you may wish to include.
Role There are three	account categories: Administrator, Super User and User.The Administrators have full access to make changes within the KE Management software, which includes adding and removing Transmitters and Receivers, user accounts, preferences, and configuration settings.The Super Users have access to the OSD on User Stations and can connect Channels and Profiles.The Users can log in from User Stations to connect channels.
Status Status allows	you to control the user's account and access to the installation, as follows:Disable Account lets you suspend a user's account without actually deleting it, so that it can be easily reinstated in the future.

1. At this point you can assign the new user to a group by selecting the Groups tab – the Groups page is discussed on page 133. You can assign the user's Channels and Groups access rights by selecting the Devices tab – as discussed on page 137. You can assign the user's Profiles and Video Walls access rights by selecting the Profiles/Video Walls tab – as discussed on page 140.

Note: Optionally, you can skip this step now to add more users and create groups, and come back to it later.

1. When your selections have been made click Save.

2. When the Operation Succeeded message appears, click OK.

3. Click Users in the Sidebar to return to the main screen. The new user appears in the Sidebar list and in the main panel, as well.

4. The Sidebar Users list can expand and collapse. If the list is expanded, click the minus symbol (−) next to the Users icon to collapse it; if it is collapsed there is a plus symbol (+) next to the icon. Click the plus symbol to expand it.

5. The icon for administrators is orange; the icon for users is green.
6. The large main panel shows the user’s name; the description that was given when the account was created; and whether the account is currently active or has been disabled.

Modifying User Accounts

To modify a user account, do the following:

1. In the Sidebar User list, click the user's name

- or -

In the main panel, select the user's name

1. Click Modify.

2. In the User page that comes up, make your changes, then click Save.

Note: The User page is discussed on page 128; the Groups page is discussed on page 133, the Devices page is discussed on page 137.

Deleting User Accounts

To delete a user account do the following:

1. In the main panel, select the user's name.
2. Click Delete.
3. Click OK.

Groups

Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually. Multiple groups can be defined to allow some users access to specific devices, while restricting other users from accessing them.

Creating Groups

To create a group, do the following:

1. Select Groups on the menu bar.
2. Click Add at the bottom of the main panel. The Group notebook opens, with the Group tab selected:

Group Members Devices General Group Name: Description: Save

1. Enter the required information in the appropriate fields. A description of each of the fields is given in the table below:

Field Description
Group Name A maximum of	16 characters is allowed.
Description Additional information about the user that you may wish to include. A maximum of 63 characters is allowed.

1. At this point you can assign users to the group by selecting the Members tab – the Members page is discussed on page 135. You can also assign the group's Channels and Channel Groups access rights by selecting the Devices tab – the Devices page is discussed on page 137.

2. When your selections have been made click Save.

3. When the Operation Succeeded message appears, click OK.

4. Click Group in the Sidebar to return to the main screen. The new group appears in the Sidebar Group list and in the main panel.

5. The Sidebar Group list can expand and collapse. If the list is expanded, click the minus symbol (−) next to the Users icon to collapse it; if it is collapsed there is a plus symbol (+) next to the icon. Click the plus symbol to expand it.

6. The large main panel shows the group’s name, and the description that was given when the group was created

Repeat the above procedure to add additional groups.

Note: You must perform Step 7 before attempting to add a new group, or else the new group you are creating will replace the group you just finished creating.

Modifying Groups

To modify a group, do the following:

1. In the Sidebar Group list, click the group's name

2. or -
   In the main panel, select the group's name.

3. Click Modify.

4. In the Group notebook that comes up, make your changes, then click Save.

Note: The Group page is discussed on page 131; the Members page is discussed on page 135, The Devices page is discussed on page 137.

Deleting Groups

To delete a group do the following:

1. In the Sidebar, click the Groups icon.
2. In the main panel, select the group's name.
3. Click Delete.
4. Click OK.

Users and Groups

There are two ways to manage users and groups: from the Users notebook; and from the Group notebook.

Note: Before you can assign users to groups, you must first create them. See Adding Users, page 128 for details.

Assigning Users to a Group From the User's Notebook

To assign a user to a group from the User's notebook, do the following:

1. In the Sidebar User list, click the user's name

- or -

In the main panel, select the user's name

1. Click Modify.
2. In the User notebook that comes up, select the Groups tab. A screen, similar to the one below, appears:

User Groups Devices Available G1 G4 G3 G2 Class Selected > < Save

1. In the Available column, select the group that you want the user to be in.
2. Click the Right Arrow to put the group's name into the Selected column.
3. Repeat the above for any other groups that you want the user to be in.
4. Click Save when you are done.

Note: If a user has permissions in addition to the ones assigned to the group, the user keeps those permissions in addition to the group ones.

Removing Users From a Group From the User's Notebook

To remove a user from a group from the User's notebook, do the following:

1. In the Sidebar User list, click the user's name

- or -

In the main panel, select the user's name.

1. Click Modify.
2. In the User notebook that comes up, select the Groups tab. A screen, similar to the one below, appears:

User Groups Devices Available G1 G4 G2 Class Selected G3 > < Save

1. In the Selected column, select the group that you want to remove the user from.
2. Click the Left Arrow to remove the group's name from the Selected column. (It goes back into the Available column.)
3. Repeat the above for any other groups that you want to remove the user from.
4. Click Save when you are done.

Assigning Users to a Group From the Group's Notebook

To assign a user to a group from the Group notebook, do the following:

1. In the Sidebar Group list, click the group's name

- or -

In the main panel, select the group's name.

1. Click Modify.
2. In the Group notebook that comes up, select the Members tab. A screen, similar to the one below, appears:

Group Members Devices Available Brett Frank Larry administrator test_act Selected > < Save

1. In the Available column, select the user that you want to be a member of the group.
2. Click the Right Arrow to put the user's name into the Selected column.
3. Repeat the above for any other users that you want to be members of the group.
4. Click Save when you are done.

Note: If a user has permissions in addition to the ones assigned to the group, the user keeps those permissions in addition to the group ones.

Removing Users From a Group From the Group's Notebook

To remove a user from a group from the Group's notebook, do the following:

1. In the Sidebar Group list, click the group's name

- or -

In the main panel, select the group's name.

1. Click Modify.

2. In the Group notebook that comes up, select the Members tab. A screen, similar to the one below, appears:

Group Members Devices Available Brett Larry administrator Selected Frank test act > < Save

1. In the Selected column, select the user that you want to remove from the group.
2. Click the Left Arrow to remove the user's name from the Selected column. (It goes back into the Available column.)
3. Repeat the above for any other users that you want to remove from the group.
4. Click Save when you are done.

Device

You can assign Channel and Channel Group permissions from the Devices tab. For information on Channels and Channel Groups See Channels, page 111.

Assigning Device Permissions From the User's Notebook

To assign a device permissions to a user from the User's notebook, do the following:

1. In the Sidebar User list, click the user's name

- or -

In the main panel, select the user's name.

1. Click Modify.

2. In the User notebook that comes up, select the Devices tab. A screen, similar to the one below, appears:

User	Groups	Devices	Profiles/Video Walls
Channels/CGroups		View Only	Share	Occupy	Exclusive
▼ Channels		□	□	□	□
KE6900T 33		□	□	□	□
KE6940T 34		□	□	□	□
KE6940T 36		□	□	□	□
KE6940T 35		□	□	□	□
▼ Groups		□	□	□	□

1. Make your permission settings for each device according to the information provided below:

Field Description

Channels Lists the Channels which you can assign access rights to for the user. (See Channels, page 111 for details)

Groups Lists the Channel Groups which you can assign access rights to for the user. (See Channel Groups, page 115 for details)

Columns Check the boxes to apply access rights on the device for the user. This defines how the Channel can be accessed when multiple users access it.View Only: Users can only view the remote screen, and cannot perform operations on it.Share: Users simultaneously share control over the Channel. Input from the users is placed in a queue and executed chronologically.Occupy: The first user to access the Channel has control over the Channel. However, additional users may view the Channel's video display. If the user who controls the Channel is inactive for longer than the time set in the Timeout box, Channel control is transferred to the first user to move the mouse or strike the keyboard.Exclusive: The first user to access the Channel has exclusive control over the Channel. No other users can view the Channel. The Timeout function does not apply to Channels which have this setting.

1. When you have finished making your choices, click Save.
2. In the confirmation popup that appears, click OK.

Assigning Device Permissions From the Groups' Notebook

To assign a device permissions to a Group of users, do the following:

1. In the Sidebar Groups list, click the group's name

- or -

In the main panel, select the group's name.

1. Click Modify.
2. In the Groups notebook that comes up, select the Devices tab.
3. The screen that comes up is the same one that appears in the User's notebook. The only difference is that whatever settings you make apply to all members of the group instead of just one individual member.

Make your device assignments according to the information described under Assigning Device Permissions From the User's Notebook, page 137.

Profiles/Video Walls

You can assign Profile and Video Wall permissions from the Profiles/Video Walls tab. For information on Profiles and Video Walls, see Profiles, page 117 or Video Wall, page 121.

Assigning Profile/Video Wall Permissions From the User's Notebook

To assign a Profile/Video Wall permission to a user from the User's notebook, do the following:

1. In the Sidebar User list, click the user's name

-or-

In the main panel, select the user's name.

1. Click Modify.
2. In the User notebook that comes up, select the Profile/Video Wall tab. A screen, similar to the one below, appears:

Profiles/Video Walls	Operation
Profiles	☐
r25	✓
111111	✓
22222	☐
3333333	✓
Video Walls	☐
Test1	✓
test2	✓
3x3	✓
8x8	✓
1	✓

Save

1. Make your permission settings for each device according to the information provided below:

Field Description
Profiles/Video Walls	Lists the Profiles/Video Walls which you can assign access rights to for the user. (SeeChannels, page 111 for details)
Operation Put a check in the box to grant permission for the user to connect to Profiles/Video Walls.

1. When you have finished making your choices, click Save.

Chapter 9 System

Overview

The System tab is used to configure the KE Management system settings and provides three menu bar items: Global Settings, ANMS and Redundancy. The System tab opens on the Global Settings page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Global Settings ANMS Redundancy Welcome to the Matrix Manager Global Settings General Matrix Manager Name: Matrix Manager Description: Network Ports HTTP Port: 080 HTTPS Port:443 Device Port: $110 Allowed Access Mode View Only Share Occupy Exclusne User Station Login Settings Login Required Non-Authorized User: administrator Fast Switching Fast Switching: Disable Global Device Properties Properties Sync Occupy Timeout: 5 sec (1-240) EOID Mode Selection: Default Beeper: Enable Save

Global Settings

The Global Settings page lets an administrator change the default settings used for the KE Management Software:

General KE Manager Name: Manager Description: Network Ports HTTP Port: 8080 HTTPS Port: 8443 Device Port: 9110 Allowed Access Mode ✓ View Only Share Occupy Exclusive User Station Login Settings ✓ Login Required Non-Authorized User: Brett Fast Switching Fast Switching: Disable Global Device Properties Properties Sync Occupy Timeout: 5 sec (1-240) EDID Mode Selection: Default Beeper: ✓ Enable Matrix Manager Version: 1.4.131.025 (2015-07-29 09:09) Key serial number:

Item Description
General	Fill in a Name and Description for the KE Management software.
Item Description
Network Ports Use this setting to specify the service ports used to access the KE Management software:◆Device Port: This is the port number to configure on the Transmitter and User Station to access the KE Management software (see Manager Address, page 56 and Manager Address, page 52). The default is 9110.◆HTTP Port: This is the port number to use for a browser login. The default is 8080.◆HTTPS Port: This is the port number to use for a secure browser login. The default is 8443.Example: To access the KE Management software on a computer with an IP address of 192.168.0.100, using a secure browser login (https), enter: https://192.168.0.100:8443
Allowed Access Mode Select the default Access Mode for devices added to the KE Management software. This defines how the device can be accessed when multiple users log on.◆View Only: Users can access the computer and view the screen, but cannot perform any operations on it.◆Exclusive: The first user to connect to the Transmitter has exclusive control over the computer. No other users can view the computer. The Timeout function does not apply to devices that have this setting.◆Occupy: The first user to connect to the Transmitter has control over the computer. However, additional users may view the computers video display. If the user who controls the computer is inactive for longer than the time set in the Timeout box, computer control is transferred to the next user to move the mouse or strike the keyboard.◆Share: Users simultaneously share control over the computer. Input from the users is placed in a queue and executed chronologically.
User Station Login Settings	This will be the User Station's default setting when they are added to the KE Management software. You can change this setting from the User Station's Properties.◆ Check Login Required to prompt users for a username and password at the User Station OSD before being able to access the Connections Page (see Connections Page, page 61). If you uncheck this, you must set the Non-Authorized User.◆ Non-Authorized User: If the Login Required box is not checked, select a user from the drop-down menu to use as the default profile to anonymously login to the User Station, in the background.Note: WARNING! If Login Required isn't checked and an Anonymous User isn't selected, a system login error will occur in the User Station OSD.
Fast Switching Allows you	to select the default resolution to use that gives you the ability to switch faster between User Station and Transmitter connections. If the monitor you are using does not support fast switching the video may not display correctly when this setting is enabled.
Global Device Properties	These settings allow you to set the default properties used by all devices:Occupy Timeout:Set the number of seconds for a user's session to be inactive before the access is released for use by another user, when using the Occupy Access Mode. This will be the default setting for Transmitters.EDID Mode Selection:Extended Display Identification Data (EDID) contains a display's basic information and is used by the source device to utilize the best resolution across different monitors. This will be the default setting for Transmitters. Select how you want the source device to acquire the display's EDID:Default:EDID is set to the ATEN default configuration. This setting must be used when connecting KE6900 devices to KE8950 devices.Auto:Checks the EDID of all connected displays and uses the best resolution for all displays.Manual:Manually set the EDID configuration from the User Station's OSD (see Manual EDID, page 62).Remix:Checks the EDID of all connected displays and the source device uses the best common resolution for all displays.Beeper:Check this box for the device to alert you with a sound when its first being accessed or when a configuration change is made.Use theSynccheck box for each option above to push the setting change to the devices after you clickSave.

ANMS

The ANMS (Advanced Network Management Settings) page is used to set up login authentication and authorization management from external sources. It is organized as a notebook with two tabs – each with a series of related panels, as described below.

Event Destination

Event Destination

Authentication & Authorization

SMTP Settings

☐ Enable report from the following SMTP Server

Log Level:

SMTP Server:

SMTP Port:

□ Server requires authentication

Account Name:

Password:

From:

To:

- Syslog Settings

Enable

Log Level:

Server IP:

Service Port:

Save

- SMTP Settings

To have the Matrix Manager email reports from the SMTP server to you, do the following:

1. Enable the Enable report from the following SMTP Server, select the the Log Level (Information, Warning, or Error), and key in the SMTP Server IP address and SMTP Port.

2. If your server requires authentication, check the Server requires authentication checkbox, and key in the appropriate information for the Account Name and Password fields.

3. Key in the email address of where the report is being sent from in the From field.

Note:

1. Only one email address is allowed in the From field, and it cannot exceed 64 Bytes.

2. 1 Byte = 1 English alphanumeric character.

3. Key in the email address (addresses) of where you want the SMTP reports sent to in the To field.

Note: If you are sending the report to more than one email address, separate the addresses with a semicolon. The total cannot exceed 256 Bytes.

1. Click Save.

♦ Syslog Settings

To record all the events that take place on the Matrix Manager and write them to a Syslog server, do the following:

1. Check Enable.
2. Use the drop-down menu to select the Log Level (Information, Warning, or Error).
3. Key in the Server IP address of the Syslog server.
4. Key in the Service Port number. The valid port range is 1-65535.
5. Click Save.

Authentication & Authorization

Event Destination Authentication & Authorization RADIUS settings Enable Preferred RADIUS Server: Preferred RADIUS Service Port: 1612 Alternate RADIUS Server: Alternate RADIUS Service Port: 1645 Timeout: 3 sec Retries: 3 Shared Secret (at least 6 Characters): LDAP/AD settings TACACS+ settings Save

♦ RADIUS Settings

To allow authentication and authorization through a RADIUS server, do the following:

1. Check Enable.
2. Fill in the IP addresses and service port of the Preferred RADIUS Server and Alternate RADIUS Server.
3. In the Timeout field, set the time in seconds that the Matrix Manager waits for a RADIUS server reply before it times out.
4. In the Retries field, set the number of allowed retries.
5. In the Shared Secret field, key in the character string that you want to use for authentication between the Matrix Manager and the RADIUS Server. A minimum of 6 characters is required.

6. On the RADIUS server, Users can be authenticated with any of the following methods:

7. Set the entry for the user as su/xxxx
   Where xxxx represents the Username given to the user when the account was created on the Matrix Manager.

8. Use the same Username on both the RADIUS server and the Matrix Manager.

9. Use the same Group name on both the RADIUS server and the Matrix Manager.

10. Use the same Username/Group name on both the RADIUS server and the Matrix Manager.

In each case, the user's access rights are the ones assigned that were assigned when the User of Group was created on the Matrix Manager.

◆ LDAP / AD Authentication and Authorization Settings:

LDAP/AD settings Enable Enable SSL Preferred LDAP Server: Preferred LDAP Service Port: 389 Alternate LDAP Server: Alternate LDAP Service Port: 389 Timeout: 10 sec Admin DN: Admin Name: Password: Search DN:

To allow authentication and authorization for the Matrix Manager via LDAP / AD, refer to the information in the table, below:

Item Action
Enable Put a check in the Enable checkbox to allow LDAP / AD authentication and authorization.
Enable SSL Put a check in the Enable checkbox to allow SSL connections.
LDAP Server IP and Port	Fill in the IP address and port number for the LDAP / AD server.◆ You can use the IPv4 address, the IPv6 address or the domain name in the LDAP Server field.◆ For LDAP, the default port number is 389.
Timeout Set the time	in seconds that the Matrix Manager waits for an LDAP / AD server reply before it times out.
Admin DN Consult the LDAP / AD administrator to ascertain the appropriate entry for this field. For example, the entry might look like this: ou=kn4132,dc=aten,dc=com
Admin Name Key in the LDAP administrator's username.
Password Key in the LDAP administrator's password.
Search DN Set the distinguished name of the search base. This is the domain name where the search starts for user names.

On the LDAP / AD server, Users can be authenticated with any of the following methods:

- With MS Active Directory schema.

Note: If this method is used, the LDAP schema for MS Active Directory must be extended. Without schema – Only the Usernames used on the Matrix Manager are matched to the names on the LDAP / AD server. User privileges are the same as the ones configured in the Matrix Manger.

• Without schema – Only the Usernames used on the Matrix Manager are matched to the names on the LDAP server. User privileges are the same as the ones configured in the KE Management software.
• Without schema – Only Groups in AD are matched. User privileges are the ones configured for the groups he belongs to in the Matrix Manger.
• Without schema – Usernames and Groups in AD are matched. User privileges are the ones configured for the User and the Groups in the Matrix Manger.

♦ TACACS+ Settings:

TACACS+ settings Enable Preferred TACACS+ Server: Preferred TACACS+ Service Port: 49 Shared Secret 1(at least 6 Characters): Alternate TACACS+ Server: Alternate TACACS+ Service Port: 49 Shared Secret 2(at least 6 Characters):

- Enable TACACS+ and enter the following information:

• Preferred TACACS+ Server
• Preferred TACACS+ Service Port
• Shared Secret 1
  Alternate TACACS+ Server
  Alternate TACACS+ Service Port
• Shared Secret 2

Redundancy

The Redundancy page sets up a second computer as backup in case the computer hosting the KE Management software goes off-line. If the KE Management software is off-line, the secondary computer will automatically take over operations, allowing all connections to continue without disruption – with only a brief period (30 seconds) when new connections can't be started. When the primary computer comes back online it retrieves the database with any changes from the secondary computer and re-takes all KE Management software operations.

To setup Redundancy, do the following:

1. Install the KE Management software on a second computer with the USB License key (see page 71).
2. Open the KE Management software and go to the System → Redundancy page.

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Global Settings ANMS Redundancy Status Item Status Mode Status Peer (P Address) Peer ID Auto Switch Event Log Modify

1. Click Modify. The Status window appears:

Status Redundancy Setting ✓ Enable Redundancy ○ Master ● Slave Master Selection Master: Matrix Manager(192.168.0.69) OK Cancel

1. Check the Enable Redundancy box and select the Slave radio button.
2. Use the Master drop-down menu to select the primary computer's IP address.
3. Click OK.
4. This computer is now running in Standby mode, as identified in the orange status bar:

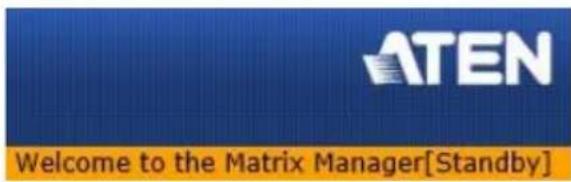

ATEN Welcome to the Matrix Manager[Standby]

1. Remove the USB License key and plug it into the primary computer running the KE Management software.
2. Open the KE Management software on the primary computer and go to the System → Redundancy page.

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Global Settings ANPS Redundancy Status Item Status Mode Status Peer IP Address Peer ID Auto Switch Event Log Modify

1. Click Modify. The Status window appears:

Status Redundancy Setting Enable Redundancy Master Slave Slave Selection Slave: Matrix Manager(192.168.0.70) Username: Password: Auto Switch OK Cancel

1. Check the Enable Redundancy box and select the Master radio button.
2. Use the Slave drop-down menu to select the secondary computer's IP address.
3. Enter the Username and Password of the secondary computer's local administrator account.
4. Check the Auto Switch box to automatically switch the KE Management software to the secondary computer when the primary computer is offline – and reverse the action when the primary computer is back online.
   15.Click OK.
5. The Redundancy page provides information about the configuration.

(Continues on next page.)

Item	Status
Mode	Master
Status	Working
Peer IP Address	192.168.0.70
Peer ID	94DE80B750CD0000
Auto Switch	YES

Event Log

Tue Nov 18 2014 11:35:49 GMT+0800 (台北標準時間)KE Manager disconnected(ip=192.168.0.70).

Tue Nov 18 2014 10:14:58 GMT+0800 (台北標準時間)KE Manager connected(ip=192.168.0.70).

Tue Nov 18 2014 09:22:20 GMT+0800 (台北標準時間)KE Manager disconnected(ip=192.168.0.70).

Tue Nov 18 2014 09:22:20 GMT+0800 (台北標準時間)KE Manager disconnected(ip=192.168.0.70).

Tue Nov 18 2014 08:01:27 GMT+0800 (台北標準時間)KE Manager connected(ip=192.168.0.70).

Tue Nov 18 2014 07:08:51 GMT+0800 (台北標準時間)KE Manager disconnected(ip=192.168.0.70).

Item Action
Mode Displays the role of the computer running the KE Management software: Master (primary) or Slave (secondary).
Status	Displays Working for the computer currently managing the KE Management software database. Displays Standby when the computer is waiting as a backup and getting database updates from the primary computer running the KE Management software.
Peer IP Address Displays the IP address of the computer configured to send (primary) or receive (secondary) the database updates for redundancy.
Peer ID Displays the MAC address of the computer configured to send (primary) or receive (secondary) the database updates for redundancy.
Auto Switch Displays the Auto Switch (Yes/No) status. (Master only).
Event Log Displays the logs that provide information about the KE Management software's redundancy status.

Chapter 10 Logs

Overview

The Matrix Manager logs all the events that take place on it an stores them in a Log. The Logs tab opens on the System Log page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance ATEN Welcome to the Matrix Manager Systems Log Time 03/28/2014 14:42:36 03/28/2014 14:42:36 03/28/2014 14:40:27 03/28/2014 14:31:43 03/28/2014 14:31:43 03/28/2014 14:30:55 03/28/2014 14:30:55 03/28/2014 14:30:55 03/28/2014 14:30:21 03/28/2014 14:30:06 03/28/2014 14:29:37 03/28/2014 14:29:23 03/28/2014 14:28:47 03/28/2014 14:28:23 03/28/2014 14:28:23 03/28/2014 14:28:13 03/28/2014 14:27:52 03/28/2014 14:27:48 03/28/2014 13:59:27 03/28/2014 13:58:27 03/28/2014 13:57:00 03/28/2014 13:42:03 03/28/2014 13:42:03 03/28/2014 13:13:34 03/28/2014 12:30:19 User Severity Information Information Error Information Information Information Information Information Information Information Information Warning Warning Information Information Error Information Error Log Information Session created:\Sessionid=**********bvBe) from ip User login succeeded(username=administrator). Cannot find the KE authentication key. User login succeeded(username=administrator). Session created:\Sessionid=**********v9s0) from ip Session terminated normally(\sessionid=**********Ssty) User logout(username=administrator). User logout(username=administrator). Global settings has been changed.(code=0x180) Global settings has been changed.(code=0x1000000) Global settings has been changed.(code=0x1000000) Global settings has been changed.(code=0x40) New profile is added (id=000000000000003) Session created:\Sessionid=**********rwkt) from ip User login succeeded(username=brett). User is modified (username=brett). User login failed(username=administrator). User login failed(username=brett). Session created:\Sessionid=**********Ssty) from ip User login succeeded(username=administrator). Cannot find the KE authentication key. Session created:\Sessionid=**********wp7i) from ip User login succeeded(username=administrator). Cannot find the KE authentication key. Cannot find the KE authentication key.

System Log

The System Log page displays events that take place on the Matrix Manager and provides a breakdown of the time, user, severity, device, and log information, for a description of each event. You can change the sort order of the display by clicking on the column headings.

Time 03/28/2014 14:42:36 03/28/2014 14:42:36 03/28/2014 14:40:27 03/28/2014 14:31:43 03/28/2014 14:31:43 03/28/2014 14:30:55 03/28/2014 14:30:55 03/28/2014 14:30:55 03/28/2014 14:30:21 03/28/2014 14:30:06 03/28/2014 14:29:27 03/28/2014 14:29:23 03/28/2014 14:28:47 03/28/2014 14:28:23 03/28/2014 14:28:23 03/28/2014 14:28:13 03/28/2014 14:27:52 03/28/2014 14:27:48 03/28/2014 13:58:27 03/28/2014 13:58:27 03/28/2014 13:57:06 03/28/2014 13:42:03 03/28/2014 13:42:03 03/28/2014 13:13:34 03/28/2014 13:30:16 User created(Sessionid=***** vblte) from ip 10.3.41.62. User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error User login succeeded(username=administrator). Error

- The first four buttons on the lower row navigate through the pages of the listed events. The left takes you to the first page; the right takes you to the last page; the middle buttons move you backward or forward one page.

Note: These buttons are only active when there is a relevant action they can perform. For example, when there is more than one page of information and you are on the first page, the “move forward” and “last page” buttons are active, but the “move backward” and “first page” buttons are not.

• Clicking the plus sign (+) beside a category in the sidebar menu expands the event headings into subcategories. Selecting a subcategory allows you to view only the logs that relate to that choice.
• Clicking All from the sidebar returns you to the default view to display all events.
• In general, a blank page, indicates that there were no log events recorded for that category.

Devices Users Severity All

When the log file limit is reached, the oldest events get discarded as new events come in. The buttons at the bottom of the page are shown below and described in the tables below:

1/80 25 Per Page

Button Explanation
Navigation Buttons The four	buttons on the lower row (left side) navigate through the pages of the listed events. The left takes you to the first page; the right takes you to the last page; the middle buttons move you backward or forward one page.
Drop-Down Menu Use this menu to select how many events you want to display per page. Available choices are 25, 50, and 100.

Configure Export Filter

Button Explanation
Configure Clicking Configure	opens a pop-up window that allows you to set how many days or the number of records to record before over-writing old log files. Use the radio button to select By period (days) or By records and enter the number you wish to use.
Export	Clicking Export lets you save the contents of the log to a file on your computer.
Filter	Clicking Filter allows you to search for particular events by date or by specific words or strings, as described in the next section.

Filter

Filter lets you narrow the log event display to ones that occurred at specific times; ones containing specific words or strings. When you access this function, the log filter dialog box appears at the bottom of the page:

Log Management Time: Today All Range From: To: Pattern: Apply Reset Cancel

A description of the filter items is given in the table, below:

Item Description
Time This feature lets you filter for events that occurred at specific times, as follows:Today: Only the events for the current day are displayed.All: Displays all events.Range: Select a time frame of events. After selecting Range, click inside the From and To text box to bring up the calendar.◆From: Filters for events from a specific date and time to the present. Click inside the From box to bring up a calendar. Set the date and time that you want the filtering to start from. All events from the Start date/time to the present are displayed.◆To: Filters for events from a specific date and time to a specific date and time. Click inside the From box to bring up a calendar. First select the From (described above).
Pattern Filters for a particular word or string. Key the word or string into the Information text box. Only events containing that word or string are displayed. Wildcards (? for single characters; * for multiple characters) and the keyword or are supported. E.g., h*ds would return hands and hoods; h?nd would return hand and hind, but not hard; h*ds or h*ks would return hands and hooks.
Apply Click to apply the filter choices.
Reset Click this button to clear the entries in the dialog box and start with a clean slate.
Cancel Click this button to exit the log filter function.

Chapter 11

Maintenance

Overview

The Maintenance tab has four menu bar options: Backup/Restore, Firmware Upgrade, Certificates, and Preferences. When you click the Maintenance tab, it opens on the Backup/Restore page, as shown here:

ALTUSEN Matrix Manager Dashboard Device Management User Management System Logs Maintenance Backup/Restore Firmware Upgrade Certificates Preferences Welcome to the Matrix Manager Backup/Restore Backup Password: Backup Restore Filename Browse... Password: Restore Export Device List Export Logout

• Backup/Restore allows administrators to backup system configuration settings to a file, and restore configuration settings from previously saved files.
• Firmware Upgrade allows administrators to upgrade firmware for network connected devices.
• Certificates allow for enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate.
• Preferences allows the user that is logged in to set individual preferences for their browser sessions.

Backup / Restore

When you click the Maintenance tab Matrix Manager, the Backup/Restore page is displayed. The page is divided into two main sections: Backup, and Restore:

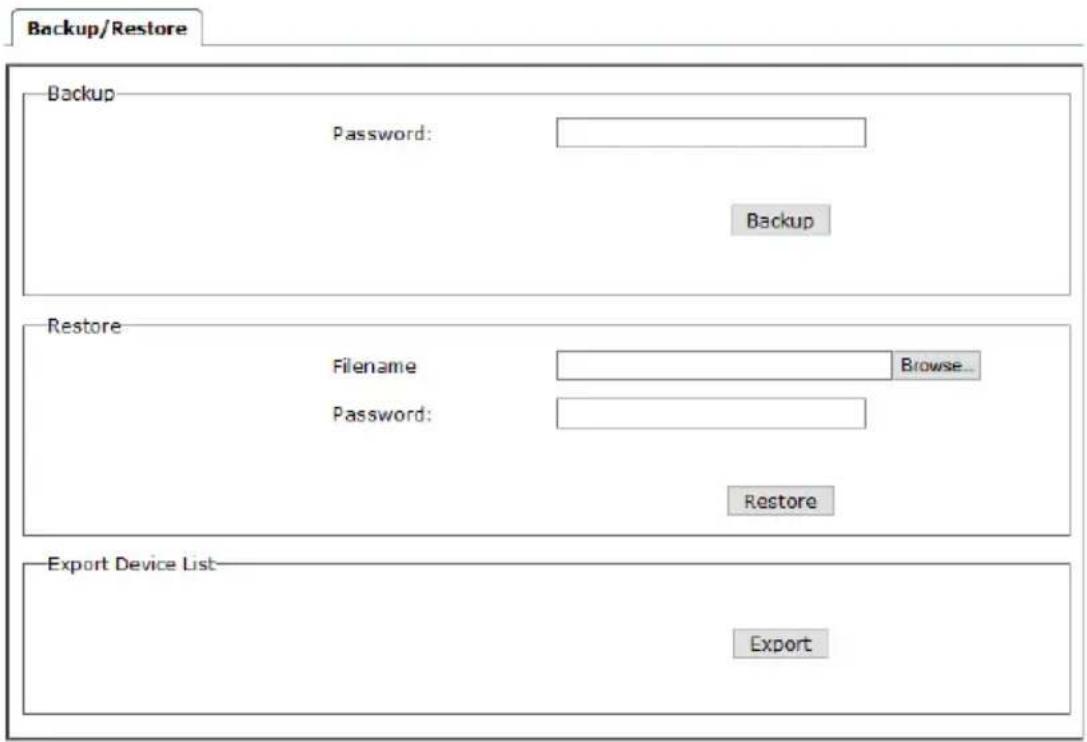

Backup/Restore Backup Password: Backup Restore Filename Browse... Password: Restore Export Device List Export

The operations to perform backup/restore procedures are described in the table below and in the section that follows:

Procedure Operation
Backup Backs up	the KE Management software configuration – includingUser Station, Transmitter, Channel, and Profile configurations; user and group accounts, user profiles, logs, and system settings.
Restore Deletes	the current User Station, Transmitter, Channel, and Profile configurations; user and group accounts, user profiles, logs, and system settings.; then restores those settings to the values that exist in the previously saved backup file.
Export Device List	Clicking Export allows you to save a file with a complete list of the devices added to the Matrix Manger. The file contains the ID, Name, Description and IP Address of each Transmitter and User Station. An Existing column also lists if the device is available: Yes, it exists and is available, or No, it is off-line or has been removed.

Backup

To back up system configuration settings, do the following:

1. (Optional) In the Backup panel, provide a password for the backup file.

Note: Providing a password is a security feature – if you provide a password, you will need to give the same password in order to restore the configuration settings from this file.

1. Click Backup.
2. In the dialog box that comes up, Click Save to save the configuration file (System.conf) to a location on your hard disk.
3. Navigate to the directory where you want to save the file and click Save.

Restore

To restore system configuration settings, do the following:

1. In the Restore panel, click Browse.
2. Navigate to the directory where the backup file is located and select it.
3. When you return to the Backup/Restore page enter the password you set when the backup file was created.

Note: If you did not set a password for the file, leave the field blank.

1. Click Restore.
2. Click OK to confirm that you want to restore the configuration data. When the Restore procedure is in process, a message stating that the Matrix Manager will restart will appear. After a short while the Matrix Manager closes and refreshes at the log in screen. When it comes back up the configuration settings that were restored from the backup file are in effect.

Firmware Upgrade

New firmware versions can be downloaded from our website as they become available. Check the website regularly, to find the latest upgrade packages.

Under Firmware Upgrade all KE devices that are discovered online are provided in a list allowing you to select which devices get upgraded.

To upgrade the firmware do the following:

1. Go to our website and download the firmware upgrade package appropriate to your KE device.
2. Open your browser and log in to the Matrix Manager with an administrator's account.
3. Click the Maintenance tab; select Firmware Upgrade on the menu bar. A confirmation dialog box may appear:

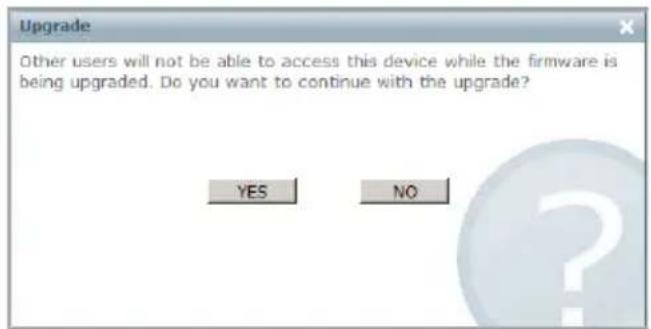

Upgrade Other users will not be able to access this device while the firmware is being upgraded. Do you want to continue with the upgrade? YES NO

1. Click Yes to continue. After a short while, the Firmware Upgrade page comes up:

Firmware Upgrade Select modules to upgrade ✓ User Station: KE6940R 26(192.168.0.26) V1.4.131 ✓ User Station: KE6900R 23(192.168.0.23) V1.4.131 ✓ User Station: KE6940R 25(192.168.0.25) V1.4.131 ✓ User Station: KE6940R 24(192.168.0.24) V1.4.131 ✓ Transmitter: KE6900T 33(192.168.0.33) V1.4.131 ✓ Transmitter: KE6940T 34(192.168.0.34) V1.4.131 ✓ Transmitter: KE6940T 36(192.168.0.36) V1.4.131 ✓ Transmitter: KE6940T 35(192.168.0.35) V1.4.131 ✓ Check firmware version Filename: Browse... Upgrade

All the devices that are capable of being upgraded are listed.

Note: Only online devices show up in the list. Offline devices do not get upgraded.

1. Make sure there is a check in the checkbox in front of the modules you want to upgrade. Uncheck the modules that you do not want to upgrade.
2. Click Browse. Navigate to the directory where the firmware upgrade file is located and select it.

3. Enable or disable Check Firmware Version

4. If you enabled Check Firmware Version the current firmware level is compared with that of the upgrade file. If the current version is equal to or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.

5. If you didn't enable Check Main Firmware Version, the upgrade file is installed without checking what its level is.

6. If you cancel the firmware upgrade, you have to wait 12 seconds before you can disable Check Firmware Version and restart the firmware upgrade.

7. Click Upgrade to start the upgrade procedure. As the upgrade proceeds, progress information is shown on the screen. Once the upgrade completes successfully, the devices will reset.

8. Log in to the and check the firmware version to be sure it is the new one.

Firmware Upgrade Recovery

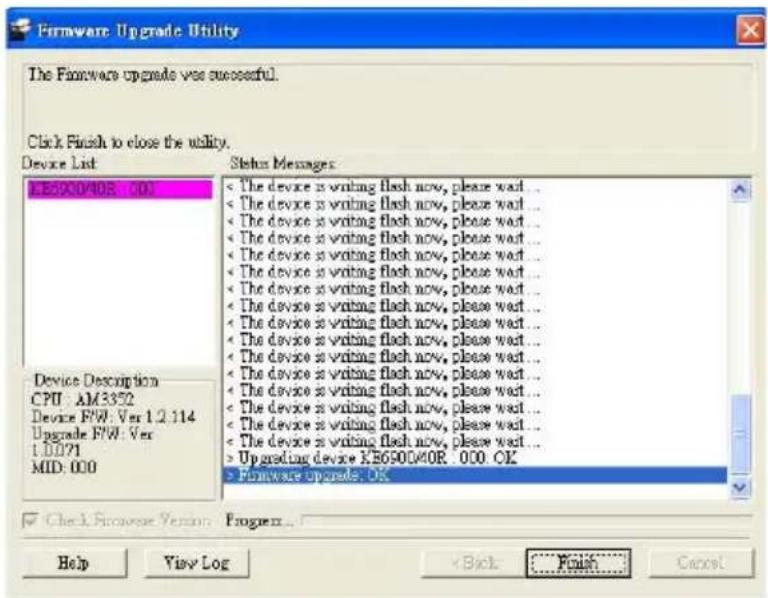

If the Upgrade Succeeded screen doesn't appear or the upgrade procedure is abnormally halted (due to computer crash, power failure, etc.), the device may become inoperable. If you find that the device does not work following a failed or interrupted upgrade, do the following

1. Power off the KE device.
2. Press the Reset button, then power on the KE device while holding Reset.
3. Hold Reset for 7 seconds after the device is powered on.
4. The device will revert to a previous firmware version and recover from the failure.
5. Upgrade the firmware to the most current version available.

Certificates

This page provides information about the Private Certificates:

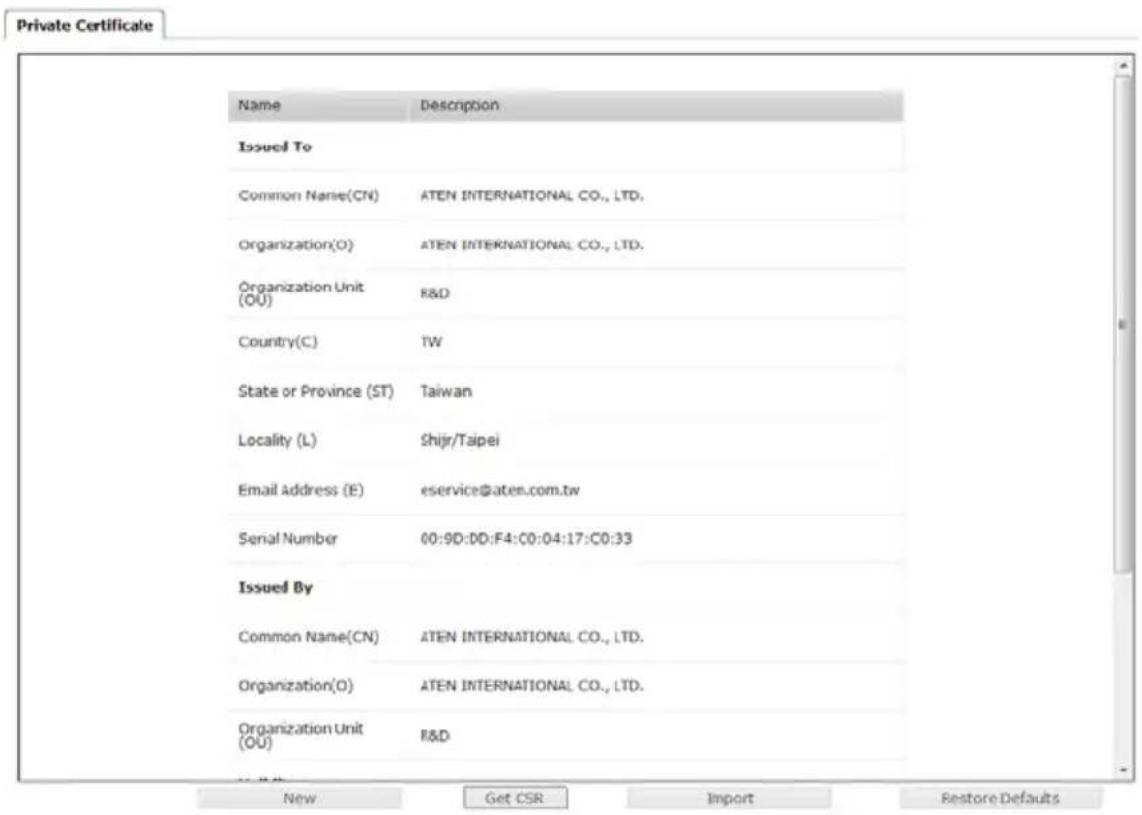

Private Certificate Name Description Issued To Common Name(CN) ATEN INTERNATIONAL CO., LTD. Organization(O) ATEN INTERNATIONAL CO., LTD. Organization Unit (OU) R&D Country(C) TW State or Province (ST) Taiwan Locality (L) Shijr/Taipei Email Address (E) [e-mail] Serial Number 60:9D:DD:F4:C0:04:17:C0:33 Issued By Common Name(CN) ATEN INTERNATIONAL CO., LTD. Organization(O) ATEN INTERNATIONAL CO., LTD. Organization Unit (OU) R&D New Get CSR Import Restore Defaults

Private Certificate

When logging in over a secure (SSL) connection, a signed certificate is used to verify that the user is logging in to the intended site. For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate.

There are two methods for establishing your private certificate: generating a self-signed certificate; and importing a third-party certificate authority (CA) signed certificate.

- Generating a Self-Signed Certificate

If you wish to create your own self-signed certificate, a free utility – openssl.exe – is available for download over the web. See Self-Signed Private Certificates, page 224 for details about using OpenSSL to generate your own private key and SSL certificate.

- Obtaining a CA Signed SSL Server Certificate

For the greatest security, we recommend using a third party certificate authority (CA) signed certificate. To obtain a third party signed certificate, go to a CA (Certificate Authority) website to apply for an SSL certificate.

After the CA sends you the certificate and private encryption key, save them to a convenient location on your computer.

- Importing the Private Certificate

To import the private certificate, do the following:

1. Click Import from the bottom of the Private Certificate page, shown here:

New

Get CSR

Import

Restore Defaults

1. Click Browse to the right of Certificate Filename; and browse to where your certificate file is located; and select it.

2. Click Import to complete the procedure.

Note: Clicking Restore Defaults returns the device to using the default ATEN certificate.

Certificate Signing Request

The Certificate Signing Request (CSR) section provides an automated way of obtaining and installing a CA signed SSL server certificate.

New

Get CSR

Import

Restore Defaults

To perform this operation do the following:

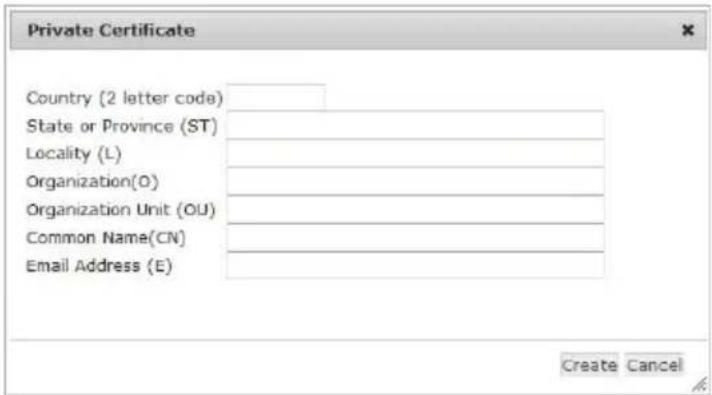

1. Click New. The following dialog box appears:

Private Certificate Country (2 letter code) State or Province (ST) Locality (L) Organization(O) Organization Unit (OU) Common Name(CN) Email Address (E) Create Cancel

1. Fill in the form – with entries that are valid for your site – according to the example information in the following table:

Information Example
Country (2 letter code) TW
Information Example
State or Province Taiwan
Locality Taipei
Organization Your Company	Ltd.
Organization Unit Tech Department
Common Name mycompany.com	Note: This must be the exact domain name of the site that you want the certificate to be valid for. If the site's domain name is www.mycompany.com, and you only specify mycompany.com, the certificate will not be valid.
Email Address [e-mail]

1. After filling in the form (all fields are required), click Create.

A self-signed certificate based on the information you just provided is now stored on the KE Management software.

1. Click Get CSR, and save the certificate file (csr.cer) to a convenient location on your computer.

This is the file that you give to the third party CA to apply for their signed SSL certificate.

1. After the CA sends you the certificate, save it to a convenient location on your computer. Click Import to locate the file; then click Import to store it on the Matrix Manager.

Note: When you upload the file, the Matrix Manager checks the file to make sure the specified information still matches. If it does, the file is accepted; if not, it is rejected.

If you want to remove the certificate (to replace it with a new one because of a domain name change, for example), simply click Restore Defaults.

Preferences

Users can set individual preferences for their browser sessions on the Preferences page. The Preferences page allows you to select options for the user that is currently logged in.

Language:	English
Toolbar Hotkey:	[Ctrl][Ctrl]
Logout Timeout:	30 min (0-180)	Disabled
Screen Blanker:	0 min (0-30)	Disabled
Welcome Message:	Enable	Username
Old Password:	**********
New Password:	**********
Confirm Password:	**********

Item Description

Language Click the drop-down menu to select the language you want to use during sessions for this user. Choices are: English, Chinese (Simplified), Chinese (Traditional), Japanese, Korean, Dutch, French, Spanish, Portuguese, and Russian.

Toolbar Hotkey Select the hotkey combination to call the Tool Bar function for this user. The Tool Bar is used when accessing the computer from the Transmitter or Receiver side.

Logout Timeout If there is no user input for the amount of time set with this function, the user is automatically logged out. A login is necessary before the KE Management software can be accessed again. The default is 30 minutes.

Screen Blanker Set how many minutes the device waits when a session is idle before turning off the display.

Welcome Page If you want the Welcome Message to appear on screen when the user logs in, select Enable.If you want the user's Screen Name to appear with the Welcome Message, check theUsernamecheck box.Password This section allows you to change the user's password:1. Key in your old password in the Old password field.2. Key in your new password in the New password field.3. Key in your new password again in the Confirm password field.

When you have made your choices, Click Save.

To use the original system set preferences, click Restore Defaults.

Chapter 12

Firmware Upgrade Utility

The Windows-based Firmware Upgrade Utility (FWUpgrade.exe) provides a smooth, automated process for upgrading the firmware. The Utility comes as part of a Firmware Upgrade Package that is specific for each device. New firmware upgrade packages are posted on our web site as new firmware revisions become available. Check the web site regularly to find the latest packages and information relating to them:

http://www.aten.com

Preparation

1. From a computer that is not part of your installation go to our Internet support site and choose the model name that relates to your KE device to get a list of available Firmware Upgrade Packages.
2. Choose the Firmware Upgrade Package you want to install (usually the most recent), and download it to your computer.
3. Be sure that the computer is connected to the same LAN segment as the KE devices.

Starting the Upgrade

To upgrade your firmware:

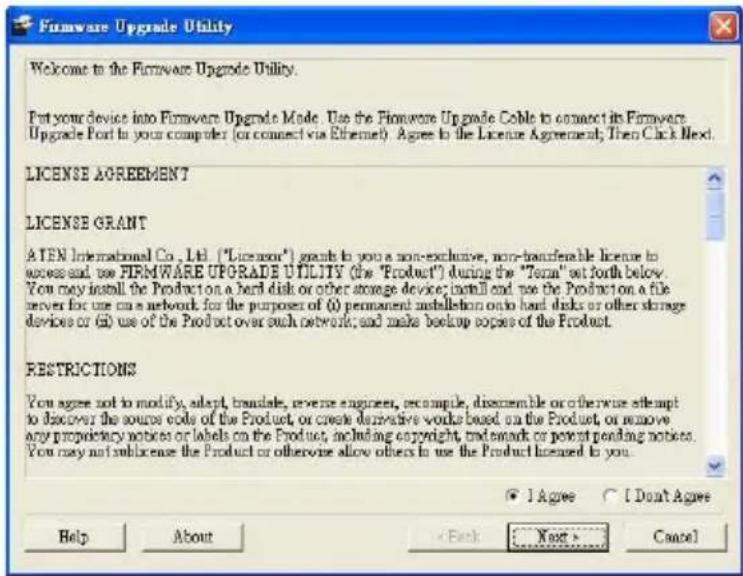

1. Run the downloaded Firmware Upgrade Package file - either by double clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility Welcome screen appears:

Firmware Upgrade Utility Welcome to the Firmware Upgrade Utility. Put your device into Firmware Upgrade Mode. Use the Firmware Upgrade Cable to connect its Firmware Upgrade Port to your computer (or connect via Ethernet). Agree to the License Agreement; Then Click Next. LICENSE AGREEMENT LICENSE GRANT A TEN International Co., Ltd. ("Licensor") grants to you a non-exclusive, non-transferable license to access and use FIRMWARE UPGRADE UTILITY (the "Product") during the "Term" set forth below. You may install the Product on a hard disk or other storage device; install and use the Product on a file never for use on a network for the purpose of (i) permanent installation onto hard disks or other storage devices or (ii) use of the Product over such network; and make backup copies of the Product. RESTRICTIONS You agree not to modify, adapt, translate, reverse engineer, ecompile, discremble or otherwise attempt to discover the source code of the Product, or create derivative works based on the Product, or remove any proprietary notices or labels on the Product, including copyright, trademark or patent pending notices. You may not sublicense the Product or otherwise allow others to use the Product licensed to you. I Agree I Don't Agree Help About < Back Next > Cancel

Note: The screens shown in this section are for reference only.

1. Read the License Agreement (enable the I Agree radio button).
2. Click Next. The Firmware Upgrade Utility main screen appears:

Firmware Upgrade Utility If Check Firmware Version is checked, the utility compares the device's firmware level with the upgrade files. If the device's version is newer, the utility lets you decide whether to continue or not. If it is not checked, the utility performs the upgrade directly. Click Next to begin Device List: Status Messages: > Loading & testing files ... > Loading & testing files: OK > Searching for Devices... Device Description ✓ Check Firmware Version Progress Help View Log Back Next Cancel

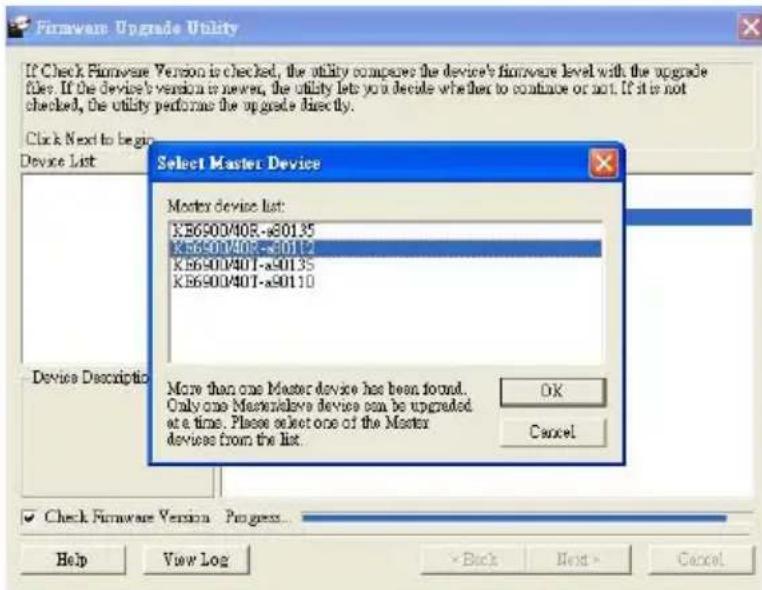

1. The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Select Master Device list.

If Check Firmware Version is checked, the utility compares the device's firmware level with the upgrade files. If the device's version is newer, the utility lets you decide whether to continue or not. If it is not checked, the utility performs the upgrade directly. Click Next to begin Device List Select Master Device Master device list: KB690040R-a80135 KB690040S-a80134 KB690040T-a80135 KB690040T-a80110 More than one Master device has been found. Only one Master/above device can be upgraded at a time. Please select one of the Master devices from the list. OK Cancel Device Description Check Firmware Version Progress... Help View Log Back Next Cancel

1. After you have made your device selection, Click OK and then Next to begin the upgrade.

Firmware Upgrade Utility If Check Firmware Version is checked, the utility compares the device's firmware level with the upgrade files. If the device's version is newer, the utility lets you decide whether to continue or not. If it is not checked, the utility performs the upgrade directly. Click Next to begin. Device List KB590040R : 000 Device Description CPU : AM3352 Device F/W: Var 1.2.114 Upgrade F/W: Var 1.0.071 MID: 000 Status Messages: > Loading & testing files ... > Loading & testing files: OK > Searching for devices ... > Preparing firmware upgrade ... > Preparing firmware upgrade: OK > Upgrading device KB590040R : 000 ... ✓ Check Firmware Version Progress... Help View Log < Back Next > Cancel

If you enabled Check Firmware Version, the Utility compares the device's firmware level with that of the upgrade files. If it finds that the device's version is higher than the upgrade version, it brings up a dialog box informing you of the situation and gives you the option to Continue or Cancel.

If you didn't enable Check Firmware Version, the Utility installs the upgrade files without checking whether they are a higher level, or not.

As the Upgrade proceeds status messages appear in the Status Messages panel, and the progress toward completion is shown on the Progress bar.

Upgrade Succeeded

After the upgrade has completed, a screen appears to inform you that the procedure was successful:

Firmware Upgrade Utility The Firmware upgrade was successful. Click Finish to close the utility. Device List LE690D40R : 000 Status Messages: • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • The device is writing flash now, please wait ... • Upgrading device KB690D40R : 000 OK ► Firmware Upgrade: OK Device Description CPU : AM3352 Device FWV: Ver 1.2.114 Upgrade FWV: Ver 1.0.071 MID: 000 Check Firmware Version: Program... Help View Log Back Finish Cancel

Firmware Upgrade Recovery

If the Upgrade Succeeded screen doesn't appear or the upgrade procedure is abnormally halted (due to computer crash, power failure, etc.), the device may become inoperable. If you find that the device does not work following a failed or interrupted upgrade, do the following

1. Power off the KE device.
2. Press the Reset button, then power on the KE device while holding Reset.
3. Hold Reset for 7 seconds after the device is powered on.
4. The device will revert to a previous firmware version and recover from the failure.
5. Upgrade the firmware to the most current version available.

Serial Control Protocol Commands

The KE Series's built-in bi-directional RS-232 serial interface and LAN port connection allows system control via User Stations through a high-end controller or PC. This control feature can also be accessed via TCP/IP through a computer running Telnet. The port for Telnet commands should be set to 23.

Configuring the Serial Port

The controller's serial port should be configured the same as the User Station's default configuration, as shown below:

Baud Rate 9600
Data Bits 8
Parity None
Stop Bits 1
Flow Control None

The User Station's Function Switch should be set to RS-232 Config (see page 15). Before executing RS-232 commands across a network you must install the KE Management software on a computer and ensure that it is online.

Device/Profile Commands

When typing a device or profile into a command string, you can enter the name by: IP address (device only), ID or @ with the list number in the command line interface. Use the list command to view device and profile information.

Verification

After sending a command, a verification message appears at the end of the command line. Use the echo command to identify a command by number:

• Command OK - the command is correct and performed successfully
• Command incorrect - the command has the wrong format and/or values.
• Echo Command - at the end of a command string, type: e1234 – where 1234 can be any number. The verification message returns with the echo number.

Switch Port Command

The formula for Switch Port commands is as follows:

Command + Output + Num1 + Input + Num2 + Mode + Stream + Connect + [Enter]

1. For example, if you want to switch the User Station's connection to Transmitter (192.168.0.20), type the following:
   sw i192.168.0.20 [Enter]

2. For example, if you want to disconnect the User Station from its Transmitter connections, type the following:

sw off [Enter]

1. For example, if you want to connect User Station (192.168.0.99) to Transmitter (192.168.0.79) with exclusive access to stream video and audio, type the following:

sw o192.168.0.99 i192.168.0.79 exclusive video audio on [Enter]

1. For example, to disconnect User Station (192.168.0.11) from the video stream and return it to the OSD menu, type the following:

sw o192.168.0.11 off [Enter]

1. For example, to disconnect User Station (192.168.0.09) from the video stream and logout the OSD, type the following:

sw o192.168.0.09 logout [Enter]

1. For example, to disconnect the User Station's USB stream, type the following:

sw usb off [Enter]

1. For example, to switch the User Station to the 5th Transmitter listed in the command line interface, type the following:

sw i@5 exclusive all on [Enter]

1. For example, to switch the User Station to the 7th Transmitter listed in the command line interface with echo command 4312, type the following:

sw i@7 exclusive all on e4312

1. For example, to switch User Station (192.168.0.12) to the 14th Transmitter listed in the command line interface with occupy access to stream video audio and USB, type the following:

sw o192.168.0.12 i@14 occupy video audio usb on [Enter]

The following tables show the possible values for the Switch Port commands:

Command Description
sw Switch port command
Output Description
o Output port command (RX)
Num1 Description
xx Output port
@zz List #	zz: 1~99To use the 4th User Station listed in the command line interface, type: o@4
Input Description
i Input command (TX)
Num2 Description
yy Input port
@zz List #	zz: 1~99To use the 8th Transmitter listed in the command line interface, type: i@8
Mode Description
exclusive Sets the Access Mode to exclusive.
share Sets the Access Mode to share.
occupy Sets the Access Mode to occupy.
viewonly	Sets the Access Mode to view only. If the mode is omitted, view only is used by default.
Stream Description
video	Sets the video source stream
audio	Sets the audio source stream
serial	Sets the serial source stream
Stream	Description
usb Sets the USB source stream
all Sets all source streams
Connect Description
on Connect
off Disconnect
logout Logout OSD

The following table lists the available Switch Port commands:

Command	Output	Num1	Input	Num2	Mode	Stream	Connect	Description
sw o xx	i yy exclusive		video			audio serial usb all	on	Switch output xx to input yy with exclusive access to source(s).xx: User Station IDyy: Transmitter ID
sw o xx	i yy share		video			audio serial usb all	on	Switch output xx to input yy with share access to stream source(s).xx: User Station IDyy: Transmitter ID
sw o xx	i yy	occupy	video			audio serial usb all	on	Switch output xx to input yy with occupy access to stream source(s).xx: User Station IDyy: Transmitter ID
sw o xx	i yy	viewonly	video			audio serial usb all	on	Switch output xx to input yy with viewonly access to stream source(s).xx: User Station IDyy: Transmitter ID
sw o xx						off Switch output xx, disconnect streams, return to OSD menu.xx: User Station ID
sw o xx						logout Switch output xx, disconnect streams and logout from OSD menu.xx: User Station ID
sw						video audio serial usb all	off	Switch User Station stream(s) to disconnect.
sw off Switch User Station
								disconnect streams, return to OSD menu.
sw i @zz exclusive
					share occupy viewonly	video audio serial usb all	on Switch User Station to input @zz with [mode] access to stream source(s). zz: Transmitter # by order listed in the command line interface.
sw o xx i @zz exclusive video
						audio serial usb all	on Switch output xx to input @zz with [mode] access to stream source(s). xx: User Station ID zz: Transmitter # by order listed in command line interface.

Note: 1. Each command string can be separated with a space.

1. The Mode command string can be skipped and view only will be used by default.
2. Skip the Output and Num1 command strings to configure the local User Station.

Mute Command

The Mute command allows you to enable or disable the audio.

The formula for the Mute command is as follows:

$$ \text { Command } + \text { Output } + \text { Num1 } + \text { Control } + [ \text { Enter } ] $$

1. For example, to turn mute off (audio on) for the User Station, type the following:

$$ \text { mute off } [ \text { Enter } ] $$

1. For example, to turn mute on for User Station (192.168.0.11), type the following:

$$ \text { mute o192.168.0.11 on [Enter] } $$

1. For example, to turn mute off for User Station (192.168.0.18), type the following:

$$ \text { mute o192.168.0.18 off [Enter] } $$

The following tables show the possible values for the Mute commands:

Command Description

mute Mute command

Output Description

o Output port command

Num1 Description

xx Output number

Control Description

on Mute on; audio disabled

off Mute off; audio enabled (default)

The following table lists the available Mute commands:

Command	Output	Num1	Control	Description
mute o	xx	on	Turn mute on for output xx	xx: User Station ID
mute	o	xx	off	Turn mute off for output xx	xx: User Station ID

Command Output Num1 Control Description
mute on Turn mute on for		User		Station
mute off Turn mute off for		User		Station

Note: 1. Each command string can be separated with a space.

1. The Control command string can be skipped and off will be used by default.
2. Skip the Output and Num1 command strings to configure the local User Station.

Profile Command

The Profile command allows you to connect profiles and video walls.

The formula for Profile commands is as follows:

$$ \text { Command } + \text { Profile } + \text { Num1 } + \text { Control } + [ \text { Enter } ] $$

1. For example, to connect profile 8 and lock the OSD menu, type the following:

$$ \text { profile f8[Enter] } $$

1. For example, to connect profile 4 with access to the OSD menu, type the following:

$$ \text { profile f4 release [Enter] } $$

1. For example, to disconnect profile 12 and return to the User Station to the OSD menu, type the following:

$$ \text { profile f12 back [Enter] } $$

The following tables show the possible values for the Profile commands:

Command Description
profile Profile command
Profile Description
f Profile ID
Num1 Description
xx Profile	or Video Wall ID
	xx: 1-99
Control Description
lock Connect profile, lock access to OSD menu (default)
release Connect profile, allow access to OSD menu
back Disconnect profile, return User Station to OSD menu

The following table lists the available Profile commands:

Command	Profile	Num1	Control	Description
profile f xx lock	Connect	profile xx, lock		OSD accessxx:1~99
profile f xx release	Connect	profile xx, allow		OSD accessxx:1~99
profile f xx back	Disconnect	profile xx		and return User Station to OSD menuxx: 1~99

Note: 1. Each command string can be separated with a space.
2. The Control command string can be skipped and lock will be used by default.

EDID Command

Extended Display Identification Data (EDID) is a data that contains a display's basic information and is used to communicate with the video source. The EDID commands allow you to change the EDID setting of a Transmitter.

The formula for the EDID command is as follows:

$$ \text { Command } + \text { Address } + \text { Number } + \text { Control } + [ \text { Enter } ] $$

1. For example, if you want to configure device (192.168.0.3) to use the remix EDID mode, type the following:

$$ \text { edid a192.168.0.3 remix [Enter] } $$

The following tables show the possible values for the EDID commands:

Command Description
edid EDID command
Address Description
a Address command
Number Description
xx Address numberxx: User Station ID or IP address
Control Description
auto Checks	the EDID of all connected displays and uses the best resolution for all displays.
remix Checks	the EDID of all connected displays and the source device uses the best common resolution for all displays.
default Implements ATEN's default EDID.(default)
manual Manually set the EDID configuration from the User Station's OSD (see Manual EDID, page 62).

The following table lists the available EDID commands:

Command	Address	Number	Control	Enter	Description
edid	a	xx	auto	[Enter]	Set EDID of address xx to auto.xx: Device ID or IP Address
edid a xx	remix [Enter] Set EDID of address xx to remix.xx: Device ID or IP Address
edid a xx	default [Enter] Set EDID of address xx to default.xx: Device ID or IP Address
edid a xx	manual [Enter] Set EDID of address xx to manual.xx: Device ID or IP Address

Reset Command

The Reset command allows you to reset a device back to the default factory settings. Reset includes resetting the devices IP address.

The formula for the Reset command is as follows:

$$ \text { Command } + \text { Address } + \text { Number } + [ \text { Enter } ] $$

1. For example, to reset device (192.168.0.95), type the following: reset a192.168.0.95 [Enter]

2. For example, to reset the User Station, type the following: reset [Enter]

The following tables show the possible values for the Reset command:

Command Description
reset Reset command
Address Description
a Address command
Number Description
xx Address number	xx: User Station ID or IP address

The following table lists the available Reset commands:

Command	Address	Num	Enter	Description
reset a xx	[Enter]	Reset address xx back to the factory default settingsxx: Device ID or IP Address
reset			[Enter]	Resets the User Station settings

Note: 1. Each command string can be separated with a space.

1. Skip the Address and Number command strings to reset the local User Station.

RS-232 Command

The RS-232 command allows you to set the RS-232 settings for a device.

The formula for the RS-232 command is as follows:

Command + Address + Number + Baud Rate + Parity + Data Bit + Stop Bit + Flow Control [Enter]

1. For example, to set device (192.168.0.33) with a baud rate of 38400, parity of none, data bit of 8, and stop bit of 1, type the following:

baud a192.168.0.33 38400 none 8 1 [Enter]

1. For example, to set the local device with a baud rate of 19200, type the following:

baud 19200 [Enter]

The following tables show the possible values for the RS-232 command:

Command Description
baud RS-232 command
Address Description
a Address command
Num1 Description
xx Address number	xx: Device ID or IP address
Baud Rate Description
9600 Use 9600 baud rate
19200 Use 19200 baud rate
38400 Use 38400 baud rate
115200 Use 115200 baud rate
Parity Description
None Sets the parity to none
Even Sets the parity to even
Odd Sets the parity to odd
Data Bit Description
5 Sets the data bit to 5
6 Sets the data bit to 6
Data Bit Description
7 Sets the data bit to 7
8 Sets the data bit to 8
Stop Bit Description
1 Sets the stop bit to 1
2 Sets the stop bit to 2
Flow Control Description
None Sets flow control to none
Hardware Sets flow control to hardware
Xon Sets flow control to Xon
Xoff Sets flow control to Xoff

The following table lists the available Baud Rate commands:

Command	Address	Num 1	Baud Rate	Parity	Data Bit	Stop Bit	Flow Control	Description
baud a	xx 9600	None		Even Odd	5678	12	None Hardware Xon/Xoff	Set address xx baud rate to 9600, with parity/ data bit/ stop bit / flow control setting
baud a	xx 19200	None		Even Odd	5678	12	None Hardware Xon/Xoff	Set address xx baud rate to 19200, with parity/ data bit/ stop bit / flow control setting
baud a	xx 38400	None		Even Odd	5678	12	None Hardware Xon/Xoff	Set address xx baud rate to 38400, with parity/ data bit/ stop bit / flow control setting
baud a	xx 115200	None		Even Odd	5678	12	None Hardware Xon/Xoff	Set address xx baud rate to 115200, with parity/ data bit/ stop bit / flow control setting
baud 9	600 Set local device							baud rate to 9600
baud 1	9200 Set local device							baud rate to 19200
baud 3	8400 Set local device							baud rate to 38400
baud 1	15200 Set local device							baud rate to 115200

Note: 1. Each command string can be separated with a space.

1. The Baud Rate value is required but Parity, Data Bit and Stop Bit can be skipped and their setting will not change.

2. Skip the Address and Number command strings to configure the local device settings.

OSD Command

To enable or disable the On-Screen Display (OSD) menu for a User Station, use the following command:

$$ \text { Command } + \text { Output } + \text { Number } + \text { Control } + [ \text { Enter } ] $$

1. For example, to enable the OSD for User Station 192.168.0.51, type: osd o192.168.0.51 on [Enter]

2. For example, to disable the OSD for the local User Station, type: osd off [Enter]

The following tables show the possible values for the OSD command:

Command Description
osd OSD command
Output Description
o Output command
Number Description
xx Output number	xx: User Station ID or IP address
Control Description
on Enable OSD functions
off Disable OSD functions (default)

The following table lists the available OSD commands:

Command	Output	Number	Control	Enter	Description
osd	o	xx	on	[Enter]	Enable OSD functions for output xxx:User Station ID or IP address
osd	o	xx	off	[Enter]	Disable OSD functions for output xx off (default)xx:User Station ID or IP address

Note: 1. Each command string can be separated with a space.

1. Skip the Output and Number command strings to configure the local User Station.

List Command

The List command allows you to retrieve information about users, settings and connections.

The formula for the List command is as follows:

$$ \text { Command } + \text { Output } + \text { Input } + \text { Number } + \text { Control [Enter] } $$

1. For example, for a complete list of available channels, type the following: list channel [Enter]
2. For example, for a complete list of available profiles, type the following: list profile [Enter]
3. For example, to list all users logged into all OSD menus, type the following:
4. list login [Enter]
5. For example, to list the user logged into the OSD on User Station (192.168.0.44), type the following:

list o192.168.0.44 login [Enter]

1. For example, for a complete list of available connections, type the following:

list connection [Enter]

1. For example, to list the current connections on Transmitter (192.168.0.88), type the following:

list i192.168.0.88 connection [Enter]

The following tables show the possible values for the List command:

Command Description
list List command
Output Description
o Output command
Input Description
i Input command
Number Description
xx Output or	Input numberxx: Device ID or IP address
Control Description
channel Lists information about the available channel(s)
profile Lists information about the available profile and TV wall connections
rx Lists information about the User Station
login Lists information about users logged into to the OSD menu
connection Lists information about a Transmitters current connections

The following table lists the available List commands:

Command	Output Input Number		Control Description
list o xx	login	List output xx user			logged into OSD.
list o xx	rx	List output xx User			Station information
list		i	xx	connection	List input xxTransmitter information
list				channel	List all available channel information
list				profile	List all available profile information
list				rx	List information about all User Stations
list				login	List information about all OSD logins
list				connection	List information about all connections

Note: 1. Each command string can be separated with a space.

1. Skip the Output or Input and Number command strings to view the local User Station.

Read Command

The Read command allows you to retrieve the properties of a device.

The formula for the Read command is as follows:

$$ \text { Command } + \text { Output } + \text { Input } + \text { Number } + \text { Control [Enter] } $$

1. For example, to read all of the local User Station's properties, type the following:

$$ \text { read all } [ \text { Enter } ] $$

1. For example, to read all of User Station (192.168.0.19) device properties, type the following:

$$ \text { read o192.168.0.19 all [Enter] } $$

1. For example, to read all of Transmitter (192.168.0.28) device properties, type the following:

$$ \text { read i192.168.0.28 all [Enter] } $$

1. For example, to read the basic properties of User Station (192.168.0.61), type the following:

$$ \text { read o192.168.0.61 basic [Enter] } $$

1. For example, to read the network properties of Transmitter (192.168.0.71), type the following:

$$ \text { read i192.168.0.71 network [Enter] } $$

The following tables show the possible values for the Read command:

Command Description
read Read command
Output Description
o Output command
Input Description
i Input command
Number Description
xx Output or	Input numberxx: Device ID or IP address
Control Description
all Read all device properties
Control	Description
basic Read basic properties
network Read network properties
ipsettings Read IP settings
rs232 Read RS232 properties
properties Read connection properties
manager Read KE Management software prop- erties
streams Read enable media properties
tx Read source stream IP properties (User Station)
usbmode Read USB mode properties (User Station)
multicast Read multicast properties (Transmitter)
videoqtyadvanced Read advanced video properties (Transmitter)
ossettings Read OS properties (Transmitter)

The following table lists the available Read commands:

Command	Output	Input	Number	Control	Description
read	o	i	xx	all	Read output or input xx all device properties xx: Device ID or IP address
read	o	i	xx	basic	Read output or input xx basic properties xx: Device ID or IP address
read	o	i	xx	network	Read output or input xx network properties xx: Device ID or IP address
read	o	i	xx	ipsettings	Read output or input xx IP address properties xx: Device ID or IP address
read o i xx rs232 Read output or input xx					RS-232 propertiesxx: Device ID or IP address
read o i xx properties	Read output or input xx				connection propertiesxx: Device ID or IP address
read o i xx manager	Read output or input xx				KE Management IP and port propertiesxx: Device ID or IP address
read o i xx streams Read output or input xx					enable media propertiesxx: Device ID or IP address
read o xx tx Read output xx source					stream IP address propertiesxx: User Station ID or IP address
read o xx usbmode	Read output xx USB				mode propertiesxx: User Station ID or IP address
read	i		xx multicast Read input	put xx multicast propertiesxx: Transmitter ID or IP address
read	i		xx	videoqtyadvanced	Read input xx advanced video propertiesxx: Transmitter ID or IP address
read	i		xx	ossettings	Read input xx OS propertiesxx: Transmitter ID or IP address
read				all	Read all properties of local User Station

Command	Output Input Number	Control Description
read basic			network ipsettings rs232 properties manager streams tx usbmode	Read [control] properties of local User Station.

Note: 1. Each command string can be separated with a space.
2. Skip the Output or Input and Number command strings to read the local User Station properties.

Set Command

The Set command allows you to configure the properties of a device. Some settings require that both the device and Matrix Manger are online or the command will fail.

The formula for the Set command is as follows:

$$ \text { Command } + \text { Output } + \text { Input } + \text { Number } + \text { Control } + \text { Value } + [ \text { Enter } ] $$

1. For example, to set the name of the local User Station to KE6940TX1, type the following:

$$ \text { set Name } = \text { KE6940TX1 } [ \text { Enter } ] $$

1. For example, to set the description of Transmitter (192.168.0.33) to KE Room B, type the following:

$$ \text { set o192.168.0.19 Description = KE Room B [Enter] } $$

1. For example, to set the DHCP settings of Transmitter (192.168.0.28) to static, type the following:

$$ \text { set i192.168.0.28 dhcpFlag = STATIC [Enter] } $$

1. For example, to set the IP settings of the local User Station to 192.168.0.2, type the following:

$$ \text { set ipAddr } = 1 9 2. 1 6 8. 0. 2 [ \text { Enter } ] $$

1. For example, to set the Transmitter Video IP setting to 192.168.0.44 for User Station (192.168.0.56), type the following:

$$ \text { set o192.168.0.56 TxVideoIP = 192.168.0.44 [Enter] } $$

The following tables show the possible values for the Set command:

Command Description
set Set command
Output Description
o Output command
Input Description
i Input command
Number Description
xx Output or	Input numberxx: Device ID or IP address
Control Description
Name Sets the device name
Description Sets the device description
iplnstallerFlag Sets the IP installer option
dhcpFlag Sets the DHCP setting
ipAddr Sets the IP address
netmask Sets the subnet mask
gw Sets the default gateway
modeFlag Sets the device mode
BaudRate Sets the baud rate setting
Parity Sets the parity setting
DataBit Sets the data bit setting
StopBit Sets the stop bit setting
FlowCtrl Sets the flow control setting
TxVideoIP Sets the Transmitter video IP setting
TxAudioIP Sets the Transmitter audio IP setting
TxUSBIP Sets the Transmitter USB IP setting
TxRSIP Sets the Transmitter RS-232 IP setting
VideoEnFlag	Sets the (enable media) video source stream
AudioEnFlag	Sets the (enable media) audio source stream
USBEnFlag	Sets the (enable media) USB source stream
RSEnFlag	Sets the (enable media) RS232 source stream
ManagerIP	Sets the KE Management software IP
ManagerPort	Sets the KE Management software port
Beeper Sets the beeper
RxVM	Sets the USB mode setting
USBSecure	Sets the USB encryption
PortOS Sets the port OS setting
OSLanguage	Sets the OS language
videoMCastEn	Sets the enable multicast video setting
Control	Description
audioMCastEn Sets	the enable multicast audio setting
Edid Sets the	EDID mode selection setting
VideoType Sets	the video type setting
ColorDepth Sets	the color depth setting
BandwidthLimit Sets	the bandwidth limit setting
VideoQty Sets	the video quality setting
BGRefresh Sets	the background refresh setting
Beeper Sets	the beeper setting
OccupyTimeout Sets	the occupy timeout setting
Resolution Sets	the resolution setting
Value Description
=yy Set value	to yyyy: Enter a value that corresponds to the control being used

The following table lists the available Set commands:

Command	Output	Input	Number	Control	Value	Description
Set	o	i	xx	Name	yy	Set output or input xx Name to yyxx: Device ID or IP addressyy: Name value
Set	o	i	xx	Description	yy	Set output or input xx Description to yyxx: Device ID or IP addressyy: Description value
Set	o	i	xx	ipInstallerFlag	yy	Set output or input xx ipInstallerFlag to yyxx: Device ID or IP addressyy: enable, viewonly, disable
Set o	xx dhcpFlag yy		Set output	or input xx		dhcpFlag to yyxx: Device ID or IP addressyy: dhcp, static
Set o	xx ipAddr yy Set		output or input xx			ipAddr to yyxx: Device ID or IP addressyy: IP address value
Set o	xx netmask yy Set output or input xx					netmask to yyxx: Device ID or IP addressyy: Subnet mask value
Set o	xx gw yy	Set output or input xx				gw to yyxx: Device ID or IP addressyy: Default gateway value
Set o	xx modeFlag yy		Set output or input xx			modeFlag to yyxx: Device ID or IP addressyy: extender, matrix
Set o	xx BaudRate yy		Set output or input xx			BaudRate to yyxx: Device ID or IP addressyy: 9600, 19200, 38400, 115200
Set o	xx Parity yy Set		output or input xx			Parity to yyxx: Device ID or IP addressyy: none, even, odd
Set o	xx	DataBit		yy Set output or input xx		DataBit to yyxx: Device ID or IP addressyy: 5, 6, 7, 8
Set o i	xx StopBit yy Set output or input xx					StopBit to yyxx: Device ID or IP addressyy: 1, 1.5, 2
Set o i	xx FlowCtrl yy Set output or input xx					FlowCtrl to yyxx: Device ID or IP addressyy: none, hardware, Xon, Xoff
Set o i	xx TxVideoIP yy Set output xx					TxVideoIP to yyxx: Device ID or IP addressyy: IP address value
Set o xx	xx TxAudioIP yy Set output xx					TxAudioIP to yyxx: Device ID or IP addressyy: IP address value
Set o xx	xx TxUSBIP yy Set output xx TxUSBIP					to yyxx: Device ID or IP addressyy: IP address value
Set o xx	xx TxRSIP		yy Set output xx TxRSIP			to yyxx: Device ID or IP addressyy: IP address value
Set o i	xx VideoEnFlag		yy Set output or input xx			VideoEnFlag to yyxx: Device ID or IP addressyy: enable, disable
Set o i	xx	AudioEnFlag		yy Set output or input xx		AudioEnFlag to yyxx: Device ID or IP addressyy: enable, disable
Set o	xx USBEnFlag yy Set output or input xx					USBEnFlag to yyxx: Device ID or IP addressyy: enable, disable
Set o	xx RSEnFlag yy Set output or input xx					RSEnFlag to yyxx: Device ID or IP addressyy: enable, disable
Set o	xx ManagerIP yy Set output or input xx					ManagerIP to yyxx: Device ID or IP addressyy: KE Management software IP address
Set o	xx ManagerPort yy Set output or input xx					ManagerPort to yyxx: Device ID or IP addressyy: KE Management software port
Set o	xx Beeper yy Set output or input xx					Beeper to yyxx: Device ID or IP addressyy: enable, disable
Set o	xx RxVM yy Set output xx RxVM to					yyxx: Device ID or IP addressyy: vm, vusb
Set o	xx USBSecure yy Set output xx					USBSecure to yyxx: Device ID or IP addressyy: on, off
Set i	xx PortOS yy Set input xx PortOS to					yyxx: Device ID or IP addressyy: win, mac, sun, other
Set i xx	OSLanguage	yy	Set input	xx		OSLanguage to yyxx: Device ID or IP addressyy: english, japanese, french, german, spanish, korean, chinese(traditional), english(uk), swedish, arabic, belgian, canadian-bilingual, french(canada), czech, danish, finnish, greek, hebrew, hungarian, international(iso), italian, latin american, dutch, norwegian, persian(farsi), polish, portuguese, russian, slovak, french (switzerland), german (switzerland), switzerland, reserved, turkish-q, reserved, serbo-croatian
Set i xx	videoM	CastEn	yy	Set input xx		videoMCastEn to yyxx: Device ID or IP addressyy: enable, disable
Set i xx	audioM	CastEn	yy	Set input xx		audioMCastEn to yyxx: Device ID or IP addressyy: enable, disable
Set i xx	Edid yy	Set input	xx Edid	to yy		xx: Device ID or IP addressyy: default, auto, manual, remix
Set i xx	VideoType	yy	Set input	xx VideoType		to yyxx: Device ID or IP addressyy: dvi-d, dvi-a
Set i xx	ColorDepth yy	Set input xx	ColorDepth			to yyxx: Device ID or IP addressyy: 8, 16, 24
Set i xx	BandwidthLimit	yy Set input xx				BandwidthLimit to yyxx: Device ID or IP addressyy: unlimited, 10, 20, 50, 100, 200, 500
Set i xx	VideoQty yy	Set input xx	VideoQty			to yyxx: Device ID or IP addressyy: 1, 2, 3, 4, 5
Set i xx	BGRefresh yy	Set input xx	BGRefresh			to yyxx: Device ID or IP addressyy: off, 16, 32, 64, 128, 256
Set i xx	OccupyTimeout	yy Set input xx				OccupyTimeout to yyxx: Device ID or IP addressyy: 1~240
Set i xx	Resolution yy	Set input xx	Resolution			to yyxx: Device ID or IP addressyy: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x960, 1280x720, 1152x864, 1024x768, 800x600, 720x400, 640x480

This Page Intentionally Left Blank

Safety Instructions

General

• This product is for indoor use only.
• Read all of these instructions. Save them for future reference.
  ◆ Follow all warnings and instructions marked on the device.
• Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
• Do not use the device near water.
• Do not place the device near, or over, radiators or heat registers.
• The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered.
• The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings. Likewise, the device should not be placed in a built-in enclosure unless adequate ventilation has been provided.
• Never spill liquid of any kind on the device.
• Avoid circuit overloads. Before connecting equipment to a circuit, know the power supply’s limit and never exceed it. Always review the electrical specifications of a circuit to ensure that you are not creating a dangerous condition or that one doesn’t already exist. Circuit overloads can cause a fire and destroy equipment.
• Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
• The device should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• The device is designed for IT power distribution systems with 230V phase-to-phase voltage.
• To prevent damage to your installation it is important that all devices are properly grounded.
• The device is equipped with a 3-wire grounding type plug. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not attempt to defeat the

purpose of the grounding-type plug. Always follow your local/national wiring codes.

• Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over.
• If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
• Position system cables and power cables carefully; Be sure that nothing rests on any cables.
• Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock.
• Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
• If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair.
• The power cord or plug has become damaged or frayed.
  ♦ Liquid has been spilled into the device.
• The device has been exposed to rain or water.
• The device has been dropped, or the cabinet has been damaged.
• The device exhibits a distinct change in performance, indicating a need for service.
• The device does not operate normally when the operating instructions are followed.
• Only adjust those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.

Rack Mounting

• Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
• Always load the rack from the bottom up, and load the heaviest item in the rack first.
• Make sure that the rack is level and stable before extending a device from the rack.
• Use caution when pressing the device rail release latches and sliding a device into or out of a rack; the slide rails can pinch your fingers.
• After a device is inserted into the rack, carefully extend the rail into a locking position, and then slide the device into the rack.
• Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not exceed 80 percent of the branch circuit rating.
• Make sure that all equipment used on the rack – including power strips and other electrical connectors – is properly grounded.
• Ensure that proper airflow is provided to devices in the rack.
• Ensure that the operating ambient temperature of the rack environment does not exceed the maximum ambient temperature specified for the equipment by the manufacturer.
• Do not step on or stand on any device when servicing other devices in a rack.

Technical Support

International

• For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com
• For telephone support, See Telephone Support, page iii:

North America

Email Support [e-mail]
Online Technical Support	Troubleshooting Documentation Software Updates	http://www.aten-usa.com/support
Telephone Support 1-888-999-ATEN		ext 4988

When you contact us, please have the following information ready beforehand:

Product model number, serial number, and date of purchase.
- Your computer configuration, including operating system, revision level, expansion cards, and software.
◆ Any error messages displayed at the time the error occurred.
◆ The sequence of operations that led up to the error.
◆ Any other information you feel may be of help.

Specifications

KE6900T / KE6940T

Function KE6900T KE6940T
Connectors Console Ports	Keyboard 1 x USB Type A Female (White)
	Video 1 x DVI-I Female(White)		2 x DVI-I Female(White)
	Mouse 1 x USB Type A Female (White)
	Speaker 1 x Mini Stereo Jack Female (Green)
	Mic. 1 x Mini Stereo Jack Female (Pink)
	RS-232 1 x DB-9 Male (Black)
	KVMPorts	KB / Mouse USB Type B Female (White)
		Speaker 1 x Mini Stereo Jack (Green)
		Mic. 1 x Mini Stereo Jack (Pink)
		Video 1 x DVI-I Female(White)	2 x DVI-I Female(White)
		RS-232 1 x DB-9 Female (Black)
	Power 1 x DC Jack (Black)
	LAN	1 x RJ-45 Female (Black)
Switches	Function	1 x Slide switch (Black)(Auto, RS-232 Config, Local)
	Reset	1 x Semi-recessed Pushbutton
LEDs LAN		1 (Green / Orange)
	Power	1 x Blue
	Local	1 x Green
	Remote	1 x Green
Emulation	Keyboard / Mouse	USB
Power Consumption		DC 5V
Video Resolution		Up to 1920 x 1200
Environment	Operating Temp.	0–50°C
	Storage Temp.	-20–60°C
	Humidity	0–95% RH, Non-condensing
Physical Properties	Housing Metal
	Weight 1.14 kg 1.15 kg
	Dimensions (L x W x H)	21.50 x 16.29 x 4.18 cm

KE6900R / KE6940R

Function KE6900R KE6940R
Connectors US	B Virtual Media 2 x USB Type A Female (White)
	Console Ports	Keyboard 1 x USB Type A Female (White)
		Video 1 x DVI-I Female (White)	2 x DVI-I Female (White)
		Mouse 1 x USB Type A Female (White)
		Speaker 1 x Mini Stereo Jack Female (Green)
		Mic. 1 x Mini Stereo Jack Female (Pink)
	RS-232 1 x DB-9 Male (Black)
	Power 1 x DC Jack (Black)
	LAN 1 x RJ-45 Female (Black)
Switches OSD	1 x Pushbutton
	Video		1 x Pushbutton
	Graphics		1 x Pushbutton
	Function		1 x Slide Switch (Black) (Extension, RS-232 Config)
	Reset		1 x Semi-recessed Pushbutton
LEDs LAN			1 (Green / Orange)
	Power		1 x Blue
	Local		1 x Green
	Remote		1 x Green
Emulation	Keyboard / Mouse		USB
Power Consumption			DC 5V
Video Resolution			Up to 1920 x 1200
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–95% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.25 kg
	Dimensions (L x W x H)		22.75 x 17.16 x 5.48 cm

KE6900ST

Function KE6900ST
Connectors	KVM Ports	KB / Mouse	USB Type B Female (White)
		Video 1 x DVI-D Male (White)
	RS-232 1 x DB-9 Female (Black)
	Power 1 x DC Jack (Black)
	LAN 1 x RJ-45 Female (Black)
Switch Reset 1	x Semi-recessed Pushbutton
LEDs LAN 1 (Green / Orange)
Emulation Keyboard / Mouse USB
Power Consumption 5 V / 7.3 W
Video Resolution Up to 1920 x 1200
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–95% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.43 kg
	Dimensions(L x W x H)		14.39 x 10.30 x 3.00 cm

KE8950T / KE8952T

Function KE8950T KE8952T
Connectors Console Ports	Keyboard 1 x USB Type A Female (White)
	Video 1 x HDMI Female (Silver)
	Mouse 1 x USB Type A Female (White)
	Speaker 1 x Mini Stereo Jack Female (Green)
	Mic. 1 x Mini Stereo Jack Female (Pink)
	RS-232 1 x DB-9 Male (Black)
	KVM Ports	KB / Mouse USB Type B Female (White)
		Speaker 1 x Mini Stereo Jack (Green)
		Mic. 1 x Mini Stereo Jack (Pink)
		Video 1 x HDMI Female (Silver)
		RS-232 1 x DB-9 Female (Black)
	LAN 1 x RJ-45 Female(Black)		1 x RJ-45 Female(Black; PoE)
	LAN 1 x SFP Module Female (Black)
	Power		1 x DC Jack (Black)
Switches	Function		1 x Slide Switch (Black)(Auto, RS-232 Config, Local)
	Reset		1 x Semi-recessed Pushbutton
LEDs	LAN		1 (Green / Orange)
	Power		1 x Blue
	Local		1 x Green
	Remote		1 x Green
Emulation	Keyboard / Mouse		USB
Power Consumption			DC 5V, 7.22 W
Video Resolution			Up to 3840 x 2160 @ 30 Hz (4:4:4)
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–95% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.10 kg	1.13 kg
	Dimensions(L x W x H)		21.50 x 16.29 x 4.18 cm

KE8950R / KE8952R

Function KE8950R KE8952R
Connectors US	B Virtual Media 2 x USB Type A Female (White)
	Console Ports	Keyboard 1 x USB Type A Female (White)
		Video 1 x HDMI Female (Silver)
		Mouse 1 x USB Type A Female (White)
		Speaker 1 x Mini Stereo Jack Female (Green)
		Mic. 1 x Mini Stereo Jack Female (Pink)
	RS-232 1 x DB-9 Male (Black)
	LAN 1 x RJ-45 Female (Black)		1 x RJ-45 Female (Black; PoE)
	LAN 1 x SFP Module Female (Black)
	Power 1 x DC Jack (Black)
Switches OSD	1 x Pushbutton
	Video		1 x Pushbutton
	Graphics		1 x Pushbutton
	Function		1 x Slide Switch (Black) (Extension, RS-232 Config)
	Reset		1 x Semi-recessed Pushbutton
LEDs	LAN		1 (Green / Orange)
	Power		1 x Blue
	Local		1 x Green
	Remote		1 x Green
Emulation	Keyboard / Mouse		USB
Power Consumption			DC 5V, 5.65 W
Video Resolution			Up to 3840 x 2160 @ 30 Hz (4:4:4)
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–95% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.23 kg
	Dimensions (L x W x H)		22.75 x 17.16 x 5.48 cm

Optional Rack Mounting

For convenience and flexibility, two optional rack mounting kits are available as shown in the following table:

Mounting Type Model
KE69 Dual Rack Mount Kit 2X-021G
KE69 Single Rack Mount Kit 2X-031G
Video Extender Rack Mount Kit (KE6900ST only)	VE-RMK 1U

Dual Rack Mounting

The 2X-021G Dual Rack Mounting Kit installs two KE6900/KE8950 units side by side in 1U of server rack space.

1. Remove four screws from the units and then use the same screws to secure the units together with the link bracket.

Link Bracket

(Continues on next page.)

1. Remove the bottom and side screw from each unit.

Remove Screws Remove Screws

1. Use the screws in step 2 to install the left and right mounting brackets.

Phillips Head Hex Screw Left Mounting Bracket Right Mounting Bracket Phillips Head Hex Screw

1. Screw the mounting brackets to the rack.

Isometric line drawing of a server rack with ventilation slots and connectors (no text or symbols)

Single Rack Mounting

The 2X-031G Single Rack Mounting kit installs one KE6900/KE8950 unit in 1U of server rack space.

1. Remove the eight screws and plastic guards from the unit.

ALTUSON ALTUSON

1. Remove the bottom and side screws from the unit.

Technical line drawing of a server rack with ports and connectors (no text or symbols)

(Continues on next page.)

1. Use the screws in step 2 to install the right and left mounting brackets.

Technical line drawing of an electronic device showing internal components and mounting points (no text or symbols)

1. Screw the mounting brackets to the rack.

Isometric line drawing of a server rack with vertical supports and a central device (no text or symbols)

IP Installer

From a client computer running Windows, an IP address for a transmitter or receiver can be assigned with the IP Installer utility. The utility can be obtained from the Download area of our website or from the product page on the Software & Driver tab. After downloading the utility to your client computer, do the following:

1. Unzip the contents of IPInstaller.zip to a directory on your hard drive.
2. Go to the directory that you unzipped the IPInstaller program to and run IPInstaller.exe. A dialog box similar to the one below appears:

Network Device IP Installer Device list: Device Name Model Name MAC Address IP Address KE6900T KE6900T 00-10-74-s9.01-10 172.17.17.67 KE6940T KE6940T 00-10-74-s9.01-35 172.17.17.61 KE6900R KE6900R 00-10-74-s8.01-12 172.17.17.60 KE6940R KE6940R 00-10-74-s8.01-35 172.17.17.80 SN3101 SN3101 00-10-74-42-00-31 172.17.17.18 Protocol: IPv4 Network adapter: MAC: 00-19-db-ea-8c-d3, IP: 172.17.17.20 IPv4 settings Obtain an IP address automatically (DHCP) Use the following IP address: IP address: 172 . 17 . 17 . 67 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 172 . 17 . 17 . 254 IPv6 address: Subnet prefix length: Default gateway: Exit About Enumerate Set IP

1. Select the Transmitter or Receiver in the Device List.

Note: 1. If the list is empty, or your device doesn't appear, click Enumerate to refresh the Device List.

1. If there is more than one device in the list, use the MAC address to pick the one you want. The MAC address is located on the devices bottom panel.

2. Select either Obtain an IP address automatically (DHCP), or Specify an IP address. If you chose the latter, fill the IP Address, Subnet Mask, and Gateway fields with the information appropriate to your network.

3. Click Set IP.
4. After the IP address shows up in the Device List, click Exit.

Trusted Certificates

Overview

When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device's certificate is not trusted, and asks if you want to proceed.

Security Alert Information you exchange with this site cannot be viewed or changed by others. However, there is a problem with the site's security certificate. The security certificate was issued by a company you have not chosen to trust. View the certificate to determine whether you want to trust the certifying authority. The security certificate date is valid. The name on the security certificate is invalid or does not match the name of the site Do you want to proceed? Yes No View Certificate

The certificate can be trusted, but the alert is triggered because the certificate's name is not found on the Microsoft list of Trusted Authorities. You can ignore the warning and click Yes to go on.

Self-Signed Private Certificates

If you wish to create your own self-signed encryption key and certificate, a free utility – openssl.exe – is available for download over the web at www.openssl.org. To create your private key and certificate do the following:

1. Go to the directory where you downloaded and extracted openssl.exe to.

2. Run openssl.exe with the following parameters:

openssl req -new -newkey rsa:1024 -days 3653 -nodes -x509 -keyout CA.key -out CA.cer -config openssl.cnf

Note: 1. The command should be entered all on one line (i.e., do not press [Enter] until all the parameters have been keyed in).

1. If there are spaces in the input, surround the entry in quotes (e.g., "ATEN International").

To avoid having to input information during key generation the following additional parameters can be used:

/C /ST /L /O /OU /CN /emailAddress.

Examples

openssl req -new -newkey rsa:1024 -days 3653 -nodes -x509 -keyout CA.key -out CA.cer -config openssl.cnf -subj "/C=yourcountry/ST=yourstateorprovince/L=yourlocationor city/O=yourorganization/OU=yourorganizationalunit/CN=yourcommonname/emailAddress=[e-mail] openssl req -new -newkey rsa:1024 -days 3653 -nodes -x509 -keyout CA.key -out CA.cer -config openssl.cnf -subj "/C=CA/ST=BC/L=Richmond/O=ATEN International/OU=ATEN /CN=ATEN/emailAddress=[e-mail]

Importing the Files

After the openssl.exe program completes, two files – CA.key (the private key) and CA.cer (the self-signed SSL certificate) – are created in the directory that you ran the program from.

RS-232 Pin Assignments

Pin assignments for the Transmitter and Receiver's rear RS-232 port that is used for connecting to a serial terminal are given in the table, below:

Pin Assignment
1 N/A None
2	R	X	D
3 TXD	Transmit Data
4 DTR	Data Terminal Ready
5 GND	Signal Ground
6 DSR	Data Set Ready
7 RTS	Request to Sent
8 CTS	Clear to Sent
9 N/A None

Transmitter Front RS-232 Port

Pin assignments for the Transmitter's front RS-232 port that is used for connecting to a computer for serial control are given in the table, below:

Pin Assignment
1 N/A None
2 TXD Transmit Data
3	R	X	D	R e
4 DSR Data Set Ready
5 GND Signal Ground
6 DTR Data Terminal Ready
7 CTS Clear to Sent
8 RTS Request to Sent
9 N/A None

e

e

Multicast IP Address

Multicasting helps to broadcast audio and video data from a transmitter to multiple user stations over a network. To setup up Multicasting on a network switch you must know the Audio and Video Multicast IP address which can be found on the KE Transmitter. To determine the default Multicast IP address set by the KE device use the instructions below. The Multicast IP addresses can be set manually using Telnet.

KE Multicast Rule

All Audio and Video Multicast IP addresses use the format: 230.X.Y.Z.

X.Y.Z relates to the Transmitter's IP address and 230 is always the first octet of a Multicast IP address. You use the Transmitter's IP address to find X and then use it to calculate the Audio and Video Multicast IP address.

Multicast IP Formula

To calculate the Audio and Video Multicast IP address, use the Transmitter's IP address to determine X and then use the appropriate table below to calculate the Multicast IP address for each data stream (audio/video).

Example:

Transmitter IP Address: 172.16.27.146; (172.X.Y.Z)

$$ \mathrm{X} = 1 6 $$

If X is between 0 \~ 127

Transmitter IP X		VideoX + 128	AudioX + 192	MulticastVideo IPAddress	MulticastAudio IPAddress
172.16.27.146(example)	16	6 ± 128 = 144	16 + 192 = 208	230.144.27.146	230.208.27.146
		____+ 128 =	____+ 192 =	230._.._.	230._.._.
		____+ 128 =	____+ 192 =	230._.._.	230._.._.
		____+ 128 =	____+ 192 =	230._.._.	230._.._.

If X is between 128 \~ 192

Transmitter IP	X - 128 = A	Video A + 128	Audio A + 192	Multicast Video IP Address	Multicast Audio IP Address
172.168.27.14 (example)	168 - 128 = 40	40 + 128 = 168	40 + 192 = 232	230.168.27.14	230.232.27.14
	____- 128 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.
	____- 128 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.
	____- 128 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.

If X is 192 or higher

Transmitter IP	X - 192 = A	Video A + 128	Audio A + 192	Multicast Video IP Address	Multicast Audio IP Address
172.200.27.14 (example)	200 - 192 = 8	8 + 128 = 136	8 + 192 = 200	230.136.27.14	230.200.27.14
	____- 192 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.
	____- 192 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.
	____- 192 =	____+ 128 =	____+ 192 =	230._._._.	230._._._.

Keys to Network Performance

For optimum performance, KE Series devices requires high amounts of data to be transferred across a network; therefore we recommend the following strategies to setup KE Series devices. Using our suggestions will provide better performance and the highest video resolutions possible. Use each of the keys to ensure the best transmission of data and the highest throughput possible.

Build a Network Diagram

To build an effective KE installation, start by mapping out the layout. Create a diagram with the KE devices, computers and routers along with how they will be connected across the network. It also helps to write out how the devices will interact. Use this diagram as the frame work as you decide what devices to purchase and how to build the network effectively for the best data throughput.

Considerations:

• If possible, create a private network for the KE devices
  ◆ Use the same switch model throughout
  ◆ Use a flat cascaded layout
  ♦ Avoid a tree or pyramid structure
  ♦ Limit cascades to two levels
  ◆ Install network switches near each other
• Minimize the distance of connections
• Install Matrix Manger (CCKM) computer and KE devices on the same subnet
  ◆ Check the 3 Other Factors before installation

Other Factors

■ Choose the Right Cable

Always use Cat 5/6e Ethernet cable or higher installed by a professional between any two devices you are installing. We recommend using ATEN Brand Ethernet cable to ensure the quality. It’s best when installing KE devices to use brand new Ethernet cabling for each part of the installation to ensure the reliability of the data being transmitted. This is a key to getting the best uninterrupted video resolution across the network.

■ Determine the Distance

Distance is an important factor when setting up networks, with a shorter distance and fewer hops through routers, data can be transmitted more efficiently. So whenever possible decrease the distance and direct network traffic effectively between subnets that communicate with each other to increase the data throughput.

■ Ensure the Bandwidth

Ensuring the bandwidth ahead of time will guarantee performance before installing KE devices on a network. This will eliminate the primary cause of problems related to video quality and transmission of data. If the speed is right at all ends of your network, then the only other causes are derived from device failure or limits caused by a router, switch or device setting.

Sample Network Diagram
    subgraph_KE6900T["KE6900T"]
        PC1["PC"] -->|KVM port| KE6900T["KE6900T"]
        KE6900T -->|Console port| KE6900T
    end
    subgraph_KE6900R["KE6900R"]
        KE6900R1["KE6900R"] -->|Console port| KE6900R
        KE6900R -->|Console port| KE6900R
    end
    subgraph_KE6900T["KE6900T"]
        PC2["PC"] -->|KVM port| KE6900T["KE6900T"]
        KE6900T -->|Console port| KE6900T
    end
    subgraph_KE6900R["KE6900R"]
        KE6900R1["KE6900R"] -->|Console port| KE6900R
        KE6900R -->| console port| KE6900R
    end
    subgraph_KE6900T["KE6900T"]
        PC3["PC"] -->|KVM port| KE6900T["KE6900T"]
        KE6900T -->|Console port| KE6900T
    end
    subgraph_KE6900R["KE6900R"]
        KE6900R1["KE6900R"] -->|Console port| KE6900R
        KE6900R -->| Console port| KE6900R
    end
    subgraph_KE6900T["KE6900T"]
        PC4["PC"] -->|KVM port| KE6900T["KE6900T"]
        KE6900T -->|Console port| KE6900T
    end
    subgraph_KE6900R["KE6900R"]
        KE6900R1["KE6900R"] -->|Console port| KE6900R
        KE6900R -->| KVM port | KE6900T
    end

Choose a High Performance Switch

A high performance network switch is the means of a successful KE setup. When choosing a network switch, first select the type:

Layer 2 or Layer 3 Switches

You'll need to determine whether you need a layer 2 or a layer 3 switch for your KE network. Layer 3 switches cost more than layer 2 switches because they are more complex and handle more network traffic. The best way to calculate which type of switch you need is to first determine if you will have a dedicated network for the KE devices or if the KE devices will be on a network that shares throughput with other network equipment such as computers, servers and printers. If they share the network with other devices its best to consider a layer 3 switch and use layer 2 switches exclusively for the KE device connections. For larger installations we recommend using Layer 3 switches. The major differences are:

Layer 3 Switch: IP addresses in packets are examined and intelligent forwarding decisions are made. On a larger network broken into subnets across long distances, a layer 3 switch becomes the best choice as they can improve network efficiency and provide better traffic flow. They are better at directing more traffic to different locations on a larger more complex network, and with layer two switches working below them.

Layer 2 Switch: Packets are examined and forwarded using only the MAC address. If you have a small central network, a layer 2 switch should do the job. If the network is exclusive and will only transmit the bandwidth of KE devices, layer 2 switches with the correct settings can get the job done effectively.

Considerations

Number of ports

Choose a switch that has enough ports to match the number of KE devices you will be installing. Switches typically come in 5, 8, 10, 16, 24, 28, 48, and 52-port configurations. If you are installing 13 KE transmitters and 13 KE receivers, you will need to purchase a switch with at least 28 ports.

Stackable verse Standalone

Stackable switches allow you to easily manage and configure ports spanning across multiple switches that the KE devices are connected through. This provides a centralized method to configure and troubleshoot the initial setup of

KE devices on a network which makes fine tuning the bandwidth, data throughput and video quality easier. Stackable switches can be configured to direct the KE transmissions between many units more specifically and effectively. Standalone switches provide the same configuration features as Stackable switches but they must be set individually.

Stackable switches provide an easy way to manage multiple switches, as one unit. For example, instead of configuring, managing, and troubleshooting 6 28-port switches individually, you can manage the six as if they are a single unit using Stackable Switches. The six switches (168 ports) function as a single switch and are managed from one web or GUI interface.

What Stackable Switches Can do:

1. Create a link aggregation group with one port in one unit of the stack and another port of that group in another switch in the stack.
2. Select a port on one switch in the stack and mirror the traffic to a switch port on another unit of the stack; thus copy the configuration to direct traffic more effectively between KE devices.
3. Apply custom ACL security settings to any port on any switch in the stack.
4. Stackable switches can be setup in a ring configuration, so that if a port or cable fails, the stack automatically routes around the failure, at microsecond speeds. Stackable Switches also allow you to add and remove stack “members” which are automatically updated and recognized as such.

Switch Specifications

The following specifications are recommended when choosing a layer 2 or layer 3 switch:

◆ 1000Mbps Gigabit Ethernet switches (1000Mbps or faster Ethernet ports)
◆ High bandwidth between switches, if possible using Fibre Channel
- Layer 3 switches that efficiently processes IGMP queries
IGMP Snooping v2 or v3
◆ Flow Control Functions
◆ Throughput of: Full Duplex, 1Gbps up- and down- stream speeds per port
◆ Performance of their most onerous tasks (e.g. IGMP snooping) with multiple dedicated processors (ASICS)
◆ Use the same switch make and model throughout each subnet

- The maximum number of simultaneous ‘snoopable groups’ the switch can handle meets or exceeds the number of KE transmitters that will be used to create Channel groups

Configuring Switches and KE Devices

Configuring the switch correctly will pass data more efficiently, allowing a better stream across the network to each KE device. The following settings will help optimize your network traffic through a switch:

◆ Enable IGMP Snooping on L2 switches
◆ Enable IGMP Querier on the L3 switch
- Enable IGMP Fast-Leave on all switches where KE units are directly connected
- Enable Spanning Tree Protocol (STP) on all switches and enable Portfast exclusively on switch ports that have KE units connected
- Pick an appropriate forwarding mode on all switches. Use Cut-through if available, or Store and Forward

KE transmitter Settings:

• Adjust the KE transmitter settings one at a time, in small intervals, and view the images as you do, so that you can adjust to the positive or negative results and achieve the best quality and bandwidth possible
• If the quality of color is important, set the Color Depth to 24 bits and manually adjust other settings until you are satisfied with the visual appearance
• If moving video images are shown frequently, increase the Video Quality setting to the highest level and reduce the Bandwidth Limit and Color Depth setting.
• When images on the screen are more often static, increase the Background Refresh and/or the Video Quality settings
• Check that all KE units have been updated with the latest firmware version

Limited Hardware Warranty

ATEN warrants its hardware in the country of purchase against flaws in materials and workmanship for a Warranty Period of two [2] years (warranty period may vary in certain regions/countries) commencing on the date of original purchase. This warranty period includes the LCD panel of ATEN LCD KVM switches. Select products are warranted for an additional year (see A+ Warranty for further details). Cables and accessories are not covered by the Standard Warranty.

What is covered by the Limited Hardware Warranty

ATEN will provide a repair service, without charge, during the Warranty Period. If a product is defective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product. Replaced products assume the warranty of the original product for the remaining period or a period of 90 days, whichever is longer. When the products or components are replaced, the replacing articles shall become customer property and the replaced articles shall become the property of ATEN.

To learn more about our warranty policies, please visit our website:

http://www.aten.com/global/en/legal/policies/warranty-policy/
