USER MANUAL SpeedDome SD83x4E Vivotek

Technical line drawing of a surveillance camera with labeled components (no readable text or symbols beyond branding)

Rev. 1.0

Table of Contents

Overview......4

Revision History ...... 4

Read Before Use....5

Package Contents 5

Symbols and Statements in this Document....5

Physical Description 6

Installation 9

Hardware Installation 9

Network Deployment....18

Software Installation....21

Ready to Use....22

Accessing the Network Camera 23

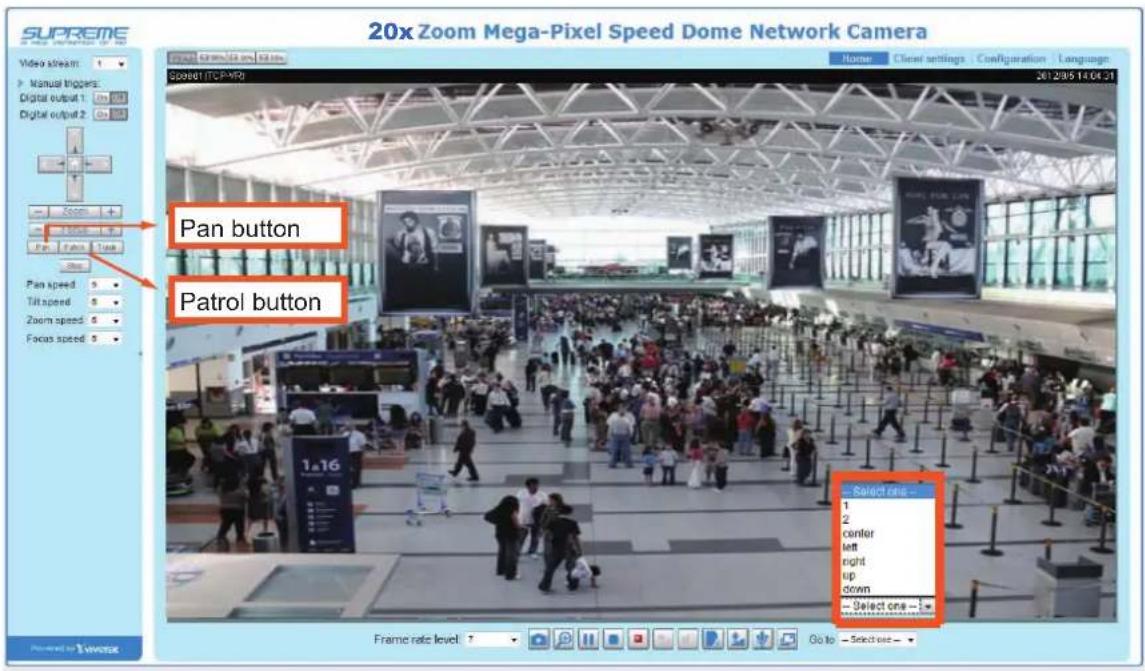

Using Web Browsers....23

Using RTSP Players....25

Using 3GPP-compatible Mobile Devices....26

Using VIVOTEK Recording Software....27

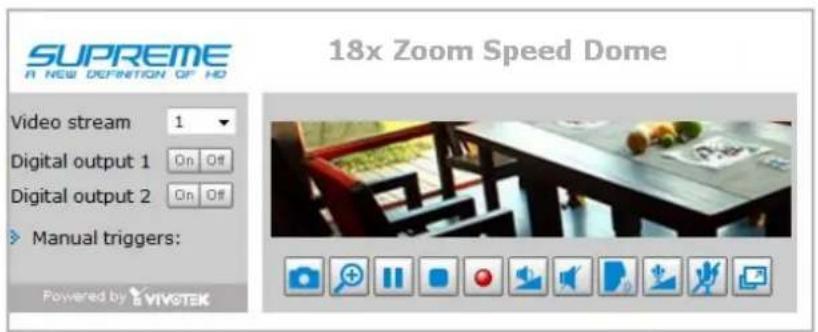

Main Page 28

Client Settings 34

Configuration 39

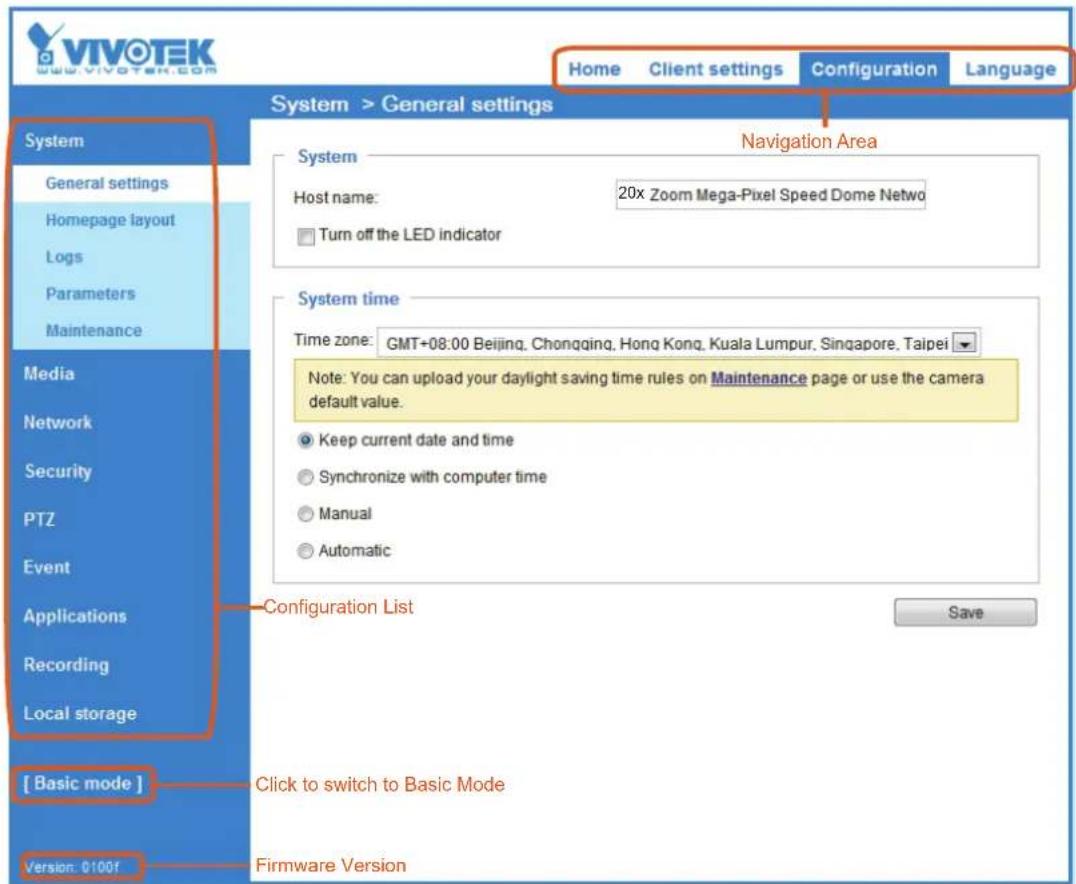

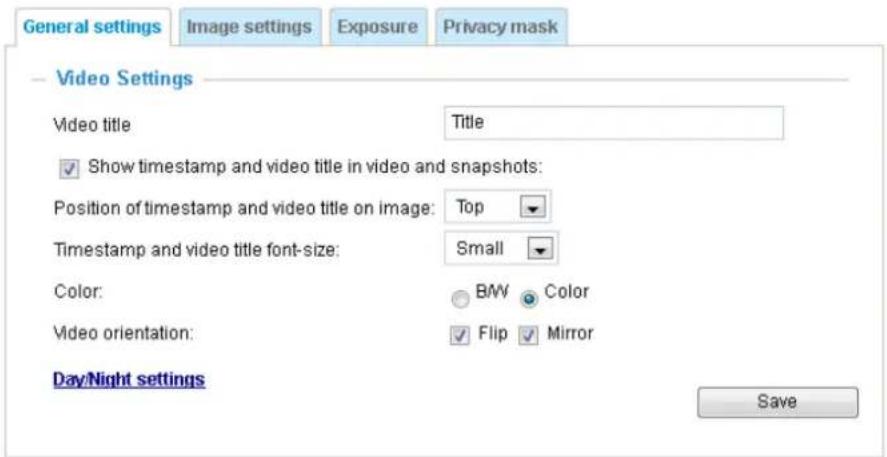

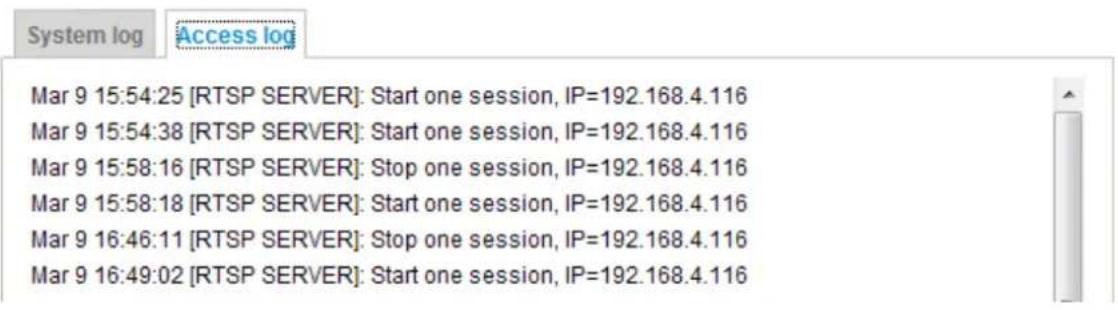

System > General settings....40

Network > General settings....66

Network > Streaming protocols 74

Network > DDNS 78

Network > SNMP (Simple Network Management Protocol)....83

Security > User Account....84

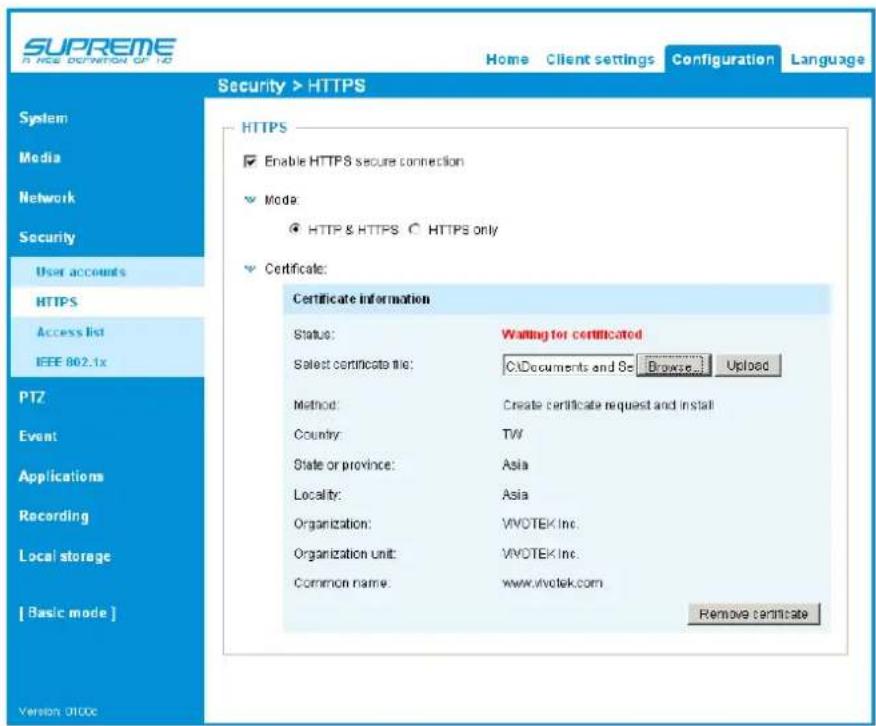

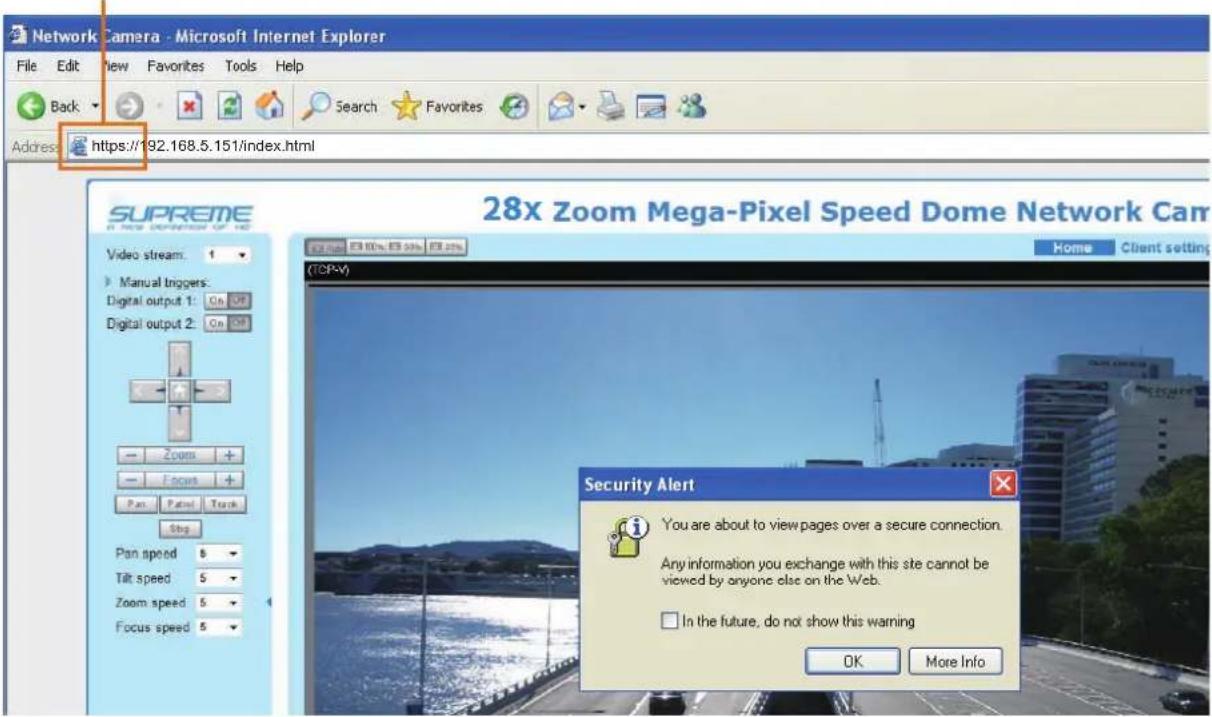

Security > HTTPS (Hypertext Transfer Protocol over SSL) 85

Security > Access List 92

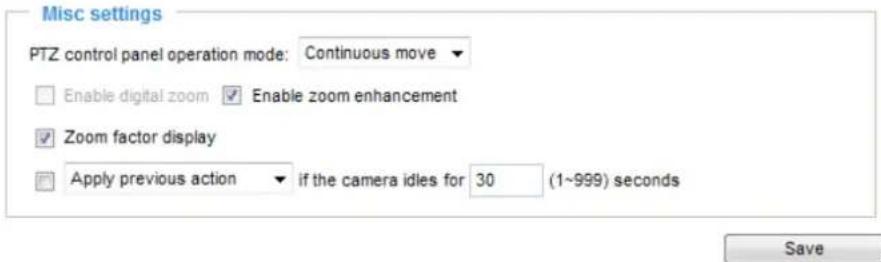

PTZ > PTZ settings 97

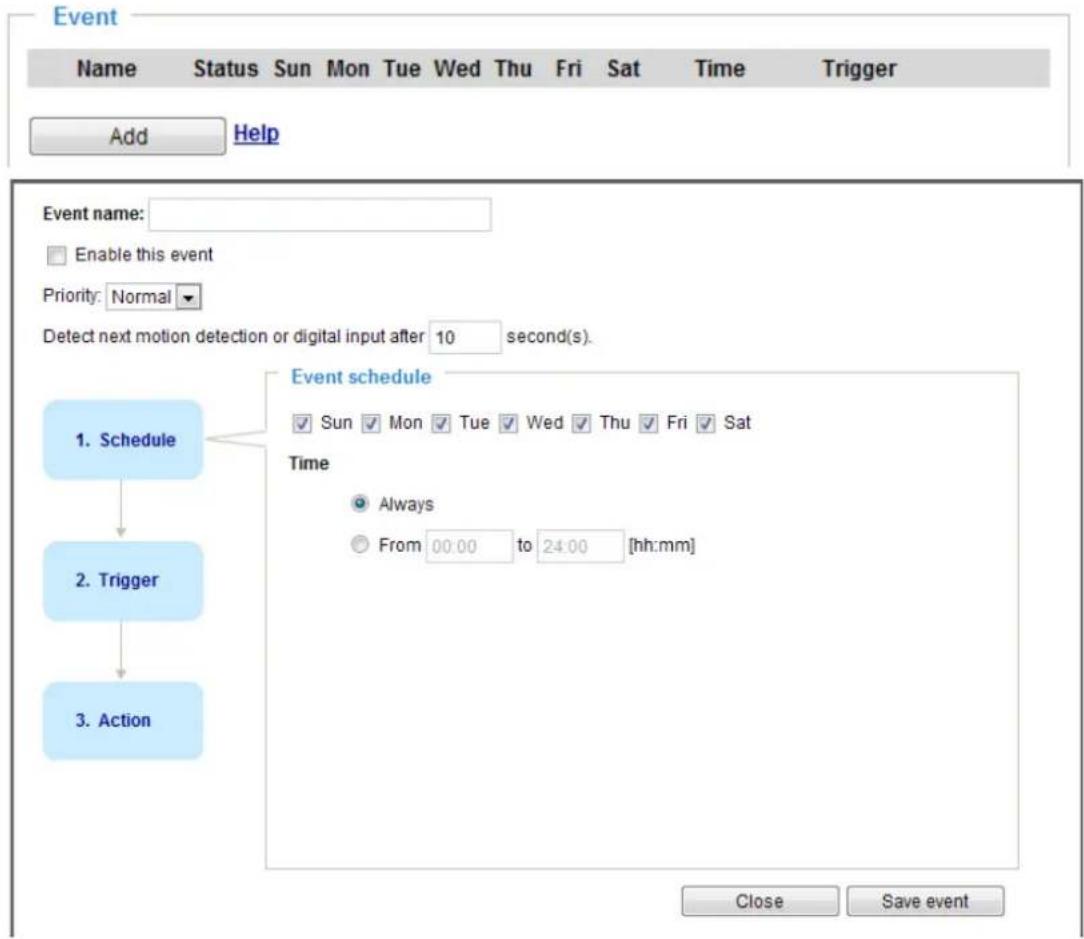

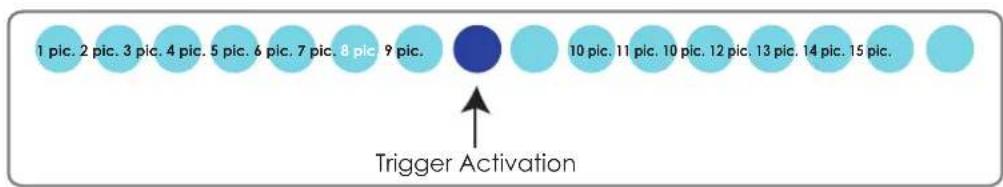

Event > Event settings 102

Applications > Motion detection.... 116

Applications > DI and DO 119

Applications > Audio detection 120

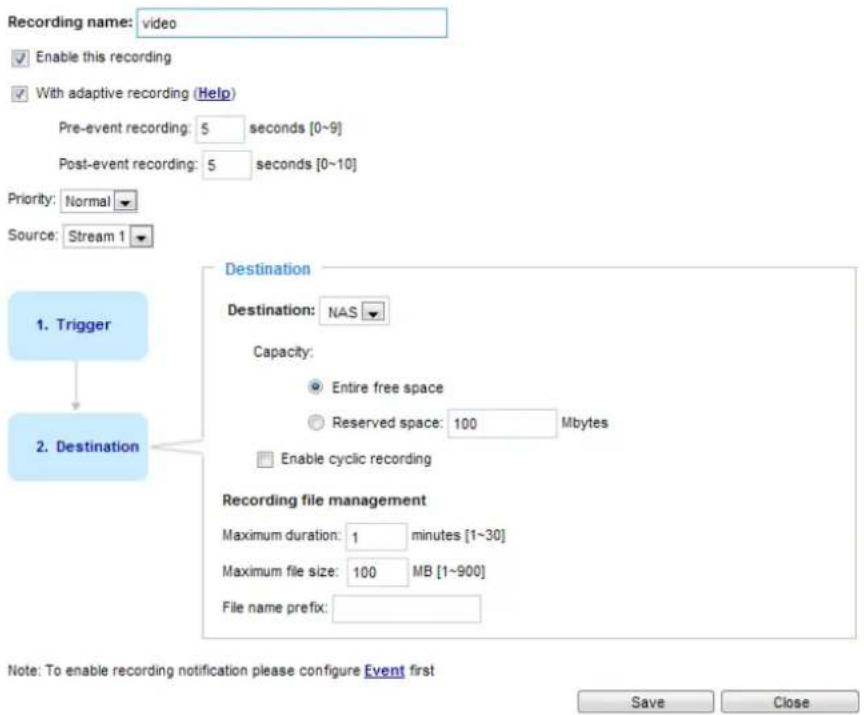

Recording > Recording settings 122

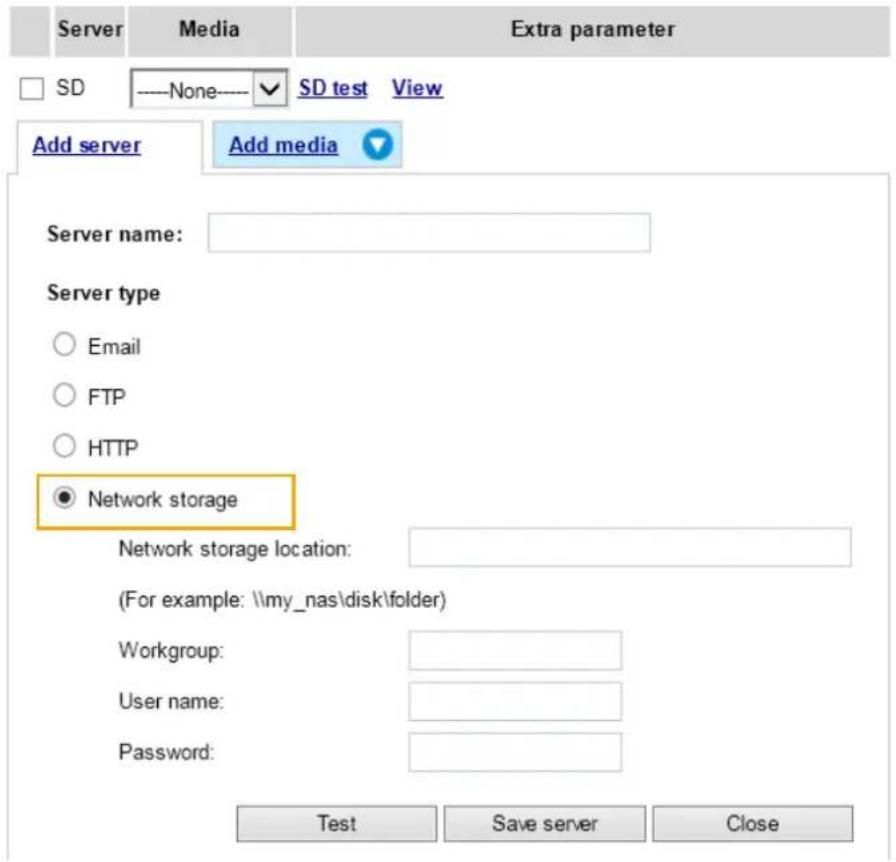

Local storage > SD card management....127

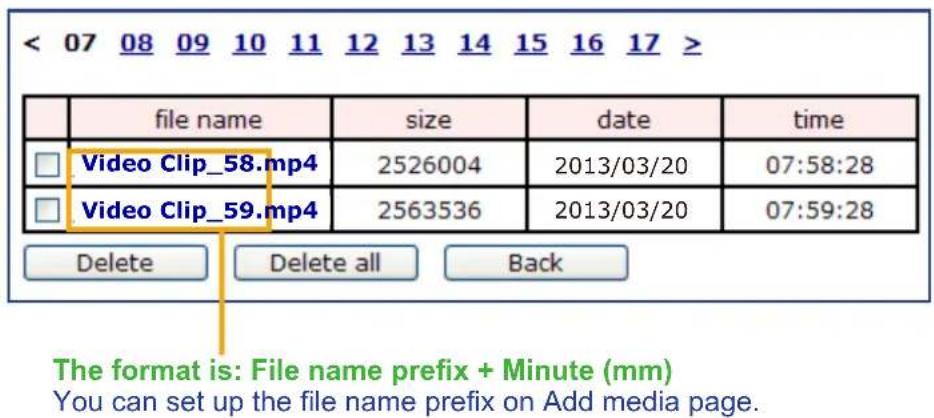

Local storage > Content management 128

Appendix 130

URL Commands for the Network Camera....130

Technical Specifications 214

Technology License Notice....215

Electromagnetic Compatibility (EMC)....216

Overview

VIVOTEK SD8363E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 20x optical zoom lens, the SD8363E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.

Revision History

■ Rev. 1.0: Initial release

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the Package Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/ surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ SD83x4E/83x6E
■ Wall Mount Bracket / Screws
■ Waterproof Connectors / Terminal Blocks / Ethernet Cable / Ground Wire
■ Screws / Alignment Sticker / T25 Stardriver / Seal Ring / Desiccant Bags
■ Quick Installation Guide
■ Software CD / Warranty Card
■ PC/ABS /Smoked Dome Cover / IO Combo Cable (Separately Purchased)

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient or problem situations.

NOTE: Notices provide guidance or advices that are related to the functional integrity of the machine.

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or process.

WARNING! or IMPORTANT!: These statements indicate situations that can be dangerous or hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might occur to an operator.

Physical Description

Outer View

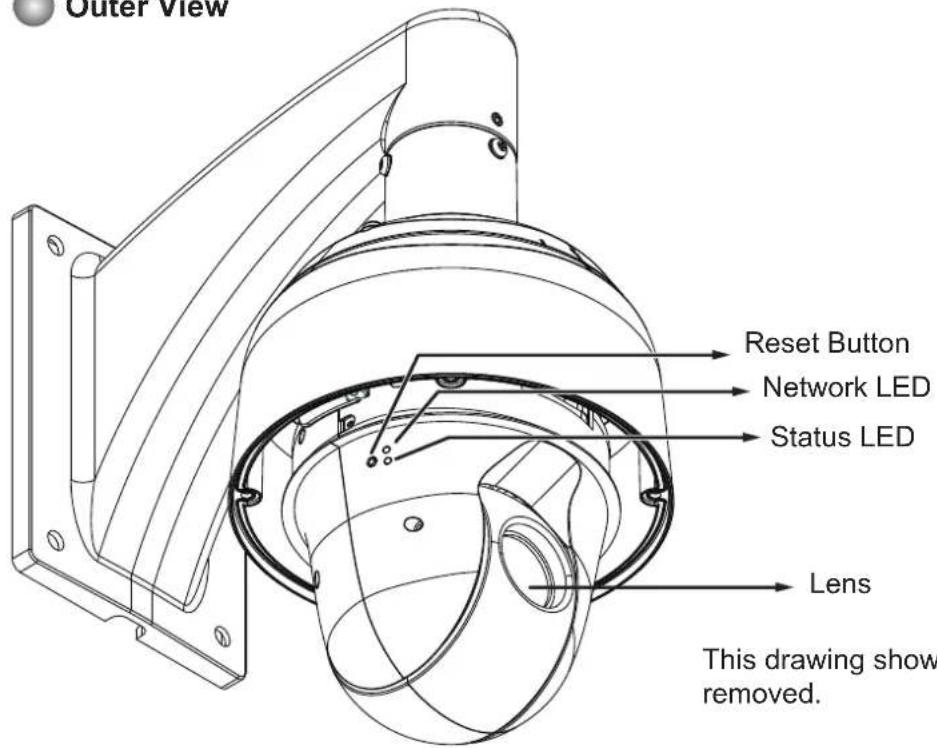

This drawing shows a camera with its dome cover removed.

Inner View

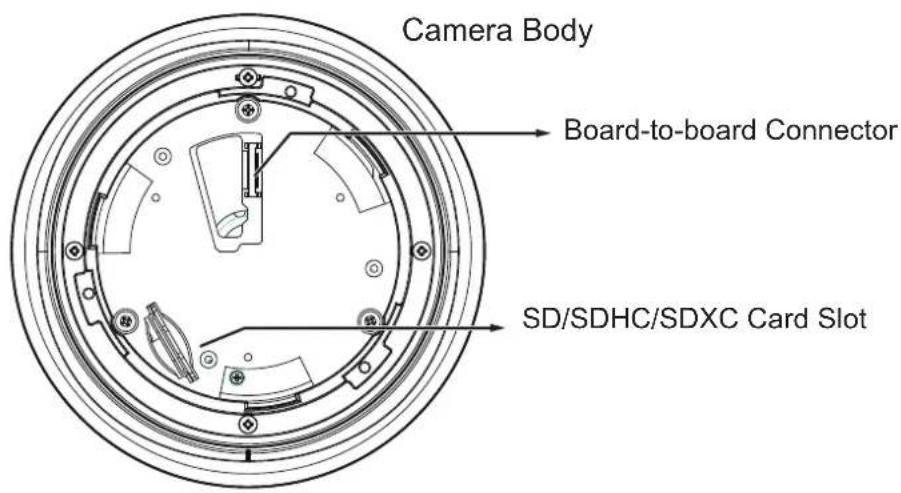

The card slot is accessed by removing the top section using the T25 stardriver.

Technical line drawing of a mechanical device with no visible text or symbols

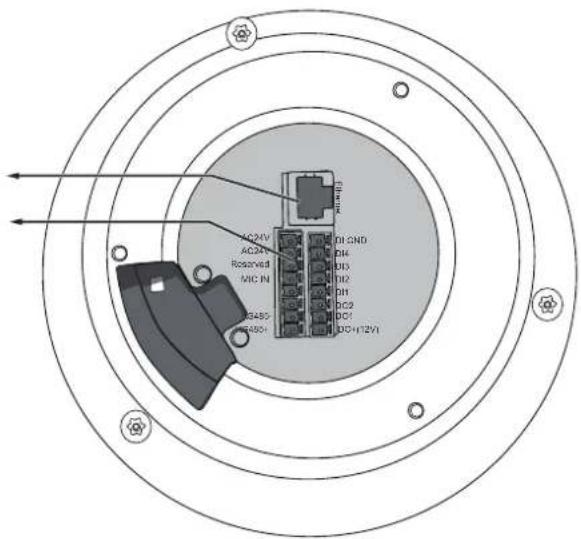

Interface Section

Ethernet 10/100 RJ45 Plug General I/O Terminal Block

Status LED

Item LED status Description
1 Steady red Power on and system booting
	Red LED off Power off
2	Steady red & Green blinking every 1 sec.	Network normal (heartbeat)
	Steady red & Green LED off Network failed
3	Red blinking every 0.15 sec. & Green blinking every 1 sec.	Upgrading firmware
4	Red blinking every 0.15 sec. & Green blinking every 0.15 sec.	Restoring default

Hardware Reset

The reset button is used to reset the system or to restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press and release the recessed reset button with a paper clip or thin object. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button for a while to restore. Note that all settings will be restored to factory default.

SD/SDHC/SDXC Card Capacity

This network camera is compliant with SD/SDHC/SDXC 32GB, 64GB, and other preceding standard SD cards.

DI/DO Diagram

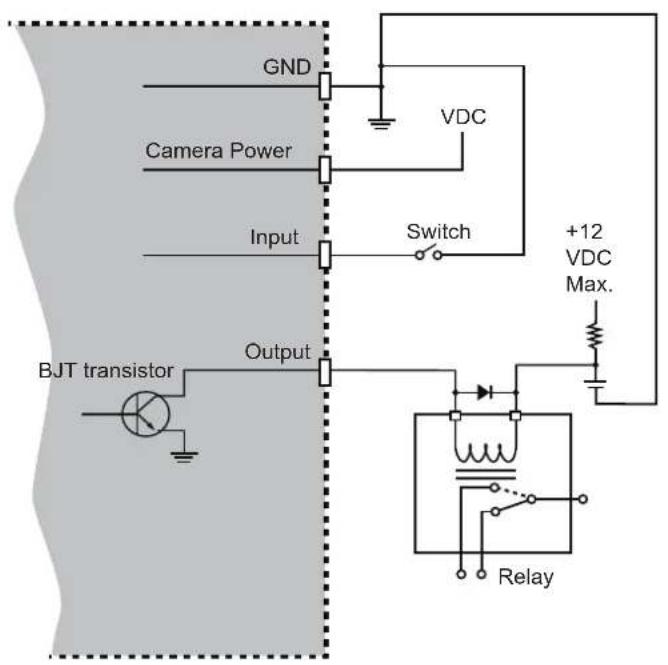

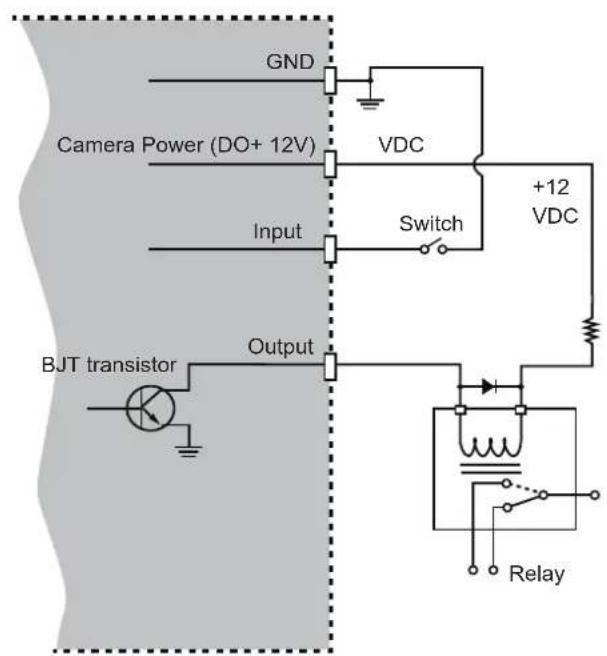

Please refer to the following illustration for the connection method. Please note that the maximum load on the DO pins is 50mA.

IMPORTANT:

1. The camera can be driven by an Ethernet connection to a PoE Plus switch (30W output). You can connect both the PoE Plus and the 24V power for fail-safe redundancy.
2. If the installation requires heating in the winter ( <-5^ ), you will need approximately 60 Watts of power to drive the embedded heater. You can either connect the 24V power lines or a High Power PoE power injector (separately purchased).

Installation

Hardware Installation

1. Connecting RJ45 Ethernet Cable

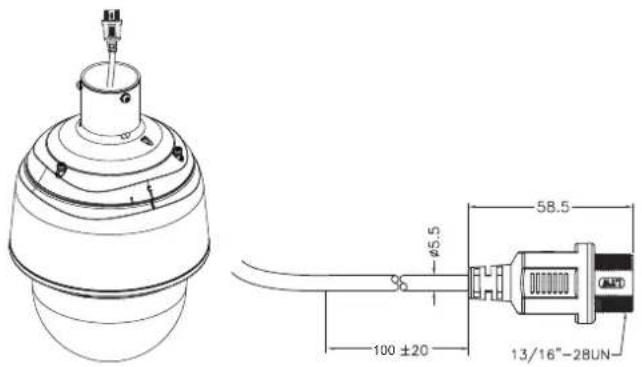

- RJ45 Cable Dimension (unit: mm)

Use CAT5e cables only.

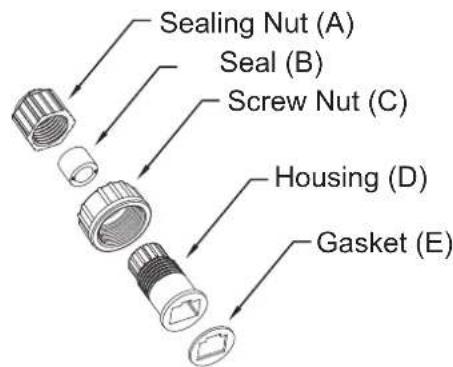

Components of the Waterproof Connector

Assembling Steps

1 Prepare an Ethernet cable and strip part of the sheath.

Recommended cable gauge: O.D. 5.5\~7

2 Insert the housing into the screw nut.

3 Insert the seal into the housing.

4 Insert the stripped Ethernet cable through the sealing nut and the housing.

5 Clamp the cable with an RJ45 plug.

Technical line drawing of a mechanical connector assembly (no text or symbols)

6 Push the RJ45 plug into the housing, then secure the sealing nut tightly.

Mechanical assembly diagram showing a threaded component with directional arrows indicating motion (no text or labels)

7 Attach the gasket to the front of the housing.

Pure mechanical component diagram without any text, numbers, or symbols

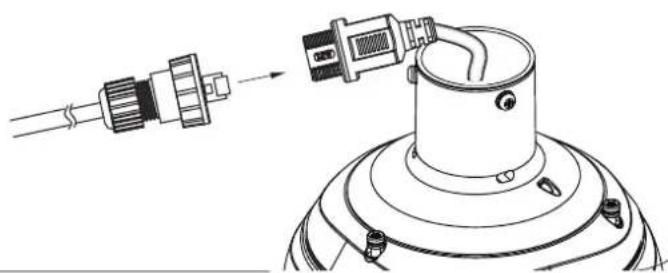

8 Connect the Ethernet cable to the RJ45 cable and secure the connectors tightly.

Technical line drawing of a mechanical assembly with a cylindrical component and a separate view showing a shaft and housing (no text or symbols)

2. Connecting Power and I/O Wires

If you need to connect I/O wires and 24V power, disassemble the top section of the camera. It is highly recommended to complete the following before you can mount the speed dome camera at the installation site:

Skip this section and move to Section 3-3 if you connect the Ethernet cable only.

2-1. Cabling through the Waterproof Connectors

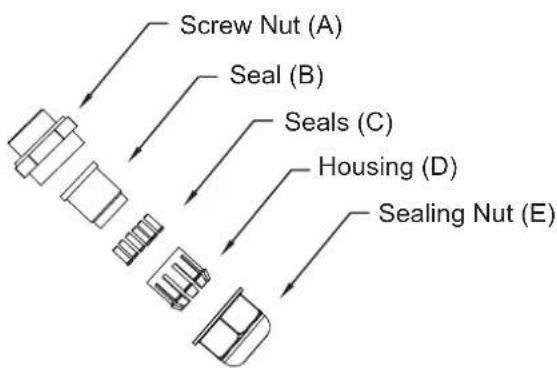

Components of the Waterproof Connector

• Wire range: 13\~16AWG (1.2\~1.8mm)
  • A socket wrench for the M20 hex nut is required.

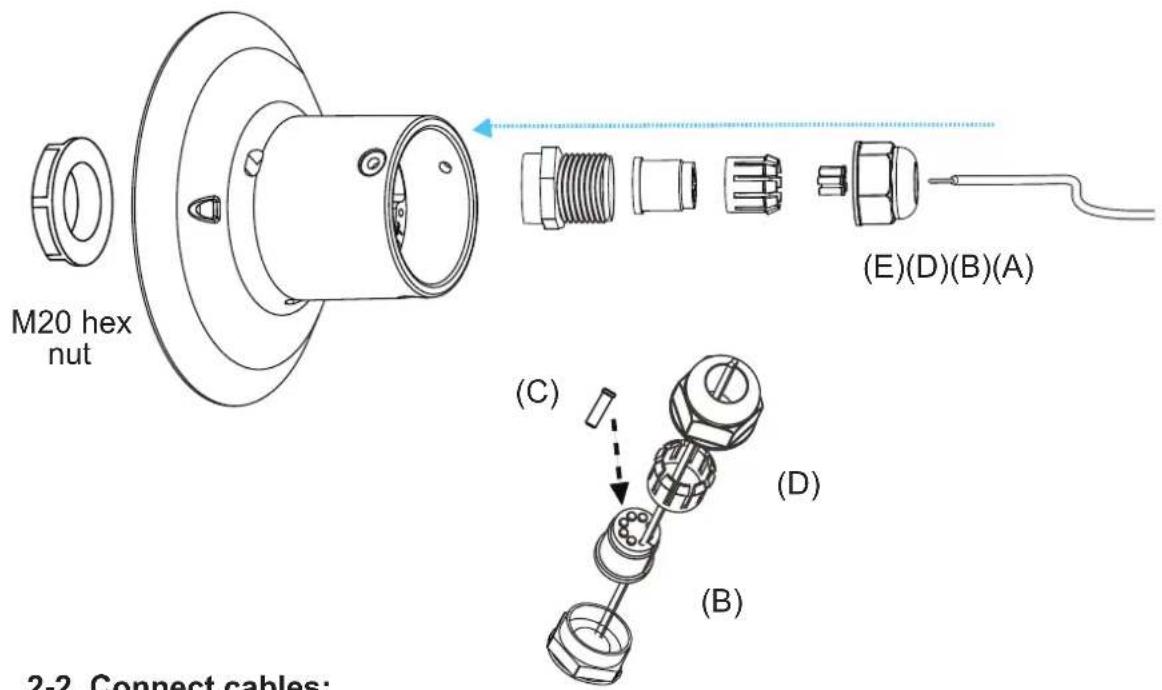

• Disassemble the components of the waterproof connector into parts (A) \~ (E) as shown above.

• Remove the plastic stopper from the bottom of the dome cap and keep the M20 hex nut for later use.
• Depending on the number of wires, remove seals (C) from the rubber seal (B).
• If you have external devices such as sensors and alarms, feed IO wires through the waterproof connector (E --> D --> B --> A) as the illustrated below. Note that there are 16 holes on the seal (B), and wire range is between 1.2 and 1.8mm.
• Push the seal (B) into the housing (D).
• Secure the sealing nut (E) tightly.

2-2. Connect cables:

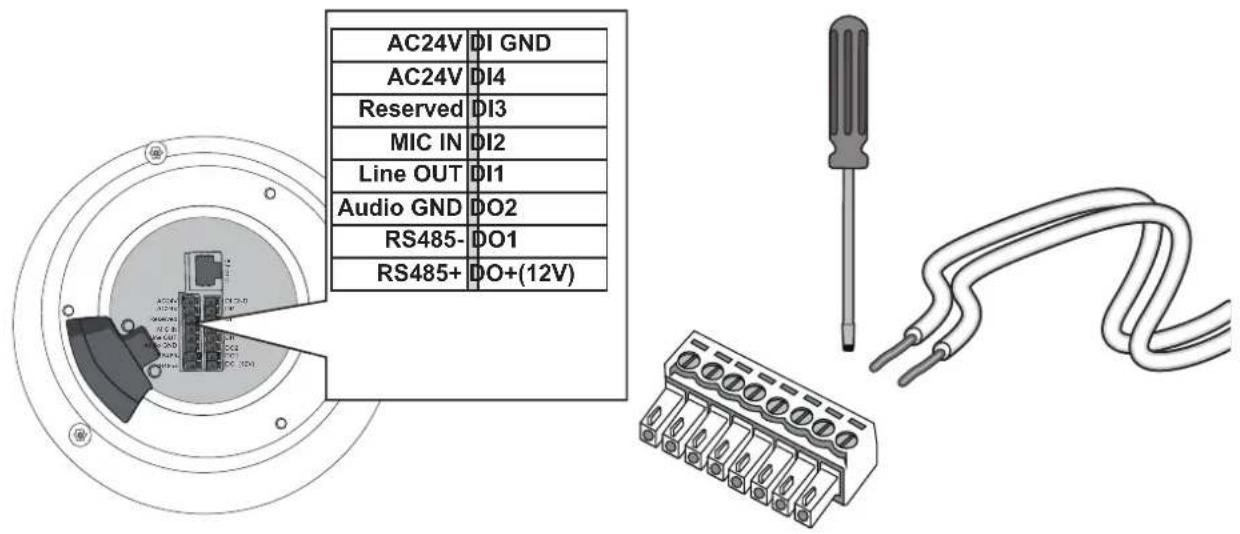

1. Use a small-size flat-blade screwdriver to secure IO wires to the included terminal blocks. You may also purchase an IO combo cable from VIVOTEK.

Wire range: 13\~16AWG

Strip length: 6\~7mm

Screw: M2

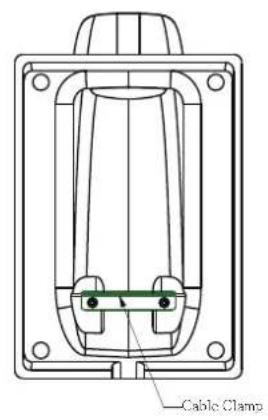

1. Feed the Ethernet cable and IO wires through the mounting bracket, the openings on the dome cap, and to the interface section. Attach the rubber seal plug to dome cap for water proofing.
2. Secure the included ground wire to the dome cap, pass it through the mount bracket, and connect the other end to a grounded conduit later.

NOTE:

1. I/O wires are user-supplied.
2. Avoid touching the circuit boards to prevent damage by electro static discharge.

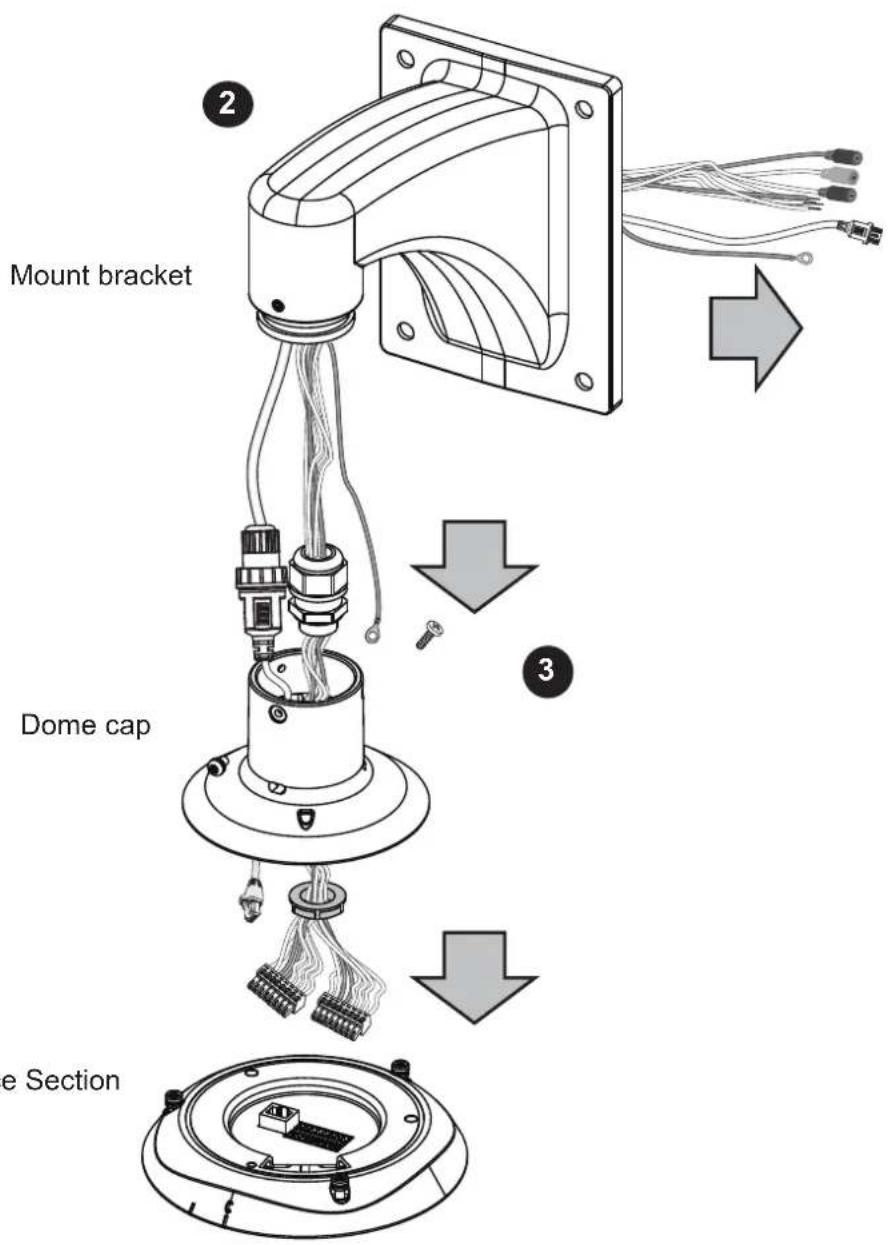

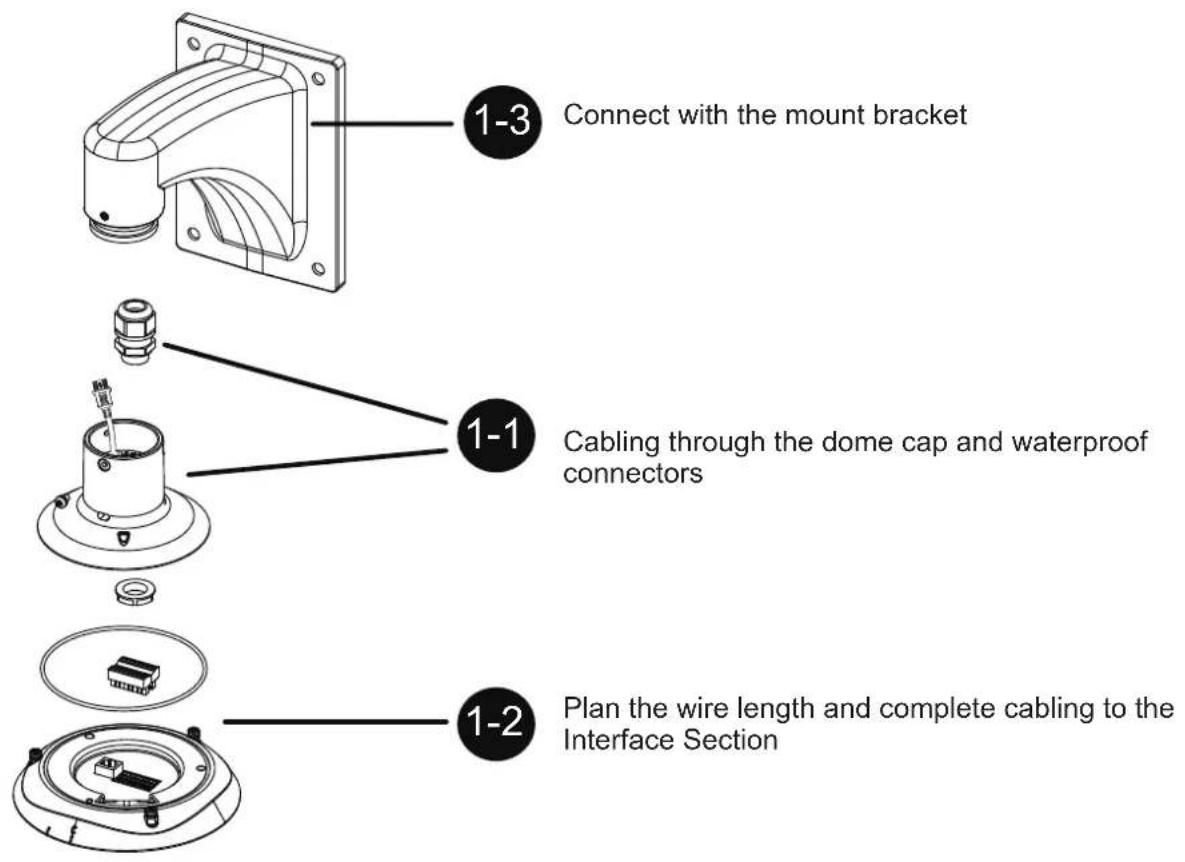

1-3. Connect with the Mount Bracket

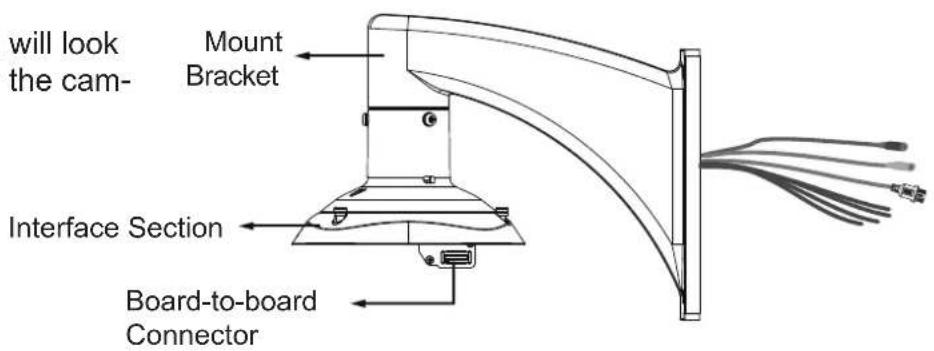

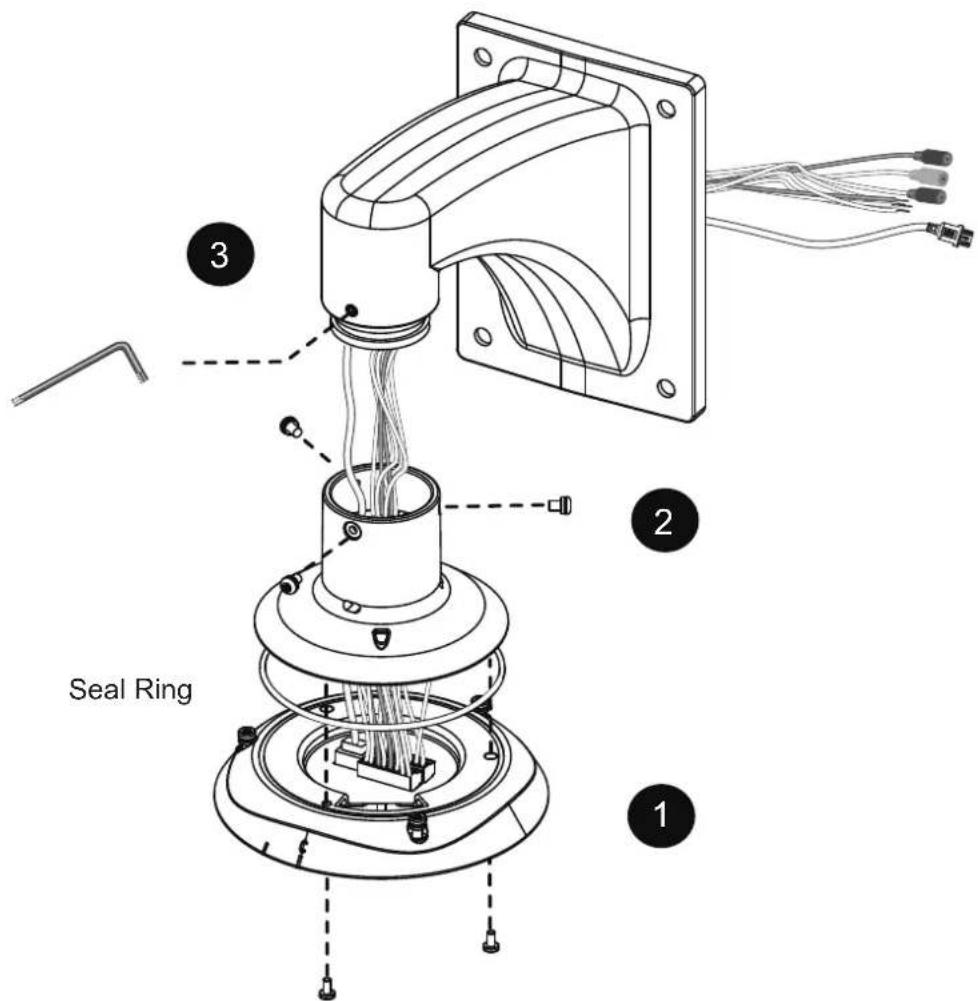

Combine the components of the top section.

1. Press the seal ring into the groove on the interface section. Use the black machine screws (M4x8) to attach the interface section to the dome cap.
2. Secure the dome cap to the mount bracket.
3. Use the included hex wrench to secure the connection.

When done, the top section will look like this. You can now carry the camera and the top section to the installation site.

2. Mounting the Network Camera

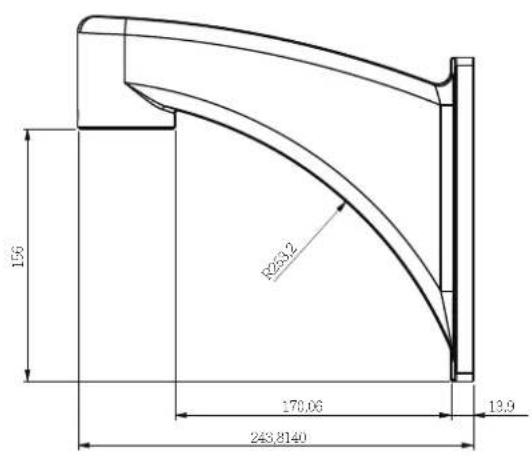

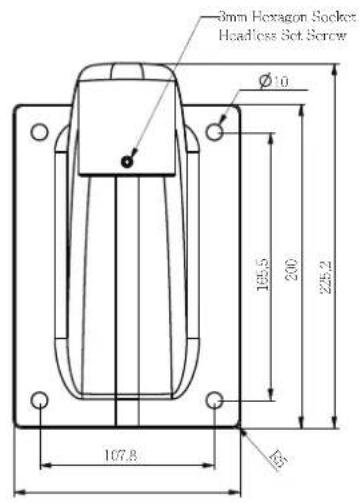

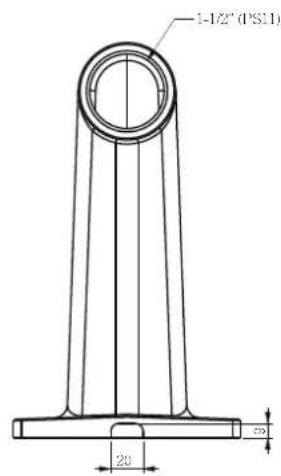

Shown below are the dimensions of the wall mount bracket and its mounting holes:

You can find the installation instructions on VIVOTEK's website for other options such as a parapet mount: http://www.vivotek.com/web/product/accessories.aspx

IMPORTANT:

You should examine whether the color of the silica gel inside the chassis has turned red. If so, you should replace the desiccant bag.

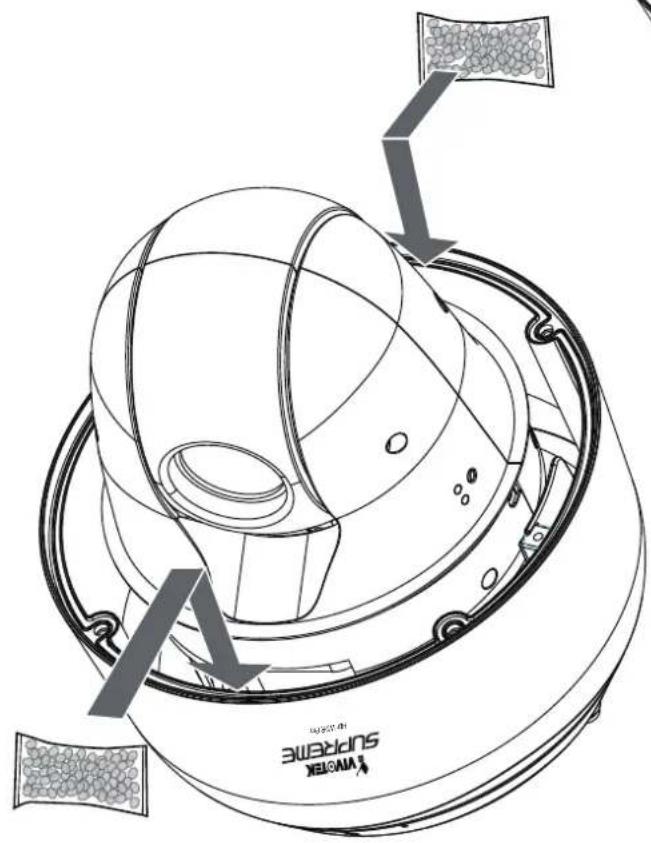

To replace the desiccant bags:

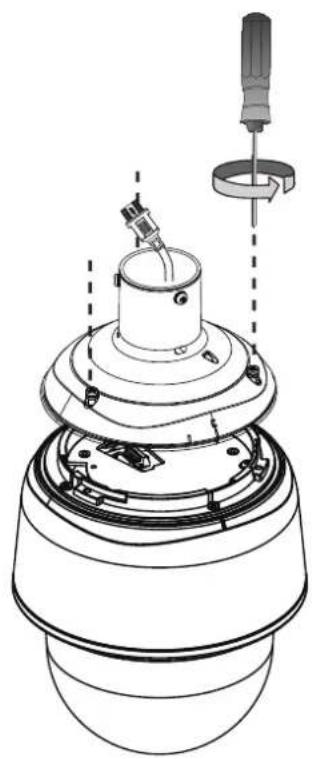

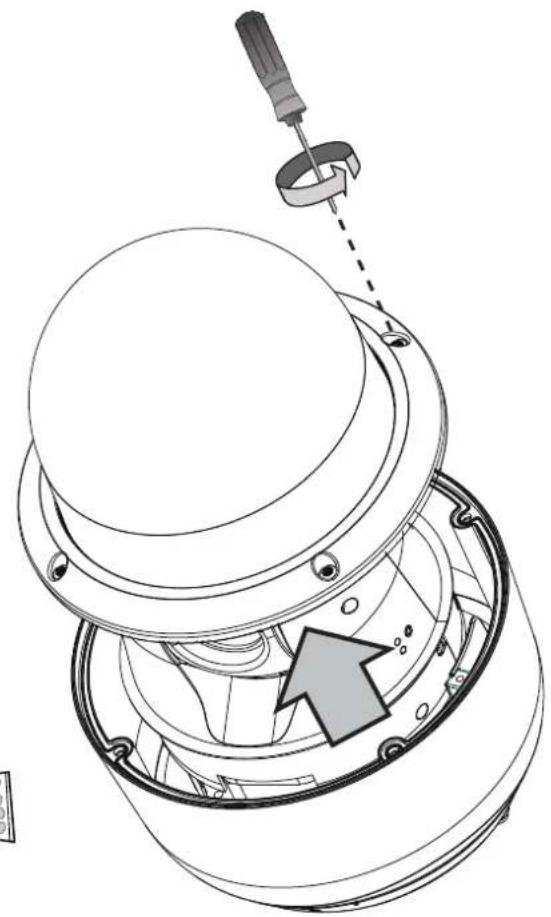

1. Remove the dome cover by loosening 4 T25 anti-tamper screws.
2. Replace the desiccant bags by attaching them firmly to the inside of the chassis.
3. Re-install the dome cover.

Note that it takes approximately 2 days to suppress the moisture level to 30% or lower.

Before that, condensation may still be observed from on the dome cover.

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

NOTE:

Before mounting the camera, install an SD card if you prefer recording to local storage.

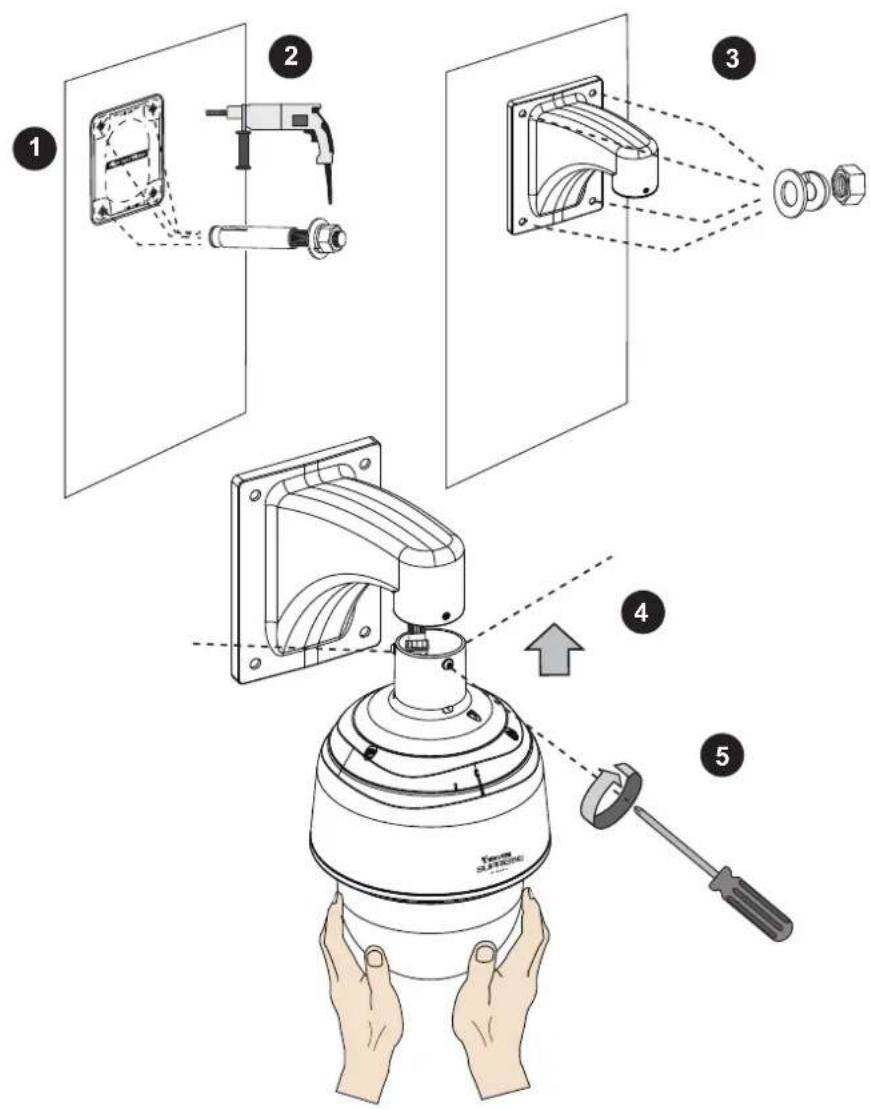

1. Mounting with Ethernet Connection Only

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in threaded anchors. Note that you should hammer the anchors with hex nuts on them so that the threaded poles will not be deformed! If preferred, drill another hole for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
4. Align the camera with the wall mount bracket.
5. Tighten 3 included screws using a Phillips screwdriver. Make sure all parts have been securely tightened.

2. Mounting with Ethernet & I/O Wires

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in threaded anchors. Note that you should hammer the anchors with hex nuts on them so that the threaded poles will not be deformed! If preferred, drill another hole for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.

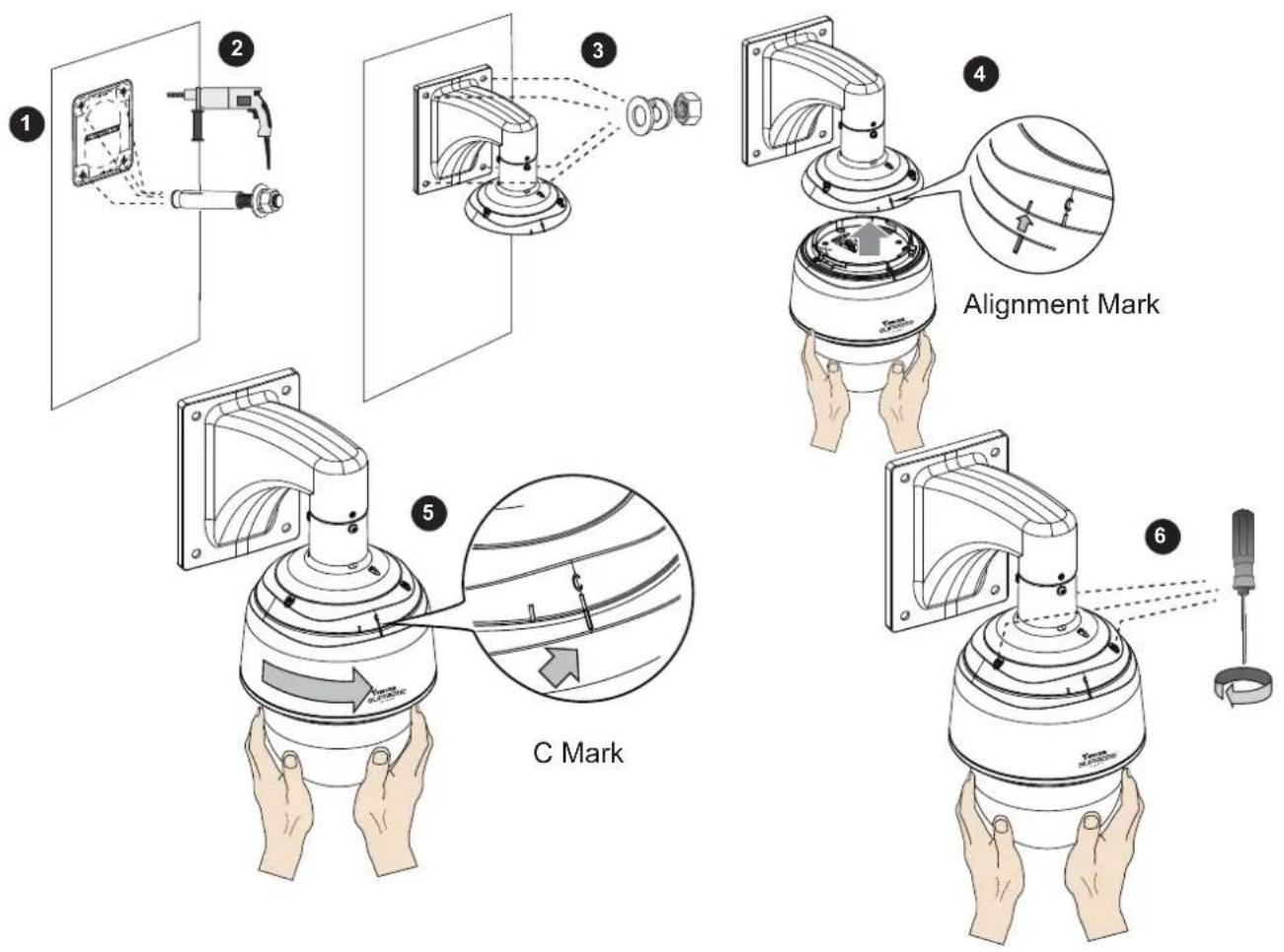

4. Align the camera body with the top section. Align the alignment mark on the camera with that on the interface section. Push the camera up to match the top section.
5. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.
6. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top. Make sure all parts have been securely tightened.

Network Deployment

Setting up the Network Camera over the Internet

There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software Installation on page 21 for details.

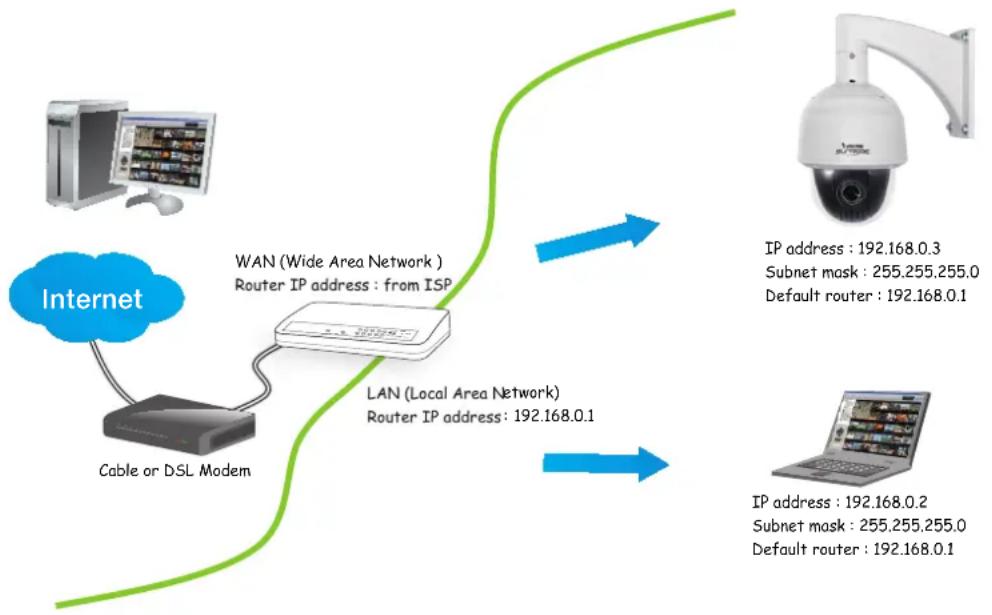


1. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router.

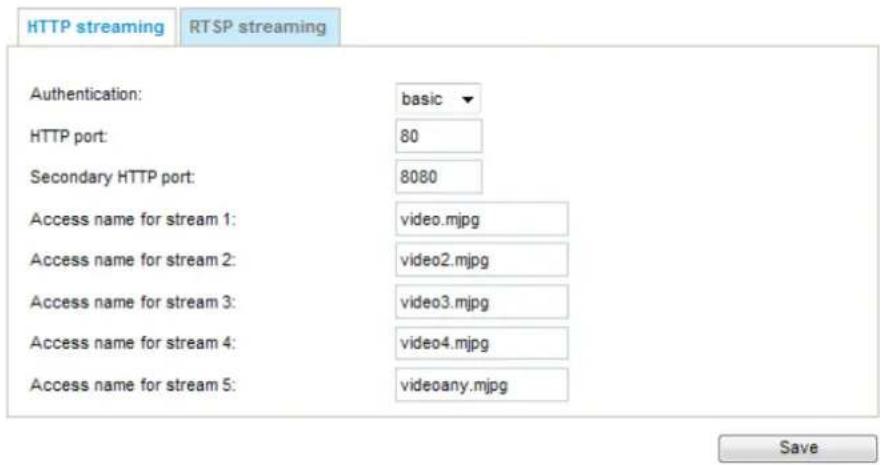

■ Secondary HTTP port: 8080
■ RTSP port: 554
■ RTP port for audio: 5558
■ RTCP port for audio: 5559
■ RTP port for video: 5556
■ RTCP port for video: 5557

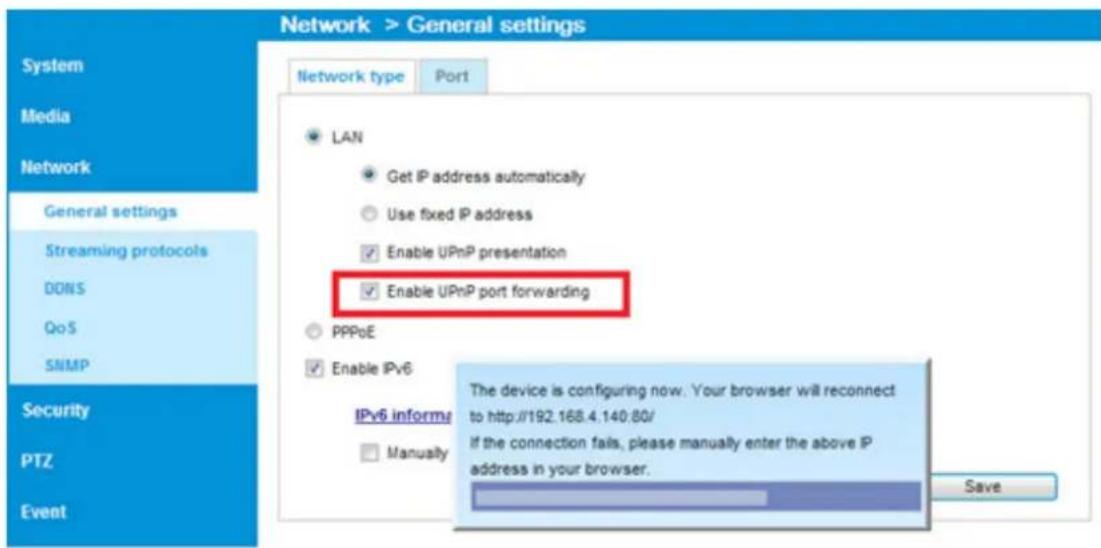

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router's user's manual.

1. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the

Internet. Please refer to Network Type on page 66 for details.

For example, your router and IP settings may look like this:

Device IP Address: internal port	IP Address: External Port (Mapped port on the router)
Public IP of router 122.146.57.120
LAN IP of router 192.168.2.1
Camera 1 192.168.2.10:80 122.146.57.120:8000
Camera 2 192.168.2.11:80 122.146.57.120:8001
... ... ...

Configure the router, virtual server or firewall, so that the router can forward any data coming into a preconfigured port number to a network camera on the private network, and allow data from the camera to be transmitted to the outside of the network over the same path.

From Forward to
122.146.57.120:8000 19	2.168.2.10:80
122.146.57.120:8001 19	2.168.2.11:80
... ...

When properly configured, you can access a camera behind the router using the HTTP request as follows: http://122.146.57.120:8000

If you change the port numbers on the Network configuration page, please open the ports accordingly on your router. For example, you can open a management session with your router to configure access through the router to the camera within your local network. Please consult your network administrator for router configuration if you have troubles with the configuration.

For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.

Internet connection with static IP

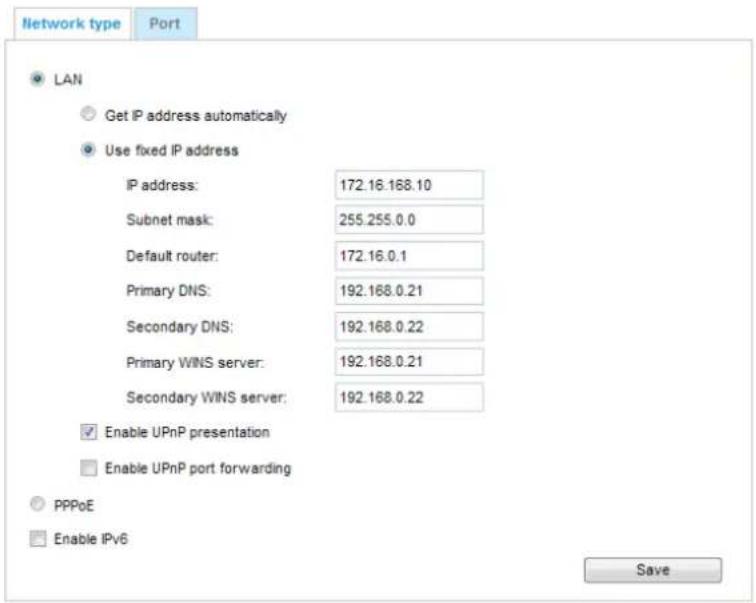

Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 66 for details.

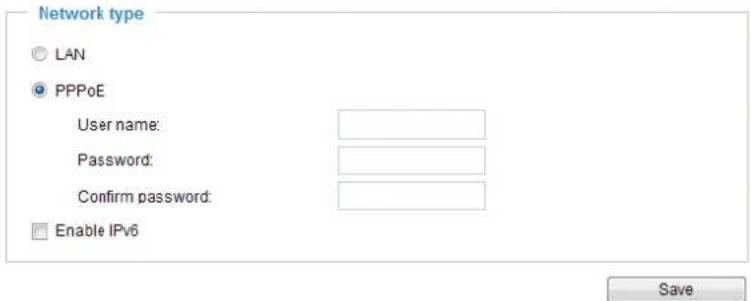

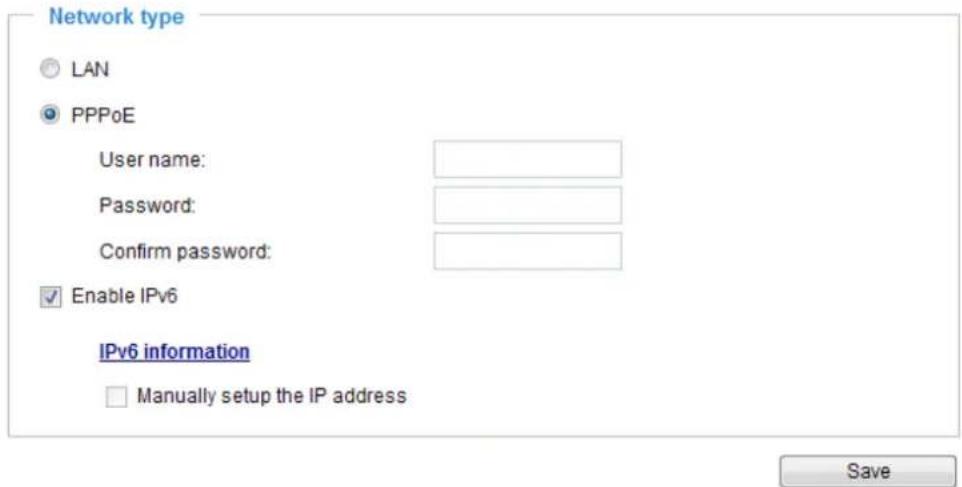

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 67 for details.

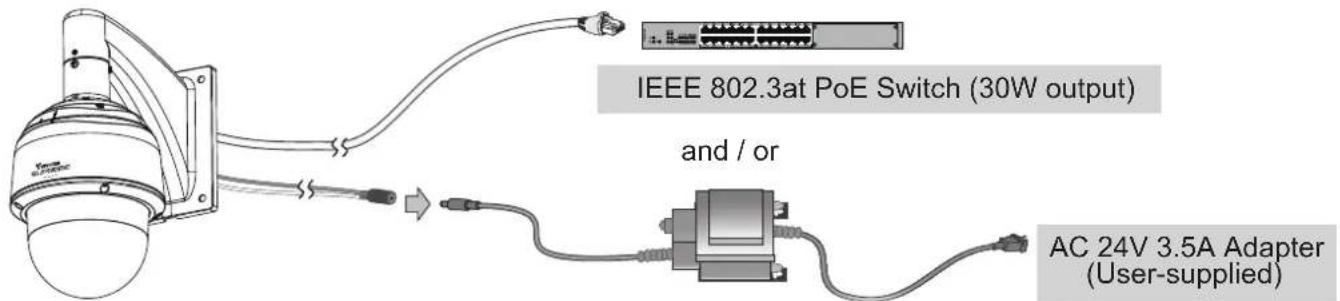

General Connection

1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W PoE output port alone can not drive the onboard heater, and hence if using the PoE switch alone, the application does not apply in low-temperature condition. 30W PoE plus can only drive the camera when it is working at a temperature higher than -5°C.
2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V adapter can drive the camera and the onboard heater.

You can connect both power sources for redundancy in power supply.

Power over Ethernet (High Power PoE)

When using a non-PoE switch

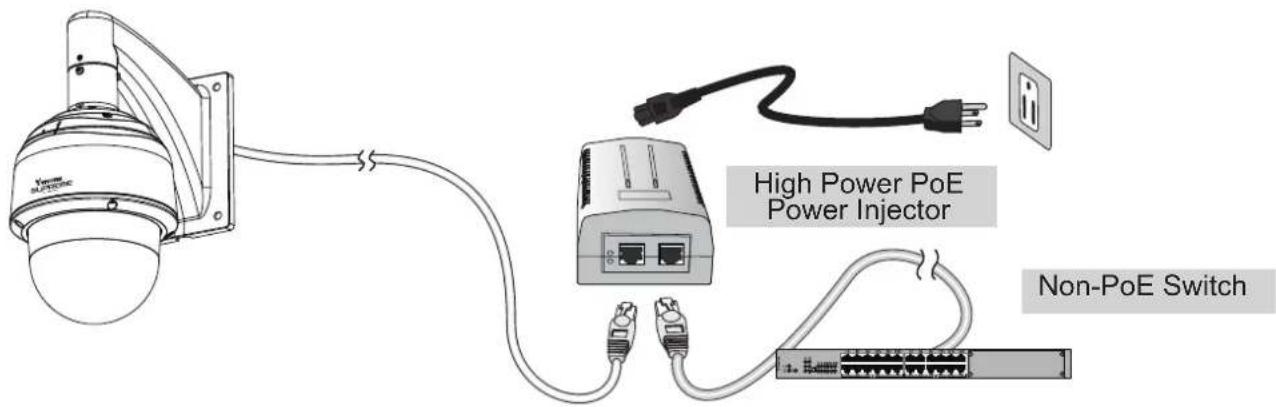

Use a High Power PoE power injector (separately purchased) capable of 60W output to connect between the Network Camera and a non-PoE switch. Sufficient power is required for low temperature conditions when the onboard heater is activated.

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD. Double click the IW2 shortcut on your desktop to launch the program.

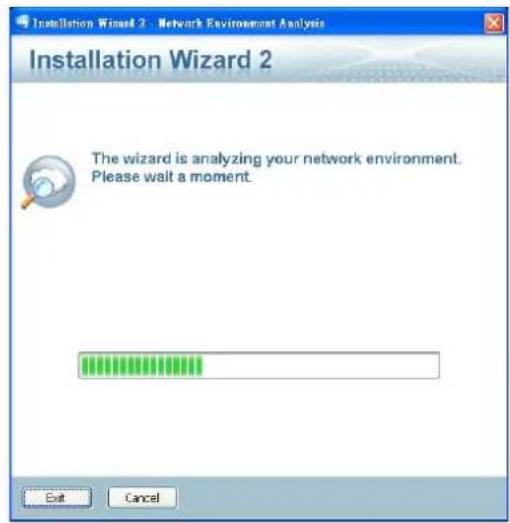

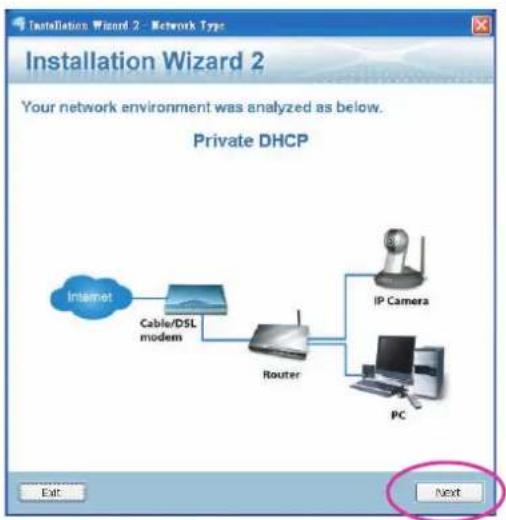

1. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.


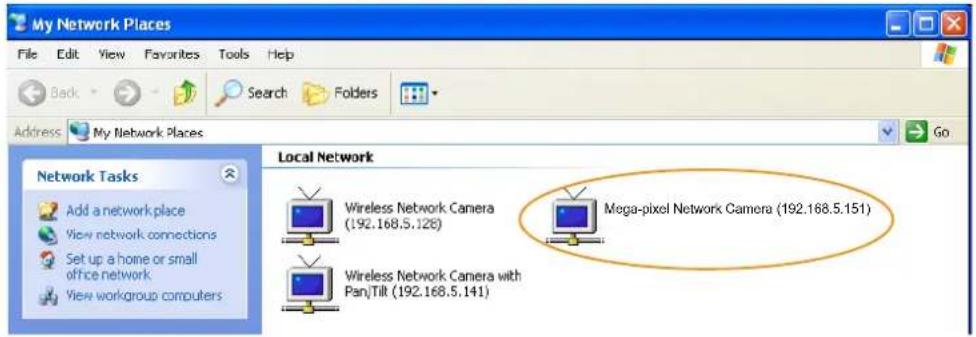

1. The program will search for all VIVOTEK network devices on the same LAN.

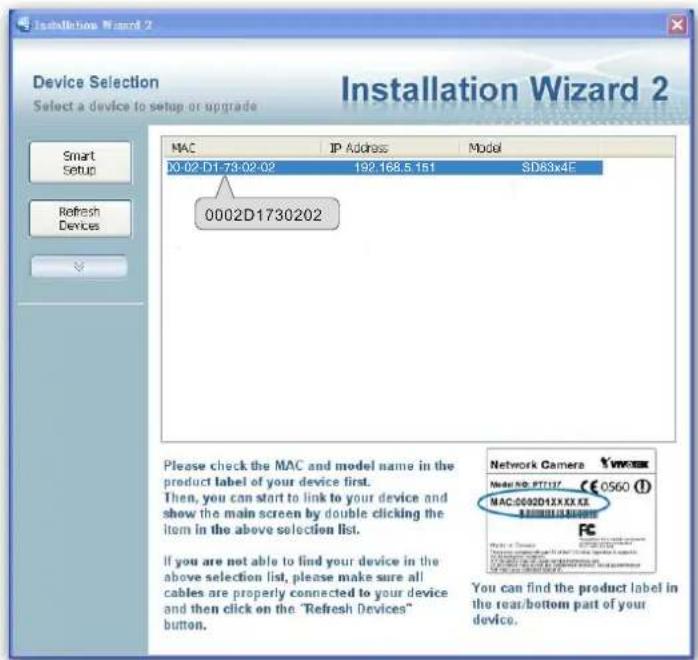

2. After a brief search, the main installer window will prompt. Double-click on the MAC and model name which matches the product label on your device to connect to the Network Camera via a web browser.

Ready to Use

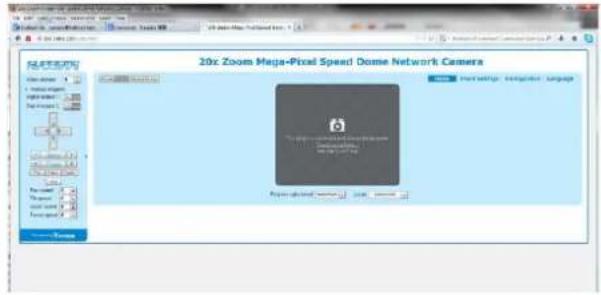

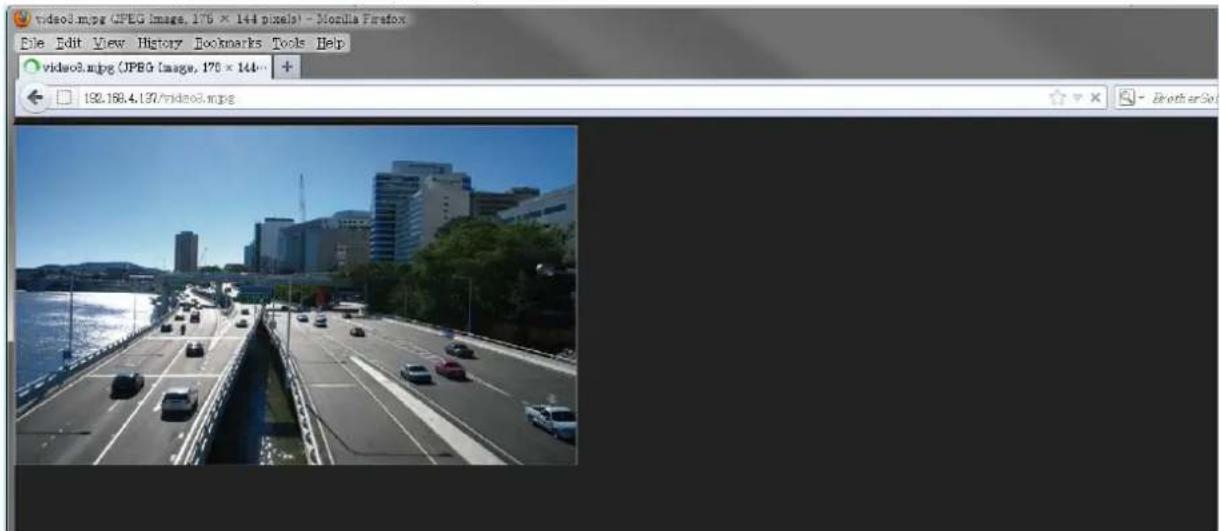

1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

IMPORTANT:

• Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser.
• If you encounter this problem, try execute the lexlore.exe program from C:\Windows\SysWOW64. A 32-bit version of IE browser will be installed.
• On Windows 7, the 32-bit explorer browser can be accessed from here: C:\Program Files (x86)\Internet Explorer\iexplore.exe
• If you experience compatibility issues between the plug-in control, you may try to uninstall the Camera Stream Controller located in: C:/Program Files (x86)/Camera Stream Controller.

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.

If your network environment is not a LAN, follow these steps to access the Network Camera:

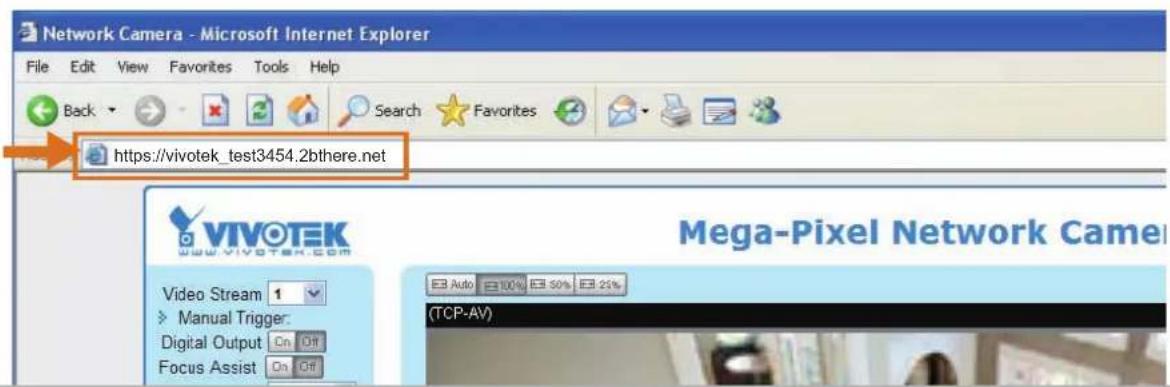

1. Launch your web browser (e.g., Microsoft® Internet Explorer or Mozilla Firefox).
2. Enter the IP address of the Network Camera in the address field. (A temporary IP will be generated for the camera. Find it in your Network Neighborhood). Press Enter.
3. Live video will display in your web browser.

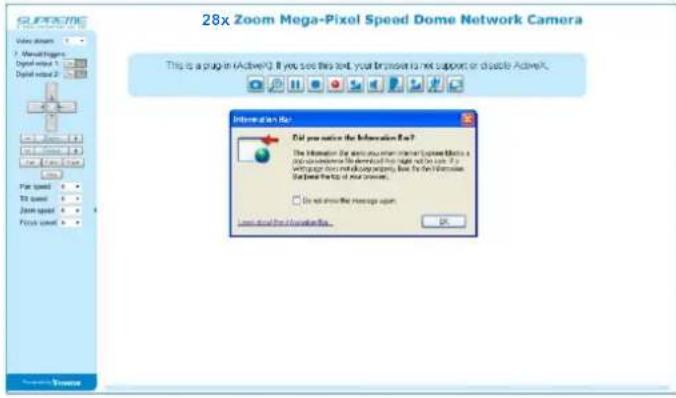

4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.

NOTE:

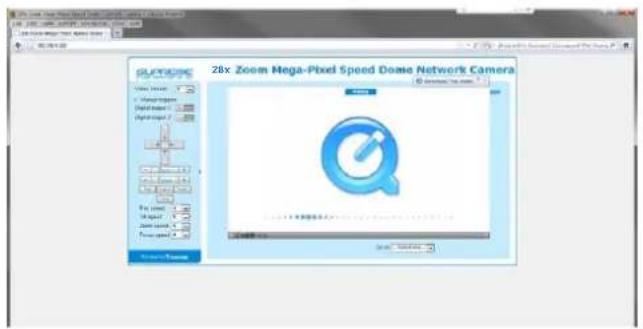

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video. If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser.

By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera.

For more information about how to enable password protection, please refer to Security on page 84.

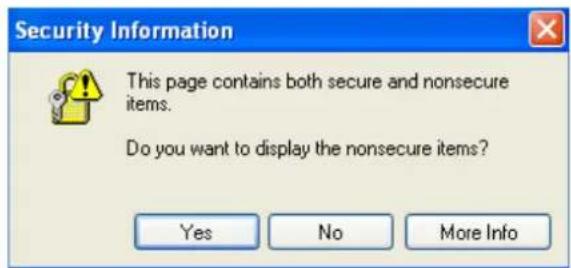

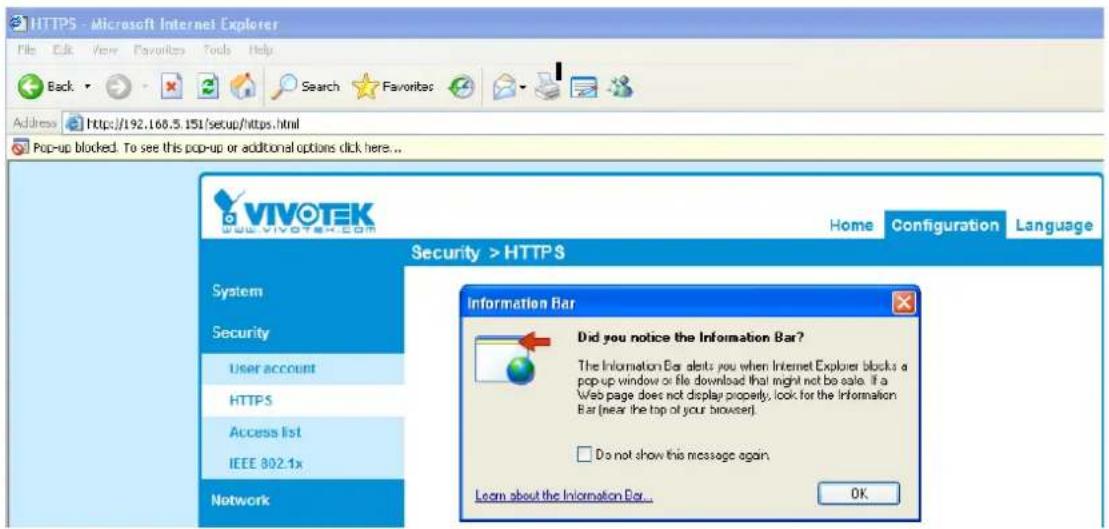

If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable the ActiveX® Controls for your browser.

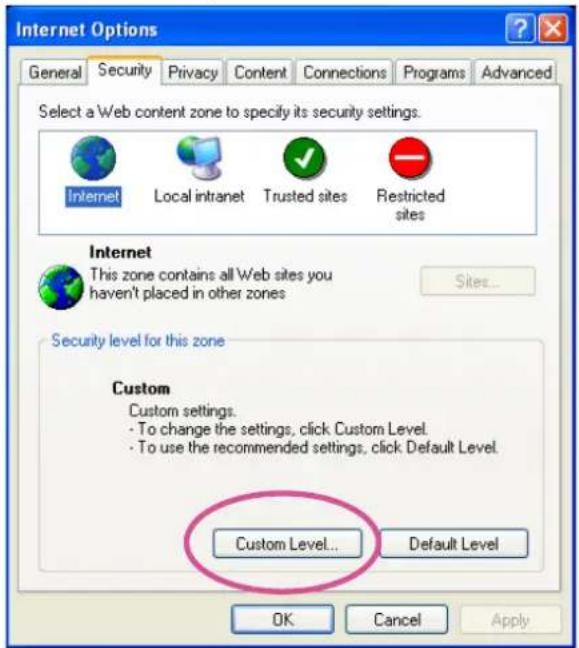

1. Choose Tools > Internet Options > Security > Custom Level.

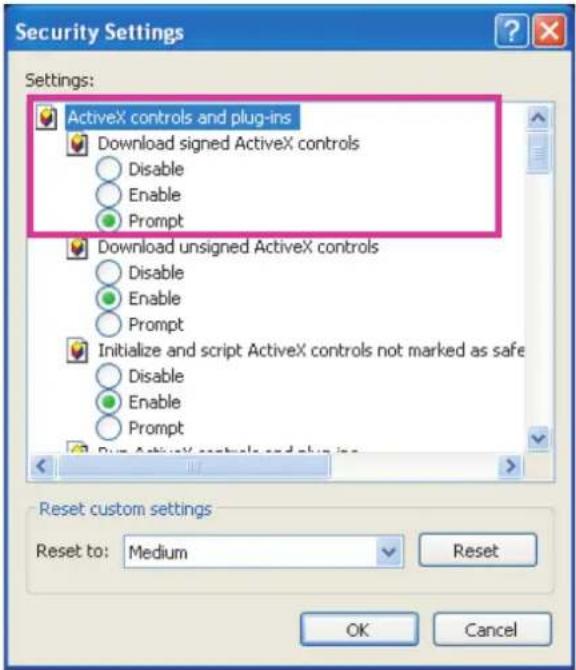

1. Look for Download signed ActiveX® controls; select Enable or Prompt. Click OK.

1. Refresh your web browser, then install the ActiveX® control. Follow the instructions to complete installation.

Using RTSP Players

To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

VLC Media Player

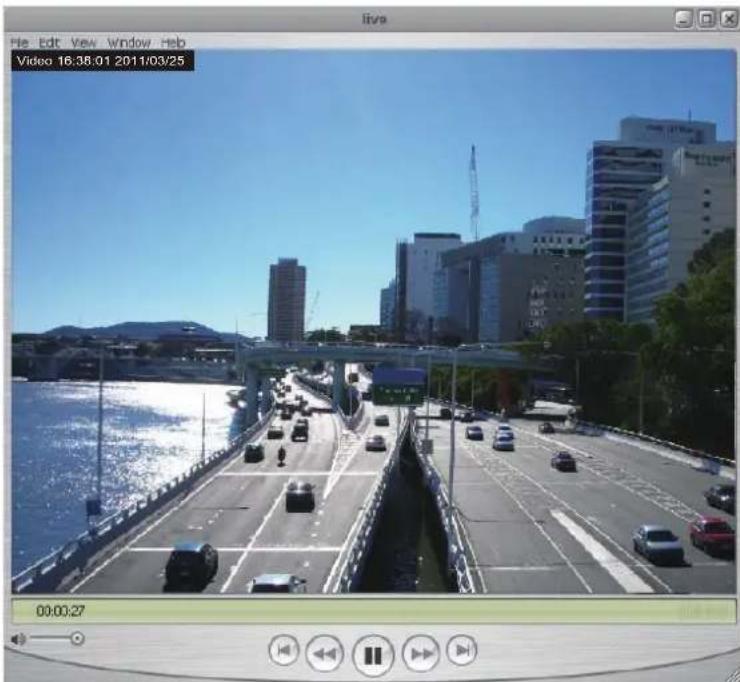

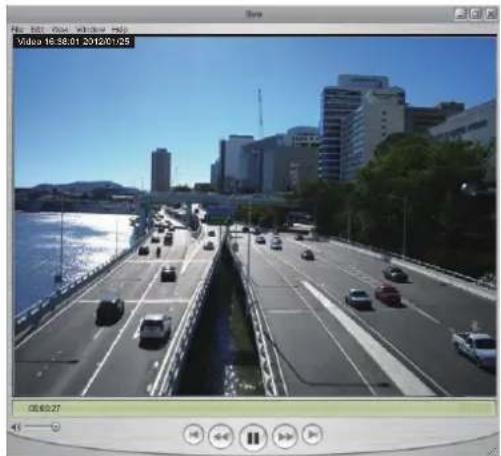

VLC media player unch the RTSP play

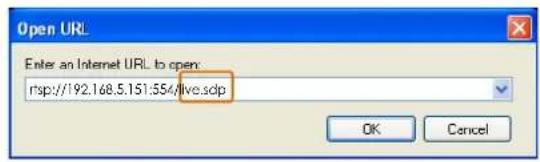

1. Choose File > Open URL. An URL dialog box will pop up.

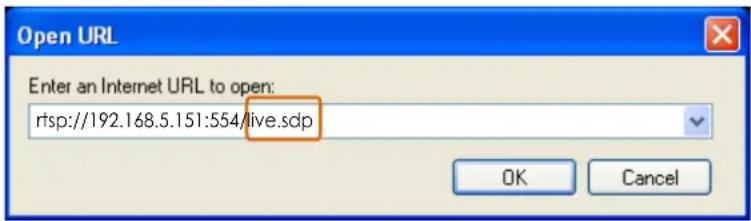

2. The address format is rtsp://:/

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 75.

For example:

1. The live video will be displayed in your player.

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 75 for details.

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 18.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable.
   For more information, please refer to RTSP Streaming on page 75.

2. As the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video and audio streaming parameters as listed below.

For more information, please refer to Stream settings on page 62.

Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps

1. As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 75.

2. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).

3. Type the following URL commands into the player.

The address format is rtsp://:/.

For example:

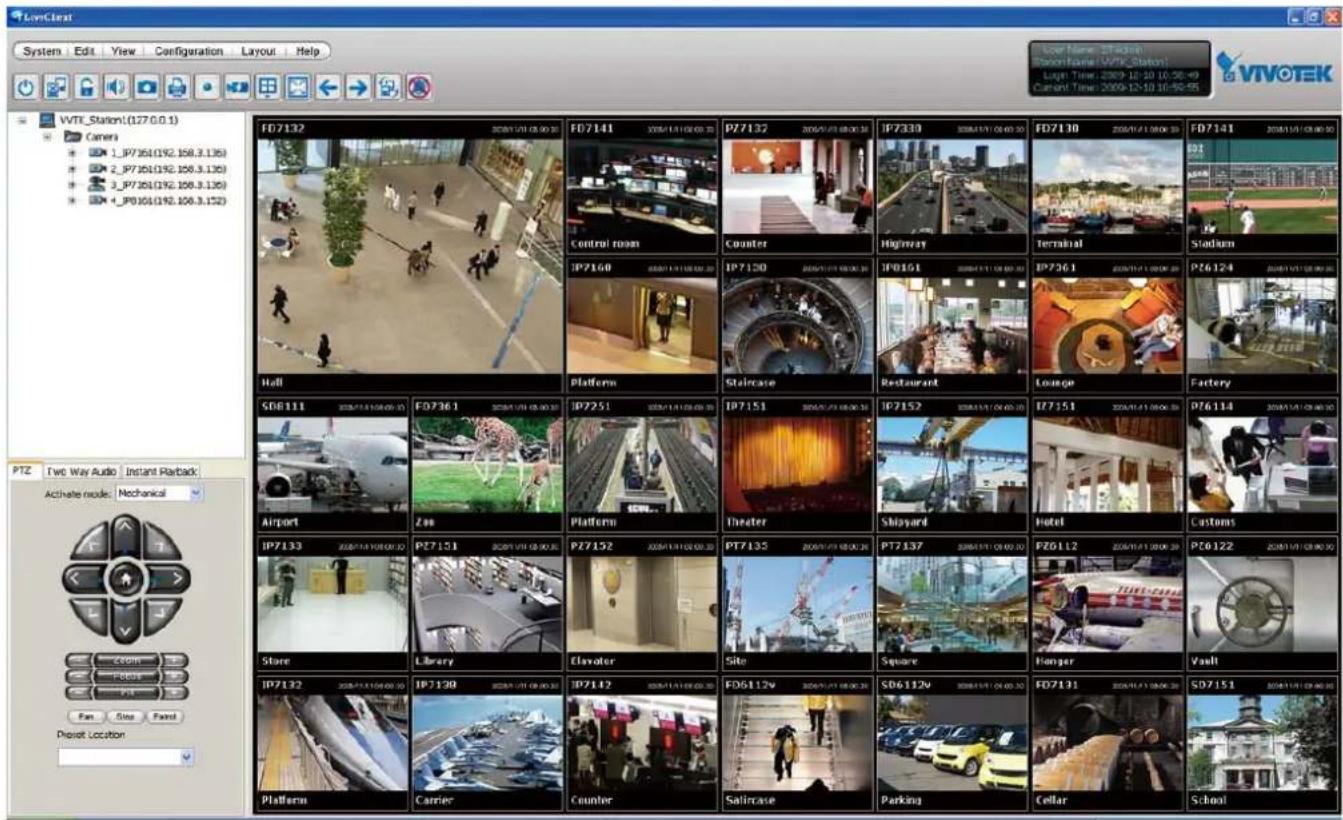

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user's manual of the software or download it from http://www.vivotek.com.

Main Page

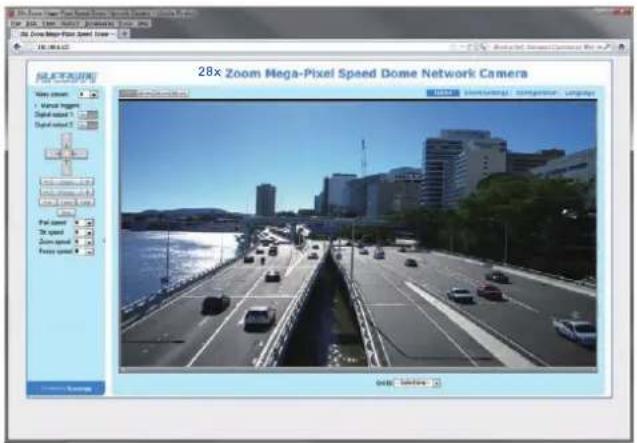

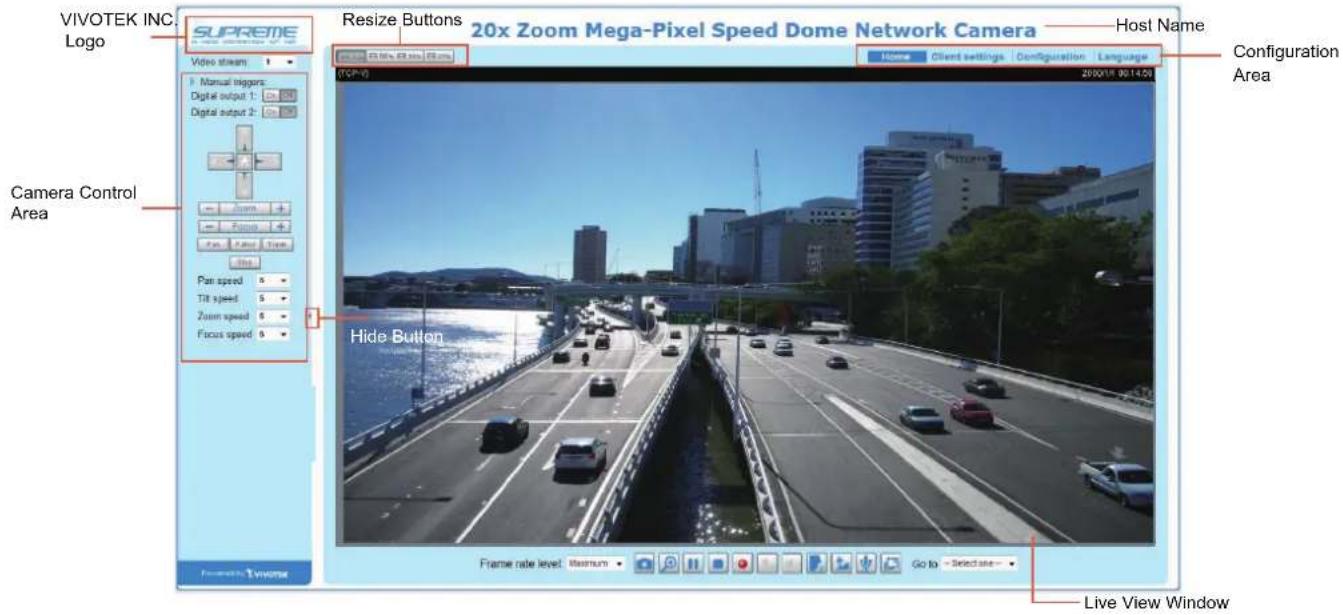

This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window.

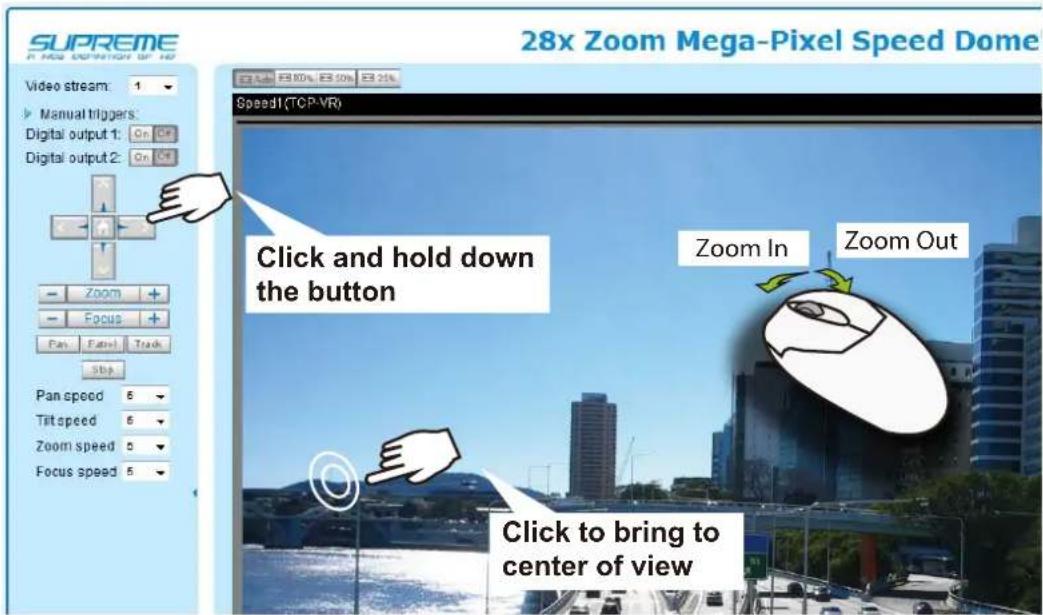

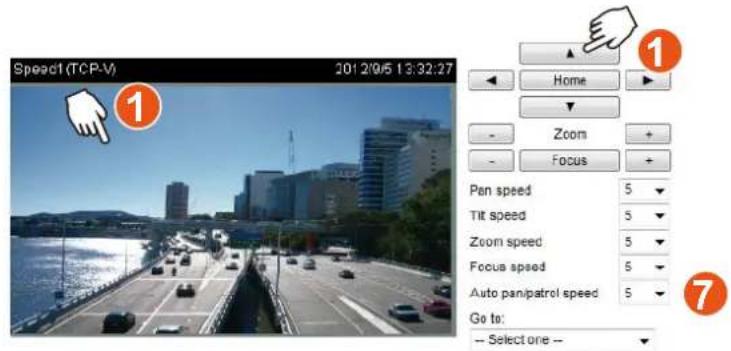

Mouse and Screen Control

In addition to the use of a joystick, mouse control is also supported by the web session. You can click on any spot on the screen to move camera's field of view to that direction. To pan 360 degrees, you can click and hold down the left mouse button when clicking a PTZ directional button. The same applies to arrow keys, Zoom, and Focus buttons on the PTZ panel.

Note that if your screen control malfunctions, it is possible that the CPU of your current view station can not cope with the HD video feeds or that an incompatibility issue occurred with the ActiveX control plugins.

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to fit your needs. For more information, please refer to System on page 40.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (stream 1 \~ 4) simultaneously. You can select either one for live viewing. For more information about multiple streams, please refer to page 63 for detailed information.

Manual triggers: Manual triggers can be turned on/off by users from the main page. The manual triggers can be associated with the Event settings, and, as the result, can be used to perform recording actions, sending notifications, and so on. See Event settings on page 102.

Digital Output: Click to turn the digital output device on or off.

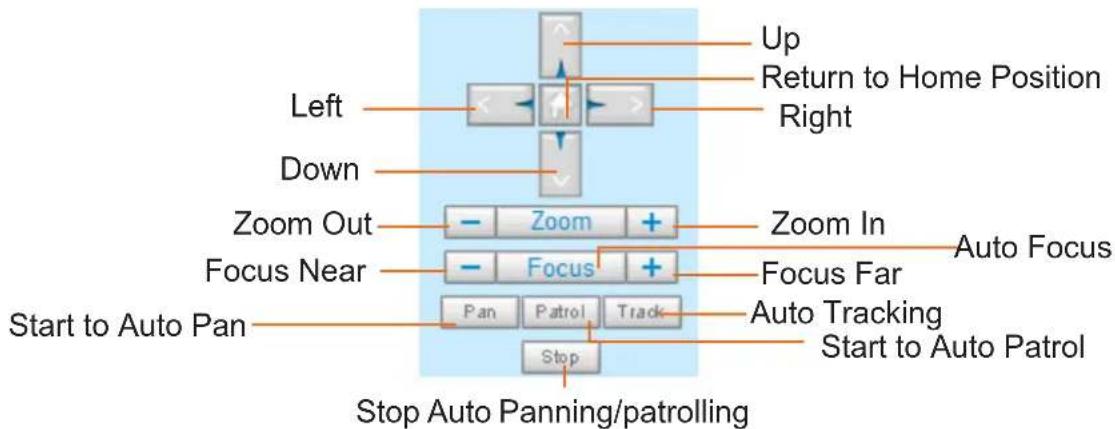

PTZ Control Panel:

Pan: Click this button to start the auto pan (360° continuous rotation).

Stop: Click this button to stop the Auto Pan, Auto Patrol, and Auto Tracking functions.

Patrol: Once the Administrator has determined the list of preset positions (including the zoom-in action on a particular position), click this button to command the camera to patrol among those positions on the Patrol List. The Network Camera will patrol continuously. For more information, please refer to PTZ control on page 97.

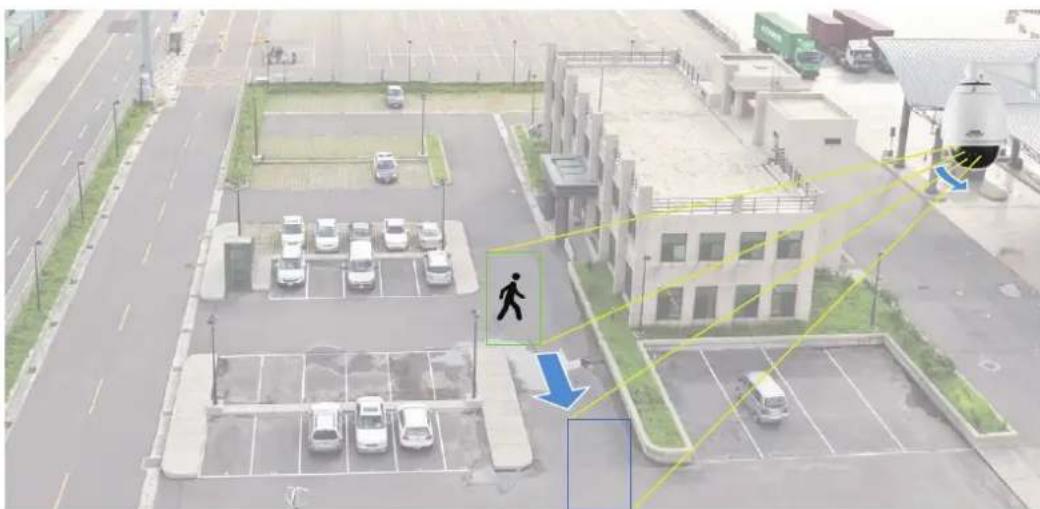

Track: Allows the camera to move along following the moving objects in the current field of view. If you observe an object of your interest, click this button to track the object. Note that this function does not apply in an extremely crowded area, such as a market or sidewalk full of pedestrian activities. Constant shift of tracked objects will decrease the usability of this feature.

Once started, you can use the Stop button to stop the current action. A click on the screen can also stop the tracking action.

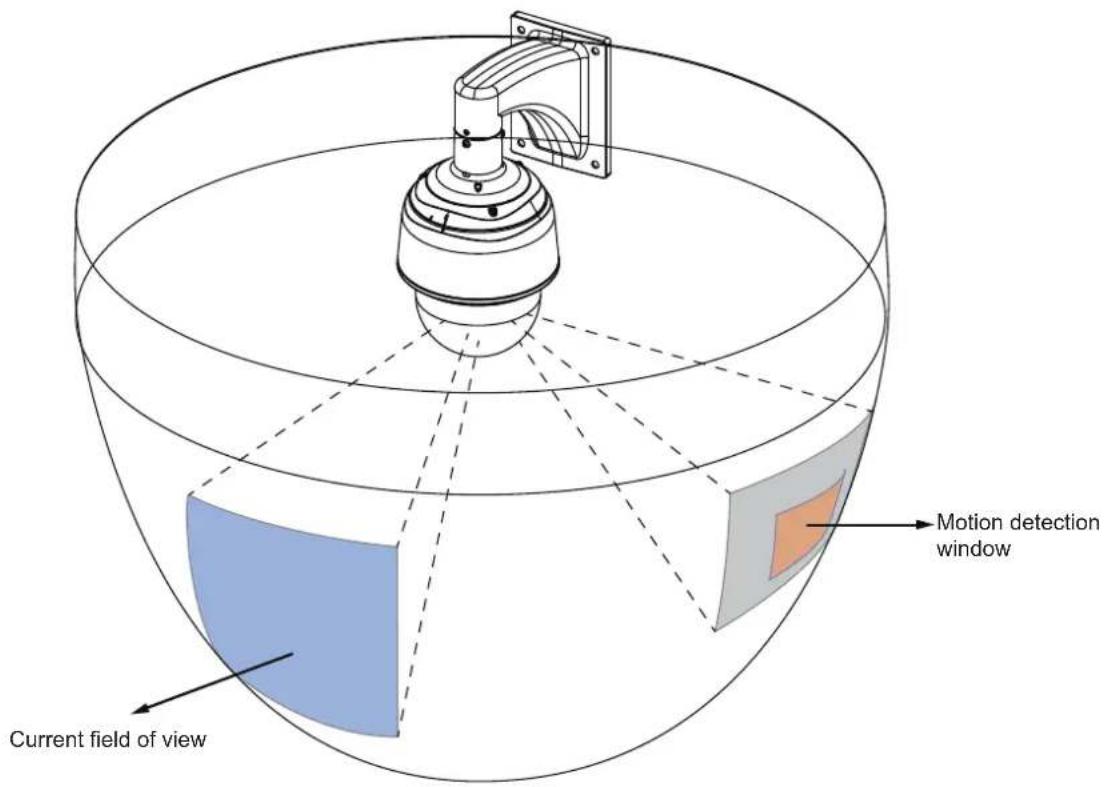

Another key concept is that the camera only detect movements within the current field of view.

Please refer to PTZ > Auto tracking on page 100 and further for tracking configuration details.

Pan /Tilt /Zoom /Focus speed: Adjust the speed of Pan/ Tilt/ Zoom/ Focus:

Pan speed Tilt speed Zoom speed Focus speed
-5 -5 -5 -5 Slower
-4 -4 -4 -4
-3 -3 -3 -3
-2 -2 -2 -2
-1 -1 -1 -1
0 0 0 0
1 1 1 1			Faster
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5

Note that mouse screen control is also supported. You can refer to page 97 for related information.

Configuration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 34.

Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to Configuration on page 39.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文. You can also change a language on the Configuration page; please refer to page 39.

Hide Button

You can click the hide button to hide the control panel or display the control panel.

Resize Buttons

Click the Auto button, the video cell will resize automatically to fit the monitor.

Click 100% is to display the original homepage size.

Click 50% is to resize the homepage to 50% of its original size.

Click 25% is to resize the homepage to 25% of its original size.

Go to

If you have preset PTZ positions, these positions will be available in the Go to menu. Please refer to page 97 for more information.

Live Video Window

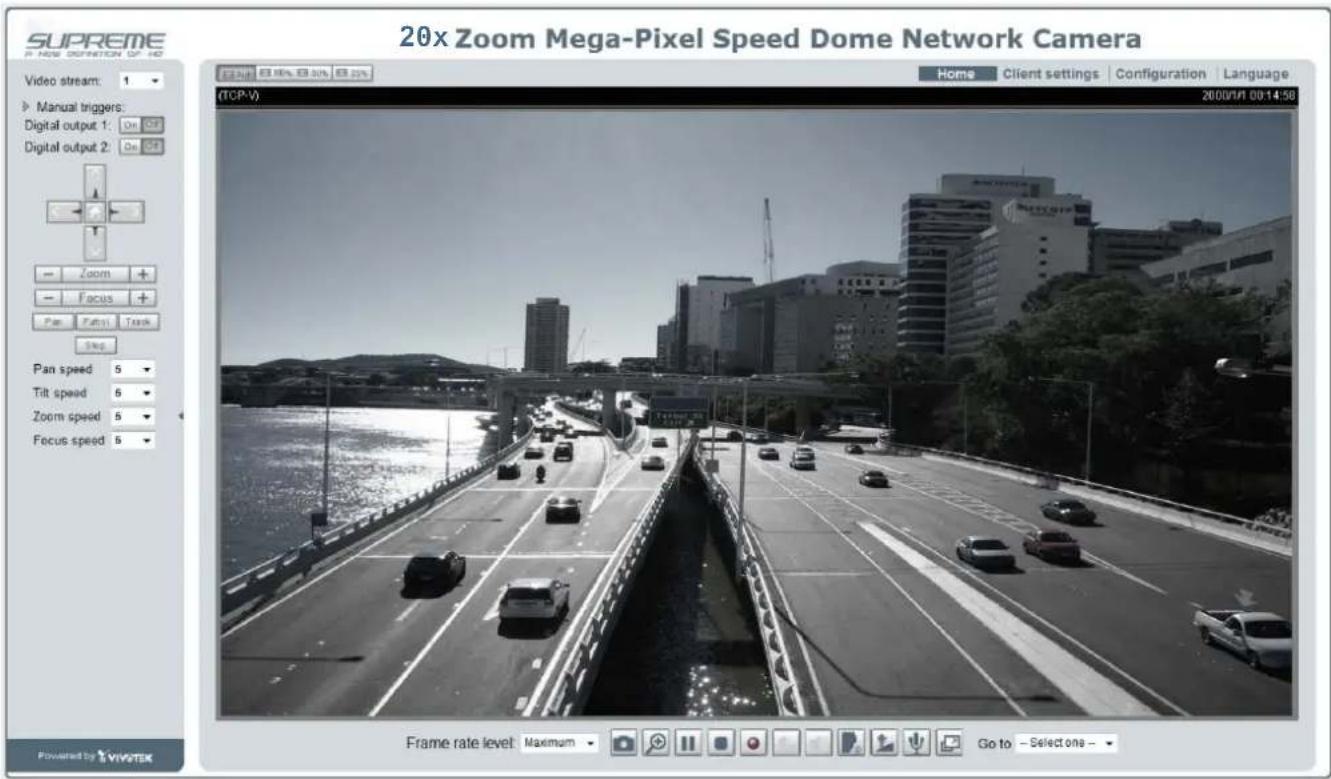

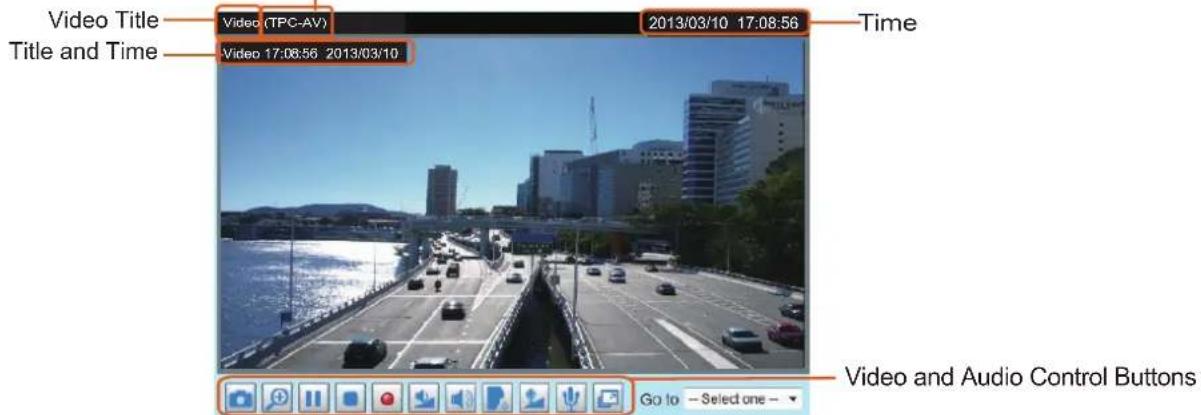

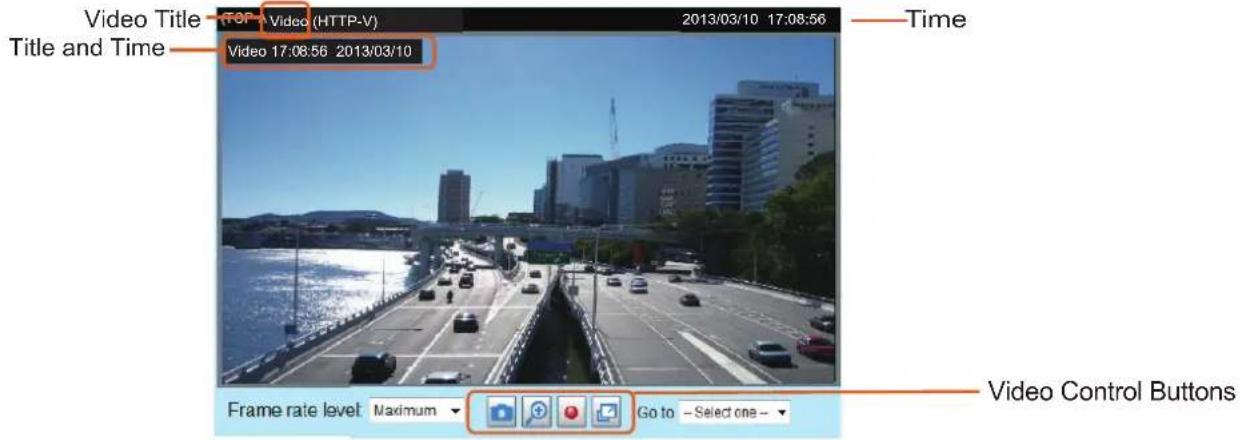

■ The following window is displayed when the video mode is set to H.264 / SVC / MPEG-4:

H.264/MPEG-4 Protocol and Media Options

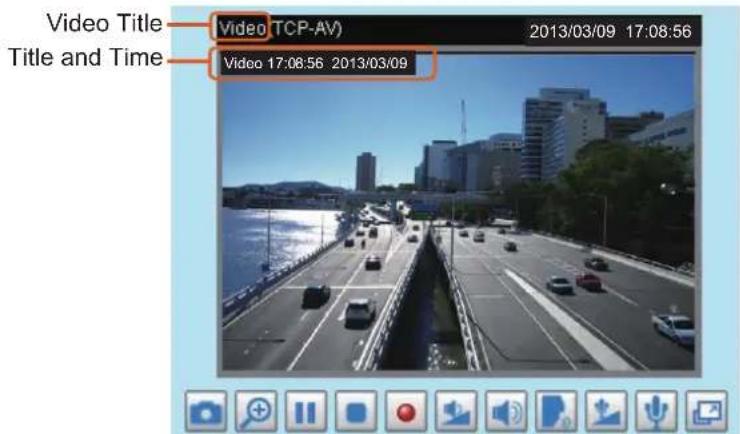

Video Title: The video title can be configured. For more information, please refer to Video settings on page 51.

H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 / MPEG-4 video streaming. For further configuration, please refer to Client Settings on page 34.

Time: Display the current time. For further configuration, please refer to Media > Image > General settings on page 51.

Title and Time: The video title and time can be stamped on the streaming video. For further configuration, please refer to Media > Image > General settings on page 51. The zoom ratio is also displayed with the title bar.

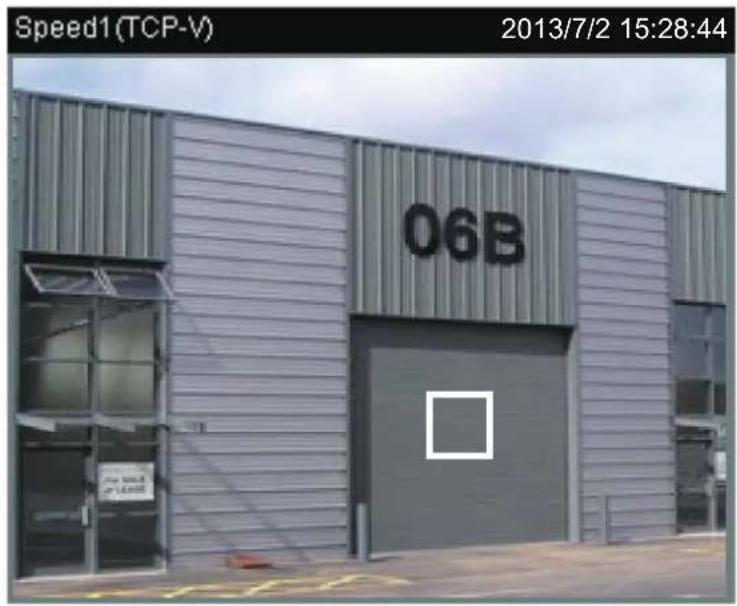

2.0x Title 2013/09/05 10:39:08

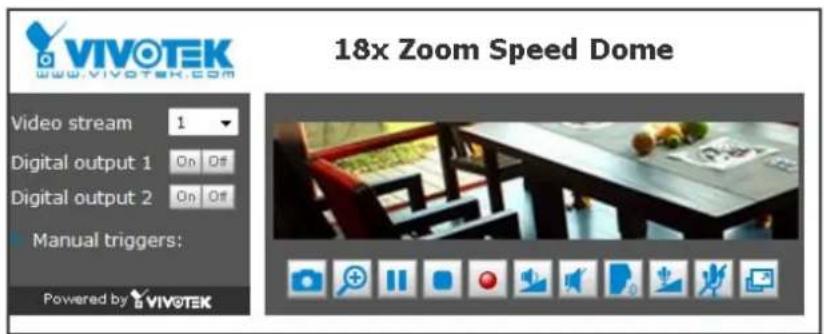

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

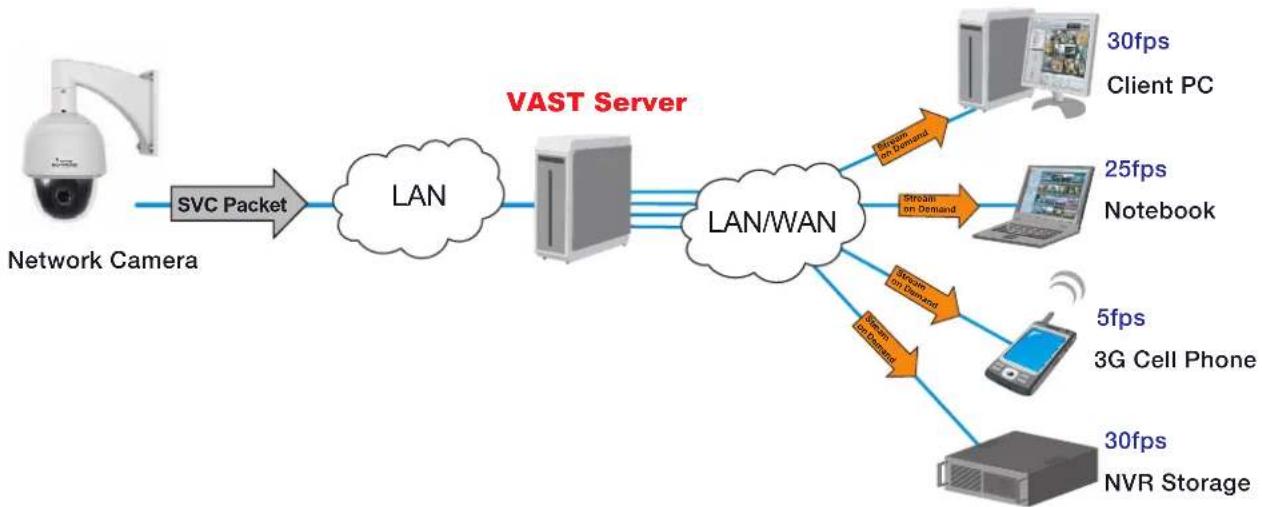

Frame rate level: The Frame rate level menu is available when you configure your video stream as the MJPEG or SVC mode. The frame rate menu allows you to manually select a frame rate for the current

video stream. Please refer to page 63 for more information.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

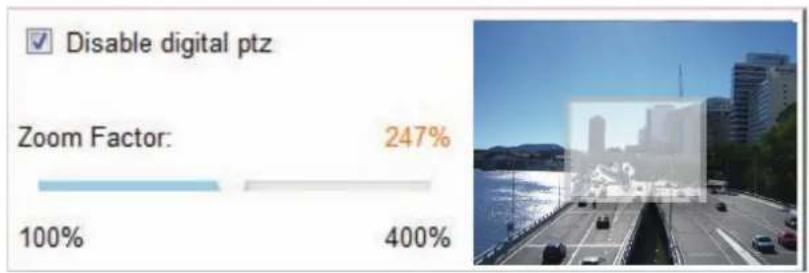

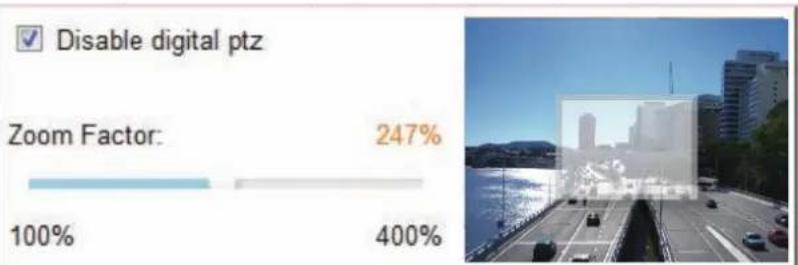

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Pause: Pause the transmission of the streaming media. The button becomes the ▶ Resume button after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the □ Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 35 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after clicking the Mute button.

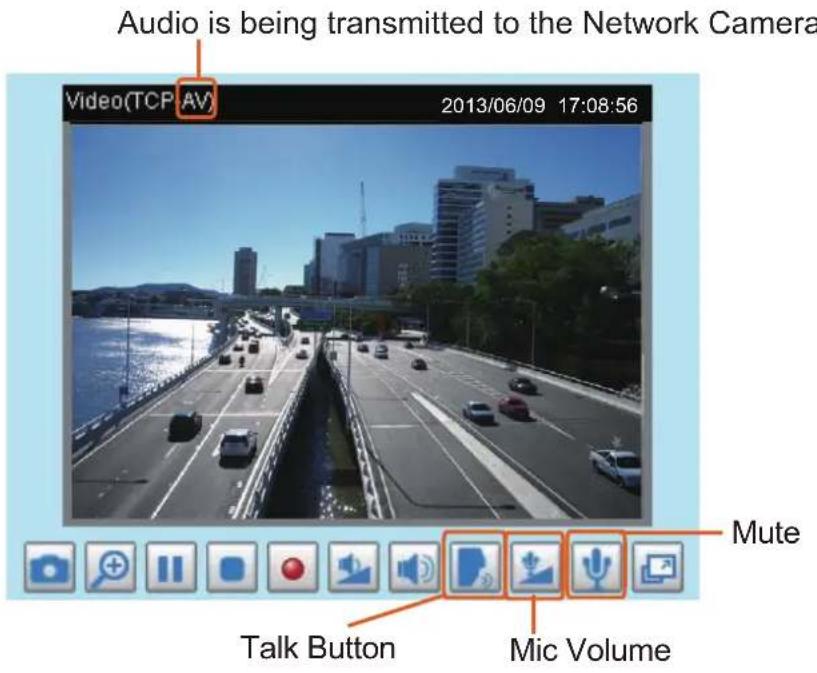

Talk: Click this button to talk to people around the Network Camera. Audio will project from the external speaker connected to the Network Camera. Click this button again to end talking transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the microphone volume on the local computer.
Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

■ The following window is displayed when the video mode is set to MJPEG:

Video Title: The video title can be configured. For more information, please refer to Media > Image on page 51.

Time: Display the current time. For more information, please refer to Media > Image on page 51.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 51.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP.mp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation been indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To save to a different area you want to magnify, drag the navigation screen.

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the □ Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 35 for details.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings.

H.264 / MPEG-4 Media Options

H.264/MPEG-4 Media Options

Video and Audio
Video Only
Audio Only

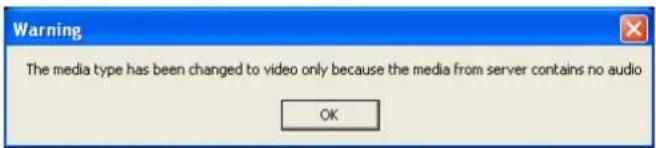

Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264 or MPEG-4.

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

○ UDP Unicast
○ UDP Multicast
TCP
HTTP

Depending on your network environment, there are four transmission modes of H.264 or MPEG-4 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses.

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time. For more information, please refer to RTSP Streaming on page 76.

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.

HTTP: This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through.

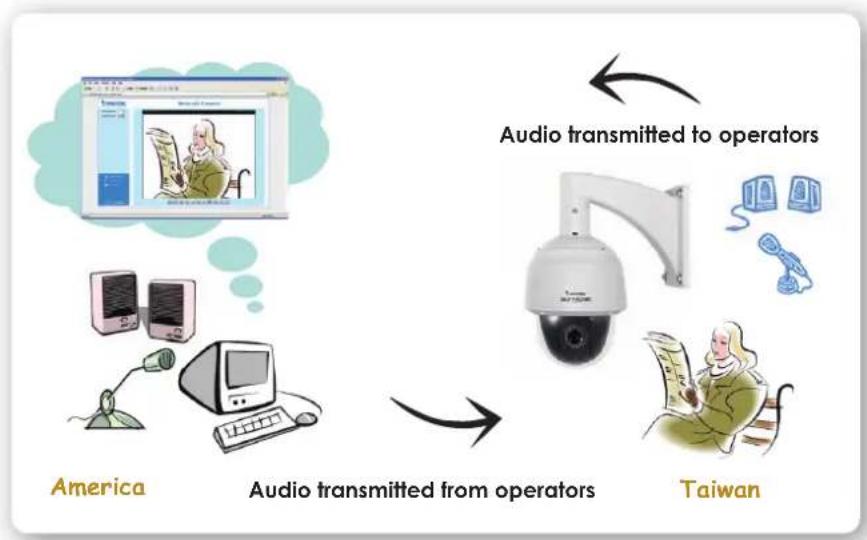

Two way audio

Two way audio

Half-duplex
Full-duplex

Select an audio communication mode. In half-duplex mode, only one of the communicating sides can deliver audio. In full-duplex mode, make sure your client has embedded codec of sound card supporting the full-duplex function.

MP4 Saving Options

MP4 saving options

Folder:

D:\Record3

Browse..

File name prefix:

CLIP

Add date and time suffix to file name

Users can record live video as they are watching it by clicking the button - Start MP4 Recording - on the main page. Here, you can specify the storage destination and file name.

Folder: Specify a storage destination for the recorded video files.

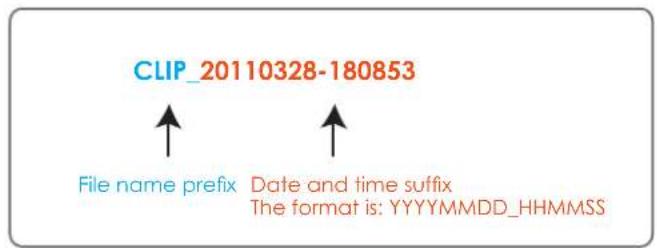

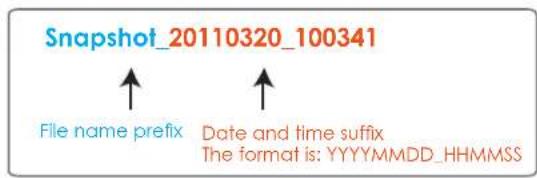

File name prefix: Enter the text that will be appended to the front of the video file name.

Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name of the recorded videos.

Local Streaming Buffer Time

Local Streaming Buffer Time

Millisecond

Save

In a busy network, fluctuations in available bandwidth can occur. Video streaming may lag and may not proceed very smoothly. If you enable this option, video streams from the camera will be temporarily stored on the computer's cache memory for a configurable period of time (seconds or milliseconds) before being played on a web session. This will help you see the streaming more smoothly. If you enter 3,000 Millisecond, the streaming will delay for 3 seconds.

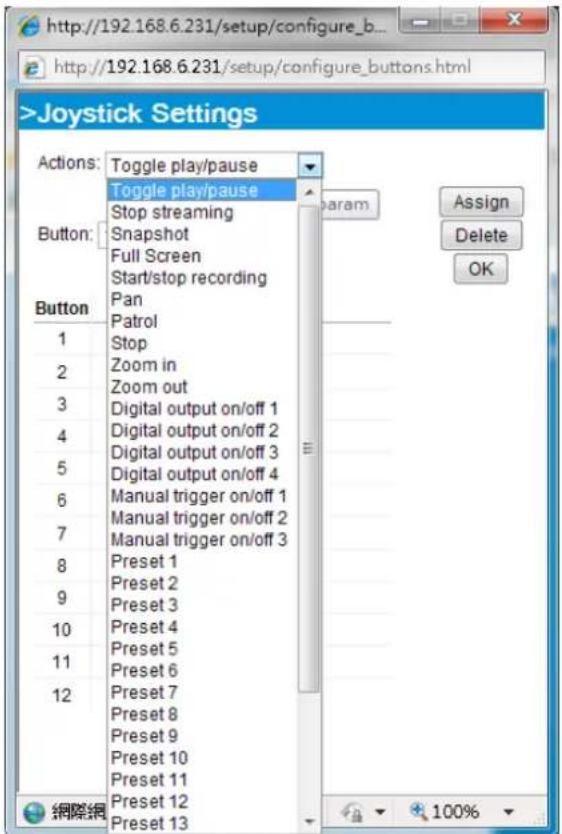

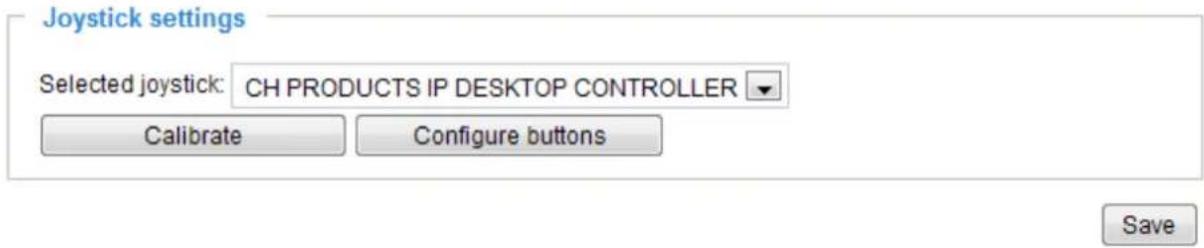

Joystick Settings

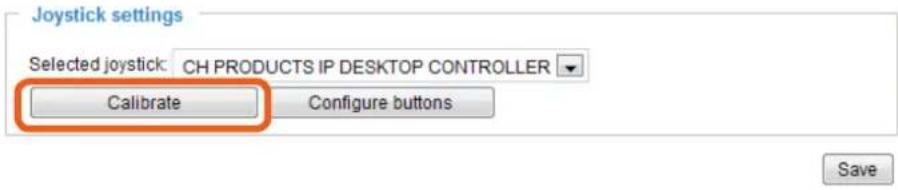

Enable Joystick

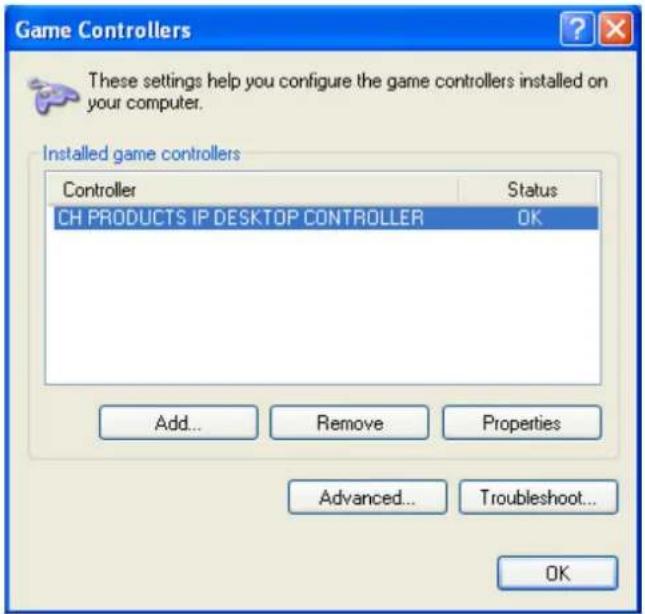

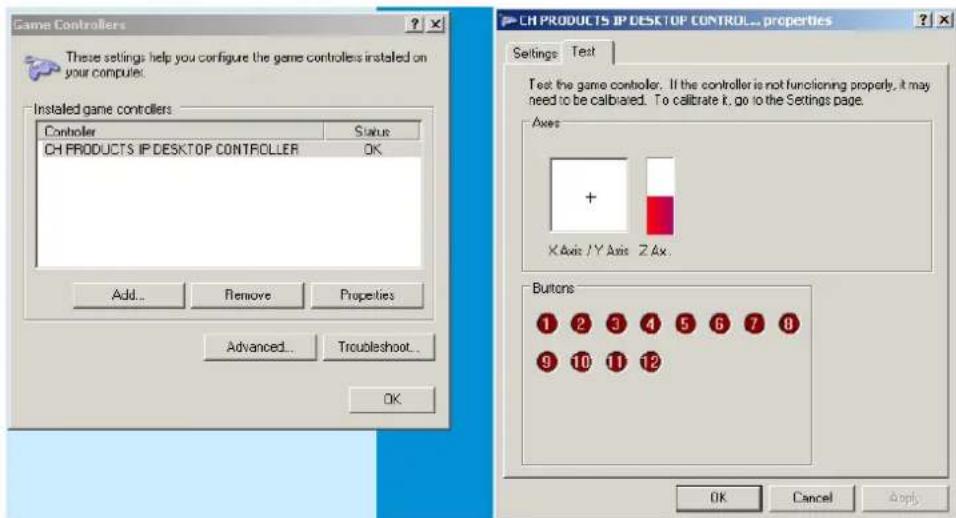

Connect to the USB plug of the joystick to a USB port on your management computer. Once a USB joystick is connected, the related joystick configuration will be available on the Client settings window. The joystick should work properly without installing any other driver or software.

Then you can begin to configure the joystick settings of connected devices. Please follow the instructions below to enable joystick settings.

1. Click on the Configure buttons button. If your joystick is working properly, it will be displayed on the drop-down list.

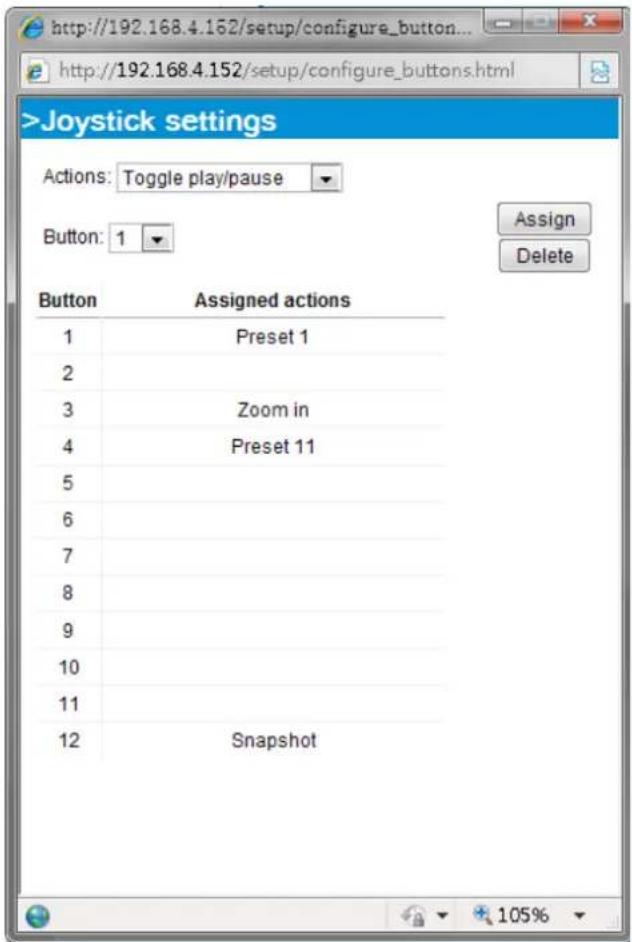

Buttons Configuration

In the Joystick Settings window, you can use the combinations of pull-down menus, Actions and Button number, to assign joystick buttons with different functions. The number of buttons may differ from the joystick you attached.

Please follow the steps below to configure your joystick buttons:

1. Select the number of the button you want to configure from its pull-down list. For example: Assign Preset 1 (move to preset 1 position) to Button 1.

1. Select an action from the Actions menu. Click Assign to associate the button with an action.
2. Your configuration will be automatically saved.
3. To disable an assignment, select the number of a button, and then click the Delete button. The associated action will then be cleared.
4. Repeat the above process to assign actions to other buttons. When done, simply close the configuration window.

NOTE:

• If you want to assign Preset actions to your joystick, the PTZ preset locations should be configured in advance.
• If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting.

- The joystick will appear in the Game Controllers list in the Windows Control panel. If you want to check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.

- Follow the onscreen instructions to calibrate your joystick.

Configuration

Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. Please refer to page 84 Security > User Account for how to configure access rights for different users.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users. Some advanced functions (PTZ/ Event/ Recording/ Local storage) are not displayed in Basic Mode.

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first sub-item will be displayed; when you click on the second sub-item, the detailed information for the second sub-item will be displayed and that of the first sub-item will be hidden.

Show below are the locations of the Basic Mode and the Advanced Mode screen elements:

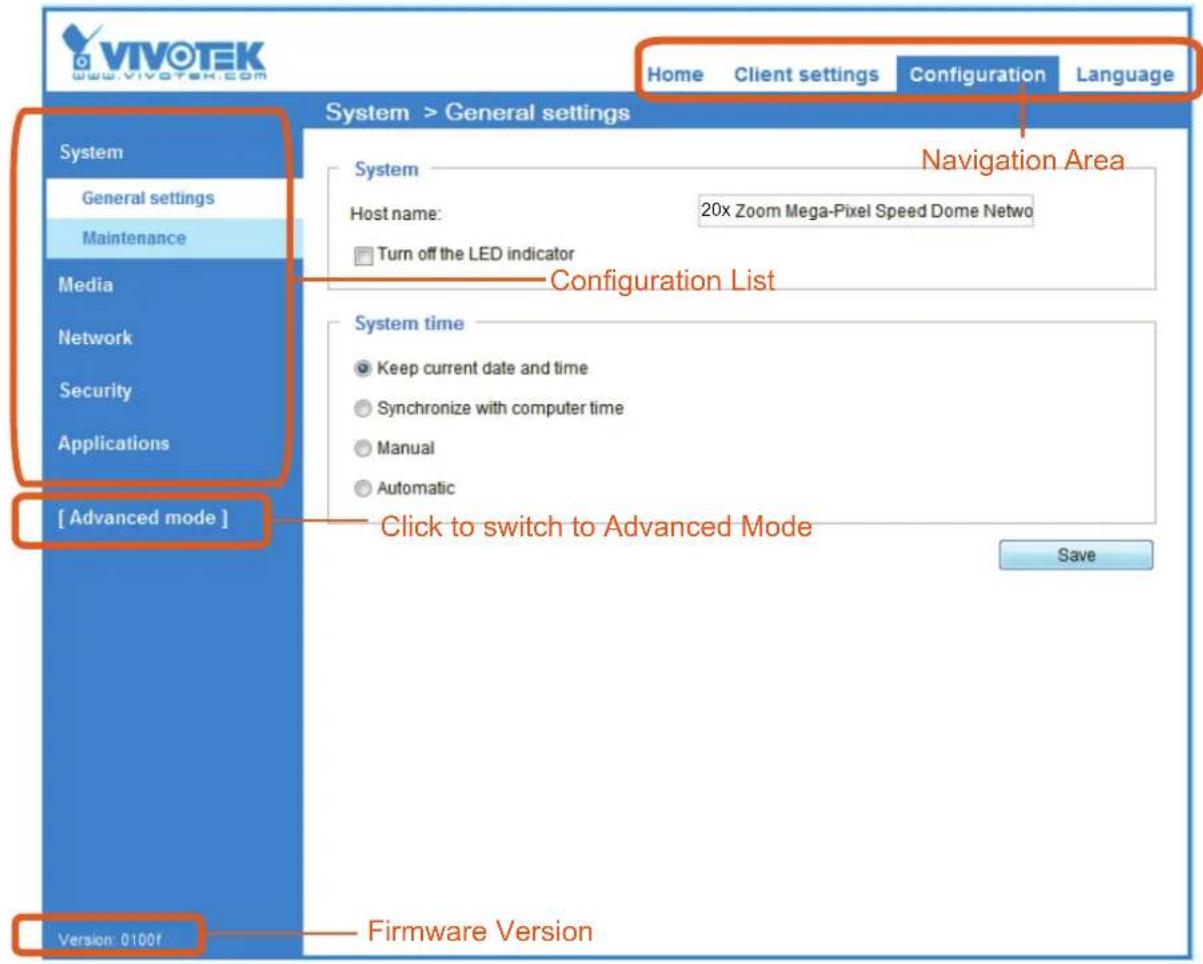

Basic Mode

Advanced Mode

Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are tagged with Advanced Mode. If you want to configure advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch over.

Navigation Area provides an instant switch among Home page (the monitoring page for live viewing), Configuration page, and multi-language selection.

System > General settings

This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System and System Time.

System

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.

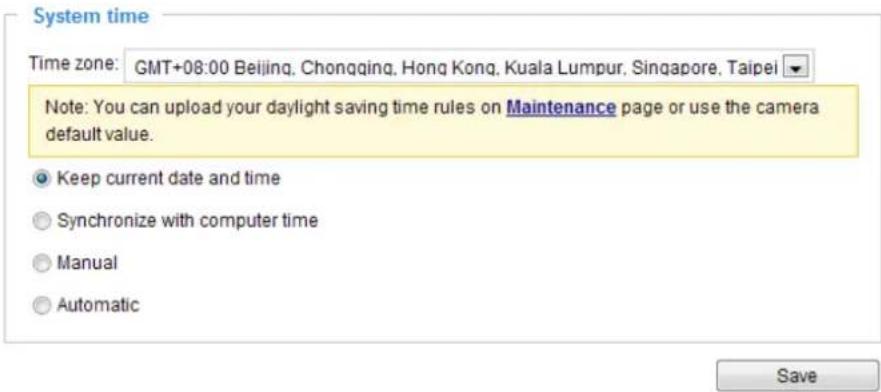

System time

Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off.

Synchronize with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

Manual: The administrator can enter the date and time manually. Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server.

NTP server: Assign the IP address or domain name of an established time server. Leaving the text box blank connects the Network Camera to the default time servers. The precondition is that your camera must have access to the Internet.

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis.

Time zone Advanced Mode: Select the appropriate time zone from the list. If you want to upload Daylight Savings Time rules, please refer to System > Maintenance > Import/ Export files on page 48 for details.

When finished with the settings on this page, click Save at the bottom of the page to enable the settings.

System > Homepage layout Advanced Mode

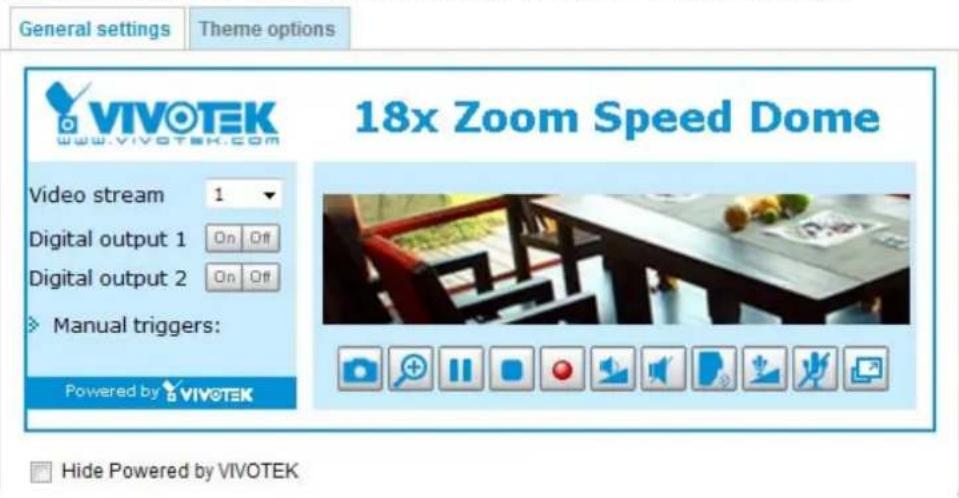

This section explains how to set up your own customized homepage layout.

General settings

This column shows the settings of your homage layout. You can manually select the background and font colors in Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings:

■ Hide Powered by VIVOTEK: If you check this item, such wording will be removed from the homepage.

Logo graph

Here you can change the logo at the top of your homepage.

Follow the steps below to upload a new logo:

1. Click Custom and the Browse field will appear.
2. Select a logo from your files.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.

Customized button

Deselect the checkbox if you do not need the Manual trigger buttons on the main page.

Theme Options

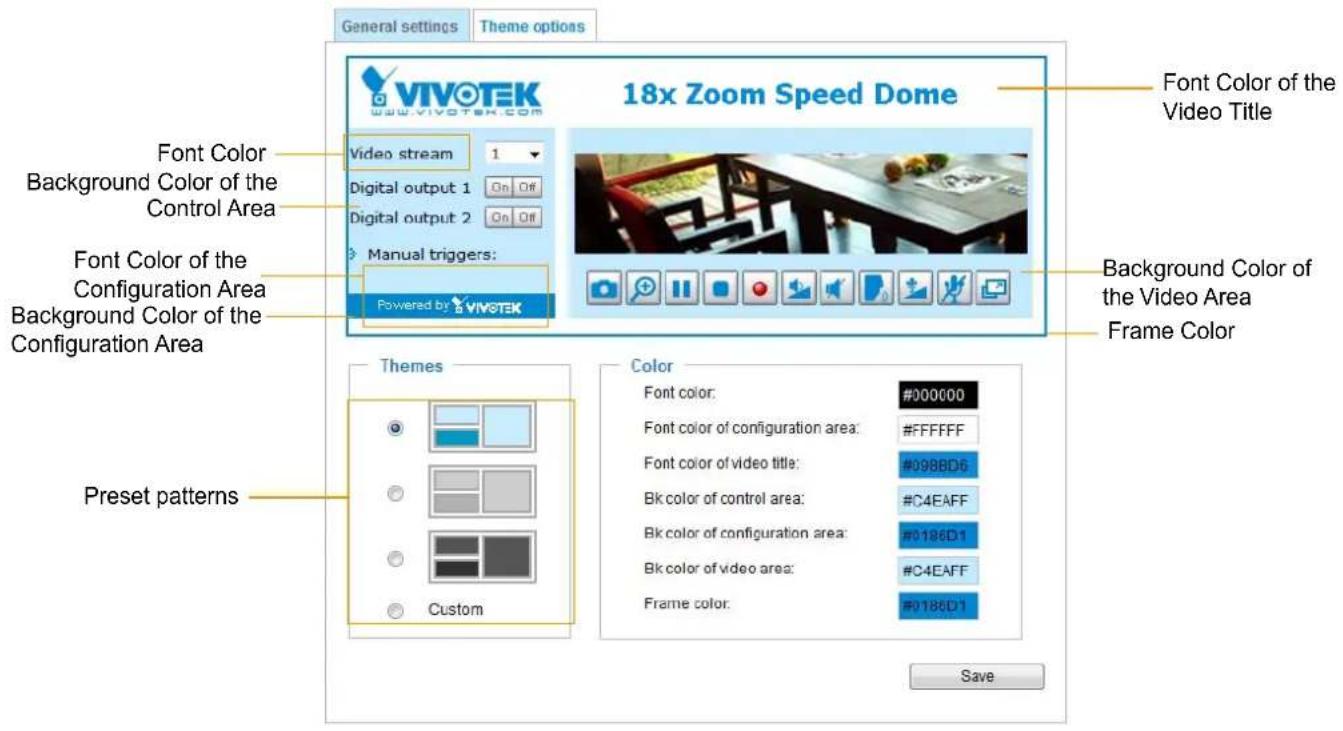

Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.

■ Follow the steps below to set up the customed homepage:

1. Click Custom on the left column.

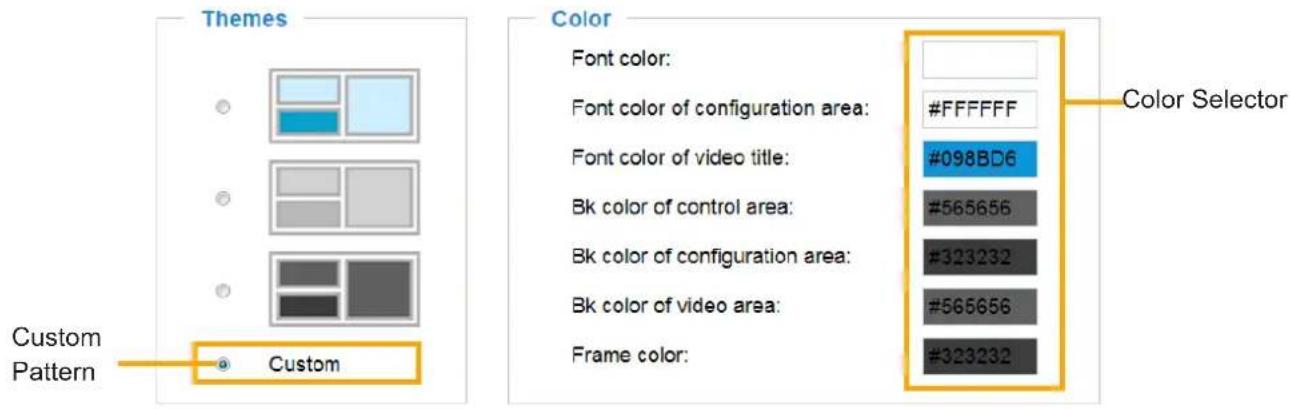

2. A double-click on the color selection area (the right hand side column) will bring up a color palette window.

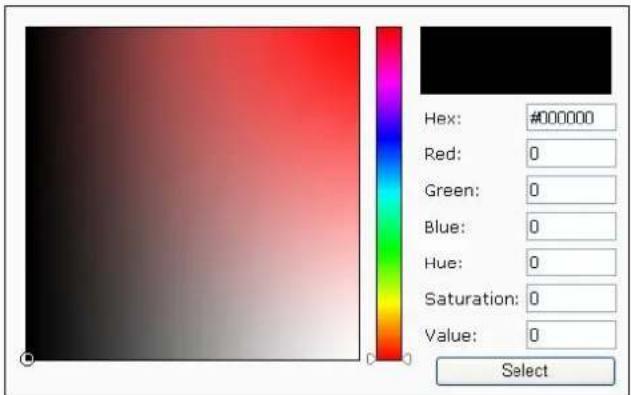

1. The palette window will pop up as shown below.

1. Drag the slider bar and click on the left square to select a desired color.
2. The selected color will be displayed in the corresponding fields and in the Preview column.
3. Click Save to enable the settings.

Below are options for system integrators or VARs. You can use the checkboxes to replace VIVOTEK's company logo, the embedded website address or the slogan "Powered by VIVOTEK." When done, use the Save button to complete the configuration.

□ Hide Powered by MIVOTEK

Logo graph

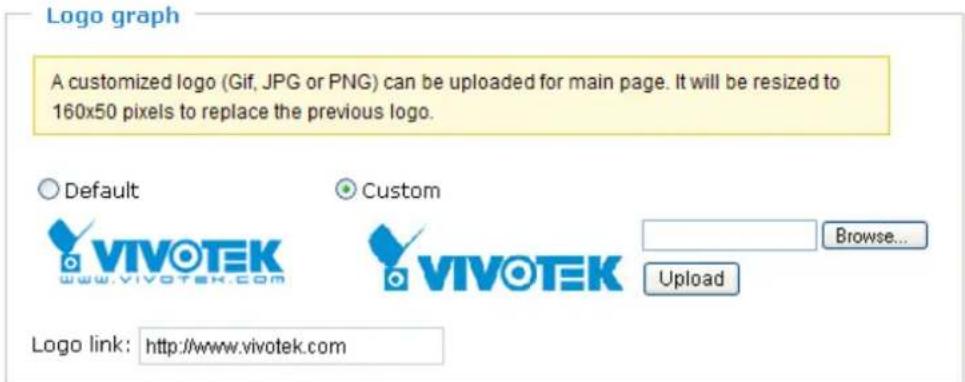

A customized logo (Gif, JPG or PNG) can be uploaded for main page. It will be resized to 160x50 pixels to replace the previous logo.

Default

Logo link: http://www.vivotek.com

Custom

Customized button

Show manual trigger button

Save

System > Logs Advanced Mode

This section explains how to configure the Network Camera to send the system log to the remote server as backup.

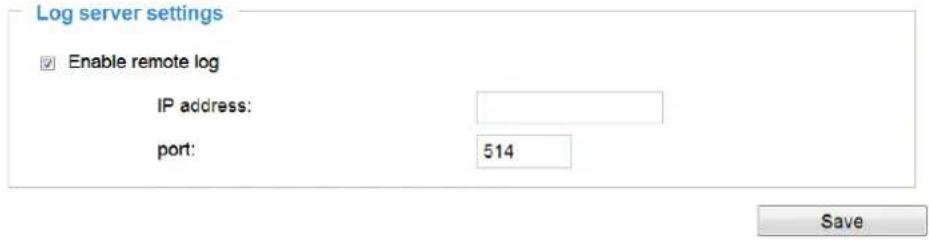

Log server settings

Follow the steps below to set up the remote log:

1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
3. In the port text box, enter the port number of the remote server.
4. When completed, click Save to enable the setting.

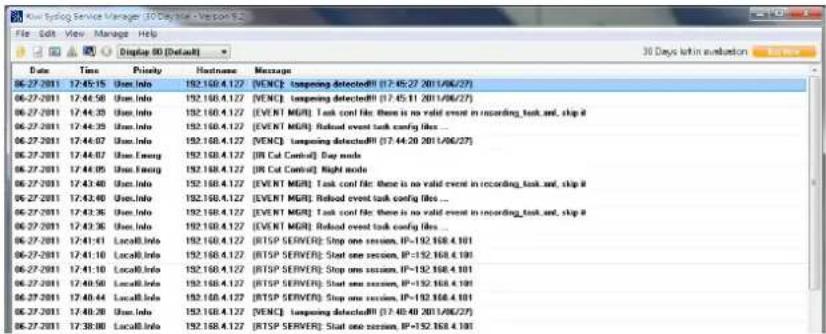

You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit http://www.kiwisyslog.com/kiwi-syslog-daemon-overview/.

System log

This column displays the system log in a chronological order. The system log is stored in the Network Camera's buffer area and will be overwritten when the number of events reaches a preset limit.

May 11 14:59:53 syslogd 1.5.0: restart.
May 11 14:59:54 [swatchdog]: Ready to watch httpd.
May 11 14:59:54 [EVENT MGR]: Starting eventmgr with support for EcTun
May 11 14:59:54 [EVENT MGR]: Task conf file: there is no valid event in recording_task.xml, skip it
May 11 14:59:54 [EVENT MGR]: Task conf file: there is no valid event in event_task.xml, skip it
May 11 14:59:55 [ectun]: receiver value of x-path : "camctrl_c0_pr" from configer failed!
May 11 14:59:55 [ectun]: Get Notify parameter "camctrl_c0_pr" value failed
May 11 14:59:55 [ectun]: receiver value of x-path : "eset_i109_name" from configer failed!
May 11 14:59:56 [ectun]: Get Notify parameter "eset_i109_name" value failed
May 11 14:59:56 [DRM Service]: Starting DRM service.
May 11 15:00:05 [UPnPIGDCP]: Search IGD failed
May 11 15:00:06 [swatchdog]: Ready to watch configer.
May 11 15:00:10 [swatchdog]: Ready to watch venc.
May 11 15:00:13 automount[721]: >> mount: mounting /dev/mmcblk0p1 on /mnt/auto/CF
failed No such device or address
May 11 15:00:13 automount[721]: mount(generic): failed to mount /dev/mmcblk0p1 (type vfat) on /mnt/auto/CF

Access log

Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

System > Parameters Advanced Mode

The View Parameters page lists the entire system's parameters in an alphabetical order. If you need technical assistance, please provide the information listed on this page.

system_hostname='18x Zoom Speed Dome Network Camera'
system_ledoff='0'
system_date='2013/09/12'
system_time='15:20:00'
system_datetime�'
system_ntp�'
system_timezone timezoneindex='320'
system_daylight_enable='0'
system_daylight_dstactualmode='1'
system_daylight_auto_begintime='NONE'
system_daylight_auto_endtime='NONE'
system_daylight_timezones=',-360,-320,-280,-240,-241,-200,-201,-16'
system_updateinterval='0'
system_info_modelname='SD8314E'
system_info_extendedmodelname='SD8314E'
system_info_serialnumber='0002D12455BB'
system_info_firmwareversion='SD83X6-VVTK-0200a3'
system_info_language_count='9'
system_info_language_i0='English'
system_info_language_i1='Deutsch'
system_info_language_i2='Español'
system_info_language_i3='Français'

System > Maintenance

This chapter explains how to restore the Network Camera to factory default, reboot, upgrade firmware version, etc.

General settings > Upgrade firmware

Upgrade firmware

Select firmware file:

Browse...

Upgrade

This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the firmware:

1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.
2. Click Browse... and specify the firmware file.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade completes.

If the upgrade is successful, you will see "Reboot system now!! This connection will close". After that, refresh the management session with the Network Camera.

The following message is displayed when the upgrade has succeeded.

Reboot system now!! This connection will close.

The following message is displayed when you have selected an incorrect firmware file.

Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. This will take about 1 - 5 minutes. Wrong PKG file format Unpack fail

General settings > Reboot

Reboot

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the address field to resume the connection.

General settings > Restore

Restore

Restore all settings to factory default except settings in

Network

Daylight saving time

Custom language

Restore

This feature allows you to restore the Network Camera's factory defaults.

Network: Select this option to retain the Network Type settings (please refer to Network Type on page 66).

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).

Custom Language: Select this option to retain the Custom Language settings.

If none of the options is selected, all settings will be restored to factory default. The following message is displayed during the restoring process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

Import/Export files

Advanced Mode

This feature allows you to Export / Update daylight saving time rules, custom language file, and configuration file.

General settings

Import/Export files

Export files

Export daylight saving time configuration file

Export

Export language file

Export

Export configuration file

Export

Export server status report

Export

Upload files

Update daylight saving time rules:

Browse..

Upload

Update custom language file:

Browse..

Upload

Upload configuration file:

Browse..

Upload

Export daylight saving time configuration file: Click to set the start and end time of DST.

Follow the steps below to export:

1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera.
2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing.

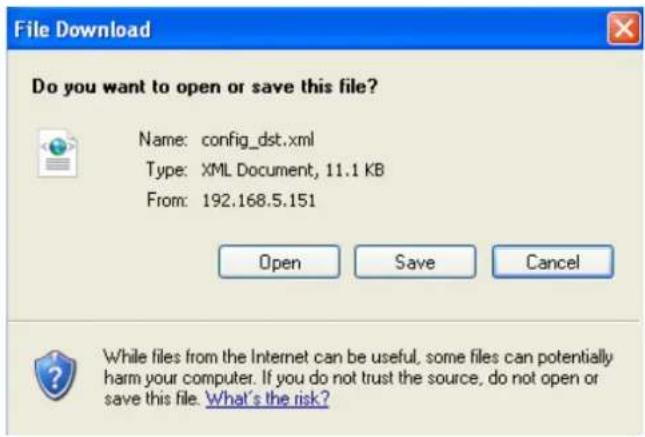

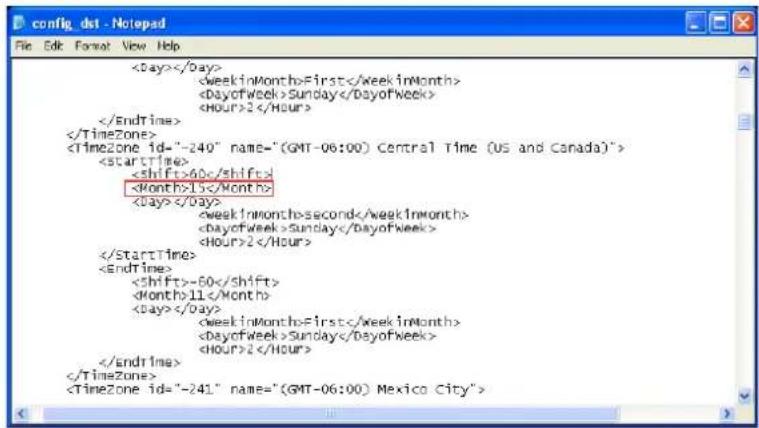

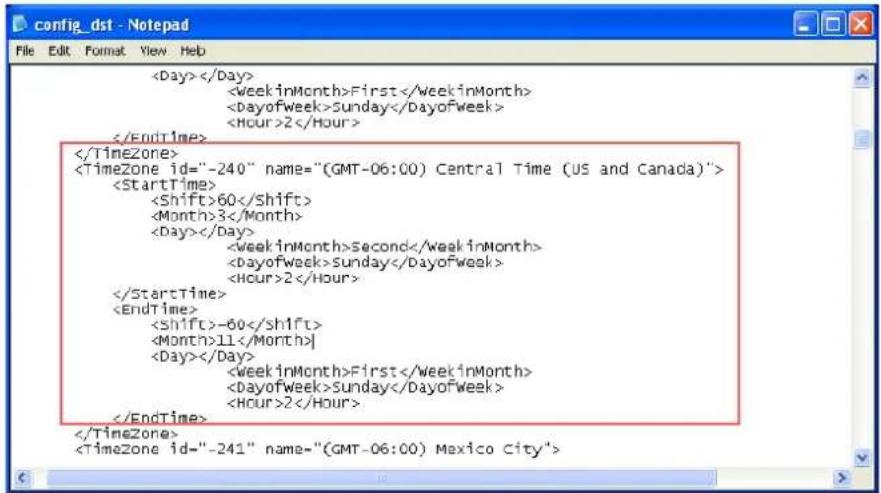

1. Open and edit the file using Microsoft ^® Notepad and locate your time zone in the strings; set the start and end time of DST. When completed, save the file.

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November.

Update daylight saving time rules: Click Browse... and specify the XML file to update.

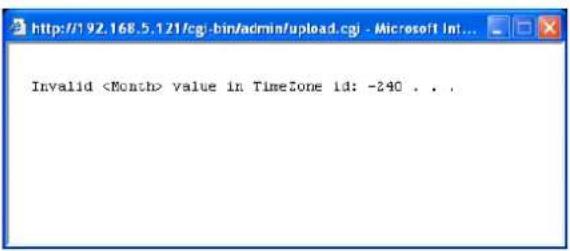

If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.

The following message is displayed when attempting to upload an incorrect file format.

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

Update custom language file: Click Browse... and specify your own custom language file to upload.

Export configuration file: Click to export all parameters for the device and user-defined scripts.

Update configuration file: Click Browse... to update a configuration file. Please note that the model and firmware version of the device should be identical to those specified for the configuration file. If you have set up a fixed IP or other special settings for your device, it is not suggested to update a configuration file.

Export server status report: Click to export the current server status report, such as time, logs, parameters, process status, memory status, file system status, network status, kernel message..., and so on.

Tips:

- If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort method to restore normal operation. See the following for how to bring the camera back to work:

Applicable scenario:

(1) Power disconnected during firmware upgrade.
(2) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working condition.

You can use the following methods to activate the camera with its backup firmware:

(3) Press and hold down the reset button for at least one minute.
(4) Power on the camera until the Red LED blinks rapidly.
(5) After boot up, the firmware should return to the previous version before the camera hanged. (The procedure should take 5 to 10 minutes, longer than the normal boot-up process). When this process is completed, the LED status should return to normal.

Media > Image

Advanced Mode

This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask.

General settings

Video title

Show timestamp and video title in videos and snapshots: Enter a name that will be displayed on the title bar of the live video as the picture shown below.

Position of timestamp and video title on image: Select to display time stamp and video title on the top or at the bottom of the video stream.

Timestamp and video title font size: Select the font size for the time stamp and title.

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.

Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Change the settings if the Network Camera is installed in a different orientation (which is rare for a speed dome) to correct the image orientation.

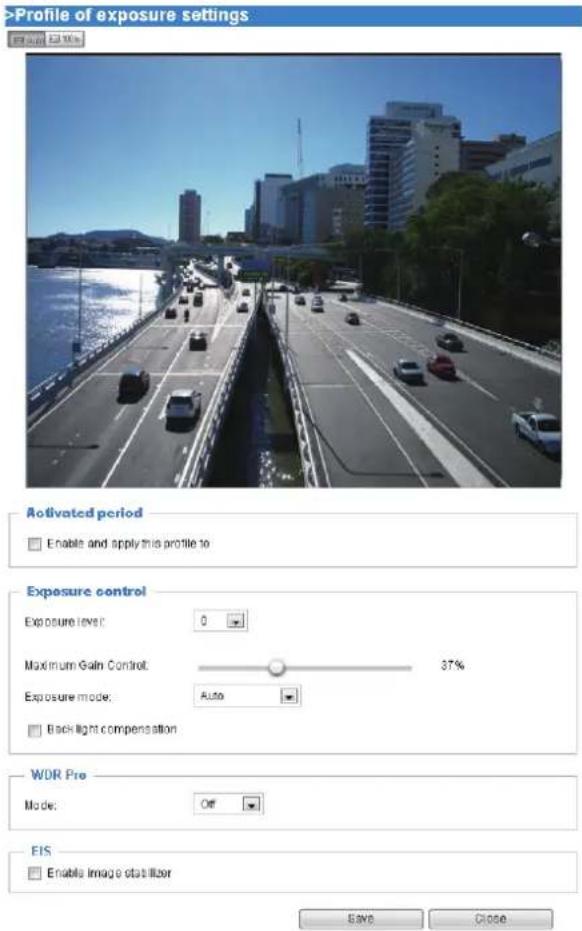

Day/Night settings: Provides a link to the associated exposure setting page.

Image settings

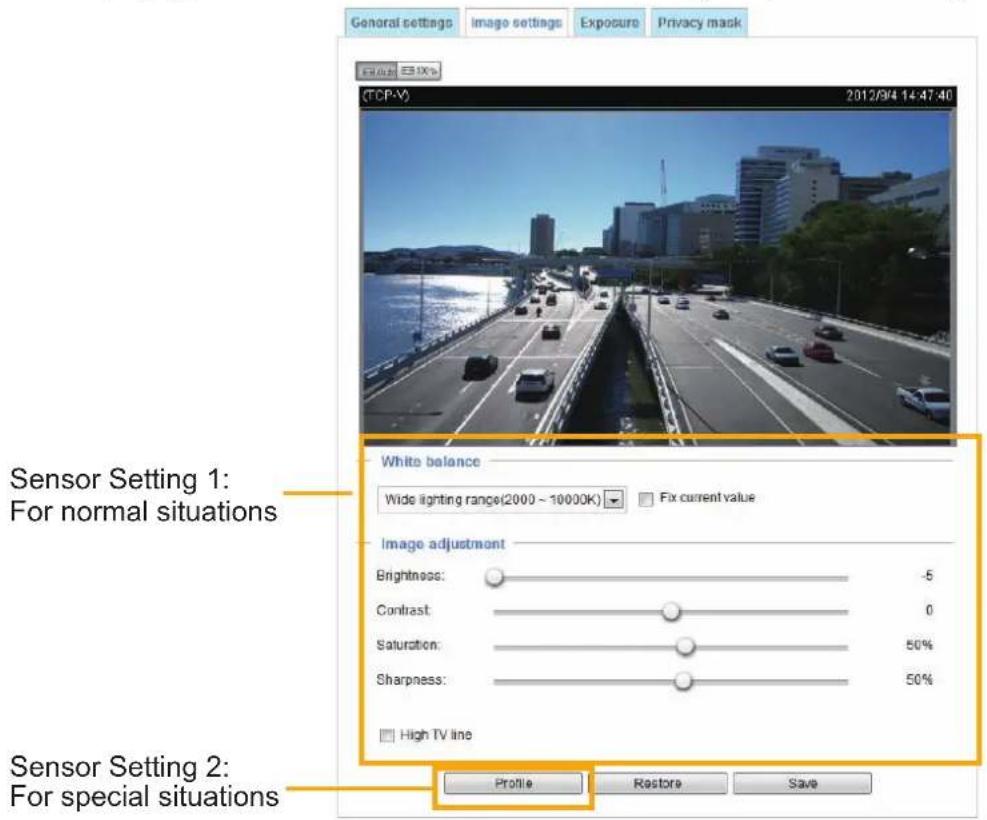

On this page, you can tune the White balance and Image adjustment settings.

White balance: Adjust the value for the best color temperature.

■ Select one of the white balance modes:

1. Outdoor (system default): Using this mode enables the camera to capture images with natural white balance observable in the morning.
2. Fluorescent light: 3,200K base mode, suitable for indoor applications.
3. Wide lighting range: This mode adapts to light temperatures ranging from 2,000 to 10,000K. This mode especially applies in areas where the camera needs to cover both indoor and outdoor areas.
4. Sodium vapor lamp: This mode applies to streets and highway lit by sodium vapor lamps.

■ Fix current value: This option is available when the Wide lighting range is selected. When selected, the camera will use the current color temperature setting. Note that you should use the Save button below to preserve current configuration. Otherwise, the white balance mode will return to Auto after you leave the configuration page.

■ Manual: In the manual mode, you can manually tune the R gain and Blue gain values by dragging the slide bars. Index numbers will be shown on the right hand side while changes in image is immediately displayed.

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5.
■ Contrast: Adjust the image contrast level, which ranges from -5 to +5.
■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%.
■ Sharpness: Adjust the image sharpness level, which ranges from 0% to 100%.
■ High TV line: This enhances the clarity of imaging details with high acutance. While the image quality is improved, noises may also increase at the same time.

Note that the Preview button has been cancelled, all changes made to image settings is directly shown on screen. You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the setting. You can also click on Profile to adjust all settings above in a pop-up window for special lighting conditions during a specific period of time in a day.

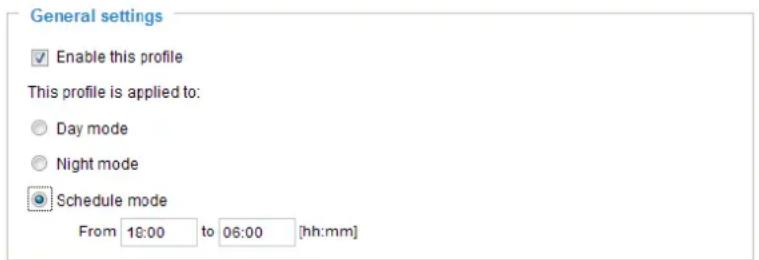

Activated period

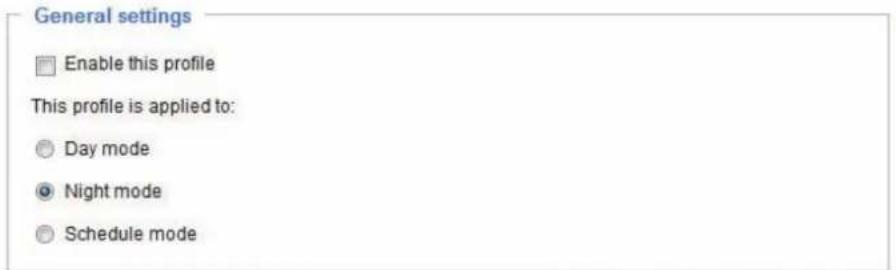

Enable and apply this profile to

Day mode

Night mode

Schedule mode

Exposure Advanced Mode

On this page, you can set the Exposure level, Max gain, Exposure mode, and IR cut filter realted settings. Detailed configurations will be automatically adjusted since the sensor library will automatically adjust the value according to the ambient light.

Exposure control:

■ Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to bright). You can also select other values from the Exposure mode menus and select a preferred scenario or manually configure the associated settings. You may prefer a shorter shutter time to better capture moving objects, while a faster shutter reduces light and needs to be compensated by electrical brightness gains.

■ Maximum Gain Control: Select a maximum value for the electronic gain from the slide bar. The gain value also has its effect on the sensitivity of the IR cut filter. When applying the gain control, IR cut filter setting will change accordingly.

■ Exposure mode:

Select Auto, Shutter Priority, Iris Priority, Quality Priority, or Manual mode according to your needs. - Auto: System default, which automatically adjusts the iris, shutter speed, and gain for an optimal exposure level.

• Shutter Priority: When selected, the Exposure time slide bar will appear, allowing you to select an exposure time ranging from 1/10,000, to 1/1 second. Once a fixed value is selected, system firmware will automatically tune the gain and iris settings to match an optimal exposure level.
• Iris Priority: When selected, the Iris adjustment slide bar will appear, allowing you to select an aperture size ranging from F28 to F1.6. Once a fixed value is selected, system firmware will automatically tune the gain and exposure time to match an optimal exposure level. The value is measured in the F-number as the ratio of the focal length to the lens diameter. Iris size is inversely proportional to the F-number; therefore, the smaller the F-number, the greater is the exposure ratio. Smaller F-number (larger exposure ratio, larger the size of lens aperture opening) is shown on the right of the slide bar.
• Quality Priority: When selected, the embedded mapping table of aperture size and depth of field will apply when operating with the auto focus mechanism.
• Manual: Select Manual to set a fixed exposure time, iris, and gain. Then, tune the slide bar to set the Exposure time, Iris adjustment, and Gain Control to the best image quality. A shorter exposure time allows less amount of light to enter the sensor; while a higher gain control value generates certain amount of noises.

Exposure control

Exposure mode:

Exposure time:

Iris adjustment:

Gain control:

Manual

Note the following when the Manual mode is selected:

1. The Exposure level bar will not be available.
2. The IR cut filter setting will switch to Day Mode. If it was previously configured into other modes, the previous setting remains intact.

NOTE:

- When Iris Priority is selected for the Exposure mode, the tunable aperture size is related to zoom ratio. When using different zoom ratios, the range of aperture sizes can be different. When zoom ratio is 0x, the range of iris sizes is F1.6\~F14. When zoom ratio is 18x, the iris size is F3.4. See below for the corresponding maximum iris sizes at different zoom ratios:

Exposure mode:

Iris adjustment:

F8

Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.
1.00 1.4	1.14 1.6	1.28 1.8	1.42 1.9	1.56 2.1	1.70 2.2	1.84 2.2	1.98 2.3
1.01 1.4	1.15 1.6	1.29 1.8	1.43 1.9	1.57 2.1	1.71 2.2	1.85 2.3	1.99 2.3
1.02 1.4	1.16 1.6	1.30 1.8	1.44 2.0	1.58 2.1	1.72 2.2	1.86 2.3	2.00 2.3
1.03 1.4	1.17 1.6	1.31 1.8	1.45 2.0	1.59 2.1	1.73 2.2	1.87 2.3	2.01 2.3
1.04 1.5	1.18 1.7	1.32 1.8	1.46 2.0	1.60 2.1	1.74 2.2	1.88 2.3	2.02 2.3
1.05 1.5	1.19 1.7	1.33 1.8	1.47 2.0	1.61 2.1	1.75 2.2	1.89 2.3	2.03 2.4
1.06 1.5	1.20 1.7	1.34 1.9	1.48 2.0	1.62 2.1	1.76 2.2	1.90 2.3									2.04 2.4
1.07 1.5	1.21 1.7	1.35 1.9	1.49 2.0	1.63 2.1	1.77 2.2	1.91 2.2	2.05 2.4
1.08 1.5	1.22 1.7	1.36 1.9	1.50 2.0	1.64 2.1	1.78 2.2	1.92 2.3	2.06 2.4
1.09 1.5	1.23 1.7	1.37 1.9	1.51 2.0	1.65 2.1	1.79 2.2	1.93 2.3	2.07 2.4
1.10 1.5	1.24 1.7	1.38 1.9	1.52 2.0	1.66 2.1	1.80 2.2	1.94 2.3	2.08 2.4
1.11 1.6	1.25 1.8	1.39 1.9	1.53 2.0	1.67 2.1	1.81 2.2	1.95 2.3	2.09 2.4
1.12 1.6	1.26 1.8	1.40 1.9	1.54 2.0	1.68 2.1	1.82 2.2	1.96 2.3	2.10 2.4
1.13 1.6	1.27 1.8	1.41 1.9	1.55 2.1	1.69 2.2	1.83 2.2	1.97 2.3	2.11 2.4

Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio
2.12 2.3	2.26 2.5	2.40 2.5	2.54 2.5	6 2.68 2	6 2.82 2	6 2.96 2	7 3.36 2	8
2.13 2.4	2.27 2.5	2.41 2.5	2.55 2.5	6 2.69 2	6 2.83 2	6 2.97 2	7 3.40 2	8
2.14 2.4	2.28 2.5	2.42 2.5	2.56 2.5	6 2.70 2	6 2.84 2	6 2.98 2	7 3.44 2	8
2.15 2.4	2.29 2.5	2.43 2.5	2.57 2.5	6 2.71 2	6 2.85 2	7 2.99 2	7 3.49 2	8
2.16 2.4	2.30 2.5	2.44 2.5	2.58 2.5	6 2.72 2	6 2.86 2	7 3.00 2	7 3.53 2	8
2.17 2.3	2.31 2.5	2.45 2.5	2.59 2.5	6 2.73 2	6 2.87 2	7 3.01 2	7 3.58 2	8
2.18 2.4	2.32 2.5	2.46 2.5	2.60 2.5	6 2.74 2	6 2.88 2	7 3.05 2	7							3.62 2.8
2.19 2.4	2.33 2.5	2.47 2.5	2.61 2.5	6 2.75 2	6 2.89 2	7 3.09 2	7 3.67 2	8
2.20 2.3	2.34 2.5	2.48 2.5	2.62 2.5	6 2.76 2	6 2.90 2	7 3.12 2	7 3.72 2	9
2.21 2.4	2.35 2.5	2.49 2.5	2.63 2.5	6 2.77 2	6 2.91 2	7 3.16 2	7 3.76 2	9
2.22 2.4	2.36 2.5	2.50 2.5	2.64 2.5	6 2.78 2	6 2.92 2	7 3.20 2	7 3.81 2	9
2.23 2.5	2.37 2.5	2.51 2.5	2.65 2.5	6 2.79 2	6 2.93 2	7 3.24 2	8 3.86 2	9
2.24 2.5	2.38 2.5	2.52 2.5	2.66 2.5	6 2.80 2	6 2.94 2	7 3.28 2	8 3.92 2	9
2.25 2.5	2.39 2.5	2.53 2.5	2.67 2.5	6 2.81 2	6 2.95 2	7 3.32 2	8 3.97 2	9

Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio	F no.	Zoom ratio
4.02 2.9	4.89 3.1	6.05 3.2	7.59 3.3	9.64 3.5	12.28	3.5 15.66	3.4	20.76	3.4
4.08 2.9	4.96 3.1	6.14 3.2	7.72 3.4	9.80 3.5	12.49	3.5 15.94	3.4	21.29	3.4
4.13 2.9	5.04 3.1	6.24 3.2	7.85 3.4	9.98 3.5	12.71	3.5 16.23	3.4	21.85	3.4
4.19 2.9	5.11 3.1	6.34 3.2	7.98 3.4	10.15	3.5 12.93	3.5 16.53	3.4	22.47	3.4
4.25 3.0	5.19 3.1	6.44 3.2	8.12 3.4	10.33	3.5 13.15	3.5 16.84	3.4	23.15	3.4
4.30 3.0	5.26 3.1	6.55 3.3	8.26 3.4	10.51	3.5 13.38	3.5 17.16	3.4	23.89	3.4
4.36 3.0	5.34 3.1	6.65 3.3	8.40 3.4	10.69	3.5 13.61	3.5 17.49	3.4								24.72	3.5
4.43 3.0	5.43 3.1	6.76 3.3	8.54 3.4	10.88	3.5 13.85	3.5 17.83	3.4	25.66	3.5
4.49 3.0	5.51 3.1	6.87 3.3	8.69 3.4	11.07	3.5 14.09	3.5 18.19	3.4	26.74	3.6
4.55 3.0	5.59 3.1	6.99 3.3	8.84 3.4	11.26	3.5 14.34	3.5 18.56	3.4	28.00	3.7
4.62 3.0	5.68 3.2	7.10 3.3	8.99 3.4	11.46	3.5 14.59	3.5 18.96	3.4
4.68 3.0	5.77 3.2	7.22 3.3	9.15 3.4	11.66	3.5 14.85	3.5 19.37	3.4
4.75 3.0	5.86 3.2	7.34 3.3	9.31 3.4	11.86	3.5 15.11	3.5 19.80	3.4
4.82 3.0	5.59 3.2	7.46 3.3	9.47 3.5	12.07	3.5 15.38	3.4 20.27	3.5

■ Back light compensation: This option is only available when the Auto mode is selected for the Exposure setting. This option enables light compensation for images that are too dark to recognize; for example, for the dark side of objects that is posed against bright sunlight. This option is disabled if you enable the WDR function.

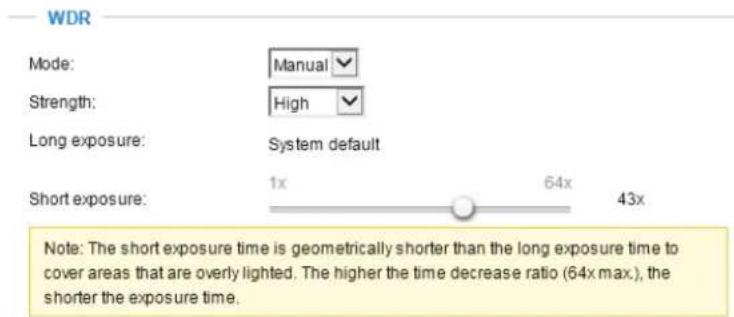

■ WDR Pro (Wide Dynamic Range): Default is off. When set to Auto, you can select the sensitivity and strength of the WDR function. The Low, Medium, High options correspond to the level of contrast between the overly-lit area and the shaded areas. For example, the High option applies to a high contrast scenario. Note that when the exposure time is set to longer than 1/60 second, the WDR function will be disabled.

The Sensitivity option applies to the response speed to the change in bright-to-dark lighting contrast.

If you prefer using the Manual setting, the Long exposure time (that for capturing the shaded area of an image) is either automatically selected by firmware or using the exposure time you selected in the Manual or Shutter Priority mode. On the other hand, the short exposure time is geometrically shorter than the long exposure time to cover areas that are overly lighted. The higher the time decrease ratio (64x max.), the shorter the exposure time.

NOTE:

• The WDR works by generating an optimal image from out of two image frames, one taken with long exposure and the other shorter exposure.
• When the WDR mode is set to Manual, the maximum multiplying power between the long and short exposure time may not be as large as 64x. The configurable multiplying power can be smaller when the long and the short exposure time are set to be close in numbers.

WDR
Mode:
Strength:
Long exposure:
Short exposure:

System default

Long exposure	Short exposure	Multiplying power	Long exposure	Short exposure	Multiplying power
1/10000 1/10	000 1 1/180	1/10000 56
1/6000 1/100	00 2 1/125 1	8000 64
1/4000 1/100	00 3 1/100 1	6400 64
1/3000 1/100	00 3 1/90 1/5	670 64
1/2000 1/100	00 5 1/60 1/3	840 64
1/1500 1/100	00 7 1/30 1/1	920 64
1/1000 1/100	00 10 1/15 1	960 64
1/725 1/1000	0 14 1/8 1/51	2 64
1/500 1/1000	0 20 1/4 1/25	6 64
1/350 1/1000	0 29 1/2 1/12	8 64
1/250 1/1000	0 40 1/1 1/64	64

Day/Night Settings

IR cut filter

With a removable IR-cut filter, this Network Camera can automatically remove the filter to let IR light enter the light sensor during low light conditions.

■ Auto mode

The Network Camera automatically removes the filter by judging the level of ambient light.

■ Day mode

In day mode, the Network Camera switches on the IR cut filter at all times to block infrared light from reaching the sensor so that the colors will not be distorted.

■ Night mode

In night mode, the Network Camera switches off the IR cut filter at all times for the sensor to accept infrared light, thus helping to improve low light sensitivity.

■ Schedule mode

The Network Camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

EIS

Enable image stabilizer

Select the checkbox to enable the Electronic image stabilization (EIS) function.

IMPORTANT:

1. Because the exposure settings are also available in the Profile setting, incorrect configurations such as a very high exposure level will let the camera consider it is operating in the Day mode even when the ambient light is actually low. The camera will falsely remove the IR cut filter, and thus results in distorted image colors.
   Therefore, when the IR cut filter is in the Auto mode, the Profile setting is not available.
2. When set to the Night mode, the image display automatically changes to Black and White.
3. There is no Preview button in the Exposure window. Configuration changes are directly reflected in the live view window.

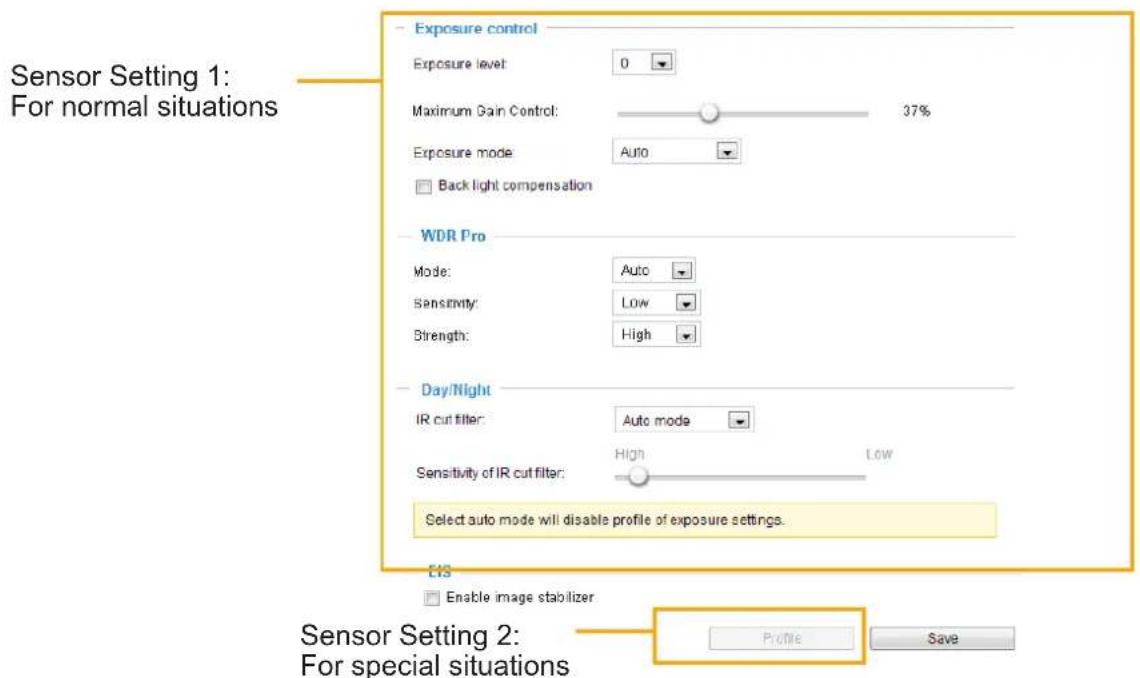

Exposure Profile: (Only available when the IR cut filter is not set to the Auto mode)

If you want to configure another sensor and exposure setting for an individual day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.

Activated period: Select the mode this profile to apply to: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to take effect.

Please follow the steps below to set up a profile:

1. Check Enable and apply this profile to.
2. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode.

When a span of time is configured using the Schedule mode, you can configure the Day/Night setting for controlling the behavior of the IR cut filter during that time.

1. Configure Exposure control settings in the following columns. Please refer to previous discussions for detailed information.
2. Click Save to enable the setting and click Close to exit the window.

Privacy mask Advanced Mode

Click Privacy Mask to open the settings page. On this page, you can block out sensitive view areas to address privacy concerns.

NOTE:

1. The navigation buttons here also support the continuous move. You can click and hold down the button to move across the screen until you release the button.

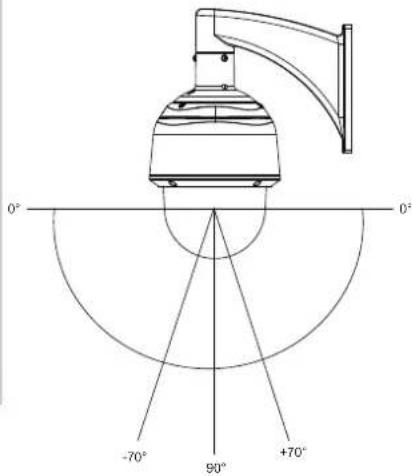

2. You can not create privacy masks at angles between +70° and -70°.

■ To set the privacy mask windows, follow the steps below:

1. Click on the Enable privacy mask checkbox to enable this function.

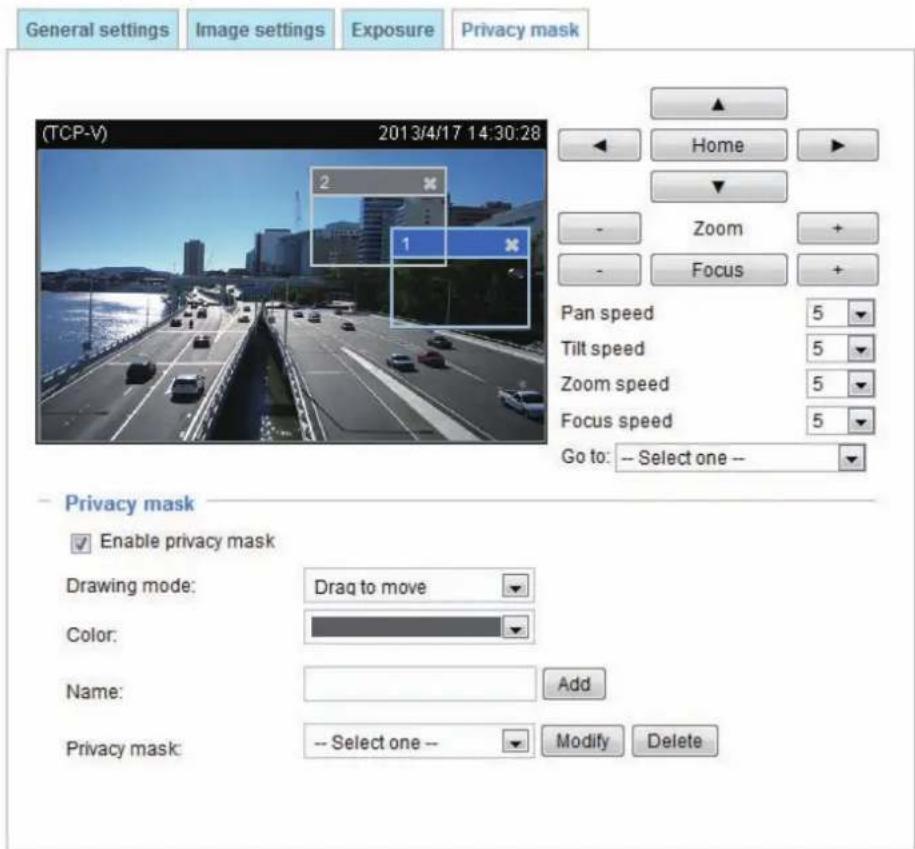

2. Use mouse clicks on the screen to move to a place where you want to create a mask. You can also use the PTZ panel to fine-tune the move to the target area.
3. Enter a name for the masking window. Click Add to create a new window.

4. Click on the Modify button and then use the mouse cursor to re-size the masking window, which is recommended to be at least twice the size of the object (height and width) you want to cover. You can select the Drawing mode as "Fixed in center" or "Drag to move."

5. When using the Fixed in center mode, you can move to the area of your interest, and then manually change the size and shape of the masking window.

6. When using the Drag to move mode, you can move to an area of your interest using the PTZ buttons above, and then click and drag to draw a masking window. The click to move maneuver is not available when you select the Drag to move mode.

7. You can also change the color of the mask from the Color menu.

8. If preferred, move the field of view to other places to create more privacy masks.

You may be prompted by the message when trying to create a privacy mask at angles between +70° and -70°.

NOTE:

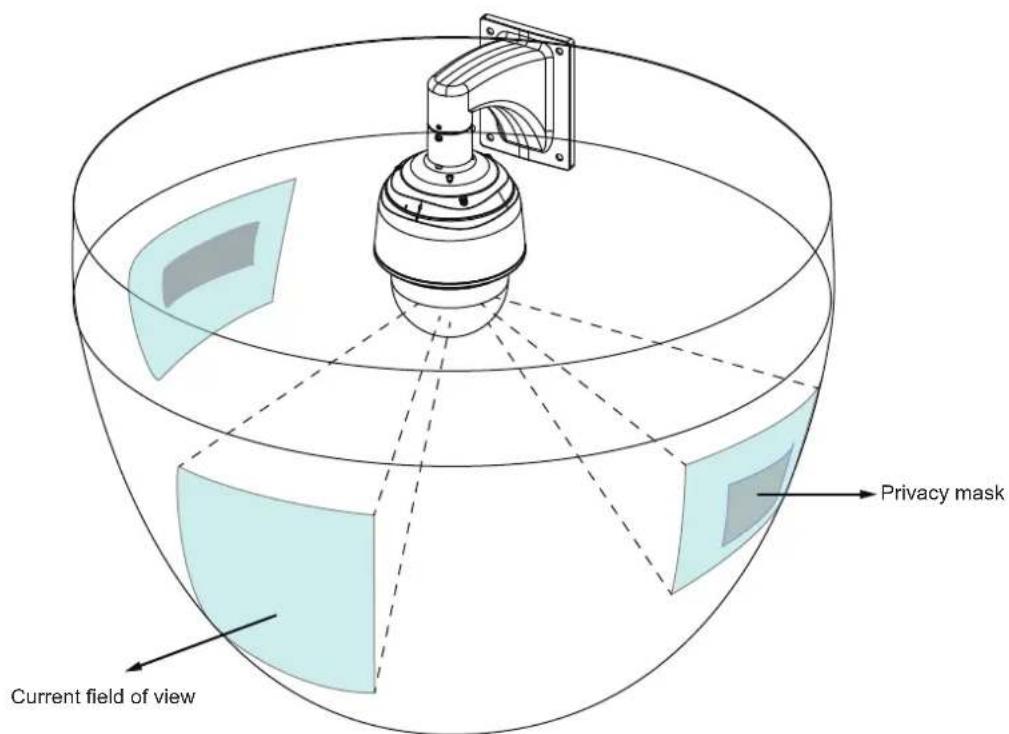

• The camera supports "3D Privacy Mask." Privacy masks should stay at the same positions regardless of how the camera lens may move.
• When the "Enabled privacy mask" checkbox is deselected, no privacy masks will appear on screen.
• Up to 24 privacy mask windows can be configured over the camera's hemispheric coverage.
• If you want to delete a privacy mask window, select its name from the pull-down menu at the bottom, and then click Delete to remove it.

Media > Video Advanced Mode

Stream settings

Stream settings

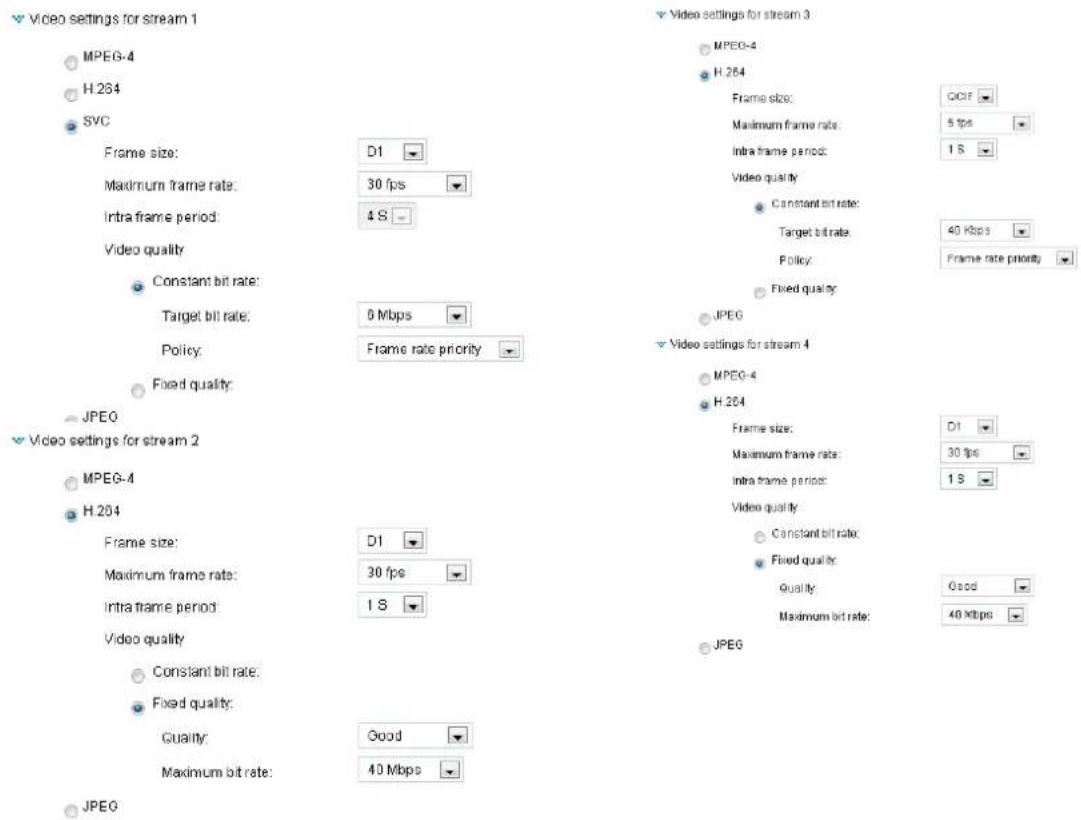

Video settings for stream 1
Video settings for stream 2
Video settings for stream 3
Video settings for stream 4

Save

This Network Camera supports multiple streams with frame sizes ranging from QCIF (176x144) to D1 (704x480 NTSC pixels).

The definition of multiple streams:

■ Stream 1: Users can define the Frame sizes, compression format, image quality, etc. Only stream 1 supports SVC adaptive frame rate setting. See page 63 for more information about SVC streaming.
■ Stream 2: The default frame size for stream 2 is configured to D1.
■ Stream 3: The default frame size for Stream 3 is set to the minimized QCIF for viewing on mobile devices.
■ Stream 4: The default frame size for stream 4 is configured to D1 in H.264 mode.

Click the stream item to display the detailed information. .

This Network Camera offers real-time H.264, MPEG-4, SVC-T, and MJPEG compression standards (Multiple Codec) for real-time viewing. If the H.264 / MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are several parameters through which you can adjust the video performance:

NOTE:

▶ Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality.
▶ Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of such occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

Configurable Frame Rate Level: SVC

The camera supports the latest SVC-T (Scalable Video Coding - Temporal) feature. The SVC feature enables streaming of videos for multiple clients from one single set of layered IP packets. Designed for saving bandwidth and CPU load on client stations, the frame rate of a video stream appearing on the live view can be individually adjusted. This feature applies when an administrator experiences unstable video streaming due to the lack of network bandwidth, less-than-ideal hardware, or during an occurrence of network problems.

A slide bar will appear below the view cell. Click and drag the drop-down menu. A numeric indicator on the VAST software or web console will display the current selection. See below for the frame rates represented by the numeric indicator.

Indicator Frames per second (fps) - NTSC/PAL
Maximum 30/25
7 26/22
6 23/19
5 19/17
4 15/13
3 11/9
2 8/6
1 4/3
Minimum 1/4

NOTE:

1. The SVC feature only applies to stream #1.
2. The SVC feature does not apply to MPEG-4 and MJPEG streams.

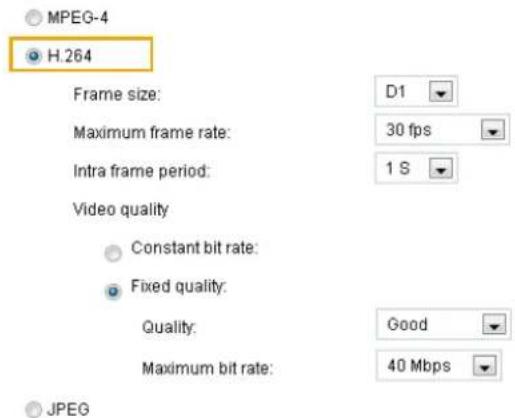

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality and for recognizing moving objects in the field of view.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select Customize and manually enter a value.

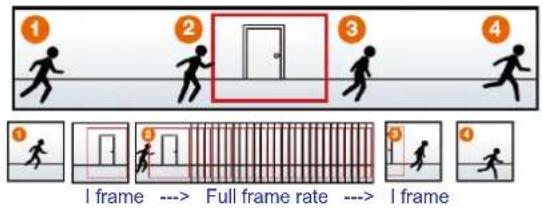

■ Intra frame period

Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds. The Intra frame period is not configurable with an SVC stream.

■ Video quality

Constant bit rate:

• Constant bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, 8Mbps, 10Mbps, 12Mbps, 14Mbps, and 16Mbps. You can also select Customize and manually enter a value.
• Target bit rate: Select a bit rate from the pull-down menu. The bit rate ranges from 20kbps to a maximum of 16Mbps. The bit rate then becomes the Average or Upper bound bit rate number. The Network Camera will strive to deliver video streams around or within the bit rate limitation you impose.
• Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain the frame rate per second performance, while image quality will sometimes be compromised. If Image quality priority is selected, the Network Camera may drop some video frames in order to maintain the image quality of individual frames.
• Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.
• Maximum bit rate: With the fixed image quality, you can still impose an upper threshold on the maximum bit rate as a ceiling value.

NOTE:

▶ Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality.

▶ Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

Media > Audio

Advanced Mode

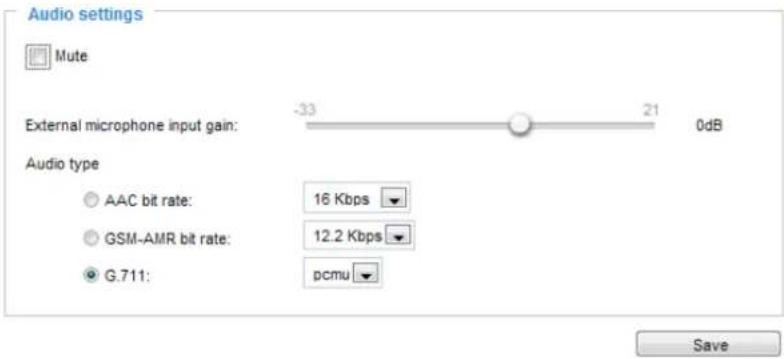

Audio Settings

Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page. In that case, the following message is displayed:

External microphone input gain: Select the gain of the external audio input according to ambient conditions. Adjust the gain from +21 db (most sensitive) or -33db (least sensitive).

Audio type: Select audio codec AAC or GSM-AMR and the bit rate Advanced Mode

■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps.
■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are selectable from: 4.75Kbps, 5.15Kbps, 5.90Kbps, 6.7Kbps, 7.4Kbps, 7.95Kbps, 10.2Kbps, and 12.2Kbps.
■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or pcma (A-Law) mode.

When completed with the settings on this page, click Save to enable the settings.

IMPORTANT:

The network camera does not come with embedded microphone. An external microphone will be necessary especially if you prefer the Audio Detection feature. By default, the Audio setting is muted, and you need to manually uncheck the Mute option.

Network > General settings

This section explains how to configure a wired network connection for the Network Camera.

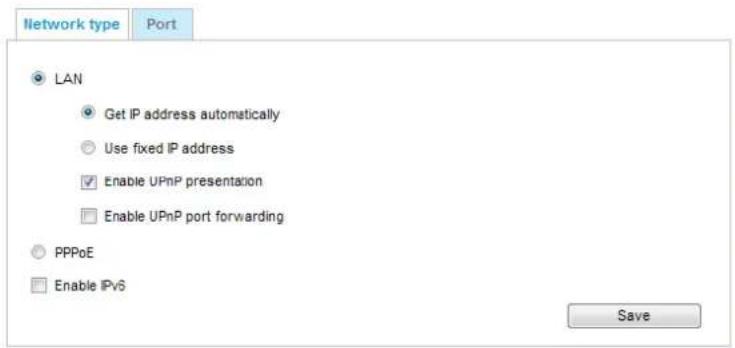

Network Type

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Please rememer to click on the Save button when you complete the Network setting.

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.

Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera.

1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 21 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP or network administrator.

Subnet mask: This is used to determine if the destination is in the same subnet. The default value is "255.255.255.0".

Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid router setting will disable the transmission to destinations across different subnets.

Primary DNS: The primary domain name server that translates host names into IP addresses.

Secondary DNS: Secondary domain name server that backs up the Primary DNS.

Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.

Secondary WINS server: The secondary WINS server that maintains the database of computer names and IP addresses.

Enable UPnP presentation: Select this option to enable UPnP ^TM presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, the shortcuts to connected Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently, UPnP ^TM is supported by Windows XP or later. Note that to utilize this feature, please make sure the UPnP ^TM component is installed on your computer.

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports automatically on the router so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP ^TM and it is activated.

PPPoE (Point-to-point over Ethernet)

Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.

Follow the steps below to acquire your Network Camera's public IP address.

1. Set up the Network Camera on the LAN.
2. Go to Configuration > Event > Event settings > Add server (please refer to Add server on page 110) to add a new email or FTP server.
3. Go to Configuration > Event > Event settings > Add media (please refer to Add media on page 102). Select System log so that you will receive the system log in TXT file format which contains the Network Camera's public IP address in your email or on the FTP server.
4. Go to Configuration > Network > General settings > Network type. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting.

1. The Network Camera will reboot.
2. Disconnect the power to the Network Camera; remove it from the LAN environment.

NOTE:

▶ If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera.
▶ If UPnP ^TM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
▶ Steps to enable the UPnP ^TM user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP ^TM components.

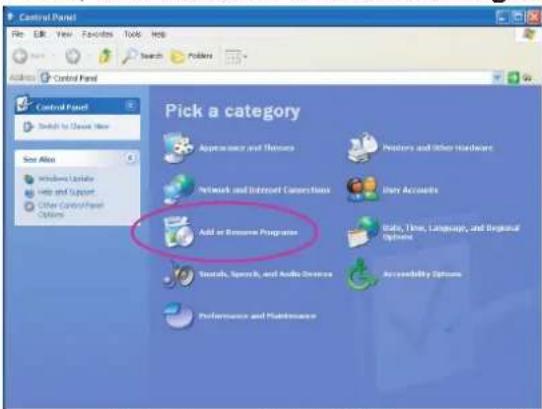

1. Go to Start, click Control Panel, then click Add or Remove Programs.

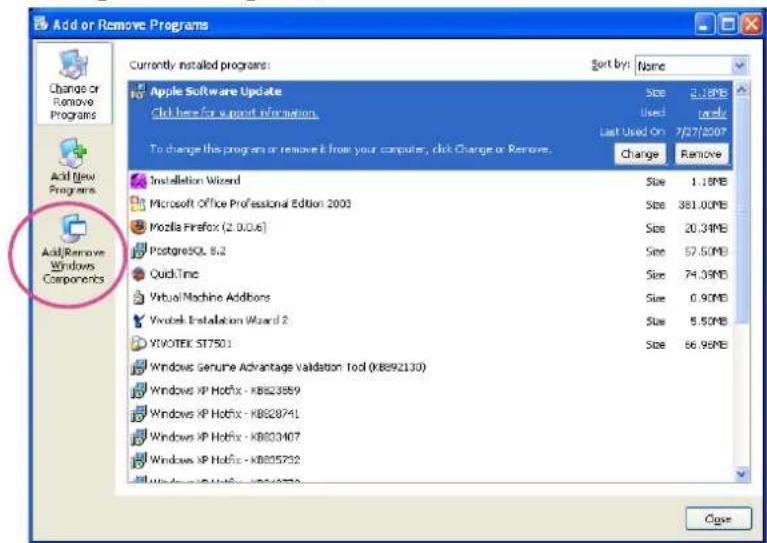

1. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.

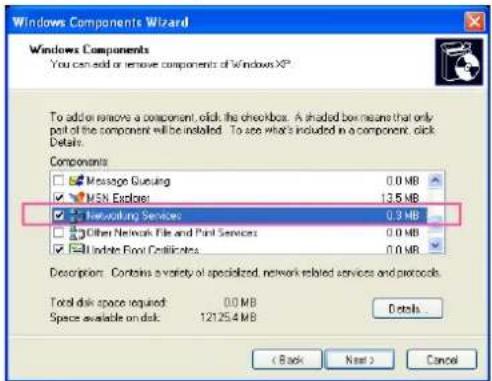

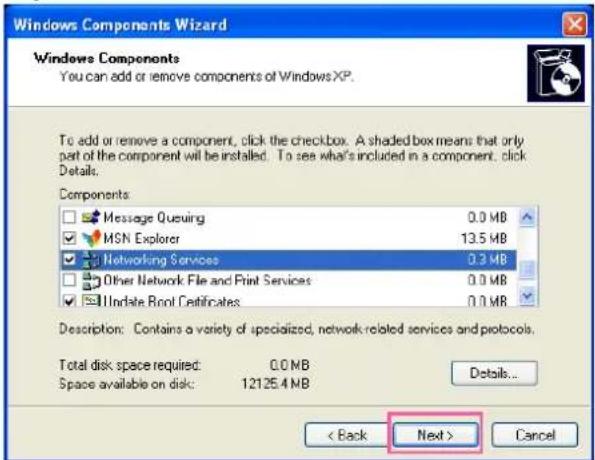

1. In the Windows Components Wizard dialog box, select Networking Services and click Details.

1. In the Networking Services dialog box, select Universal Plug and Play and click OK.

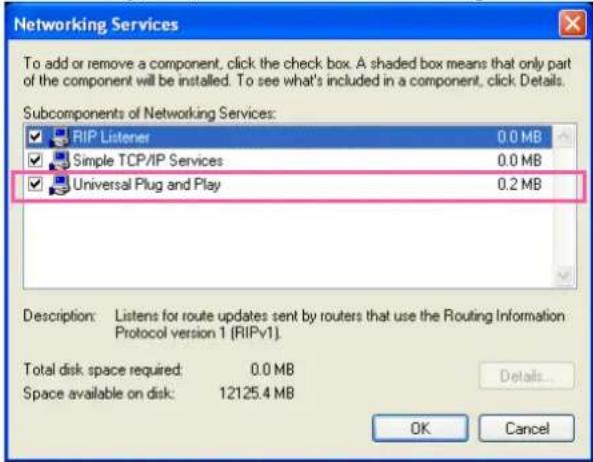

1. Click Next in the following window.

1. Click Finish. UPnP ^TM is enabled.

▶ How does UPnP ^TM work?
UPnP ^TM networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
▶ Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network Camera's public address in order to access the Network Camera from the Internet. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

▶ If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the Network Camera to factory default; please refer to Restore on page 48 for details. After the Network Camera is reset to factory default, it will be accessible on the LAN.

Enable IPv6

Select this option and click Save to enable IPv6 settings.

Please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.

IPv6 Information: Click this button to obtain the IPv6 information as shown below.

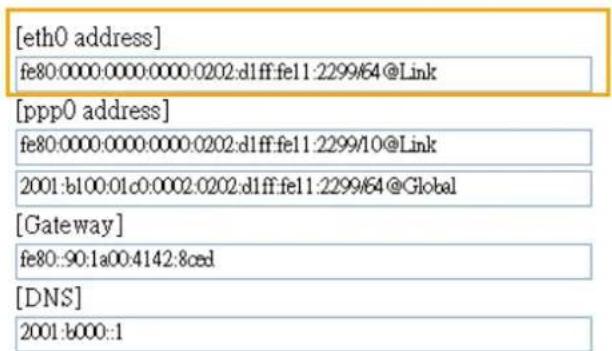

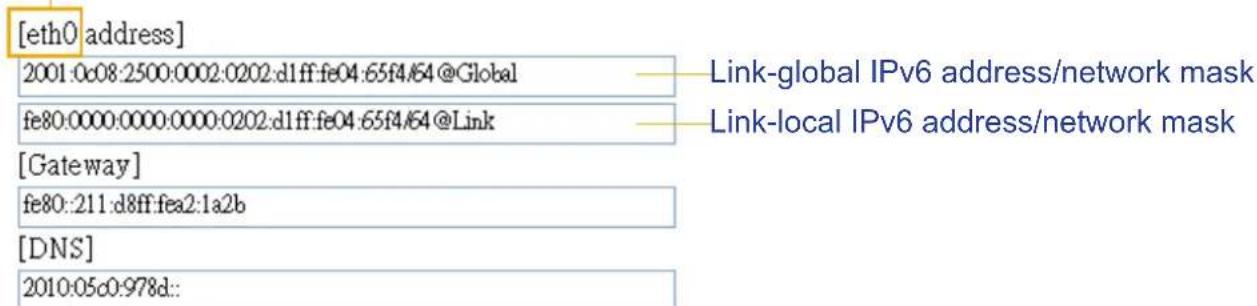

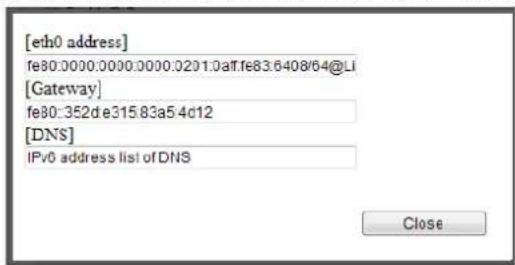

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6 address will be displayed as follows:

Refers to Ethernet

Please follow the steps below to link to an IPv6 address:

1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:

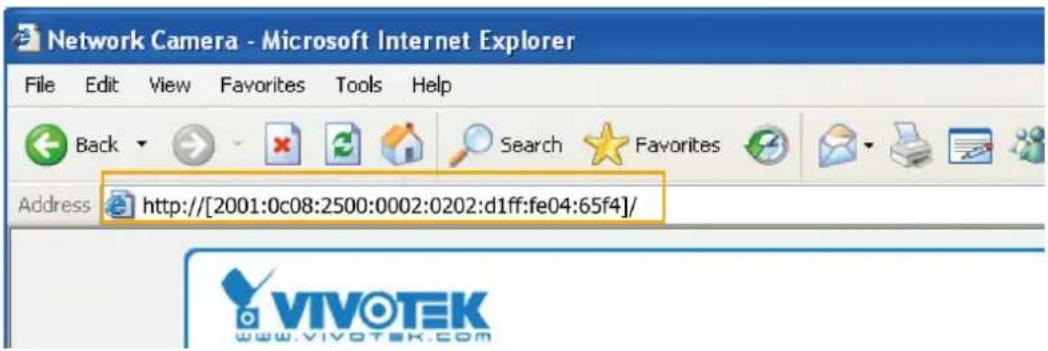

1. Press Enter on the keyboard or click Refresh button to refresh the webpage. For example:

NOTE:

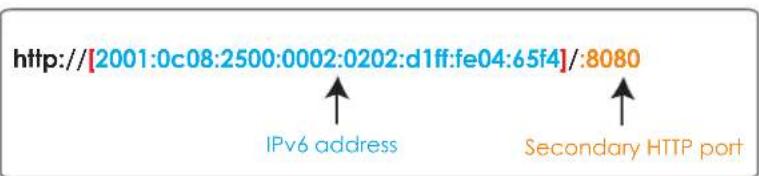

▶ If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please refer to HTTP streaming on page 74 for detailed information.)

▶ If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6 information column as shown below.

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and router advertisements-enabled routers. If you check this item, the following blanks will be displayed for you to enter the corresponding information:

Enable IPv6

IPv6 information

√ Manually setup the IP address

Optional IP address / Prefix length

Optional default router

Optional primary DNS

64

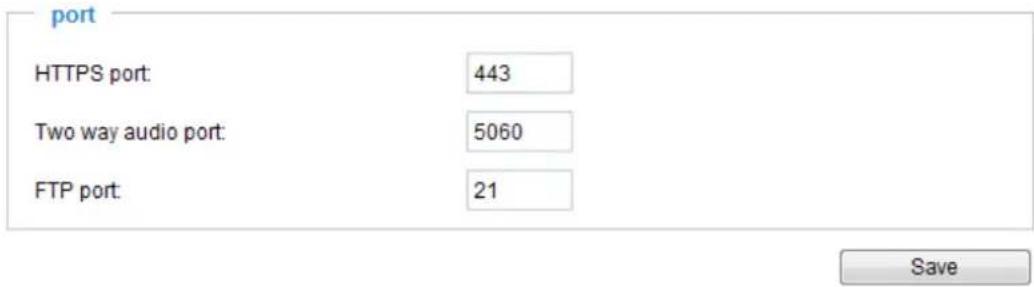

Port

HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535.

Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.

The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously. By using the Network Camera's built-in or external microphone and an external speaker, you can communicate with people around the Network Camera.

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio function, make sure the video mode is set to "MPEG-4" or "H.264" on the Media > Video > Stream settings page and the media option is set to "Media > Video > Stream settings" on the Client Settings page. Please refer to Client Settings on page 34 and Stream settings on page 62.

Click to enable audio transmission to the Network Camera; click to adjust the volume of microphone; click to turn off the audio. To stop talking, click again.

FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

Network > Streaming protocols

Advanced Mode

HTTP streaming

To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 84 for details.

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.

If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are incorrectly assigned, the following warning messages will be displayed:

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

On the LAN

http://192.168.4.160 or

http://192.168.4.160:8080

Access name for stream 1 \~ 5: This Network camera supports multiple streams simultaneously. The access name is used to identify different video streams. Users can click Media > Video > Stream settings to set up the video quality of linked streams. For more information about how to set up the video quality, please refer to Stream settings on page 61.

When using Mozilla Firefox to access the Network Camera and the video mode is set to JPEG, users will receive video comprised of continuous JPEG images. This technology, known as "server push", allows the Network Camera to feed live pictures to Mozilla Firefox.

URL command -- http://:/ For example, when the Access name for stream 2 is set to video2.mjpg:

1. Launch the Mozilla Firefox browser.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.

NOTE:

▶ Microsoft® Internet Explorer does not support server push technology; therefore, using http://:/ will not work.

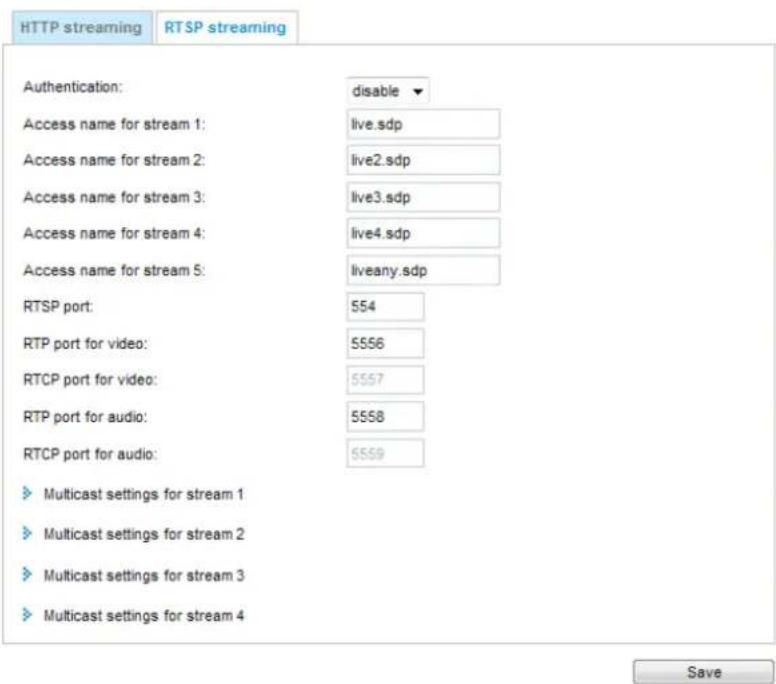

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for controlling the access to video stream first. Please refer to Security > User account on page 84 for details.

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest.

If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.

The availability of the RTSP streaming for the three authentication modes is listed below:

	Quick Time player VLC
Disable O O
Basic O O
Digest O X

Access name for stream 1 \~ 5: This Network camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source.

If you want to use an RTSP player to access the Network Camera, you have to set the video mode to H.264 / MPEG-4 and use the following RTSP URL command to request transmission of the streaming data.

rtsp://:/

For example, when the access name for stream 1 is set to live.sdp:

1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown below.

Video player interface displaying a highway scene with vehicles and city buildings in the background (no readable text or symbols)

RTSP port /RTP port for video, audio/ RTCP port for video, audio

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by monitoring the Internet traffic volume. By default, the RTCP port for video is set to 5557 and the RTCP port for audio is set to 5559.

The ports can be changed to values between 1025 and 65535. The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP port changes, the RTCP port will change accordingly.

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

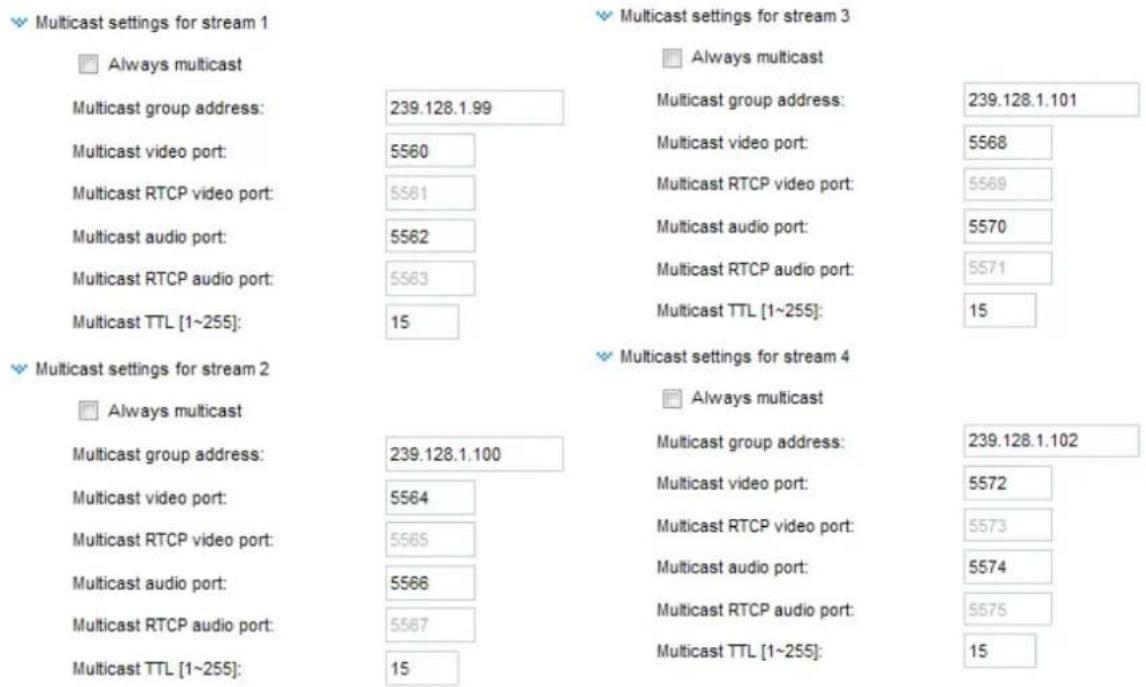

Multicast settings for stream 1, 2, 3, and 4: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for video streams.

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can effectively save Internet bandwidth.

The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.

If the multicast RTP video ports are incorrectly assigned, the following warning message will be displayed:

Multicast TTL [1\~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded.

Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope

Network > DDNS

This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

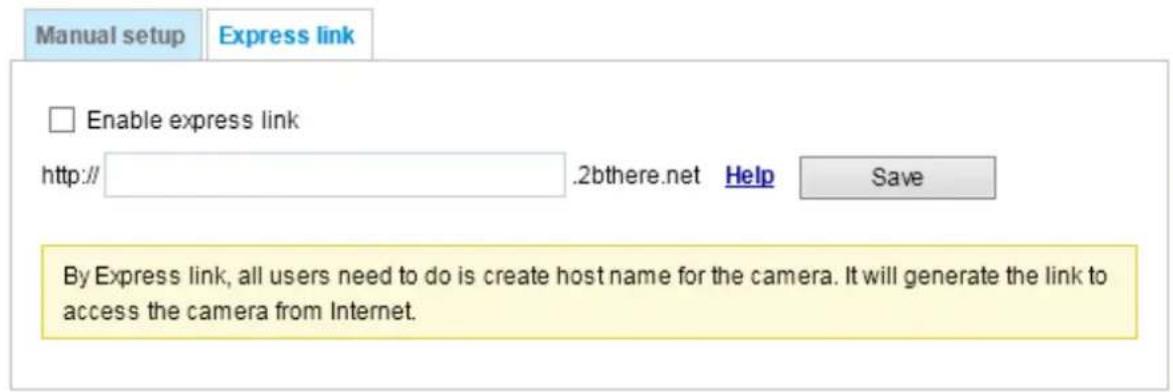

Express link

Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will examine if the host name is valid and automatically open a port on your router. If using DDNS, the user has to manually configure UPnP port forwarding. Express Link is more convenient and easier to set up.

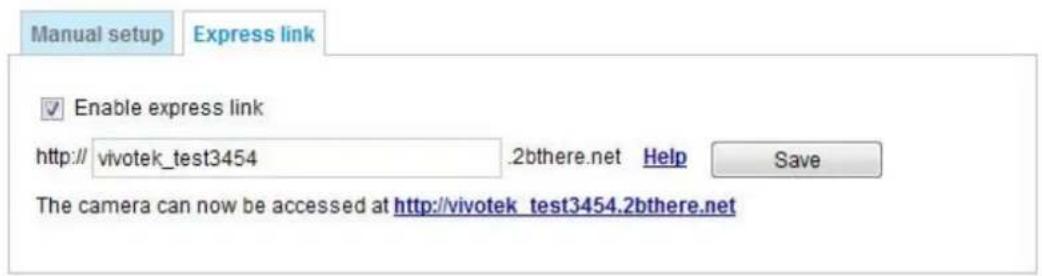

Please follow the steps below to enable Express Link:

1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by another device, a warning message will show up. If the host name is valid, it will display a message as shown below.

Manual setup

DDNS: Dynamic domain name service

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

User name:

Password:

Dyndns.org(Dynamic)

Enable DDNS: Select this option to enable the DDNS setting.

Provider: Select a DDNS provider from the provider drop-down list.

VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK's Network Cameras from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), CustomSafe100, dyn-interfree.it.

Note that before utilizing this function, please apply for a dynamic domain account first.

■ Safe100.net

1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the terms of the Service Agreement.
2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register. After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column.

Register

Host name:

Email:

Key:

Confirm key:

VWTK.safe100.net

[e-mail]

...

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in

the following fields and then click "Register".

Register

DDNS Registration Result:

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the

DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Click Copy and all the registered information will automatically be uploaded to the corresponding fields in the DDNS column at the top of the page as seen in the picture.

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

Email:

Key:

Save

Register

Host name:

Email:

Key:

Confirm key:

WTK.safe100.net

[e-mail]

●●●●

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register".

Register

DDNS Registration Result:

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Select Enable DDNS and click Save to enable the setting.

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, fill in the Host name, Server name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column. Enter ns1.safe100.net as the Server name.
3. Click Copy and all for the registered information will be uploaded to the corresponding fields in the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.

Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your account information will be sent to your email address.

Refer to the following links to apply for a dynamic domain account when selecting other DDNS providers:

■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
■ dyn-interfree.it: visit http://dyn-interfree.it/

Network > QoS (Quality of Service) Advanced Mode

Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.

The following are the main benefits of a QoS-aware network:

■ The ability to prioritize traffic and guarantee a certain level of performance to the data flow.

■ The ability to control the amount of bandwidth each application may use, and thus provide higher reliability and stability on the network.

Requirements for QoS

To utilize QoS in a network environment, the following requirements must be met:

■ All network switches and routers in the network must include support for QoS.

■ The network video devices used in the network must be QoS-enabled.

QoS models

CoS (the VLAN 802.1p model)

IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0 (lowest) to 7 (highest). The priority is set up via a web console with the network switches, which then use different queuing disciplines to forward the packets.

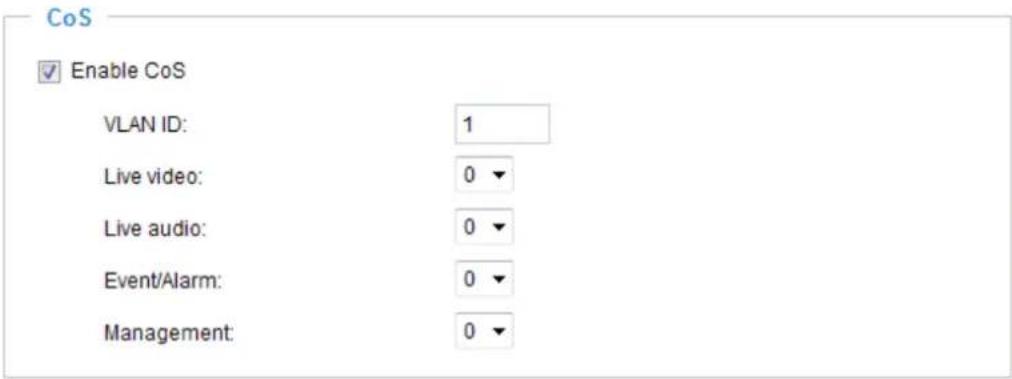

Below is the setting column for CoS. Enter the VLAN ID of your switch (0\~4095) and choose the priority for each application (0\~7).

If you assign Video the highest level, the switch will handle video packets first.

NOTE:

▶ A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.

Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" traffic control and QoS as "finely-grained" traffic control.

▶ Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol.

QoS/DSCP (the DiffServ model)

DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each network node classify packets according to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth to reserve for it.

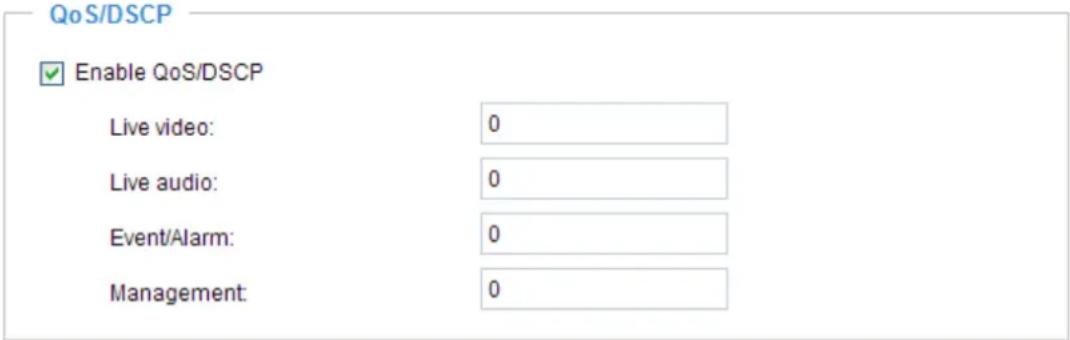

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application (0\~63).

Save

Network > SNMP (Simple Network Management Protocol)

Advanced Mode

This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

■ The SNMP consists of the following three key components:

1. Manager: Network-management station (NMS), a server which executes applications that monitor and control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status of managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches, bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.

Before configuring SNMP settings on the this page, please enable your NMS first.

SNMP Configuration

Enable SNMPv1, SNMPv2c

Select this option and enter the names of Read/Write community and Read Only community according to your NMS settings.

Enable SNMPv1, SNMPv2c

SNMPv1, SNMPv2c Settings

Read/Write community:

Private

Read only community:

Public

Enable SNMPv3

This option contains cryptographic security, a higher security level, which allows you to set the Authentication password and the Encryption password.

■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).

Enable SNMPv3

SNMPv3 Settings

Read/Write Security name:

Private

Authentication Type:

MD5

Authentication Password:

-

Encryption Password:

Public

Read only Security name:

MD5

Authentication Type:

Authentication Password:

m = 311

Encryption Password:

Security > User Account

This section explains how to enable password protection and create multiple accounts.

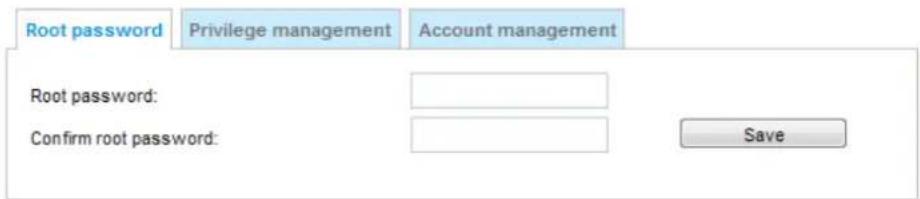

Root Password

The administrator account name is "root", which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the "root" account first.

1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will prompt for authentication; type the correct user's name and password in their respective fields to access the Network Camera.

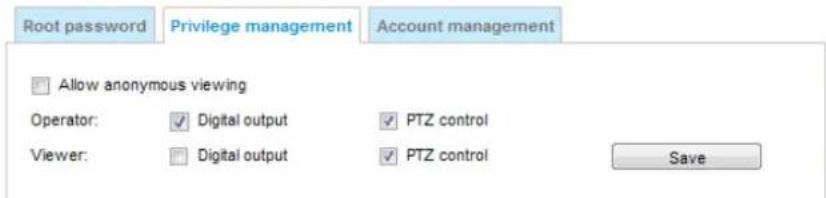

Privilege management Advanced Mode

Digital Output & PTZ control: You can modify the manage privileges of operators or viewers. Select or deselect the checkboxes, then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page. (Please refer to Configuration on page 39).

Allow anonymous viewing: If this checkbox is selected, any client can access the live stream without entering a User ID and Password.

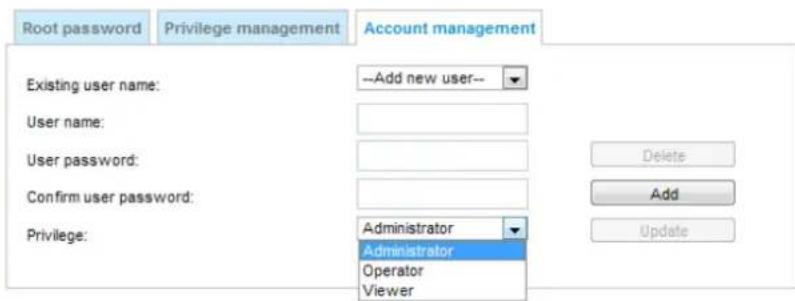

Account management

Administrators can add up to 20 user accounts.

1. Input the new user's name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.

Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can access the Configuration page. Although operators cannot access the Configuration page, they can use the URL Commands to get and set the camera parameters. For more information, please refer to URL Commands of the Network Camera at the Appendix of this manual. Viewers access only the main page for live viewing.

Here you also can change a user's access rights or delete user accounts.

1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.

Security > HTTPS (Hypertext Transfer Protocol over SSL)

Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level.

Create and Install Certificate Method

Before using HTTPS for communication with the Network Camera, a Certificate must be created first. There are three ways to create and install a certificate:

Create self-signed certificate

1. Select this option from a pull-down menu.
2. In the first column, select Enable HTTPS secure connection, then select a connection option: "HTTP & HTTPS" or "HTTPS only".
3. Click Create certificate to generate a certificate.

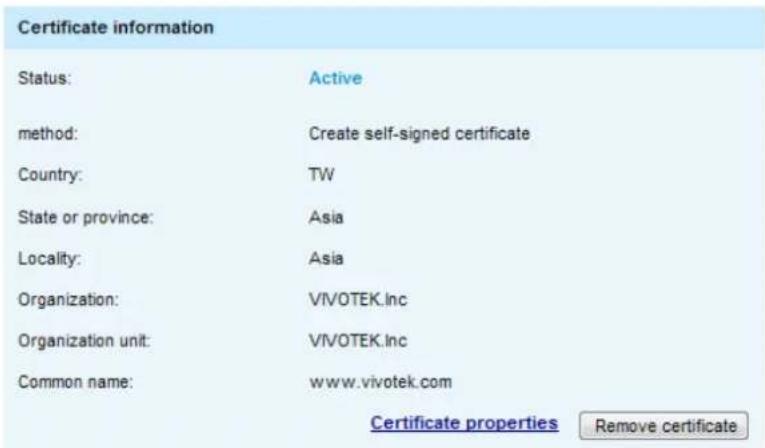

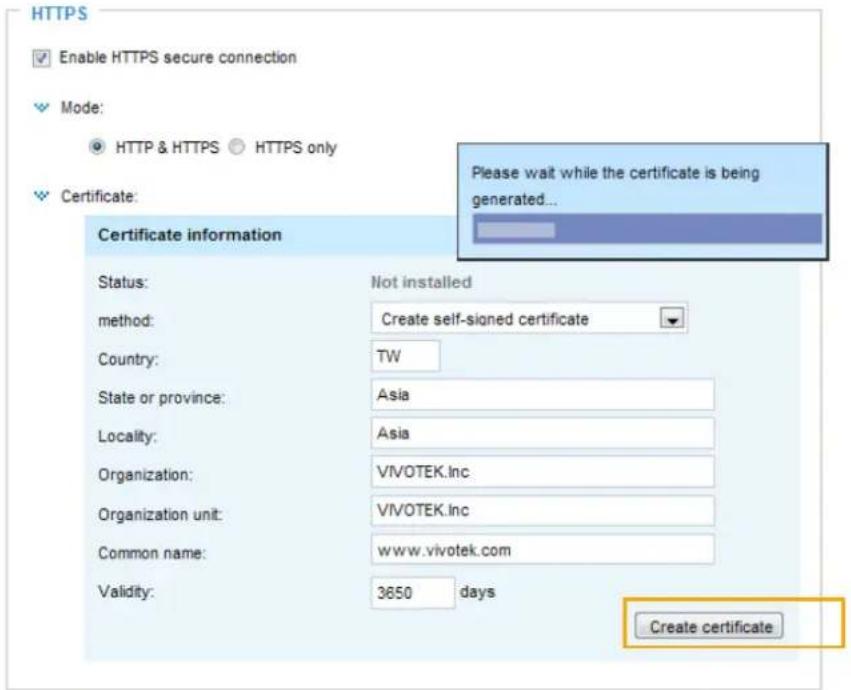

1. The Certificate Information will automatically be displayed as shown below. You can click Certificate properties to view detailed information about the certificate.

1. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection.

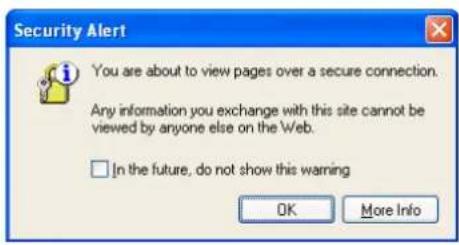

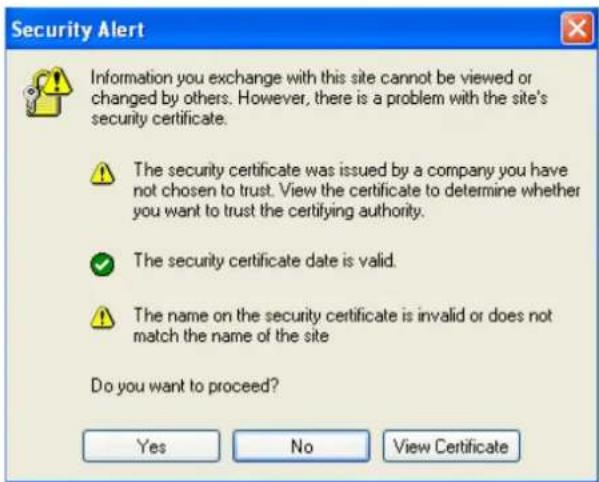

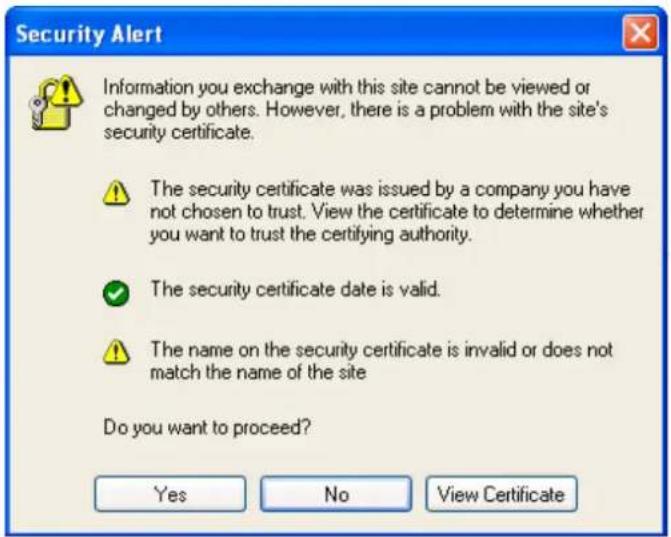

2. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

https://

Create certificate request and install

1. Select the option from the Method pull-down menu.

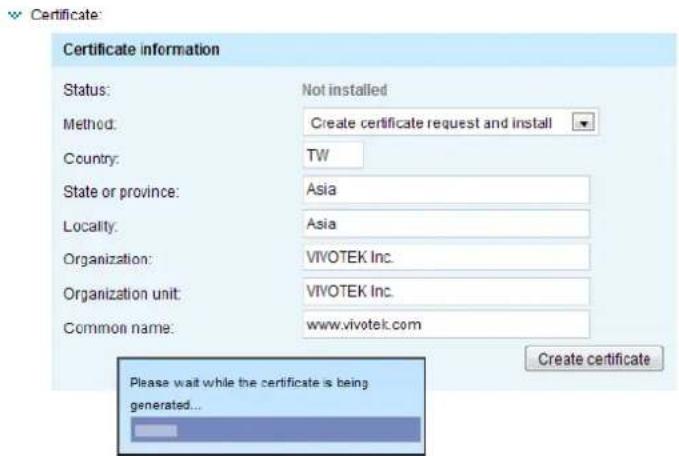

2. Click Create certificate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.

1. The Certificate request window will prompt.

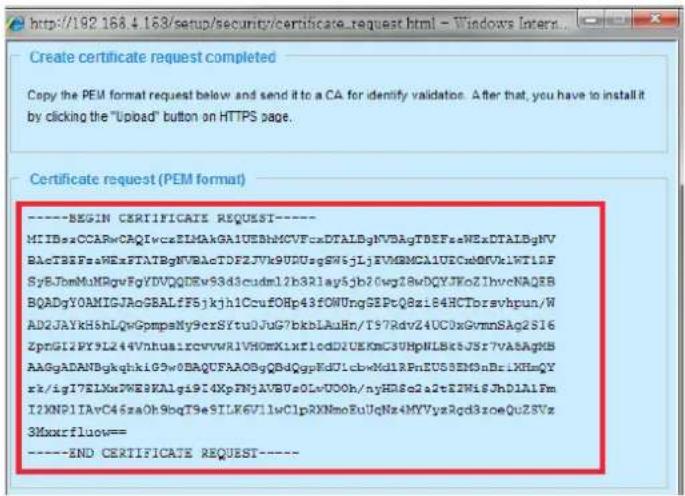

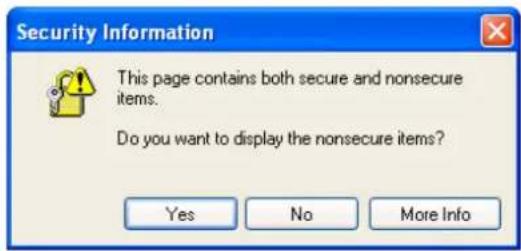

If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups.

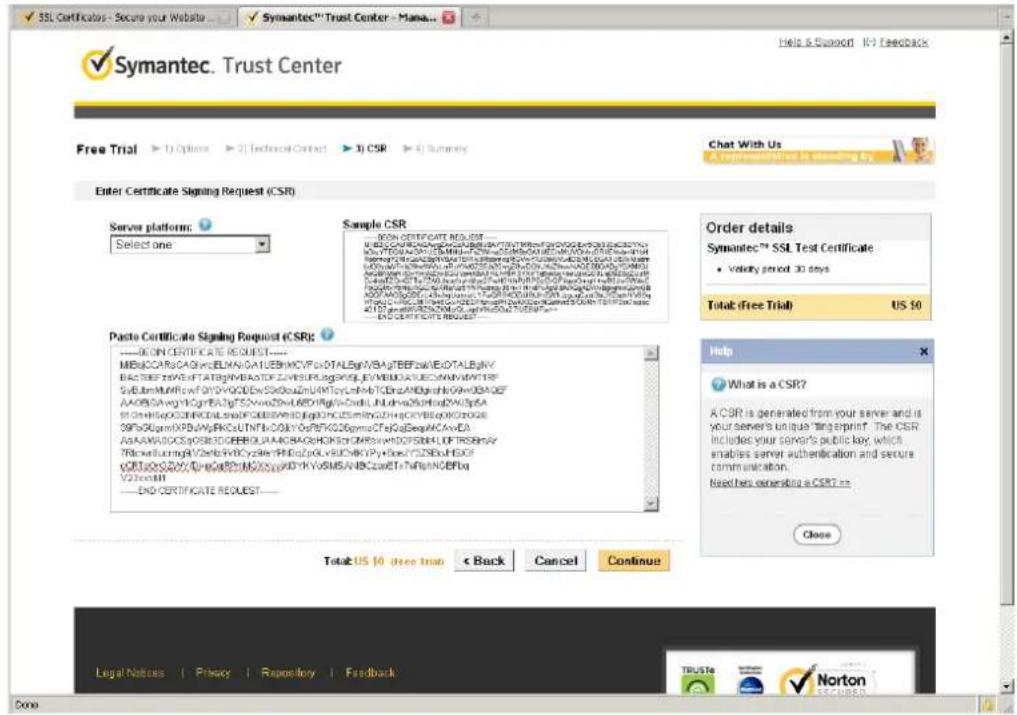

1. Look for a trusted certificate authority, such as Symantec's VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA's signing request window. Proceed with the rest of the process as CA's instructions on their webpage.

1. Once completed, your SSL certificate should be delivered to you via an email or other means. Copy the contents of the certificate in the email and paste it in a text/HTML/hex editor/converter, such as IDM Computer Solutions' UltraEdit.

immediately, please dial 666.893.6565 or 650.426.5112 option 3 or send en email to [e-mail]

Thank you for your interest in Symantec!

----BEGIN CERTIFICATE----

M1FIDCCAA+yuAwIEAgIQFx1Cohn/CeB3t0WQDBIZA#NBgpkhiGw0BAQUFADCByELMAkGAUIEBhMCVVmPzAVBgVBAO14121cmTAaNcLCEJbnMwDAcAwLgYDVYQQEydGb3gVGvADcCBqDlWab3NlyC8RnKmsx5LDagImBgfXhDkA#HmIcyEqBaEBgSAeTOVRcLcmIyG9mIra2S8ndChCoHRNwzyovL3d3dy5Z1Kpc21nb51bj20Vv3BzLSR1c5BjYSRaYoYwOTECmCGAlAeAwMeKvWvYasVnpZ24gVPrpYwgU(F)YxJTLFNlcnZ1oEDQSAITEcYhMD4DTYEwDowHuAwMCAwHFcXTDEyMDwNjIaNTkLOVwQeqAxCzAJgBpNVBAYALrWMQwCyWtVDYQyERbc21NbHcWcvDWYQYPARSeC2lnMRWEvDrVQQKxFwASWSV2PEVLILcyuyrFTAiBGIVNbaUSDF2JVKURUBsWSy1JSD6gDA1GEChqxYVgYbOKgbZygDNIIGFOID3cy5Z7Kpc21nb51jb20Vr382LRlc3RjYSaOyKWYWTEEMGGAUAeQAoQcd3d3LnIcDGE3M15j2bCWgZdwQDKToQZThvcNAQEBBQADyQAMIOGaANAIIDtcck9KfcC+ha9UYFvg9K2CYT5e72tunRYLPedlld6eQDRp+h-jhpITQGscSTIwnWBCTFP/q4xIFBeqWuGU5020GR/qqrIMAEK1xskENfNRWKlISNs1sveclO2gyRFeRSNC9q945GDrRbRSkduoMpvAhkoKOcNgqtAGMBAGjggGMIIIBfTAIBgIVRREEEJAgq583cdcaZmU4MIcyLmNbVblA/BgIVRHEGLJAMAGA0AU0dWBk/WqAKWIFoRDCEBIRNVRREFDAAMnIGqJbnJodShwo1bSVHjPtyWrcRzItYcJsInZlonIzeWuLmNbVrb5TVIJUWncIhcEyLmjByLBdBSRgVNS3EqsABDM08CmC03A0G+EUBBxOvdTAvBgqrBqETEQoCARTyshR0chNKLy53d3cudnVycXnP224aYzVt2LNvcyeJCXNY2BvADYr01BEYFAYTKAABBQCHAsGCCsGAQTFUbDMCH80AI0dWvYMSaFAcgEiq9kl3ATyr7ao2BmFN1HQNGCCGGAQFEVBESGgw2JakBggrFBqCYWyyAReCoDvoL2JjcIAdmVyaXNPz74u72tMD4GCCsGAQTFBeAacHjYodERwOl0vU1Z5VHpYWrtRzItWyhlLnZlcaliaWuLuNbVrb39TVJUcnHlbEcYmLlcJdBgpkhiGw0EAQDFRAOCAQEAThuwFnJac/XTfs/zsr9sElhLKGEqSPoaNeowisScn12Pd3keKVrp6TCLSNbCRDGyPalLFxAEUITr3WLSCoXNBLAJPi12qVsbDxfgVtgWx97td2crUrsj5ic6NtStubQc27u3pWeWakH/U4x+qGvQ8bZsCFaSnn/qcapKeqCVxVycWheCMWrgQgsC13egkPzsvr70rEhnLnPupjNXUKSGeu3Ml3CrKrAzQv1Rad15QYT3gt50qn2a9ghdEuTnhCBWwqONXbceIfIDc3FTF70m6CoPVtnlcmJpfY9evUdcyfIIIm2NDcoSg5c12ARFBpi//KcGe--

END CERTIFICATE

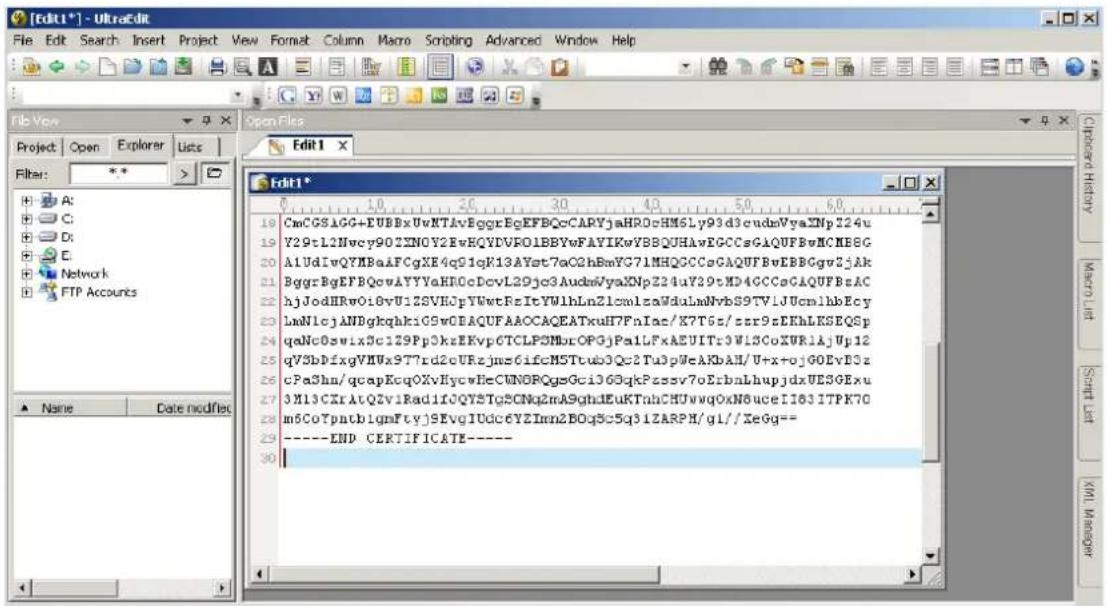

1. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line.

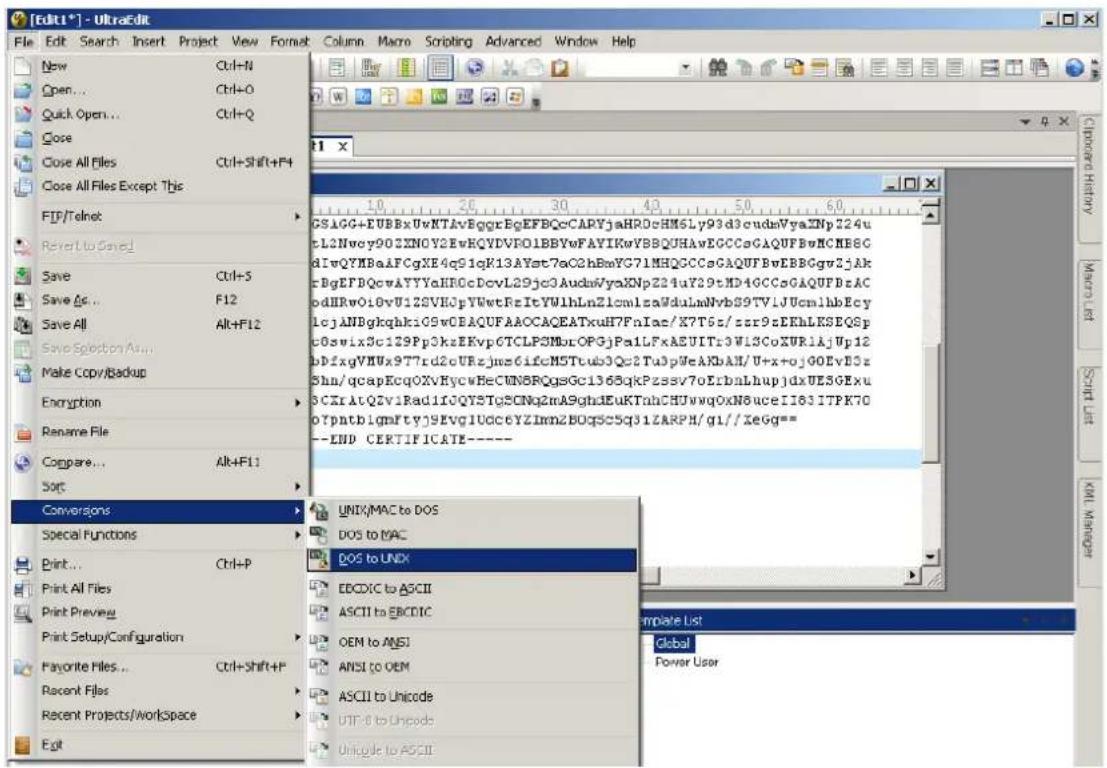

1. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.

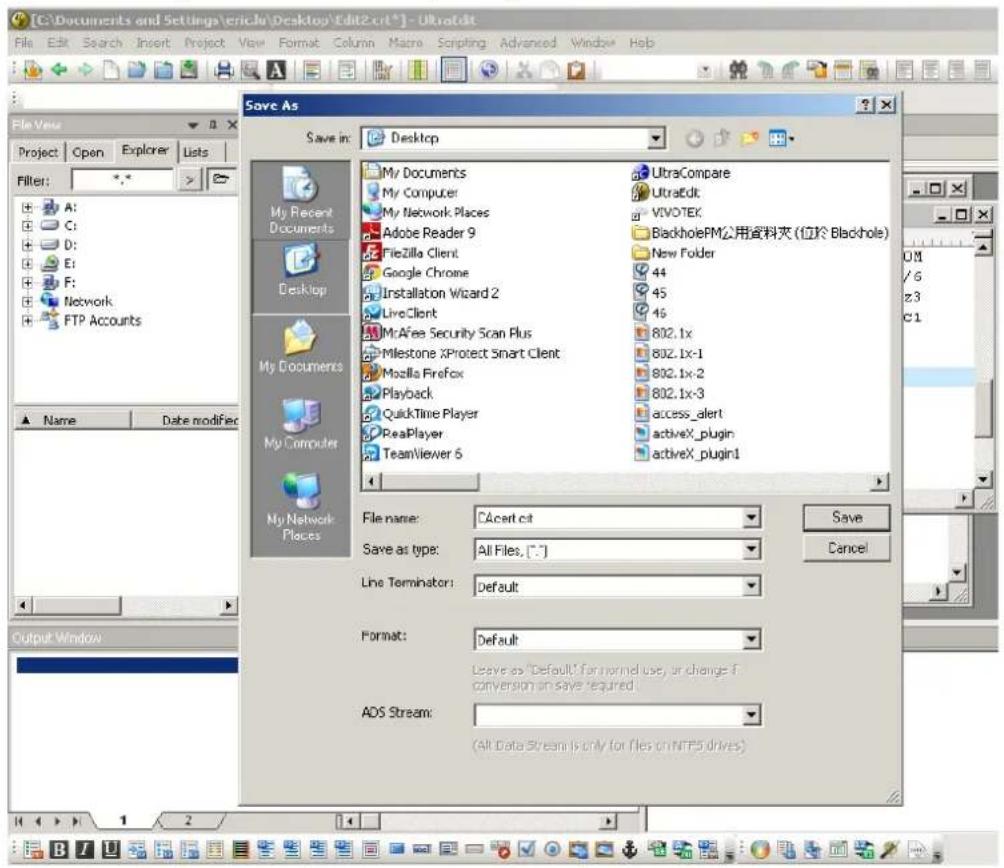

1. Save the edit using the ".crt" extension, using a file name like "CAcert.crt."

1. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification.

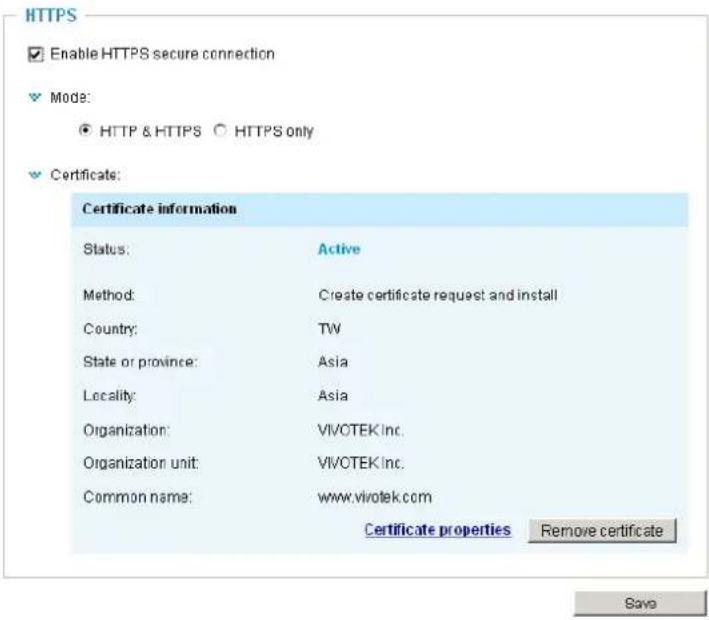

1. When the certificate file is successfully loaded, its status will be stated as Active. Note that a certificate must have been created and installed before you can click on the "Save" button for the configuration to take effect.

1. To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

Security > Access List Advanced Mode

This section explains how to control access permission by verifying the client PC's IP address.

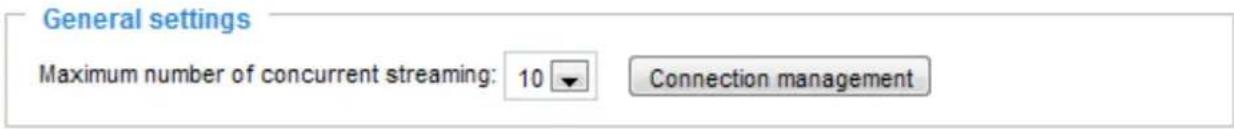

General Settings

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1\~10 clients (including all streams). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).

Connection management: Click this button to display the connection status window showing a list of the current connections. For example:

	IP address	Elapsed time	User ID
	192.168.1.147	12:20:34	root
	61.22.15.3	00:10:09	anonymous
	192.168.3.25	45:00:34	greg

■ IP address: Current connections to the Network Camera.
■ Elapsed time: How long the client has been at the live view webpage (note that only clients currently at the live view window will be listed here).
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video. The user name will be displayed in the User ID column. If the administrator allows clients to make a connection without a user name and password, the User ID column will be empty.

There are some situations which allow clients access to the live video without a user name and password:

1. The administrator does not set up a root password. For more information about how to set up a root password and manage user accounts, please refer to Security > User account on page 84.
2. The administrator has set up a root password, but set RTSP Authentication to "disable". For more information about RTSP Authentication, please refer to RTSP Streaming on page 75.
3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to page 84.

■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny their access. Please note that those checked connections will only be disconnected temporarily and they will automatically retry a connection (IE Explorer or Quick Time Player). If you want to enable the denied list, please check Enable access list filtering and click Save in the first column.

■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and they will automatically retry a connection (IE Explore or Quick Time Player).

Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function.

Filter

Filter type: Select Allow or Deny as the filter type. If you choose Allow Type, only those clients whose IP addresses are on the Access List below can access the Network Camera, and exclude the access from those that are not on the list. If you choose Deny Type, those clients whose IP addresses are on the Access List below will not be allowed to access the Network Camera, while those that are not on the list can.

Filter

Filter type: ☐ Allow ☑ Deny

Then you can Add a rule to the following Access List. Please note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 Settings, please refer to Network > Enable IPv6 on page 70 for detailed information.

IPv4 access list

Add

Delete

IPv6 access list

Add

Delete

There are three types of rules:

Single: This rule allows the user to add an IP address to the Allowed/Denied list.

For example:

Filter address

Rule:

Single

IP address:

OK

Cancel

Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List in the CIDR format, e.g. 192.168.xx.xx/24.

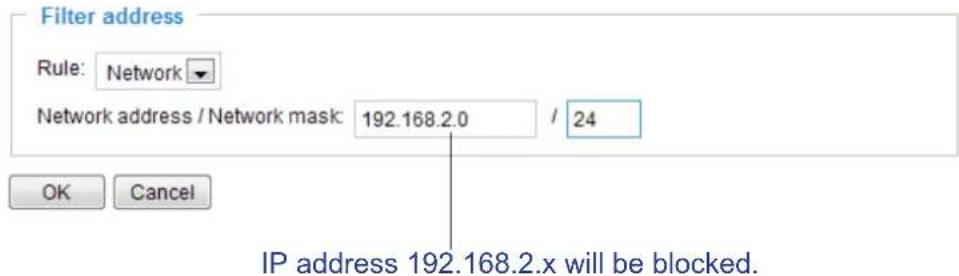

For example:

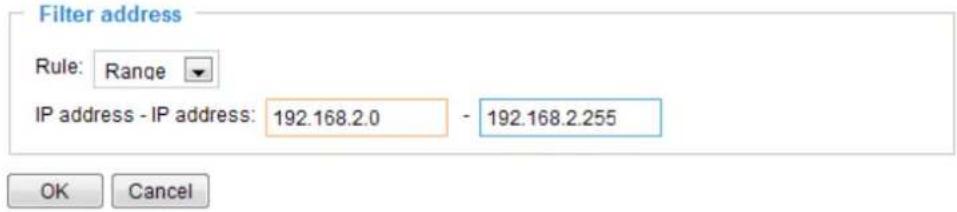

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.

Note: This rule is only applicable to IPv4 addresses.

For example:

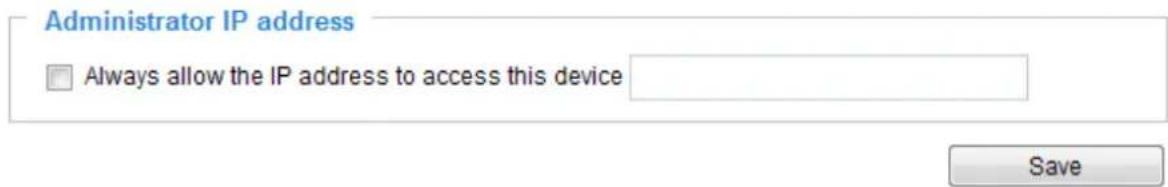

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator's IP address in this field to make sure the Administrator can always connect to the device.

Security > IEEE 802.1x

Advanced Mode

Enable this function if your network environment uses IEEE 802.1x, which is a port-based network access control. The network devices, intermediary switch/access point/hub, and RADIUS server must support and have their 802.1x settings enabled.

The 802.1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless). If all certificates between client and server are verified, a point-to-point connection will be enabled; if authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication Protocol (EAP), to facilitate communication.

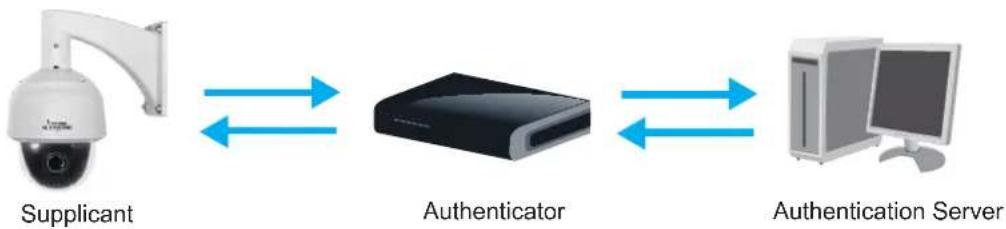

■ The components of a protected network with 802.1x authentication:

1. Supplicant: A client end user (camera), which requests authentication.
2. Authenticator (an access point or a switch): A "go between" which restricts unauthorized end users from communicating with the authentication server.
3. Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user's access request.

■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS.

Please follow the steps below to enable 802.1x settings:

1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital certificate from a Certificate Authority (i.e., network administrator of your company) which can be validated by a RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the configuration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the EAP method. In the following blanks, enter your ID and password issued by the CA, then upload related certificate(s).

IEEE 802.1x

Enable IEEE 802.1x

EAP method:

Identity:

Password:

CA certificate:

Status: no file

IMPORTANT

The maximum length of password is 200 symbols.

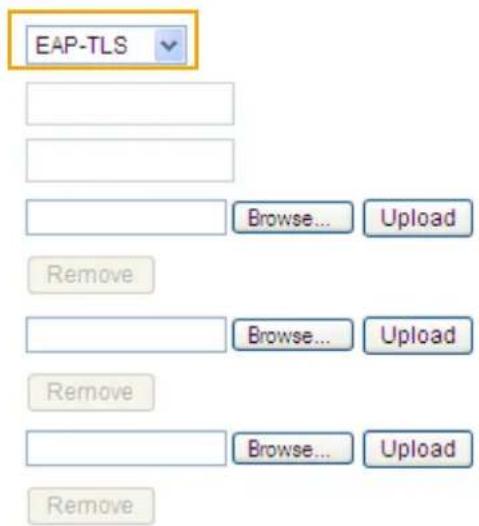

IEEE 802.1x

Enable 802.1x

EAP method:

Identity:

Private key password:

CA certificate:

Status: no file

client certificate:

Status: no file

Client private key:

Status: no file

1. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically.

NOTE:

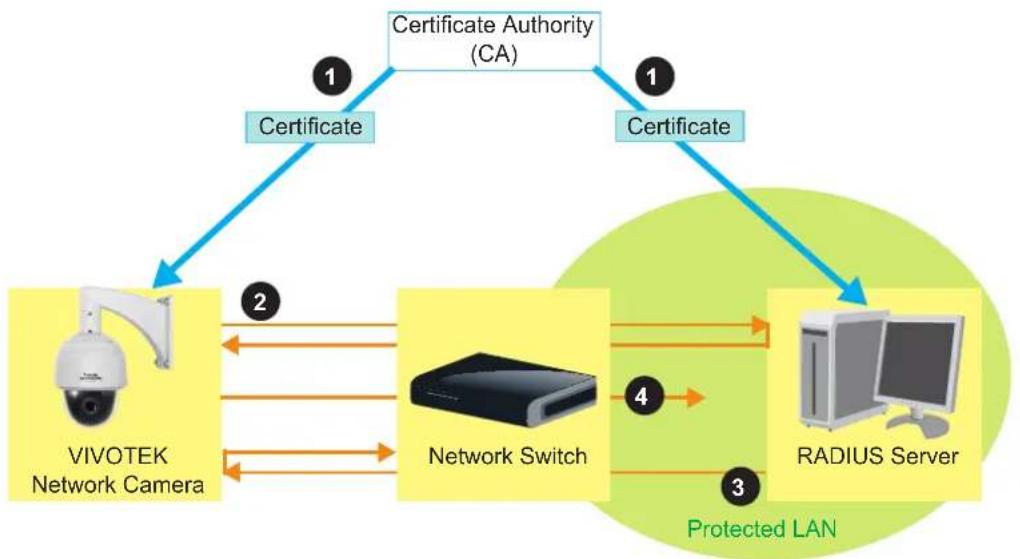

▶ Below is the authentication process for 802.1x:

1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator). The client offers its identity and client certificate, which is then forwarded by the switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server's certificate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera's state to authorized and is allowed access to the protected network via a pre-configured port.

PTZ > PTZ settings Advanced Mode

This section explains how to control the Network Camera's Pan/Tilt/Zoom operation. The camera comes with built-in PTZ mechanisms.

NOTE:

The navigation buttons here also support the continuous move. You can click and hold down the button to move across the screen until you release the button.

Preset positions and patrol settings

In the PTZ settings page, you can select preset positions for the camera to patrol. A total of 256 preset positions can be configured. A single patrol tour with 32 positions is supported.

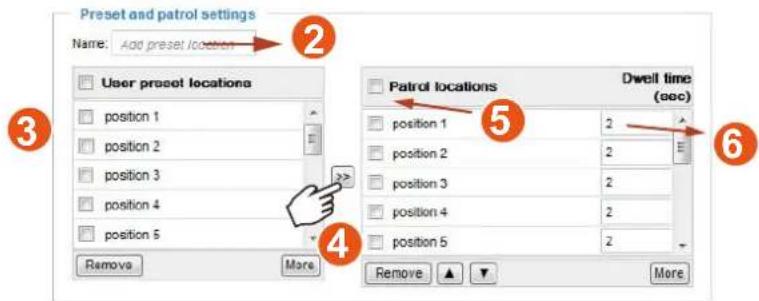

Please follow the steps below to configure preset positions and arrange them in a pan/tilt/zoom tour:

1. Adjust the shooting area to the desired position using the keypad on the upper right side of the window. The default Home position refers to the center position defaulted in the factory. You might as well select another area of interest as the "Home" position. You should also select the speeds for the actions that occur during the patrol; i.e., pan, tilt, zoom, focus, and the auto pan/patrol.
2. Enter a name for a new preset position, which can contain up to forty characters. Click Add to enable the settings. The preset positions will be listed on the User preset locations. (To add positions you wish, please repeat steps 1\~2.)
3. Select the preset positions and click on the Save button at the bottom of the screen.
4. Click on the move button (>>) >> to move positions to the Patrol locations window.
5. You may select some or all of the imported positions as the stop points during the tour.
6. Enter a preferred dwell time before the camera lens moves to the next position.
7. Select a speed level for the auto patrol tour.
8. Click on the Save button to preserve your configuration.

To remove a preset position from the list, select it and click Remove.

You can re-arrange the patrol order of the positions on the list using the ▲ ▼ buttons.

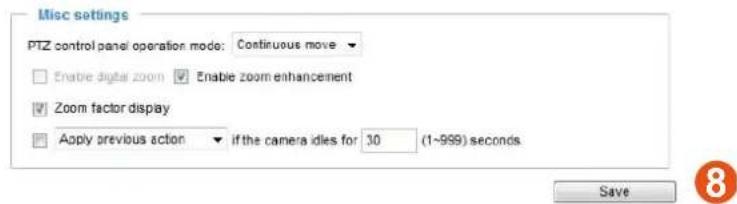

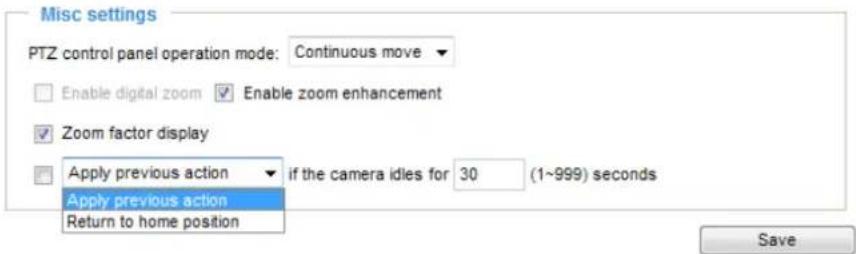

Misc. settings: Use the checkboxes and the pull-down menus for the camera to automatically resume the previous action or return to the home position after the camera has stayed idle for a period of time.

PTZ control panel operation mode: This determines how your mouse and PTZ control panel works on a live view window.

The Continuous move allows your screen control action to continue as long as you click and hold down the left mouse button. For example, if you click on the left button on the PTZ control panel, the camera's view should continuously rotate to the left until you release the button. The same applies to arrow keys, Zoom, and Focus buttons on the PTZ panel. If you select Click to move, every single mouse click takes effect for once without the ensuing move.

Note that if your screen control malfunctions, it is possible that the CPU of your current view station can not cope with the HD video feeds or that an incompatibility issue occurred with the ActiveX control plugins.

If you select the Enable digital zoom checkbox, you will be able to zoom in on an image by up to 240X magnification with the combination of the 20X mechanical zoom and another 12X digital zoom.

The Enable Zoom enhancement option takes effect only when a camera is showing a live stream of a smaller frame size, e.g., 640 x 360, than the maximum frame size. This option is enabled by default. This allows a slightly more zoom in ratio than the original mechanical zoom.

The Zoom factor display: This option is enabled by default, and zoom ratio is displayed along with the video title on the upper left corner of a view cell.

Apply previous action if the camera idles for ____(1\~999) seconds: You can assign an action to be taken when the camera sits idle for a configurable period of time. For example, you can let camera resume a patrol tour. The resumed patrol will continue from the last preset position. You may also let the camera return to the home position. The idle state does not include the situations when the camera is performing pan or patrol action.

Return to home position: When no activities occur after a configurable period of time, let the camera's lens return to the default home position.

Positions on the Home page

The Preset positions will also be displayed on the home page. Select one from the Go to drop-down list, and the Network Camera will move to the selected position.

Pan button: Click this button to start the 360° horizontal auto pan.

Patrol button: Click this button, then the Network Camera will patrol continuously among the selected positions.

PTZ > Calibrate

This function re-calibrates the home position to the default center to recover any displacement caused by external forces. Please note that there is no confirm message after using the function, and the calibration immediately takes place. If, after a long use, a user finds it is difficult to move camera's field of view to a specific point, use this function to restore the camera's orginal coordinates in pan and tilt motions.

PTZ > Calibrate

Calibrate

Recalibrate the home position to the default center to recover the tolerance caused by some external forces.

Calibrate

Auto tracking

In this window, you can modify the minimum object size as the triggering factor while performing the Auto Tracking function. You can move the camera view to an area of your interest, estimate, and define the possible size of objects. For example, you can designate the object size such as that of a human trespasser. The silhouette of the tresspasser must be larger than the whole of the object size square box. The minimum object size is 30x30 pixels within a 320x420 view window.

Use the slide bar to tune the sensitivity of the tracking function.

Auto tracking

Sensitivity:

High

Modify minimum object size

Save

This function stops when the user clicks on any buttons on the PTZ panel, or a mouse click takes place on a view window.

Users can choose to perform other functions, such as pan or patrol, simply by clicking their buttons on the PTZ panel while the camera is performing the auto tracking function.

When Auto Tracking is taking place, a "Tracking" message is displayed on the message bar.

SD8363E-VVTK(TCP-V)

Tracking.. 1.0X SD8363E-VVTK 2013/06/17

Auto tracking is configured by designating the minimum object size. Moving objects that entered the current region of view will trigger the tracking action.

Auto tracking, if applied, is designed to track an intruder in a place where human traffic is not heavy, such as a warehouse or a load area. Heavy traffic can result in a constant shift of tracked objects, and reduce the effectiveness of the feature.

NOTE:

1. The speed dome can track one object at a time.
2. If multiple objects are present, the camera tracks the object that is farthest from the camera.
3. If a tracked object stays motionless for 10 seconds, camera will abandon it and start tracking another object that is farthest away from the center of view.
4. The zoom-in ratio while tracking is determined by the zoom ratio of the camera lens when the tracking was triggered.
5. Manual control (such as using a joystick to pan or tilt or using a click on VAST view cell) always has a higher priority than Auto tracking.
6. Objects can easily move away from the FOV when the zoom-in ratio is high. Therefore, it is recommended not to zoom in too much on where the Auto tracking is expected to take place.

Event > Event settings Advanced Mode

This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is triggered, you can specify what type of action will be performed.

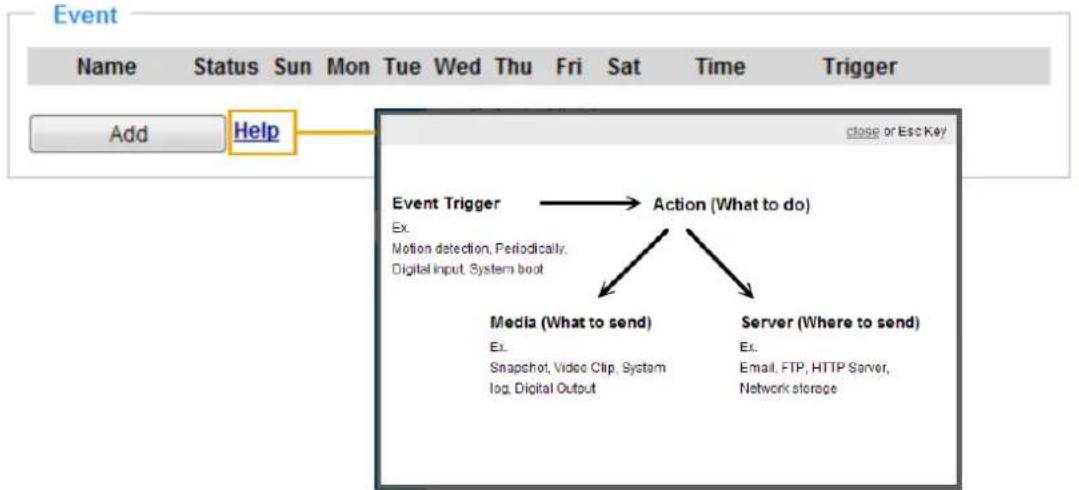

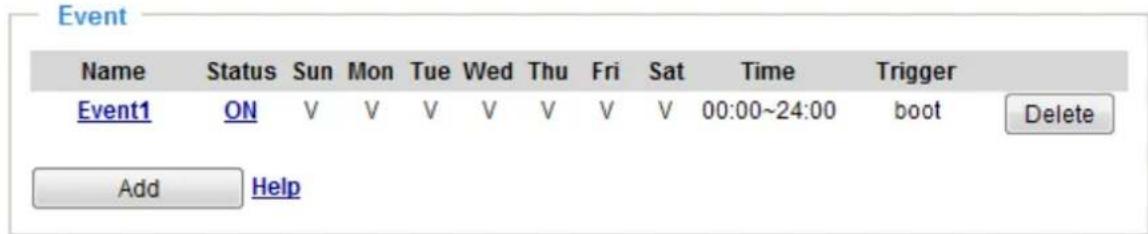

Event

An event is an action initiated by a user-defined trigger source. In the Event column, click Add to open the event settings window.

■ Event name: Enter a name for the event setting.
■ Enable this event: Select this option to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
■ Detect next motion detection or digital input after □ seconds: Enter the duration in seconds to pause motion detection after a motion is detected.

Follow the steps 1\~3 to arrange the three elements -- Schedule, Trigger, and Action to configure an action to take when an event is triggered. You can configure 3 event-triggered conditions.

1. Schedule

Specify the time span for the event-triggering condition. Please select the days of the week and the time in a day (in 24-hr time format) for the recording schedule.

2. Trigger

This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices.

There are several choices of trigger sources as shown on next page. Select the item to display the detailed configuration options.

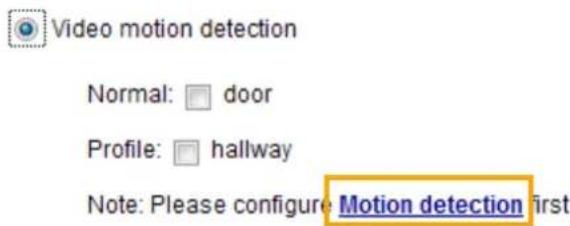

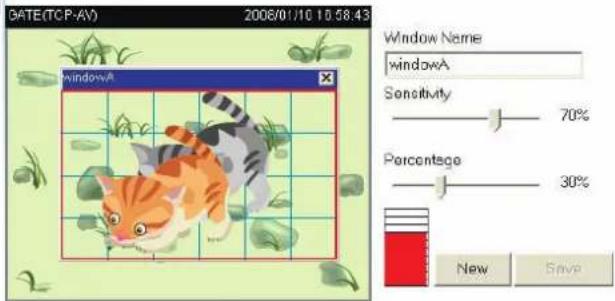

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source. To enable this function, you need to configure a Motion Detection Window first. For more information, please refer to Motion Detection on page 116 for details.

■ Periodically

This option allows the Network Camera to trigger periodically for every other defined minute. Up to 999 minutes are allowed.

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc.

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected and reconnected.

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to rewrite older data.

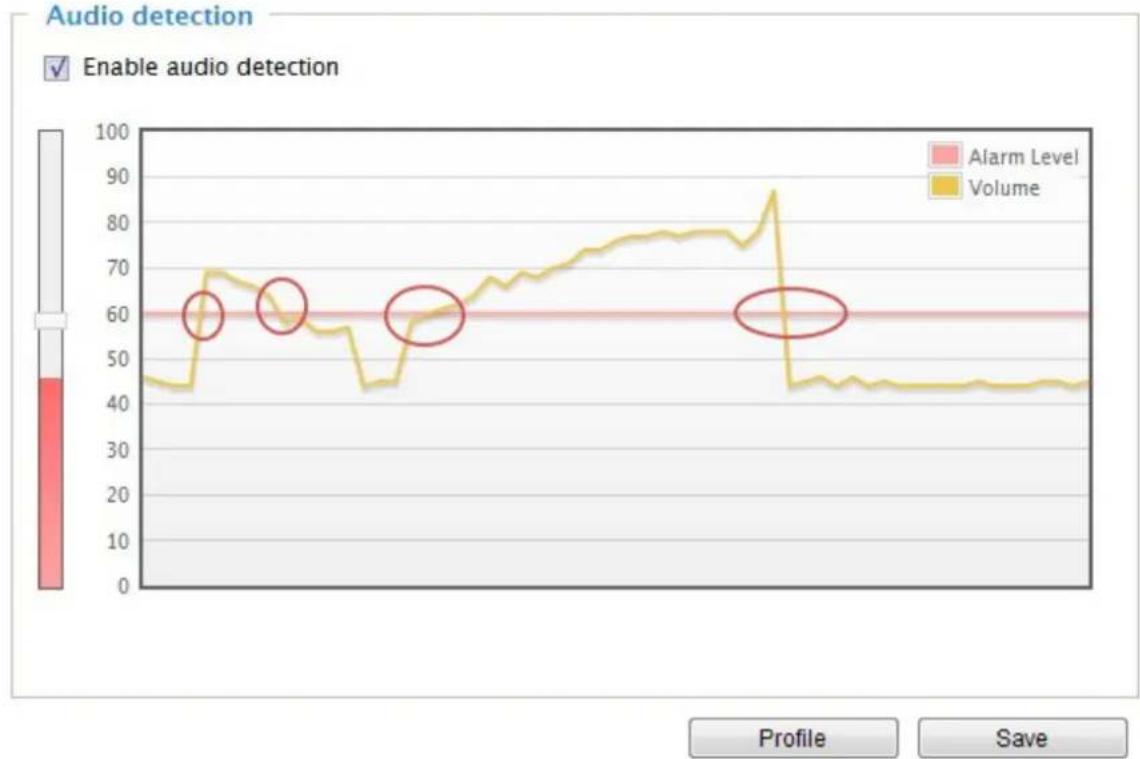

■ Audio detection

A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view. Please refer to page 119 Applications > Audio detection for more details.

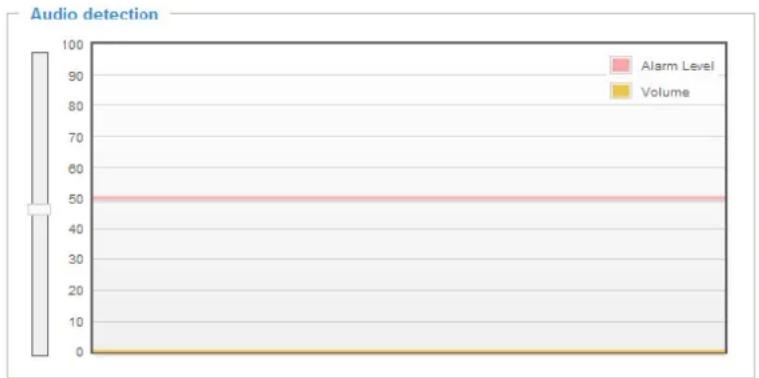

Audio detection

Note: Please configure Audio detection first

Once you have a preset audio alarm level, you can define the triggering condition either as an audio input rises above or falls below the alarm level.

■ Manual triggers

An event can be manually triggered by the manual trigger buttons on the main page.

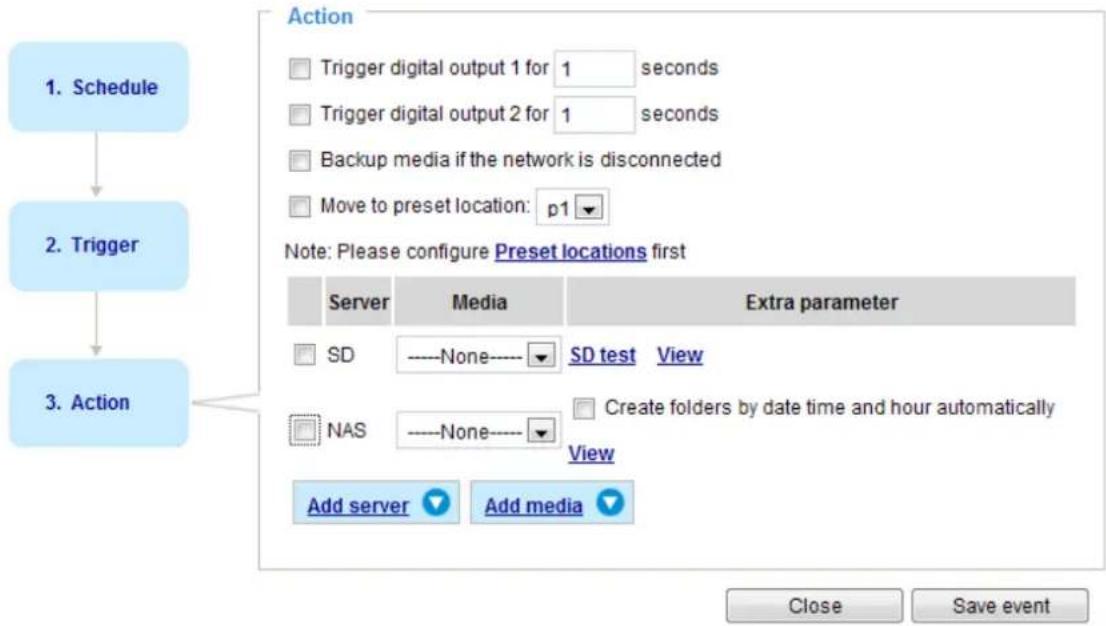

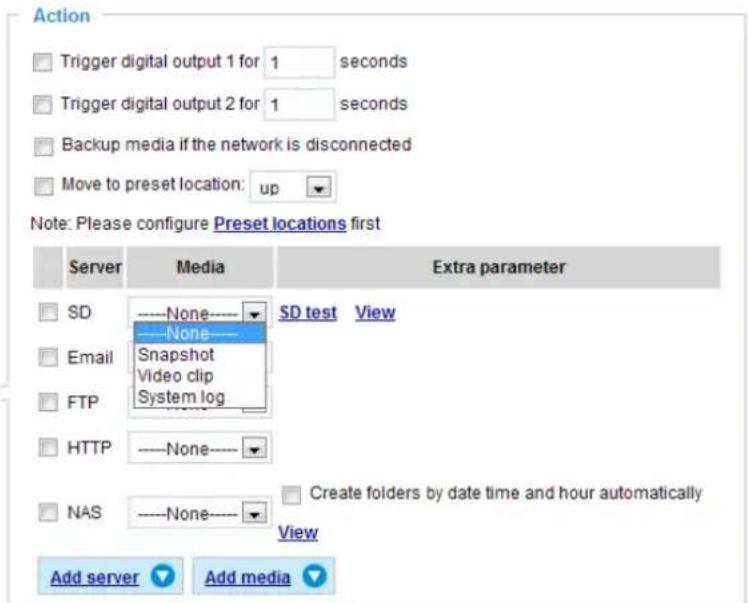

3. Action

Define the actions to be performed by the Network Camera when a trigger is activated.

■ Trigger digital output for □ seconds

Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.

■ Backup media if the network is disconnected

Select this option to backup media file on SD card if the network is disconnected. Please note that this function will only be displayed after you set up a networked storage (NAS). For more information about how to set up network storage, please refer to page 124.

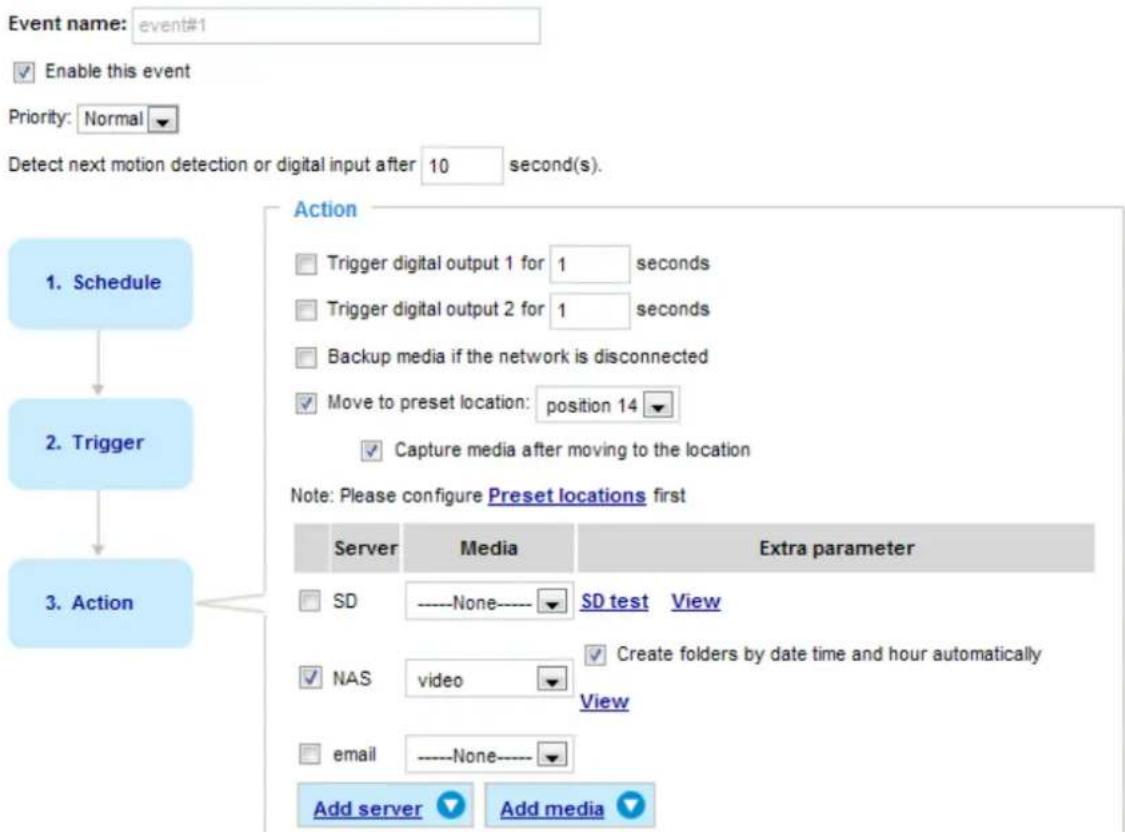

■ Move to preset location

Select a preset location you've configured. Note that please configure Preset locations first. For detailed information, please refer to page 98\~100. Another checkbox will appear, Capture media after moving to the location. You can select to record associated snapshot, video clip or system event once the event is triggered and the camera moves to the preset location. See Add Media in the following discussion.

To set an event with recorded video or snapshots, it is necessary to configure the server and media

settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated.

NOTE:

If you configured a motion detection window as a trigger, the motion detection may become invalid when the camera's field of view moved away from the detection window.

You can let camera return to the motion detection position to detect the coming event by re-configuring your Home position in PTZ > PTZ settings (see page 97) or turn the camera to a preset position.

Add server

Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.

There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options. You can configure either one or all of them.

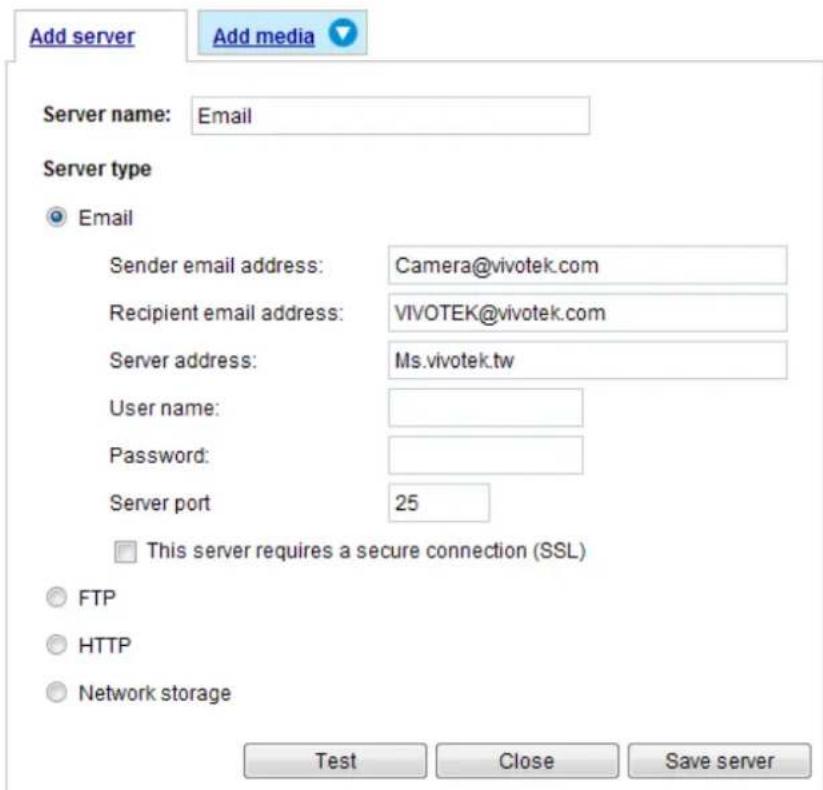

Server type - Email

Select to send the media files via email when a trigger is activated.

■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure connection (SSL).

To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result.

Click Save server to enable the settings, then click Close to exit the Add server page.

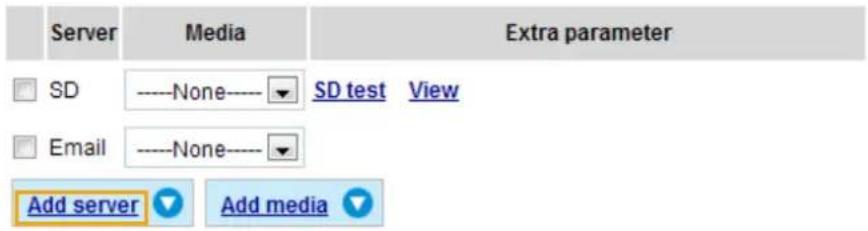

After you set up the first event server, a new item for event server will automatically show up on the Server list. If you wish to add more server options, click Add server.

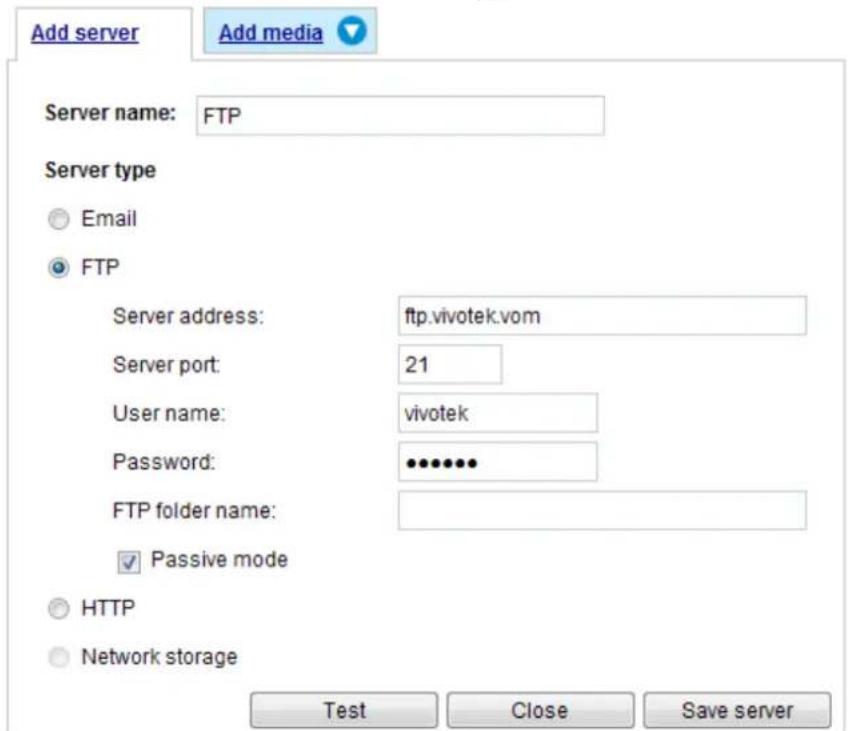

Server type - FTP

Select to send the media files to an FTP server when a trigger is activated.

■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name

Enter the folder where the media file will be placed. If the folder name does not exist, the Network Camera will create one on the FTP server.

■ Passive mode

Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall.

To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.

Click Save server to enable the settings, then click Close to exit the Add server page.

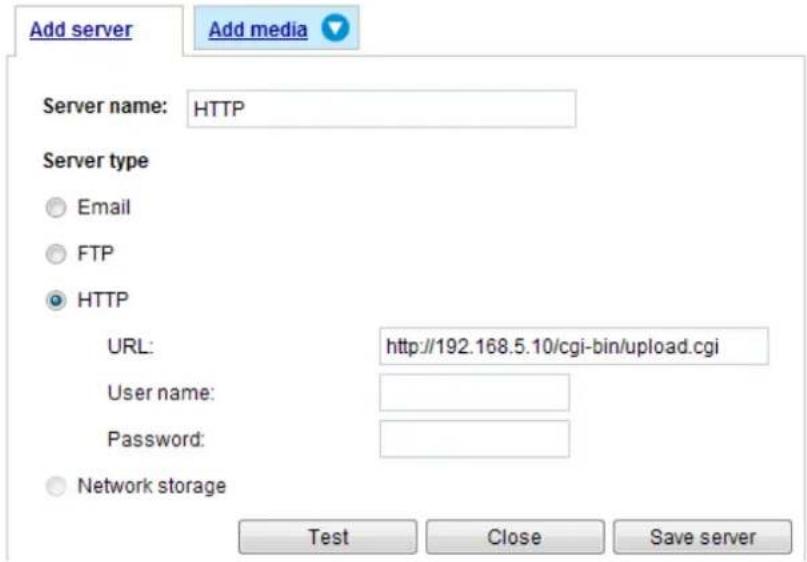

Server type - HTTP

Select to send the media files to an HTTP server when a trigger is activated.

■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.

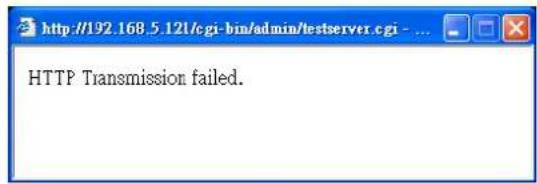

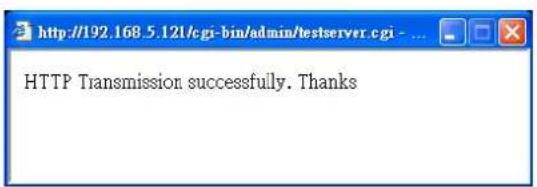

To verify if the HTTP settings are correctly configured, click Test. The result will be shown in a pop-up window as below. If successful, you will receive a test.txt file on the HTTP server.

Click Save server to enable the settings and click Close to exit the Add server page.

Network storage:

Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 124 for details.

Click Save server to enable the settings, then click Close to exit the Add server page.

■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use. Please refer to page 127 for detailed information.

Add media

Click Add media to open the media setting window. You can specify the type of media that will be sent and preserved when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log. Select the item to display the detailed configuration options. You can configure either one or all of them.

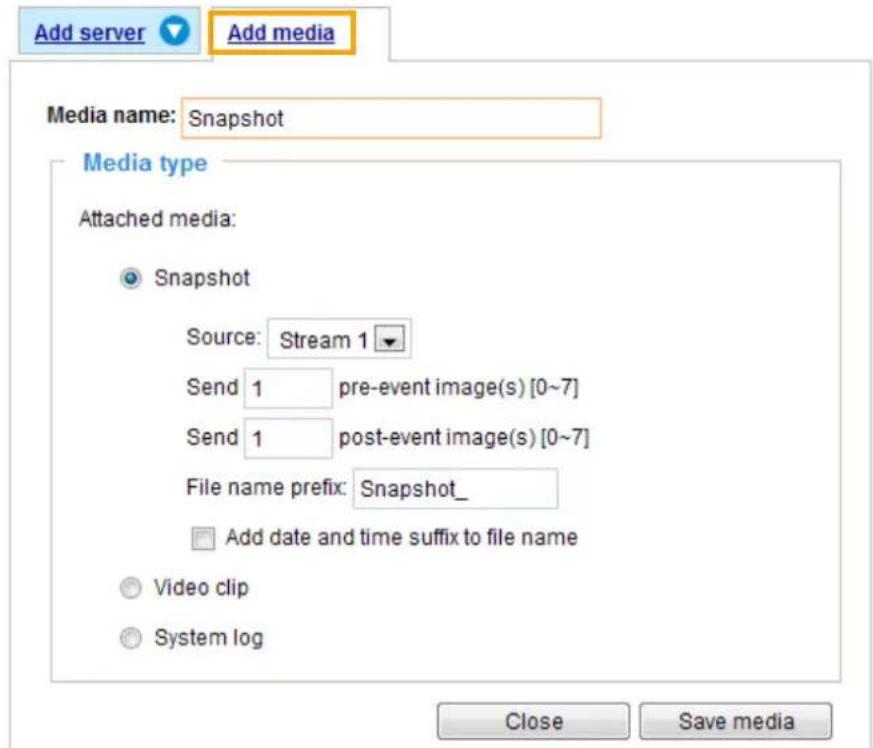

Media type - Snapshot

Select to send snapshots when a trigger is activated.

■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from stream 1 \~ 4. (The following options are available when the check circle is selected.
■ Send □ pre-event images

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.

■ Send □ post-event images

Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can be generated.

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15 images are generated after a trigger is activated.

■ File name prefix

Enter the text that will be appended to the front of the file name.

■ Add date and time suffix to the file name

Select this option to add a date/time suffix to the file name.

For example:

Click Save media to enable the settings, then click Close to exit the Add media page.

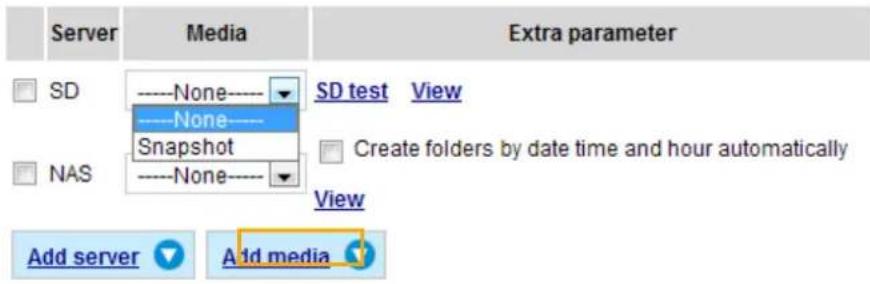

After you set up the first media server, a drop-down menu of existing medias will be available on the Media list. If you wish to add more media options, click Add media again.

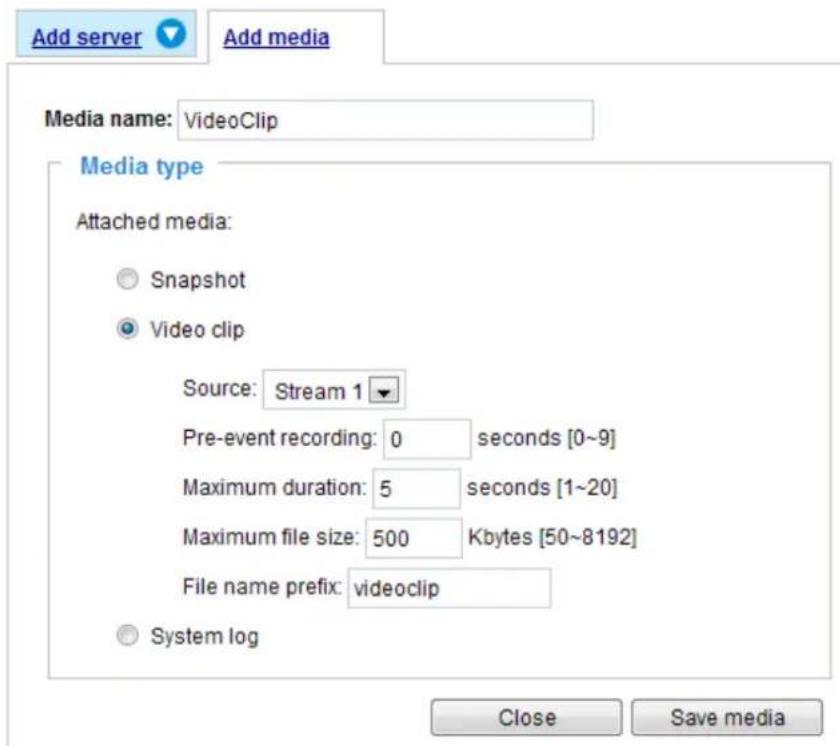

Media type - Video clip

Select to send video clips when a trigger is activated.

■ Media name: Enter a name for the media setting.
■ Source: Select the source of video clip.
■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.

■ Maximum duration

Specify the maximum recording duration in seconds. Up to 20 seconds can be set. For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.

■ Maximum file size

Specify the maximum file size allowed.

■ File name prefix

Enter the text that will be appended to the front of the file name. For example:

Click Save media to enable the settings, then click Close to exit the Add media page.

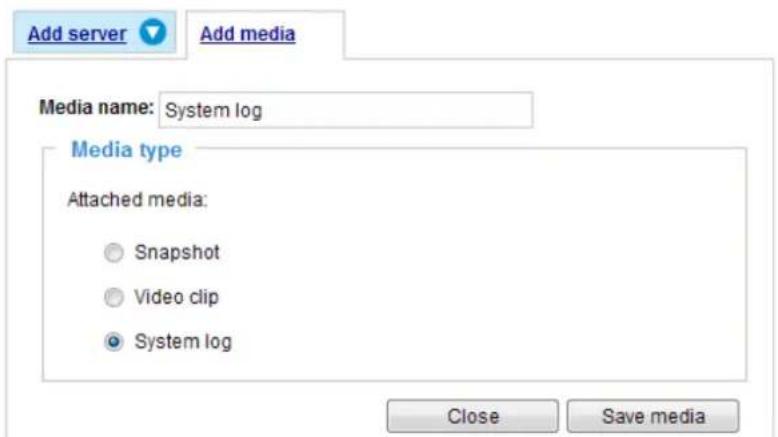

Media type - System log

Select to send a system log when a trigger is activated.

Click Save media to enable the settings, then click Close to exit the Add media page.

■ View: Click this button to open a file list window. This function only applies when an SD card and networked storage are available.

If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card. For more information about Local storage, please refer to page 127. If you click View button of Network storage, a file directory window will pop up for you to view recorded data on Network storage.

■ Create folders by date, time, and hour automatically: If you check this item, the system will automatically create sub-folders named by the date.

The following is an example of a file destination with recorded video clips:

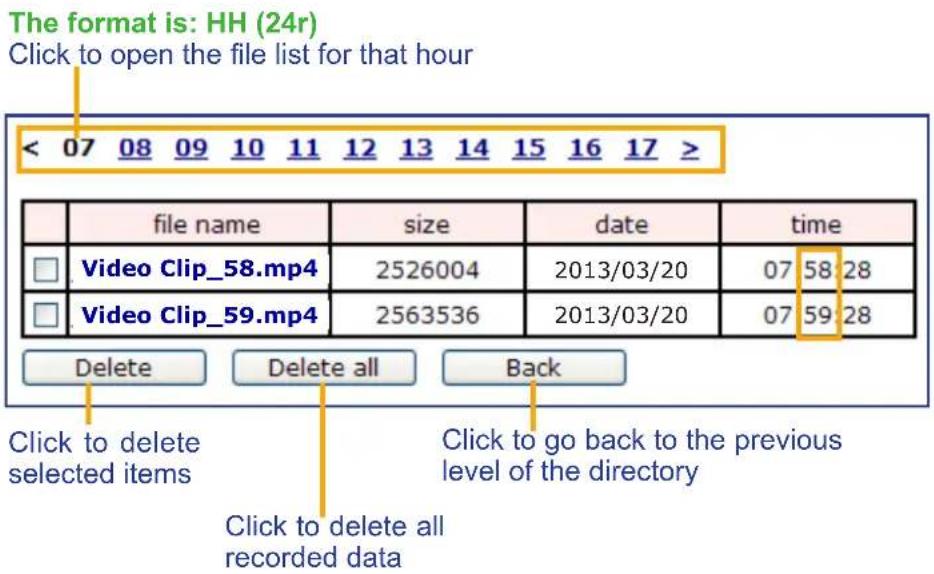

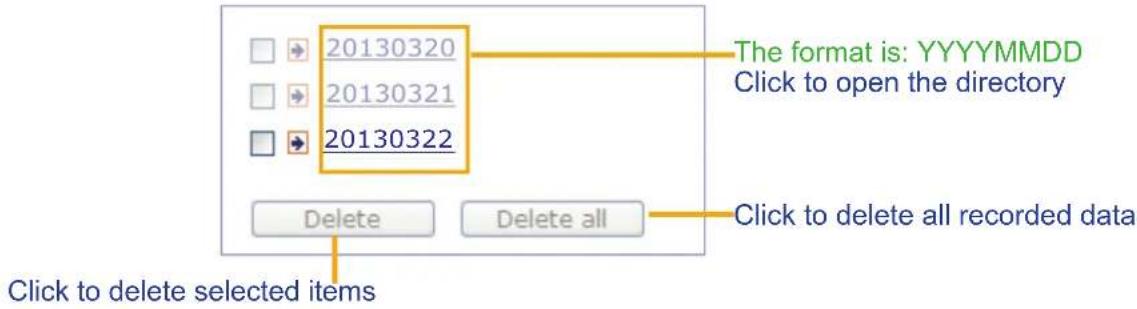

Click 20130320 to open the directory:

Here is an example of the Event setting:

When completed the settings with steps 1\~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page.

The following is an example of the Event setting page:

When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mails.

If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove the event setting.

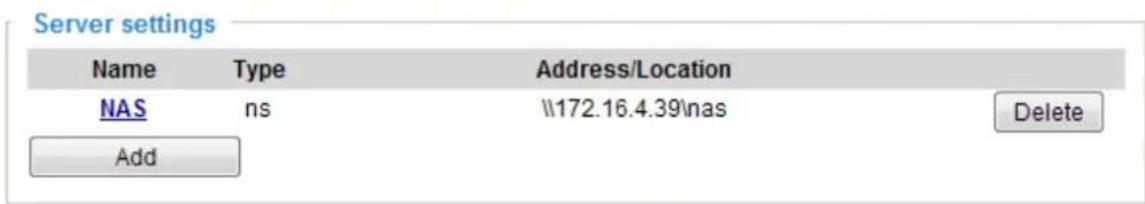

To remove a server setting from the list, select a server name and click Delete. Note that you can only delete a server setting when the server setting is currently not applied to an event setting.

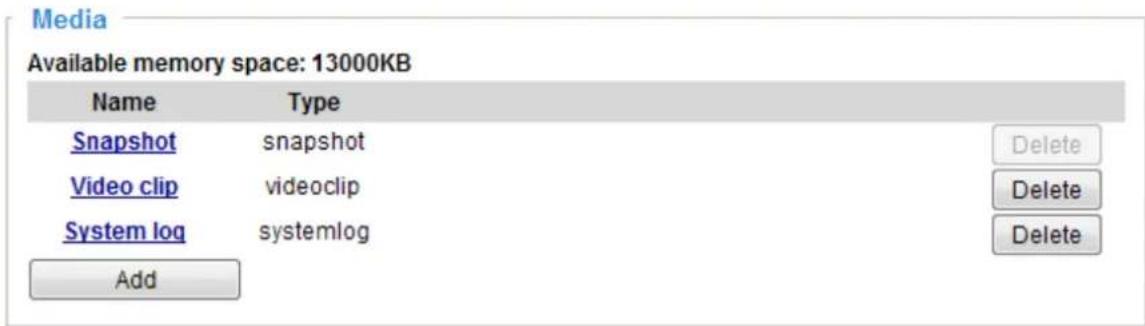

To remove a media setting from the list, select a media name and click Delete. Note that you can only delete a media setting when the media setting is currently not applied to an event setting.

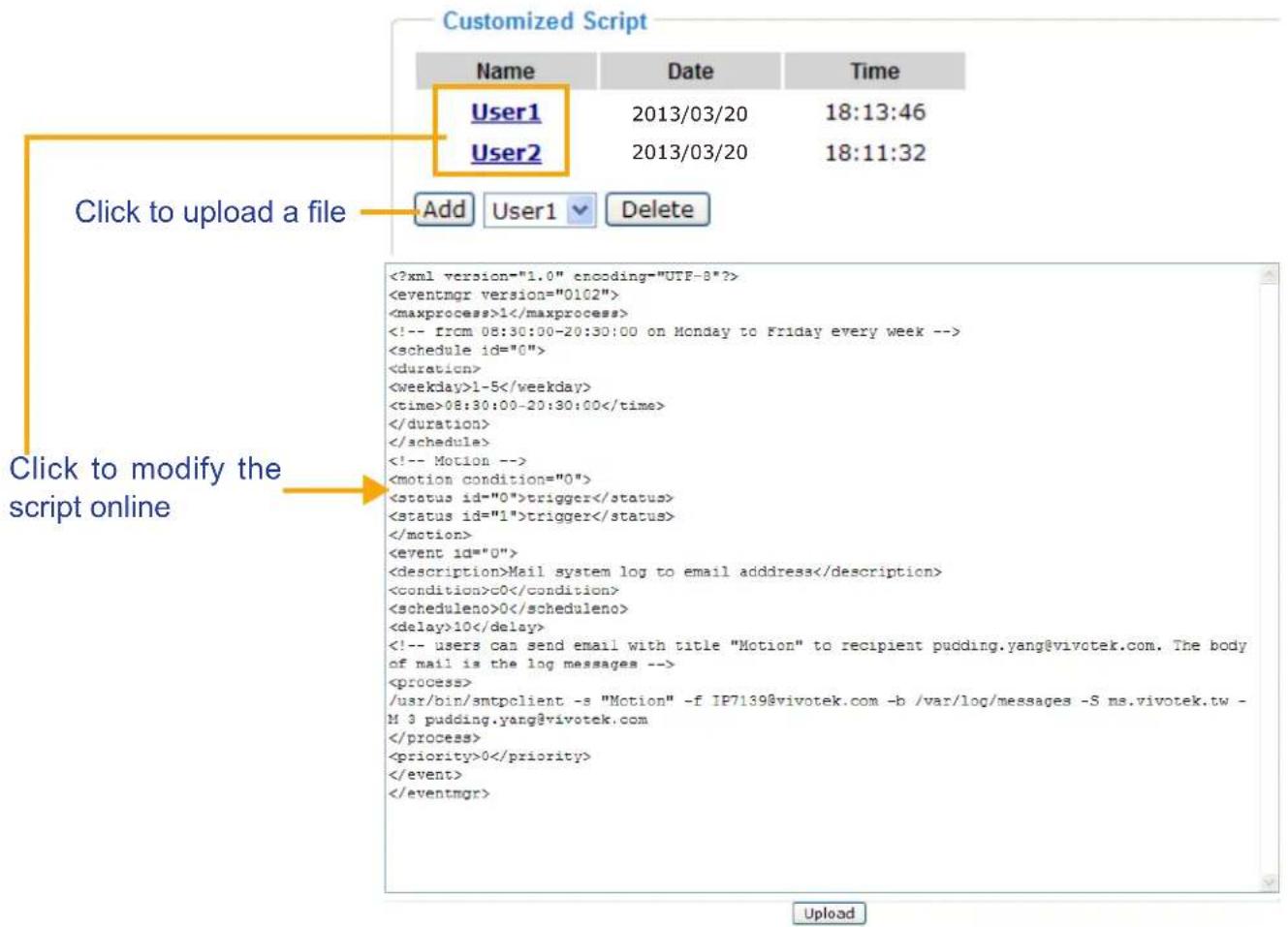

Customized Script

This function allows you to upload a sample script (.xml file) to the camera, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support.

Applications > Motion detection

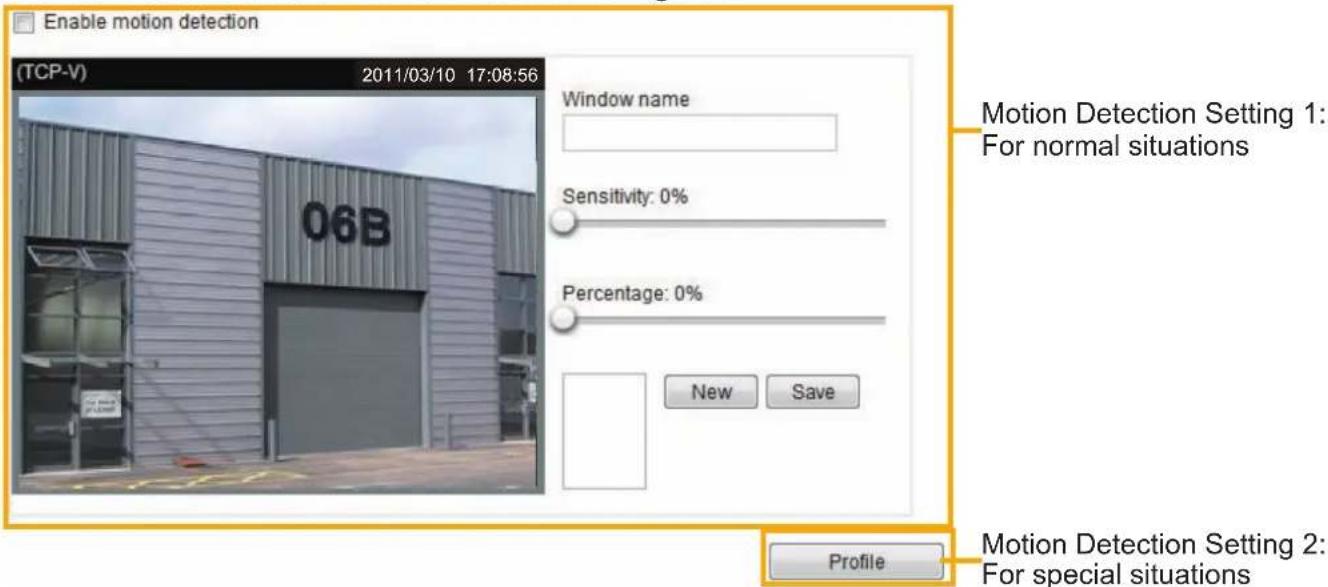

This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured.

Follow the steps below to enable motion detection:

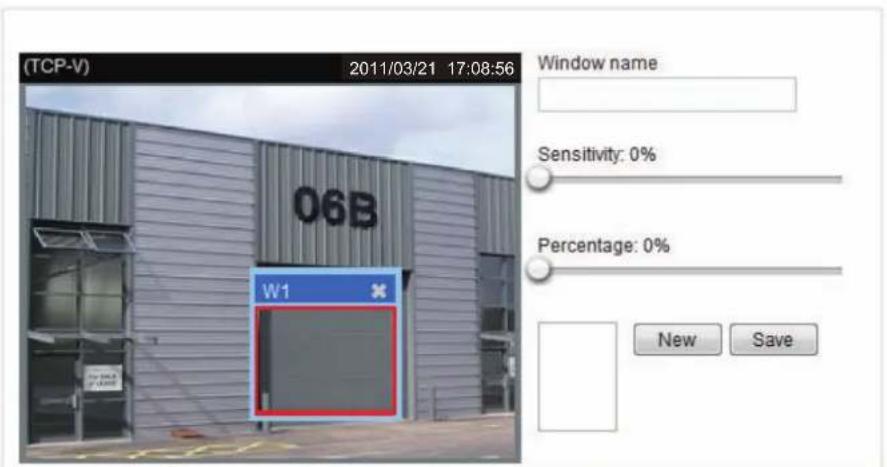

1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.

■ To move and resize the window, drag and drop your mouse on the window.
■ To delete window, click X on the top right corner of the window.

1. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slider bar.
2. Click Save to enable the settings.
3. Select Enable motion detection to enable this function.

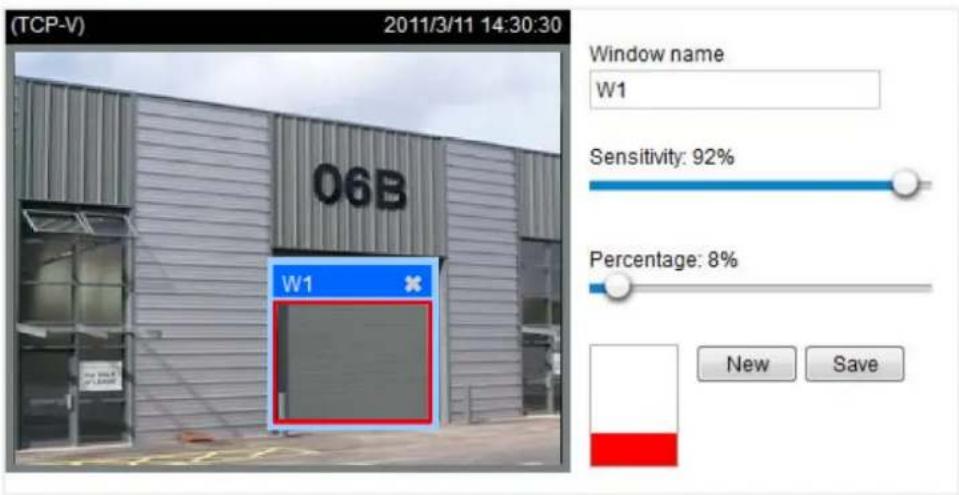

For example:

√ Enable motion detection

Profile

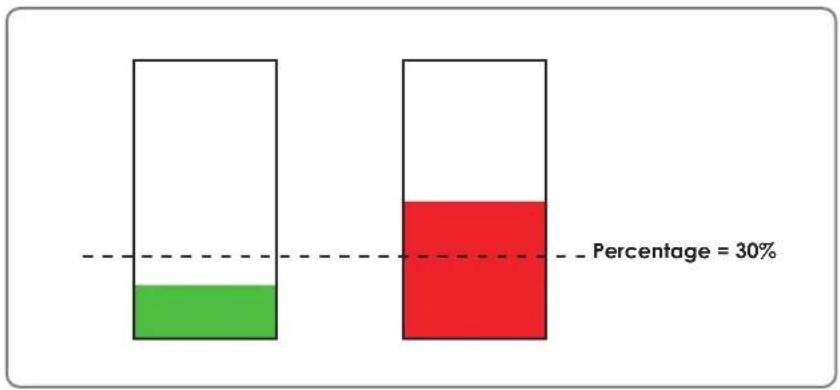

The Percentage Indicator will rise or fall depending on the variation between sequential images. When motions are detected by the Network Camera and are judged to exceed the defined threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can be captured instantly and configured to be sent to a remote server (Email, FTP) by utilizing this feature as a trigger source. For more information on how to set an event, please refer to Event settings on page 102.

A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold.

If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well.

Please follow the steps beolw to set up a profile:

1. Create a new motion detection window.
2. Check Enable this profile.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.

This motion detection window will also be displayed on the Event settings page. You can go to Event > Event settings > Trigger to configure it as a trigger source. Please refer to page 103 for detailed information.

NOTE:

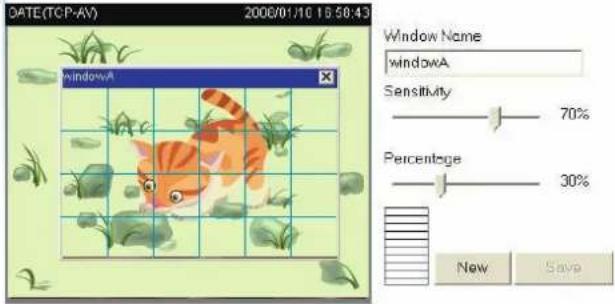

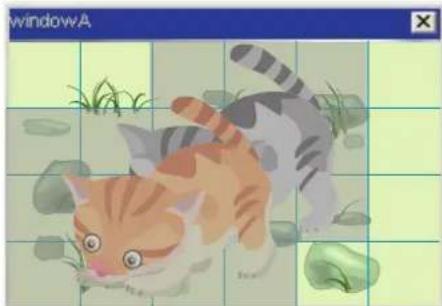

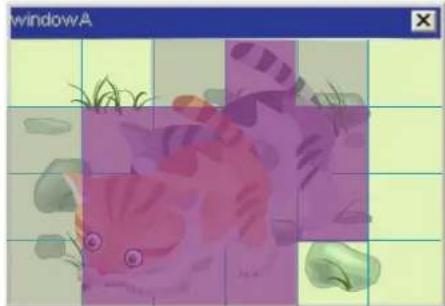

▶ How does motion detection work?

A
Enable motion detection

C

Illustration of a cat playing with grass and rocks, displayed within a grid interface (no text or symbols)

B
√ Enable motion detection

D

Illustration of a pink cat with green grass and fish, set against a grid background (no text or symbols)

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red.

For applications that require a high level of security management, it is suggested to use higher sensitivity settings and smaller percentage values.

Applications > DI and DO Advanced Mode

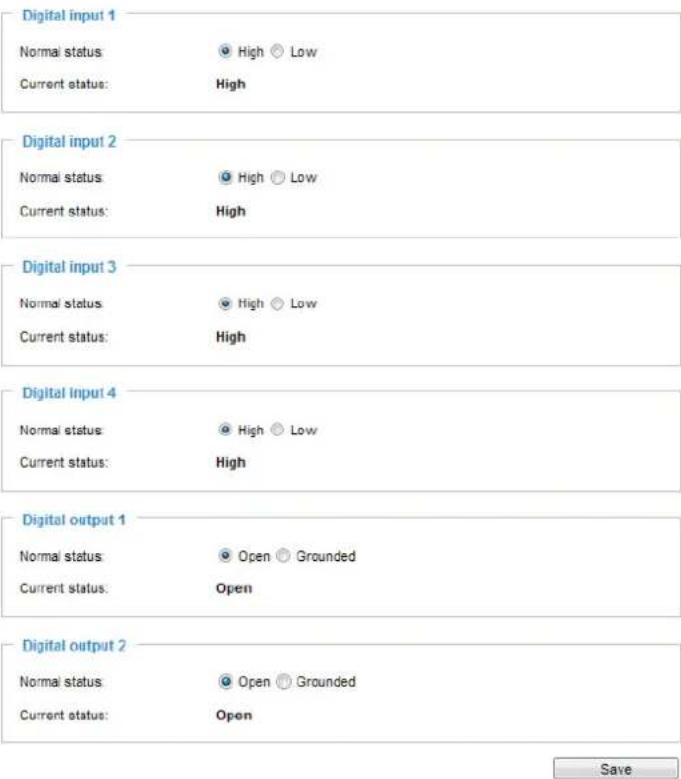

Digital input: Select High or Low to define normal status for the digital input. Connect a digital input from a sensor device to the camera, the Network Camera will report the current signal status. You may then configure the Normal status (non-trigger status) as High or Low.

Digital output: Select High or Low to define normal status for the digital output. Connect an output line to an external device, the Network Camera will report the current signal status. You may then configure the Normal status (non-trigger status) as High or Low.

Set up the event source as DI on Event > Event settings > Trigger. Please refer to page 103 for detailed information.

Applications > Audio detection

Advanced Mode

Audio detection, along with video motion detection, is applicable in the following scenarios:

1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window.
2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
3. A PTZ camera can be directed to turn to a preset point by the occurrence of audio events.
4. Dark environments where video motion detection may not function well.

The red circles indicate where the audio alarms can be triggered when breaching or falling below the preset threshold.

How to configure Audio detection:

1. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the "Enable audio detection" checkbox and click Save to enable the feature.

NOTE:

1. Note that the volume numbers (0\~100) on the side of wave diagram does not represent decibel (dB). Sound intensity level has already been mapped to preset values. You can, however, use the real-world inputs at your installation site that are shown on the wave diagram to configure an alarm level.
2. To configure this feature, you must not mute the audio in Configuration > Media > Audio. The default of the camera can be muted due to the lack of an internal microphone. An external microphone is provided by users.

You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night.

1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the Day, Night, or Schedule mode check circles. You may also manually configure a period of time during which this profile will take effect.
4. Click Save and then click Close to complete your configuration.

Audio detection profile settings

IMPORTANT:

• If the Alarm level and the received volume are set within a range of 20% on the wave diagram, frequent alarms will be triggered. It is recommended to set the Alarm level farther apart from the detected sound level.
• To configure and enable this feature, you must not configure video stream #1 into motion JPEG. If an external microphone input is connected and recording of audio stream is preferred, audio stream is transmitted between camera and viewer/recording station along with stream #1.
  • Refer to page 65 for Audio settings, and page 62 for video streaming settings.

Recording > Recording settings Advanced Mode

This section explains how to configure the recording settings for the Network Camera.

Recording Settings

NOTE:

▶ Please remember to format your SD card when using it for the first time. Please refer to page 127 for detailed information.

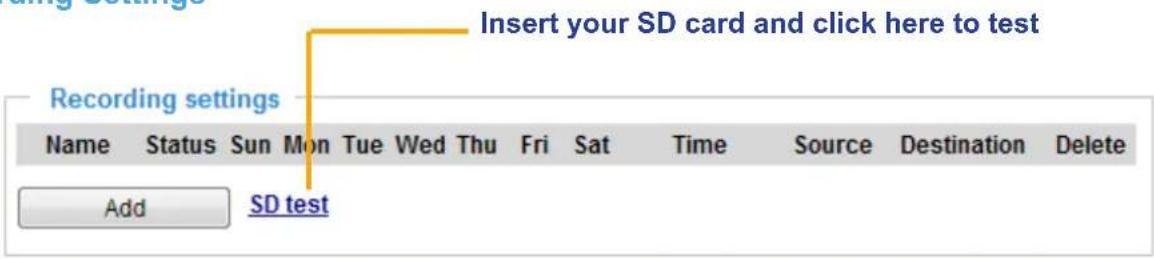

Recording Settings

Click Add to open the recording setting window. On this page, you can define the adaptive recording, recording source, recording schedule, and recording capacity. A total of 2 recording settings can be configured.

■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:

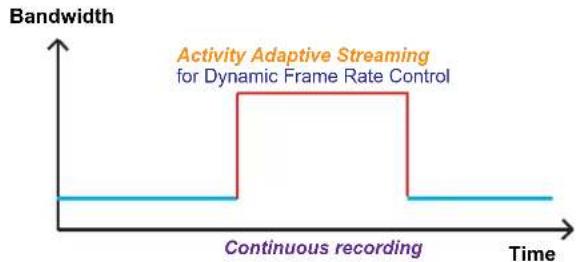

Select this option will activate the frame rate control according to alarm trigger. The frame control means that when there is alarm trigger, the frame rate will raise up to the value you've set on Stream setting page. Please refer to page 64 for more information.

If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record video streams in the full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage.

NOTE:

To enable adaptive recording, please make sure you've set up the trigger source such as Motion Detection, DI Device, or Manual Trigger.

▶ When there is no alarm trigger: - JPEG mode: record 1 frame per second. - H.264 mode: record I frame only. - MPEG-4 mode: record I frame only.

▶ When the I frame period is >1s on Video settings page, it should be forced to make the I frame period to 1s when adaptive recording is activated.

The alarm trigger includes: motion detection and DI detection. Please refer to Event settings on page 102.

■ Pre-event recording and post-event recording
The Network Camera has a buffer area; it temporarily holds data for up to a certain limit. Enter a number to decide the duration of recording that will take place before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher priority setting will be executed first.
■ Source: Select a stream as the recording source.

NOTE:

▶ To enable recording notification, please configure Event settings first. Please refer to page 102.

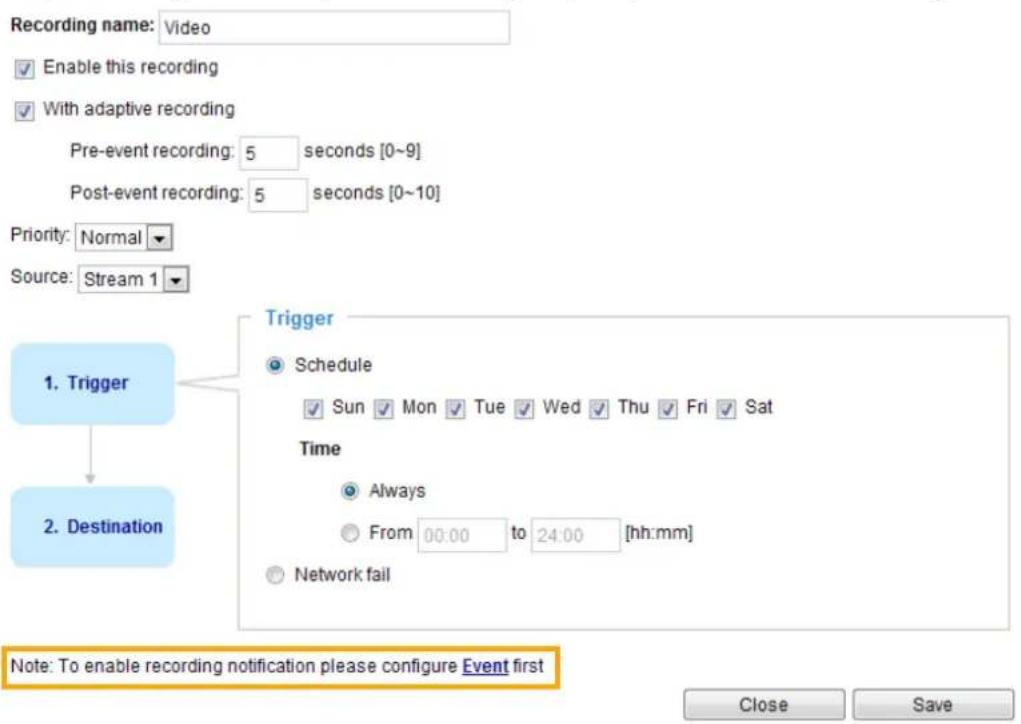

Please follow steps 1\~2 below to set up the recording:

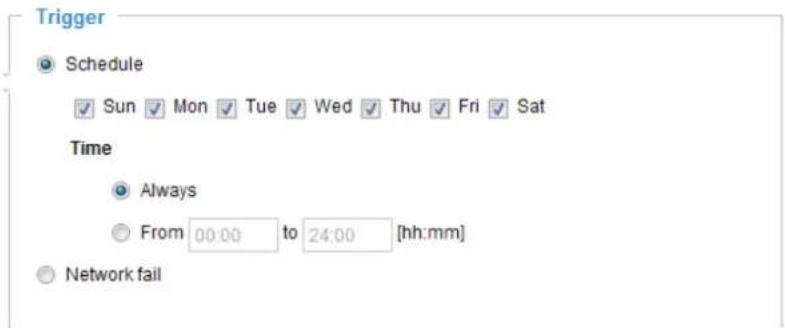

1. Trigger

Select a trigger source.

■ Schedule: The server will start to record files on the local storage or to a networked storage device (NAS).
■ Network fail: Since the time when the network fails, the server will start to record files on the local storage (SD card).

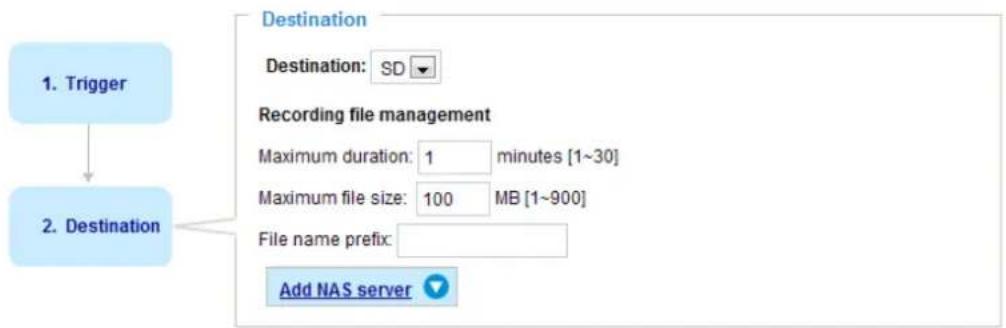

2. Destination

You can select the SD card or network attached storage (NAS) for recording video files.

Note: To enable recording notification please configure Event first

NAS server

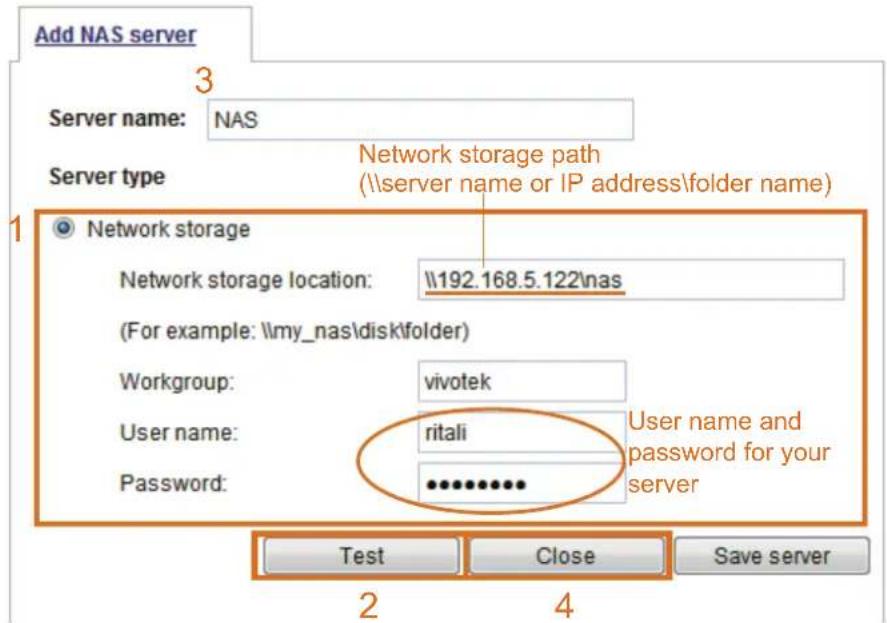

Click Add NAS server to open the server setting window and follow the steps below to set up:

1. Fill in the information for your server.

For example:

1. Click Test to check the setting. The result will be shown in the pop-up window.

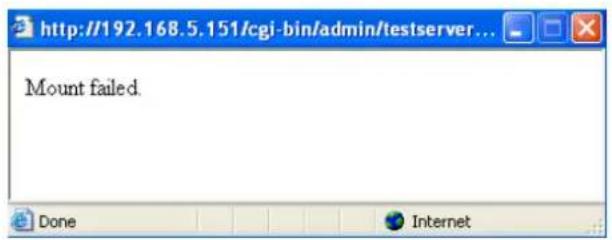

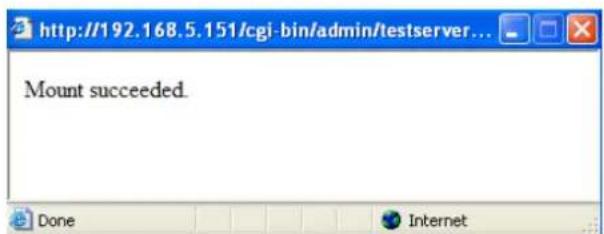

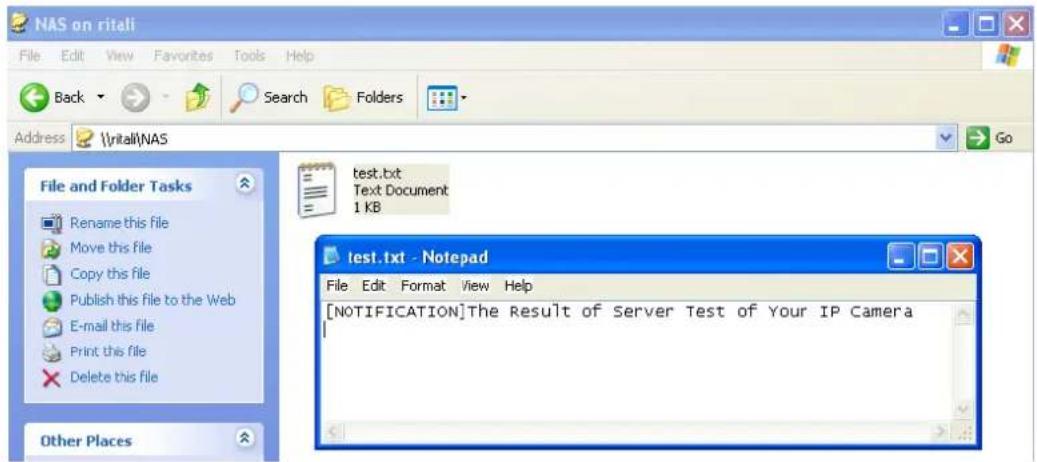

If successful, you will receive a test.txt file on the network storage server.

1. Enter a server name.
2. Click Save to complete the settings and click Close to exit the page.

■ Capacity: You can select either the entire storage space available or specify a reserved space. The recording size limit must be larger than the reserved space for cyclic recording. The reserved space is used during cyclic recording to prevent malfunctions that might occur during the transaction stage when the video feeds are about to fill up the storage space, and new data is still coming. This value must be larger than 15 MBytes.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest files will be overwritten by the latest ones.
■ File name prefix: Enter the text that will be appended to the front of the file name.

If you want to enable recording notification, please click Event to set up. Please refer to Event > Event settings on page 102 for more details.

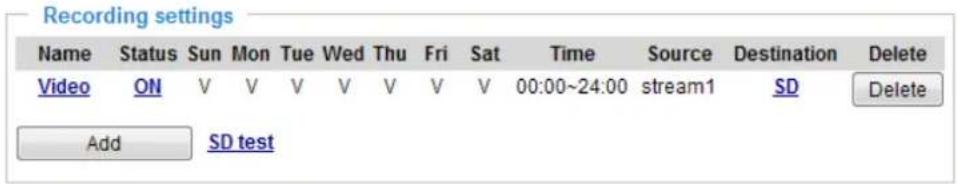

When completed, select Enable this recording. Click Save to enable the setting and click Close to exit

this page. When the system begins recording, it will send the recorded files to a networked storage or SD card. The new recording name will appear on the recording page as shown below. To remove a recording setting from the list, select it and click Delete.

■ Video (Name): Click to open the Recording settings page to modify its details.
■ ON (Status): Click to manually adjust the Status. (ON: start recording; OFF: stop recording)
■ NAS or SD (Destination): Click to open the file list of recordings as shown below. For more information about folder naming rules, please refer to page 95 or page 113 for details.

Local storage > SD card management

This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control.

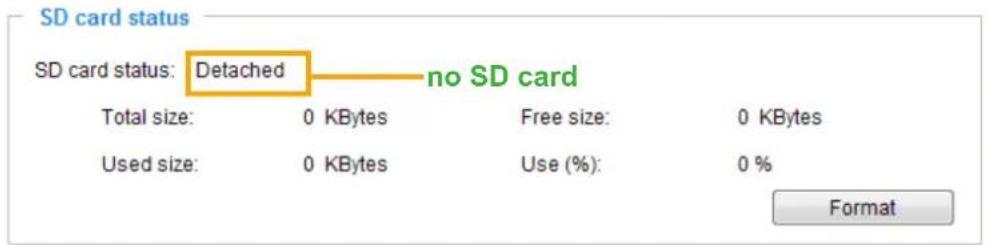

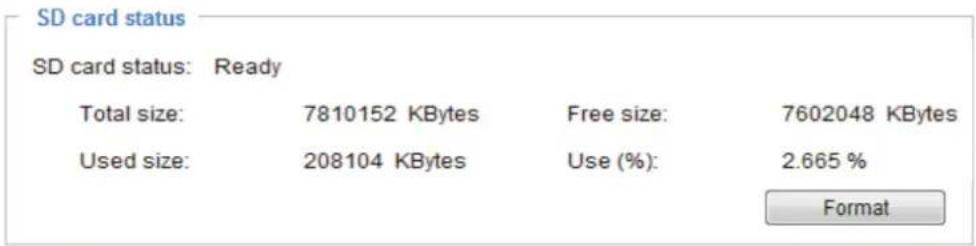

SD card status

This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

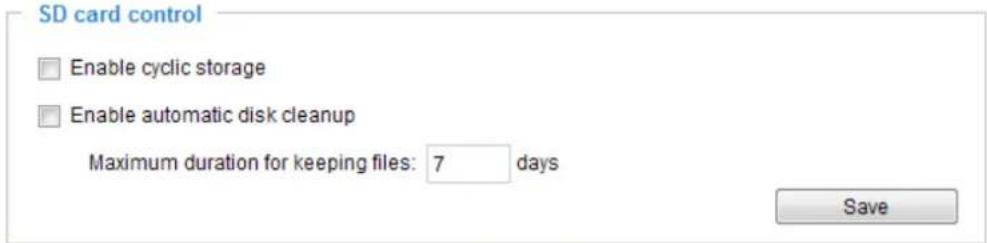

SD card control

■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest files will be overwritten by the latest ones.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file. For example, if you enter "7 days", the recorded files will be stored on the SD card for 7 days.

When all settings are completed, click Save to enable your settings.

Local storage > Content management

This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the search results.

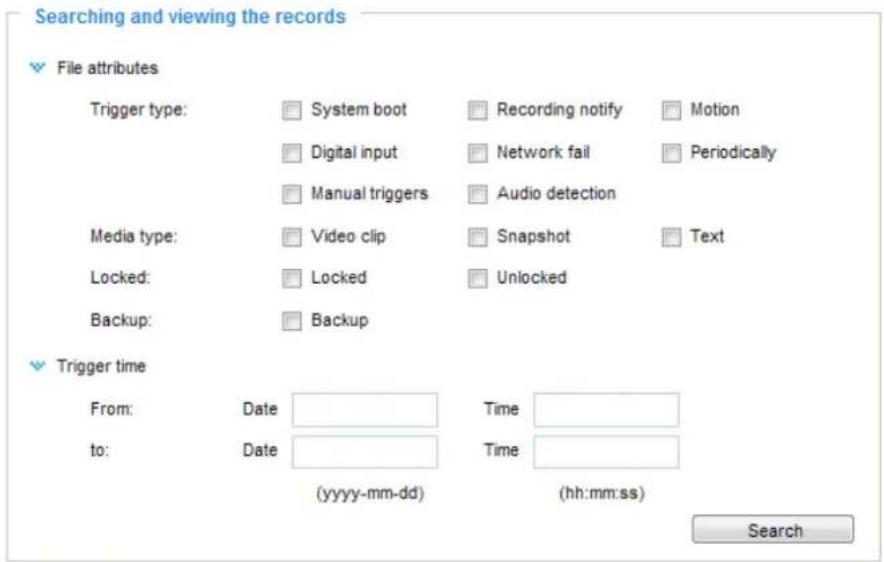

Searching and Viewing the Records

This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.

■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search.

Click Search and the recorded data that matches the search criteria will be listed in Search Results window.

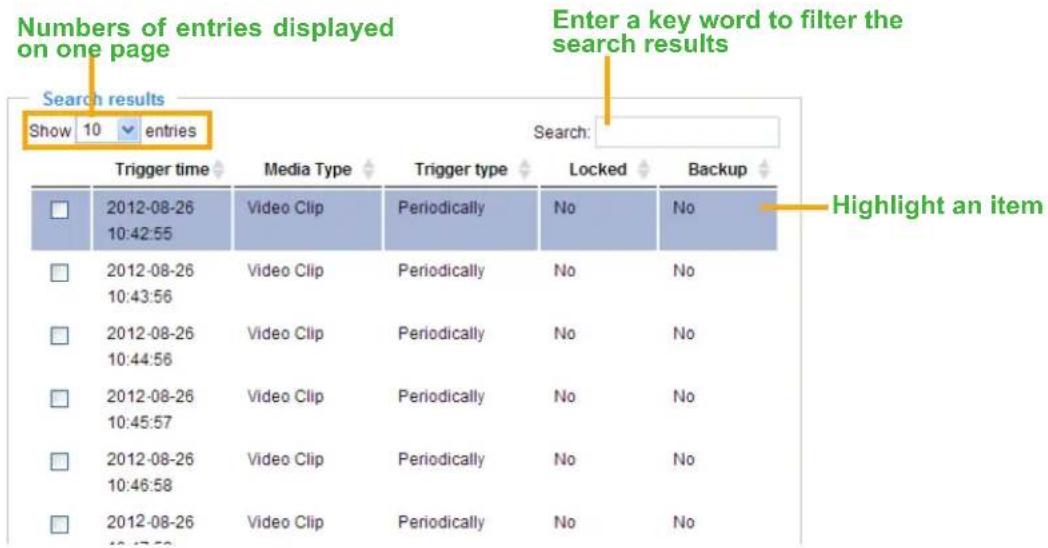

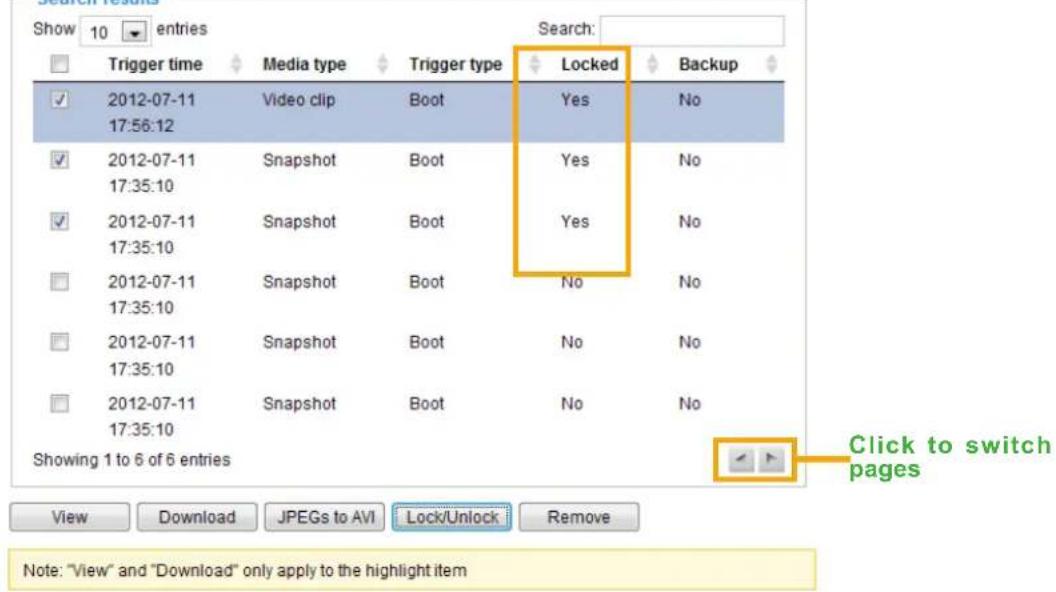

Search Results

The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click 🔔 to sort the search results in either direction.

■ View: Click on a search result. The entry will be highlighted in purple as shown above. Click the View button and a media window will pop up to play back the selected file.

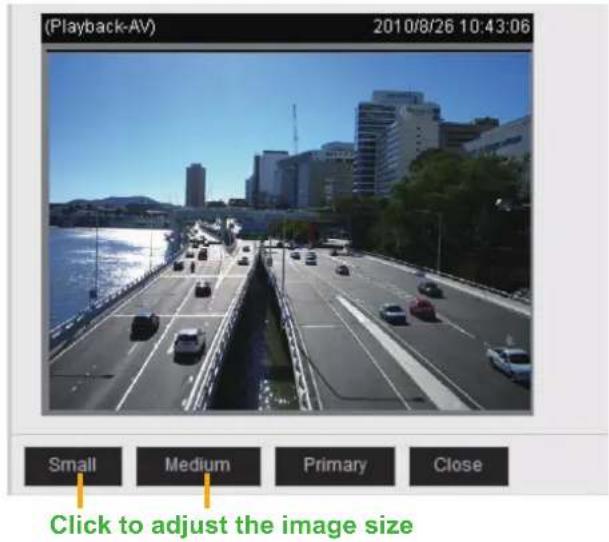

For example:

■ Download: Click on a search result to select an entry as shown above. Then click the Download button and a file download window will prompt for you to save the file.
■ JPEGs to AVI: This function only applies to "JPEG" format files such as snapshots. You can select several snapshots from the list, then click this button. The series of snapshots will be converted into an AVI file.
■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example: Search results

■ Remove: Select the desired search results, then click this button to delete the files.

Appendix

URL Commands for the Network Camera

1. Overview

For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set internal parameter values. The image and CGI-requests are handled by the built-in Web server.

2. Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets should also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, that is replaced with the string myserver in the URL syntax example further down in the page.

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced syntax as shown below. For example, name of the server is written as and is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.

Return:

HTTP/1.0 <HTTP code> <HTTP text>\r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example.

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video.jpg

3. General CGI URL Syntax and Parameters

CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]

Example: Set digital output #1 to active

http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1

4. Security Level

SECURITY LEVEL	SUB-DIRECTORY DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer, dido, camctrl		1. Can view, listen, talk to camera.2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer, dido, camctrl, operator		Operator access rights can modify most of the camera's parameters except some privileges and network options.
6 [admin] anonymous, viewer, dido, camctrl, operator, admin		Administrator access rights can fully control the camera's operations.
7 N/A Internal parameters. Unable to be changed by any external interfaces.

5. Get Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>...]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]

[&<parameter>...]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>...]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>...]

Where the should be [_] or [.]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only , the parameters of the related group will be returned.

When querying parameter values, the current parameter values are returned.

A successful control request returns parameter pairs as follows:

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter> = <value> \r\n
[<parameter pair>]

is the actual length of content.

Example: Request IP address and its response

Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

6. Set Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

PARAMETER VALUE	DESCRIPTION
	value to assigned	Assignto the parameter.
update	Set to 1 to update all fields (no need to update parameter in each group).
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

<parameter> = <value> \r\n

[<parameter pair>]

Only the parameters that you set and are readable will be returned.

Example: Set the IP address of server to 192.168.0.123:

Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

7. Available parameters on the server

Valid values:

VALID VALUES DESCRIPTION
string[] Text strings shorter than `n' characters. The characters '', <,>, & are invalid.
string[n~m] Text strings longer than `n' characters and shorter than `m' characters. The characters '', <,>, & are invalid.
password[] The same as string but displays '*' instead.
integer Any number between (-2 ^31 - 1) and ( 2^31 - 1).
positive integer Any number between 0 and (2 ^32 - 1).
~Any number between `m' and `n'.
domain name[] A string limited to a domain name shorter than `n' characters (eg. www.ibm.com).
email address []	A string limited to an email address shorter than `n' characters ([e-mail]).
ip address A string limited to an IP address (eg. 192.168.1.1).
mac address A string limited to contain a MAC address without hyphens or colons.
boolean	A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].
,,,,,...	Enumeration. Only given values are valid.
blank	A blank string.
everything inside <>	A description
integer primary key	SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server.
text SQLite data type. The	value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
coordinate x, y coordinate	(eg. 0,0)
window size window width	and height (eg. 800x600)

NOTE: The camera should not be restarted when parameters are changed.

7.1 system

Group: system

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
hostname string[64] 18x Zoom		SpeedDomeNetworkCamera	1/6 Host name of server(Network Camera, Wireless Network Camera, Video Server, Wireless Video Server).note: The zoom ratio depend on zoom-module.
ledoff		0	6/6	Turn on (0) or turn off (1) all led indicators.
date	,, keep, auto		6/6 Current date of system. Set to 'keep' to keep date unchanged. Set to 'auto' to use NTP to synchronize date.
time	,, keep, auto		6/6 Current time of the system. Set to 'keep' to keep time unchanged. Set to 'auto' to use NTP to synchronize time.
datetime			6/6 Another current time format of the system.
ntp	,,		6/6 NTP server.*Do not use "skip to invoke default server" for default value.
	address>,
timezoneindex -489 ~ 529	320 6/6 Indicate timezone and area.			-480: GMT-12:00 Eniwetok, Kwajalein-440: GMT-11:00 Midway Island,Samoa-400: GMT-10:00 Hawaii-360: GMT-09:00 Alaska-320: GMT-08:00 Las Vegas,San_Francisco,Vancouver-280: GMT-07:00 Mountain Time,Denver-281: GMT-07:00 Arizona-240: GMT-06:00 Central America,Central Time, Mexico City,Saskatchewan-200: GMT-05:00 Eastern Time, NewYork, Toronto-201: GMT-05:00 Bogota, Lima,Quito, Indiana-180: GMT-04:30 Caracas-160: GMT-04:00 Atlantic Time,Canada, La Paz, Santiago-140: GMT-03:30 Newfoundland-120: GMT-03:00 Brasilia, Buenos Aires,Georgetown, Greenland-80: GMT-02:00 Mid-Atlantic-40: GMT-01:00 Azores,Cape_Verde_IS.0: GMT Casablanca, Greenwich MeanTime: Dublin,Edinburgh, Lisbon, London40: GMT 01:00 Amsterdam, Berlin,Rome, Stockholm, Vienna, Madrid,Paris41: GMT 01:00 Warsaw, Budapest,Bern80: GMT 02:00 Athens, Helsinki,
				Istanbul, Riga81: GMT 02:00 Cairo82: GMT 02:00 Lebanon, Minsk83: GMT 02:00 Israel120: GMT 03:00 Baghdad, Kuwait,Riyadh, Moscow, St. Petersburg,Nairobi121: GMT 03:00 Iraq140: GMT 03:30 Tehran160: GMT 04:00 Abu Dhabi, Muscat,Baku,Tbilisi, Yerevan180: GMT 04:30 Kabul200: GMT 05:00 Ekaterinburg,Islamabad, Karachi, Tashkent220: GMT 05:30 Calcutta, Chennai,Mumbai, New Delhi230: GMT 05:45 Kathmandu240: GMT 06:00 Almaty, Novosibirsk,Astana, Dhaka, Sri Jayawardenepura260: GMT 06:30 Rangoon280: GMT 07:00 Bangkok, Hanoi,Jakarta, Krasnoyarsk320: GMT 08:00 Beijing, Chongging,Hong Kong, Kuala Lumpur, Singapore,Taipei360: GMT 09:00 Osaka, Sapporo,Tokyo, Seoul, Yakutsk380: GMT 09:30 Adelaide, Darwin400: GMT 10:00 Brisbane, Canberra,Melbourne, Sydney, Guam,Vladivostok440: GMT 11:00 Magadan, SolomonIs., New Caledonia480: GMT 12:00 Auckland, Wellington,Fiji, Kamchatka, Marshall Is.520: GMT 13:00 Nuku'Alofa
daylight_enable		0	6/6	Enable automatic daylight saving time in time zone.
daylight_dstactualmode 1~4 1 6/7 Check current status of is daylight
				saving time.(Used internally)
daylight_auto_begintime string[19] NONE 6/7 Display the current daylight saving start time.
daylight_auto_endtime	string[19]	NONE	6/7 Display the current daylight saving end time.
daylight_timezones	string	,-360,-280,-240,-241,-200,-201,-160,-140,-120,-80,-40,0,40,41,80,81,82,83,120,140,380,400,480	3/6, List time	zone index which support daylight saving time.
updateinterval	0,3600,86400,604800,2592000	0 6/6 0 to Disable automatic time adjustment, otherwise, it indicates the seconds between NTP automatic update intervals.
restore	0,N/A 7/6 Restore the system parameters to default values afterseconds.
reset	0,N/A 7/6 Restart the server afterseconds ifis non-negative.
restoreexceptnet 0~ N/A 7/6 Restore the system parameters to default values except (ipaddress, subnet, router, dns1, dns2, pppoe). This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
restoreexceptdst 0~ N/A 7/6 Restore the system parameters to default values except all daylight saving time settings.
				This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results.
restoreexceptlang 0~ N/A	7/6 Restore the system parameters to			default values except the custom language file the user has uploaded. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.

7.1.1 system.info

Subgroup of system_info (The fields in this group are unchangeable.)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
modelname string[40] SD8314E /		SD8324E/SD8316E/SD8326E	0/7 Internal model name of the server (eg. IP7139)
extendedmodelname string[40] SD8314E /		/SD8324E/SD8316E/SD8326E	0/7 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to "modelname"
serialnumber			0/7 12 characters MAC address (without hyphens).
firmwareversion string[40]		product dependent >	0/7 Firmware version, including model, company, and version number in the format:
language_count		9	0/7	Number of webpage languages available on the server.
language_i<0~(count-1)>	string[16]		0/7 Available language lists.

customlanguage_maxcount		0/6 Maximum number of custom languages supported on the server.
customlanguage_count	0 0/6	Number of custom languages which have been uploaded to the server.
customlanguage_i<0~(maxcount-1)	string	0/6 Custom language name.

7.2 status

Group: status

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
di_i<0~(ndi-1)>	0	1/7 0 => Inactive, normal		1 => Active, triggered(capability.ndi > 0)
do_i<0~(ndo-1)>	0	1/7 0 => Inactive, normal		1 => Active, triggered(capability.ndo > 0)
daynight	day, night	6/7 Current status of day, night.
onlinenum_rtsp integer 0	6/7 Current number of RTSP			connections.
onlinenum_httppush integer	0 6/7 Current number of HTTP push			server connections.
eth_i0	0	1/7 Get network information from mii-tool.
vi_i<0~(nvi-1)>	0	1/7 Virtual input		0 => Inactive1 => Active(capability.nvi > 0)

7.3 digital input behavior define

Group: di_i<0\~(ndi-1)>(capability.ndi > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
normalstate	high, low	high	1/1	Indicates open circuit or closed circuit (inactive status)

7.4 digital output behavior define

Group: do_i<0\~(ndo-1)>(capability.ndo > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
normalstate	open, grounded	open	1/1	Indicate open circuit or closed circuit (inactive status)

7.5 security

Group: security

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
privilege_do	view, operator, admin	operator 1/6	Indicate which	privileges andabove can control digital output(capability.ndo >0)
privilege_camctrl	view, operator, admin	view 1/6 Indicate which privileges andabove can control PTZ(capability.ptzenabled >0 or capability.eptz >0)
user_i0_name string[64]	root 6/7 User name of root
user_i<1~20>_name string	6/7 User name
user_i0_pass password[64]	6/6 Root password
user_i<1~20>_pass	password[64]	7/6 User password
user_i0_privilege	view, operator, admin	admin	6/7 Root privilege
user_i<1~20>_privilege	view, operator, admin	6/6 User privilege

7.6 network

Group: network

NAME VALUE	DEFAULT	SECURITY	(get/set)	DESCRIPTION
preprocess			An 32-bit integer, each bit can be set separately as follows:Bit 0 => HTTP service;Bit 1=> HTTPS service;Bit 2=> FTP service;Bit 3 => Two way audio and RTSP Streaming service;To stop service before changing its port settings. It'srecommendedto set this parameter when change a service port to the port occupied by another service currently. Otherwise, the service may fail.Stopped service will auto-start after changing port settings.Ex:Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480.Then, set preprocess=9 to stop both service first."/cgi-bin/admin/setparam.cgi?network_preprocess=9&network_http_port=5556&network_rtp_videoport=20480"
type	lan,pppoe		lan 6/6 Network connection type.
resetip	1 6/6	1 => Get ipaddress, subnet,	router, dns1, dns2 from DHCP server at next reboot.0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
ipaddress			6/6 IP address of server.
subnet			Subnet mask.
router			Default gateway.

dns1			Primary DNS server.
dns2			Secondary DNS server.
wins1			Primary WINS server.
wins2			Secondary WINS server.

7.6.1 802.1x

Subgroup of network_ieee8021x (capability.protocol.ieee8021x > 0)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
enable0 6/6 Enable/disable IEEE 802.1x
eapmethod	eap-peap,eap-tls	eap-peap 6/6 Selected EAP method
identity_peap String[64]		6/6 PEAP identity
identity_tls	String[64]		6/6	TLS identity
password	String[253]		6/6	Password for TLS
privatekeypassword	String[253]		6/6	Password for PEAP
ca_exist	0 6/6 CA installed flag
ca_time	String[20]	0	6/7	CA installed time. Represented in EPOCH
ca_size	String[20] 0 6/7 CA file size (in bytes)
certificate_exist	0		6/6	Certificate installed flag (for TLS)
certificate_time	String[20] 0 6/7 Certificate installed time.			Represented in EPOCH
certificate_size String[20]	0 6/7 Certificate file size (in bytes)
privatekey_exist	0		6/6	Private key installed flag (for TLS)
privatekey_time	String[20] 0 6/7 Private key installed time.			time.Represented in EPOCH
privatekey_size	String[20] 0 6/7 Private key file size (in bytes)

7.6.2 QOS

Subgroup of network_qos_cos (capability.protocol<|box_end|><|ref_start|>qos.cos > 0)

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
enable0 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 1 6/6 VLAN ID
video 0~7 0 6/6 Video channel for CoS
audio0~7 0 6/6 Audio channel for CoS(capability.naudio >0)	0~7 0 6/6 Audio channel for CoS		(capability.naudio >0)
eventalarm 0~7 0 6/6 Event/alarm channel for CoS
management0~7 0 6/6 Management channel for CoS
eventtunnel0~7 0 6/6 Event/Control channel for CoS

Subgroup of network_qos_dscp (capability.protocol.qos.dscp > 0)

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
enable0 6/6 Enable/disable DSCP
video 0~630 6/6 Videochannel for DSCP
audio0~630 6/6 Audio channel for DSCP(capability.naudio > 0)	0 6/6 Audio channel for DSCP
eventalarm 0~630 6/6 Event/alarm channel for DSCP
management0~630 6/6 Management channel for DSCP
eventtunnel0~630 6/6 Event/Control channel for DSCP

7.6.3 IPV6

Subgroup of network_ipv6 (capability.protocol.ipv6 > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	6/6	Enable IPv6.
addonipaddress			6/6	IPv6 IP address.
addonprefixlen	0~128 64	6/6 IPv6 prefix length.
addonrouter			6/6	IPv6 router address.
addondns			6/6	IPv6 DNS address.
allowoptional		0	6/6	Allow manually setup of IP address setting.

7.6.4 FTP

Subgroup of network_ftp

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
port 21, 1025~65535	21 6/6 Local ftp server port.

7.6.5 HTTP

Subgroup of network_http

NAME VALUE DEFAULT	SECURITY		(get/set)	DESCRIPTION
port 80, 1025 ~	65535	80 1/6 HTTP port.
alternateport 1025~6	5535 8080	6/6 Alternate HTTP port.
authmode	basic,digest	basic	1/6 HTTP authentication mode.
s0_accessname	string[32]	video.mjpg	1/6	HTTP server push access name for stream 1.(capability.protocol.spush_mjpeg =1 and capability.nmediastream >0)
s1_accessname	string[32] video2.mjpg 1/6 HTTP server push			access name for stream 2.(capability.protocol.spush_mjpeg =1 and capability.nmediastream >1)
s2_accessname	string[32] video3.mjpg 1/6 Http server push			access name for stream 3(capability.protocol.spush_mjpeg =1 and capability.nmediastream >2)
s3_accessname	string[32] video4.mjpg 1/6 Http server push			access name for stream 4(capability.protocol.spush_mjpeg =1 and capability.nmediastream >3)
s4_accessname	string[32]	videoany.mjpg	1/6	Http server push access name for stream 5(capability.protocol.spush_mjpeg =1 and capability.nmediastream >4)For some models, it is used for anystream.(capability.protocol.spush.mjpeg = 1 and capability.nanystream = 1)
anonymousviewing <boolean> 0 1/6 Enable anoymous streaming viewing.

7.6.6 HTTPS port

Subgroup of network_https (capability.protocol.https > 0)

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
port 443, 1025 ~65535	443 1/6 HTTPS port.

7.6.7 RTSP

Subgroup of network_rtsp (capability.protocol.rtsp > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port	554, 1025 ~ 65535	554	1/6	RTSP port. (capability.protocol.rtsp=1)
anonymousviewing		0	1/6	Enable anonymous streaming viewing.
authmode	disable, basic, digest	disable	1/6	RTSP authentication mode. (capability.protocol.rtsp=1)
s0_accessname	string[32]	live.sdp	1/6	RTSP access name for stream1. (capability.protocol.rtsp=1 and capability.nmediastream > 0)
s1_accessname	string[32]	live2.sdp	1/6	RTSP access name for stream2. (capability.protocol.rtsp=1 and capability.nmediastream > 1)
s2_accessname	string[32]	live3.sdp	1/6	RTSP access name for stream3 (capability.protocol.rtsp=1 and capability.nmediastream > 2)
s3_accessname	string[32]	live4.sdp	1/6	RTSP access name for stream4 (capability.protocol.rtsp=1 and capability.nmediastream > 3)
S4_accessname	string[32]	liveany.sdp	1/6	RTSP access name for stream5 (capability.protocol.rtsp=1 and capability.nmediastream > 4) For some models, it is used foranystream.(capability.protocol.rtsp=1 and capability.nanystream = 1)
s0_audiotrack	-1 6/6 Enable	audio for stream1.
s1_audiotrack	-1 6/6 Enable	audio for stream2.
s2_audiotrack	-1 6/6 Enable	audio for stream3.
s3_audiotrack	-1 6/6 Enable	audio for stream4.
S4_audiotrack	-1 6/6 Enable	audio for stream5.

7.6.7.1 RTSP multicast

Subgroup of network_rtsp_s<0\~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0)

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
alwaysmulticast <boolean> 0 4/4 Enable always multicast.
ipaddress		For n=0,239.128.1.99For n=1,239.128.1.100,and so on.	4/4 Multicast IP address.
videoport	1025 ~ 65535	5560+n*4	4/4 Multicast video port.
audioport <product dependent>	1025 ~ 65535	5562+n*4	4/4 Multicast audio port.(capability.naudio > 0)
ttl	1 ~ 255	15	4/4 Multicast time to live value.

7.6.8 SIP port

Subgroup of network_sip (capability.protocol.sip> 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port	1025 ~ 65535	5060	1/6	SIP port.

7.6.9 RTP port

Subgroup of network_rtp

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
videoport 1025 ~ 65535 5556 6/6 Video channel port for RTP.			(capability.protocol.rtp_unicast=1)
audiport 1025 ~ 65535 5558 6/6 Audio channel port for RTP.			(capability.protocol.rtp_unicast=1)

7.6.10 PPPoE

Subgroup of network_pppoe (capability.protocol.pppoe > 0)

NAME VALUE DEFAULT	SECURITY		(get/set)	DESCRIPTION
user	string[128]		6/6	PPPoE account user name.
pass	password[64]		6/6	PPPoE account password.

7.7 IP Filter

Group: ipfilter

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
enable0 6/6 Enable access list filtering.
admin_enable0 6/6 Enable administrator IP				address.
admin_ip String[43]6/6 Administrator IP address.
maxconnection 0~10 10 6/6 Maximum number of				concurrent streaming connection(s).
type	0, 1	1	6/6	Ipfilter policy :0 => allow1 => deny
ipv4list_i<0~9>	Single address:<ip address>Network address:<ip address / network mask>Range address:<start ip address - end ip address>		6/6	IPv4 address list.
ipv6list_i<0~9>	String[43]		6/6	IPv6 address list.

7.8 Video input

Group: videoin

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
cmosfreq	50, 60	60	4/4	CMOS frequency. (capability.videoin.type=2)
color	0, 1	1 4/4	0 =>monochrome 1 => color
flip		0	4/4	Flip the image.
mirror		0	4/4	Mirror the image.
ptzstatus2 1/7 A 32-bit integer, each bit can be set				separately as follows:Bit 0 => Support camera control function; 0(not support), 1(support)Bit 1 =>Built-in or externalcamera; 0 (external), 1(built-in)Bit 2 => Support pan operation;0(not support), 1(support)Bit 3 => Support tilt operation;0(not support), 1(support)Bit 4 => Support zoom operation;0(not support), 1(support)Bit 5 => Support focus operation;0(not support), 1(support)
text string[64]> 1/4 Enclose caption.
imprinttimestamp0 4/4 Overlay time stamp on video.
enableblc 0~1 0 4/4	Enable backlight compensation			(exposurecontrol => auto with IRCut)
agc	1~12(6db~28db)	12 4/4 Set auto gain contro		to normal levelor MAX level.

7.8.1 Video input setting per channel

Group: videoin_c<0\~(n-1)> for n channel products, and m is stream number

NAME	VALUE	DEFAULT	SECURITY(get/set)	DESCRIPTION
cmosfreq	50, 60	60	4/4	CMOS frequency.(capability. videoin.type=2)
whitebalance	outdoor, indoor, widerange, sodium, rbgain,	outdoor	4/4	"outdoor" outdoor application "indoor" indoor application "widerange" light temperature range 2000 to 10000K."sodium" sodium vapor lamps."rbgain" manual set rgain/bgain
zoomratiodisplayfixvalenable 0~2 0 4/4 indicates keep current value.	0, 1	1	4/4	0: Do not display zoom ratio1: Display zoom ratio0: disable, 1: enable,2: trigger/get current value
rgain 0~100 30 4/4 Manual set rgain value of gain				control setting.
bgain 0~100 30 4/4 Manual set bgain value of gain				control setting.
color 0, 1 1 4/4 0 =>monochrome				1 => color
flip <boolean> 0 4/4 Flip the image.
mirror <boolean> 0 4/4 Mirror the image.
ptzstatus		2	1/7	A 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function; 0(not support), 1(support)Bit 1 =>Built-in or external camera; 0 (external), 1(built-in)Bit 2 => Support pan operation; 0(not support), 1(support)Bit 3 => Support tilt operation; 0(not support), 1(support)Bit 4 => Support zoom operation; 0(not support), 1(support)Bit 5 => Support focus operation; 0(not support), 1(support)
text	string[64]		1/4	Enclose caption.
imprinttimestamp		0 4/4 Overlay time stamp on video.
options	quality,framerate	quality	1/4 Video input option:(1) Full HD (MAX1080P 30fps)(product dependent)(2) Exceptional frame rate(720P 60fps)
enablepreview		0 1/4 Usage for UI of exposure	exposure	settings. Preview settings of video profile.
s0_codedtype	mpeg4, mjpeg,h264,svc	h264	1/4	Video codec type.
s<1~(m-1)>_codectype mpeg4, mjpeg,h264,svc	h264 1/4 Video codec type.
s<0~(m-1)>_resolution Reference capability_vide oin_resolution	s0: D1,s1: 4CIF,s2: 4CIF,s3: D1	1/4 Video resolution in pixels.
s<0~(m-1)>_mpeg4_intrap period	250, 500,1000, 2000,3000, 4000	1000 4/4 Intra frame period in milliseconds.
s0_mpeg4_maxvbrbitrate	1000~40000000	40000000 4/4 Mpeg4 max vbr bitrate
s<0~(m-1)>_mpeg4_prioritypolicy	framerate,imagequality	s0: framertes1: framerates2: imagequalitys3: imagequality	4/4 The policy to apply when the target bit rate is not sufficient to satisfy current encoded conditions."framerate" indicates frame rate first."imagequality" indicates image quality first.
s<0~(m-1)>_mpeg4_ratecontrolmode	cbr, vbr s0: cbr	s1: cbrs2: cbrs3: cbr	4/4 cbr, constant bitratevbr, fix quality
s<0~(m-1)>_mpeg4_quant	1~599, 100	3 4/4 Quality of video when choosingvbr in "ratecontrolmode".99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_mpeg4_qvalue	2~31 7	4/4 Manual video quality level input.(s<0~(m-1)>_mpeg4_quant = 99)
s<0~(m-1)>_mpeg4_qpercent	1~100 29	4/4 Manual video quality level input.(s<0~(m-1)>_mpeg4_quant =
				100)
s<0~(m-1)>_mpeg4_bitrate	1000~16000000s0: 3000000s1: 3000000s2: 512000s3: 30000004/4 Setbit rate in bps when choosing cbr in "ratecontrolmode".	s0: 3000000s1: 3000000s2: 512000s3: 3000000	4/4 Set	bit rate in bps when choosing cbr in "ratecontrolmode".
s<0~(m-1)>_mpeg4_maxframe	1~25(pal)1~30(ntsc)	s0: 25/30s1: 25/30s2: 15s3: 25/30	1/4 Set	maximum frame rate in fps (for MPEG-4).
s0_svc_intraperiod 250, 500,	1000, 2000,3000, 4000	4000 4/4 Intra frame period in milliseconds.
s0_svc_svclayer	3	3	1/4	SVC temporal layer.
s0_svc_svcsyntax	0~1	0	1/4	Enable SVC syntax or not.
s0_svc_maxvbrbitrate	1000~40000000	40000000 4/4 SVC max vbr	bitrate
s0_svc_prioritypolicy framerate, imagequalityimagequality4/4The policy to apply when the target bit rate is not sufficient to satisfy current encoded conditions."framerate" indicates frame rate first."imagequality" indicates image quality first.	imagequality	imagequality	4/4	The policy to apply when the target bit rate is not sufficient to satisfy current encoded conditions."framerate" indicates frame rate first."imagequality" indicates image quality first.
s0_svc_ratecontrolmode cbr, vbr cbr4/4 cbr, constant bitratevbr, fix quality	vbr cbr	4/4 cbr, constant bitrate		vbr, fix quality
s0_svc_quant	1~599, 100	3 4/4 Quality of video when choosingvbr in "ratecontrolmode".99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s0_svc_qvalue	0~51	31	4/4	Manual video quality level input.(s<0~(m-1)>_svc_quant = 99)
s0_svc_qpercent	1~100	44	4/4	Manual video quality level input.(s<0~(m-1)>_svc_quant = 100)
s0_svc_bitrate	1000~16000000	3000000 4/4 Set bit rate in bps when choosing cbr in
				"ratecontrolmode".
s0_svc_maxframe	1~25(pal)1~30(ntsc)	25/30 1/4 Set max	maximum frame rate in fps(forsvc).
s0_svc_profile	0~2	1	1/4	Indicate SVC profiles0: baseline1: main profile2: high profile
s<0~(m-1)>_h264_intraperiod	250, 500,1000, 2000,3000, 4000	1000 4/4 Intra frame period		in milliseconds.
s<0~(m-1)>_h264_maxvbr bitrate	1000~40000000	40000000 4/4 SVC max vbr		bitrate
s<0~(m-1)>_h264_prioritypolicy	framerate,imagequality	s0: frameres1: framerates2: imagequalitys3: imagequality	4/4 The	policy to apply when the target bit rate is not sufficient to satisfy current encoded conditions."framerate" indicates frame rate first."imagequality" indicates image quality first.
s<0~(m-1)>_h264_ratecont rolmode	cbr, vbr s0: cbr	s1: cbrs2: cbrs3: cbr	4/4 cbr,	constant bitratevbr, fix quality
s<0~(m-1)>_h264_quant	1~5,99, 100	3 4/4 Quality of video when		choosingvbr in "ratecontrolmode".99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_h264_qvalue	0~51	31	4/4	Manual video quality level input.(s<0~(m-1)>_svc_quant = 99)
s<0~(m-1)>_h264_qpercent	1~100 44 4/4 Manual video quality level input.(s<0~(m-1)>_svc_quant = 100)
s<0~(m-1)>_h264_bitrate	1000~16000000	s0: 3000000s1: 3000000s2: 512000s3: 3000000	4/4 Set	bit rate in bps when choosing cbr in "ratecontrolmode".
s<0~(m-1)>_h264_maxframe	1~25(pal)1~30(ntsc)	s0: 25/30s1: 25/30s2: 15s3: 25/30	1/4 Set	maximum frame rate in fps (for svc).
s<0~(m-1)>_h264_profile	0~2	1	1/4	Indicate SVC profiles0: baseline1: main profile2: high profile
s<0~(m-1)>_mjpeg_priority policy	framerate, imagequality	s0: frameres1: frameres2: imagequalitys3: imagequality	4/4 The	policy to apply when the target bit rate is not sufficient to satisfy current encoded conditions."framerate" indicates frame rate first."imagequality" indicates image quality first.
s<0~(m-1)>_mjpeg_maxvbrbitrate	1000~40000000	40000000 4/4 Jpeg	g max vbr	bitrate
s<0~(m-1)>_mjpeg_ratecontrolmode	cbr, vbr s0: vbr	s1: vbrs2: vbrs3: vbr	4/4 cbr,	constant bitratevbr, fix quality
s<0~(m-1)>_mjpeg_quant	1~5,99, 100	3 4/4 Quality of JPEG video		99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_mjpeg_qvalue	2~97 49 4/4 Manual video quality level input.(s<0~(m-1)>_mjpeg_quant = 99)
s<0~(m-1)>_mjpeg_qpercent	1~100 29 4/4 Manual video quality level input.(s<0~(m-1)>_mjpeg_quant = 100)
s<0~(m-1)>_mjpeg_maxframe	1~25(pal)1~30(ntsc)	s0: 25/30s1: 25/30s2: 15s3: 25/30	1/4 Set	maximum frame rate in fps (for JPEG).
s<0~(m-1)>_mjpeg_bitrate	1000~160000 s0: 6000000 4/4 Set bit rate in bps when
	00 s1: 6000000	s2: 512000s3: 6000000		choosing cbr in"ratecontrolmode".
s<0~(m-1)>_forcei 1 N/A 7/6 Force I frame.
daynight	auto,schedule, day,night	auto 4/4 auto => auto day nightnight => ircut filter on day => ircut filter off schedule => scheduled ircut filter
exposurecontrol 0~4 0 4/4	Select exposure mode.			0 => Auto with IRCut1 => Shutter priority2 => Iris priority3 => Manual mode4 => Quality mode
exposurelevel 0~12 6 4/4 Exposure level
agc	1~12(6db~28db)	12 4/4 Set auto gain control to normal level or MAX level.
enableblc 0~1 0 4/4 Enable	backlight compensation			(exposurecontrol => auto with IRCut)
shutterpriority 0~14 6 4/4 Exposure time				(exposurecontrol( => shutter priority)
irispriority	1~17SD83x4E:(F22~F1.4)SD83x6:(F28~F1.6)	13 4/4 Iris adjustment		(exposurecontrol => Iris priority)
irismanual	1~17SD83x4E:(F22~F1.4)SD83x6:(F28~F1.6)	13 4/4 Iris adjustment		(exposurecontrol => manual)
shutterspeed	0~14(1/1 ~1/10000)	5 4/4 Exposure time		(exposurecontrol => manual)
gain	0~15(0db ~ 28db)	1 4/4 Gain control		(exposurecontrol => manual)
wdr_mode	0~2 0 4/4 WDR enhanced.
				0: off1: manual2: auto
wdr_shadowcorrection 0~2 2	4/4 WDR strength			0: low1: medium2: high
wdr_shortexposure 1~64 32	4/4 Short exposure ratio			The higher the ratio (64x max.),the shorter the exposure time.(wdr_mode : 1)
wdr_sensitivity 0~2 0 4/4 WDR strength				0: low1: medium2: high(wdr_mode: 2)
eis 0~1	0 4/4	Stabilizer		0: off1: on(SD8332 only)

7.8.1.1 Alternative video input profiles per channel

In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).

Group: videoin_c0_profile_i<0\~(m-1)> (capability. nvideoinprofile > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	4/4	Enable/disable this profile setting
policy	day, night, schedule	night	4/4	The mode which the profile is applied to.
begintime	hh:mm	18:00	4/4	Begin time of schedule mode.
endtime	hh:mm	06:00	4/4	End time of schedule mode.
exposurecontrol	0~4	0	4/4	Select exposure mode.0 => Auto with IRCut1 => Shutter priority2 => Iris priority3 => Manual mode
exposurelevel	0~12	6	4/4	Exposure level

agc	1~12(6db~28db)	12 4/4 Set auto gain control	to normal levelor MAX level.
enableblc 0~1 0 4/4	Enable backlight compensation		(exposurecontrol => auto with IRCut)
shutterpriority 0~14	5 4/4 Exposure time		(exposurecontrol( => shutter priority)
irispriority	1~17SD83x4E:(F22~F1.4)SD83x6:(F28~F1.6)	13 4/4 Iris adjustment	(exposurecontrol => Iris priority)
irismanual 1~17	SD83x4E:(F22~F1.4)SD83x6:(F28~F1.6)	13 4/4 Iris adjustment	(exposurecontrol => manual)
shutterspeed	0~14(1/1 ~ 1/10000)	5 4/4 Exposure time	(exposurecontrol => manual)
gain	0~15(0db ~ 28db)	1 4/4 Gain control	(exposurecontrol => manual)
whitebalance outdoor, indoor, widerange, sodium, rbgain,	outdoor 4/4	"auto" indicates	auto white balance."manual" indicates keep current value.
rgain 0~100	30 4/4 Manual set rgain value of gain		control setting.
bgain	0~100	30 4/4 Manual set bgain value of gain	control setting.
wdr_mode	0~2 0 4/4 WDR enhanced.		0: off1: manual2: auto
wdr_shadowcorrection	0~2 2 4/4 WDR strength		0: low1: medium2: high
wdr_shortexposure	1~64 32 4/4 Short exposure ratio

				The higher the ratio (64x max.), the shorter the exposure time.(wdr_mode : 1)
wdr_sensitivity 0~2 0	4/4 WDR strength			0: low1: medium2: high(wdr_mode: 2)
eis	0~1	0		4/4 Stabilizer0: off1: on(SD8332 only)
daynight	auto,schedule,day,night	auto 4/4 auto => auto daynightnight => ircut filter onday => ircut filter offschedule => scheduled ircut filter

7.10 IR cut control

Group: ircutcontrol (capability.nvideoinprofile > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
updateinterval	1~10	5	6/10	Update IR cut status interval
daymodebegintime	00:00~23:59	07:00	6/6	Day mode begin time
daymodeendtime	00:00~23:59	18:00	6/6	Day mod end time
sensitivity	0~28	8	6/6	Sensitivity of IR cut filter

7.10.1 Alternative IR cut control profiles

Group: ircutcontrol _profile

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
profilestatus	0 6/6 Enable/disable this profile setting

Group: ircutcontrol _profile_i<0\~(m-1)>(capability. nvideoinprofile > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
mode	auto, schedule, day,	night	6/6 Active mode of this profile
	night
daymodebegintime 00:00~23:59 07:00		6/6 Day mode	begin time
daymodeendtime 00:00~23:59 18:00 6/6 Day mod end time
sensitivity 0~28 8 6/6 Sensitivity of IR cut filter

7.11 Image setting per channel

Group: image_c<0\~(n-1)> for n channel products

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
brightness	-5~5	-5	4/4	Adjust brightness of image according to mode settings.
saturation	-5~5, 100	100	4/4	Adjust saturation of image according to mode settings. 100 for saturation percentage mode.
saturationpercent	0~100	50	4/4	Adjust saturation value of percentage when saturation=100
contrast	-5 ~ 5	0	4/4	Adjust contrast of image according to mode settings.
sharpness	-3~3,100	100	4/4	Adjust sharpness of image according to mode settings.
sharpnesspercent	0~100	50	4/4	Adjust sharpness value of percentage when sharpness=100
hightvline	0,1	0	4/4	High TV line
gammacurve	0~100	0	4/4	Gamma curve
highsensitivity	0,1	1	4/4	High sensitivity
profile_i0_enable		0	4/4	Enable/disable this profile setting
profile_i0_policy	day, night, schedule	night	4/4	The mode which the profile is applied to.
profile_i0_begintime	hh:mm	18:00	4/4	Begin time of schedule mode.
profile_i0_endtime	hh:mm	06:00	4/4	End time of schedule mode.
profile_i0_brightness	-5~5	-5	4/4	Adjust brightness of image according to mode settings.
profile_i0_saturation	-5~5, 100	100	4/4	Adjust saturation of imageaccording to mode settings.100 for saturation percentage mode.
profile_i0_saturationpercent	0~100 50 4/4 Adjust saturation value of			percentage whensaturation=100
profile_i0_contrast -5 ~ 5 0	4/4 Adjust contrast of image			according to mode settings.
profile_i0_sharpness -3~3,1	00 100 4/4 Adjust sharpness of image			according to mode settings.
profile_i0_sharpnesspercent	0~100 50 4/4 Adjust sharpness value of			percentage whensharpness=100
profile_i0_hightvline 0,1 0	4/4 High TV line
profile_i0_gammacurve 0~1	00 0 4/4 Gamma curve

7.12 Image setting for preview

Group: imagepreview_c<0\~(n-1)> for n channel products

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
brightness -5~5 -5	4/4 Adjust brightness of image		according to mode settings.
saturation -5~5,100	100 4/4 Adjust saturation of image		according to mode settings.100 for saturation percentage mode.
saturationpercent 0~	100 50 4/4 Adjust saturation value of		percentage whensaturation=100
contrast	-5 ~ 5 0	4/4 Adjust contrast of image	according to mode settings.
sharpness -3~3,100	0	4/4 Adjust sharpness of image	according to mode settings.
sharpnesspercent	0~100 50 4/4 Adjust sharpness value of		percentage whensharpness=100
gammacurve	0~100 0	4/4 Gamma curve
hightvline	0,1	0	4/4 High TV line
highsensitivity	0,1	1	4/4 High sensitivity

Group: imagepreview

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
videoin_whitebalance	outdoor, indoor, widerange, sodium, rbgain,	outdoor	4/4	Preview of adjusting white balance of image according to mode settings
videoin_restoreatwb	1~	0	4/4	Restore of adjusting white balance of image according to mode settings
videoin_rgain	0~100	0	4/4	Manual set rgain value of gain control setting.
videoin_bgain	0~100	0	4/4	Manual set bgain value of gain control setting.

7.13 Audio detection settings

Group: audioin_c<0\~(n-1)> for n channel products (capability.audioin>0)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
alarm_enable 0, 1 0 4/4 Enable audio detection
alarm_level 1~100 50 4/4 Audio detection alarm level
profile_i0_enable <boolean> 0 4/4 Enable/disable this profile setting
profile_i0_policy day, night, schedule	night 4/4 The mode which the profile is applied to.
profile_i0_begintime hh:mm	18:00	4/4	Begin time of schedule mode.
profile_i0_endtime hh:mm	06:00	4/4	End time of schedule mode.
profile_i0_alarm_level 1~100 50 4/4 Audio detection alarm level

7.14 Audio input per channel

Group: audioin_c<0\~(n-1)> for n channel products (capability.audioin>0)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
source	linein	linein	4/4	micin => use built-in microphone input.linein => use external microphone input.
mute	0, 1 1 1/4 Enable audio mute.
gain	1~100 69 4/4 Gain of input.			(audioin_c<0~(n-1)>_source = linein)
boostmic	1~100 69 4/4 Gain of build-in mic.			dependent>
s<0~(m-1)>_codectype	aac4, gamr, g711, g726	aac4	4/4 Set audio	codec type for input.
s<0~(m-1)>_aac4_bitrateproduct dependent>	16000,32000,48000,64000,96000,128000	16000	4/4 Set AAC4	bitrate in bps.

s<0~(m-1)>_gamr_bitrateproduct dependent>	4750,5150,5900,6700,7400,7950,10200,12200	12200 4/4 Set AMR bitrate in bps.
s<0~(m-1)>_g726_bitrateproduct dependent>	16000,24000,32000,40000	32000 4/4 Set G.726 bitrate in bps.
s<0~(m-1)>_g711_modeproduct dependent>	pcmu,pcma	pcmu 4/4 Set G.711 mode.

7.15 Time Shift settings

Group: timeshift, c for n channel products, m is stream number (capability.timeshift > 0)

NAME VALUE DEFAULT	1		(get/set)	DESCRIPTION
enable	0 4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(m-1)>_allow	0 4/4 Enable time shift streaming for specific stream.

7.16 Motion detection settings

Group: motion_c<0\~(n-1)> for n channel product

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	4/4	Enable motion detection.
win_i<0~2>_enable		0	4/4	Enable motion window 1~3.
win_i<0~2>_name	string[14]		4/4	Name of motion window 1~3.
win_i<0~2>_left	0 ~ 320	0	4/4	Left coordinate of window position.
win_i<0~2>_top	0 ~ 240	0	4/4	Top coordinate of window position.
win_i<0~2>_width	0 ~ 320	0	4/4	Width of motion detection window.
win_i<0~2>_height	0 ~ 240	0	4/4	Height of motion detection window.
win_i<0~2>_objsize	0 ~ 100	0	4/4	Percent of motion detection window.
win_i<0~2>_sensitivity	0 ~ 100	0	4/4	Sensitivity of motion detection window.

Group: motion_c<0\~(n-1)> profile for m profile and n channel product (capability.nmotionprofile > 0)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
i<0~(m-1)>_enable0 4/4	Enable profile 1 ~ (m-1).
i<0~(m-1)>_policy	day,night,schedule	night 4/4	The mode which the profile is applied to.
i<0~(m-1)>_begintime hh:mm 18:00	4/4 Begin time of schedule			mode.
i<0~(m-1)>_endtime	hh:mm	06:00	4/4	End time of schedule mode.
i<0~(m-1)>_win_i<0~2>_enable	0	4/4 Enable	motion window.
i<0~(m-1)>_win_i<0~2>_name	string[14]		4/4	Name of motion window.
i<0~(m-1)>_win_i<0~2>_left	0 ~ 320	0	4/4	Left coordinate of window position.
i<0~(m-1)>_win_i<0~2>_top 0 ~ 240	0 4/4 Top coordinate of window			position.
i<0~(m-1)>_win_i<0~2>_width 0 ~ 320	0 4/4	Width of motion detection		window.
i<0~(m-1)>_win_i<0~2>_height	0 ~ 240	0	4/4	Height of motion detection window.
i<0~(m-1)>_win_i<0~2>_objsize	0 ~ 100	0	4/4	Percent of motion detection window.
i<0~(m-1)>_win_i<0~2>_sensitivity	0 ~ 100	0	4/4	Sensitivity of motion detection window.

7.17 Tempering detection settings

Group: tampering_c<0\~(n-1)> for n channel product (capability.tampering > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	4/4	Enable or disable tamper detection.
threshold	0 ~ 255	32	1/7	Threshold of tamper detection.
duration	10 ~ 600	10	4/4	If tampering value exceeds the 'threshold' for more than 'duration' second(s), then tamper detection is triggered.

7.18 DDNS

Group: ddns (capability.ddns > 0)

NAME VALUE	DEFAULT SECURITY		(get/set)	DESCRIPTION
enable0 6/6 Enable or disable the dynamic DNS.
provider	CustomSafe100,DynInterfree,DyndnsCustom,DyndnsDynamic,Safe100,	DyndnsDynamic	6/7 Safe100 => safe100.netDyndnsDynamic => dyndns.org (dynamic)DyndnsCustom => dyndns.org (custom)DynInterfree =>dyn-interfree.itCustomSafe100 =>Custom server using safe100 methodPeanutHull => PeanutHullIODATA => iodata.jpDO JP => ddo.jpMYDNS JP => mydns.jpCustomizeddyndns => Custom server using dyndns methodDP21 => dp-21.netNetHome => NetHome Co.,LtdADAMA LAND => non-functional service providerAddress.net => non-functional service providerLuna_VC => cybergate ddnsMars_VC => cybergate ddnsPlanex_VC => cybergate ddnsSun_VC => cybergate ddnsNexus_Control => nexus controlDO_JP_FREE => dp-21.net (free)Epolice => epolice.com.twPCCW => pccw.comMegaChips => megachips.co.jpDlink =>D-LINKDlinkCN => D-LINK CNLogitec => logitec.co.jpGE_Security =>GE SecurityHUAGAI => huagai.com
				3322 => 3322.netALARM => alarm.comChangeIP => TOSHIBANOIP => TOSHIBASWISSCOM =>swiss.comCustomizedTZO => Customized server using TZO method
	_string[128]	6/6 Your DDNS hostname.
	string[64]	6/6 Your user name or email	to login to theDDNS service provider
	string[64]	6/6 Your password or key to	login to theDDNS service provider.
	string[128]	6/6 The server name for safe	100.(This field only exists if the provider is customsafe100)

7.19 Express link

Group: expresslink

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
enable <boolean> 0 6/6 Enable or disable express link.
state	onlycheck, onlyoffline, checkonline, badnetwork	badnetwork 6/6 Camera will		check the status of network environment and express link URL
url string[63] NULL 6/6 The url user define to link to camera

7.20 UPnP presentation

Group: upnppresentation

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable	1 6/6	Enable or disable the UPnP presentation service.

7.21 UPnP port forwarding

Group: upnpportforwarding

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	6/6	Enable or disable the UPnP port forwarding service.
upnpnatstatus	0~3	0	6/7	The status of UPnP port forwarding, used internally.0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding

7.22 System log

Group: syslog

NAME VALUE DEFAULT SECURITY		(get/set)	DESCRIPTION
enableremotelog0 6/6 Enable remote log.
serverip6/6 Log server IP address.
serverport	514,1025~65535	514 6/6 Server port used for log.
level 0~7 6 6/6 Levels used to distinguish the			importance of the information:0: LOG_EMERG1: LOG_ALERT2: LOG_CRIT3: LOG_ERR4: LOG_WARNING5: LOG_NOTICE6: LOG_INFO7: LOG_DEBUG
setparamlevel	0~2 0 6/6 Show	log of parameter setting.	0: disable1: Show log of parameter setting set from external.2. Show log of parameter setting set from external and internal.

7.23 camera PTZ control

Group: camctrl_c<0\~(n-1)> for n channel product (capability.ptzenabled)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
ccdtype	string[16]	product dependent	6/7	56 : SD8314E57 : SD8324E50 : SD8316E51 : SD8326E
motortype	string[16]	0324	6/7	Firmware version of motor driver
panspeed -5 ~ 5	0	1/4	Pan speed
tiltspeed	-5 ~ 5	0	1/4	Tilt speed
zoomspeed	-5 ~ 5	0	1/4	Zoom speed

autospeed -5 ~ 5 0 1/4 Auto pan speed
focusspeed -5 ~ 5 0 1/4 Auto focus speed
preset_i<0~(npreset-1)>_name	string[40] <blank> 1/4 Name of the preset location.
preset_i<0~(npreset-1)>_pan	0 ~ 7999 <blank> 1/4 Pan position at each preset location.
preset_i<0~(npreset-1)>_tilt	0 ~ 2445 <blank> 1/4 Tilt position at each preset location.
preset_i<0~(npreset-1)>_zoom	0 ~ 16384 <blank> 1/4 Zoom position at each preset location.
preset_i<0~(npreset-1)>_focus	4096 ~ 49152 <blank> 1/4 Focus position at each preset location.
preset_i<0~(npreset-1)>_fliped	0,1 <blank> 1/4 Flip side at each preset location.
patrol_i<0~39>_name	string[40] <blank> 1/4 (For internal device)		The name of patrol location
patrol_i<0~39>_dwelling	0 ~ 255 <blank> 1/4 (For internal device)		The dwelling time of each patrol location
disablemdonptz <boolean> 1 1/4 Disable motion detection on PTZ operation.
defaulthome		1	1/4 This field tells system to use default home position or not.
axisx	0 ~ 7999 0 1/4 Custom home pan position.
axisy	0 ~ 2445 0 1/4 Custom home tilt position.
axisz	0 ~ 16384 0 1/4 Custom home zoom position.
axisf	4096 ~ 49152 4096 1/4 Custom home focus position.
axisflip	0,1 0 1/4 Custom home flip side.
returnhome	0,1 0 1/4 Enable/disable return home while idle.		idle.
returnhomeinterval	1~999	5	1/4 While idle over this time interval, idle action will be taken.
digitalzoom		0 1/4 Enable/disable digital zoom
idleaction_enable	0~1	1	1/4 Enable/disable idle action while idle
idleaction_type	home, prev	prev	1/4 This field tells what kind of action should be taken while idle.
idleaction_interval	1~999	5	1/4 While idle over this time interval, idle action will be taken.
horizontalalignment		0	1/4 Once you enable this feature, a

				reference line will be visible when the camera tilt is under 0° or over 180° to help verify that the camera is mounted to a flat surface.
osdzoom0	1/4 Show zoom	ratio text on video.
zoomenhance		0	1/4	Enable / Disable zoom enhancement

7.25 SNMP

Group: snmp (capability.snmp > 0)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
v2 0~1 0 6/6	SNMP v2 enabled. 0 for disable, 1 for			enable
v3 0~1 0 6/6	SNMP v3 enabled. 0 for disable, 1 for			enable
secnamerw	string[31]	Private	6/6	Read/write security name
secnamero	string[31]	Public	6/6	Read only security name
authpwrw	string[8~128]		6/6	Read/write authentication password
authpwro	string[8~128]		6/6	Read only authentication password
authtyperw	MD5,SHA	MD5	6/6	Read/write authentication type
authtypero	MD5,SHA	MD5	6/6	Read only authentication type
encryptpwrw	string[8~128]		6/6	Read/write passwd
encryptpwro	string[8~128]		6/6	Read only password
encrypttyperw	DES	DES	6/6	Read/write encryption type
encrypttypero	DES	DES	6/6	Read only encryption type
rwcommunity	string[31]	Private	6/6	Read/write community
rocommunity	string[31]	Public	6/6	Read only community
syslocation	0~128		6/6	System location
syscontact	0~128		6/6	System contact

7.26 Layout configuration

Group: layout (New version)

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
logo_default1 1/6	0 => Custom logo			1 => Default logo
logo_link	string[64]	w.vivotek.com	1/6 Hypotank of the logo
logo_powerbyvvtk_hidden		0 1/6 0 => display the		power by vivotek logo1 => hide the power by vivotek logo
custombutton_manualtrigger_show		1 1/6 Show or hide manual		trigger (VI) button in homepage0 -> Hidden1 -> Visible
theme_option 1~4 1 1/6 1~3: One of the default themes.				4: Custom definition.
theme_color_font	string[7]	#000000	1/6	Font color
theme_color_configfont	string[7]	#ffffff	1/6	Font color of configuration area.
theme_color_titlefont	string[7]	#098bd6	1/6	Font color of video title.
theme_color_controlbackground	string[7] #c4eaff 1/6 Background color of control area.
theme_color_configbackground	string[7]	#0186D1	1/6	Background color of configuration area.
theme_color_videobackground	string[7]	#c4eaff	1/6	Background color of video area.
theme_color_case	string[7]	#0186D1	1/6	Frame color

7.27 Privacy mask

Group: privacymask3d_c<0\~(n-1)> for n channel product

NAME VALUE DEFAULT	SECURITY		(get/set)	DESCRIPTION
enable0	4/4 Enable the 3D privacy mask
color 0~14 0 4/4 Privacy mask color
win_i<0~23>_name string[40]4/4 Name of the privacy mask window.
win_i<0~23>_pan	0 ~ 7999	0	4/4	Pan position of window position.
win_i<0~23>_tilt	0 ~ 2445	0	4/4	Tilt position of window position.
win_i<0~23>_zoom	0 ~ 16384	0	4/4	Zoom position of window position.
win_i<0~23>_fliped	0,1	0	4/4	Flip side of window position.
win_i<0~23>_width	0 ~ 80	0	4/4	Width of privacy mask window.
win_i<0~23>_height	0 ~ 60	0	4/4	Height of privacy mask window.

7.28 Capability

Group: capability

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
api_httpversion		0100a	0/7	The HTTP API version.
bootuptime		150	0/7	Server bootup time.
nir	0,	0 0/7	Number of	IR interfaces.(Recommend to use ir for built-in IR and extir for external IR)
npir	0,	0 0/7	Number of	PIRs.
ndi	0,	4 0/7	Number of	digital inputs.
nvi	0,integer>	3 0/7	Number of	virtual inputs(manual trigger)
ndo	0,	2 0/7 Number of digital outputs.
naudioin	0,	1 0/7 Number of audio inputs.
naudioout	0,	1 0/7 Number of audio outputs.
nvideoin		1 0/7 Number of video inputs.
nmediastream		4 0/7 Number of media stream per channels.
nvideosetting		2 0/7 Number of video settings per channel.
naudiosetting		1 0/7 Number of audio settings per channel.
nuart	0,	0 0/7 Number of UART interfaces.
nvideoinprofile		1 0/7 Number of video input profiles.
nmotionprofile 0,	integer>	1 0/7 Number of motion profiles.
nmotion 0,	integer>	3 0/7 Number of motion window.
ptzenabled 0,	integer>	63 0/7 An 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0(external), 1(built-in) Bit 2 => Support pan operation, 0(not support), 1(support) Bit 3 => Support tilt operation;
				0(not support), 1(support)Bit 4 => Support zoom operation;0(not support), 1(support)Bit 5 => Support focus operation;0(not support), 1(support)Bit 6 => Support iris operation;0(not support), 1(support)Bit 7 => External or built-in PT;0(built-in), 1(external)Bit 8 => Invalidate bit 1 ~ 7;0(bit 1 ~ 7 are valid),1(bit 1 ~ 7 are invalid)Bit 9 => Reserved bit;Invalidate lens_pan, Lens_tilt,lens_zoon, lens_focus, len_iris.0(fields are valid),1(fields are invalid)
evctrlchannel <boolean> 1 0/7 Indicate whether to support				HTTP tunnel for event/control transfer.
joystick <boolean> 1 0/7 Indicate whether to support				joystick control.
ptz_panspeedlv	<positive integer>	45 0/7 Indicate the maximum joystick pan speed support.
ptz_tiltspeedlv	<positive integer>	45 0/7 Indicate the maximum joystick tilt speed support.
ptz-zoomspeedlv	<positive integer>	8 0/7 Indicate the maximum joystick zoom speed support.
storage_dbenabled <boolean>	1 0/7 Media files are indexed in			database.
ptzenabledclient <boolean> 0	0/7 Indicate whether to support ptz			client
protocol_https <boolean> 1	0/7 Indicate whether to support			HTTP over SSL.
protocol_rtsp <boolean> 1	0/7 Indicate whether to support			RTSP.
protocol_sip	<boolean> 1 0/7 Indicate whether to support			SIP.

protocol_maxconnection		10 0/7 The maximum allowed integer	maximum allowed simultaneous connections.
protocol_maxgenconnection		10 0/7 The maximum general integer	streaming connections .
protocol_maxmegaconnection		0 0/7 The maximum megapixel integer	streaming connections.
protocol_rtp_multicast_ scalable		1 0/7 Indicate whether to support	scalable multicast.
protocol_rtp_multicast_ backchannel		0 0/7 Indicate whether to support	backchannel multicast.
protocol_rtp_tcp	1 0/7 Indicate whether to support		RTP over TCP.
protocol_rtp_http	1 0/7 Indicate whether to support		RTP over HTTP.
protocol_spush_mjpeg	1 0/7 Indicate whether to support		server push MJPEG.
protocol_snmp	1 0/7 Indicate whether to support		SNMP.
protocol_ipv6	1 0/7 Indicate whether to support		IPv6.
videoin_type 0, 1, 2 2 0/7 0 => Interlaced CCD			1 => Progressive CCD2 => CMOS
videoin_resolution	available resolution separated by commas><product dependent>	QCIF, CIF, 4CIF, D1	0/7 Available resolutions list.
videoin_maxframerate		30/25, 30/25, 30/25, 30/25,	0/7 Available maximum frame list.
videoin_codec	mpeg4, mjpeg, h264, svc	mpeg4, mjpeg, h264,	0/7 Available codec list.

	dependent>	svc
videoout_codec	available codec types separated by commas)	0/7	Available codec list.
audio_aec	0 0/7 Indicate whether to support		acoustic echo cancellation.
audio_extmic	1 0/7 Indicate whether to support		external microphone input.
audio_linein	1 0/7 Indicate whether to support		external line input.(It will be replaced by audio_mic and audio_extmic.)
audio_lineout	1 0/7 Indicate whether to support		line output.
audio_headphoneout	0 0/7 Indicate whether to support		headphone output.
audioin_codec aac4, gamr,	g711, g726	aac4, gamr, g711, g726	0/7 Available codec list for audio input.
audioout_codec	g711	0/7	Available codec list for SIP.
camctrl_httptunnel	0 0/7 Indicate whether to support		httptunnel.
camctrl_httptunnelclient	0 0/7 Indicate whether to support		httptunnel client.
camctrl_privilege	1 0/7 Indicate whether to support		"Manage Privilege" of PTZ control in the Security page.1: support both/cgi-bin/camctrl/camctrl.cgi and/cgi-bin/viewer/camctrl.cgi0: support only/cgi-bin/viewer/camctrl.cgi
uart_httptunnel0	0/7 Indicate whether to support		HTTP tunnel for UART transfer.
transmission_mode	Tx,Rx,Both	Tx 0/7 Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
network_wire10/7 Indicate whether to support			Ethernet.
derivative_brand0 0/7 Indicate whether to support			the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX. (TCVV<->TCXX is excepted)
npreset 0,,integer>		256 0/7 Number of preset locations
eptz 0,,integer>		0 0/7 A 32-bit integer, each bit can be set separately as follows: Bit 0 => stream 1 supports ePTZ or not. Bit 1 => stream 2 supports ePTZ or not. The rest may be deduced by analogy
nanystream	0,,1 0/7 number of any media stream per channel	1 0/7 number of any media stream per channel
iva	0 0/7 Indicate whether to support Intelligent Video analysis	Indicate whether to support
tampering	0 0/7 Indicate whether to support tampering detection.	Indicate whether to support
test_ac	1 0/7 Indicate whether to support test ac key.	Indicate whether to support
version_onvifdaemon		1.7.1.3	0/7 Indicate ONVIF daemon version
localstorage_manageable	1 0/7 Indicate whether to manageable local storage is supported.	Indicate whether to manageable
localstorage_seamless	1 0/7 Indicate whether to manageable recording is supported.	Indicate whether to manageable
localstorage_modnum	0,,40/7 The maximum MOD connection numbers.	4	0/7 The maximum MOD connection numbers.

	integer>
localstorage_slconnum		1 0/7 Seamless connection number.
adaptiverecording	0 0/7 Indicate whether to support			adaptive recording.
adaptivestreaming	0 0/7 Indicate whether to support			adaptive streaming.

7.29 Customized event script

Group: event_customtaskfile_i<0\~2>

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
name string[40] <blank> 6/6 Custom script identification of this entry.
date string[4~20] <blank> 6/6 Date of custom script.
time string[4~20] <blank> 6/6 Time of custom script.

7.30 Event setting

Group: event_i<0\~2>

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
name	string[40]		6/6	Identification of this entry.
enable	0, 1	0	6/6	Enable or disable this event.
priority	0, 1, 2	1	6/6	Indicate the priority of this event:"0" = low priority"1" = normal priority"2" = high priority
delay	1~999	10 6/6 Delay in seconds before detecting the next event.
trigger	boot, di, motion, seq, recnotify, volalarm, vi	boot	6/6 Indicate	the trigger condition:"boot" = System boot"di" = Digital input"motion" = Video motion detection"seq" = Periodic condition"recnotify" = Recording notification."volalarm" = Audio detection."vi" = Virtual input.
triggerstatus String[40]	trigger 6/6 The status for event trigger
extriggerstatus String[40]	6/6 The status for event trigger
extriggerstatus1 String[40]	6/6 The status for event trigger
extriggerstatus2 String[40]	6/6 The status for event trigger
extriggerstatus3 String[40]	6/6 The status for event trigger
di 0~15 1 6/6 Indicate the source id of di trigger.				This field is required when trigger condition is "di".One bit represents one digital input. The LSB indicates DI 0.
mdwin 0~7 0 6/6 Indicate the source window id of motion				detection.This field is required when trigger condition is "md".One bit represents one window.The LSB indicates the 1^st window.For example, to detect the 1^st and 3^rd windows, set mdwin as 5.
mdwin0	0~7 0 6/6 Similar to mdwin. The parameter takes effect when profile 1 of motion detection is enabled.
valevel		0 6/6 Enable/Disable audio detect.
valevel0		0	6/6	Enable/Disable audio detect profile.
vi 0~7 0 6/6 Indicate the source id of vi trigger.				This field is required when trigger condition is "vi".
inter	1~999 1 6/6 Interval of snap shots in minutes. This field is used when trigger condition is "seq".
weekday 0~127 127 6/6	Indicate which	weekday is scheduled.		One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm 00:00	6/6 Begin time of the weekly schedule.
endtime	hh:mm	24:00	6/6 End time of the weekly schedule.(00:00 ~ 24:00 sets schedule as always on)
action_do_i<0~(ndo-1)>_enable	0, 1 0 6/6 Enable or disable trigger digital output.
action_do_i<0~(ndo-1)>_duration	1~999 1 6/6 Duration of the digital output trigger in seconds.
action_goto_enable	0 6/6 Enable/disable ptz goto preset positionon event triggered.
action_goto_name	string[40]	6/6	Specify the preset name that ptz goto on event triggered.
action_goto_sync	0 6/6 Capture media after moving to the location
action_cf_enable	0 6/6 Enable or disable sending media to SD card.
action_cf_folder	string[128]	6/6	Path to store media.
action_cf_media	0~4, 101	6/6	Index of the attached media.
action_cf_datefolder	1 6/6 Enable this to create folders by date, time, and hour automatically.
action_cf_backup	0 6/6 Enable or disable the function that send media to SD card for backup if network is disconnected.
action_server_i<0~4>_enable	0, 1 0 6/6 Enable or disable this server action.
action_server_i<0~4>_media	0~4, 101	6/6 Index of the attached media.

action_server_i<0~4>_datefolder		0	6/6 Enable this	to create folders	ers by date, time, and hour automatically.
action_patrol_enable(only for VS series)		0	6/6 Enable/disable	ptz patrol	when event triggered.
action_patrol_server(only for VS series)	0~255 0 6/6		Indicate the target servers to		which the snapshots taken during patrol dwelling time should be sent.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.

7.31 Server setting for event action

Group: server_i<0\~4>

PARAMETER VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type	email,ftp,http,ns	email 6/6 Indicate the server type:"email" = email server"ftp" = FTP server"http" = HTTP server"ns" = network storage
http_url	string[128]	http://	6/6	URL of the HTTP server to upload.
http_username	string[64]	NULL	6/6	Username to log in to the server.
http_passwd	string[64] NULL 6/6 Password of the user.
ftp_address	string[128]	NULL 6/6 FTP server address.
ftp_username	string[64]	NULL	6/6	Username to log in to the server.
ftp_passwd	string[64] NULL 6/6 Password of the user.
ftp_port	0~65535	21	6/6	Port to connect to the server.
ftp_location	string[128]	NULL	6/6	Location to upload or store the media.
ftp_passive 0, 1 1 6/6	Enable or disable	passive mode.		0 = disable passive mode1 = enable passive mode
email_address string[128]	NULL 6/6	Email server address.
email_sslmode 0, 1 0 6/6	Enable support SSL.
email_port 0~65535 25	6/6	Port to connect to the server.
email_username string[64]	NULL 6/6	Username to log in to the server.
email_passwd string[64]	NULL 6/6	Password of the user.
email_senderemail	string[128]	NULL 6/6	Email address of the sender.
email_recipientemail	string[128]	NULL 6/6	Email address of the recipient.
ns_location	string[128]	NULL 6/6	Location to upload or store the media.
ns_username	string[64]	NULL 6/6	Username to log in to the server.
ns_passwd	string[64]	NULL	6/6	Password of the user.
ns_workgroup	string[64]	NULL	6/6	Workgroup for network storage.

7.32 Media setting for event action

Group: media_i<0\~4> (media_freespace is used internally.)

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name	string[40]	NULL	6/6	Identification of this entry
type	snapshot, systemlog, videoclip, recordmsg	snapshot	6/6	Media type to send to the server or store on the server.
snapshot_source	0~3	0	6/6	Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc.
snapshot_prefix	string[16]	Snapshot<1~5>_	6/6	Indicate the prefix of the filename. media_i0=> Snapshot1_ media_i1=> Snapshot2_ media_i2=> Snapshot3_ media_i3=> Snapshot4_ media_i4=> Snapshot5_
snapshot_datesuffix 0, 1	0 6/6 Add date and time suffix to filename:			1 = Add date and time suffix.0 = Do not add.
snapshot_preevent 0 ~ 7	1 6/6 Indicates the number of pre-event			images.
snapshot_postevent 0 ~	7 1 6/6 The number of post-event images.
videoclip_source 0~3 0	6/6 Indicate the source of media stream.			0 means the first stream.1 means the second stream and etc.2 means the third stream and etc.3 means the fourth stream and etc.
videoclip_prefix	string[16]	VideoClip<1~5>_	6/6 Indicate the prefix of the filename.
videoclip_preevent 0 ~ 9	0 6/6 Indicates the time for pre-event			recording in seconds.
videoclip_maxduration 1	~ 20 5 6/6 Maximum duration of one video clip in seconds.
videoclip_maxsize	50 ~ 8192	1000	6/6	Maximum size of one video clip file in Kbytes.

7.33 Recording

Group: recording_i<0\~1>

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name	string[40]	NULL	6/6	Identification of this entry.
trigger	schedule, networkfail	schedule	6/6	The event trigger type schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
enable	0, 1	0	6/6	Enable or disable this recording.
priority	0, 1, 2	1	6/6	Indicate the priority of this recording:"0" indicates low priority."1" indicates normal priority."2" indicates high priority.
source	0~3	0	6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and so on.
limitsize 0,1 0 6/6 0:Entire free space mechanism				Limit recording size mechanism
cyclic 0,1 0 6/6 0:Disable cyclic recording				Enable cyclic recording
notify 0,1 1 6/6 0:Disable recording notification				Enable recording notification
notifyserver 0~31 0 6/6 Indicate which notification server is scheduled.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.
weekday 0~127 127 6/6 Indicate which weekday is scheduled.				One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm 00:00 6/6 Start time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.(00:00~24:00 indicates schedule always on)
prefix string[16] <blank> 6/6 Indicate the prefix of the filename.
cyclesize 200~ 100 6/6 The maximum size for cycle recording in Kbytes when choosing to limit recording size.
reserveamount 0~ 100 6/6 The reserved amount in Mbytes when choosing cyclic recording mechanism.
dest	cf,0,1,2,3,4	cf 6/6 The dest	ination to store	the recorded data."cf" means local storage (CF or SD card)."0" means the index of the network storage.
cffder string[128] NULL	6/6 Folder name.
adaptive_enable	0,1 0 6/6 Indicate whether the adaptive recording is enabled		adeaptive recording is enabled
adaptive_preevent	0~9 1 6/6 Indicate when is the adaptive recording started before the event trigger point (seconds)		adeaptive recording started before the event trigger point (seconds)
adaptive_postevent	0~10 1 6/6 Indicate when is the adaptive recording stopped after the event trigger point (seconds)		the adaptive recording stopped after the event trigger point (seconds)
maxsize	1~2000	100	6/6 Unit: Mega bytes.
	product dependent>	dependent>	When this condition is reached, recording file is truncated.
maxduration	60~3600	60	6/6 Unit: Second
	product dependent>	dependent>	When this condition is reached, recording file is truncated.

7.34 HTTPS

Group: https (capability.protocol.https > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	6/6	To enable or disable secure HTTP.
policy		0	6/6	If the value is 1, it will force HTTP connection redirect to HTTPS connection
method	auto, manual, install	auto	6/6	auto => Create self-signed certificate automatically. manual => Create self-signed certificate manually. install => Create certificate request and install.
status	-3 ~ 1	0	6/6	Specify the https status. -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate0 = Not installed1 = Active
countryname string[2]	TW 6/6 Country	name in the certificate		information.
stateorprovincename	string[128] Asia 6/6	State or province name in the		certificate information.
localityname string[128]	Asia 6/6 The locality name in the certificate			information.
organizationname	string[64]	VIVOTEK.Inc	6/6 Organization name in the certificate information.
unit	string[32]	VIVOTEK.Inc	6/6 Organizational unit name in the certificate information.
commonname	string[64]	www.vivotek.com	6/6 Common name in the certificate information.
validdays 0 ~ 9999	3650 6/6 Valid period for the certification.

7.35 Storage management setting

Currently it's for local storage (SD, CF card)

Group: disk_i<0\~(n-1)> n is the total number of storage devices. (capability.storage.dbenabled > 0)

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
cyclic_enabled		0	6/6	Enable cyclic storage method.
autocleanup_enabled		0	6/6	Enable automatic clean up method.Expired and not locked media files will be deleted.
autocleanup_maxage		7	6/6 To specify the expired days for automatic clean up.

7.36 Object tracking setting

Group: sdobjtrack.

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
objsize_type	-1~2	-1	1/4	Type of object size.-1:customized width and height0:object size = 30 x 301:object size = 10 x 202:object size = 10 x 10

objsize_customized_width	10~320 30 1/4	The minimum	width of tracking target.
objsize_customized_height	10~240 30 1/4	The minimum	height of tracking target.
sensitivity 0~2 1 1/4	Tracking sensitivity.

7.37 Seamless recording setting

Group: seamlessrecording (capability.localstorage.seamless > 0)

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
diskmode	seamless, manageable	seamless 1/6	"seamless" indicates enable seamless recording. "manageable" indicates disable seamless recording.
maxconnection 3 3 1/6	Maximum number of connected seamless streaming.
stream	0~3 1 1/6 (Internal used, read only)
output	0~3 2 1/6 (Internal used, read only)
enable		0	1/6	Indicate whether seamless recording is recording to local storage or not at present. (Read only)
guid<0~2>_id	string[127]		1/6	The connected seamless streaming ID. (Read only)
guid<0~2>_number	0~3	0	1/6	Number of connected seamless streaming with guid<0~2>_id. (Read only)

8. Useful Functions

8.1 Drive the Digital Output (capability.ndo > 0)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>][&do3=<state>][&do4=<state>]

Where state is 0 or 1; "0" means inactive or normal state, while "1" means active or triggered state.

PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0	- Inactive, normal state
		1 - Active, triggered state

Example: Drive the digital output 1 to triggered state and redirect to an empty page.

http://myserver/cgi-bin/dido/setdo.cgi?do1=1

8.2 Query Status of the Digital Input (capability.ndi > 0)

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]

If no parameter is specified, all of the digital input statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital input 1.

Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n

8.3 Query Status of the Digital Output (capability.ndo > 0)

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]

If no parameter is specified, all the digital output statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital output 1.

Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n

\r\n
do1=1\r\n

8.4 3D Privacy Mask

Note: This request requires admin user privilege

You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0"

Method: GET/POST

Syntax:

Fixed in center :

http:///cgi-bin/admin/setpm3d.cgi?method=&name=&[maskheight=&maskwidth=&return=]

Drag to move :

http:///cgi-bin/admin/setpm3d.cgi?method=&name=&[maskheight=&maskwidth=&return=&maskcx=&maskcy=&videosize=1280x720]

PARAMETER VALUE	DESCRIPTION
method add Add	a 3D privacy mask at current location
	delete Delete a 3D privacy mask
	edit Edit a 3D privacy mask
maskname string[40]	3D privacy mask name
maskheight integer	3D privacy mask height
maskwidth	integer 3D privacy mask width
maskcx	0~1280	X offset of mask location. (for drag to move)
maskcy	0~720	Y offset of mask location. (for drag to move)
return		Redirect to pageafter the 3D privacy mask is configured. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.5 Capture Single Snapshot

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>]&resolution=<value>]&quality=<value>]&streamid=<value>

If the user requests a size larger than all stream settings on the server, this request will fail.

PARAMETER	VALUE	DEFAULT	DESCRIPTION
channel 0~(n-1)	0 The channel	number of the video source.
resolution		0 The resolution of the image.
quality 1~5 3	The quality of the image.
streamid	0~(m-1)		The stream number.

The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>

8.6 Account Management

Note: This request requires Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi?

method=<value>&username=[&userpass=<value>][&privilege=<value>][&privilege=<value>][...][&return=<return page>]

PARAMETER VALUE	DESCRIPTION
method Add Add	an account to the server	When using this method, the "username" field is necessary. It will use the default value of other fields if not specified.
	Delete Remove an account from the server. When using this method, the "username" field is necessary, and others are ignored.
	edit Modify the account	password and privilege. When using this method, the "username" field is necessary, and other fields are optional. If not specified, it will keep the original settings.
username	The name of the user	to add, delete, or edit.
userpass	The password of the new user to add or that of the old user to modify. The default value is an empty string.
Privilege		The privilege of the user to add or to modify.
	viewer	Viewer privilege.
	operator Operator privilege.
	admin	Administrator privilege.
Return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.7 System Logs

Note: This request require Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/syslog.cgi

Server will return the most up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n

8.8 Upgrade Firmware

Note: This request requires Administrator privileges.

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=<file name>[&return=<return page>]\r\n\r\n<multipart encoded form data>

Server will accept the file named to upgrade the firmware and return with if indicated.

8.9 Camera Control (capability.ptzenabled)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>]
[&move=<value>] - Move home, up, down, left, right
[&focus=<value>] - Focus operation
[&iris=<value>] - Iris operation
[&auto=<value>] - Auto pan, patrol
[&zoom=<value>] - Zoom in, out
[&zooming=<value>&zs=<value>] - Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] - Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] - Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>][&speedlink=<value>] ] - Set speeds
[&return=<return page>]

Example:

http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&move=right
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&zoom=tele
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&x=300&y=200&resolution=704x480&videosize=704x480&streach=1

PARAMETER VALUE	DESCRIPTION
channel <0~(n-1)>	Channel of video source.
camid 0,<positive>	integer> Camera ID.
move home Move	to camera to home position.
	up Move camera up.
	down Move camera down.
	left Move camera left.
	right Move camera right.
speedpan	-5 ~ 5 Set the pan speed.
speedtilt	-5 ~ 5 Set the tilt speed.
speedzoom	-5 ~ 5 Set the zoom speed.
speedfocus -5 ~ 5	Set the focus speed.
speedapp -5 ~ 5	Set the auto pan/patrol	speed.
auto pan Auto pan.
	patrol Auto patrol.
	stop Stop camera.
zoom wide Zoom	larger view with current	speed.
	tele Zoom further with	current speed.
stop Stop zoom.
zooming wide or tele	Zoom without stopping for larger view or further view with zs speed, used for joystick control.
zs	0 ~ 8	Set the speed of zooming, "0" means stop.
vx		The slope of movement = vy/vx, used for joystick control.
vy
vs	0 ~ 127	Set the speed of movement, "0" means stop.
x	x-coordinate clicked by user.It will be the x-coordinate of center after movement.
y	y-coordinate clicked by user.It will be the y-coordinate of center after movement.
videosize		The size of plug-in (ActiveX) window in web page
resolution		The resolution of streaming.
stretch		0 indicates that it usesresolution(streaming size) as the range of the coordinate system.1 indicates that it usesvideosize(plug-in size) as the range of the coordinate system.
focus	auto	Auto focus.
	far	Focus on further distance.
	near	Focus on closer distance.
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.10 ePTZ Camera Control (capability.eptz > 0)

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=&stream=<value>
[&move=<value>] - Move home, up, down, left, right
[&auto=<value>] - Auto pan, patrol
[&zoom=<value>] - Zoom in, out
[&zooming=<value>&zs=<value>] - Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] - Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] - Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] - Set speeds
[&return=<return page>]

Example:

http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&videosize=640x480&resolution=640x480&stretch=0

PARAMETER VALUE	DESCRIPTION
channel <0~(n-1)>	Channel of video source.
stream	<0~(m-1)>	Stream.
move home Move	to home ROI.
	up Move up.
	down Move down.
	left Move left.
	right Move right.
auto pan	Auto pan.
	patrol	Auto patrol.
	stop	Stop auto pan/patrol.
zoom	wide	Zoom larger view with current speed.
	tele	Zoom further with current speed.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
zs 0 ~ 6 Set the speed of zooming, "0" means stop.
vxThe direction of movement, used for joystick control.
vy
vs 0 ~ 7 Set the speed of movement, "0" means stop.
x x-coordinate clicked by user. It will be the x-coordinate of center after movement.
y y-coordinate clicked by user. It will be the y-coordinate of center after movement.
videosize The size of plug-in (ActiveX) window in web page
resolution The resolution of streaming.
stretch		0 indicates that it usesresolution(streaming size) as the range of the coordinate system.1 indicates that it usesvideosize(plug-in size) as the range of the coordinate system.
speedpan	-5 ~ 5 Set the pan speed.
speedtilt	-5 ~ 5 Set the tilt speed.
speedzoom	-5 ~ 5 Set the zoom speed.
speedapp	1 ~ 5 Set the auto pan/patrol speed.
return		Redirect to the pageafter the parameter is assigned.The can be a full URL path or relative path according to the current path.

8.11 Recall (capability.ptzenabled)

Note: This request requires Viewer privileges.

Method: GET

Syntax:

http://<servername>/cgi-bin/viewer/recall.cgi?
recall=<value>[&channel=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION
recall Text string less than 30 characters		One of the present positions to recall.
channel <0~(n-1)> Channel of the video source.		source.
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.12 ePTZ Recall (capability.eptz > 0)

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&recall=<value>[&return=<return page>]

PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.		source.
stream	<0~(m-1)>	Stream.
recall Text string less than 40 characters		One of the present positions to recall.
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path.

8.13 Preset Locations (capability.ptzenabled)

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http:///cgi-bin/operator/preset.cgi?[channel=]([\&addpos=][&delpos=][&return=]

PARAMETER VALUE	DESCRIPTION
addpos	ng less than30 characters>	Add one preset location to the preset list.
channel <0~(n-1)>	Channel of the video	source.
delpos	ng less than30 characters>	Delete preset location from preset list.
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.14 ePTZ Preset Locations (capability.eptz > 0)

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/operator/ePreset.cgi?channel=&stream=&addpos=&delpos=&return=

PARAMETER VALUE DESCRIPTION
channel <0~(n-1)>	Channel of the video	source.
stream	<0~(m-1)>	Stream.
addpos	40 characters>	Add one preset location to the preset list.
delpos	less than40 characters>	Delete preset location from the preset list.
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path.

8.15 IP Filtering

Note: This request requires Administrator access privileges.

Method: GET/POST

Syntax:

http://cgi-bin/admin/ipfilter.cgi?type[=]http://cgi-bin/admin/ipfilter.cgi?method=add&ip=[&index=][&return=]http://cgi-bin/admin/ipfilter.cgi?method=del&index=[&return=]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
method addv4 Add IPv4 address into access list.
ip	Single address:Network address:Range address:
index	The start position to add or to delete.
return	Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.16 UART HTTP Tunnel Channel (capability.nuart > 0)

Note: This request requires Operator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>]

GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>]

x-sessioncookie: string[22]

accept: application/x-vvtk-tunnelled

pragma: no-cache

cache-control: no-cache

POST /cgi-bin/operator/uartchannel.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache

cache-control : no-cache

content-length: 32767

expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through a proxy server.

This channel will help to transfer the raw data of UART over the network.

Please see UART tunnel spec for detail information

PARAMETER VALUE	DESCRIPTION
channel 0 ~ (n-1)	The channel number of	UART.

8.17 Event/Control HTTP Tunnel Channel (capability.

evctrlchannel > 0)

Note: This request requires Administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/ctrlevent.cgi
----
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache

----
POST /cgi-bin/admin/ ctrlevent.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through the proxy server.

This channel will help perform real-time event subscription and notification as well as camera control more efficiently. The event and control formats are described in another document.

See Event/control tunnel spec for detail information

8.18 Get SDP of Streams

Note: This request requires Viewer access privileges.

Method: GET/POST

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

"m" is the stream number.

"network_accessname_<0\~(m-1)>” is the accessname for stream "1" to stream "m". Please refer to the

"subgroup of network: rtsp" for setting the accessname of SDP.

You can get the SDP by HTTP GET.

When using scalable multicast, Get SDP file which contains the multicast information via HTTP.

8.19 Open the Network Stream

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<0~m-1>_accessname>

For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.

|rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

For details on streaming protocol, please refer to the "control signaling" and "data format" documents.

8.20 Senddata (capability.nuart > 0)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http:///cgi-bin/viewer/senddata.cgi?

[com=][&data=][&flush=] [&wait=] [&read=]

PARAMETER VALUE	DESCRIPTION
com 1 ~ <max. com port number>		The target COM/RS485 port number.
data <hex decimal data>[,<hex decimal data>]		The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each comma separates the commands by 200 milliseconds.
flush yes,no yes:	Receive data buffer of the COM port will be cleared before read.no: Do not clear the receive data buffer.
wait	1 ~ 65535	Wait time in milliseconds before read data.
read	1 ~ 128	The data length in bytes to read. The read data will be in the return page.

Return:

HTTP/1.0 200 OK\r\nContent-Type: text/plain\r\nContent-Length: <system information length>\r\n\r\n<hex decimal data>\r\n

Where hexadecimal data is digits from 0 \~ 9, A \~ F.

8.21 Storage managements (capability.storage.dbenabled > 0)

Note: This request requires administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>...]

The commands usage and their input arguments are as follows.

PARAMETER VALUE	DESCRIPTION
cmd_type		Required.Command to be executed, including search, insert, delete, update, and queryStatus.

Command: search

PARAMETER VALUE	DESCRIPTION
label	Optional.	The integer primary key column will automatically be assigned a unique integer.
triggerType		Optional.Indicate the event trigger type.Please embrace your input value with single quotes.Ex. mediaType='motion'Support trigger types are product dependent.
mediaType		Optional.Indicate the file media type.Please embrace your input value with single quotes.Ex. mediaType='videoclip'Support trigger types are product dependent.
destPath		Optional.Indicate the file location in camera.Please embrace your input value with single quotes.Ex. destPath='/mnt/auto/CF/NCMF/abc.mp4'
resolution		Optional.Indicate the media file resolution.Please embrace your input value with single quotes.Ex. resolution='800x600'
isLocked		Optional.Indicate if the file is locked or not.0: file is not locked.1: file is locked.A locked file would not be removed from UI or cyclic storage.
triggerTime		Optional.Indicate the event trigger time. (not the file created time)Format is "YYYY-MM-DD HH:MM:SS"Please embrace your input value with single quotes.Ex. triggerTime='2008-01-01 00:00:00'If you want to search for a time period, please apply "TO" operation.Ex. triggerTime='2008-01-01 00:00:00'+TO+'2008-01-0123:59:59' is to search for records from the start of Jan 1^st 2008 to the end of Jan 1^st 2008.
limit	Optional.	Limit the maximum number of returned search records.
offset	Optional.	Specifies how many rows to skip at the beginning of the matched records.Note that the offset keyword is used after limit keyword.

To increase the flexibility of search command, you may use "OR" connectors for logical "OR" search operations. Moreover, to search for a specific time period, you can use "TO" connector.

Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and 2008-01-01 23:59:59.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType='motion'+OR+'di'+OR+'seq'&triggerTime='2008-01-01 00:00:00'+TO+'2008-01-01 23:59:59'

Command: delete

PARAMETER VALUE	DESCRIPTION
label <integer primary key> Required.		Identify the designated record.Ex. label=1

Ex. Delete records whose key numbers are 1, 4, and 8.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8

Command: update

PARAMETER VALUE	DESCRIPTION
labelRequired.Identify the designated record.Ex. label=1	Required.	Identify the designated record.Ex. label=1
isLocked		Required.Indicate if the file is locked or not.

Ex. Update records whose key numbers are 1 and 5 to be locked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5

Ex. Update records whose key numbers are 2 and 3 to be unlocked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3

Command: queryStatus

PARAMETER VALUE	DESCRIPTION
retType xml or javascript	Optional.	Ex. retype=javascriptThe default return message is in XML format.

Ex. Query local storage status and call for javascript format return message.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript

8.22 Virtual input (capability.nvi > 0)

Note: Change virtual input (manual trigger) status.

Method: GET

Syntax:

http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]

PARAMETER	VALUE	DESCRIPTION
vi	state[(duration)nstate]Where "state" is 0, 1. "0" means inactive or normal state while "1" means active or triggered state.Where "nstate" is next	Ex: vi0=1Setting virtual input 0 to trigger state
		Ex: vi0=0(200)1Setting virtual input 0 to normal state, waiting 200milliseconds, setting it to trigger state.Note that when the virtual input is waiting for next state, it
	state after duration. cannot	accept new requests.
return		Redirect to the pageafter the request is completely assigned. Thecan be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.

Return Code Description

200 The request is successfully executed.

400 The request cannot be assigned, ex. incorrect parameters.Examples:setvi.cgi?vi0=0(10000)1(15000)0(20000)1No multiple duration.setvi.cgi?vi3=0VI index is out of range.setvi.cgi?vi=1No VI index is specified.

503 The resource is unavailable, ex. Virtual input is waiting for next state.Examples:setvi.cgi?vi0=0(15000)1setvi.cgi?vi0=1Request 2 will not be accepted during the execution time(15 seconds).

8.23 Open Timeshift Stream (capability.timeshift > 0,

timeshift_enable=1, timeshift_c_s_allow=1)

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

For RTSP (MP4 and h264), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

“n” is the channel index.

“m” is the timeshift stream index.

For details on timeshift stream, please refer to the "TimeshiftCaching" documents.

PARAMETER	VALUE	DEFAULT	DESCRIPTION
maxsft		0 Request cached	stream at most how many seconds ago.
tsmode	normal,adaptive	normal Streaming mode:normal => Full FPS all the time.adaptive => Default send only I-frame for MP4 and H.264, and send 1 FPS for MJPEG. If DI or motion window are triggered, the streaming is changed to send full FPS for 10 seconds.(*Note: this parameter also works on non-timeshift streams.)
reftime mm:ss	The time	camera receives the request.	Reference time for maxsft and minsft.(This provides more precise time control to eliminate the inaccuracy due to network latency.)Ex: Request the streaming from 12:20rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk N/A	N/A Check if the requested stream enables timeshift, feature and if minsft is achievable.If false, return "415 Unsupported Media Type".
minsft		0	How many seconds of cached stream client can accept at least.(Used by forcechk)

Return Code	Description
400 Bad Request	Request is rejected because some parameter values are illegal.
415 Unsupported Media Type	Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.

8. 24 Open Anystream (capability.nanystream > 0)

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/videoany.mjpg?codectype=mjpeg[&resolution=<value>&mjpeg_quant=<value>&mjpeg_qvalue=<value>&mjpeg_maxframe=<value>]

For RTSP (MPEG4), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/liveany.sdp?codectype=mpeg4[&resolution=<value>&mpeg4_intraperiod=<value>&mpeg4_ratecontrolmode=<value>&mpeg4_quant=<value>&mpeg4_qvalue=<value>&mpeg4_bitrate=<value>&mpeg4_maxframe=<value>]

For RTSP (h264), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/liveany.sdp?codectype=h264[&resolution=<value>&h264_intraperiod=<value>&h264_ratecontrolmode=<value>& h264_quant=<value>& h264_qvalue=<value>& h264_bitrate=<value>&h264_maxframe=<value>]

PARAMETER	VALUE	DEFAULT	DESCRIPTION
codectype mjpeg, mpeg	4, h264	N/A Set codec type for Anystream.
solution	capability_videoin_resolution dependent>		Video resolution in pixels.
mjpeg_quant 0, 1~5	99, 1~5	3 Quality of JPEG video.0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
mjpeg_qvalue	10~2002~97	50	Manual video quality level input.(This must be present if mjpeg_quant is equal to 0, 99)
mjpeg_maxframe 1~25,26~30 (only for NTSC or 60Hz CMOS)		15 Set maximum frame rate in fps (for JPEG).
mpeg4_intraperiod 250,500, 1000, 2000, 3000,4000		1000 Intra frame period in milliseconds.
mpeg4_ratecontrolmode	cbr, vbr vbr cbr: constant bitrate		vbr: fix quality
mpeg4_quant 0, 1~5	99, 1~5	3 Quality of video when choosing vbr in "mpeg4_ratecontrolmode".0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
mpeg4_qvalue	1~312~31	7Manual video quality level input.(This must be present if mpeg4_quant is equal to 0, 99)
mpeg4_bitrate	1000~80000001000~4000000	512000	Set bit rate in bps when choosing cbr in "mpeg4_ratecontrolmode".
mpeg4_maxframe 1~25,26~30 (only for NTSC or 60Hz CMOS)		1015	Set maximum frame rate in fps (for MPEG-4).
h264_intraperiod 250, 500, 1000, 2000, 3000, 4000		1000 Intra frame period in milliseconds.
h264_ratecontrolmode cbr, vbr vbr cbr: constant bitrate			vbr: fix quality
h264_quant 0, 1~5	99, 1~5	3 Quality of video when choosing vbr in "h264_ratecontrolmode".0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
h264_qvalue	0~51	30	Manual video quality level input.(This must be present if h264_quant is equal to 0, 99)
h264_bitrate	1000~80000001000~4000000	512000	Set bit rate in bps when choosing cbr in "h264_ratecontrolmode".
h264_maxframe 1~25,26~30 (only for NTSC or 60Hz CMOS)		1015	Set maximum frame rate in fps (for h264).
		dependent>

Technical Specifications

Technical Specifications

Models	SD8363ESD8363E-M (electronic dehumidifier)
System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB
Camera Features
Image Sensor	1/3" Progressive CMOS
Maximum Resolution	1920x1080
Lens Type	20x optical zoom, auto focus
Focal Length	1 = 4.7 ~ 94 mm
Aperture	F1.6 (wide) ~ F3.5 (tele)
Auto-iris	DC-iris
Field of View	3" ~ 55" (horizontal)2" ~ 32" (vertical)3" ~ 64" (diagonal)
Shutter Time	1/1 sec. to 1/10,000 sec.
WDR Technology	WDR Pro
Day/Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.02 Lux @ F1.6, 50 IRE (Color)0.001 Lux @ F1.6, 50 IRE (B/W)
Pan Speed	0.05" ~ 450" / sec.
Pan Range	360 endless
Tilt Speed	0.05" ~ 450" / sec.
Tilt Range	220" (-110" ~ +110")
Preset Locations	256 preset locations
PanNitz/zoomFunctionalities	48x digital zoom (4x on IE plug-in, 12x built-in)Auto pan modeAuto patrol mode
On-board Storage	SDi/SDHC/SDXC card slot
Video
Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264:30 fps @ 1920x108060 fps @ 1280x720MPEG-4:30 fps @ 1920x108060 fps @ 1280x720MJPEG:30 fps @ 1920x108060 fps @ 1280x720(Up to 30/15 fps in WDR mode)
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 60 dB
Dynamic Range	108 dB
Video Streaming	Adjustable resolution, quality and bitrateZoom enhancement for better image quality under limited bandwidth
Image Settings	Adjustable image size, quality and bit rateTime stamp, text overlay, flip & mirrorConfigurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)Scheduled profile settings
Audio
Audio Capability	Audio input/output (full duplex)
Compression	GSM-AMR, AAC, G,711
Interface	External microphone inputExternal line output
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPeE, CoS, QoS, SNMP, 802.1X
Interface	10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Triple-window video motion detection
Auto-Tracking	Auto-tracking on moving object

Alarm and Event
Alarm Triggers	Video motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS serverFile upload via HTTP, SMTP, FTP and NAS server
General
Connectors	RJ-45 cable connector for Network/PoE connectionAudio inputAudio outputAC 24V power inputDC 12V power inputDigital input*4Digital output*2RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
LED Indicator	System power and status indicator
Power Input	PoE plus (IEEE 802.3at compliant)High Power PoEAC 24V
Power Consumption	PoE plus:Max. 19WAC 24V:Max. 48W (heater on)Max. 19W (heater off)High Power PoE:Max. 48W (heater on)Max. 19W (heater off)
Dimensions	: 205 mm x 321 mm
Weight	Net: 3,660 g
Casing	Weather-proof IP66- and NEMA 4X-rated metal housingBuilt-in electrical dehumidifier device (SD8363E-M)
Safety Certifications	CE, FCC Class A, VCCI, C-Tick, NEMA 4X
Operating Temperature	-5°C ~ 55°C (PoE Plus)-40°C ~ 55°C (AC 24V / High Power PoE)
Warranty	36 months
System Requirements
Operating System	Microsoft Windows 7/Vista/XP/2000
Web Browser	Mozilla Firefox 7~10 (Streaming only)Internet Explorer 7 x or 8.x
Other Players	VLC: 1.1.11 or aboveQuicktime: 7 or above
Included Accessories
CD	User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
Others	Wall mount bracket, screws, waterproof connectors, terminal blocks, RJ45 coupler, ethernet cable, quick installation guide, warranty card, alignment sticker. 125 stardriver, seal ring, software CD

Dimensions

Compatible Accessories

Mounting Kits PoE Kits
	AM-11620 cm pendant pipe		AM-231Parapet mounting kit		AM-5191.5" PT adapter		AP3001PoE plus injector
	AM-11740 cm pendant pipe		AM-221Goose neck mounting kit					AA-341AC 24V power adapter
	AM-118Indoor pendant head		AM-103Recessed kit				Others

All specifications are subject to change without notice. Copyright © 2013 VIVOTEK INC. All rights reserved.

Distributed by:

VIVOTEK INC.

6F, No.192, Lien Cheng Rd., Chung Ho, New Taipei City, 235, Taiwan, R.O.C. T: [phone] | F: [phone] E: [e-mail]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131 [T: 408-773-8688 | F: 408-773-8298 | E: [e-mail]]

Ver 1.0

Technology License Notice

MPEG-4 AAC Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

MPEG-4 Visual Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. PLEASE REFER TO HTTP://WWW.MPEGLA.COM.

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS' PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR'S WEBSITE AT HTTP://WWW.VOICEAGE.COM.

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

VCCI Warning

VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
