USER MANUAL 5805-75206-85 Hooker
** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people
| NO | HARDWARE LIST | Q'TY | |
| A | 516 × 40 MM ALLEN BOLT | 6 | |
| B | LOCK WASHER | 10 | |
| C | FLAT WASHER | 10 | |
| D | ALLEN WRENCH | 1 | |
| E | 516 × 25 MM ALLEN BOLT | 2 | |
| F | 516 × 100 MM ALLEN BOLT | 2 | |


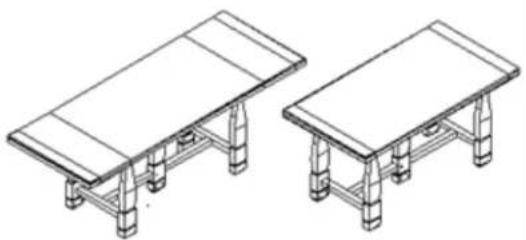

Two identical isometric diagrams of a table with supports and legs, no text or symbols present.
Diagram 1
Diagram 2
Note:
- Leaves cannot be switchable. Follow numbers on leaves and top when assemble
- Height of this table can be adjusted with or without extension block. (30" and 36" heights)
Assembly steps -36" height:
- Put two side frames (G & J) upside down on a soft surface to prevent it from being scratched.

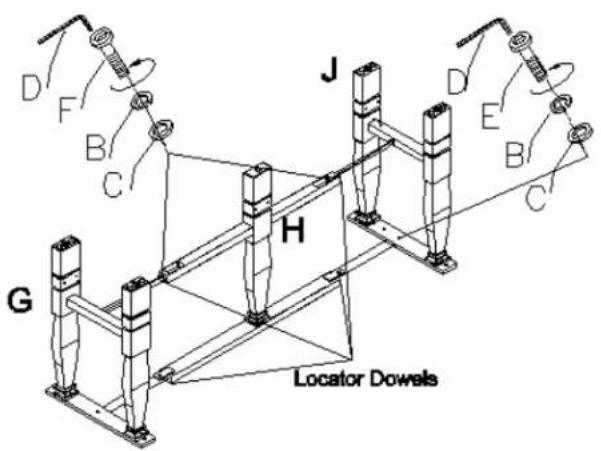

- Attach the ends of stretcher to top and center on side frames (G & J), using bolts (E), lock washers (B) and flat washers (C), tighten all bolts with allen wrench (D) to assemble the top of stretcher by first (See Diagram 1).
- Then using bolts (F), lock washers (B) and flat washers (C), tighten all with allen wrench (D) to assemble the center of stretcher (See Diagram 1).

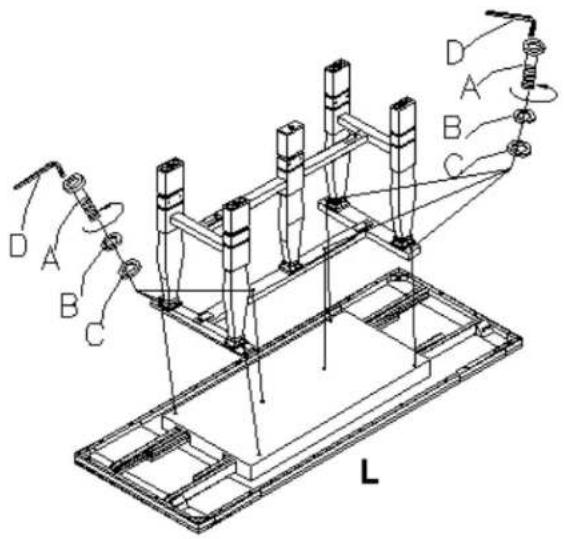

- Place table top (L) upside down on a soft surface to prevent it from being scratched. Put whole base onto top to make sure all pre-drilled holes are in alignment, well insert bolts (A), lock washers (B) and flat washers (C), tighten bolts by turning with allen wrench (D) in clockwise direction (See Diagram 2).
- Turn table upright.
Assembly steps -30" height:
Diagram 3

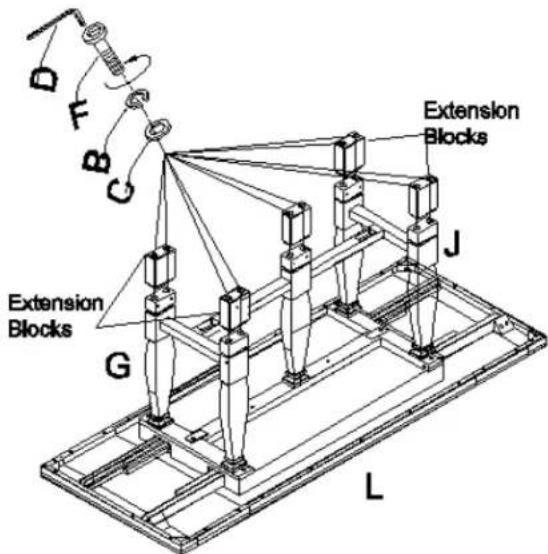

- Unscrew bolts (F), lock washers (B) and flat washers (C) on extension blocks with allen wrench (D). Then remove the extension blocks from the side frames (G & J) directly (See Diagram 3).
- Also unscrew the adjustment levelers from the bottom on the extension blocks. Then screw them into bottom of side frames.
- Turn table upright.
Instruction for table leaves:

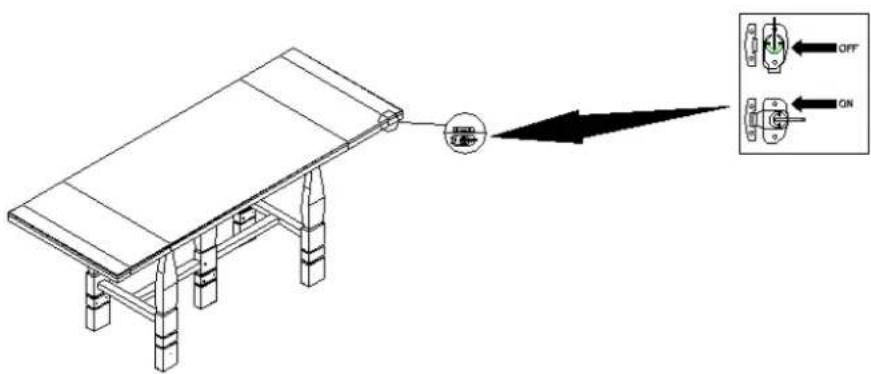

- There are latches at the bottom of table top, turn off the latches as shown in Diagram 4.

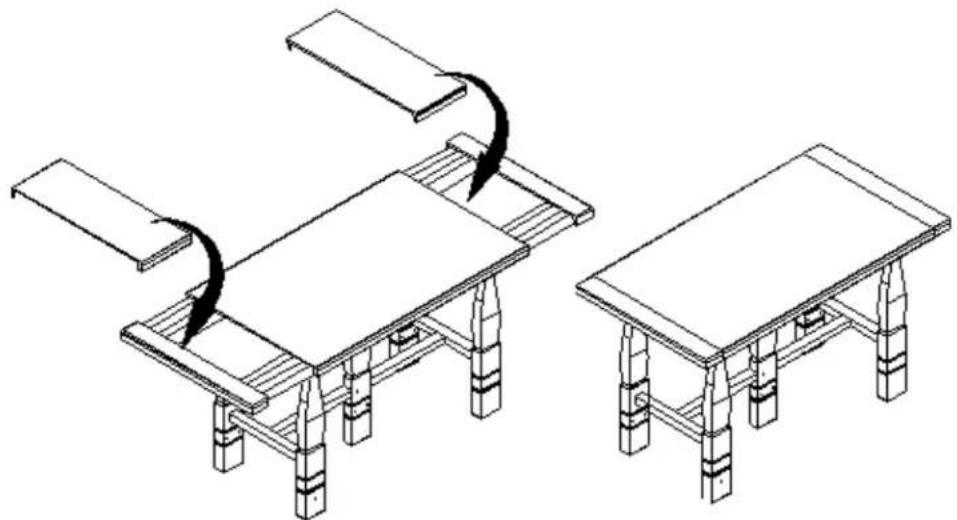

- Pull out table top as the arrow direction shown in Diagram 5.
- Place table leaves between and push table tops together.
- Turn on latches. (see Diagram 4)
- Take opposite actions to remove table leaves.
Diagram 4
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution. Polish the finish with soft cloth and an industry recognized furniture polish.
