Item# 5750-75206-MWD Friendship Table
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.

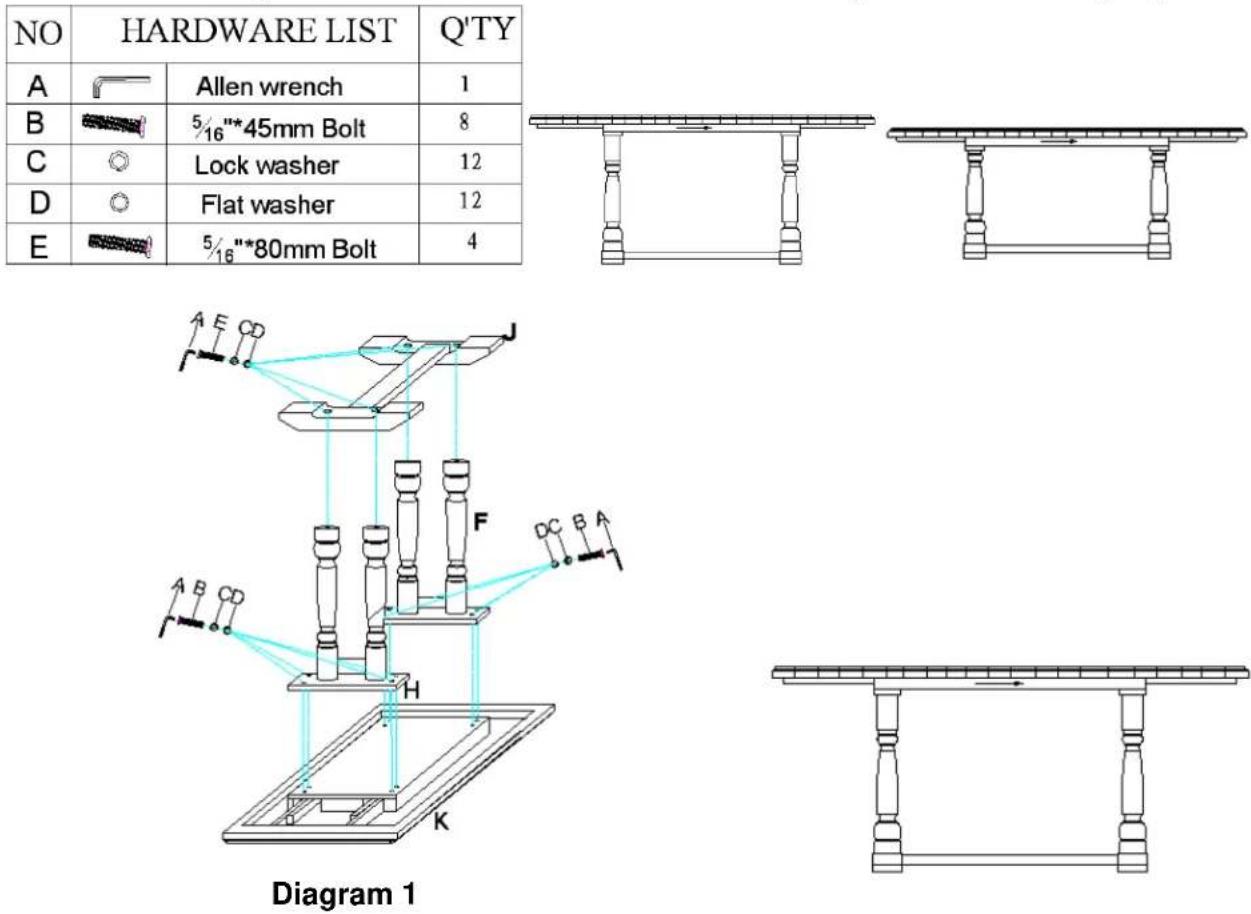

| NO | HARDWARE LIST | Q'TY | |
| A | Allen wrench | 1 | |
| B | 516 ""45mm Bolt | 8 | |
| C | Lock washer | 12 | |
| D | Flat washer | 12 | |
| E | 516 ""80mm Bolt | 4 | |
Note:
Height of this table can be adjusted with or without extension block. (30" and 36" heights)
Assembly steps with extension blocks:
-
Attach mounting bridge (H) with legs (F) to table top (K) by inserting bolts (B), lock washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 1)
-

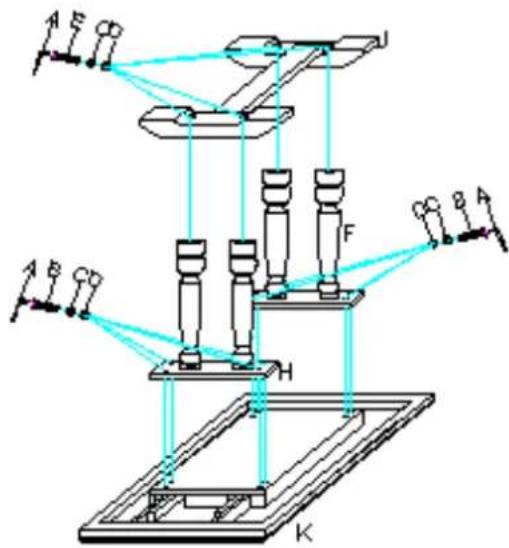

Attach base frame (J) to legs (F) by inserting bolts (E), lock washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 1)
-
Turn table upright.
Assembly steps without extension blocks:
Diagram 2
Diagram 3
- Unscrew bolts (B), lock washers (C) and flat washers (D) from mounting bridge (H).

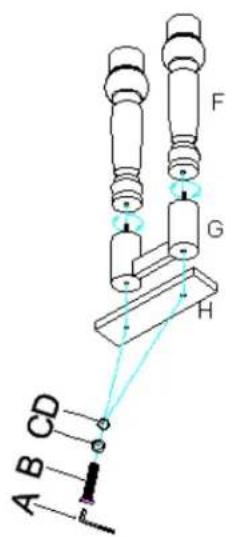

- Remove extension blocks (G) from legs(F) in counter clockwise direction with care.

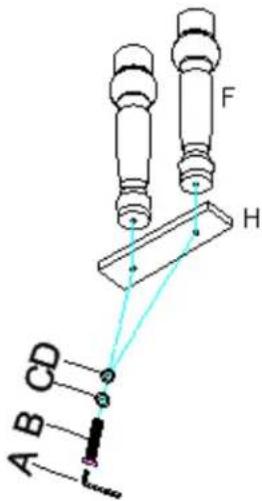

- Attach mounting bridge (H) to legs (F) by inserting bolts (B), lock washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 3).
- Attach mounting bridge (H) to table top (K) by inserting bolts (B), lock washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 4)
-
Attach base frame (J) to legs (F) by inserting bolts (E), lock washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 4)
-
Turn table upright.
Instruction for table leaves:

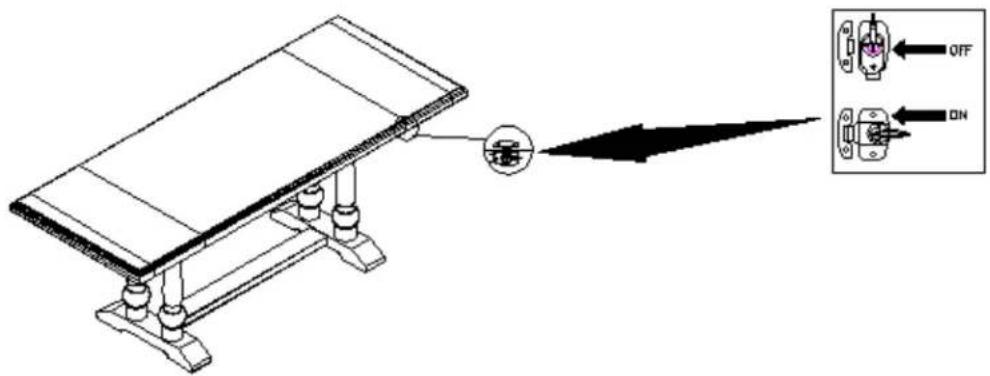

- There are latches at the bottom of table top, turn off the latches as shown in Diagram 5.
Diagram 5
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution. Polish the finish with soft cloth and an industry recognized furniture polish.
