Product Type	Security Camera (PTZ Dome)
Brand	Bosch
Model	AutoDome VG4-163
Power Supply	24 VAC
Pan Range	360° continuous
Tilt Range	110° (vertical)
Diagonal Adjustment	300°
Lens Adjustment	Zoom and focus with lock screws
Image Sensor	CCD (Day/Night version available)
Video Output	Composite video via 2.5 mm monitor jack
On-Screen Display (OSD)	Main and Install menus
Key Features	Auto Level Control, BLC, White Balance, DNR, XF-DYN, Day/Night switching, SensUp
Communication	Bilinx over coax/UTP; USB Bilinx adapter (optional)
Camera ID	Up to 17 characters, displayed on screen
Menu Navigation	5 keys: Up, Down, Left, Right, Select
Remote Control	Compatible with Bosch keyboards, DiBos, DIVAR, Allegiant systems
Security	Menu buttons can be disabled via CTFID software
Dimensions	Not specified in manual; typical dome diameter ~6-8 in
Weight	Not specified in manual; typical ~2-3 kg
Maintenance	Clean dome bubble with soft cloth; avoid harsh chemicals
Spare Parts	Optional monitor cable (S1460), USB Bilinx adapter (VP-CFGSFT)

Frequently Asked Questions - AutoDome VG4-163 BOSCH

How do I access the OSD menu on the AutoDome VG4-163?

Press the center Select key on the camera circuit board menu keyboard to open the Main menu. Press and hold the Select key for about 1.5 seconds to open the Install menu.

What should I do if there is no video output?

Check that the Green LED on the CPU board is on. If off, verify the Red LED is blinking. If Red LED is steady on, cycle power. Check fuses and power supply connections. Ensure video coax is terminated with 75 Ω only at the head end.

How do I adjust the camera's pan, tilt, and diagonal position?

Loosen the horizontal thumbscrew for pan (360°), the tilt wheel thumbscrew for tilt (110°), and push the camera inward and rotate for diagonal adjustment (300°). Retighten after positioning.

How do I set the camera focus and zoom?

From the Install menu, select Set Focus Now to fully open the iris. Loosen the zoom lock screw to adjust field of view (Wide/Tele), then loosen the focus lock screw to sharpen the image. Repeat and tighten both screws.

Why is my picture dark?

Check that Gain Control is set to AUTO, and Auto Iris Level is appropriate. Ensure video coax is terminated correctly and the lens cover is removed. Restore all camera settings if needed (ON-40-ENTER).

How do I enable or disable Bilinx communication?

In the Install menu, select COMM and set to ON or OFF. When using Bilinx control via CTFID software, this menu selection is inactive; it can only be changed through camera menu keys when CTFID is not running.

What does the 'Low Voltage' message mean?

The input voltage is below 21 VAC. Use a Bosch-approved power supply and check that the AC voltage at the camera is ≥ 21 VAC during operation. Reduce wire length if necessary.

How do I restore all camera settings to factory defaults?

From the Install menu, select DEFAULTS then RESTORE ALL?. Confirm to reset all settings. Alternatively, press the Menu Select key twice quickly on a selected item to restore its default.

Can I disable the local menu keys to prevent unauthorized changes?

Yes, use the CTFID software with a USB Bilinx adapter. Select Online Config > Installer Options > Miscellaneous > Camera Buttons and set to Disable.

How do I set the camera ID and display it on screen?

In the Install menu, select CAMERA ID then CAMERA ID again. Use arrow keys to enter up to 17 characters. Then set ID POS to TOP or BOT to display the ID on the monitor.

USER MANUAL AutoDome VG4-163 BOSCH

Three white security camera units mounted on a wall, showing different camera designs (no text or symbols visible)

AutoDome 100 Series Fixed Camera

VG5 100 Series

BOSCH

en User Manual

Table of Contents

1 Camera Setup 4

1.1 Configuring the Camera 4

2 Positioning the Camera 5

3 Adjusting Focal Length (Zoom) and Focus 6

4 Advanced Setup 7

4.1 Accessing and Navigating Menus 7

4.2 Main Menu Function 8

4.2.1 Main Menu 9

4.2.2 ALC Submenu 9

4.2.3 ALC -> SHUTGAIN Submenu 9

4.2.4 ALC -> SHUTGAIN -> DAY/NIGHT Submenu 10

4.2.5 ENHANCED Submenu 11

4.2.6 COLOR Submenu 11

4.2.7 Back Light Compensation (BLC) Submenu 12

4.3 Install Menu Functions 12

4.3.1 Install Menu 13

4.3.2 CAMERA ID Submenu 13

5 Troubleshooting Guide 14

5.1 VG5 AutoDome Operation and Control 14

1 Camera Setup

Install and wire the 100 Series AutoDome according to the VG5 AutoDome Installation Manual. A typical system includes a keyboard, matrix switcher, monitor, and appropriate wiring connections. Please refer to the individual product manuals for complete installation and setup instructions for each of the system components.

1.1 Configuring the Camera

To assist setup, the VG5-100 Series camera module can be connected to a monitor through the miniature 2.5 mm monitor jack located on the camera circuit board. The monitor jack provides a composite video signal with synchronization. An optional cable (part number S1460) is available for making this connection.

To access the monitor jack, remove the bubble and covert liner:

1. Insert a small screw driver through the keyway in the Pendant trim-ring, rotate the dome bubble counterclockwise and remove the dome bubble. For In-Ceiling AutoDomes, you must loosen the small screw in the trim ring before rotating the bubble.

2. Press and hold the two retention buttons on each side of the camera module and then pull off the covert liner. See the image below.

Removing the covert liner provides access to the menu keys, and the pan and tilt thumbscrew adjustment locks.

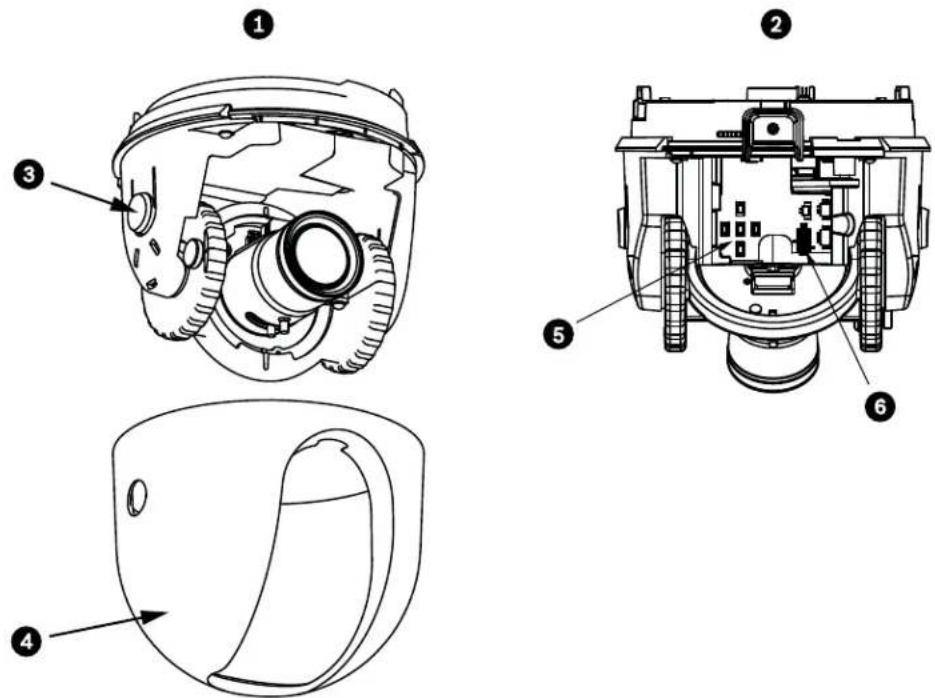

Figure 1.1 100 Series Camera Module

Ref Description
1	F	r	o	n t
2 Back	View
3 Retention Button (2)
4	C	o	v	e r
5	M	e	n	u K
6 Monitor Jack

V	i	e	w
t	L	i	n	e	r
e	y	b	o	a	r	d

2 Positioning the Camera

The camera module position can be adjusted along the horizontal, vertical, and diagonal (for azimuth) axes. When adjusting the position, ensure that the picture displayed on the monitor is level. After the covert liner is removed, position the camera by performing the following steps:

WARNING!

To prevent damage to the camera module do not rotate the camera past its stops.

1. For horizontal (pan) adjustment, loosen the thumbscrew at the platform base and rotate the camera (left or right) to the desired position. The camera can be rotated up to 360° between stops. If it hits the stop before achieving the desired position, rotate it in the opposite direction. Retighten the thumbscrew to secure the camera.
2. For vertical adjustment (tilt), loosen the thumbscrew at the tilt wheel and position the camera (up or down) to the desired position. The camera can be tilted up to 110^ between stops. Retighten the thumbscrew to secure the camera.
3. To compensate for angled ceilings or sidewall mounts, push the camera inward toward its base and rotate it until the image on the monitor is horizontal. The camera can be rotated up to 300^ between stops.

CAUTION!

The CCD image sensors are highly sensitive and require special care for proper performance and extended lifetime. Do not expose it to direct sunlight or bright spotlights in operating and non-operation conditions. Avoid bright lights in the field of view of the camera.

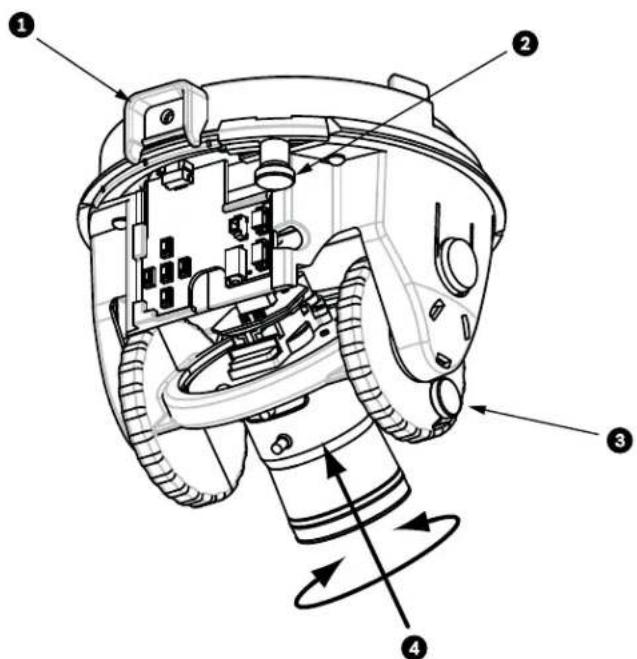

Figure 2.1 Camera Position Adjustments

Ref Description

1 Camera Module Lock Tab

2 Horizontal (pan) Thumbscrew

3 Tilt Wheel Thumbscrew

4 Diagonal Adj.

3 Adjusting Focal Length (Zoom) and Focus

To adjust the camera lens focal length and focus, perform the following steps:

1. Select Set Focus Now from the Install menu.

2. To adjust the focal length, loosen the focal (zoom) lock screw and rotate the lens mechanism (WIDE or TELE.) until you achieve the desired field of view. (Item 1, in the figure below).

3. To focus the image on the monitor, loosen the focus lock screw and turn the lens mechanism (NEAR or FAR) until the image is in focus.

4. Repeat both these adjustments until the desired view is in focus.

5. Tighten both adjustment screws.

6. Exit the Install menu.

7. Remove the monitor jack and replace the covert liner and dome bubble when finished.

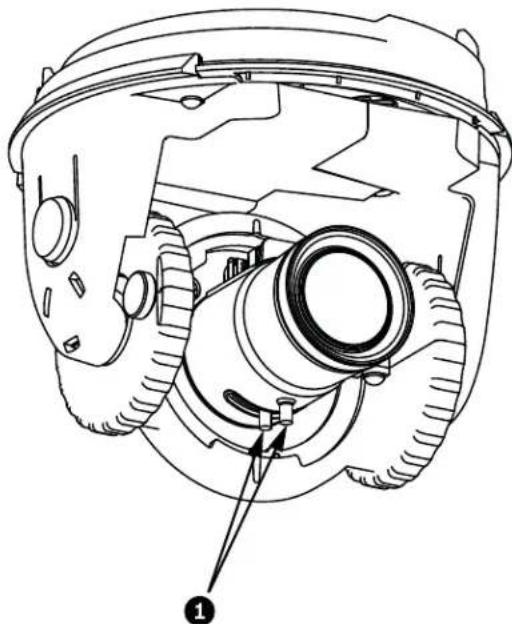

Technical line drawing of a mechanical assembly with labeled component (1), showing internal gears and housing (no text or symbols beyond label)

Figure 3.1 Focus and Zoom Adjustment

4 Advanced Setup

The VG5-100 Series camera module normally provides an optimal picture without the need for further adjustments. Advanced setup options, however, are available for obtaining the best results from the camera under special circumstances. There are two upper level On-Screen Display (OSD) menus: the Main menu and the Install menu.

The Main menu allows you to select and setup the picture enhancement functions. The Install menu allows you to set the camera ID, focus and synchronization settings. The Main and Install menus have settings that you can select directly or open to submenus for a more detailed setup.

NOTICE!

Active menu selections can vary depending on the combination of camera, CPU and COMM (communication) modules used. The menu selections described in this manual are typical for a VG5-100 Series system.

4.1 Accessing and Navigating Menus

There are five (5) keys used for navigating through the various menus. To access the setup menus, press the center Select key to open and display the Main menu. Use the four directional keys to navigate through the menus.

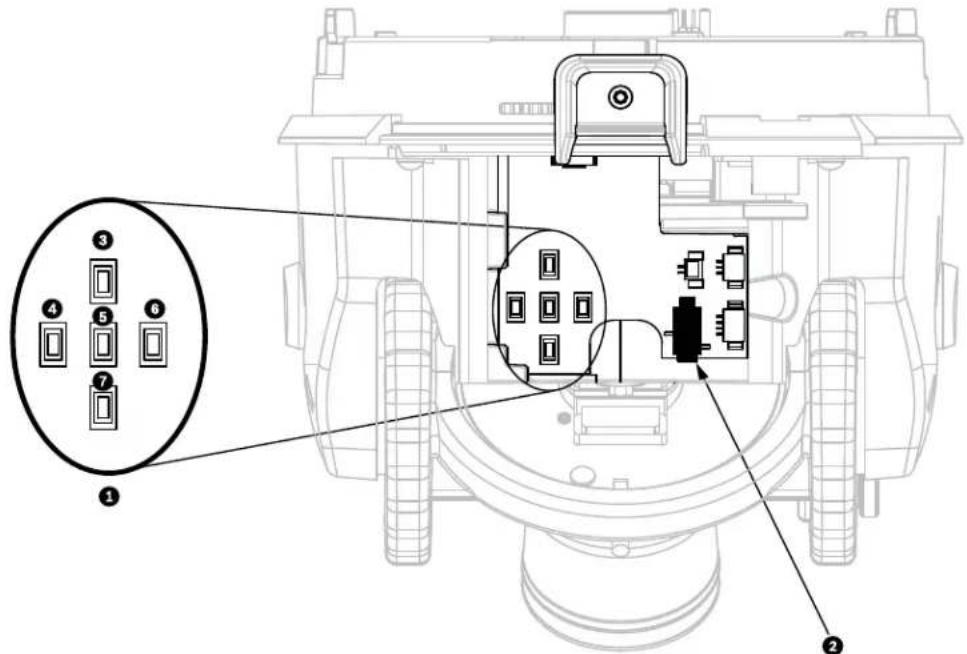

Figure 4.1 Menu Keyboard and Monitor Jack

Ref	Description	Ref	Description
1	Menu	Keyboard	5	Select Button
2	Monitor	Jack	6	Right Button
3	Up	Button	7	Down Button
4	Left	Button

Use the menu keys to perform the following:

• To access the Main menu or to select a sub-menu item, press the center Menu Select key.
• To open the Install menu press the Menu Select key for approximately 1.5 seconds.
• To scroll up or down a menu press the Up or Down keys.
• To move through options or to set parameters, press the Left or Right keys.

	NOTICE!To restore a selected menu item to its factory default, quickly press the Menu Select key twice.To exit the OSD menus from any menu item, hold down the Menu Select key until the OSD disappears.
	The VG5-100 Series also supports a variety of remote methods to make camera adjustments, including the following:– A Universal keyboard using Bilinx over coax or UTP. For example, using a Bosch DiBos 8, a Bilinx capable DIVAR, or an Allegiant system.– A PC running the optional Bosch Configuration Tool for Imaging Devices (CTFID) software with a USB Bilinx adapter (Part No. VP-CFGSFT).
	NOTICE!To prevent unauthorized changes to the camera settings, the camera menu buttons can be disabled using Bilinx communication through the CTFID software. Select the Online Config button, then select the Miscellaneous branch and set Camera Buttons to Disable.

4.2 Main Menu Function

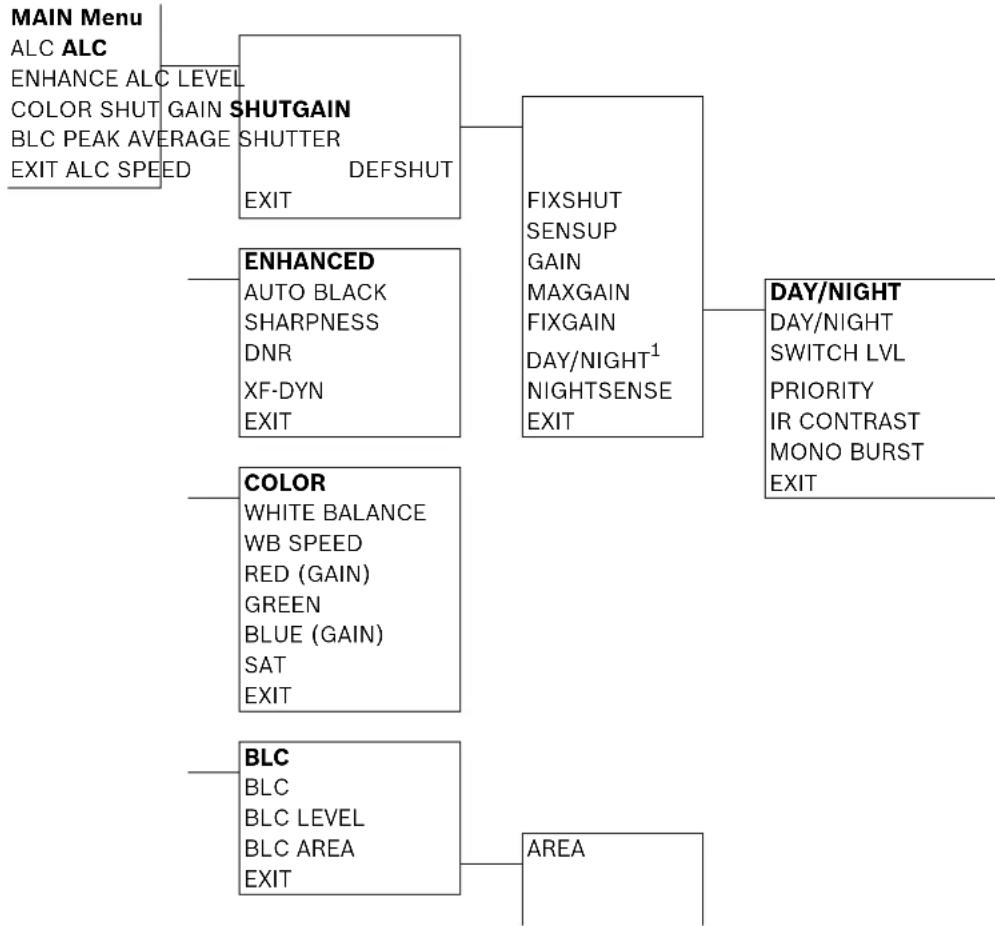

This section provides a graphical representation of the Main menu and descriptions for all functions.

1. Available in Day/Night version cameras only, other versions show NightSense.
2. Only available when White Balance is set to Manual mode.

4.2.1 Main Menu

Function Selections Description
ALC Selects	Submenu Accesses the Auto Level Control menu.
ENHANCE Selects	Submenu Accesses the Picture Enhancement menu.
COLOR Selects	Submenu Accesses the Color Control menu.
BLC	ON, OFF, or selects submenu	- Enables Back Light Compensation (BLC).- Accesses the BLC submenu.
EXIT		Exits this menu.

4.2.2 ALC Submenu

Function	Selections	Description
ALC LEVEL	(-15 to +15)	Adjusts the video output level.
SHUTGAIN	Selects Submenu	Accesses the Shutter and Gain control menu.
PEAK AVERAGE	(-15 to +15)	Adjusts the balance between peak and average video control.
ALC SPEED	ON, OFF, or selects submenu	Adjusts the speed of the video level control loop.
EXIT		Returns to the MAIN menu.

4.2.3 ALC -> SHUTGAIN Submenu

Function	Selections	Description
SHUTTER	AES, FL, FIXED	- AES (Auto Electronic Shutter): The camera automatically sets the optimum shutter speed.- FL (Flickerless): Avoids interference from light sources.- FIXED: Allows the user to define the shutter speed.
DEFSHUT	1/60 (1/50), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10K	The camera tries to maintain the selected shutter speed as long as the light level of the scene permits.(Only available if SHUTTER is set to AES mode.)
FIXSHUT 1/60 (1/50), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10K	1/50), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10K	Selects the shutter speed. (Only available if SHUTTER is set to FIXED mode.)
SENSUP	OFF or (2x to 10x)	Selects the sensitivity factor the camera is set to. (Only available if SHUTTER is set to AES mode.)
GAIN	AGC, FIXED	- AGC mode: The camera automatically sets the gain to the lowest possible value needed to maintain a good picture.- FIXED mode: The gain is set at a predefined value.
MAXGAIN	(0 to 26)	Selects the maximum value the gain can have during AGC operation.
FIXGAIN	(0 to 26)	Selects the gain setting. (Only available if GAIN is set to FIXED mode.)
DAY/NIGHT ^3	Selects submenu	Accesses the Day/Night Control menu.
Function Selections Description
NIGHTSENSE AUTO, OFF, FORCED - UTO mode: Camera automatically switches to NIGHTSENSE in low light conditions.- OFF mode: NIGHTSENSE is turned off.- FORCED mode: The camera is set to NIGHTSENSE (black and white) mode.
EXIT Returns to the ALC menu.

1. Only available in Day/Night version cameras, color versions show NightSense.

NOTICE!

If SensUp is active, some noise or spots may appear in the picture. This behavior is normal.

SensUp may cause some motion blur on moving objects.

Depending on the camera GAIN setting, unrelated menu items are not active.

4.2.4 ALC -> SHUTGAIN -> DAY/NIGHT Submenu

Function Selections Description
DAY/NIGHT	AUTO, COLOR, MONO	- AUTO: Switches the filter between COLOR and MONO depending on the scene illumination level.- COLOR: Use for normal daylight conditions.- MONO: Removes the IR filter, providing full IR sensitivity.
SWITCH LEVEL	(-15 to +15)	Sets the video leveling threshold when the camera switches to monochrome operation.
PRIORITY	COLOR, MOTION	in AUTO mode:- COLOR: Displays a color image as long as the light level permits.- MOTION: Avoids motion blur as long as the light level permits.
IR CONTRAST	NORMAL, ENHANCED	- NORMAL: Optimizes contrast in monochrome applications with visible light illumination.- ENHANCED: Optimizes contrast in applications with high IR illumination levels.
MONO BURST	ON, OFF	- ON: The color burst remains active, even in Monochrome mode.- OFF: The color burst in the video signal is switched OFF in Monochrome mode.
EXIT		Returns to the SHUTGAIN menu.

NOTICE!

Depending on the camera's DAY/NIGHT setting, unrelated menu items are not active.

4.2.5 ENHANCED Submenu

Function Selections Description
AUTO BLACK ON, OFF ON:	Automatically increases the visibility of details.
SHARPNESS (-15 to +15) Adjusted by the sharpness of the picture.Zero (0) is the default position.
DNR(Dynamic Noise Reduction)	AUTO, OFF AUTO: Automatically reduces the noise in the picture. This option may cause some motion blur with moving objects.OFF: DNR is turned off.
XF-DYN OFF, LOW, MID, HIGH	XF-DYN mode: Automatically optimizes picture contrast.
EXIT		Returns to the MAIN menu.

4.2.6 COLOR Submenu

Function	Selections	Description
WHITE BALANCE	ATW, AWB HOLD, MANUAL	- ATW (Automatic White Balance): Allows the camera to constantly adjust for optimal color reproduction.- AWB HOLD: Puts the ATW on hold and saves the color settings.- MANUAL: Allows the red, green and blue gain to be set manually to a desired position.
WB SPEED	Slow, Medium, Fast	Adjusts the speed of the white balance control loop when in ATW mode
RED-GAIN	(-5 to +5)	- In ATW mode: Adjusts the red gain to optimize white.
RED	(-30 to +30)	- In Manual mode: Adjusts red gain.
GREEN	(-5 to +5)	In Manual mode: Adjusts the green gain. (Not available in ATW mode.)
BLUE-GAIN	(-5 to +5)	- In ATW mode: Adjusts the blue gain to optimize white.
BLUE	(-30 to +30)	- In Manual mode: Adjusts the blue gain.
SAT	(-15 to +5)	Adjusts the color saturation. (-15 produces a monochrome picture.)
EXIT		Returns to the MAIN menu.

4.2.7 Back Light Compensation (BLC) Submenu

Functions Selections Description
BLC ON, OFF	ON: The video level	optimizes the selected area of the image. Parts outside this area may be underexposed or overexposed, which is normal.
BLC LEVEL (-15 to +15) Adjusts the balance between the selected BLC area and its surroundings.
BLC AREA Selects submenu Accesses the Back Light Compensation area menu. To size the BLC area:- Select the AREA option from the BLC menu. The monitor displays the current area with the upper left corner flashing.- Move the flashing corner of the image by using the Up, Down, Left and Right keys to change the size and shape of the area.- Press the center Menu Select key to move the flashing cursor to the opposite (or diagonal) corner, which can now be used to change the size and shape of the area.- Press the Menu Select key again to save the area and to exit the AREA menu.
EXIT		Returns to the MAIN menu.

4.3 Install Menu Functions

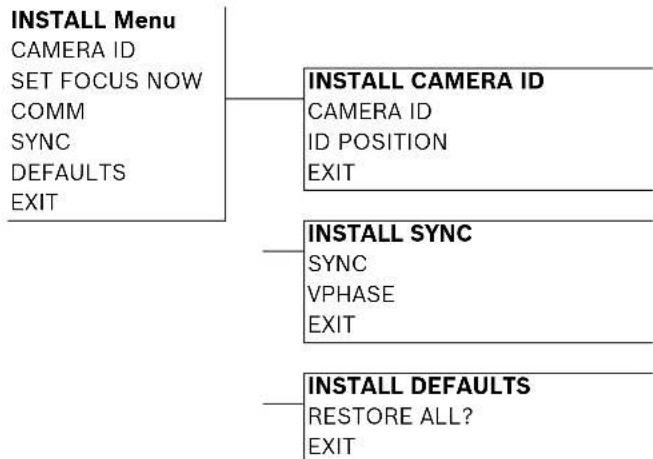

This section provides a graphical representation of the Install menu and descriptions for all functions.

4.3.1 Install Menu

Function Selections	Description
CAMERA ID Selects	submenu Accesses	the Camera ID submenu.
SET FOCUS NOW	Completely opens the lens iris for best focus. The recommended focus procedure is:– Unlock the focus locking screw.– From the INSTALL menu highlight SET FOCUS NOW.– Turn the lens focus adjustment as required– Tighten the lens focus locking screw.– Exit the menu selection.
COMM ON, OFF Turns on Bilinx communication. See notice below.
SYNC	Selects submenu Accesses the synchronization functions.
DEFAULTS	Selects submenu	Returns all settings for all modes to their default.
EXIT		Exits this menu.

NOTICE!

When using Bilinx control, the COMM ON/OFF menu selection is not active. This function can be accessed only through the camera menu keys when the CTFID software is not actively running.

4.3.2 CAMERA ID Submenu

Function	Selections	Description
CAMERA ID	Selects submenu	To enter up to a 17-character camera name:- Press the Menu Select key to enter the Camera ID string.- Enter up to a 17-character string name for the camera.- Use the Up and Down keys to select a character.- Use the Left and Right keys to change position in the string.- Press the Menu Select key to save and to exit the character string.- Exit the Camera ID menu.
ID POS	OFF, TOP, BOT	Use left or right keys to select:OFF: Camera ID not displayed.TOP: Camera ID displayed at upper left corner of display.BOT: Camera ID displayed at lower left corner of display.(The camera ID is not displayed when the OSD menu is open.)
EXIT		Returns to the INSTALL menu.

5 Troubleshooting Guide

5.1 VG5 AutoDome Operation and Control

Problem Solution
No video	- Check that the Green LED on the AutoDome CPU board is on. This LED indicates video from the camera.If the Green LED is off, then:- Check that the Red LED on the AutoDome CPU board is slowly blinking. This LED indicates power to the AutoDome power supply board and to the CPU Module.Red LED on AutoDome CPU ModuleFlash SequenceIndicates:- 5 sec. on / 0.5 sec. off: Normal operation- Steady on: CPU is lockedIf the Red LED is on steady, then:- Try cycling the AutoDome power off and on.If the Red LED is off, then:If using a Bosch Pendant Power Supply Box:- Check that Green LED in Power Supply Box is on. This LED indicates mains power through the transformer.If the Green LED is off, then:- Turn off the Power.- Check the FX101 fuse for mains power to the Power Supply Box.If O.K., then:- Check the FX102 fuse for 24 V power to the AutoDome Pendant.If O.K., then:If using a non-Bosch power supply:- Check that the mains power to the power supply box is on.If O.K., then:- Check that there is 24 V output from the transformer.- Check the connector on top of the AutoDome housing for bent pins.If O.K., then:- Check the integrity of all wires and terminal connections to the AutoDome.If O.K., then:If there is power to the AutoDome, then:- Remove the camera and CPU modules from the AutoDome housing and check that the Green LED on the housing power supply board is on.If the Green LED is off, then:- Check that the fuse on the housing power supply board is good. (Try replacing the unit, if an extra camera module is available.)
Local Keys Disabled	- This message appears if the Camera Menu Keyboard has been disabled through the CTFID tool. Select OnLine Config>Installer Options>Miscellaneous>Camera Buttons>Disable
No Remote Menu Access	- Ensure that all coax, fiber and Ethernet cables are properly connected. See the VG5 AutoDome Installation Manual.If O.K., then:- Check if you can access the AutoDome OSD menus.If O.K., then:
Intermittent Remote Camera Access	- Check that all wiring meets Bosch recommended standards, specifications and distances. See the VG5 AutoDome Installation Manual.
Picture is dark	- Check that the Gain Control is set to AUTO (ON-43-ENTER).If O.K., then:- Check that the Auto Iris Level is set to the appropriate level (ON-11-ENTER).If O.K., then:- Check that the video coax is terminated with 75 Ω only at the head end. (Double termination causes dark video.)If O.K., then:- Check that the camera lens cover is removed.If O.K., then:- Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome Installation Manual.If O.K., then:- Restore all camera settings (ON-40-ENTER).
Colors are not correct	- Reset the White Balance to the appropriate selection (ON-30-ENTER).If O.K., then:- Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome Installation Manual.If O.K., then:- Restore the default settings (ON-40-ENTER).
Background is too bright to see subject	- Turn on backlight compensation (ON-20-ENTER).
Video is rolling, noisy or distorted	- Ensure that the Synch Mode is set to Internal (OFF-42-ENTER).If O.K., then:- Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome Installation Manual.If O.K., then:- Check the integrity of all BNC connectors and splices.Note: Connecting a network cable to the interface board of a non-IP AutoDome causes video distortion.- Remove the network cable from the interface board RJ-45 connector.If O.K., then:- Contact Bosch Technical Support.
Day/Night camera does not switch automatically when image is dark	- Check that the Day/Night mode is set to AUTO (ON-56-ENTER).If O.K., then:- Set Gain Control to AUTO (ON-43-ENTER).
Inside of EnviroDome bubble is foggy	- Check the status of the Heater Module (ON-66-ENTER).If status reports Heater No Power, then:- Turn off the power to the AutoDome.- Check the FX103 fuse in the Power Supply Box for power (24 V) to the heater module.If O.K., then:- Check all wiring and connector pins to the heater module.
Low Voltage flashing on monitor display	- If using a non-Bosch power supply, confirm that it meets the Bosch AutoDome power ratings. See the AutoDome Datasheet for specifications.If O.K., then:- Check the mains input line voltage.If O.K., then:- Check that the maximum wire length from the power supply has not been exceeded.See the VG5 AutoDome Installation Manual.If O.K., then:- Measure the AC voltage input to the camera while power is applied to the camera. The voltage must be ≥ 21 VAC to stop the message.

Bosch Security Systems, Inc.

850 Greenfield Road

Lancaster, PA 17601

U.S.A.

www.boschsecurity.com

© Bosch Security Systems, Inc., 2011
