USER MANUAL AW5800XTP-Pair AvaLAN

USER'S MANUAL ADDENDUM Matched Pair Bridges

Certain AvaLAN radios are sold as matched pairs, pre-configured as a wireless Ethernet bridge. The manual supplied with the pair does not include information about the pair configuration, hence this addendum.

This addendum applies to these products:

AW900xTR-PAIR AW2400xTR-PAIR AW5800xTR-PAIR

AW900iTR-PAIR AW2400iTR-PAIR

AW900xTP-PAIR AW2400xTP-PAIR AW5800xTP-PAIR

The pair configuration as shipped from the factory consists of these features:

1. One unit of the pair is configured as an Access Point and the other is configured as a Subscriber Unit.
2. The Access Point is given the IP Address 192.168.17.17.
3. The Subscriber Unit is given the IP Address 192.168.17.18.
4. User-specified encryption keys are disabled and the two radios are keyed to each other using the "Auto-Key" method.
5. RF Channel selection is set to automatic mode.

If these configuration parameters work for you in your system, you need only to connect antennas, power and LAN and the pair should work transparently, looking just like an Ethernet cable.

If you need to change any of the pair's parameters, you may use the browser interface as described in the accompanying manual. You might need to do this if you need to set the pair to a particular channel, or you wish to provide your own encryption keys. If the default IP Addresses won't work in your system, the best way to change them is by using the ipfinder utility described in the manual and downloadable from www.avalanwireless.com.

In case of difficulty, you may find additional help under the Support tab on our website or by contacting AvaLAN Technical Support using the information in the manual.

Revision 08.11.2010

Close-up of a metallic stand with a tilted diamond-shaped object, no visible text or symbols

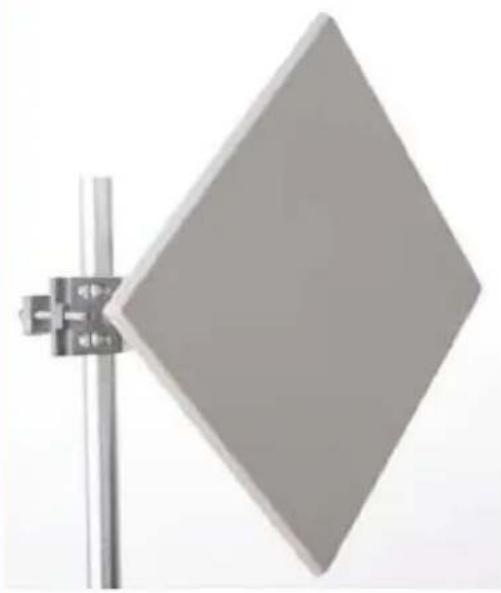

Exterior view of a white diamond-shaped electronic device mounted on a metal rod (no text or symbols visible)

AW5800XTP

USER'S MANUAL

5.8 GHz Integrated Radio & Antenna

Thank you for your purchase of the AW5800XTP multipoint wireless Ethernet radio with integrated antenna.

The AW5800XTP includes:

• (1) Integrated Radio & Antenna Unit
• (1) 120 VAC to 12 VDC power adapter
• (1) AW-POE Power Over Ethernet Injector

If you have any questions when configuring your AvaLAN system, the best place to get answers is to visit www.avalanwireless.com.

You will also find the latest updates there.

If more assistance is needed, send email to [e-mail].

To speak to a live technician, please call technical support at the number below during normal business hours.

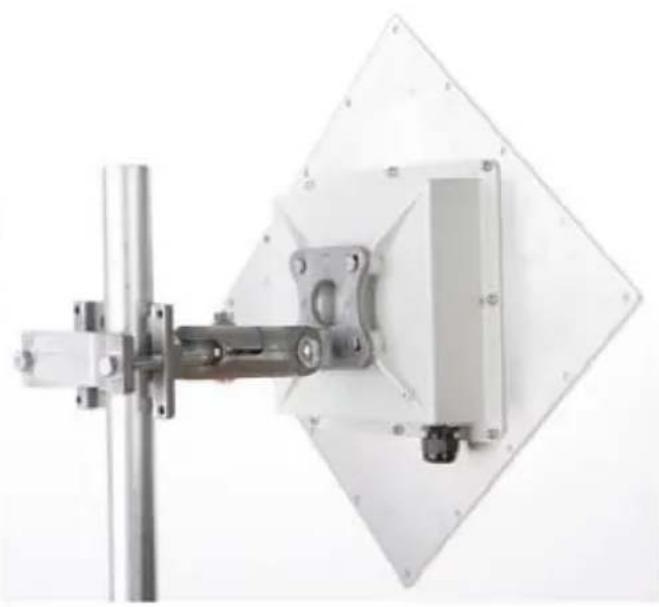

Two mechanical or optical components with metallic rods and a tilted square plate, shown from different angles (no text or symbols visible)

© 2009 by AvaLAN Wireless Systems Inc. All rights reserved. Revision 100114.0

125A Castle Drive Madison, AL 35758

Sales: [phone] Technical Support: [phone] Customer Service: [phone] Fax: [phone]

Operational summary

The AW5800XTP Integrated Radio & Antenna allows the user to create a long-range, wireless Ethernet network with up to 16 Subscriber Units per Access Point. The configuration may include any combination of AW5800XTP and AW5800XTR radios. (Please note that older AvaLAN 5.8 GHz radios can exist on the same LAN but cannot be used to form wireless links with the AW5800XTP/XTR units because link encryption protocols have changed.)

Configuring a wireless link with the AW5800XTP requires the establishment of six elements:

• Each radio must know whether it is to be an Access Point (AP) or Subscriber Unit (SU).

• Each radio must have an IP address that is unique among all others on the same network.

• The AP must know how many SUs are expecting communication with it.

- The AP and any given SU must agree on which radio frequency channel they are using. This can be manually set or allowed to change automatically.

- The SU must be assigned a unique subscriber ID to specify which time division slot it will use when communicating with the AP.

- The AP and any given SU must share a common 128-bit encryption key. APs can exchange keys with up to 63 SUs, though only 16 can be connected at any given time.

The AP automatically scans for the best of the 58 available radio frequency channels, encrypts Ethernet data received from the network, and transmits it wirelessly to the correct SU. The AP is constantly monitoring the radio link and can automatically change the channel if performance is degraded due to interference. If two AP units are physically close to one another, they may interfere if operating on adjacent frequency channels. Place them at least 10 feet apart or manually select non-adjacent channels for their operation. Also, the SU should be placed at least 10 feet from the AP to avoid overloading the receivers.

Any 10/100 BaseT Ethernet client device (ECD) can be connected to an AW5800XTP Subscriber Unit. Each SU encrypts Ethernet traffic received from the attached ECD and transmits the data wirelessly to its AP. Each SU can be plugged directly into an ECD without adding drivers or loading software. Essentially, once the AP/SU pair is configured and running it behaves like a continuous Ethernet cable.

Physical Setup

1. Before mounting the radio in its final location, you may want to perform the digital setup procedure described in the next section.

2. Mount the AW5800XTP securely using the mounting bracket provided or other means as necessary. Maximize lightning resistance by providing a strong DC ground connection to the metal housing.

3. The unit may be mounted with horizontal or vertical polarization and it is important that the antenna of the Access Point and the antenna of the Subscriber Unit be pointed toward one another and be oriented with the same polarization. In a point-to-multipoint situation with radially dispersed SUs, you should use an AW5800XTR equipped with an omnidirectional antenna as the Access Point

4. Power is provided to the unit by means of the Ethernet cable, allowing the power supply to be located at a convenient location. The included power-over-Ethernet injector (POE) provides the means for adding DC power to unused wires in the cable. Decide where to place the POE based on proximity to AC power at some point along the desired path of the Ethernet cable. Plug the included power supply into an appropriate electrical outlet and into the POE. Connect an Ethernet cable between your network and the “DATA IN” port on the POE. Connect a second cable from the “P + DATA OUT” port on the POE and the AW5800XTP. The AW5800XTP is provided with a cable clamping device that allows an RJ45 plug on the cable to pass through it and can be tightened down around the cable to provide a weatherproof seal.

Digital Setup

1. Digital configuration is done by means of the AW5800XTP's built in browser interface. It should be powered on and connected at least temporarily to a network containing a computer that can run a conventional web browser.

2. Download the AvaLAN IP Discovery Utility from our website and extract ipfinder.exe from the zip archive, placing it on your desktop or in a convenient folder.

http://www.avalanwireless.com/ipfinder/ipfinder.zip

Note that this utility only runs on MS Windows, not linux or MAC. If you must use a non-Windows computer for configuration, make sure your subnet mask allows your computer to see 192.168.17.17. Connect to that default IP address with your web browser, continuing the setup procedure with step 6.

1. Run the IP Discovery Utility, ipfinder.exe and you should see a window similar to the view on the next page.

IP Discovery Changer Utility v1.7 (Dec 3 2008) AvaLAN W I R E L E S S Devices on the local network will appear in the list below. Double-click a device to change its IP address. Click 'Search' to clear the list and search for devices. Search MAC Address IP Address Gateway Network HTTP Port 00:21:79:00:03:15 192.168.1.17 192.168.1.1 255.255.255.0 80

The AW5800XTP should appear in the list at the default IP address of 192.168.17.17. If it does not, click “Search” to regenerate the list. If it still does not appear, you have a connection issue and need to re-examine the cabling or you may have a firewall issue on your computer.

1. Double click the list item that refers to the AW5800XTP being configured. You should see a second window that is similar to this:

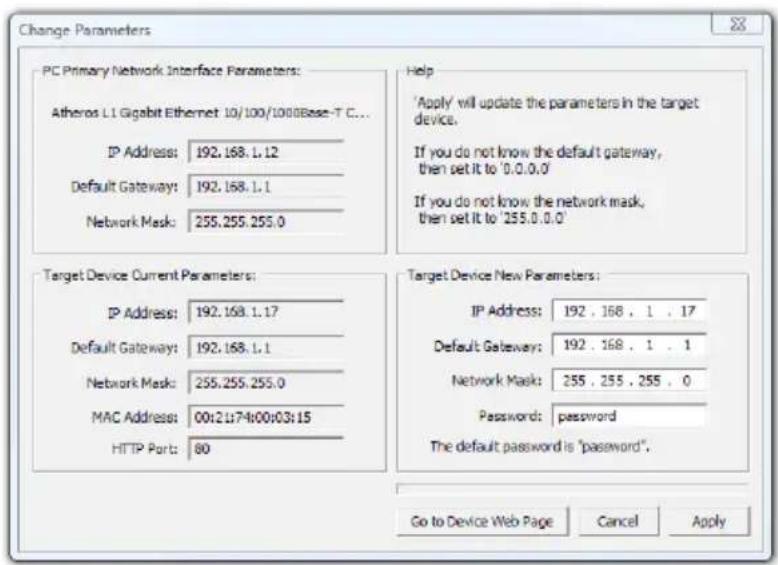

Change Parameters PC Primary Network Interface Parameters: Atheros L1 Gigabit Ethernet: 10/100/1000Base-T C... IP Address: 192.168.1.12 Default Gateway: 192.168.1.1 Network Mask: 255.255.255.0 Target Device Current Parameters: IP Address: 192.168.1.17 Default Gateway: 192.168.1.1 Network Mask: 255.255.255.0 MAC Address: 00:2:1:7:4:00:03:15 HTTP Port: 80 Help 'Apply' will update the parameters in the target device. If you do not know the default gateway, then set it to '0.0.0.0' If you do not know the network mask, then set it to '255.0.0.0' Target Device New Parameters: IP Address: 192 . 168 . 1 . 17 Default Gateway: 192 . 168 . 1 . 1 Network Mask: 255 . 255 . 255 . 0 Password: password The default password is "password". Go to Device Web Page Cancel Apply

The information on the left is the current status of the radio, while the boxes on the right allow you to change it. Choose your desired parameters and click "Apply."

1. Make note of the chosen IP address and password, then click "Go to Device Web Page." This will cause your default web browser to launch with the device IP address in the browser address bar. Or you may launch the browser on your own and enter the web page address manually: http://[the IP address you just set].

AW5800XTP User's Manual

1. The browser page that loads initially shows the current device information and QoS statistics and provides a login at the upper right. Log in using the password you just specified (or “password” if you kept the default). If the login succeeds, you will see an admin page similar to this:

AVaLAN W I R E L E S S Version: 1.49.4003 MAC Address: 00.21.74.00.03.16 Ethernet: 100 Mbps Full Duplex Uptime: 0 days 00h 07:02 Refresh Now Every 10 sec Need help? Online FAQ available at www.AvaLANWireless.com Statistics Radio Block Error Rate: 0.0 % Radio Total Packets: 0 Radio Failed Packets: 0 Radio Passed Packets: 0 Radio Broadcast Packets: 0 Radio Unicast Packets: 0 Radio Average TX Size: 0 bytes Radio Average RX Size: 0 bytes Device Information Device Type: Subscriber Unit Subscriber ID: 0 Current RF Channel: 1 RF Connected: No Radio Active: Standby Product Code: 4 Radio Version: 3 Radio Firmware Release: 063 Device Settings Description Value Device Password: password RF Channel: ● Use DIP 3-8 selection: 0 (auto channel select mode) ○ 0 (overrides the current DIP 3-8 selection) Network IP Address: 192.168.1.17 (##.#.#) Network Mask: 255.0.0.0 (##.#.#) Default Gateway: 0.0.0.0 (##.#.#) HTTP Port: 80 (decimal 1-65535) Apply Cancel Done

1. The admin page has sections similar to the login page showing radio statistics and device information plus it adds several new sections. The Device Settings section allows setting the network information and choosing an RF frequency channel. The default is to allow the radio to choose its own frequency based on minimizing interference. If you set a fixed channel, make sure the AP and all SUs use the same one. References to DIPs on this and the next web page refer to switches inside the radio that are used in the legacy method of configuration and may be ignored when using the browser method.

If you scroll down in the Admin browser page, you will come to three more sections:

• A graphical spectrum analyzer display that may help you to select radio channels that avoid interference
• A section to be used if an update to the AW5800XTP's firmware is required
• An Advanced Links section with a dire warning about advanced users only.

Despite the warning, you will need to click the “Advanced Admin” button in order to set the Channel ID and encryption key. You should then see a page similar to that on the next page.

AvaLAN W I R E L E S S Version: 1.48.4003 MAC Address: 00:21:74:00:03:16 Ethernet: 100 Mbps Full Duplex Uptime: 0 days 00h 10:45 Login Back to Admin Page Refresh Now Need help? Online FAQ available at www.AvaLAN/Wireless.com Warning! These setting are only for use by advanced users! Please proceed with caution. Device Settings Description Value Device: Type: Access Point (overmda DIP 1 selection) Subscriber Unit (DIP 1 selection) Subscriber ID: Every SU must have a unique ID. Valid IDs are from 1 to 63. 1 (decimal 1-63) Encryption: Enable User Specified Keys Network Name (32-bit): xxxx-xxxx 0000-0076 (hex) Encryption Key (126-bit): xxxx-xxxx-xxxx-xxxx-xxxx-xxxx-xxxx-xxxx 0123-4567-890A-BCDE-F012-3456-789A-BCDE (hex) Cautier! By enabling User Specified keys, you will have to manually key all of your subscriber units Apply Cancel Reset the Device Reset Device Done

1. On the Advanced Admin page, set the parameters as follows:

2. Choose Device Type: Access Point or Subscriber Unit.

3. For Subscriber Units, assign unique ID numbers in numeric order from 1 to 63.
4. For an Access Point, enter the number of Subscriber Units that will be communicating with it.
5. Click the box labeled "Enable User Specified Keys."
6. Choose an 8-digit hex (0-9 and A-F) Network Name that will be common among the AP and its SUs and enter it. The hyphen is required.
7. Choose a 32-digit hex encryption key and enter it. Again, the hyphens are required. This key must match between the AP and the SU so make a note of it as well.

After entering the parameters, click the "Apply" button to save them to the radio.

1. When all of the radios are keyed and operating, connect them to your network and Ethernet devices as desired and cycle the radio's power to begin normal operation. Now, browser management of the SUs can be performed over the wireless network. Note: avoid plugging actively linked radios into the same switch because this will corrupt its routing table and may cause network problems just as if you had plugged a CAT5 cable directly between two ports of a switch.

5.8 GHz Channels

Channel F	frequency - MHz Channel Frequency - MHz Channel Frequency - MHz
0 Auto	Mode 20 5767.7083	40 5809.37	50
1 5728	.1250 21 5769.7917	41 5811.45	83
2 5729	.6875 22 5771.8750	42 5813.54	17
3 5732	.2917 23 5773.9583	43 5815.62	50
4 5734	.3750 24 5776.0417	44 5817.70	83
5 5736	.4583 25 5778.1250	45 5819.79	17
6 5738	.5417 26 5780.2083	46 5821.87	50
7 5741	.1458 27 5782.2917	47 5823.95	83
8 5742	.7083 28 5784.3750	48 5826.04	17
9 5743	.7500 29 5786.4583	49 5828.12	50
10 5746	.8750 30 5788.5417	50	5830.2083
11 5748	.9583 31 5790.6250	51	5832.2917
12 5751	.0417 32 5792.7083	52	5834.3750
13 5753	.1250 33 5794.7917	53	5836.4583
14 5755	.2083 34 5796.8750	54	5838.5417
15 5757	.2917 35 5798.9583	55	5840.6250
16 5759	.3750 36 5801.0417	56	5842.7083
17 5761	.4583 37 5803.1250	57	5844.7917
18 5763	.5417 38 5805.2083	58	5846.8750
19 5765	.6250 39 5807.2917

Limited Warranty

This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product.

Compliance Statement ( Part 15.19 )

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Warning ( Part 15.21 )

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure (OET Bulletin 65)

To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons.

Information to the User - Part 15.105 (b)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.
