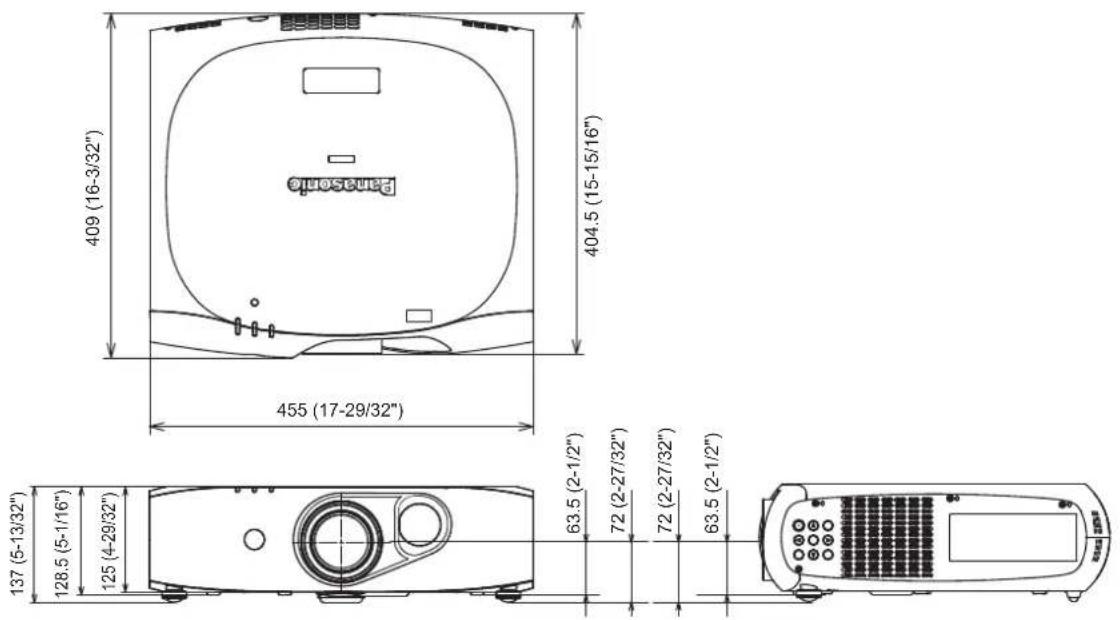

| Dimensions (W x H x D) | 455 mm x 137 mm x 409 mm (17.9" x 5.4" x 16.1") |
| Weight | Approx. 11.5 kg (25.4 lbs) |
| Power Consumption | 430 W (operation), 0.5 W (ECO standby), 8 W (normal standby) |
| Power Supply | AC 100 V - 240 V, 50/60 Hz |
| Noise Level | 35 dB |
| Input Terminals | HDMI, DVI-I, COMPUTER (D-sub 15), VIDEO, AUDIO, LAN, RS-232C, 3D SYNC |
| 3D Support | DLP Link and VESA standard IR systems |
| Key Features | DIGITAL LINK, edge blending, color matching, automatic setup, ECO management |
| Operating Temperature | 0°C to 45°C (low altitude), 0°C to 40°C (high altitude) |
| Remote Control | Wireless, range 15 m, uses 2 AA batteries |
| Maintenance | Filter cleaning, lens cleaning, light source replacement by dealer |
| Safety | Class 1 laser product, risk group 3, various built-in protections |
| Optional Accessories | Ceiling mount bracket, digital interface box, etc. |
Frequently Asked Questions - Solid Shine PT-RZ475U PANASONIC
User questions about Solid Shine PT-RZ475U PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Video projector in PDF format for free! Find your manual Solid Shine PT-RZ475U - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Solid Shine PT-RZ475U by PANASONIC.

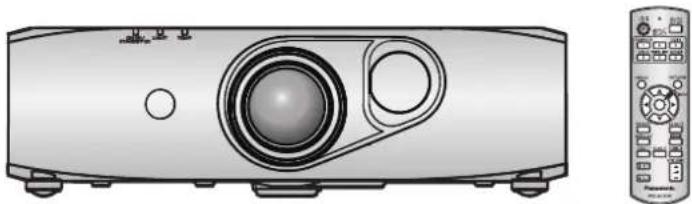

USER MANUAL Solid Shine PT-RZ475U PANASONIC
Operating Instructions Functional Manual
DLP™ Projector
Commercial Use
Model No.
PT-RZ475U
■ Before operating this product, please read the instructions carefully and save this manual for future use.
■ Before using your projector, be sure to read "Read this first" (pages 2 to 9).
Read this first!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V. If you need to use higher voltages than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.
WARNING RISK OF ELECTRIC SHOCK.DO NOT OPEN
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.
Notice on laser
This projector is the Class 1 laser product that complies with IEC 60825-1.
RISK GROUP 3
WARNING: POSSIBLY HAZARDOUS OPTICAL RADIATION EMITTED FROM THIS PRODUCT. AVERTISSEMENT: DES RADIATIONS OPTIQUES NUISIBLES PEUVENT ÊTRE EMISES PAR CE PRODUIT. WARNUNG: DIESES PRODUKT EMITTIERT MÖGLICHERWEISE GEFÄHRLICHE OPTISCHE STRAHLUNG. ПРЕДУПРЕЖДЕНИЕ: DANHÄЯ ПРОДУКЦИЯ МОЖЕТ СОЗДАВАТЬ ОПАСНОЕ ОПТИЧЕСКОЕ ИЗЛУЧЕНИЕ. 경고: 본 제품에서 유해한 광방사가 방출되었을 가능성이 있습니다. TQFX340
注意-開放時クラス4のレーザー放射
Trade Name: Panasonic
Responsible Party: Panasonic Corporation of North America
Address: One Panasonic Way, Secaucus, NJ 07094
Telephone number: (877)803-8492
E-mail: projectorsupport@us.panasonic.com
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instructions and do not make any unauthorized modifications.
Caution:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
NOTIFICATION (Canada)
This class A digital apparatus complies with Canadian ICES-003.
WARNING:
- Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
- For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.
- For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING:
POWER
The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately.
Continued use of the projector in these conditions will result in fire or electric shock.
- If foreign objects or water get inside the projector, cut off the power supply.
- If the projector is dropped or the cabinet is broken, cut off the power supply.
- If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.
Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.
During a thunderstorm, do not touch the projector or the cable.
Electric shocks can result.
Do not do anything that might damage the power cord or the power plug.
If the power cord is used while damaged, electric shocks, short-circuits or fire will result.
- Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.
Completely insert the power plug into the wall outlet and the power connector into the projector terminal.
If the plug is not inserted correctly, electric shocks or overheating will result.
- Do not use plugs which are damaged or wall outlets which are coming loose from the wall.
Do not use anything other than the provided power cord.
Failure to observe this will result in fire or electric shocks. Please note that if you do not use the provided power cord to ground the device on the side of the outlet, this may result in electric shocks.
Clean the power plug regularly to prevent it from becoming covered in dust.
Failure to observe this will cause a fire.
- If dust builds up on the power plug, the resulting humidity can damage the insulation.
Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.
Do not handle the power plug and power connector with wet hands.
Failure to observe this will result in electric shocks.
Do not overload the wall outlet.
If the power supply is overloaded (ex., by using too many adapters), overheating may occur and fire will result.
■ ON USE/INSTALLATION
Do not place the projector on soft materials such as carpets or sponge mats.
Doing so will cause the projector to overheat, which can cause burns, fire or damage to the projector.
Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, ex. a bathroom.
Using the projector under such conditions will result in fire, electric shocks or deterioration of components.
Deterioration of components (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down.
Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.
Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.
WARNING:
Do not cover the air intake/exhaust ports or place anything within 500 mm (20") of them.
Doing so will cause the projector to overheat, which can cause fire or damage to the projector.
- Do not place the projector in narrow, badly ventilated places.
- Do not place the projector on cloth or papers, as these materials could be drawn into the air intake port.
Do not look at the light emitted from the lens while the projector is being used.
Doing so can cause loss of sight.
- Strong light is emitted from the projector's lens. Do not directly look at this light.
Do not expose your eyes and skin to the projection light while the projector is being used.
Possibly hazardous optical radiation is emitted from this product, causing damage to your eyes and skin.
- Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector.
Never attempt to remodel or disassemble the projector.
High voltages can cause fire or electric shocks.
- For any inspection, adjustment and repair work, please contact an Authorized Service Center.
Doing so may cause exposure to dangerous laser radiation.
- The laser module is built in this projector. Follow procedures specified in the Operating Instructions to make operations and adjustments.
Do not allow metal objects, flammable objects, or liquids to enter inside of the projector. Do not allow the projector to get wet.
Doing so may cause short circuits or overheating, and result in fire, electric shock, or malfunction of the projector.
- Do not place containers of liquid or metal objects near the projector.
- If liquid enters inside of the projector, consult your dealer.
• Particular attention must be paid to children.
Use the ceiling mount bracket specified by Panasonic.
Using the ceiling mount bracket other than the specified one will result in falling accidents.
- Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
Installation work (such as ceiling mount bracket) should only be carried out by a qualified technician.
If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.
- Do not use anything other than an authorized ceiling mount bracket.
- Be sure to use the provided accessory wire with an eye bolt as an extra safety measure to prevent the projector from falling down. (Install in a different location to the ceiling mount bracket.)
WARNING:
ACCESSORIES
Do not use or handle the batteries improperly, and refer to the following.
Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire.
- Use AA/R6/LR6 batteries.
- Do not use unspecified batteries.
- Do not use chargeable batteries.
- Do not disassemble dry cell batteries.
- Do not heat the batteries or place them into water or fire.
- Do not allow the + and – terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.
- Do not store or carry batteries together with metallic objects.
- Store the batteries in a plastic bag and keep them away from metallic objects.
- Make sure the polarities (+ and −) are correct when inserting the batteries.
- Do not use a new battery together with an old battery or mix different types of batteries.
- Do not use batteries with the outer cover peeling away or removed.
If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary.
- Battery fluid on your skin or clothing could result in skin inflammation or injury.
Rinse with clean water and seek medical advice immediately. - Battery fluid coming in contact with your eyes could result in loss of sight.
In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.
Do not use the supplied power cord with devices other than this projector.
- Using the supplied power cord with devices other than this projector may cause short circuits or overheating, and result in electric shock or fire.
Remove the depleted batteries from the remote control promptly.
• Leaving them in the unit may result in fluid leakage, overheating, or explosion of the batteries.
CAUTION:
POWER
When disconnecting the power cord, be sure to hold the power plug and power connector.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall outlet.
Failure to do so may result in fire or electric shock.
Disconnect the power plug from the wall outlet before carrying out any cleaning.
Failure to do so may result in electric shock.
■ ON USE/INSTALLATION
Do not place heavy objects on top of the projector.
Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.
Do not put your weight on this projector.
You could fall or the projector could break, and injury will result.
- Be especially careful not to let young children stand or sit on the projector.
Do not place the projector in extremely hot locations.
Doing so will cause the outer casing or internal components to deteriorate, or result in fire.
• Take particular care in locations exposed to direct sunlight or near stoves.
Do not place your hands or other objects close to the air exhaust port.
Doing so will cause burns or damage your hands or other objects.
- Heated air comes out of the air exhaust port. Do not place your hands or face, or objects which cannot withstand heat close to this port.
Always disconnect all cables before moving the projector.
Moving the projector with cables still attached can damage the cables, which will cause fire or electric shocks to occur.
When mounting the projector on the ceiling, keep mounting screws and power cord from contact with metal parts inside the ceiling.
Contact with metal parts inside the ceiling can cause electric shocks.
ACCESSORIES
When not using the projector for an extended period of time, remove the batteries from the remote control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
CAUTION:
■ VIEWING 3D VIDEO
Those with a medical history of oversensitivity to light, heart problems, or poor physical health should not view 3D images.
This may lead to a worsening of medical conditions.
If you feel tiredness or discomfort, or other abnormality while viewing with 3D Eyewear, discontinue viewing.
Continuing use may cause health problems. Take a break as necessary.
When viewing 3D movies, aim to view one movie at a time and take a break as necessary.
When viewing 3D images, for example when playing 3D games or using a PC where two way interaction is possible, take an appropriate break every 30 to 60 minutes.
Watching for long periods of time may cause eye fatigue.
When preparing contents, use contents properly created to be used for 3D.
This may cause eye fatigue or health problems.
When viewing 3D images, pay attention to people and objects in the vicinity.
3D video may be mistaken for actual objects, and the related bodily movements can cause damage to objects and lead to injury.
Use 3D Eyewear when viewing 3D videos.
Do not tilt your head when viewing with 3D Eyewear.
Those who are near or far sighted, those with weaker eyesight in one eye, or those with astigmatism should use corrective glasses etc. when using 3D Eyewear.
If the image appears distinctly double when viewing 3D video, discontinue viewing.
Watching for long periods of time may cause eye fatigue.
View at a distance of at least three times the effective height of the screen.
Viewing at distance closer than the recommended distance may cause eye fatigue. As with movies, if there are black bands at the top and bottom of the video, view at a distance of 3 times or more of the height of the video section.
Children younger than 5 or 6 years old should not use 3D Eyewear.
As it is difficult to gauge the reactions of children to fatigue and discomfort their condition may worsen suddenly. If a child uses the 3D Eyewear, guardians should beware of the child's eyes becoming tired.
Brazil Only
Brasil Apenas
•SOLID SHINE is a trademark of Panasonic Corporation.
•RealD 3D is a trademark of RealD Inc.
- Windows®, Windows Vista®, and Internet Explorer® are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
• Mac, Mac OS, OS X, and Safari are registered trademarks of Apple Inc. in the United States and other countries.
- PJLink ^M is a registered trademark or pending trademark in Japan, the United States, and other countries and regions.
- HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• VGA and XGA are trademarks of International Business Machines Corporation in the United States.
- SVGA is a trademark or registered trademark of Video Electronics Standards Association.
- RoomView and Crestron RoomView are trademarks of Crestron Electronics, Inc.
Crestron Connected and Fusion RV are trademarks of Crestron Electronics, Inc.
- Adobe Flash Player is a trademark or registered trademark of Adobe Systems Inc. in the United States and/or in other countries.
- All other names, company names, and product names mentioned in this manual are trademarks or registered trademarks of their respective owners.
Please note that the ^® and ^TM symbols are not specified in this manual.
■Illustrations in this manual
- Illustrations of the projector, screen, and other parts may vary from the actual product.
■Reference pages
- Reference pages in this manual are indicated as (→ page 00).
Term
- In this manual, the "Wireless remote control unit" accessory is referred to as "Remote control".
Features of the Projector
Quick Steps
For details, refer to the corresponding pages.
Long-life reliability achieved
The reliability is enhanced through the power-driving and unique cooling control system that maximizes the life of the light source, and complete hermeticity of the light source unit, achieving the maintenance-free projector for a long time.
Improved system performance
▶ A wide range of uses are available, with the installation of the color matching function, edge blending function, and multiple-projector brightness control function, as well as the support for 3D projection (VESA standard IR system, DLP Link system).
Energy conservation achieved through the ECO function
The function to reduce power consumption is installed, which is optimizing the light source power according to the brightness of the surroundings, input signal, and video mute status.
- Set up the projector.
(→ page 27) - Connect with external devices.
(→ page 30)
- Connect the power cord.
(→ page 35)
- Switch on the projector.
(→ page 36)
- Make initial settings.
(→ page 20)
•Take this step when you switch on the power for the first time after purchasing the projector.
- Select the input signal.
(→ page 39)
- Adjust the image.
(→ page 39)
Contents
Be sure to read "Read this first!" from page 2.
Read this first!
Chapter 1 Preparation
Precautions for use
Cautions when transporting....15
Cautions when installing 15
Security 17
DIGITAL LINK....18
Disposal 18
Cautions on use....18
Accessories 19
Optional accessories....19
Start-up display 20
Focus adjustment....20
Initial setting (display language) 20
Initial setting (projector setup) 21
About your projector 22
Remote control 22
Projector body 23
Using the remote control 25
Inserting and removing the batteries 25
Setting the remote control ID numbers 25
Chapter 2 Getting Started
Setting up
Installation mode 27
Parts for installation (optional) 27
Screen size and throw distance 28
Adjusting adjustable feet....29
Connecting 30
Before connecting 30

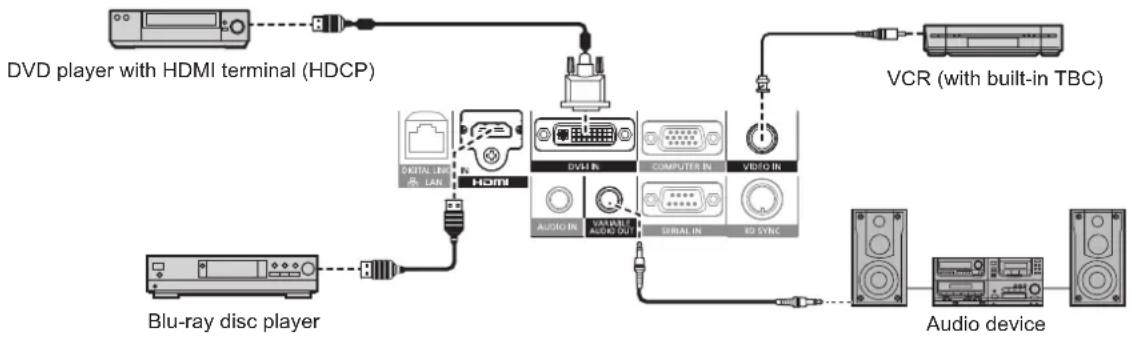

Connecting example: AV equipment 31
Connecting example: Computers 32
Connecting example: Twisted-pair-cable transmitter 32
Connecting example: IR transmitter 33
Chapter 3 Basic Operations
Switching on/off the projector
Connecting the power cord 35
Power indicator 35
Switching on the projector 36
Making adjustments and selections....37
Switching off the projector 38
Projecting 2
Selecting the input signal ____
Adjusting the image ....
Viewing 3D images
Adjusting the projection position 41
Adjustment range by the lens position shift (optical shift)....
Operating with the remote control 42
Using the AV mute function....
Using the Freeze function ....
Switching the input
Using the Automatic setup function 43
Using the Function button ....
Using the ECO management function 44
Adjusting the volume
Chapter 4 Settings
Menu navigation 46
Navigating through the menu 46
Main menu 47
Sub-menu 48
[PICTURE] menu 51
[PICTURE MODE] 51
[CONTRAST] 51
[BRIGHTNESS] 52
[COLOR] 27 52
[TINT] 52
[COLOR TEMPERATURE] 52
[DAYLIGHT VIEW] 54
[SHARPNESS] 54
[NOISE REDUCTION] 54
[SYSTEM SELECTOR] 55
sRGB-compliant video 55
[POSITION] menu 56
[SHIFT] 56
[ASPECT] 57
[ZOOM] 57
[CLOCK PHASE] 58
[KEYSTONE] 59
[ADVANCED MENU] menu 60
[DIGITAL CINEMA REALITY]......60
[BLANKING] 60
[INPUT RESOLUTION] 61
[CLAMP POSITION] 61
[EDGE BLENDING]
[FRAME RESPONSE] 63
[RASTER POSITION] 64
[DISPLAY LANGUAGE] menu 65
Changing the display language 65
Contents
[3D SETTINGS] menu 66
[3D MODE]......66
[3D SYNC OUTPUT DELAY] 66
[LEFT/RIGHT SWAP] 67
[3D INPUT FORMAT] 67
[SAFETY PRECAUTIONS MESSAGE]....68
[3D SAFETY PRECAUTIONS] 68
[DISPLAY OPTION] menu 69
[COLOR MATCHING]......69
[SCREEN SETTING] 70
[AUTO SIGNAL]....71
[AUTO SETUP]....71
[COMPUTER IN]....71
[DVI-I IN] 72
[HDMI IN] 73
[DIGITAL LINK IN] 73
[ON-SCREEN DISPLAY]....73
[CLOSED CAPTION SETTING] (NTSC input only) 75
[BACK COLOR]....76
[STARTUP LOGO]....76
[SUB MEMORY LIST]....76
[FREEZE]....77
[AV MUTE] 77
[PROJECTOR SETUP] menu 78
[PROJECTOR ID] 78
[PROJECTION METHOD]....78
[COOLING CONDITION] 79
[ECO MANAGEMENT]....79
[BRIGHTNESS CONTROL] 81
[SCHEDULE] 85
[INITIAL STARTUP] 86
[STARTUP INPUT SELECT] 87
[DIGITAL LINK INPUT] 87
[RS-232C] 88
[FUNCTION BUTTON] 90
[AUDIO SETTING] 90
[STATUS] 92
[DATE AND TIME] 92
[SAVE ALL USER DATA] 93
[LOAD ALL USER DATA] 93
[INITIALIZE] 94
[SERVICE PASSWORD] 94
[TEST PATTERN] menu 95
[TEST PATTERN] 95
[SECURITY] menu
[SECURITY PASSWORD]....
[SECURITY PASSWORD CHANGE] 96
[TEXT DISPLAY]
[TEXT CHANGE]
[MENU LOCK]
[MENU LOCK PASSWORD]....
[CONTROL DEVICE SETUP]
[NETWORK] menu
[ DIGITAL LINK MODE ]
[ DIGITAL LINK SETUP ]....
[ DIGITAL LINK STATUS]....
[NETWORK SETUP]
[NETWORK CONTROL] 101
[NETWORK STATUS]....101
Network connections ....
Connecting to a twisted-pair-cable transmitter 102
Accessing from the web browser 103
[DIGITAL LINK] menu 118
[FOCUS] menu 119
[SIGNAL LIST] menu 120
Registering new signals 120
Renaming the registered signal 120
Deleting the registered signal 120
Chapter 5 Maintenance
Light source/temperature indicator 122
When an indicator lights up 122
Maintenance 123
Before maintaining the projector 123
Maintenance 123
Troubleshooting 124
Chapter 6 Appendix
Technical information 127
PJLink protocol 127
Control commands via LAN 128
Menu lock password 132
List of compatible signals 133
Specifications 136
Dimensions 139
Precautions for Ceiling Mount Bracket 140
Index 141
Chapter 1 Preparation
This chapter describes things you need to know or check before using the projector.
Precautions for use
Cautions when transporting
- When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They may damage the internal components and result in malfunctions.
- Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing
■Do not set up the projector outdoors.
The projector is designed for indoor use only.
■Do not set up the projector in the following locations.
- Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal components or malfunction.
- Near the exhaust of an air conditioner: Depending on the conditions of use, the screen may fluctuate in rare cases due to the hot air from the air exhaust port or the heated or cooled air. Make sure that the exhaust from the projector or other equipment, or the air from the air conditioner does not blow toward the front of the projector.
- Places with sharp temperature fluctuations such as near lights (studio lamps): Doing so may result in deformation of the projector body due to heat, which may cause malfunctions.
The operating environment temperature of the projector should be between 0 °C (32 °F) and 45 °C (113 °F) when using it at elevations lower than 1 400 m (4 593') above sea level, and between 0 °C (32 °F) and 40 °C (104 °F) when using it at high altitudes (1 400 m (4 593') or higher – lower than 2 700 m (8 858') above sea level). - Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector.
- Place where there is high-power laser equipment: Directing a laser beam onto the lens surface causes damage to the DLP chips.
■ Be sure to ask a specialized technician or your dealer when installing the projector to a ceiling.
The optional Ceiling Mount Bracket is required.
Model No.: ET-PKR100H (for High Ceilings), ET-PKR100S (for Low Ceilings), ET-PKR100P (for portrait)
■ Ask a qualified technician or your dealer to install the cable wiring for DIGITAL LINK connection.
Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.
■ The projector may not work properly due to strong radio wave from the broadcast station or the radio.
If there is any facility or equipment, which outputs strong radio wave, near the installation location, install the projector at a location sufficiently far from the source of the radio wave. Or, wrap the LAN cable connected to the
■ Focus adjustment
The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on the power. Wait at least 30 minutes with the image projected before adjusting the focus.
■ Do not install the projector at elevations of 2 700 m (8 858') or higher above sea level.
Doing so may shorten the life of the components and result in malfunctions.

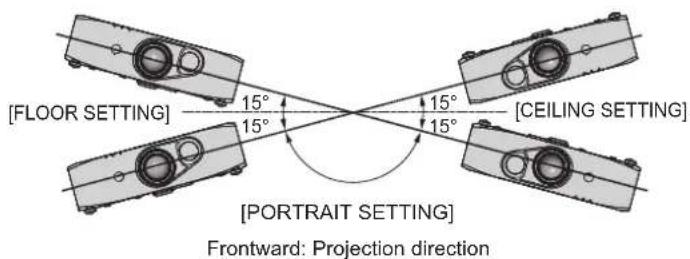

■ When installing and using the projector at an angle that exceeds 30^ vertically, set [COOLING CONDITION] ( page 79).
Failure to observe this may shorten the life of the components or result in malfunctions.
■Do not use the projector with the connecting terminal side up.

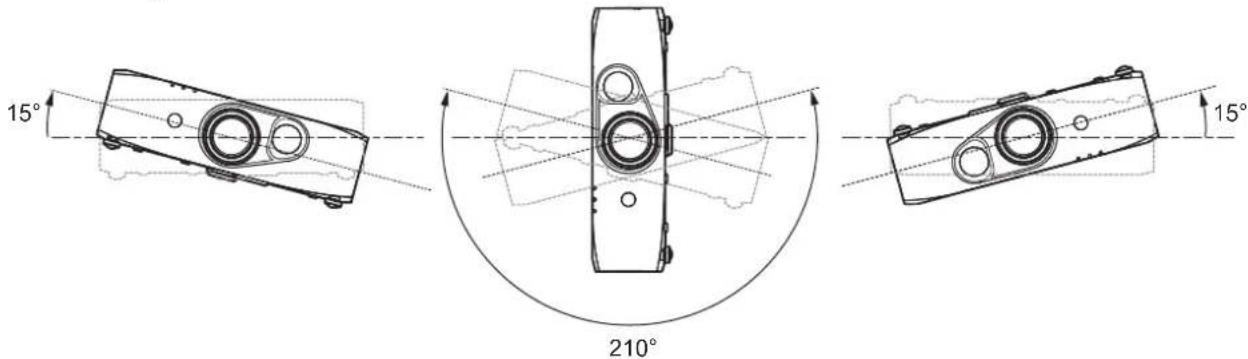

Using the projector at an angle that exceeds the available angle of 210^ may result in malfunctions. If setting up the projector at an angle that exceeds 210^ is required, consult your dealer.
● Available angle in horizontal direction
● Available angle in vertical direction for the portrait setting
■ For the portrait setting, set the projector directly facing the screen.
- If the projector is vertically installed in the portrait setting, the keystone correction for the vertical tilt is not available. In this case, the keystone correction works for the horizontal tilt.
■Cautions when setting up the projector
- To install and use the projector via a method that does not use the adjustable feet in a floor standing installation, fix the projector using the four screw holes for ceiling mounting (as shown in the figure).

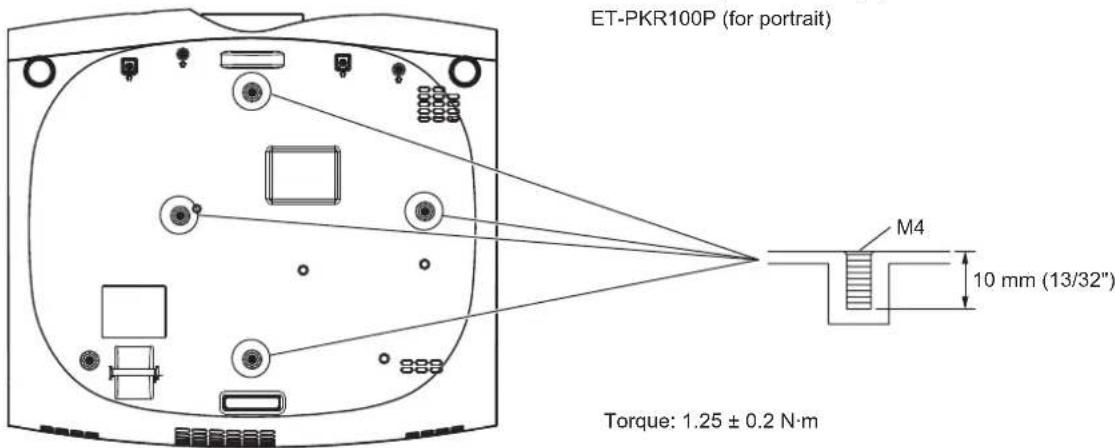

(Screw diameter: M4, tapping depth inside the set: 10 mm (13/32"), torque: 1.25 ± 0.2 N·m)
Make a clearance of at least 12 mm (15/32") between the projector bottom and setting surface by inserting spacers (metallic) etc. between them.
- Use the adjustable feet only for the floor standing installation and for adjusting the angle. Using them for other purposes may damage the set.
The positions of screw holes for ceiling mount and adjustable feet
- Do not stack projectors on top of each other.
- Do not block the ventilation ports (intake and exhaust) of the projector.
- Prevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and exhaust) of the projector.
100 mm (4") or longer
- Do not install the projector in a confined space.
When it is necessary to install the projector in a confined space, install the air conditioning or ventilation separately. Exhaust heat may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.
Security
When using this product, take safety measures against the following incidents.
• Personal information being leaked via this product
- Unauthorized operation of this product by a malicious third party
• Interfering or stopping of this product by a malicious third party
Take sufficient security measures. (→ pages 96, 114)
- Make your password difficult to guess as much as possible.
- Change your password periodically.
- The connecting network must be secured by a firewall, etc.
- Set a password for the web control and restrict the users who can log in.
- Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
DIGITAL LINK
“DIGITAL LINK” is a technology that uses a twisted-pair-cable to transmit video, audio, Ethernet, and serial control signals. The projector supports the optional Digital Interface Box (Model No.: ET-YFB100G), and the “XTP transmitter” of Extron Electronics. For twisted-pair-cable transmitter of other manufacturers of which the operation has been verified with the DIGITAL LINK compatible projector, refer to Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Disposal
To dispose of the product, ask your local authorities or dealer for correct methods of disposal.
Cautions on use
■To get a good picture quality
- In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.
■ Do not touch the surface of the projection lens with your bare hands.
If the surface of the projection lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen.
■DLP chips
- The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always lit. Note that such phenomena does not indicate malfunction.
- Directing a high-power laser beam onto the lens surface can damage the DLP chips.
Light source
The light source of the projector uses LED and lasers, and has the following characteristics.
- The luminance of the light source will decrease by duration of usage.
The runtime until when the luminance of the light source decreases by half differs depending on the setting of the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [LIGHT POWER]. It is approximately 27 000 hours when [LIGHT POWER] is set to [NORMAL], approximately 61 000 hours when set to [ECO1], and approximately 87 000 hours when set to [ECO2]. These hours are the estimated durations when the projector is used without change in the setting of [LIGHT POWER], and these vary depending on individual differences and usage conditions. The runtime is not the warranty time. If the light source goes off or the brightness reduces noticeably, ask your dealer about replacement of the light source unit.
■Computer and external device connections
- When connecting a computer or an external device, read this manual carefully regarding the use of power cords and shielded cables as well.
- When inputting digital signals to the
terminal, use a commercially available cable with a ferrite core.
■Viewing 3D images
The projector can display 3D image signals that are input through various systems such as "frame packing" and "side by side". You need to prepare external devices for viewing 3D images (such as 3D eyewear, video signal output devices) which are compatible with your 3D system. For connections of the projector and external devices, see the instruction manuals of external devices you use. Connections vary depending on your 3D system.
Refer to "List of 3D compatible signals" ( page 135) for the types of 3D video signals that can be used with the projector.
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories.
Wireless remote control unit <1>
(N2QAYB000812)
Power cord <1> (TXFSX01RWDZ)
CD-ROM <1>
(TXFQB02VLF8)
AA/R6 or AA/LR6 battery <2>
(For remote control unit)
Attention
• After unpacking the projector, discard the power cord cap and packaging material properly.
- Do not use other power cords other than the supplied power cord.
- For missing accessories, consult your dealer.
- Store small parts in an appropriate manner, and keep them away from small children.
Note
- The model numbers of accessories are subject to change without prior notice.
Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
| Instruction/list (PDF) Operating | Instructions – Functional Manual | |
| Multi Projector Monitoring & Control Software Operating Instructions | ||
| Logo Transfer Software Operating Instructions | ||
| List of Compatible Projector Models | This is a list of projectors that are compatible with the software contained in the CD-ROM and their restrictions. | |
| Software Multi Projector Monitoring & Control Software (Windows) | This software allows you to monitor and control multiple projectors connected to the LAN. | |
| This software allows you to create original images, such as company logos to be displayed when projection starts, and transfer them to the projector. | ||
Optional accessories
| Optional accessories (product name) | Model No. |
| Ceiling Mount Bracket | ET-PKR100H (for High Ceilings), ET-PKR100S (for Low Ceilings), ET-PKR100P (for portrait) |
| Digital Interface Box ET-YFB100G | |
Note
- The model numbers of optional accessories are subject to change without prior notice.
Start-up display
The initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed. Set them in accordance with circumstances. In other occasions, you can change the settings by menu operations.
Focus adjustment
Adjust the focus to display the menu screen clearly.
Refer to "Adjusting the image" (→ page 39) for details.
1) Press ▲▼◀▶ to adjust the focus.
2) Press the
- If you press the
button on the initial setting (projector setup) screen, you can go back to the initial setting (display language) screen. - To continue operations after completed the initial settings (projector setup), refer to "Selecting the input signal" (→ page 39).
- To perform focus adjustment while the initial setting screen is displayed, press the
button on the remote control. The focus adjustment screen is displayed. - By default, the time zone of the projector is set to +09:00 (Japan and Korean Standard Time). Change the setting in the [PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.
About your projector
Remote control
FrontTop
Attach a strap according to usage condition.
1 Remote control indicator
Flashes if any button in the remote control is pressed.
2 Power <|/|> button
Sets the projector to the standby mode when the

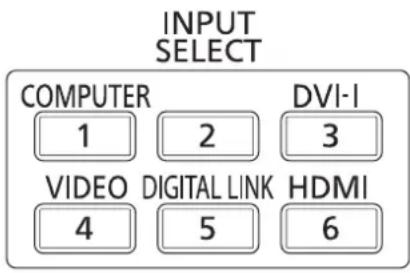

3 Input selection (
Switches the input signal to project. (→ page 43) Also used to set the ID number of the remote control and security password. (→ page 25)
4
- Do not drop the remote control.
- Avoid contact with liquids or moisture.
- Do not attempt to modify or disassemble the remote control.
- When attaching the strap to the remote control, hold the strap to prevent it from swinging.
Note
- The remote control can be used within a distance of about 15 m (49'2") if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ± 15° vertically and ± 30° horizontally, but the effective control range may be reduced.
- If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly.
- The signal will be reflected off the screen. However, the operating range may be limited from light reflection loss due to the screen material.
- If the remote control signal receiver directly receives strong light, such as fluorescent light, the remote control may not operate properly. Use it in a place distant from the light source.
- The power indicator
will flash if the projector receives a remote control signal.
Projector body
FrontSide
■
Rear
Bottom
3 Temperature indicator
4 Adjustable feet
Adjusts the projection angle.
5 Remote control signal receiver
6 Projection lens

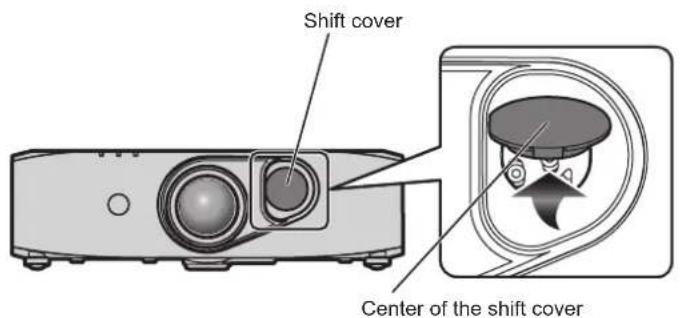

7 Shift cover
Inside the cover is the lens shift adjustment mechanism for adjusting projection position.
8 Air intake port
9 Air exhaust port
10 Security slot
This security slot is compatible with the Kensington security cables.
11 Connecting terminals ( page 24)
12
Connect the supplied power cord.
13
Turns on/off the main power.
14 Control panel (→ page 24)

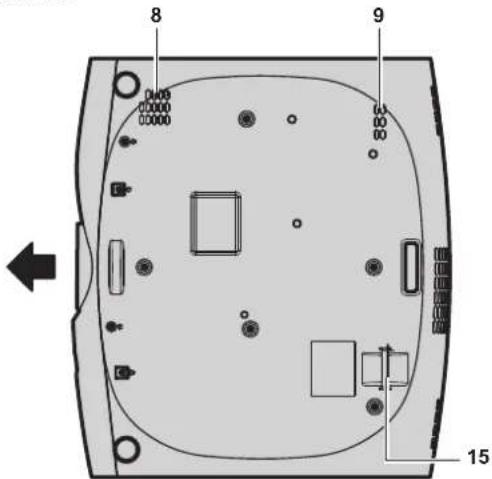

15 Burglar hook port
Attaches a burglar prevention cable, etc.
: Projection direction

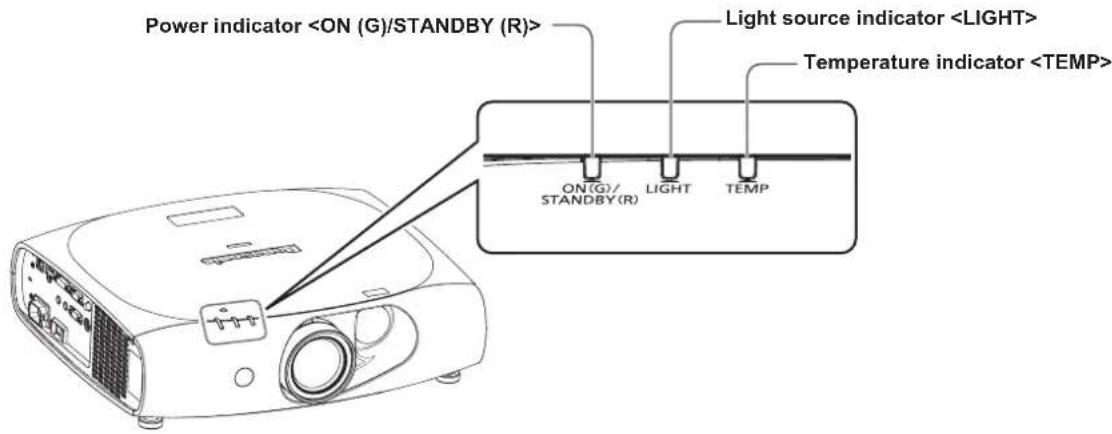

1 Power indicator
2 Light source indicator
■Control panel
1 Power <|/|> button
Sets the projector to the state where the projector is switched off (standby mode) when the
2
Displays the main menu. (→ page 46)
3 button
Switches the input signal to project. (→ page 43)
4 ▲▼◀▶ buttons/ button/ button
Used to navigate through the menu screen. Also used to enter a password in [SECURITY] or enter characters.
■Connecting terminals
1 terminal
This is the LAN terminal to connect to the network. This is also used when connecting an audio and video signal sending device via the LAN terminal.
2 terminal
This is the terminal to input HDMI signals.
3 terminal
This is the terminal to input DVI-D and DVI-A signals (RGB signal or YC_BC_R/YP_BP_R ).
4 terminal
This is the terminal to input RGB or YC_BC_R/YP_BP_R signals from a computer.
5
This is the terminal to input video signals.
6
This is the terminal to input audio signals.
7 terminal
This is the terminal to output audio signals input to the projector.
8 terminal
This is the RS-232C compatible terminal to externally control the projector by connecting a computer.
This terminal is used to connect an IR transmitter to the projector.
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Using the remote control
Inserting and removing the batteries
1) Open the cover. (Fig. 1)
2) Insert the batteries and close the cover (insert the ⬤ side first). (Fig. 2)
- When removing the batteries, perform the steps in reverse order.
Setting the remote control ID numbers
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if a unique ID number is assigned to each projector.
After setting the ID number of the projector, set same ID number on the remote control.
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the
How to set
1) Press the
2) Within five seconds, press the one-digit ID number set on the projector using the number (<1> - <6>) buttons.
- If you press the
Attention
- Since the ID number of the remote control can be set without the projector, do not press the
button on the remote control carelessly. If the button is pressed and no number (<1> - <6>) buttons are pressed within five seconds, the ID number returns to its original value before the button was pressed. - The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead batteries. Set the same ID number again when the batteries are replaced.
Note
- Set the ID number of the projector from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.
Setting up
Installation mode
There are six installation modes for the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (→ page 78) and [COOLING CONDITION] (→ page 79) according to the installation mode. Also set [COOLING CONDITION] correctly. Using the projector with incorrect settings may shorten the life of light source.
| Mounting on the ceiling and projecting forward Setting on a desk/floor and projecting from rear(Using the translucent screen) | |||
 |  | ||
| Menu item Method Menu item Method | |||
| [PROJECTION METHOD] [FRONT/CEILING] [PROJECTION METHOD] [REAR/FLOOR] | |||
| [COOLING CONDITION] | [CEILING SETTING] | [COOLING CONDITION] | [FLOOR SETTING] |
Mounting on the ceiling and projecting from rear(Using the translucent screen) | Setting on a desk/floor and projecting forward | ||
| Menu item Method Menu item Method | |||
| [PROJECTION METHOD] [REAR/CEILING] [PROJECTION METHOD] [FRONT/FLOOR] | |||
| [COOLING CONDITION] | [CEILING SETTING] | [COOLING CONDITION] | [FLOOR SETTING] |
| Portrait setting and projecting from the rear(Using the translucent screen) | Portrait setting and projecting forward | ||
 |  | ||
| Menu item Method Menu item Method | |||
| [PROJECTION METHOD] [REAR/FLOOR] [PROJECTION METHOD] [FRONT/FLOOR] | |||
| [COOLING CONDITION] | [PORTRAIT SETTING] | [COOLING CONDITION] | [PORTRAIT SETTING] |
Parts for installation (optional)
You can install the projector on the ceiling using the optional Ceiling Mount Bracket (Model No.: ET-PKR100H (for High Ceilings), ET-PKR100S (for Low Ceilings), ET-PKR100P (for portrait)).
- Be sure to use the Ceiling Mount Bracket specified for this projector.
- Refer to the Installation Instructions supplied with the Ceiling Mount Bracket when installing the projector.
Attention
- To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualified technician.
Screen size and throw distance
Refer to the following figures and table describing projection distances to install the projector. Image size and image position can be adjusted in accordance with the screen size and screen position.
| L Projection distance (m) |
| SH Image height (m) |
| SW Image width (m) |
| SD Image diagonal size (m) |
Attention
- Before setting up, read "Precautions for use" (→ page 15).
- Do not use the projector and high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the lens surface.
Projection distance
(The dimensions of the following table contain a slight error.)
(Unit: m)
| Projection screen size | 4:3 aspect ratio 16:9 aspect ratio 16:10 aspect ratio | ||
| Diagonal (SD) | Projection distance (L) | Projection distance (L) | Projection distance (L) |
| 1.02 (40") 0.83 | (2.73') 0.67 (2.21') 0.73 (2.40') | ||
| 1.27 (50") 1.05 | (3.46') 0.85 (2.80') 0.93 (3.03') | ||
| 1.52 (60") 1.27 | (4.18') 1.03 (3.39') 1.12 (3.67') | ||
| 1.78 (70") 1.49 | (4.90') 1.21 (3.98') 1.31 (4.31') | ||
| 2.03 (80") 1.71 | (5.62') 1.39 (4.57') 1.51 (4.95') | ||
| 2.29 (90") 1.93 | (6.35') 1.57 (5.16') 1.70 (5.59') | ||
| 2.54 (100") 2.15 | (7.07') 1.75 (5.75') 1.90 (6.23') | ||
| 3.05 (120") 2.60 | (8.51') 2.11 (6.93') 2.29 (7.50') | ||
| 3.81 (150") 3.26 | (10.68') 2.65 (8.70') 2.87 (9.42') | ||
| 5.08 (200") 4.36 | (14.29') 3.55 (11.65') 3.84 (12.61') | ||
Projection distance formulas
To use a screen size not listed in this manual, check the screen size SD (m) and use the following formula to calculate projection distance. Unit for calculations: m (The values of the following calculation results contain a slight error.)
| 4:3 aspect ratio | 16:9 aspect ratio | 16:10 aspect ratio | |
| Screen size Height (SH) | = SD x 0.6 | = SD x 0.490 | = SD x 0.530 |
| Screen size Width (SW) | = SD x 0.8 | = SD x 0.872 | = SD x 0.848 |
| Projection distance (L) | = 0.8670 x SD - 0.0476 | = 0.7084 x SD - 0.0476 | = 0.7659 x SD - 0.0476 |
Adjusting adjustable feet
Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, the projection screen can be adjusted to be rectangular by adjusting the adjustable feet. The adjustable feet can also be used to adjust the projector to be level when it is tilted in a horizontal direction.
Extend the adjustable feet by rotating in the direction shown in the figure and retract by rotating in the opposite direction.
Front adjustable feet: Approx. 12 mm (15/32")
Attention
- Be careful not to block the intake/exhaust with your hands or any objects when adjusting the adjustable feet when the light source is on. (→ page 23)

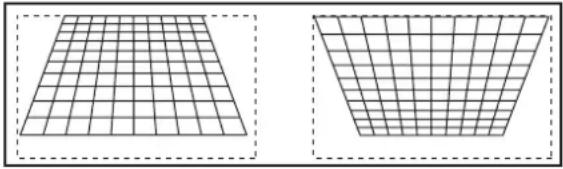

- When there is trapezoidal distortion, execute the [POSITION] menu → [KEYSTONE].
Connecting
Before connecting
- Before connecting, carefully read the operating instructions for the external device to be connected.
- Turn off the power of all devices before connecting cables.
• Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. - When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
- Do not use unnecessarily long cables to connect to a device connected to the projector or to the projector body. The longer the cable, the more it is susceptible to noise. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
- When connecting cables, connect GND first, then insert the connecting terminal of the connecting device in a straight manner.
- Acquire any connection cable necessary to connect the external device to the system that is either not supplied with the device or not available as an option.
- If video signals from AV equipment contain too much jitter, the images on the screen may randomly wobble or waver. In this case, a time base corrector (TBC) must be connected.
- The projector accepts video signals, analog RGB signals (synchronous signals are TTL level), and digital signals.
- Some computer models are not compatible with the projector.
- Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image may not display properly.
- Refer to "List of compatible signals" (→ page 133) for the types of video signals that can be used with the projector.
terminal pin assignments and signal names
| Outside view Pin No. Signal name Pin No. Signal name | ||||
 | (1) R/P | R | (9) — | |
| (2) G/Y (10) GND | ||||
| (3) B/P | B | (11) GND | ||
| (4) — (12) DDC data | ||||
| (5) | GND | (13) | SYNC/HD | |
| (6) | GND (14) | VD | ||
| (7) | GND | (15) | DDC clock | |
| (8) | GND | |||
terminal pin assignments and signal names
| Outside view Pin No. Signal name Pin No. Signal name | ||||
 | (1) | T.M.D.S data 2- | (16) | Hot plug detection |
| (2) | T.M.D.S data 2+ | (17) | T.M.D.S data 0- | |
| (3) | T.M.D.S data 2/4 shield | (18) | T.M.D.S data 0+ | |
| (4) — (19) | T.M.D.S data 0/5 shield | |||
| (5) — (20) — | ||||
| (6) | DDC clock | (21) | — | |
| (7) | DDC data | (22) | T.M.D.S clock shield | |
| (8) | Analog VD | (23) | T.M.D.S clock+ | |
| (9) | T.M.D.S data 1- | (24) | T.M.D.S clock- | |
| (10) | T.M.D.S data 1+ | C1 | Analog R/ P_R | |
| (11) | T.M.D.S data 1/3 shield | C2 | Analog G/G SYNC/Y | |
| (12) — C3 | Analog B/P | B | ||
| (13) — C4 | Analog HD/SYNC | |||
| (14) | +5 V | C5 | Analog GND | |
| (15) GND | ||||
terminal pin assignments and signal names
| Outside view Pin No. Signal name Pin No. Signal name | |||
Even-numbered pins of (2) to (18) Odd-numbered pins of (1) to (19) | (1) T.M.D.S data 2+ (11) T.M.D.S clock shield | ||
| (2) T.M.D.S data 2 shield (12) T.M.D.S clock | - | ||
| (3) T.M.D.S data 2 - | (13) CEC | ||
| (4) T.M.D.S data 1+ (14) — | |||
| (5) T.M.D.S data 1 shield (15) SCL | |||
| (6) T.M.D.S data 1 - | (16) SDA | ||
| (7) T.M.D.S data 0+ (17) | DDC/CECGND | ||
| (8) T.M.D.S data 0 shield (18) +5 V | |||
| (9) T.M.D.S data 0 - | (19) Hot plug detection | ||
| (10) T.M.D.S clock+ | |||
<3D SYNC> terminal pin assignments and signal names
| Outside view Pin No. Signal name | ||
 | (1) | +5 V |
| (2) | GND | |
| (3) | Stereo Sync | |
Connecting example: AV equipment
Attention
• Always use one of the following when connecting a VCR.
- A VCR with built-in time base corrector (TBC)
- A time base corrector (TBC) between the projector and the VCR
- If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the projector and the external devices.
- When inputting digital signals to the
Note
- When a DVI digital signal is input, some external devices to be connected may require to switch the setting using the [DISPLAY OPTION] menu → [DVI-I IN] → [EDID].
- The
terminal can be connected to HDMI- or DVI-I-compliant devices. However, images may not appear or may not be displayed properly on some devices. - For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
- The
terminal of the projector can be connected to an external device with a DVI terminal by using an HDMI/DVI conversion cable, but some devices may not project the image properly or function properly. - The projector does not support VIERA Link (HDMI).
- If the [HDMI] and [DIGITAL LINK] settings in the [PROJECTOR SETUP] menu → [AUDIO SETTING] → [AUDIO IN SELECT] are incorrect, the projector may have malfunctions such as the absence of audio.

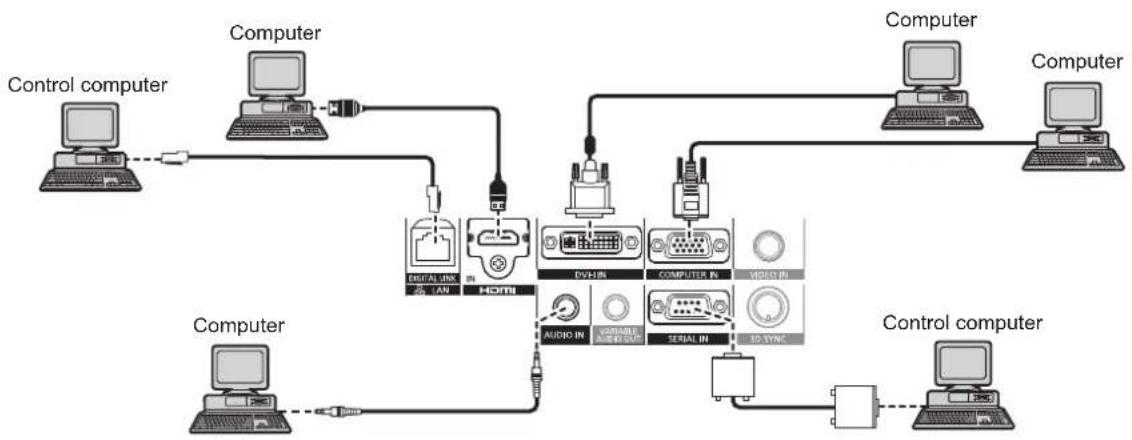

Connecting example: Computers
- When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables.
- When inputting digital signals to the
terminal, use a commercially available cable with a ferrite core.
Note
- When a DVI digital signal is input, some external devices to be connected may require to switch the setting using the [DISPLAY OPTION] menu → [DVI-I IN] → [EDID].
- For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
- The
terminal of the projector can be connected to an external device with an DVI terminal by using a HDMI/DVI conversion cable, but some devices may not project the image properly or function properly. - The
terminal (for digital input) supports single link only. - If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate the projector.
- If the [AUDIO IN SELECT] settings are incorrect, the projector may have malfunctions such as the absence of audio.

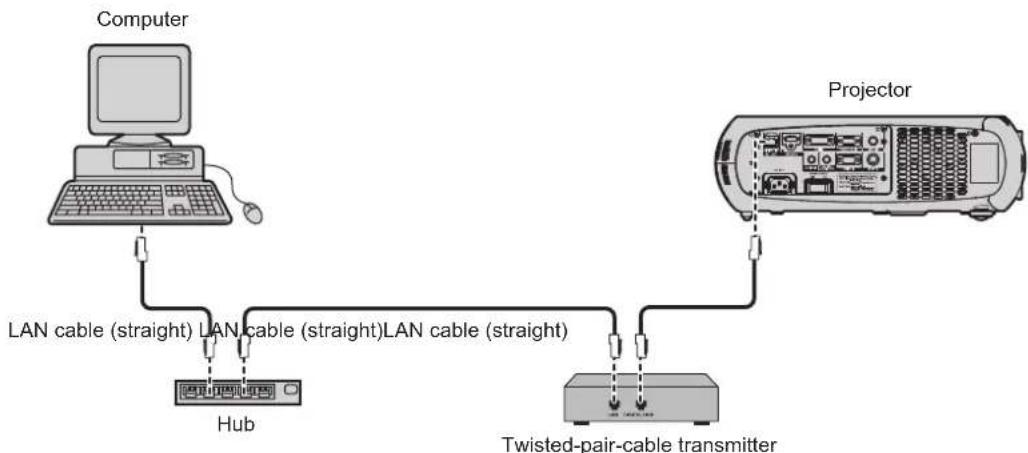

Connecting example: Twisted-pair-cable transmitter
Twisted-pair-cable transmitters such as the optional Digital Interface Box (Model No.: ET-YFB100G) use twisted-pair-cables to transmit input video, audio, Ethernet, and serial signals, and the projector can input those digital signals to the
Projector connecting terminals
Attention
•Always use one of the following when connecting a VCR.
-A VCR with built-in time base corrector (TBC)
-A time base corrector (TBC) between the projector and the VCR
- If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the projector and the external devices.
- Use a commercial HDMI/DVI conversion cable with a ferrite core.
- Ask a qualified technician or your dealer to install the cable wiring for a twisted-pair-cable transmitter and the projector. Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.
- For the LAN cable between a twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
-Compatible with CAT5e or higher
-Shielded type (including connectors)
-Straight-through
-Single wire
- When laying cables between a twisted-pair-cable transmitter and the projector, check that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
When using a relay connector midway, include it in the measurement.
- Do not use a hub between a twisted-pair-cable transmitter and the projector.
- When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturer, do not place another twisted-pair-cable transmitter (receiver) between the twisted-pair-cable transmitter of other manufacturer and the projector. This may cause sound and image to be disrupted.
- Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
- To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
- Lay the cables between a twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
- When installing multiple cables, run them side by side along the shortest distance possible without bundling them together.
- After laying the cables, confirm that the value of [SIGNAL QUALITY] in the [NETWORK] menu [DIGITAL LINK STATUS] is displayed in green (indicates normal quality). ( page 100)
Note
- For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
•The projector does not support VIERA Link (HDMI). - The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). If this distance is exceeded, image and sound may be disrupted and may cause a malfunction in LAN communication. Please note that we do not support the use of the projector outside the maximum transmission distance.
- For twisted-pair-cable transmitter of other manufacturers of which the operation has been verified with the DIGITAL LINK compatible projector, refer to Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Connecting example: IR transmitter
VESA standard 3D eyewear
Note
- When viewing 3D images using VESA standard 3D eyewear, connect the commercially available VESA standard IR transmitter and set the [3D SETTINGS] menu → [3D MODE] to [3D SYNC] or [DLP Link + 3D SYNC].
- When using 3D eyewear that supports DLP Link, an IR transmitter is not required.
When using 3D eyewear that supports DLP Link, set the [3D SETTINGS] menu → [3D MODE] to [DLP Link] or [DLP Link + 3D SYNC].
Chapter 3 Basic Operations
This chapter describes basic operations to start with.
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the
For details of power cord handling, refer to "Read this first!" (→ page 2).
Attaching the power cord
1) Check the shapes of the
Removing the power cord
1) Confirm that the
2) Remove the power cord connector from the
Power indicator
Displays the status of the power. Check the
When the light source indicator
Chapter 3 Basic Operations — Switching on/off the projector
| Indicator status Projector status | ||
| Off The main power is switched off. | ||
| Red | Flashing | The power is switched off (in standby mode). [STANDBY MODE] is set to [NORMAL]. Projection will start when the power < /| > button is pressed.The projector may not operate when the temperature indicatoris flashing. |
| Lit | The power is switched off (in standby mode). [STANDBY MODE] is set to [ECO]. Projection will start when the power < /| > button is pressed.The projector may not operate when the temperature indicatoris flashing. | |
| Green Lit Projecting. | ||
Note
- The projector consumes power even in standby mode (when the power indicator
lights/flashes in red). Refer to "Power consumption" ( page 136) for the power consumption. - The power indicator
flashes in green if a remote control signal is received. - The power indicator
flashes in green slowly when the projector is in AV mute mode.

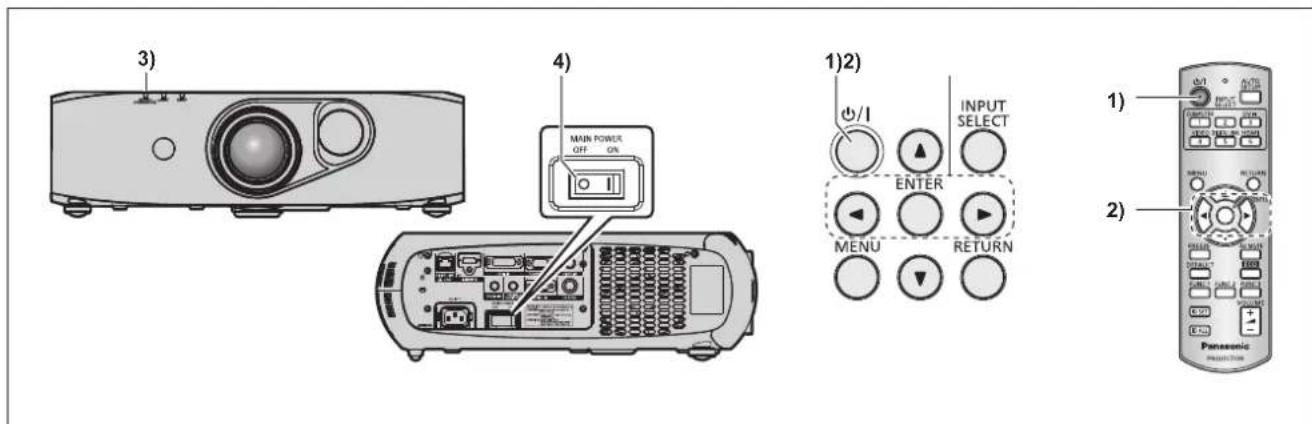

Switching on the projector
1) Connect the power cord to the projector body.
2) Connect the power plug to an outlet.
•(AC 100 V - 240 V 50 Hz/60 Hz)
3) Press the
- The power indicator
4) Press the power <|>|> button.
- The power indicator
Note
- If the projector is switched on at around 0^ (32 °F), a warm-up period of approximately five minutes may be necessary until an image is displayed.
The temperature indicatorlights during the warm-up period. When the warm-up is completed, the temperature indicator turns off and the projection starts. Refer to "When an indicator lights up" ( page 122) for the indicator status. - If the operating environment temperature is low and warm-up takes more than five minutes, the projector will judge that a problem has occurred and the power will automatically be set to standby mode. If this happens, increase the operating environment temperature to 0 °C (32 °F) or higher, turn off the main power, and then switch on the projector again.
- If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], it may take more time before the projector starts projecting after the power is turned on compared with when [NORMAL] is set.
- When the power is turned or an input signal is switched, you may here a high-frequency driving sound. This is not a malfunction.
- If the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY] and the power is turned off by pressing the
side of the switch or by using the breaker directly while projecting during the last time of use, the power indicator lights in green and projection starts after a while when the power is turned on by pressing the side of the switch with the power plug connected to the outlet, or with the breaker turned on. - If the projector is switched on at around 0 °C (32 °F), a warm-up period of approximately five minutes may be necessary until an image is displayed.
The temperature indicator
lights during the warm-up period. When the warm-up is completed, the temperature indicator turns off and the projection starts. Refer to "When an indicator lights up" (▶ page 122) for the indicator status. - If the operating environment temperature is low and warm-up takes more than five minutes, the projector will judge that a problem has occurred and the power will automatically be set to standby mode. If this happens, increase the operating environment temperature to 0 °C (32 °F) or higher, turn off the main power, and then switch on the projector again.
- If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], it may take more time before the projector starts projecting after the power is turned on compared with when [NORMAL] is set.
- When the power is turned or an input signal is switched, you may here a high-frequency driving sound. This is not a malfunction.
- If the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY] and the power is turned off by pressing the
side of the switch or by using the breaker directly while projecting during the last time of use, the power indicator lights in green and projection starts after a while when the power is turned on by pressing the side of the switch with the power plug connected to the outlet, or with the breaker turned on.
Making adjustments and selections
It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted.
1) Press the
2) Change the settings of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the installation mode. (→ page 27)
- Refer to "Navigating through the menu" (→ page 46) for the operation of the menu.
3) Press the input selection (
Note
- When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Refer to "Start-up display" (→ page 20) for details.
Switching off the projector
1) Press the power <|>|> button.
- The [POWER OFF(STANDBY)] confirmation screen is displayed.
2) Press ◀▶ to select [OK], and press the
(Or press the power <|/|> button again.)
•Projection of the image stops.
3) Wait for a few seconds until the power indicator
4) Press the
Note
- Even when the power </| > button is pressed and the power is switched off, the projector consumes power if the main power of the projector is on.
When the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], the power consumption during standby can be conserved. - The power can be turned off by pressing the
side of the switch while projecting or by directly using the breaker under conditions where the switch of the projector cannot be switched off/on easily such as while mounting on the ceiling. However, the settings or adjustments performed right before the power is turned off may not be reflected.
Projecting
Check the external device connections ( page 30) and the power cord connection ( page 35), and turn on the projector ( page 36) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Selecting the input signal
Select an input signal.
1) Press the input selection (
- The image of the signal being input in the selected terminal is projected.
Attention
- Images may not be projected properly depending on the external device, or the blu-ray disc or DVD disc, to be played back. Set the [PICTURE] menu → [SYSTEM SELECTOR].
- Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu → [ASPECT].
Adjusting the image
1) Adjust the projection angle.
• Install the projector on a flat surface and parallel to the screen so that the projected screen is rectangular.
- If the screen is tilted downward, extend the adjustable feet and adjust the projection screen so that the projected screen is rectangular.
- Refer to "Adjusting adjustable feet" (→ page 29) for details.
2) Press the
•The focus adjustment screen is displayed.
3) Press ▲▼◀▶ to adjust the focus.
Note
- It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted.
- When there is trapezoidal distortion, execute the [POSITION] menu [KEYSTONE].
- When the projection position needs to be adjusted, do so following the procedure described in "Adjusting the projection position" (→ page 41).

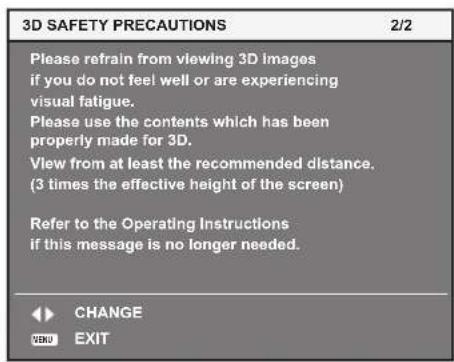

Viewing 3D images
To project/view 3D images, you need active shutter system 3D eyewear, 3D content, and devices that can play 3D content.
The projector only supports frame packing system, side by side system, top and bottom system, and frame sequential system as 3D video signal input. Other systems are not supported.
The active shutter system 3D eyewear supports DLP Link system and VESA standard IR (Infrared) system. However, not all the 3D eyewear operations have been verified.
Attention
- Be sure to read "VIEWING 3D VIDEO" in "Read this first!" (→ page 8) before projecting/viewing 3D images.
- Also read the operating instructions of 3D eyewear when using 3D eyewear.
- If you use 3D eyewear in a room with the fluorescent light turned on, light may flicker or 3D images may not be viewed properly. In such a case, turn off the fluorescent light.
• Take off 3D eyewear before viewing displays other than 3D images (such as computer screen, digital clock, calculator).
3D eyewear with DLP Link system support
You can project/view 3D images using 3D eyewear that supports DLP Link through the following procedure.
Turn on the projector.
1) Turn on the 3D eyewear.
2) Change projector settings to use the 3D eyewear.
- To set, select [DLP Link] or [DLP Link + 3D SYNC] in the [3D SETTINGS] menu → [3D MODE].
Note
- Change the setting in the [3D SETTINGS] menu [LEFT/RIGHT SWAP] [DLP Link], if there is something wrong with 3D images.
- The 3D eyewear that supports DLP Link operates by receiving synchronized signals of 3D images which are included in projection light reflected on the screen, and images can be viewed in three dimensions. Depending on the conditions such as projection screen size, brightness of installation location, viewing distance, and brightness of the light source, synchronized signals may not be received properly and you may not view 3D images correctly.
- To view 3D images using the 3D eyewear that supports DLP Link system, the 3D eyewear is required to be synchronized to the following frequency according to the vertical scanning frequency of 3D video signals. For 3D eyewear specifications, contact the companies of 3D eyewear.
| Vertical scanning frequency 3D eyewear supporting frequency | |
| 60 Hz/120 Hz 120 Hz | |
| 50 Hz/100 Hz 100 Hz | |
| 24 Hz 96 Hz | |
3D eyewear with VESA standard IR (Infrared) system support
You can project/view 3D images using 3D eyewear that supports VESA standard IR (Infrared) system through the following procedure. Turn off the projector.
1) Connect the IR transmitter cable to the <3D SYNC> terminal on the projector.
2) Turn on the projector, 3D eyewear, and IR transmitter.
3) Change projector settings to use the 3D eyewear.
- To set, select [3D SYNC] or [DLP Link + 3D SYNC] in the [3D SETTINGS] menu → [3D MODE].
Note
- Change the setting in the [3D SETTINGS] menu [LEFT/RIGHT SWAP] [3D SYNC], if there is something wrong with 3D images.
Adjusting the projection position
When the projection position of images is shifted, adjust the lens shift through the following procedure.
Tool used:
- Ball point allen key wrench (M4) or allen wrench (M4)
Used when adjusting screw (1) to screw (3).
Torque (recommended): 1.2 N·m to 1.6 N·m
- Flat-blade screwdriver
Used when adjusting the opening for the lens shift adjustment.
Size of the opening for the lens shift adjustment: 1.5 mm (1/16") x 7 mm (9/32")
Fig. 1 Fig. 2
- While pressing the center of the shift cover, pull it up in the direction of the arrow to remove.
1) Remove the shift cover. (Fig. 1)
2) Turn the screw (1) counterclockwise to loosen it. (Fig. 2)
3) Turn and loosen the screw (2) or screw (3) counterclockwise to adjust the lens shift.
| Orientation Adjustment method | |
| Vertical | Loosen the screw (2) and adjust the opening of the lens shift adjustment (top and bottom). |
| Horizontal | Loosen the screw (3) and adjust the opening of the lens shift adjustment (right and left). |
• Vertical and horizontal lens shift can be adjusted simultaneously.
4) After the lens shift has been adjusted, tighten the screw (2) or screw (3).
5) Tighten the screw (1).
6) Attach the shift cover.
- Check the shape of the hole and fit the shift cover in the correct direction.
Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the movement of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift based on the standard projection position in the range shown in the following figure.
Operating with the remote control
Using the AV mute function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the audio and video temporarily.
AV MUTE
button
1) Press the
•The audio and video turn off.
2) Press the
•The audio and video turn on.
Note
- The power indicator
flashes slowly when the projector is in AV mute mode. - The projector has no built-in speakers. Audio is output from the external sound system connected to the
terminal.
Using the Freeze function
The projected image can be paused temporarily and the audio muted, regardless of the playback of the external equipment.
FREEZE
button
1) Press the
•The video is paused and the audio is muted.
2) Press the
- The video playback resumes and the audio is unmuted.
Note
- [FREEZE] is displayed on the screen when the video is paused.
Switching the input
The input for projection can be switched.
button
1) Press the input selection (, ,
- This operation can be also performed using the button on the control panel.
| Switch the input to COMPUTER. | |
| Switch the input to DVI-I. | |
| Switch the input to VIDEO. | |
| Switch the input to DIGITAL LINK. | |
| Switch the input to HDMI. |
Note
- When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the
terminal, the ET-YFB100G input changes with each press of the button.
For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on the twisted-pair-cable transmitter.
Using the Automatic setup function
The automatic setup function can be used to automatically adjust the resolution, clock phase, and image position when analog RGB signals consisting of bitmap images such as computer signals are being input, or to automatically adjust the image position when DVI-D/HDMI signals are input. Supplying images with bright white borders at the edges and high-contrast black and white characters is recommended when the system is in automatic adjustment mode.
Avoid supplying images that include halftones or gradation, such as photographs and computer graphics.
AUTO SETUP
button
1) Press the button.
- [COMPLETE] is displayed when it has completed without any problem.
Note
- The clock phase may shift even if it has completed without any incident. In such cases, adjust the [POSITION] menu → [CLOCK PHASE] (→ page 58).
- If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even when [COMPLETE] appears. In this case, adjust the settings in the [ADVANCED MENU] menu → [INPUT RESOLUTION] (→ page 61), [POSITION] → [CLOCK PHASE] (→ page 58), and [SHIFT] (→ page 56).
- Adjust special signals according to the [DISPLAY OPTION] menu [AUTO SETUP] (→ page 71).
• Automatic adjustment may not work depending on the model of the computer.
• Automatic adjustment may not work for a synchronization signal of C-SY or SYNC ON GREEN. - Images may be disrupted for a few seconds during automatic adjustment, but it is not a malfunction.
- Adjustment is required for each input signal.
- Automatic adjustment can be canceled by pressing the
or - If the automatic setup function is used while moving images are being input, the adjustment may not be performed properly even for an RGB signal that can use automatic setup. [INCOMPLETE] may appear, or adjustment may not be finished properly even if [COMPLETE] appears.
Using the Function button
Frequently used operations can be assigned to the
The
FUNC 1
FUNC 2
FUNC 3
button
1) Press the
When assigning operations to the
1) Press the
- After settings have been completed, F1 or F2 is displayed on the left of the assigned menu item (main menu, sub-menu, or details menu) when
or is set, respectively. Also, F3 is displayed on the left of [FOCUS] on the main menu. - Perform the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (→ page 90) when deallocating functions.
Using the ECO management function
The setting screen related to the ECO management can be displayed.
ECO
button
1) Press the
Note
- Refer to the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] (→ page 79) for details.
Adjusting the volume
The audio output volume can be adjusted.
VOLUME
button
1) Press the
Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.

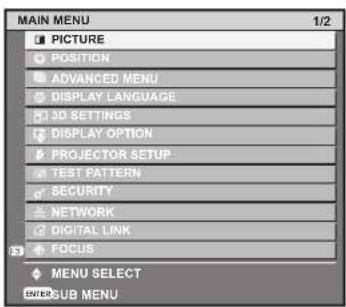

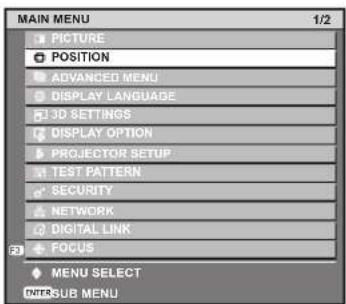

Navigating through the menu
Operating procedure
MENU
button
1) Press the
- Pressing the
button or the - Some items may not be adjusted or used for certain signal formats to be input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.
- Some items can be adjusted even if signals are not input.
- Individual adjustment screen is cleared automatically if no operation is performed for approximately five seconds.
- For menu items, refer to "Main menu" (→ page 47) and "Sub-menu" (→ page 48).
- The cursor color depends on the settings of the [OSD DESIGN] menu ( page 74). The selected item is displayed with the yellow cursor by default.
- In a portrait setting, the menu is displayed sideways.
Resetting adjustment values to the factory default
If the
button
1) Press the button on the remote control.
Note
- You cannot reset all the settings to the factory default at a time.
- To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 94).
- Some items cannot be reset by pressing the
button. Adjust each item manually. - The square mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the square mark varies by the selected input signals.
Current adjustment value
Setting the on-screen display to show/hide
If you press the
- Some items may not be adjusted or used for certain signal formats to be input to the projector.
- The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.
- Sub-menu items and factory default settings differ depending on the selected input terminal.
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" ( page 46) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
![PANASONIC Solid Shine PT-RZ475U - [PICTURE] menu - 1](/content/2026/06/1201944/images/4b04bce6cea40169013b97dd041a32749e53bc041fd69c11c403a7a1f6de4eef.jpg)
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press ▲▼ to select [PICTURE MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
| [GRAPHIC] The image | becomes suitable for input from the personal computer. |
| [STANDARD] The image | becomes suitable for moving images in general. |
| [CINEMA] The image | becomes suitable for movie contents. |
| [NATURAL] The image | is sRGB compliant. |
| [REC709] *1 | The image is Rec.709 compliant. |
| [DICOM SIM.]*1 | The image becomes similar to that of DICOM Part 14 Grayscale Standard. |
| [DYNAMIC] Color and brightness are optimized and image becomes suitable for video content. | |
*1 Use the factory default for the settings under the [PICTURE] menu other than [PICTURE MODE].
Note
- The factory default picture mode is [GRAPHIC] for still image input signals and [STANDARD] for movie-based input signals.
- When [LIGHT POWER] is set to [ECO1] or [ECO2], [DYNAMIC] cannot be selected. Even when [PICTURE MODE] is set to [DYNAMIC] while [LIGHT POWER] is set to [NORMAL], the setting is switched to [GRAPHIC] automatically if [LIGHT POWER] is switched to [ECO1] or [ECO2].
- [DYNAMIC] cannot be selected when viewing 3D images. Even when [DYNAMIC] is selected while viewing 2D images, the setting is switched to [GRAPHIC] automatically once viewing 3D images.
- Rec.709 is an abbreviation of "ITU-R Recommendation BT.709" and is color standard of high-definition television.
- DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
[CONTRAST]
You can adjust the contrast of the colors.
1) Press ▲▼ to select [CONTRAST].
2) Press ◀▶ or the
- The [CONTRAST] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
| Operation Adjustment Range of adjustment | ||
| Press the ▶ button. | Brightens the screen and makes the color deeper. | -31 - 31 |
| Press the ◀ button. | Darkens the screen and makes the color lighter. | |
Attention
- Adjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press ▲▼ to select [BRIGHTNESS].
2) Press ◀▶ or the
- The [BRIGHTNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
| Operation Adjustment | Range of adjustment | |
| Press the ▶ button. | Increases the brightness of the dark (black) parts of the screen. | -31 - 31 |
| Press the ◀ button. | Reduces the brightness of the dark (black) parts of the screen. |
[COLOR]
You can adjust the color saturation of the projected image.
1) Press ▲▼ to select [COLOR].
2) Press ◀▶ or the
- The [COLOR] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
| Operation Adjustment Range of adjustment | ||
| Press the ▶ button. | Deepens colors. | -31 - 31 |
| Press the ◀ button. | Weakens colors. | |
[TINT]
You can adjust the skin tone in the projected image.
1) Press ▲▼ to select [TINT].
2) Press ◀▶ or the
- The [TINT] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
| Operation Adjustment Range of adjustment | ||
| Press the ▶ button. | Adjusts skin tone toward greenish color. | -31 - 31 |
| Press the ◀ button. | Adjusts skin tone toward reddish purple. | |
[COLOR TEMPERATURE]
You can switch the color temperature if the white areas of the projected image are bluish or reddish.
Adjusting with color temperature
1) Press ▲▼ to select [COLOR TEMPERATURE].
2) Press ◀▶ or the
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
| [DEFAULT] Factory default setting. | |
| [USER] | Adjusts white balance as desired. Refer to “Adjusting desired white balance” (→ page 53) for details. |
| [MIDDLE] | Select so that images become natural. |
| [HIGH] | |
Note
- When “[PICTURE MODE]” (→ page 51) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE BALANCE HIGH] cannot be adjusted.)
- When [COLOR MATCHING] (→ page 69) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press ▲▼ to select [COLOR TEMPERATURE].
2) Press ◀▶ or the
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to select [USER].
4) Press the
- The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [WHITE BALANCE].
6) Press the
•The [WHITE BALANCE] screen is displayed.
7) Press ▲▼ to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8) Press the
- The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9) Press ▲▼ to select [RED], [GREEN], or [BLUE].
10) Press ◀▶ to adjust the level.
| Item Operation Adjustment Range of adjustment | |||
| [RED] | Press the ▶ button. | Deepens red. | [WHITE BALANCE HIGH]: 0 - 255 (factory default is 255)[WHITE BALANCE LOW]: -127 - 127 (factory default is 0) |
| Press the ◀ button. | Weakens red. | ||
| [GREEN] | Press the ▶ button. | Deepens green. | |
| Press the ◀ button. | Weakens green. | ||
| [BLUE] | Press the ▶ button. | Deepens blue. | |
| Press the ◀ button. | Weakens blue. | ||
Note
- Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the
button on the remote control to return the setting for the selected item only to the factory default setting. - The setting of [COLOR TEMPERATURE] is not reflected in internal test patterns ( page 95). Make sure to set [COLOR TEMPERATURE] while projecting input signal.
Changing the [USER] name
1) Press ▲▼ to select [COLOR TEMPERATURE].
2) Press ◀▶ or the
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to select [USER].
4) Press the
- The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [COLOR TEMPERATURE NAME CHANGE].
6) Press the
- The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.
7) Press ▲▼◀▶ to select the text, and press the
8) Press ▲▼◀▶ to select [OK], and press the
•The name set to color temperature is changed.
Note
- When a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press ▲▼ to select [DAYLIGHT VIEW].
2) Press ◀▶ or the
- The [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
| [AUTO] Corrects the image vividness automatically. |
| [OFF] No correction. |
| [1] Corrects the image to weaken vividness. |
| [2] Corrects the image to medium vividness. |
| [3] Corrects the image to high vividness. |
Note
- If [ON] is selected from the [ADVANCED MENU] menu [EDGE BLENDING], [AUTO] cannot be set.
- If [REAR/FLOOR] or [REAR/CEILING] is selected from the [PROJECTOR SETUP] menu → [PROJECTION METHOD], [AUTO] cannot be set.
- [AUTO] mode may not operate properly if objects are placed on top of the projector.
- If [PICTURE MODE] is [NATURAL], [REC709], or [DICOM SIM.], the factory default setting is [OFF].
[SHARPNESS]
You can adjust the sharpness of the projected image.
1) Press ▲▼ to select [SHARPNESS].
2) Press ◀▶ or the
- The [SHARPNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
| Operation Adjustment Range of adjustment | ||
| Press the ▶ button. | Contours become sharper. | 0 - 15 |
| Press the ◀ button. | Contours become softer. | |
Note
- If you press ▶ while the adjustment value is [15], the value will become [0]. If you press ◀ while the adjustment value is [0], the value will become [15].
•[SHARPNESS] cannot be set while displaying 3D images.
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1) Press ▲▼ to select [NOISE REDUCTION].
2) Press ◀▶ or the
- The [NOISE REDUCTION] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] No correction.
[ON] Corrects the noise.
Attention
- Setting the projector may result in an image that appears different from the actual image. In such a case, set it to [OFF].
- [NOISE REDUCTION] cannot be set when viewing 3D videos.
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal.
1) Press ▲▼ to select [SYSTEM SELECTOR].
2) Press the
3) Press ▲▼ to select a system format.
• Available system formats vary depending on the input signal.
| Terminal System format | |
| Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].Set it to [AUTO] normally. (Setting [AUTO] will automatically select [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].)Switch the setting to the signal method for the TV used. | |
| 480i, 576i, or 576p signal Select [RGB] or [YCCR]. | |
| VGA60 or 480p signal Select [VGA60], [480p], or [480pRGB]. | |
| Other movie-based signals Select [RGB] or [YPBRPR]. | |
| 480p or 576p signal Select [RGB], [YCCR444], or [YCCR422]. | |
| Other movie-based signals Select [RGB], [YPBRPR444], or [YPBRPR422]. | |
| 480p or 576p signal Select [AUTO], [RGB], [YCCR444], or[YCCR422]. | |
| Other movie-based signals Select [AUTO], [RGB], [YPBRPR444], or[YPBRPR422]. | |
*1 When [DVI-I IN] is set to [ANALOG].
*2 When [DVI-I IN] is set to [DIGITAL].
- Refer to "List of compatible signals" (→ page 133) for the types of video signals that can be used with the projector.
- This may not function properly for some connected external devices.
sRGB-compliant video
sRGB is an international standard (IEC61966-2-1) for color reproduction defined by IEC (International Electrotechnical Commission). Set according to the following steps to reproduce more faithful, sRGB compliant colors.
1) Set [COLOR MATCHING] to [OFF].
• Refer to [COLOR MATCHING] (→ page 69).
2) Display the [PICTURE] menu.
•Refer to “[PICTURE] menu” (→ page 51).
3) Press ▲▼ to select [PICTURE MODE].
4) Press ◀▶ to set [NATURAL].
5) Press ▲▼ to select [COLOR].
6) Press the
7) Follow Steps 5) to 6) to set [TINT] and [COLOR TEMPERATURE] to the factory default settings.
Note
- sRGB is available for RGB signal input only.
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" ( page 46) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
![PANASONIC Solid Shine PT-RZ475U - [POSITION] menu - 1](/content/2026/06/1201944/images/b5be7e25ac280112ff49a336f83dc3078c3df17c6b613d1b75e992cf5e8f7e13.jpg)
Note
- When the input is set to DIGITAL LINK, only [KEYSTONE] can be set. When the optional Digital Interface Box (ET-YFB100G) is connected to the projector, adjust the shift, aspect, and clock phase from the menu of ET-YFB100G.
[SHIFT]
Move the image position vertically or horizontally if the image position projected on the screen is shifted even when the relative position of the projector and the screen is installed correctly.
1) Press ▲▼ to select [SHIFT].
2) Press the
•The [SHIFT] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.
| Orientation Operation Adjustment | |||
| Vertical (up and down) adjustment | Press the ▲ button. | The image position moves up. | ![PANASONIC Solid Shine PT-RZ475U - [SHIFT] - 1](/content/2026/06/1201944/images/0e963c2d27846bfb91f8264d094a84322af17c453c9b66732a925fc4cb6a499b.jpg) |
| Press the ▼ button. | The image position moves down. | ![PANASONIC Solid Shine PT-RZ475U - [SHIFT] - 2](/content/2026/06/1201944/images/385a4ea3197782c9ae11aebd08336ac97ae0602adf23fa6f4894189bf90452c1.jpg) | |
| Horizontal (right and left) adjustment | Press the ▶ button. | The image position moves to the right. | ![PANASONIC Solid Shine PT-RZ475U - [SHIFT] - 3](/content/2026/06/1201944/images/6ff4506f5d4889bbd4c5876158013091c6a95fd3c2cd46aa938e1fb72aa2c0db.jpg) |
| Press the ◀ button. | The image position moves to the left. | ![PANASONIC Solid Shine PT-RZ475U - [SHIFT] - 4](/content/2026/06/1201944/images/238369b419d53eaa64e931b78085768e6e40065fb798dad8caef401fc5e93eda.jpg) | |
Note
- For the portrait setting, image position is moved horizontally when "Vertical (up and down) adjustment" is made. Image position is moved vertically when "Horizontal (right and left) adjustment" is made.
[ASPECT]
Switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (→ page 70)
1) Press ▲▼ to select [ASPECT].
2) Press ◀▶ or the
- The [ASPECT] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
| [NORMAL] Displays images without changing the aspect ratio of the input signals. | |
| [NATIVE] Displays images without changing the resolution of the input signals. | |
| [WIDE] | Displays images with the aspect ratio converted to 16:9 when standard signals are input ^1 . Display images without changing the aspect ratio when wide-screen signals are input ^2 . |
| [4:3] | Displays images without changing the aspect ratio when standard signals are input ^1 . Displays images without changing the aspect ratio so that the images will fit in the 4:3 screen when wide-screen signals are input ^2 . |
| [H FIT] | Displays images using the entire width of the screen. When signals have the aspect ratio vertically longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off. |
| [V FIT] | Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed with the right and left parts cut off. |
| [FULL] | Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of the input signals differs from that of the screen range, the images are displayed with the aspect ratio converted to that of the screen selected in [SCREEN FORMAT]. |
*1 Standard signals are input signals with an aspect ratio of 4:3 or 5:4.
*2 Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.
Note
- If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals. Be careful of this when selecting the aspect ratio.
- If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.
- If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the creator of the images.
[ZOOM]
Adjust the image size.
When [ASPECT] is set to other than [NORMAL] and [NATIVE]
1) Press ▲▼ to select [ZOOM].
2) Press the
•The [ZOOM] screen is displayed.
3) Press ▲▼ to select [INTERLOCKED].
4) Press ◀▶ to switch the item.
| [OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. | |
| [ON] | Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally by units of 1.0 time. |
5) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
6) Press ◀▶ to adjust.
Note
- When [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press ▲▼ to select [ZOOM].
2) Press the
•The [ZOOM] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
| [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. |
| [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. |
5) Press ▲▼ to select [INTERLOCKED].
6) Press ◀▶ to switch the item.
| [OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. | |
| [ON] | Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally by units of 1.0 time. |
7) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
8) Press ◀▶ to adjust.
Note
- When [ASPECT] is not set to [NORMAL], [MODE] is not displayed.
[CLOCK PHASE]
Adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [CLOCK PHASE].
2) Press ◀▶ or the
- The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press ◀▶ to adjust.
- Adjustment value will change between [0] and [31]. Adjust so that the amount of interference is at a minimum.
Note
- Optimal value may not be achieved if the output from the input computer is unstable.
- Optimal value may not be achieved when there is a shift in the total dot numbers.
- [CLOCK PHASE] can be adjusted only when an analog signal is input to the
terminal or the terminal.
•[CLOCK PHASE] cannot be adjusted when a digital signal is input. - If you press ▶ while the adjustment value is [31], the value will become [0]. If you press ◀ while the adjustment value is [0], the value will become [31].
[KEYSTONE]
Correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press ▲▼ to select [KEYSTONE].
2) Press ◀▶ or the
- The [KEYSTONE] individual adjustment screen is displayed.
3) Press ◀▶ to adjust.
| Item Details | |
| [KEYSTONE] | ![PANASONIC Solid Shine PT-RZ475U - [KEYSTONE] - 1](/content/2026/06/1201944/images/b3459931284575b183f3ed99bd9502e76f09041bf5b0741c216655af335dc39d.jpg) |
Note
- [KEYSTONE] can be corrected up to ± 40^ for tilt in the vertical direction. However, the image quality will degrade and it will get harder to focus with more correction. Install the projector so the correction will be as small as possible.
- Performing [KEYSTONE] also changes the image size.
- Trapezoidal distortion may occur depending on the lens shift position.
- Aspect ratio of the image size may shift depending on the correction or lens zoom value.
- For the portrait setting, keystone is corrected for horizontal tilt.
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-menu.
Refer to "Navigating through the menu" ( page 46) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
![PANASONIC Solid Shine PT-RZ475U - [ADVANCED MENU] menu - 1](/content/2026/06/1201944/images/61f0f961ada93315dbf54bdb50258681b8fed09602434da16c6d20d50de902d2.jpg)
[DIGITAL CINEMA REALITY]
Increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input.
1) Press ▲▼ to select [DIGITAL CINEMA REALITY].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Performs automatic detection and cinema processing. (Factory default)
[OFF] Does not perform cinema processing.
Note
- When [FRAME RESPONSE] is set to [FAST], [DIGITAL CINEMA REALITY] cannot be set.
[BLANKING]
Adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out from the screen while an image from the VCR or other devices are projected.
1) Press ▲▼ to select [BLANKING].
2) Press the
- The [BLANKING] adjustment screen is displayed.
3) Press ▲▼ to select [UPPER], [LOWER], [LEFT], or [RIGHT].
4) Press ◀▶ to adjust the blanking width.
- The adjustment range is within 10 % of the resolution in each direction, and changes depending on the input signal.
| Blanking correction | Item Operation | Adjustment Range of adjustment | |||
| Top of the screen [UPPER] | Press the ◀ button. | The blanking zone moves upward. | ![PANASONIC Solid Shine PT-RZ475U - [BLANKING] - 1](/content/2026/06/1201944/images/3f0a275c5798a04d47a028bcb29e7fb4dc3e35d9325d17ae21491a4e5b71dde8.jpg) | Top and bottom: 0 (lower limit) | |
| Press the ► button. | The blanking zone moves downward. | ||||
| Bottom of the screen | [LOWER] | Press the ► button. | The blanking zone moves upward. | ![PANASONIC Solid Shine PT-RZ475U - [BLANKING] - 2](/content/2026/06/1201944/images/ddf0ed9bc1cb49d5d7d9892669669e501d265f9b878a289f55a5785ea58ee5c0.jpg) | |
| Press the ◀ button. | The blanking zone moves downward. | ||||
| Left side of the screen | [LEFT] | Press the ▶ button. | The blanking zone moves to the right. | ![PANASONIC Solid Shine PT-RZ475U - [BLANKING] - 3](/content/2026/06/1201944/images/3ee9446e06fc8f909d704c904c4daeb6a779c0c730edc83901172760fc04915c.jpg) | Left and right: 0 (lower limit) |
| Press the ◀ button. | The blanking zone moves to the left. | ||||
| Right side of the screen | [RIGHT] | Press the ◀ button. | The blanking zone moves to the right. | ![PANASONIC Solid Shine PT-RZ475U - [BLANKING] - 4](/content/2026/06/1201944/images/18dcf3a575df46d71b7a82733e547391551f7e700da397d740dc6cff7ad62864.jpg) | |
| Press the ▶ button. | The blanking zone moves to the left. | ||||
[INPUT RESOLUTION]
Adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [INPUT RESOLUTION].
2) Press the
- The [INPUT RESOLUTION] screen is displayed.
3) Press ▲▼ to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press ◀▶ to adjust each item.
- Values corresponding to the signal being input are displayed automatically for each item. Increase or decrease the displayed values and adjust to the optimal point viewing the screen when there are vertical stripes or sections are missing from the screen.
Note
- Previously mentioned vertical banding will not occur with all white signal input.
- The image may be disrupted while performing the adjustment, but it is not a malfunction.
- [INPUT RESOLUTION] can be adjusted only when an analog RGB signal is input to the
terminal or the terminal.
• Certain signals may not be adjustable.
[CLAMP POSITION]
You can adjust the optimal point when the black part of the image is blunt or it has turned green.
1) Press ▲▼ to select [CLAMP POSITION].
2) Press ◀▶ to adjust.
| Status Rough guide for optimal value Range of adjustment | ||
| The black part is blunt. | The point where bluntness of the black part improves the most is the optimal value. | 1 - 255 |
| The black part is green. | The point where the green part becomes black, and the bluntness has improved is the optimal value. | |
Note
- [CLAMP POSITION] can be adjusted only when an analog signal is input to the
terminal or the terminal.
•Certain signals may not be adjustable.
[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area.
1) Press ▲▼ to select [EDGE BLENDING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
| [OFF] Sets the edge blending function to off. |
| [ON] Sets the edge blending function to on. |
- To adjust edge blending, proceed to Step 3).
3) When [ON] is selected, press the
•The [EDGE BLENDING] screen is displayed.
4) Press ▲▼ to specify the location to be corrected.
- When joining at top: Set [UPPER] to [ON]
- When joining at bottom: Set [LOWER] to [ON]
- When joining at left: Set [LEFT] to [ON]
- When joining at right: Set [RIGHT] to [ON]
5) Press ◀▶ to switch between [ON] and [OFF].
6) Press ▲▼ to select [START] or [WIDTH].
7) Press ◀▶ to adjust the starting position or correction width.
- By setting [AUTO TESTPATTERN] on the [EDGE BLENDING] screen to [ON], the white test pattern is displayed when you enter the setting screen of starting point and correction width.
8) Press ▲▼ to select [MARKER].
9) Press ◀▶ to switch [ON].

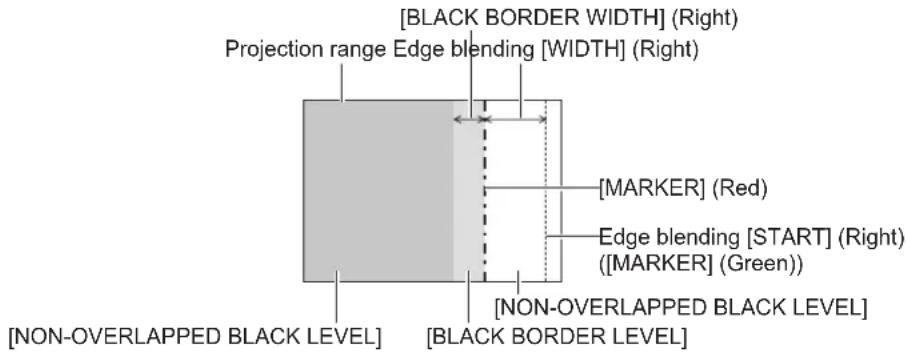

- A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value. Optimal joining is not possible with projectors that have different correction widths.
The optimal point is the point at which these lines overlap.
Red line
10) Press ▲▼ to select [BRIGHTNESS ADJUST].
11) Press the
• The [BRIGHTNESS ADJUST] screen is displayed.
- By setting [AUTO TESTPATTERN] on the [EDGE BLENDING] screen to [ON], the black test pattern is displayed when you enter the [BRIGHTNESS ADJUST] screen.
12) Press ▲▼ to select [NON-OVERLAPPED BLACK LEVEL].
- The [NON-OVERLAPPED BLACK LEVEL] screen is displayed.
- If [INTERLOCKED] is set to [OFF], [RED], [GREEN], and [BLUE] can be adjusted individually.
14) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.
- Once the adjustment is completed, press the
- Operating Instructions Functional Manual
- Read this first!
- Notice on laser
- RISK GROUP 3
- Caution:
- NOTIFICATION (Canada)
- WARNING:
- For USA-California Only
- POWER
- ■ ON USE/INSTALLATION
- ACCESSORIES
- ■ VIEWING 3D VIDEO
- Brazil Only
- Brasil Apenas
- Trademarks
- ■Illustrations in this manual
- ■Reference pages
- Term
- Features of the Projector
- Quick Steps
- Long-life reliability achieved
- Improved system performance
- Energy conservation achieved through the ECO function
- Contents
- Chapter 1 Preparation
- Precautions for use
- Start-up display 20
- About your projector 22
- Using the remote control 25
- Chapter 2 Getting Started
- Setting up
- Connecting 30
- Chapter 3 Basic Operations
- Switching on/off the projector
- Projecting 2
- Operating with the remote control 42
- Chapter 4 Settings
- Menu navigation 46
- [PICTURE] menu 51
- [POSITION] menu 56
- [ADVANCED MENU] menu 60
- [DISPLAY LANGUAGE] menu 65
- [3D SETTINGS] menu 66
- [DISPLAY OPTION] menu 69
- [PROJECTOR SETUP] menu 78
- [TEST PATTERN] menu 95
- [SECURITY] menu
- [NETWORK] menu
- [DIGITAL LINK] menu 118
- [FOCUS] menu 119
- [SIGNAL LIST] menu 120
- Chapter 5 Maintenance
- Light source/temperature indicator 122
- Maintenance 123
- Troubleshooting 124
- Chapter 6 Appendix
- Technical information 127
- Specifications 136
- Dimensions 139
- Precautions for Ceiling Mount Bracket 140
- Index 141
- Cautions when transporting
- Cautions when installing
- ■Do not set up the projector outdoors.
- ■Do not set up the projector in the following locations.
- ■ Be sure to ask a specialized technician or your dealer when installing the projector to a ceiling.
- ■ Ask a qualified technician or your dealer to install the cable wiring for DIGITAL LINK connection.
- ■ The projector may not work properly due to strong radio wave from the broadcast station or the radio.
- ■ Focus adjustment
- ■ Do not install the projector at elevations of 2 700 m (8 858') or higher above sea level.
- ■ When installing and using the projector at an angle that exceeds 30° vertically, set [COOLING CONDITION] ( → page 79).
- ■Do not use the projector with the connecting terminal side up.
- ■ For the portrait setting, set the projector directly facing the screen.
- ■Cautions when setting up the projector
- Security
- DIGITAL LINK
- Disposal
- Cautions on use
- ■To get a good picture quality
- ■ Do not touch the surface of the projection lens with your bare hands.
- ■DLP chips
- Light source
- ■Computer and external device connections
- ■Viewing 3D images
- Attention
- Note
- Contents of the supplied CD-ROM
- Optional accessories
- Start-up display
- Focus adjustment
- Initial setting (display language)
- Initial setting (projector setup)
- About your projector
- Remote control
- Projector body
- ■Control panel
- Power <|/|> button
- button
- button
- ▲▼◀▶ buttons/ button/ button
- ■Connecting terminals
- terminal
- terminal
- terminal
- terminal
- terminal
- terminal
- terminal
- terminal
- Using the remote control
- Inserting and removing the batteries
- Setting the remote control ID numbers
- How to set
- Installation mode
- Parts for installation (optional)
- Screen size and throw distance
- Projection distance
- Projection distance formulas
- Adjusting adjustable feet
- Connecting
- Before connecting
- terminal pin assignments and signal names
- <3D SYNC> terminal pin assignments and signal names
- Connecting example: AV equipment
- Connecting example: Computers
- Connecting example: Twisted-pair-cable transmitter
- Connecting example: IR transmitter
- Connecting the power cord
- Attaching the power cord
- Removing the power cord
- Power indicator
- Switching on the projector
- Making adjustments and selections
- Switching off the projector
- Projecting
- Selecting the input signal
- Adjusting the image
- Viewing 3D images
- 3D eyewear with DLP Link system support
- 1) Turn on the 3D eyewear.
- 2) Change projector settings to use the 3D eyewear.
- 3D eyewear with VESA standard IR (Infrared) system support
- Adjusting the projection position
- Adjustment range by the lens position shift (optical shift)
- Operating with the remote control
- Using the AV mute function
- AV MUTE
- button
- Using the Freeze function
- FREEZE
- Switching the input
- 1) Press the input selection (, , , , ) buttons.
- Using the Automatic setup function
- AUTO SETUP
- 1) Press the button.
- Using the Function button
- Using the ECO management function
- Adjusting the volume
- VOLUME
- Menu navigation
- Navigating through the menu
- Operating procedure
- MENU
- Resetting adjustment values to the factory default
- 1) Press the button on the remote control.
- Setting the on-screen display to show/hide
- Main menu
- Sub-menu
- [PICTURE]
- [POSITION]
- [ADVANCED MENU]
- [DISPLAY LANGUAGE]
- [3D SETTINGS]
- [DISPLAY OPTION]
- [PROJECTOR SETUP]
- [TEST PATTERN]
- [SECURITY]
- [NETWORK]
- [ DIGITAL LINK] CD
- [FOCUS]
- [SIGNAL LIST]
- [PICTURE] menu
- [PICTURE MODE]
- [CONTRAST]
- [BRIGHTNESS]
- [COLOR]
- [TINT]
- [COLOR TEMPERATURE]
- Adjusting with color temperature
- Adjusting desired white balance
- Changing the [USER] name
- [DAYLIGHT VIEW]
- [SHARPNESS]
- [NOISE REDUCTION]
- [SYSTEM SELECTOR]
- sRGB-compliant video
- [POSITION] menu
- [SHIFT]
- [ASPECT]
- [ZOOM]
- When [ASPECT] is set to other than [NORMAL] and [NATIVE]
- When [ASPECT] is set to [NORMAL]
- [CLOCK PHASE]
- [KEYSTONE]
- [ADVANCED MENU] menu
- [DIGITAL CINEMA REALITY]
- [BLANKING]
- [INPUT RESOLUTION]
- [CLAMP POSITION]
- [EDGE BLENDING]
- 19) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.
- [FRAME RESPONSE]
- 1) Press ▲▼ to select [FRAME RESPONSE].
- 2) Press ◀▶ to switch the item.
- [RASTER POSITION]
- [DISPLAY LANGUAGE] menu
- Changing the display language
- [3D SETTINGS] menu
- [3D MODE]
- [3D SYNC OUTPUT DELAY]
- [LEFT/RIGHT SWAP]
- When using 3D eyewear that supports DLP Link
- When using VESA standard 3D eyewear
- [3D INPUT FORMAT]
- [SAFETY PRECAUTIONS MESSAGE]
- [3D SAFETY PRECAUTIONS]
- [DISPLAY OPTION] menu
- [COLOR MATCHING]
- Adjusting the color matching as desired
- Adjusting the color matching using a colorimeter
- [SCREEN SETTING]
- [AUTO SIGNAL]
- [AUTO SETUP]
- [COMPUTER IN]
- [DVI-I IN]
- When digital signals are input
- When analog signals are input
- [HDMI IN]
- [DIGITAL LINK IN]
- [ON-SCREEN DISPLAY]
- Setting [OSD POSITION]
- Setting [OSD DESIGN]
- Setting [OSD MEMORY]
- Setting [INPUT GUIDE]
- - ENGLISH
- Setting [WARNING MESSAGE]
- [CLOSED CAPTION SETTING] (NTSC input only)
- Selecting the closed caption display
- Setting the closed caption display
- [BACK COLOR]
- [STARTUP LOGO]
- [SUB MEMORY LIST]
- Registering the current settings to the list
- Switching to the sub memory list
- Deleting the sub memory data
- [FREEZE]
- [AV MUTE]
- [PROJECTOR SETUP] menu
- [PROJECTOR ID]
- [PROJECTION METHOD]
- [COOLING CONDITION]
- [ECO MANAGEMENT]
- Setting [LIGHT POWER]
- Setting [AUTO POWER SAVE]
- 2) Press the button.
- 3) Press ▲▼ to select [AUTO POWER SAVE].
- 4) Press ◀▶ to switch the item.
- 5) Press ▲▼ to select [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION], or [AV MUTE DETECTION].
- 6) Press ◀▶ to switch the item.
- Setting [NO SIGNAL SHUT-OFF]
- 1) Press ▲▼ to select [ECO MANAGEMENT].
- 3) Press ▲▼ to select [NO SIGNAL SHUT-OFF].
- Setting [STANDBY MODE]
- 3) Press ▲▼ to select [STANDBY MODE].
- [BRIGHTNESS CONTROL]
- Setting [BRIGHTNESS CONTROL GAIN]
- Setting [BRIGHTNESS CONTROL SETUP]
- 7) Press ▲▼ to select [LINK].
- 8) Press ◀▶ to switch the item.
- 9) Press ▲▼ to select [CALIBRATION TIME].
- 10) Press the button.
- 11) Press ◀▶ to select "hour" or "minute", press ▲▼ to set the time, and then press the button.
- 12) Press ▲▼ to select [CALIBRATION MESSAGE].
- 13) Press ◀▶ to switch the item.
- 14) Press ▲▼ to select [APPLY].
- 15) Press the button.
- Displaying [BRIGHTNESS CONTROL STATUS]
- [BRIGHTNESS CONTROL STATUS] screen display example
- When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF]
- When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set from [GROUP A] to [GROUP D]
- When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set to [OFF]
- ■Error details
- Brightness control adjustment procedure example
- [SCHEDULE]
- Enabling/disabling the schedule function
- 1) Press ▲▼ to select [SCHEDULE].
- How to assign a program
- 2) Press ◀▶ to select [ON], and press the button.
- 3) Select and assign program to each day of week.
- How to set a program
- 3) Press ▲▼ to select [PROGRAM EDIT].
- 4) Press ◀▶ to select a program number, and press the button.
- 5) Press ▲▼ to select a command number, and press the button.
- 6) Press ▲▼ to select [TIME], and press the button.
- 7) Press ◀▶ to select "hour" or "minute", press ▲▼ to set the time, and then press the button.
- 8) Press ▲▼ to select [COMMAND].
- 9) Press ◀▶ to switch the item.
- 11) Press ▲▼ to select a [COMMAND].
- 12) Press the button.
- 13) Press ▲▼ to select [STORE], and press the button.
- [INITIAL STARTUP]
- 1) Press ▲▼ to select [INITIAL STARTUP].
- [STARTUP INPUT SELECT]
- [DIGITAL LINK INPUT]
- [RS-232C]
- Communicating using the terminal
- When using existing projector control commands
- [FUNCTION BUTTON]
- [AUDIO SETTING]
- Adjusting the left/right audio balance
- Setting the audio output during standby
- Setting audio input when HDMI input is selected
- Setting audio input when DIGITAL LINK input is selected
- [STATUS]
- [DATE AND TIME]
- Setting the time zone
- Setting the date and time manually
- Setting the date and time automatically
- [SAVE ALL USER DATA]
- [LOAD ALL USER DATA]
- [INITIALIZE]
- [SERVICE PASSWORD]
- [TEST PATTERN] menu
- 1) Press ◀▶ to switch the [TEST PATTERN] item.
- [SECURITY PASSWORD]
- [SECURITY PASSWORD CHANGE]
- [TEXT DISPLAY]
- [TEXT CHANGE]
- [MENU LOCK]
- [MENU LOCK PASSWORD]
- [CONTROL DEVICE SETUP]
- [DIGITAL LINK MODE]
- [DIGITAL LINK SETUP]
- When the projector is connected directly via Ethernet
- [DIGITAL LINK STATUS]
- [NETWORK SETUP]
- [NETWORK CONTROL]
- [NETWORK STATUS]
- Network connections
- ■Example of a normal network connection
- Connecting to a twisted-pair-cable transmitter
- ■Example of network connections via a twisted-pair-cable transmitter

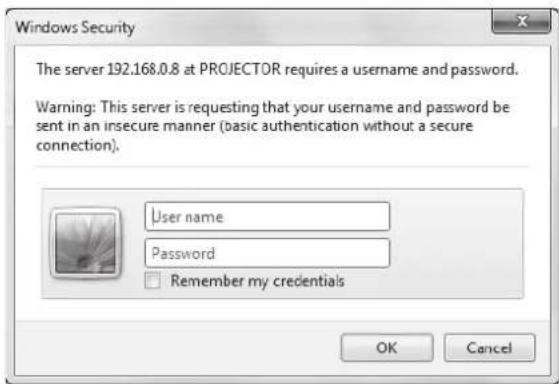

- Accessing from the web browser

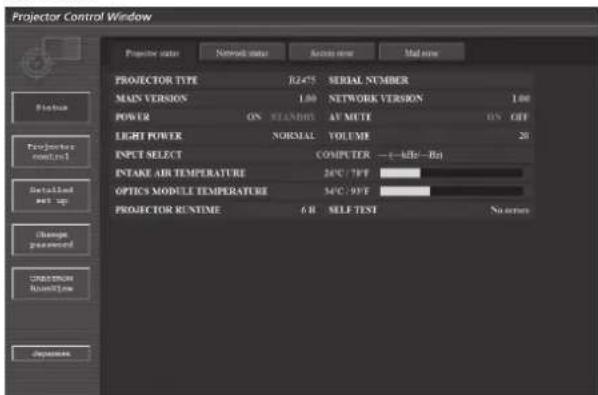

- Descriptions of items

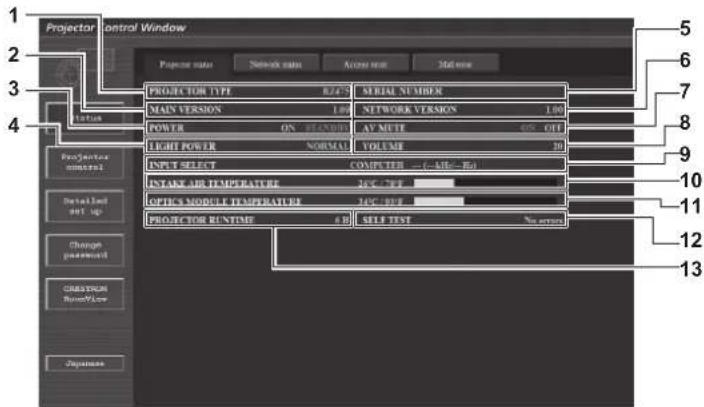

- [Projector status] page
- Error information page
- Self-diagnosis result display
- [Network status] page

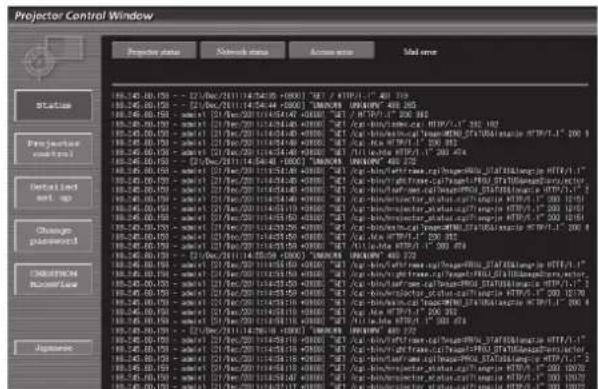

- [Access error] page
- [Mail error] page

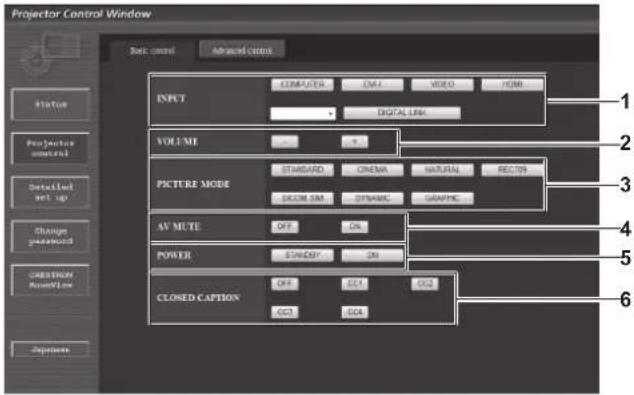

- [Basic control] page
- [Advanced control] page
- [Network config] page

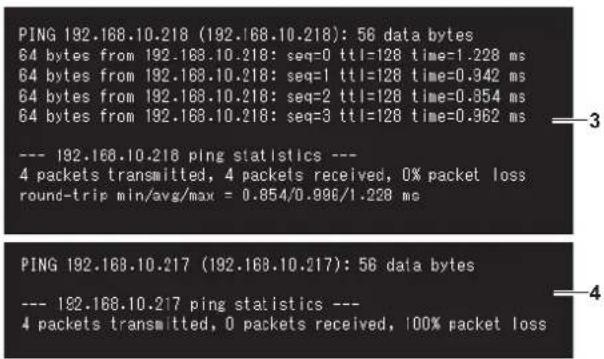

- [Ping test] page
- [Adjust clock] page

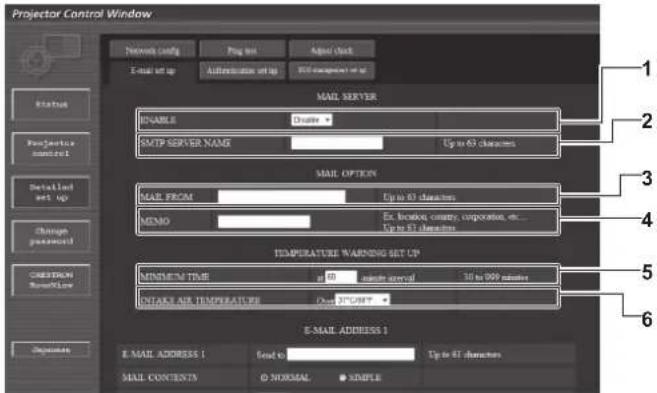

- [E-mail set up] page
- [ENABLE]
- [SMTP SERVER NAME]
- [MAIL FROM]
- [MEMO]
- [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
- [MINIMUM TIME]
- [INTAKE AIR TEMPERATURE]
- Settings of the conditions to send E-mail
- [MAIL CONTENTS]:
- [ERROR]:
- [INTAKE AIR TEMPERATURE]:
- [PERIODIC REPORT]:
- [Submit]
- [Authentication set up] page
- Contents of E-mail sent
- Example of E-mail sent when E-mail is set
- Example of the E-mail sent for an error

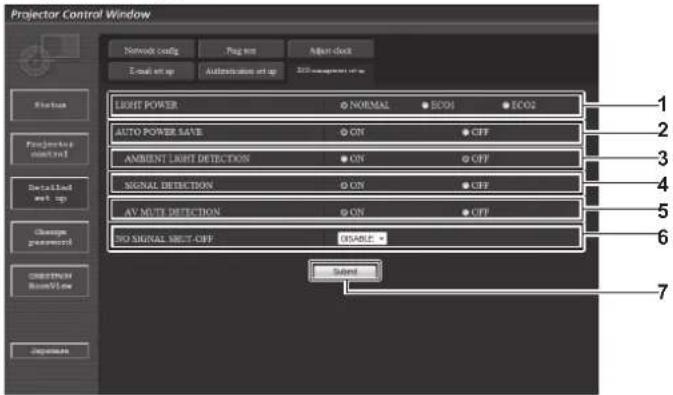

- [ECO management set up] page

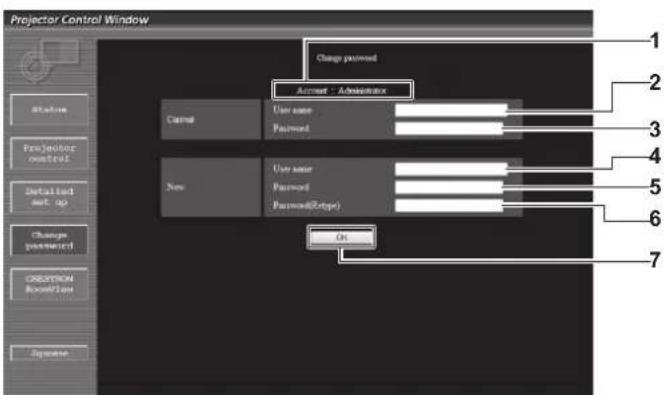

- [Change password] page
- [Administrator] account
- [User] account
- [Change password] (For user rights)
- [CRESTRON RoomView] page

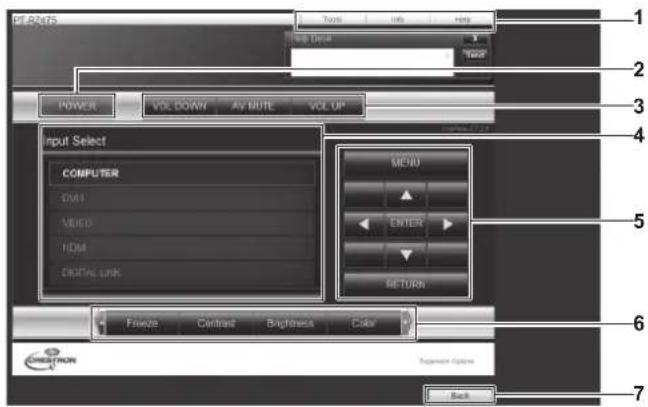

- Control page
- [Tools] page
- [Info] page
- [Help] page
- [DIGITAL LINK] menu
- [FOCUS] menu
- [SIGNAL LIST] menu
- ■Registered signal details
- Registering new signals
- Renaming the registered signal
- Deleting the registered signal
- Light source/temperature indicator
- When an indicator lights up
- Maintenance
- Before maintaining the projector
- Outer case
- Lens front surface
- Cleaning inside the projector
- Technical information
- PJLink protocol
- Control commands
- PJLink security authentication
- Control commands via LAN
- Command transmission method
- When web control administrator rights password is not set (Non-protect mode)
- 1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a connection to the projector.
- 2) Check the response from the projector
- ■Transmitted data
- ■Received data
- ■Error response
- terminal
- Connection

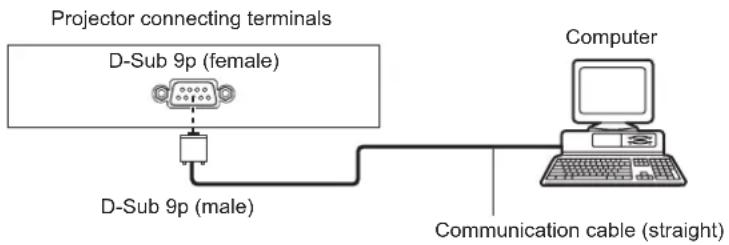

- ● To connect directly
- ● To connect a DIGITAL LINK compatible device
- Pin assignments and signal names
- Communication conditions (Factory default)

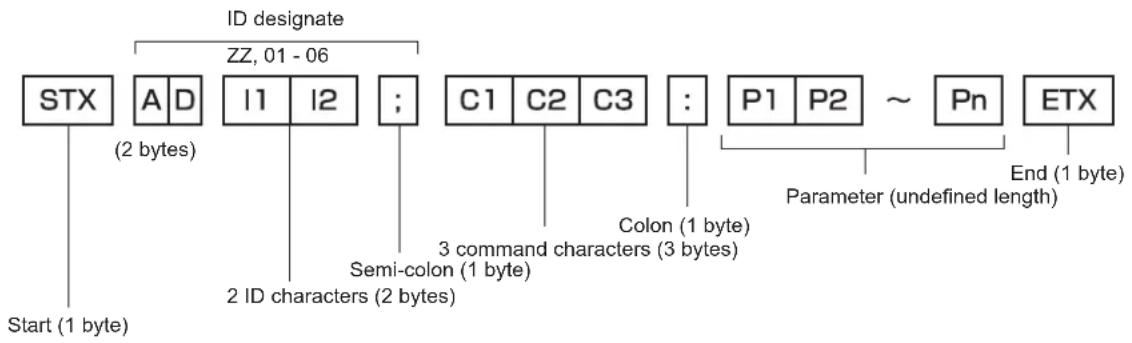

- Basic format
- Basic format (has subcommands)
- Cable specification
- Control command
- Menu lock password
- List of compatible signals
- List of 3D compatible signals
- Specifications
- ■Applicable scanning frequency
- Dimensions
- Precautions for Ceiling Mount Bracket
- Index
- - 9
- A
- B
- C
- D
- E
- F
- |
- L
- M
- N
- 92
- 0
- P
- R
- S
- 59
- T
- 47
- Z
- Information on Disposal in other Countries outside the European Union
- Panasonic Corporation
Brand : PANASONIC
Model : Solid Shine PT-RZ475U
Category : Video projector
