E920 - Security Camera ACTi - Free user manual and instructions

Product Type	Outdoor Mini Dome Camera
Model	E920
Resolution	5 Megapixels
WDR	Basic WDR
Lens Type	Fixed lens
Day/Night	Yes (built-in IR cut filter)
Power Supply	Power over Ethernet (PoE) IEEE 802.3af
Ethernet Port	RJ-45 (10/100 Mbps)
Audio Input	1x audio jack (mic with built-in amplifier)
Memory Card Slot	microSDHC/microSDXC slot
Reset Button	Yes (factory reset)
Mounting Options	Surface mount, gangbox, wall mount, pendant mount (accessories sold separately)
Operating Temperature	Not specified (likely outdoor rated)
Ingress Protection	Outdoor rated (IP66 estimated)
Dimensions (approx.)	Mini dome form factor (no exact dimensions provided)
Weight	Not specified
Cleaning Instructions	Disconnect power before cleaning. Use a soft dry cloth. Do not use liquid cleaners.
Safety Precautions	Do not open the device. Refer all servicing to qualified personnel. Use only recommended accessories.
Optional Accessories	Smoked vandal-proof dome cover, wall mount, pendant mount, gangbox converter
Firmware Access	Via web browser (Internet Explorer recommended for full features)

Frequently Asked Questions - E920 ACTi

How do I access the camera for the first time?

Connect the camera to a PoE switch and power it on. Use ACTi IP Utility to discover its IP address, or check your DHCP server. The default IP is 192.168.0.100 if no DHCP. Open a web browser and enter the IP address. Default username: Admin, password: 123456.

What type of memory card does the E920 support?

It supports microSDHC and microSDXC cards for local recording. Insert the card with metal contacts facing the bottom of the camera until it clicks.

Can I use the camera without a PoE switch?

Yes, you can use a PoE injector (sold separately) to provide power and data over a single Ethernet cable.

How do I adjust the viewing angle?

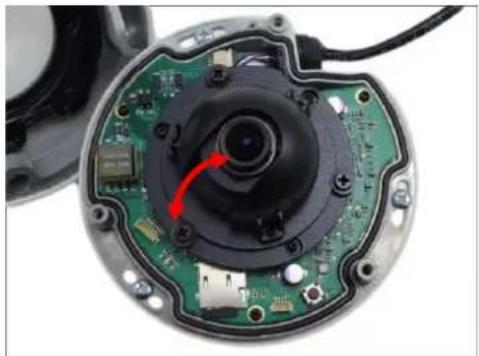

Open the dome cover, loosen the three screws securing the lens module, then pan by rotating the module and tilt by pushing the lens up or down. Retighten the screws after adjustment.

Is the camera weatherproof?

Yes, it is designed for outdoor use. The manual provides instructions for waterproofing the cable connection using the supplied cable gland to prevent water ingress.

How do I reset the camera to factory defaults?

While the camera is powered on, press and hold the Reset button (located near the Ethernet port) for at least 5 seconds until the blue LED lights up.

Can I connect an external microphone?

Yes, the camera has an audio input jack. Connect a microphone with a built-in amplifier. For outdoor installations, wrap the connectors with waterproof tape.

What browsers are supported for configuration?

Internet Explorer is recommended for full functionality (live video resizing, motion detection regions, etc.). Other browsers like Chrome or Safari require additional plug-ins (e.g., VLC or QuickTime) for live video.

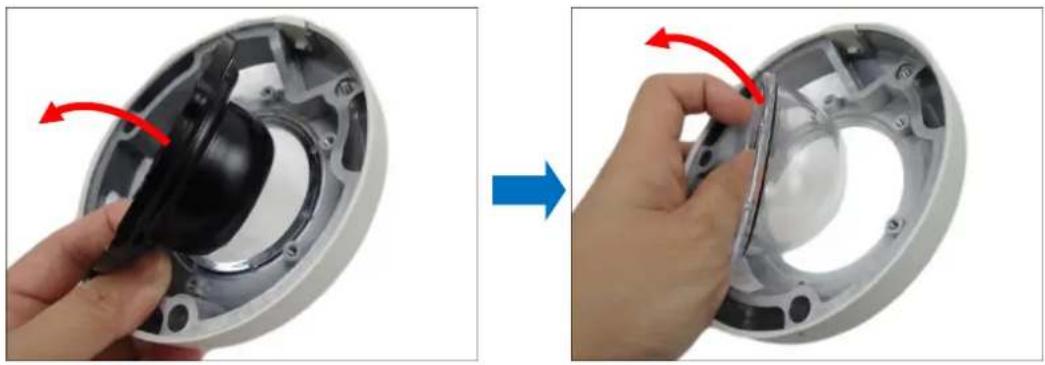

How do I replace the dome cover?

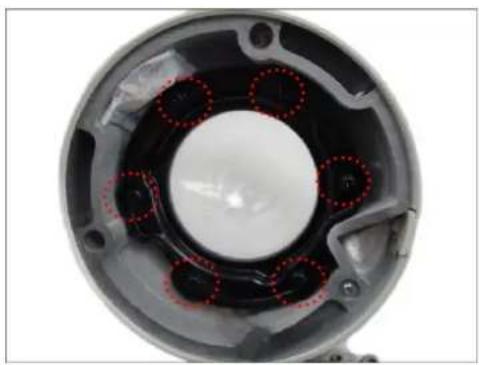

Open the dome cover, remove the six screws securing the bracket, then replace the transparent dome with an optional smoked vandal-proof cover. Transfer the rubber seal from the old cover to the new one.

What is the default IP address of the camera?

If no DHCP server is present, the camera uses 192.168.0.100 with port 80. Ensure your PC is on the same subnet (e.g., 192.168.0.x) to access it.

USER MANUAL E920 ACTi

Abstract geometric design with a red vertical bar and a gray star-like shape on a light background (no text or symbols)

Outdoor Mini Dome & Outdoor Mini Fisheye Dome Hardware Manual

E918, E918M, E919, E919M, E920, E920M,

E921, E921M, E922, E922M, E923, E923M

Ver. 2015/08/27

Table of Contents

Precautions 4

Safety Instructions 6

Introduction 7

List of Models....7

Package Contents....9

Physical Description .... 10

E918 / E920 / E922.... 10

E919 / E921 / E923.... 10

E918M / E920M / E922M.... 12

E919M / E921M / E923M.... 12

Mounting Options....14

Installation Procedures 15

Step 1: Prepare for Installation.... 15

Step 2: Open the Dome Cover .... 16

Step 3: Route the Cables ...... 17

Step 4: Install the Camera....18

Step 5: Waterproof the Cable Connection....19

M12 Ethernet Cable (for E9xxM models only).... 19

RJ-45 Ethernet Cable (for E9xx models only) 20

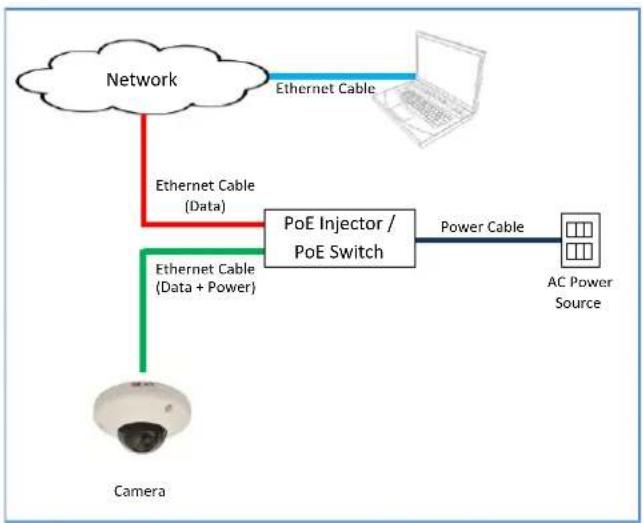

Step 6: Connect to Network....23

Step 7: Access the Camera Live View....23

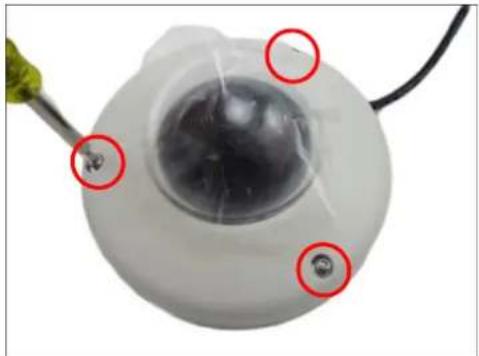

Step 8: Close the Dome Cover....24

Other Adjustments and Accessories 25

How to Install / Remove the Memory Card 25

How to Insert the Memory Card 25

How to Remove the Memory Card.... 25

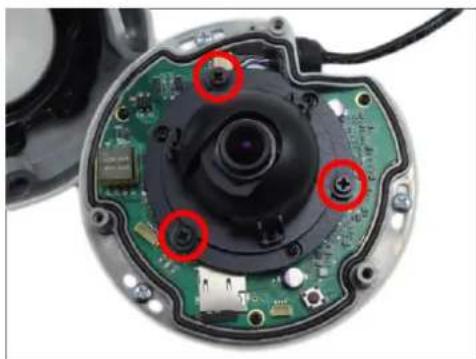

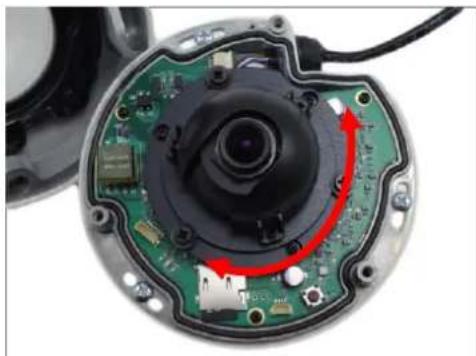

How to Adjust the Viewing Angle

[for E918(M), E920(M), E922(M) only] 26

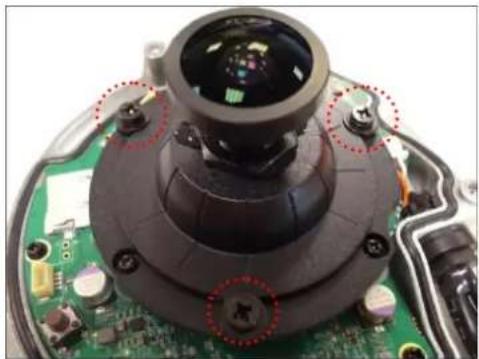

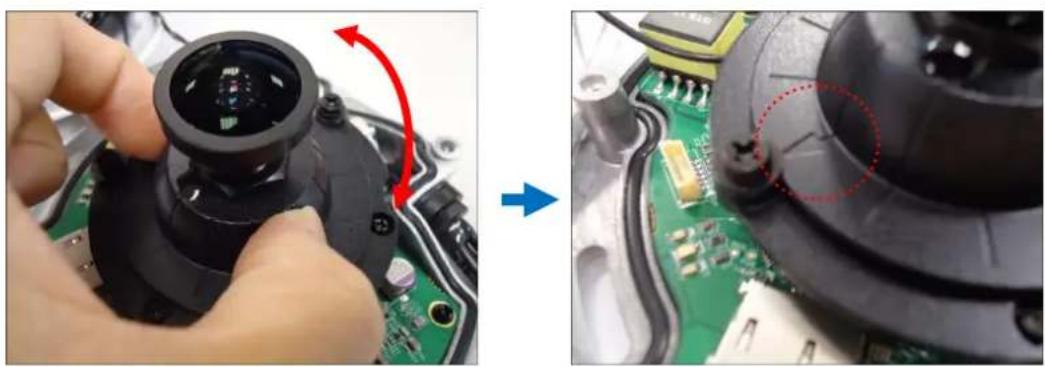

How to Adjust the Fisheye View Orientation

[for E919(M), E921(M), E923(M) only]....28

How to Connect Audio In Device....29

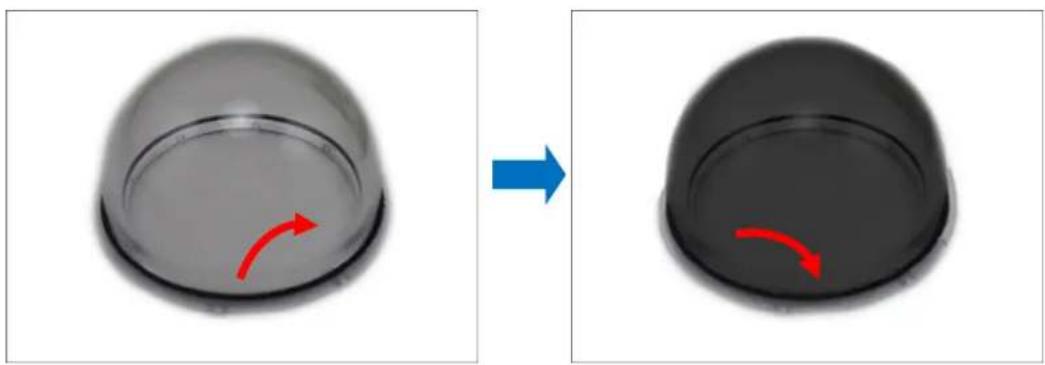

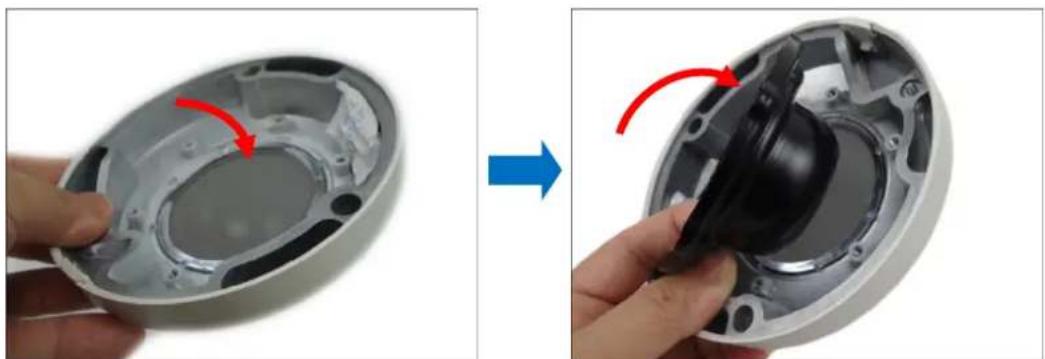

How to Replace the Dome Cover....30

Accessing the Camera 32

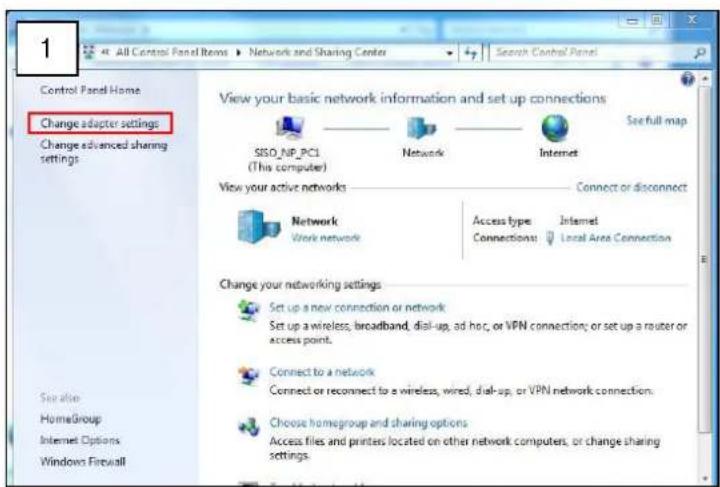

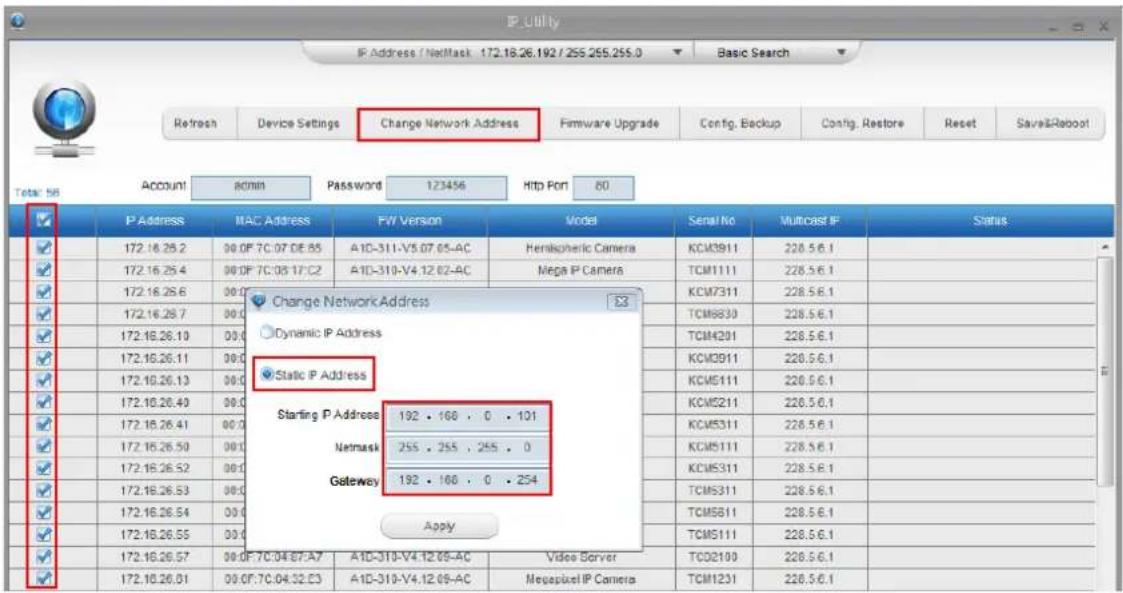

Configure the IP Addresses....32

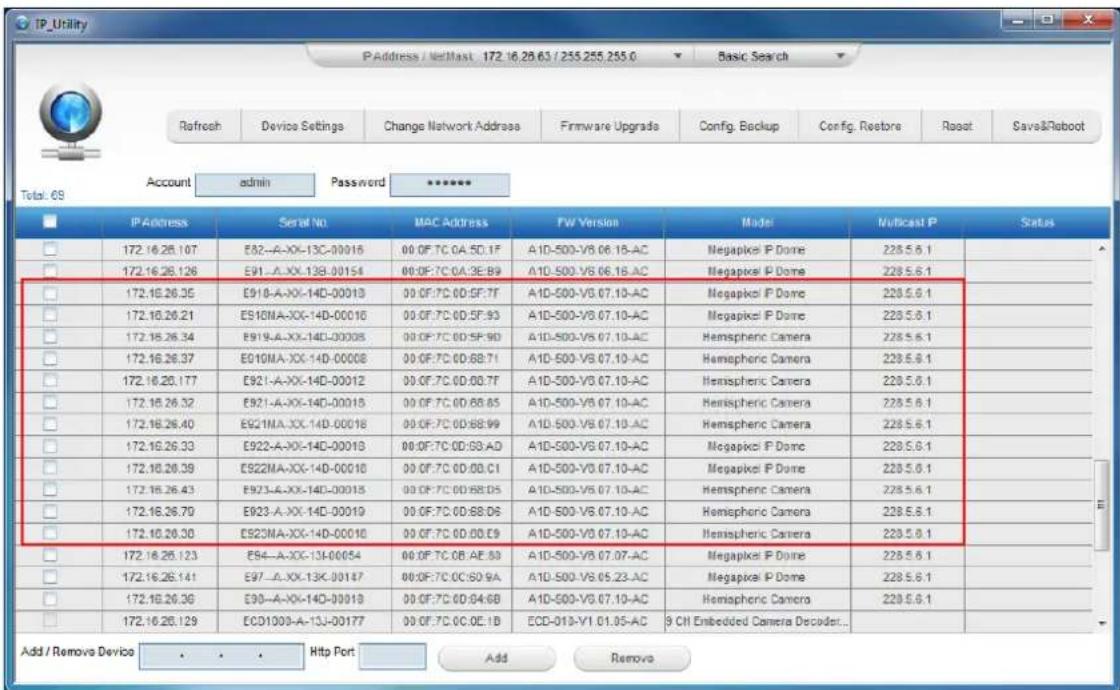

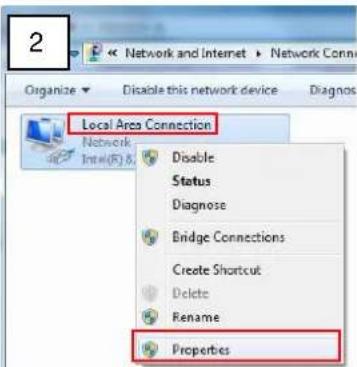

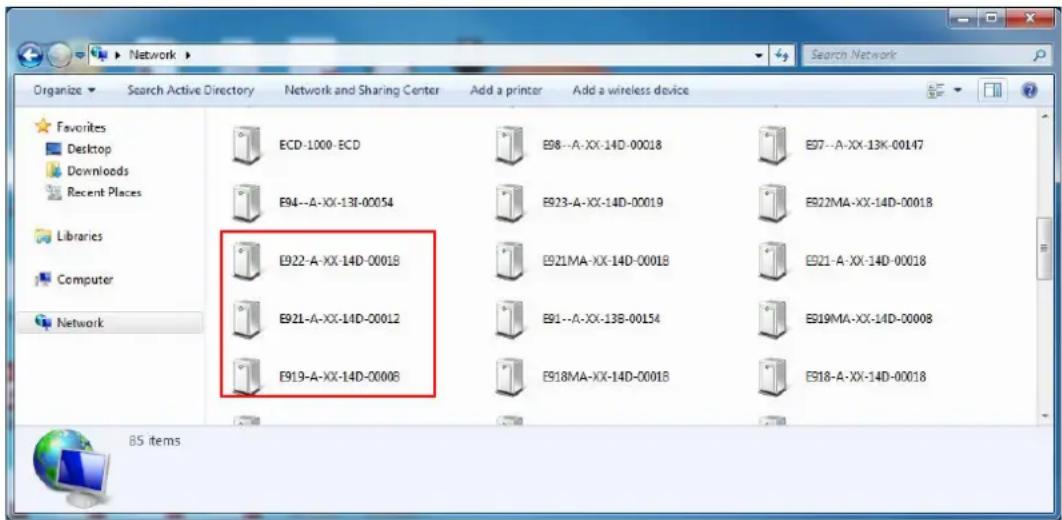

Using DHCP Server to Assign IP Addresses.... 32

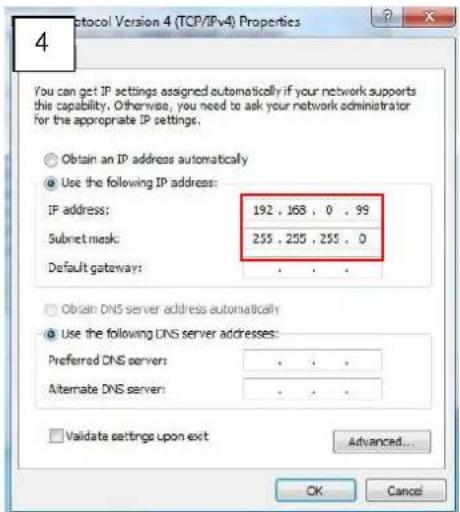

Using the Default Camera IP Address.... 34

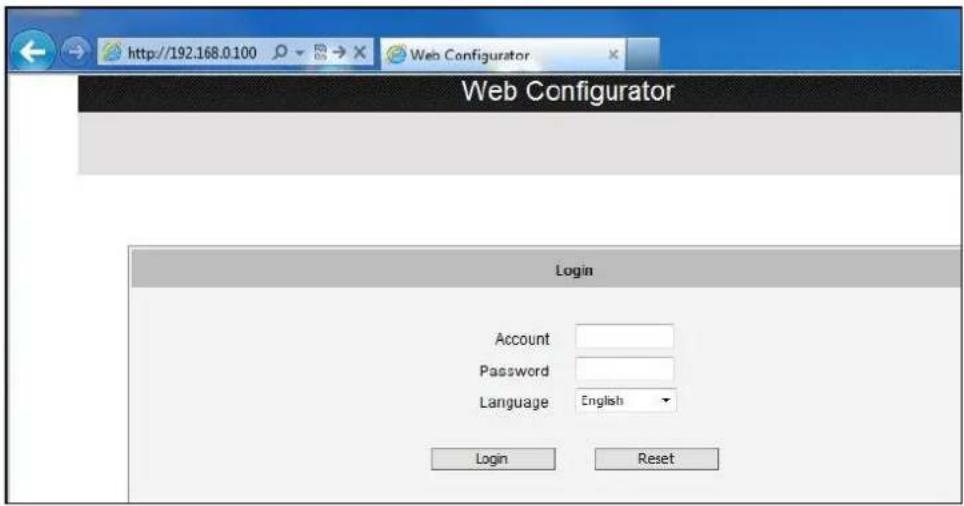

Access the Camera....36

Precautions

Read these instructions

Read all the safety and operating instructions before using this product.

Heed all warnings

Adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instructions given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

ACTi and ACTi logo are registered trademarks of ACTi Corporation. All other names and products used in this manual are registered trademarks of their respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this product from the power supply before cleaning.

Accessories and Repair Parts

Use only the accessories and repair parts recommended by the manufacturer. Using other attachments not recommended by the manufacturer may cause hazards.

Installation

Install other devices (such as PoE injector, alarm, etc.) that will be used with the camera in a dry place protected from weather,

Servicing

Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the product.
3) If the inner parts of product have been directly exposed to rain or water.
4) If the product does not operate normally even by following the operating instructions in this manual. Adjust only those controls that are covered by the instruction manual, as improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to its normal operation.

Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition.

Introduction

List of Models

This hardware manual contains the following models:

E918		3MP Outdoor Mini Dome with Superior WDR, Fixed lens
E918M		3MP Outdoor Mini Dome with Superior WDR, M12 connector, Fixed lens
E919		3MP Outdoor Mini Fisheye Dome with Superior WDR, Fixed lens
E919M		3MP Outdoor Mini Fisheye Dome with Superior WDR, M12 connector, Fixed lens
E920		5MP Outdoor Mini Dome with Basic WDR, Fixed lens
E920M		5MP Outdoor Mini Dome with Basic WDR, M12 connector, Fixed lens
E921		5MP Outdoor Mini Fisheye Dome with Basic WDR, Fixed lens
E921M		5MP Outdoor Mini Fisheye Dome with Basic WDR, M12 connector, Fixed lens
E922		10MP Outdoor Mini Dome with Basic WDR, Fixed lens
E922M		10MP Outdoor Mini Dome with Basic WDR, M12 connector, Fixed lens
E923		10MP Outdoor Mini Fisheye Dome with Basic WDR, Fixed lens
E923M		10MP Outdoor Mini Fisheye Dome with Basic WDR, M12 connector, Fixed lens

From the installation perspective, the above models are very similar; therefore one manual is used for all of them.

Package Contents

Check if the camera package comes with the following items:

CameraE918, E918M, E920, E920M,E922, E922M	CameraE919, E919M, E921, E921M,E923, E923M	Drill Template
or
Screw Kit	Hexagon Screwdriver	Dome Cover Tab
Cable Gland(Not available in E9xxM models)	Quick Installation Guide	Warranty Card

IMPORTANT: When the camera is taken out from the box, the lens cover is covered by a thin film. DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks which may happen during installation. Remove this film only after the camera is securely installed and all connections are complete.

Physical Description

E918 / E920 / E922

E919 / E921 / E923

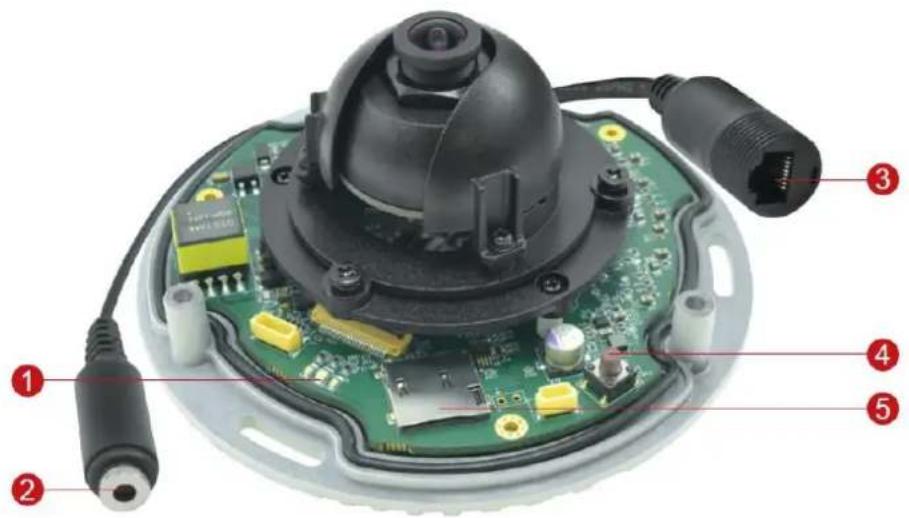

Item		Description

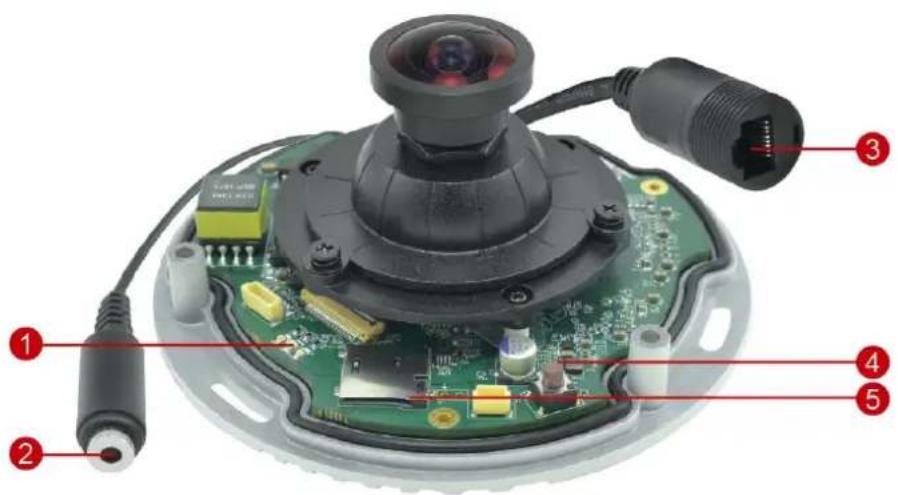

1	System LEDs	Indicates the camera status:Amber LED:Blinks when network activity is in progress.Blue LED:Lights up when the camera is powered up and goes off again after the boot up process is complete.Green LED:Lights up when the camera is connected to a network.
2	Audio Input	Connects to audio input devices, such as a microphone with built-in amplifier, etc. SeeHow to Connect Audio In Deviceon page 29 for more information.NOTE:The microphone must have a built-in amplifier.Connecting an ordinary microphone will dwarf sounds and will result in inaudible recording.
3	Ethernet Port (RJ-45)	Connects to a network using an Ethernet cable with RJ-45 connector.
4	Reset Button	Restores the factory default settings of the camera. To reset the camera, while the power is on, press and hold theReset Buttonfor at least 5 seconds or until theBlue LEDlights up.
5	Memory Card Slot	Insert a memory card (not included) into the slot for local recording purposes. SeeHow to Install / Remove the Memory Cardon page 25 for more information.NOTE:Supports only microSDHC and microSDXC cards.

E918M / E920M / E922M

E919M / E921M / E923M

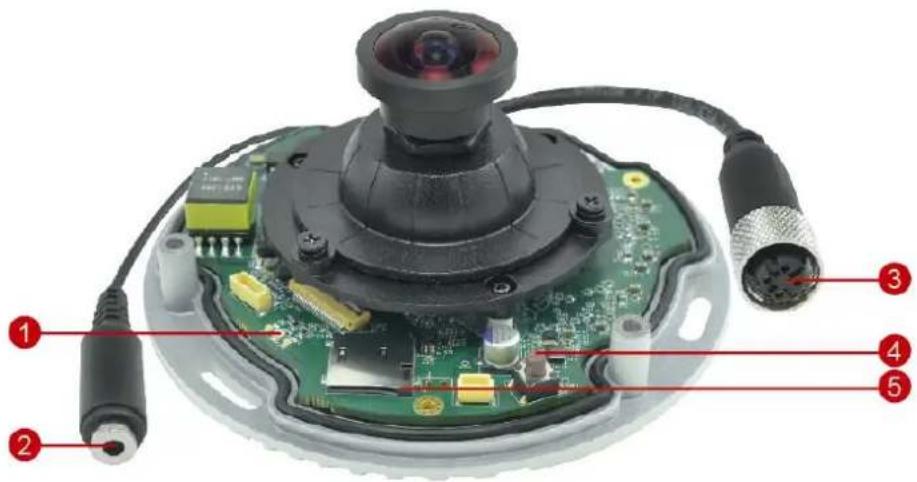

Item		Description

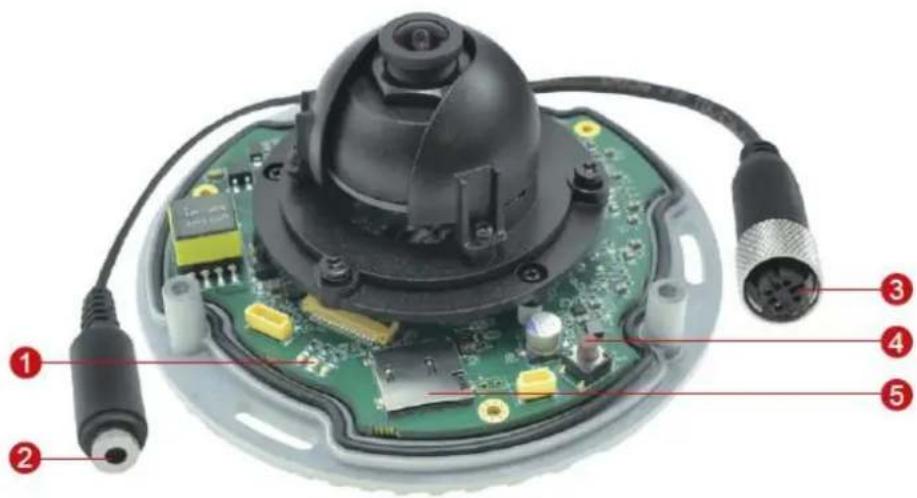

1	System LEDs	Indicates the camera status:Amber LED:Blinks when network activity is in progress.Blue LED:Lights up when the camera is powered up and goes off again after the boot up process is complete.Green LED:Lights up when the camera is connected to a network.
2	Audio Input	Connects to audio input devices, such as a microphone with built-in amplifier, etc. SeeHow to Connect Audio In Deviceon page 29 for more information.NOTE:The microphone must have a built-in amplifier.Connecting an ordinary microphone will dwarf sounds and will result in inaudible recording.
3	Ethernet Port (M12)	Connects to a network using an Ethernet cable with M12 connector. The camera uses the female M12 connector with D-coding and PoE type A.
4	Reset Button	Restores the factory default settings of the camera. To reset the camera, while the power is on, press and hold theReset Buttonfor at least 5 seconds or until theBlue LEDlights up.
5	Memory Card Slot	Insert a memory card (not included) into the slot for local recording purposes. SeeHow to Install / Remove the Memory Cardon page 25 for more information.NOTE:Supports only microSDHC and microSDXC cards.

Mounting Options

Select the most suitable solution for your installation environment. The camera can be mounted by either of the following methods:

Mount Types	Accessories
Surface Mount	Suitable when mounting the camera directly on walls or ceilings without additional mounting accessories. See Installation Procedures on page 15 for more information.
Gangbox	Suitable when mounting the camera on a 4" Round or 4" Octagon Gangbox. The use of gangbox is lawfully required in some areas in the United States. A Gangbox Converter (purchased separately) is required for this type of installation.
Wall Mount	Suitable when mounting the camera on the wall with the camera facing down as if installed on the ceiling. The Wall Mount (optional mounting accessory) is required for this type of installation.
Pendant Mount	Suitable when installing the camera on high ceilings where a straight tube is used to lower the camera. The Pendant Mount with Mount Kit (optional accessory set) is required for this type of installation.

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Installation Procedures

This section describes procedures in mounting the camera on a flat surface.

NOTE: The camera images on this documentation are for reference only and may be different from the actual camera.

Step 1: Prepare for Installation

1. Before installing the camera, prepare the additional accessories required for installation.

E9xx Models	E9xxM Models

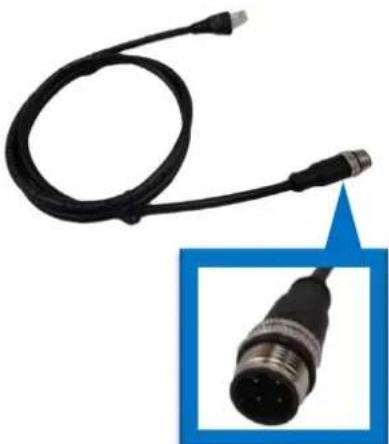

• Exterior-grade Ethernet Cable with RJ-45 connector (not included; can be purchased from local stores)• Bundled Cable Gland	• Exterior-grade Ethernet Cable with Waterproof M12 Male Connector, D-coding and PoE type A (not included; can be purchased from local stores)

1. Depending on the material of the surface where the camera will be installed, it may be necessary to drill the three (3) screw holes and use the supplied screw tox. In this case, attach the bundled drill template on the surface and drill the screw holes.

Step 2: Open the Dome Cover

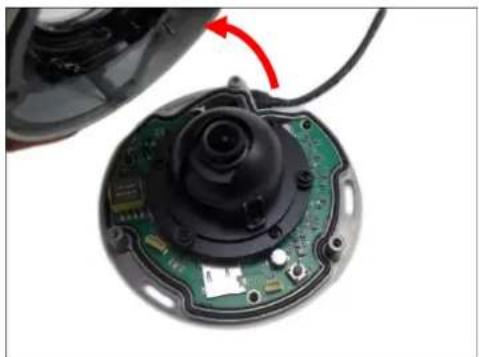

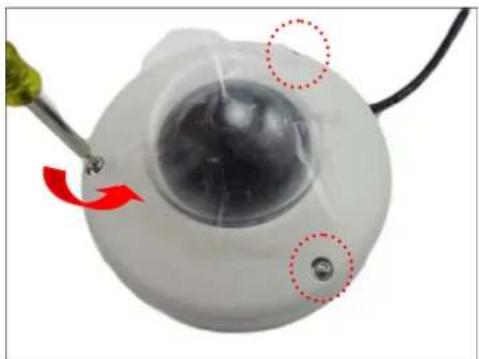

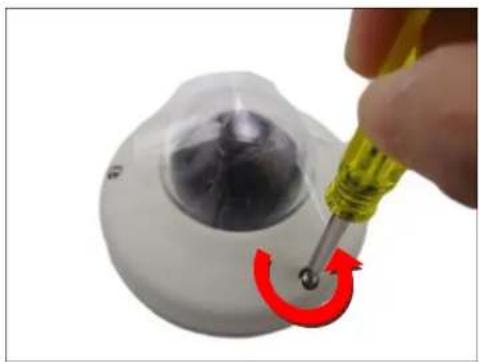

1. Loosen the three (3) screws using the bundled hex screwdriver.

Close-up of a mechanical component with a tool and red arrows indicating motion, no visible text or symbols

1. Lift to remove the dome cover.

Close-up of a black electronic device with a green circuit board and a camera lens, showing a red arrow indicating rotation (no text or symbols visible)

NOTE: A desiccant bag is attached underneath the dome cover. DO NOT remove the desiccant bag to keep the camera interior parts dry.

Step 3: Route the Cables

Determine whether the cable will pass through a hole on the surface or be routed along the surface:

If the cable will pass through a hole on the surface:

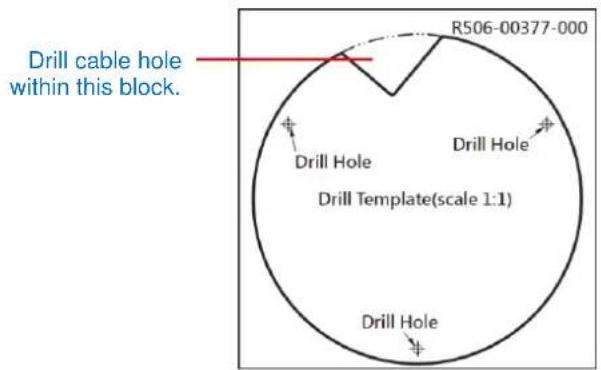

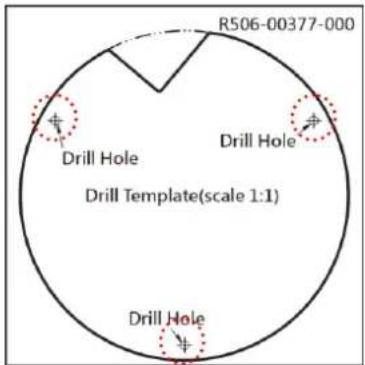

1. Drill the hole for the cable on the surface.

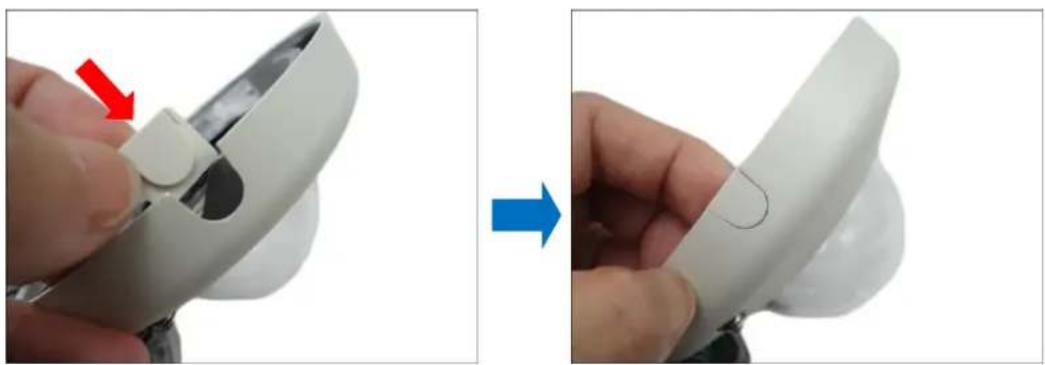

1. Insert the bundled dome cover tab to the dome cover to close the gap.

Two-step illustration showing a hand holding a white device with a red arrow indicating the process (no text or symbols present)

1. Route the cable from the network side through the hole and connect it to the Ethernet port of the camera.

NOTE: If the camera will be installed outdoors or in places wherein environmental factors change drastically, make sure to waterproof the cable connection; see Step 5: Waterproof the Cable Connection on page 19 for instructions.

1. Push the cable through the hole on the surface.

If the cable will be routed along the surface

Route the camera cable through the gap on the camera cover.

Close-up of a white desk lamp with a black handle and metallic screw base (no text or symbols visible)

Step 4: Install the Camera

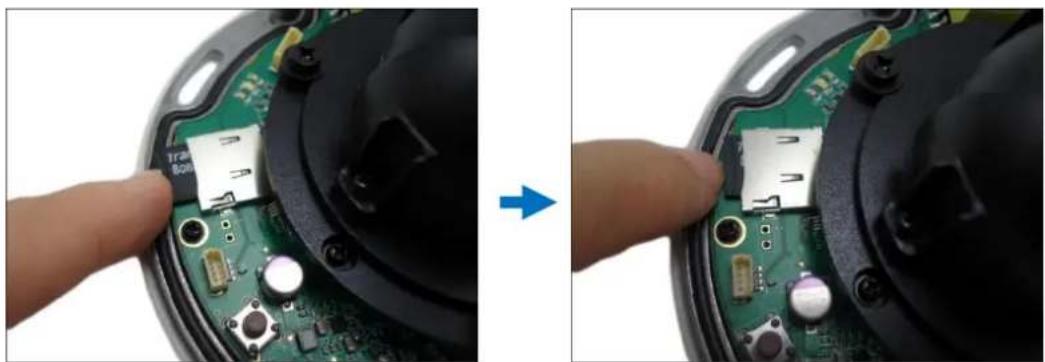

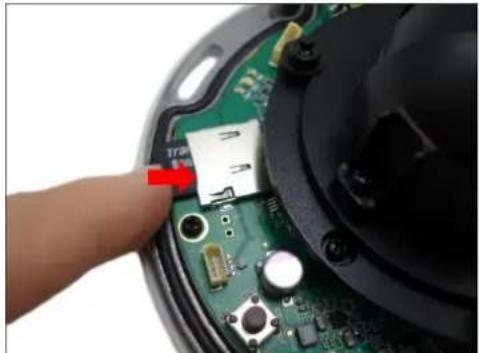

1. If necessary, insert a memory card into the memory card slot of the camera. See How to Insert the Memory Card on page 25 for more information.

Close-up of a hand inserting a small electronic component into a green circuit board (no visible text or symbols)

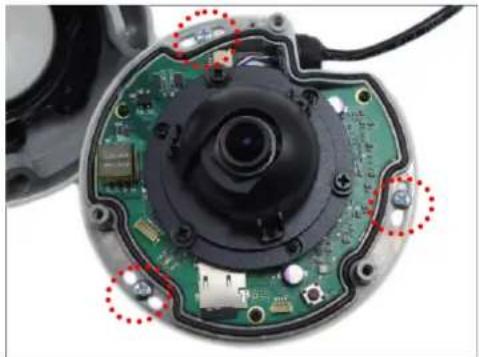

1. Install the camera to the surface using the three (3) bundled screws.

Close-up of an electronic device showing internal components and wiring (no text or symbols visible)

NOTE: Please make sure the screw is flat on the plate.

Step 5: Waterproof of the Cable Connection

Depending on the camera model, the Ethernet cable or the "pigtail" of the camera may either have the RJ-45 or M12 connector.

M12 Ethernet Cable (for E9xxM models only)

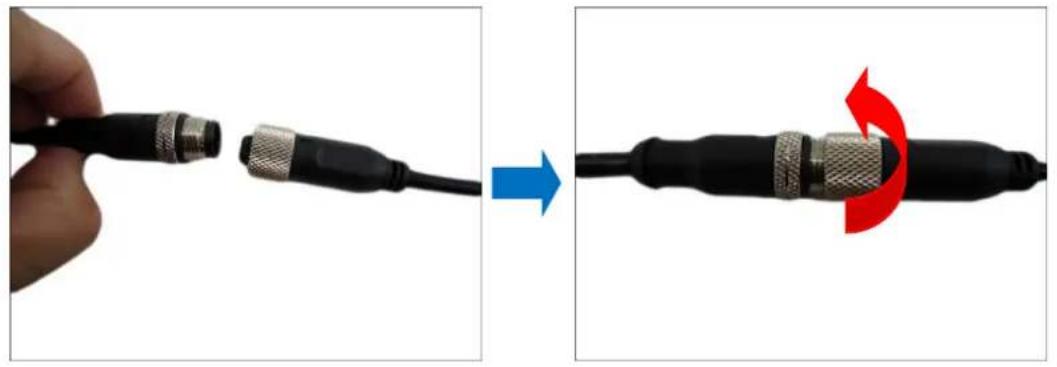

Typical M12 Ethernet cable has waterproof connection. Simply connect and screw the cable connectors to make the connection waterproof.

Two-step diagram showing a hand holding a black cable connected to a metallic connector, with a blue arrow indicating the process (no text or symbols present)

Make sure the connectors are secured tightly.

Close-up of a black cable connector with a textured internal component, no visible text or symbols

RJ-45 Ethernet Cable (for E9xx models only)

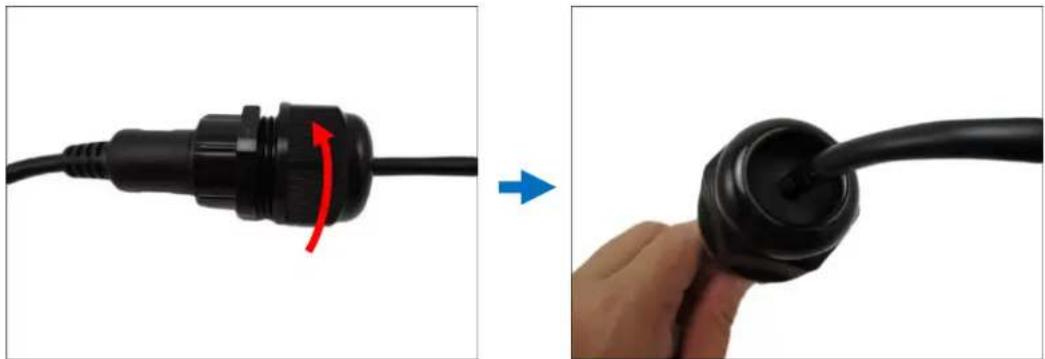

When using the RJ-45 Ethernet cable, follow the procedures below to waterproof the cable connection:

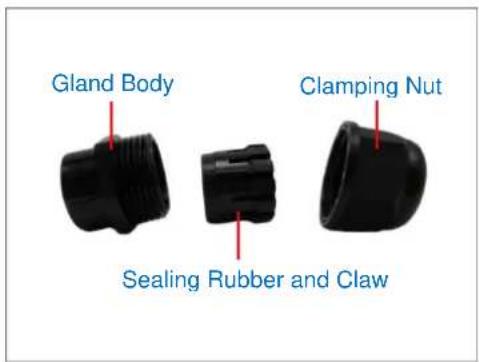

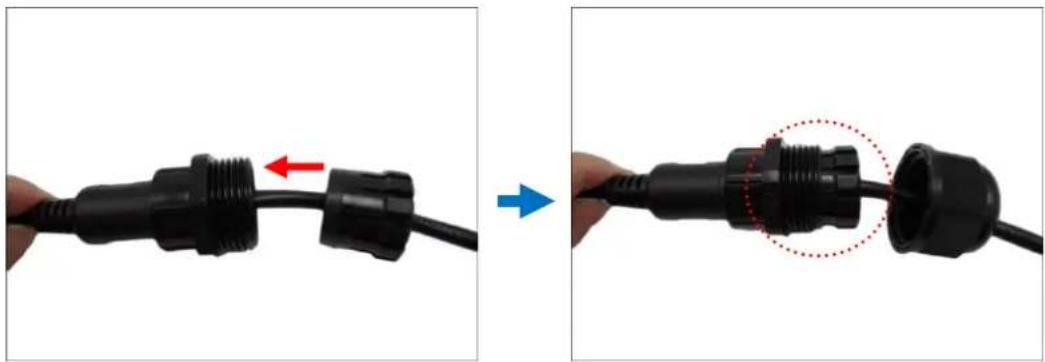

1. Detach the cable gland as shown below.

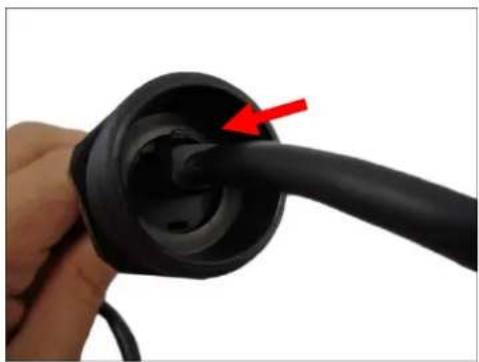

1. On the network side cable, insert the clamping nut through the Ethernet cable.

Close-up of a black cable with a red arrow pointing to its end, against a white background (no text or symbols)

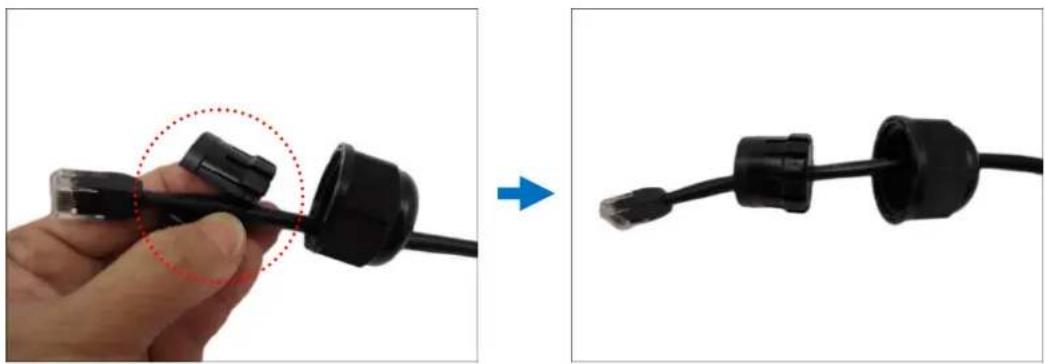

1. Insert the sealing rubber and claw through the Ethernet cable.

Close-up of a hand holding a black cable with a red dotted circle highlighting the connector, before and after assembly (no text or symbols visible)

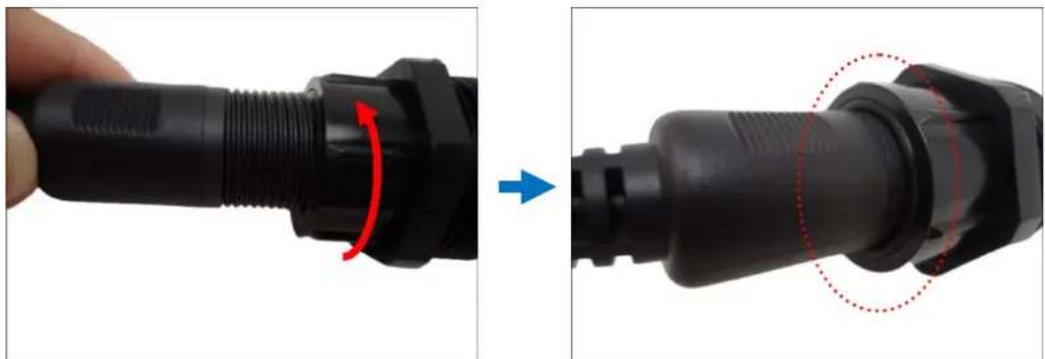

1. Make sure the bundled rubber ring is completely aligned on the gap on the gland body.

Close-up of a black plastic mechanical component with a red arrow pointing to its side (no text or symbols visible)

1. Attach the gland body to the Ethernet port of the camera.

Close-up of a black plastic connector being adjusted, showing internal threading and a red circular detail (no text or symbols visible)

IMPORTANT!

Make sure the rubber ring is completely aligned and flat on the gland body to avoid possible water leakage.

1. Connect the RJ-45 connector of the network cable to the Ethernet port of the camera.

Close-up of a hand holding a black cable with a red arrow pointing to the cable (no text or symbols visible)

1. Insert the sealing rubber and claw into the cable gland body.

Two-step diagram showing a black cable being inserted into a plug, with red and blue arrows indicating direction (no text or symbols present)

1. Attach the clamping nut to the cable gland body. Make sure the clamping nut is tightly secured and the rubber is squeezed in to avoid water leakage.

Two-step diagram showing a black cable being inserted into a terminal plug, with a hand holding the plug (no text or symbols present)

DISCLAIMER: ACTi will not be responsible for camera damage caused by water entering the cable connections.

Step 6: Connect to Network

Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below.

Step 7: Access the Camera Live View

See Accessing the Camera on page 32 for more information on how to access the Live View of the camera.

Step 8: Close the Dome Cover

1. Align cable tab side of the dome cover to the direction of the network cable.
2. Tighten the three (3) screws using the supplied hex screwdriver to attach the dome cover.

Close-up of a mechanical component with three red-circled features and a central spherical body (no visible text or symbols)

1. Remove the thin film.

Close-up of a white remote control device with a hand adjusting its lens (no visible text or symbols)

Final installation should look similar to the illustration below.

Close-up of a circular security camera with lens and control buttons (no visible text or symbols)

Other Adjustments and Accessories

How to Install / Remove the Memory Card

How to Insert the Memory Card

1. Loosen the three (3) screws to remove the dome cover.

Close-up of a hand using a screwdriver to apply a circular arrow on a small mechanical component (no text or symbols visible)

1. Insert the memory card into the card slot with the metal contacts facing the bottom side of the camera.

Close-up of hands installing a green electronic circuit board with a USB flash drive (no text or symbols visible)

1. Push the card completely until it clicks into place.

2. Attach the dome cover to the camera and tighten the three (3) screws.

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware User's Manual for more information).

Once unmounted from the firmware, push the card to eject it from the slot.

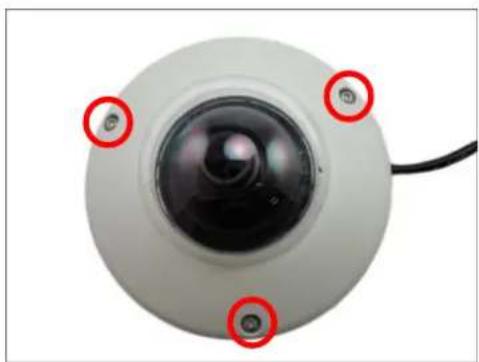

How to Adjust the Viewing Angle [for E918(M), E920(M), E922(M) only]

The camera comes with the focus already prefixed, so there is no need to adjust the focus. But the pan and tilt direction may need to be adjusted based on the camera live view.

NOTE: The following procedures are not applicable to Mini Fisheye Dome cameras.

1. Open the dome cover.
2. Slightly loosen the three (3) screws securing the lens module.

Close-up of a mechanical device showing internal components with red circles highlighting specific parts (no text or symbols visible)

1. Turn the lens module to adjust the camera pan position.

Close-up of an open electronic device showing internal components and wiring (no text or symbols visible)

1. Tighten the three (3) screws to fix the pan position.

Close-up of an electronic device showing a camera lens and internal circuit board with red annotations (no text or symbols visible)

1. Push the lens up or down to adjust to preferred tilt.

Close-up of an electronic device showing a green circuit board with a black lens and red arrow indicating rotation (no text or symbols visible)

NOTE: Because the lens is secured tightly to the module, users need to push hard to tilt the lens.

1. Close the dome cover.

Close-up of a circular security camera with three red-circled buttons on the lens (no text or symbols visible)

How to Adjust the Fisheye View Orientation [for E919(M), E921(M), E923(M) only]

1. Open the dome cover.

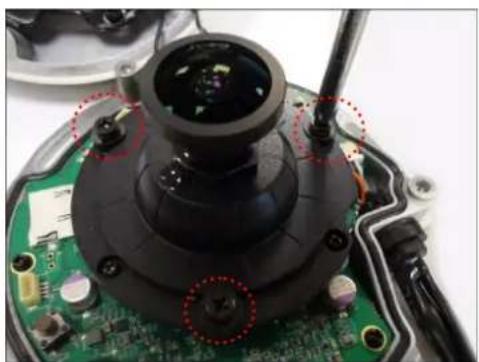

2. Loosen the three (3) screws securing the lens.

Close-up of a camera lens mounted on a circuit board with visible components and wiring (no text or symbols)

1. Turn the lens module to adjust the viewing orientation. The arrow on the lens indicates the top side orientation.

Close-up of a camera lens assembly on a circuit board, showing part being removed with red arrow and blue arrow (no text or symbols visible)

1. Once done, tighten the three (3) screws to fix the lens position.

Close-up of a camera lens mounted on a circuit board with visible components and wiring (no text or symbols)

1. Close the dome cover.

How to Connect Audio In Device

The camera comes with an audio jack where an audio input device, such as a microphone with a built-in amplifier, can be connected. The audio-in jack is covered by a rubber protection.

Close-up of a black cable with a red dotted circle highlighting the connector (no text or symbols)

WARNING: Do not remove this rubber protection if the audio-in jack will not be used to avoid water or dust from entering the jack.

To connect an audio input device, do the following:

1. Pull to remove the rubber protection.
2. Connect the audio input device.

NOTE: The microphone must have a built-in amplifier. Connecting an ordinary microphone will dwarf sounds and will result in inaudible recording.

1. If the camera is installed outdoors, be sure to wrap the audio connectors with Waterproof Tape (can be purchased in hardware stores).

DISCLAIMER: ACTi will not be responsible for camera damage due by water leakage caused by improper waterproofing of cables.

How to Replace the Dome Cover

For more discrete surveillance needs, the pre-installed dome cover can be replaced with a smoked, vandal proof dome cover. The smoked dome cover is an optiona accessory; contact your sales agent to purchase.

To replace the dome cover, follow the procedures below:

1. Open the dome cover.

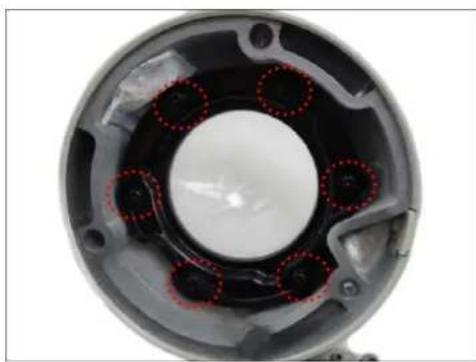

2. Remove the six (6) screws securing the dome cover bracket.

Close-up of a mechanical component with a central white circular body and multiple red dotted circular features (no text or symbols visible)

1. Remove the bracket and then the transparent dome cover.

Two-step photo showing a hand holding a transparent plastic helmet with a black inner component, before and after assembly (no text or symbols visible)

1. Remove the black rubber from the transparent dome cover and place the black rubber to the replacement dome cover.

Two 3D-rendered objects with red arrows indicating rotation, one on a gray dome and the other on a black dome (no text or symbols)

1. Install the replacement dome cover and then the bracket.

Two-step photo showing a hand holding a transparent plastic housing, with red arrows indicating the process (no text or symbols present)

1. Align the screw holes and secure the six (6) screws.

Close-up of a mechanical component with a central white sphere and multiple black circular holes, no visible text or symbols.

1. Close the dome cover.

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP Server to Assign IP Addresses

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

In the example below, we successfully found the camera that we had just connected to the network.

By double-clicking with the left mouse on the camera model, it is possible to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility

With just one click, you can launch the IP Utility and there will be an instant report as follows:

You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Using the Default Camera IP Address

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

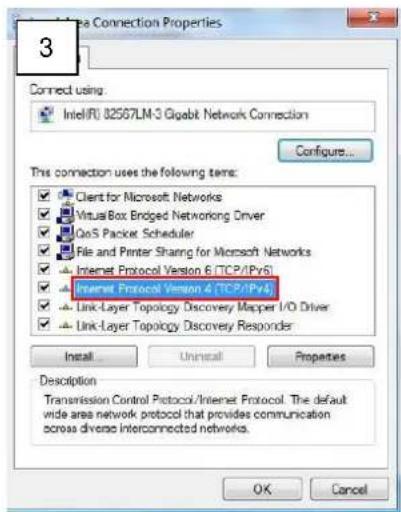

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

ACTi

Connecting Vision

Copyright © 2015, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone]

FAX: [phone]

Email: [e-mail]
