Outdoor Dome Series Hardware Manual

E89, E815, E8816, E817, E822

2015/04/17

Table of Contents

Precautions 4

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......8

Physical Description 9

Mounting Options....11

Other Mounting Accessories 13

Installing the Camera on a Surface 14

Step 1: Drill the Holes....14

Step 2: Open the Dome Cover....15

Step 3: Prepare for Waterproof Installation....17

Waterproof Solution with Naked Cable 18

Waterproof Solution with Conduit.... 20

Step 4: Install the Camera to the Surface 24

Step 5: Connect the Cable ...... 25

Step 6: Access the Camera Live View....26

Step 7: Adjust the Viewing Angle ...... 27

Step 8: Close the Dome Cover....27

Other Connections......28

How to Connect the DI/DO Devices (Optional)....28

How to Connect Audio In / Out (Optional) 32

Other Adjustments and Accessories ...... 33

How to Install a Memory Card.... 33

How to Insert the Memory Card 33

How to Remove the Memory Card....33

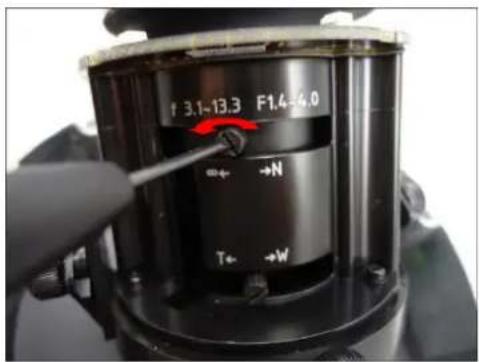

How to Adjust the Viewing Angle and Focus 34

E89 34

E815, E816, E817, E822.... 36

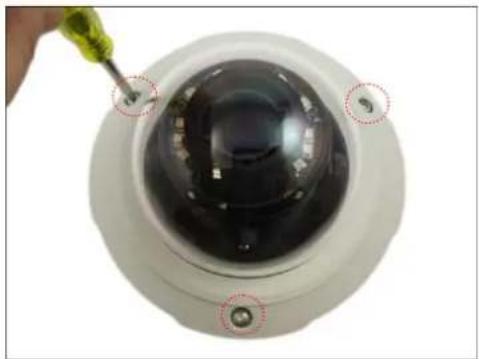

How to Replace the Dome Cover.... 37

Accessing the Camera 41

Configure the IP Addresses.... 41

Access the Camera.... 45

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Do not use accessories not recommended by the manufacturer

Install the power supply or any other accessories (if any will be used with the camera) in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

E89		10MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens
E815		5MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x Zoom lens
E816		10MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x Zoom lens
E817		3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 4.3x Zoom lens
E822		1.3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 4.3x Zoom lens

Package Contents

Camera	Mounting Screw Kit	Hexagon Screwdriver
Drill Template	Conduit Gland	Cable Gland
Terminal Block (for DI/DO)	Terminal Block (for Audio In/Out)	Quick Installation Guide
Warranty Card

Physical Description

NOTE: The camera images in this documentation are for reference only. Actual camera may slightly differ.

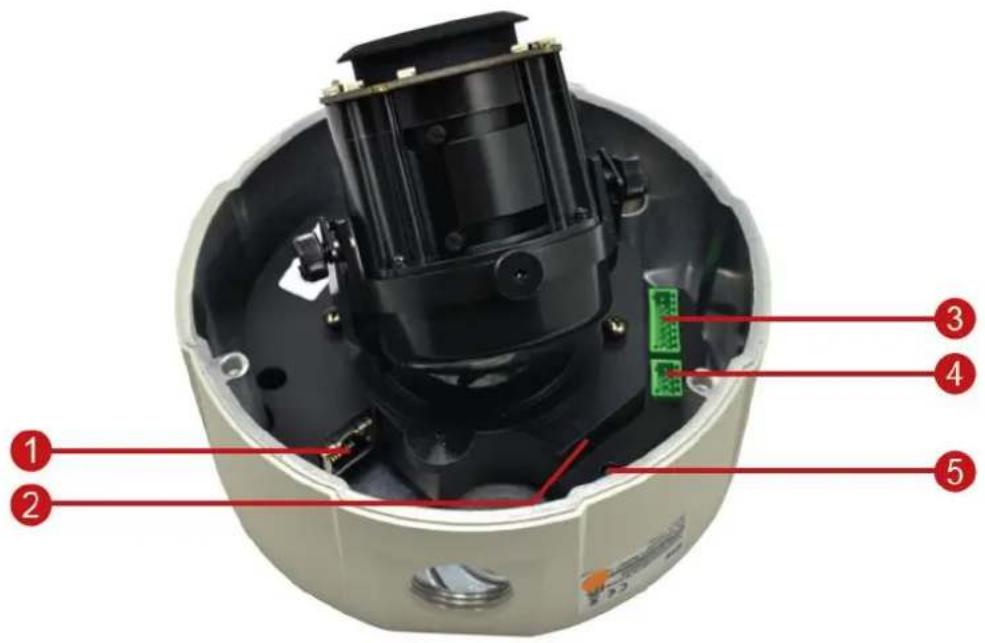

Labeled diagram of a device interior with numbered parts, showing internal components and wiring connections.

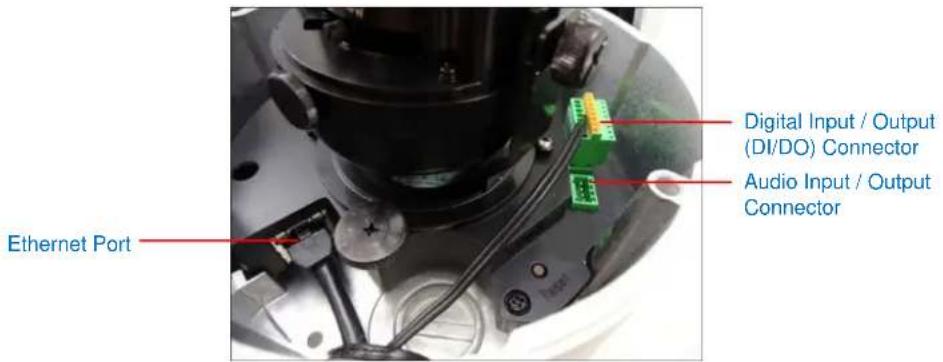

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install a Memory Card on page 33 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Digital Input / Output (DI/DO)

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect the DI/DO Devices (Optional) on page 28 for information on how to connect DI/DO devices to your camera.

4) Audio Input / Output

This connector connects to audio input and output devices, such as microphones and speakers, using the bundled terminal block. See How to Connect Audio In / Out (Optional) on page 32 for more information.

5) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including the administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Press and hold the reset button for 5 seconds.

Mounting Options

There are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Surface Mount	Suitable when mounting the camera directly walls or ceilings without extra accessories. SeeInstalling the Camera on a Surfaceon page 14 for mounting instructions.
Flush Mount	Suitable when mounting the camera discretely above dropped ceilings wherein only the dome cover will be visible underneath the ceiling.
	PMAX-1015
Gang Box Converter	Suitable for locations which require the use of gang boxes. The Gang Box Converter is attached to the gang box and the camera is installed on the Gang Box Converter. All cables are hidden inside the gang box.
	PMAX-0804
Pendant Mount	Suitable when mounting the camera on hard and high ceilings.
	PMAX-0101 PMAX-0103 (Straight Tube with Bracket)
	PMAX-0101 PMAX-0102 (Straight Tube)
Straight Wall Mount	Suitable when mounting the camera on straight walls.
	PMAX-0314 (Heavy Duty Wall Mount)
Vertical Pole Mount	Suitable when mounting the camera on vertical poles.
	PMAX-0314	PMAX-0503
Horizontal Pole Mount	Suitable when mounting the camera on horizontal poles.
	PMAX-0101	PMAX-0102[XTX2]	PMAX-0503
Corner Mount	Suitable when mounting the camera on a corner wall.
	PMAX-0314	PMAX-0402

Other Mounting Accessories

Accessories

PMAX-0104 (Extension Tube)

PMAX-0702 (Junction Box)

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Installing the Camera on a Surface

This section describes the procedures in installing the camera on a flat surface such as a hard or dropped ceiling and straight or tilted walls. Before installation, make sure the wall or the ceiling can bear more than the weight of the camera.

Step 1: Drill the Holes

Before drilling the holes on the ceiling or wall, note the direction of the connectors side of the camera, which is also the opposite side of the camera logo. This influences the camera placement and where you should drill the hole where the cables will pass through or how the cables will go along the ceiling or wall. For outdoor wall installations, if the cables will go along the wall, it is recommended to install the camera with the cables going down the wall to eliminate the possibility of water leak.

1. Attach the supplied drill template on the surface according to the preferred camera orientation.
2. Determine how the cables will be routed: pass through the surface or along the surface.

- If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface.

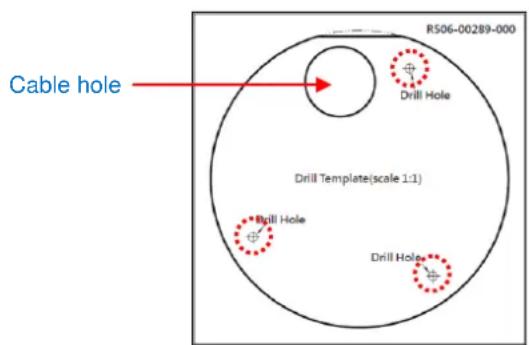

Cable hole R506-00289-000 Drill Hole Drill Template(scale 1:1) Drill Hole Drill Hole

- If the cables will be routed along the surface, just drill the three (3) screw holes on the surface.

1. Detach the drill template from the surface and insert the plastic plugs into the screw holes.

Step 2: Open the Dome Cover

NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain the plastic covering the dome cover until the camera is completely installed. However, the plastic has been removed on some of the pictures in this documentation to show clarity of the procedures being described.

1. If the cables will pass through the surface, remove the metal cap covering the bottom hole of the camera, and attach the cap to the side hole to close it. The cables will be routed to pass this hole from the surface.

Two-step photo showing a hand inserting a component into a device, with red arrows indicating the motion (no text or symbols present)

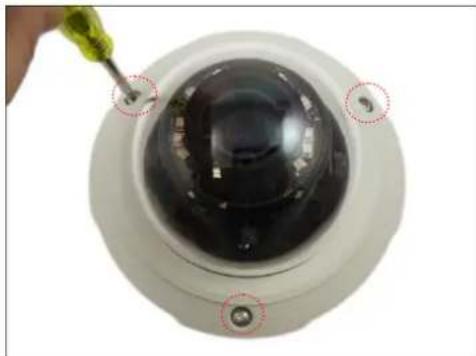

1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover.

Close-up of a camera lens with a screwdriver inserted, showing three red-circled points on the dome (no text or symbols visible)

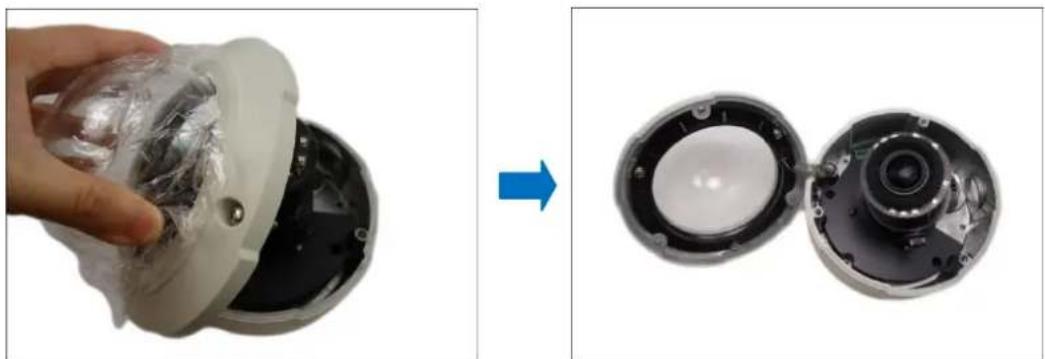

1. Carefully lift to open the dome cover and place it on the side of the camera.

NOTE: Do not abruptly lift the dome cover; it is attached to the camera with a spring wire.

Two views of a mechanical device showing internal components: one being wrapped in plastic, the other showing a close-up of a circular component (no text or symbols visible)

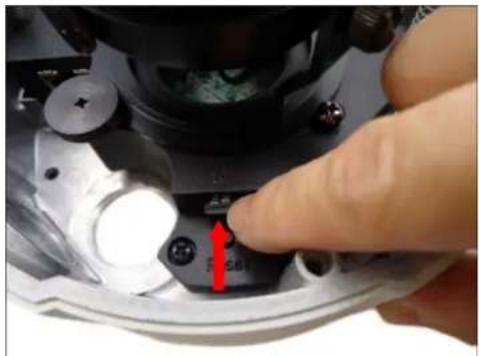

1. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera.

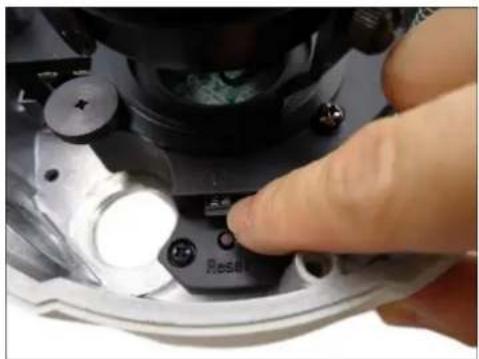

Close-up of a hand pressing a button labeled 'Reset' on a mechanical device (no other text or symbols visible)

Step 3: Prepare for Waterproof Installation

The camera comes with two (2) glands used for waterproof installation:

• Cable Gland: For use with an Exterior-grade Ethernet cable. Exterior-grade Ethernet cables are already waterproof. See Waterproof Solution with Naked Cable on page 18.
• Conduit Gland: For use with a flexible conduit. This solution is recommended when an exterior-grade Ethernet cable is not available or other cables, such as DI/DO devices, etc., will be connected to the camera. See Waterproof Solution with Conduit on page 20.

Determine the type of waterproof solution that is applicable to your installation requirements and prepare the necessary accessories or purchase extra materials.

Cable Gland

Close-up of a black plastic connector with a circular hole, shown from an inset (no text or symbols visible)

For use with an Exterior-grade Ethernet cable (not included in the package).

Coiled network of gray Ethernet connectors (no text or symbols visible)

Conduit Gland

Close-up of a black plastic connector with a blue arrow pointing to a circular hole (no text or symbols visible)

For use with 1/2" flexible conduit (not included in the package)

Close-up of a black flexible hose with threaded end (no text or symbols visible)

Waterproof Solution with Naked Cable

This section describes the procedures in using the bundled cable gland and an exterior-grade Ethernet cable.

1. Disassemble the cable gland as shown below:

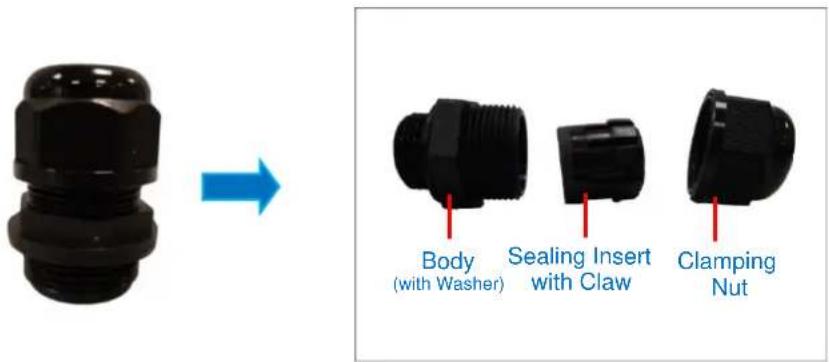

Body (with Washer) Sealing Insert with Claw Clamping Nut

1. Insert the clamping nut into the Ethernet cable.

Close-up of a black cable with a red arrow pointing to its end, no text or symbols present

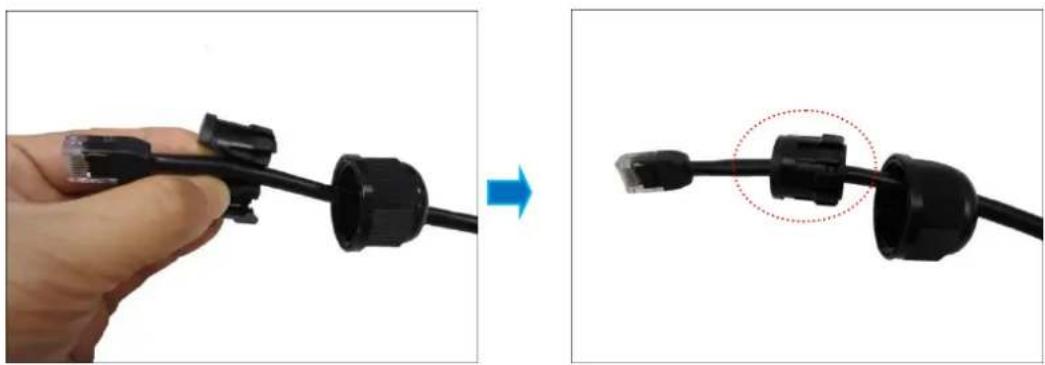

1. Insert the sealing insert with claw.

Close-up of a hand holding a black cable with connectors, showing a change from left to right (no text or symbols visible)

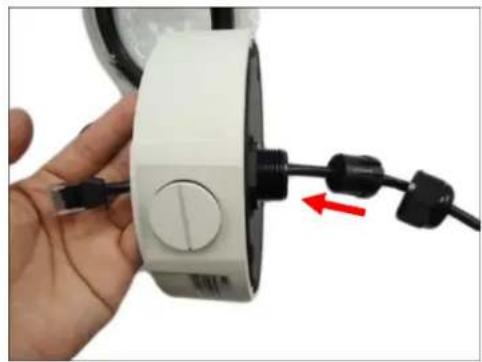

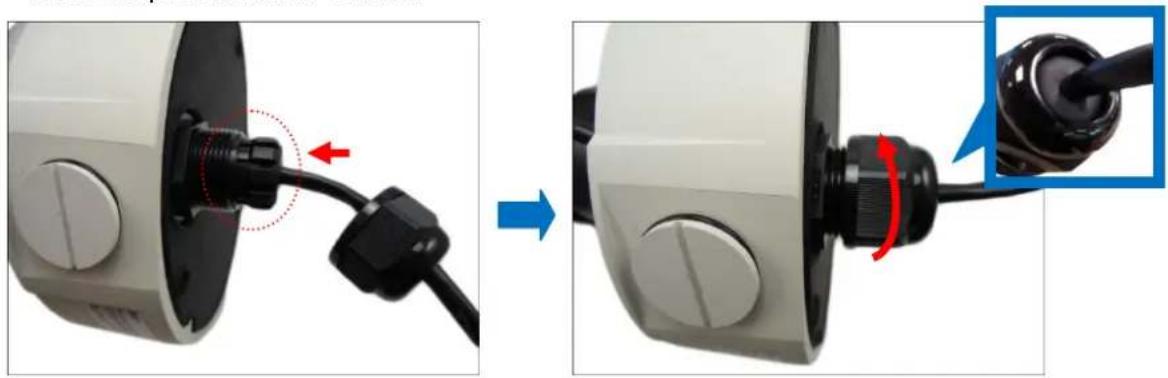

1. Attach the cable gland body to the hole of the camera.

Close-up of hands installing a black plastic component into a white housing, with no visible text or symbols.

Attach to Camera Side Hole
Attach to Camera Bottom Hole

1. If the cable will be routed along the surface, skip this step. If the cable will pass through the surface, do the following:

a. Pull the network cable through the bottom conduit hole.

Close-up of a hand holding a white cylindrical device with a black connector and red arrow indicating direction (no text or symbols visible)

b. Insert the sealing insert with claw into the cable gland body and then attach the clamping nut to complete the cable solution.

Two-step diagram showing cable installation process: one with a connector, the other with a plug inserted (no text or symbols)

NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly.

1. Proceed with Step 4: Install the Camera to the Surface on page 24.

Waterproof Solution with Conduit

This section describes the procedures to waterproof the cabling connections using the bundled conduit gland and flexible conduit. This is the recommended if an exterior-grade Ethernet cable is not available or when other cables, such as DI/DO devices, etc., will be connected to the camera.

1. Prepare the following materials for waterproof installation:

Conduit Gland(included in the camera package)	Flexible Conduit1/2" Trade size(not included in the package)
For use with 1/2" flexible conduit
Network CableCAT 5 or CAT 6(not included in the package)

1. Disassemble the bundled conduit gland as shown below:

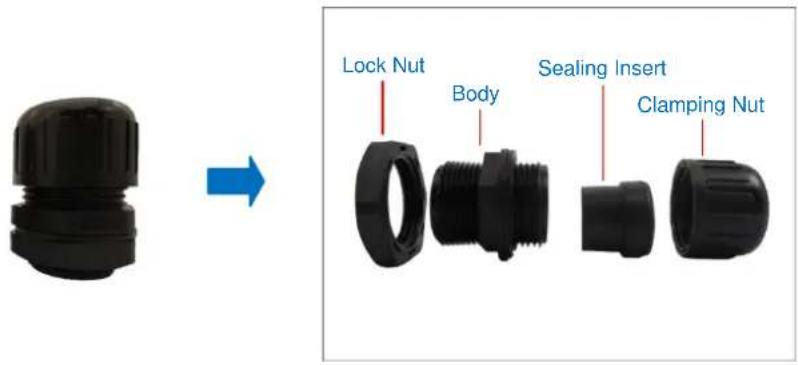

Lock Nut Body Sealing Insert Clamping Nut

NOTE: In this installation, the conduit gland body can be securely attached to the mount kit; therefore the use of lock nut is not necessary. Please set the lock nut aside.

1. Pull the network cable through the flex conduit. If connecting other input/output devices, pull the cables through the flex conduit without connectors. The terminal blocks will be attached once the cables pass through the camera hole later.

Close-up of a black cable with two metallic connectors and a red arrow indicating direction (no text or symbols)

1. Insert the clamping nut through the flex conduit.

Close-up of a black cable with a red arrow pointing to its connector (no text or symbols visible)

1. Insert the sealing insert and attach it at the end of the flex conduit.

Close-up of a hand holding a black cable with red and blue arrows indicating connection (no text or symbols)

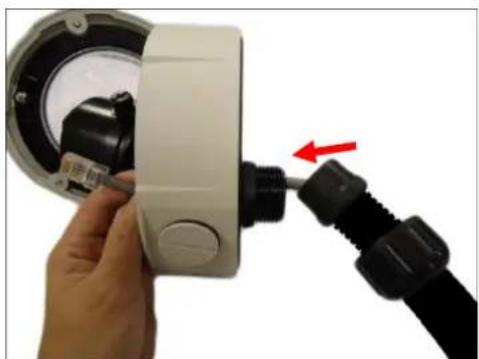

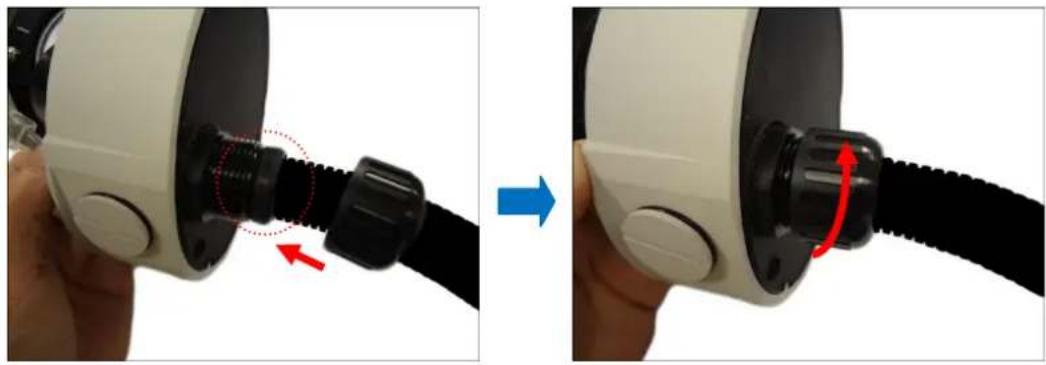

1. Screw the conduit gland body to the conduit hole of the camera.

Attach to Side Conduit Hole or Attach to Bottom Conduit Hole

1. If the cables will be routed along the surface, skip this step. If the cable will pass through the surface, do the following:

a. Pull the network cable through the bottom conduit hole.

Hand inserting a plug into a device component, showing black and red arrows indicating direction (no text or symbols)

b. Insert the sealing nut into the conduit gland body and then attach the clamping nut as tightly as possible to complete the cable solution.

Close-up of a hand holding a white handheld device connected to a black cable, showing a red arrow indicating the cable's direction (no text or symbols present)

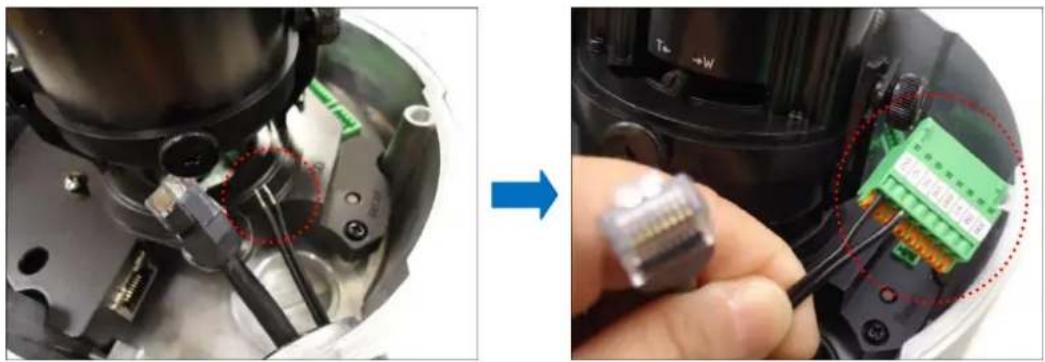

1. If connecting other cables, attach the terminal blocks to the cables. See Other Connections on page 28.

Close-up of a mechanical device showing internal components and a close-up of a connector with a green/red connector (no visible text or symbols)

1. Proceed with Step 4: Install the Camera to the Surface on page 24.

Step 4: Install the Camera to the Surface

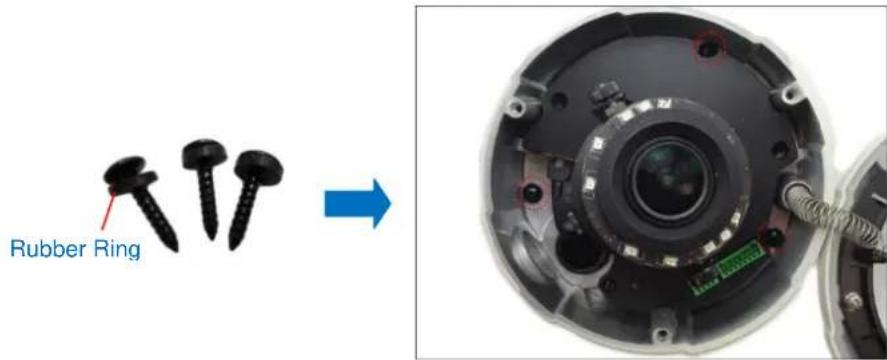

1. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface and attach the three (3) supplied screws (with rubber) to secure the camera.

Rubber Ring

CAUTION: When using electric screwdrivers, be careful not to touch the internal camera components while attaching the screws. Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the internal camera components.

DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation.

Step 5: Connect the Cable

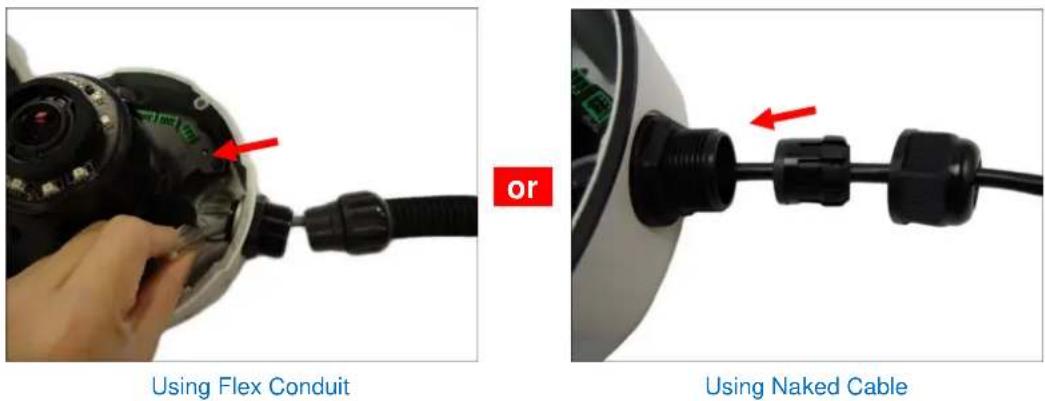

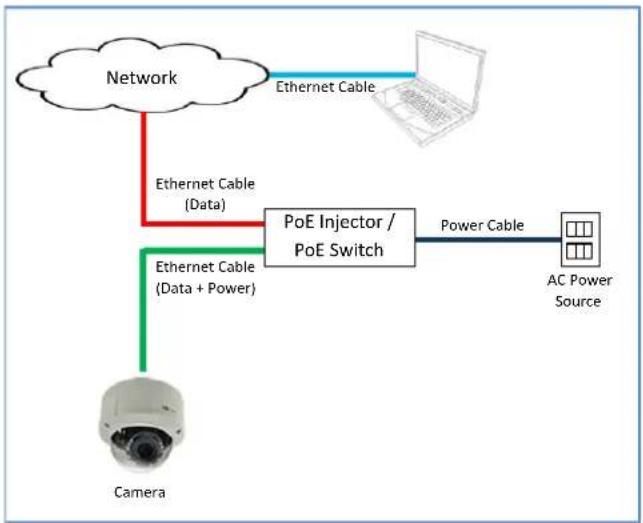

1. If the cable will be routed along the surface, pull the network cable through the side conduit hole and attach the clamping nut to the conduit gland body. If the cable passes through the surface, skip to step 2.

1. Connect the network cable to the Ethernet port and other cables (if any) to the corresponding connectors on the camera.

Digital Input / Output (DI/DO) Connector Audio Input / Output Connector Ethernet Port

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below.

Step 6: Access the Camera Live View

See Accessing the Camera on page 41 for more information on how to access the Live View of the camera.

Step 7: Adjust the Viewing Angle

Based on the live view, adjust the viewing angle and orientation of the camera. See How to Adjust the Viewing Angle and Focus on page 34 for more information.

Step 8: Close the Dome Cover

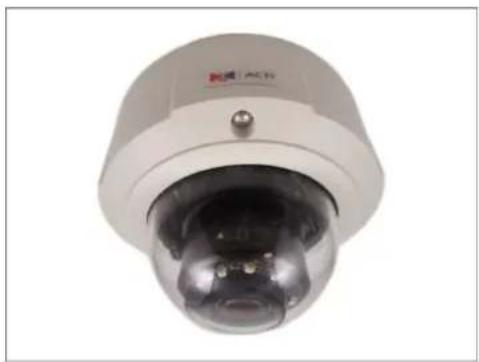

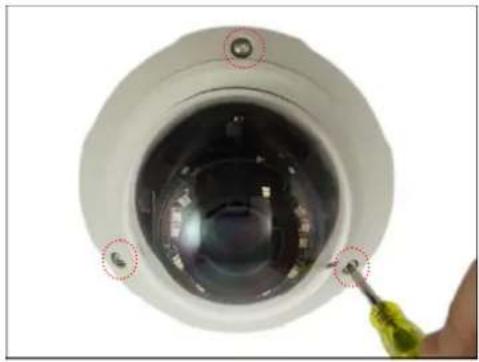

1. Tighten the three (3) screws to attach the dome cover to the camera body.

Close-up of a surveillance camera lens with a screwdriver inserted, showing no text or symbols on the lens itself.

1. Remove the plastic covering the dome cover. Final installation will look like the illustration below.

Close-up of a white security camera with a spherical lens and metallic head (no visible text or symbols)

Other Connections

This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports Digital Input and Output (DI/DO) and Audio Input and Output devices using the bundled terminal blocks. The use of these devices, however, is optional.

How to Connect the DI/DO Devices (Optional)

Depending on your surveillance needs, you may connect digital input or output devices to your camera to trigger events or notifications.

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a “panic button” to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

You can connect up to two DI and two DO devices to your camera.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

GND 12V D11 DO1 GND 12V D12 DO2

To connect input devices (DI), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Input 1 (DI1)	GND	Connect the wires of the first input device to GND and DI1.
	DI1
Digital Input 2 (DI2)	GND	Connect the wires of the second input device to GND and DI2.
	DI2

To connect output devices (DO), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Output 1 (DO1)	12V	Connect the wires of the first output device to 12V and DO1.
	DO1
Digital Output 2 (DO2)	12V	Connect the wires of the second output device to 12V and DO2.
	DO2

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 50mA

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

In this case, wire connection to Pins 1 to 4. Use the GND and DI1 pins to connect a DI device and use the 12V and DO1 pins to connect a DO device. See wiring scheme below:

3.3V R0 R DI0 DIODE NORMAL: 3.1V GND DI1 1 2 SW10 SW_TC_SPST NORMAL : HIGH TRIGGER : LOW +12V DO1 DB LED SW12 SW_TC_SPST 2 <2MDC BATTERY

Consequently, to connect a second DI or DO device, wire the connection to Pins 5 to 8.

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

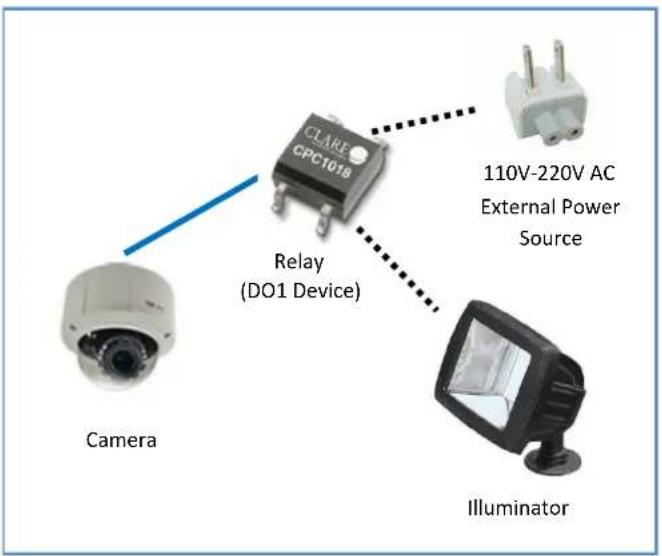

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

CLARE CPC1018 Relay (DO1 Device) Camera 110V-220V AC External Power Source Illuminator

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All About Digital Input and Digital Output downloadable from the link below (http://Download.acti.com?id=516).

How to Connect Audio In / Out (Optional)

Depending on your surveillance needs, you may connect audio input or output device, such as an active microphone or speaker, to your camera. In this case, you need to connect the audio input/output device to the supplied audio terminal block.

GND AUDIO.OUT GND AUDIO.IN

To connect audio input / output devices, map the pins to one of the pin combinations below:

Device		Mapping Instructions
Audio Output	GND	Connect the wires of the audio output device to GND and AUDIO.OUT.
	AUDIO.OUT
Audio Input	GND	Connect the wires of the audio input device to GND and AUDIO.IN.
	AUDIO.IN

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://Download.acti.com?id=534).

Other Adjustments and Accessories

How to Install a Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

Insert a memory card into the card slot with the metallic contacts facing down the camera. Push the card until it clicks into place.

Close-up of a hand pressing a mechanical component with a red arrow pointing to a button (no visible text or symbols)

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

How to Adjust the Viewing Angle and Focus

E89

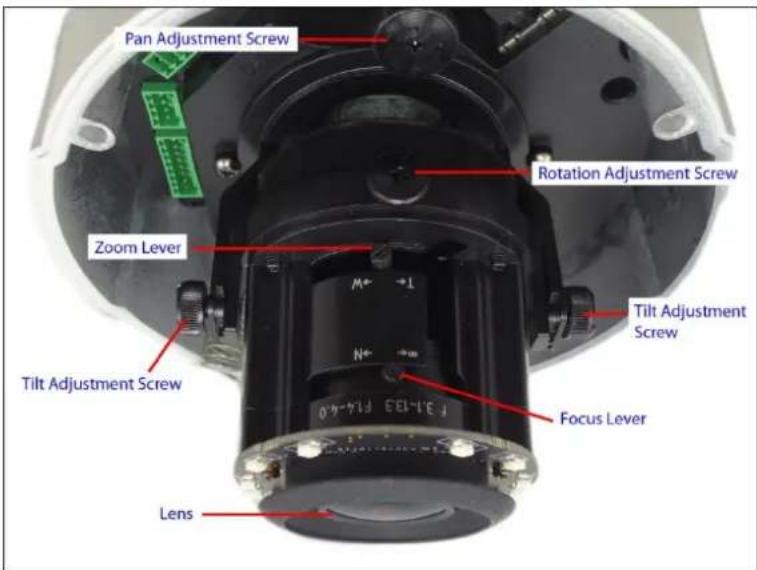

Camera Parts Overview

Pan Adjustment Screw Rotation Adjustment Screw Zoom Lever Tilt Adjustment Screw Tilt Adjustment Screw Focus Lever Lens

Adjustment Procedures

1 2 3 →1 →∞ CEI-VEJ →2 →3

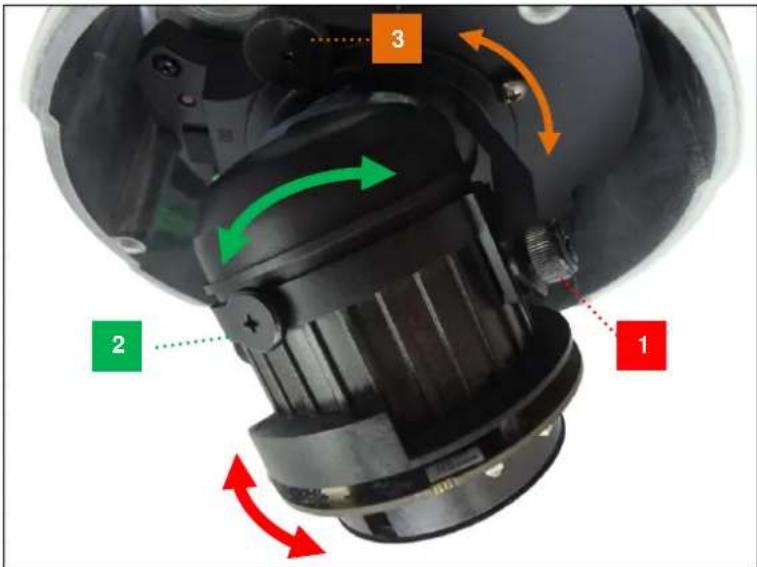

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten back the screw to fix the orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.

The camera comes with the focus and viewing angle already pre-fixed. However, if you need to change the focus and viewing angle, do the following:

1. Loosen the zoom lever screw, then move the lever left or right to adjust the viewing angle.

F 3.1-13.3 F1.4-7.0 ← →N T+ →W

1. Loosen the focus lever screw, then move the lever left or right to adjust the focus.

F 3.1-13.3 F1.4-4.0 ←→N T←→W

1. When the desired viewing angle and focus are already achieved, tighten the lever screws again to fix their position.

F 3.1-13.3 F1.4-4.0 ← →N T ← →W

E815, E816, E817, E822

Since E815, E816, E817, and E822 models are zoom cameras with auto focus feature, only the viewing angle and orientation needs to be adjusted.

Camera Parts Overview

Pan Adjustment Screw Rotation Adjustment Screw Tilt Adjustment Screw Tilt Adjustment Screw Tilt Adjustment Screw

Adjustment Procedures

1 2 3

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten back the screw to fix the orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.

How to Replace the Dome Cover

For more discrete surveillance needs, the bundled dome cover can be replaced with a smoke, vandal proof cover available for purchase. To replace the dome cover, do the following:

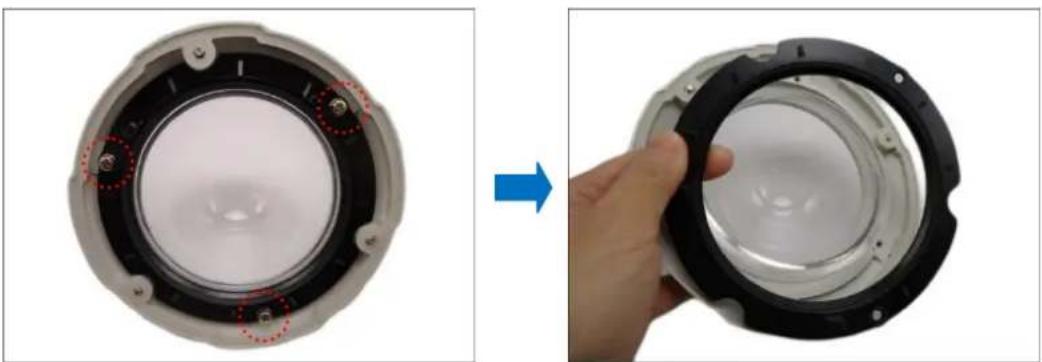

1. Loosen the three (3) screws to open the dome cover.

Close-up of a surveillance camera with a tool inserted, showing a dome and control buttons (no text or symbols visible)

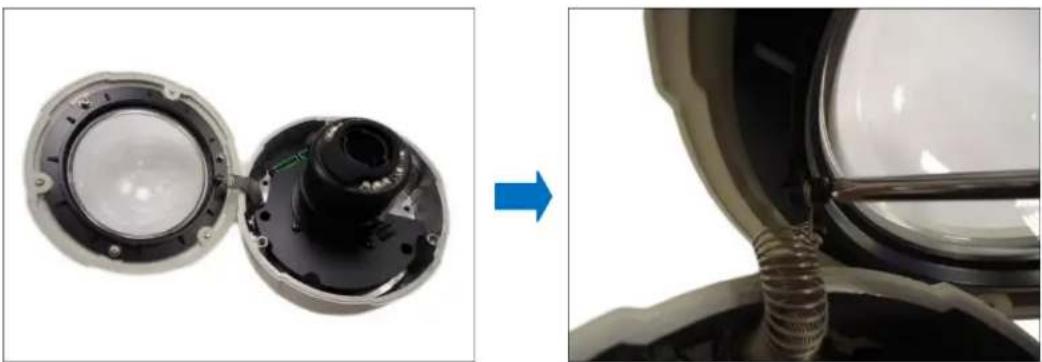

1. Using a screwdriver, remove the screw securing the spring wire to the dome cover.

Close-up of a mechanical component with a blue arrow indicating transformation (no visible text or symbols)

NOTE: Hold the spring wire as the screw is being removed to avoid the sudden release of the screw and cause it to fly in the air.

1. Remove the three (3) screws to detach the cover bracket.

Two views of a camera lens assembly before and after, showing the lens face and internal components (no text or symbols visible)

1. Remove dome cover from the cover housing.

Hand holding a transparent circular component with a red arrow indicating rotation (no text or symbols visible)

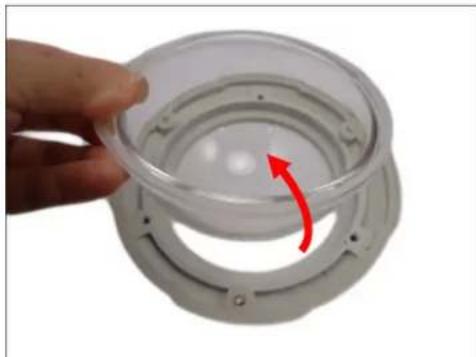

1. Remove the rubber from the dome cover.

Close-up of a hand holding a transparent plastic cup with a red arrow pointing to it, next to a close-up of its cap (no text or symbols visible)

1. Insert the rubber into the replacement dome cover.

Close-up of a hand holding a white strip against a plain background (no text or symbols visible)

1. Insert the replacement dome cover into the cover housing.

Hand holding a white dome-shaped object with a red arrow indicating rotation (no text or symbols)

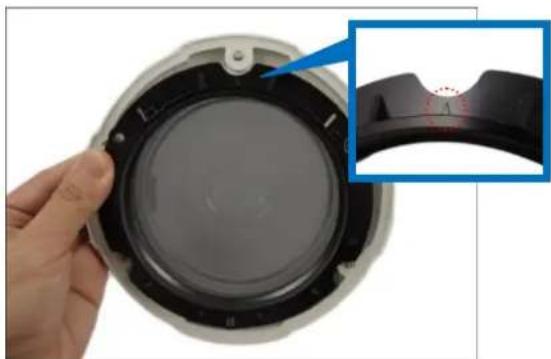

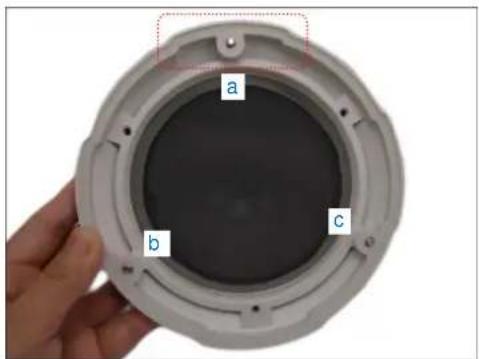

1. There are 3 indents on the cover housing; note the indent (a) which is on the center of the extended curve of the cover.

a b c

Place the bracket on the cover housing with the arrow on the bracket aligned to the indent (a).

Close-up of a hand holding a circular mechanical component with a close-up inset showing a curved black component (no text or symbols visible)

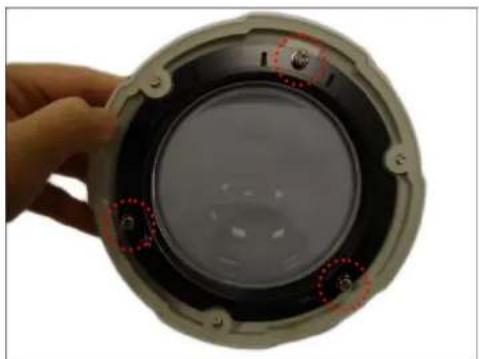

1. Attach the three (3) screws to secure the bracket to the cover housing.

Close-up of a hand holding a circular mechanical component with red circular markings and a central transparent chamber (no visible text or symbols)

1. Fit the screw into the spring wire that is attached to the camera. Note the screw placement as shown below.

Close-up of a hand holding a coiled spring with a black tip, against a plain white background (no text or symbols visible)

1. There are two (2) screw holes on the bracket, attach the screw to the right screw hole using a screwdriver.

Close-up of a mechanical spring attached to a component, with no visible text or symbols

Final installation should look like the illustration below.

Close-up of a security camera with a black dome and white casing (no visible text or symbols)

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

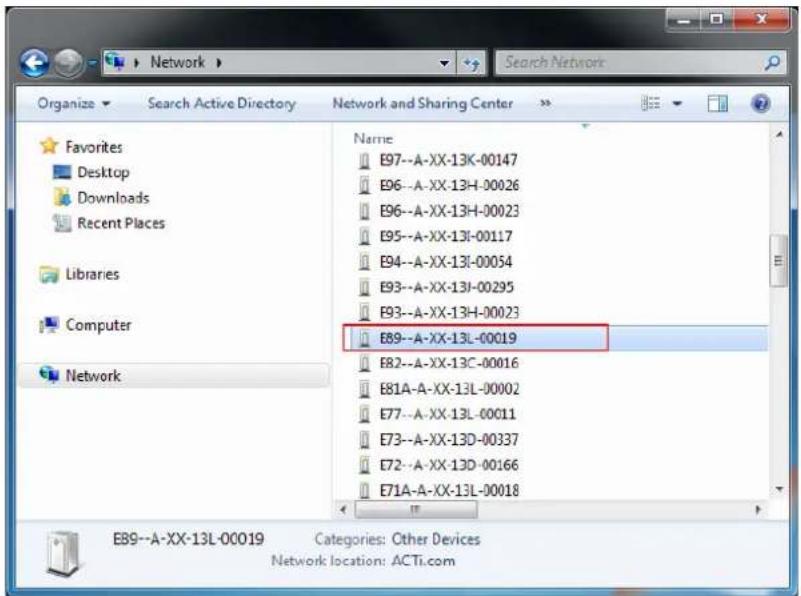

In the example below, we successfully found the camera model that had just connected to the network.

Network Search Network Organize Search Active Directory Network and Sharing Center Favorites Desktop Downloads Recent Places Libraries Computer Network Name E97--A-XX-13K-00147 E96--A-XX-13H-00026 E96--A-XX-13H-00023 E95--A-XX-13I-00117 E94--A-XX-13I-00054 E93--A-XX-13J-00295 E93--A-XX-13H-00023 E89--A-XX-13L-00019 E82--A-XX-13C-00016 E81A--A-XX-13L-00002 E77--A-XX-13L-00011 E73--A-XX-13D-00337 E72--A-XX-13D-00166 E71A--A-XX-13L-00018 EB9--A-XX-13L-00019 Categories: Other Devices Network location: ACTi.com

Double-click on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

Search and download IP Utility for free from http://www.acti.com/DownloadCenter.

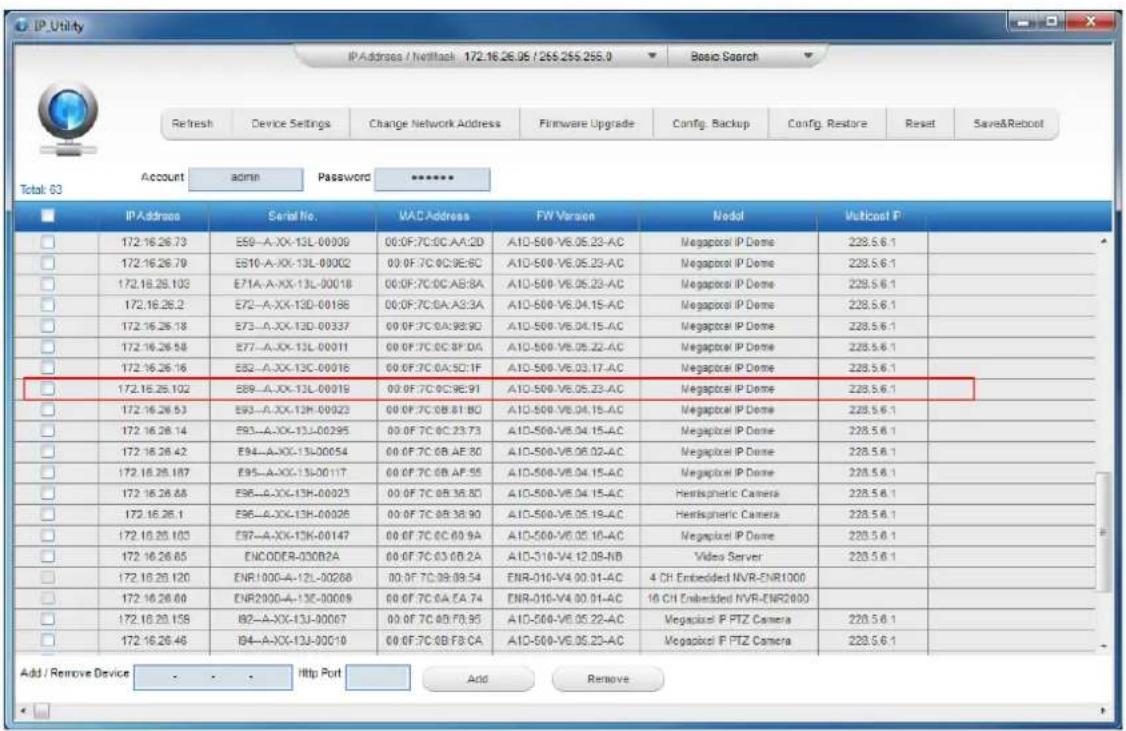

With just one click, you can launch the IP Utility and there will be an instant report as follows:

IP,Utility IPAddress / NetMask 172.16.26.05 / 265.255.255.0 Refresh Device Settings Change Network Address Firmware Upgrade Config. Backup Config. Restore Reset Save&Reboot Account admin Password ****** Total: 63 IP Address Serial No. MAC Address FW Version Model Multicost P 172.16.26.73 E59-A.XX-13L-00000 00:0F:7C:0C:AA:2D A1D-500-V6.05.23-AC Megapixcel IP Dome 228.5.6.1 172.16.26.79 E510-A.XX-13L-00002 00:0F:7C:0C:EA:6C A1D-500-V6.05.23-AC Megapixcel IP Dome 228.5.6.1 172.16.26.103 E71A-A.XX-13L-00018 00:0F:7C:0C:AB:8A A1D-500-V6.05.23-AC Megapixcel IP Dome 228.5.6.1 172.16.26.2 E72-A.XX-13D-00186 00:0F:7C:0A:A3:3A A1D-500-V6.04.15-AC Megapixcel IP Dome 228.5.6.1 172.16.26.18 E73-A.XX-13D-00337 00:0F:7C:0A:9B:9C A1D-500-V6.04.15-AC Megapixcel IP Dome 228.5.6.1 172.16.26.58 E77-A.XX-13L-00011 00:0F:7C:0C:8F:0A A1D-500-V6.05.22-AC Megapixcel IP Dome 228.5.6.1 172.16.26.16 E82-A.XX-13C-00016 00:0F:7C:0A:5C:1F A1D-500-V6.03.17-AC Megapixcel IP Dome 228.5.6.1 172.16.26.102 E89-A.XX-13L-00019 00:0F:7C:0C:9E:9I A1D-500-V6.05.23-AC Megapixcel IP Dome 228.5.6.1 172.16.26.53 E93-A.XX-13M-00023 00:0F:7C:0B:8I:8Q A1D-500-V6.04.15-AC Megapixcel IP Dome 228.5.6.1 172.16.26.14 E93-A.XX-13L-00295 00:0F:7C:0C:23:73 A1D-500-V6.04.15-AC Megapixcel IP Dome 228.5.6.1 172.16.26.42 E94-A.XX-13L-00054 00:0F:7C:0B:AE:8Q A1D-500-V6.06.02-AC Megapixcel IP Dome 228.5.6.1 172.16.26.187 E95-A.XX-13L-0011T 00:0F:7C:0B:AF:5S A1D-500-V6.04.15-AC Megapixcel IP Dome 228.5.6.1 172.16.26.88 E96-A.XX-13H-00025 00:0F:7C:0B:36:8D A1D-500-V6.04.15-AC Herispheric Camera 228.5.6.1 172.16.26.1 E96-A.XX-13H-00026 00:0F:7C:0B:38:9Q A1D-500-V6.05.19-AC Herispheric Camera 228.5.6.1 172.16.26.103 E97-A.XX-13H-00147 00:0F:7C:0C:8G:9A A1D-500-V6.05.19-AC Megapixcel IP Dome 228.5.6.1 172.16.26.65 ENCOIDR-33DBZA 00:0F:7C:0B:8G:ZA A1D-51B-V4 12/9-NB Video Server 228.5.6.1 172.16.26.12O ENR/IOOO-A-4LJ-3O28B 00:0F:7C:9G:9G:54 ENR-31B-V4 9G:9I-AC 4 CH Embedded NVR-ENR/IOOO 172.16.26.69 ENR/IOOO-A-4LJ-3OOOB 0B 9G/7C/CA/E4:74 ENR-31B-V4 9G:9I-AC 4 CH Embedded NVR-ENR/IOOO 172.16.26.15B I93-A.XX-4KJ-3OOOV 9G/7C/BA/F8:9S A1D-50B-V6 9G:9I-AC Megapixcel IP PTZ Camera 228.5.6.1 172.16.26.48 I94-A.XX-4KJ-3OOOV 9G/7C/BA/F8:CA A1D-50B-V6 9G:9I-AC Megapixcel IP PTZ Camera 228.5.6.1 Add / Remove Device - - - Http Port Add Remove

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

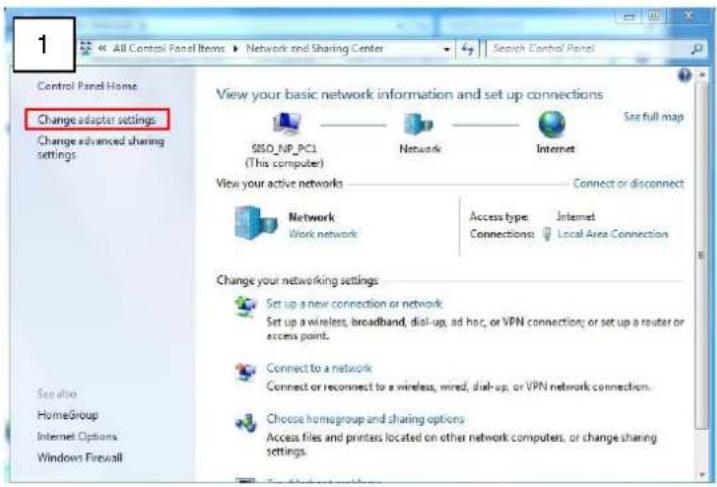

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

1 All Control Panel Items ▶ Network and Sharing Center ▶ Search Control Panel Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections SISO_NP_PCI (This computer) Network Internet See full map View your active networks Connect or disconnect Network Work network Access type: Internet Connections: Local Area Connection Change your networking settings Set up a new connection or network Set up a wireless, broadband, dial-up, ad hoc, or VPN connection; or set up a router or access point. Connect to a network Connect or reconnect to a wireless, wired, dial-up, or VPN network connection. Choose homegroup and sharing options Access files and printers located on other network computers, or change sharing settings. See also HomeGroup Internet Options Windows Firewall

2 Organize Enable this network device Diagnos Local Area Connection Network Inter(R) & Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

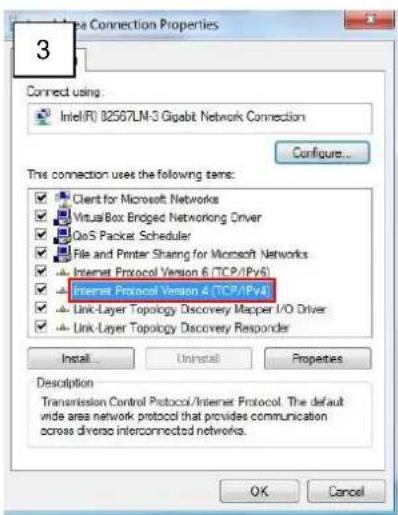

3 Connect using: Intel(R) 32567LM-3 Gigabit Network Connection Configure... This connection uses the following items: Client for Microsoft Networks VirtualBox Extended Networking Driver QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPvS) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall... Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

Protocol Version 4 (TCP/IPv4) Properties You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 99 Subnet mask: 255 . 255 . 255 . 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

Manually adjust the IP addresses of multiple cameras:

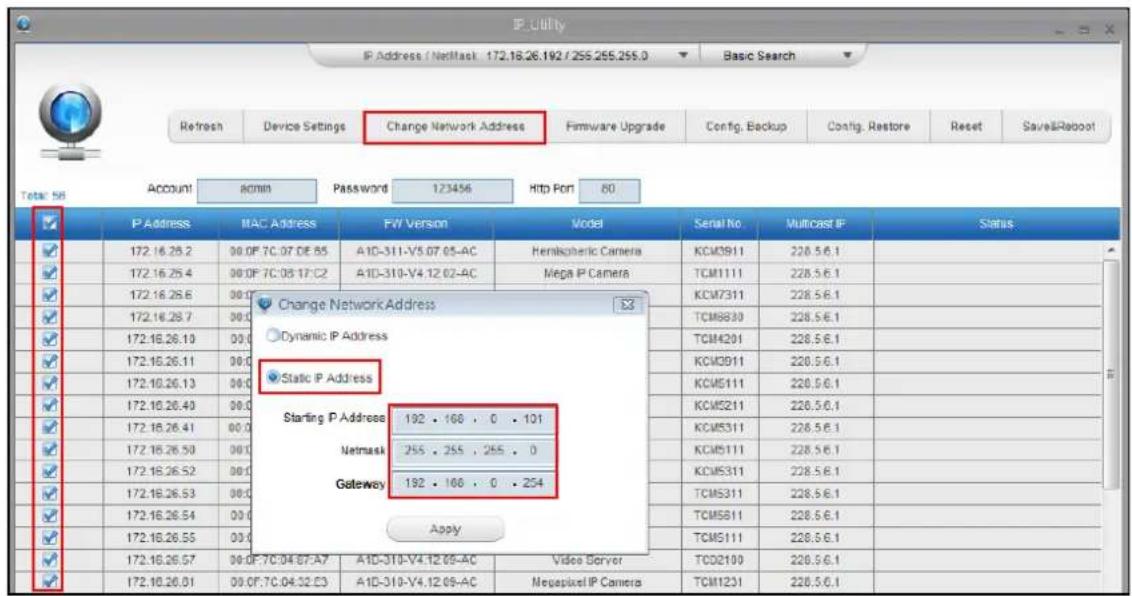

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

IP Uthly IP Address / NetMask 172.16.26.192 / 255.255.255.0 Basic Search Refresh Device Settings Change Network Address Firmware Upgrade Config, Backup Config, Restore Reset Save&Robot Total: 56 Account admin Password 123456 Http Port 80 ✓ P Address MAC Address FW Version Model Serial No Multicast IP Status ✓ 172.16.26.2 00.0F 7C.07 DE 85 A1D-311-V5.07 05-AC Hemispheric Camera KCM3911 228.5.6.1 ✓ 172.16.26.4 00.0F 7C.08 17:C2 A1D-310-V4.12 02-AC Mega IP Camera TCM1111 228.5.6.1 ✓ 172.16.26.6 00.0 ✓ 172.16.26.7 00.0 ✓ 172.16.26.10 00.0 ✓ 172.16.26.11 00.0 ✓ 172.10.26.13 00.0 ✓ 172.10.26.40 00.0 ✓ 172.16.26.41 00.0 ✓ 172.16.26.50 00.0 ✓ 172.16.26.52 00.0 ✓ 172.16.26.53 00.0 ✓ 172.16.26.54 00.0 ✓ 172.16.26.55 00.0 ✓ 172.16.26.57 00.0F:7C:04:87:A7 A1D-310-V4.12 05-AC Video Server TCD2100 228.5.6.1 ✓ 172.10.26.01 00.0F:7C:04:32:E3 A1D-310-V4.12 05-AC Megapixel IP Camera TCM1231 228.5.6.1

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Refresh

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

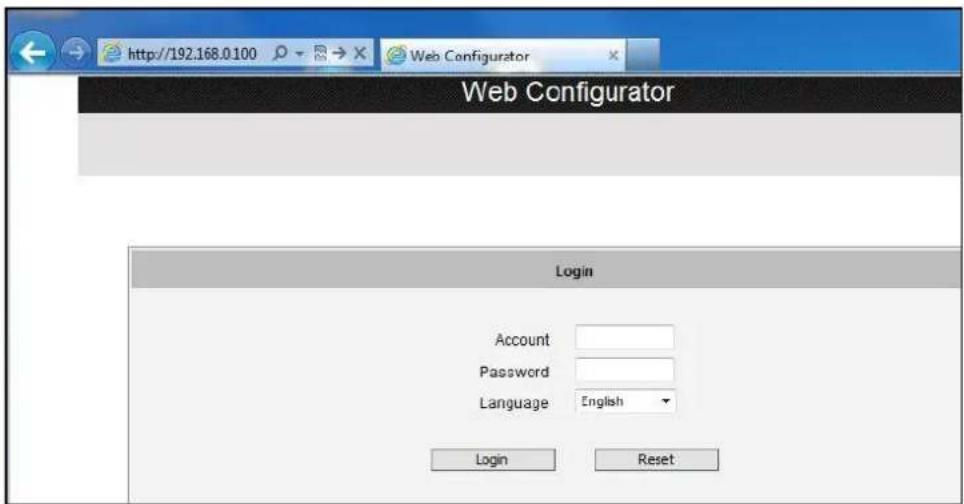

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

http://192.168.0.100 Web Configurator Web Configurator Login Account Password Language English Login Reset

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.

ACTi

Connecting Vision

Copyright © 2015, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone] FAX: [phone]

Email: [e-mail]
