USER MANUAL B83 ACTi

Abstract geometric design with a red square and a gray star-like shape (no text or symbols)

Outdoor Zoom Dome Series Hardware Manual

B81, B82, B83, B84, B85, B87

Q81

2016/05/23

Table of Contents

Precautions 4

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......8

Physical Description 9

B81, B82, B84, B85, B87 9

B83, Q81 9

Mounting Options....11

Other Mounting Accessories 13

Installing the Camera on a Surface 14

Step 1: Drill the Holes....14

Step 2: Open the Dome Cover....15

Step 3: Prepare for Waterproof Installation....17

Waterproof Solution with Naked Cable 18

Waterproof Solution with Conduit....20

Step 4: Install the Camera to the Surface....24

Step 5: Connect the Cable .... 25

Step 6: Access the Camera Live View....26

Step 7: Adjust the Viewing Angle ...... 27

Step 8: Close the Dome Cover....28

Other Connections....29

Connecting a Power Adapter (Optional) 29

Connecting the DI/DO Devices (Optional) 31

Connecting Audio In / Out Devices (Optional) 34

Other Adjustments and Accessories ...... 35

Replacing the Dome Cover 35

Using a Memory Card....39

How to Insert the Memory Card 39

How to Remove the Memory Card....39

Accessing the Camera 40

Configure the IP Addresses.... 40

Access the Camera.... 44

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

B81		5MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 3x Zoom lens
B82		5MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 2.4x Zoom lens
B83		2MP Video Analytics Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 3x Zoom lens
B84		1.3MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, SLLS, 3x Zoom lens
B85		2MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, SLLS, 3x Zoom lens
B87		3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 3x Zoom lens
Q81		2MP People Counting Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 3x Zoom lens

From the installation perspective these models are very similar; therefore you can use one manual for all of them.

Package Contents

Camera	Mounting Screw Kit	Hexagon Screwdriver
Drill Template	Conduit Gland	Cable Gland
Terminal Block (for Power)	Terminal Block (for DI/DO)	Terminal Block (for Audio In/Out)
Quick Installation Guide	Warranty Card

Physical Description

B81, B82, B84, B85, B87

B83, Q81

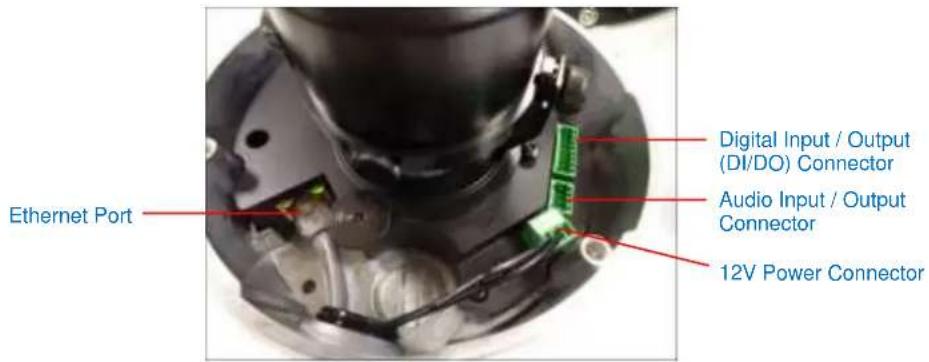

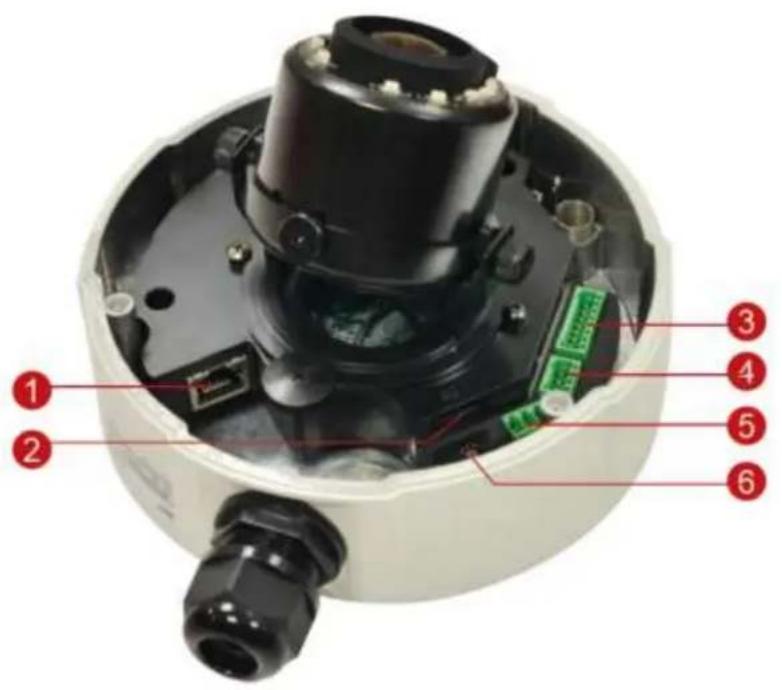

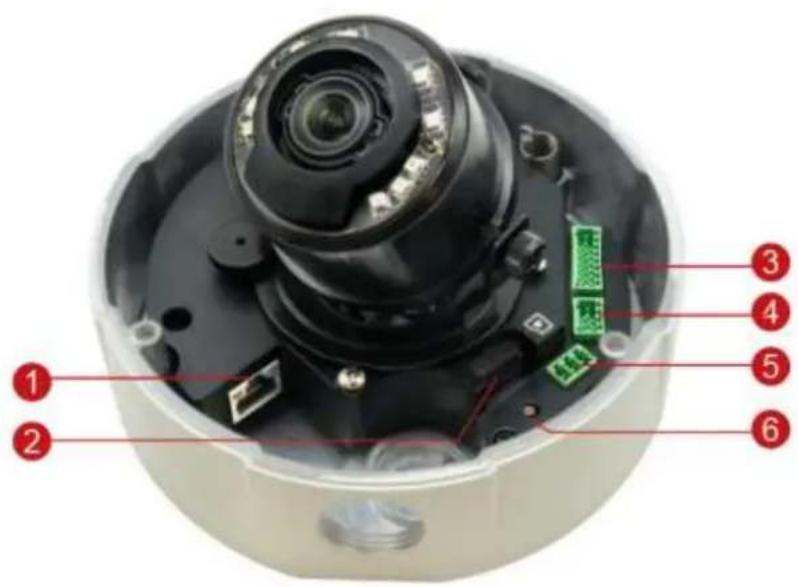

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See Using a Memory Card on page 39 for more information.

NOTE: Supports microSDHC and microSDXC cards.

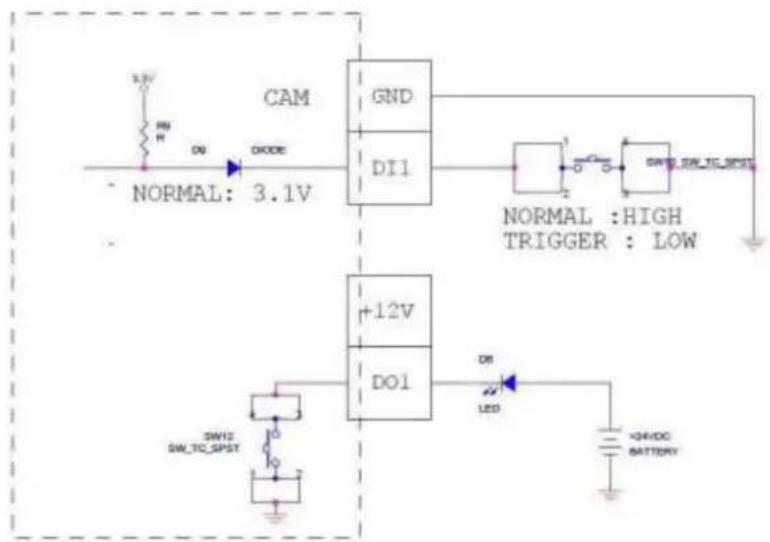

3) Digital Input / Output (DI/DO)

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See Connecting the DI/DO Devices (Optional) on page 31 for information on how to connect DI/DO devices to your camera.

4) Audio Input / Output

This connector connects to audio input and output devices, such as microphones and speakers, using the bundled terminal block. See Connecting Audio In / Out Devices (Optional) on page 34 for more information.

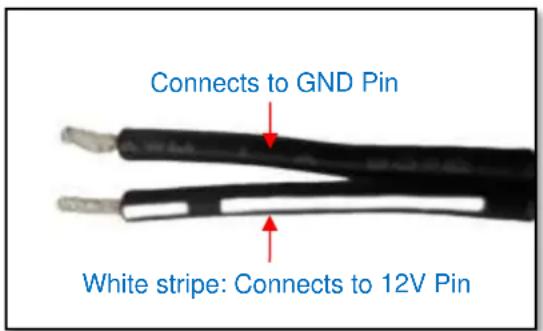

5) DC 12V Power Input

In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this connector to connect the camera to an external power adapter (not included). See Connecting a Power Adapter (Optional) on page 29 for more information.

6) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including the administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Press and hold the reset button for 5 seconds.

Mounting Options

There are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Surface Mount	Suitable when mounting the camera directly walls or ceilings without extra accessories. SeeInstalling the Camera on a Surfaceon page 14 for mounting instructions.
Flush Mount	Suitable when mounting the camera discretely above dropped ceilings wherein only the dome cover will be visible underneath the ceiling.
	PMAX-1013
Gang Box Converter	Suitable for locations which require the use of gang boxes. The Gang Box Converter is attached to the gang box and the camera is installed on the Gang Box Converter. All cables are hidden inside the gang box.
	PMAX-0804
Pendant Mount	Suitable when mounting the camera on hard and high ceilings.
	PMAX-0101 PMAX-0103 (Straight Tube with Bracket)
	PMAX-0101 PMAX-0102 (Straight Tube)
Straight Wall Mount	Suitable when mounting the camera on straight walls.
	PMAX-0314
Vertical Pole Mount	Suitable when mounting the camera on vertical poles.
	PMAX-0314	PMAX-0503
Horizontal Pole Mount	Suitable when mounting the camera on horizontal poles.
	PMAX-0101	PMAX-0102	PMAX-0503
Corner Mount	Suitable when mounting the camera on a corner wall.
	PMAX-0314	PMAX-0402

Other Mounting Accessories

Accessories

PMAX-0104 (Extension Tube)

PMAX-0702 (Junction Box)

NOTE:

• Note that for Q81 people counting camera, only surface mount on ceiling or pendant mount are recommended.
• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Installing the Camera on a Surface

This section describes the procedures in installing the camera on a flat surface such as a hard or dropped ceiling and straight or tilted walls. Before installation, make sure the wall or the ceiling can bear more than the weight of the camera.

Step 1: Drill the Holes

Before drilling the holes on the ceiling or wall, note the direction of the connectors side of the camera, which is also the opposite side of the camera logo. This influences the camera placement and where you should drill the hole where the cables will pass through or how the cables will go along the ceiling or wall.

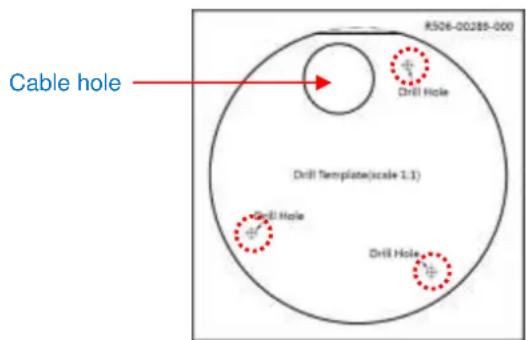

1. Attach the supplied drill template on the surface according to the preferred camera orientation.
2. Determine how the cables will be routed: pass through the surface or along the surface.

- If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface.

- If the cables will be routed along the surface, just drill the three (3) screw holes on the surface.

1. Detach the drill template from the surface and insert the plastic plugs into the screw holes.

Step 2: Open the Dome Cover

NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain the plastic covering the dome cover until the camera is completely installed. However, the plastic has been removed on some of the pictures in this documentation to show clarity of the procedures being described.

1. If the cables will pass through the surface, remove the metal cap covering the bottom hole of the camera, and attach the cap to the side hole to close it. The cables will be routed to pass this hole from the surface.

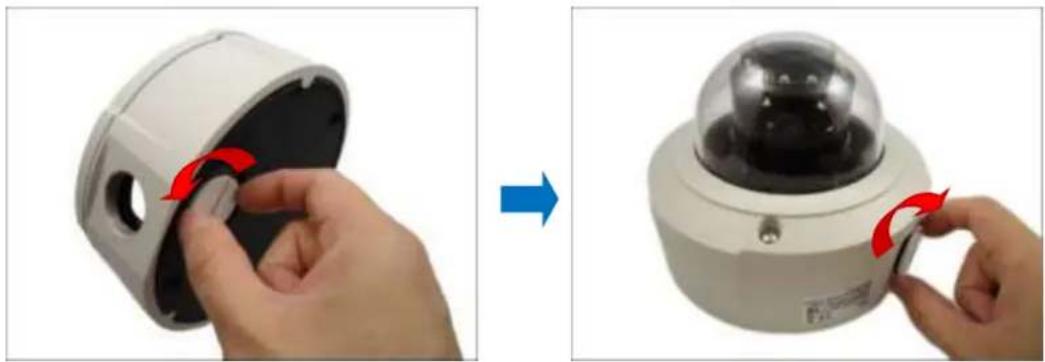

Two-step photo showing a hand holding a camera module being adjusted, with no visible text or symbols.

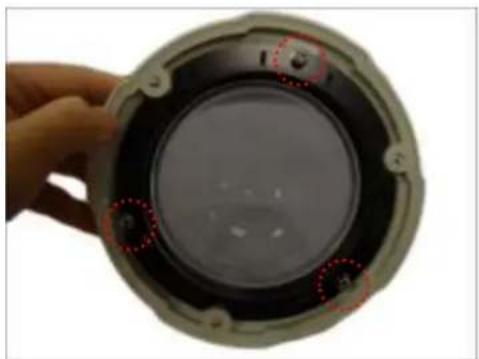

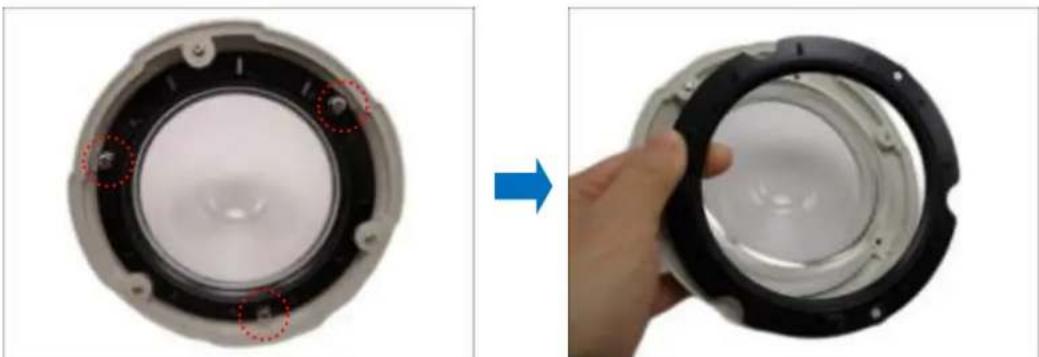

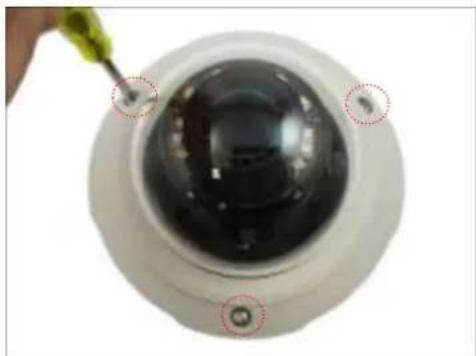

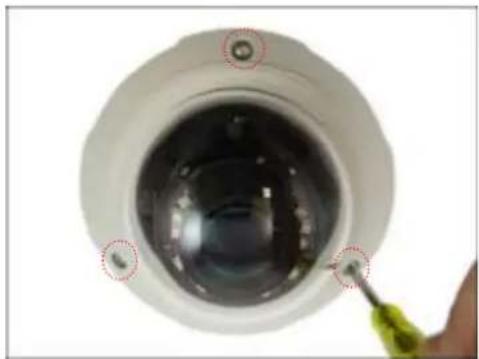

1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover.

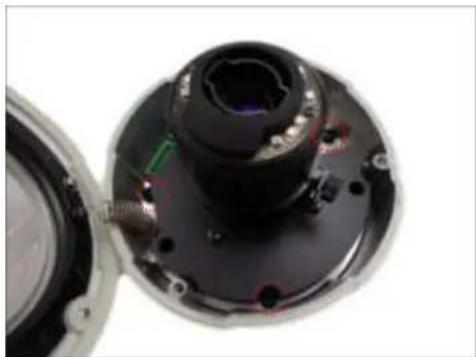

Close-up of a camera lens with a tool inserted, showing three red-circled points of interest (no text or symbols visible)

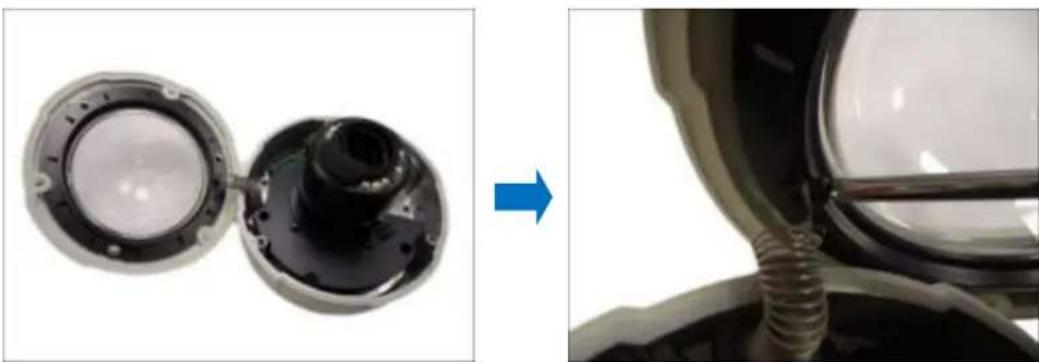

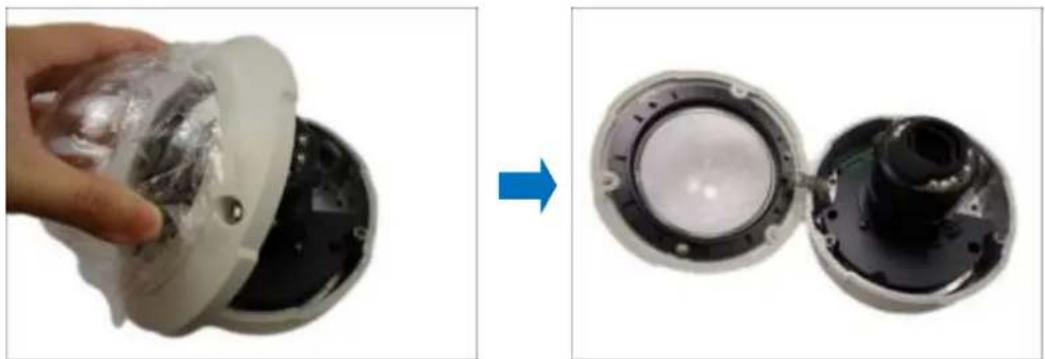

1. Carefully lift to open the dome cover and place it on the side of the camera.

NOTE: Do not abruptly lift the dome cover; it is attached to the camera with a spring wire.

Two views of a device showing internal components: one being held, the other showing a close-up of a lens (no text or symbols visible)

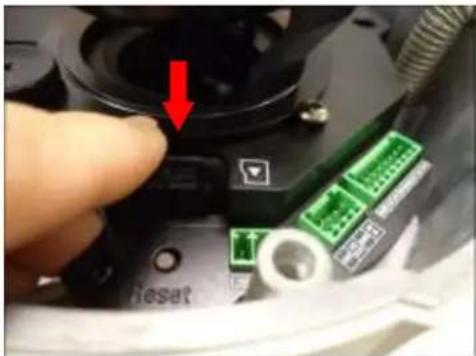

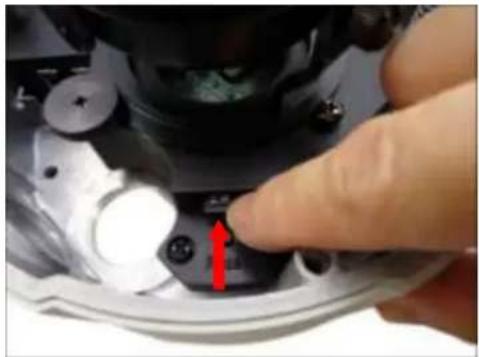

1. If necessary, insert a memory card, into the card slot. See How to Insert the Memory Card on page 39 for more information.

Close-up of a hand pressing down on a mechanical device component (no visible text or symbols)

Example of B81, B82, B84, B85, B87

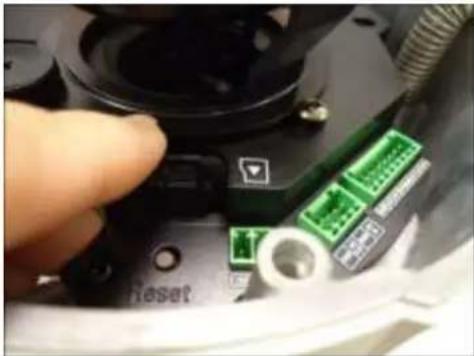

Close-up of a hand pressing a component with green connectors and a 'heset' label (no readable text beyond labels)

Example of B83, Q81

Step 3: Prepare for Waterproof Installation

The camera comes with two (2) glands used for waterproof installation:

• Cable Gland: For use with an Exterior-grade Ethernet cable. Exterior-grade Ethernet cables are already waterproof. See Waterproof Solution with Naked Cable on page 18.
• Conduit Gland: For use with a flexible conduit. This solution is recommended when an exterior-grade Ethernet cable is not available or other cables, such as power adapter, DI/DO devices, etc., will be connected to the camera. See Waterproof Solution with Conduit on page 20.

Determine the type of waterproof solution that is applicable to your installation requirements and prepare the necessary accessories or purchase extra materials.

Cable Gland

Close-up of a black plastic connector with a circular hole, shown from an inset (no text or symbols visible)

For use with an Exterior-grade Ethernet cable (not included in the package).

Coiled cable with two connectors, no visible text or symbols

Conduit Gland

Close-up of a black plastic hose component with a blue arrow pointing to its side (no text or symbols visible)

For use with 1/2" flexible conduit (not included in the package)

Close-up of a black flexible hose with threaded end (no text or symbols visible)

Waterproof Solution with Naked Cable

This section describes the procedures in using the bundled cable gland and an exterior-grade Ethernet cable.

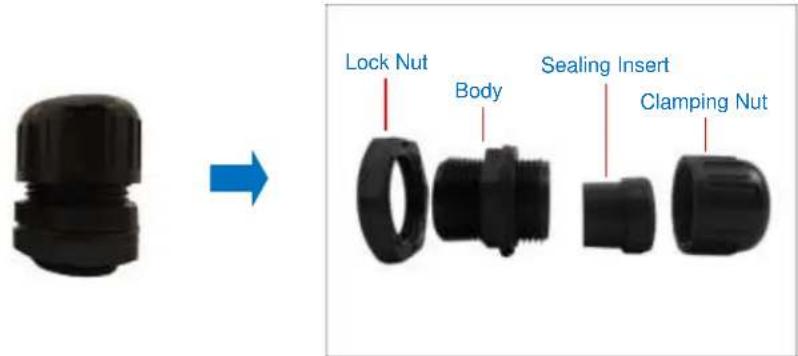

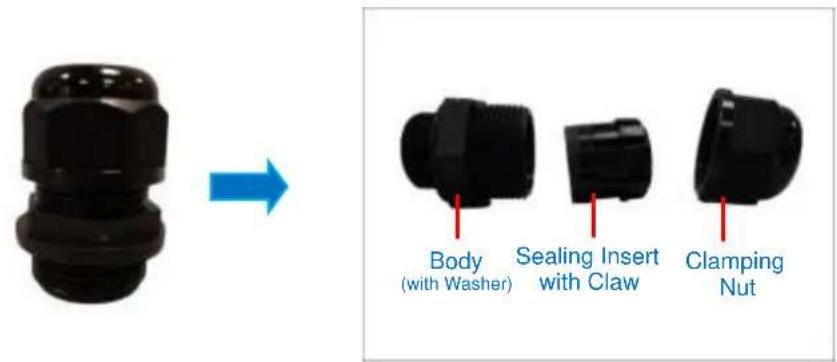

1. Disassemble the cable gland as shown below:

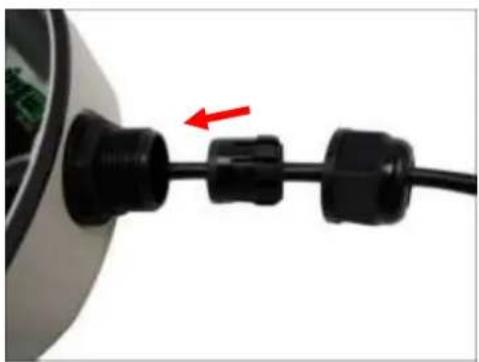

1. Insert the clamping nut into the Ethernet cable.

Close-up of a black electrical plug with a red arrow indicating direction (no text or symbols)

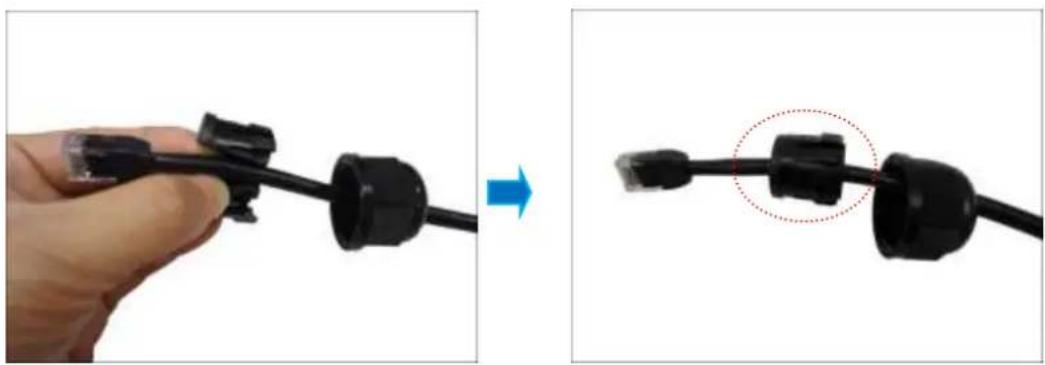

1. Insert the sealing insert with claw.

Close-up of a hand holding a black cable with connector, showing a change from left to right (no text or symbols visible)

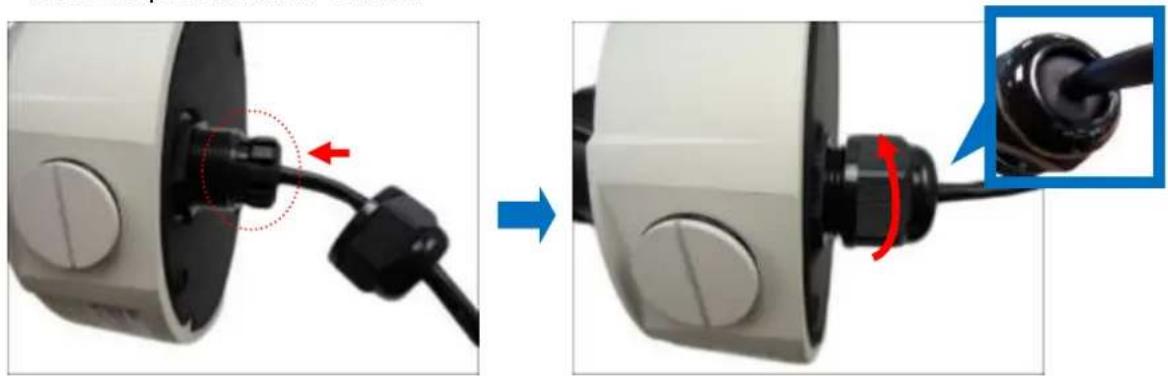

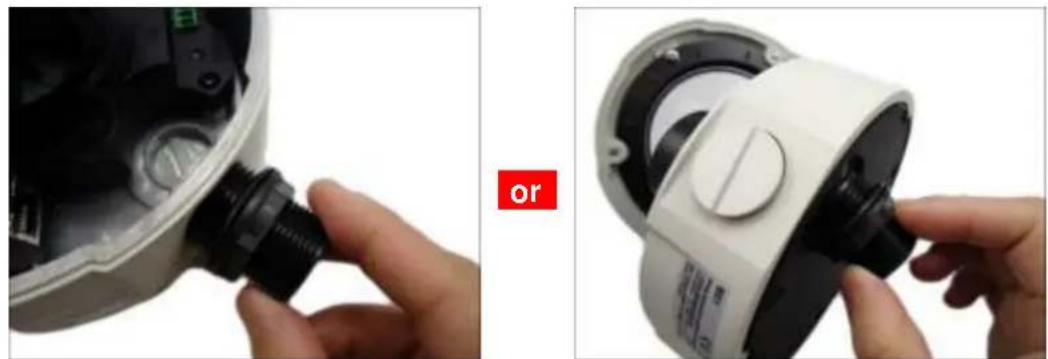

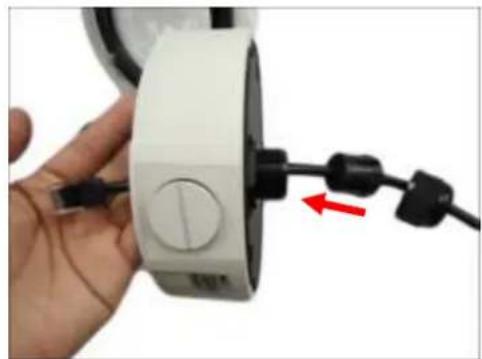

1. Attach the cable gland body to the hole of the camera.

Close-up of hands installing a black plastic component into a white device, with no visible text or symbols.

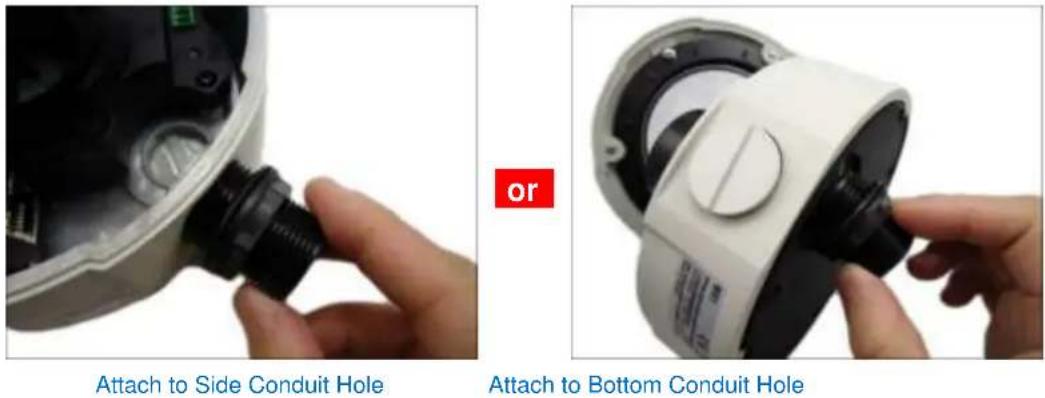

Attach to Camera Side Hole
Attach to Camera Bottom Hole

1. If the cable will be routed along the surface, skip this step. If the cable will pass through the surface, do the following:

a. Pull the network cable through the bottom conduit hole.

Close-up of a hand holding a white circular device with a black connector and red arrow indicating direction (no text or symbols visible)

b. Insert the sealing insert with claw into the cable gland body and then attach the clamping nut to complete the cable solution.

Close-up of a cable being inserted into an electric vehicle charging port, showing cable connection and cable rotation (no text or symbols)

NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly.

1. Proceed with Step 4: Install the Camera to the Surface on page 24.

Waterproof Solution with Conduit

This section describes the procedures to waterproof the cabling connections using the bundled conduit gland and flexible conduit. This is the recommended solution if an exterior-grade Ethernet cable is not available or when other cables, such as power adapter, DI/DO devices, etc., will be connected to the camera.

1. Prepare the following materials for waterproof installation:

Conduit Gland(included in the camera package)	Flexible Conduit1/2" Trade size(not included in the package)
For use with 1/2" flexible conduit
Network CableCAT 5 or CAT 6(not included in the package)

1. Disassemble the bundled conduit gland as shown below:

NOTE: In this installation, the conduit gland body can be securely attached to the mount kit; therefore the use of lock nut is not necessary. Please set the lock nut aside.

1. Pull the network cable through the flex conduit. If connecting other input/output devices or an external power adapter, pull the cables through the flex conduit without connectors. The terminal blocks will be attached once the cables pass through the camera hole later.

Close-up of a black cable with exposed wire and a metallic connector, showing a red arrow indicating direction (no text or symbols)

1. Insert the clamping nut through the flex conduit.

Close-up of a black cable with a red arrow pointing to its connector (no text or symbols visible)

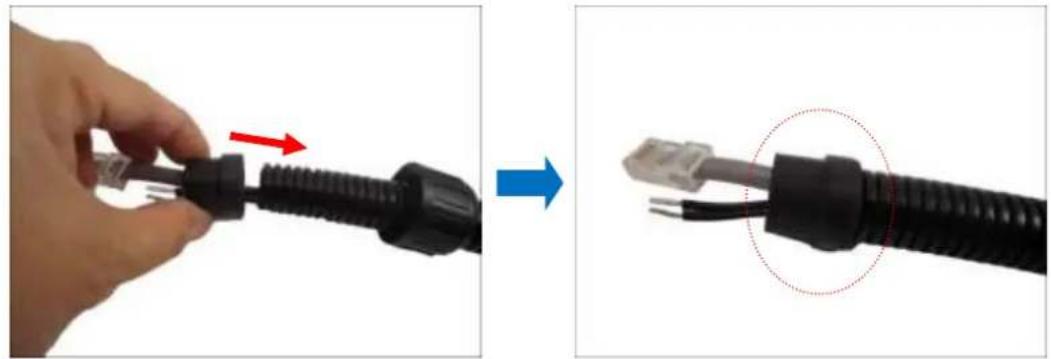

1. Insert the sealing insert and attach it at the end of the flex conduit.

Close-up of a hand holding a black cable with red and blue arrows indicating connection (no text or symbols)

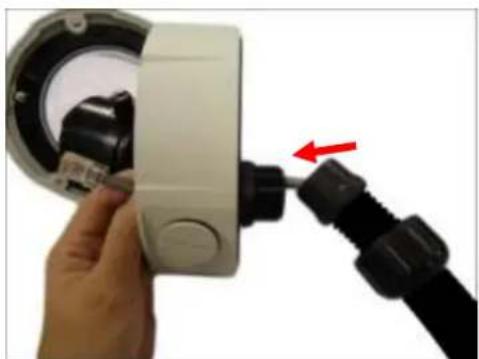

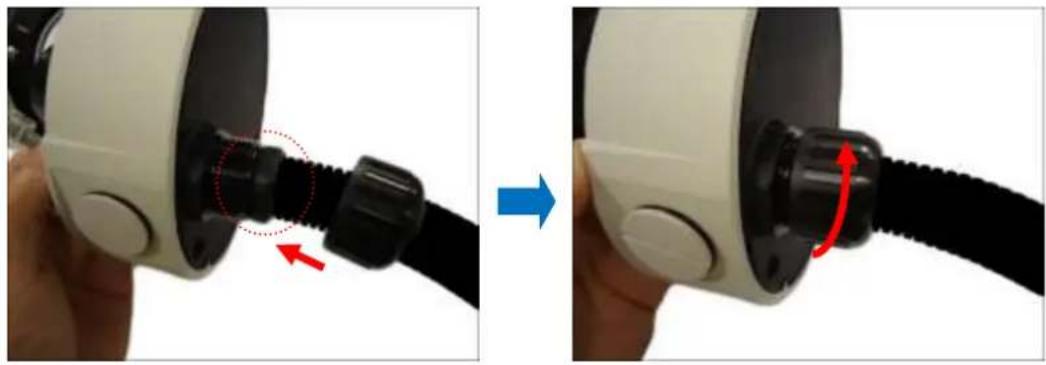

1. Screw the conduit gland body to the conduit hole of the camera.

1. If the cables will be routed along the surface, skip this step. If the cable will pass through the surface, do the following:

a. Pull the network cable through the bottom conduit hole.

Hand inserting a plug into a device component, showing black connectors and a red arrow indicating insertion (no text or symbols present)

b. Insert the sealing nut into the conduit gland body and then attach the clamping nut as tightly as possible to complete the cable solution.

Close-up of a hand holding a black cable with red arrows indicating connection points (no text or symbols)

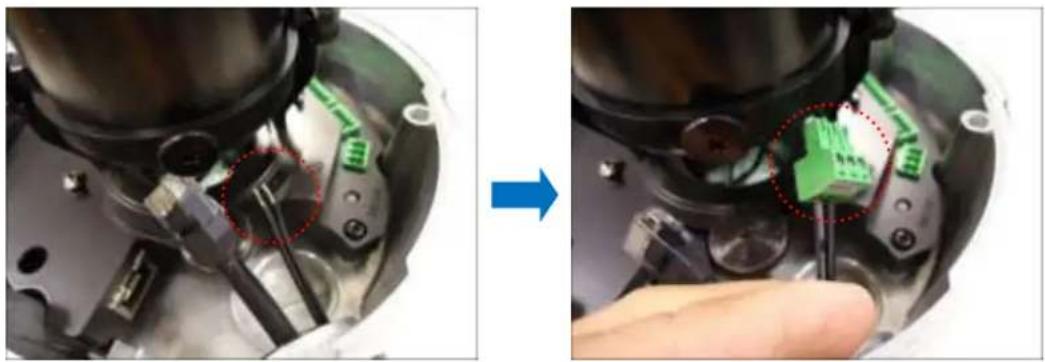

1. If connecting other cables, attach the terminal blocks to the cables. See Other Connections on page 29.

Close-up of a mechanical component being processed, showing a green plastic connector and a hand adjusting parts (no text or symbols visible)

1. Proceed with Step 4: Install the Camera to the Surface on page 24.

Step 4: Install the Camera to the Surface

1. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface and attach the three (3) supplied screws (with rubber) to secure the camera.

Close-up of a mechanical component with a black housing and green internal structure (no visible text or symbols)

CAUTION: When using electric screwdrivers, be careful not to touch the internal camera components while attaching the screws. Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the internal camera components.

DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation.

Step 5: Connect the Cable

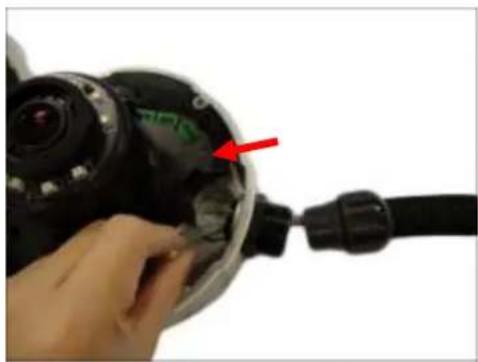

1. If the cable will be routed along the surface, pull the network cable through the side conduit hole and attach the clamping nut to the conduit gland body. If the cable passes through the surface, skip to step 2.

Close-up of a hand holding a camera lens connected to a cable, with a red arrow pointing to the lens (no visible text or symbols)

Using Flex Conduit

or

Close-up of a black cable with two connectors and a red arrow pointing to one connector (no text or symbols visible)

Using Naked Cable

1. Connect the network cable to the Ethernet port and other cables (if any) to the corresponding connectors on the camera.

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below.


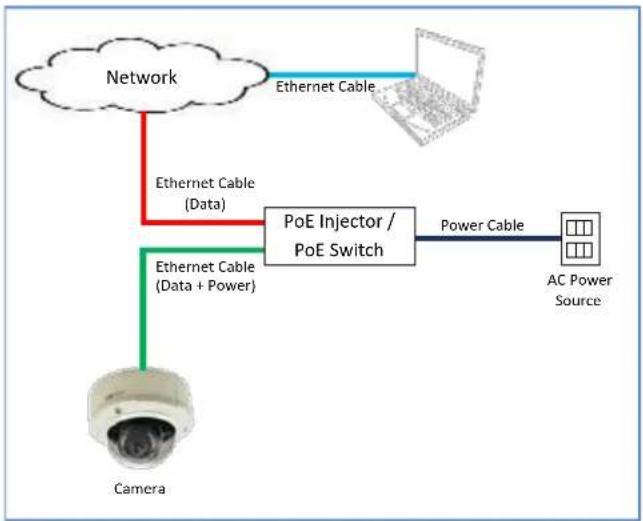

    A["Network"] -->|Ethernet Cable (Data)| B["PoE Injector / PoE Switch"]
    A -->|Ethernet Cable (Data + Power)| C["Camera"]
    B -->|Power Cable| D["AC Power Source"]
    B -->|Ethernet Cable| E["Computer"]

In case of using a non-PoE switch, power up the camera using a power adapter (not supplied). As needed, power up the other connected devices.

Step 6: Access the Camera Live View

See Accessing the Camera on page 40 for more information on how to access the Live View of the camera.

Step 7: Adjust the Viewing Angle

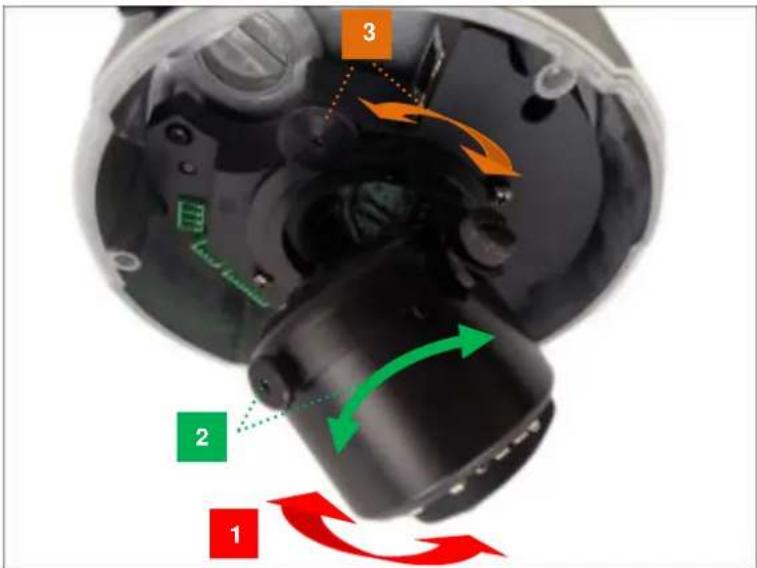

Based on the live view, adjust the viewing angle and orientation of the camera.

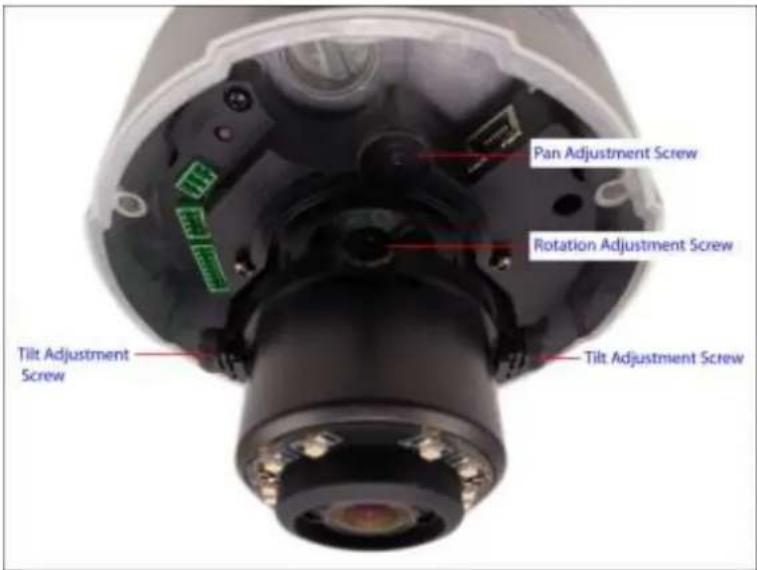

Camera Parts Overview

Adjustment Procedures

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten back the screw to fix the orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.

Step 8: Close the Dome Cover

1. Tighten the three (3) screws to attach the dome cover to the camera body.

Close-up of a security camera lens with red circular annotations pointing to the lens (no text or symbols visible)

1. Remove the plastic covering the dome cover. Final installation will look like the illustration below.

Close-up of a white surveillance camera with a spherical lens (no visible text or symbols)

Other Connections

This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO) and Audio Input and Output devices using the bundled terminal blocks. The use of these devices, however, is optional.

Connecting a Power Adapter (Optional)

In case of using a non-PoE switch or your PoE switch has limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. The power adapter must be connected to the supplied terminal block before use.

To do this, follow the procedures below:

1. Loosen the screws of the 12V and GND pins of the power terminal block.

Close-up of a green electrical connector being inserted with a black tool (no text or symbols visible)

1. Take note that a standard power adapter cable has two (2) different wires:

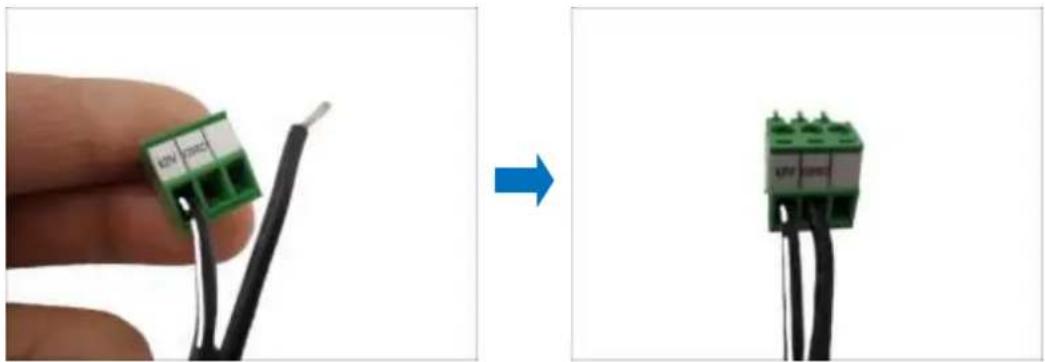

1. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.

Close-up of a green terminal block being inserted into black wires, showing the connector (no text or symbols visible)

1. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.

Close-up of a black cable with a green connector pinout and red dashed boxes highlighting the connector (no text or symbols visible)

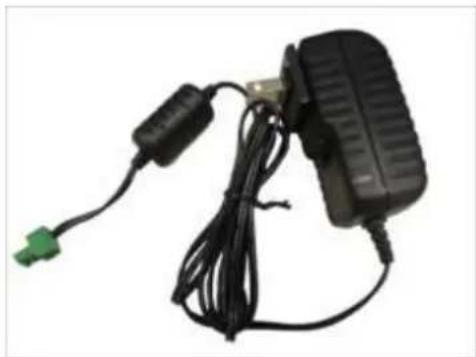

1. Set the prepared power adapter for connection later. Below is an example of a power adapter with an attached terminal block.

Electric vehicle charging plug with black cable, green connector, and power plug (no text or symbols visible)

NOTE: The power adapter is not bundled in the package.

Connecting the DI/DO Devices (Optional)

Depending on your surveillance needs, you may connect digital input or output devices to your camera to trigger events or notifications.

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a “panic button” to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

You can connect up to two DI and two DO devices to your camera.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

To connect input devices (DI), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Input 1 (DI1)	GND	Connect the wires of the first input device to GND and DI1.
	DI1
Digital Input 2 (DI2)	GND	Connect the wires of the second input device to GND and DI2.
	DI2

To connect output devices (DO), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Output 1 (DO1)	12V	Connect the wires of the first output device to 12V and DO1.
	DO1
Digital Output 2 (DO2)	12V	Connect the wires of the second output device to 12V and DO2.
	DO2

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 100mA

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (<100mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

In this case, wire connection to GND and DI1 pins to connect a DI device and use the 12V and DO1 pins to connect a DO device. See wiring scheme below:

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

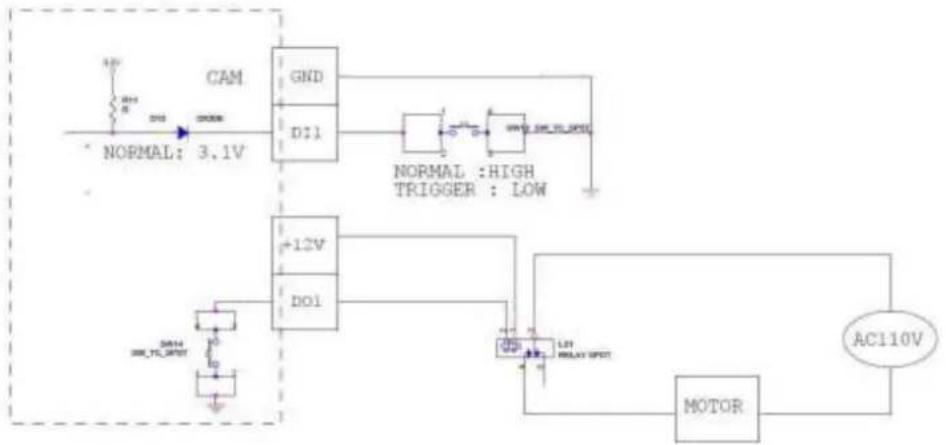


Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

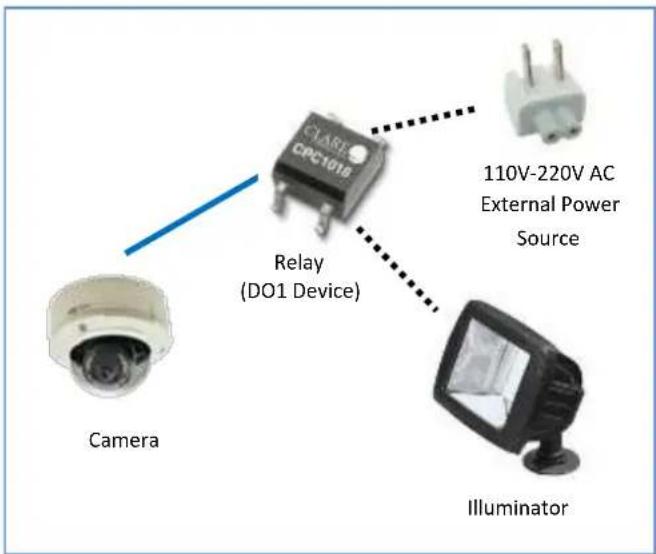

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All about Digital Input and Digital Output downloadable from the link below (http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001).

Connecting Audio In / Out Devices (Optional)

Depending on your surveillance needs, you may connect audio input or output device, such as an active microphone or speaker, to your camera. In this case, you need to connect the audio input/output device to the supplied audio terminal block.

To connect audio input / output devices, map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Audio Output	GND	Connect the wires of the audio output device to GND and AUDIO.OUT.
	DI1
Audio Input	GND	Connect the wires of the audio input device to GND and AUDIO.IN.
	DI2

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003).

Other Adjustments and Accessories

Replacing the Dome Cover

For more discrete surveillance needs, the bundled dome cover can be replaced with a smoke, vandal proof cover available for purchase. To replace the dome cover, do the following:

1. Loosen the three (3) screws to open the dome cover.

Close-up of a surveillance camera with a tool inserted, showing a dome lens and three red-circled points (no text or symbols visible)

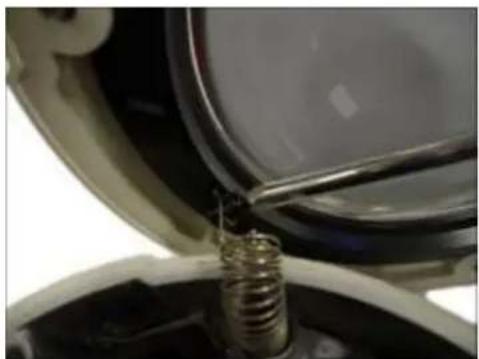

1. Using a screwdriver, remove the screw securing the spring wire to the dome cover.

Close-up of a mechanical component before and after assembly, showing internal components and a close-up view (no text or symbols visible)

NOTE: Hold the spring wire as the screw is being removed to avoid the sudden release of the screw and cause it to fly in the air.

1. Remove the three (3) screws to detach the cover bracket.

Two views of a mechanical component before and after assembly, showing internal components with red circular features (no text or symbols)

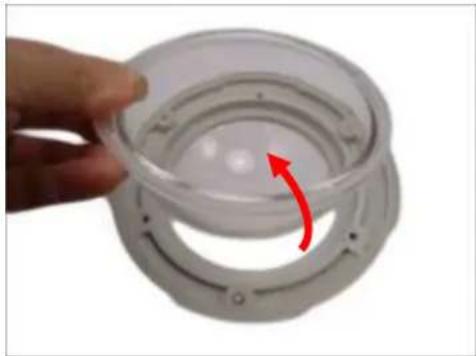

1. Remove dome cover from the cover housing.

Close-up of a hand holding a transparent circular component with a red arrow indicating rotation (no text or symbols visible)

1. Remove the rubber from the dome cover.

Close-up of a hand holding a transparent plastic cup with a red arrow pointing to it, next to a close-up of its cap (no text or symbols visible)

1. Insert the rubber into the replacement dome cover.

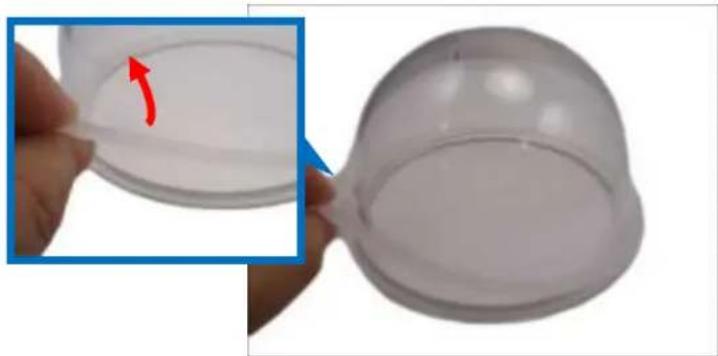

Close-up of a hand holding a white plastic strip over a dark, curved surface (no text or symbols visible)

1. Insert the replacement dome cover into the cover housing.

Hand holding a white lid with a red arrow indicating rotation (no text or symbols)

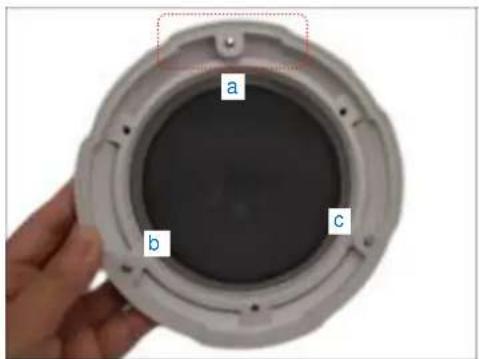

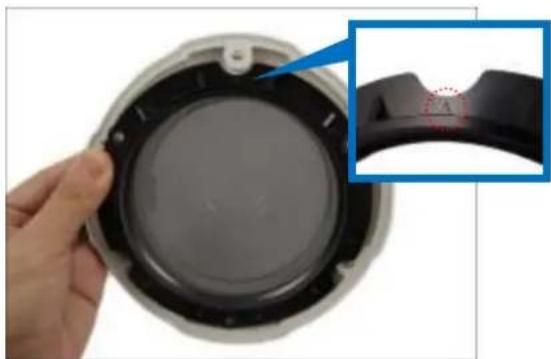

1. There are 3 indents on the cover housing; note the indent (a) which is on the center of the extended curve of the cover.

Place the bracket on the cover housing with the arrow on the bracket aligned to the indent (a).

Close-up of a hand holding a circular mechanical component with a close-up inset showing a labeled section (no text or symbols visible)

1. Attach the three (3) screws to secure the bracket to the cover housing.

Close-up of a hand holding a circular mechanical component with red annotations (no visible text or symbols)

1. Fit the screw into the spring wire that is attached to the camera. Note the screw placement as shown below.

Close-up of a hand holding a metallic cylindrical object with a small black protrusion, against a white background (no text or symbols visible)

1. There are two (2) screw holes on the bracket, attach the screw to the right screw hole using a screwdriver.

Close-up of a mechanical component with a spring attached, showing internal structure (no visible text or symbols)

Final installation should look like the illustration below.

Close-up of a white security camera with a black dome lens (no visible text or symbols)

Using a Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

For B81, B82, B84, B85, B87, insert a memory card into the card slot with the metallic contacts facing down the camera. Push the card until it clicks into place.

Close-up of a hand pressing a small mechanical component with a red arrow pointing to the button (no visible text or symbols)

For B83 and Q81, push the memory card into the card slot with the metallic contacts facing the lens.

Close-up of a hand pressing a button on a computer mouse, with green connectors and a red arrow pointing to the button (no readable text or symbols)

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

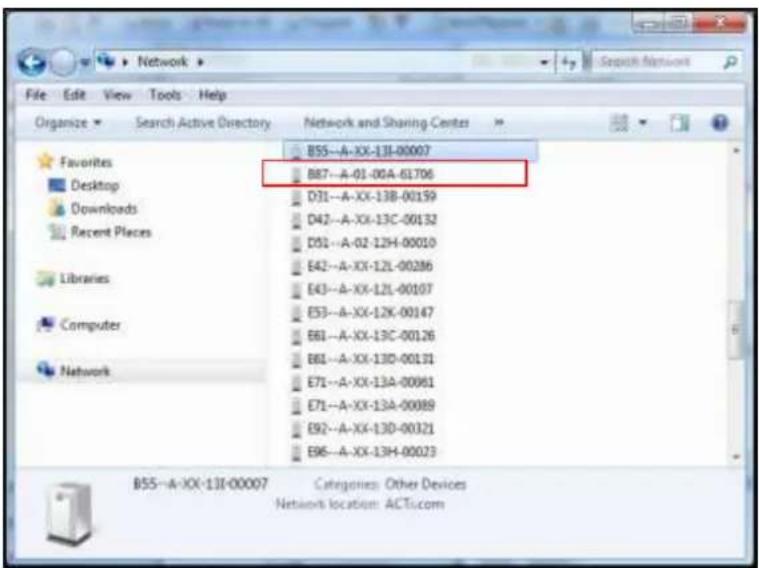

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

In the example below, we successfully found the camera model that had just connected to the network.

Double-click on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility

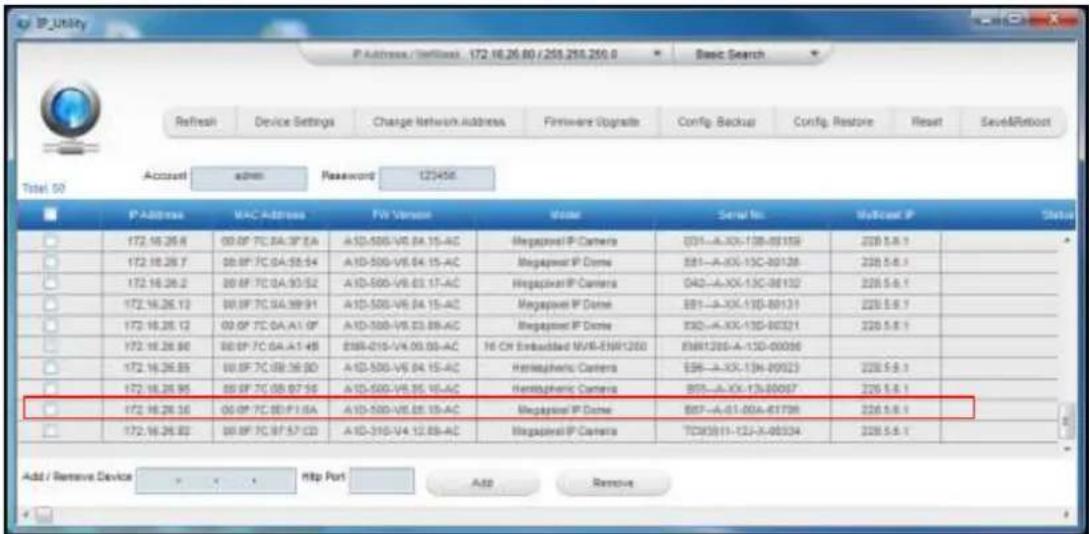

With just one click, you can launch the IP Utility and there will be an instant report as follows:

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

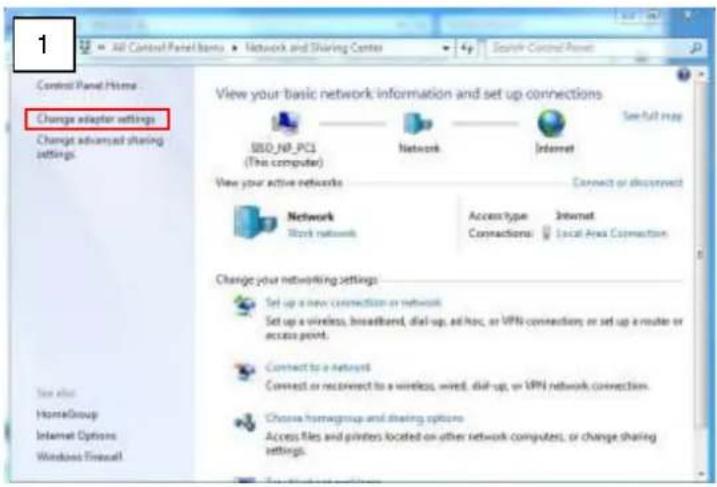

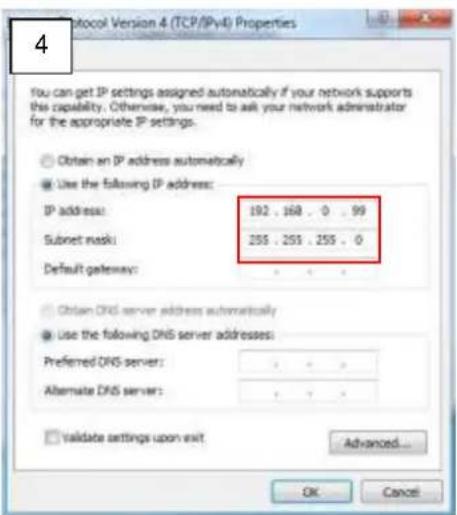

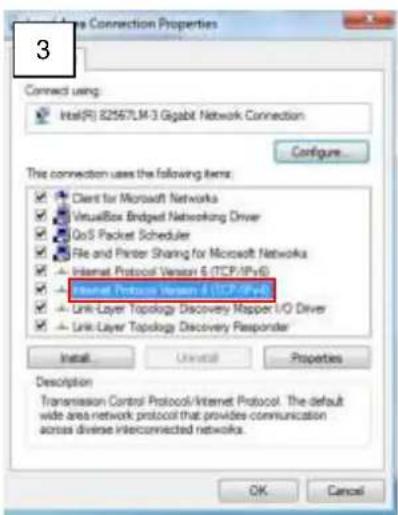

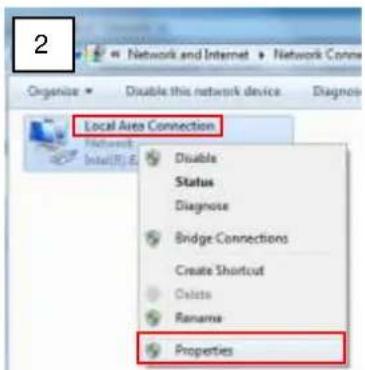

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

Manually adjust the IP addresses of multiple cameras:

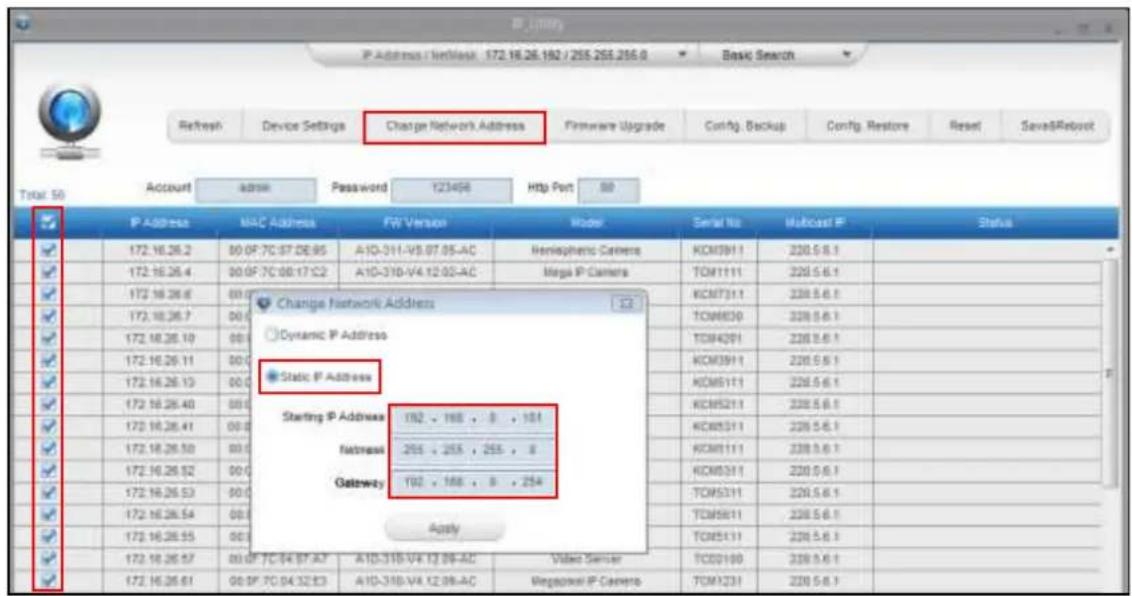

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

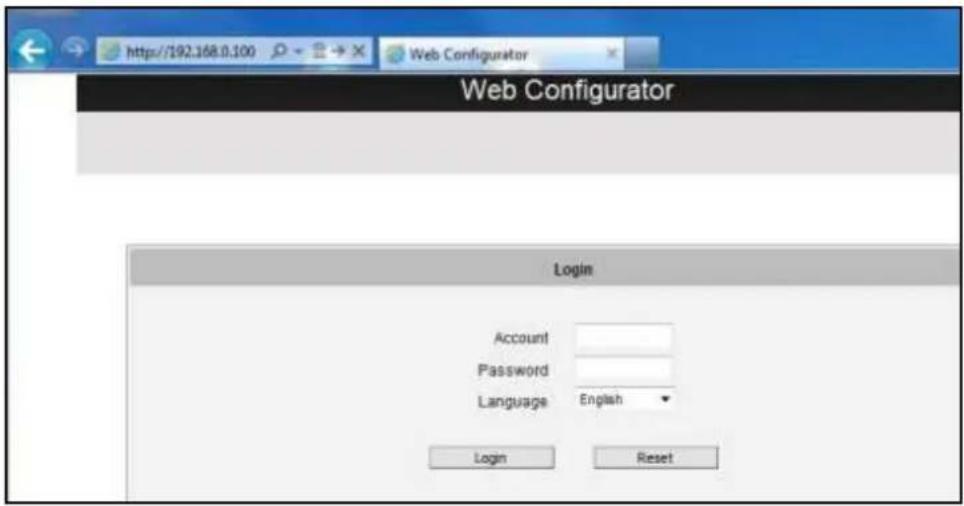

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.

ACTi

Connecting Vision

Copyright © 2016, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone] FAX: [phone]

Email: [e-mail]
